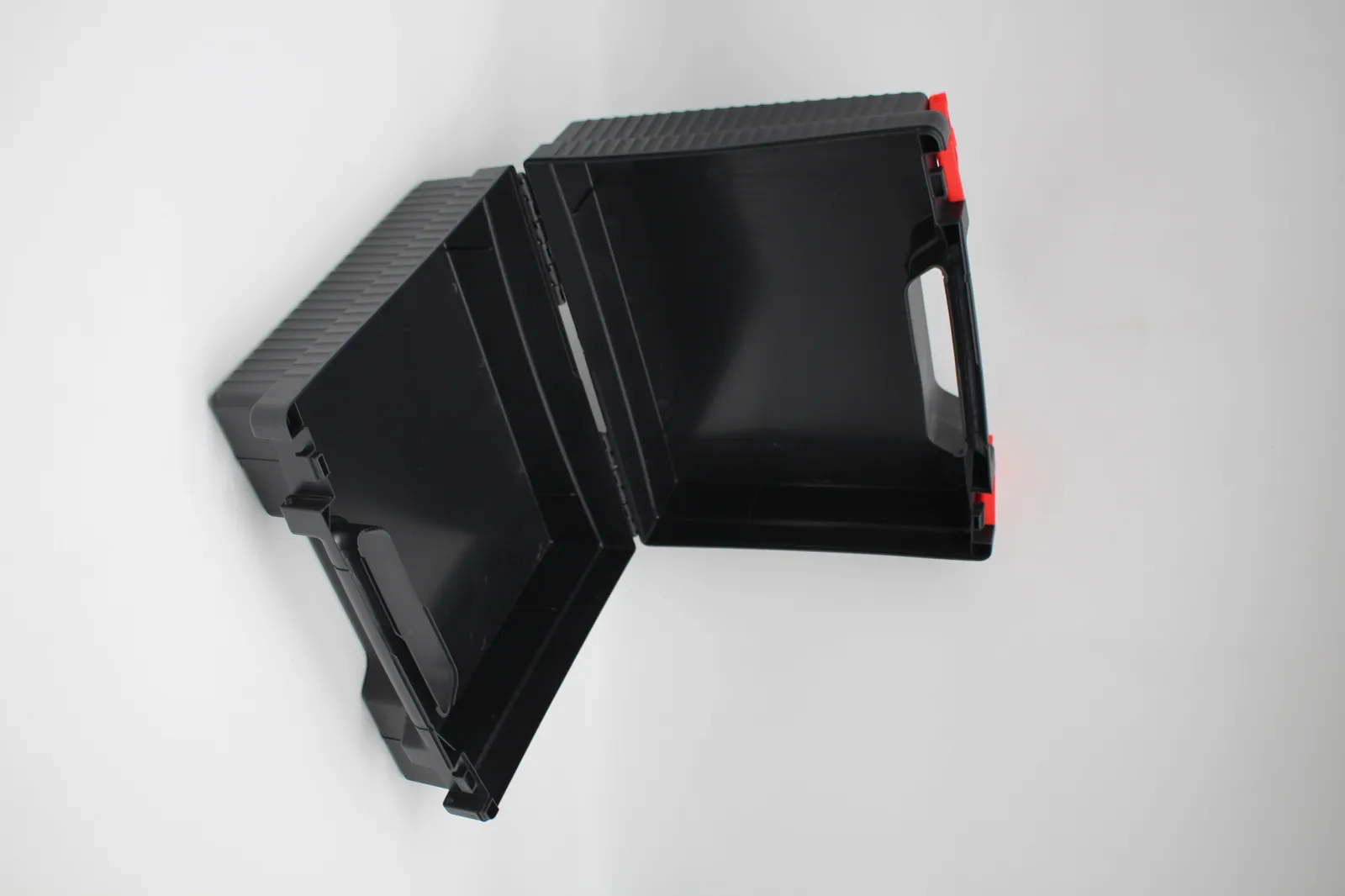

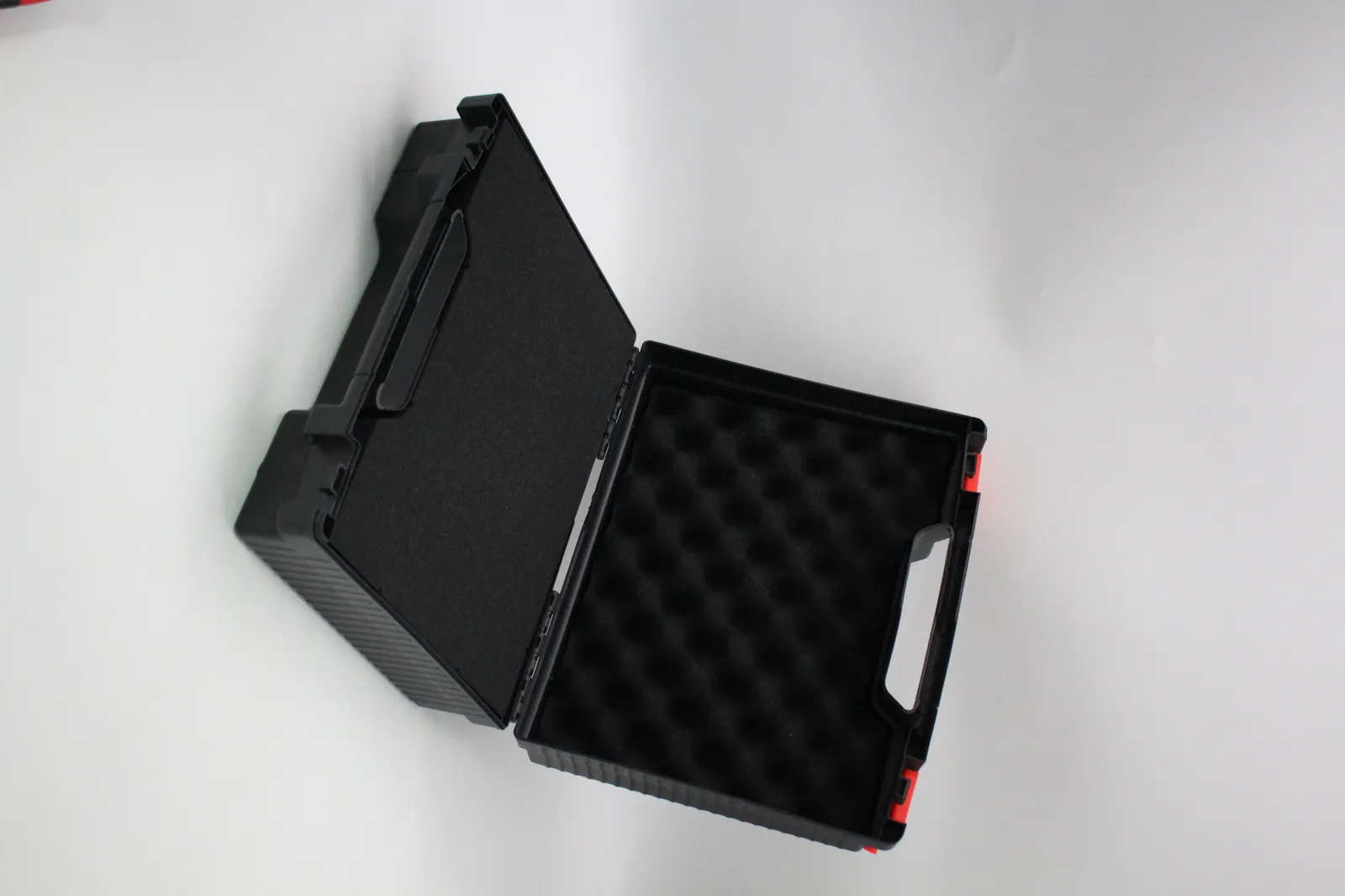

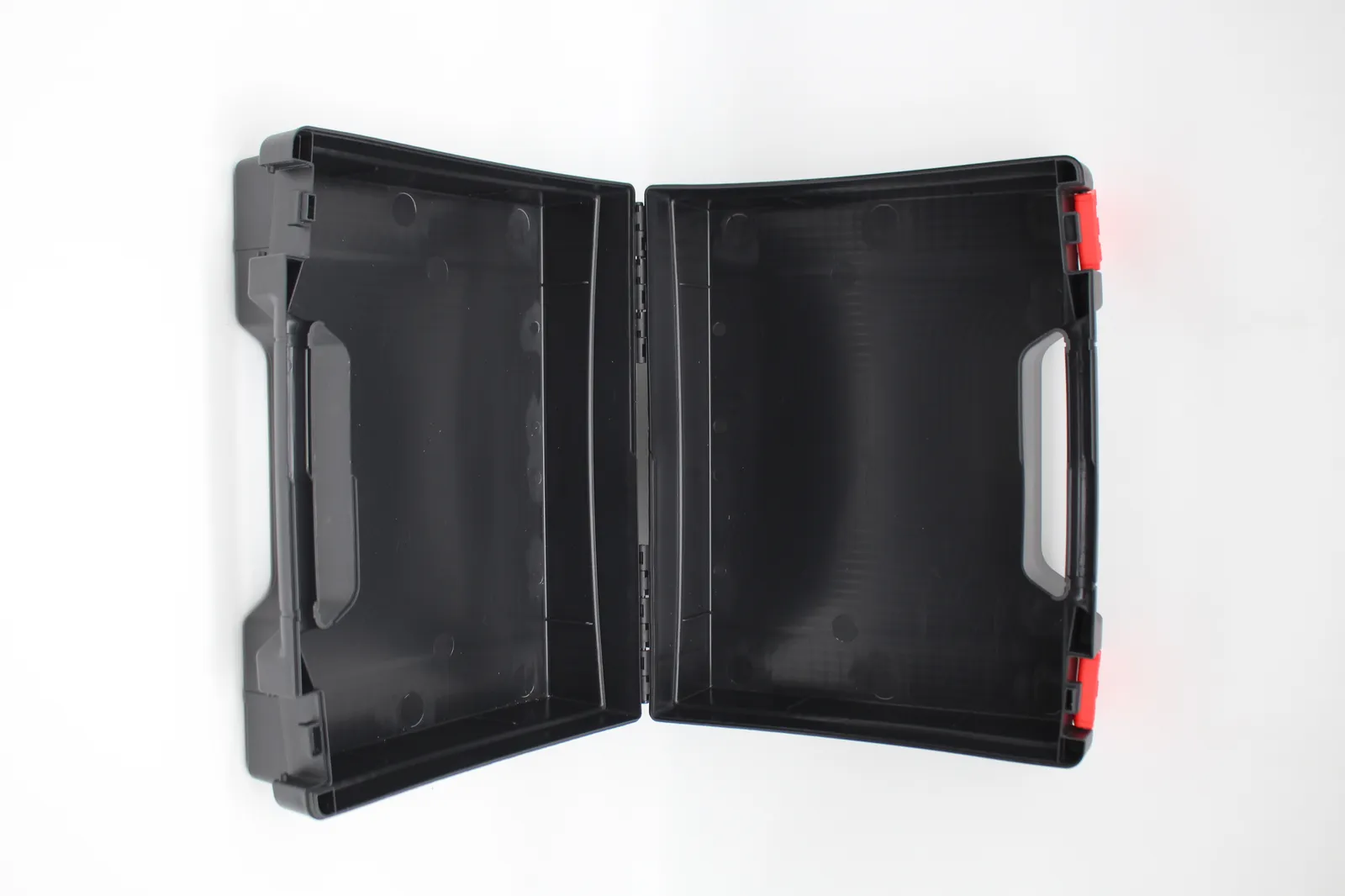

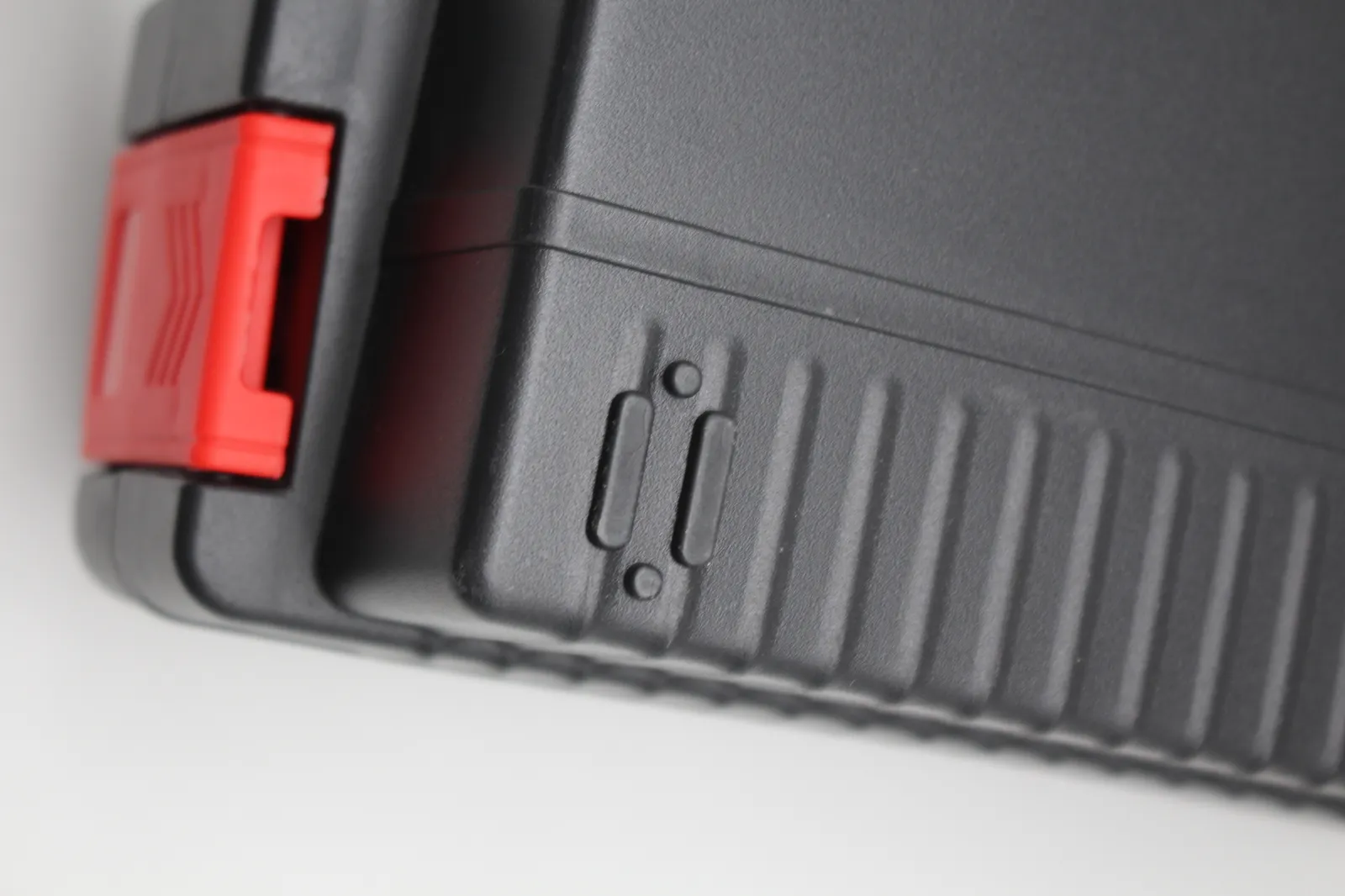

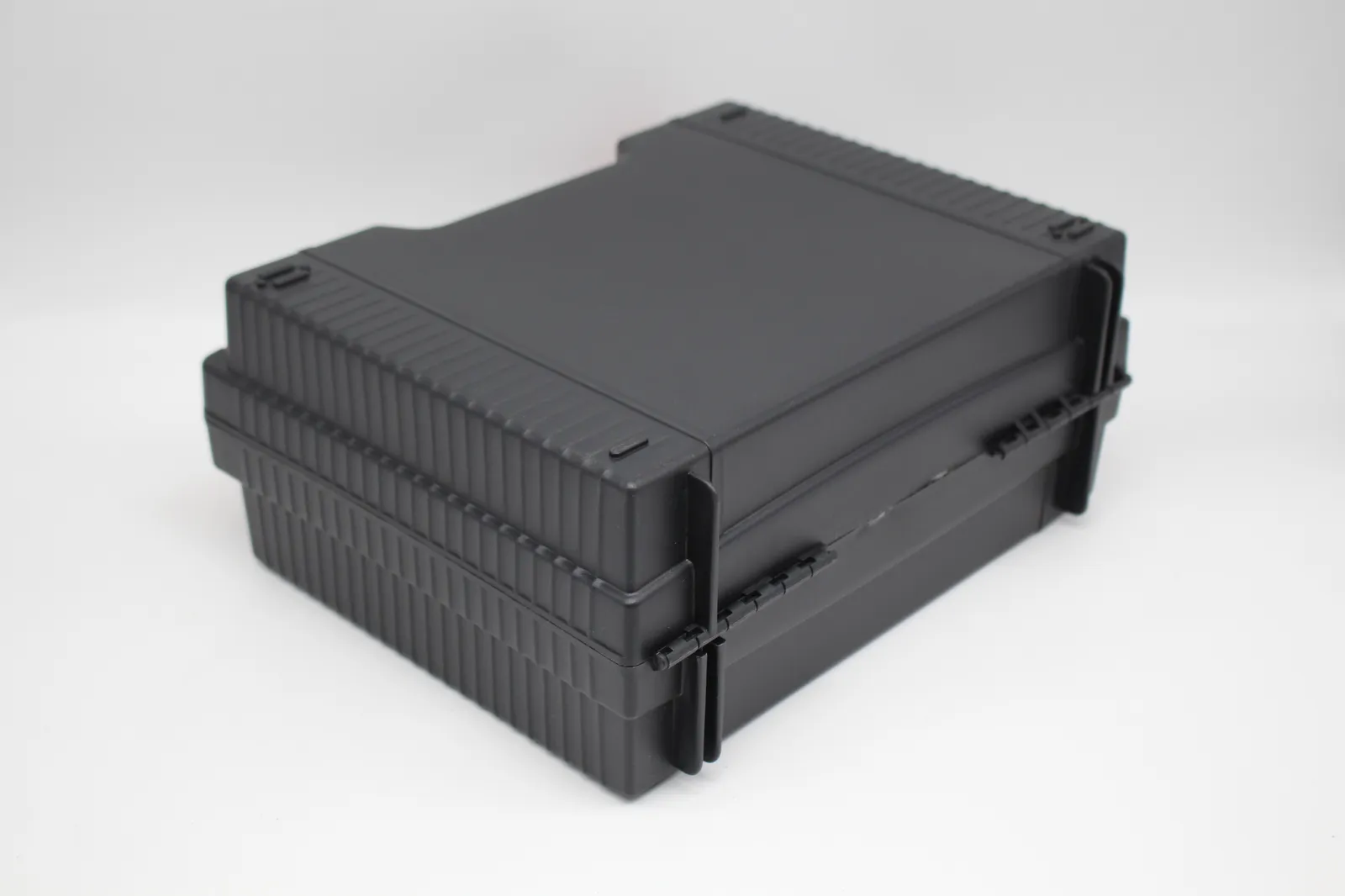

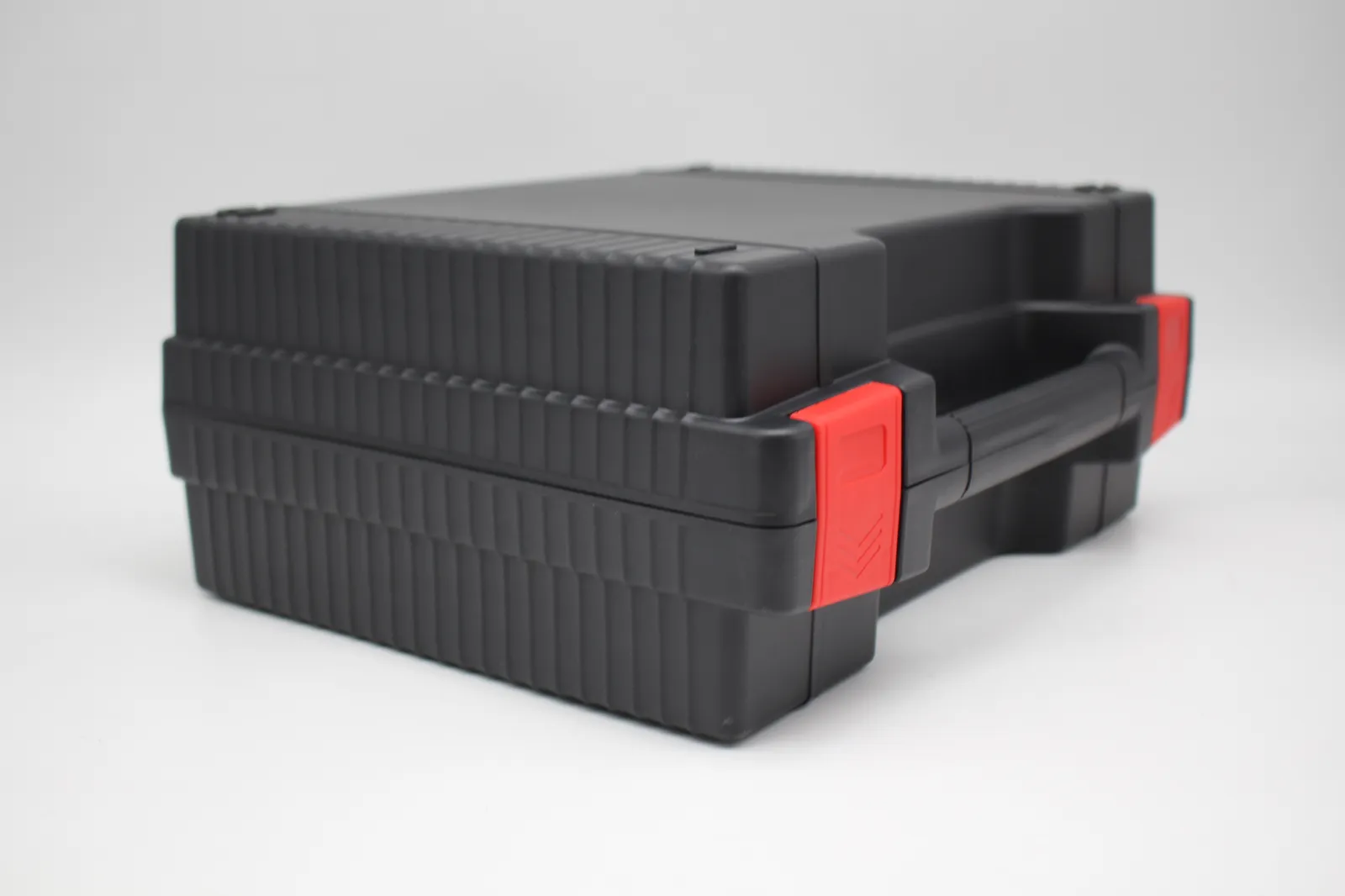

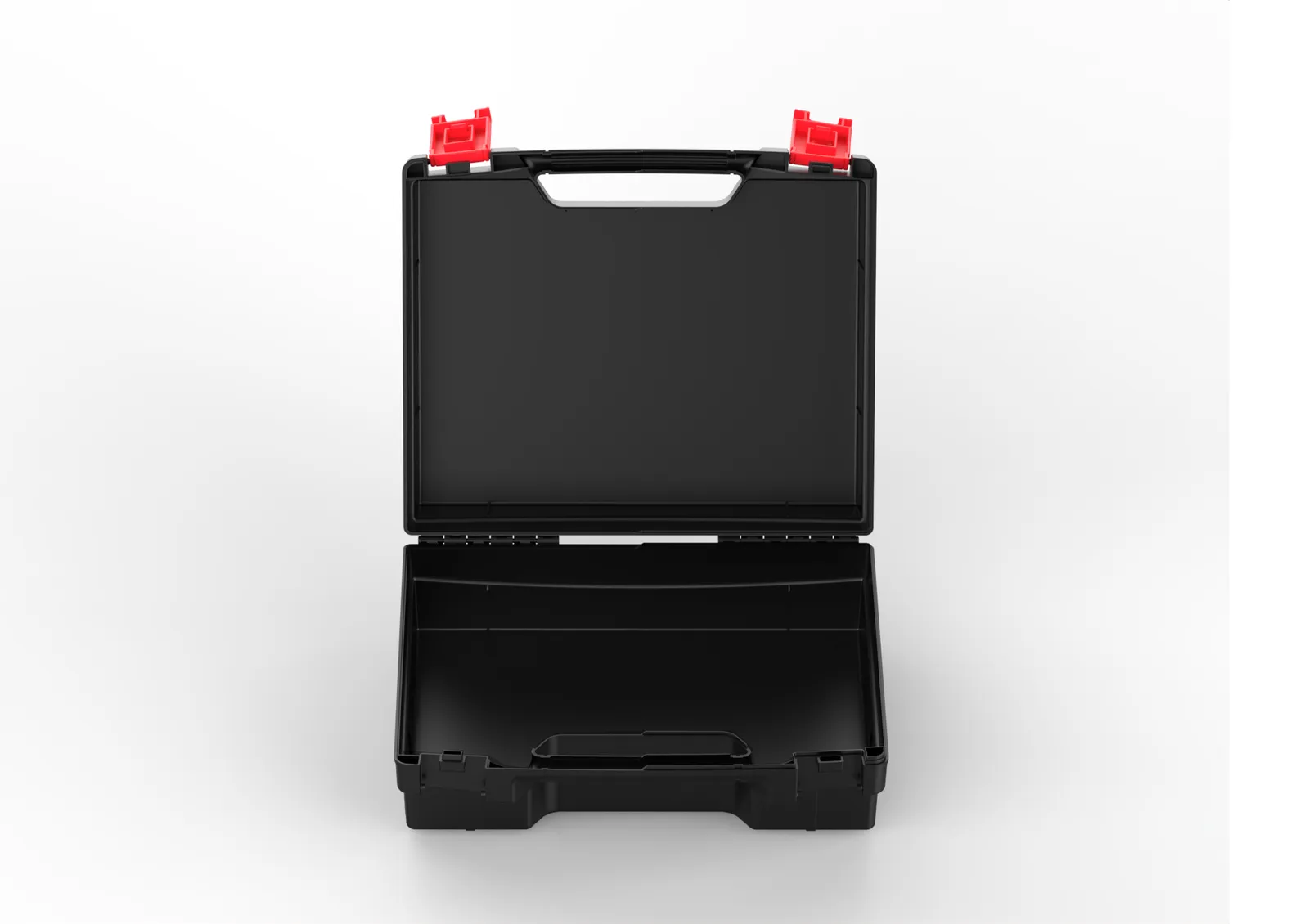

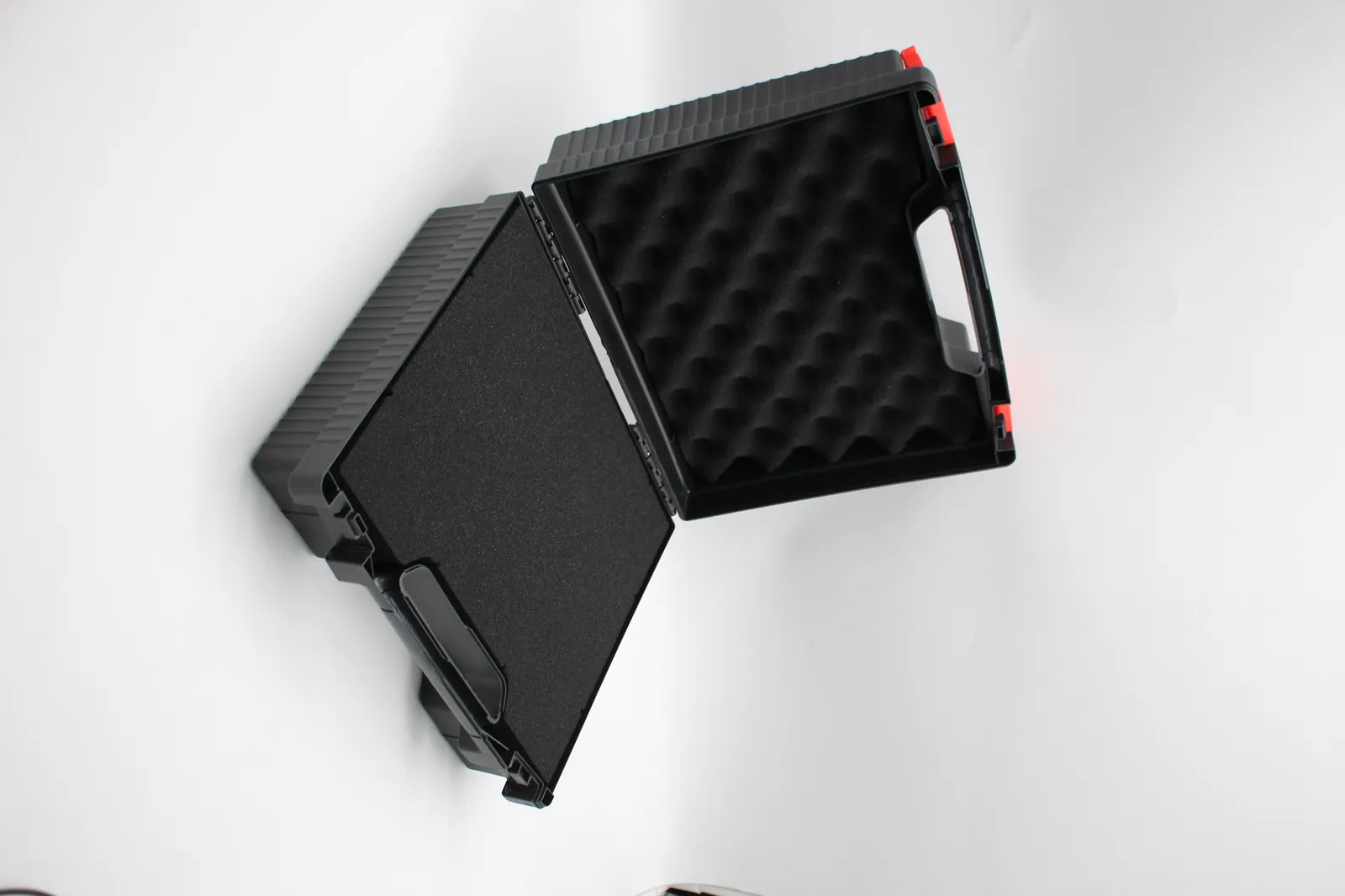

WL1-3114 PP Precision Instrument Case

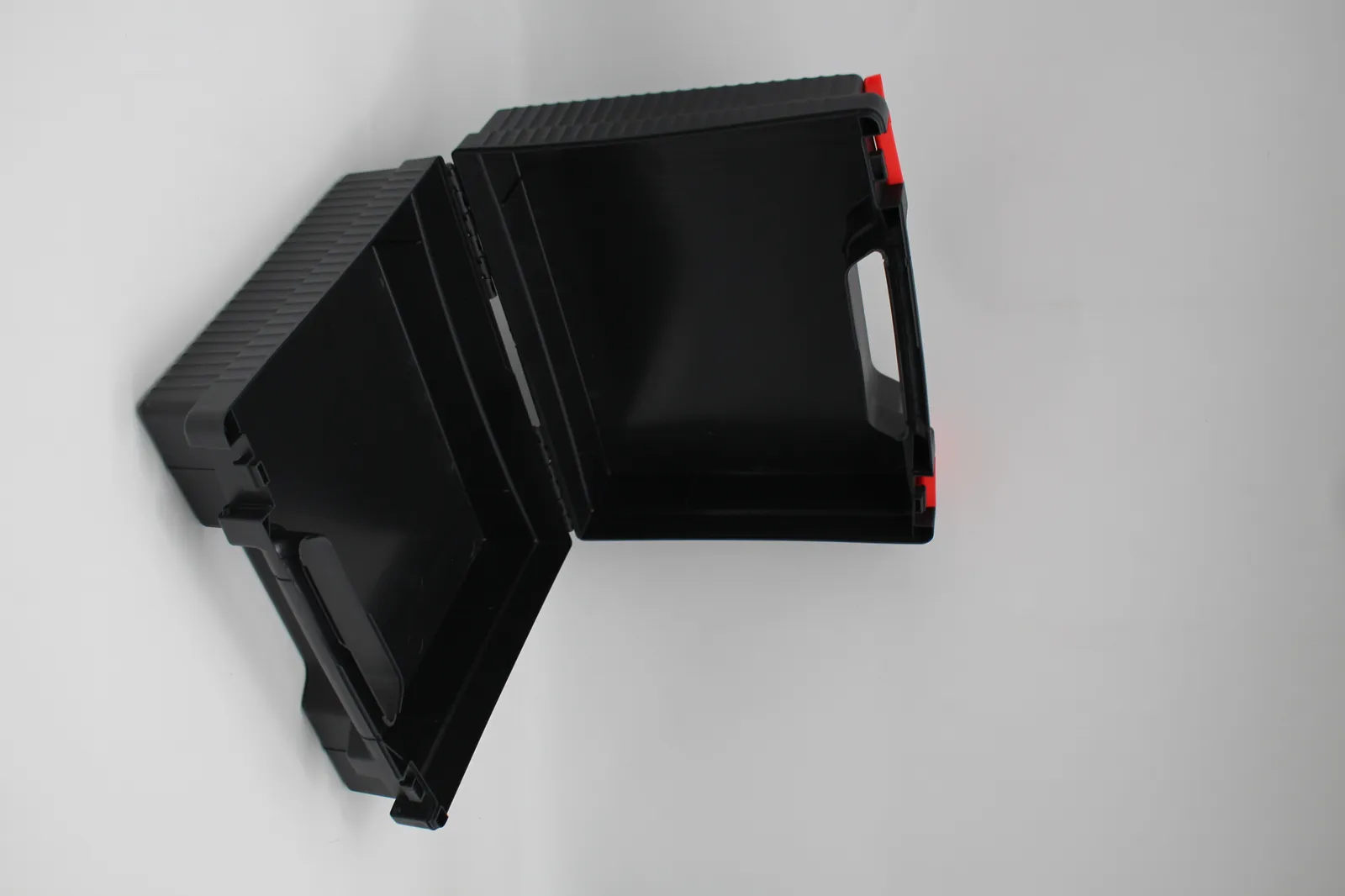

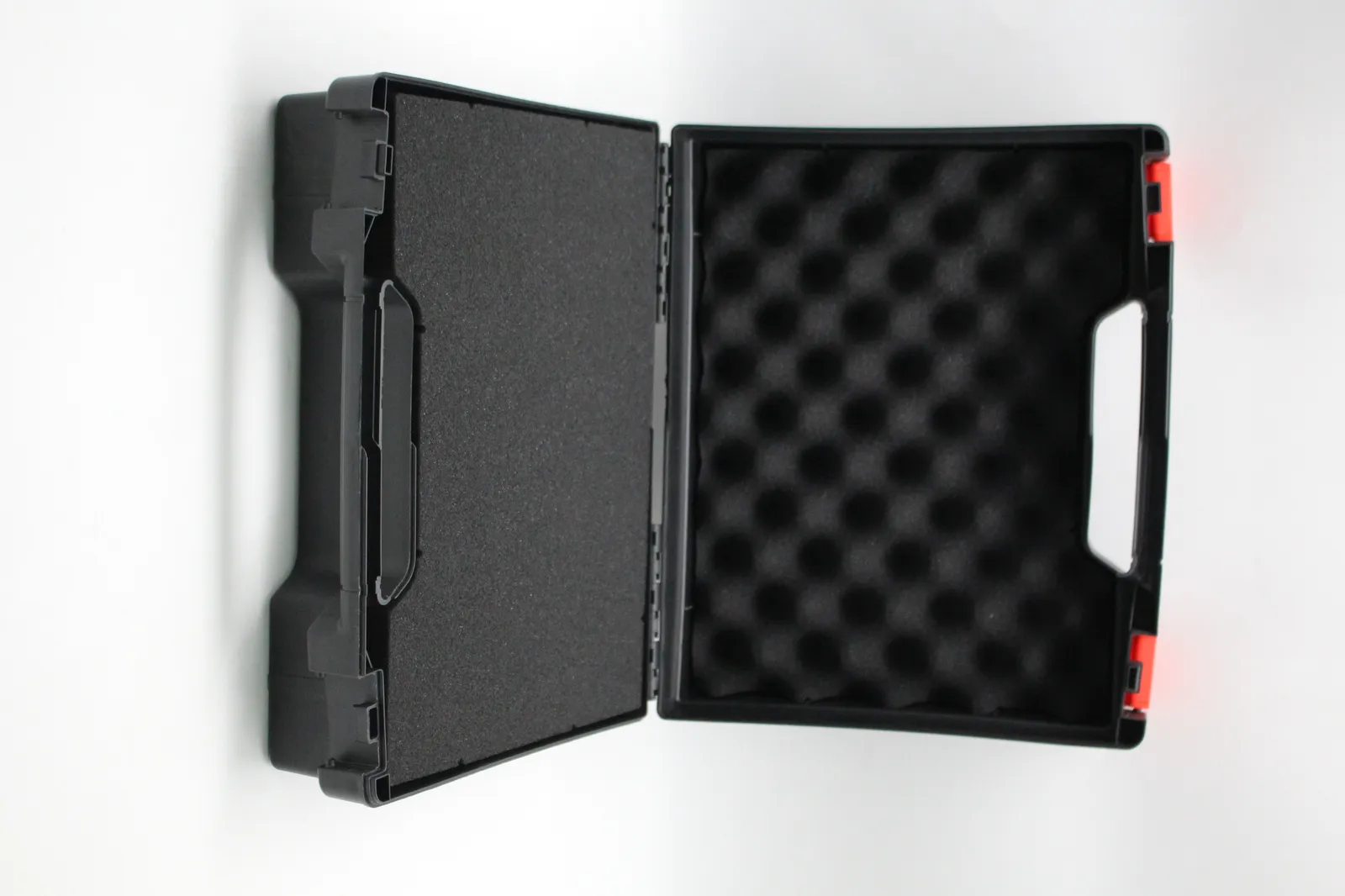

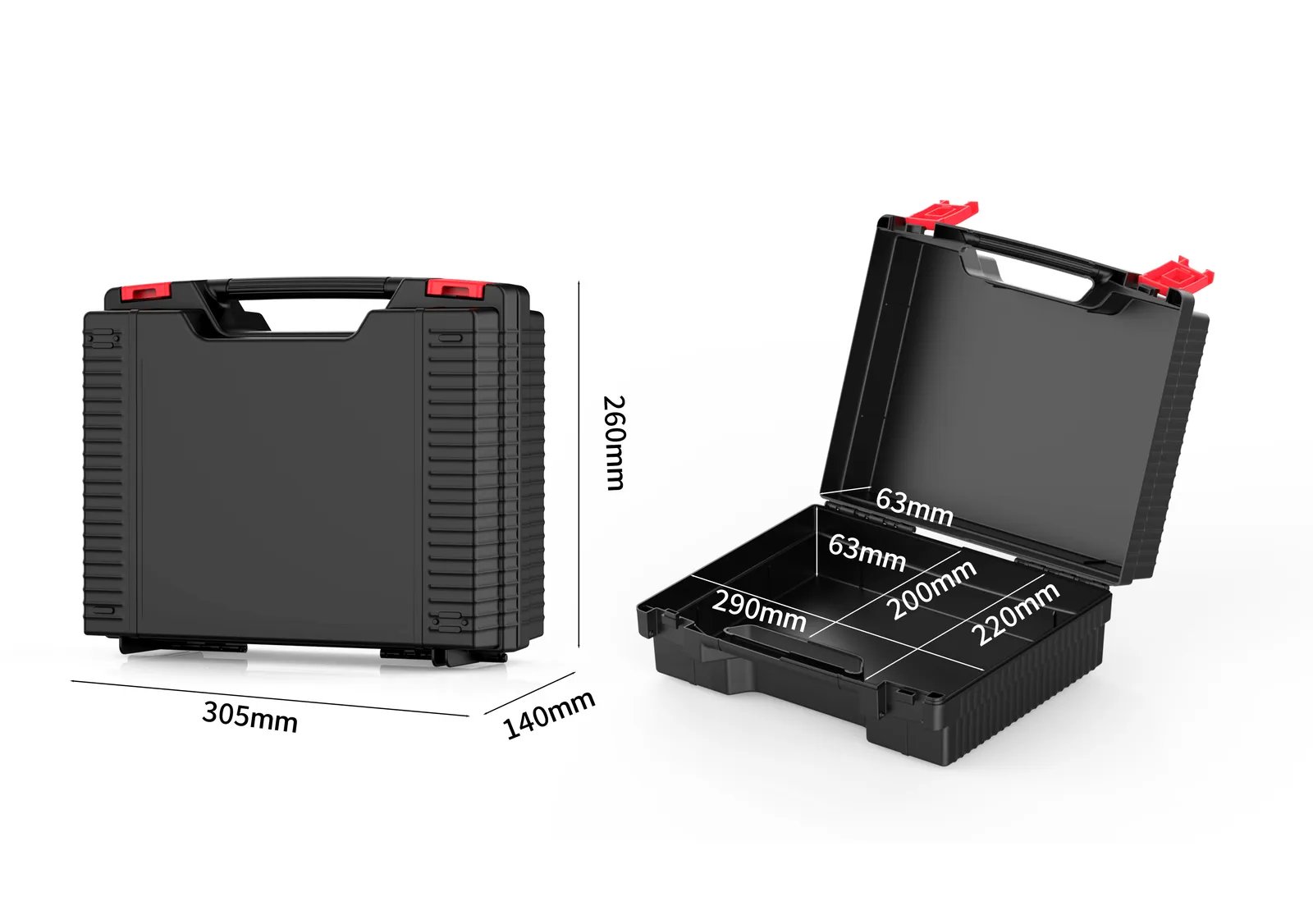

The inner size is the usable cavity once the lid is closed, so start by checking whether the main body of your equipment fits within 290 x 220 x 126 mm, then check the 200 mm narrowest clearance for insertion, and finally work out how much of the 63 + 63 mm depth can be given to foam. Comparing inner dimensions before the 305 x 260 x 140 mm outer envelope greatly reduces sizing errors. If the equipment has cables, connectors or handles, plan from the assembled maximum outline with handling clearance, and send samples to the Zhongshan plant for a fit check when dimensions are critical.

The export data records this model as supplied without packaging, meaning it ships bulk. That suits full-container loads, bulk warehousing or customers who add their own colour box and manual. Bulk supply reduces packaging cost and volume per unit, but it places more responsibility on the buyer for transport protection and storage, including crates, pallets and dust control. If you need the factory to add inner bags, dividers or an outer carton, packaging can be discussed as part of the project with Kexin New Materials (Guangdong) Co., Ltd. in Zhongshan, including carton quantity.

The figure of about 675 g is the net weight of the case itself and excludes internal foam, accessories and outer packaging, so shipped gross weight is higher. Compared with the WL1-2614 at about 460 g and the WL1-2711 at about 470 g, which share the same 2.2 mm wall, the WL1-3114 is a larger body using more material, which explains the higher weight. Use gross weight when quoting freight, calculating sea-freight chargeable weight or assessing how tiring the case is to carry. If your project sets a weight ceiling, provide the target and the factory will review foam and packing trade-offs.

The usual sequence is to confirm model and code 132, quantity, packing method and customisation needs, then have the factory review colour, logo process and internal inserts before sampling and mass production. Kexin New Materials (Guangdong) Co., Ltd. supplies directly from its Zhongshan plant, a factory-direct model suited to long-term supply programmes for instruments, gauges and medical equipment. MOQ, sampling lead time and price vary with the customisation scope, and the export data lists no fixed values, so rely on the factory response for your specific programme.
