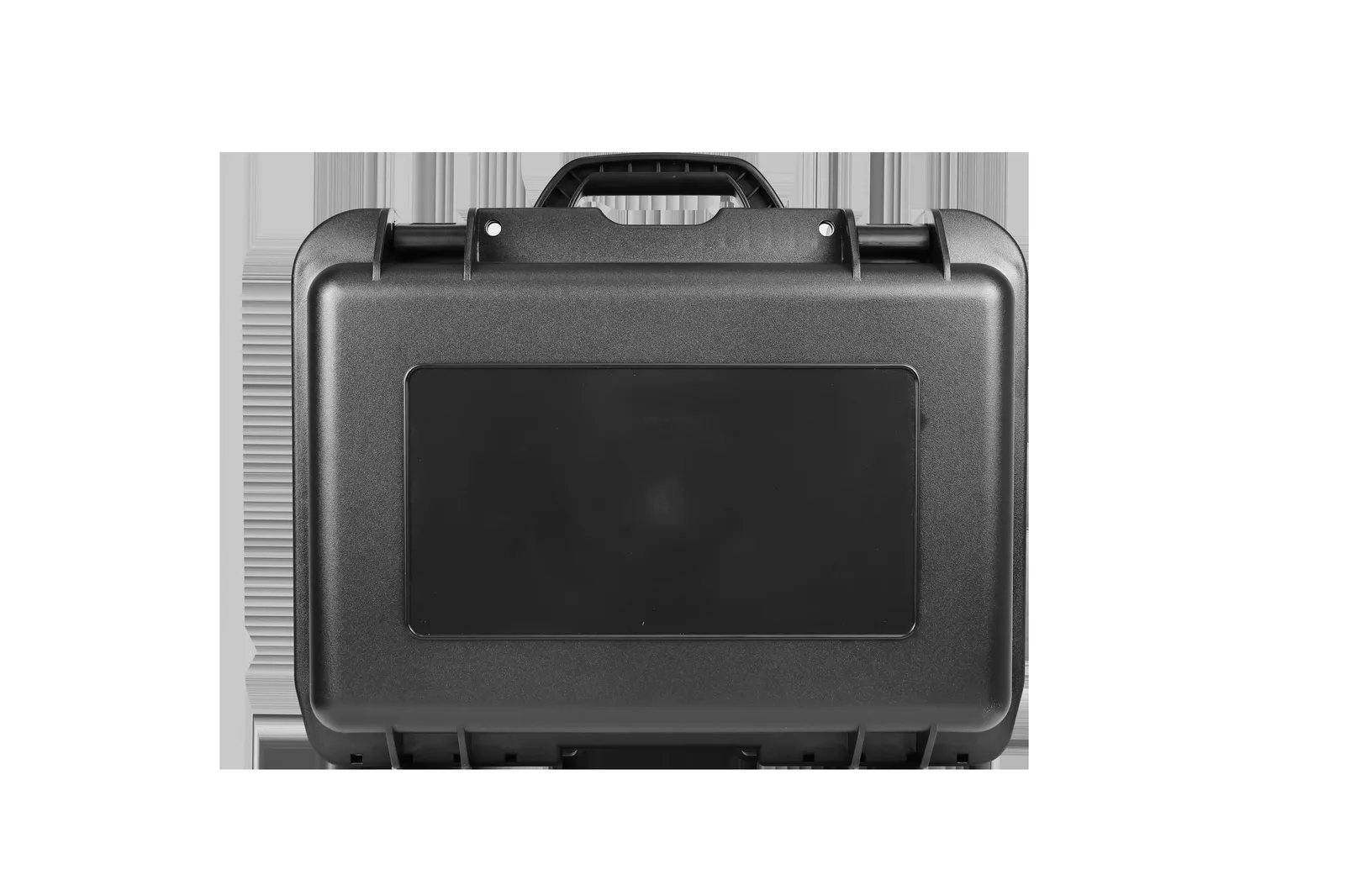

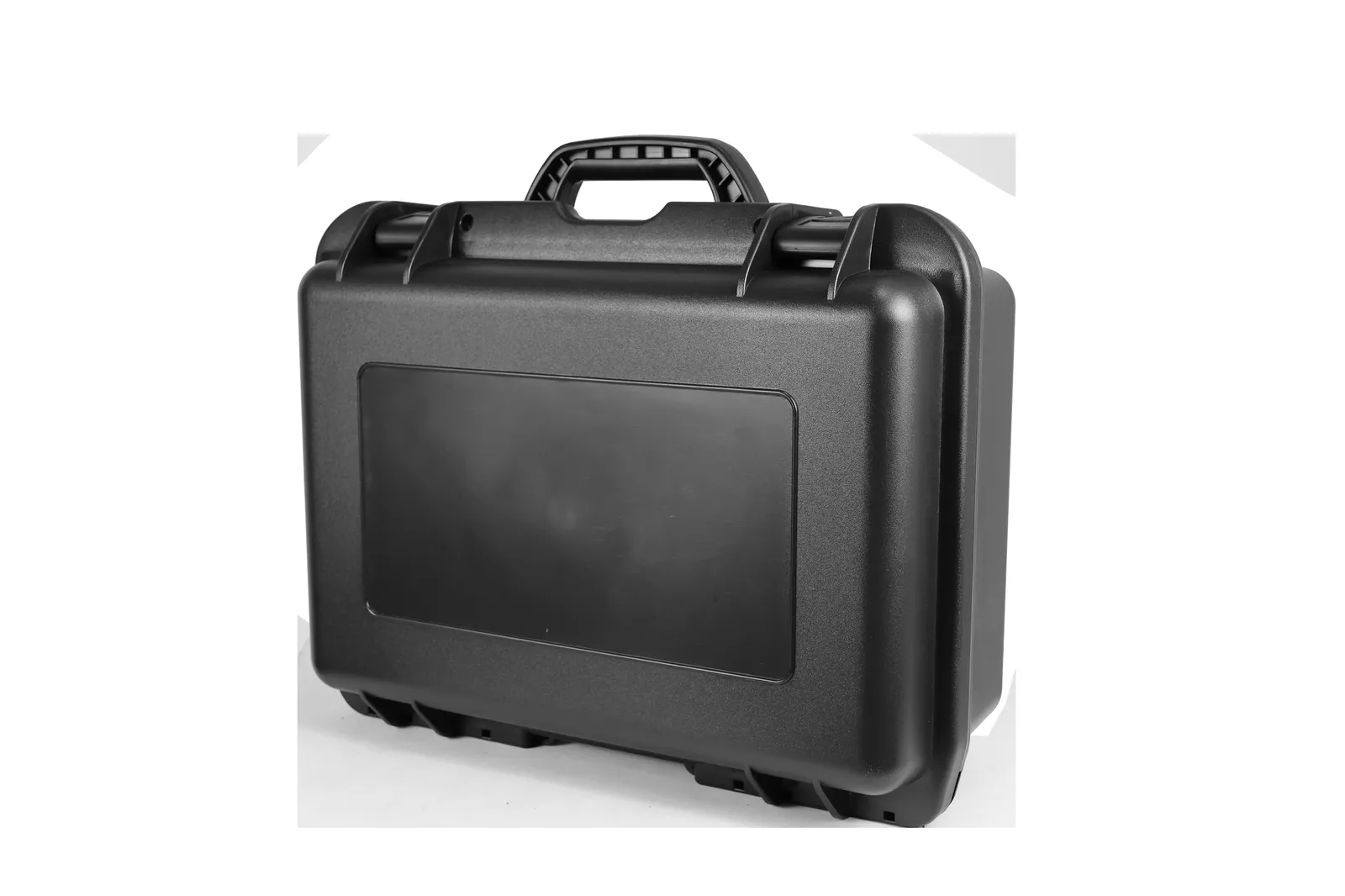

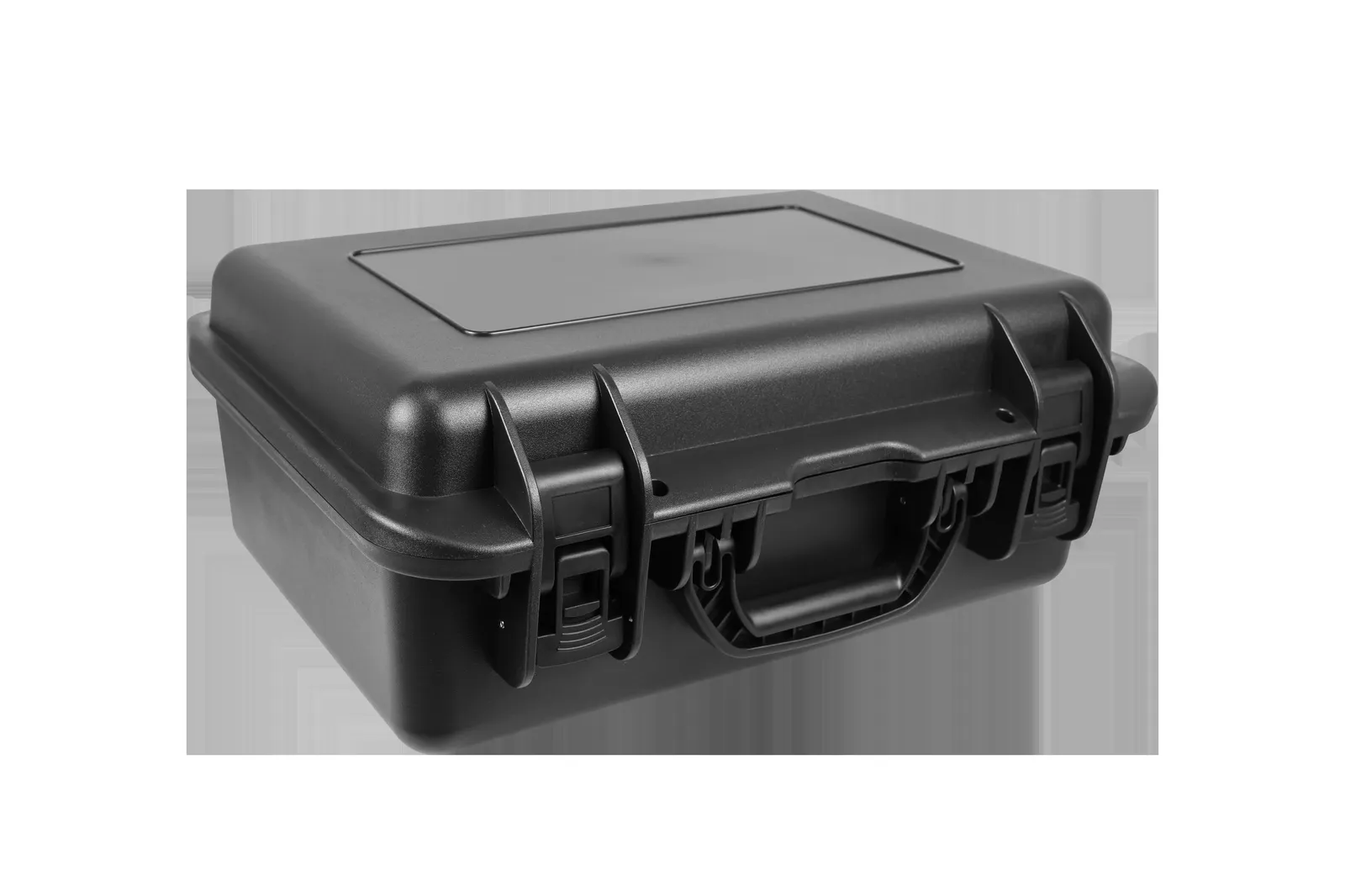

WL9-5021 ABS Medical Equipment Case

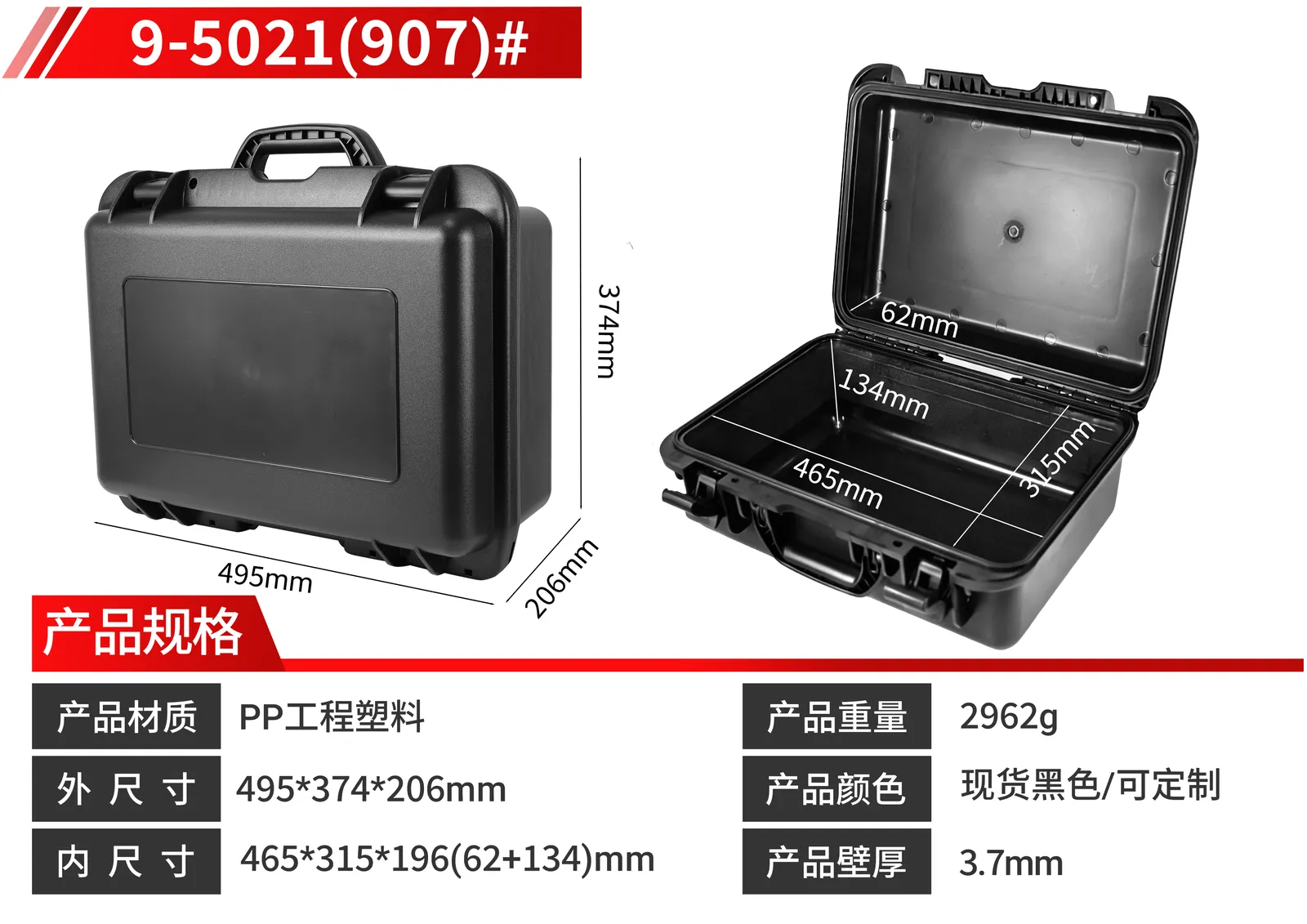

The outer shell is 495 x 374 x 206 mm and the internal cavity is 465 x 315 x 196 mm. Externally the case occupies 495 x 374 mm while the usable floor inside is 465 x 315 mm, the difference coming from the wall section, the seal channel and the moulded closing geometry rather than measurement error. Size a load from the inner dimensions, never from the outside, because outside figures overstate capacity. A 465 x 315 mm floor with 196 mm of inner height in ABS, one of the few ABS bodies in the exported 9 Series; the 62 mm lid is deep enough to clear panel bosses and connectors left plugged in.

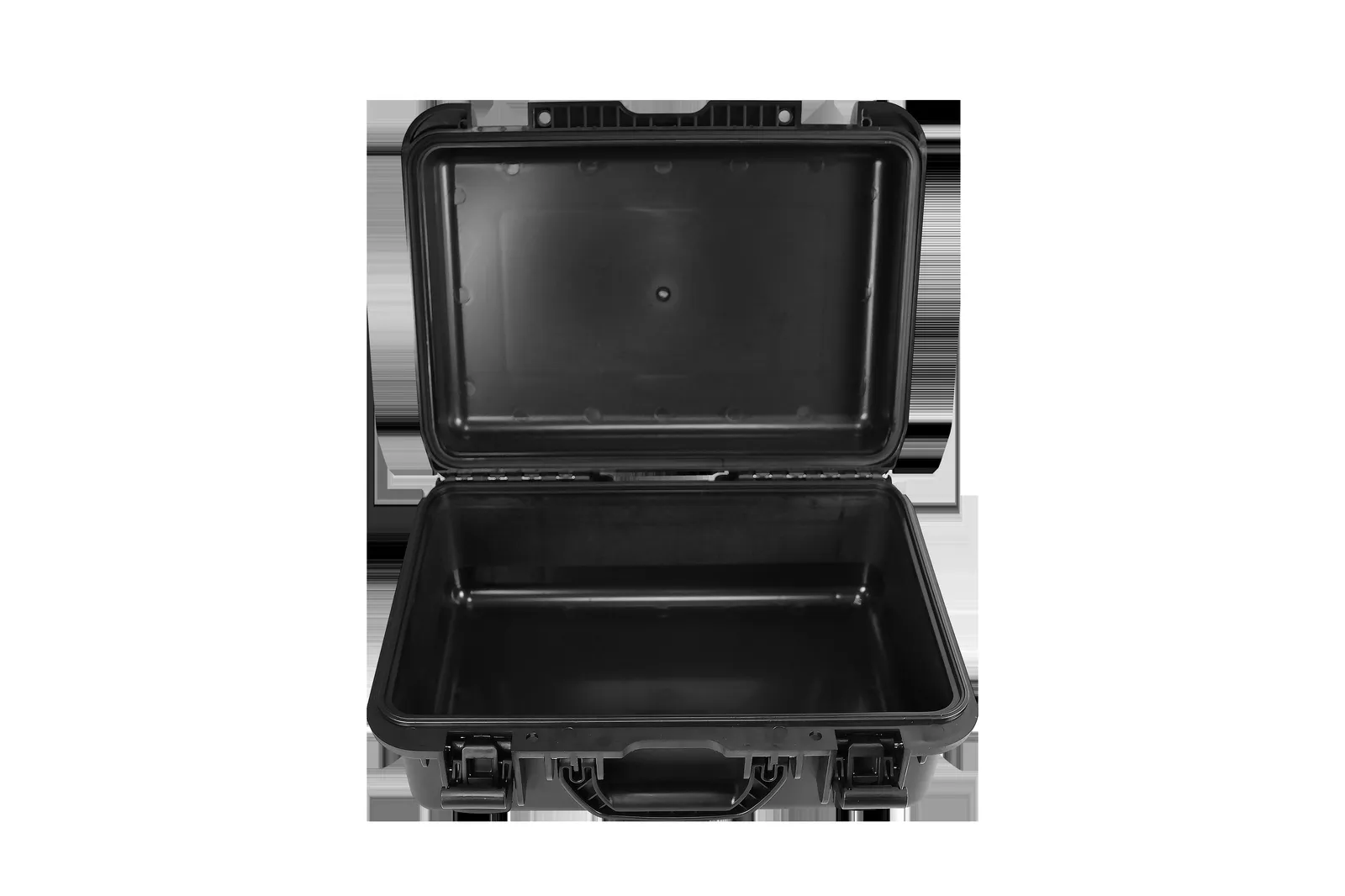

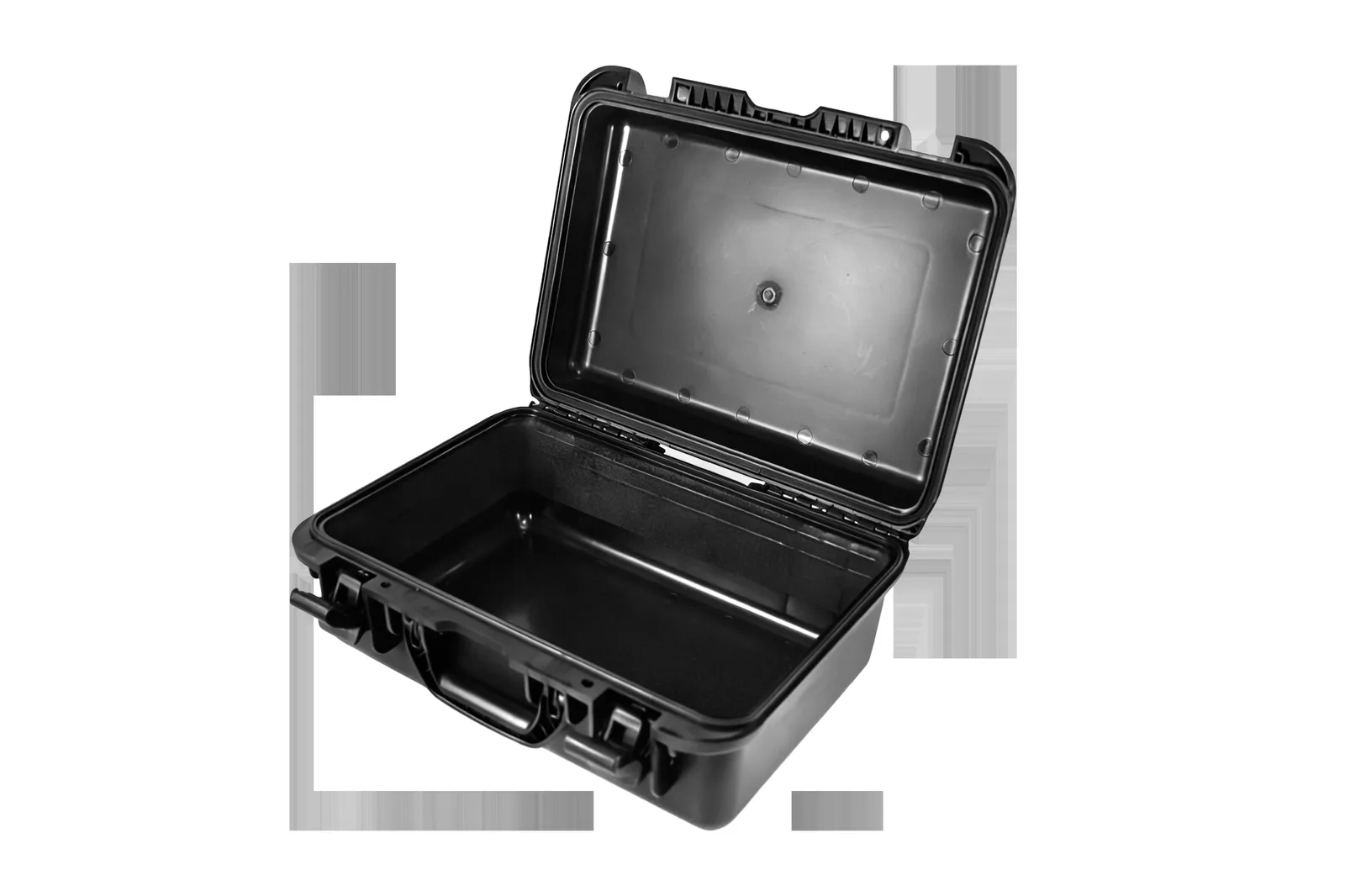

The lid adds 62 mm of internal depth and the base adds 134 mm, giving 196 mm of combined inner height. A 62 mm lid over a 134 mm base is one of the deepest lid splits in the series, so the lid side takes over part of the equipment height and suits an instrument with its panel facing up.When judging whether a body suits your contents, read the base figure first, because it sets how tall an item can stand, while the lid figure decides how much headroom remains above it. Only the sum of the two is usable height, and when measuring a part, include handles, connectors and bosses, or the lid will press on it once closed.

The shell uses a sealed closure and provides an IP67 waterproof and dustproof rating. ABS has a harder surface, so wiping down in a clinical setting leaves less mark, while the sealed cavity keeps dust out of the equipment connectors. The rating applies to the sealed cavity of the case itself, so if you store moisture-sensitive contents, pair it with desiccant or a humidity management accessory and check the sealing face for trapped debris every time you close the lid, since a single trapped fragment undermines the seal.

The factory usage category for WL9-5021 is medical equipment cases, under code 907. The 465 x 315 x 196 mm cavity and 62 mm lid suit mid-size medical equipment, detection instruments and panel-up instruments carried complete, and a 3430 g unit weight fits vehicle transport. ABS suits projects that need to hold weight down while keeping a harder exterior surface.

WL9-5021 is poly-bagged individually and packed 6 per carton measuring 765 x 485 x 650 mm. At 3430 g per unit the carton comes in at the upper end of the twenties by gross weight, normally handled by two people or with a pallet truck. The same carton size is used for WL9-4821, also at 6 pieces, so a mixed order can share one carton and pallet plan. Carton breakdowns, pallet plans and container loading layouts can be supplied with the order.
