Why is a protective case hard to open after a flight?

Because it was closed at one ambient pressure and opened at another. Aircraft cabins are pressurised to an equivalent altitude well below the aircraft's actual cruising altitude, but not to sea level. A case sealed on the ground at sea level arrives with internal pressure higher than the surrounding air; conversely a case sealed in a pressurised cabin and carried down to sea level arrives with pressure lower outside than in. In the second case the lid is held down by the atmosphere itself, which is what is meant by vacuum lock - and it is why the fix is to let air in, not to pull harder.

How does the membrane let air through but keep water out?

Two physical effects working together. The pores are far smaller than a water droplet but far larger than an air molecule, so gas passes freely. And the membrane material is hydrophobic, so water that reaches it beads rather than wets, and surface tension across the pore resists entry until a threshold pressure - commonly called the water entry pressure - is exceeded. Below that pressure, which covers rain, splashing and the short shallow immersion an IP67 test specifies, water does not enter.

Does fitting a vent reduce the IP rating of the case?

Not when the vent is specified for the rating and installed correctly. Vent manufacturers publish the ingress protection their membranes achieve, with ratings up to IP67 and IP68 depending on the membrane and housing design, and the finished case is tested with the vent fitted. What does invalidate a rating is an aftermarket hole, a damaged membrane, or a vent whose specification is below the rating claimed for the case.

What is the difference between a membrane valve, a one-way valve and a manual valve?

A membrane vent equalises continuously and automatically in both directions, at very low pressure differentials - this is the fit-and-forget option. A one-way relief valve opens only above a set differential and reseals, which protects against over-pressure but does nothing for vacuum lock. A manual valve requires the user to open it, which works but depends entirely on the user remembering. For air-freighted equipment, continuous membrane venting is the only one of the three that solves both directions without user action.

Yes if the case will be air-freighted, carried over significant altitude changes, or moved repeatedly between strongly different temperatures while sealed, and if it is sealed well enough to hold a pressure differential - which any case with a real gasket is. You may not need one if the case travels entirely by road at consistent altitude, is opened frequently, or is deliberately not sealed. Note that a well-sealed case without a vent is not defective; it simply needs to be opened with awareness of the pressure difference.

Protective Case Pressure Equalisation Valve Explained

A pressure equalisation valve is a small component that solves a problem most buyers only discover after their first air freight. It lets a sealed case breathe - passing gas in both directions through a hydrophobic microporous membrane while blocking liquid water - so that the lid opens the same way at altitude as it does at sea level.

The two failure modes it prevents

Condition	What happens inside	Symptom
Sealed at low altitude, opened at high altitude	Internal pressure higher than ambient; the lid is pushed outward	Lid bulges, gasket is loaded unevenly, latches are hard to close and may pop
Sealed at high altitude, opened at low altitude	Internal pressure lower than ambient; the lid is pressed inward	Vacuum lock - the lid will not lift, and forcing it risks damage
Sealed warm, cooled in transit	Internal air contracts, adding to the vacuum effect	Compounds the vacuum lock case above
Rapid solar heating in the field	Internal air expands, adding to the over-pressure case	Compounds the bulge case above

Both modes are consequences of having a good seal, which is exactly what you bought the case for. The better the gasket, the larger the differential the case can hold - and the more valuable the vent becomes.

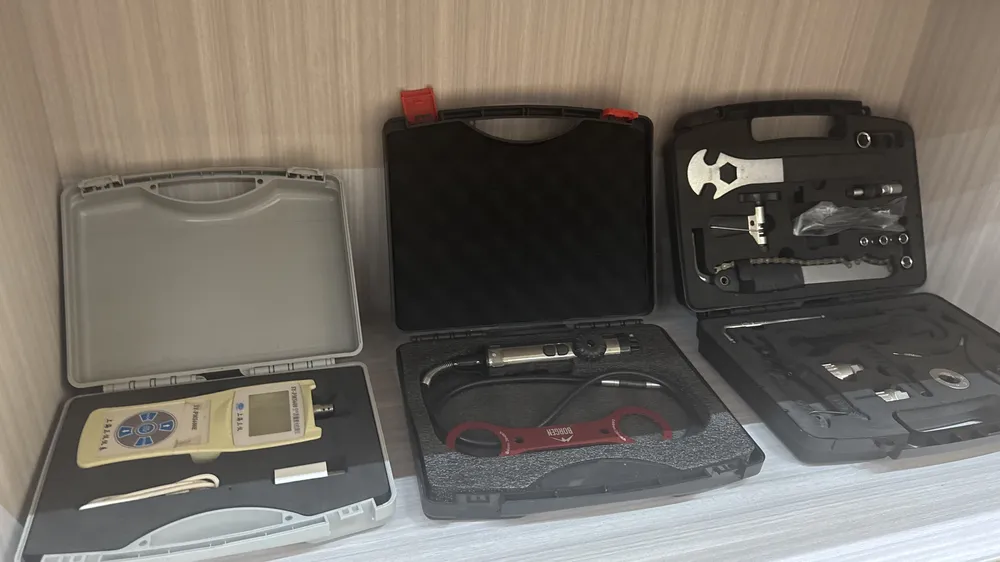

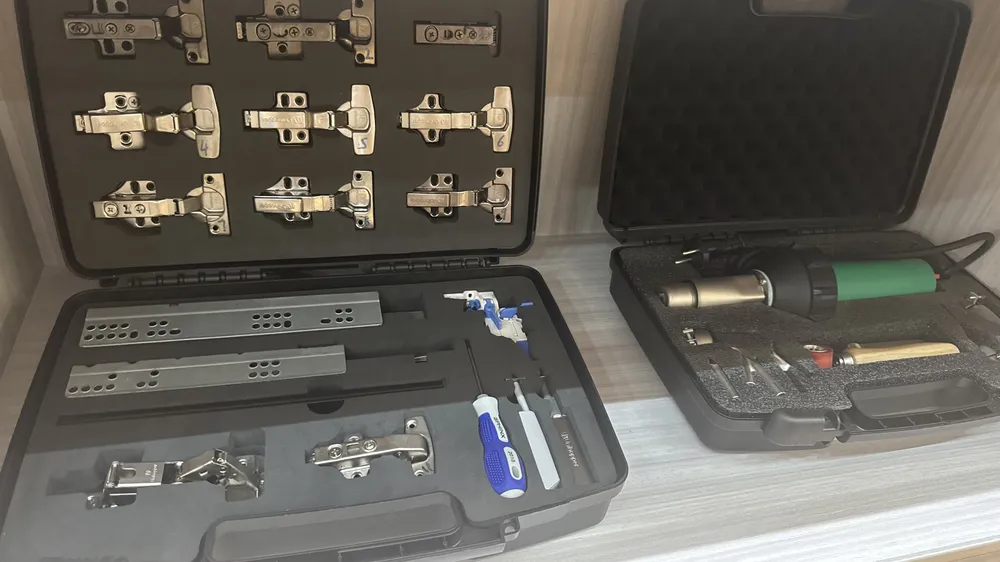

Hard case with pressure equalisation valve visible on the lid — The vent takes the pressure — the seal only has to keep out water and dust.

How the membrane works

Scale separation. The pore structure is orders of magnitude smaller than the smallest water droplet that forms in rain or immersion, and orders of magnitude larger than an air molecule. Gas diffuses through; liquid cannot.
Hydrophobicity. The membrane material - expanded PTFE in most case vents - has a low surface energy, so water beads rather than spreading and wetting the pore mouths.
Surface tension across the pore. Water bridging a pore resists entry until the applied pressure exceeds a threshold known as the water entry pressure. Below it, the membrane behaves as a solid wall to liquid and an open channel to gas.
Oleophobic treatment. Many vent membranes are additionally treated to resist oils and surfactants, which would otherwise lower the surface tension and allow low-surface-tension liquids through.

The practical limit is immersion depth and duration. A vent rated for the shallow, short immersion an IP67 test specifies is not automatically rated for deep or prolonged submersion. If the case will be under water for longer than its rating, say so when specifying.

Three valve types, and what each actually solves

Continuous membrane vent. Equalises in both directions, continuously and automatically, at very low differentials, with no user action. Solves vacuum lock and over-pressure. This is the default for air-freighted equipment.
One-way relief valve. Opens above a set differential, then reseals. Protects against internal over-pressure only - it will not admit air to release vacuum lock, so the hard-to-open-after-a-flight problem remains.
Manual vent. A screw or push element the user operates. Effective and mechanically simple, but entirely dependent on the user remembering to open it before opening the case and to close it before exposure to water.

The choice is not about which is best but about which failure you are protecting against. A one-way valve is a legitimate choice for a case that must never admit unfiltered air but may need to relieve internal pressure - where, for example, the contents generate gas. It is the wrong choice for a camera case that flies every week.

Specifying and living with one

Match the vent rating to the case rating, and confirm the case was tested with the vent fitted.
Size matters: larger internal volume and faster pressure changes need more membrane area. Large transport cases may need more than one vent position.
Position it where it can breathe and will not be struck - typically on the shell away from the latch and handle, clear of the splash path and of the seal groove.
Inspect the membrane at service intervals. A punctured, contaminated or painted-over vent is no longer a vent, and a blocked vent behaves exactly like no vent at all.
Never paint over or apply adhesive labels across the vent. It is a working component with a gas path.
Remember that the vent does not remove the need for good sealing practice; it only removes one consequence of it.

Valves are cheap, passive and unglamorous, which is why they are absent from most buying conversations until a case will not open. On JUNZHIJIA cases, whether a vent is fitted, and at what specification, depends on the series and on the duty you describe; if the case will fly, cross significant altitude, or cycle between strongly different temperatures while sealed, say so at enquiry so the vent is specified rather than added later.
