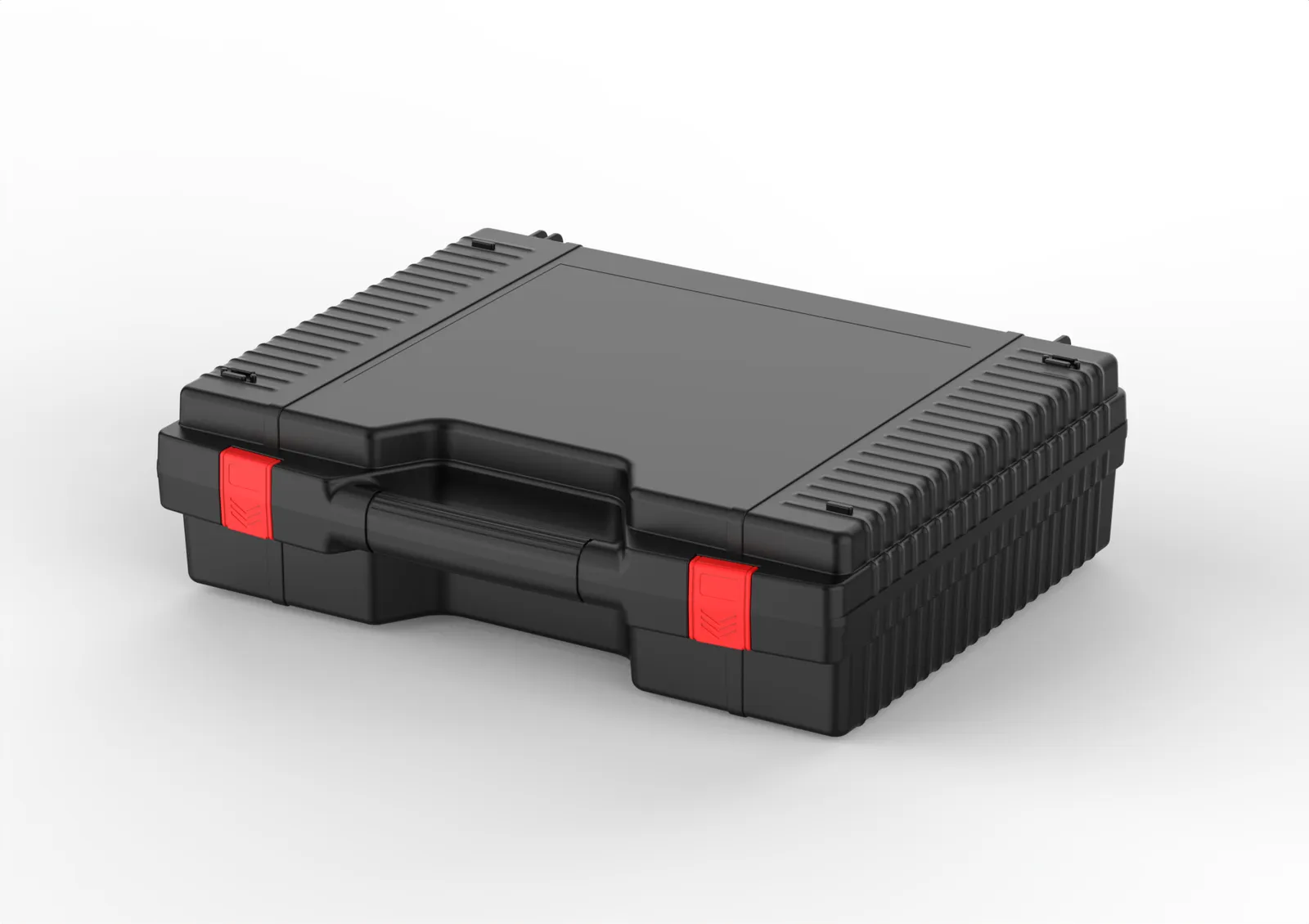

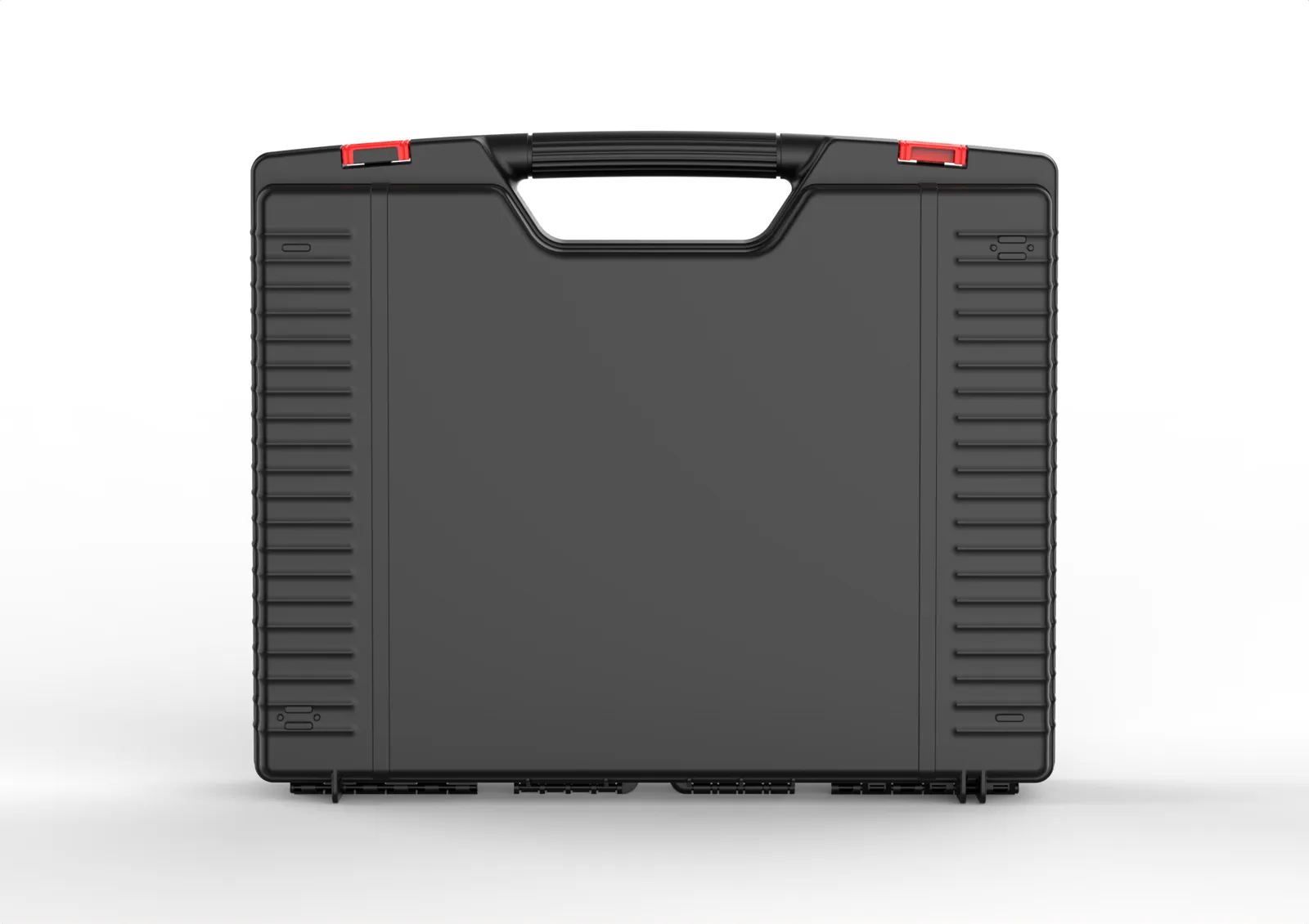

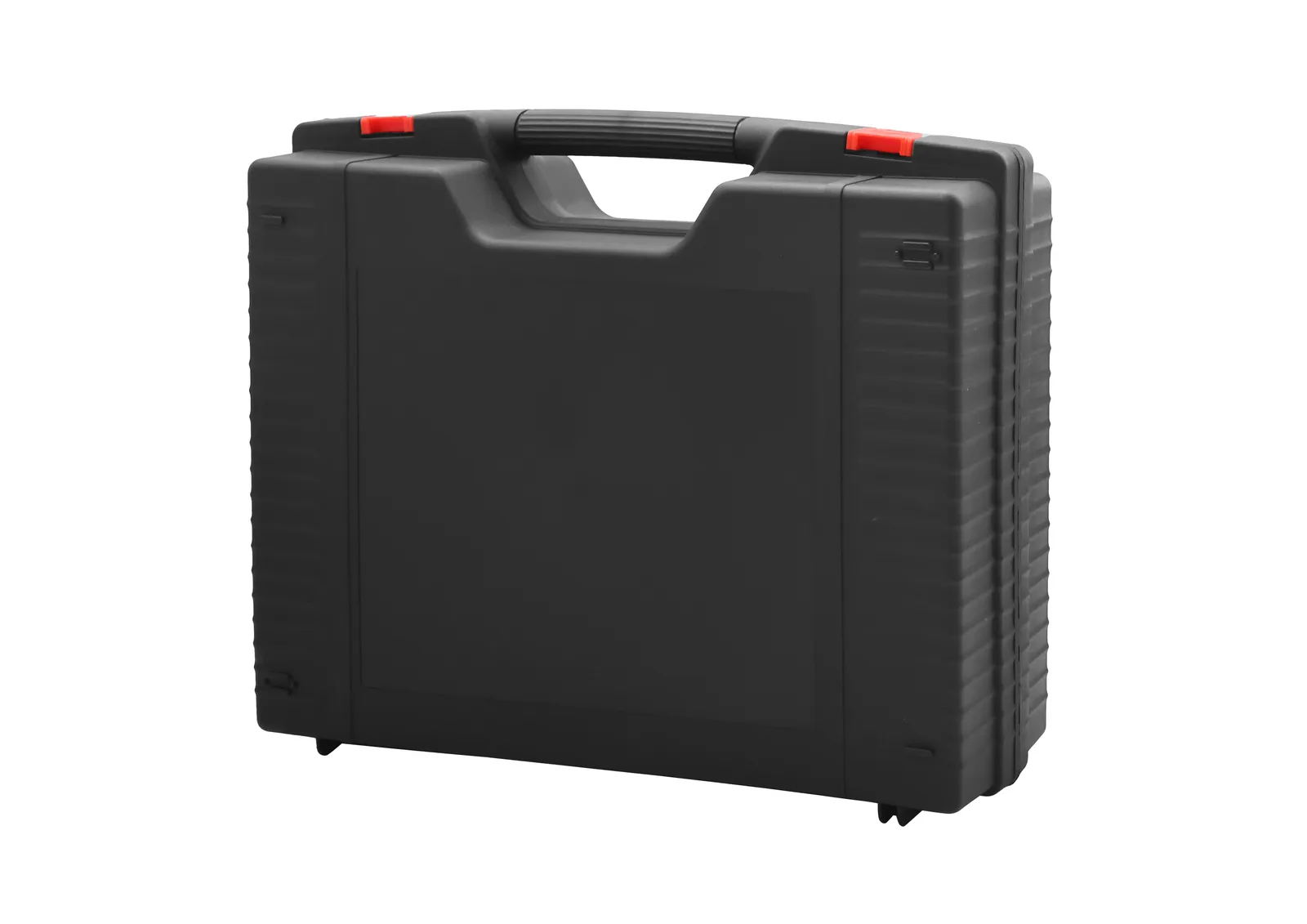

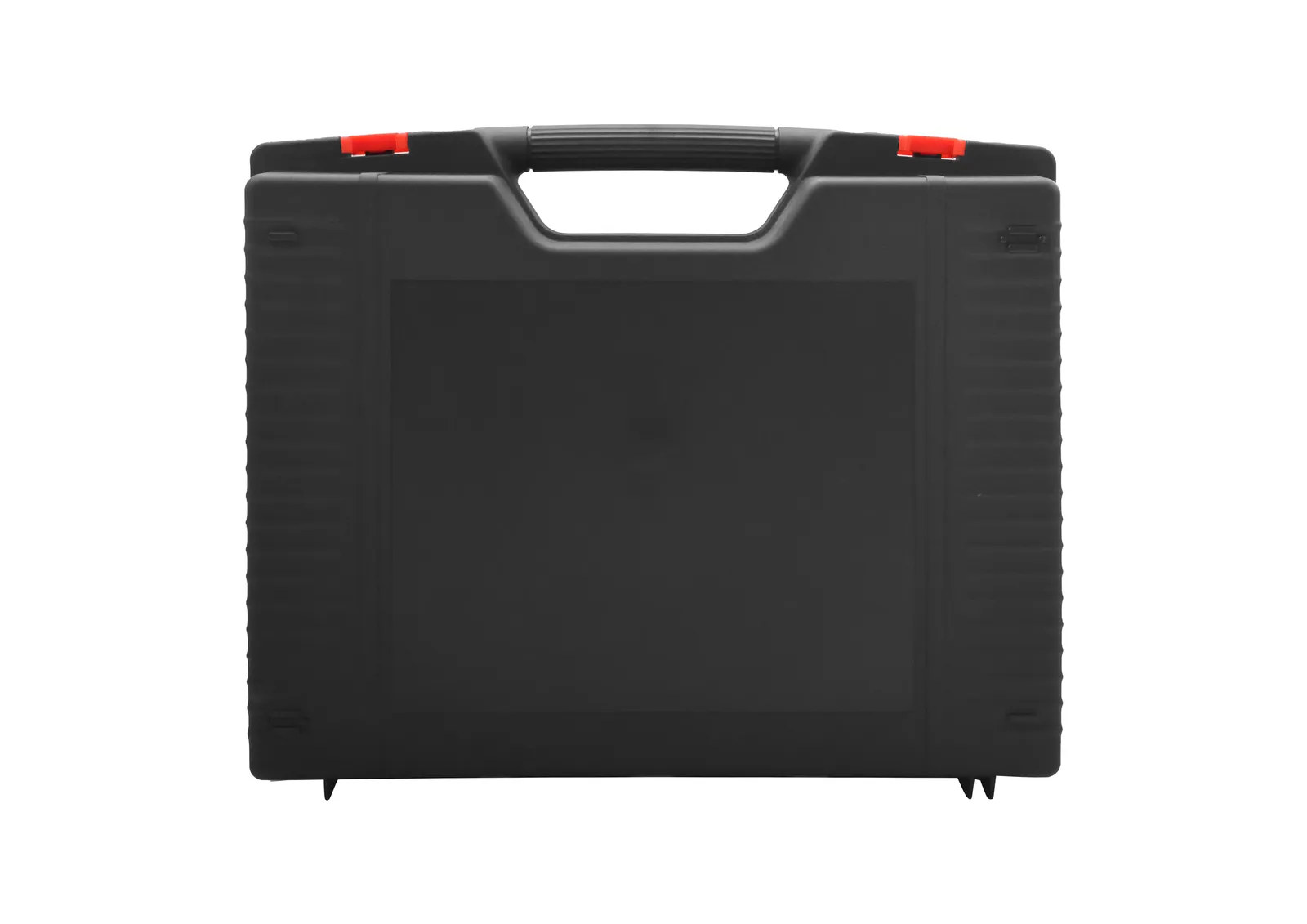

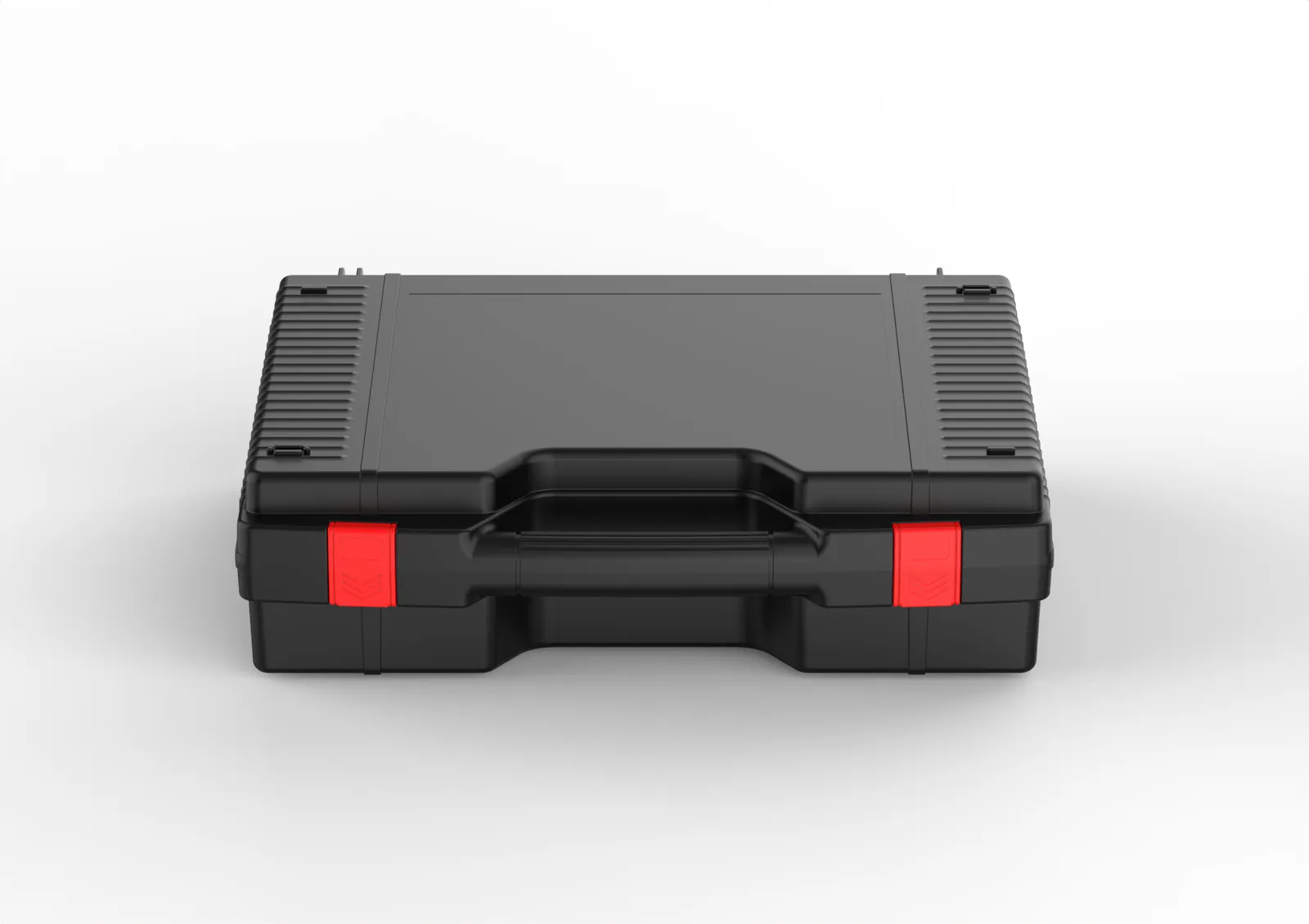

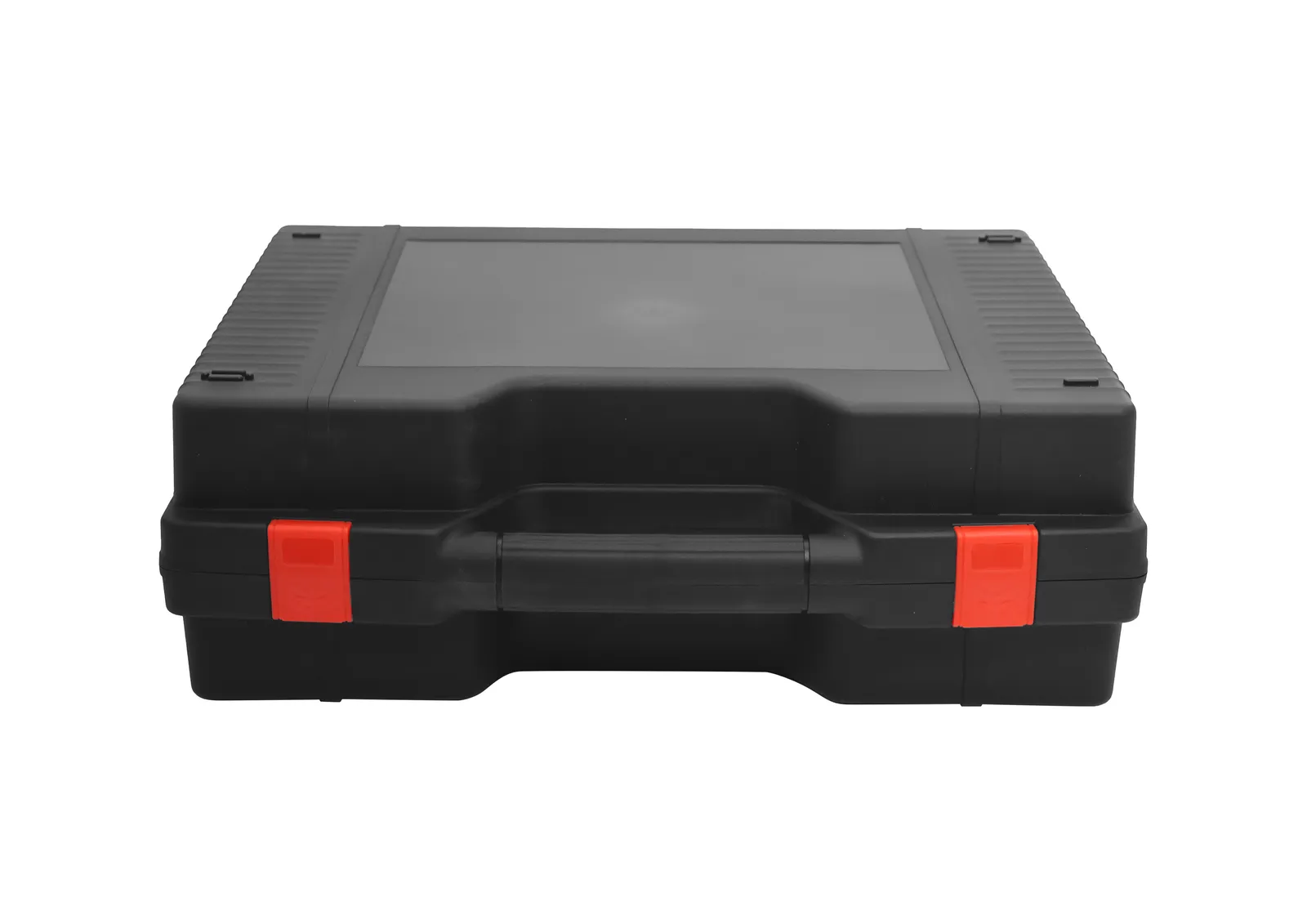

WL1-4713 Engineering PP Knife Case

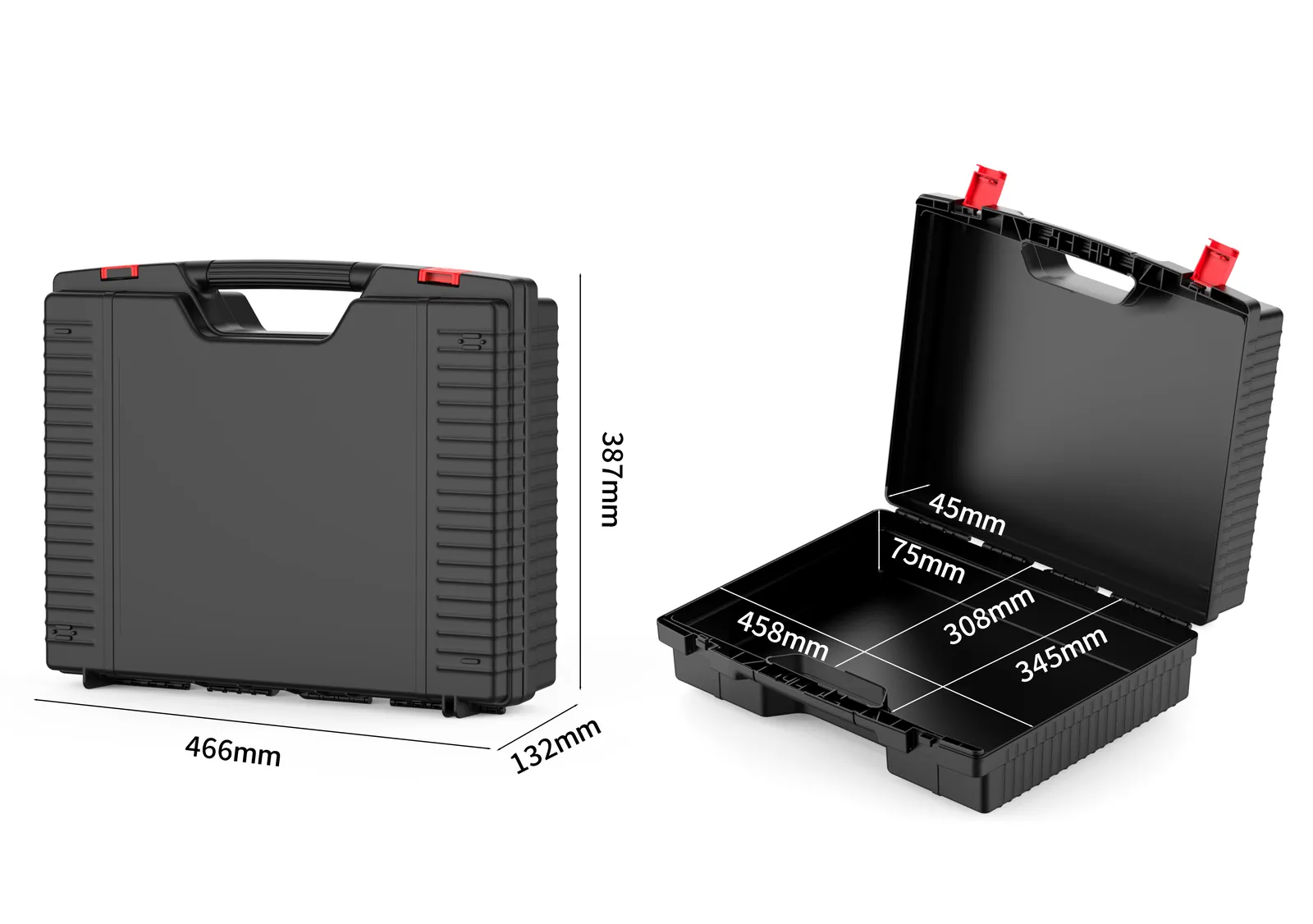

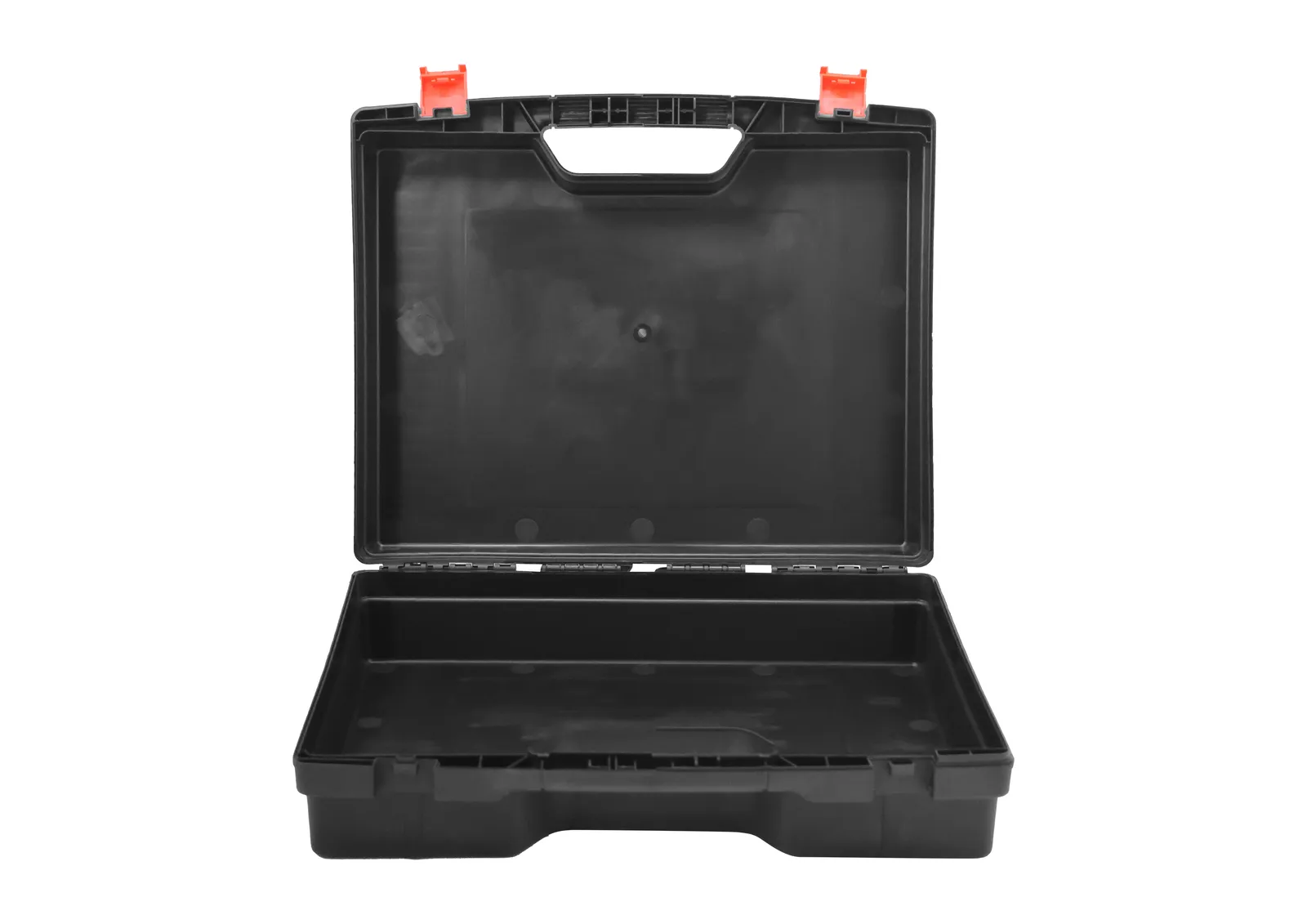

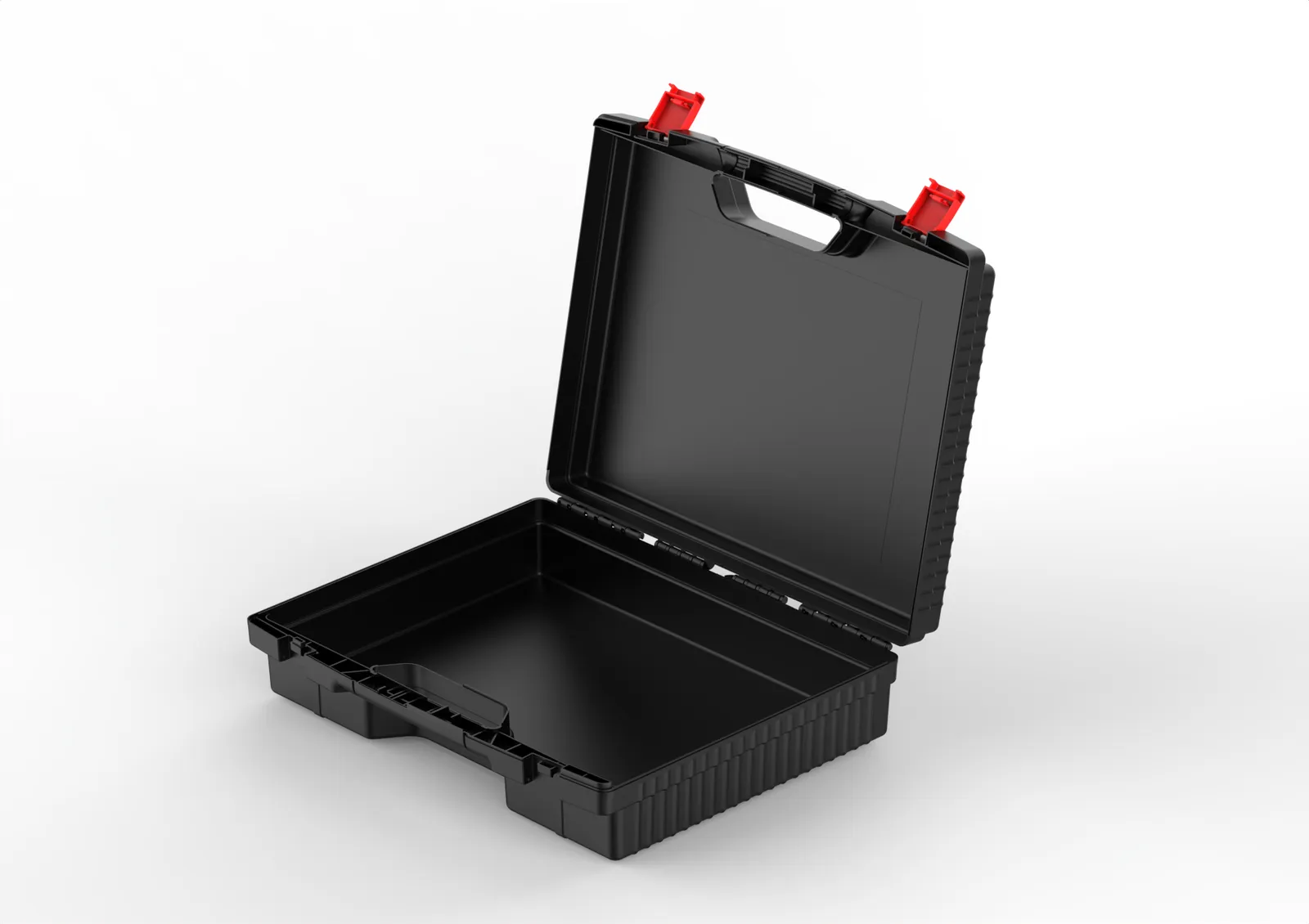

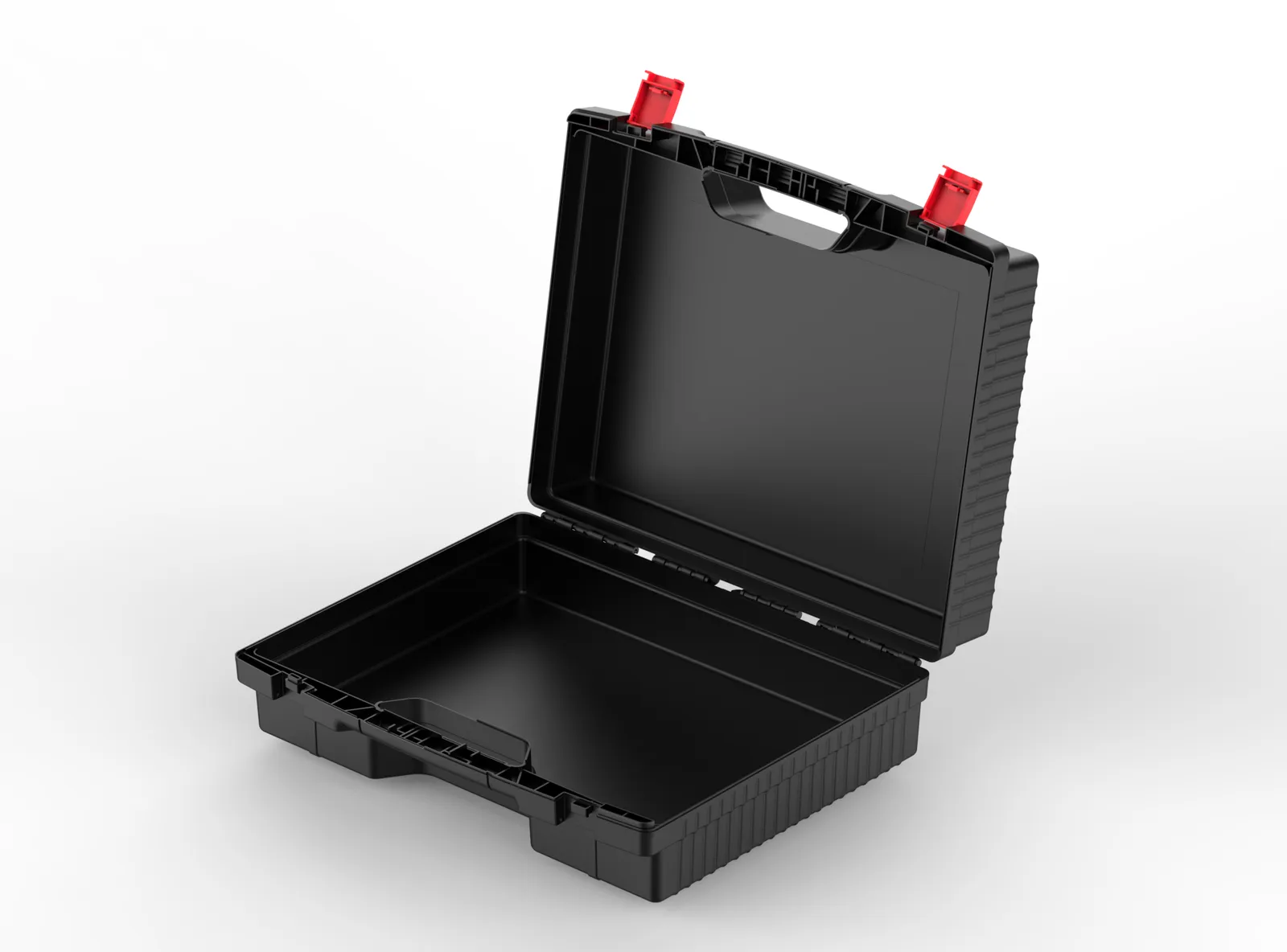

The lid and base depth figures describe the internal depth of each half, and this model uses an asymmetric 45 mm and 75 mm split. The deeper side can hold taller or more three-dimensional items, while the shallower side suits a thin foam layer or retaining strip. Insert design should follow that split: place the equipment body and its support on the deeper side and use thinner cushioning on the shallow side to press the load down, avoiding a large void that lets contents shift during handling. If both faces need thick cushioning, consider the symmetrical WL1-4716 or send assembly drawings for a clearance check.

The WL1-4710 measures 102 mm outside and 90 mm inside, while the WL1-4713 measures 132 mm outside and 120 mm inside. The extra height allows taller parts to stand, accommodates handles and connectors, or permits foam above and below the equipment, and net weight rises from about 1370 g to about 1420 g. Size it by equipment height plus foam thickness: if a flat layout is enough, the 117A saves space, while the 117B is the better fit when items must stand or need cushioning on both faces. Length and width are identical, so transport and storage footprints stay the same.

At about 1420 g net, this is one of the heavier specifications in the 1 Series, and combined with a 2.5 mm wall and the large 308 mm narrowest opening it suits carrying and storing complete blade sets, medical instruments and longer tools. Remember that net weight excludes inserts, accessories and packaging, so shipped gross weight is higher; if several people carry cases by hand frequently, consider adding a handle accessory or switching to pallet handling for full cartons. Where gross weight, stacking height or transport mode is specified, provide the figures and conditions so the factory can calculate them with the packing plan.

Provide four items: first, the model and code 117B so the factory can match it internally; second, the assembled outline and per-case weight of the contents; third, quantity, packaging requirements and delivery point for logistics and carton planning; and fourth, whether custom colour, logo or EVA and EPE inserts are needed. Kexin New Materials (Guangdong) Co., Ltd. supplies factory-direct from Zhongshan with OEM/ODM wholesale support. MOQ, sampling lead time and price vary with the customisation scope, and the export data lists no fixed values, so the factory response for your specific programme is the reference.
