Can I treat the litre rating of a Large rolling plastic storage box as capacity?

Answer: No. It follows the outer envelope, so real volume lands at 85 to 88 percent. Multiply the cavity yourself.

Do more wheels mean less effort?

Answer: No. Four wheels are stable and six only help on a long body; diameter clears thresholds, count does not.

Will a full box collapse at the bottom of a stack?

Answer: Judge sag, not survival. Five units at 60 kg for 24 hours with recovery inside 1 mm is safe.

Is a gasket necessary?

Answer: In dry rooms it can be skipped. Garages above 70 percent humidity let cartons go soft within three months without a lip.

Can a pull handle survive daily use?

Answer: One trip a day is 250 a year, so 3000 cycles covers a decade. Failures start at the detent, so check play every two years.

How to Choose a Large Rolling Plastic Storage Box

Quick answer: Judge a Large rolling plastic storage box on usable volume, wheel load, wall thickness, lid seal and spare-part cost. Trust the inner cavity over the litre figure, pair 120 litres with 50 mm wheels and 160 litres with 75 mm wheels, allow 40 kg per wheel at an 80 kg load, and cap lid sag at 3 mm after 24 hours under five stacked units.

Sizing a Large Rolling Plastic Storage Box
Wheels, Casters and Pull Handle Load
Wall Thickness and Stacking Load
Lid Gap, Gasket and Moisture Control
Handling Routes and Whole Life Cost
FAQ

1. Sizing a Large Rolling Plastic Storage Box

The litre rating is the weakest number on the sheet. A Large rolling plastic storage box is quoted on its outer envelope, wheel pockets and lid recess included, so a 160 litre body often holds 135 to 142 litres. Measure the cavity instead.

Draw the large line at 100 litres: below it a carry handle is easier, above it a full load passes 40 kg. The 120 and 160 litre sizes dominate, with cavities near 560×390×350 mm and 620×440×420 mm.

Size	Cavity	Wheels	Load	Use
60 L	460×320×280 mm	40 mm	25 kg	Home
120 L	560×390×350 mm	50 mm	60 kg	Stockroom
160 L	620×440×420 mm	75 mm	80 kg	Warehouse
200 L	700×480×450 mm	75 mm	100 kg	Returns

2. Wheels, Casters and Pull Handle Load

Wheel diameter decides what the box clears: 50 mm takes a 10 mm threshold and 75 mm a 20 mm step. At an 80 kg load, rate each wheel at 40 kg static and 25 kg dynamic.

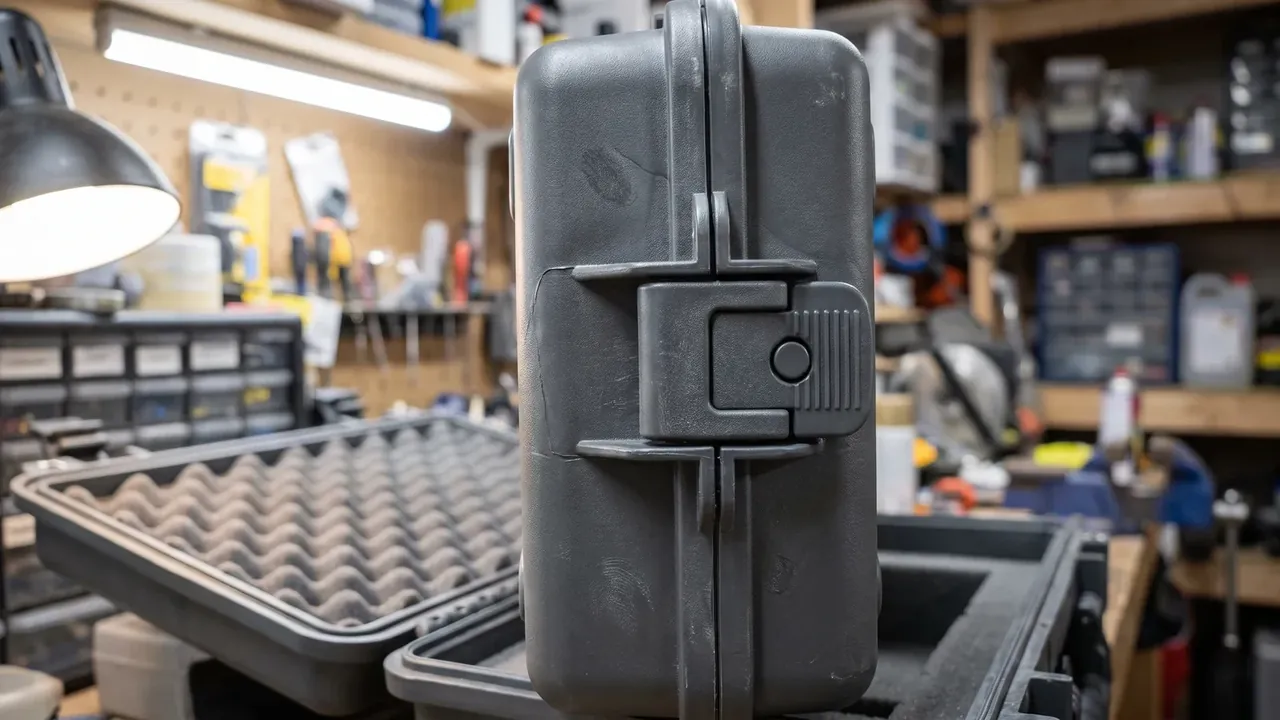

Large rolling plastic storage box: black case upright on a workbench, one latch across the seam, open halves with egg-crate foam, pegboard behind

Polypropylene is hard and noisy on tile, rubber runs quiet but wears on concrete, nylon carries the most load. Mixed routes want 75 mm rubber. On the handle, a 1.2 mm tube wall is the floor, and a 3000-cycle report is what to request.

3. Wall Thickness and Stacking Load

Read thickness by location on a Large rolling plastic storage box: 2.6 to 3.0 mm on the sides, 3.2 to 3.6 mm on the base, 2.4 to 2.8 mm on the lid. The base carries the stack, so it must be the thickest section.

Five units at 60 kg put 240 kg on the bottom box. The verdict is movement, not survival: no more than 3 mm of lid sag over 24 hours, and recovery to within 1 mm an hour after unloading. Ribs at 120 mm centres are about thirty percent stiffer than at 180 mm, and base ribs should meet above the wheel mounts.

4. Lid Gap, Gasket and Moisture Control

The lid lip sets the moisture floor. An 8 mm lip with four latches, held at 80 percent humidity for 30 days, keeps cargo moisture gain under 0.5 points; a 3 to 4 mm lip doubles it.

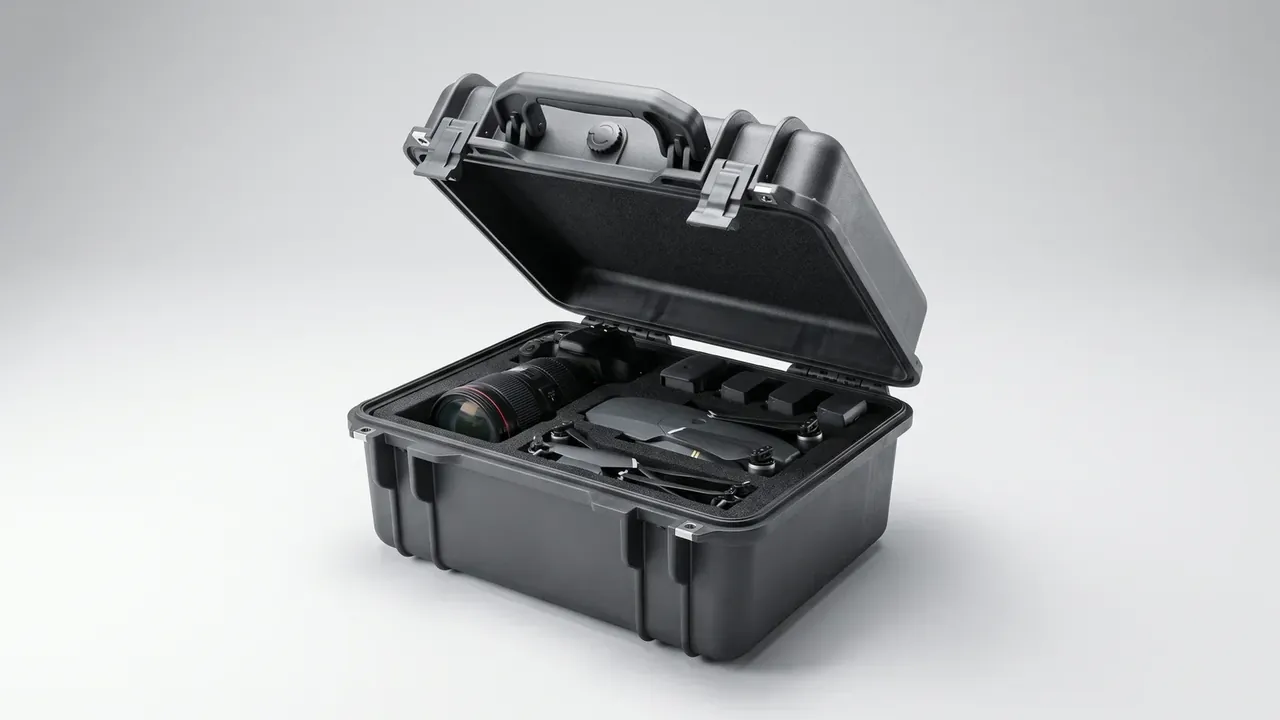

Large rolling plastic storage box: black case open on a white backdrop, two metal latches, foam tray cut for a camera and lens

EPDM stays elastic at −10 °C and suits garages, while polyurethane seals softer but takes a set. A gasket trapped in a lid channel beats tape on the rim, which lifts in summer heat. Keep the lid gap at 0.6 to 1.0 mm: wider fatigues the latch ears, tighter crushes the gasket flat.

5. Handling Routes and Whole Life Cost

Measure the lift door, threshold and ramp before ordering. An 800 mm door turns a 620 mm wide body, a threshold over 15 mm calls for 75 mm wheels, and a ramp past 8 degrees needs a braked handle.

Wheels, handle and latches on a Large rolling plastic storage box should be replaceable, and a wheel set runs 12 to 18 percent of the unit price. Over five years with wheels changed every two, a serviceable design saves about thirty percent.

Point	Pass line	Mistake
Volume	≥85% of rating	Outer dimensions quoted
Wheels	25% of load each	One figure per box
Wall	Base 0.5 mm thicker	Single thickness
Seal	Lip ≥6 mm	Tape, not a channel

Conclusion

Five numbers settle a Large rolling plastic storage box: usable volume, static load per wheel, base thickness, lip depth and the share of replaceable parts. Fix them and quotes become comparable, with no gap between a 160 litre label and 120 litres of cargo. Measure the cavity, settle the wheel diameter, then confirm stack and seal before ordering a Large rolling plastic storage box.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
