Is MIL-STD-810H a certification?

No. It is a U.S. Department of Defense test methodology. There is no official 810H certificate issued by the military; a product is tested against selected methods by a laboratory, and the result is a test report. Any claim should be backed by a report stating which methods and procedures were used.

What is the Method 516.8 transit drop test?

Procedure IV of Method 516.8 simulates handling during shipping: the item, inside its transit case, is dropped 26 times — on each face, edge, and corner — from a specified height, typically 48 inches for logistic transport configurations, onto a defined impact surface.

What is the difference between MIL-STD-810H and an IP rating?

They measure different things. MIL-STD-810H covers mechanical and climatic stresses such as shock, vibration, and temperature; IP ratings (IEC 60529) cover only dust and water ingress. A rugged case may be tested against both.

Does military grade mean indestructible?

No. Military grade only means a product passed specific test procedures under specific configurations. Which methods, at what severity, and on how many samples — those details define the real meaning, which is why the underlying test report matters more than the label.

Which 810H methods matter most for protective cases?

Method 516.8 (shock, including transit drop), Method 514.8 (vibration), Methods 501.7/502.7 (high and low temperature), Method 507.6 (humidity), Method 510.7 (sand and dust), and Method 506.6 (rain) are the ones most commonly applied to transport cases.

MIL-STD-810H Explained: Method 516.8 Transit Drop Test

MIL-STD-810H is a U.S. Department of Defense standard that defines laboratory test methods for environmental stresses — shock, vibration, extreme temperatures, humidity, sand, dust, and rain. For protective cases, the most cited part is Method 516.8 (Shock), whose Procedure IV, the transit drop test, drops a packed case 26 times to simulate shipping and handling abuse.

A Test Methodology, Not a Certificate

The first thing to understand is what 810H is not. It is not a certification program and no government body issues an 810H badge. The standard is built around tailoring: the test plan is supposed to be selected and adjusted to match the product's real life-cycle stresses. A meaningful claim therefore always names the method, the procedure, and the severity — for example, Method 516.8, Procedure IV, at a 48-inch drop height.

The 810H Methods Most Relevant to Protective Cases

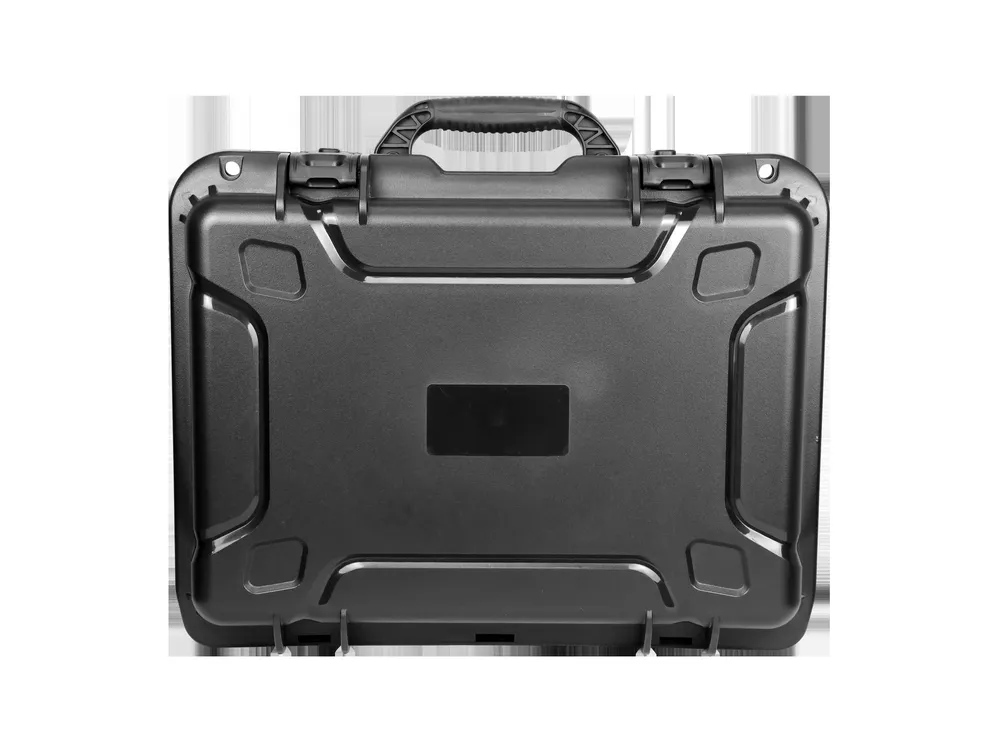

Heavy-duty protective case with reinforced corners and pressure equalization valve — Shock, vibration and rain testing all target the same weak points: corners, latches and the seal.

Method	Title	What it simulates for a case
516.8	Shock	Drops, impacts, and rough handling; Procedure IV is the transit drop
514.8	Vibration	Truck, aircraft, and ship transport vibration
501.7 / 502.7	High / Low Temperature	Desert heat, arctic cold, and storage extremes
507.6	Humidity	Tropical and condensation-prone environments
510.7	Sand and Dust	Wind-blown desert conditions
506.6	Rain	Driving rain and water spray on sealed enclosures

Inside Method 516.8 Procedure IV: The Transit Drop

Procedure IV is designed for items shipped in their transit or storage cases. The loaded case is dropped onto a specified hard surface 26 times — once on each face, edge, and corner — so that every structural weak point takes a hit. For logistic configurations the typical height is 48 inches; tactical configurations use more severe conditions, including drops onto steel plate over concrete. After the sequence, the case must still protect its contents and function as intended.

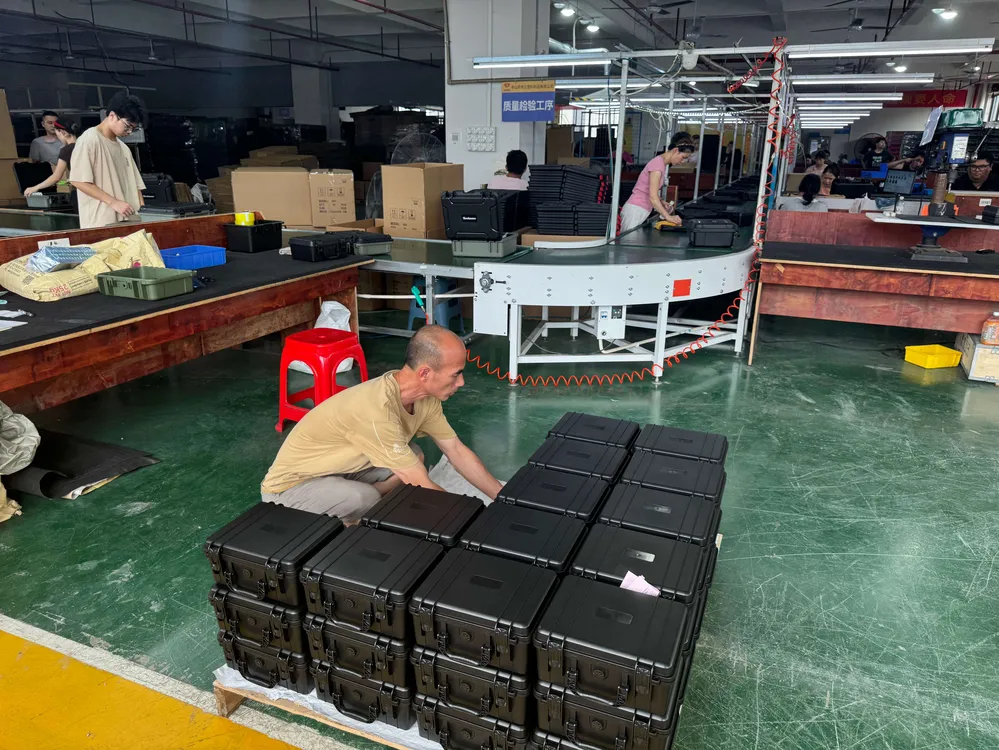

Military protective case production workshop — A test claim is only as good as the report behind it — always ask which methods and severities were used.

How to Read a Military Grade Claim

Ask which methods and procedures were tested — shock only, or also vibration, temperature, and rain
Ask for the severity: drop height, temperature range, duration
Ask who tested it: an independent laboratory report carries more weight than an internal statement
Remember the tailoring principle: a claim without a stated configuration tells you very little

How This Relates to IP Ratings

810H and IP ratings answer different questions. A case can survive 26 drops (mechanical robustness) and still leak dust if its seal is poor — and a perfectly sealed IP67 box can crack on impact if its shell is weak. Serious field equipment needs both perspectives, which is why buyers of rugged cases typically ask for IP test reports alongside any drop-test evidence. You can read our companion guide What Is IP67 Rating? for the sealing side of the story.

JUNZHIJIA builds heavy-duty cases for demanding transport duty — see the 8 Series for gun, military, and camera equipment, or contact our team to discuss test requirements for your program.
