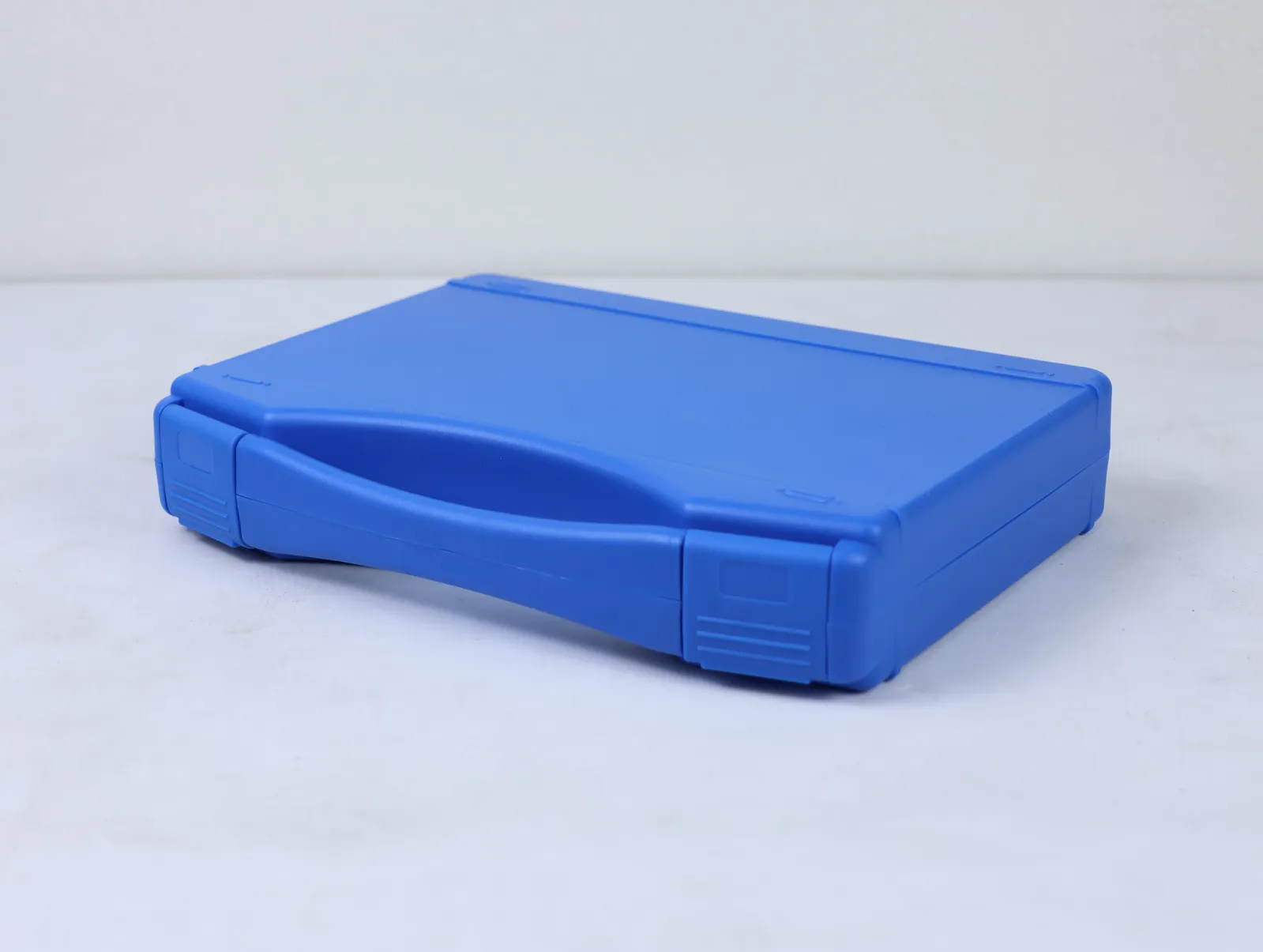

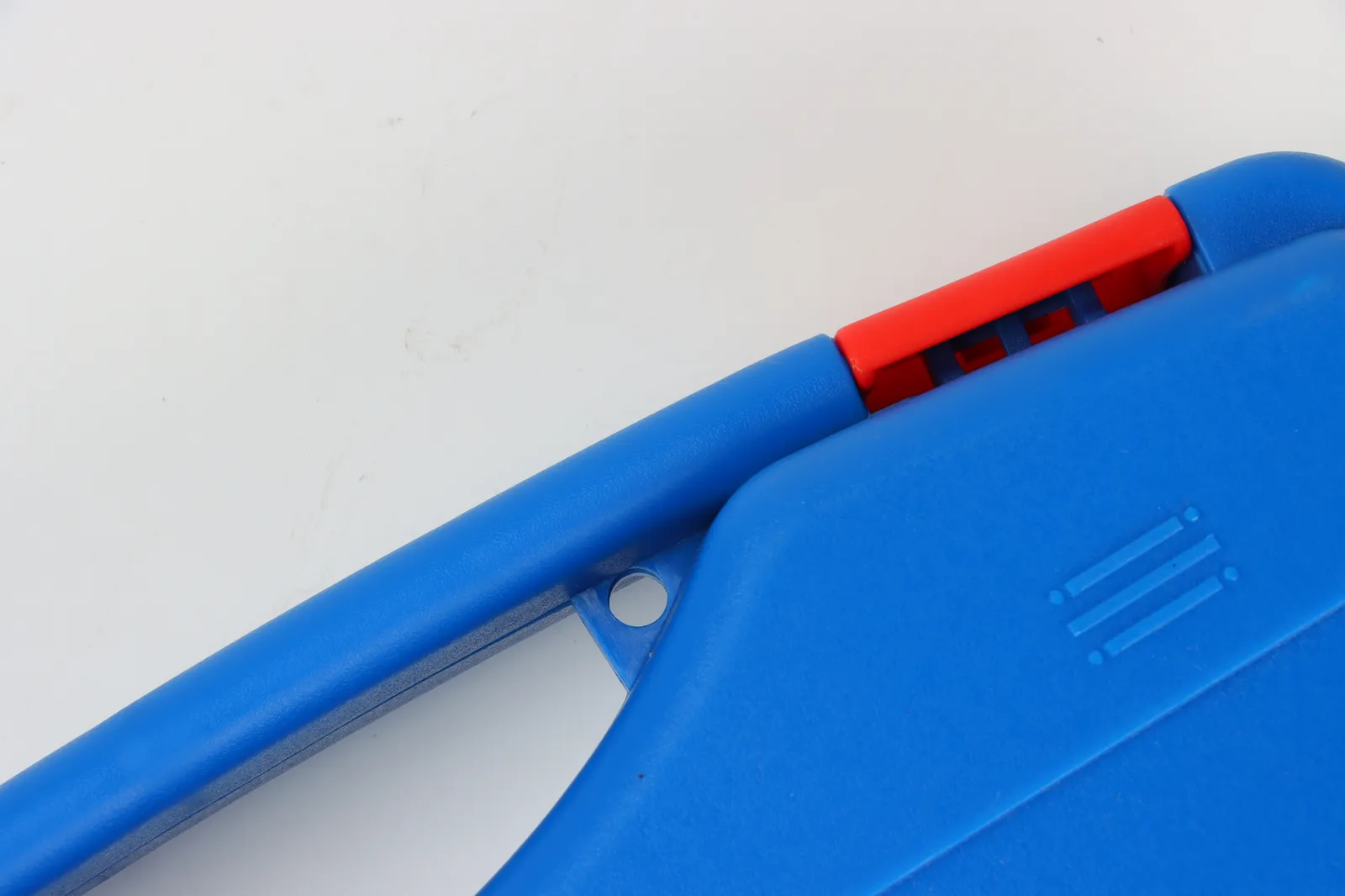

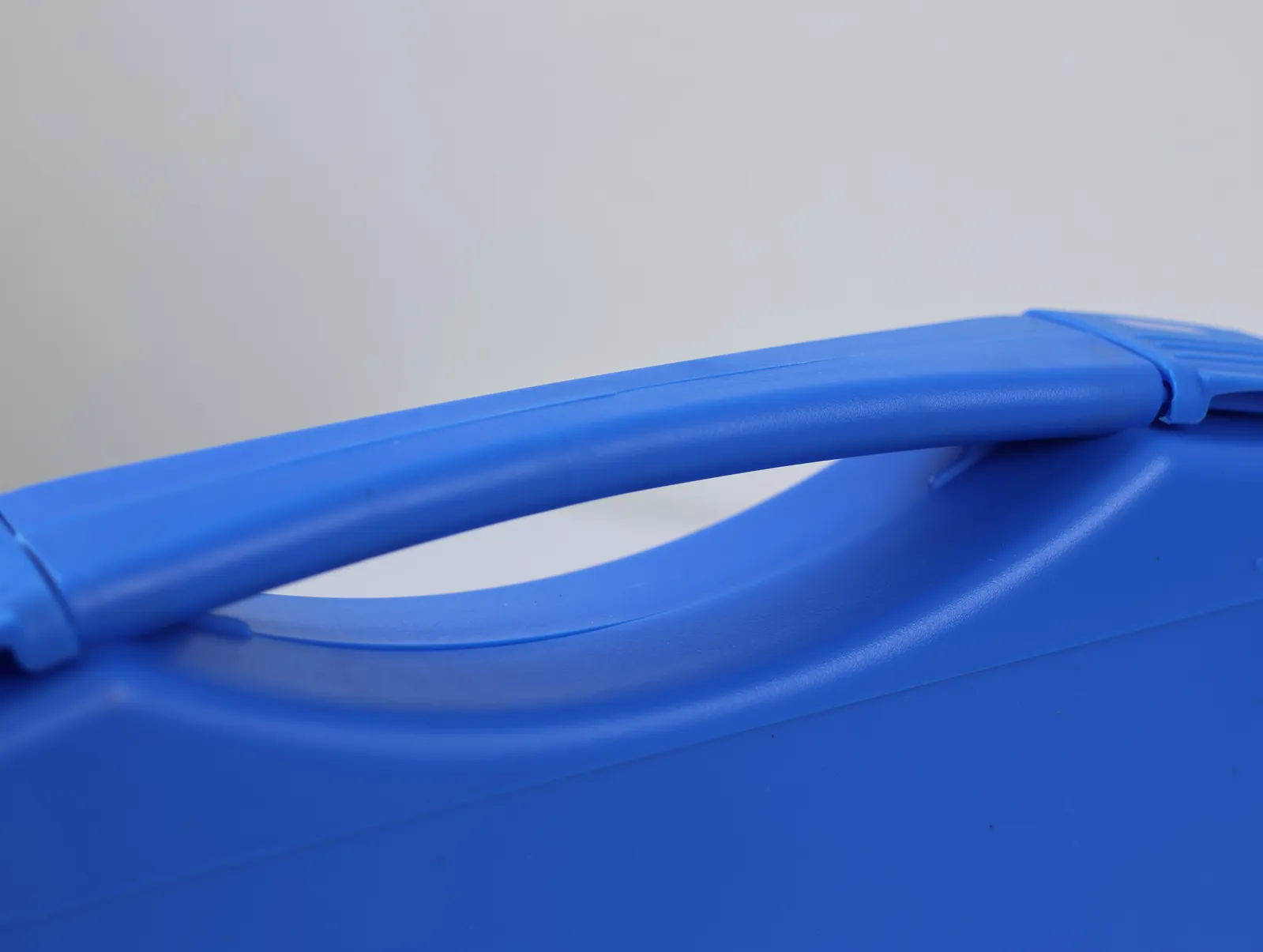

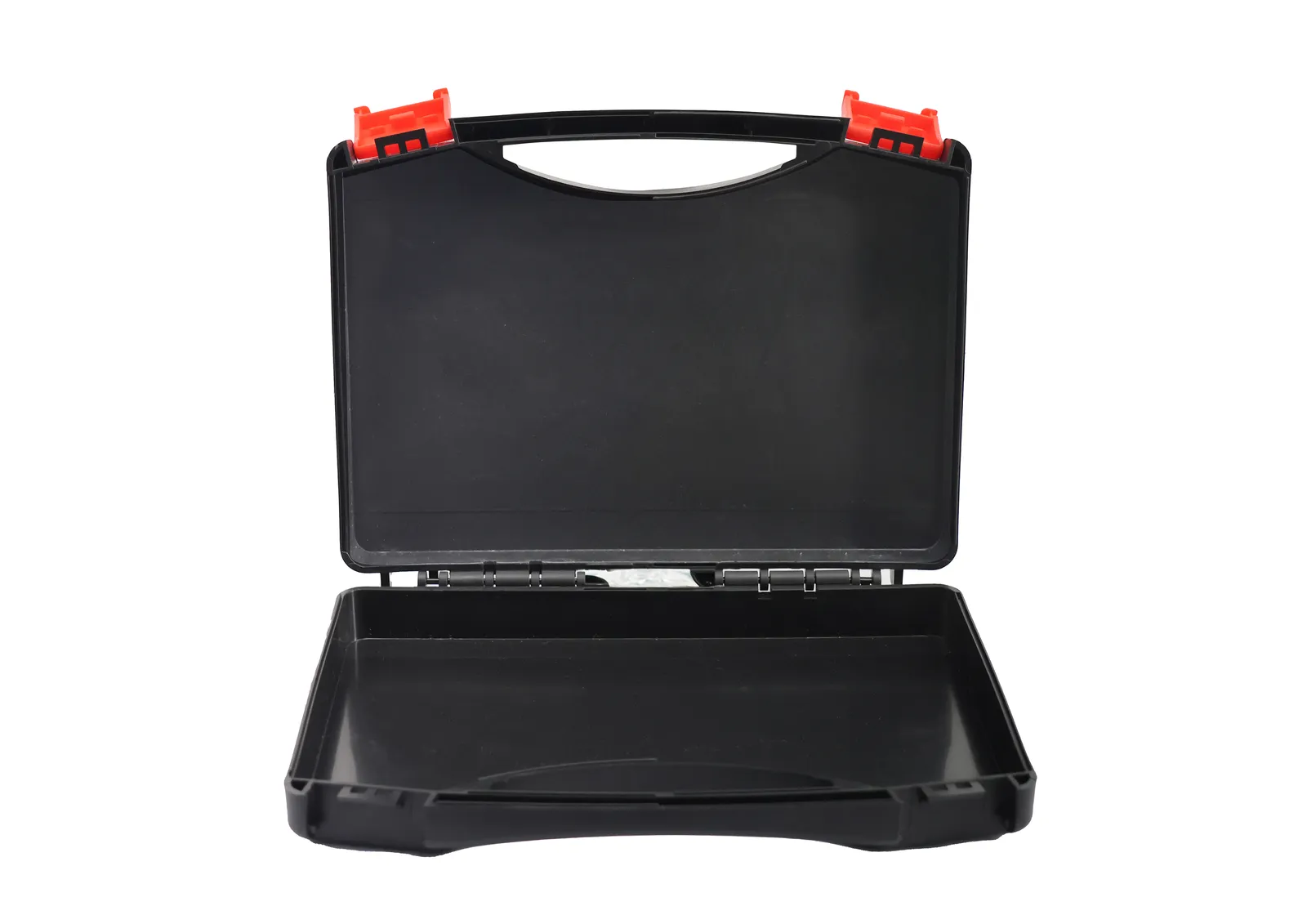

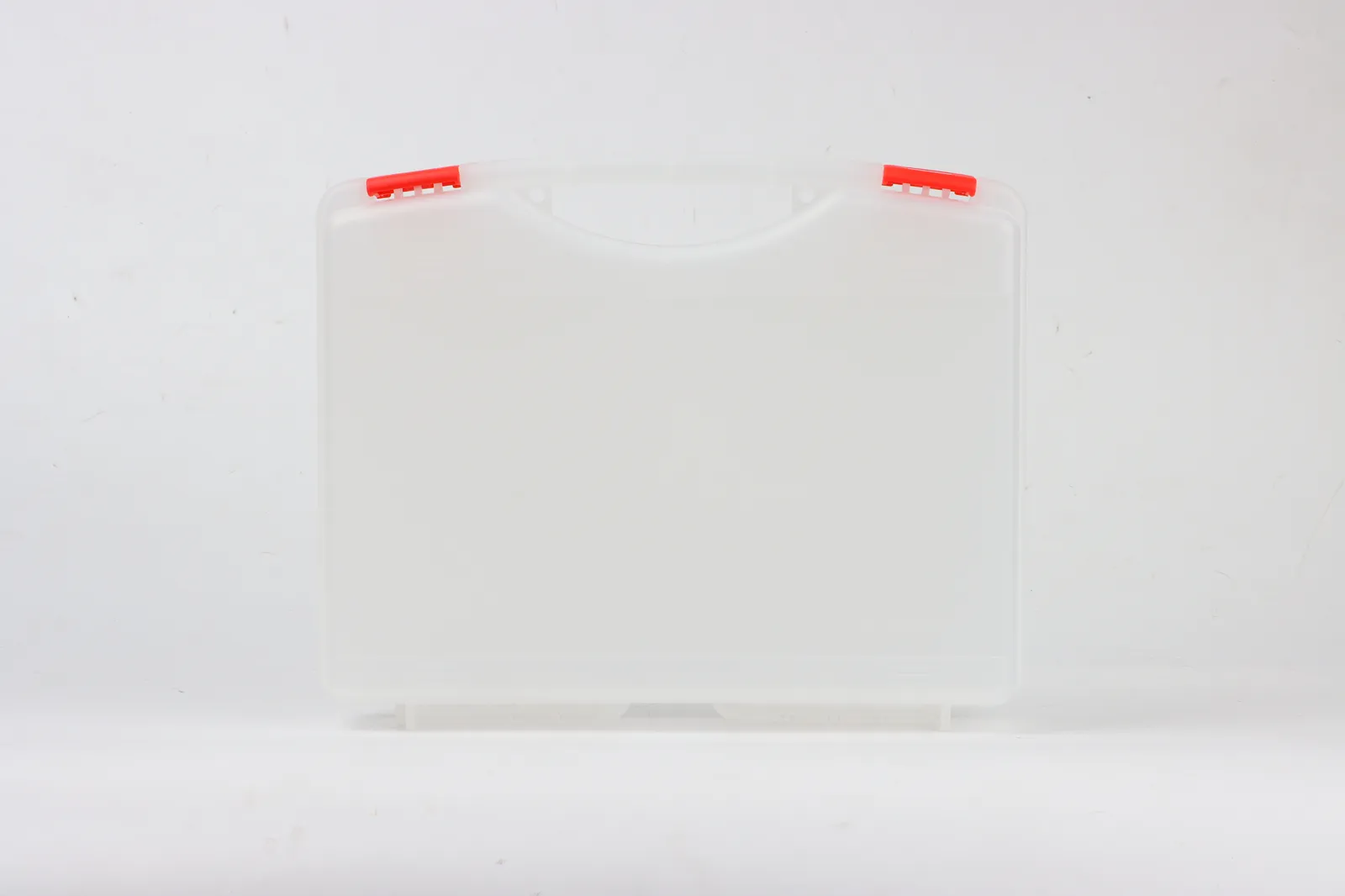

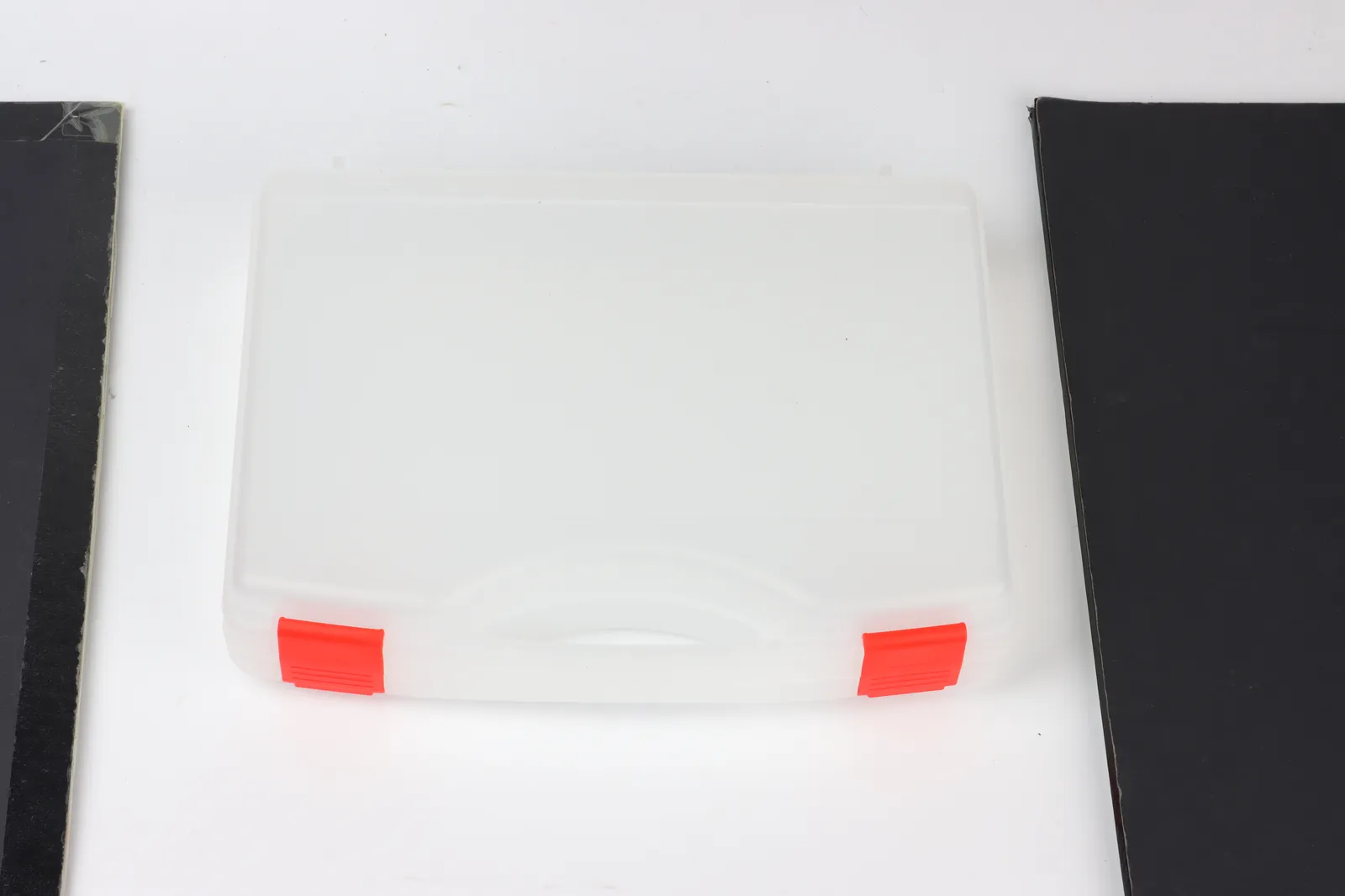

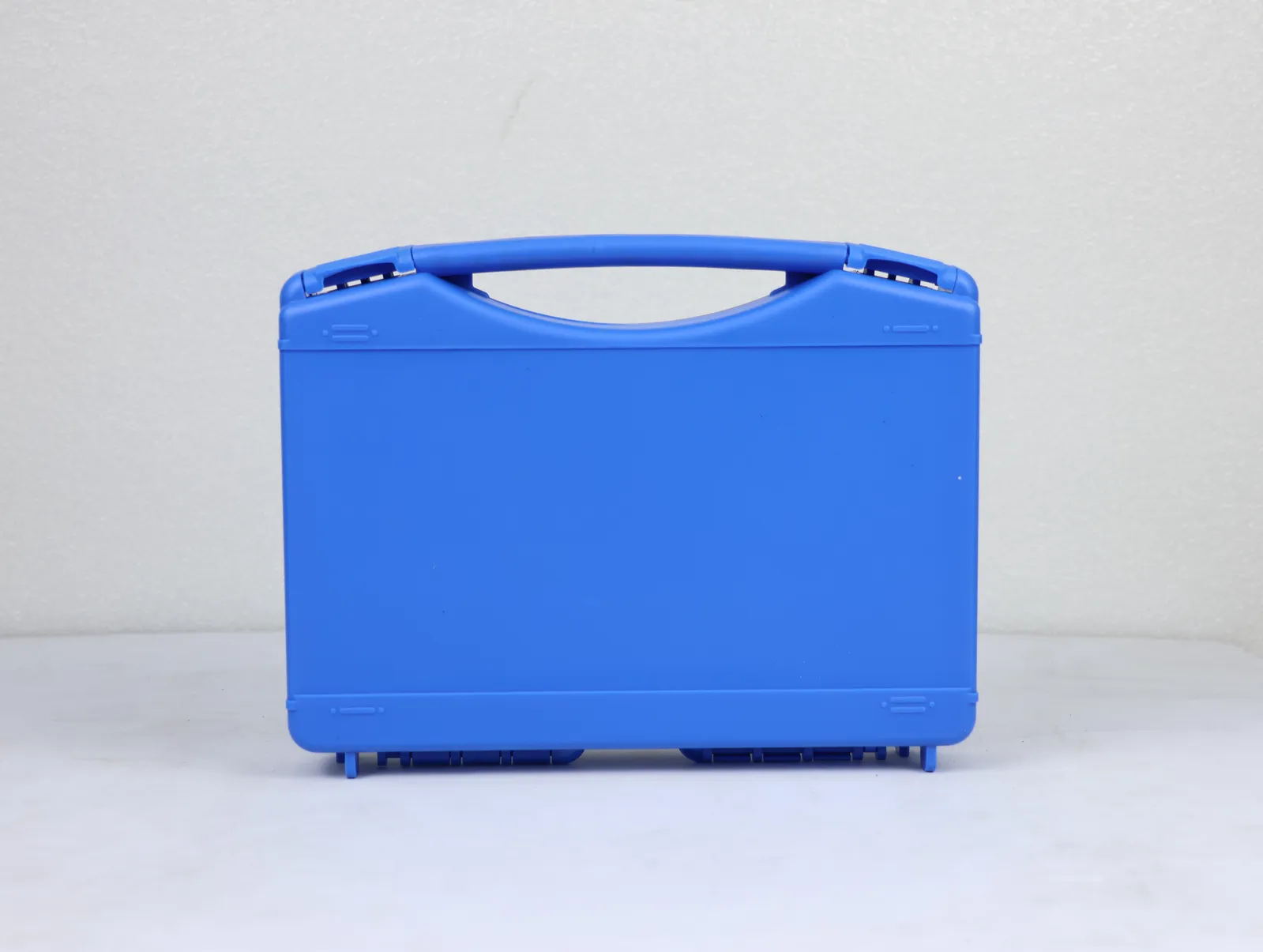

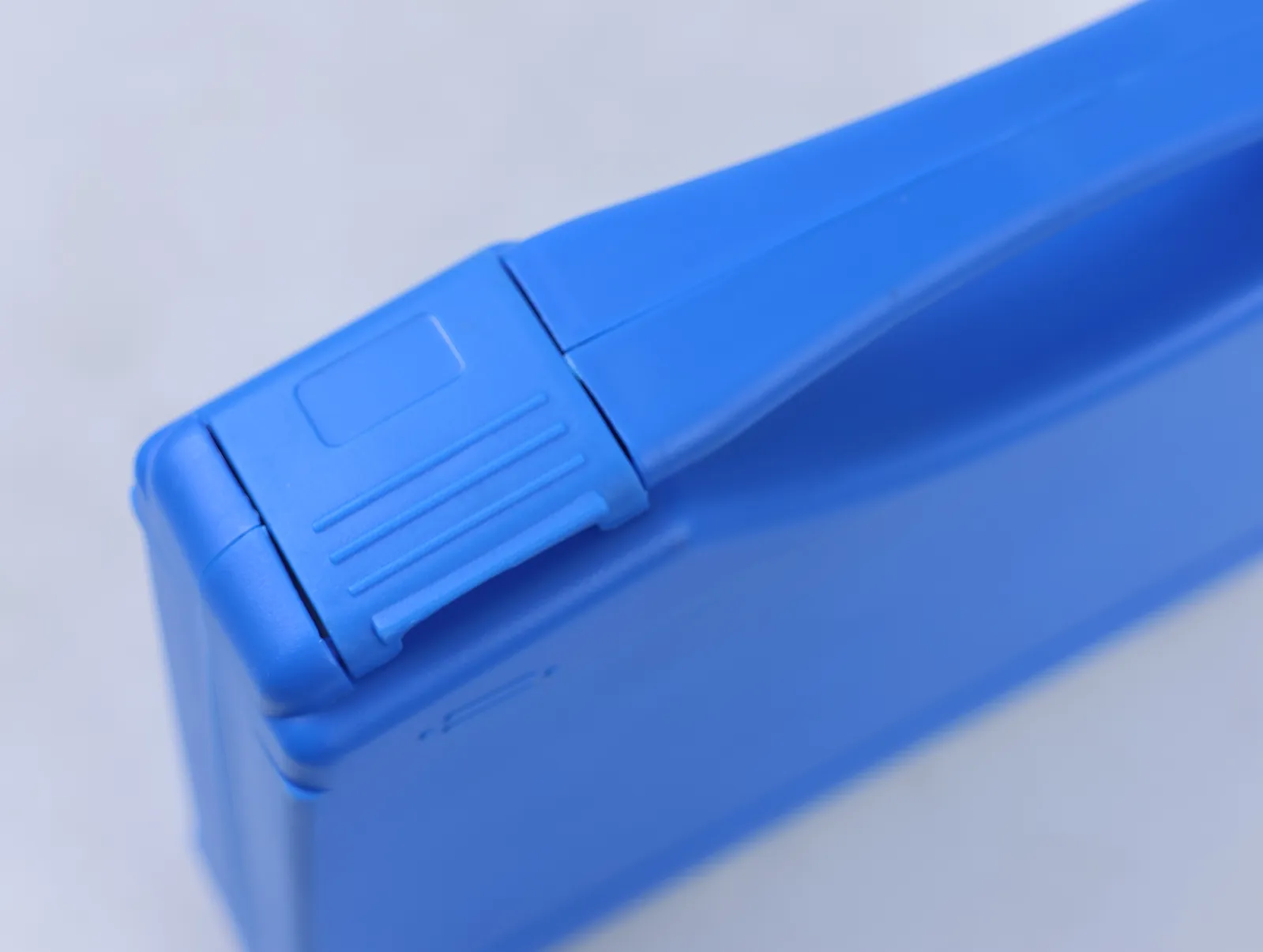

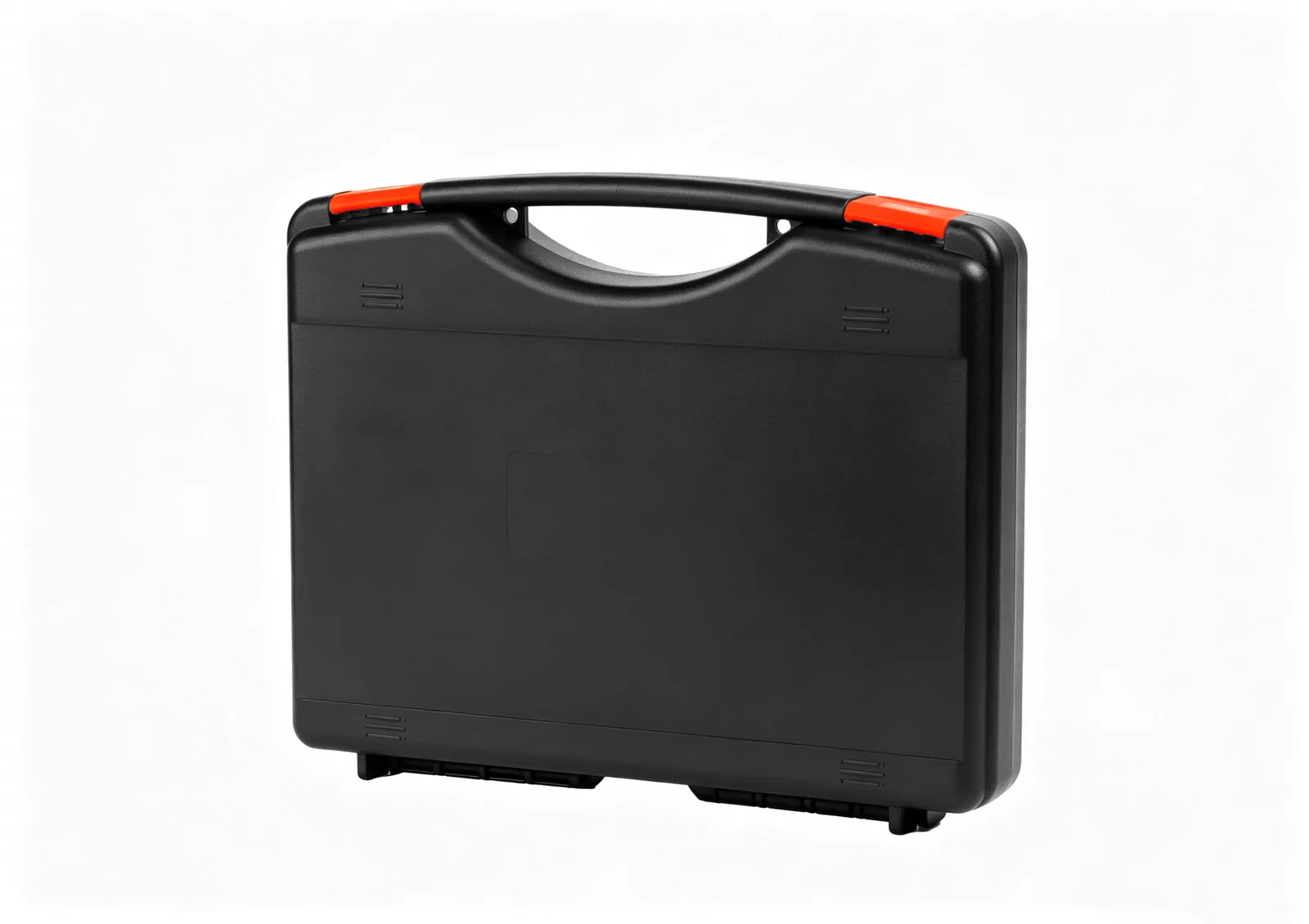

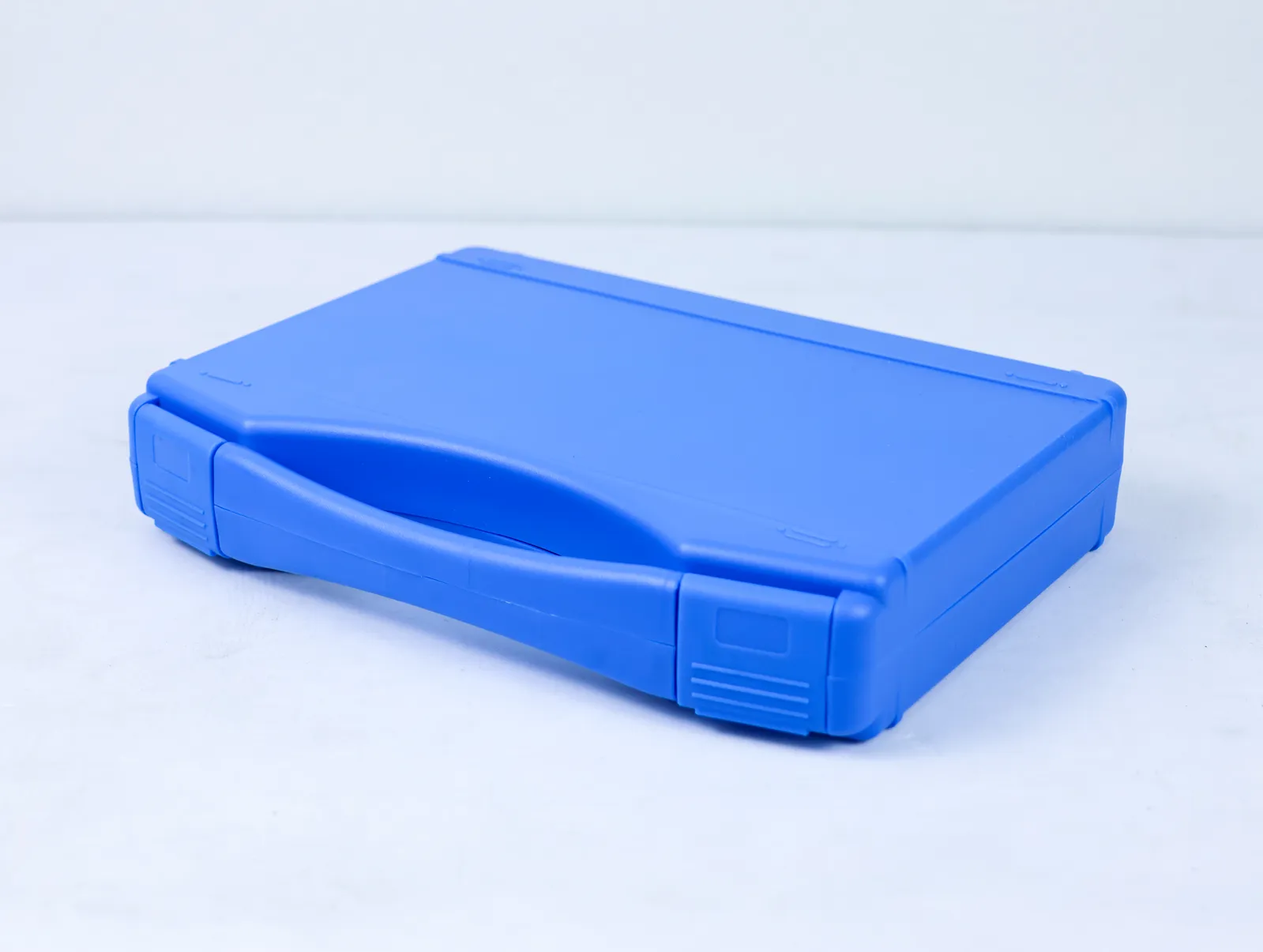

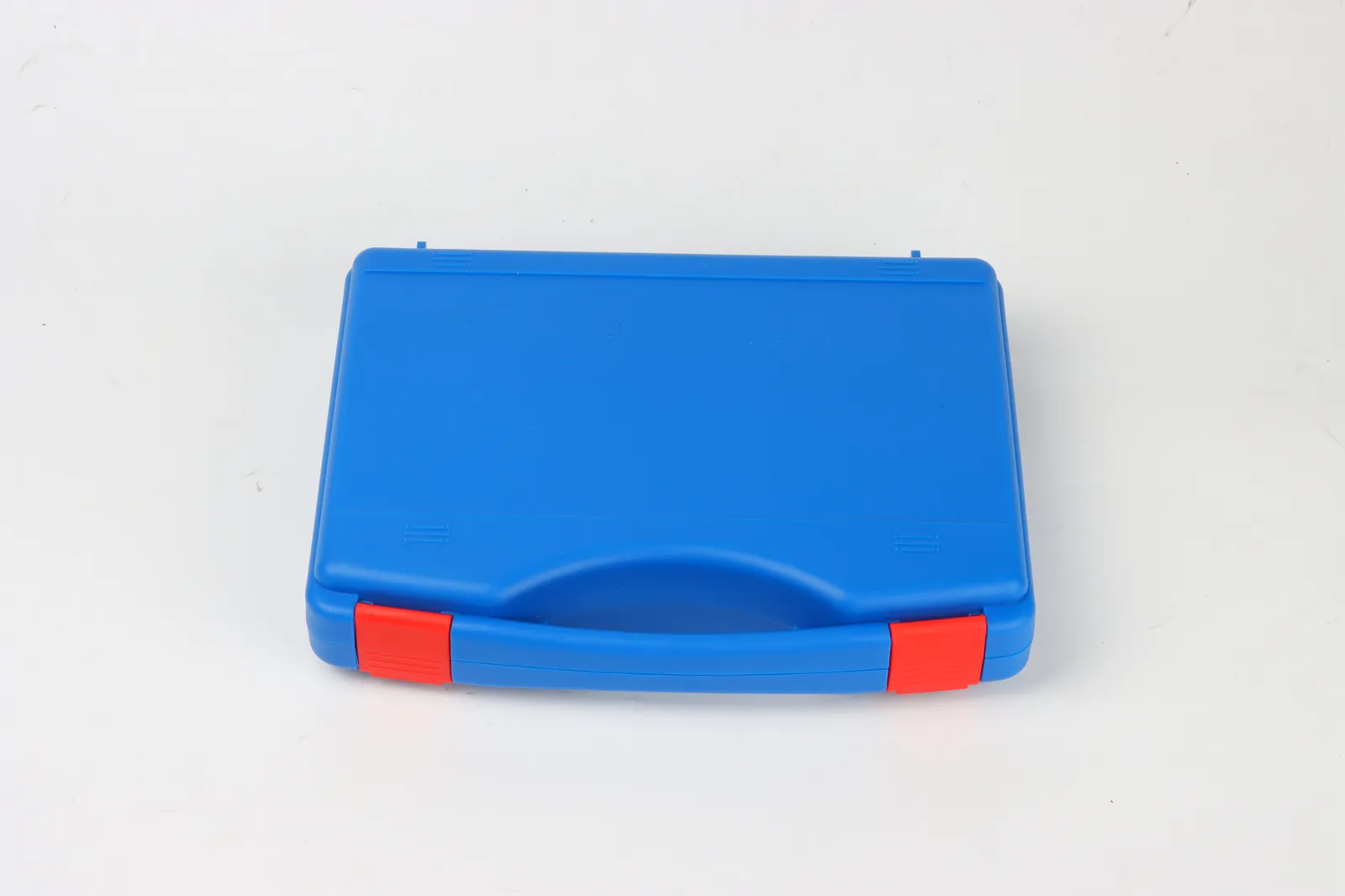

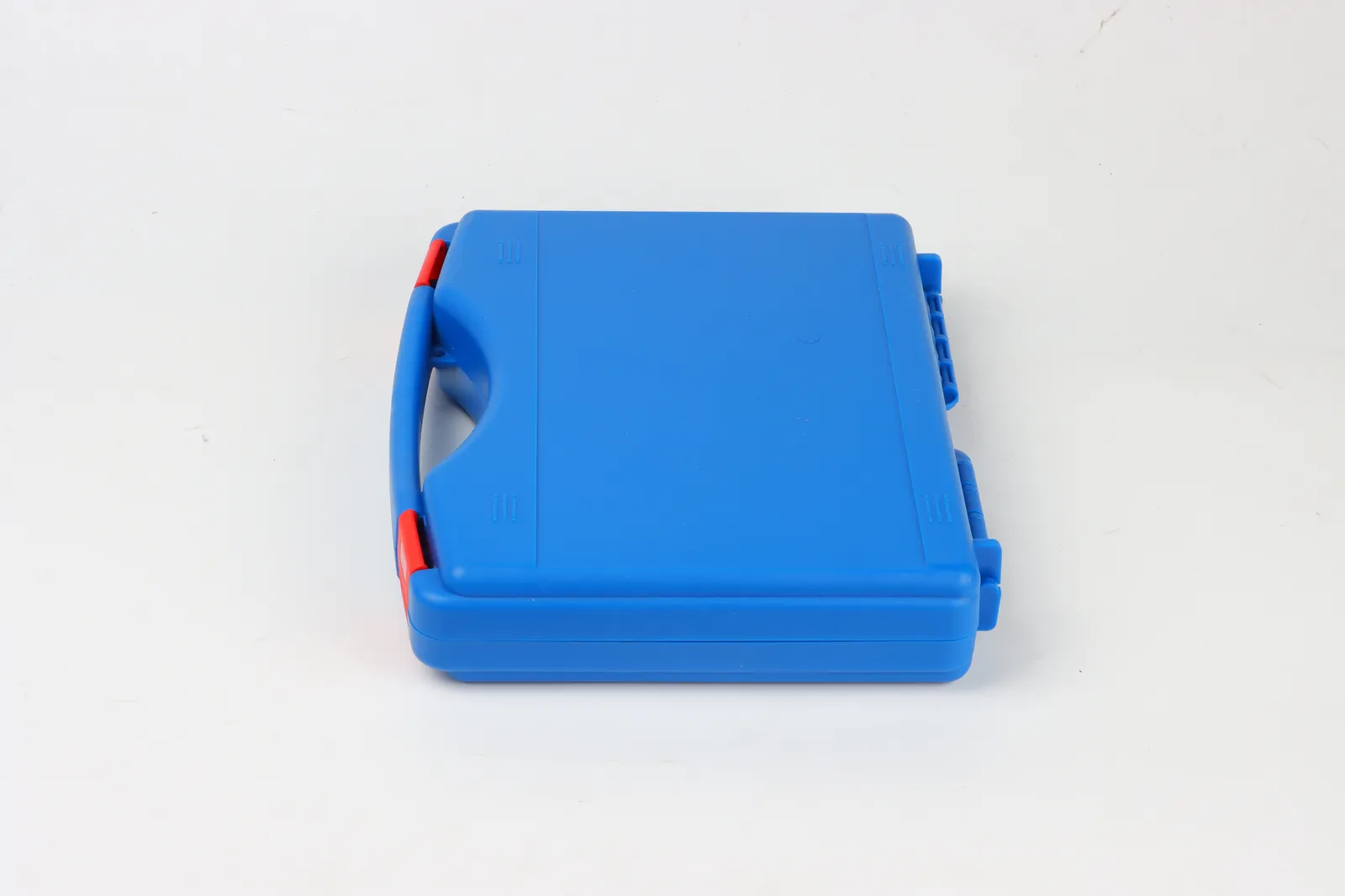

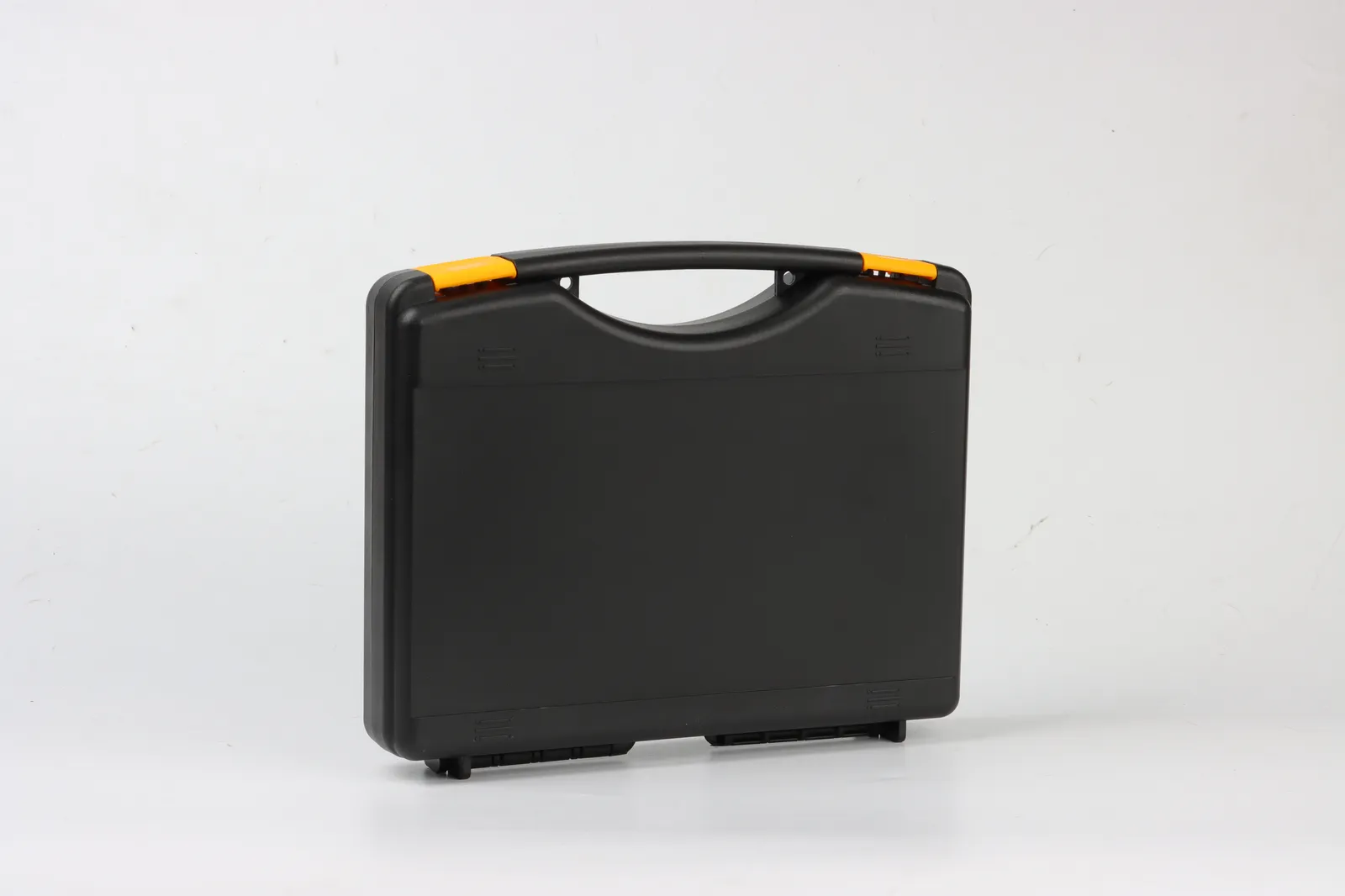

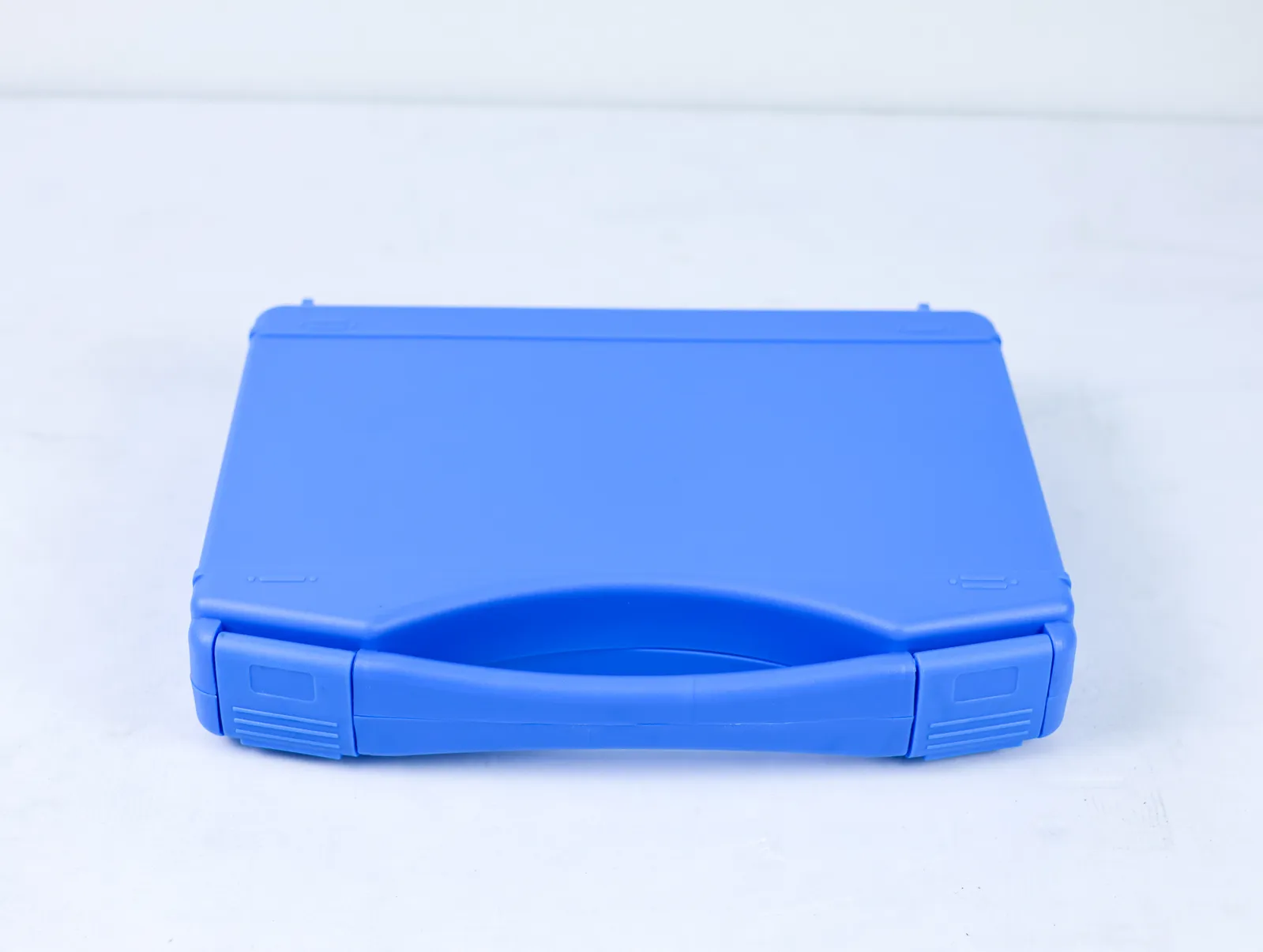

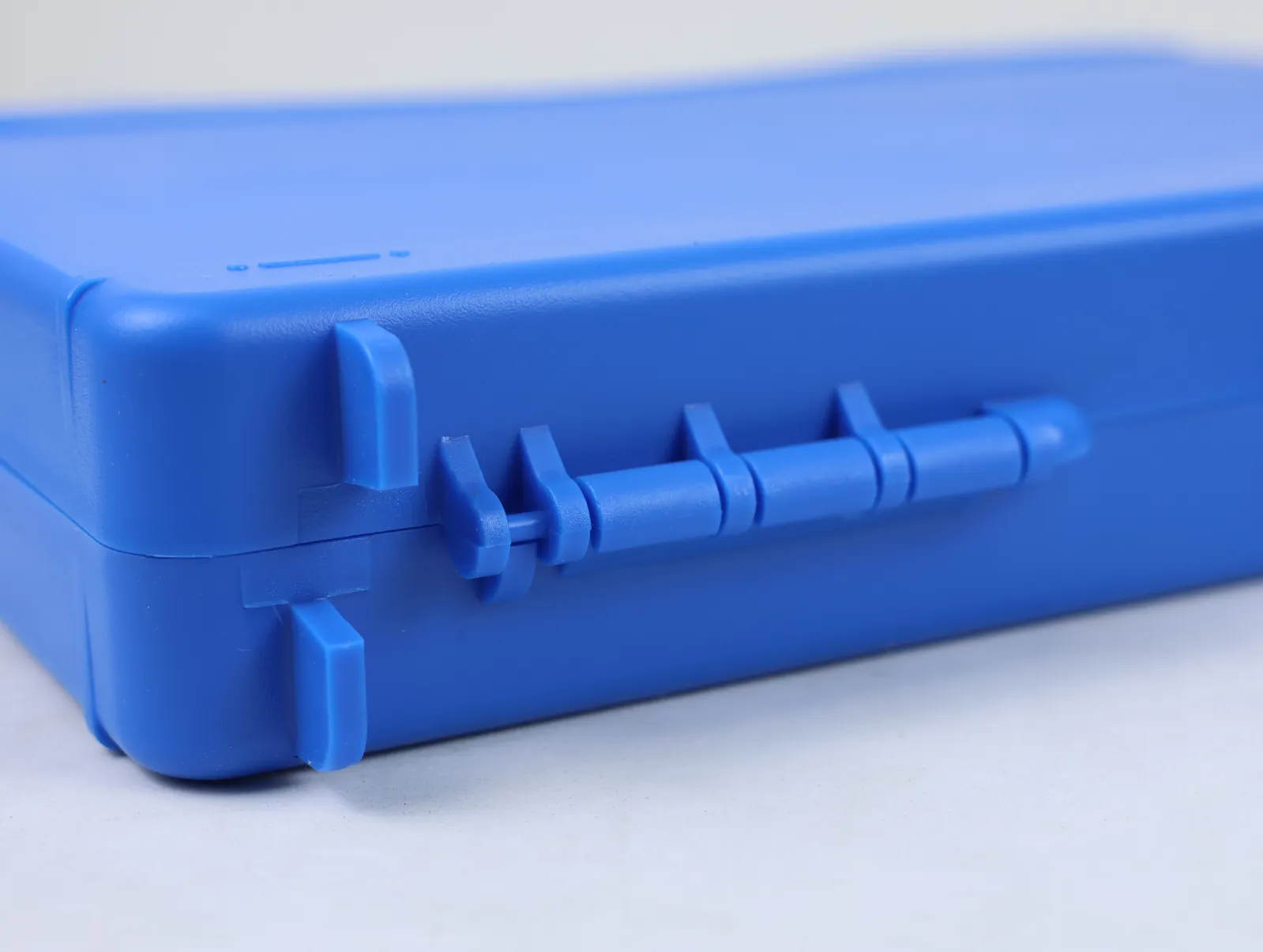

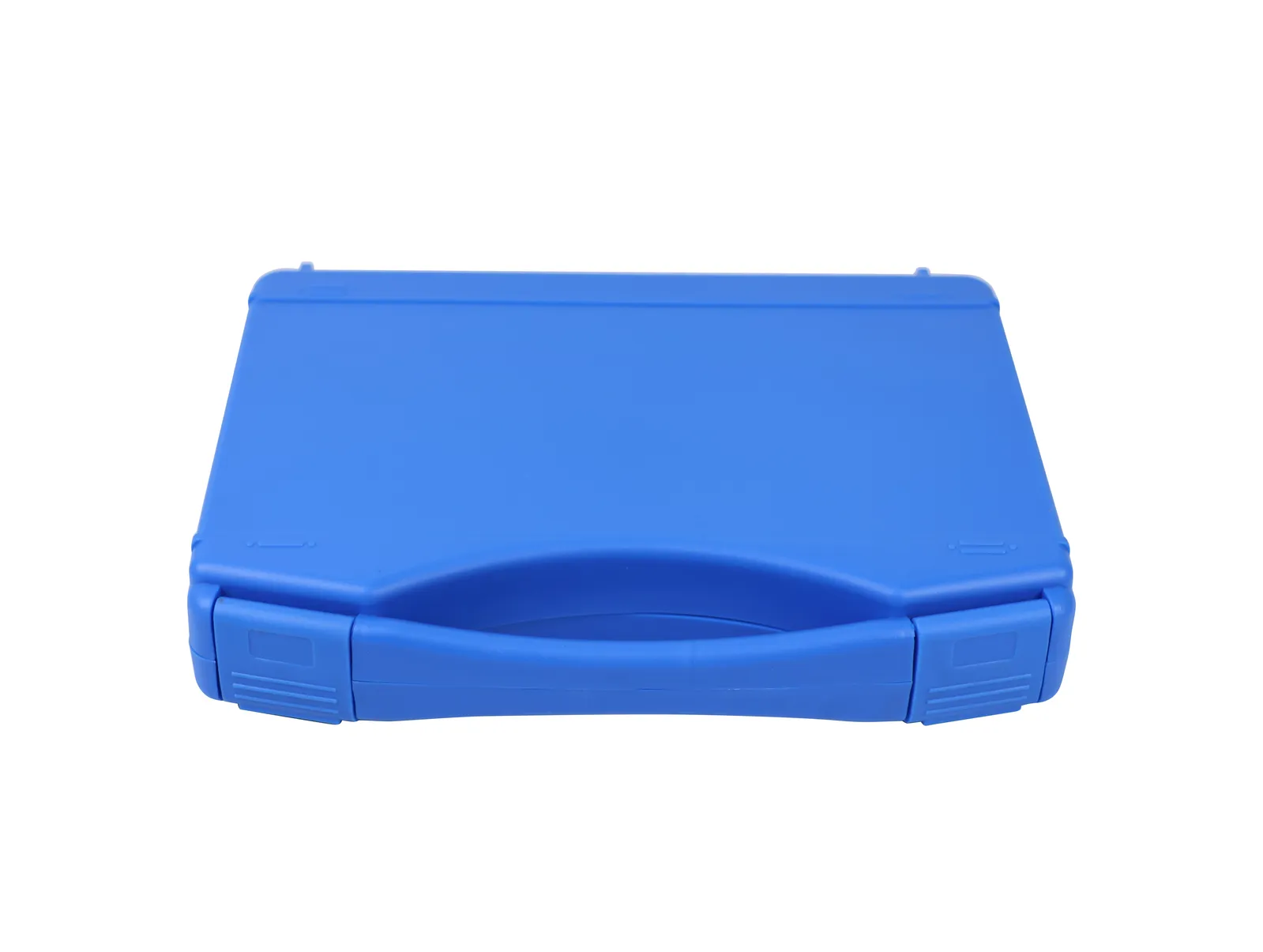

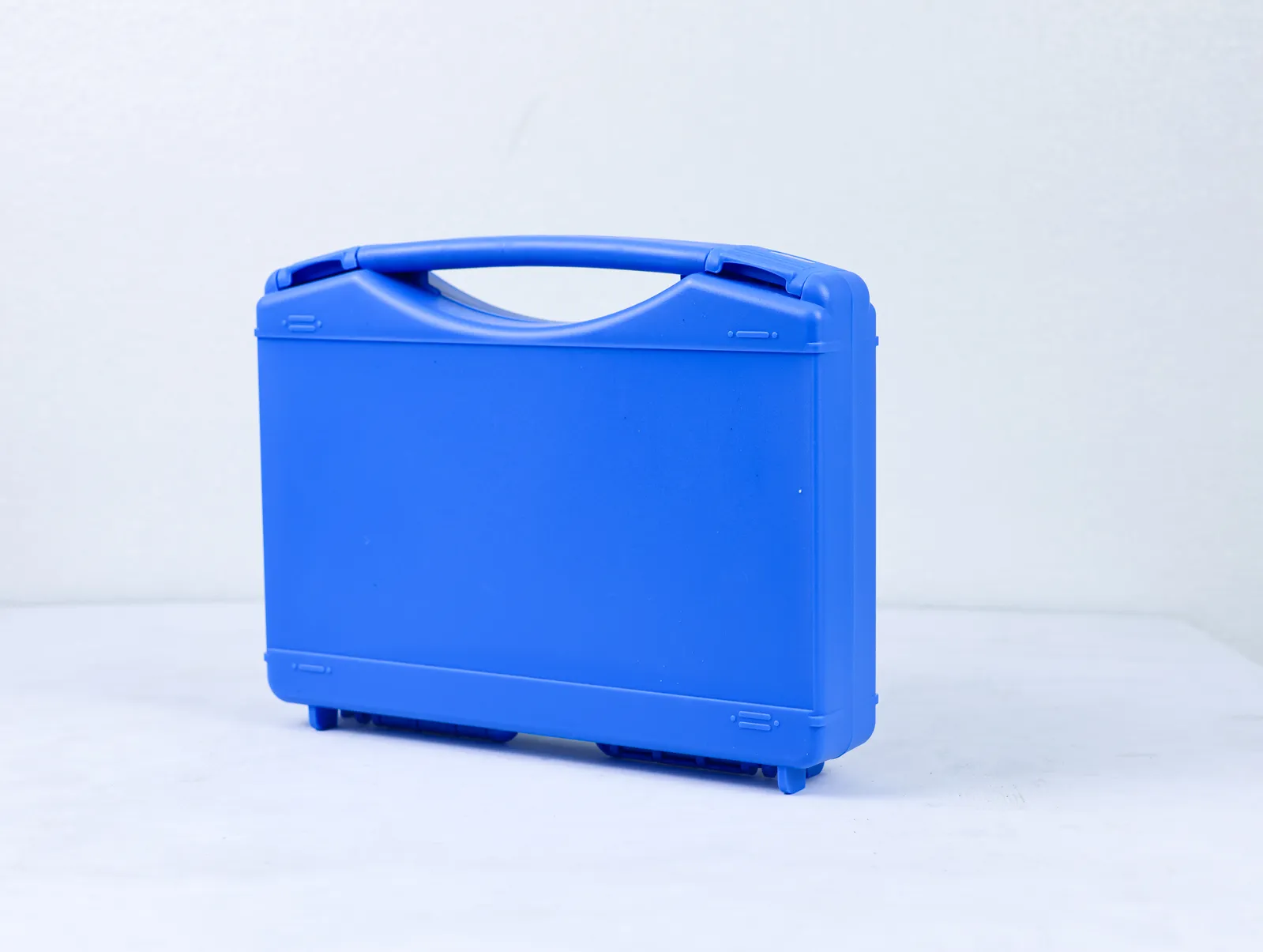

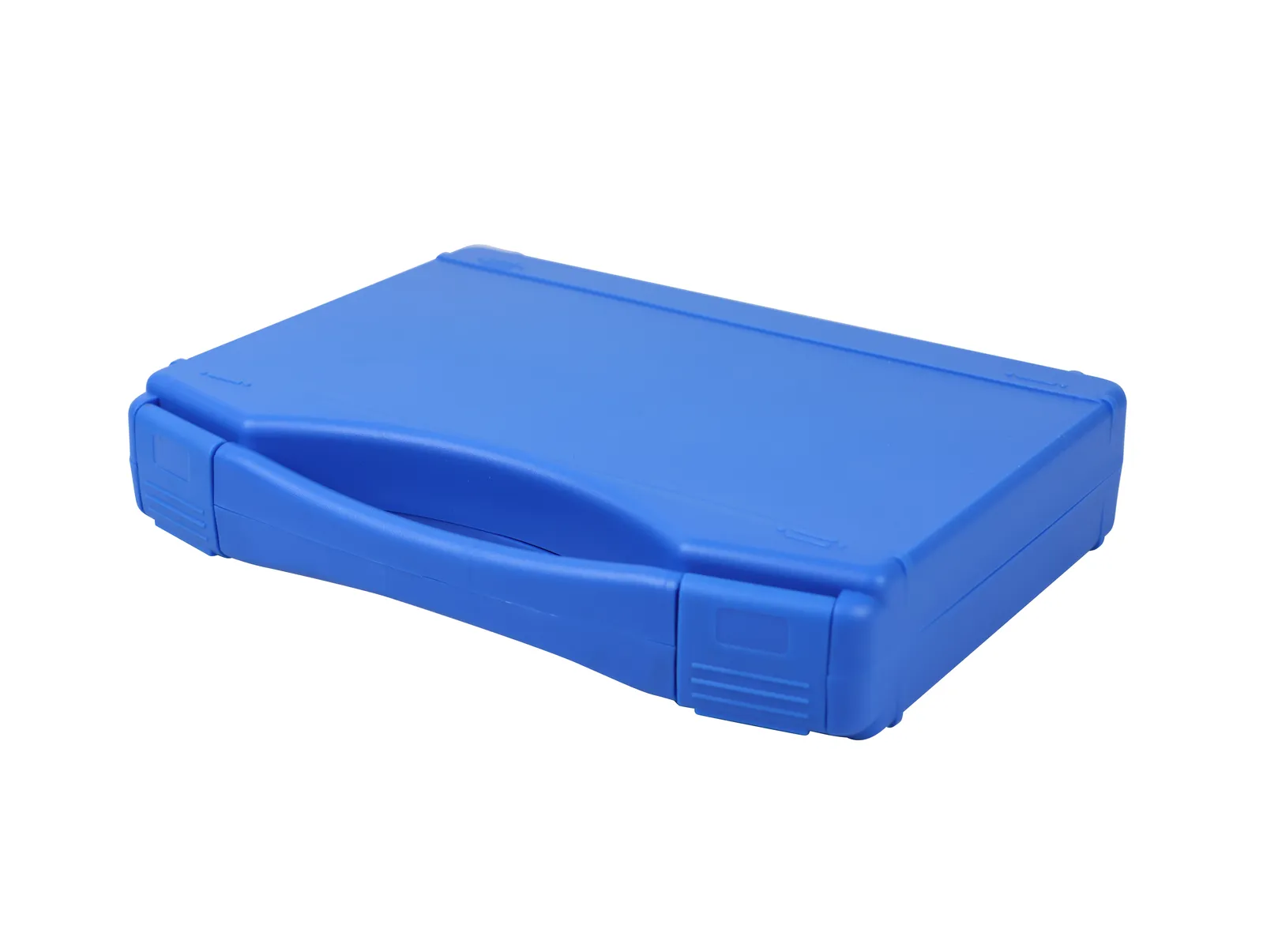

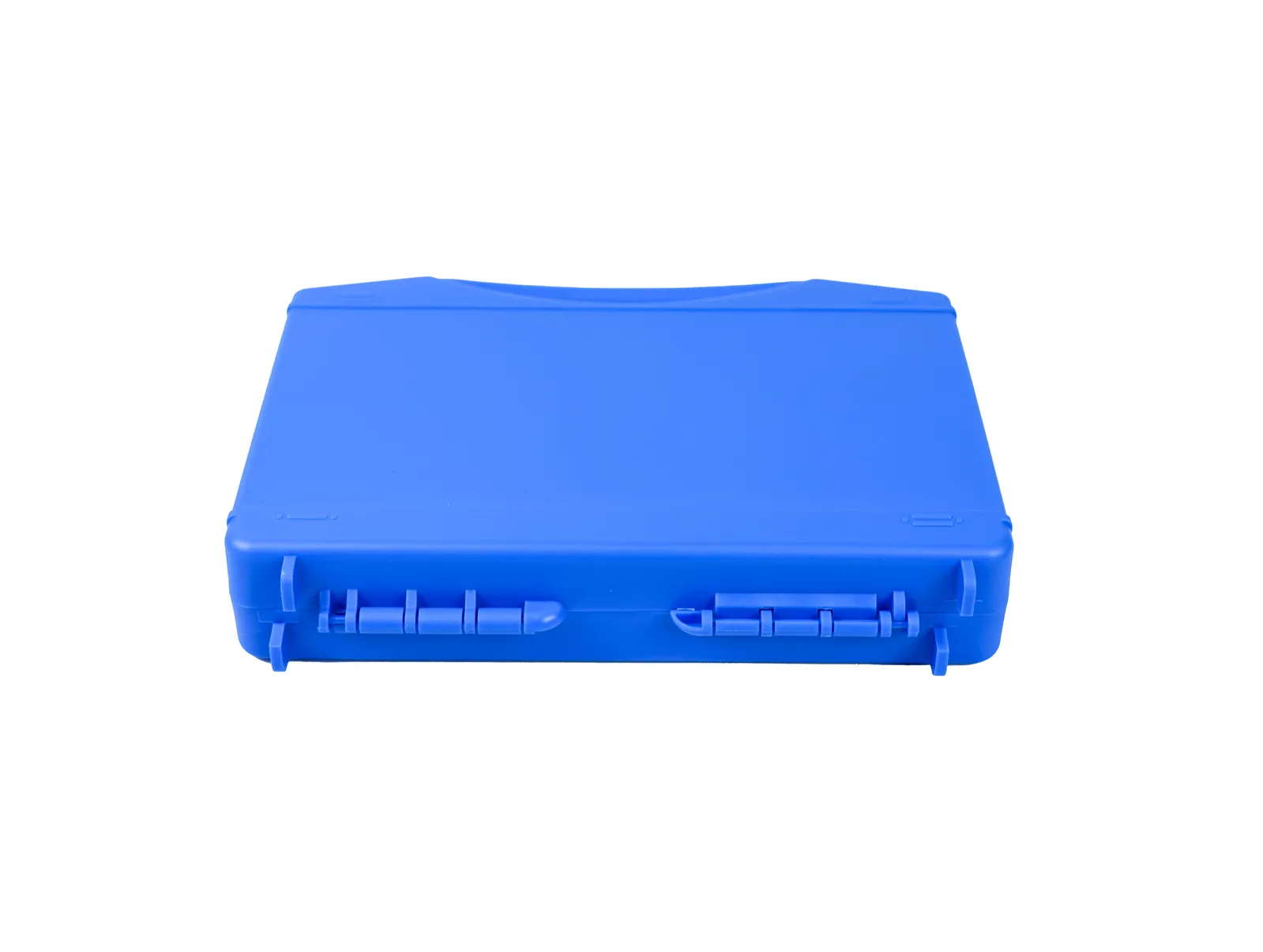

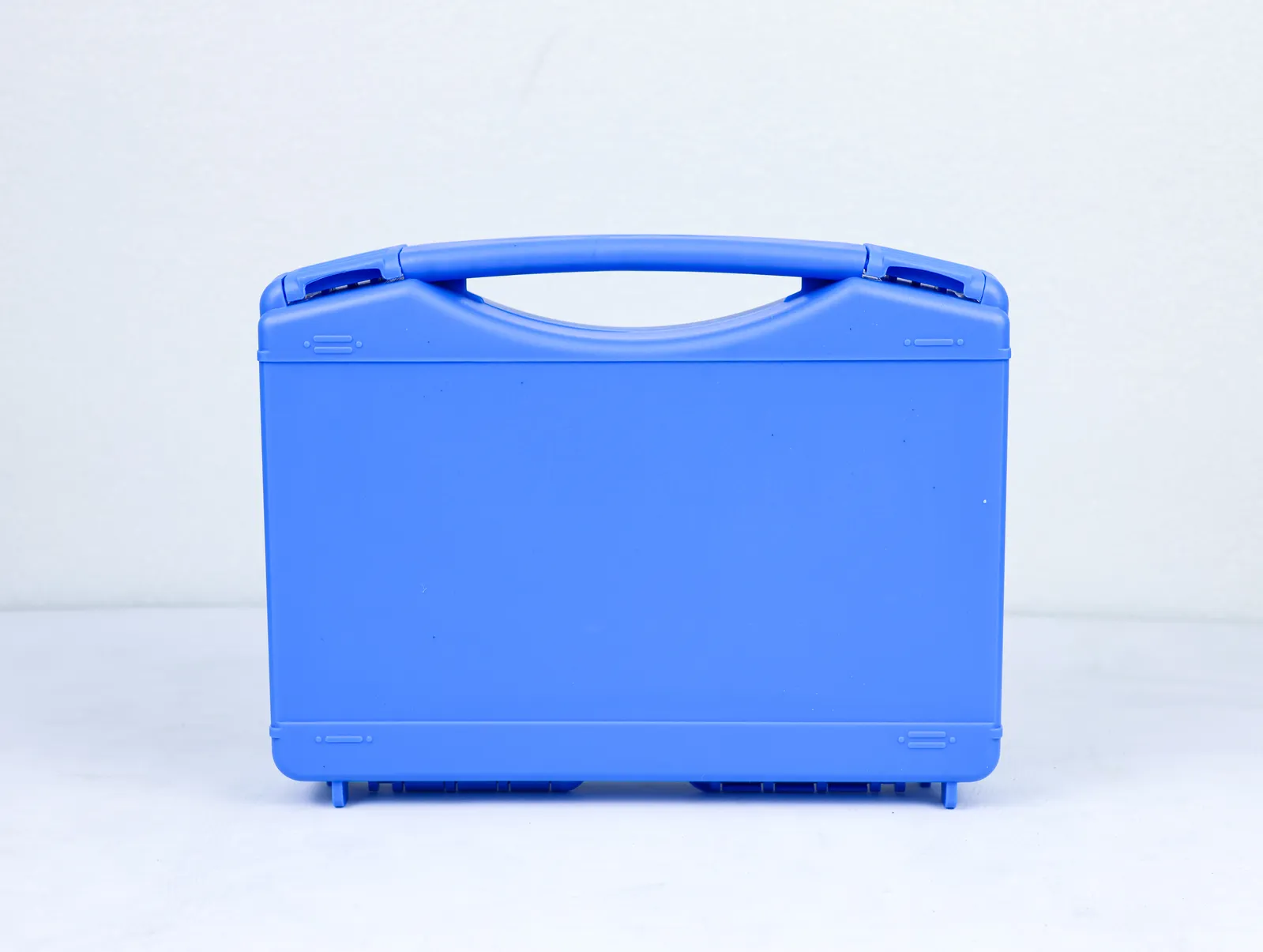

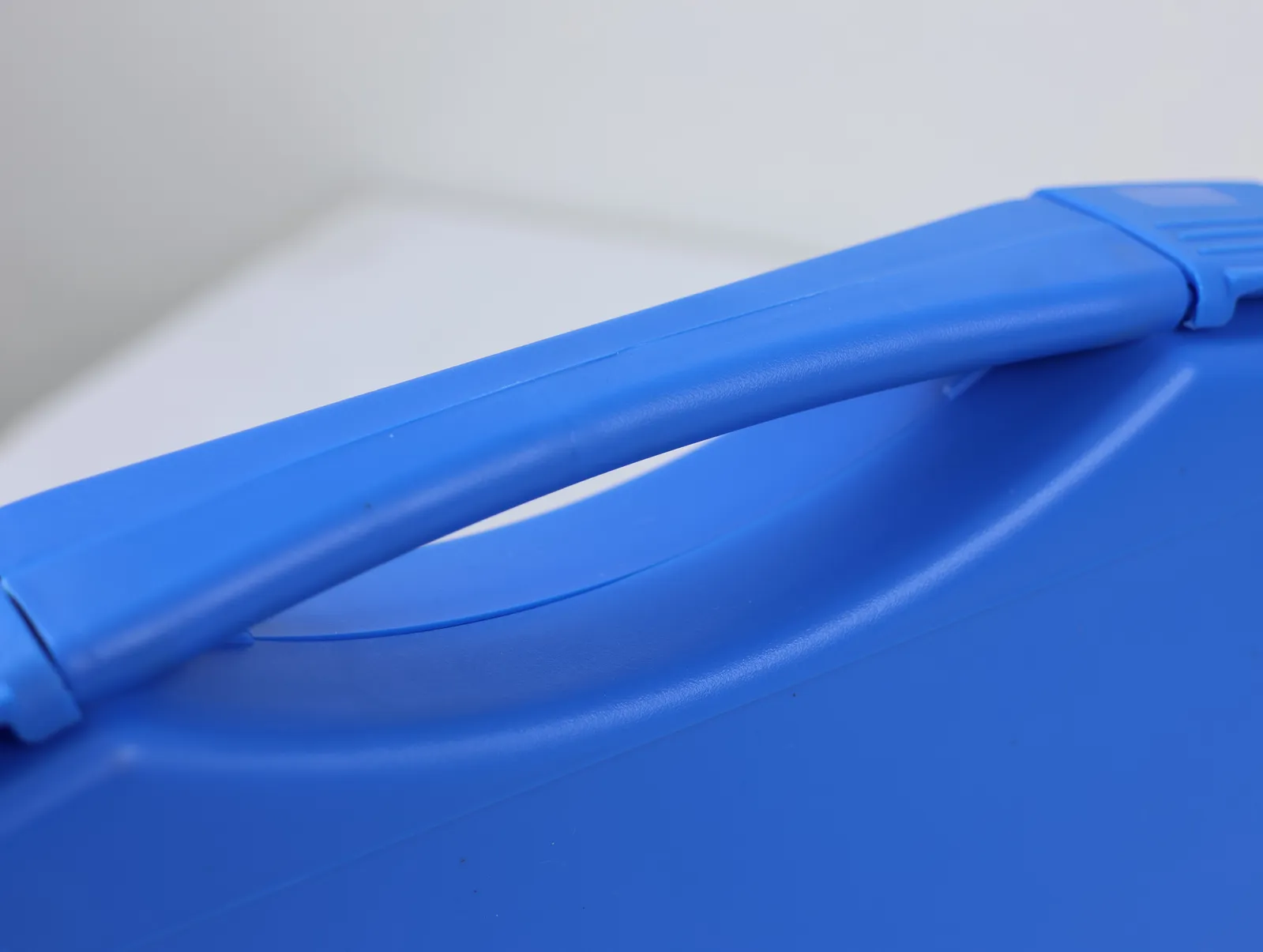

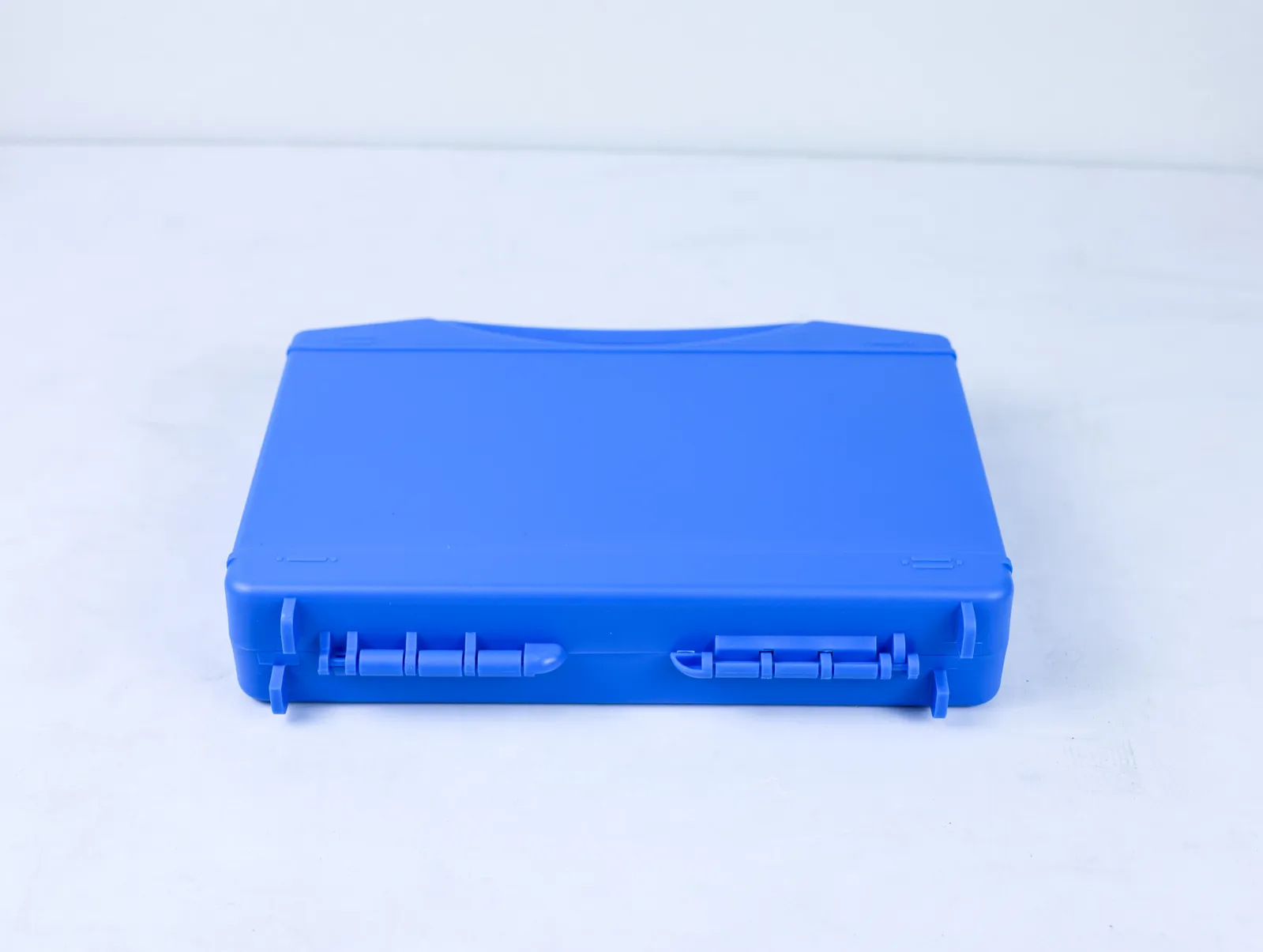

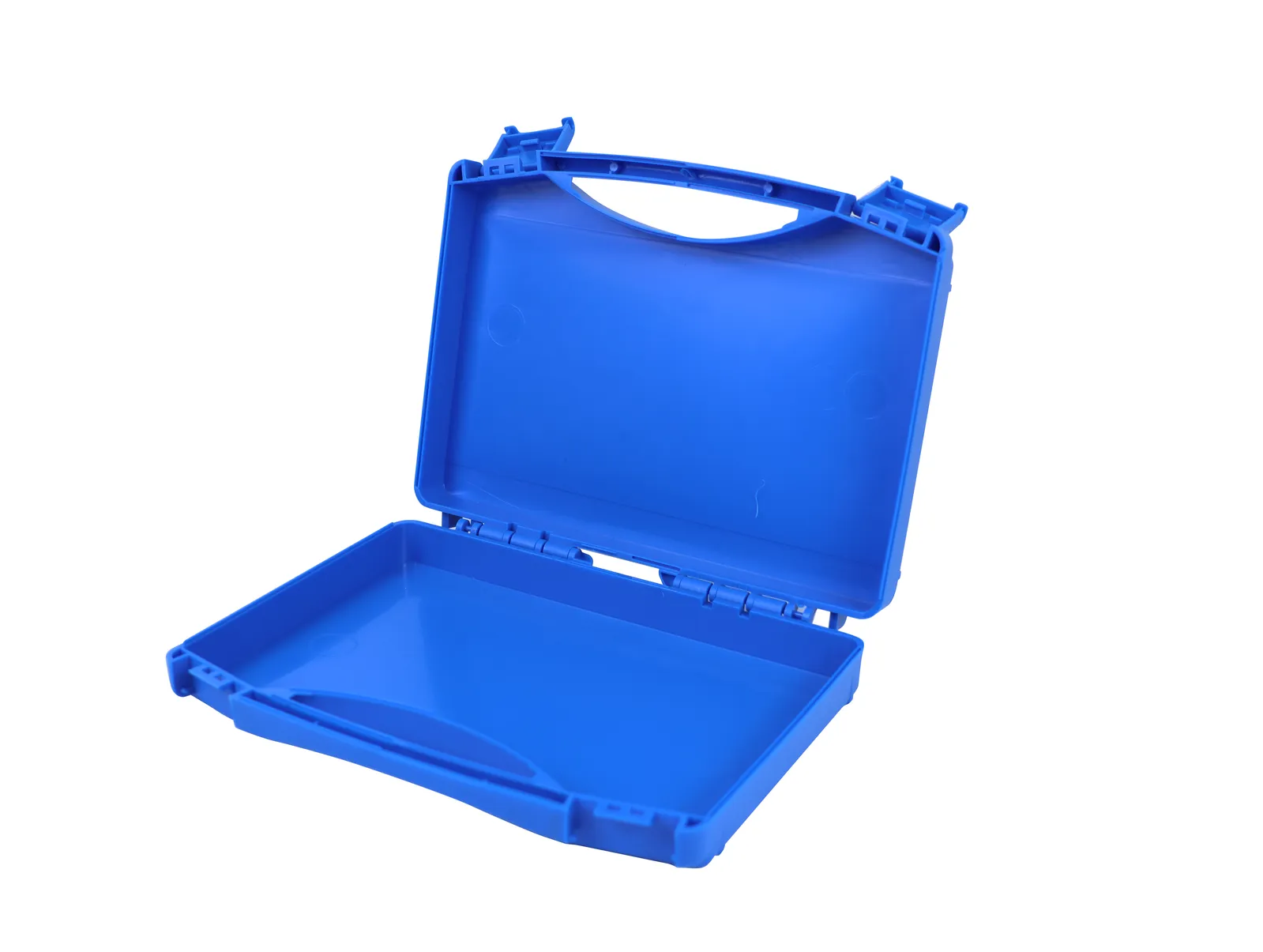

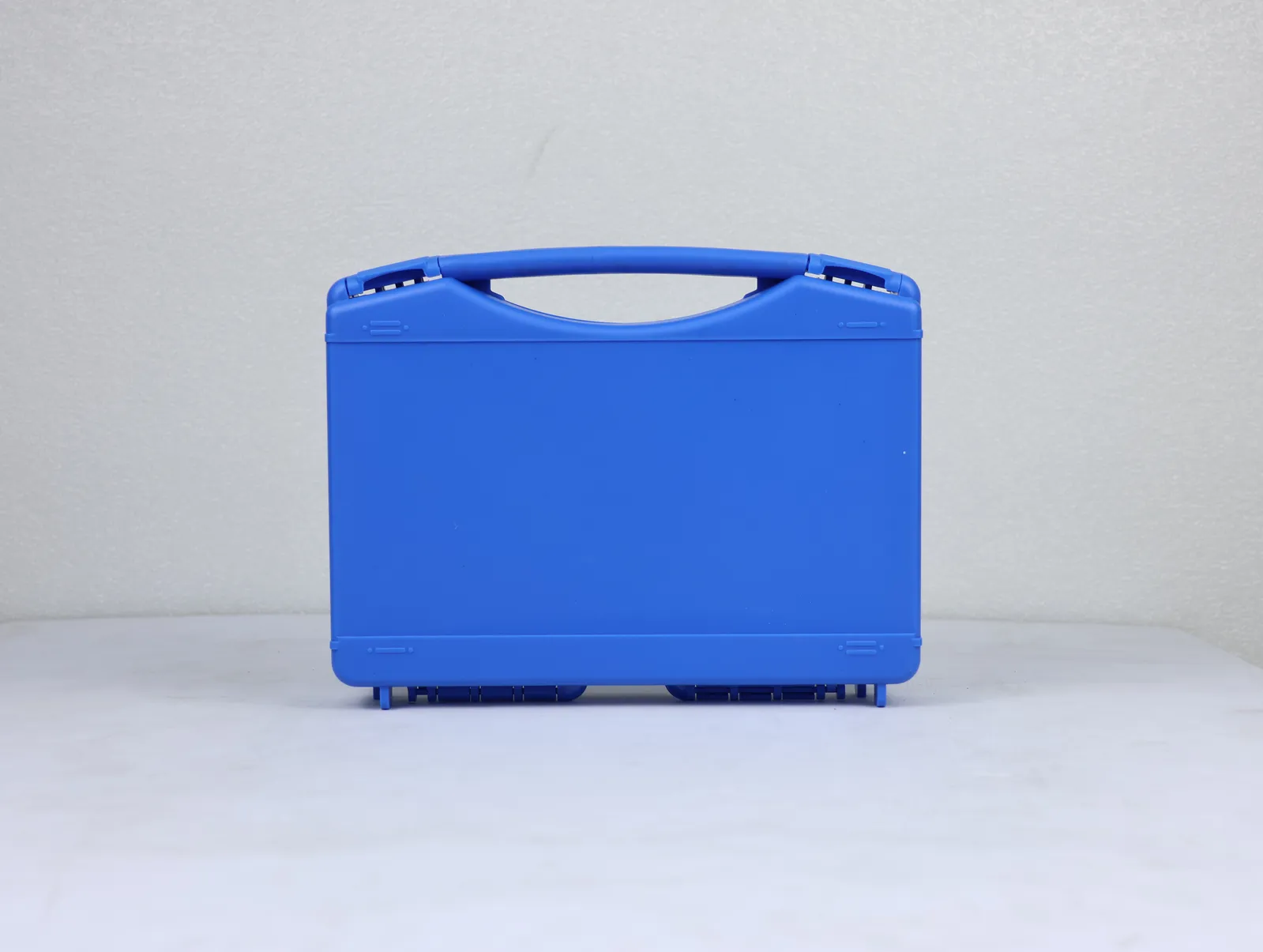

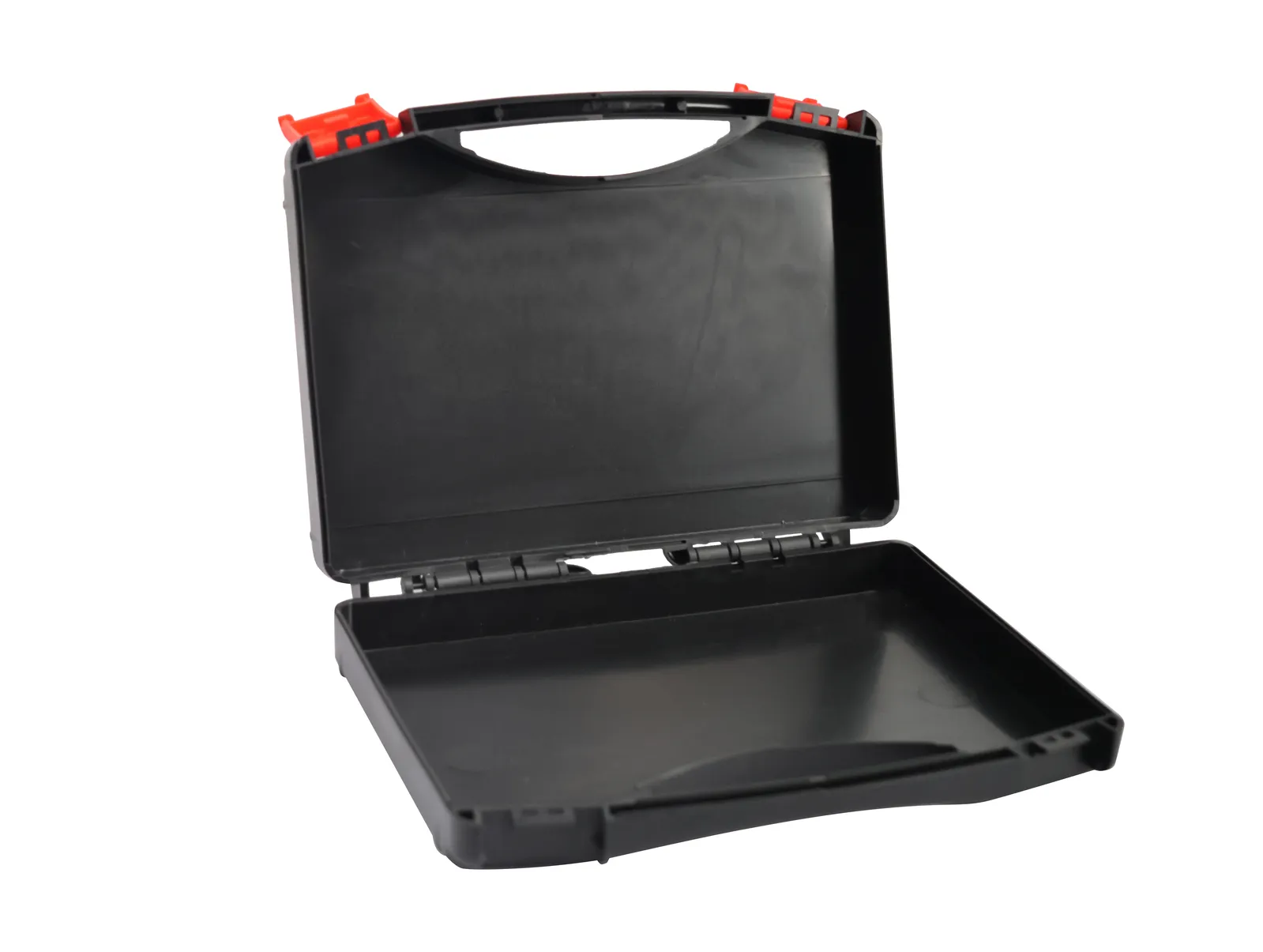

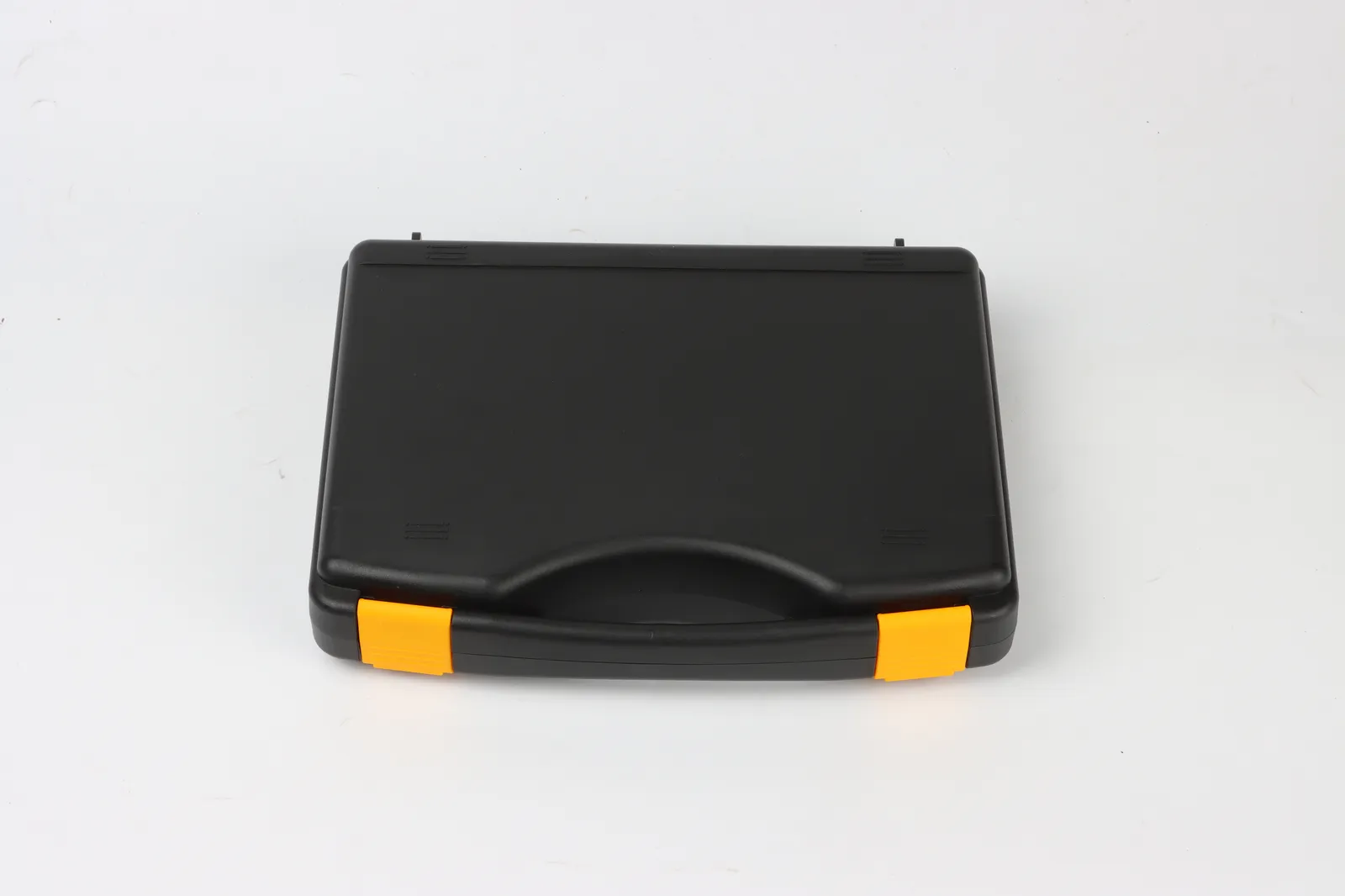

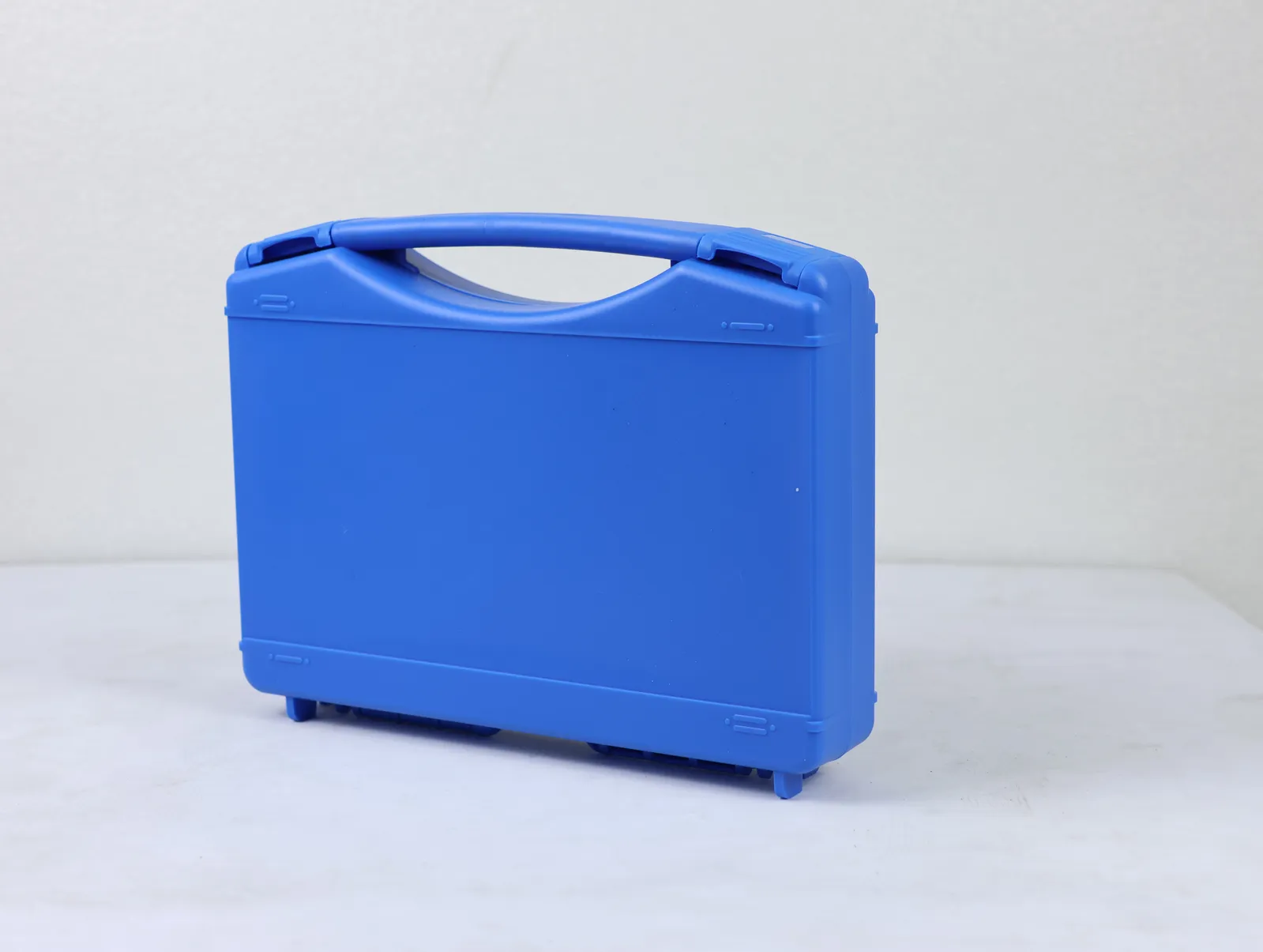

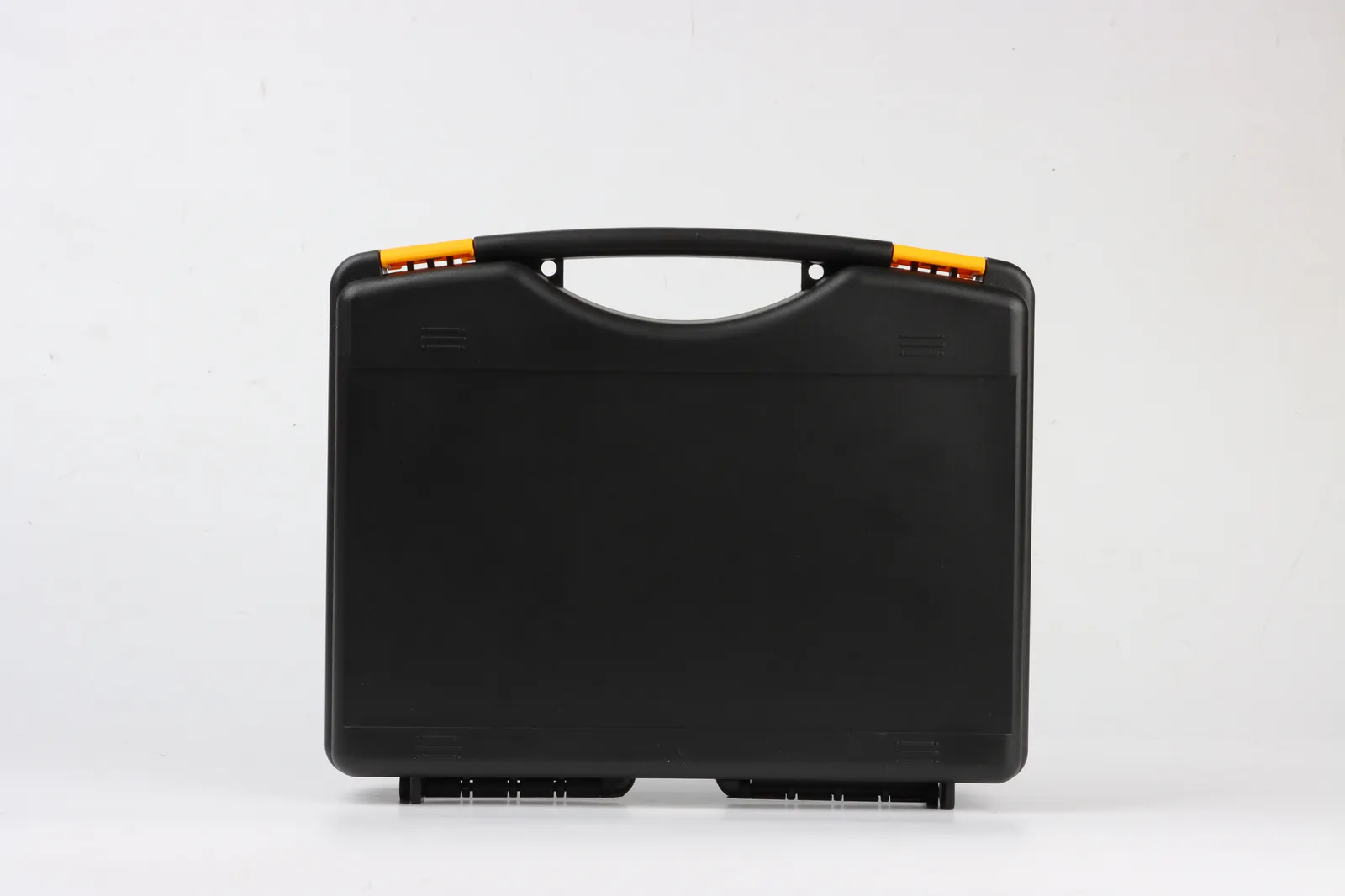

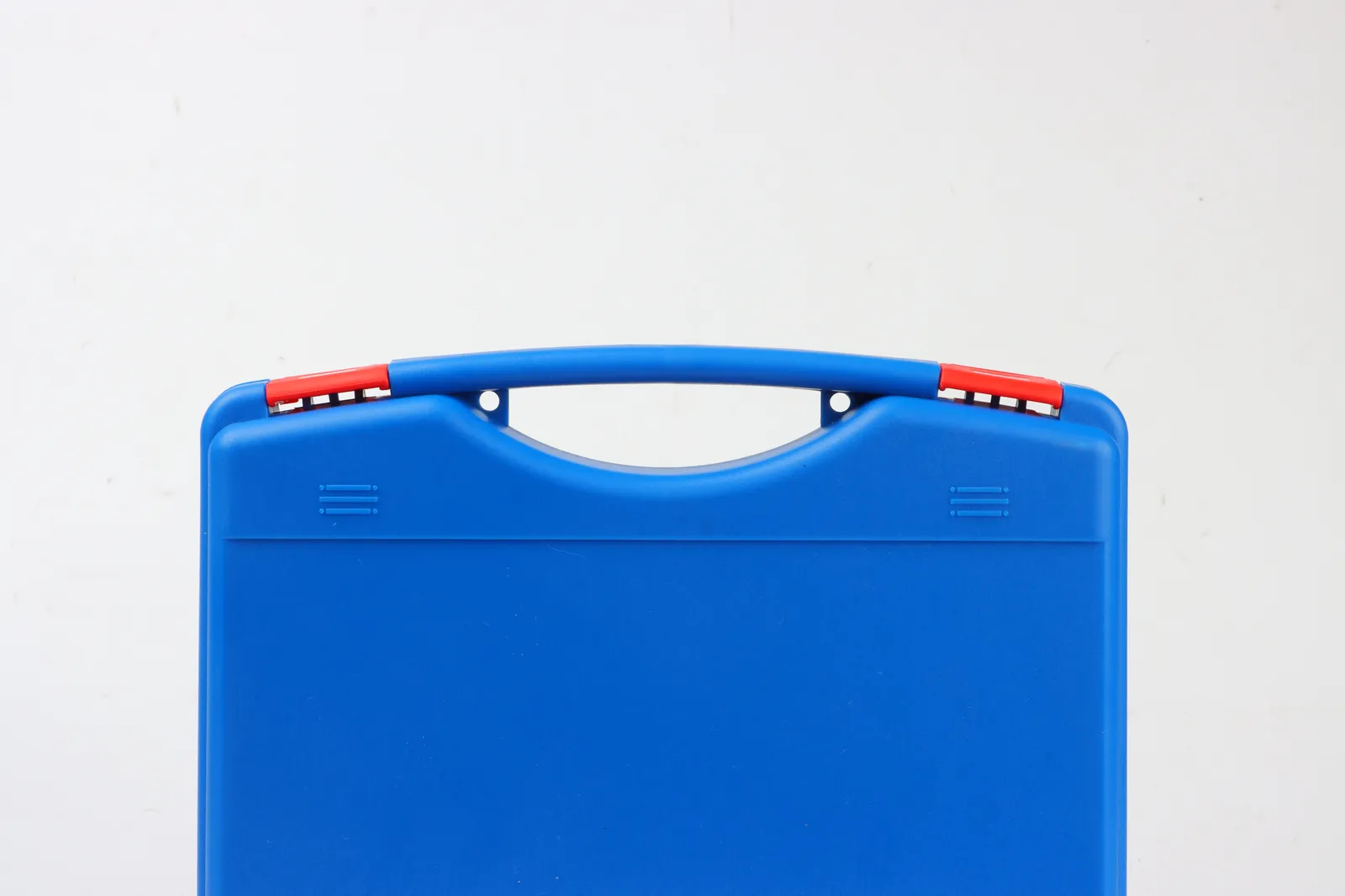

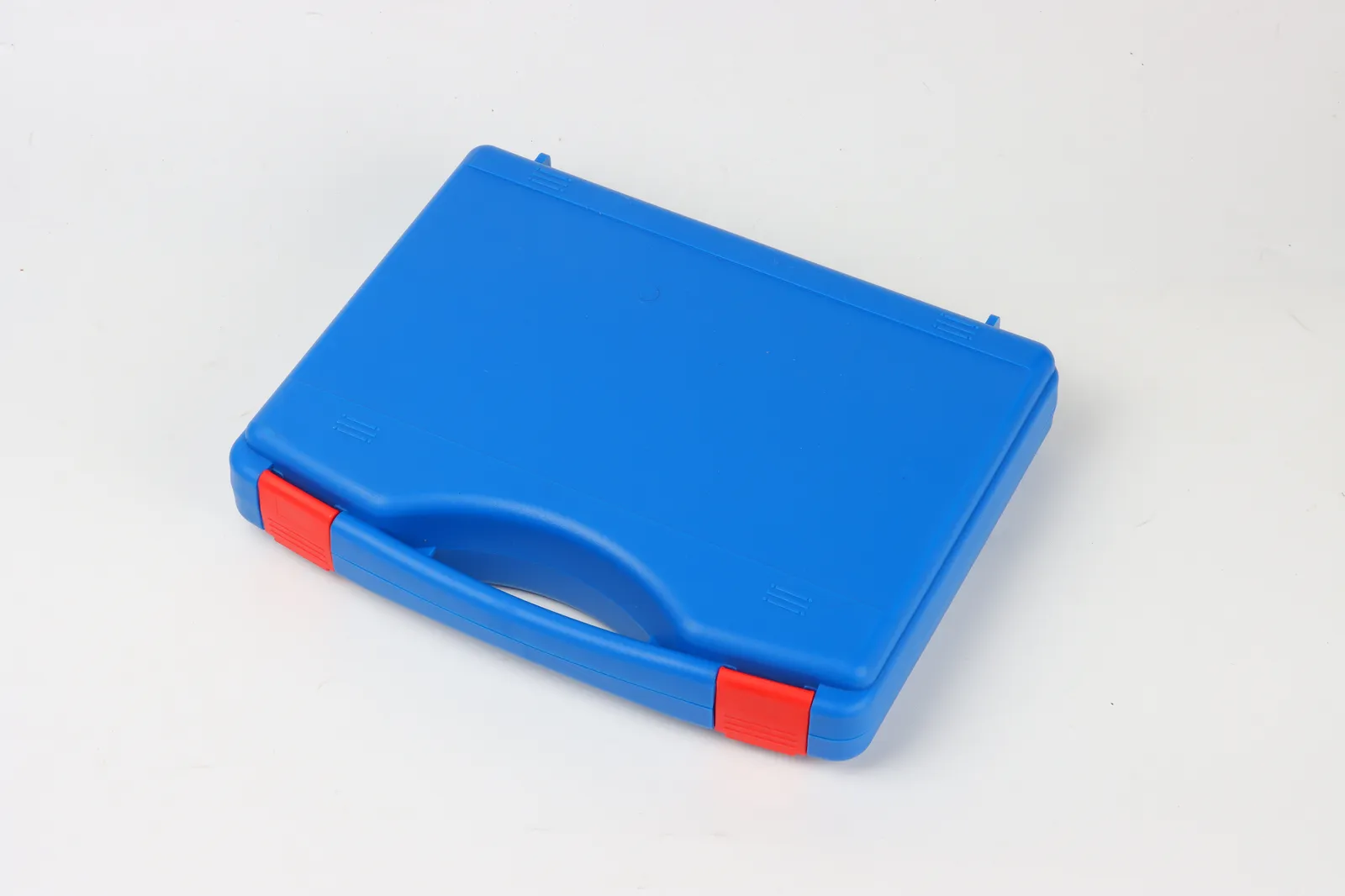

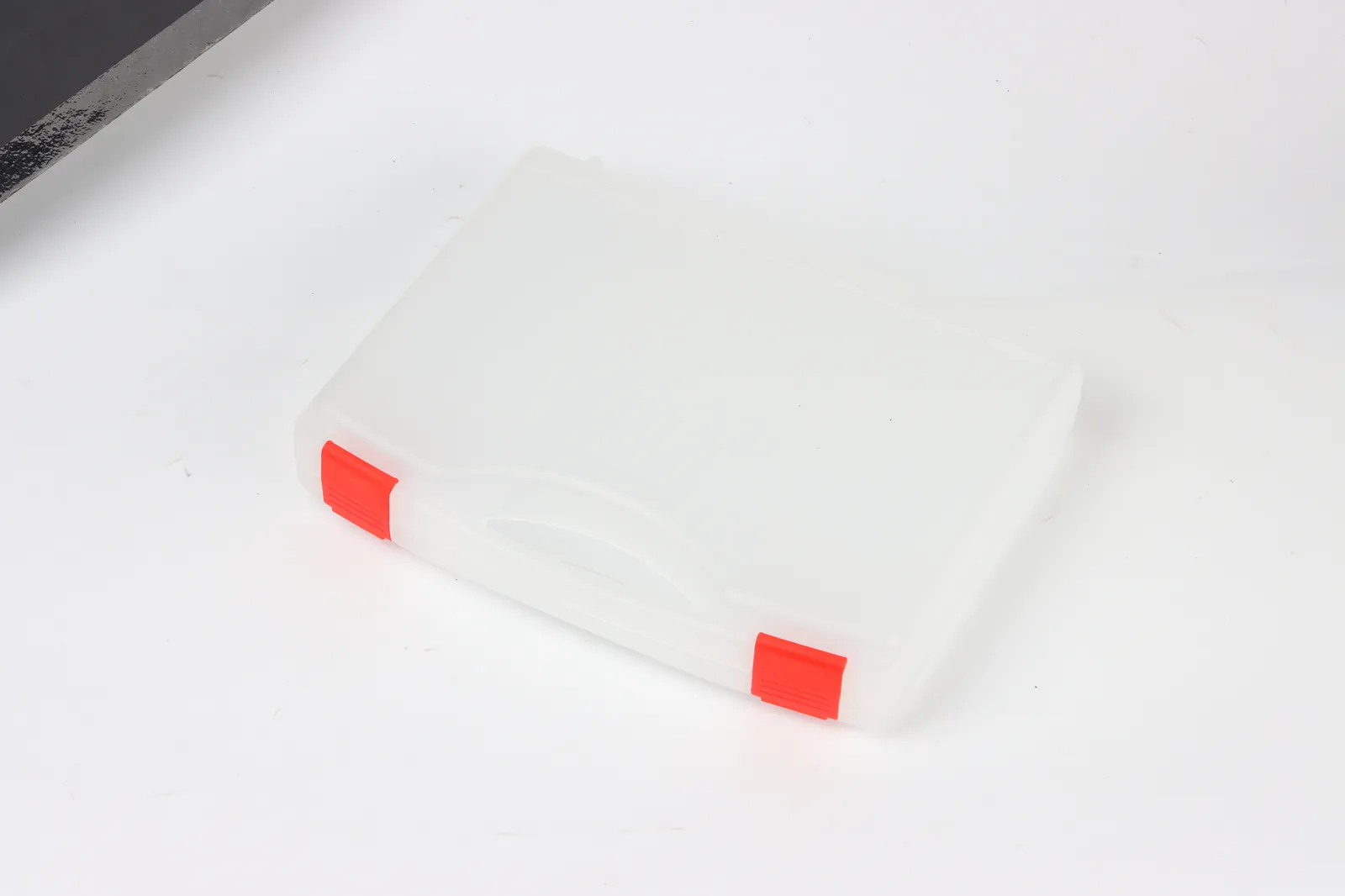

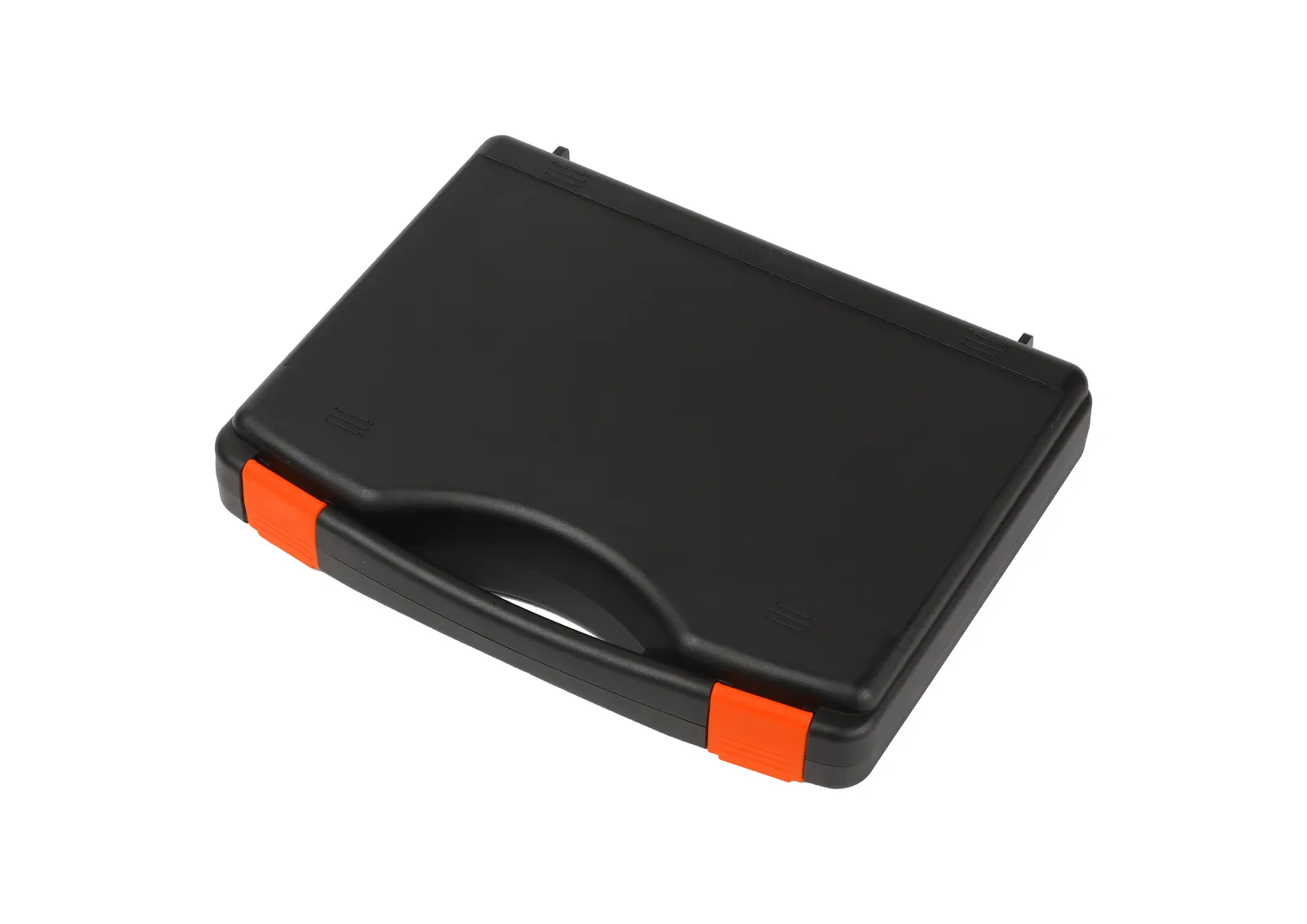

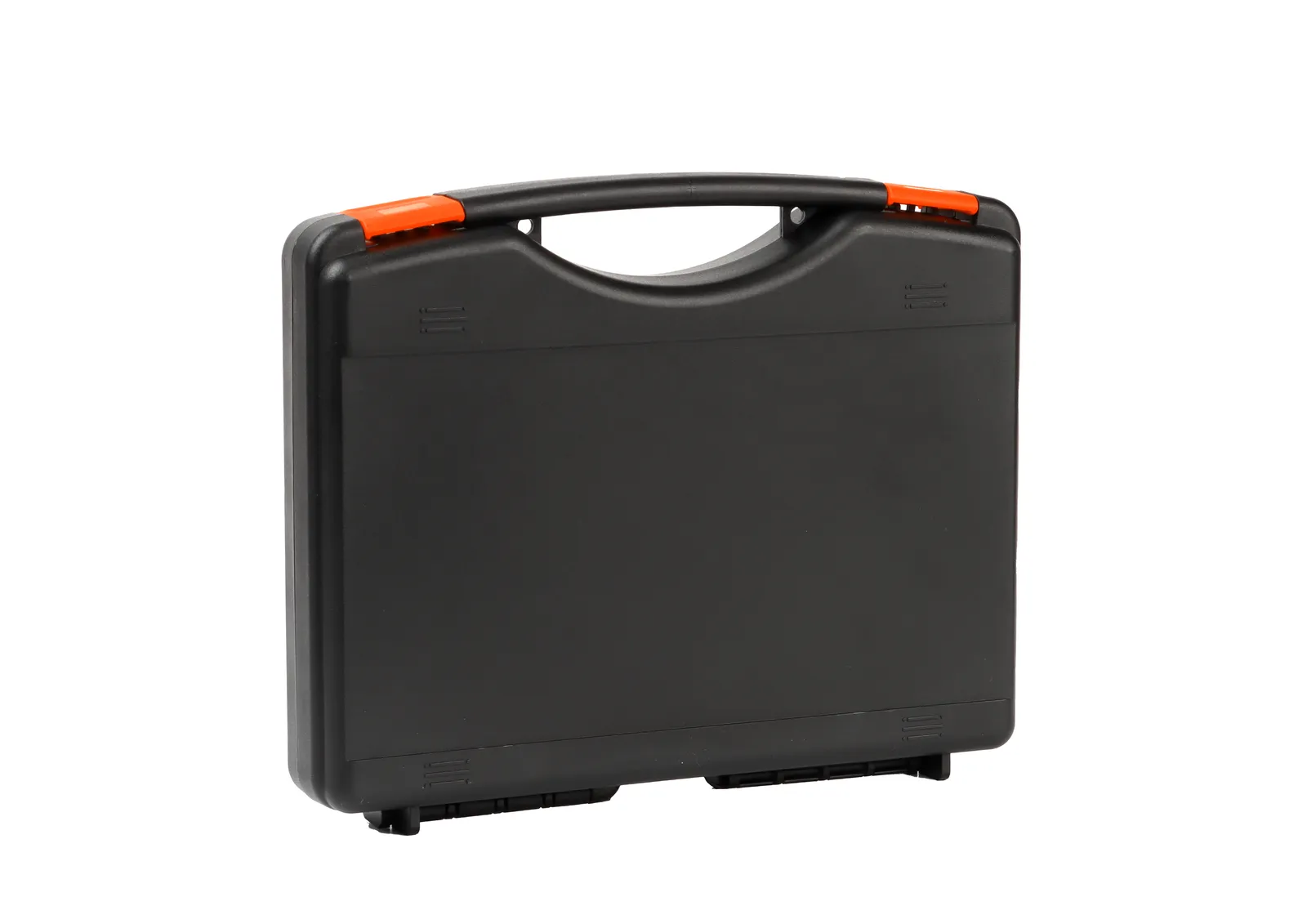

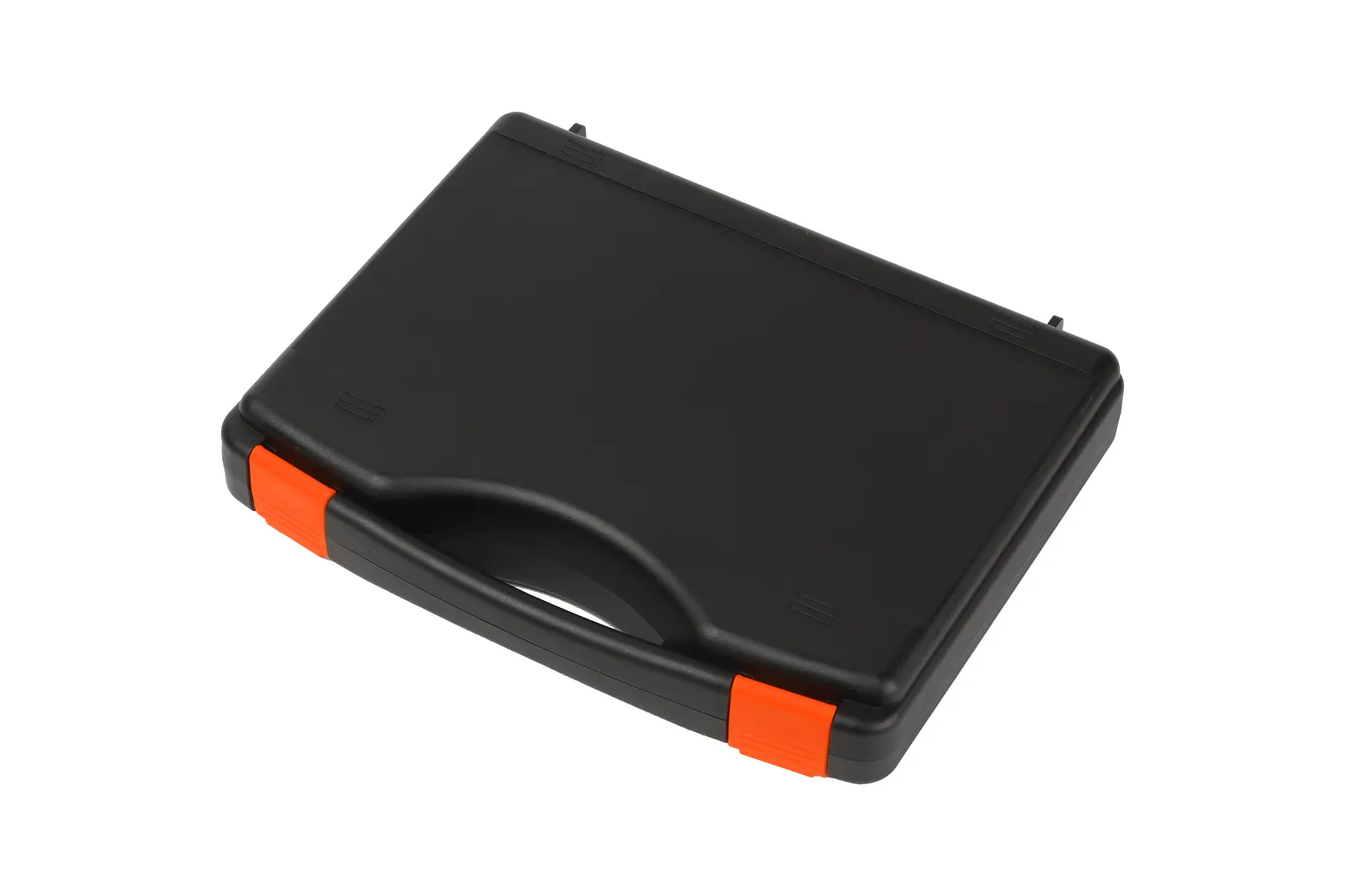

WL0-2305 PP Hardware Tool Case

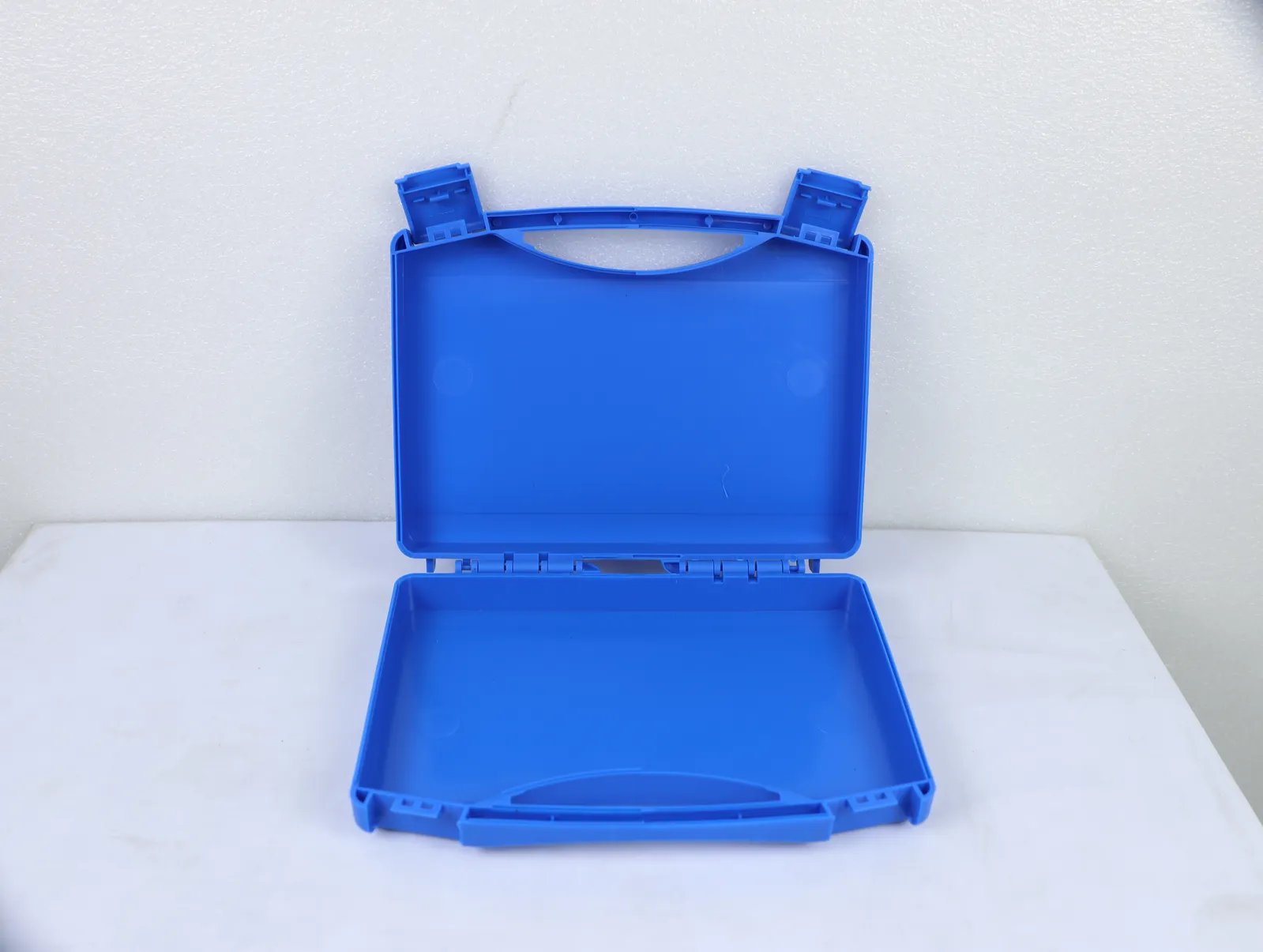

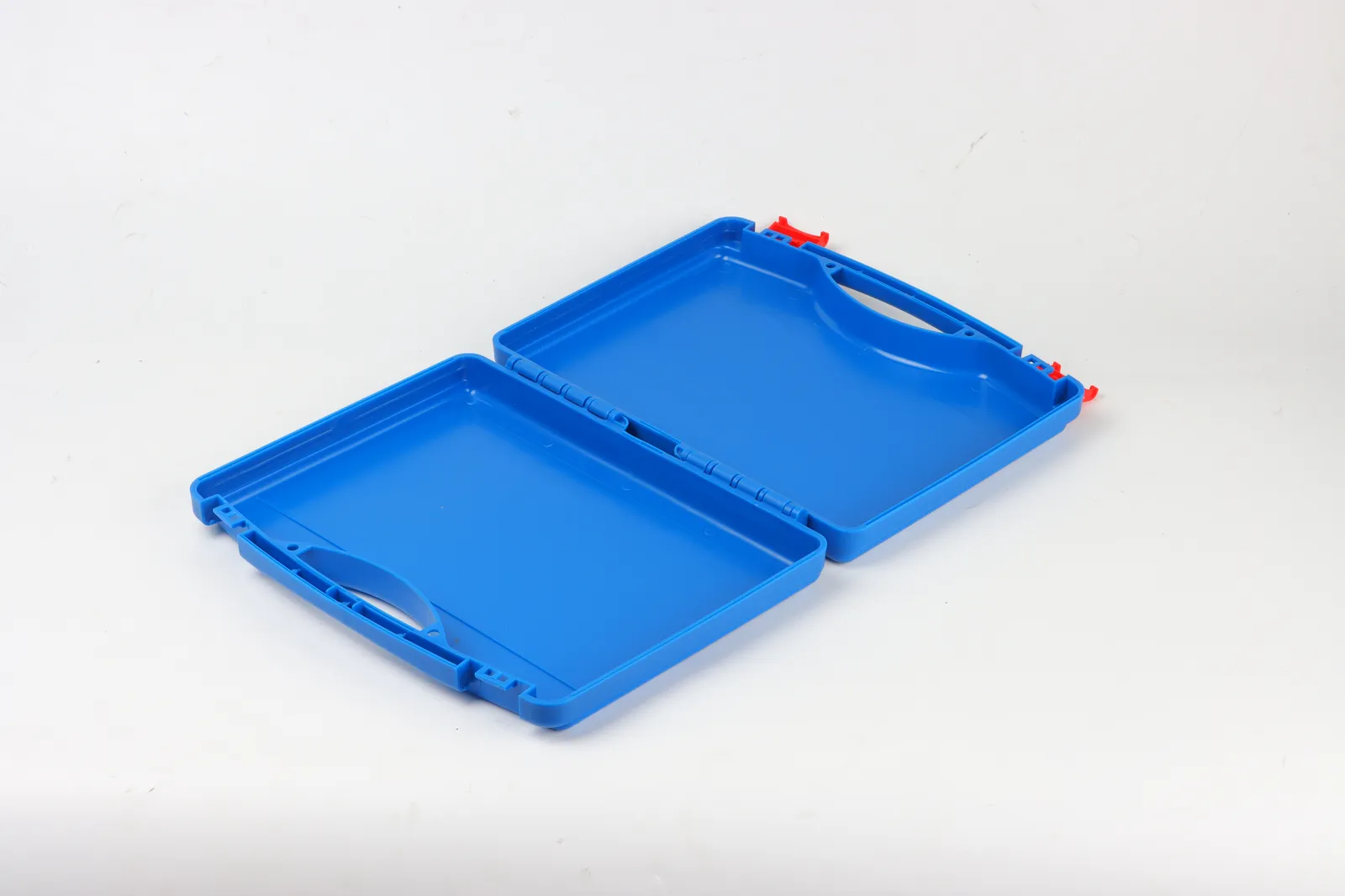

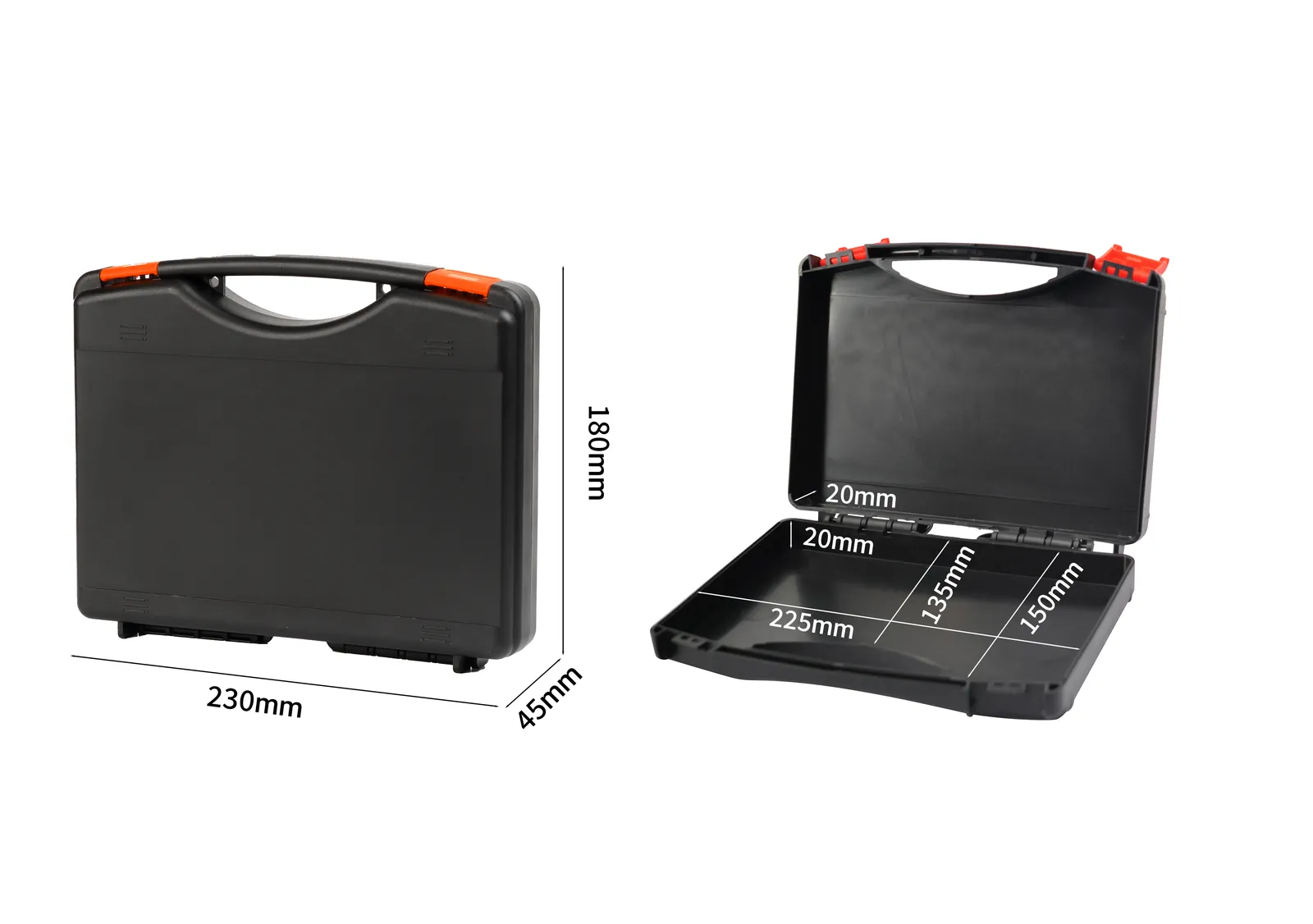

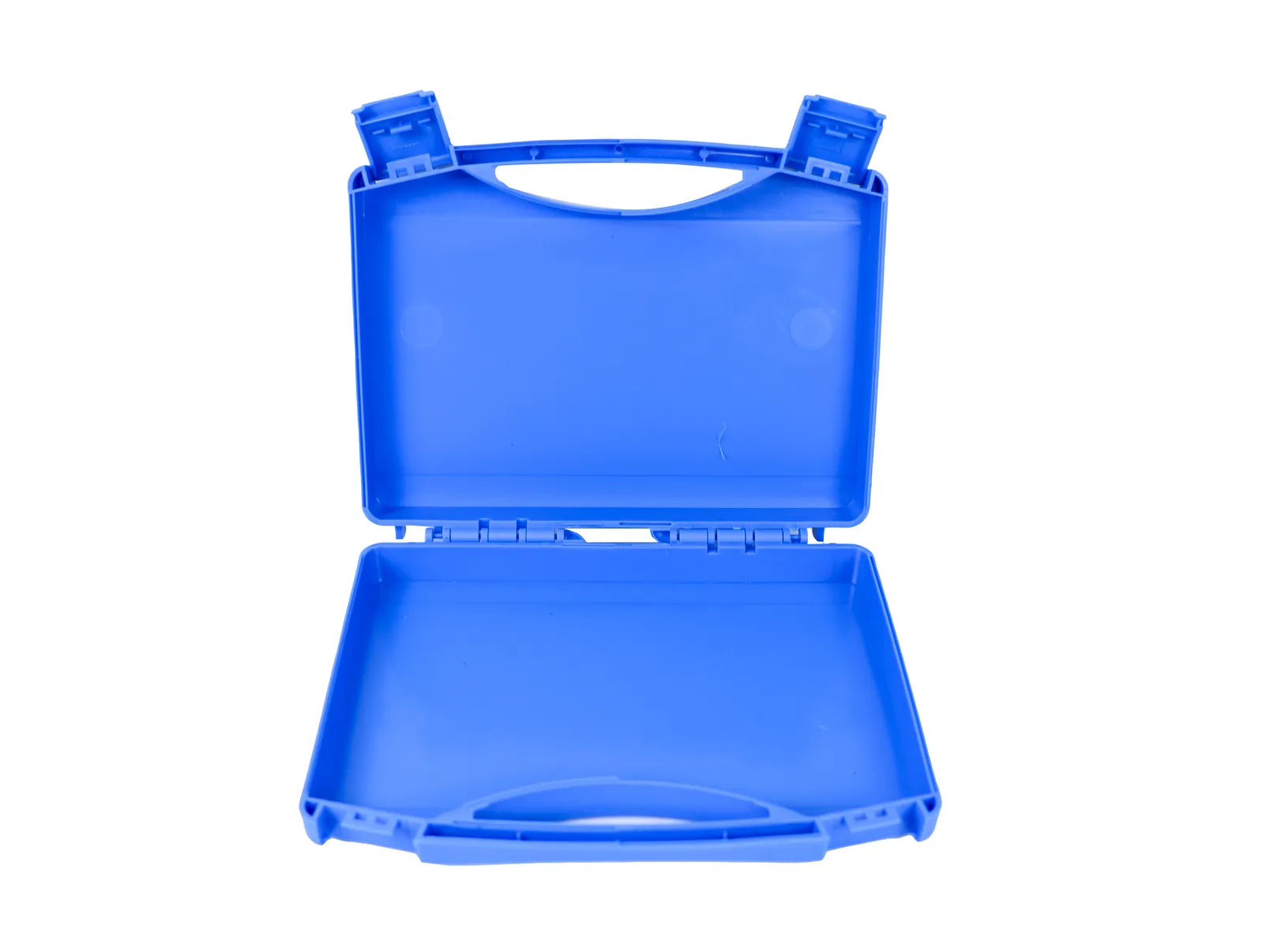

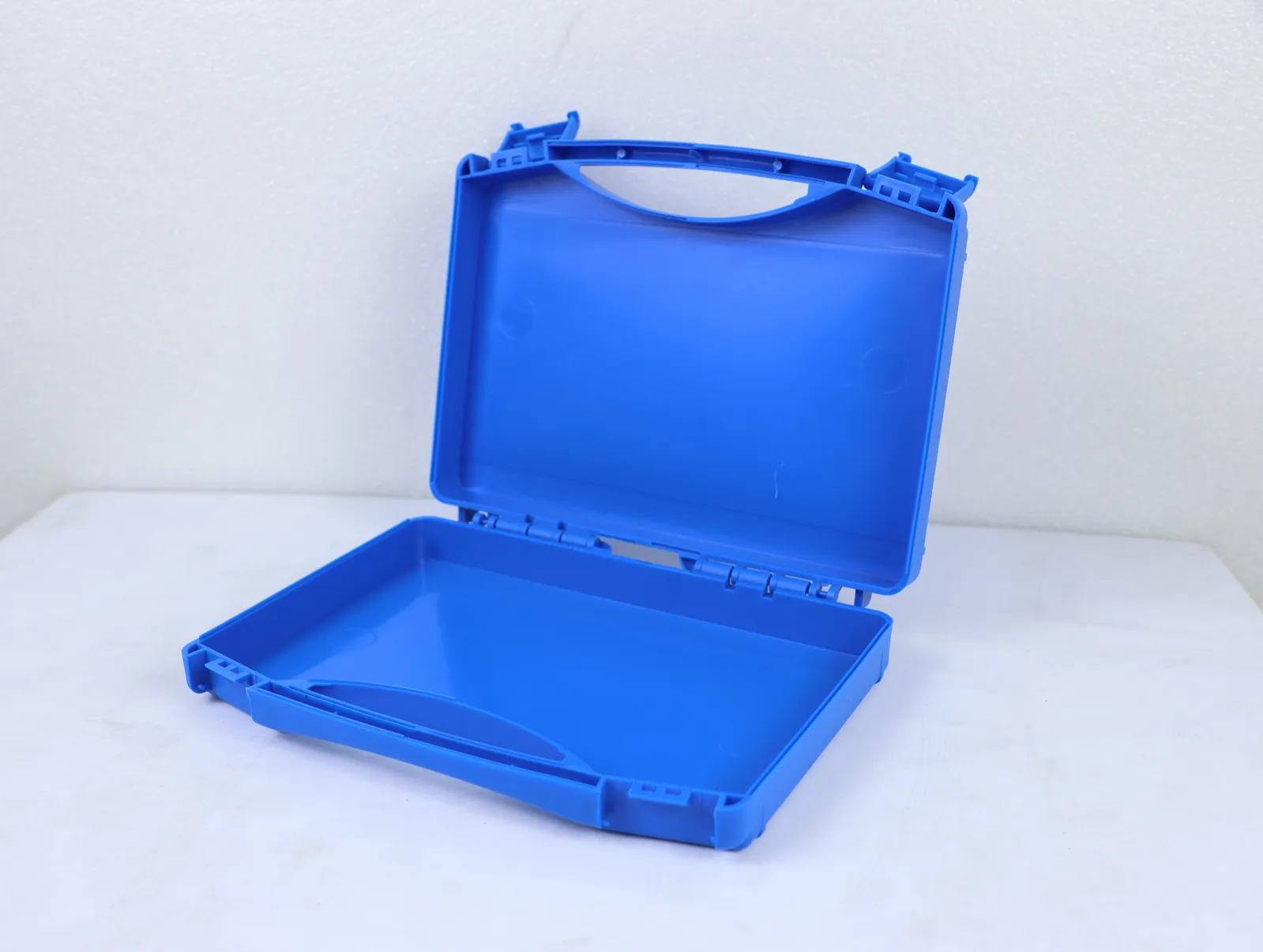

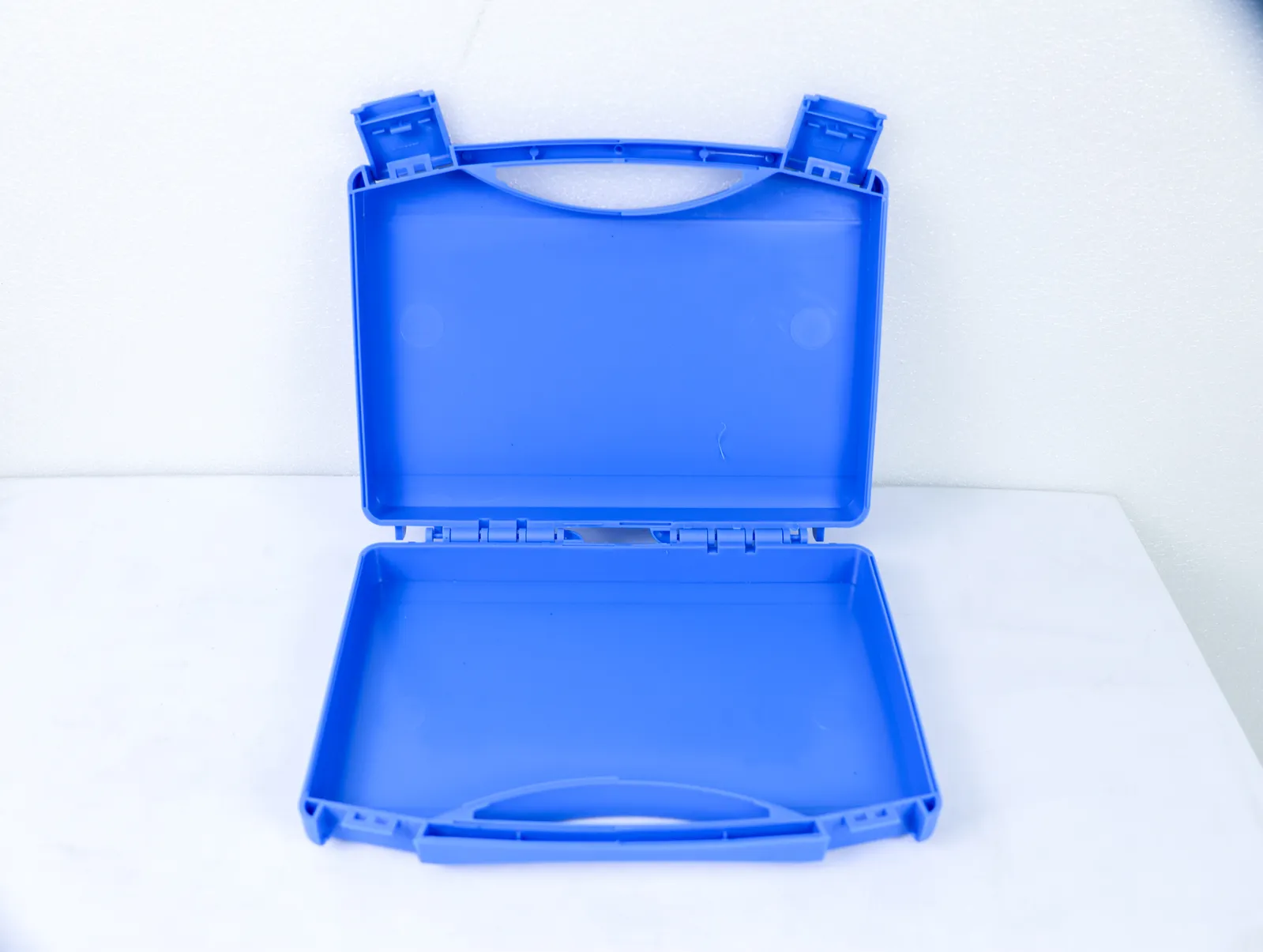

According to the product data, the case measures 230 x 180 x 45 mm outside and 225 x 150 x 40 mm inside, with a narrowest internal point of 135 mm, lid and base depths listed as 20+20 mm, a 2.0 mm wall and a net weight of about 240 g. Pay attention to that 135 mm narrowest figure, because the internal space is not uniform in width: long tools or a full row of bits may enter at the ends and then jam in the middle. Check the largest outline of your tools against the 225 x 150 x 40 mm internal space first.

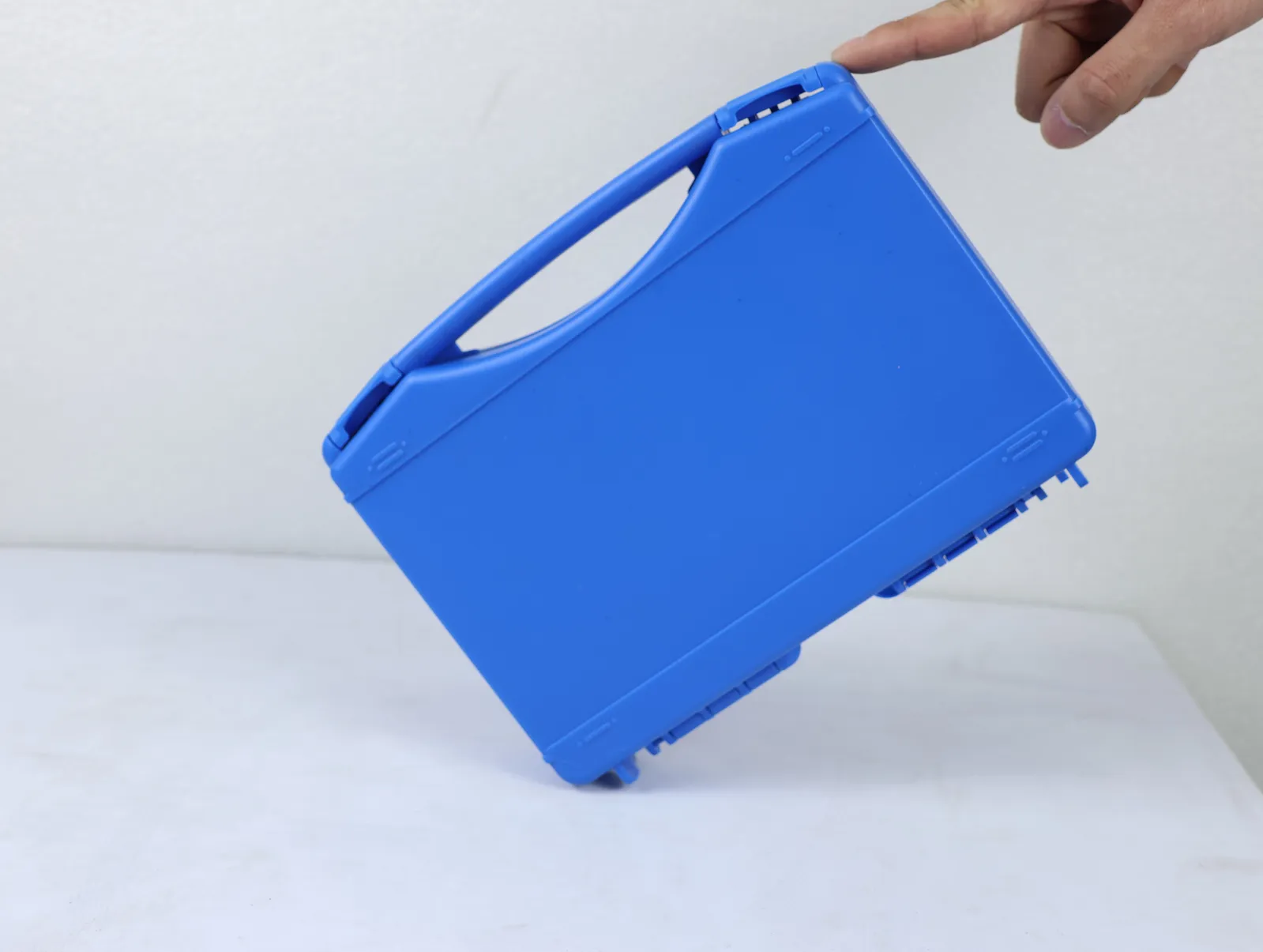

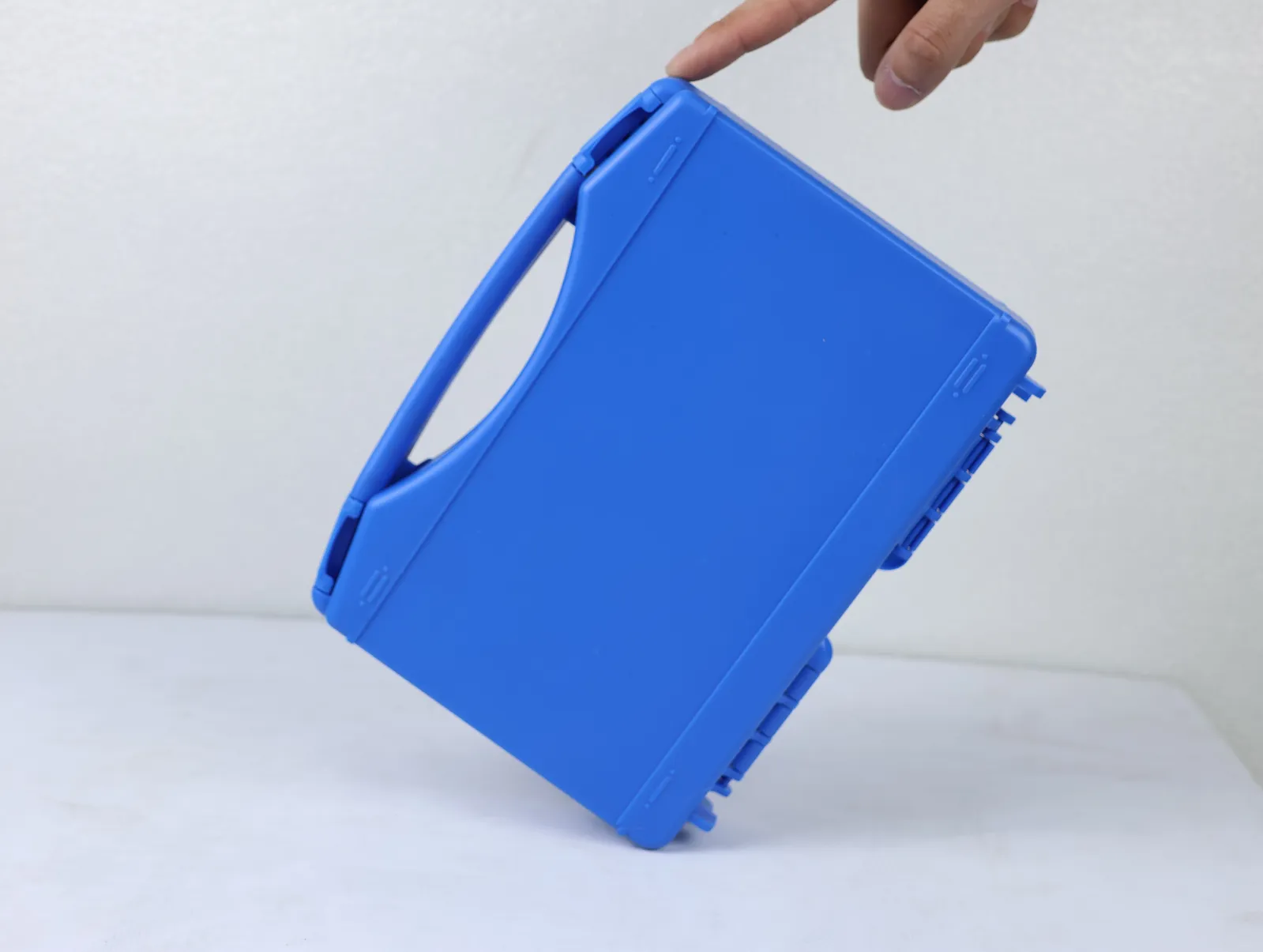

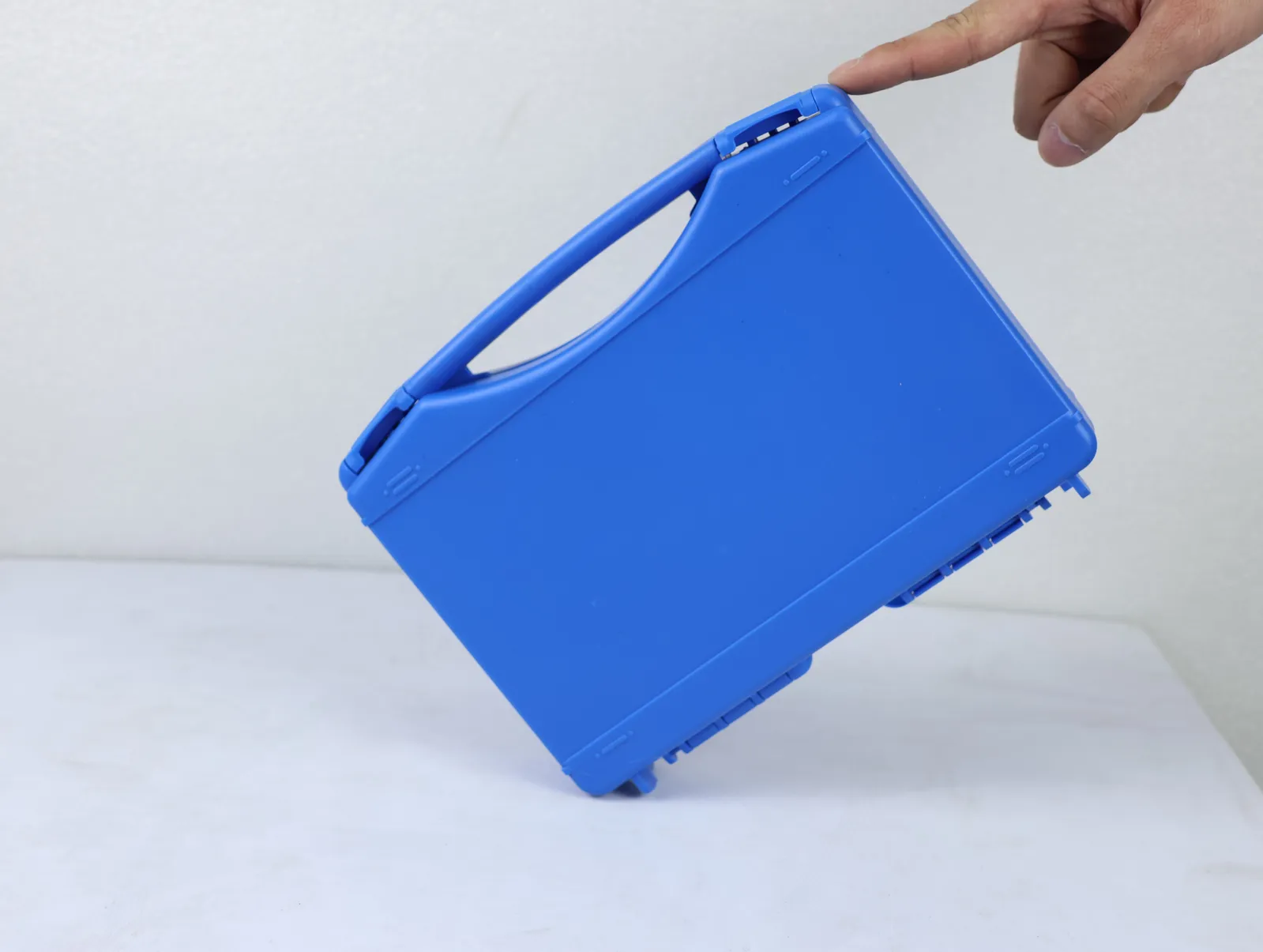

A 2.0 mm wall is the usual specification for compact 0 Series cases, and together with the toughness of PP it handles the everyday compression and knocks of a drawer, tool bag or vehicle boot, while keeping the whole case at about 240 g so it adds almost nothing to what you carry. If the case will face drops, heavy loads or long-term stacking, 2.0 mm may not be the right choice: describe the strength, stacking height and transport method when enquiring so the factory can advise on a heavier specification.

According to the product data, each piece is packed in a poly bag, the outer carton measures 480 x 370 x 470 mm, and there are 40 pieces per carton. That quantity suits receiving and shipping by full carton and makes it easy to check volume and weight with the freight forwarder. If your channel needs a different packing format, split quantities or specific carton marks, raise it when enquiring so the factory can confirm whether the packing can be adjusted before production.

JUNZHIJIA focuses on IP67 waterproof and dustproof protective cases, and the exact sealing structure, gasket specification and test method for WL0-2305 need to be confirmed with the factory, as the export data covers only dimensions and material. If the case will store tools or gauges that rust in damp air, state the humidity, dust or short-term immersion conditions and the acceptance method you expect, so the factory can propose a matching sealing solution. Put the confirmed result into the order specification.

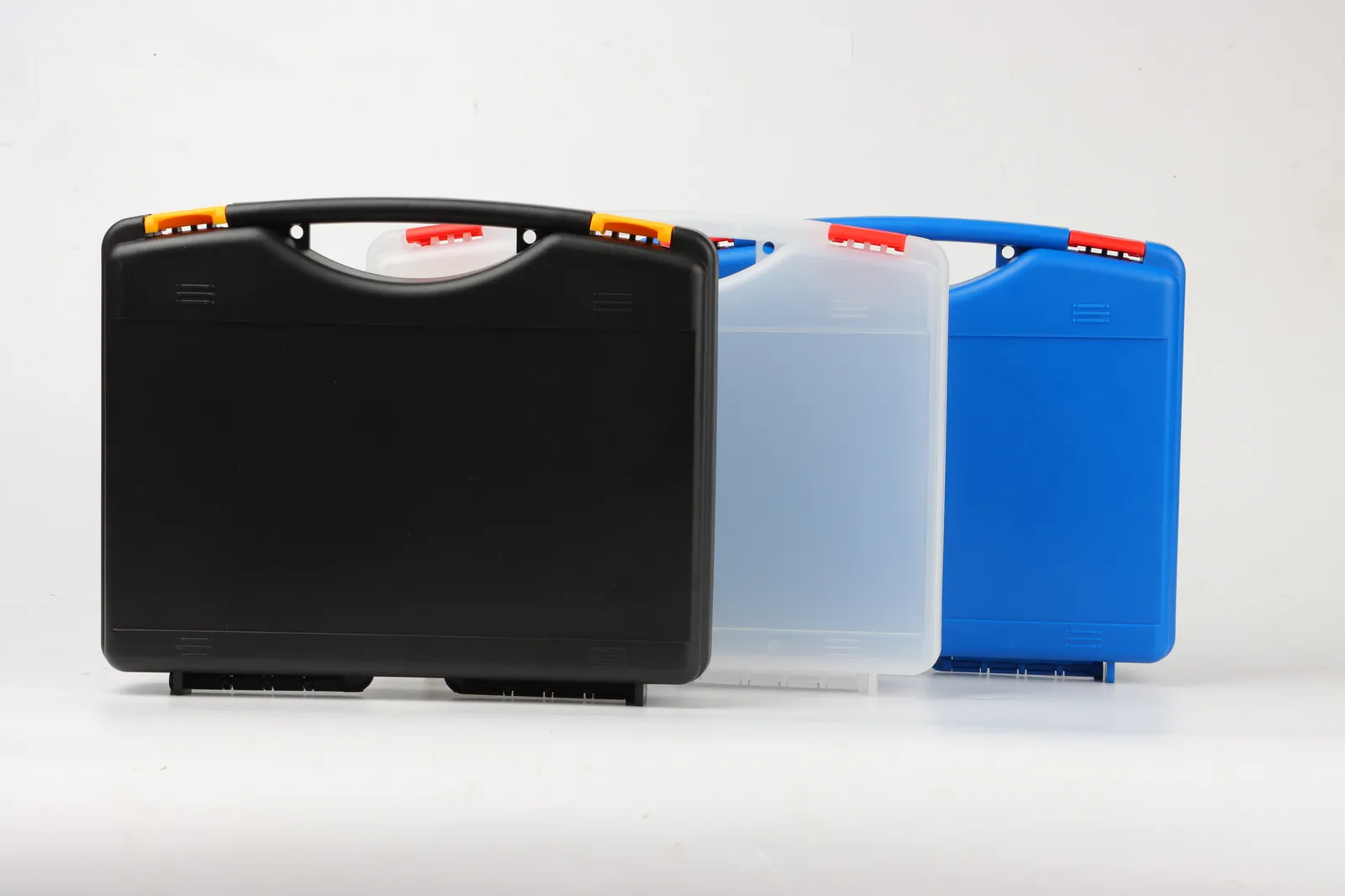

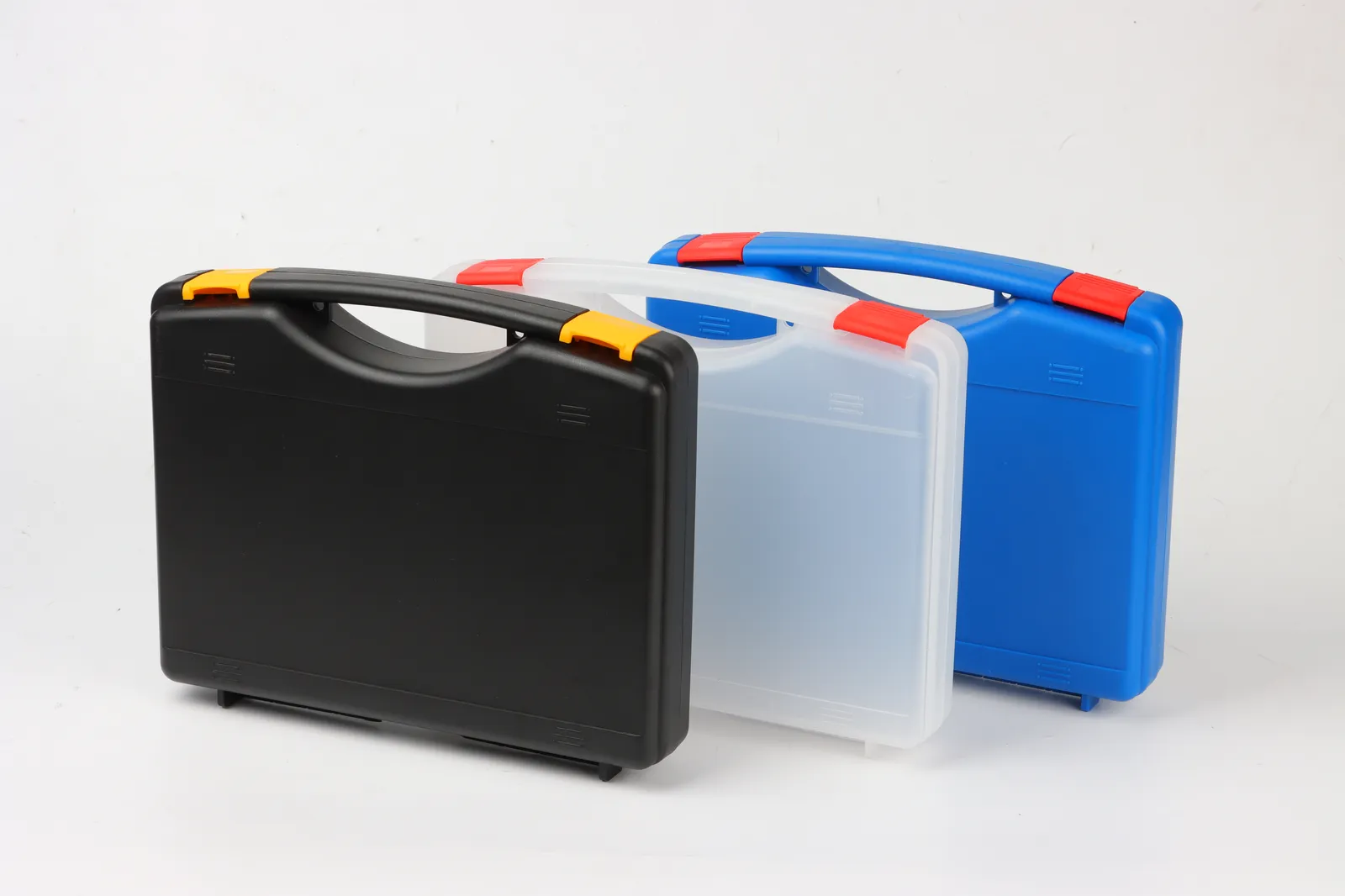

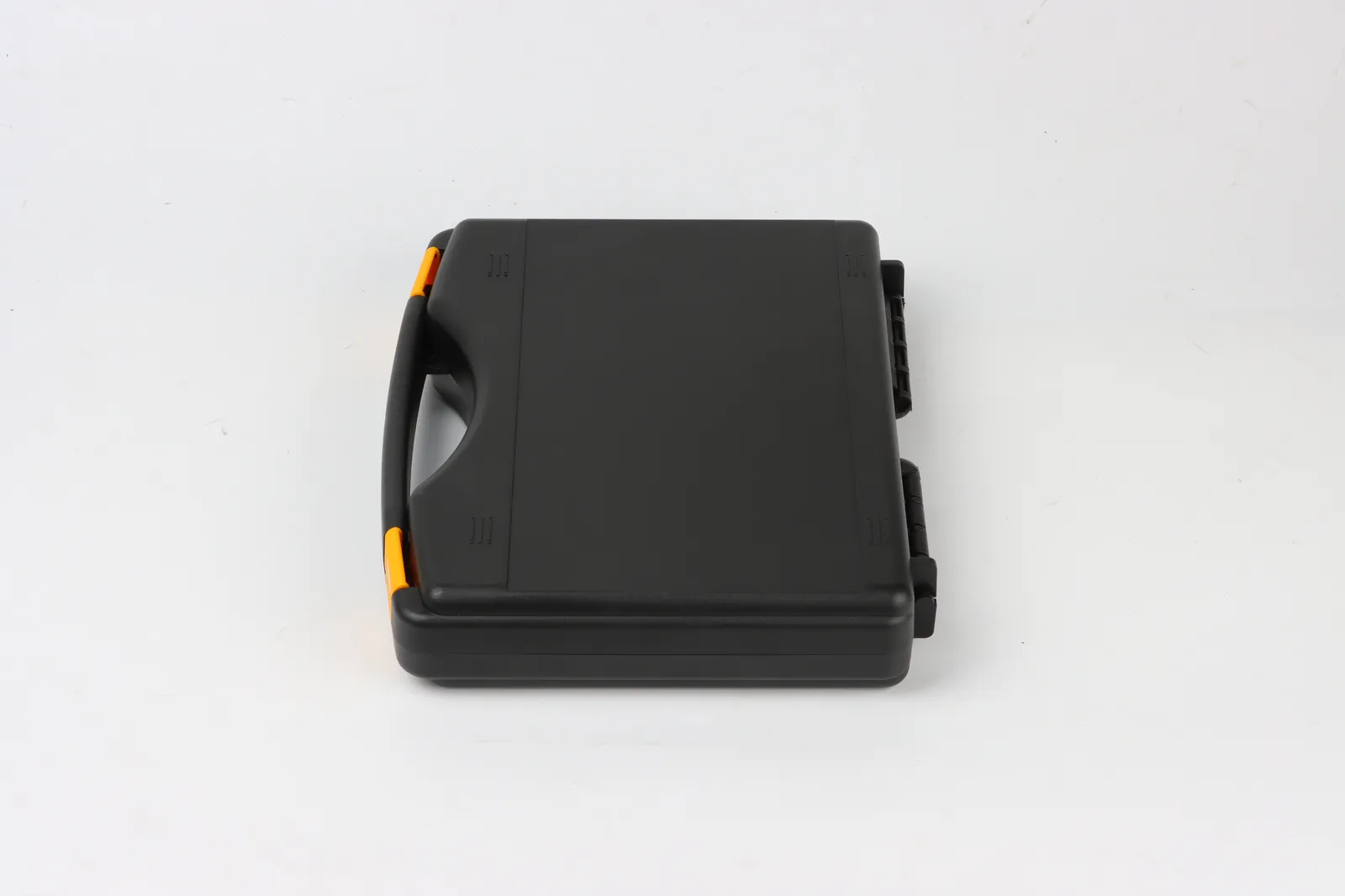

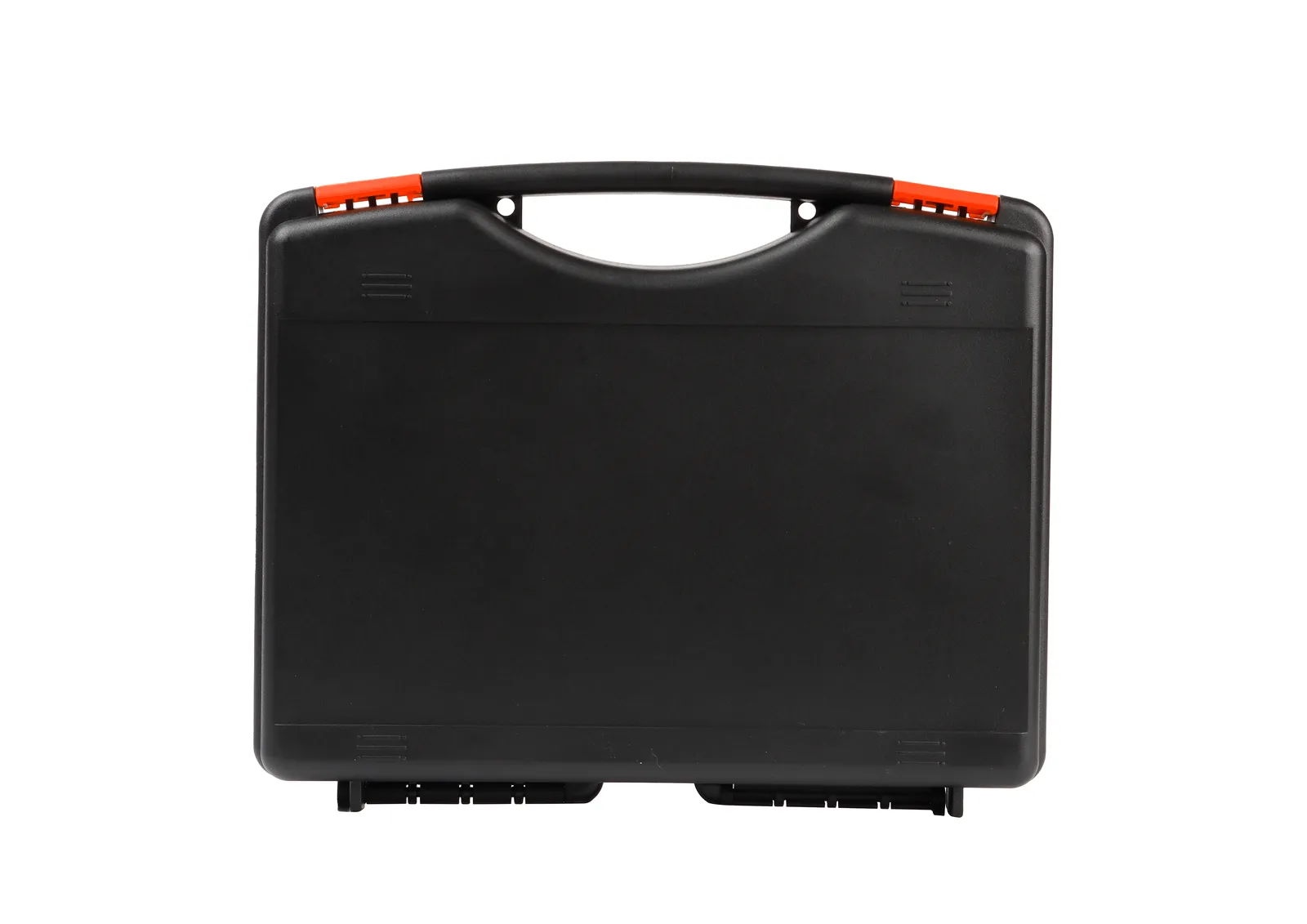

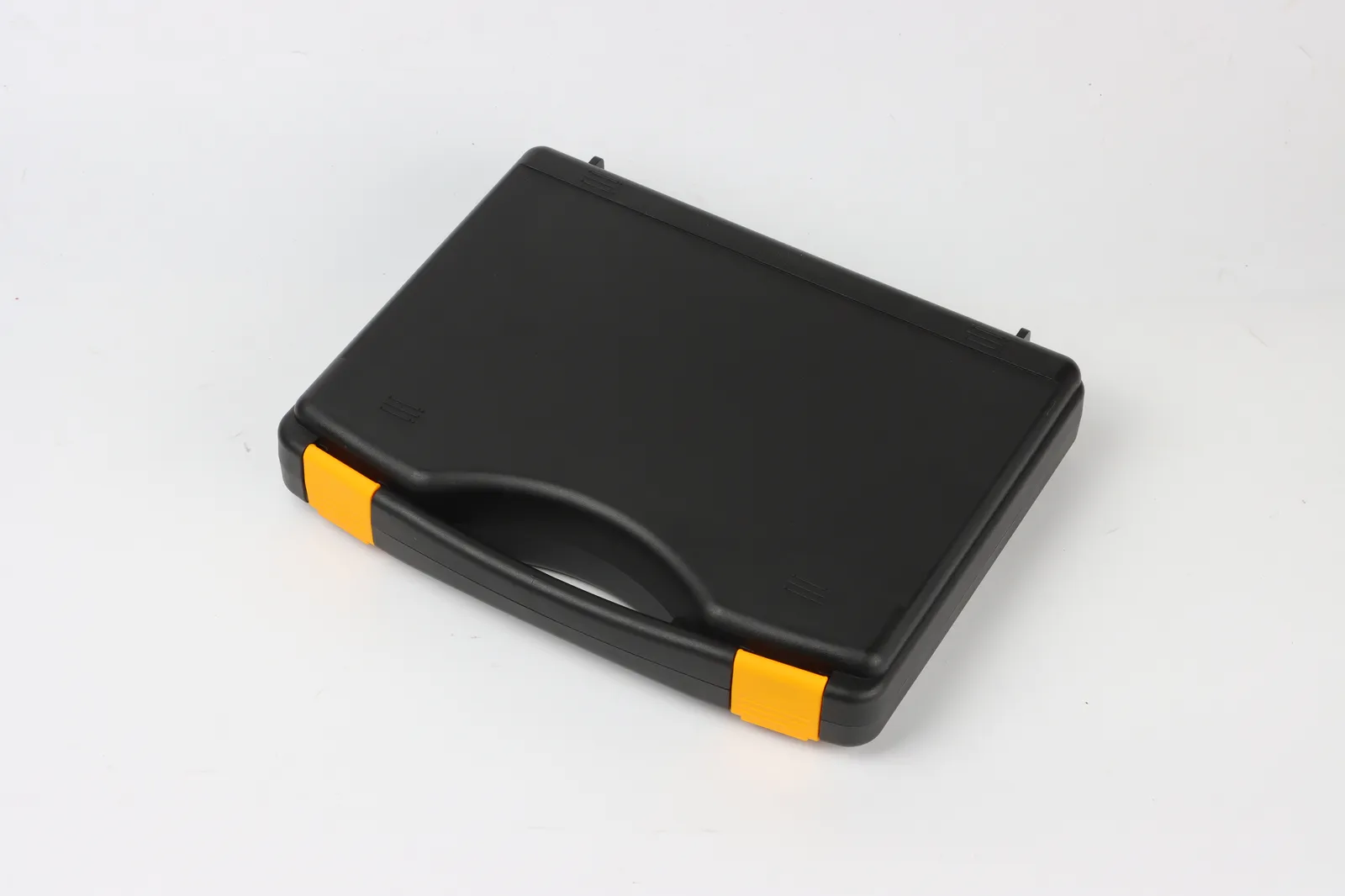

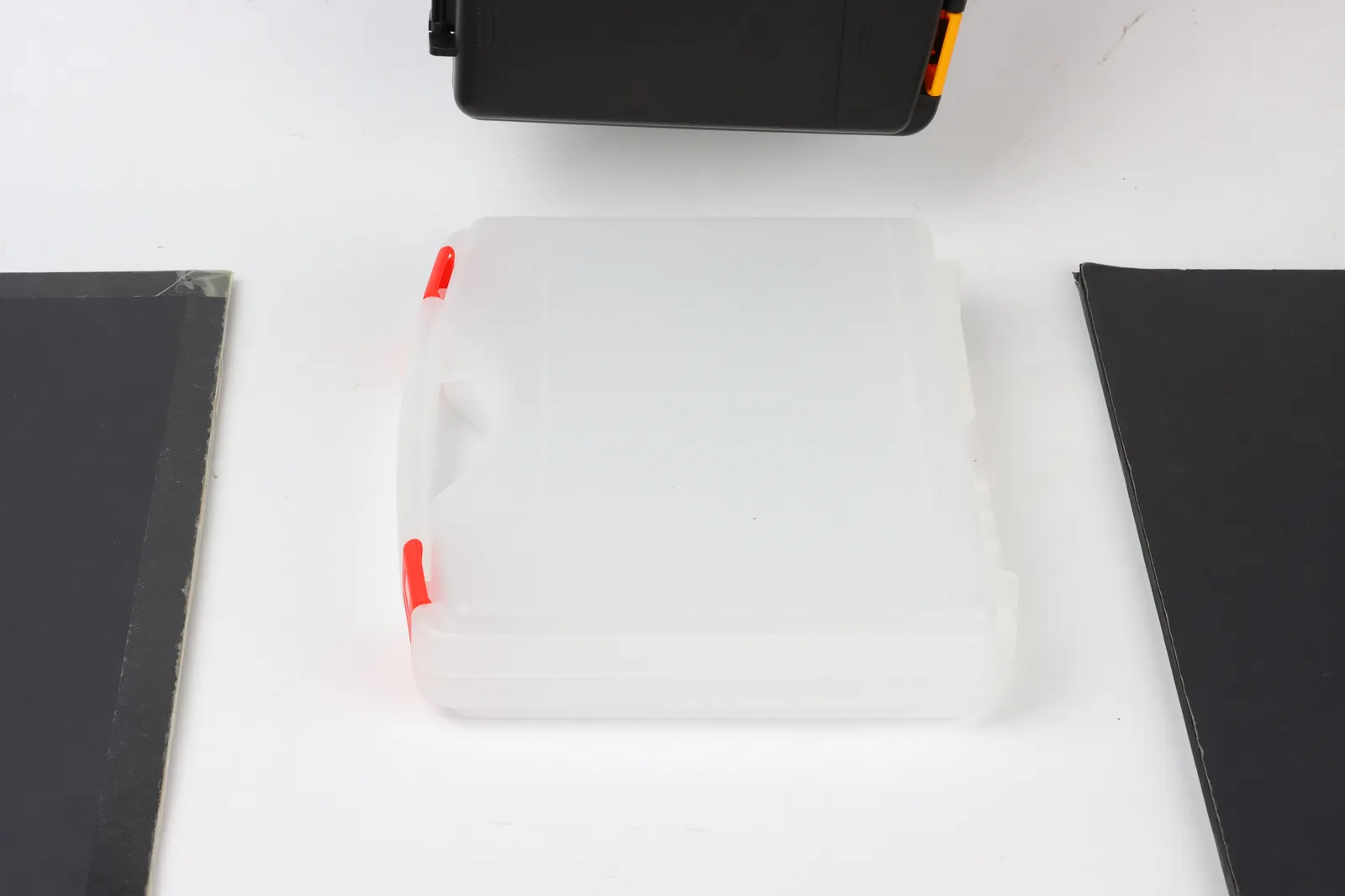

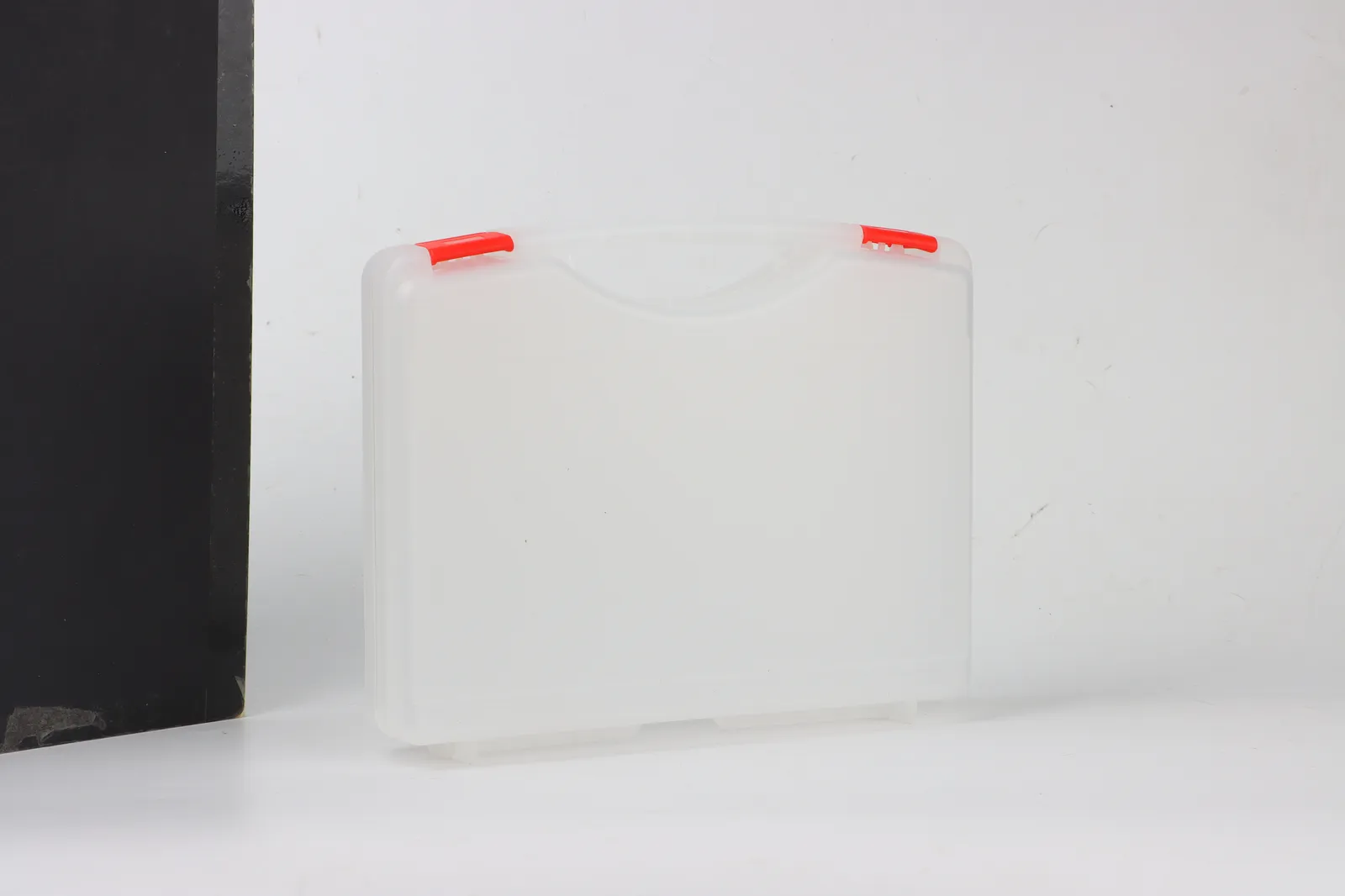

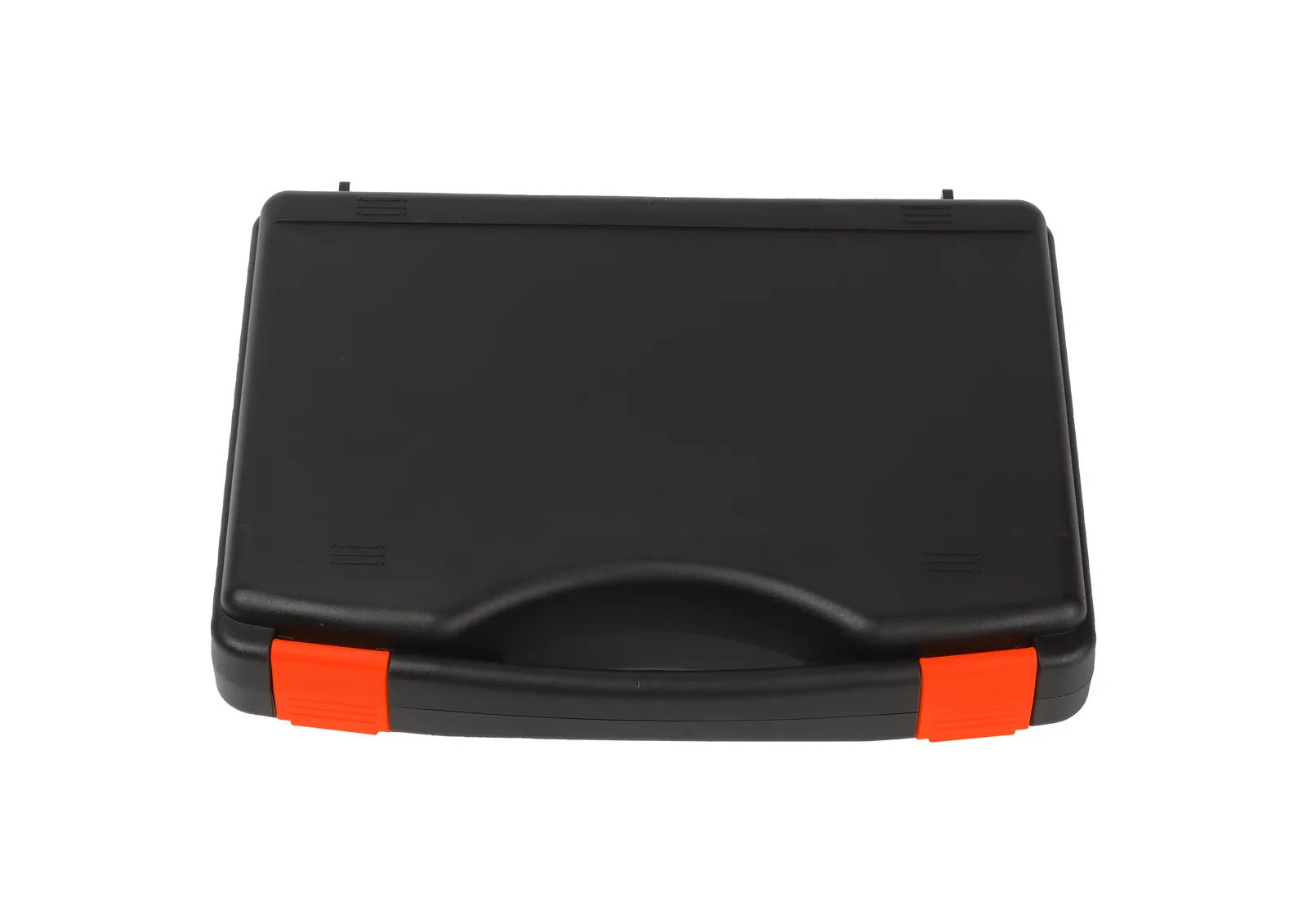

Insert, colour, logo and packaging options can be discussed under OEM/ODM supply. Typical requests include an EVA or foam insert with cut-outs following the tool outline, a body colour matched to your brand, a printed or applied logo on the lid, and customised cartons and shipping marks. The Zhongshan factory of KeXin New Materials (Guangdong) Co., Ltd. adjusts these details per order and supplies directly. Provide your target quantity, tool list and delivery date so the factory can quote and schedule production.
