WL0-2508 PP Hardware Tool Case

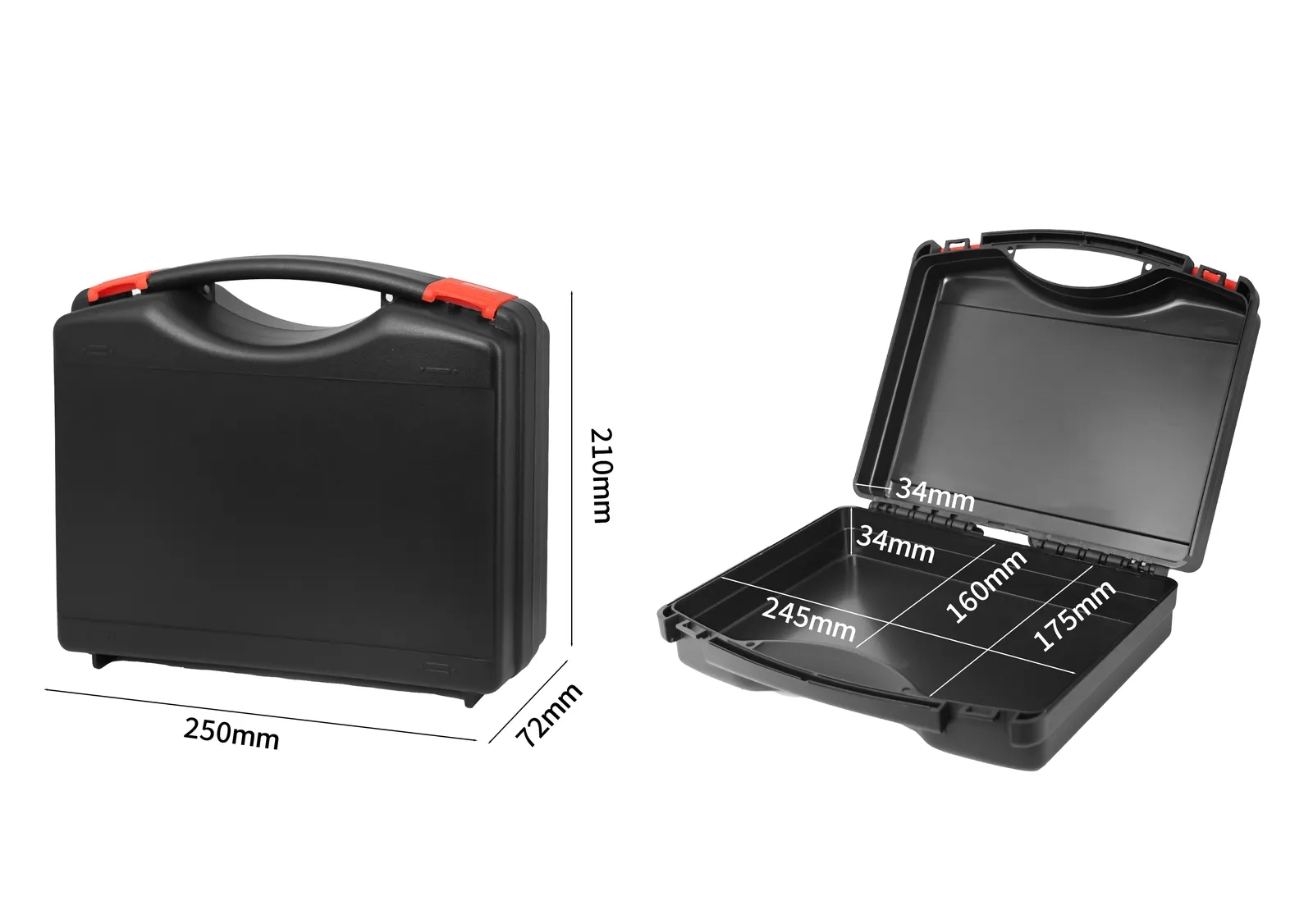

According to the product data, the footprints are close. WL0-2508 measures 250 x 210 x 72 mm outside and 245 x 175 x 68 mm inside, with a 34+34 mm depth split, a 2.0 mm wall and a net weight of about 338 g. WL0-2507 measures 250 x 210 x 70 mm outside and 245 x 175 x 64 mm inside, with a 32+32 mm split, a 2.0 mm wall and about 340 g. The difference lies in the depth split and internal height, with WL0-2508 about 4 mm taller inside, so choose it for taller contents or when an insert must still leave clearance.

The 68 mm internal height suits slightly taller items stored upright, such as small tools with handles, grouped bits or boxed gauges, while the 160 mm narrowest point decides whether long tools can lie flat. Measure the maximum length, width and height of the packed contents, then compare with the 245 x 175 x 68 mm internal space and the 160 mm figure. If a tool comes close to 160 mm wide the fit is tight, so consider standing it upright in a divided insert or choosing a wider model.

According to the product data, each piece is packed in a poly bag, the outer carton measures 515 x 440 x 385 mm, and there are 20 pieces per carton. The quantity per carton reflects the case volume, and the flatter models in the same series generally fit more units per carton. Use the carton dimensions to estimate volumetric weight and confirm the shipping method with your forwarder in advance. If you need a different quantity per carton, carton size or shipping marks, raise it when enquiring.

JUNZHIJIA focuses on IP67 waterproof and dustproof protective cases, and the exact sealing structure, gasket specification and test method for WL0-2508 need to be confirmed with the factory; the export data records no sealing or test information for this model. If the case will hold precision gauges or metal parts sensitive to moisture, state the environment and acceptance criteria when enquiring and ask for the confirmed sealing specification to be written into the order, giving a clear basis for incoming inspection and repeat purchases.

Insert, colour, logo and packaging can be discussed under OEM/ODM supply: an EVA or foam insert cut to the outline of the contents, a body colour of your choice, a printed or applied logo, and customised cartons and shipping marks. The Zhongshan factory of KeXin New Materials (Guangdong) Co., Ltd. adjusts these details per order and supplies factory direct. Provide the target quantity, contents list and expected delivery date so the factory can issue a quotation and a production schedule.
