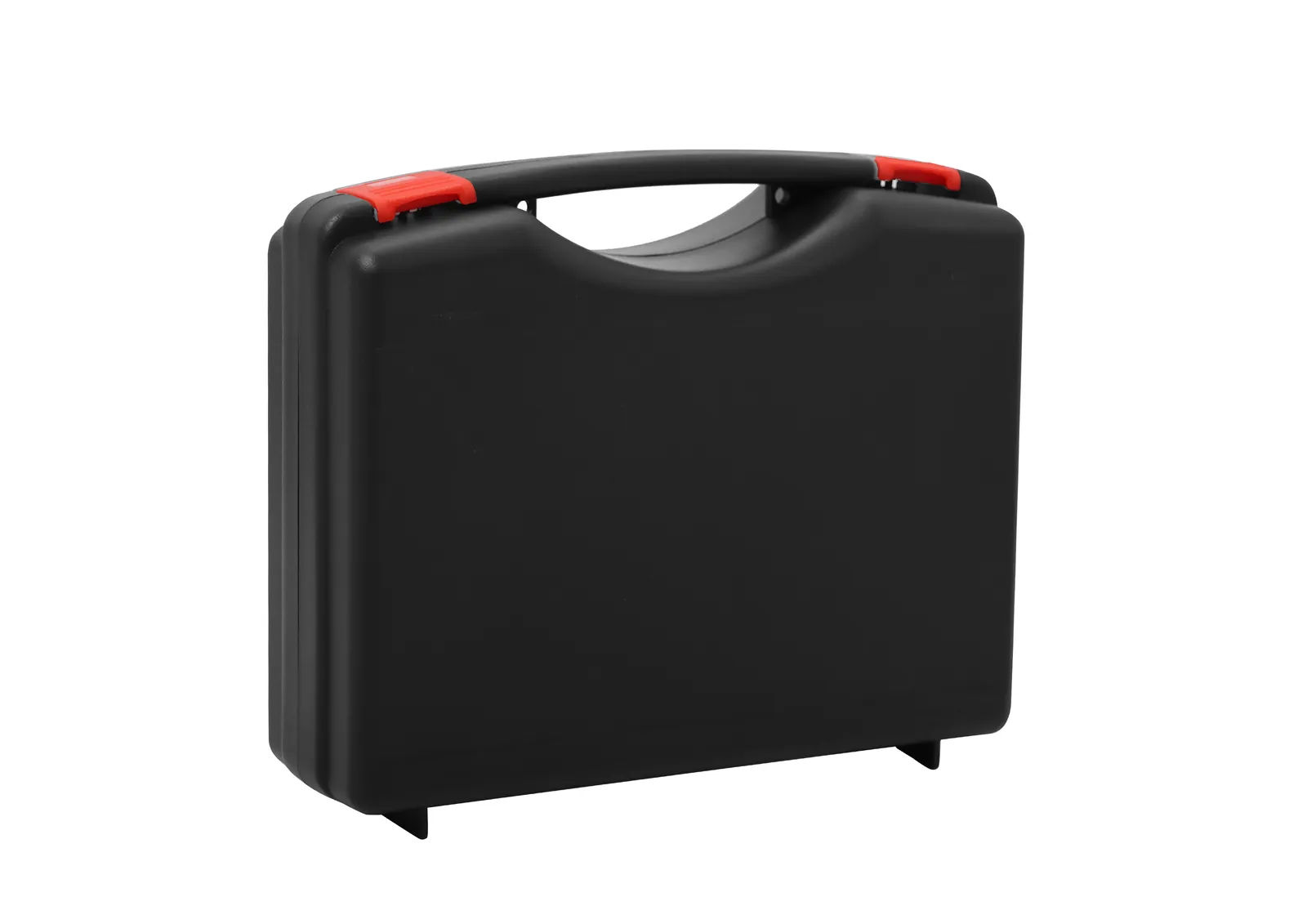

WL0-2808 Protective Case

According to the product data, the case measures 280 x 230 x 82 mm outside and 272 x 193 x 76 mm inside, with a 170 mm narrowest internal point, lid and base depths listed as 38+38 mm, a 2.2 mm wall and a net weight of about 527 g, in PP. The 38+38 mm figures are the usable depths of the lid and base and together give a 76 mm internal height, while the 170 mm narrowest point sets the maximum width for long items laid flat. Measure the packed length, width and height of the contents first.

The export data lists hardware tool cases, first aid cases and medical equipment cases for WL0-2808, which makes it a general purpose body: the 76 mm internal height suits tools stored upright, layered first aid consumables and portable medical accessories alike. The three uses differ in moisture protection, cleaning and access order. For first aid or medical use, say when enquiring whether you need a wipe-clean insert or divided compartments so the factory can adapt the insert instead of shipping the default tool case configuration.

At 2.2 mm the wall is slightly thicker than the 2.0 mm flat models in the same series, and combined with the toughness of PP it copes with the compression and knocks of everyday handling, stacking and vehicle transport, while 527 g stays within a comfortable carrying weight. If the case will face drops, heavy loads or tall stacks, describe the strength requirement, stacking height and transport method when enquiring so the factory can assess whether a heavier model or added internal support is needed.

According to the product data, each piece is packed in a poly bag, the outer carton measures 560 x 445 x 415 mm, and there are 20 pieces per carton. Twenty units per carton suits receiving and shipping by full carton and makes it easy to check volume and weight with the freight forwarder. If your channel needs a different packing format, split quantities or particular carton marks, raise it when enquiring so the factory can confirm whether the packing can be adapted before production.

JUNZHIJIA focuses on IP67 waterproof and dustproof protective cases, and the exact sealing structure, gasket specification and test method for WL0-2808 need to be confirmed with the factory; the export data records no sealing or test information for this model. First aid and medical use often carries clear moisture and dust requirements, so state the storage conditions, how often the case is wiped or disinfected, whether short-term immersion protection is needed and your acceptance method, then have the result written into the order.
