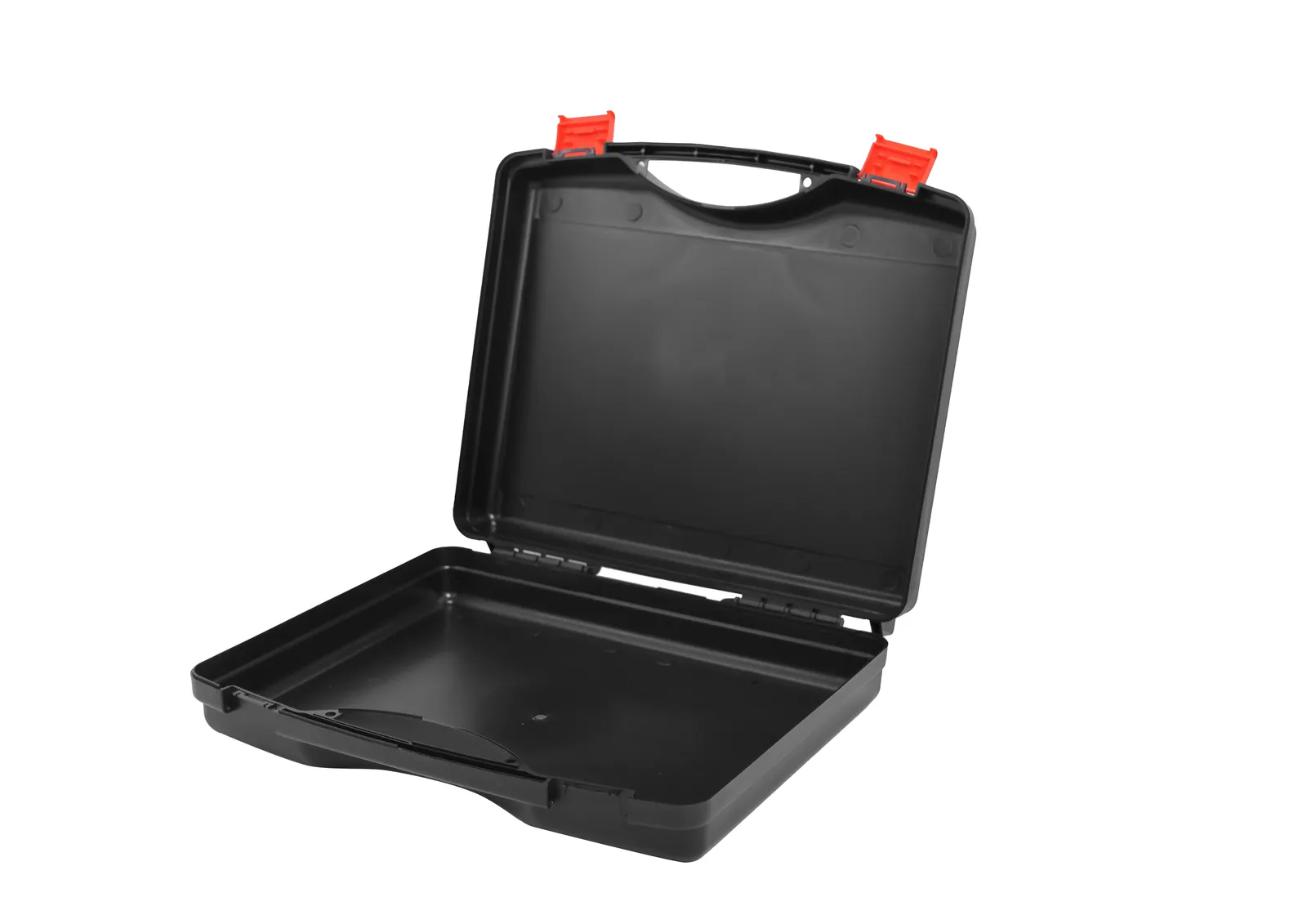

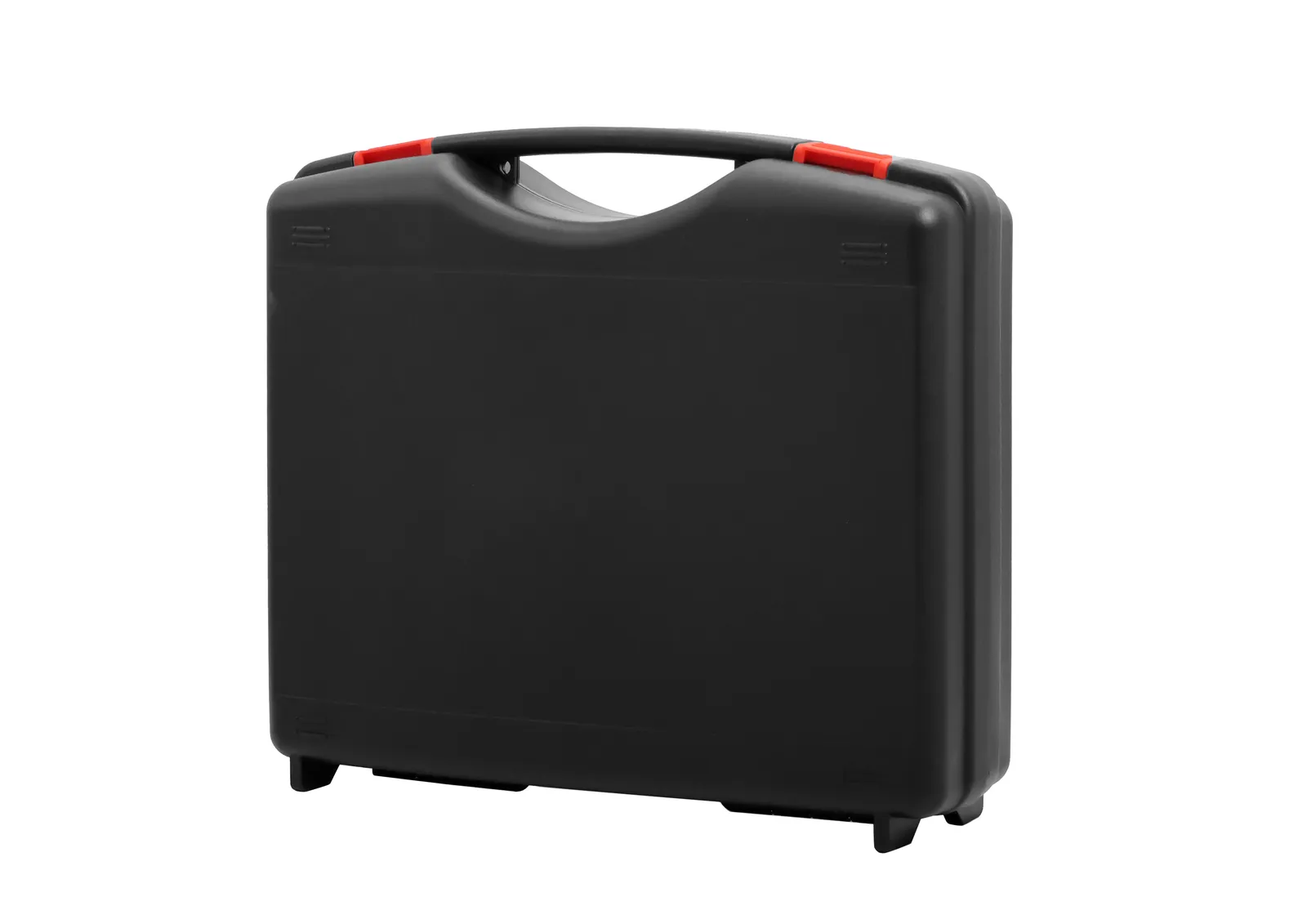

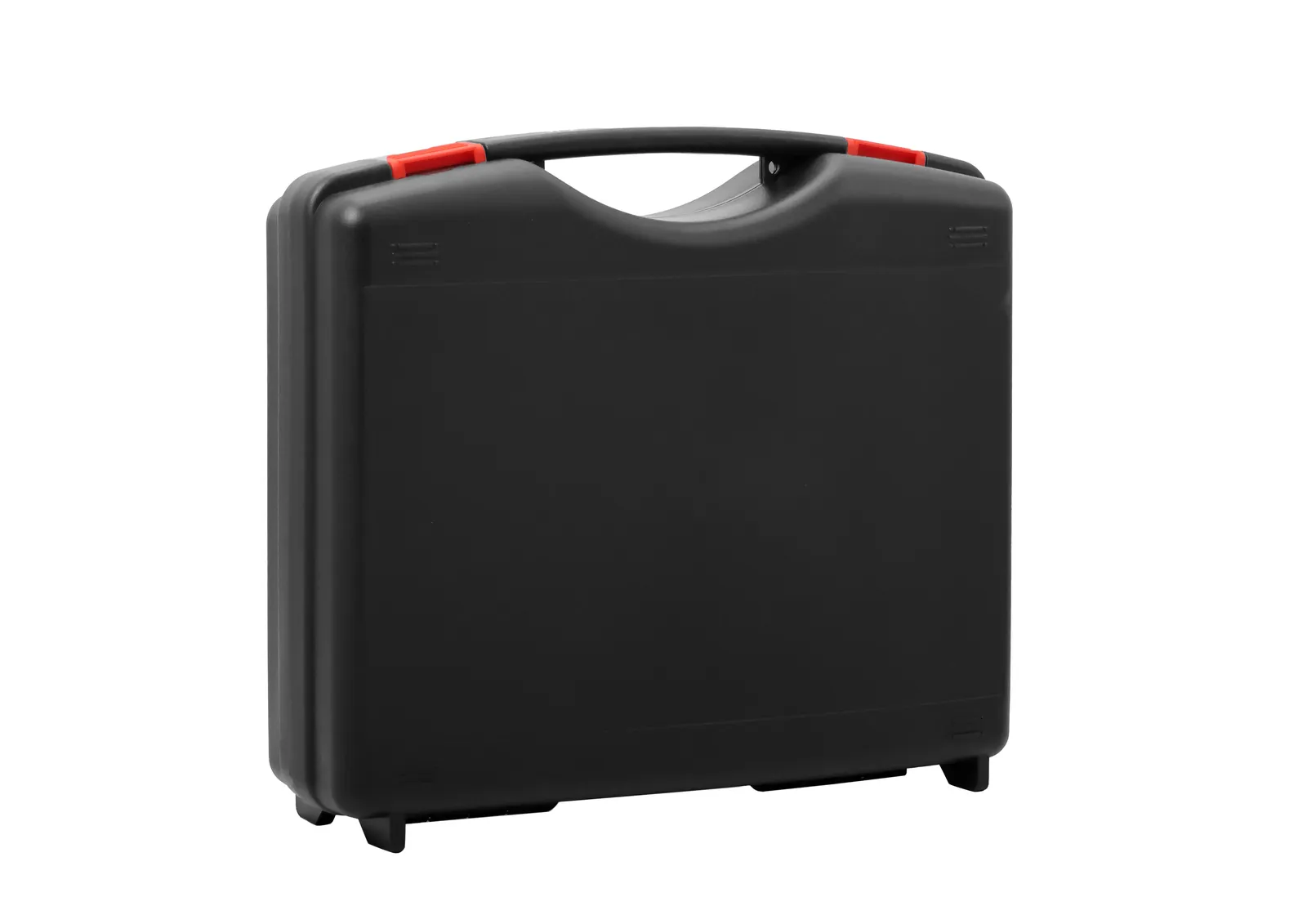

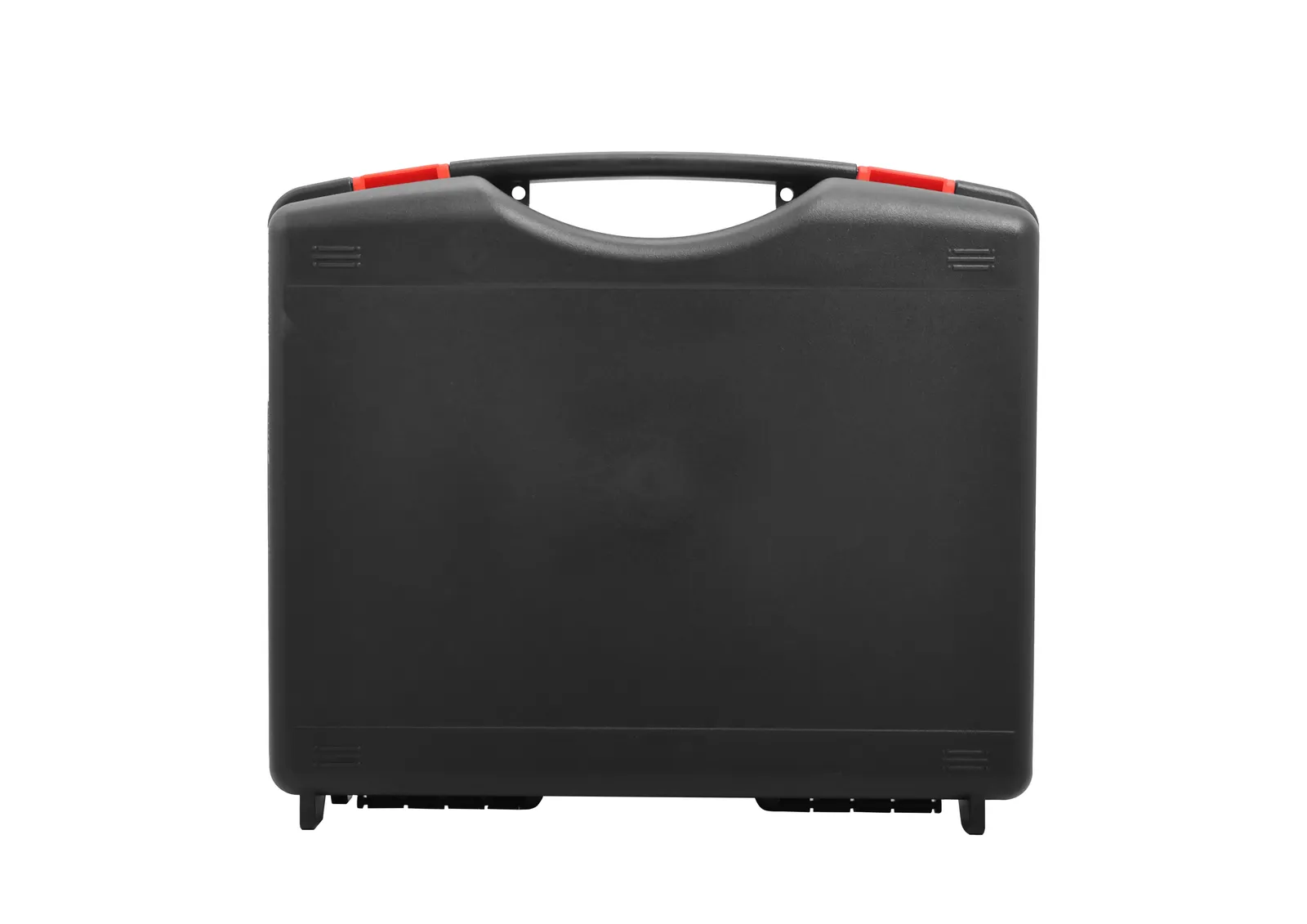

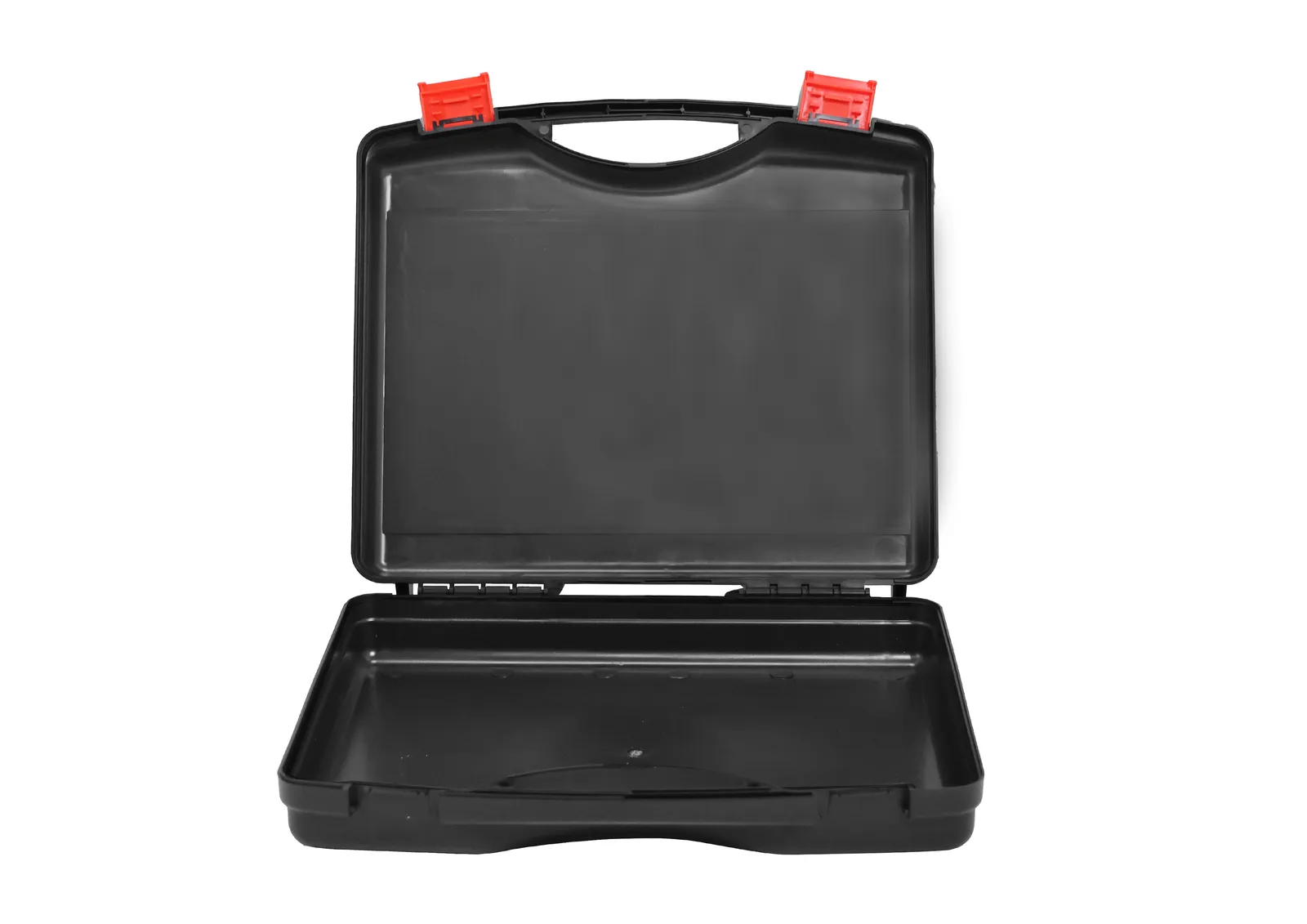

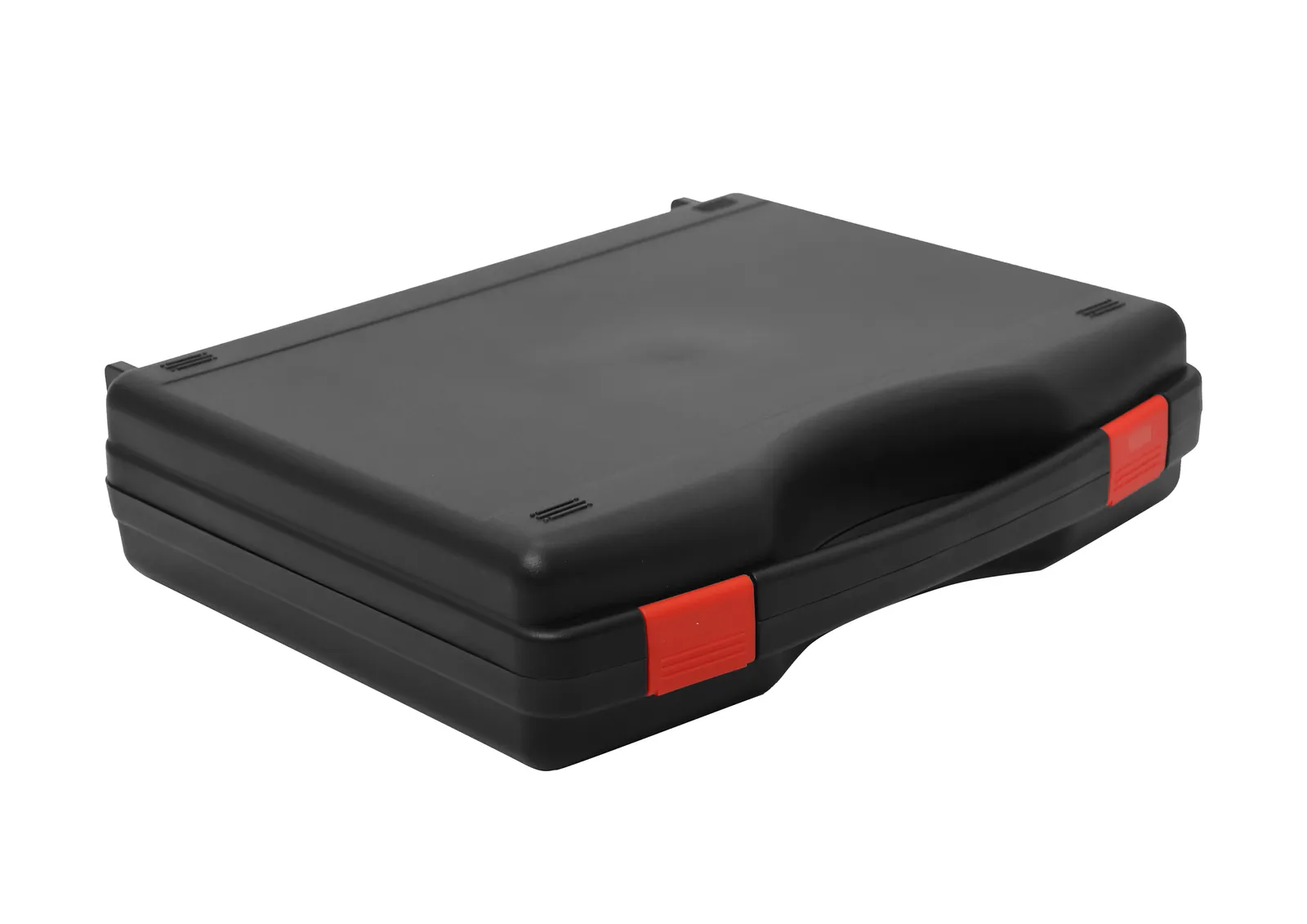

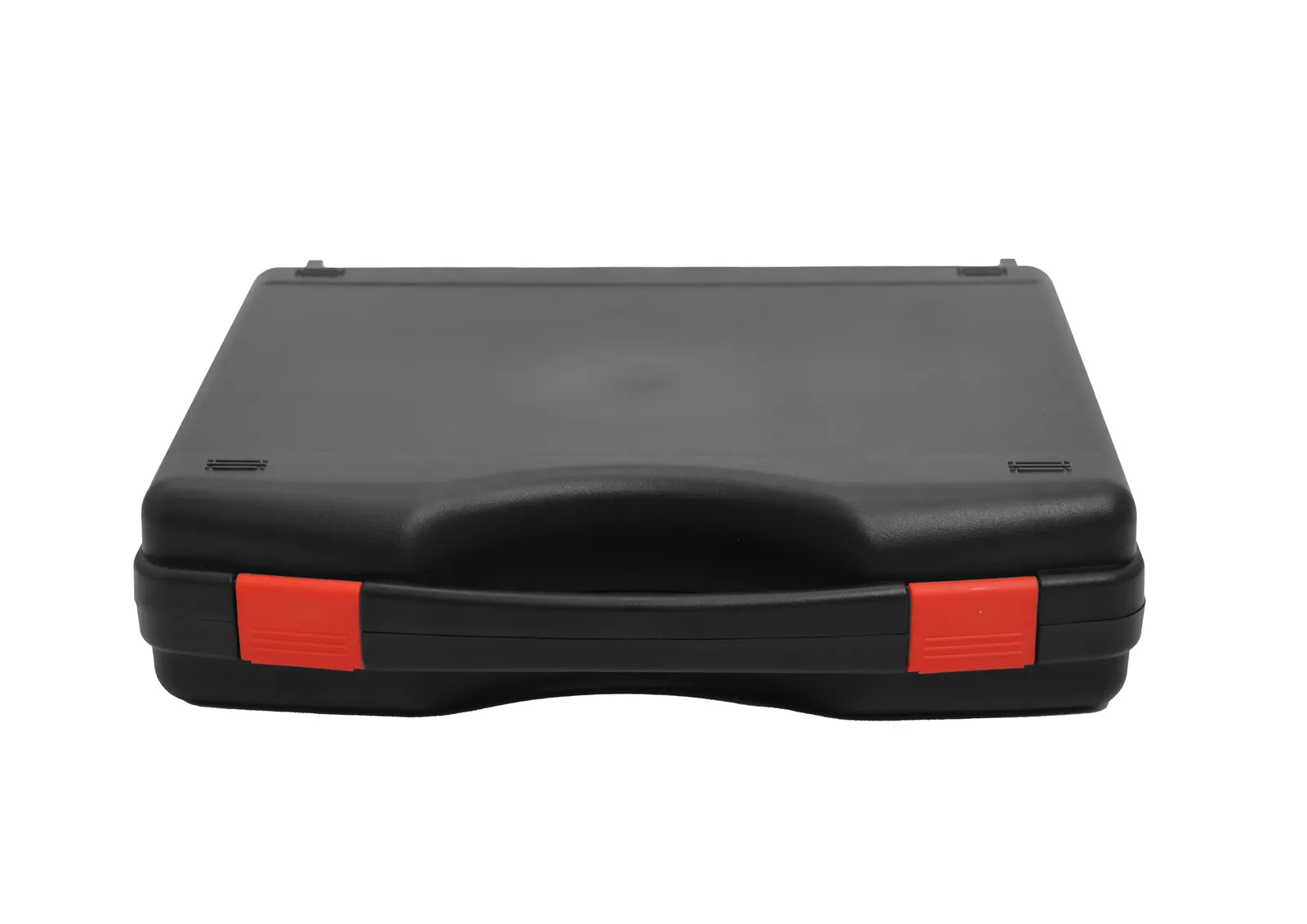

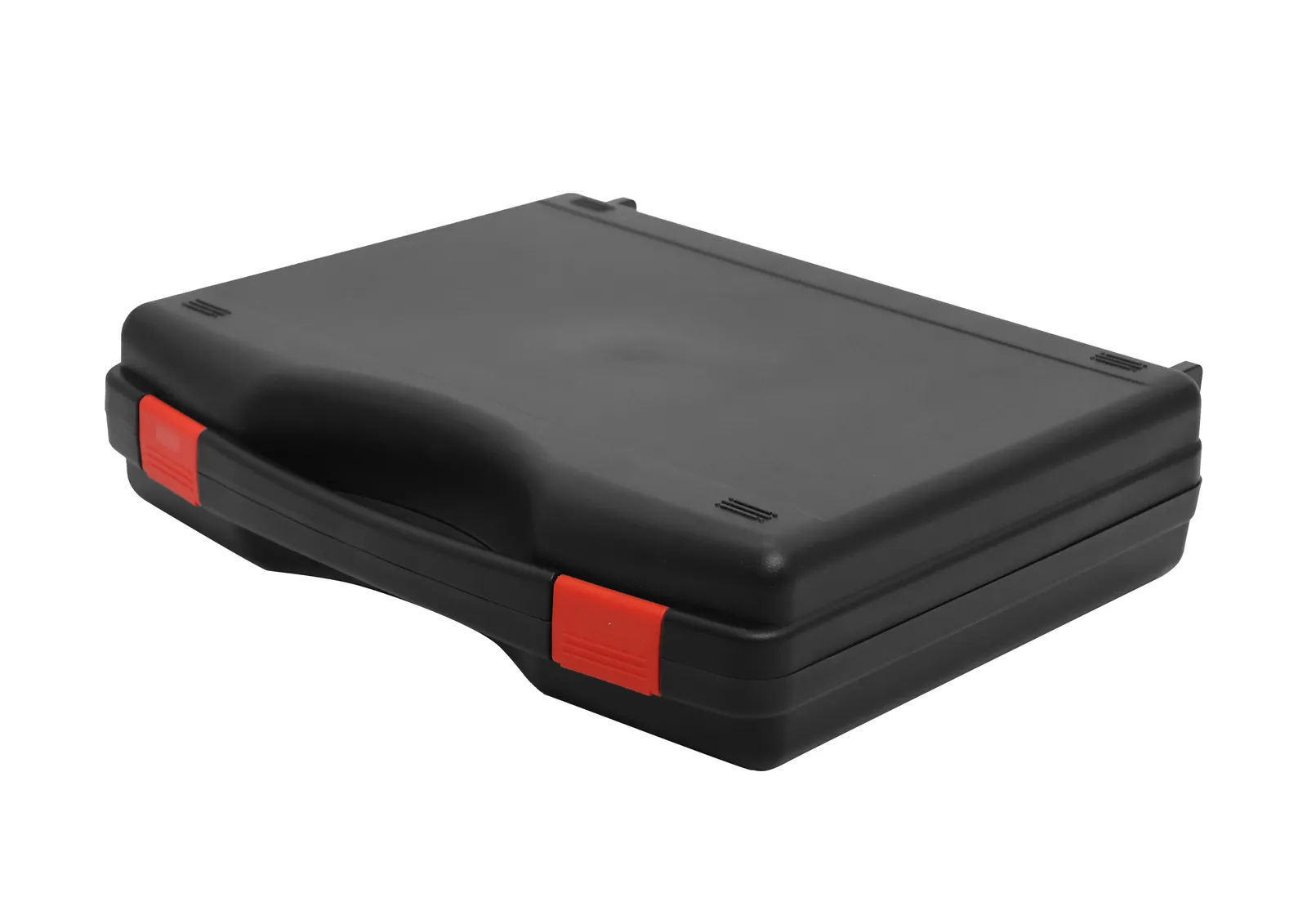

WL0-4010 PP Medical Equipment Case

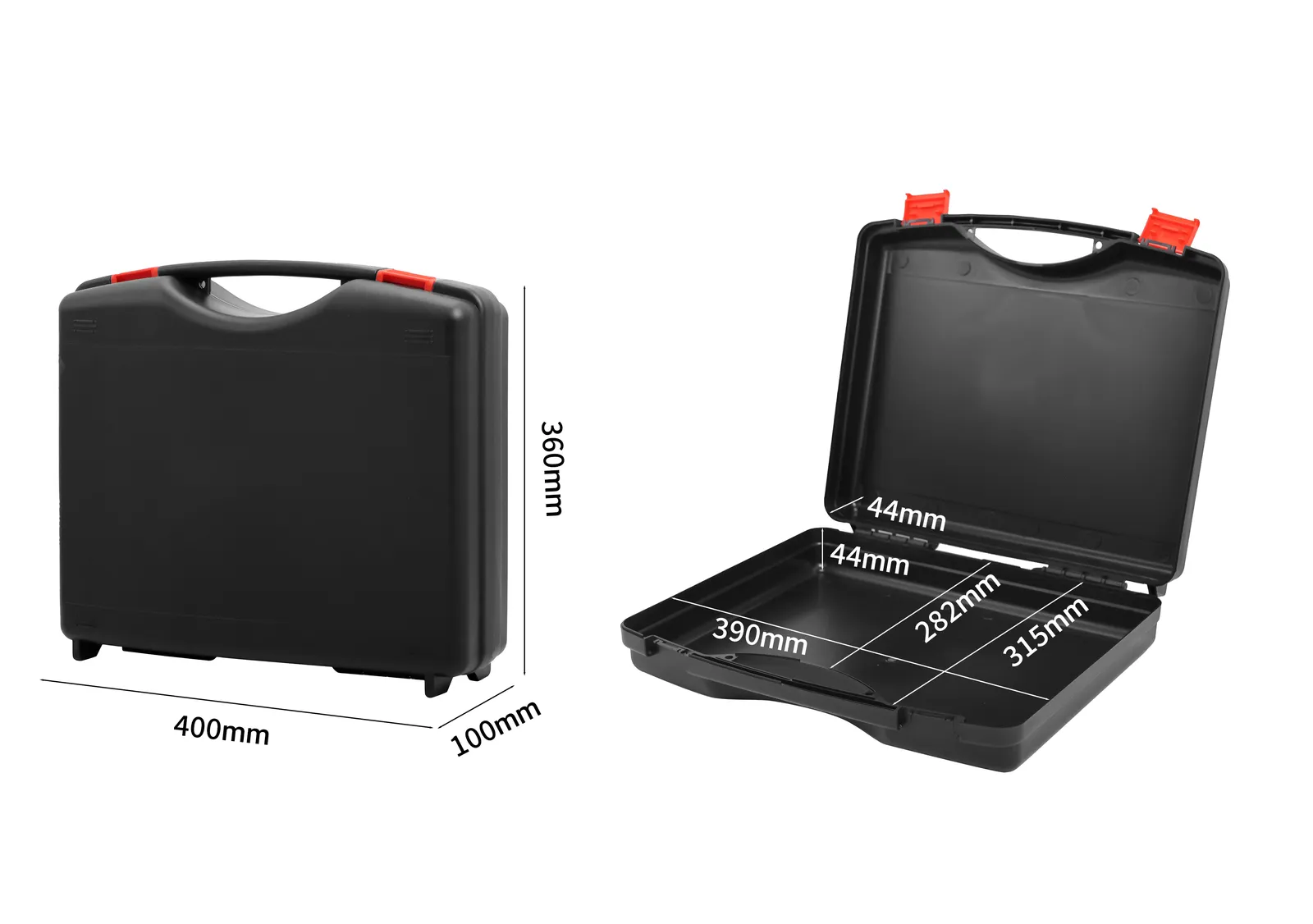

According to the product data, the case measures 400 x 360 x 100 mm outside and 390 x 315 x 88 mm inside, with a 282 mm narrowest internal point, a 44+44 mm depth split, a 3.0 mm wall and a net weight of about 1015 g. Three figures decide the fit: the 390 x 315 mm base, the 282 mm narrowest point and the 88 mm height. A unit wider than 282 mm will not lie flat, and one taller than 88 mm will prevent the lid closing. Measure the equipment and its accessories and allow 2 to 3 mm clearance.

An EVA or foam insert can be cut to the outline of the equipment and accessories, holding the main unit, probes, cables and power supply in separate zones. That reduces movement and contact damage in transit, and it keeps the packing layout identical every time so items are quicker to find on site. Cut drawings normally require three dimensional dimensions or drawings of the equipment, and a sample or trial fitting confirms clearance, cut depth and how the unit is removed. Both the lid and base offer about 44 mm of depth for fixing points.

According to the product data, each piece is packed in a poly bag, the outer carton measures 710 x 410 x 500 mm, and there are 10 pieces per carton. Medical equipment cases are usually bought in batches for a project or department, and ten units per carton makes receiving and distribution straightforward. The 710 x 410 x 500 mm carton size can be used to estimate volumetric weight and freight cost. If cases must ship with the equipment, be split by department or carry labels, mention it when enquiring.

JUNZHIJIA focuses on IP67 waterproof and dustproof protective cases, and the exact sealing structure, gasket specification and test method for WL0-4010 need to be confirmed with the factory; the export data records no sealing or test information for this model. Precision medical equipment is sensitive to moisture, dust and vibration, so state the working environment, transport method, whether short-term immersion protection is required and your acceptance criteria, then have the confirmed solution written into the order specification.

Insert, colour, logo and packaging can be discussed under OEM/ODM supply: an EVA or foam insert cut to the equipment outline with space reserved for cables and accessories, a body colour matched to your brand, printed brand, department or asset numbers on the lid, customised cartons and shipping marks, and a sample built to confirm the assembly. The Zhongshan factory of KeXin New Materials (Guangdong) Co., Ltd. adjusts these details per order. Provide the target quantity, equipment list and delivery date.
