WL0-4610 PP Medical Equipment Case

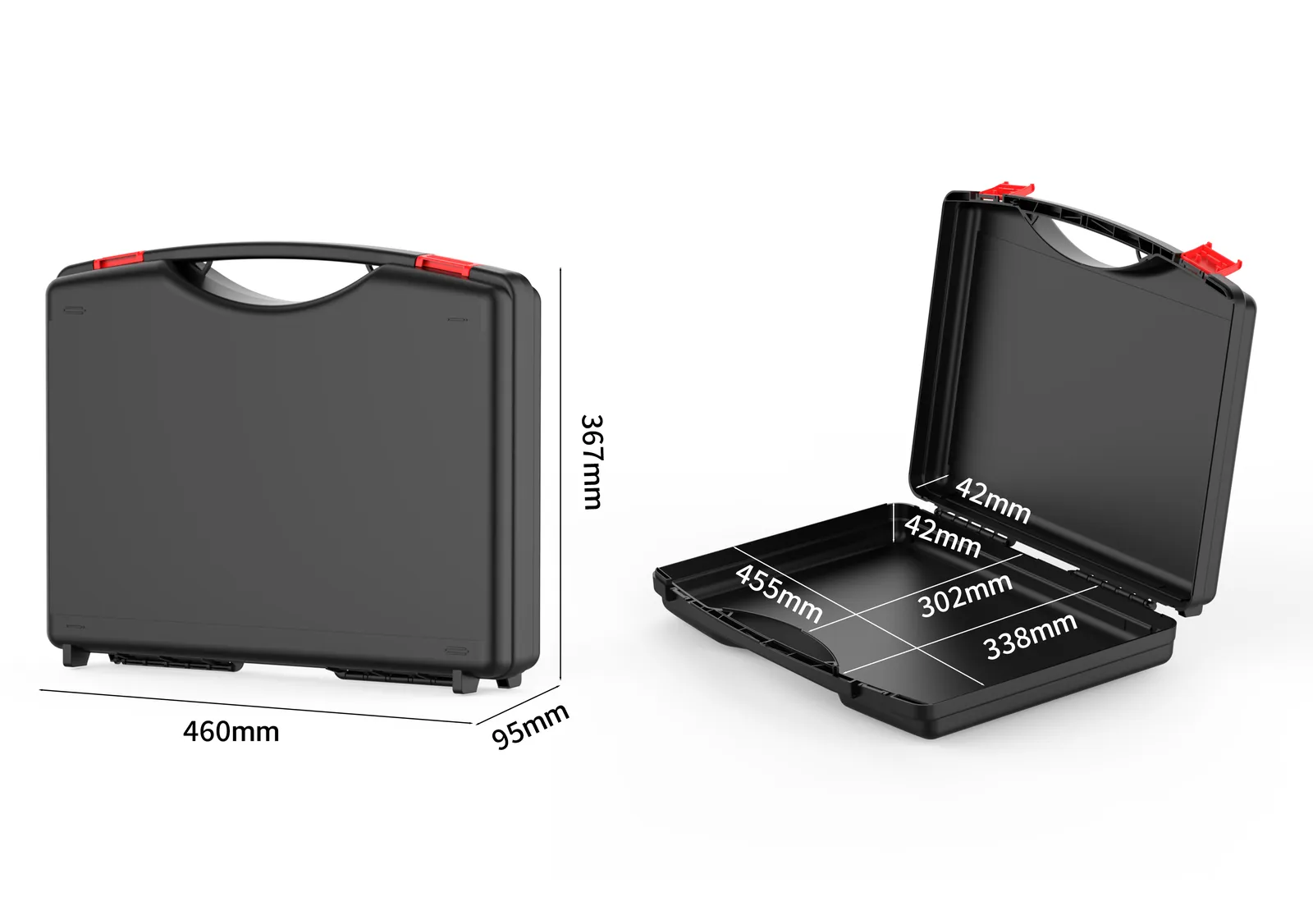

According to the product data, the case measures 460 x 367 x 95 mm outside and 455 x 338 x 84 mm inside, with a 302 mm narrowest internal point, a 42+42 mm depth split, a 3.0 mm wall and a net weight of about 1115 g. Three figures decide the fit: the 455 x 338 mm base, the 302 mm narrowest point and the 84 mm height. A unit wider than 302 mm will not lie flat and one taller than 84 mm will keep the lid open, and cables and accessories need clearance too.

According to the product data, all three share the 460 x 367 mm base and a 3.0 mm wall, differing in internal height. WL0-4610 measures 460 x 367 x 95 mm outside and 455 x 338 x 84 mm inside at about 1115 g. WL0-4613 measures 460 x 367 x 126 mm outside and 455 x 338 x 116 mm inside at about 1370 g. WL0-4616 measures 460 x 367 x 155 mm outside and 455 x 338 x 148 mm inside at about 1395 g. Choose by packed height.

A shared base size means the three cases work with the same pallets and vehicle space planning when loaded and stacked, and identical outer shapes make column stacking and counting easier in the warehouse. Buyers simply pick the internal depth that matches the equipment height rather than re-planning storage locations for each device. For a facility with equipment of several heights, models can be selected per unit while keeping one common outer footprint, which simplifies transport and replenishment.

According to the product data, each piece is packed in a poly bag, the outer carton measures 755 x 470 x 650 mm, and there are 10 pieces per carton. Ten per carton suits batch receiving and distribution by project or department, and the 755 x 470 x 650 mm size helps estimate volumetric weight and freight cost. If cases must ship together with the equipment, be split by department, carry asset labels, or need a different quantity per carton and specific marks, mention it when enquiring.

Insert, colour, logo and packaging can be discussed under OEM/ODM supply: an EVA or foam insert cut to the equipment and cable outlines with separate zones for the main unit, accessories and power supply, a body colour matched to your brand, printed brand, department or asset numbers on the lid, and customised cartons and shipping marks. The Zhongshan factory of KeXin New Materials (Guangdong) Co., Ltd. adjusts these details per order. Provide the target quantity, equipment list and delivery date.
