WL0-4613 PP Medical Equipment Case

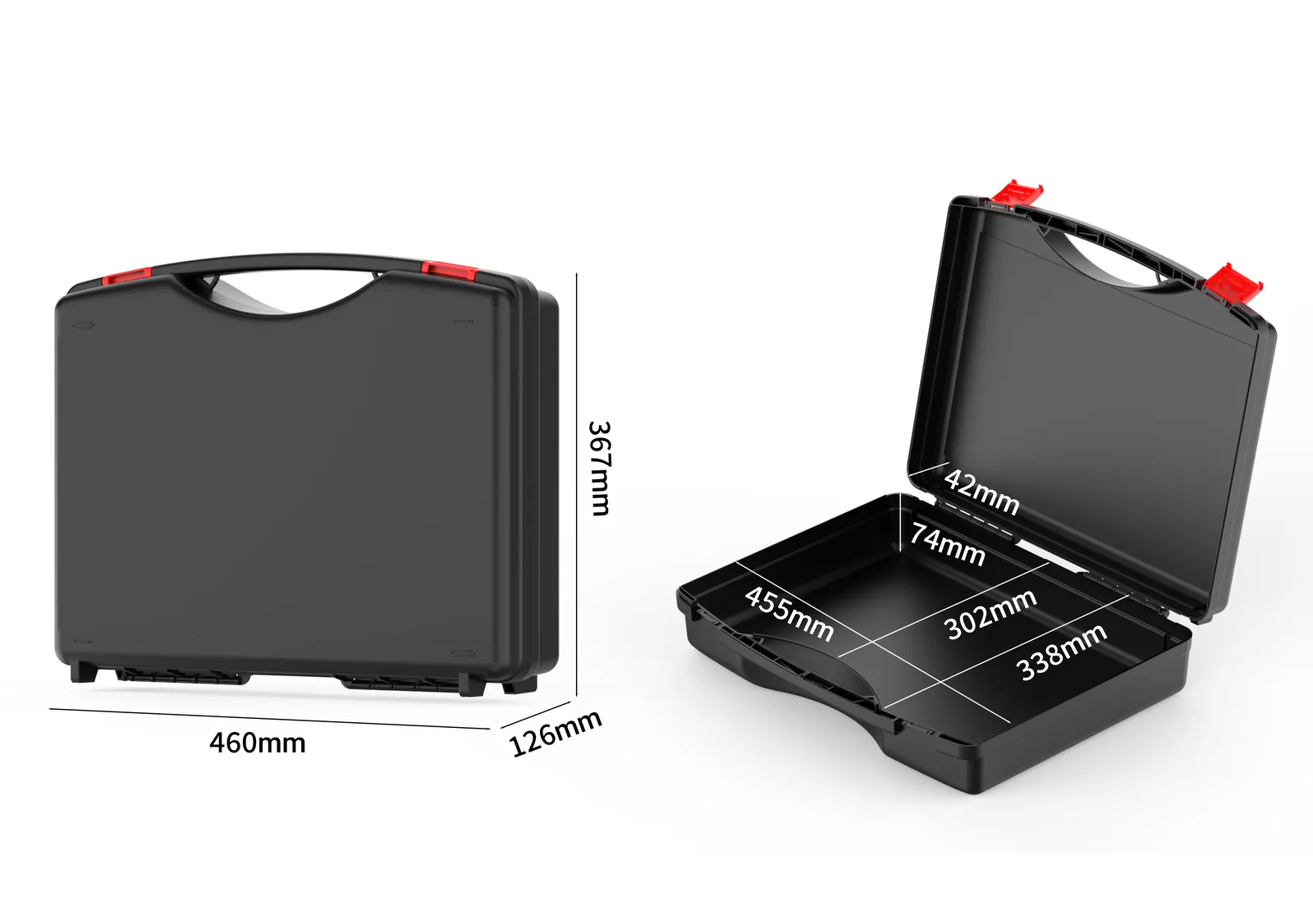

According to the product data, WL0-4613 measures 460 x 367 x 126 mm outside and 455 x 338 x 116 mm inside, with a 302 mm narrowest internal point, a 42+74 mm depth split, a 3.0 mm wall and a net weight of about 1370 g. The figures mean roughly 42 mm on the lid side and 74 mm on the base side, so the base is deeper. Typically the main unit or thicker equipment sits in the base and cables, probes and manuals go in the lid, each held by its own insert, so the two layers do not interfere.

According to the product data, both share the same base. WL0-4610 has a 455 x 338 x 84 mm internal space, weighs about 1115 g and ships 10 per carton; WL0-4613 has 455 x 338 x 116 mm inside, weighs about 1370 g and ships 8 per 755 x 470 x 635 mm carton. If the equipment plus accessories stays within 84 mm, WL0-4610 lowers unit weight and increases carton quantity; for layered loading or taller accessories, WL0-4613 is the better match.

An empty weight of about 1370 g is on the heavy side for the 0 Series, and adding equipment pushes the packed weight higher, so the case suits fixed storage points or vehicle transport rather than long one-handed carrying. When loading and stacking, keep an eye on carton weight and the number of load bearing layers, and limit stack height where necessary. If the packed weight has a firm limit, describe the handling method and weight distribution when enquiring.

According to the product data, each piece is packed in a poly bag, the outer carton measures 755 x 470 x 635 mm, and there are 8 pieces per carton. Because the body is taller and heavier, fewer units fit per carton than the WL0-4610 on the same base, and carton weight matters during handling. The 755 x 470 x 635 mm size helps estimate volumetric weight and freight cost. Mention it when enquiring if cases ship with equipment, need department or project splits, asset labels or specific marks.

Insert, colour, logo and packaging can be discussed under OEM/ODM supply: a two level insert designed around the 74 mm base and 42 mm lid depths to hold the main unit and accessories separately, a body colour matched to your brand, printed brand, department or asset numbers on the lid, customised cartons and shipping marks, and a sample to confirm the assembly. The Zhongshan factory of KeXin New Materials (Guangdong) Co., Ltd. adjusts these details per order. Provide the target quantity, equipment list and delivery date.
