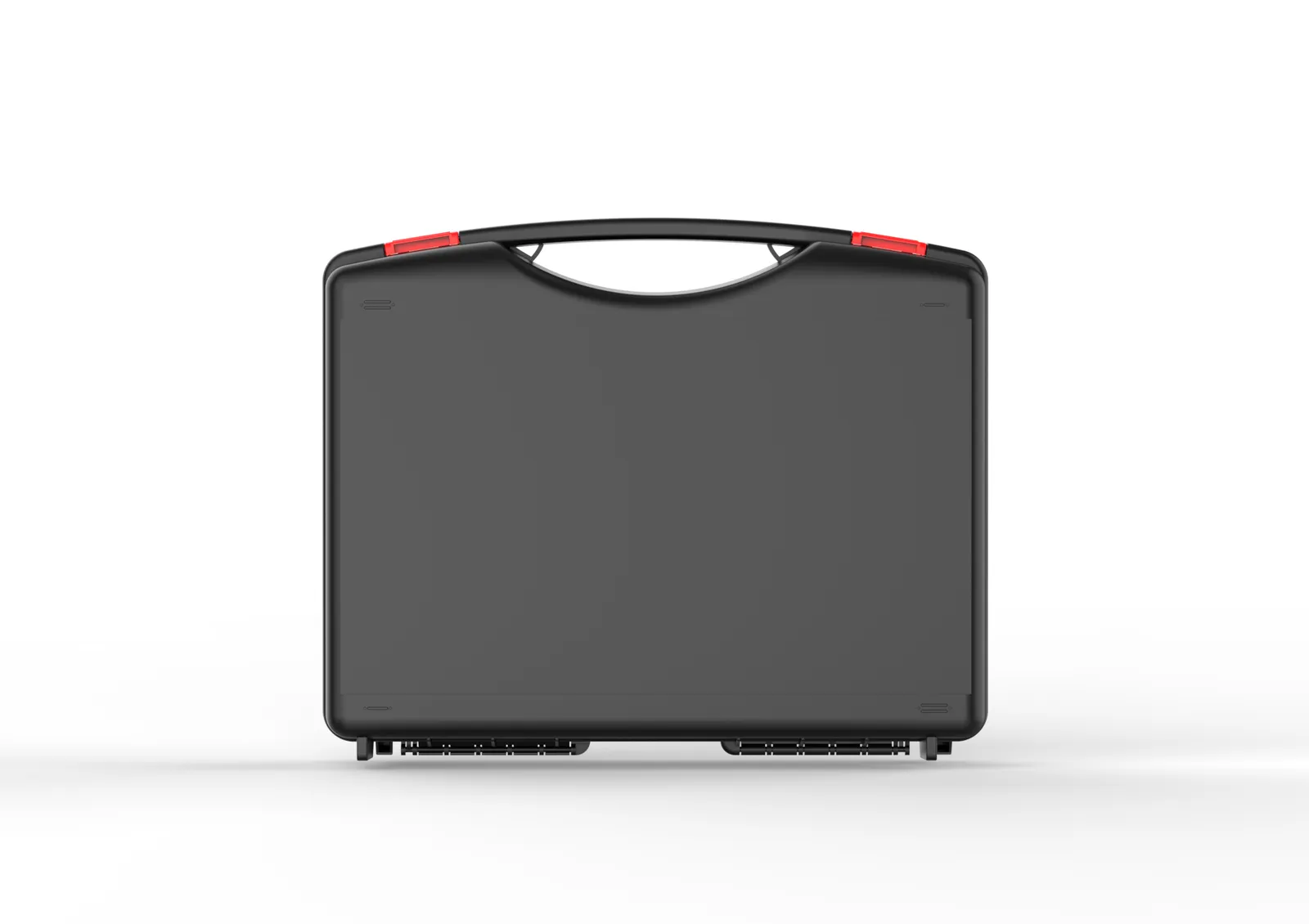

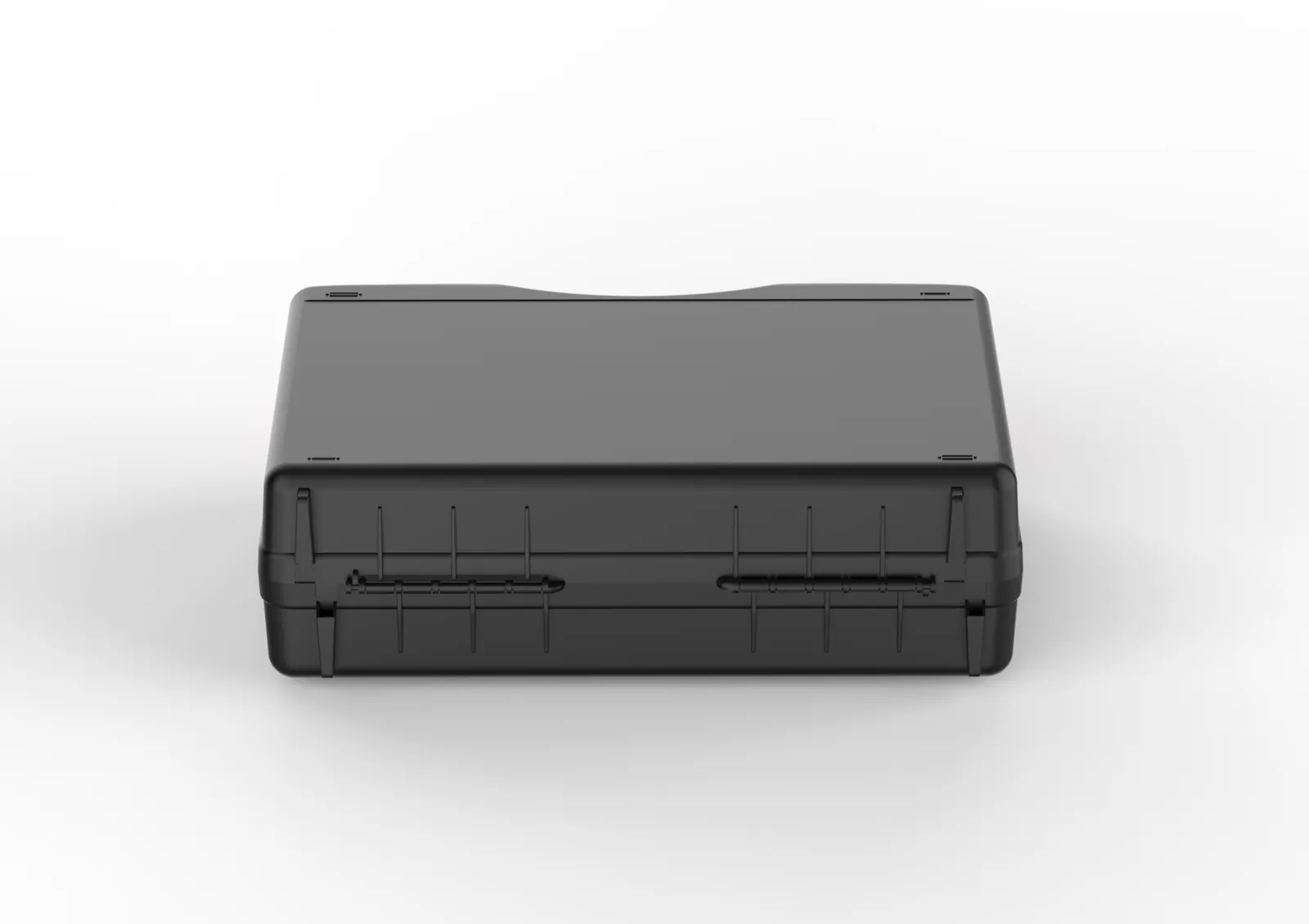

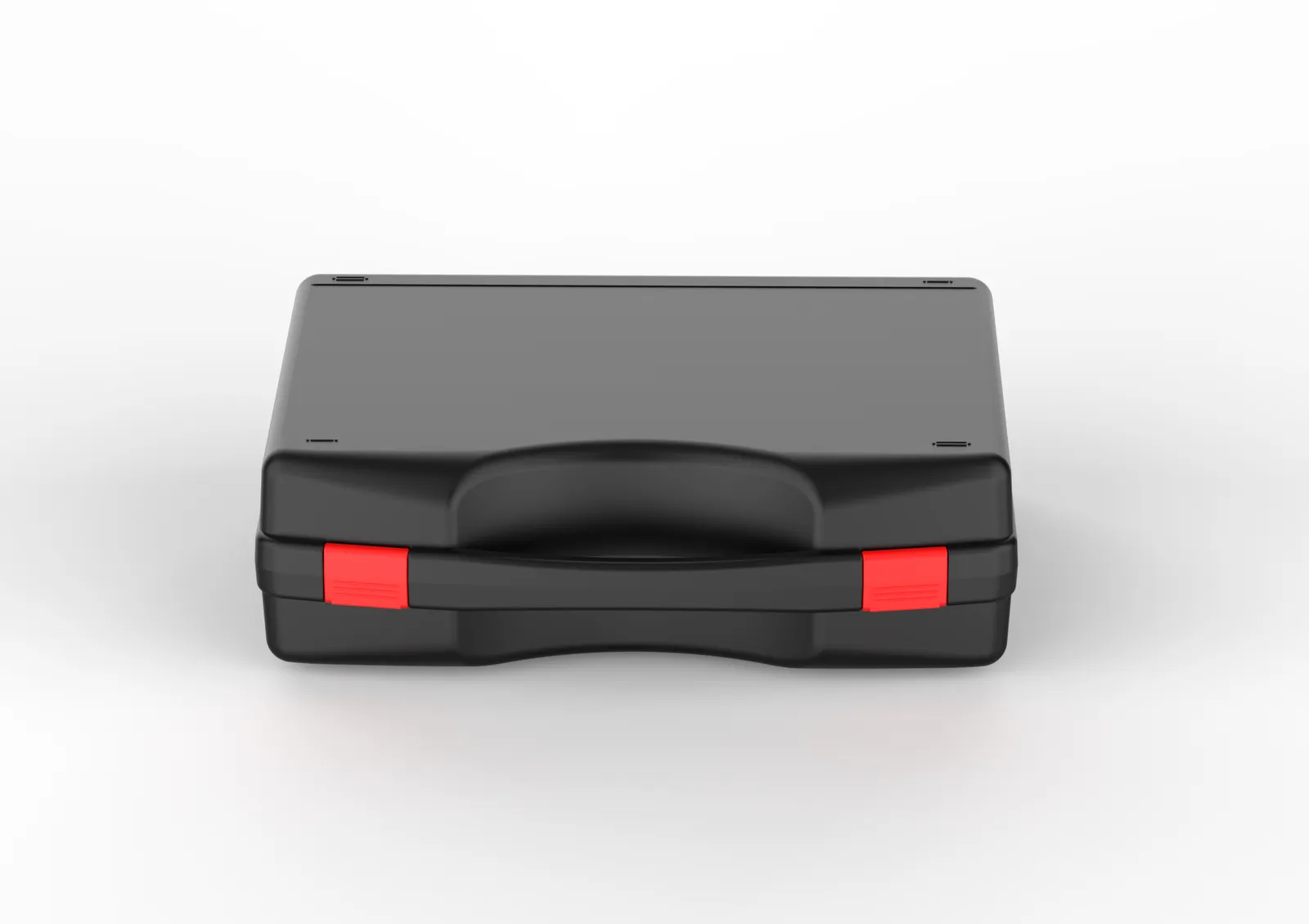

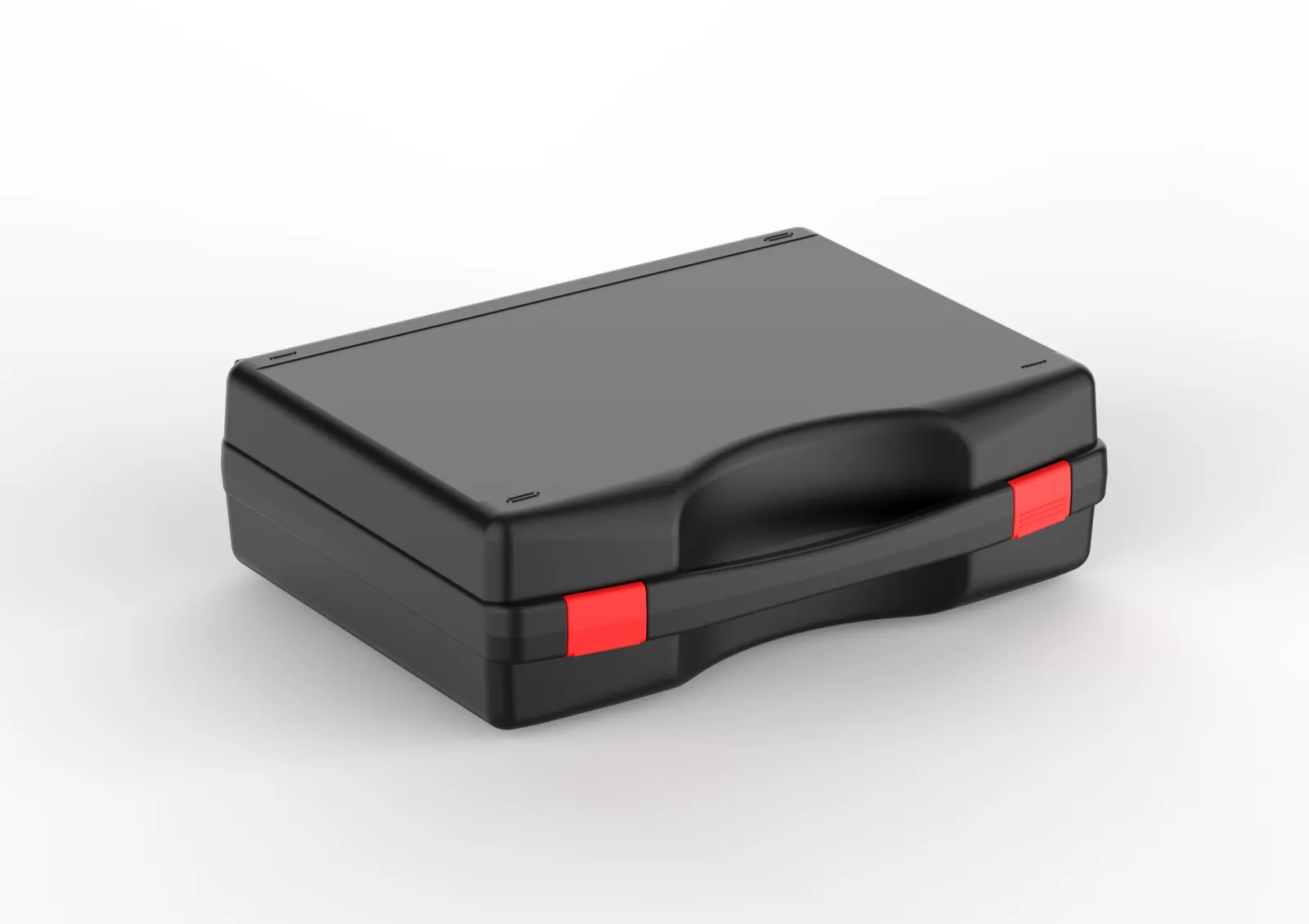

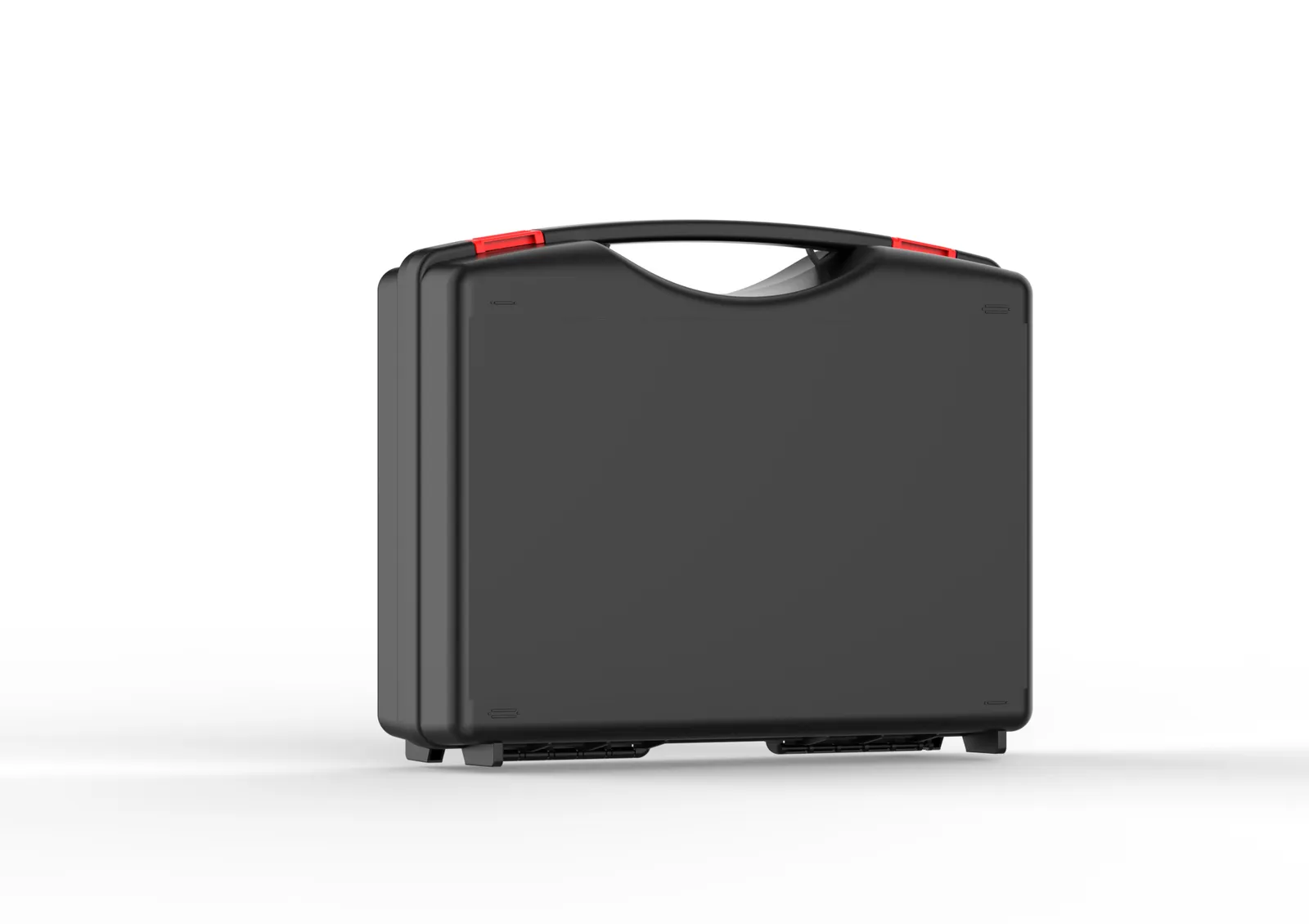

WL0-4616 PP Medical Equipment Case

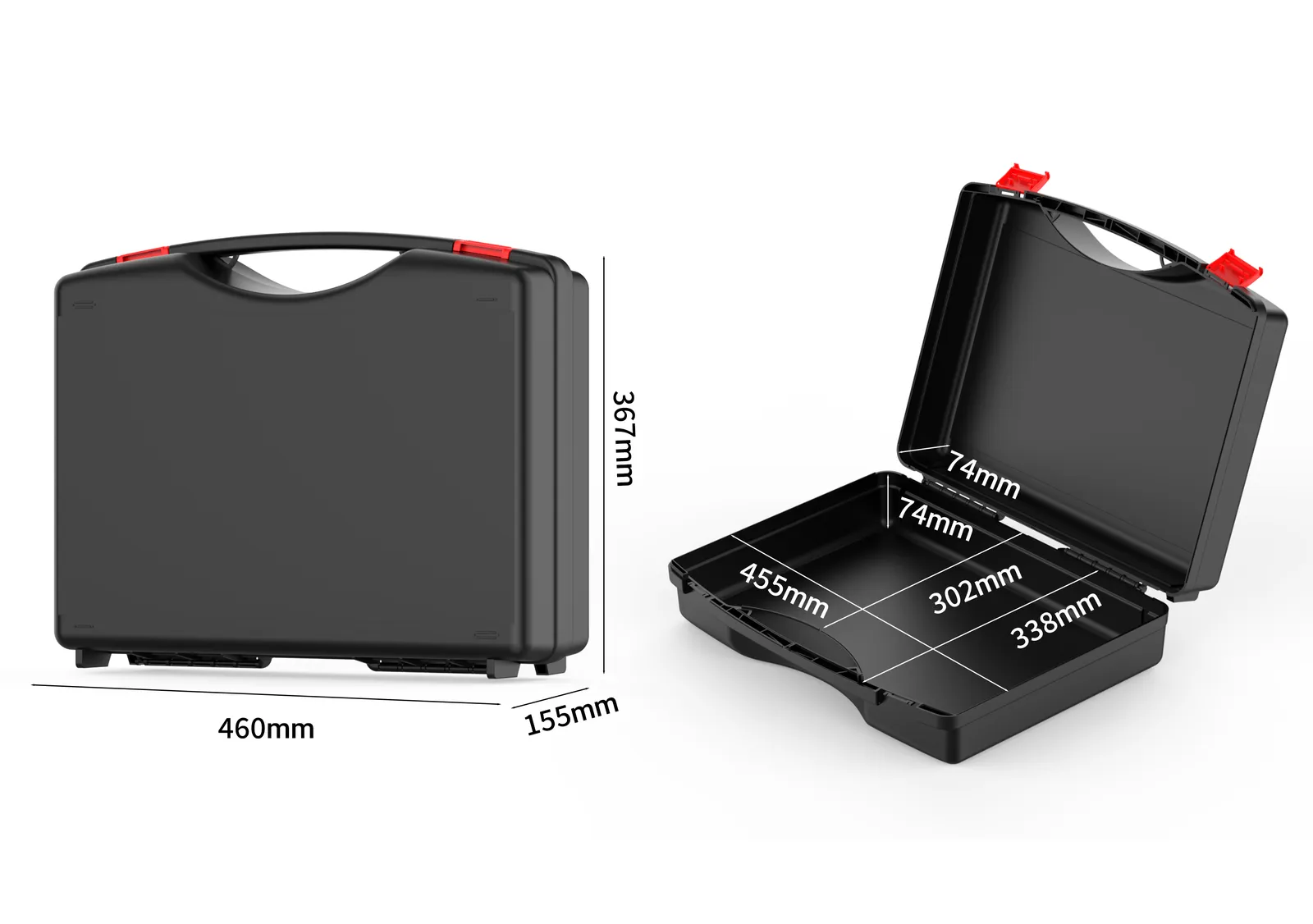

According to the product data, WL0-4616 measures 460 x 367 x 155 mm outside and 455 x 338 x 148 mm inside, with a 302 mm narrowest internal point, a 74+74 mm depth split, a 3.0 mm wall and a net weight of about 1395 g. The 148 mm height suits upright bottles of reagent, instruments with stands or vertical structures, and complete laboratory sets stored together with accessories. The 455 x 338 mm base takes a full insert layout with zones for the main unit, probes and cables. Units wider than 302 mm cannot lie flat.

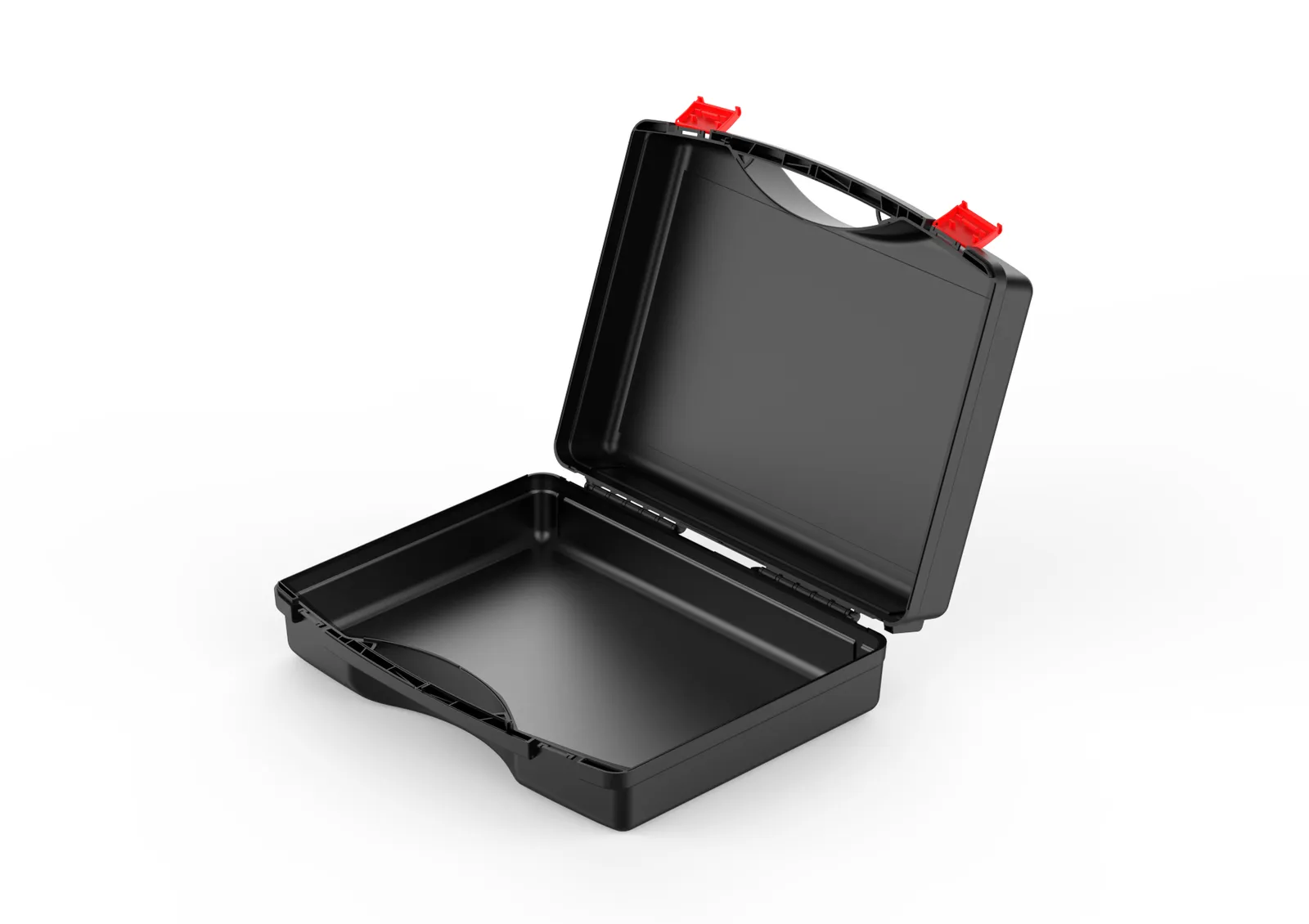

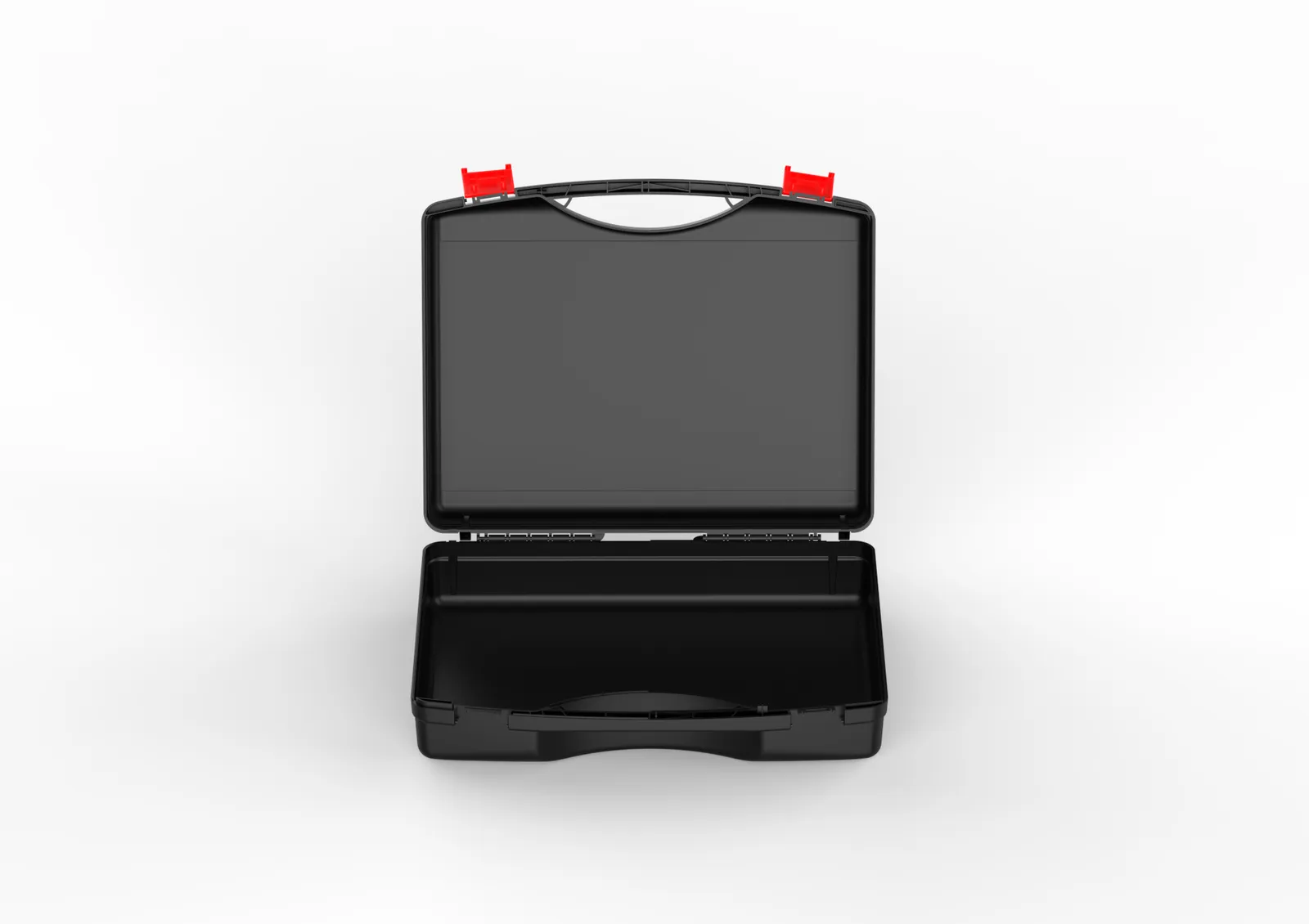

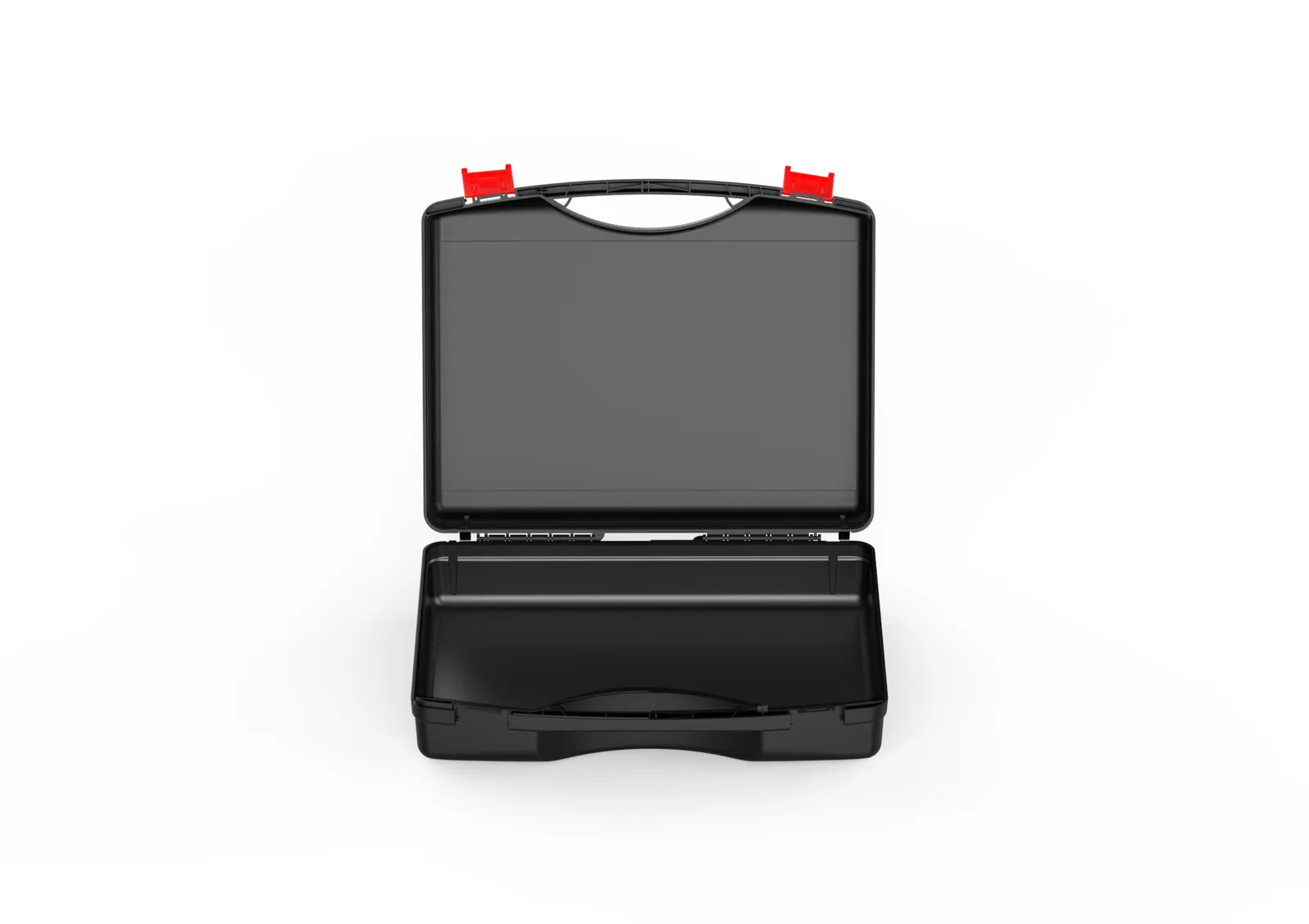

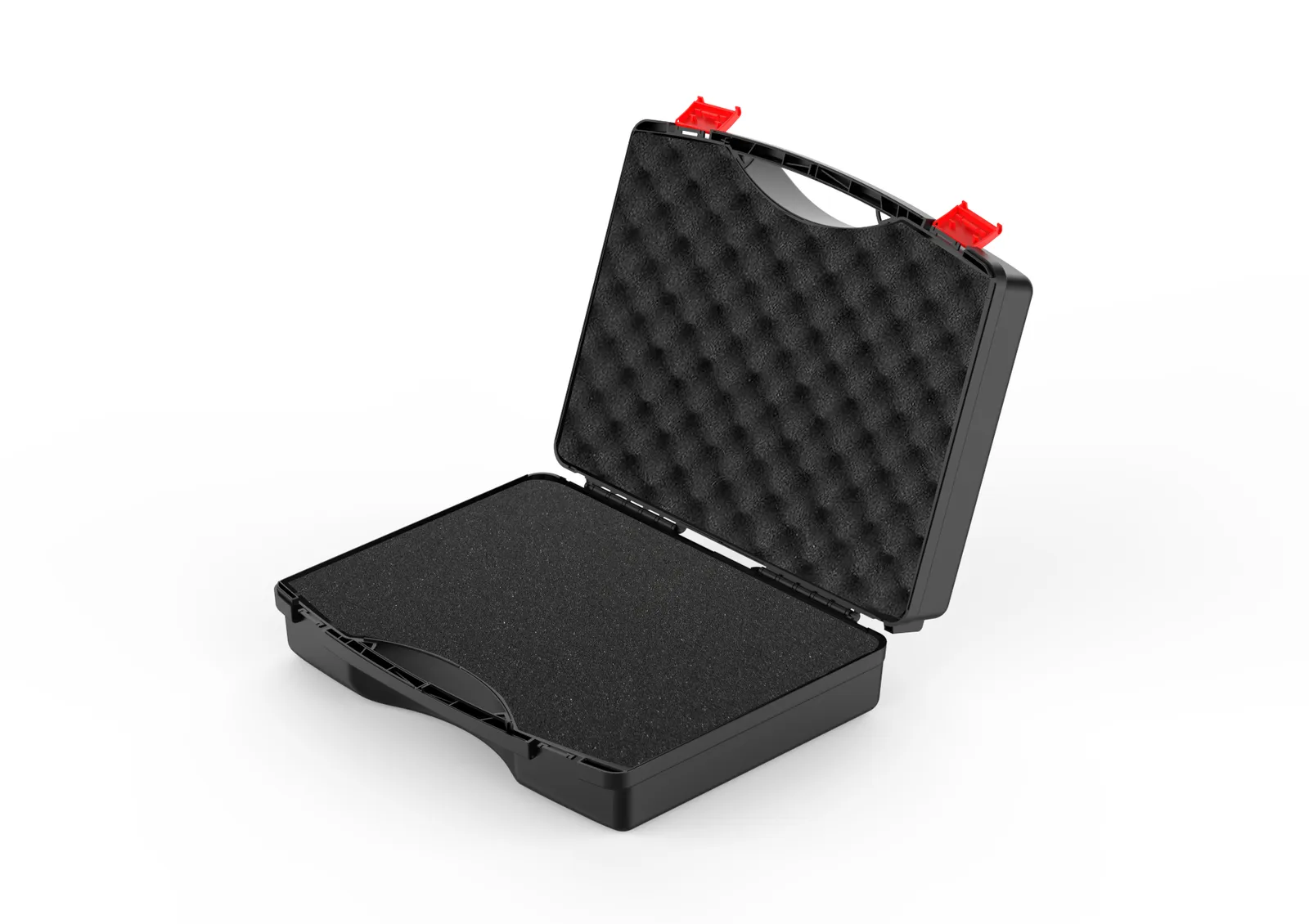

The 74+74 mm figures mean the lid and base have equal usable depth, giving a 148 mm internal height when closed. That symmetry allows a layer in each half: the heavier instrument body in the base, and cables, probes and power adapters held in the lid by an insert, so both layers are visible and easy to count when the case opens. If equipment height approaches 148 mm, state the actual size when enquiring and keep clearance, or move to a shallower model on the same base.

At about 1395 g empty, the taller body has a higher centre of gravity and greater packed weight, so stack height should be limited for stability and handling should allow for the weight. If the site needs multiple layers or long storage, describe the stacking layers, storage temperature and transport method when enquiring so the factory can assess the structure, and use internal supports or dividers to reduce movement inside the case where needed. The three models sharing this base have identical outlines, which helps with mixed stacking.

According to the product data, each piece is packed in a poly bag, the outer carton measures 755 x 470 x 635 mm, and there are 8 pieces per carton. The taller body means fewer units per carton than the flatter models on the same base, and the carton is heavier to handle. The 755 x 470 x 635 mm size helps estimate volumetric weight and freight cost. If cases ship with equipment, need project or department splits or asset labels, or need a different quantity per carton, mention it when enquiring.

Insert, colour, logo and packaging can be discussed under OEM/ODM supply: a two level insert designed around the 148 mm internal height with cut-outs holding the main unit and accessories, a body colour matched to your brand, printed brand, department or asset numbers on the lid, and customised cartons and shipping marks. The Zhongshan factory of KeXin New Materials (Guangdong) Co., Ltd. adjusts these details per order. Provide the target quantity, equipment list and delivery date, with a sample built first if needed.
