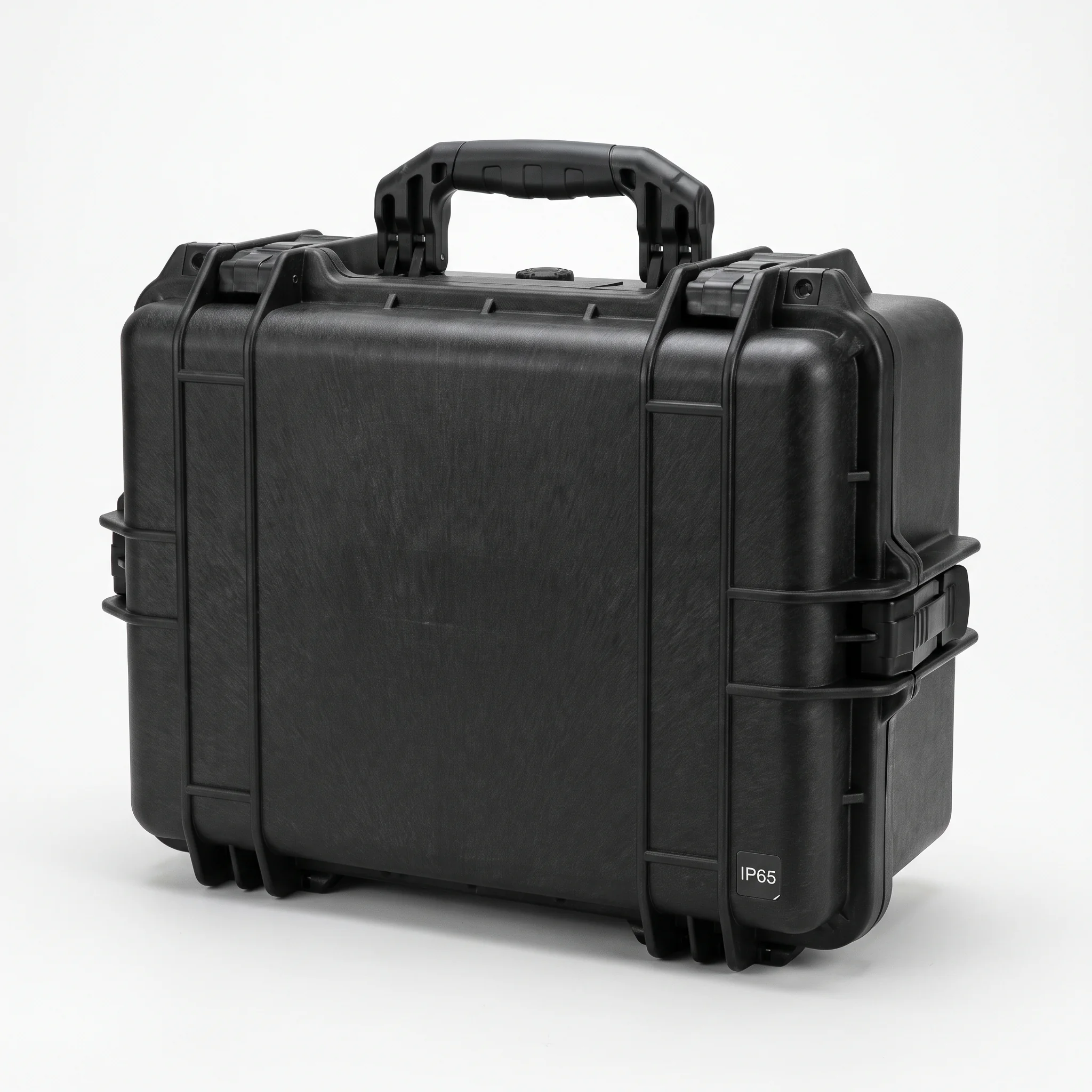

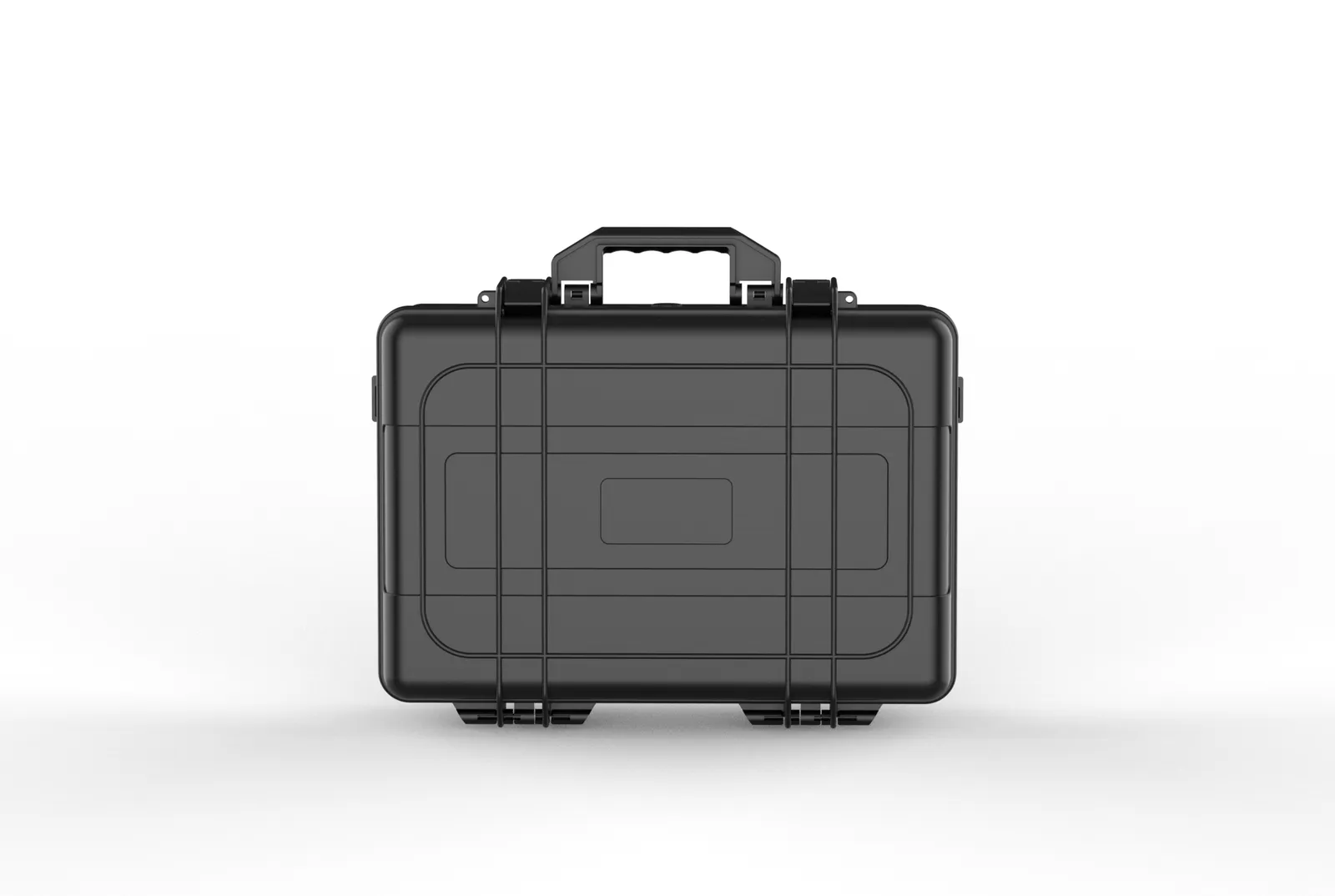

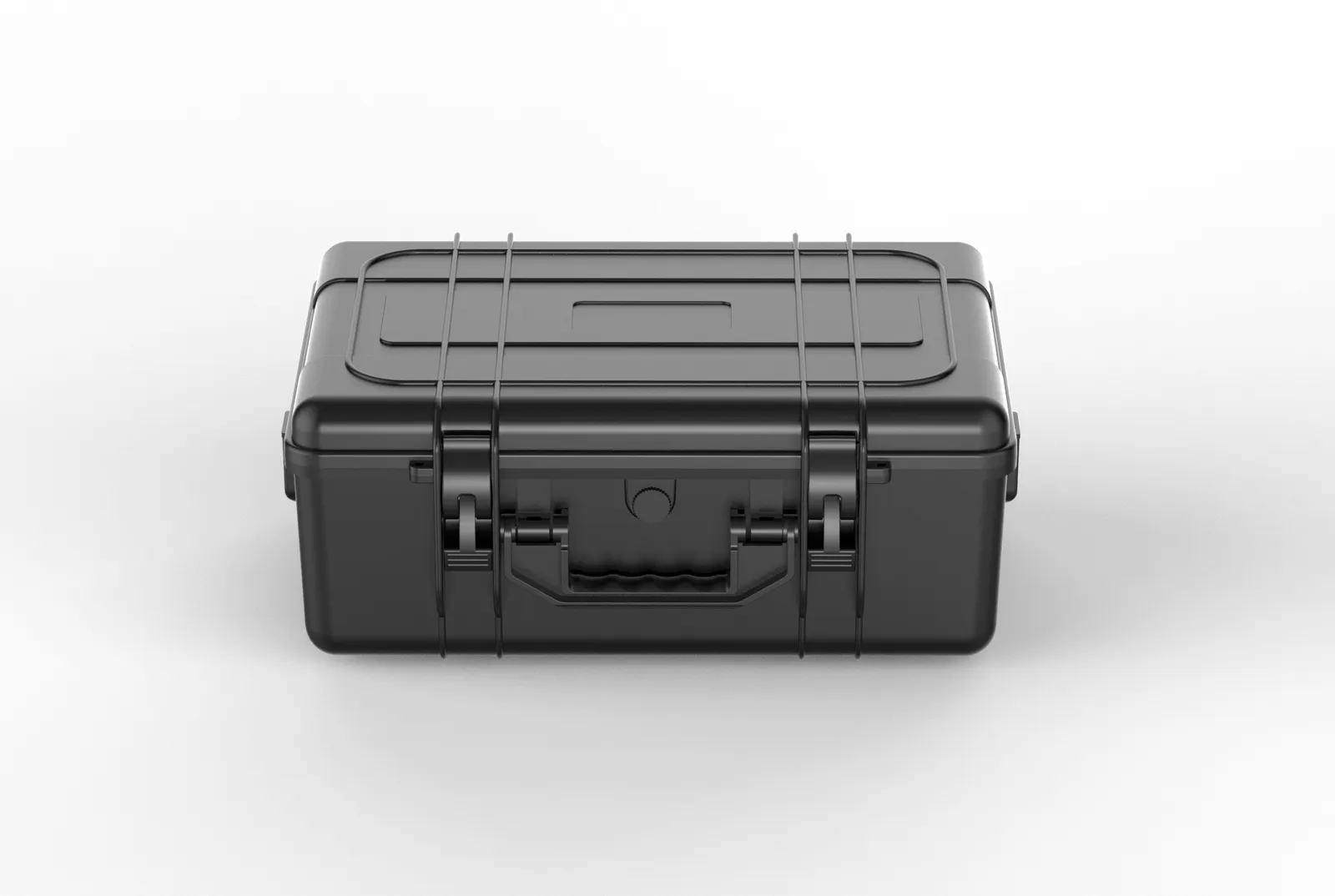

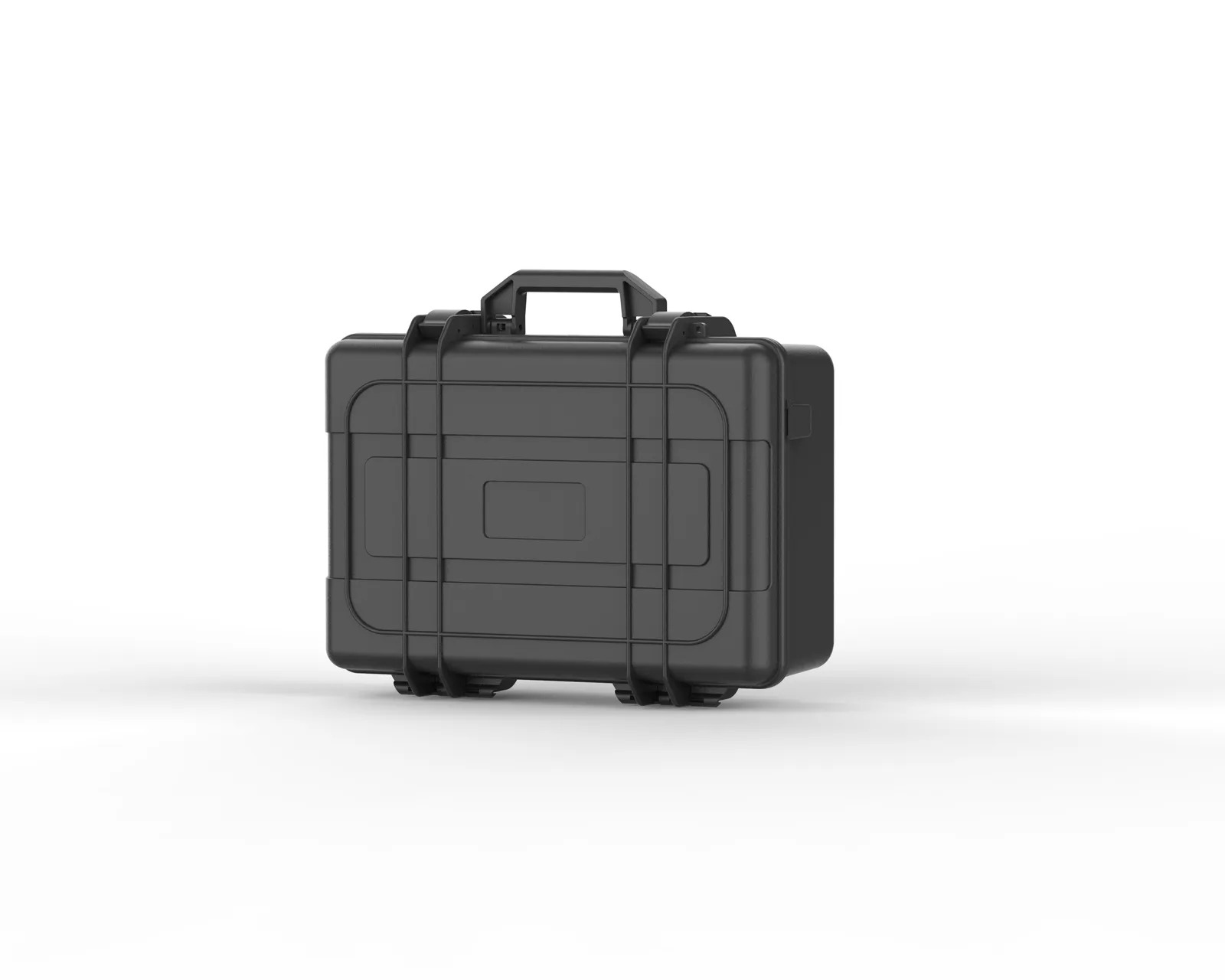

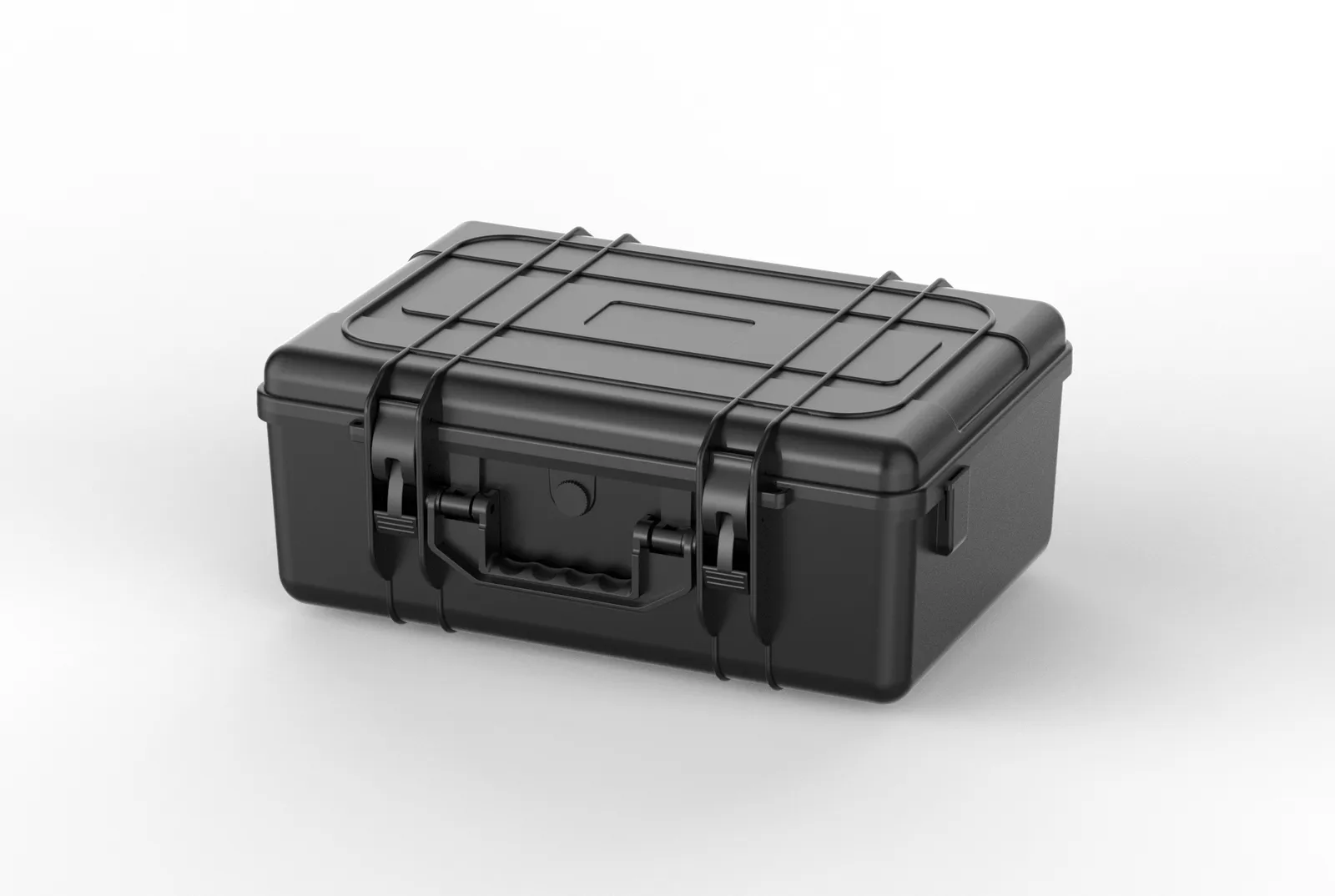

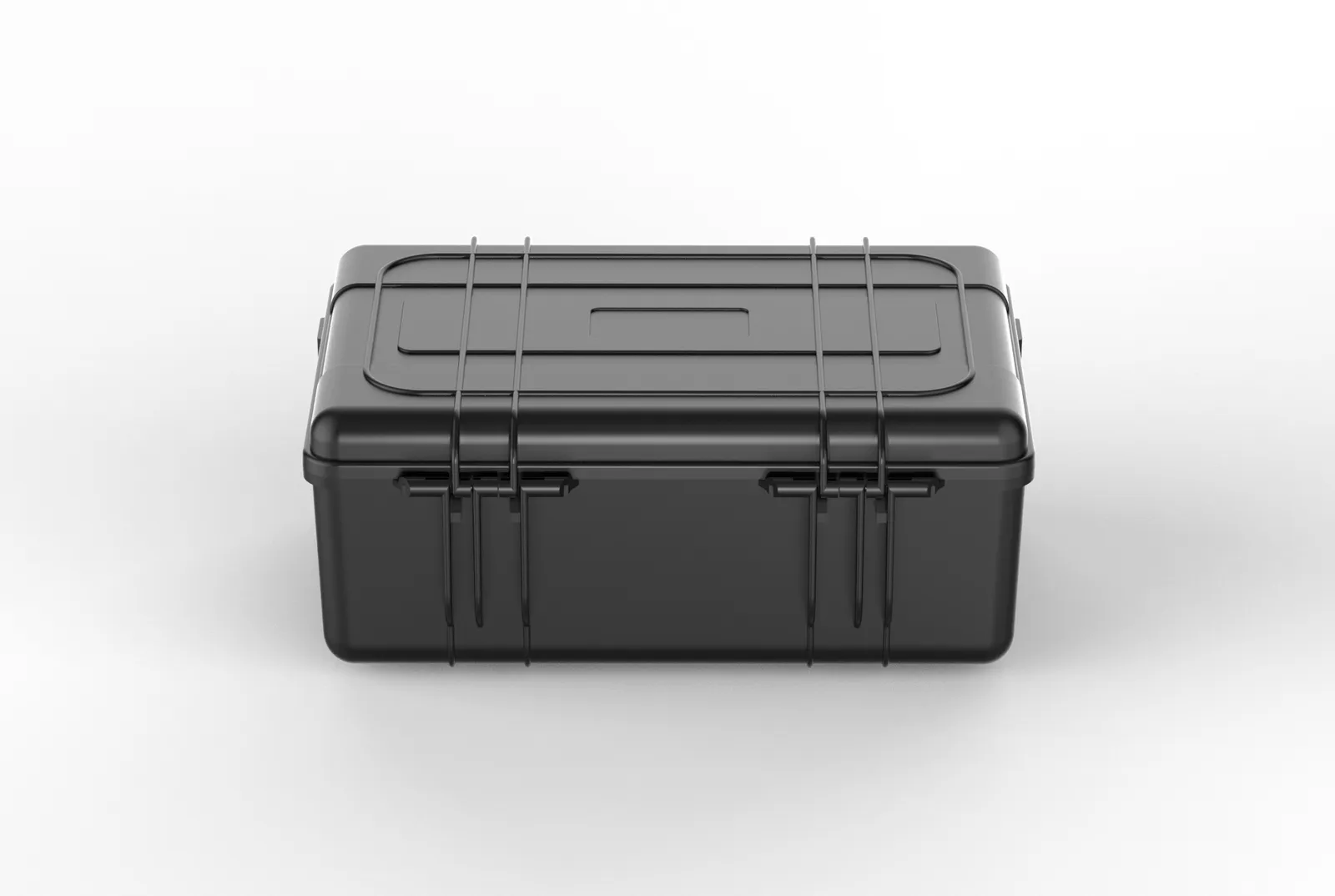

WL6-4619 ABS Knife Case

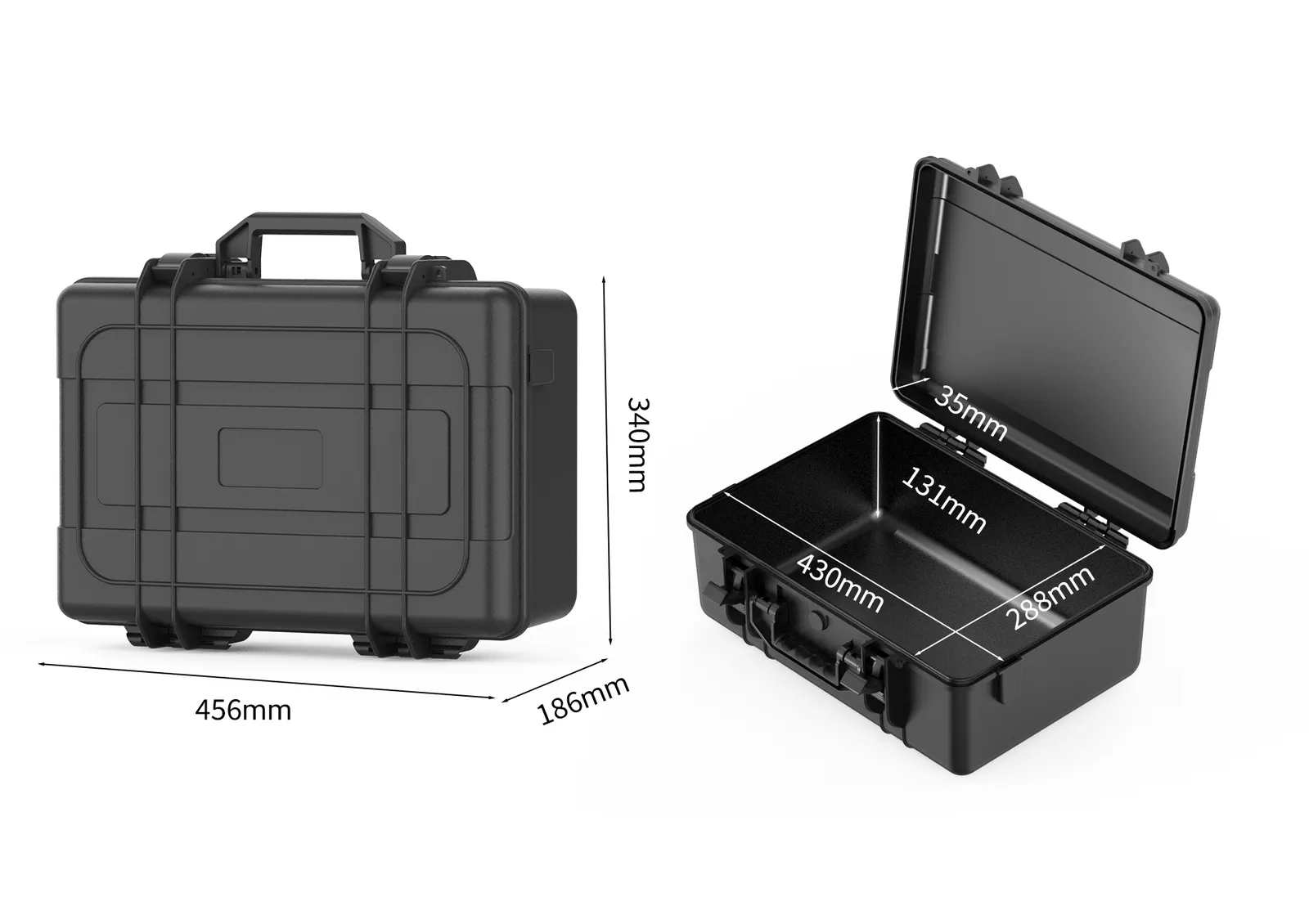

The outer shell is 456 x 340 x 186 mm and the internal cavity is 430 x 288 x 166 mm. Externally the case occupies 456 x 340 mm of bench or shelf space while the usable floor inside is 430 x 288 mm, the difference coming from the wall section and the moulded closing geometry. Size a load from the inner dimensions, never from the outside, because outside figures overstate capacity. The 166 mm inner height is the maximum upright height available, and any lining you add reduces it further, so allow for that when the insert is designed.

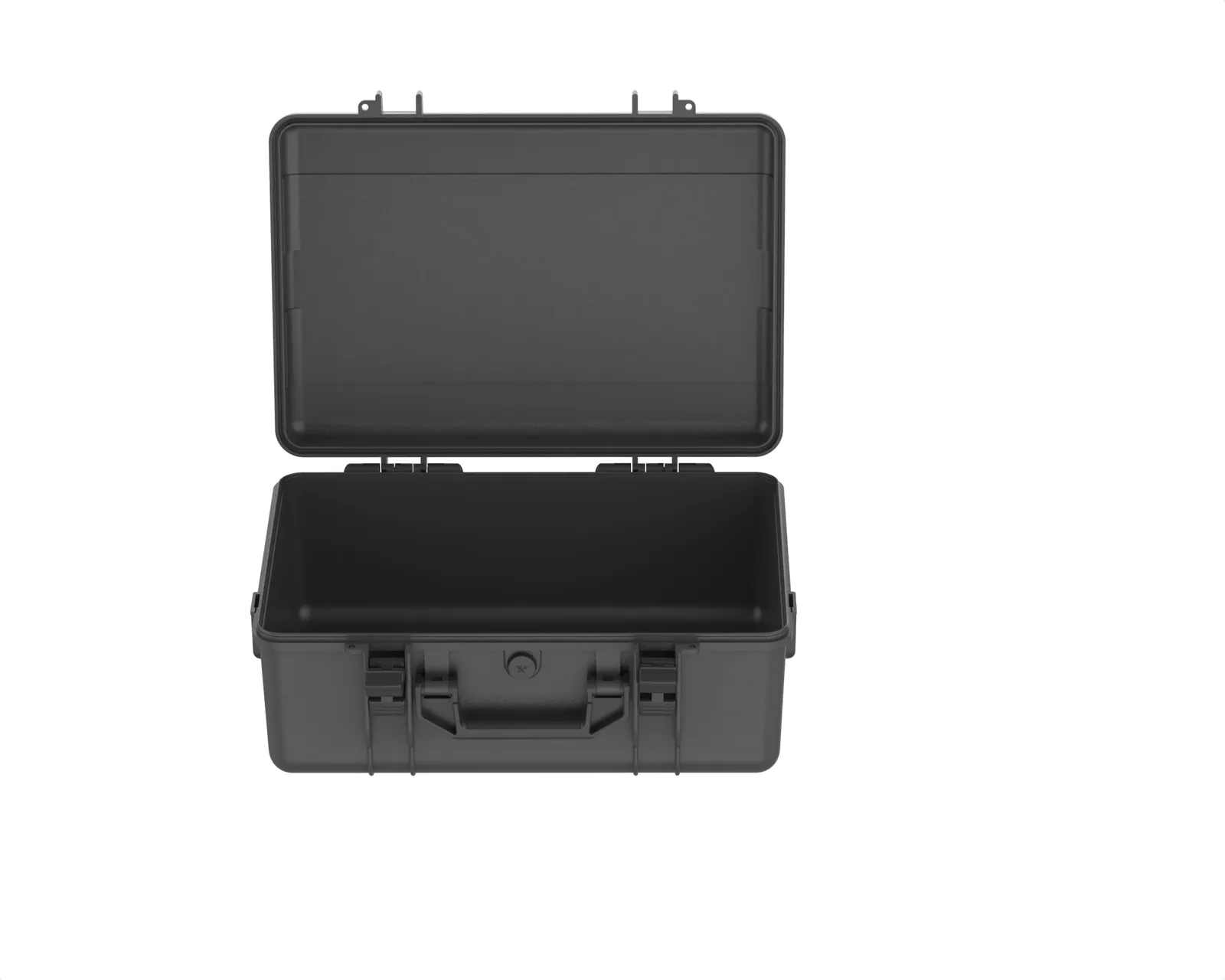

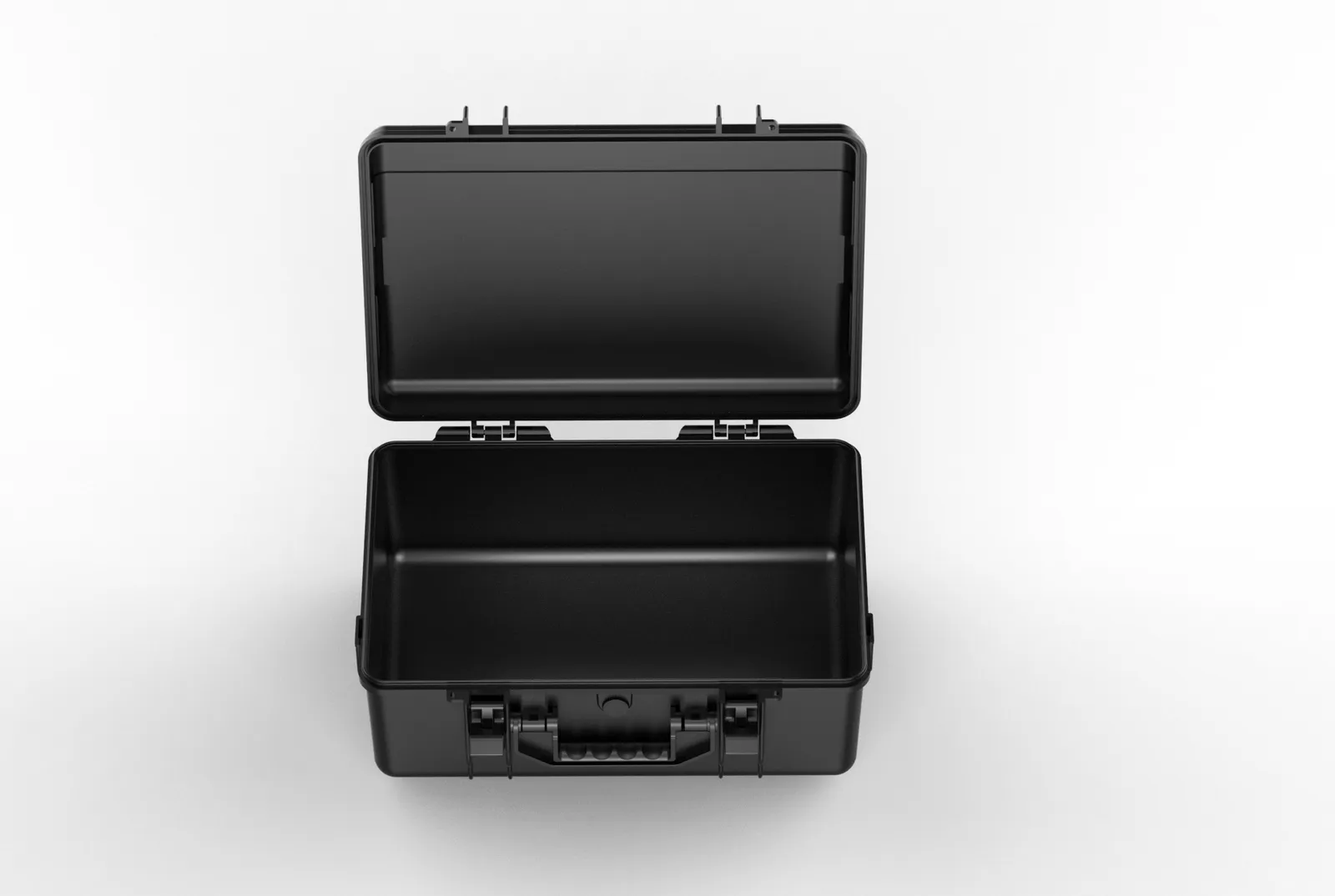

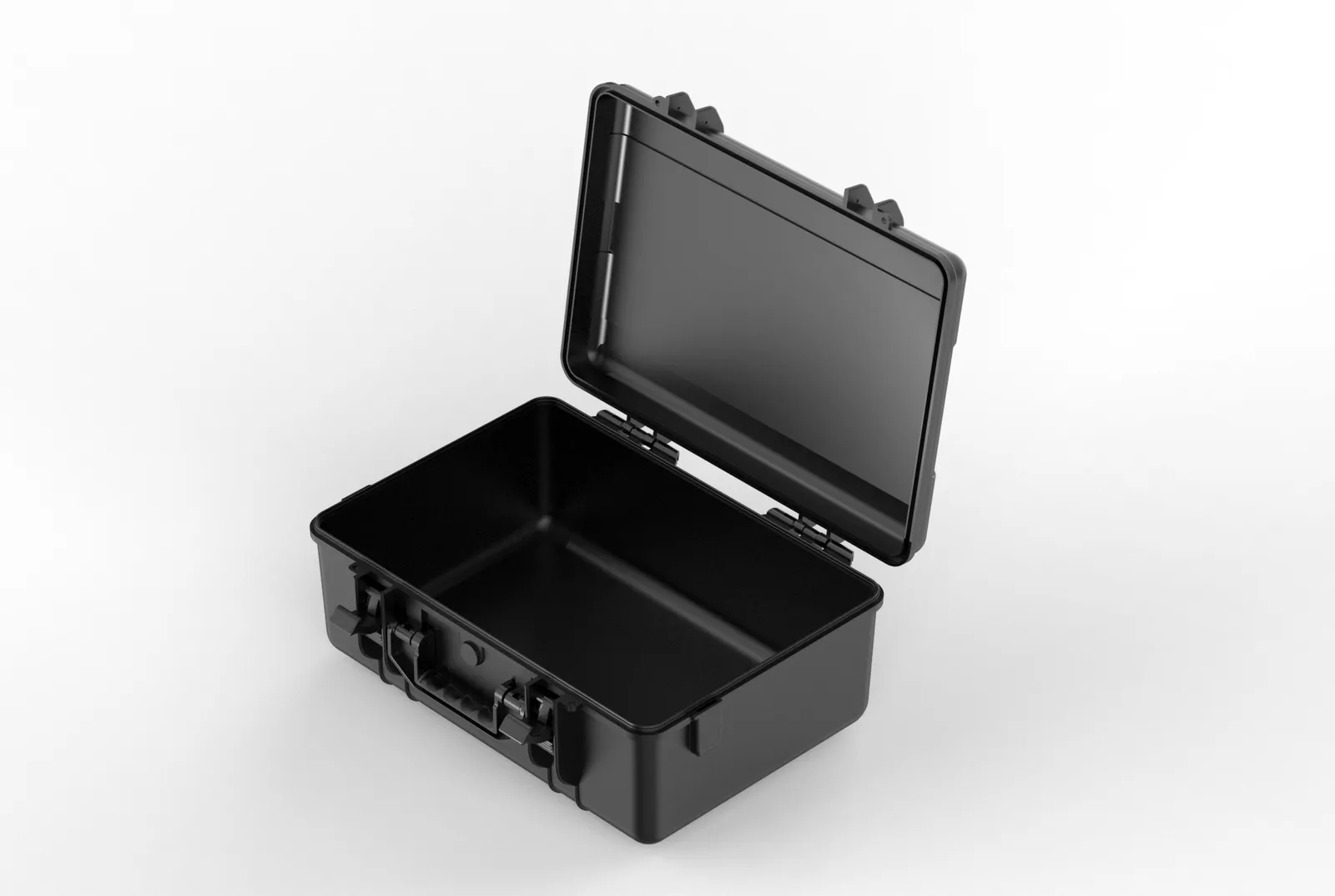

The lid adds 35 mm of internal depth and the base adds 131 mm, giving 166 mm of combined inner height. A 35 mm lid over a 131 mm base gives one of the deeper lid sections in the series, so items with a slight raised profile on top still fit, and the 166 mm inner height takes longer items upright. When judging whether a body suits your contents, read the base figure first, because it sets how tall an item can stand, while the lid figure decides how much headroom remains above it. Only the sum of the two is usable height, and when measuring a part, include handles, connectors and bosses, or the lid will press on it once closed. If the lining is routed rather than flat, the pocket depth should be taken from the base side.

Each WL6-4619 ships in its own poly bag, with 6 pieces per export carton measuring 740 x 485 x 615 mm. This is a large-carton format, so confirm unloading and storage conditions in advance. Bulk orders can be quoted by full carton or full pallet. Bear in mind that a larger carton does not automatically mean better packing efficiency: divide the carton volume by the piece count to get the transport volume per unit, then compare that against similar case formats, which makes the choice clearer on freight-sensitive projects. Packing breakdowns and pallet plans are available with the order.

The factory usage categories listed for WL6-4619 are knife cases. Suited to whole-set storage and transport of tool kits, large blades and heavy tools. With a 430 x 288 x 166 mm cavity and a unit weight of 2840 g it works best as fixed-station storage or a vehicle-transport case that needs protection from moisture, dust and knocks, rather than as a container left permanently outdoors.
