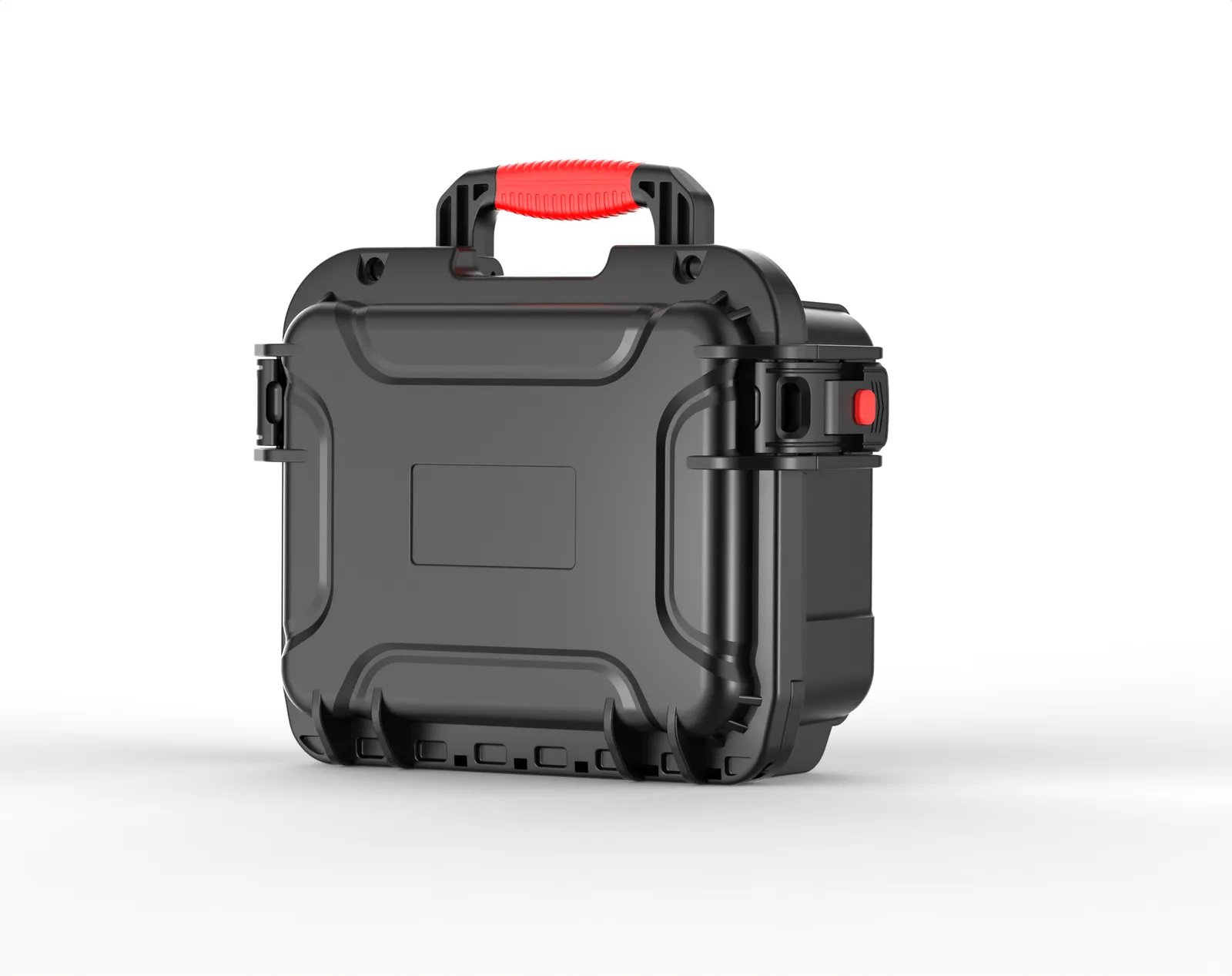

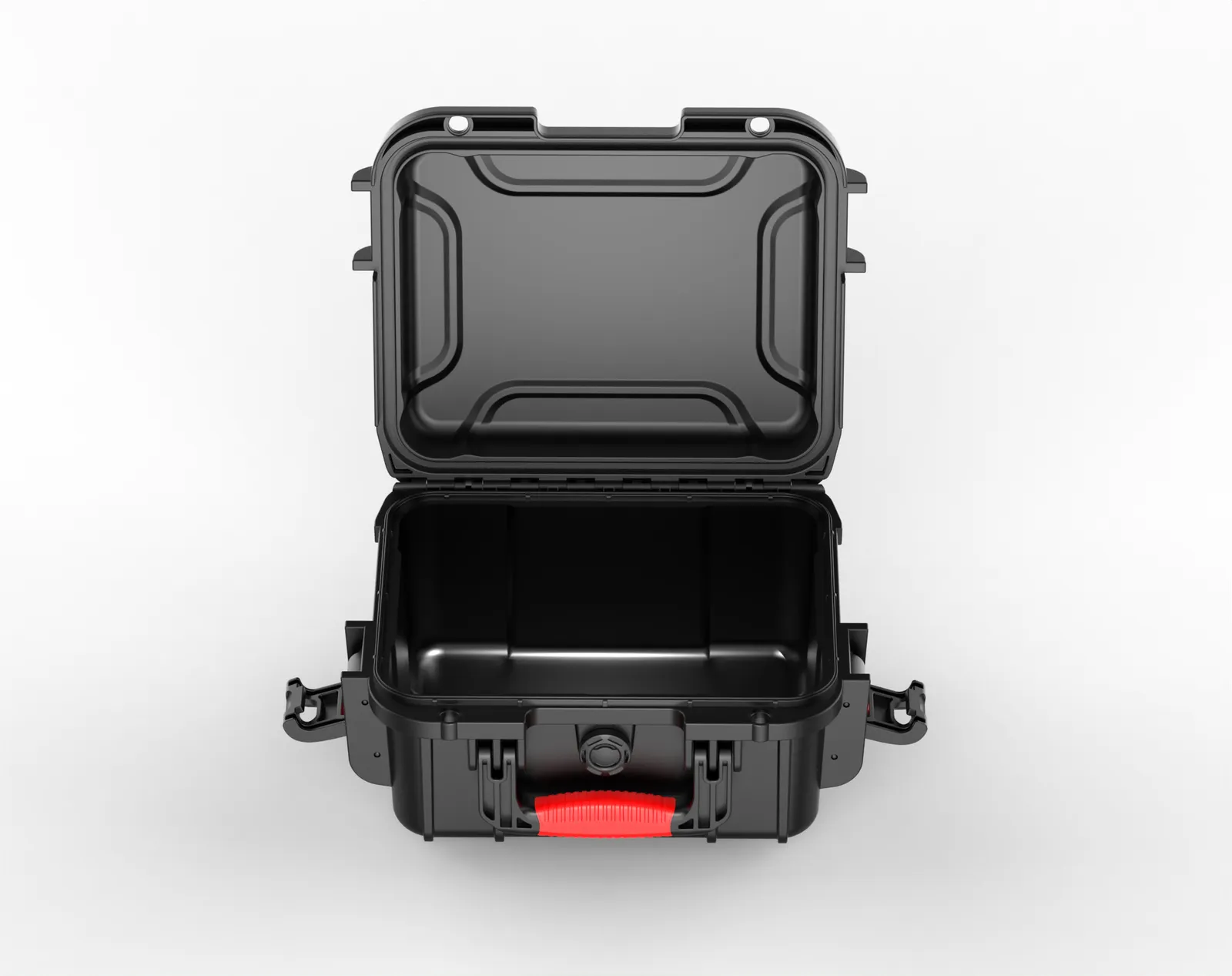

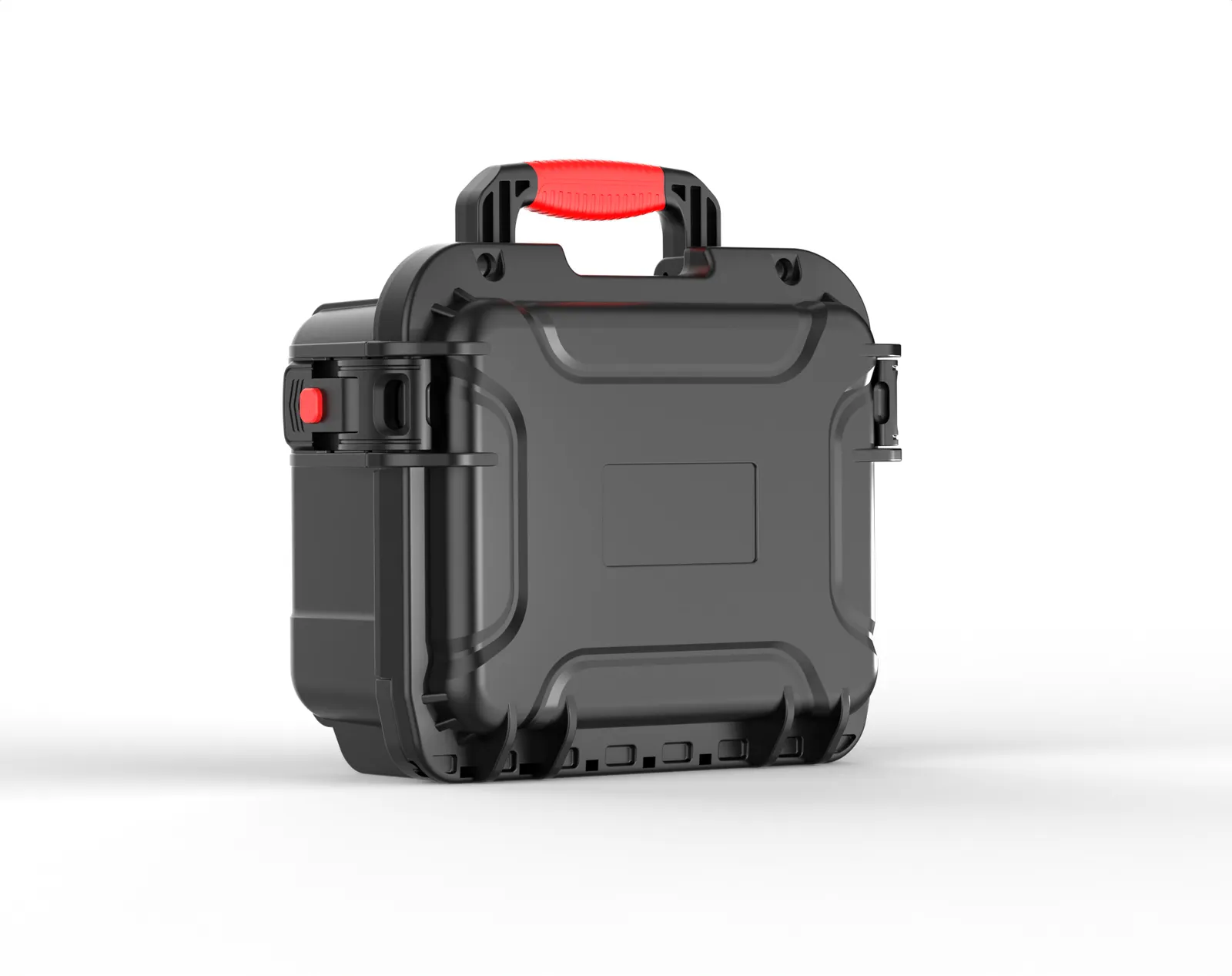

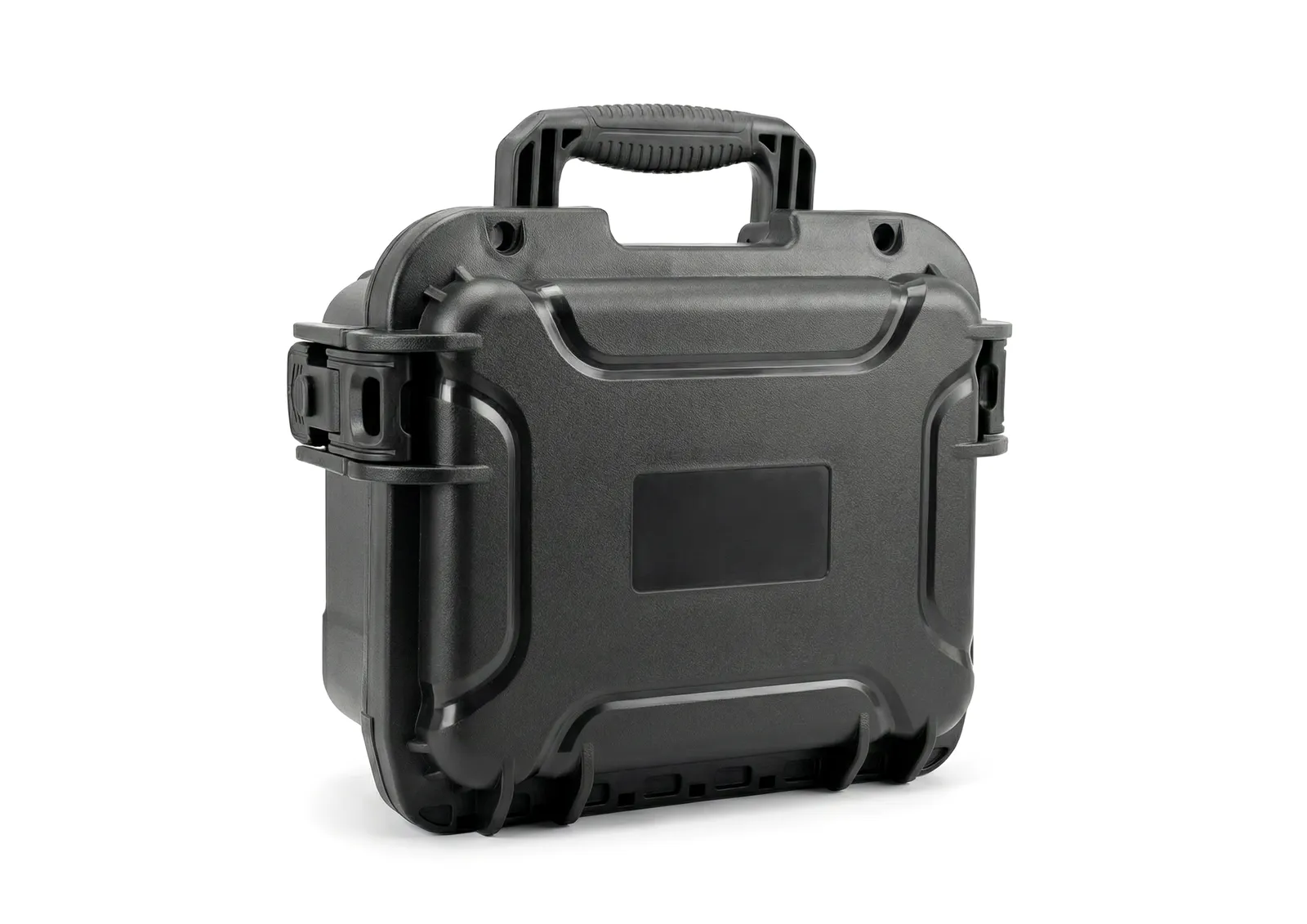

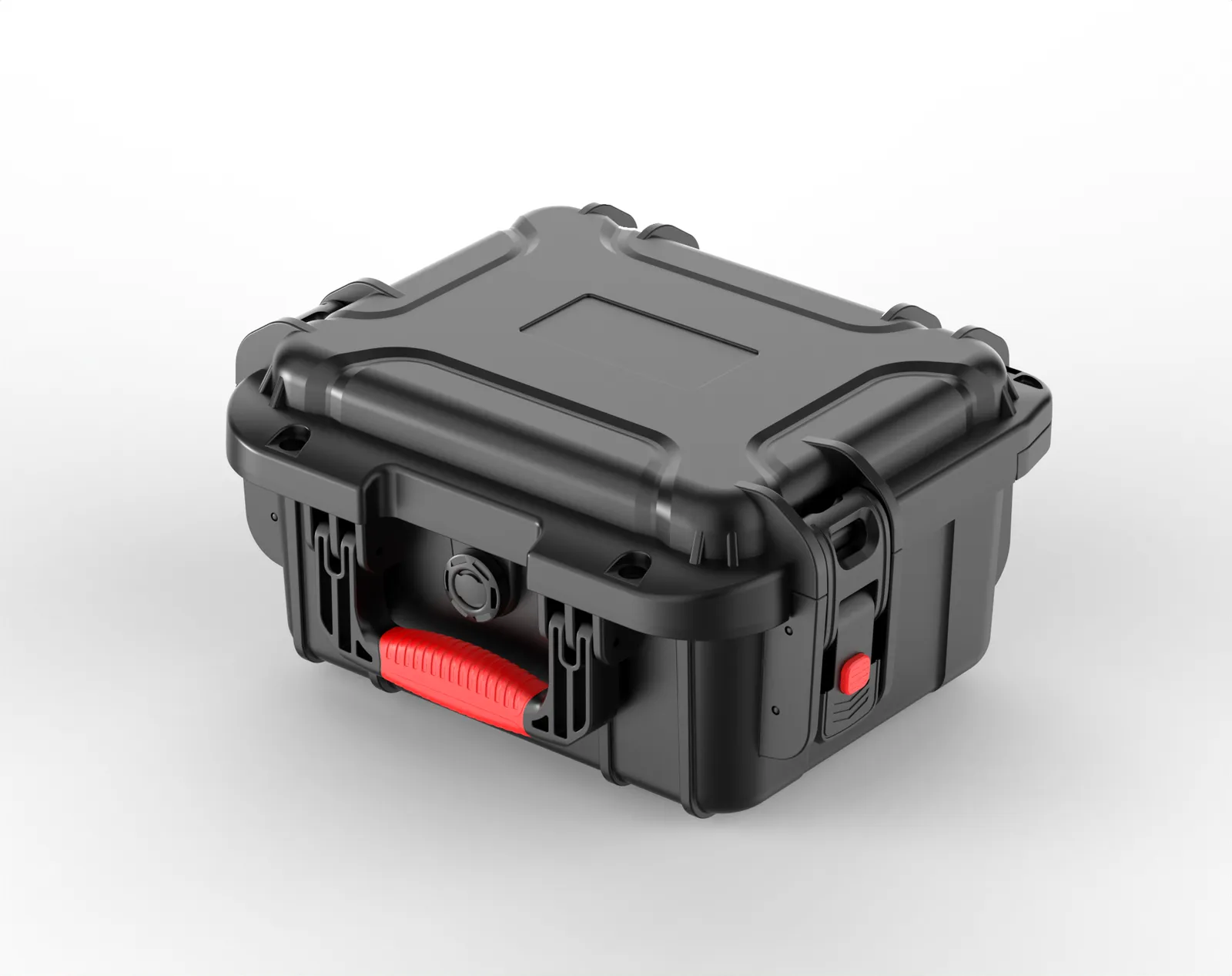

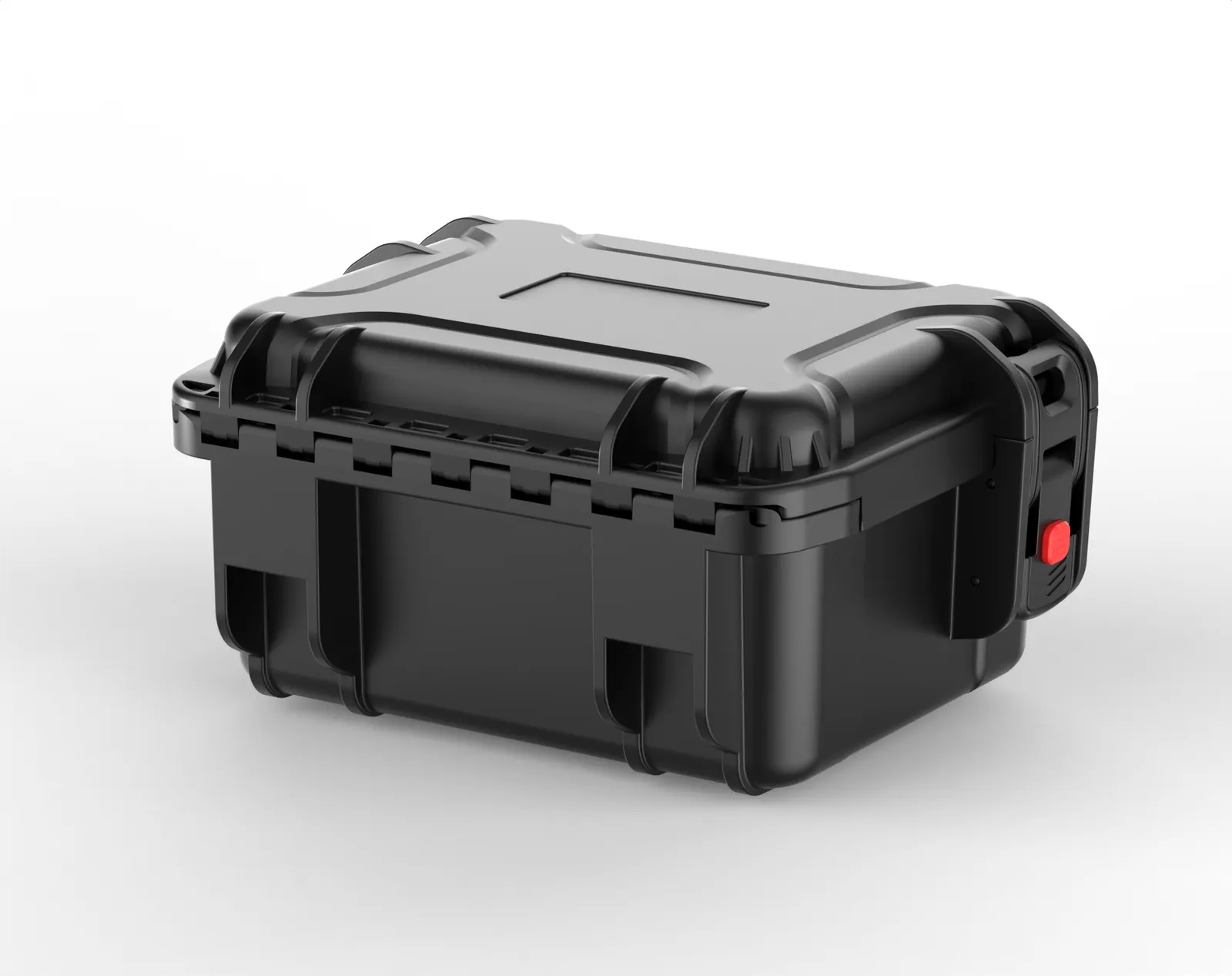

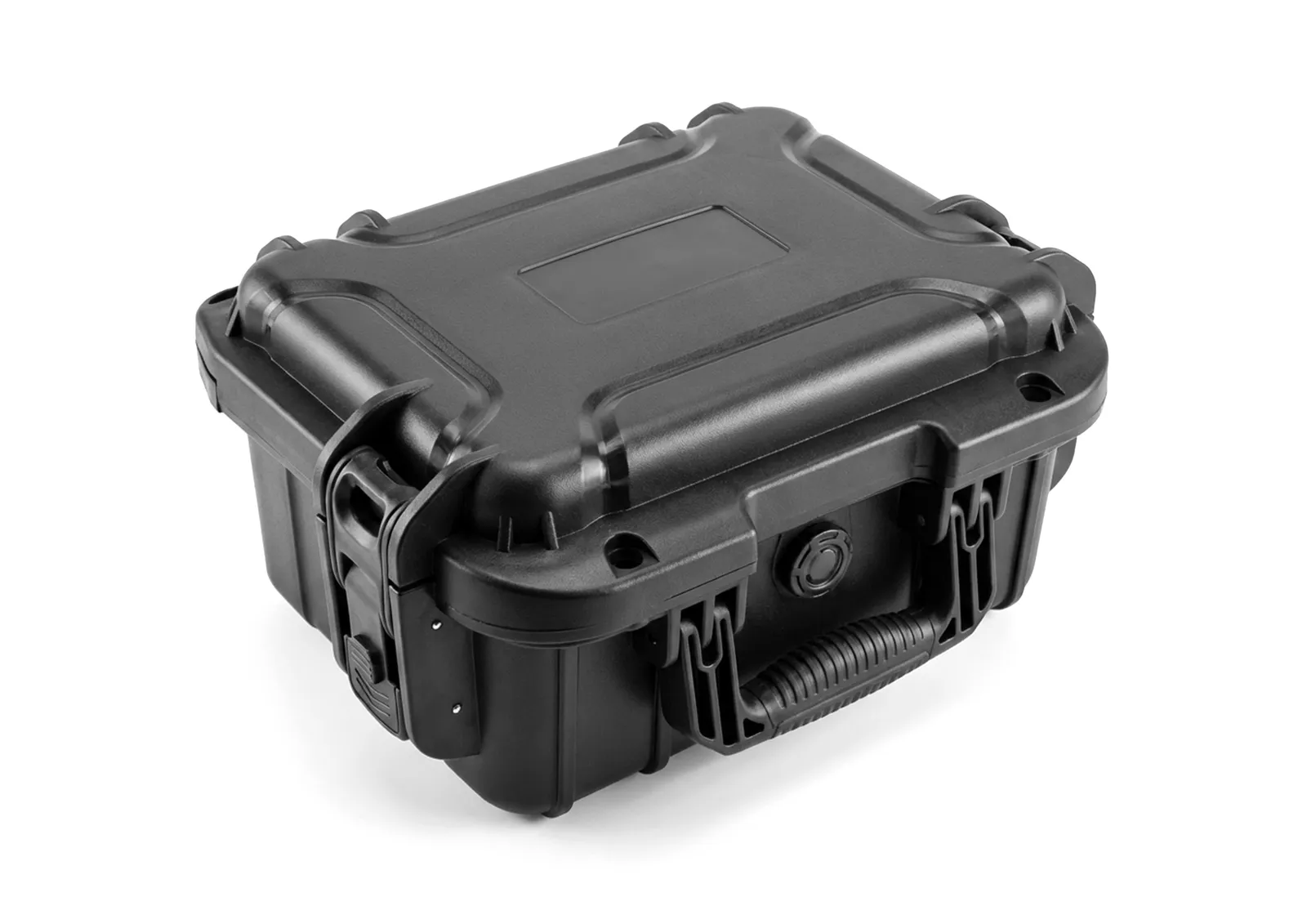

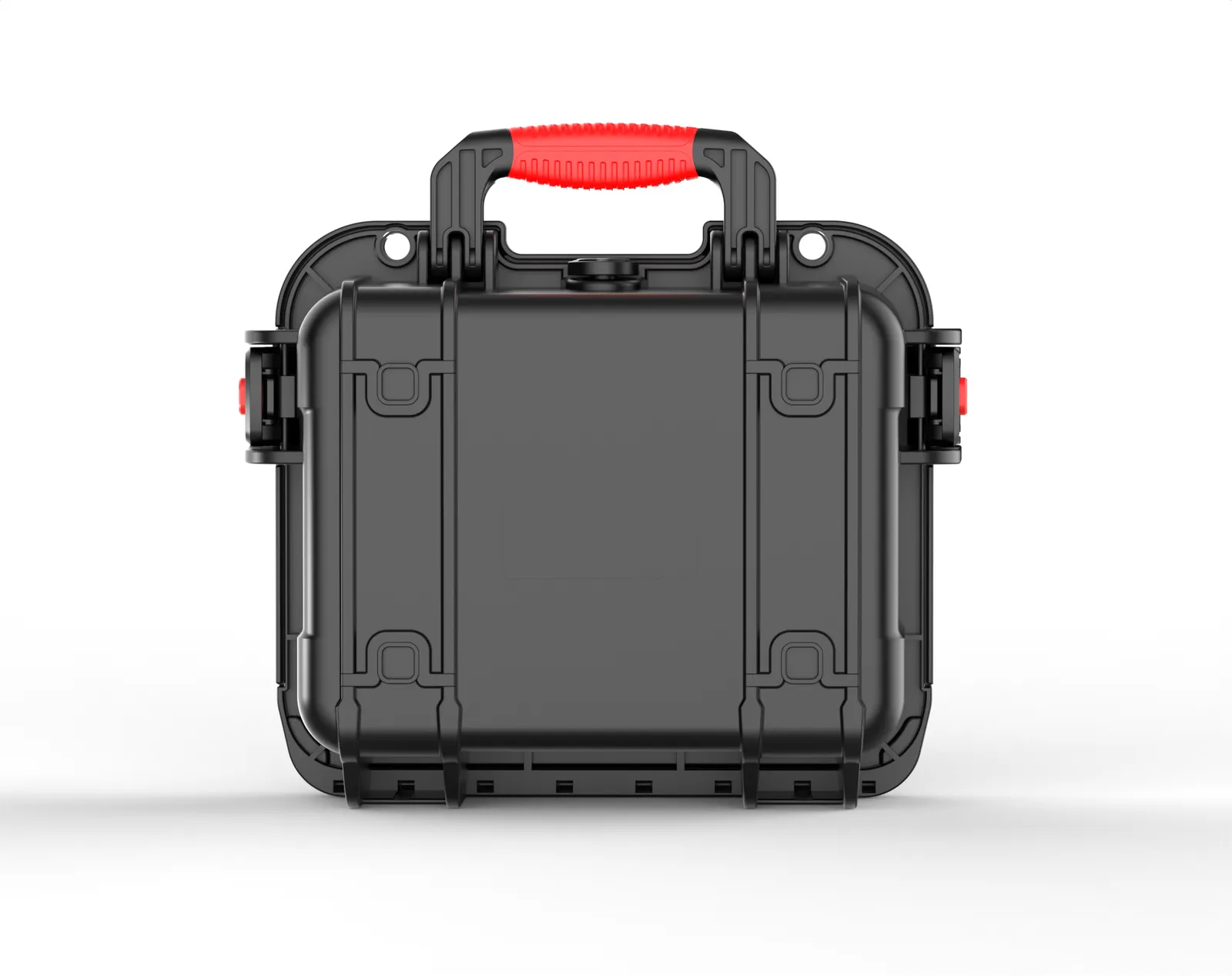

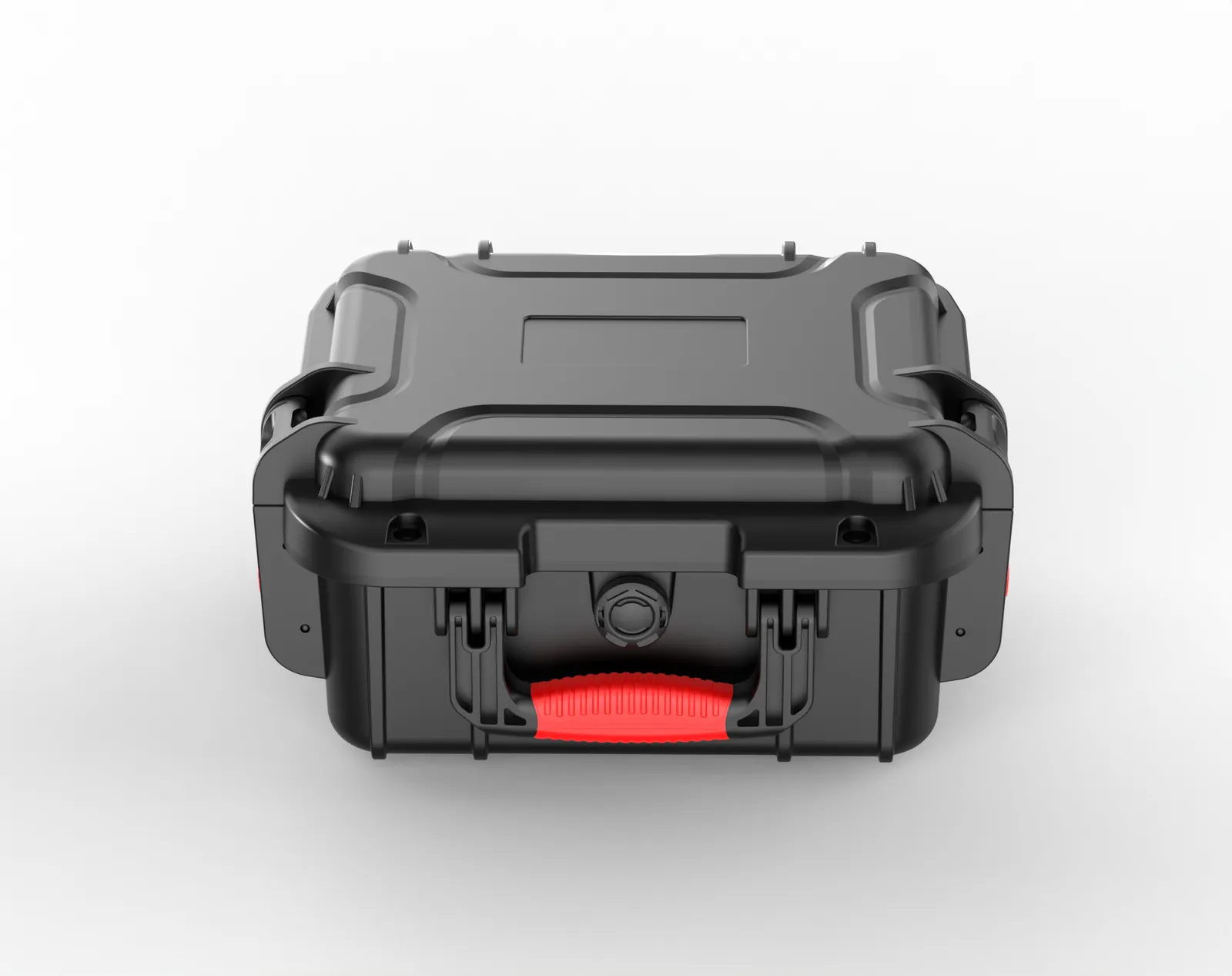

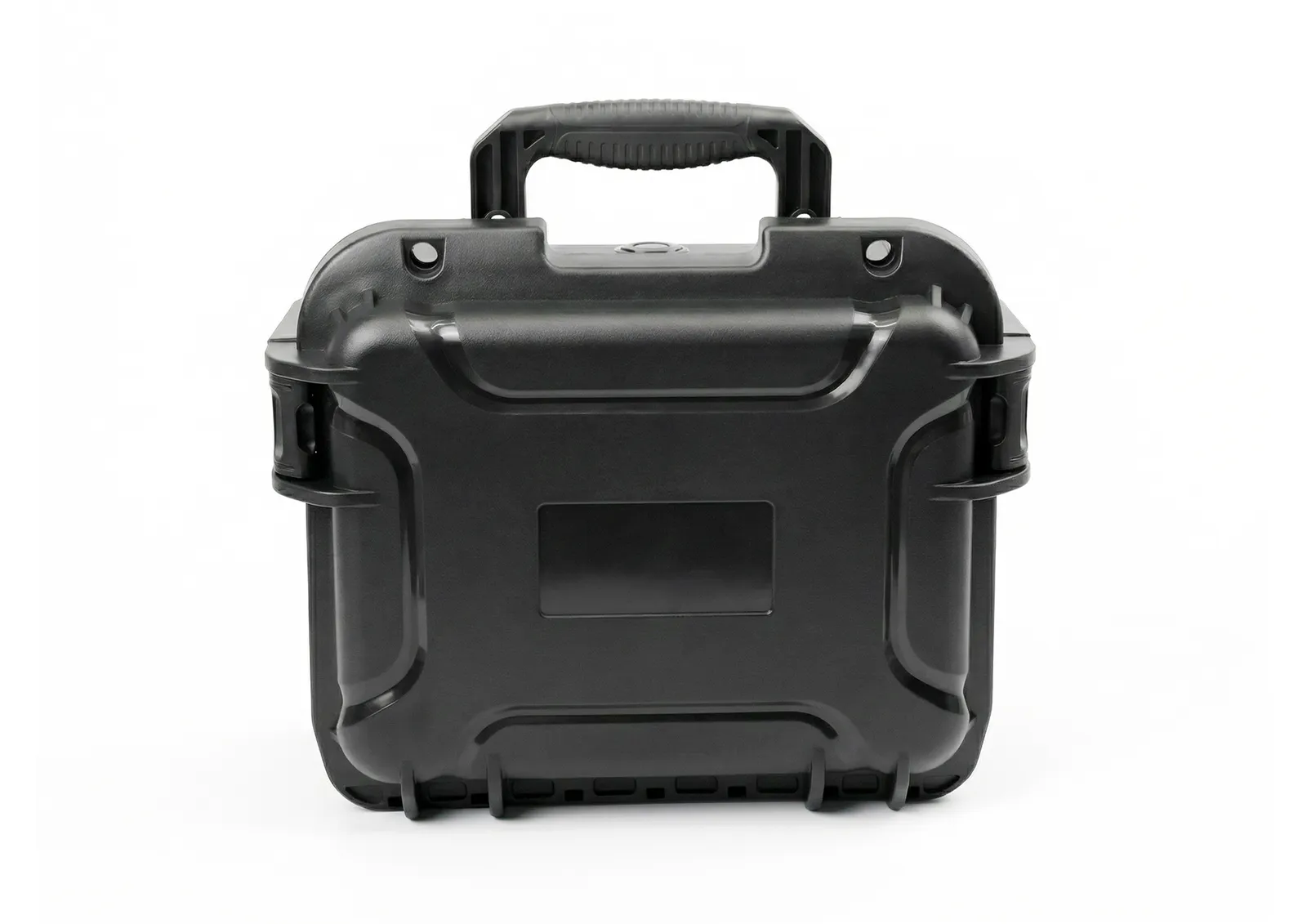

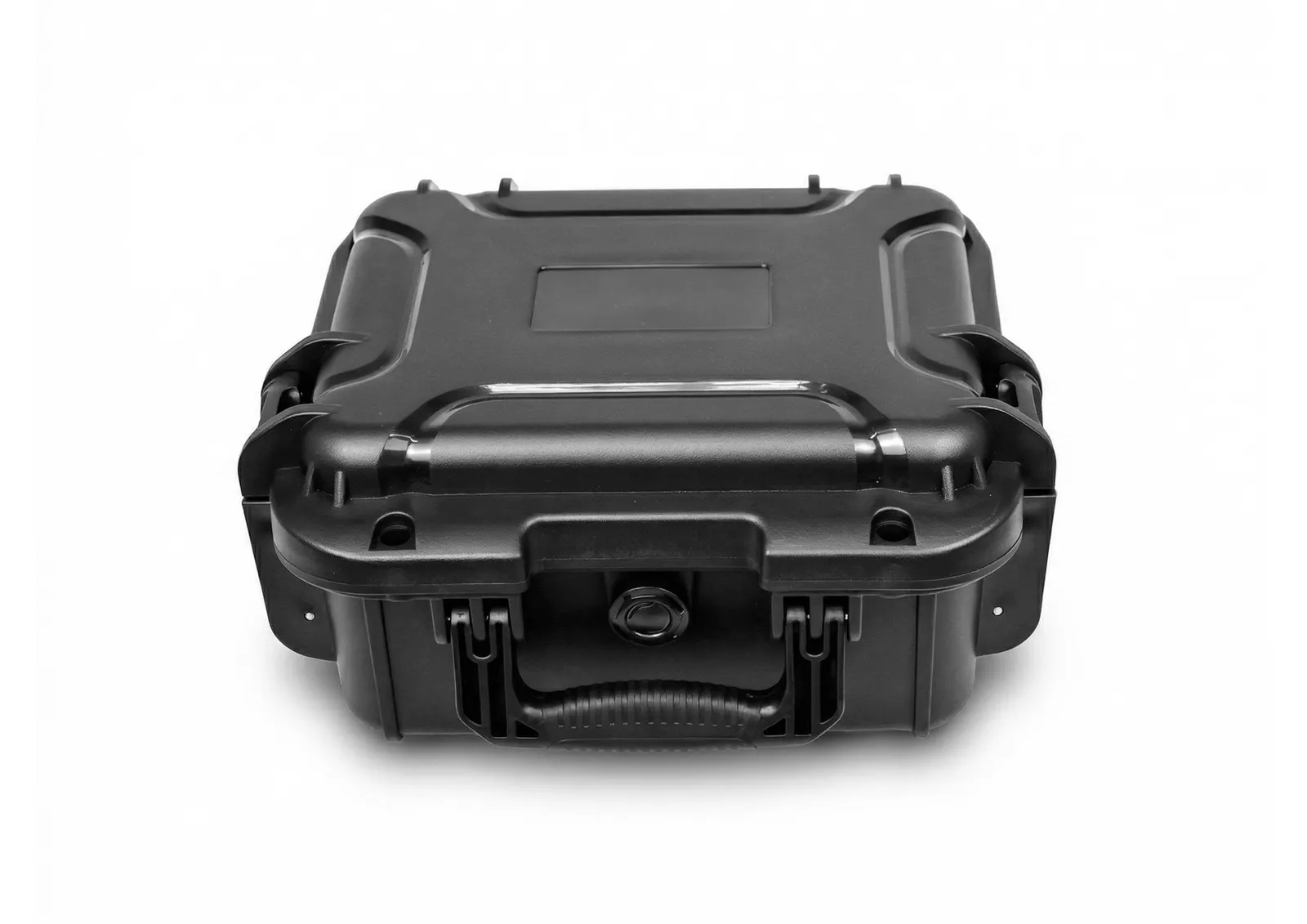

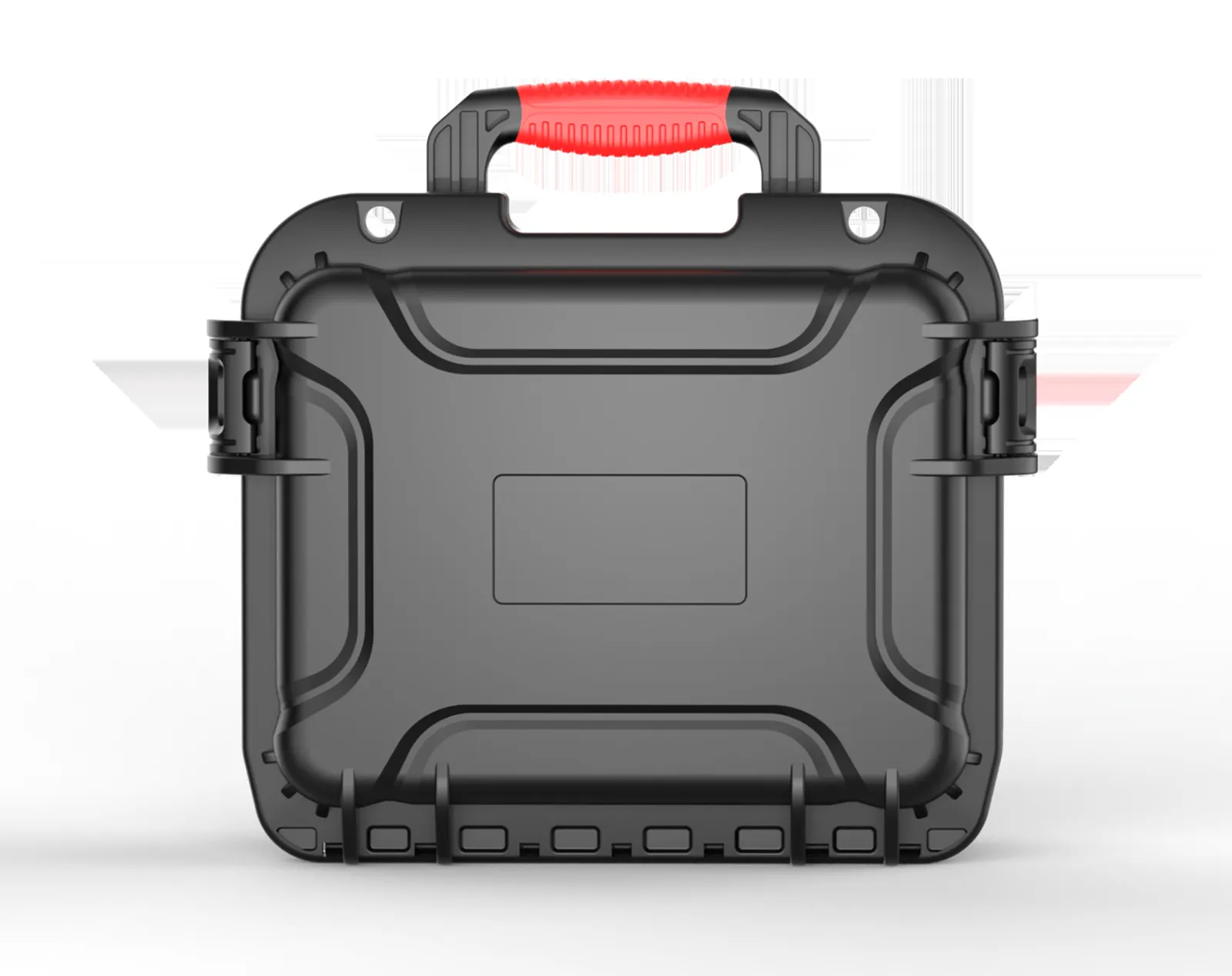

WL8-3015 PP Gun Case

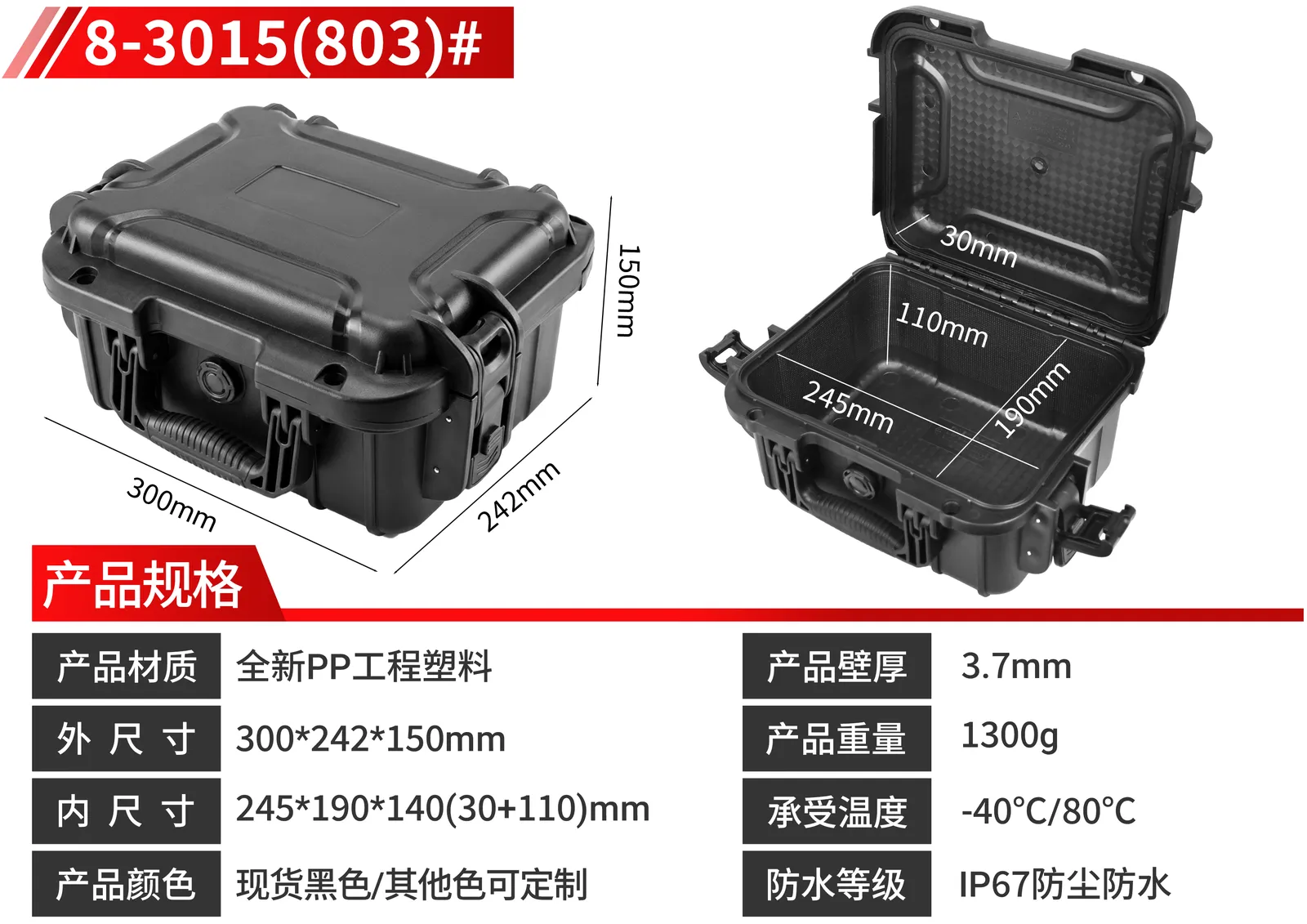

According to the product data, the case measures 300 x 242 x 150 mm outside and 245 x 190 x 140 mm inside, with lid and base depths listed as 30+110 mm, a 3.7 mm wall and a net weight of about 1240 g. The outside is only a little over 300 mm, yet the internal height reaches 140 mm, giving a compact footprint with generous depth; check your item against the 245 x 190 x 140 mm internal figures when selecting.

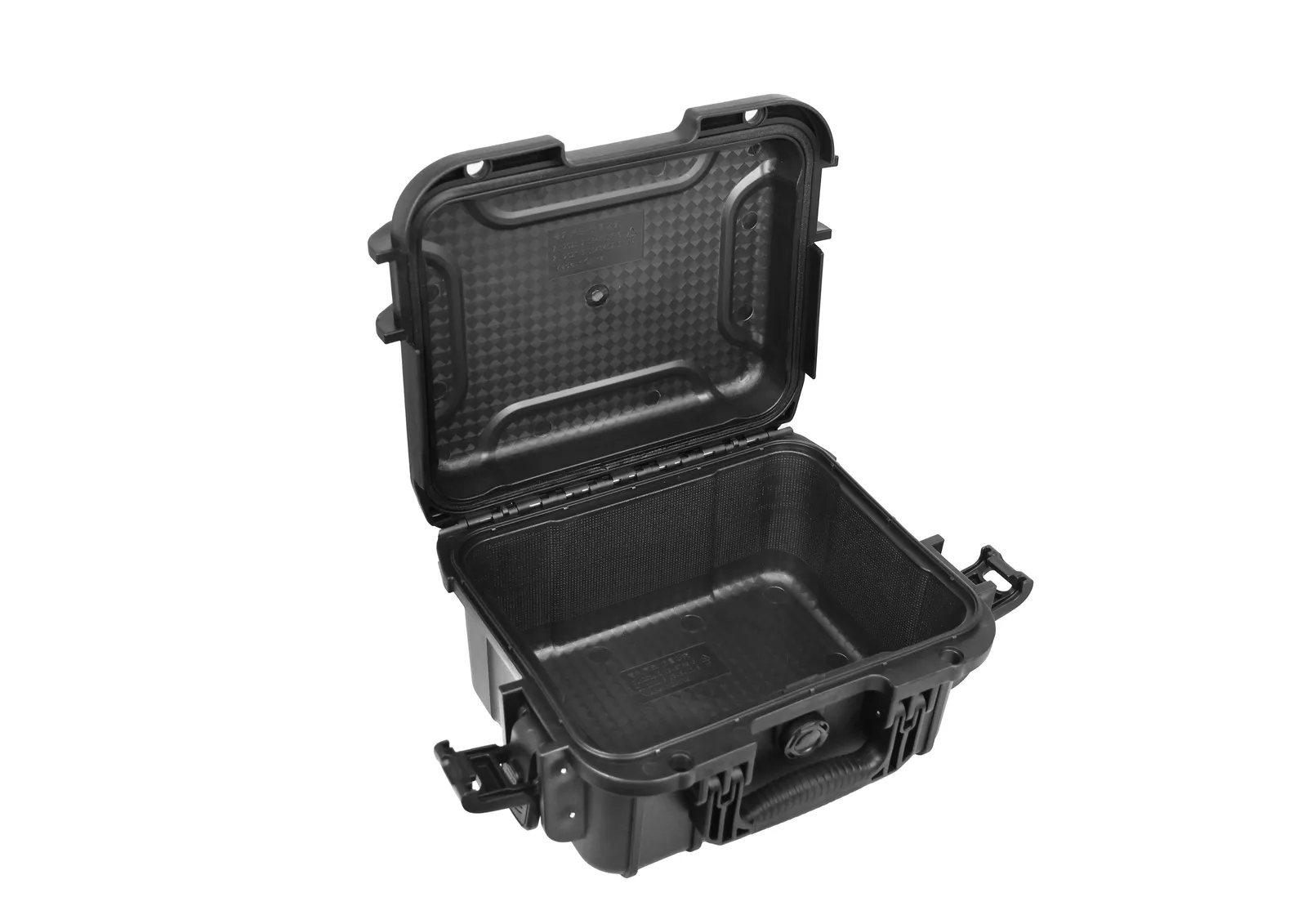

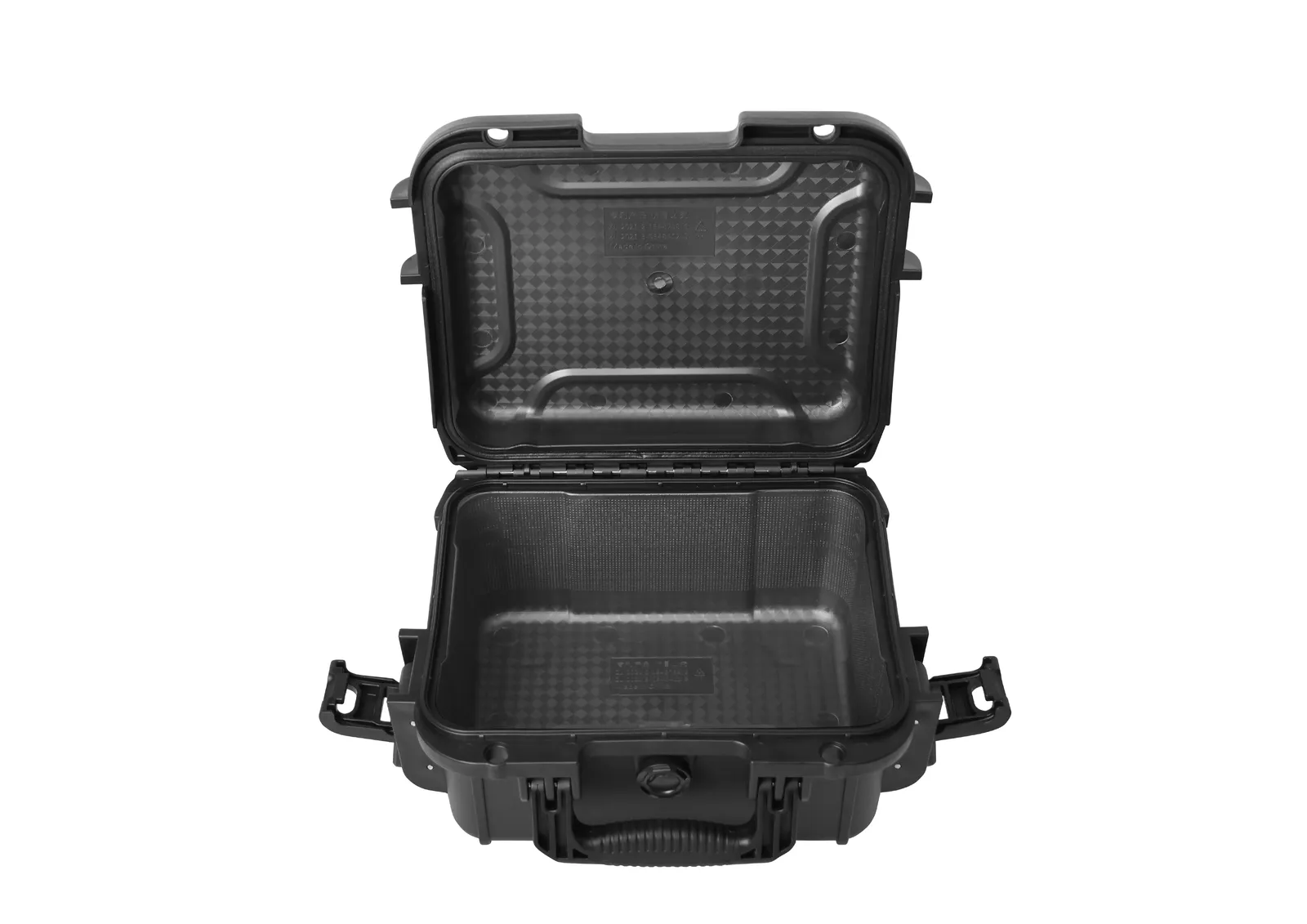

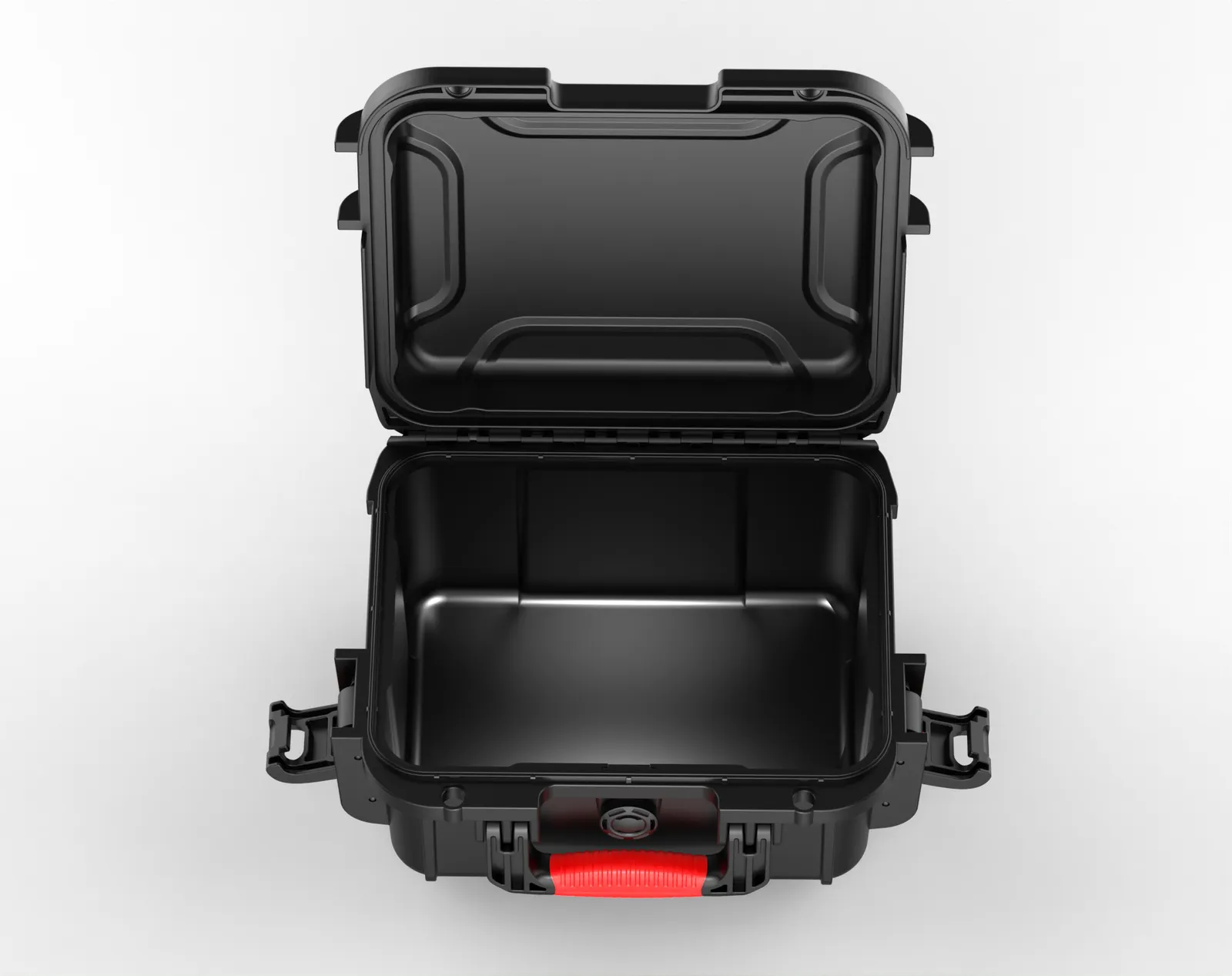

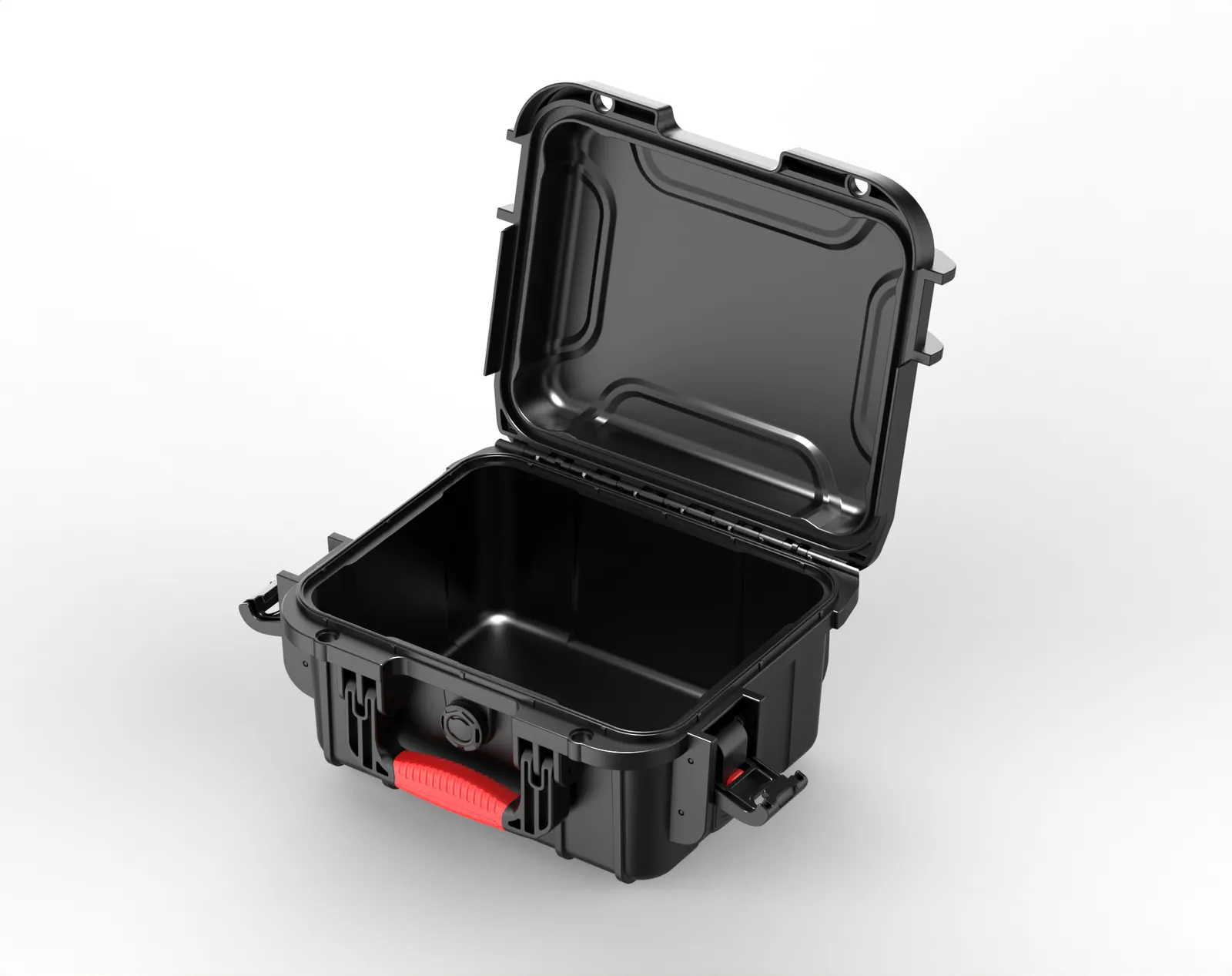

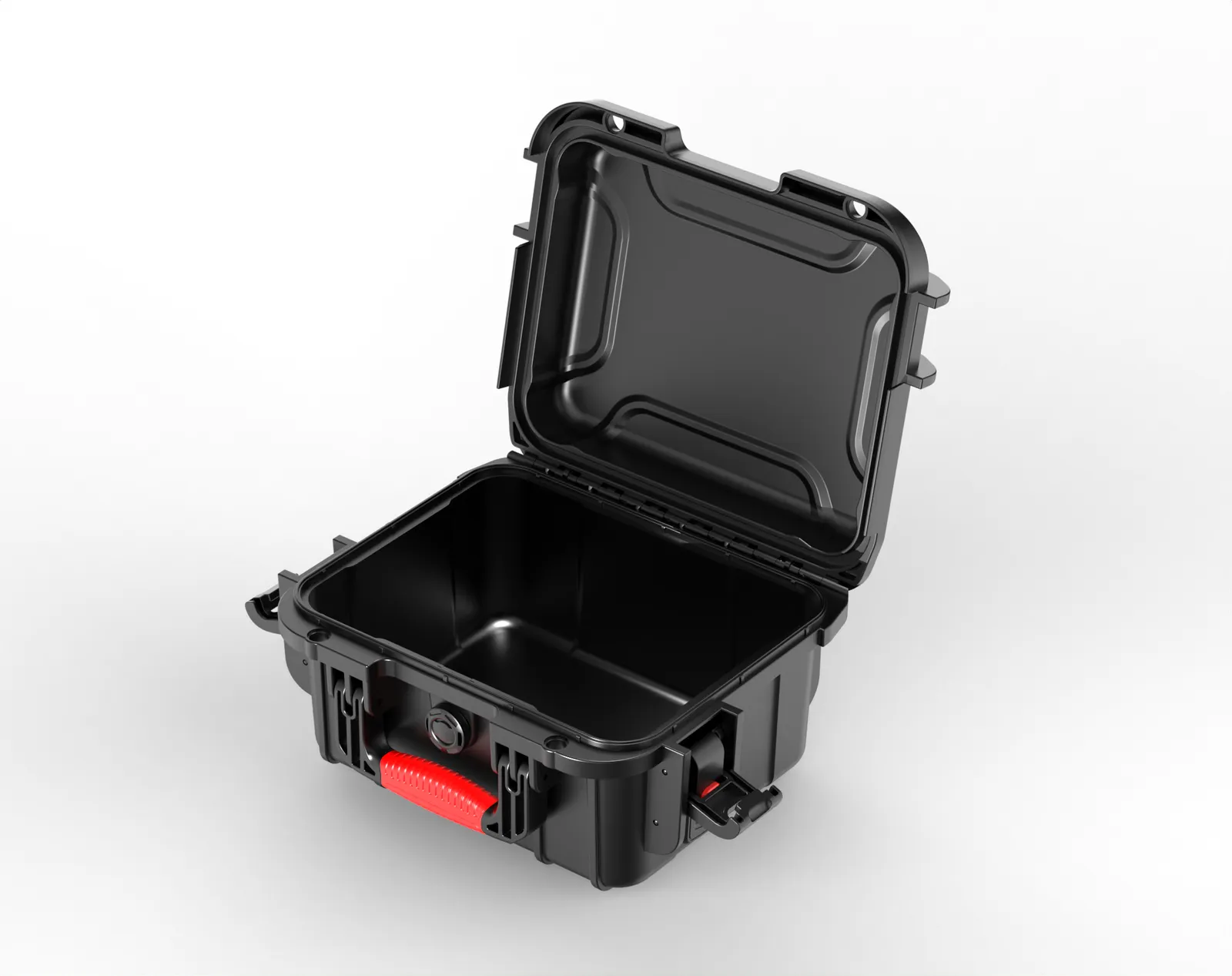

The 30 mm lid plus 110 mm base split means most of the depth sits in the lower body, which suits taller equipment or products that need a thicker insert. The 30 mm lid space also leaves room for top accessories or a cushioning layer. If your equipment is close to 140 mm tall, allow for insert thickness before confirming the model.

JUNZHIJIA focuses on IP67 waterproof and dustproof protective cases, and the exact sealing structure and test method for WL8-3015 should be confirmed with the factory. If the working environment has clear moisture, dust or short-term immersion requirements, state the medium, duration and acceptance criteria when enquiring so the factory can propose a matching sealing solution and any testing needed. Confirm the requirement in writing before production so the delivered case matches the intended protection level.

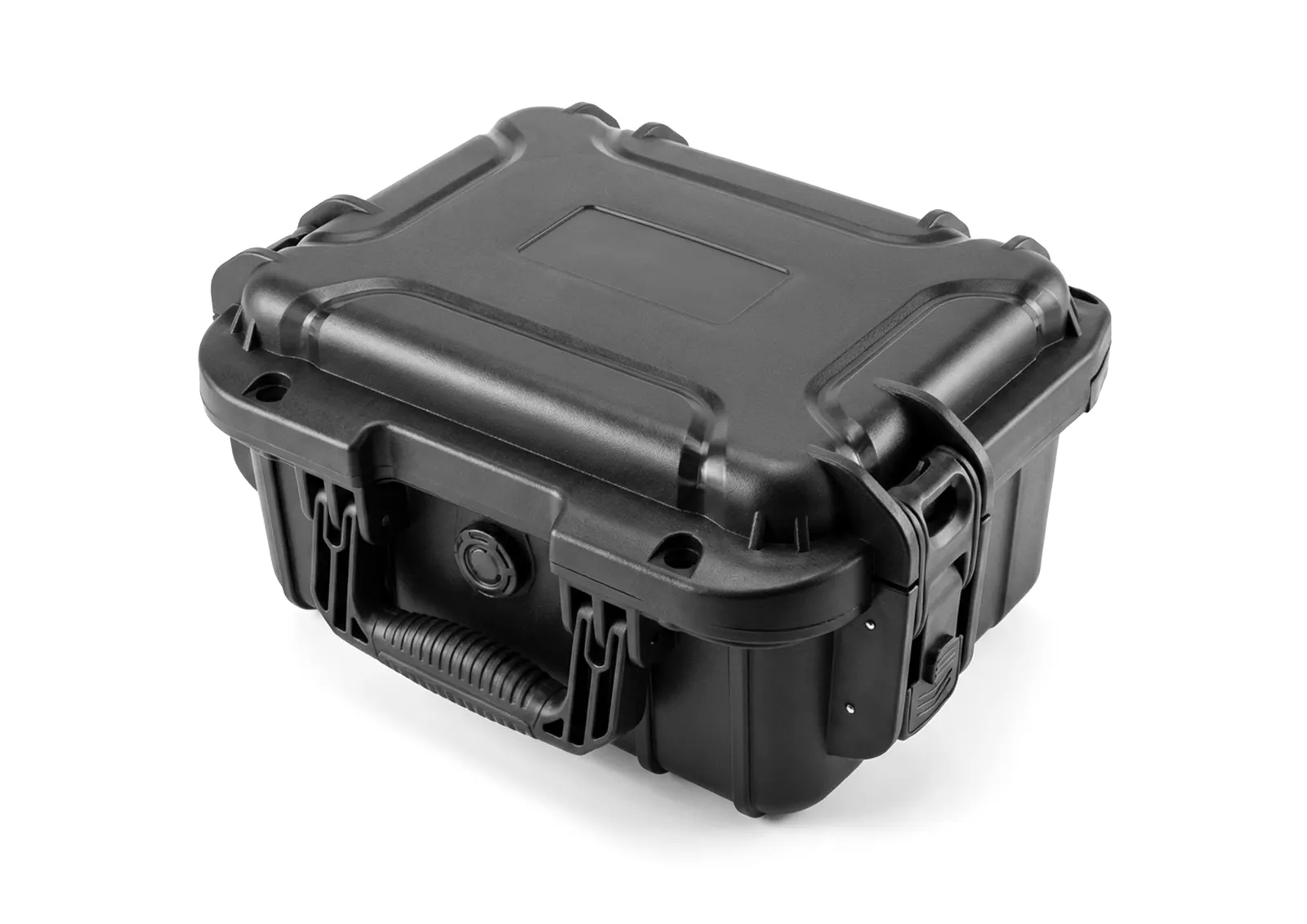

A 3.7 mm PP shell resists deformation better than a thin-wall case when dropped, stacked or shipped long distance, and together with the total weight of about 1240 g it gives the case good rigidity. The product data lists gun cases as the application, and the model also works as a protective transit case for instruments and precision equipment; confirm specific strength requirements with the factory before ordering.

Insert cutting, colour, logo and packaging can be discussed under OEM/ODM supply, for example an EVA or foam insert cut to the equipment outline, adjusting the shell colour to a brand palette, printing a logo on the case surface, and specifying carton dimensions and shipping marks. Provide target quantity, equipment type and delivery requirements so the factory can quote and schedule production.

Lead time depends on order quantity, customisation content and the production schedule at the time, and must be confirmed item by item with the factory. Packing can be agreed with the order; a common arrangement is one piece per poly bag, then full cartons per the outer carton specification. If you need specific carton sizes, shipping marks or split quantities, state them when enquiring so materials can be prepared and production planned.
