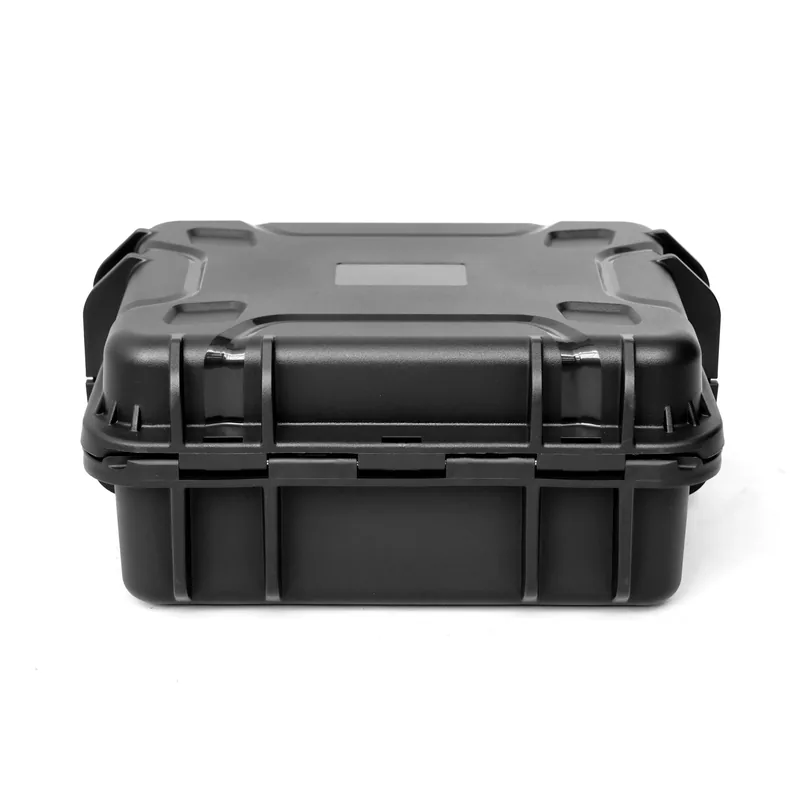

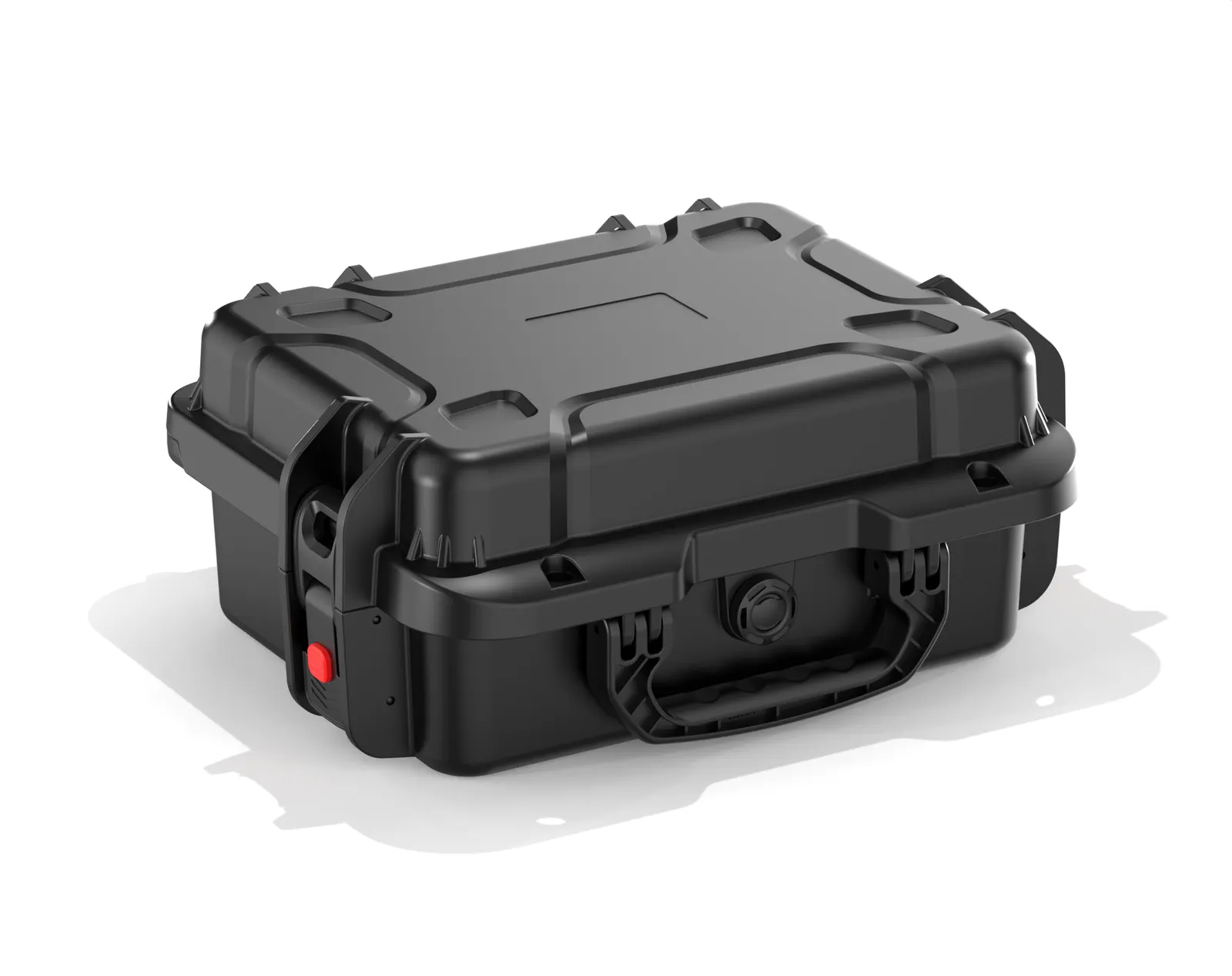

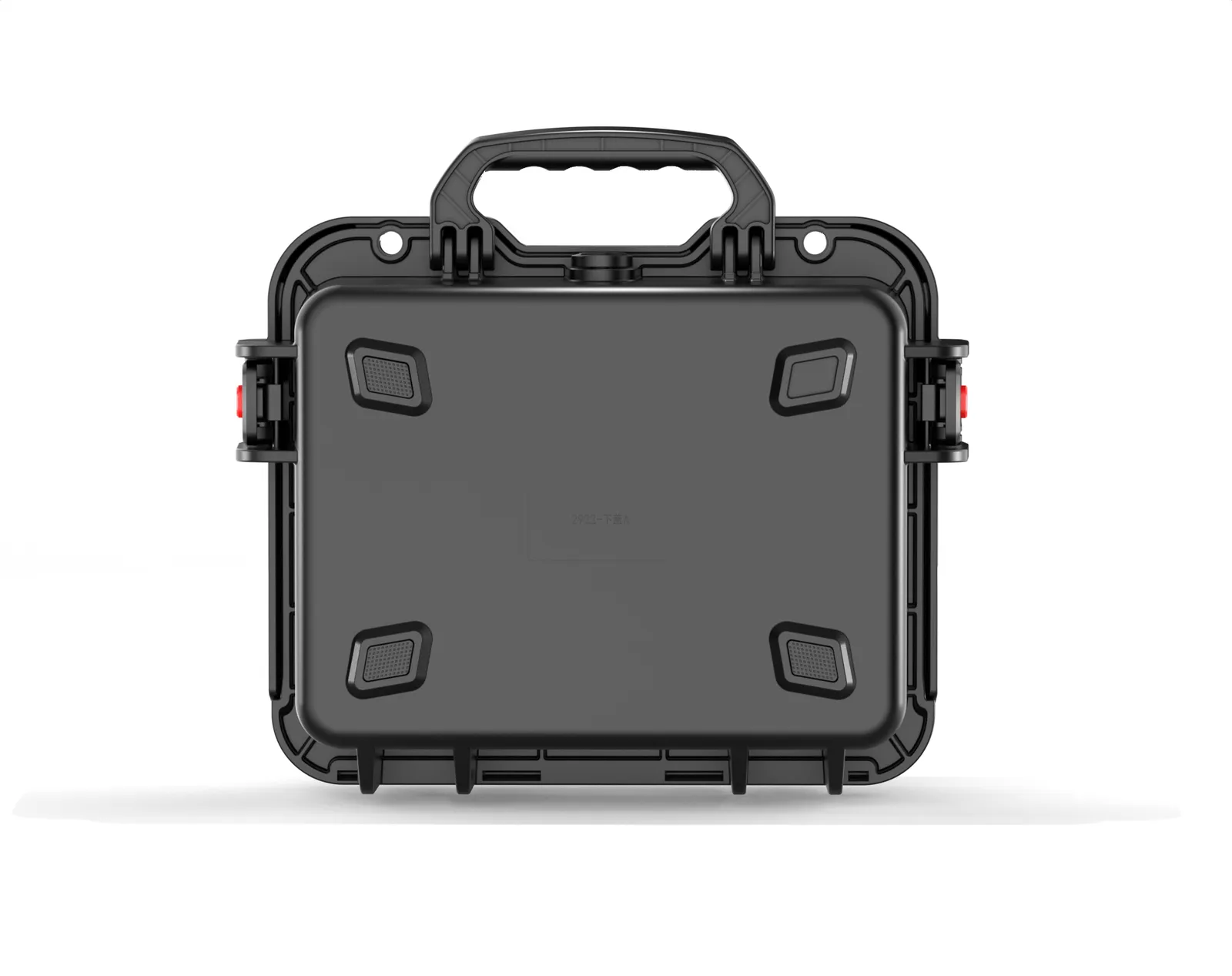

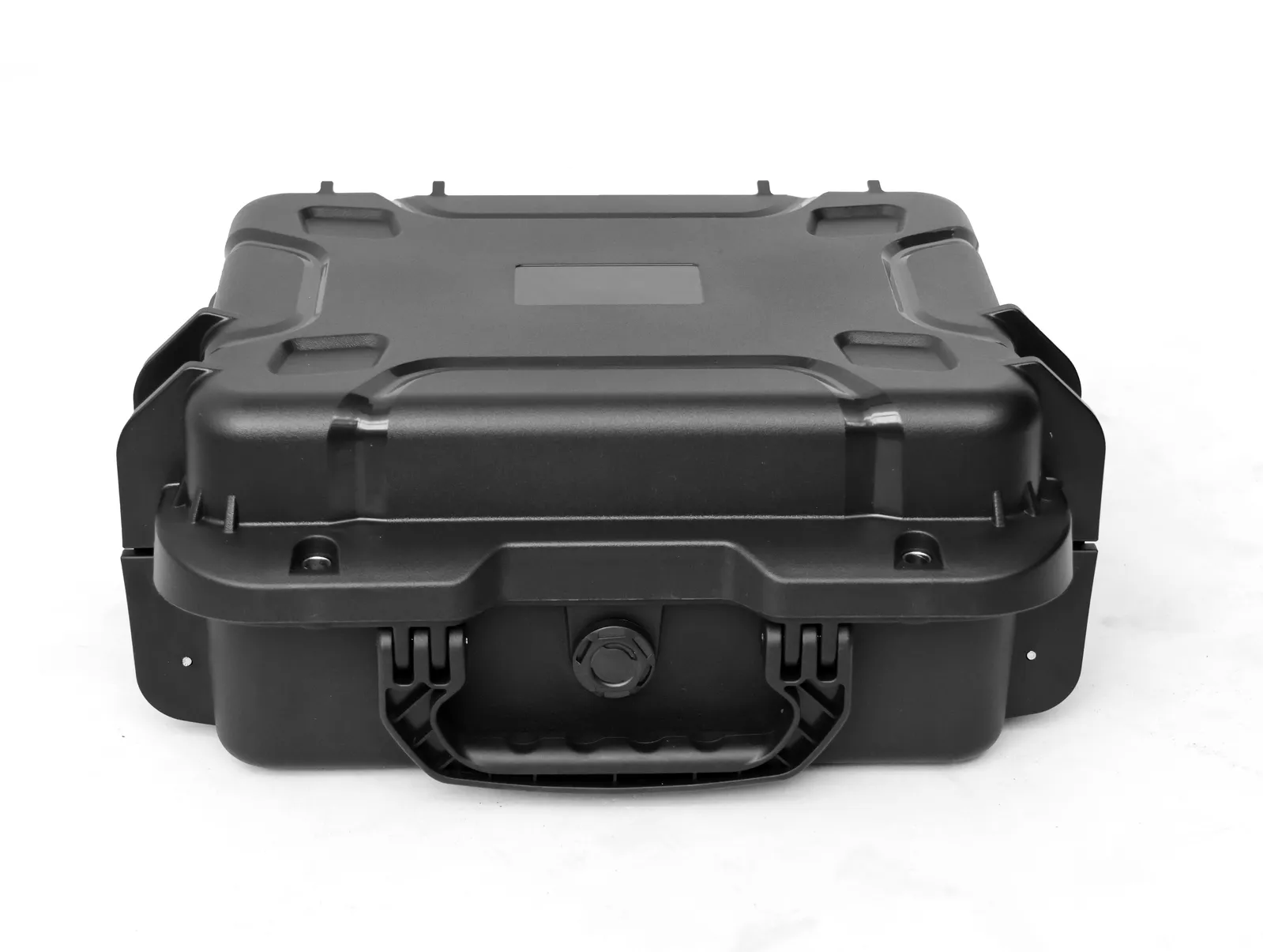

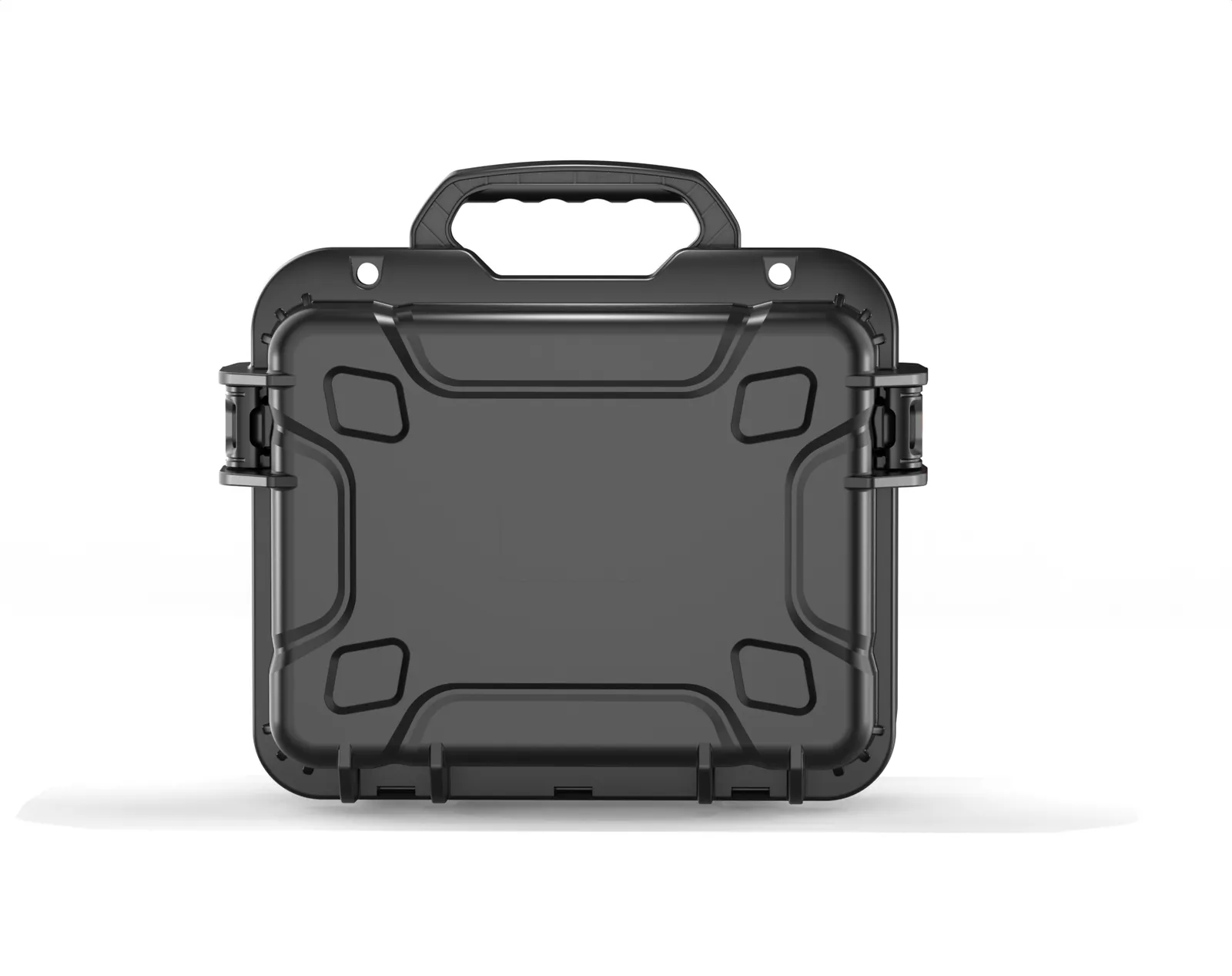

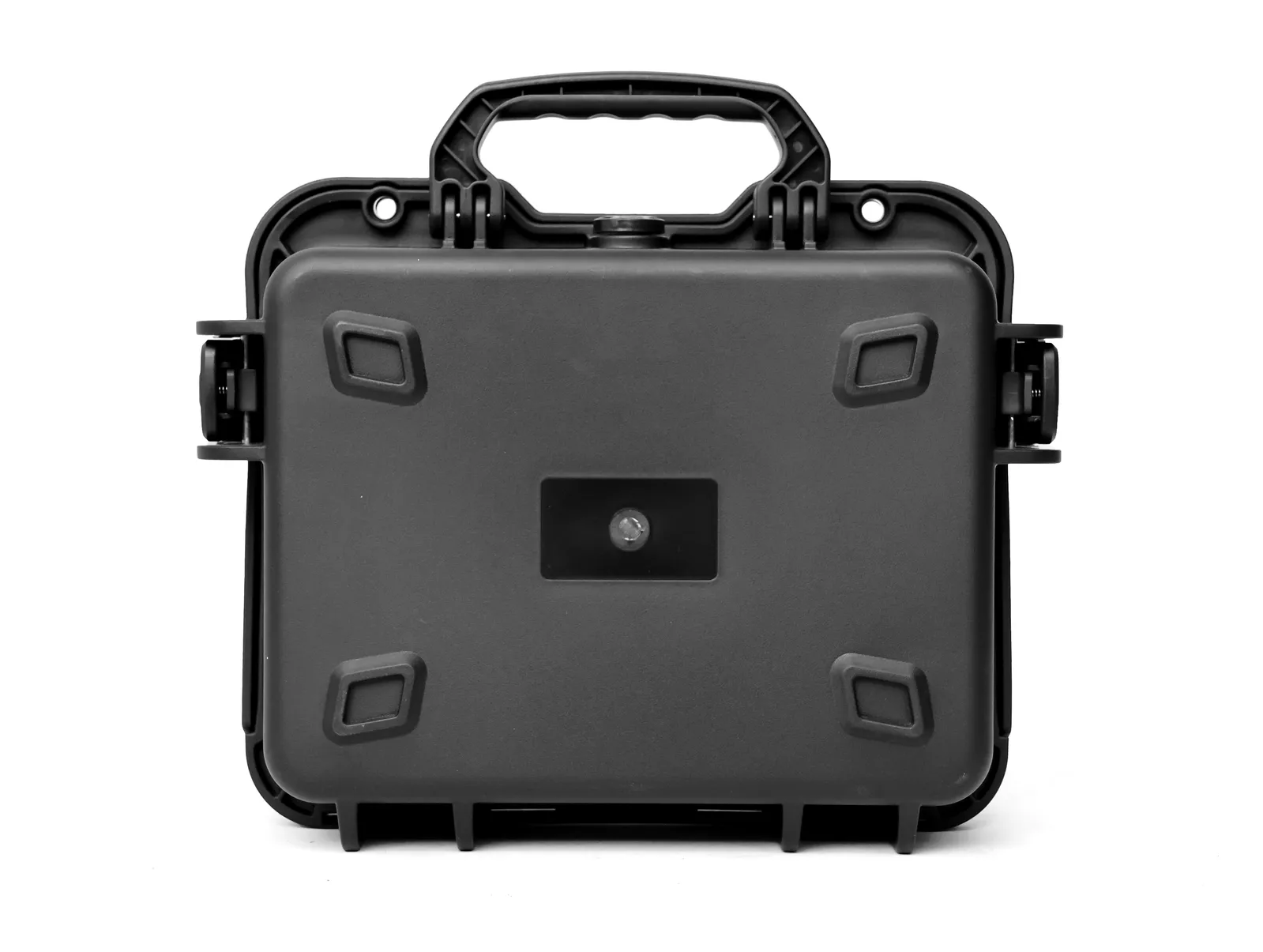

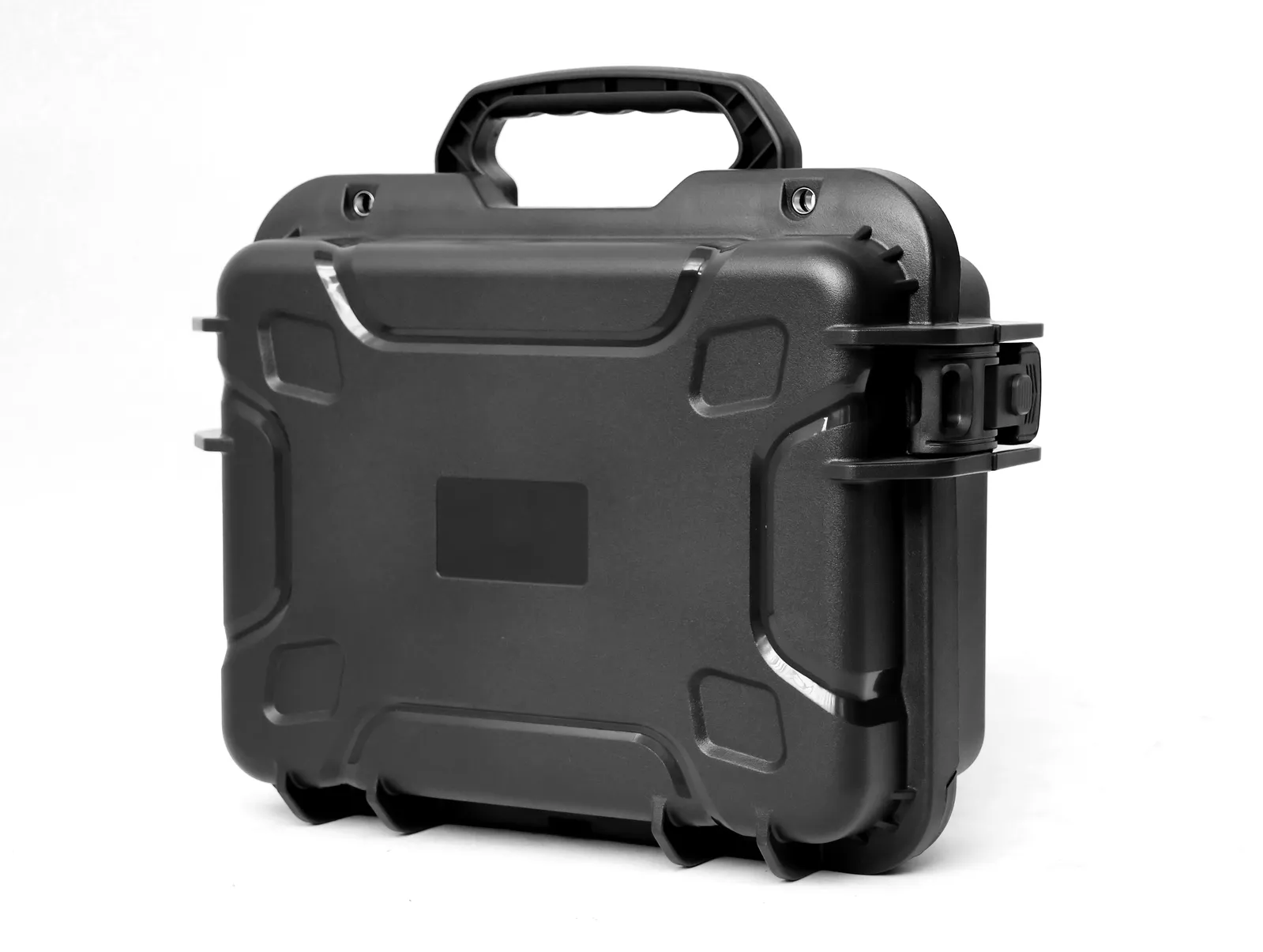

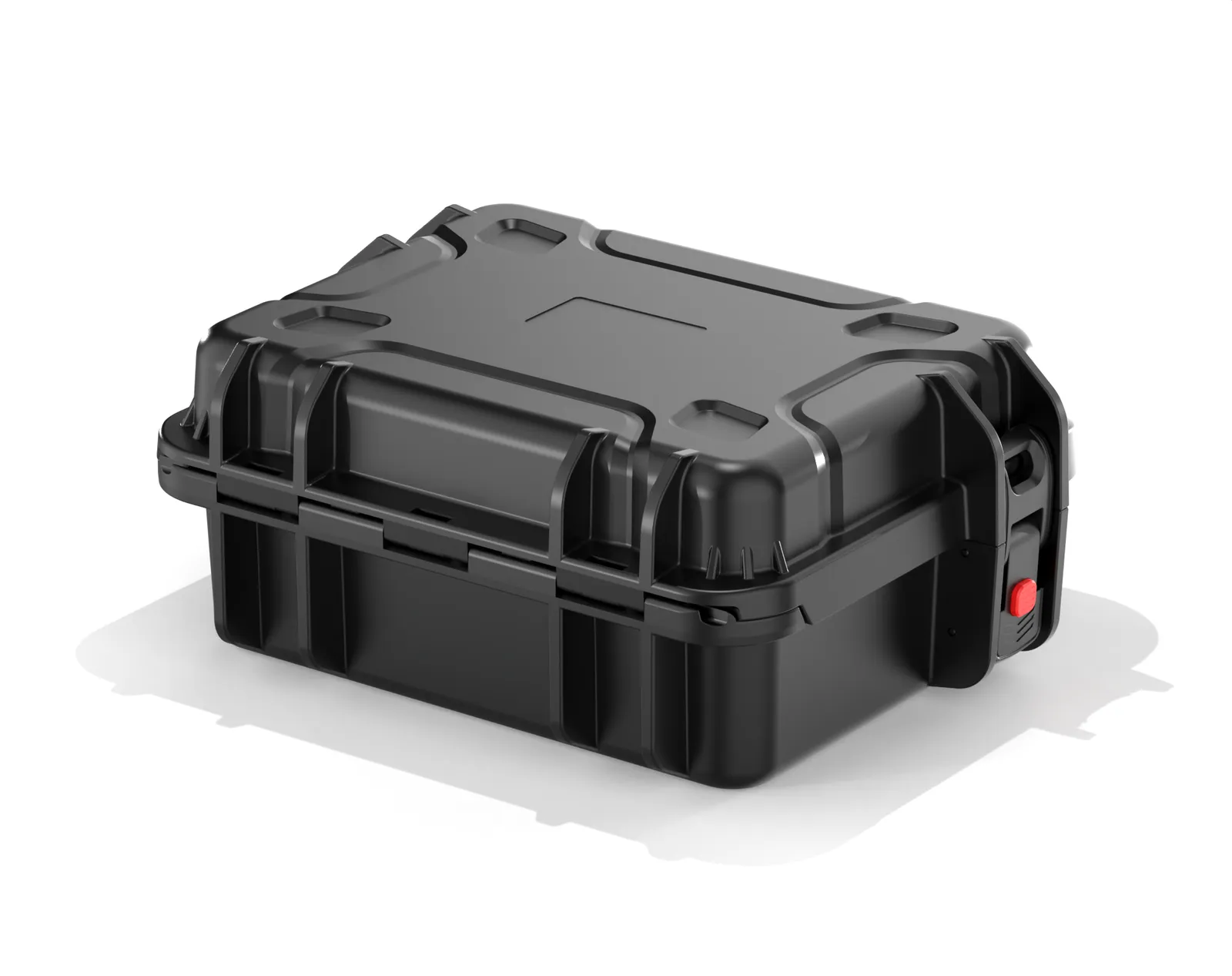

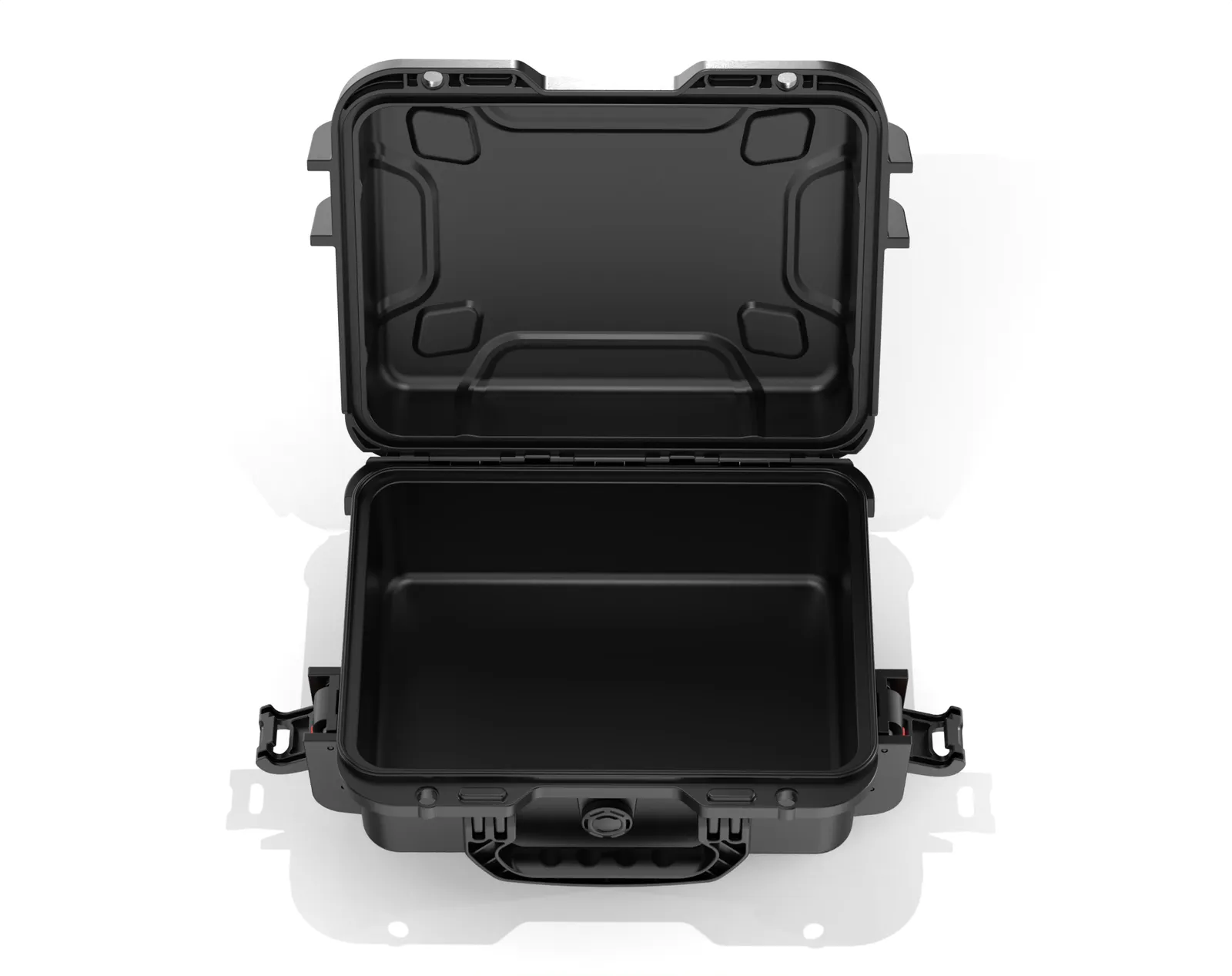

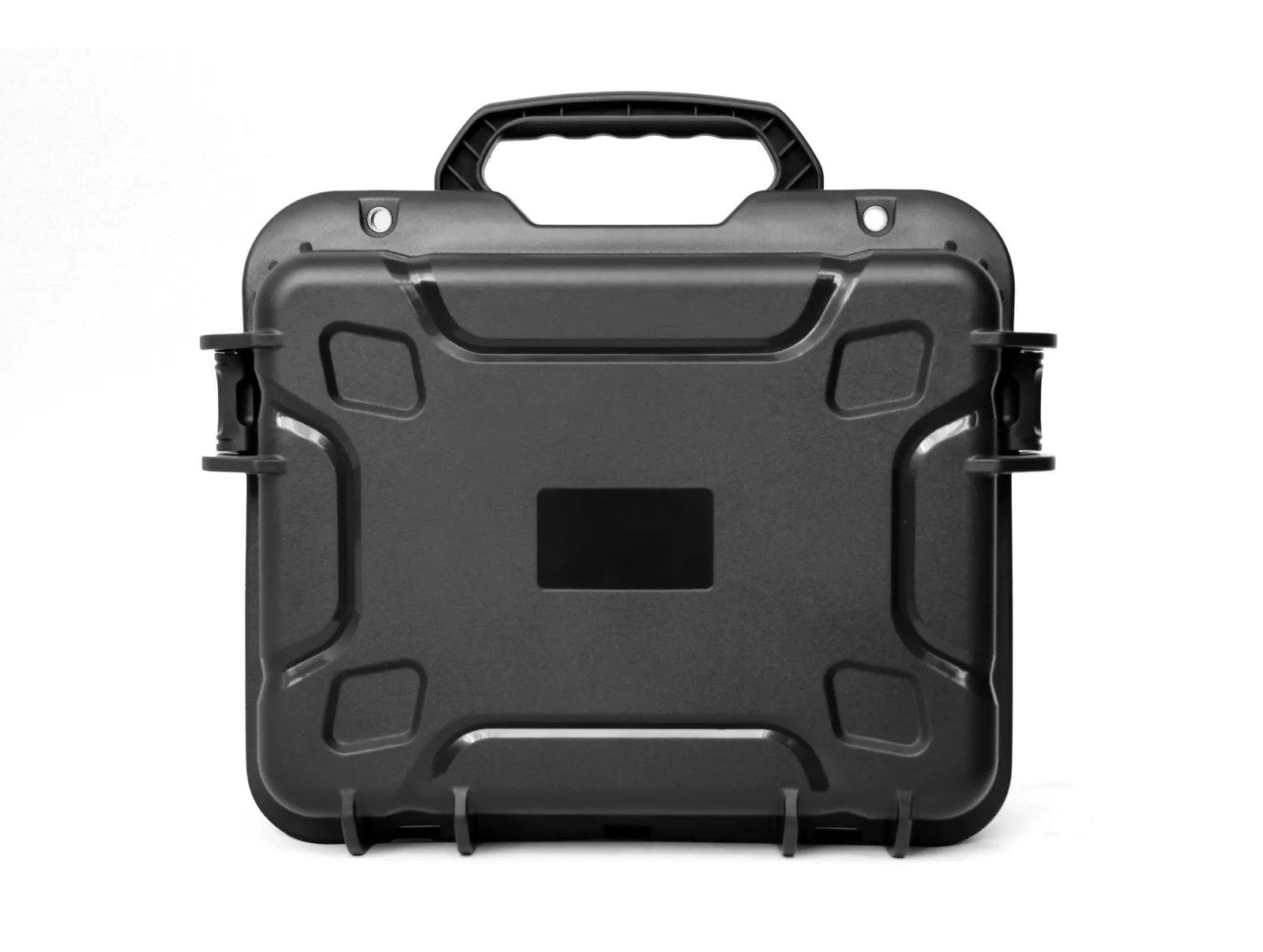

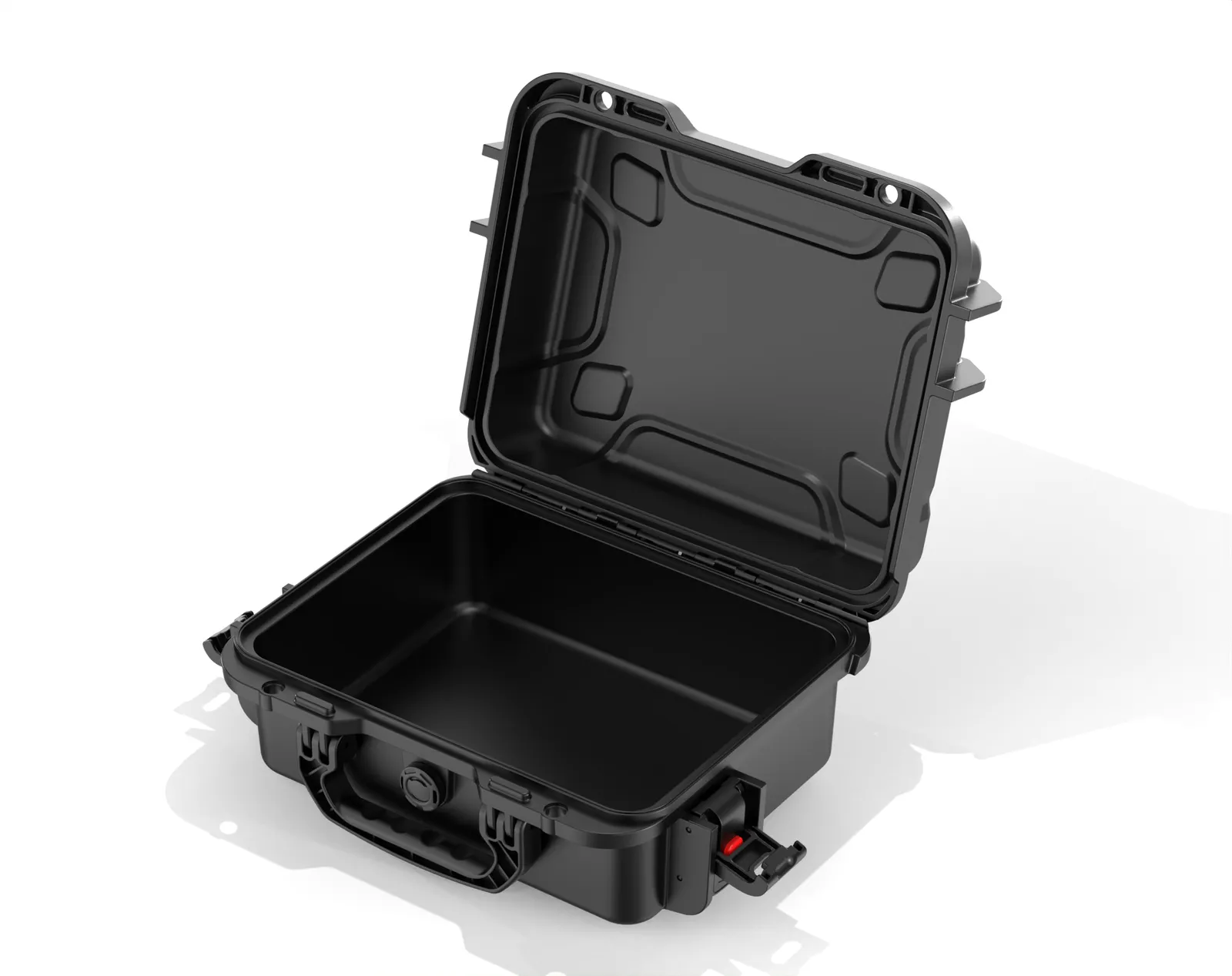

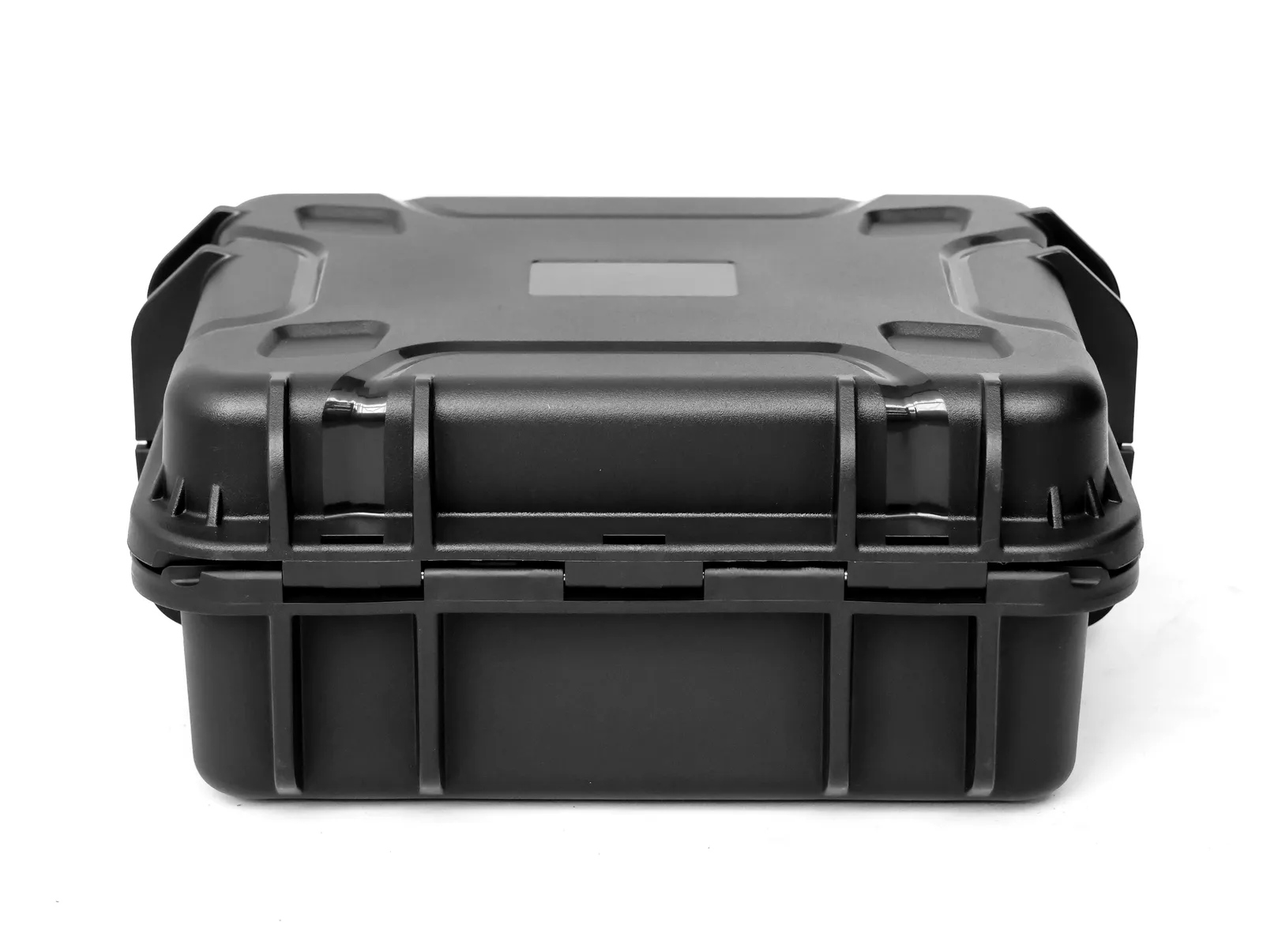

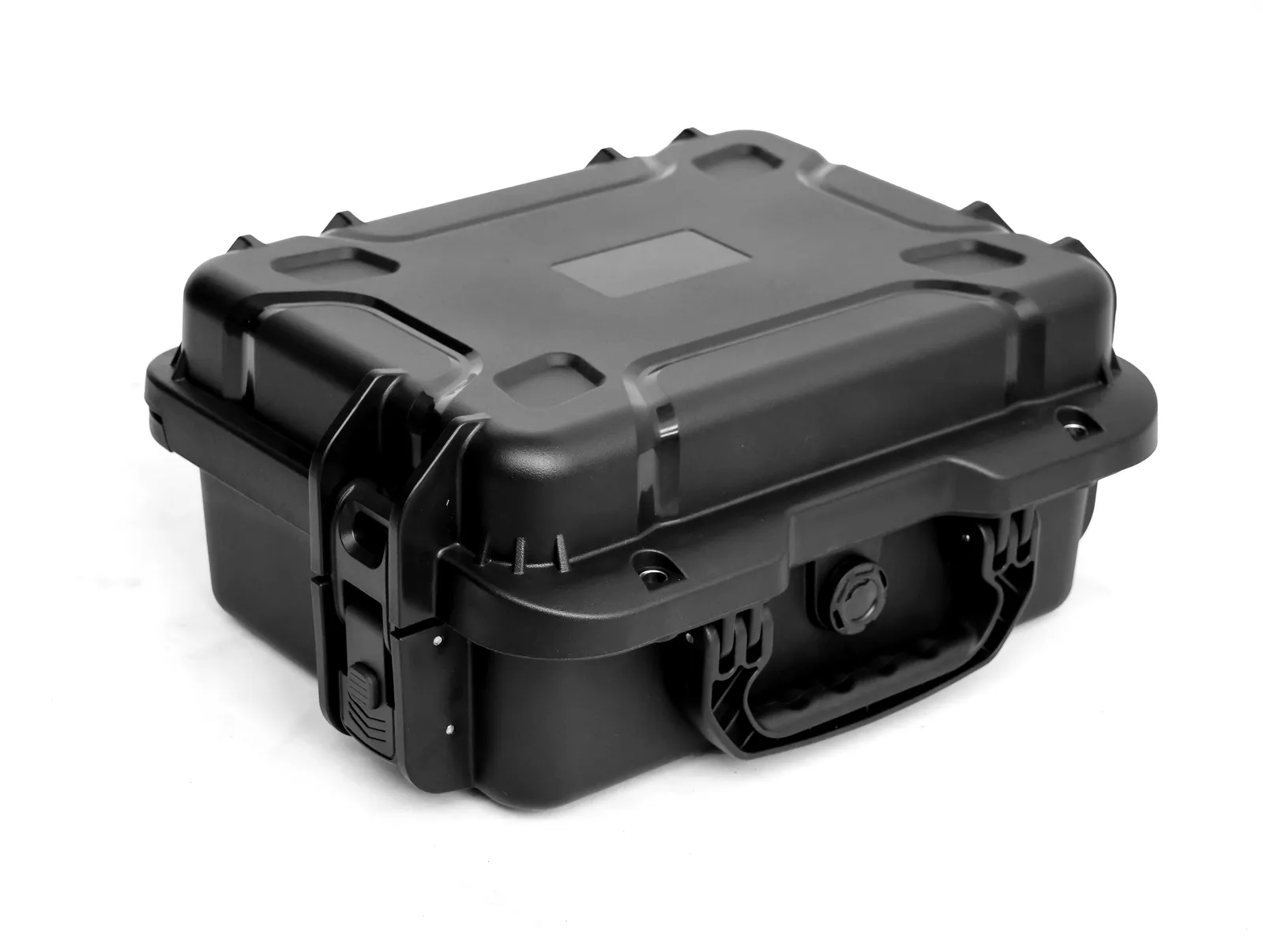

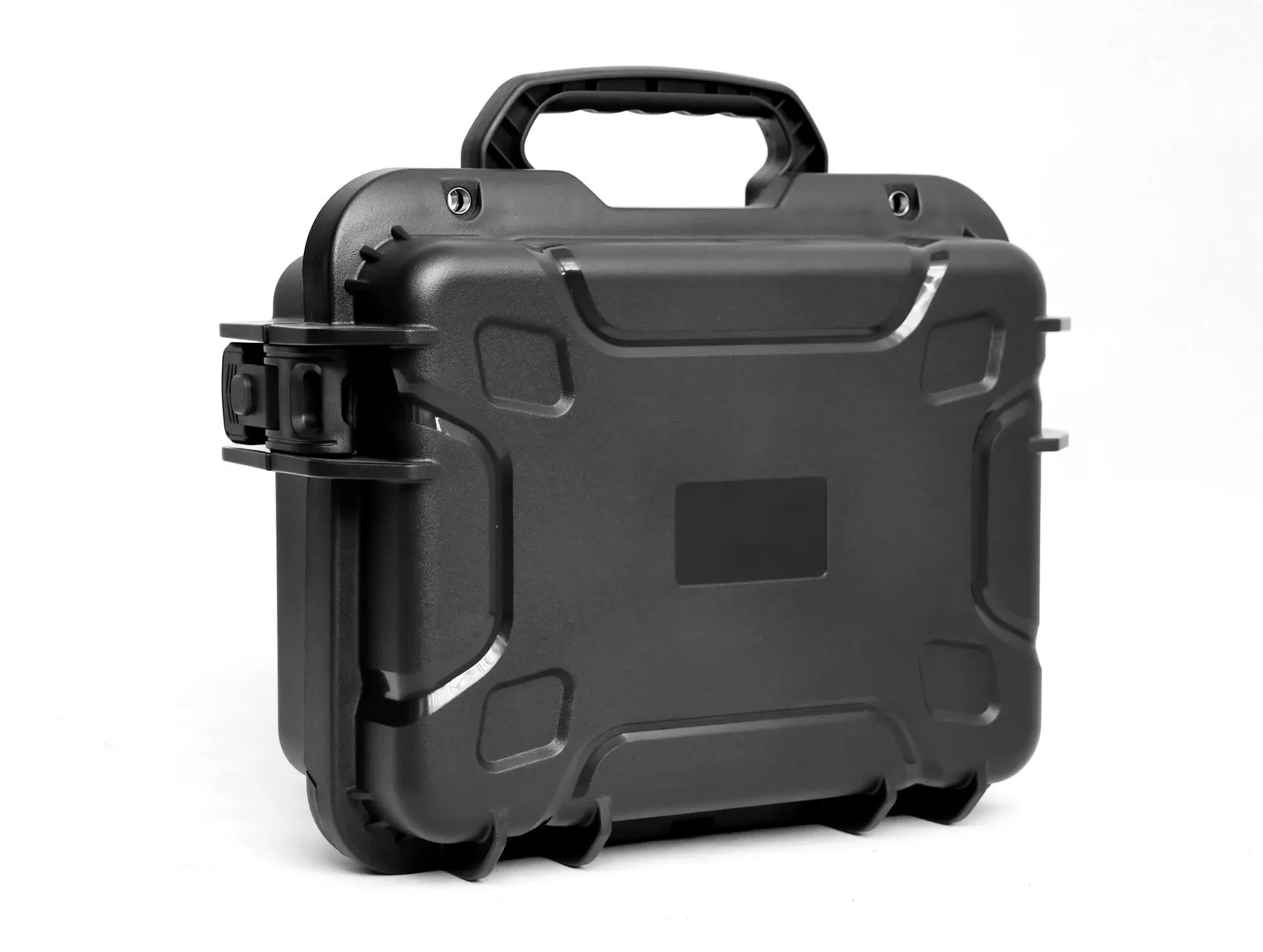

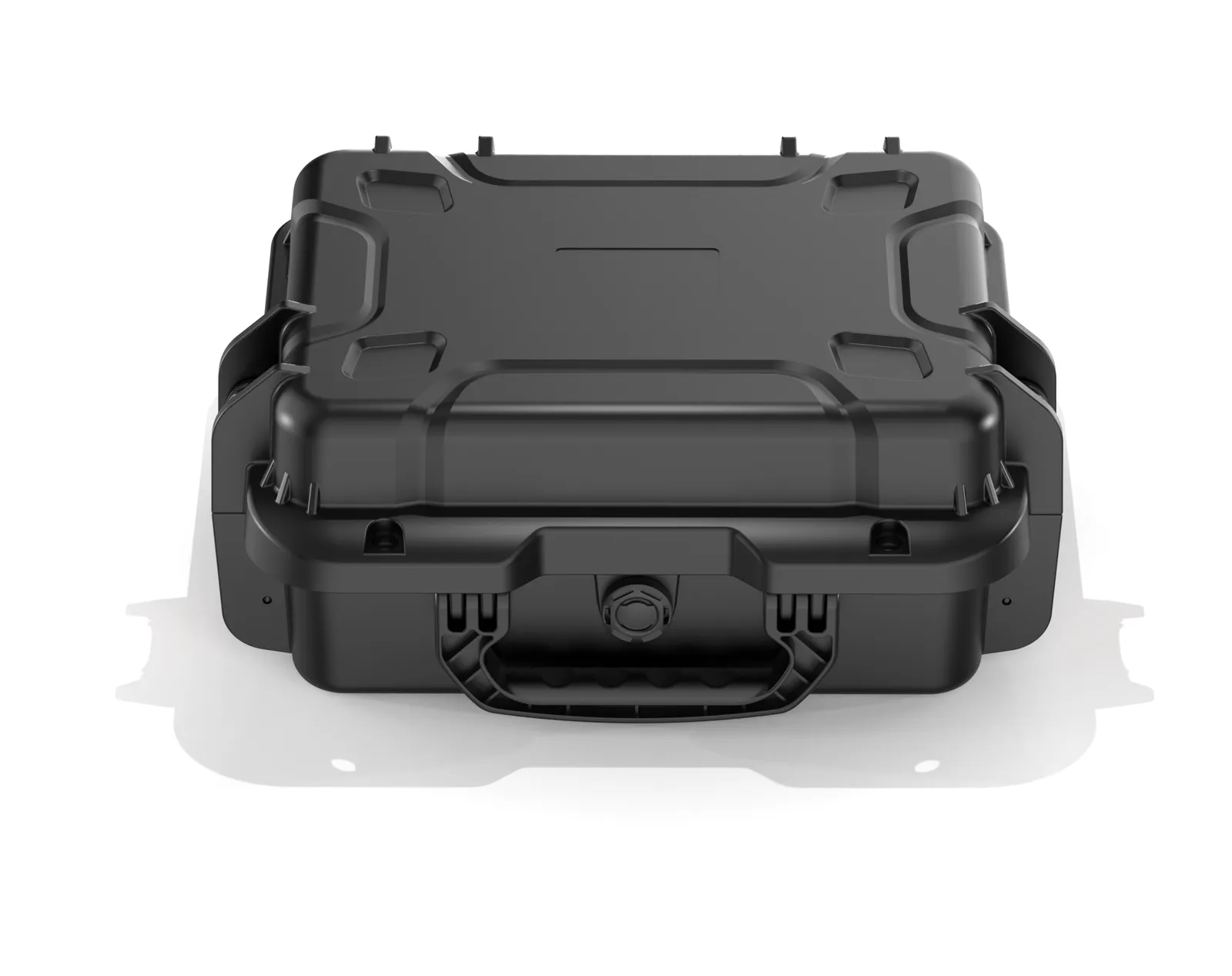

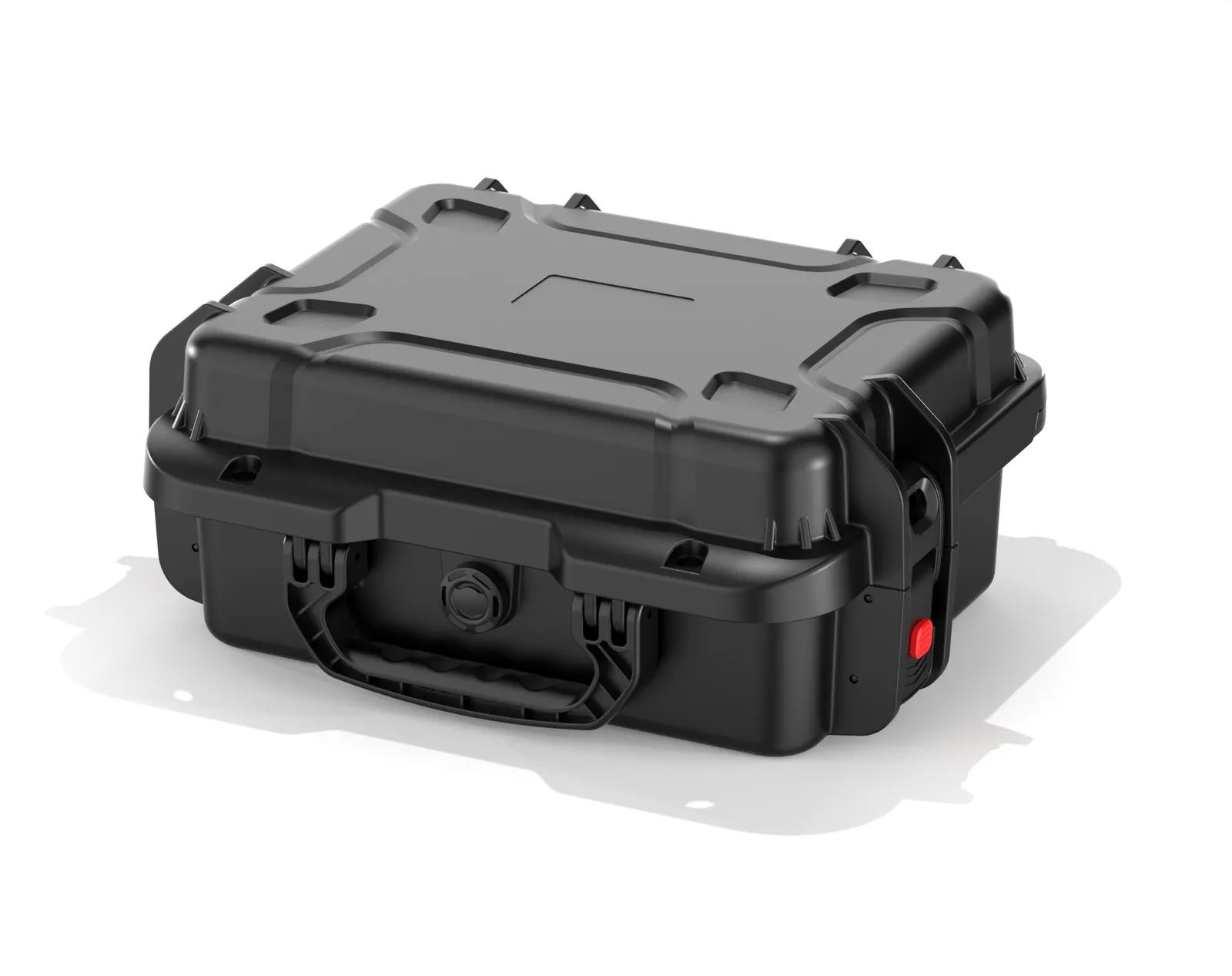

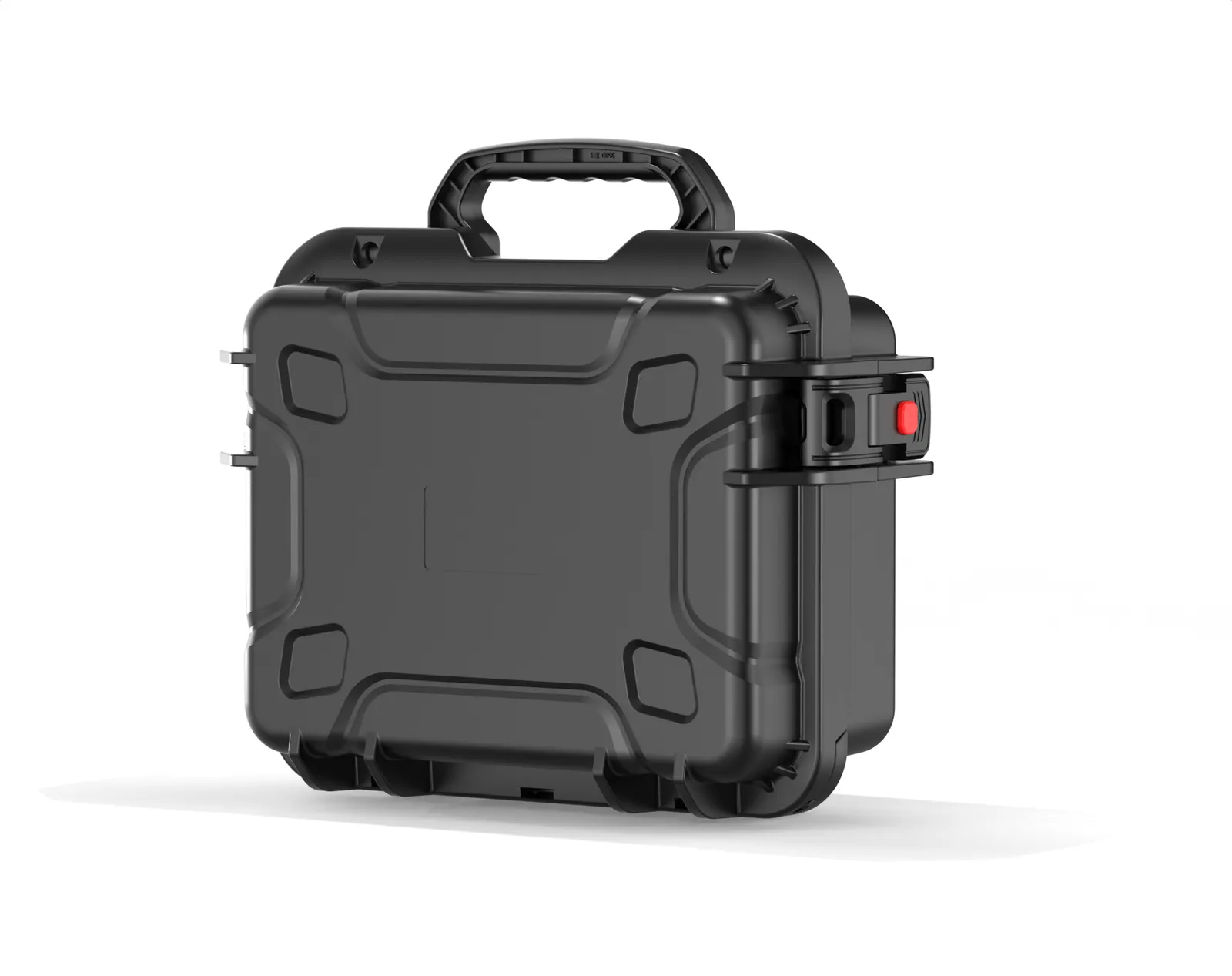

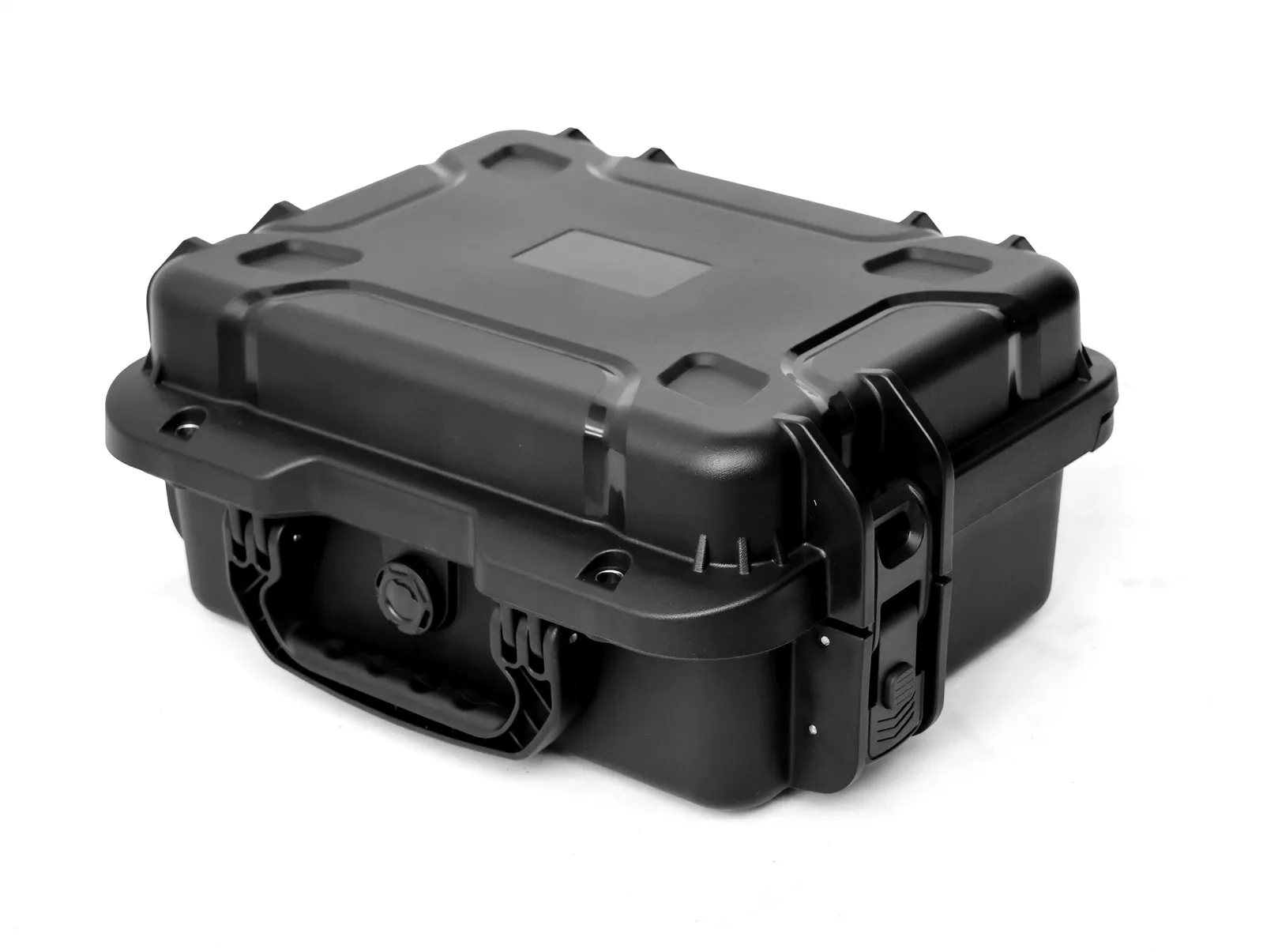

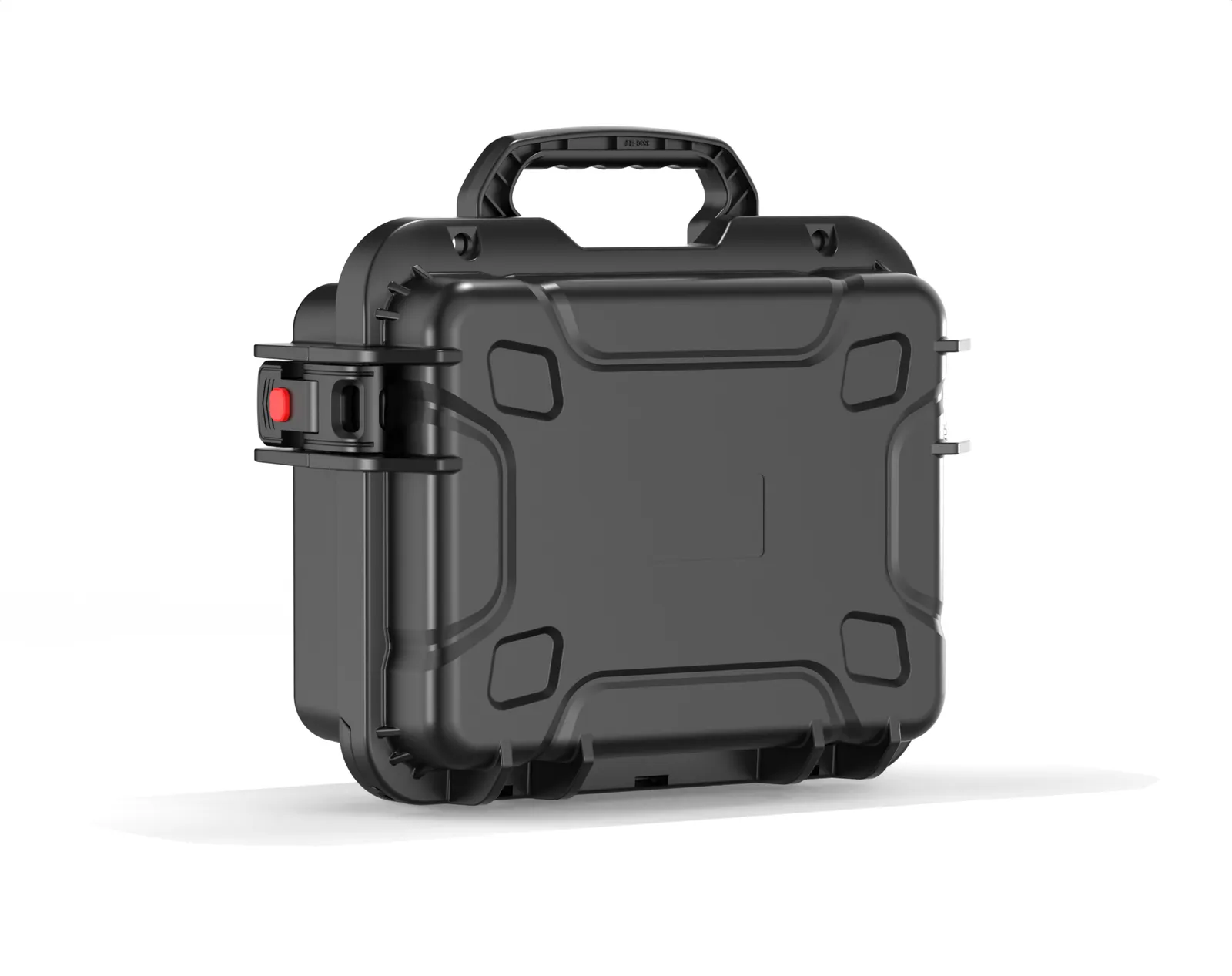

WL8-3615 PP Gun Case

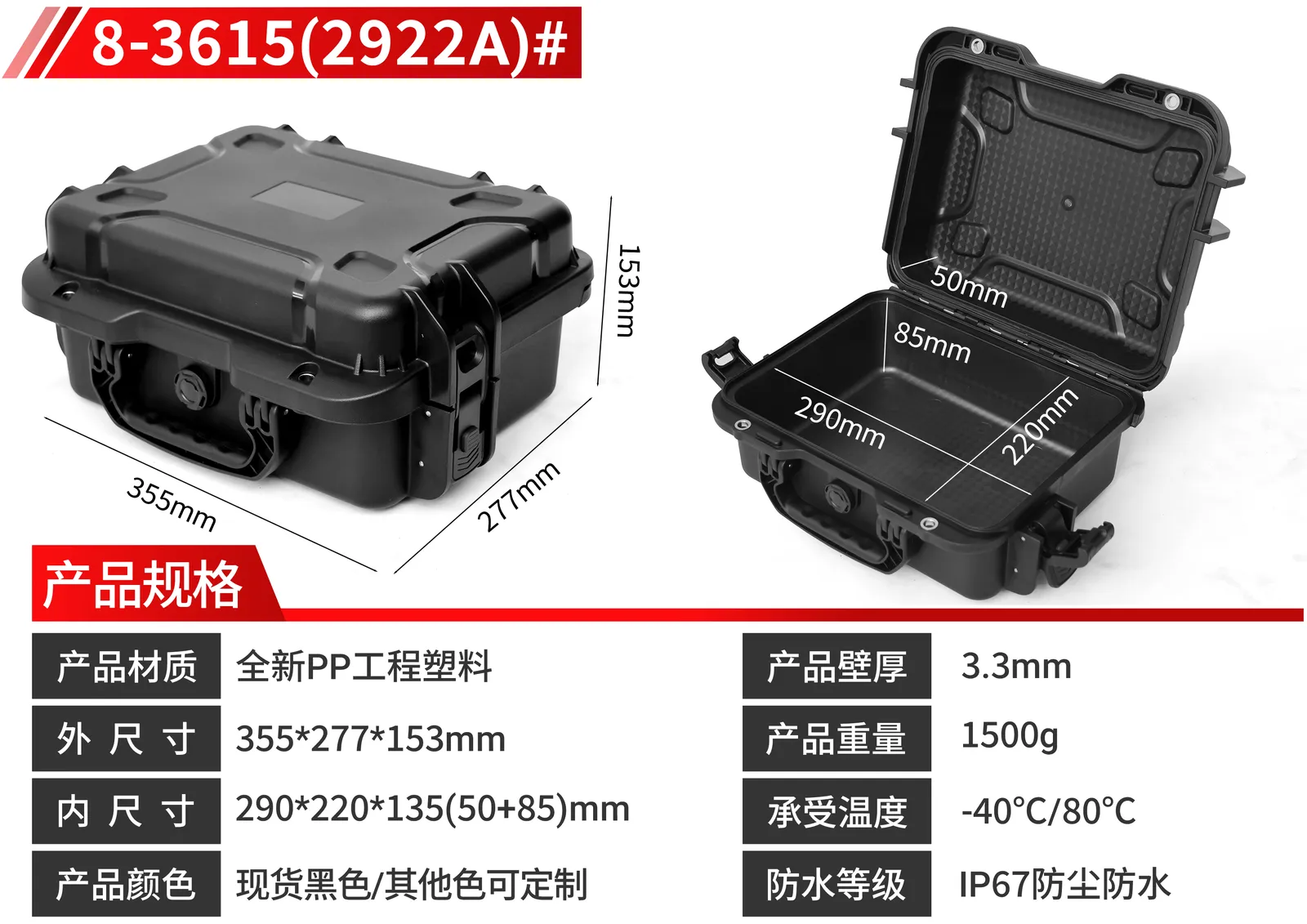

Specifications
| External Dimensions | 355*277*153mm |
|---|---|
| Internal Dimensions | 290*220*135mm |
| Lid + Base Depth | 50+85mm |
| Wall Thickness | 3.3mm |
| Weight | 1480g |
| Material | PP |
Need a custom case solution?
Tell us your requirements — OEM / ODM, logo printing, custom foam inserts.
Frequently Asked Questions

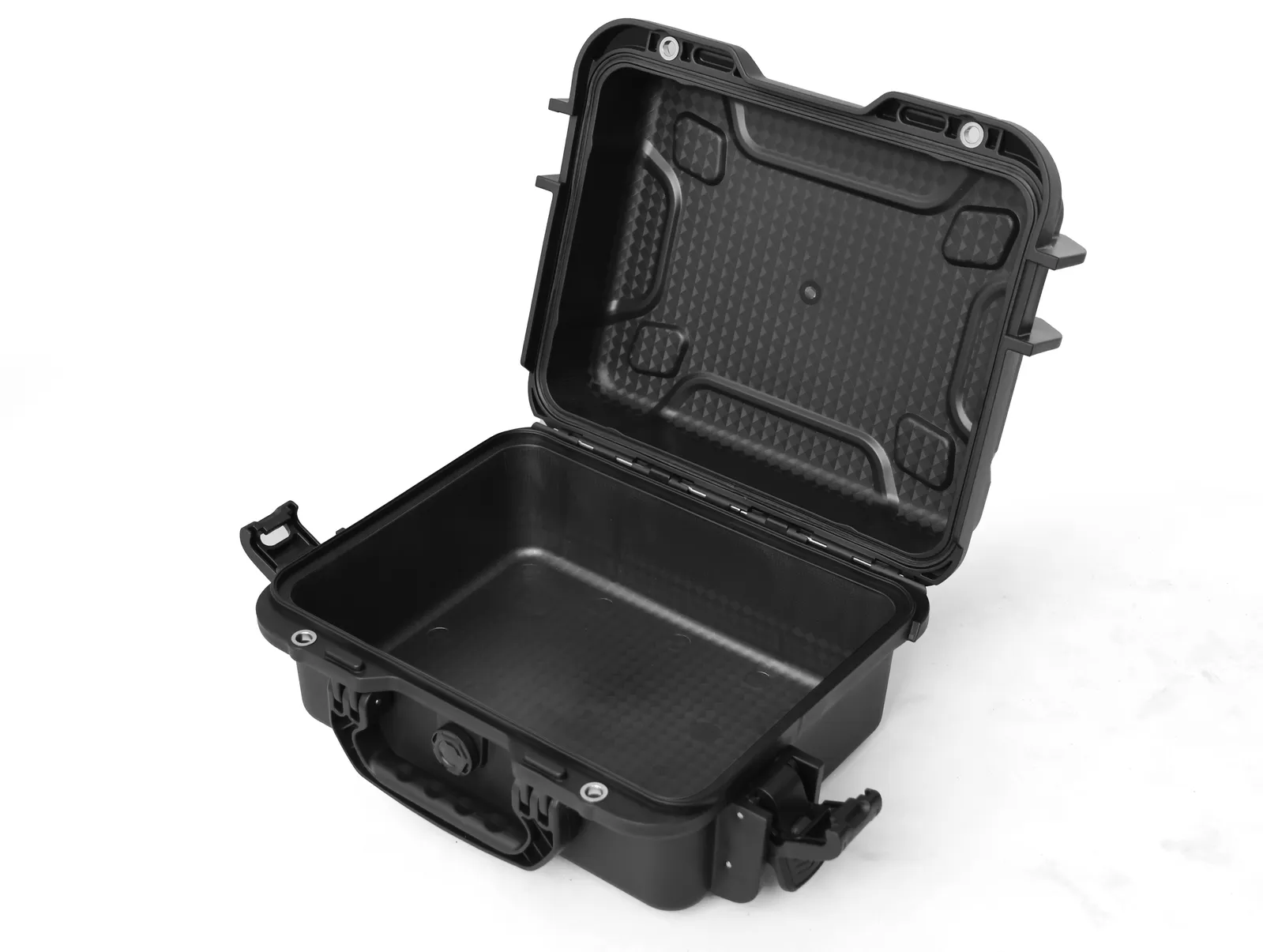

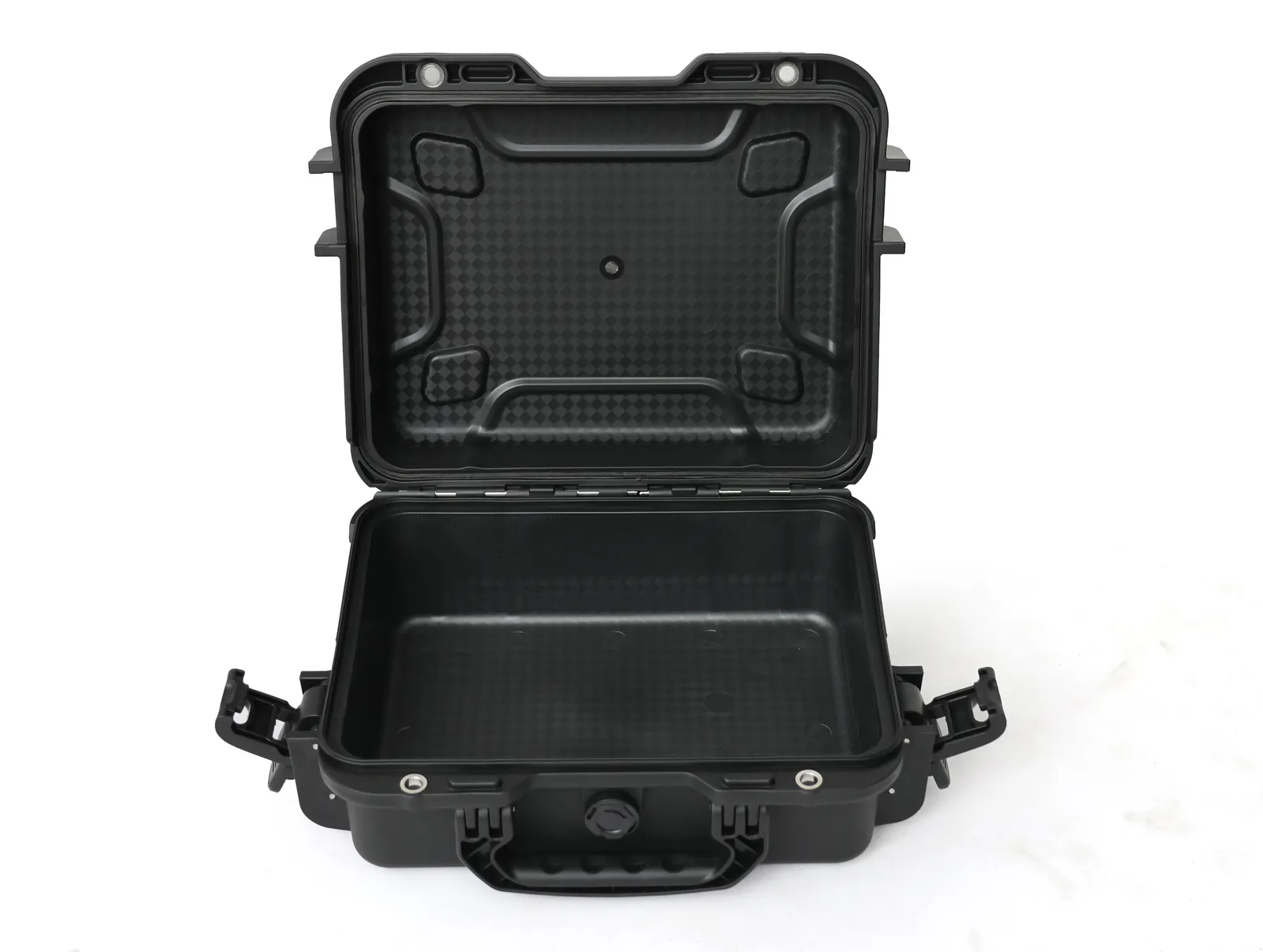

What are the internal dimensions of the WL8-3615 and what will fit inside?

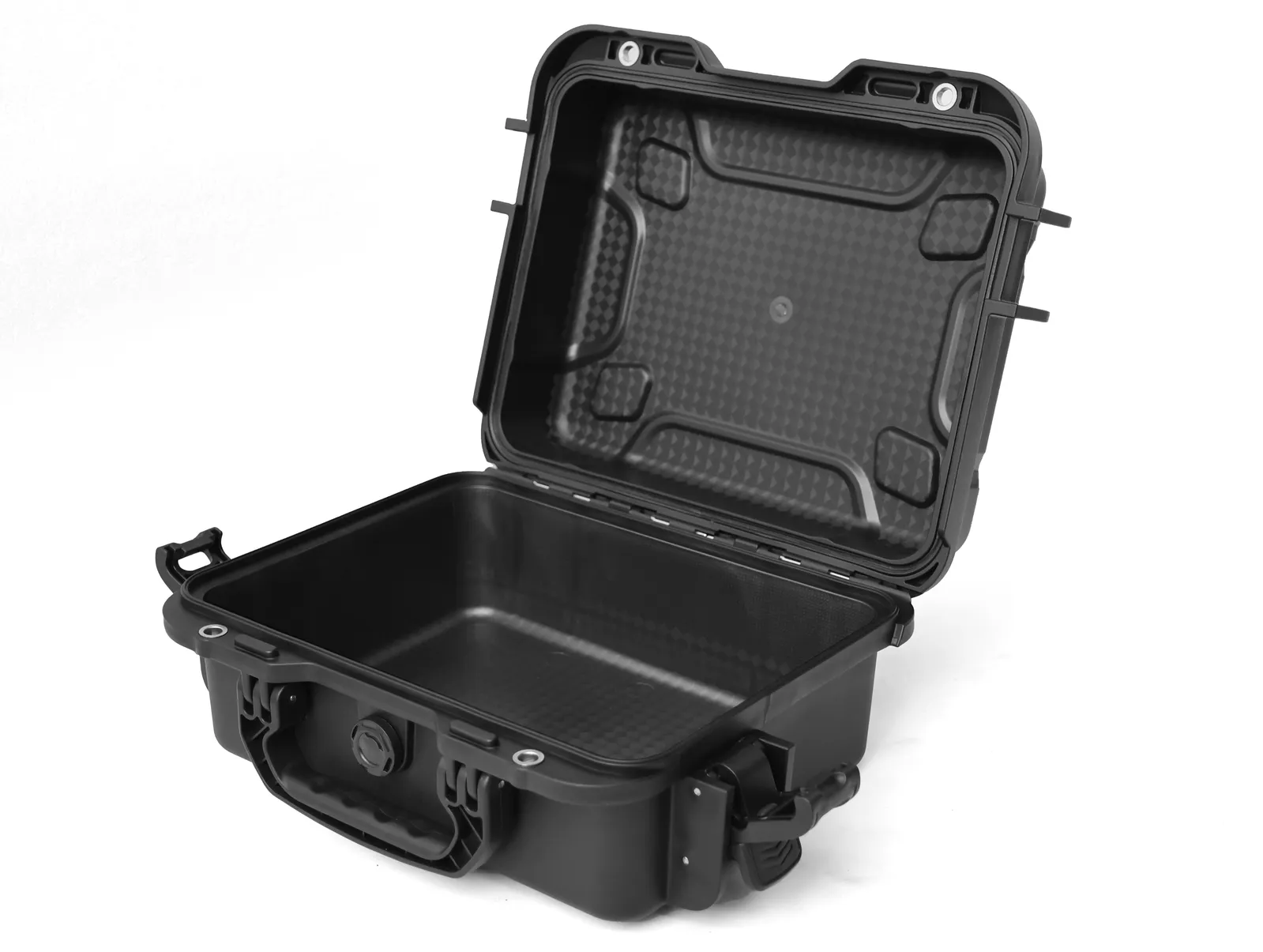

The interior measures 290*220*135 mm and the exterior 355*277*153 mm, with lid and base depths of 50 mm and 85 mm. That gives a usable floor of 290 by 220 mm for long instruments, extension rods, tool sets or equipment with a handle. The deeper base half accepts stacked parts or brackets. If your item sits close to the limit, send a drawing or photo and we will confirm the fit and adjust the foam layout before production.
Is this case waterproof and dustproof?
The polypropylene shell is injection moulded with a sealing structure and the closed case is rated IP67 for water and dust protection, which covers rain, dusty workshops and short immersion. We do not claim military standard certification for this model. In practice we recommend adding a foam insert matched to your equipment and checking the gasket periodically, since the seal is what keeps the rating effective over a long service life.
What material and wall thickness does the shell use?
Both the body and lid are polypropylene with a 3.3 mm wall, and the empty case weighs 1480 g. Single-shot injection moulding gives a rigid wall at low weight, which suits transport and storage where the case is handled often. Clean it with water or a mild detergent and a soft cloth. Avoid strong solvents and abrasive pads, as they can mark the surface and affect how the lid and gasket seat.
What is a long-format case like this used for?
It suits precision instruments, measuring tools, long-hand tools, and photographic or drone accessories that are too long for a square case. The 85 mm base depth allows layered packing, and a foam insert cut to your equipment keeps items from moving in transit. Give us the item dimensions and quantity and we will propose an insert layout inside the 290*220*135 mm cavity.
Can the case be customised, and how are MOQ and lead time handled?
Yes. Kexin New Materials (Guangdong) Co., Ltd. runs a Zhongshan factory and supplies factory-direct OEM and ODM programmes, so colour, silk-screen printing, nameplates, foam inserts and latch options can all be configured. MOQ and lead time are quoted after we review colour, insert process and printing requirements, and production normally starts once the sample is approved. Send your specification list and our sales team will calculate and reply.
