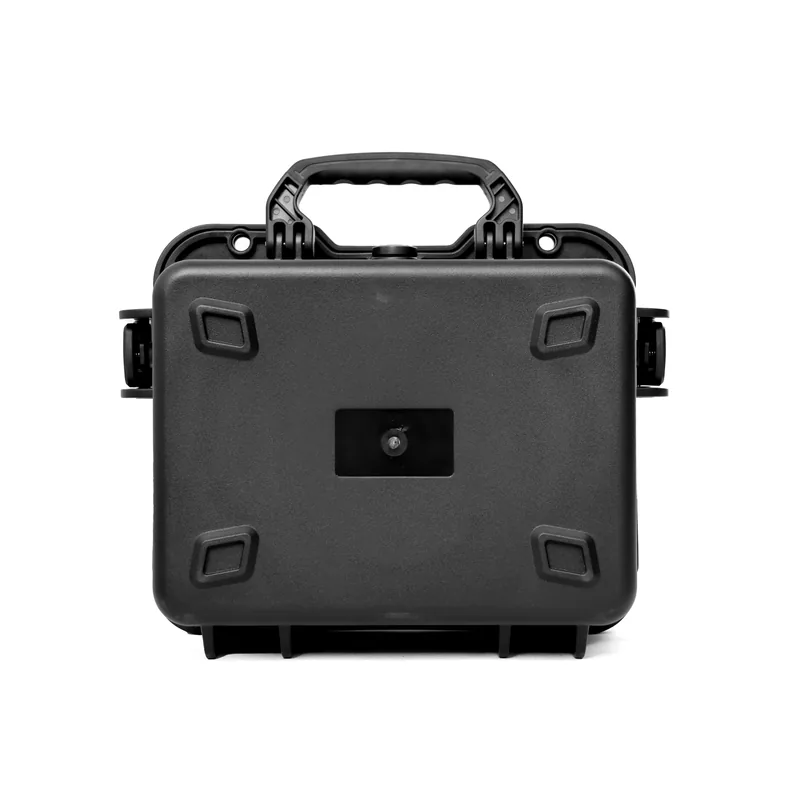

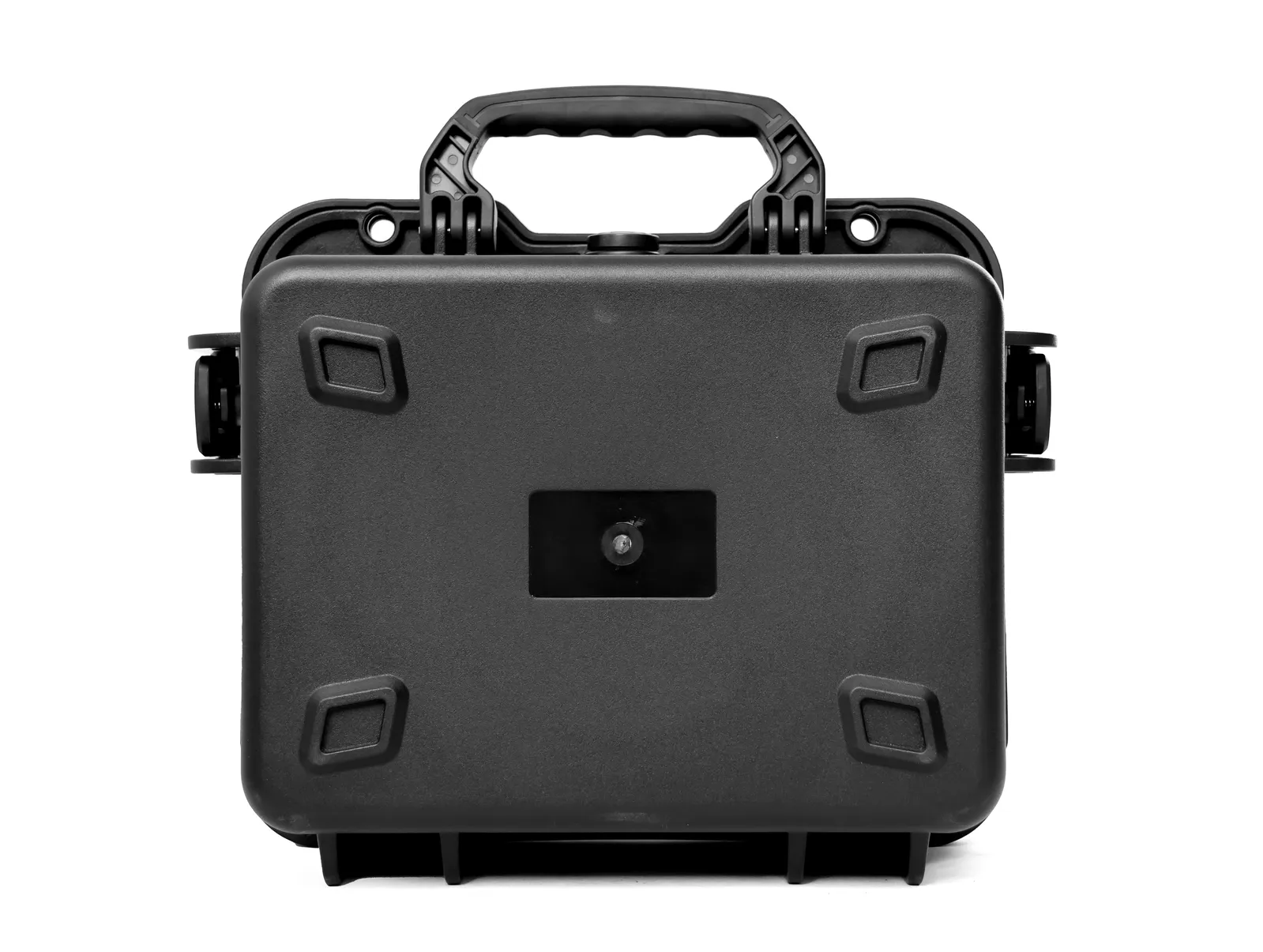

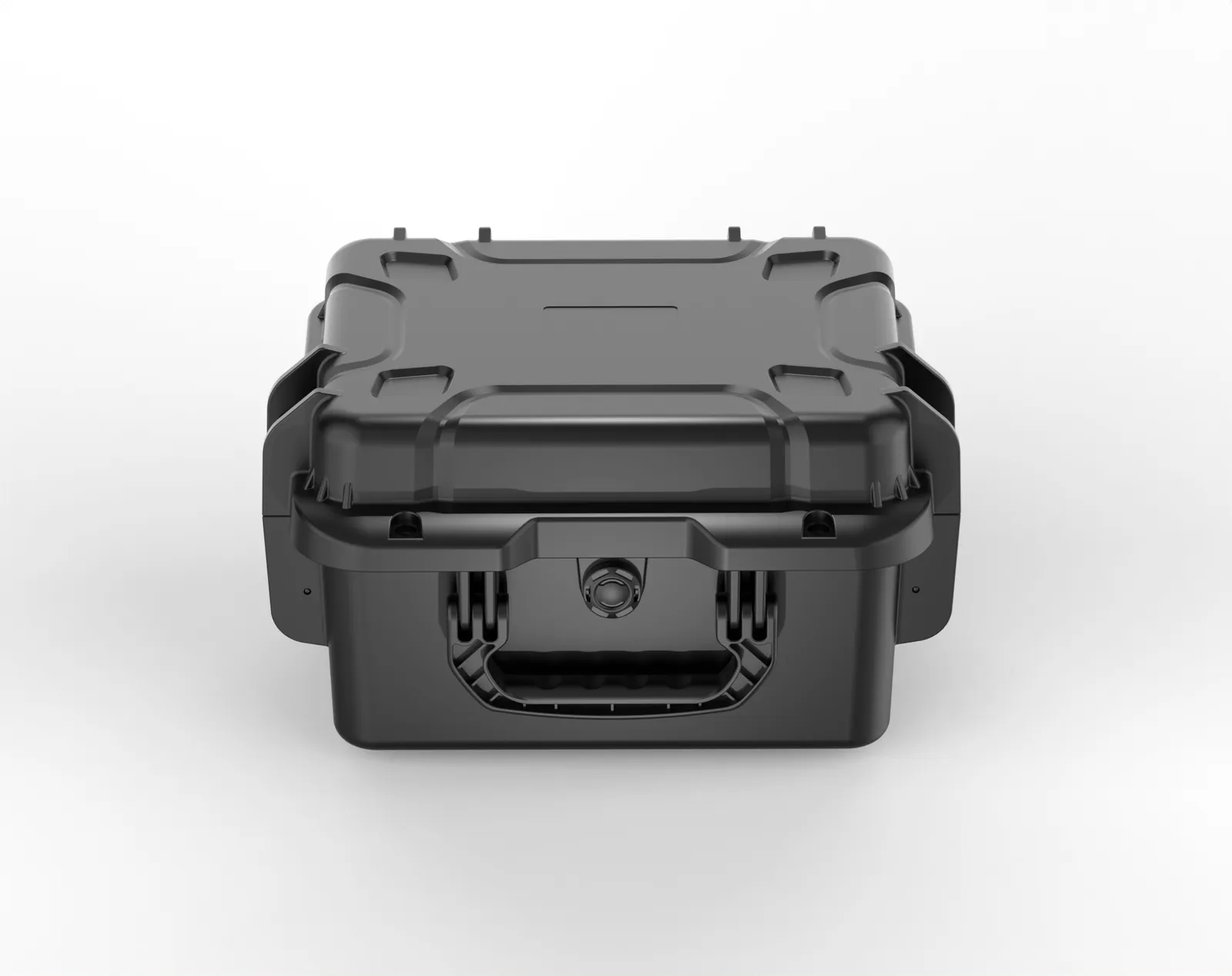

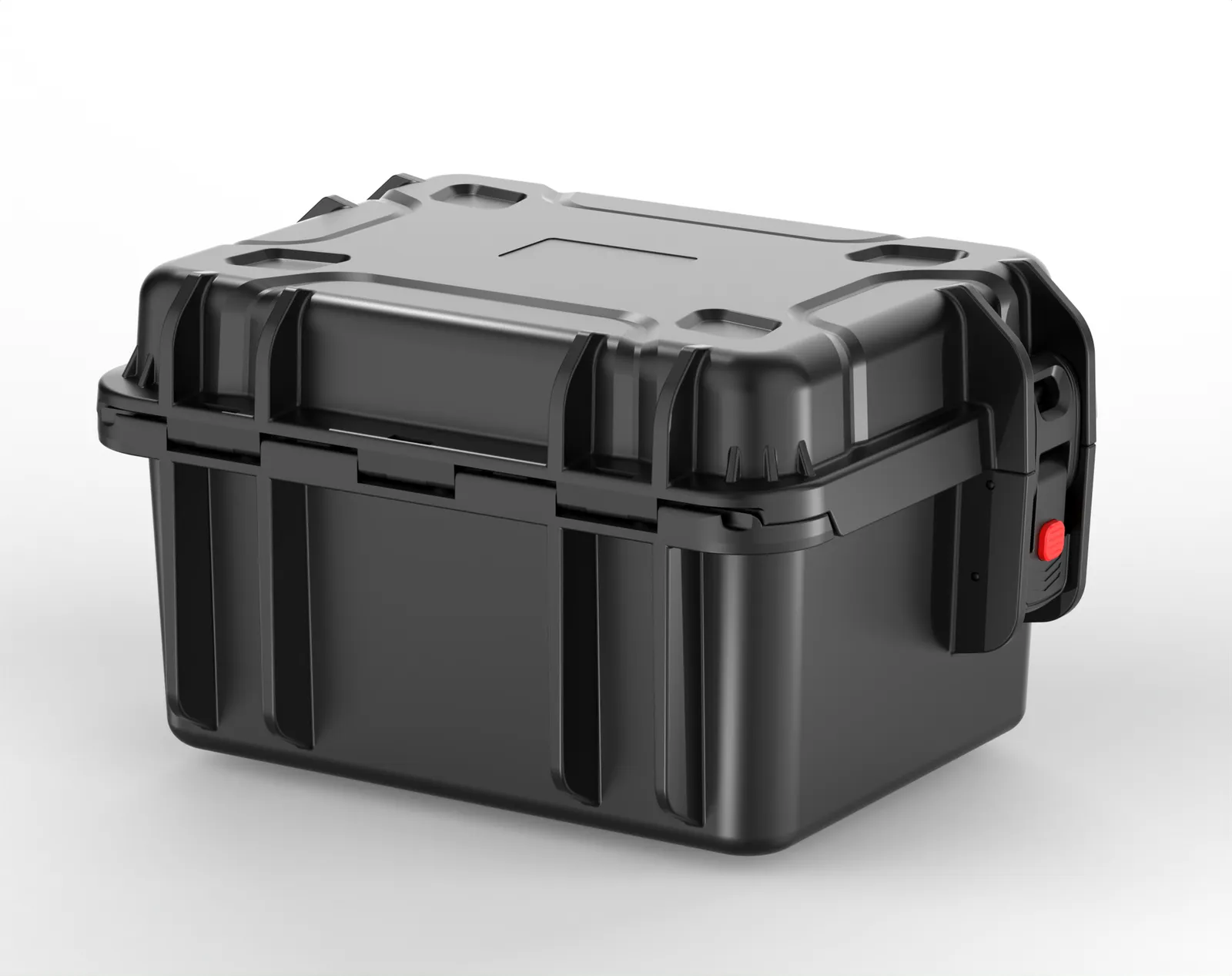

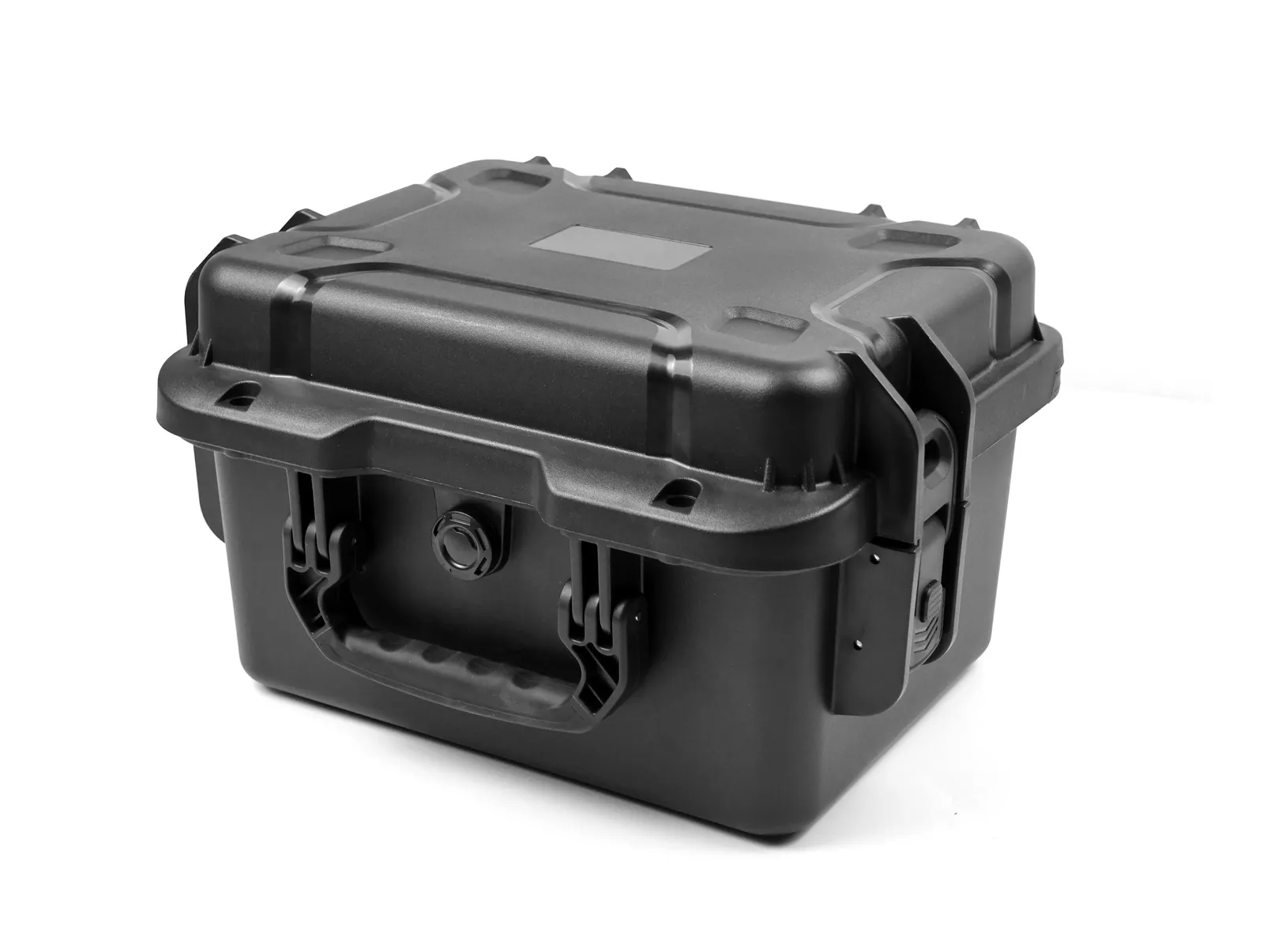

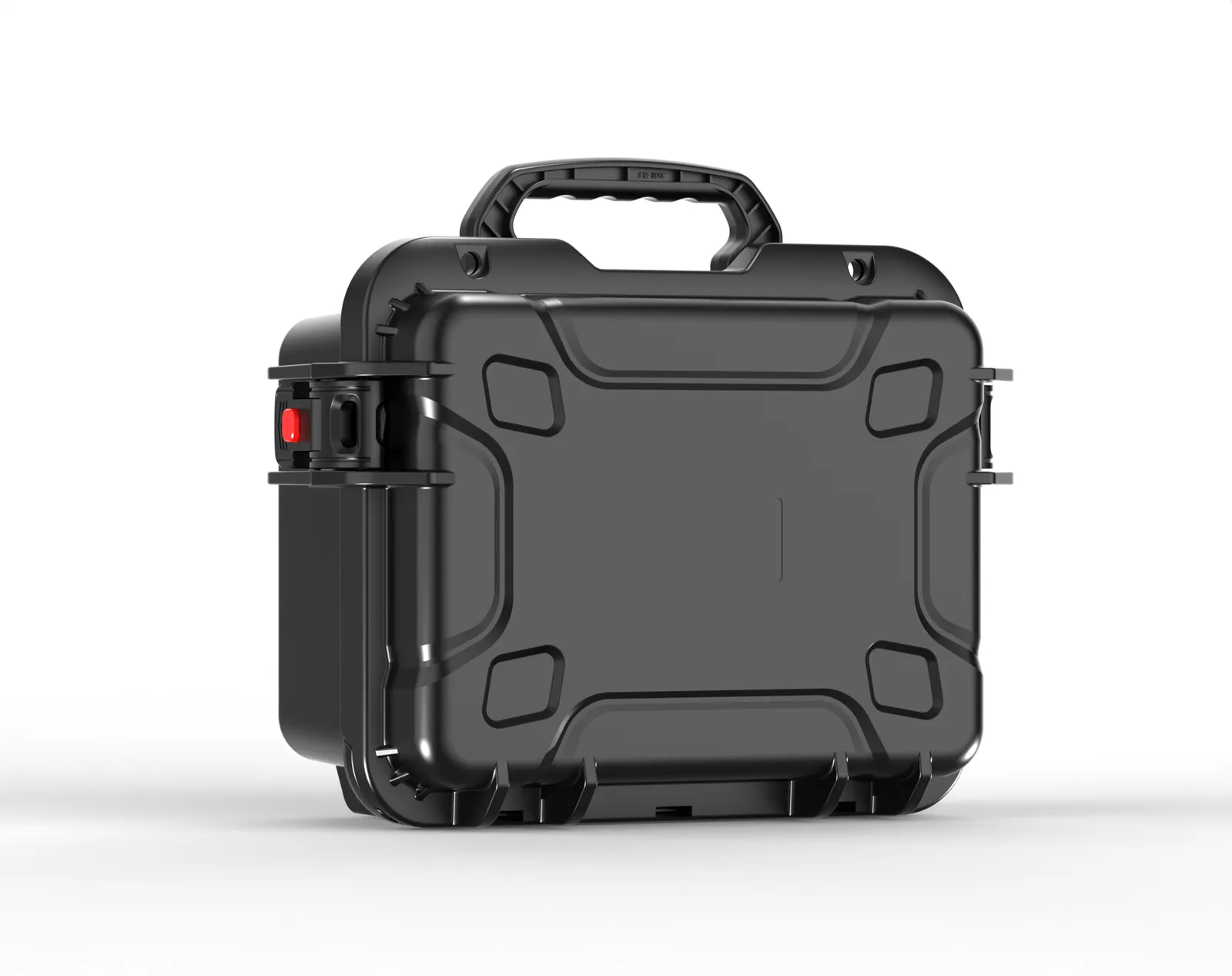

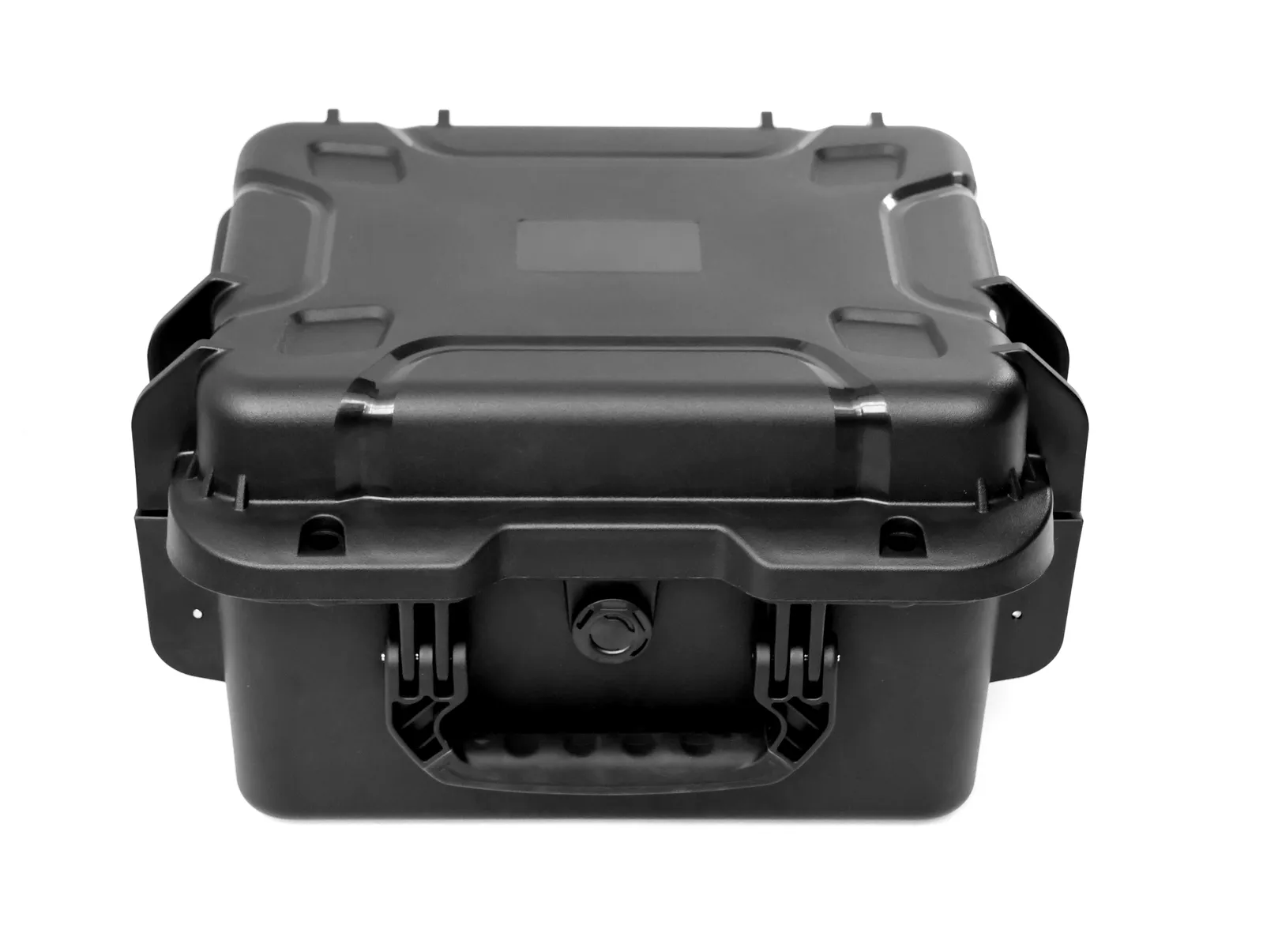

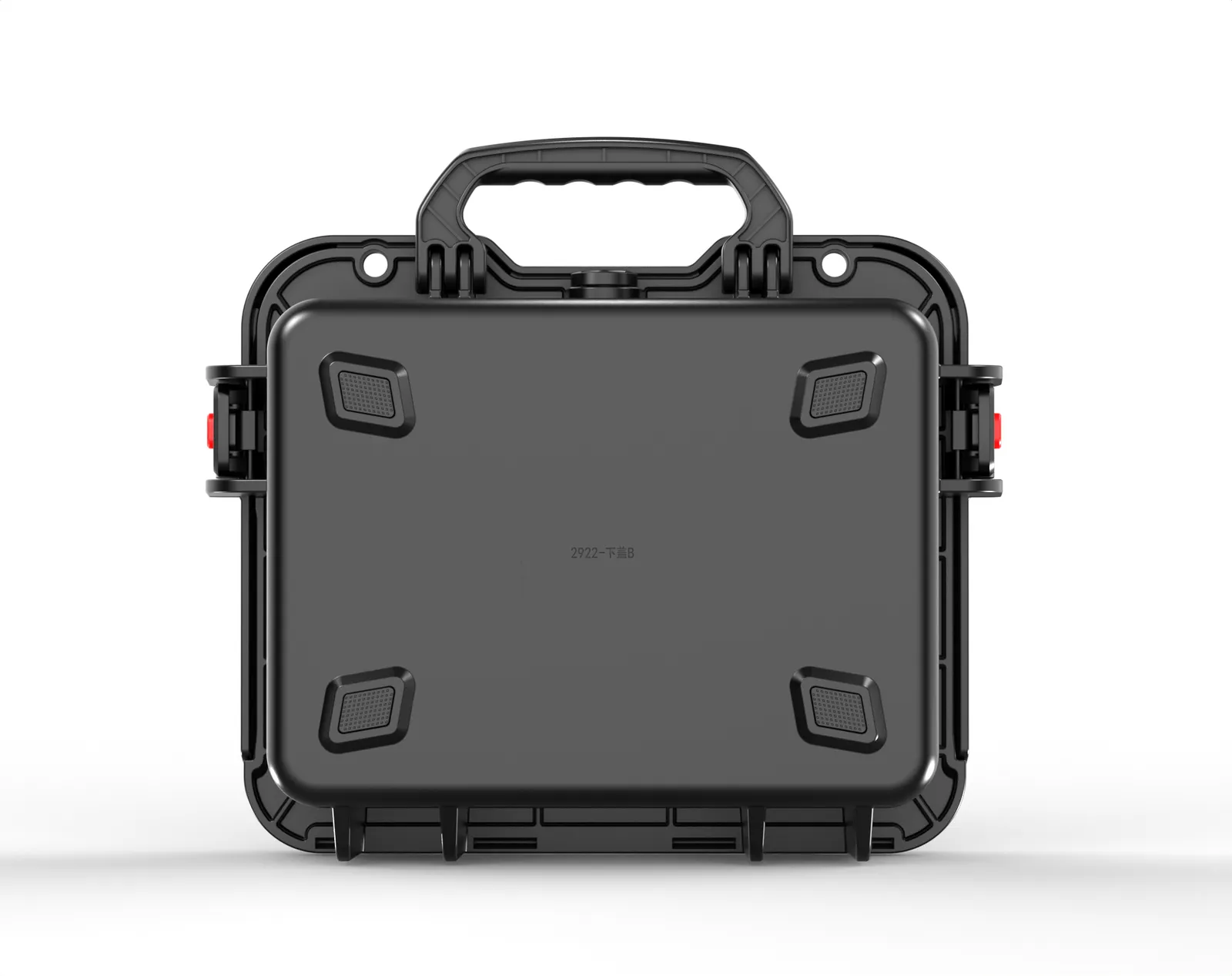

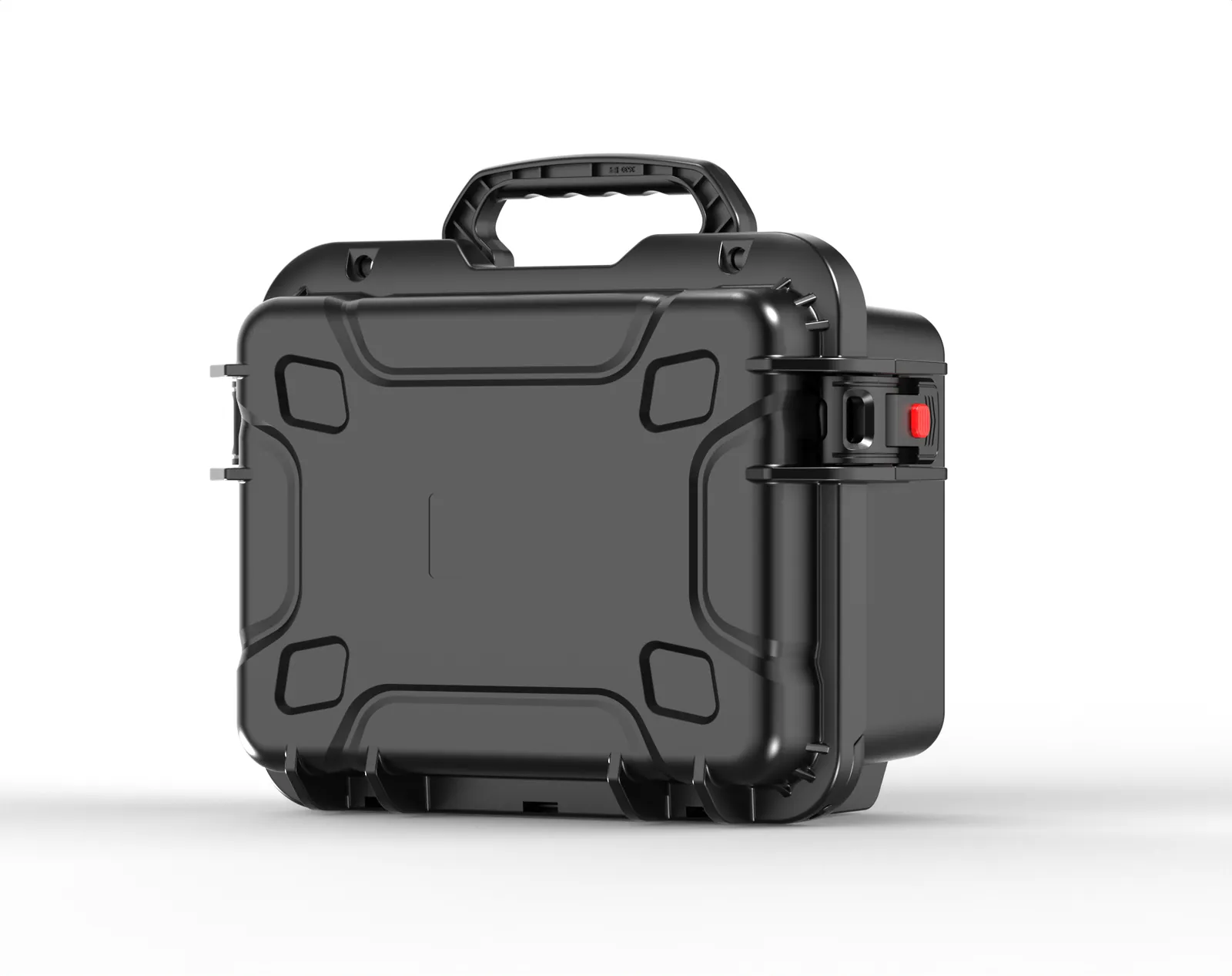

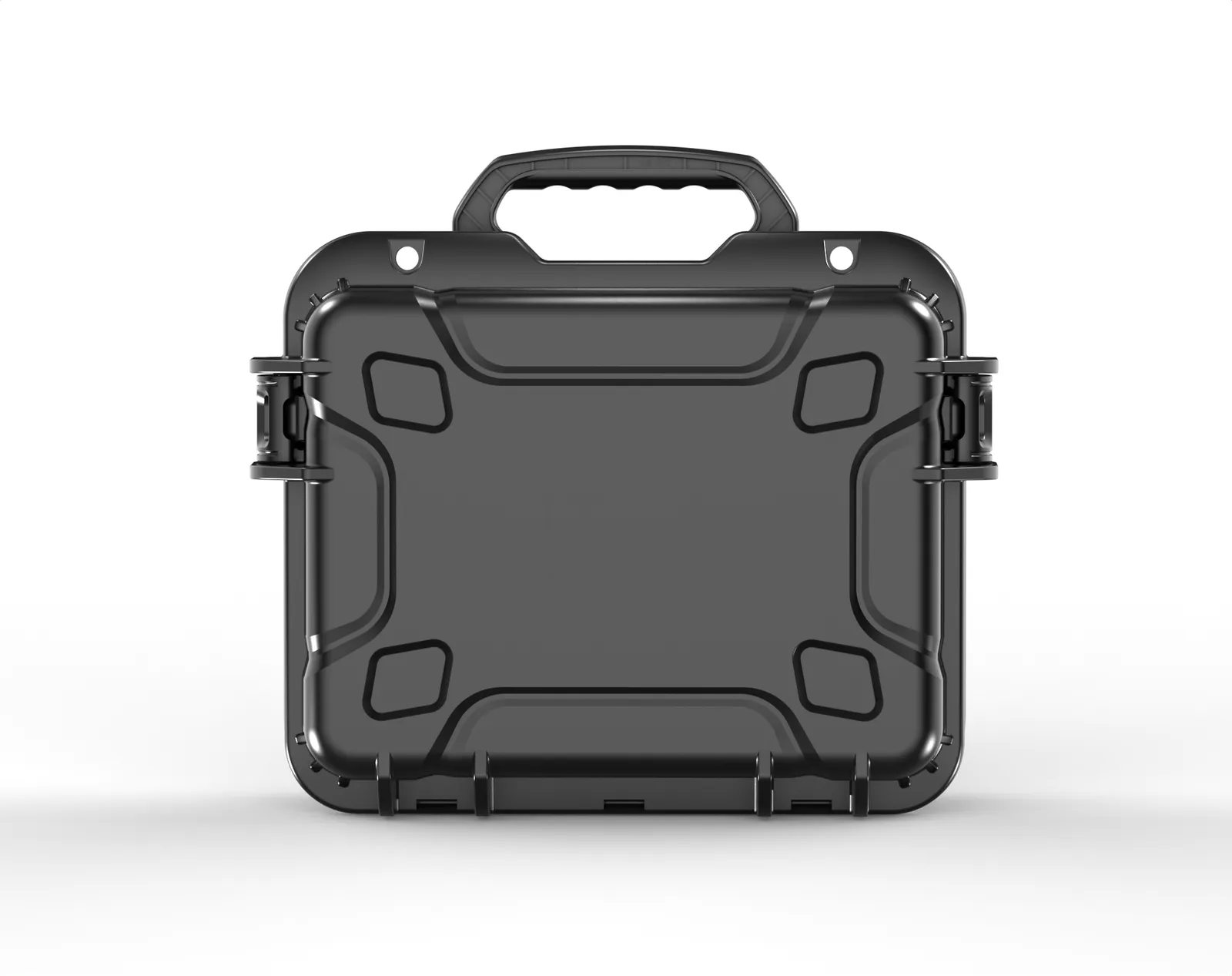

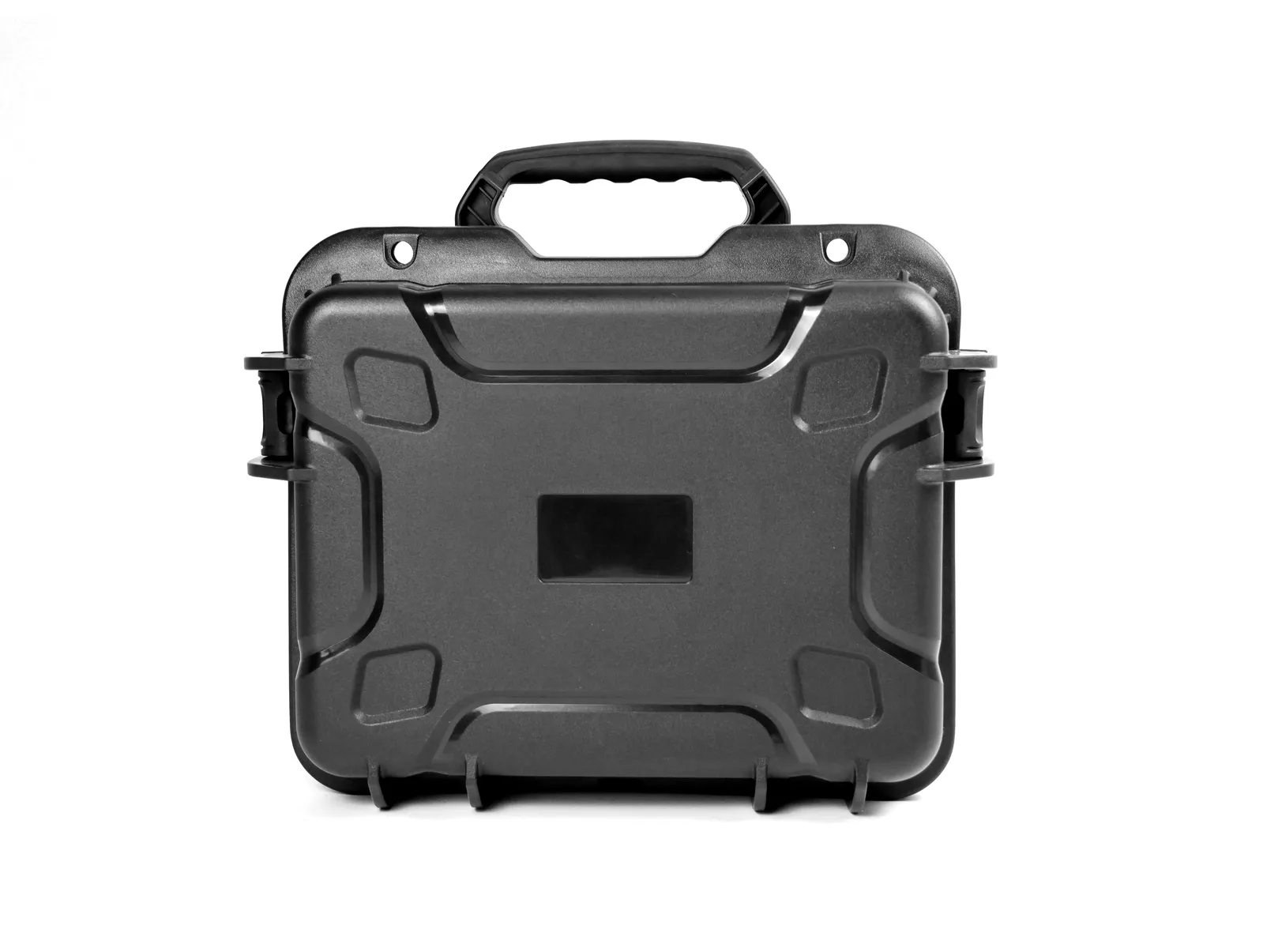

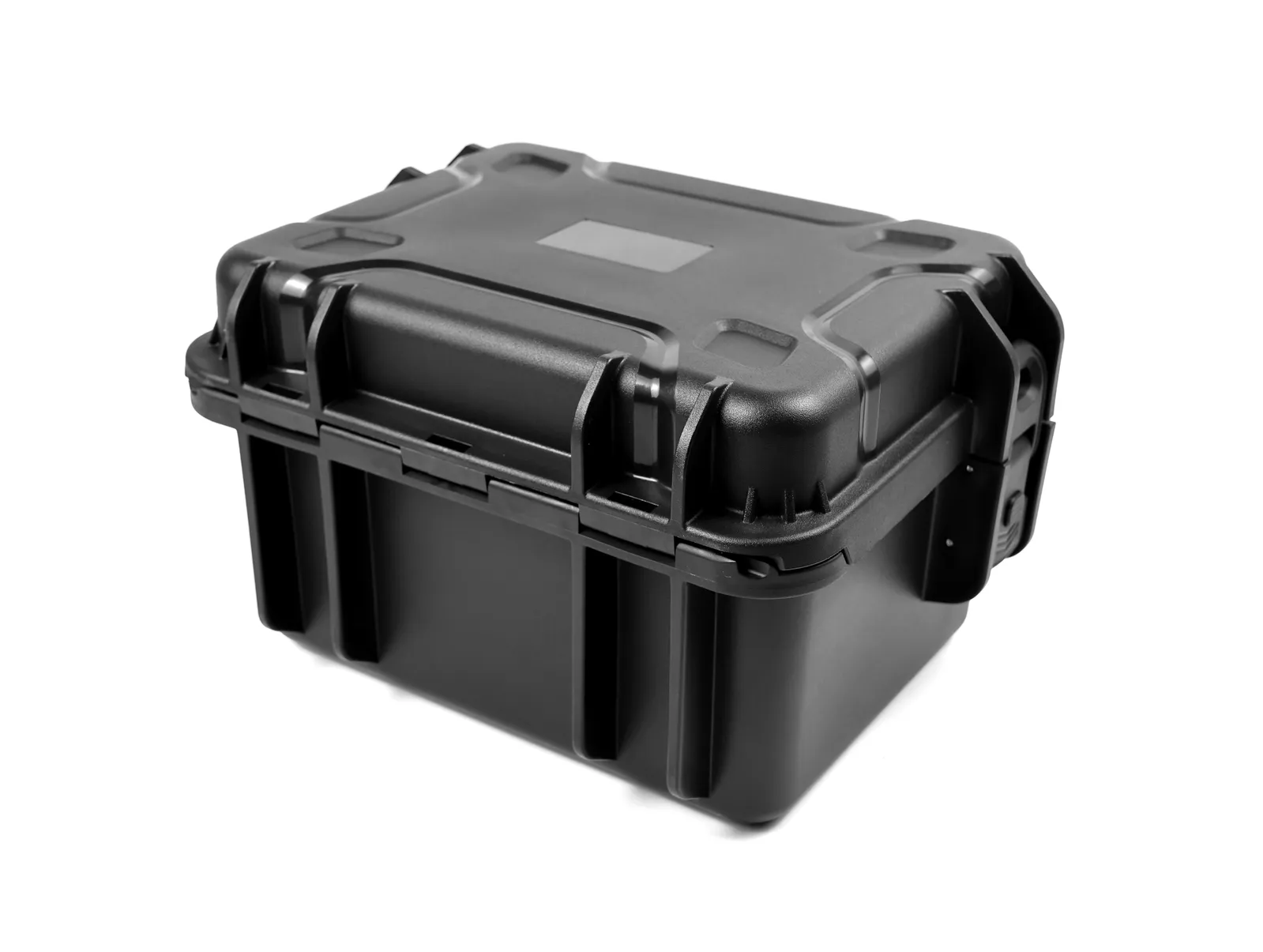

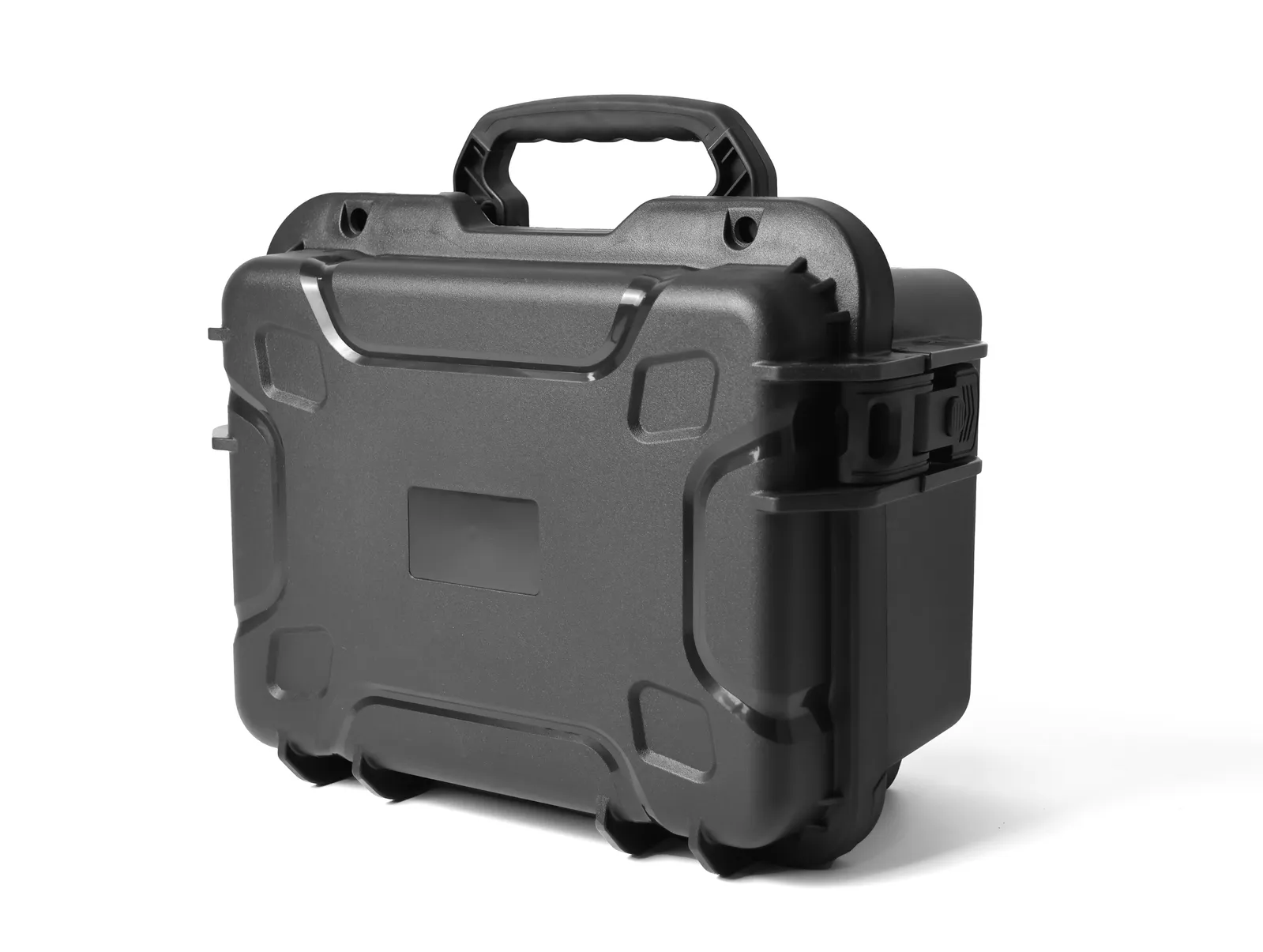

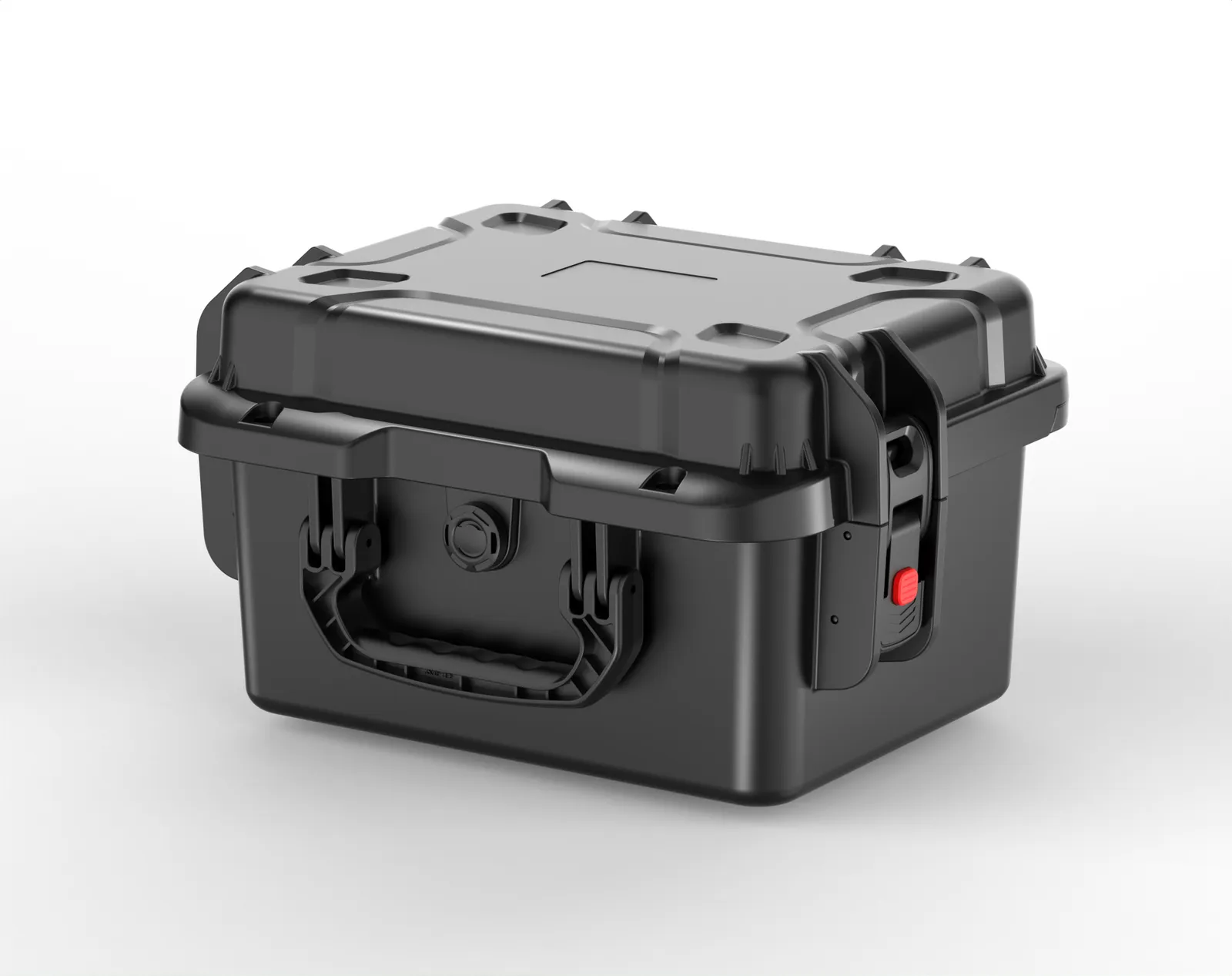

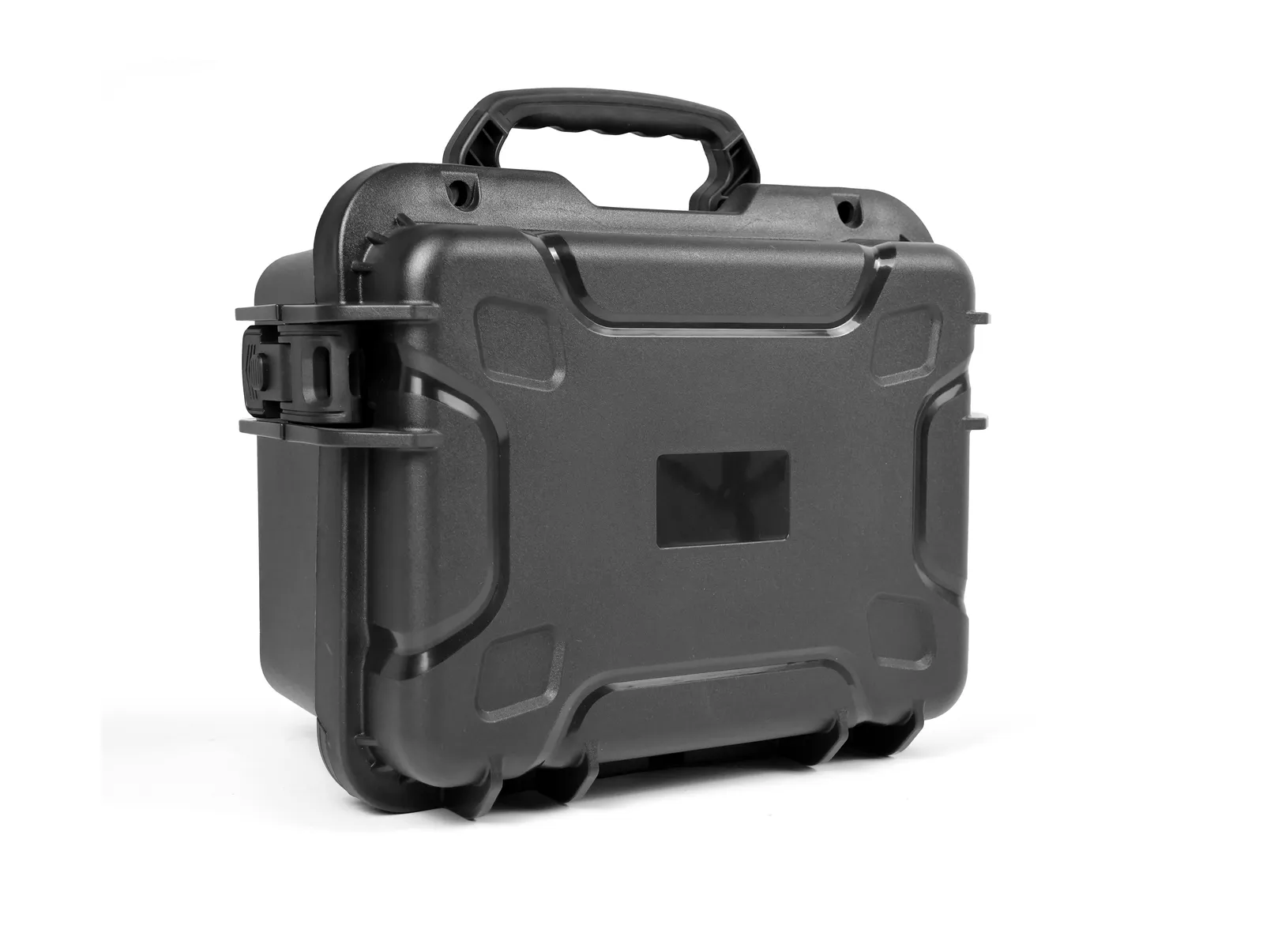

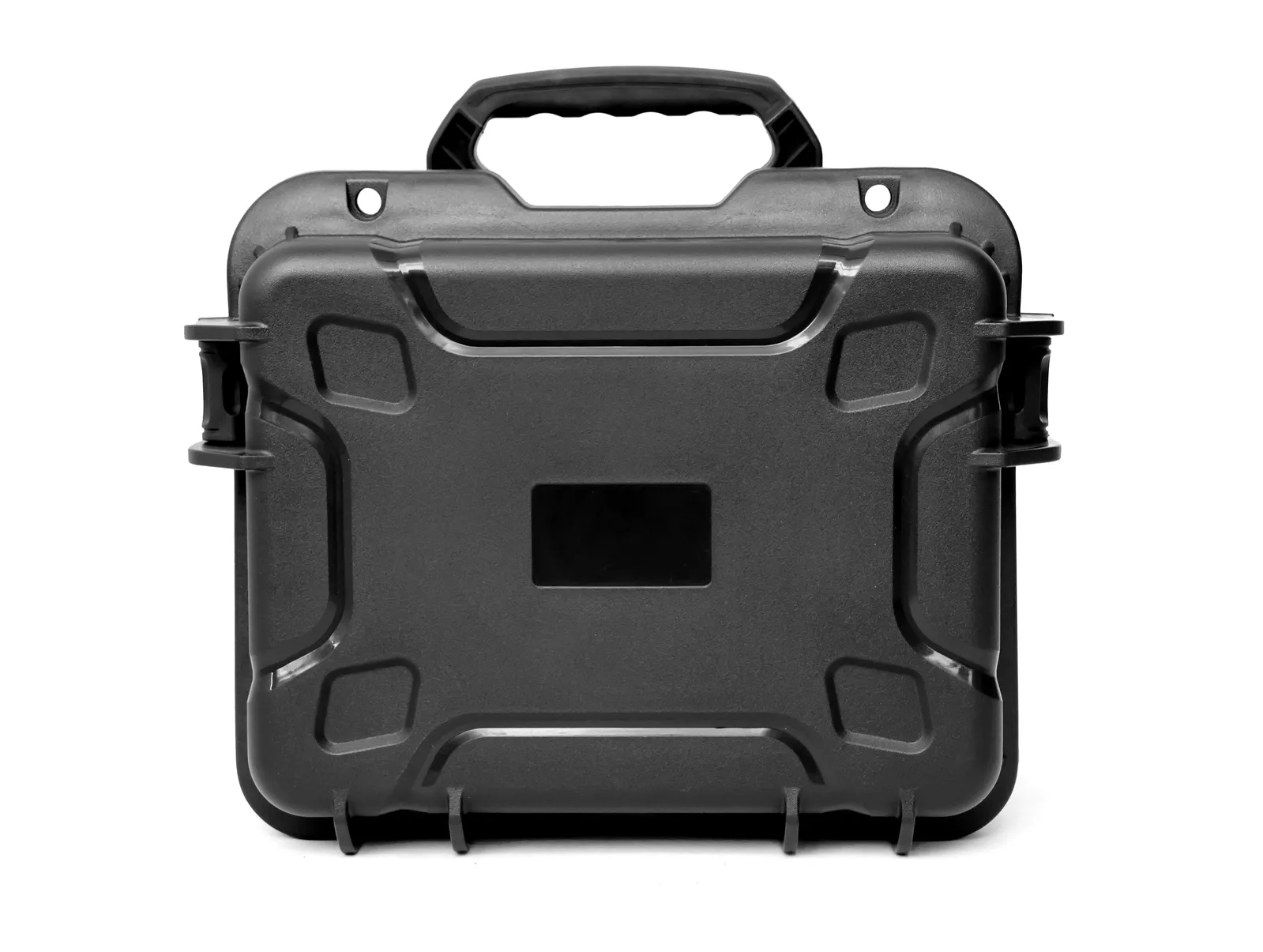

WL8-3620 PP Gun Case

Both share the same 355*277 mm footprint, so they can be swapped in the same rack or packing position. The difference is height. The WL8-3615 is 153 mm outside with a 135 mm interior height and an 85 mm base depth; the WL8-3620 is 203 mm outside with a 185 mm interior height and a 135 mm base depth. Choose the taller model for upright items or multi-layer foam, and the shorter one when you mainly pack flat, long items and want to save weight.

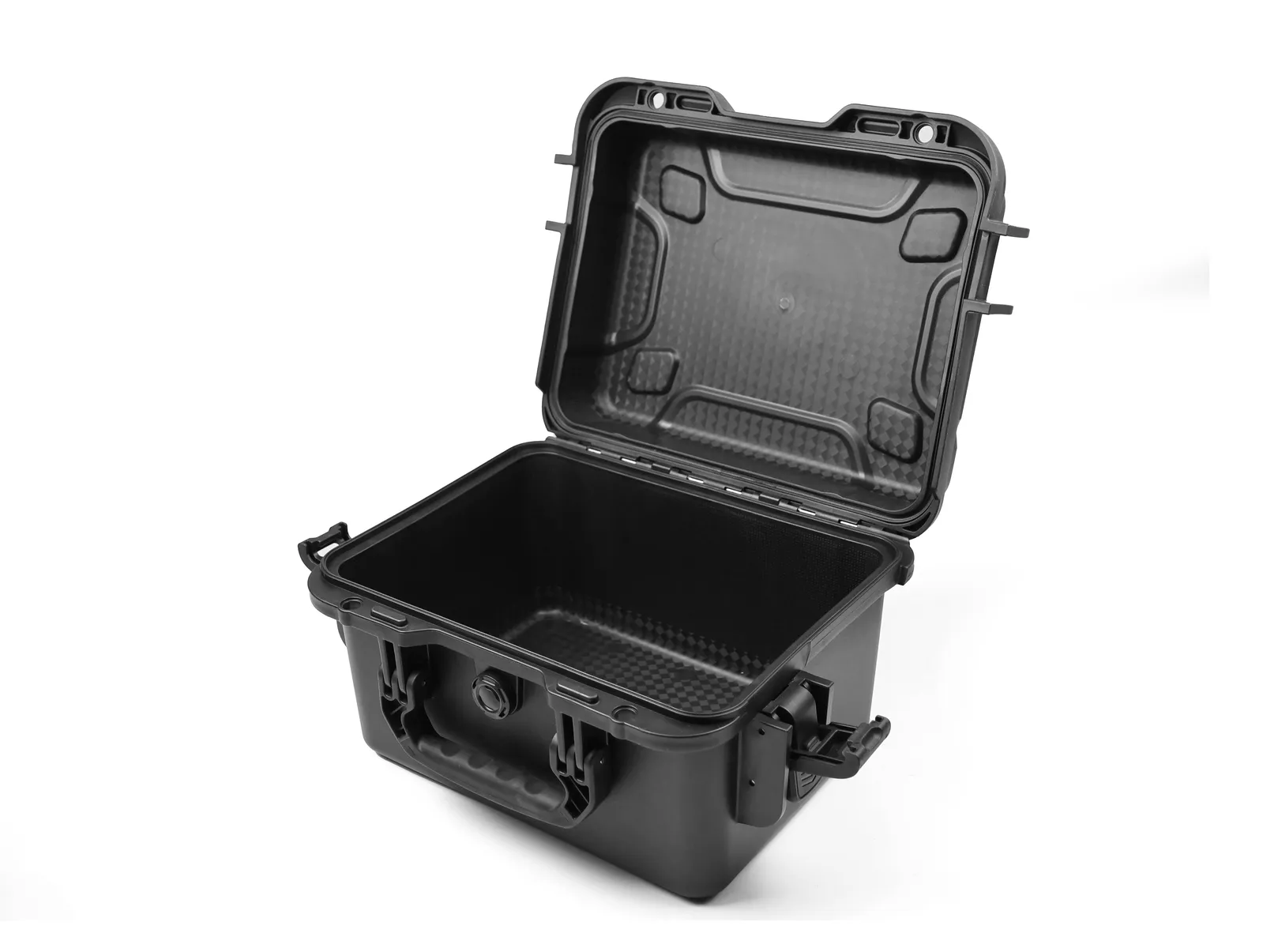

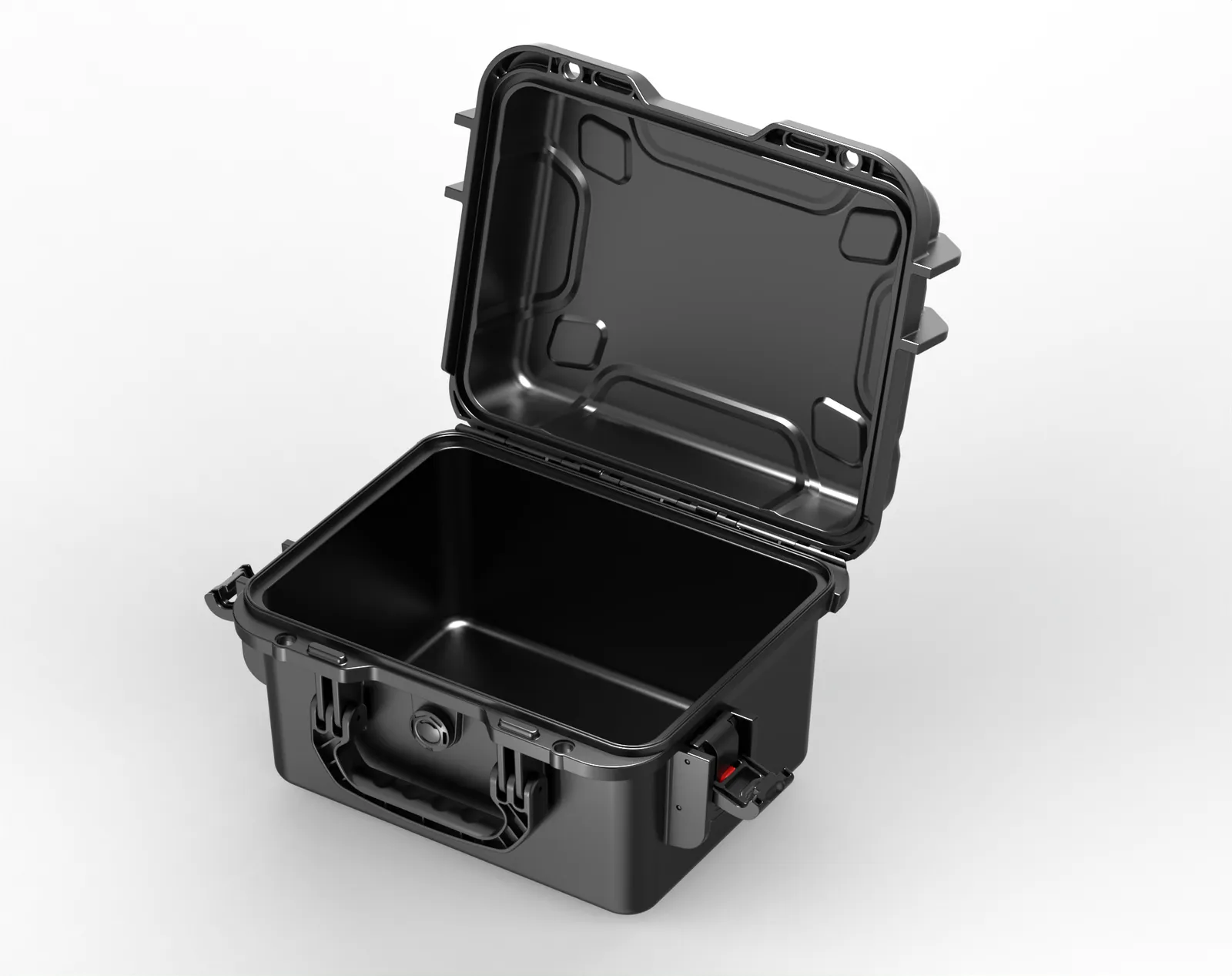

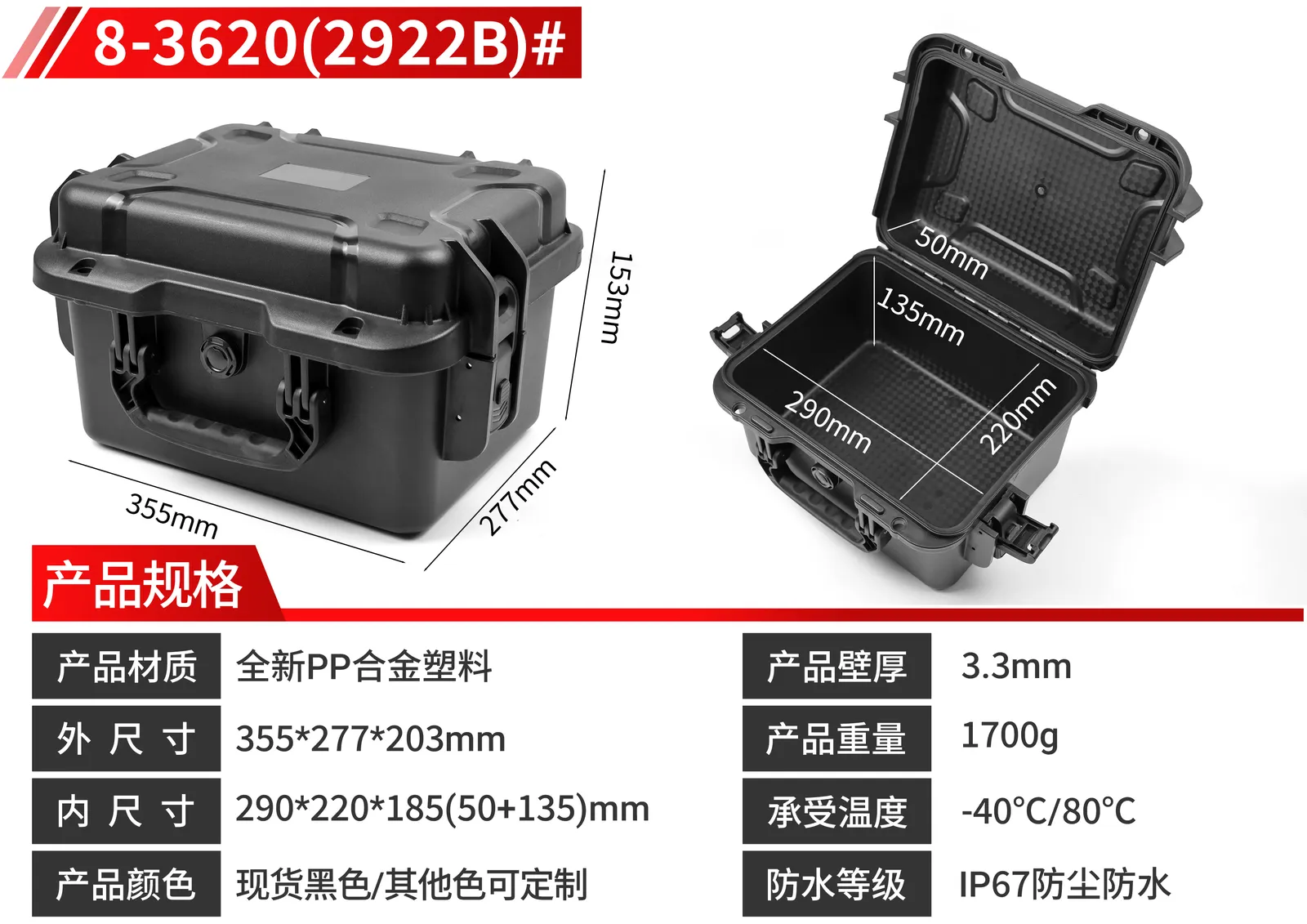

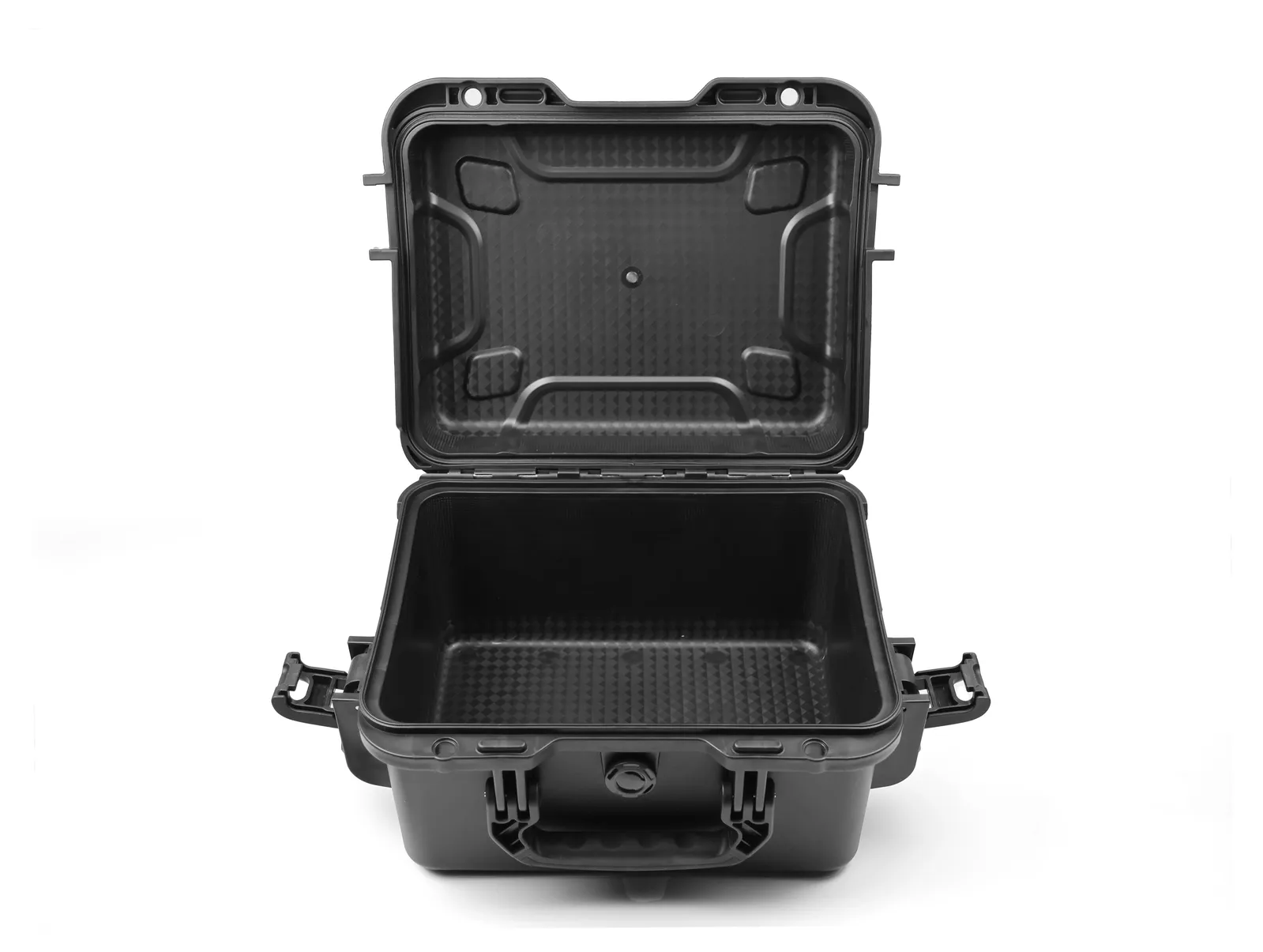

The cavity measures 290*220*185 mm, with lid and base depths of 50 mm and 135 mm, a 3.3 mm wall and a net weight of 1670 g. The 135 mm base half is the main advantage of this model: it takes taller equipment or several stacked layers. If your item is close to the 185 mm interior height, allow some foam compression and send us the item dimensions so we can check the fit before you order.

The closed case is rated IP67 for water and dust protection, which covers rain, dusty environments and short immersion, keeping equipment free of moisture and particles. The body is injection moulded in polypropylene with a sealing structure, so performance depends on the lid seating correctly on the gasket. We do not claim military standard certification for this model. Check the gasket periodically and never immerse the case if the seal is damaged or trapped debris is present.

It suits long items packed upright, tool sets with handles, complete measuring kits, and photographic or electronic equipment that needs several foam layers. The extra base depth lets one case hold a main unit plus accessories instead of splitting the load. For complex kits, send the length, width and height of each item with quantities and we will lay out a layered insert inside the 290*220*185 mm cavity.

Yes. Kexin New Materials (Guangdong) Co., Ltd. supplies factory-direct from its Zhongshan plant and can customise shell colour, silk-screen printing or nameplates, die-cut foam inserts and latch configuration, along with brand marking on the packaging. MOQ and lead time are quoted after we review colour, insert process and printing requirements, and batch production normally follows sample approval. Send your specification and target quantity and our sales team will issue a formal quotation and schedule.
