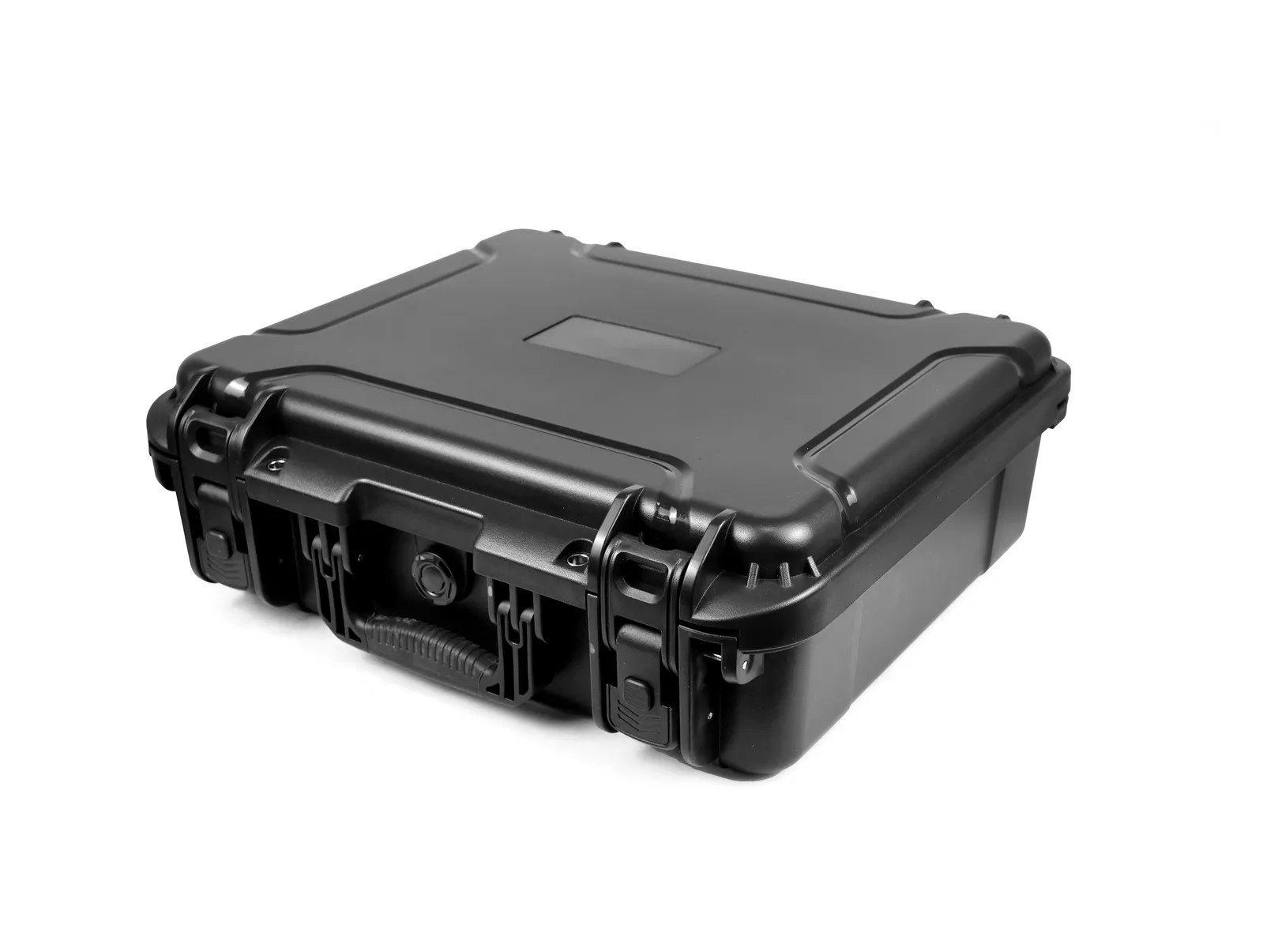

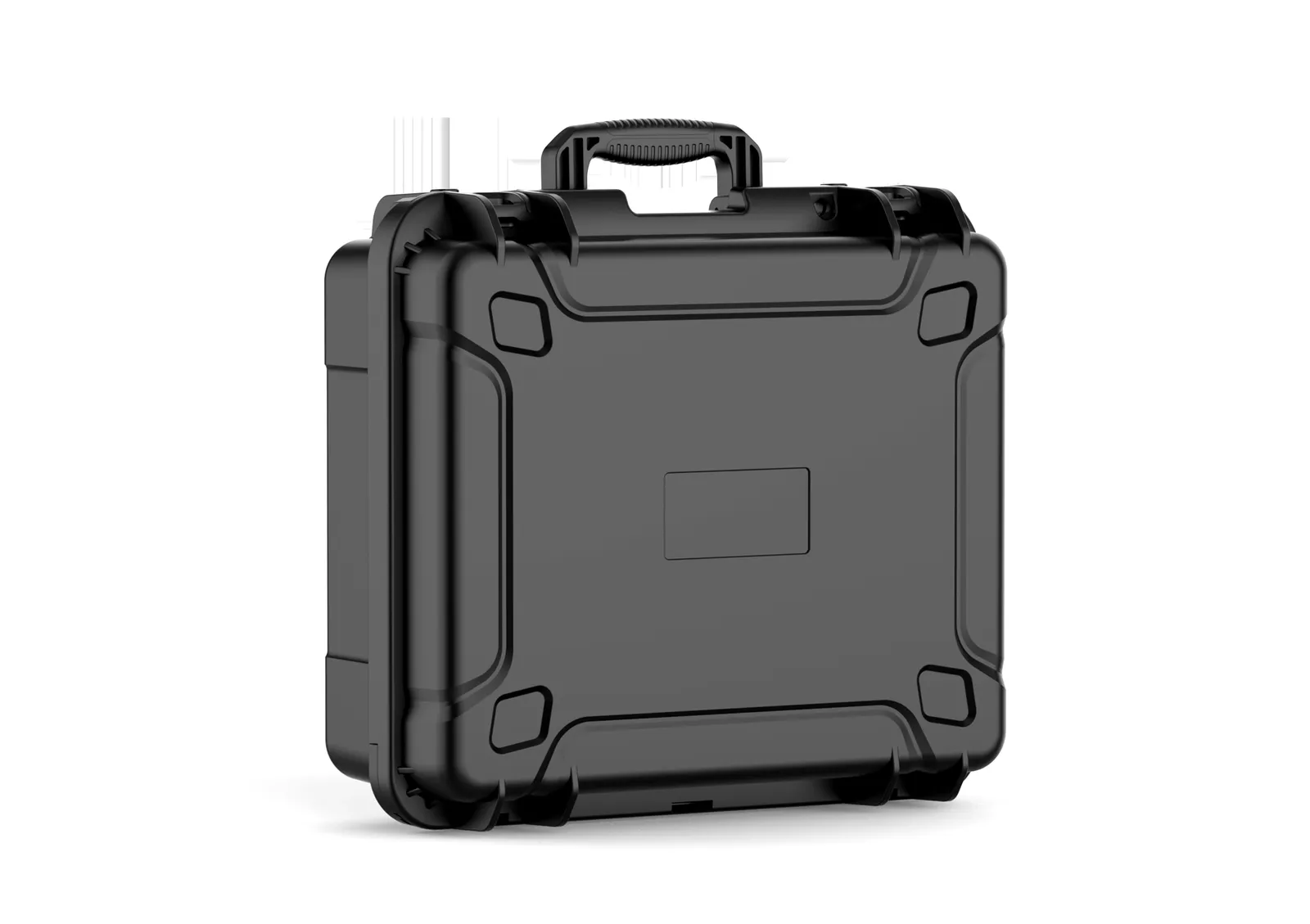

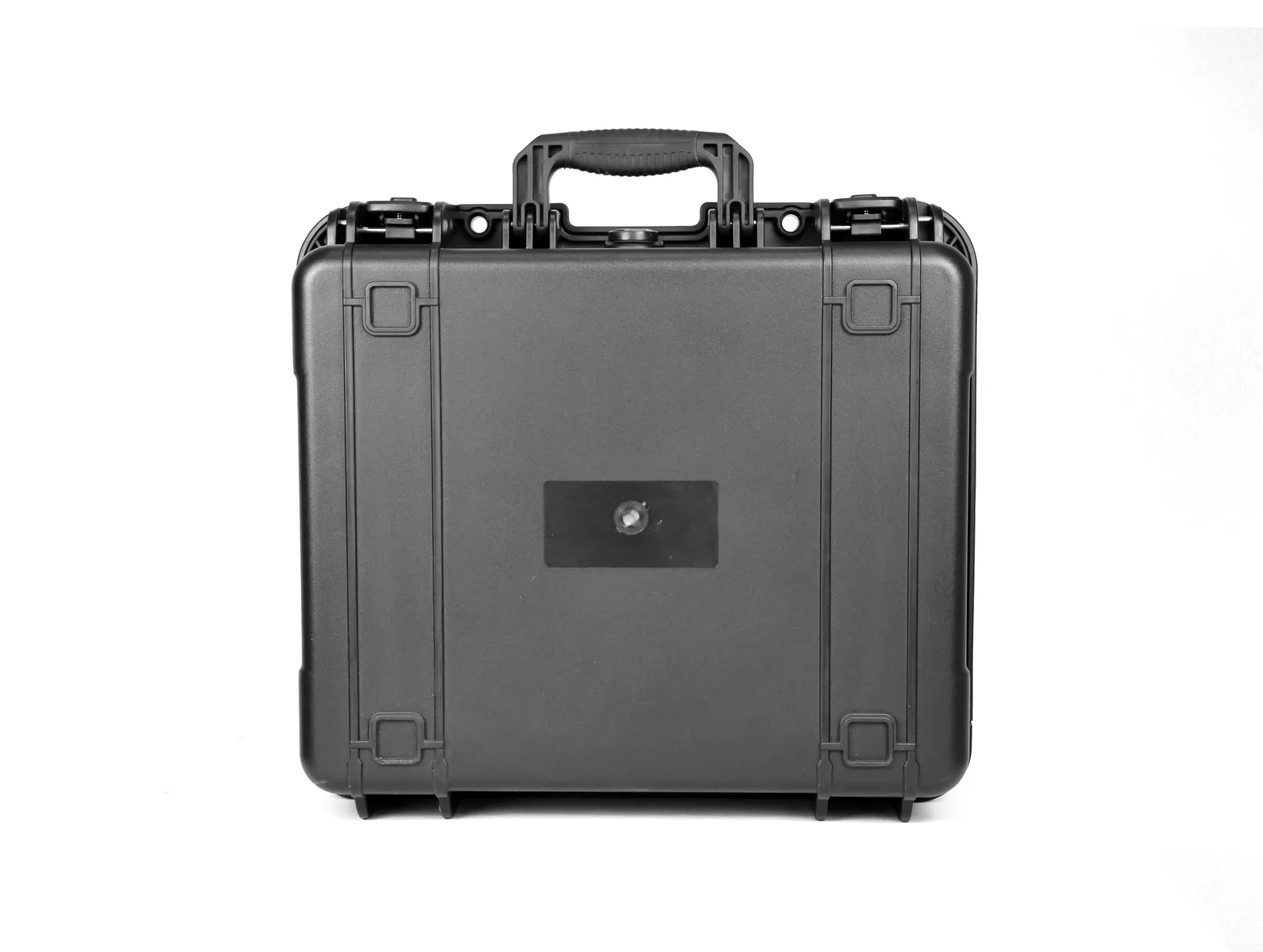

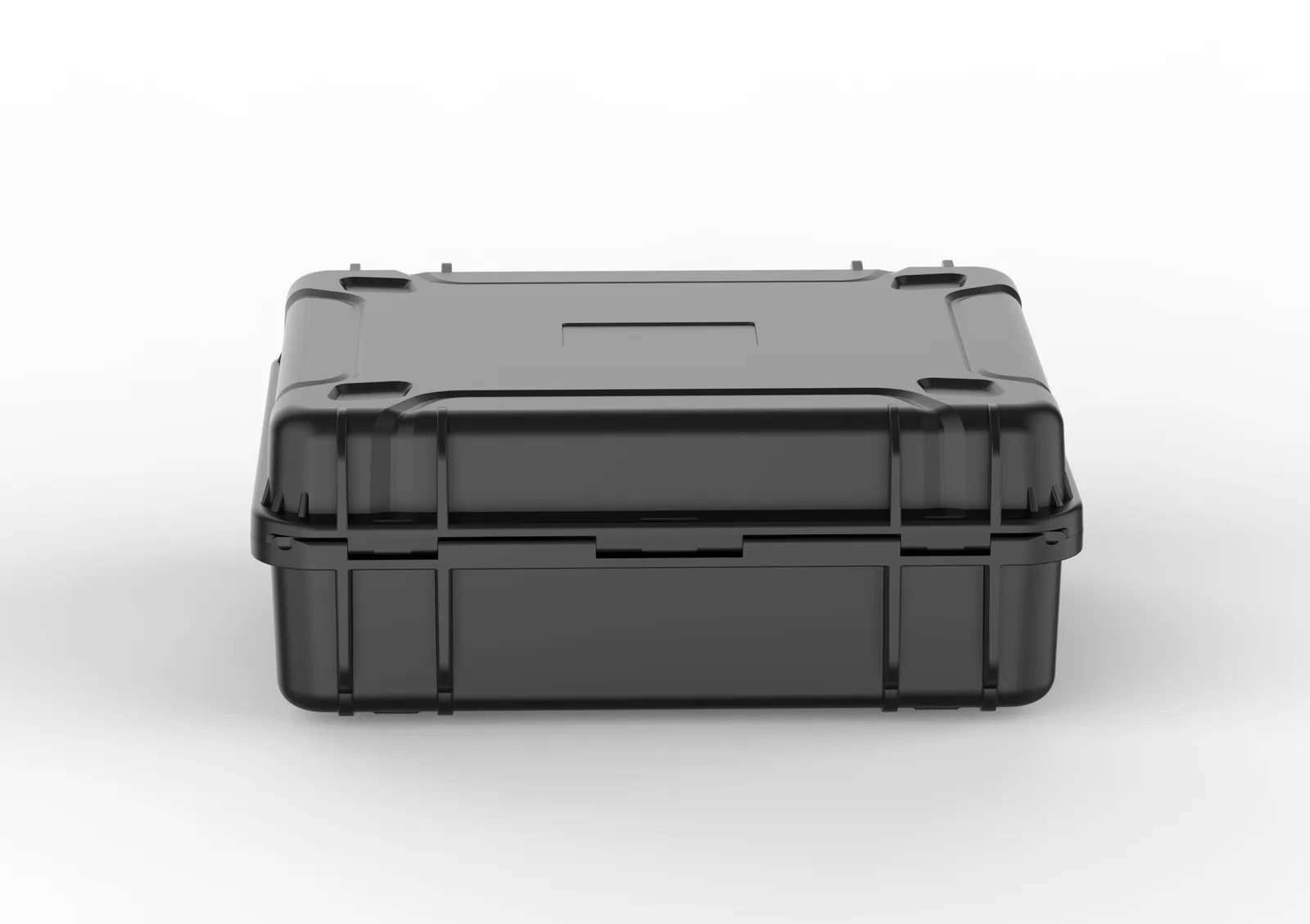

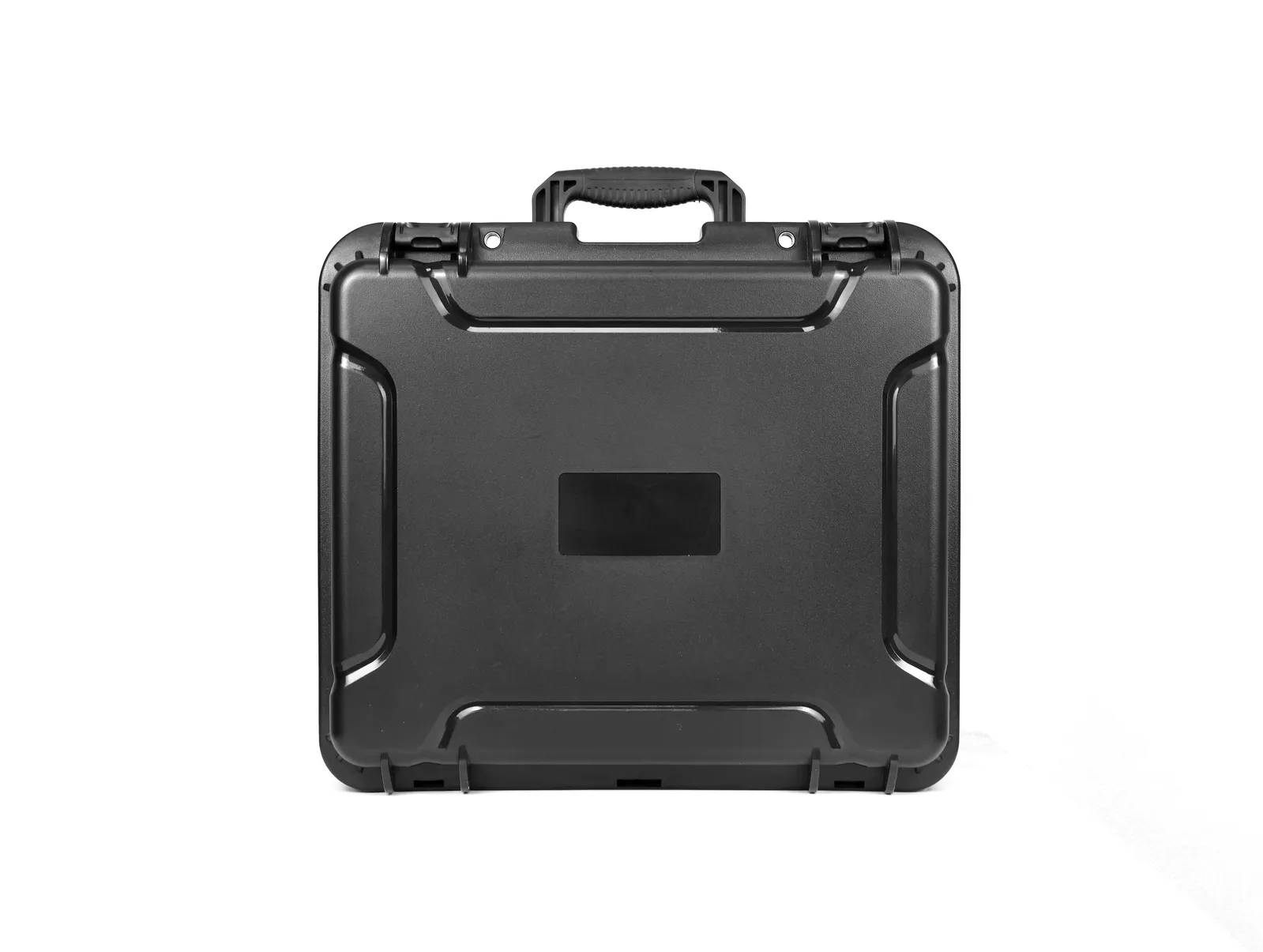

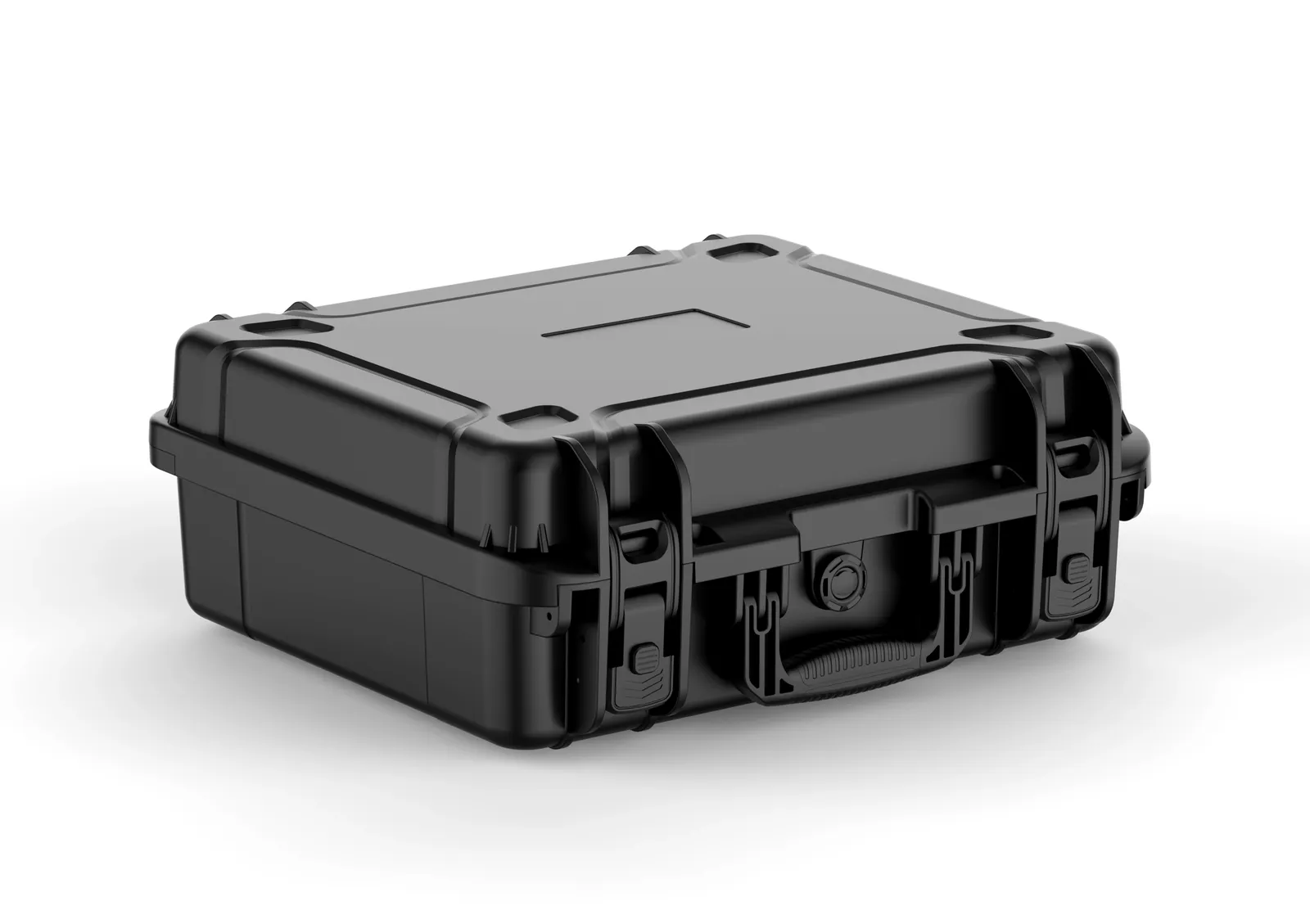

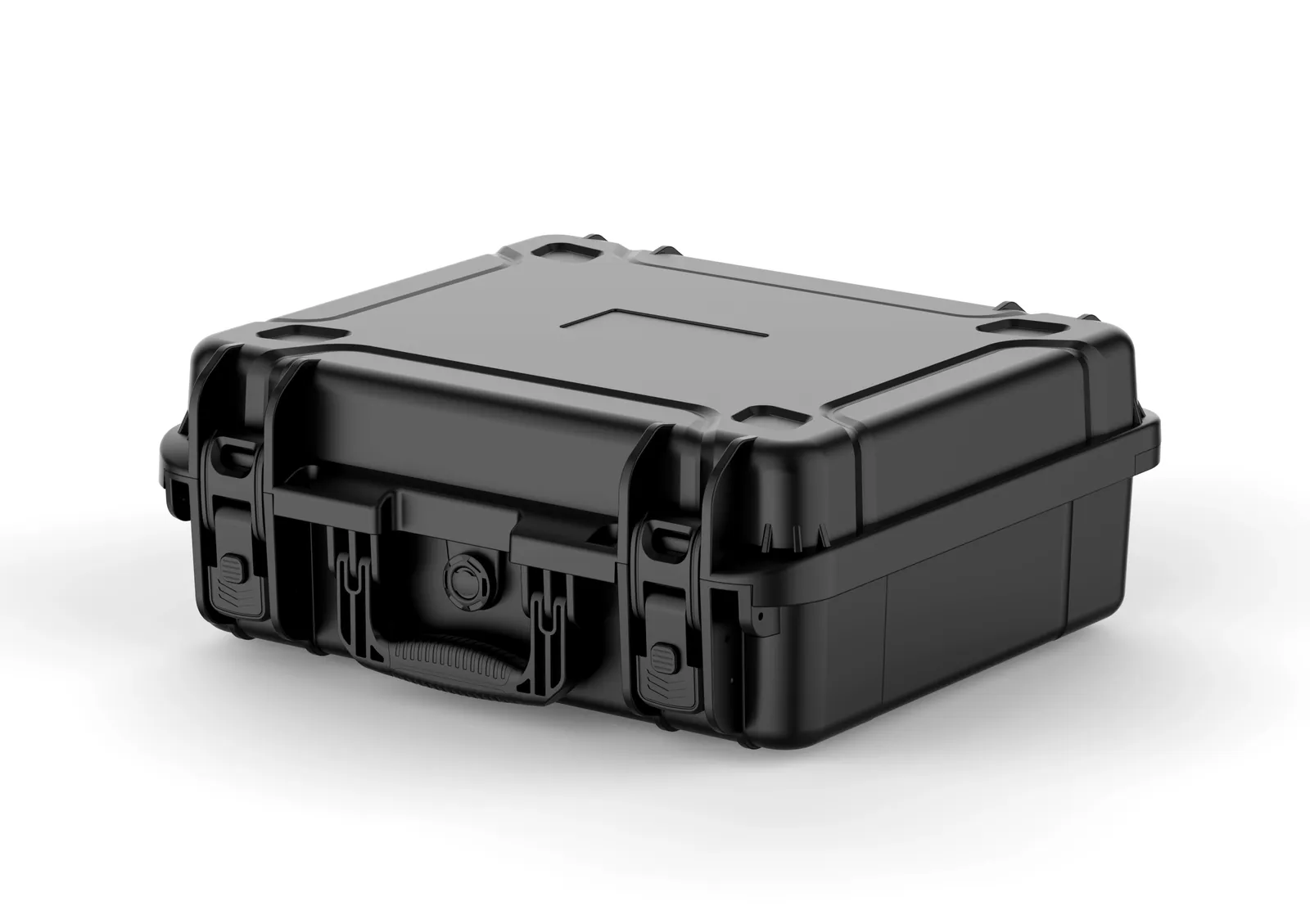

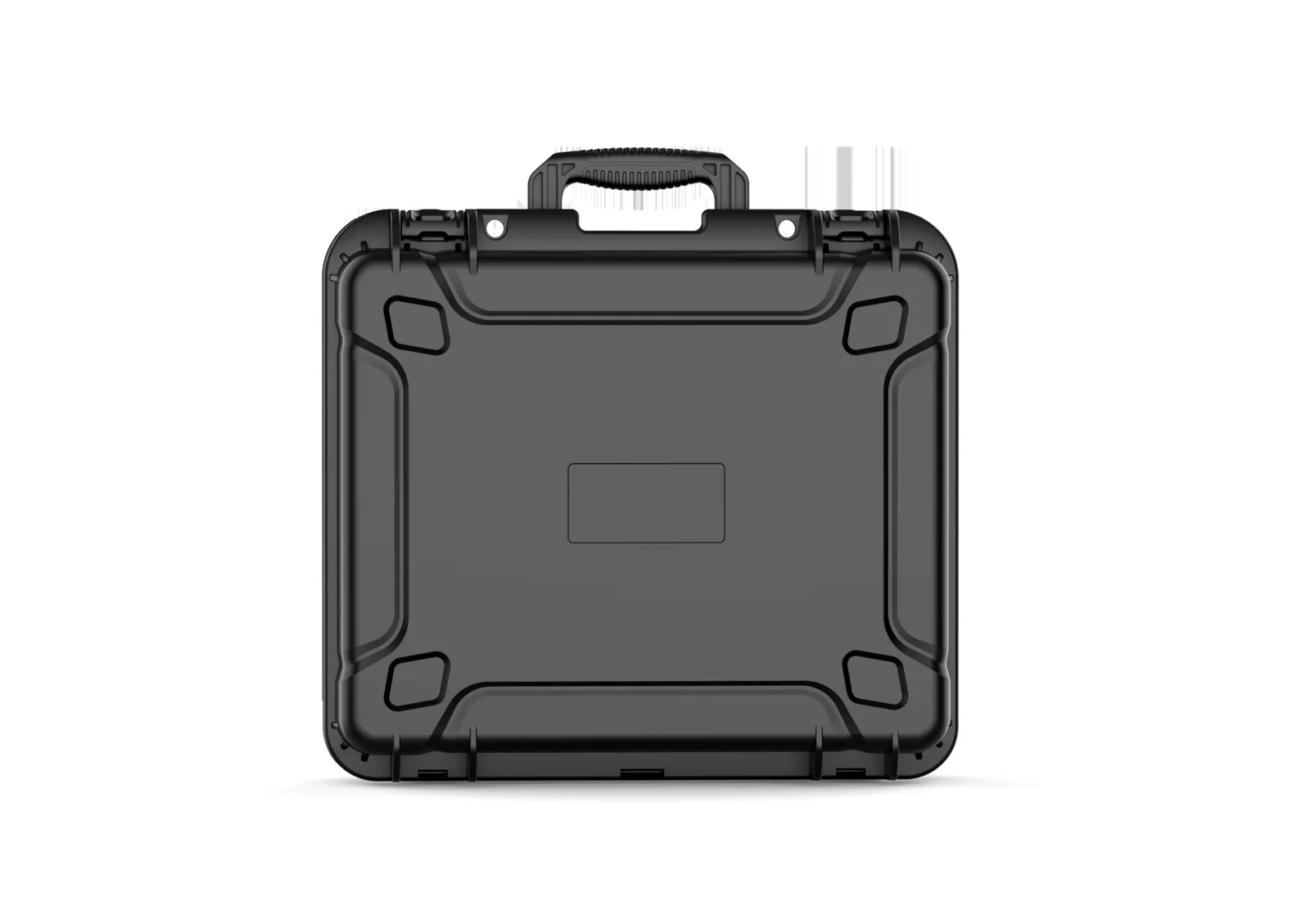

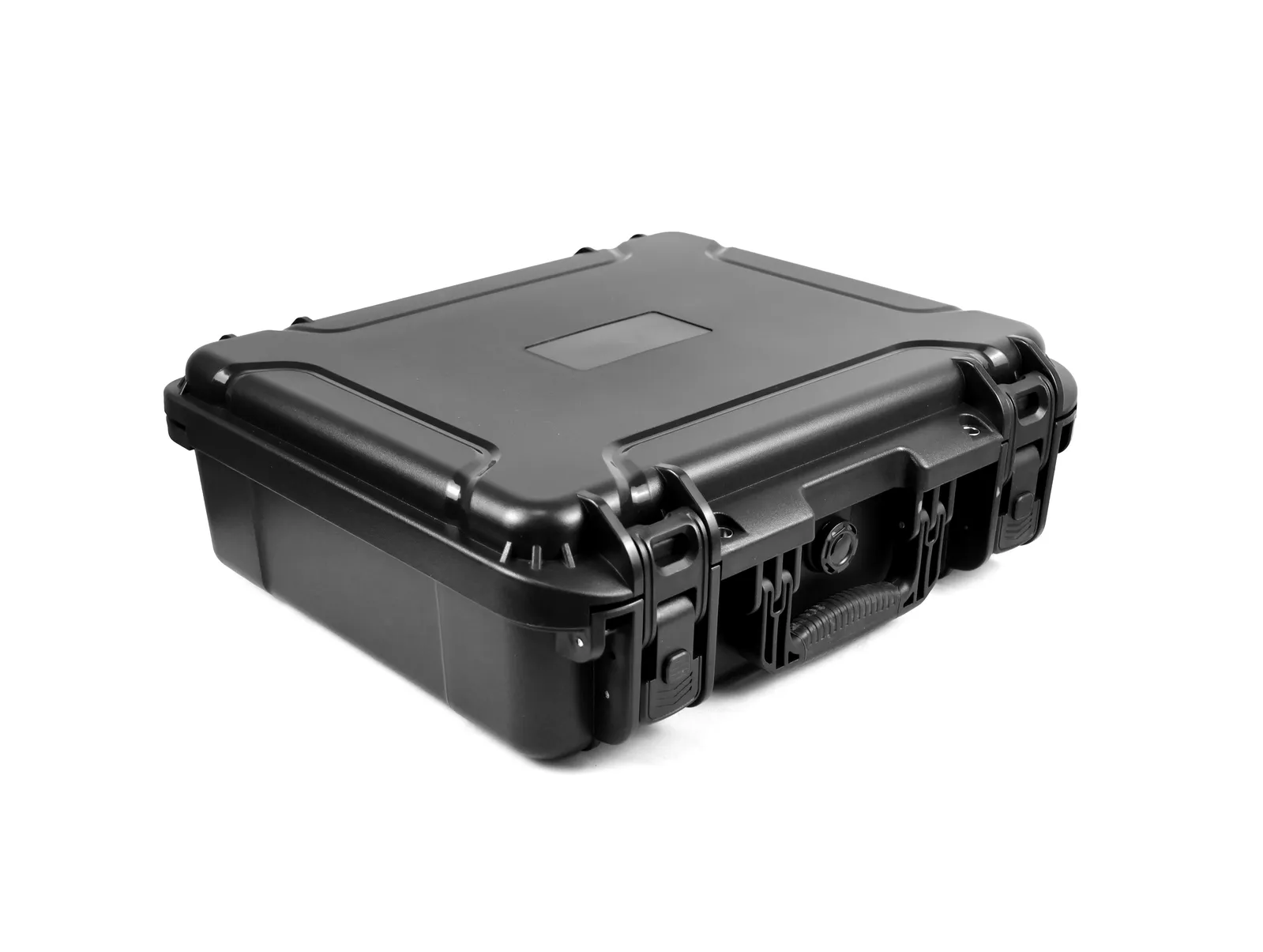

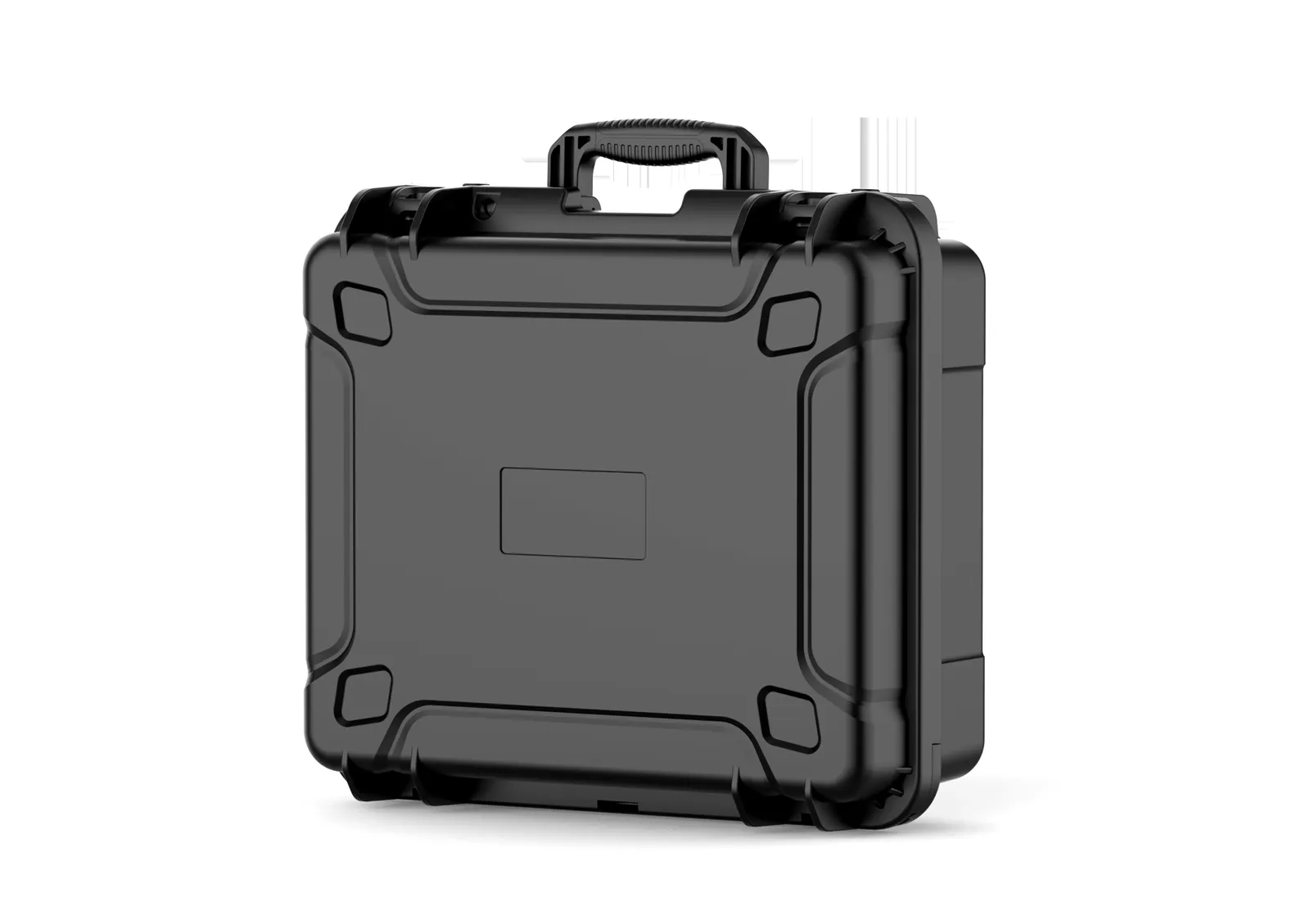

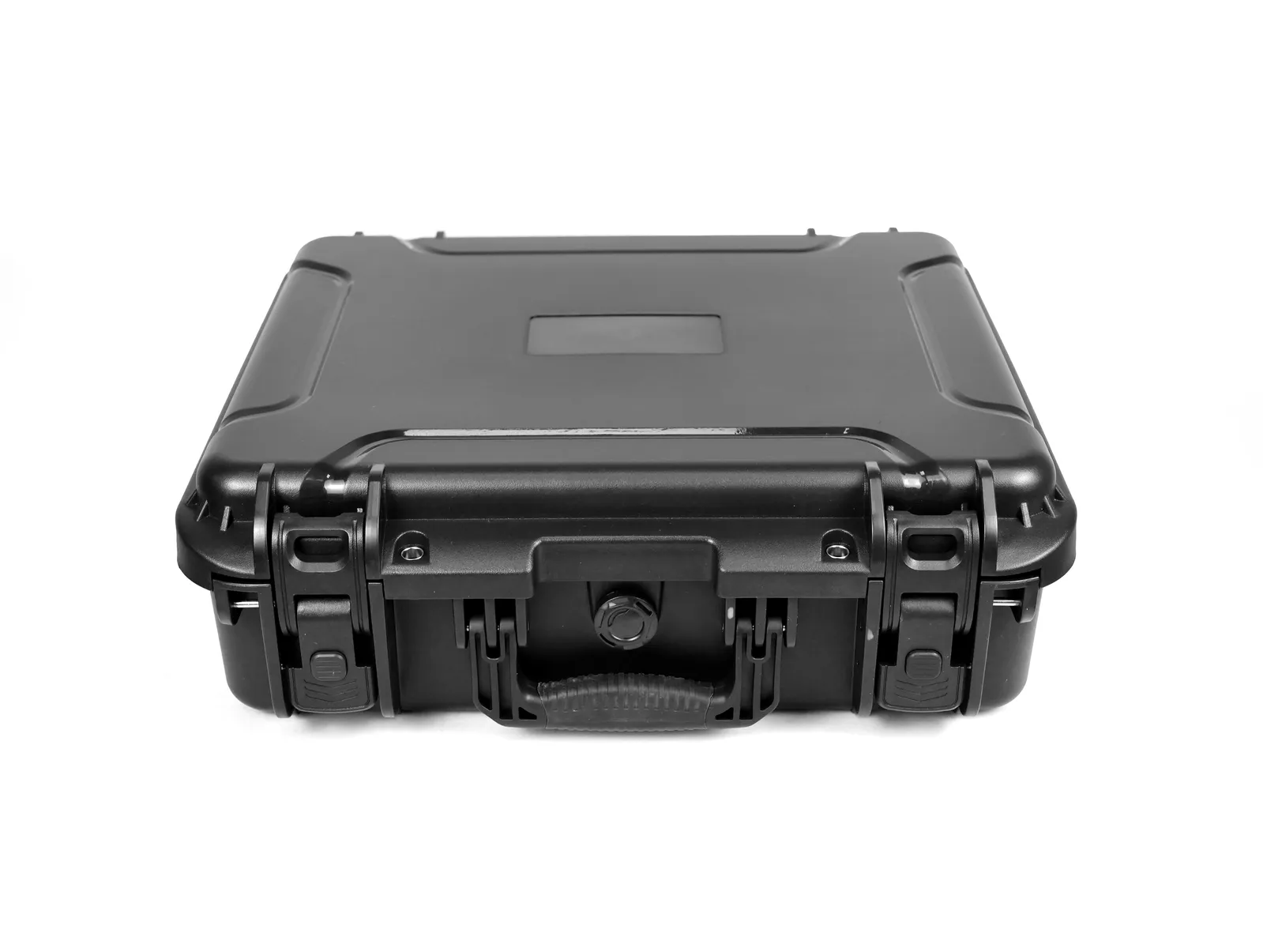

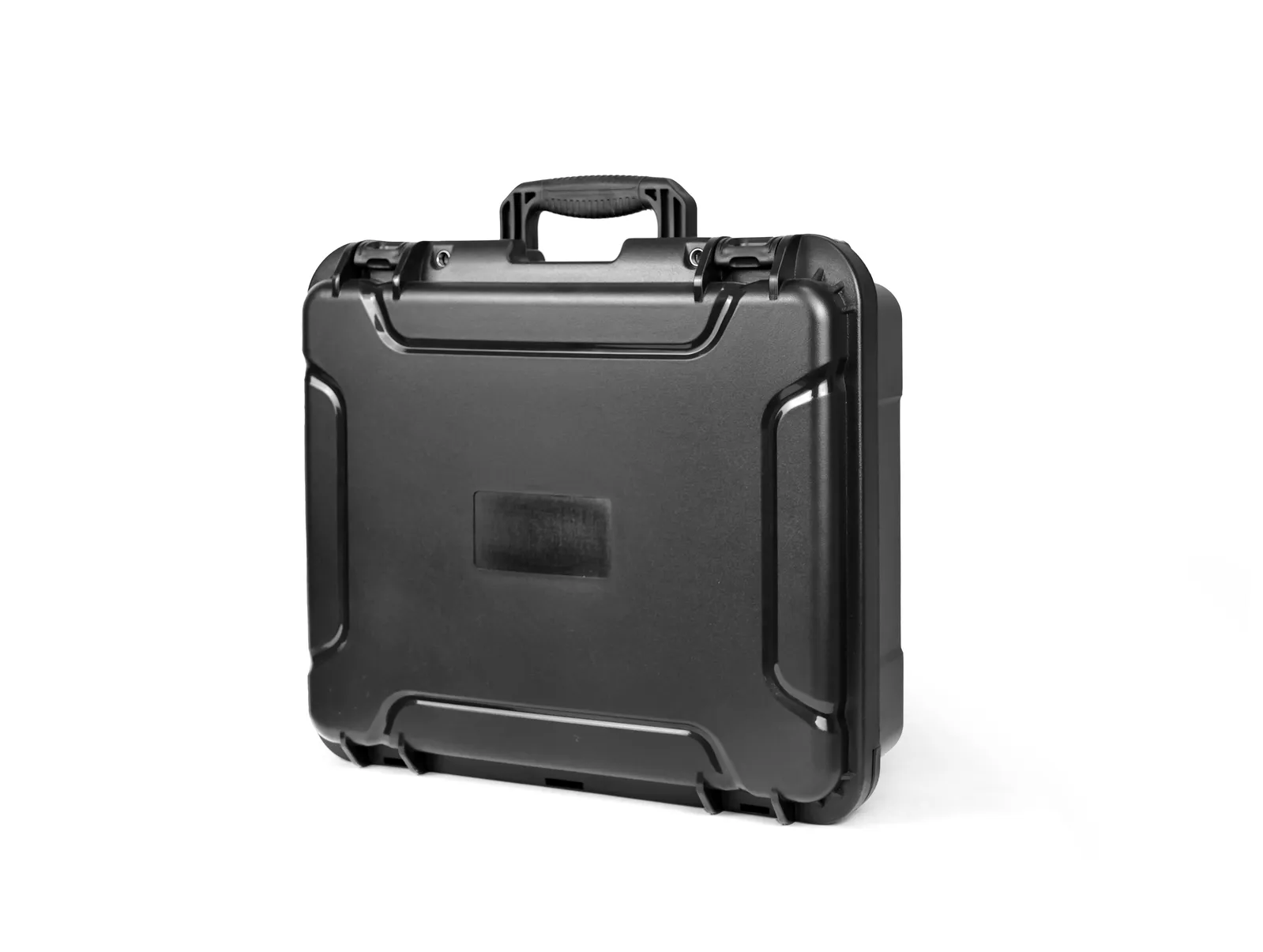

WL8-4116 PP Gun Case

This model is 405*325*156 mm outside and 380*267*140 mm inside, with lid and base depths of 55 mm and 90 mm, a 3.7 mm wall and a net weight of 2600 g. Other 8 Series cases that share the 405*325 mm footprint use a 3.4 mm wall and weigh between 1850 g and 2240 g. The thicker wall gives more margin against compression and impact but adds weight, so choose it for stacked storage or extra rigidity, and choose the 3.4 mm version when easy carrying matters more.

The shell is injection moulded in polypropylene with a sealing structure, and the closed case is rated IP67 for water and dust protection, covering rain, dusty environments and short immersion. We do not claim military standard certification for this model. The rating holds only while the lid seats correctly on the gasket, so protection drops if the seal ages, deforms or traps particles. Check the gasket and latches periodically and avoid long soaking or heavy rain once the seal is worn.

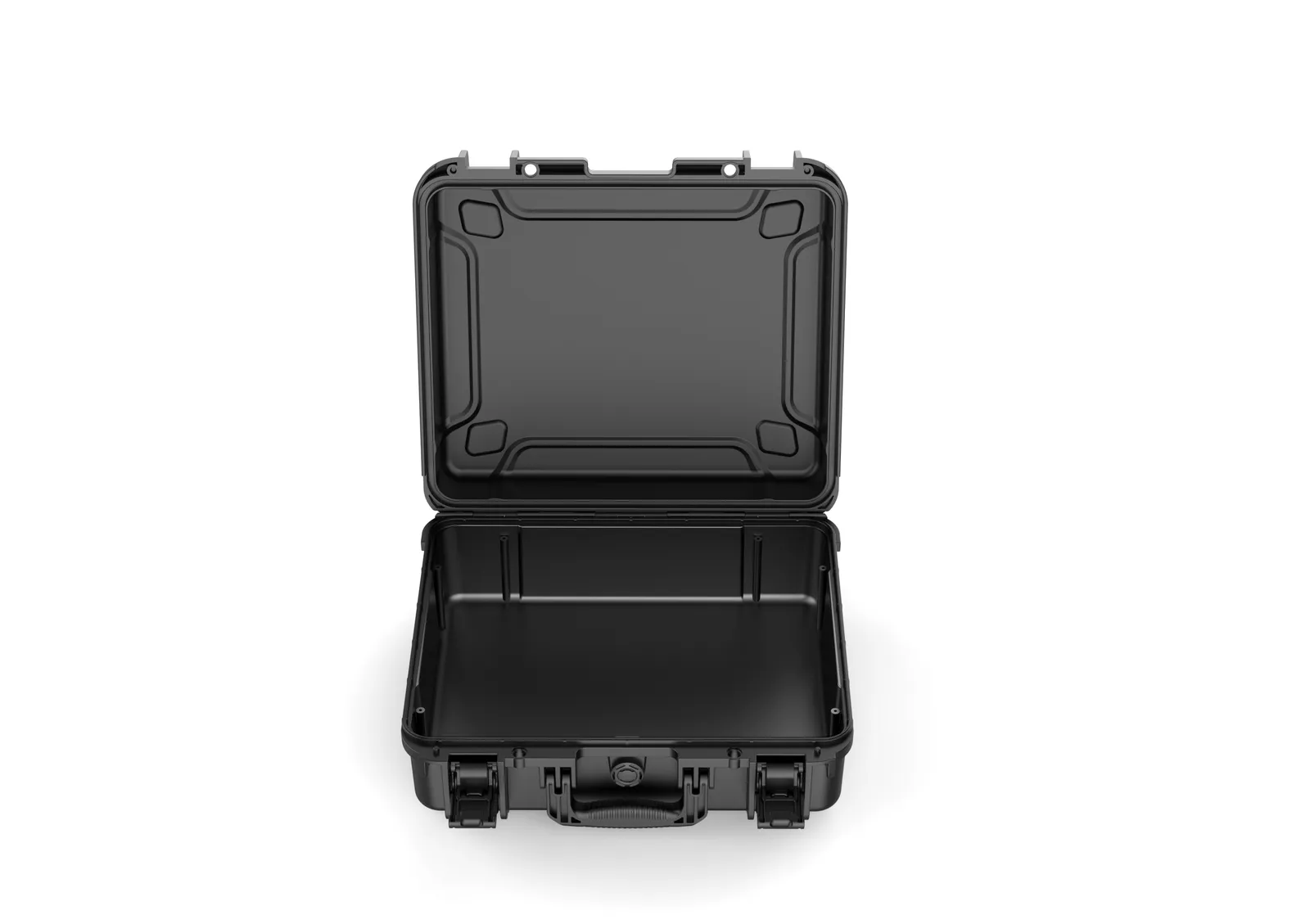

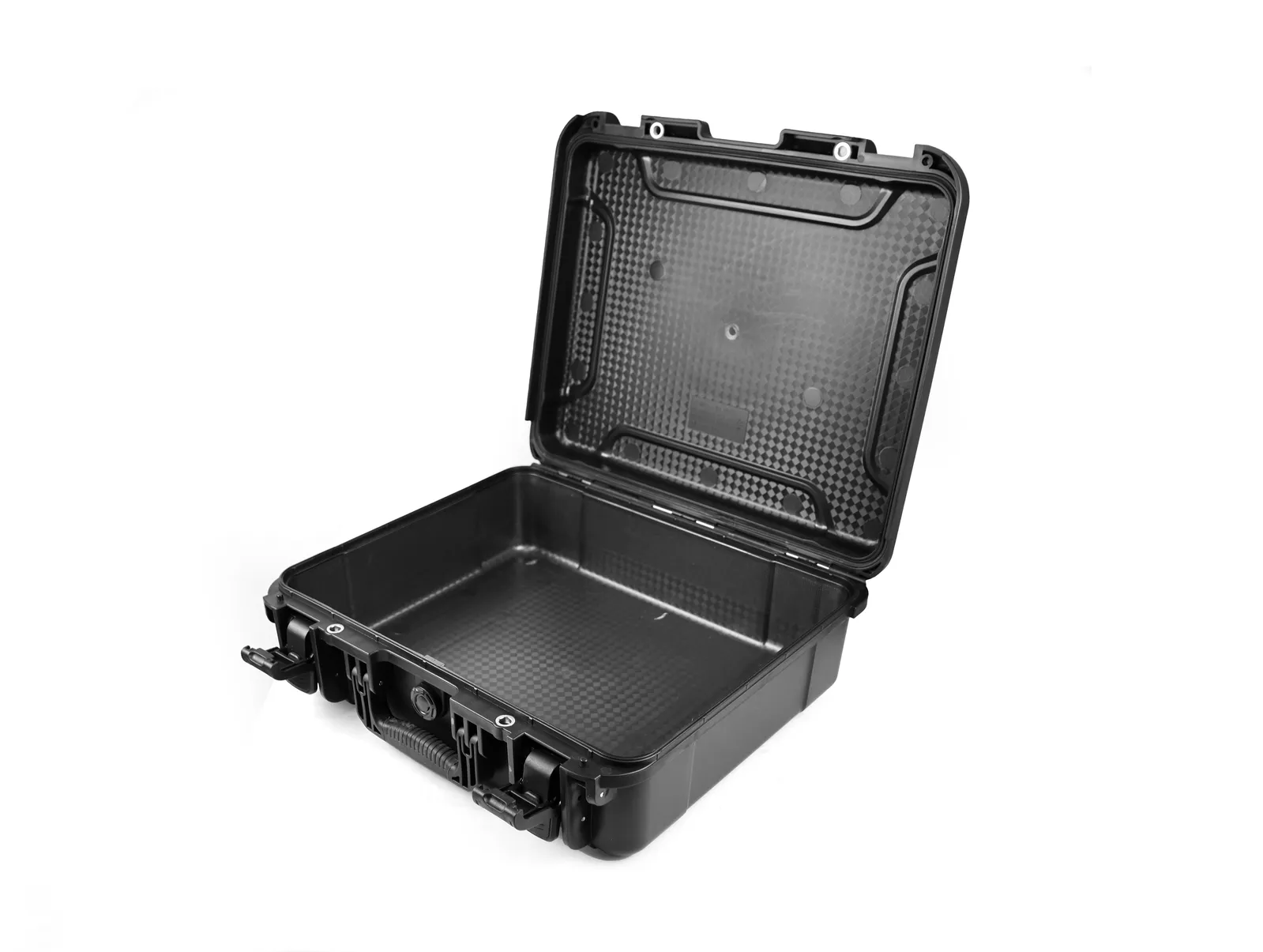

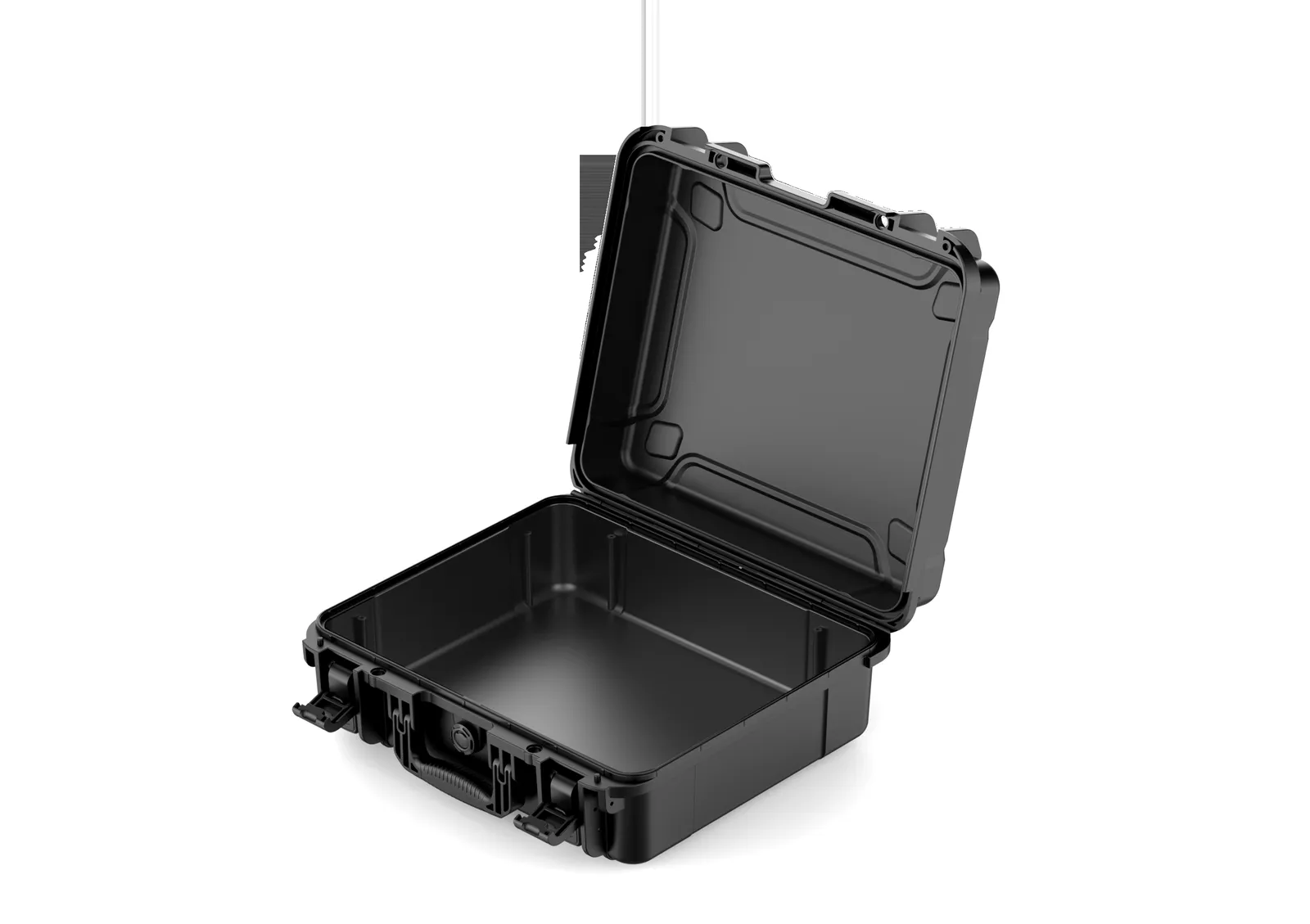

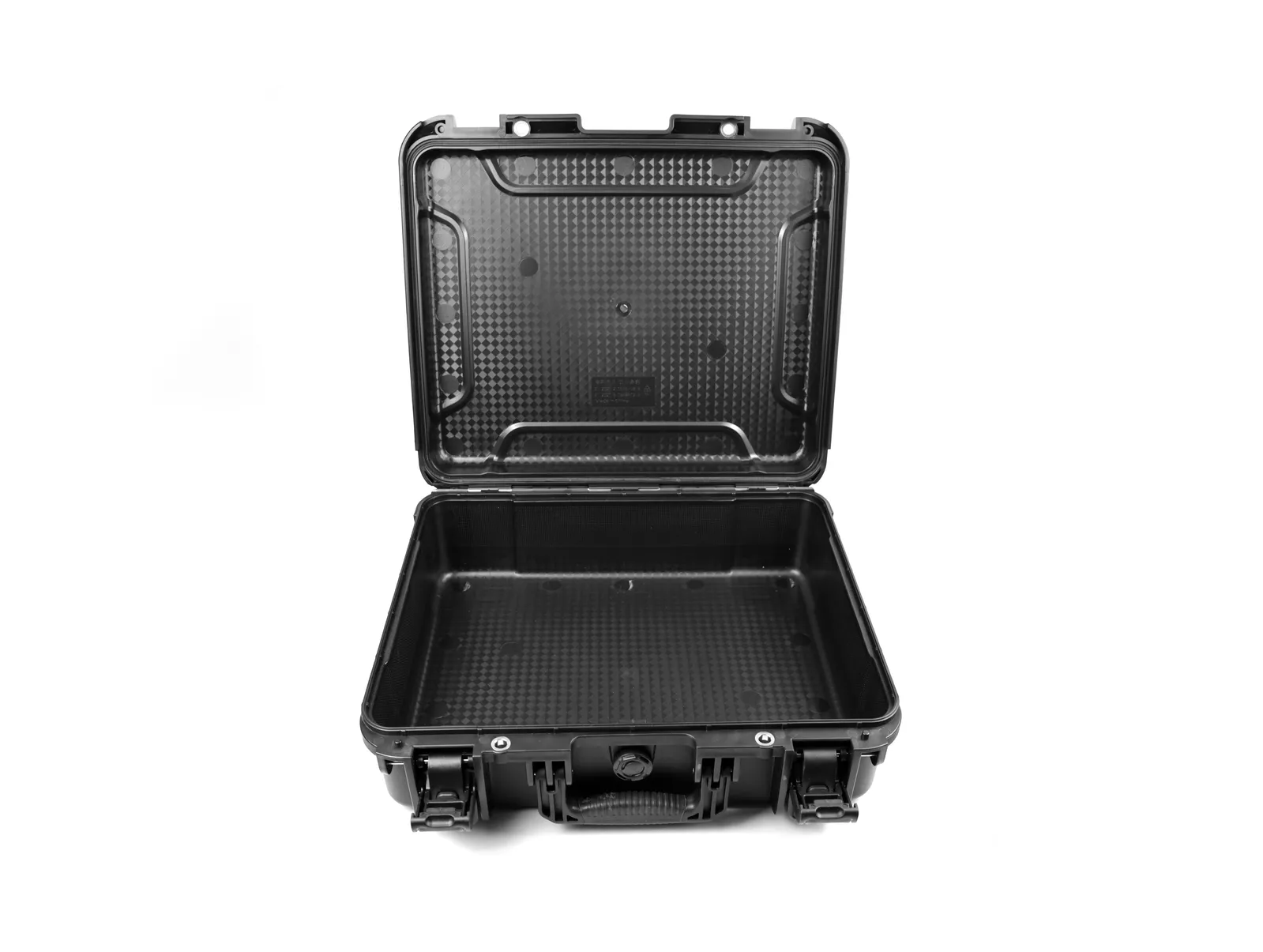

The lid depth is 55 mm and the base depth is 90 mm, which together account for the 140 mm internal height. The deeper base half carries the main equipment while the shallower lid side takes cables, adapters and slim accessories. That split is flexible for layered packing: set the main layer height from your thickest item, then arrange the rest around it. For kits with several layers, send the item list and we will propose a layered insert layout for the cavity.

It suits heavier hardware tool sets, measuring instruments and electronic devices, as well as photographic gear, drone accessories and knives that need protection from moisture and dust. The 3.7 mm wall and 2600 g weight make the case more comfortable in stacked storage and rough transport, which is common in warehouse rotation, field service and spare-parts shipping. If your items have fixed shapes, send length, width, height and quantity and we will cut foam pockets or dividers into the 380*267*140 mm cavity.

Yes. JUNZHIJIA is our own brand and Kexin New Materials (Guangdong) Co., Ltd. supplies this model factory-direct from its Zhongshan factory. Body colour, silk-screen or nameplate printing, foam insert layout and latch configuration can all be customised, and packaging marks can follow your brand. MOQ and lead time are confirmed after reviewing colour, insert process and printing requirements, and we normally approve a sample before bulk production. Send your customisation list, target quantity and application for a quote and schedule.
