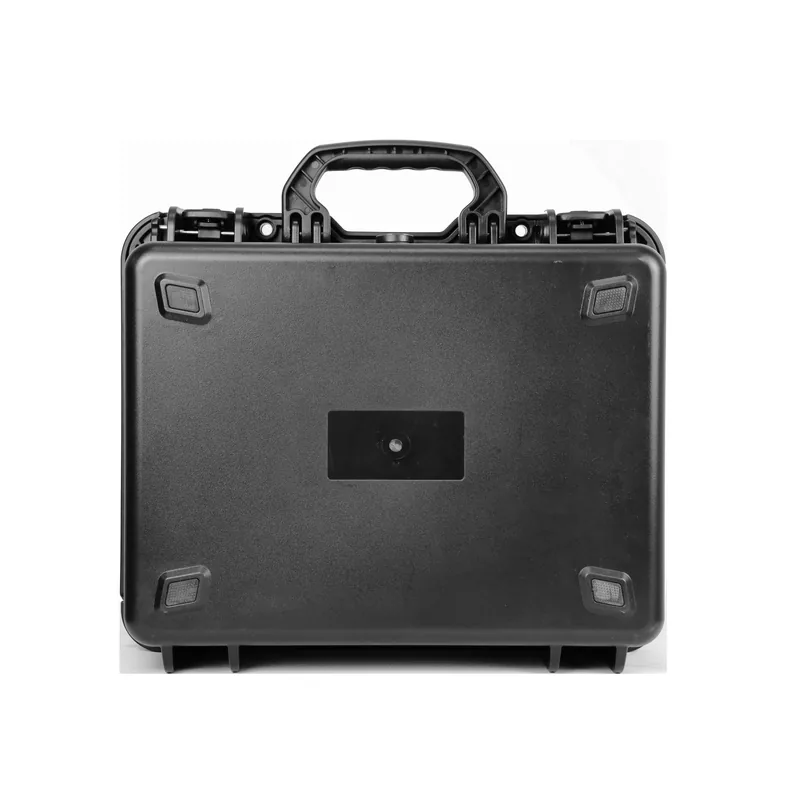

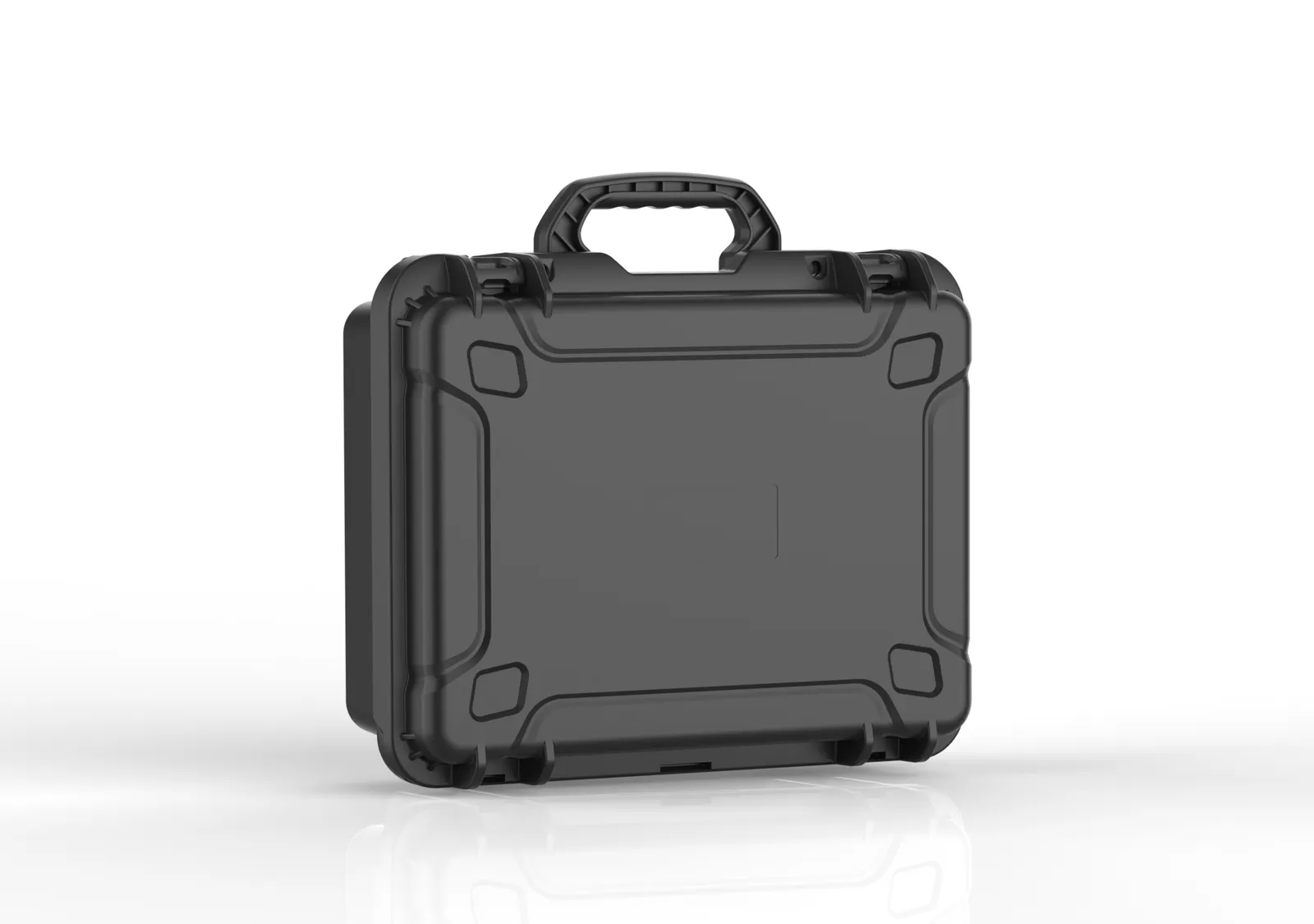

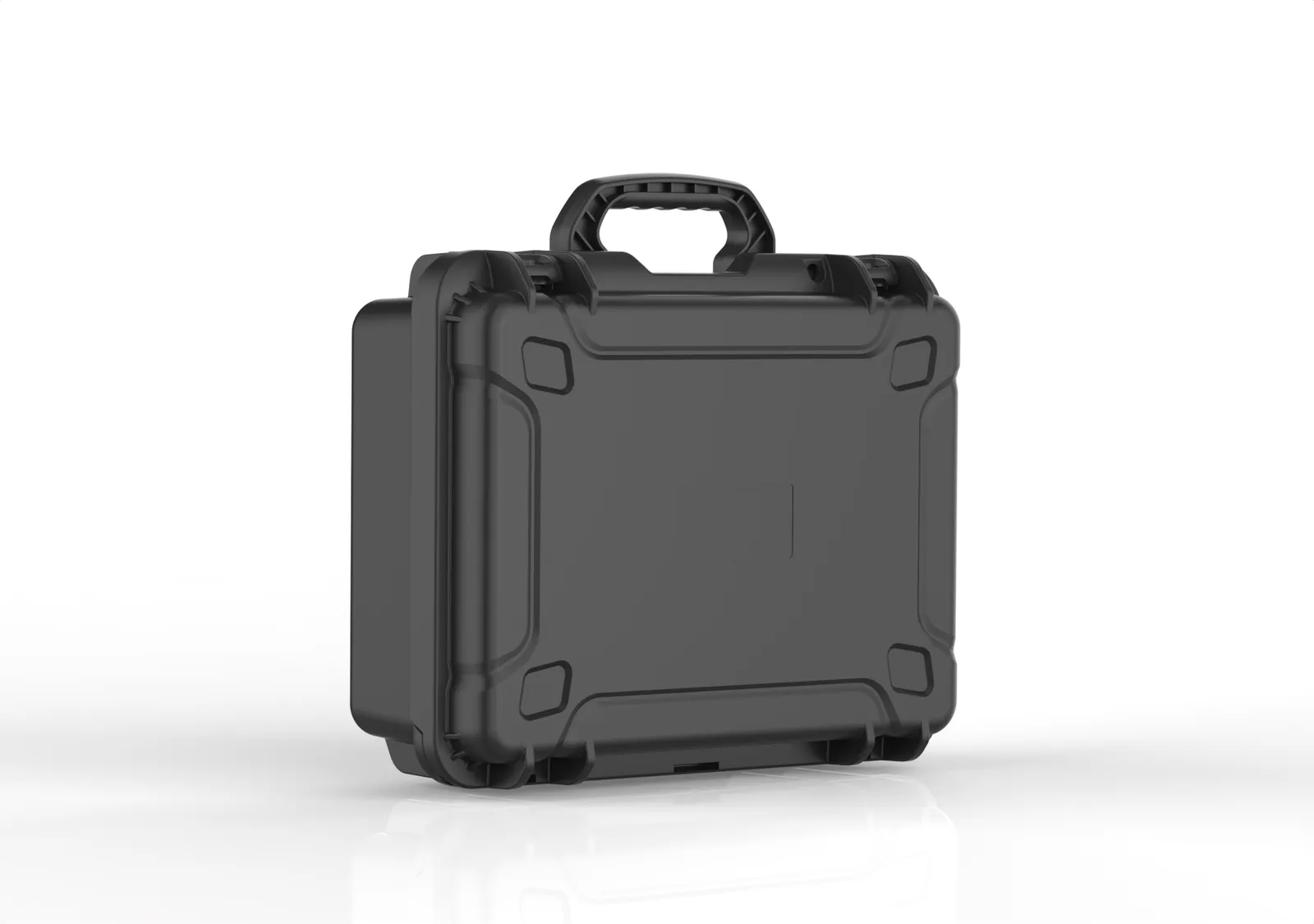

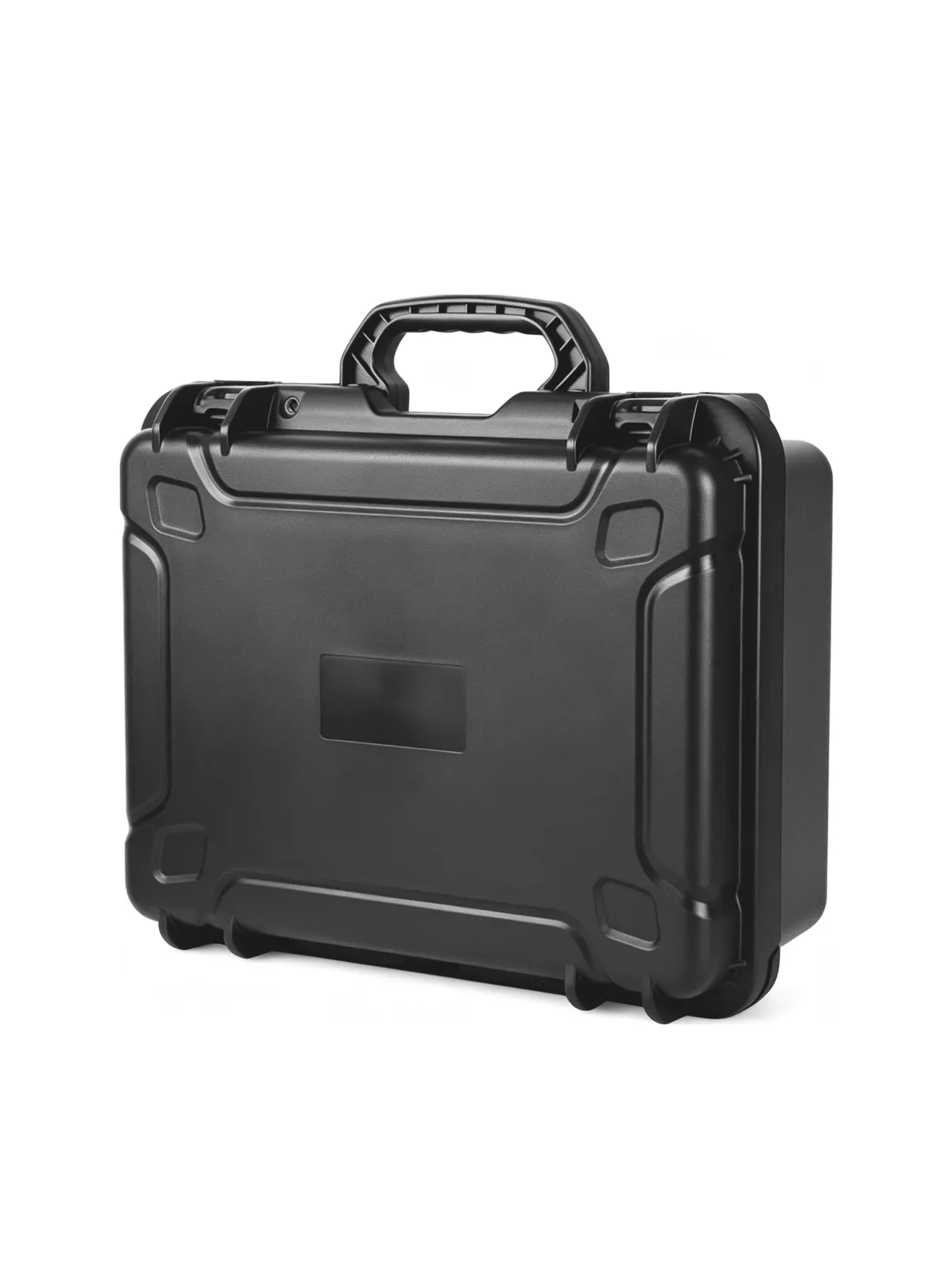

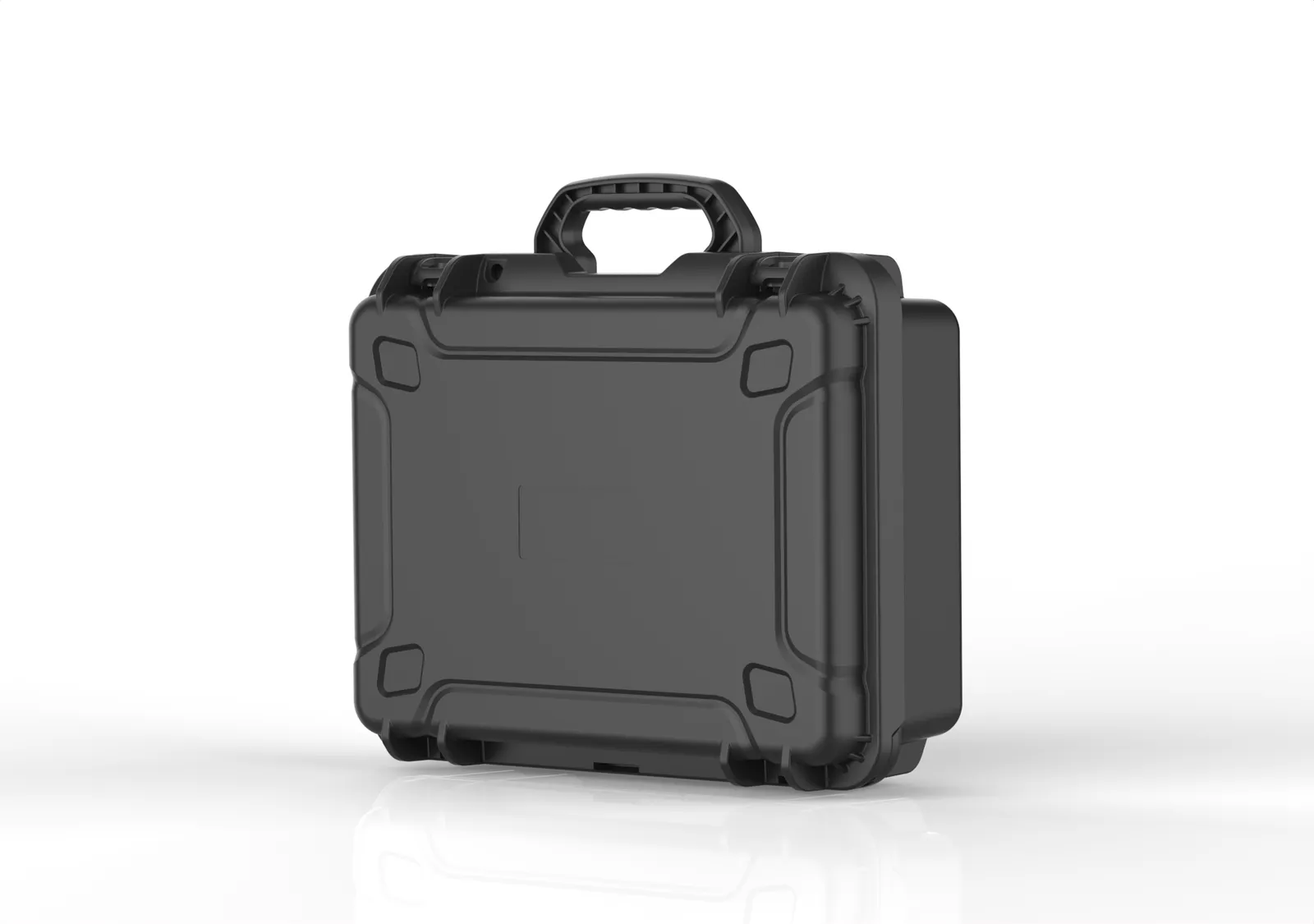

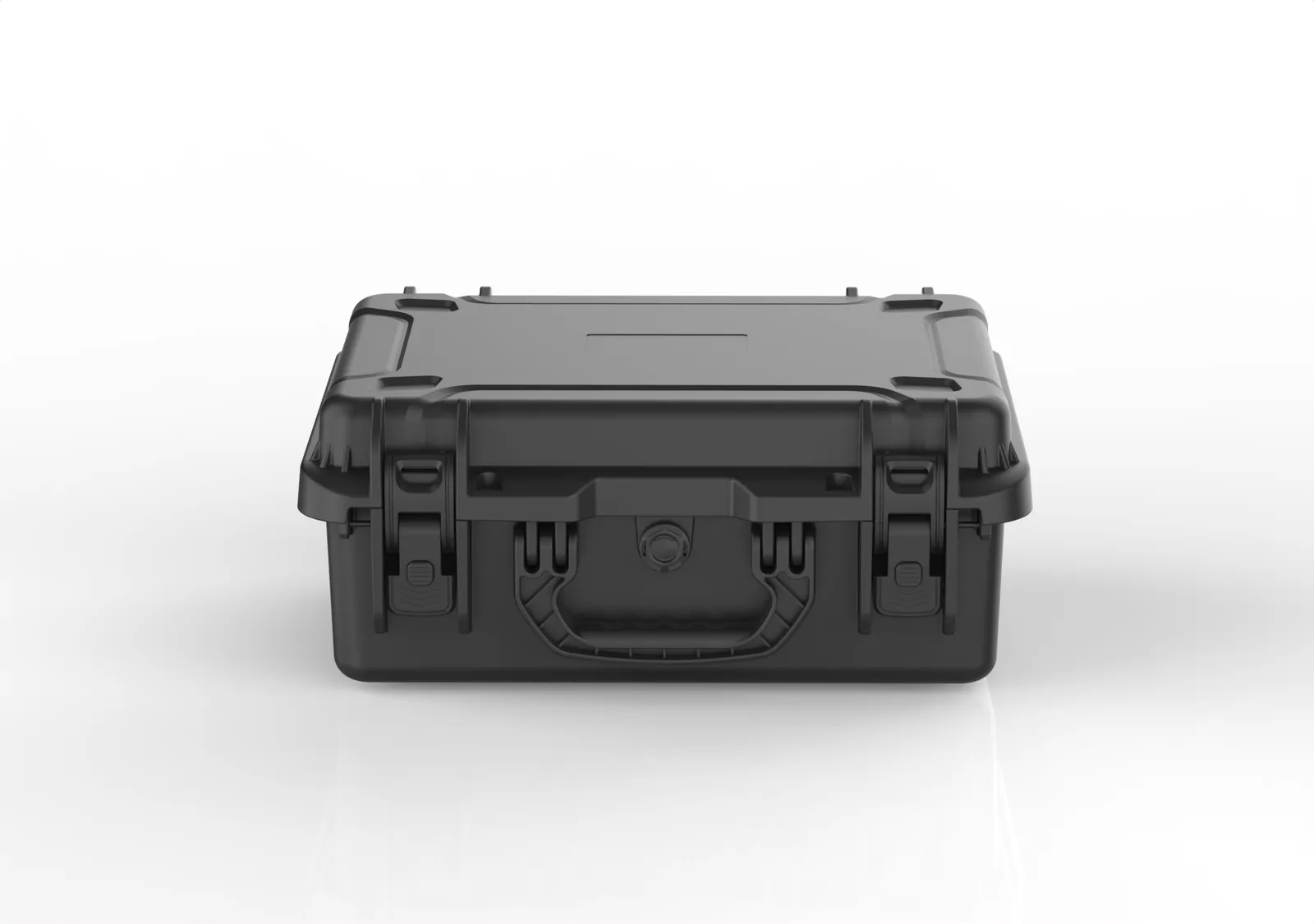

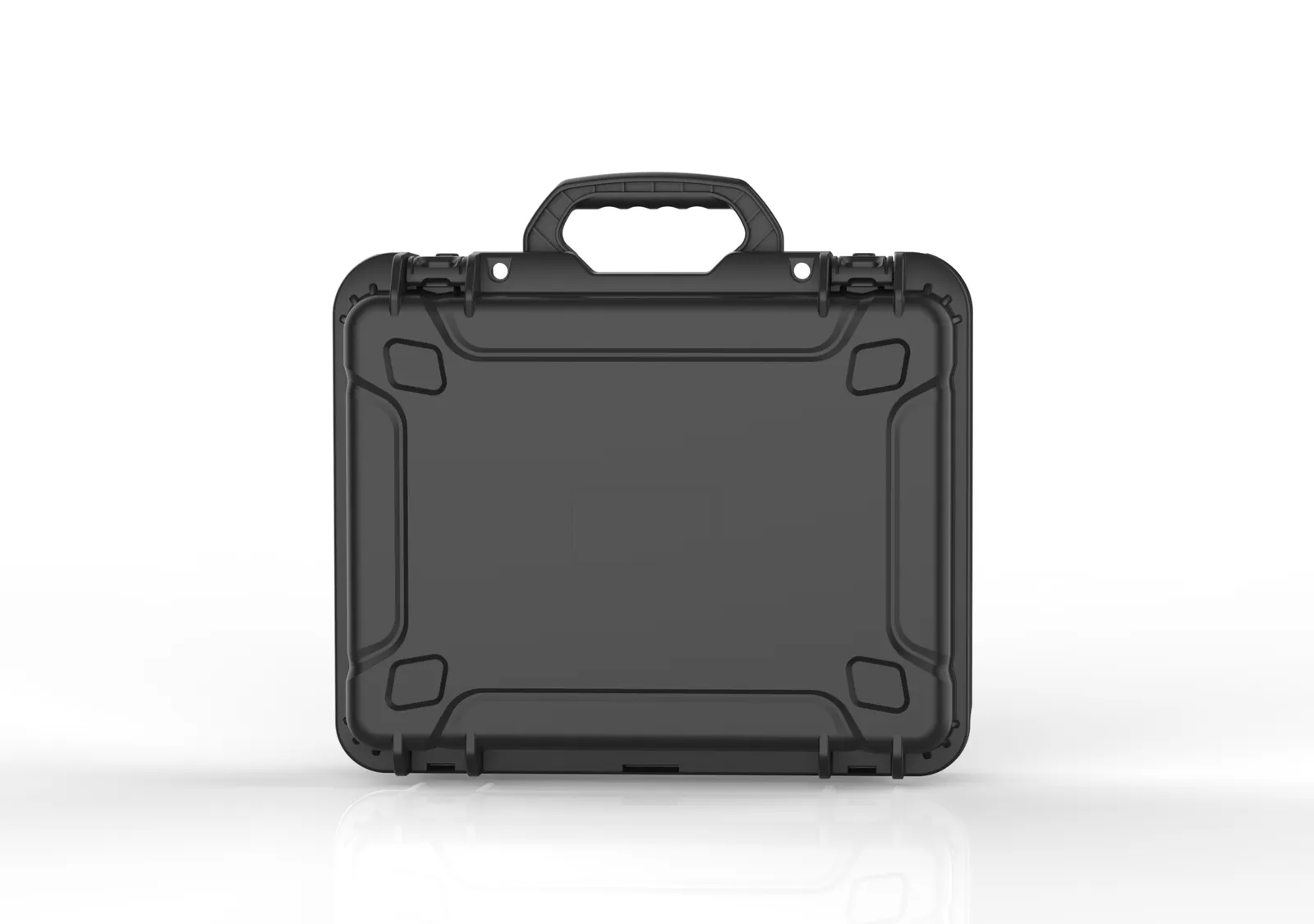

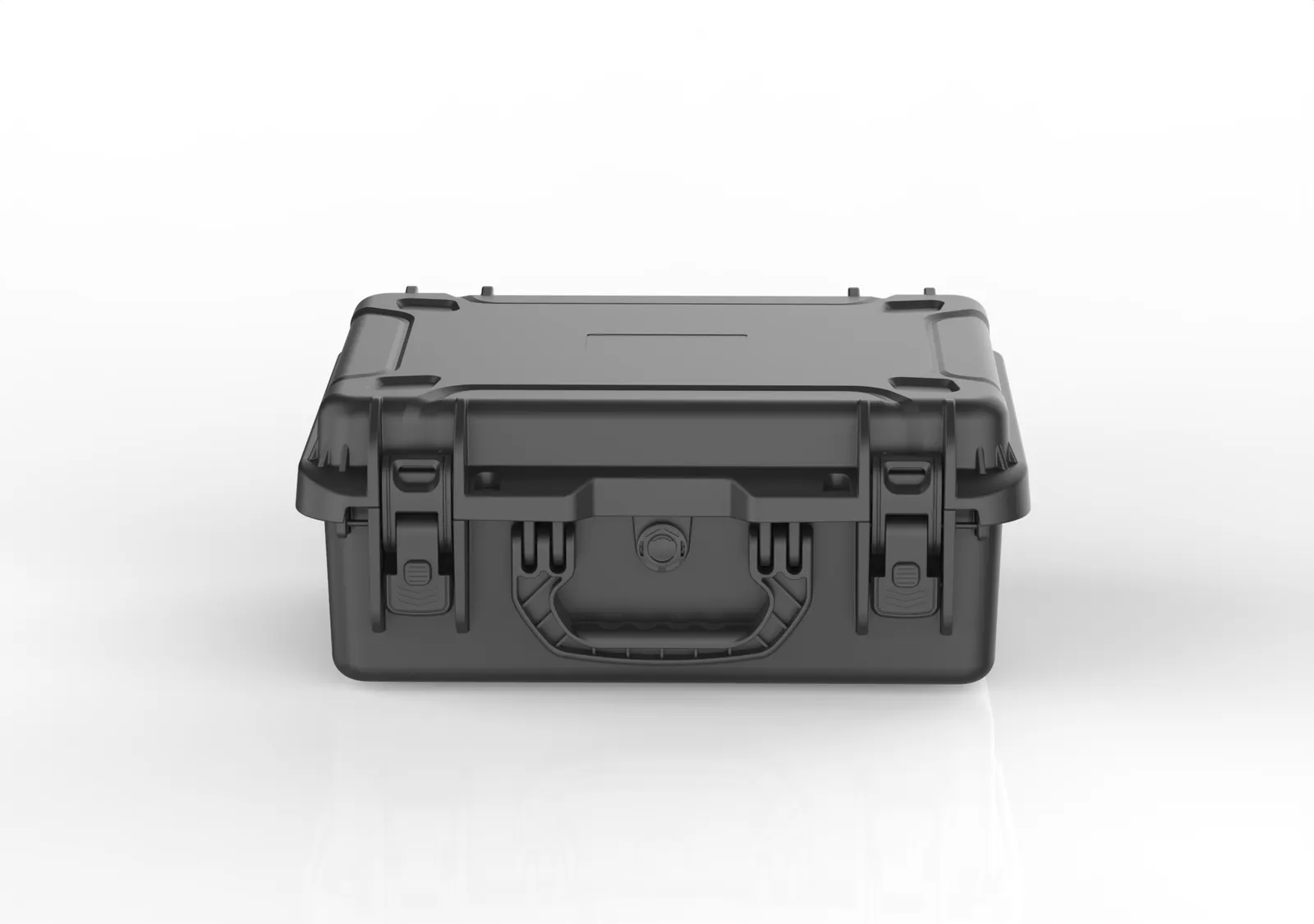

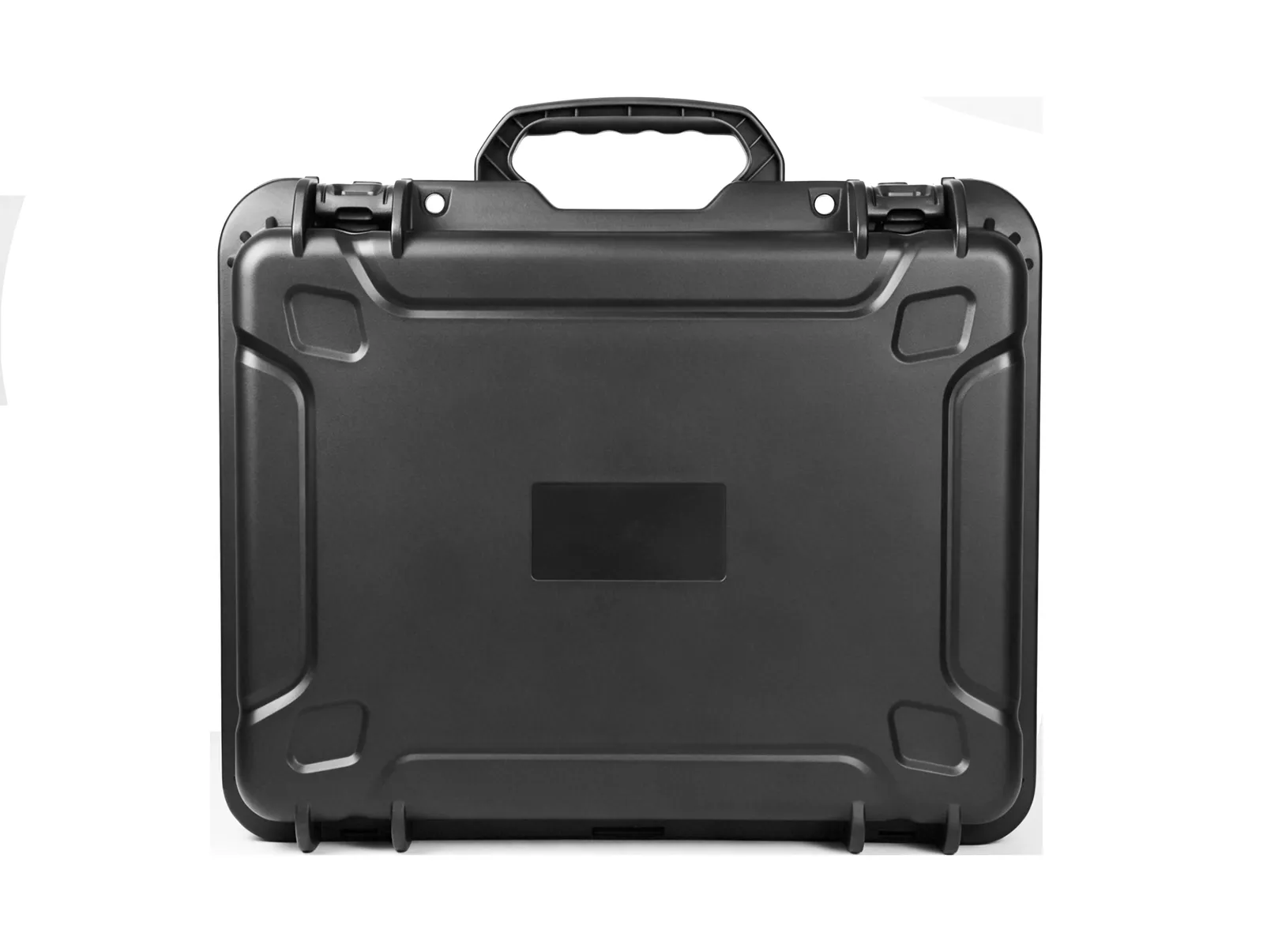

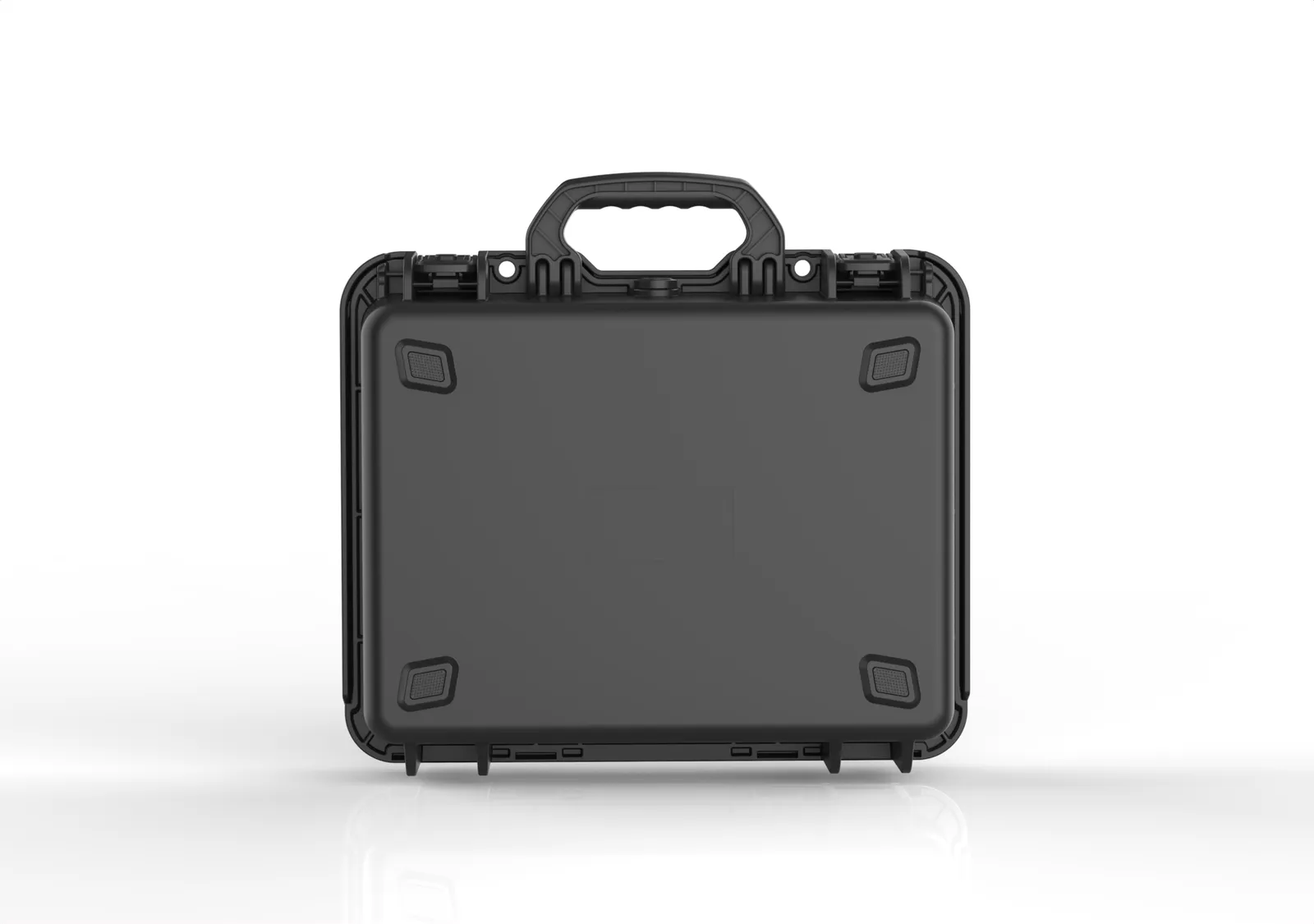

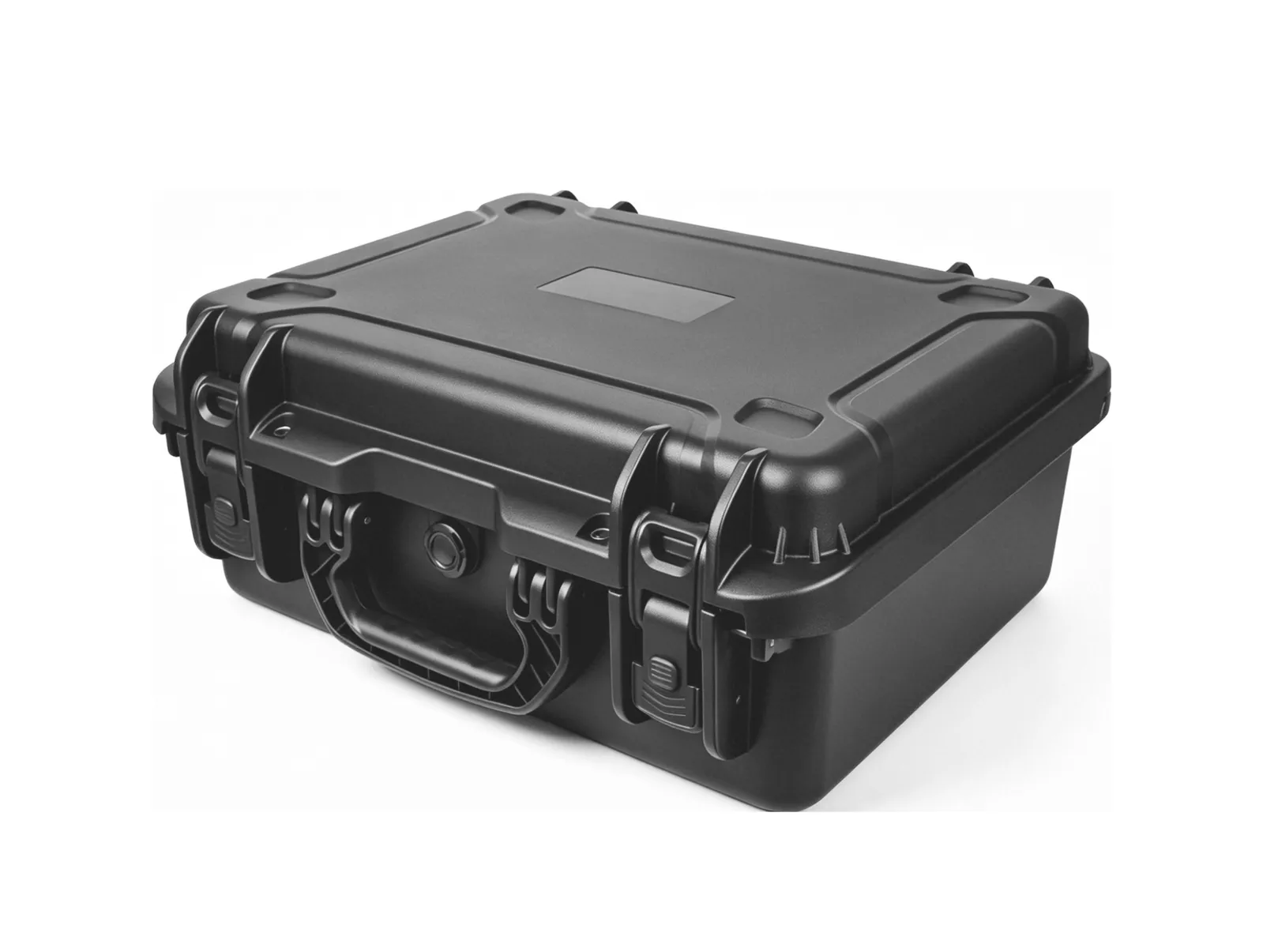

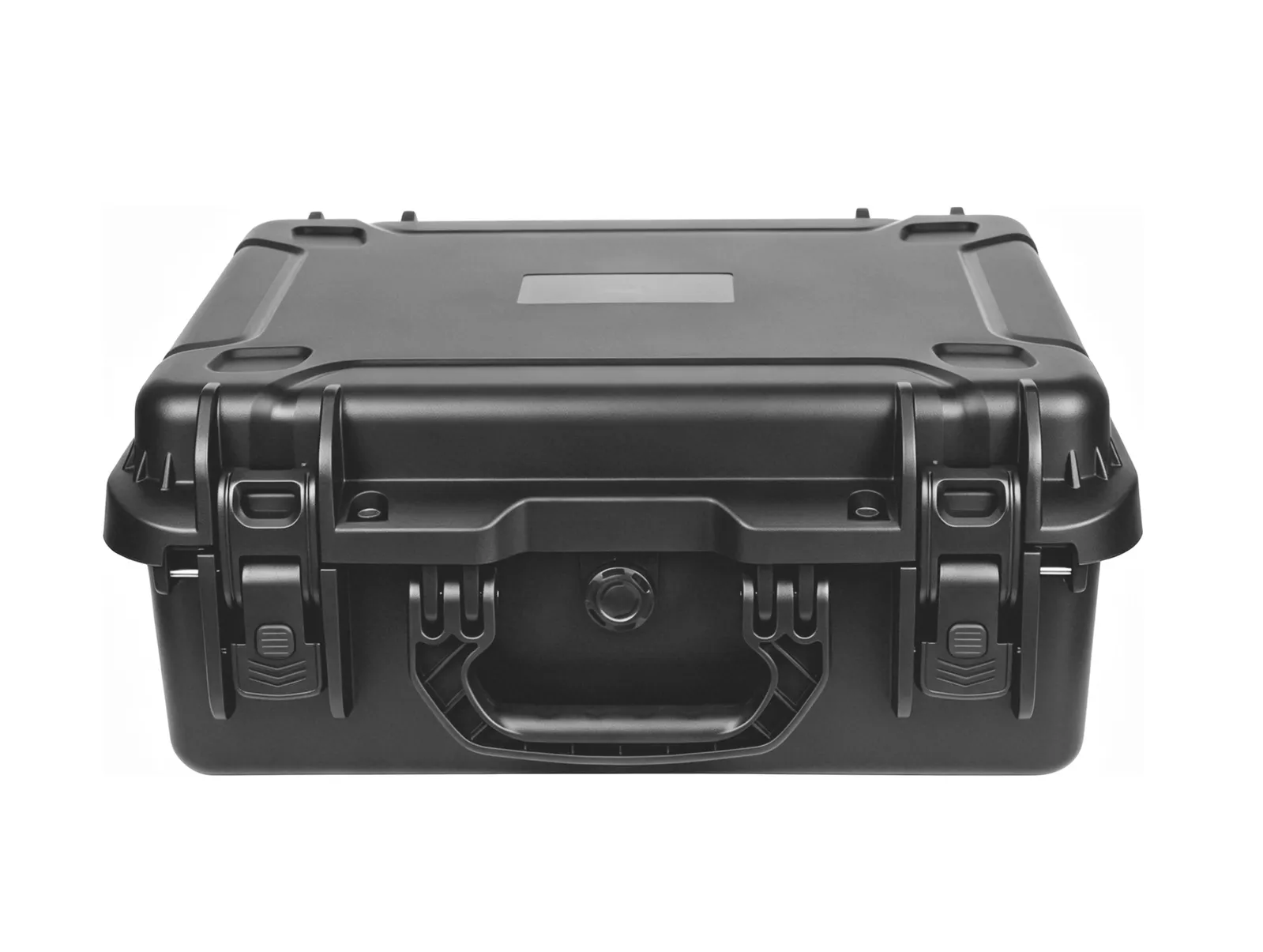

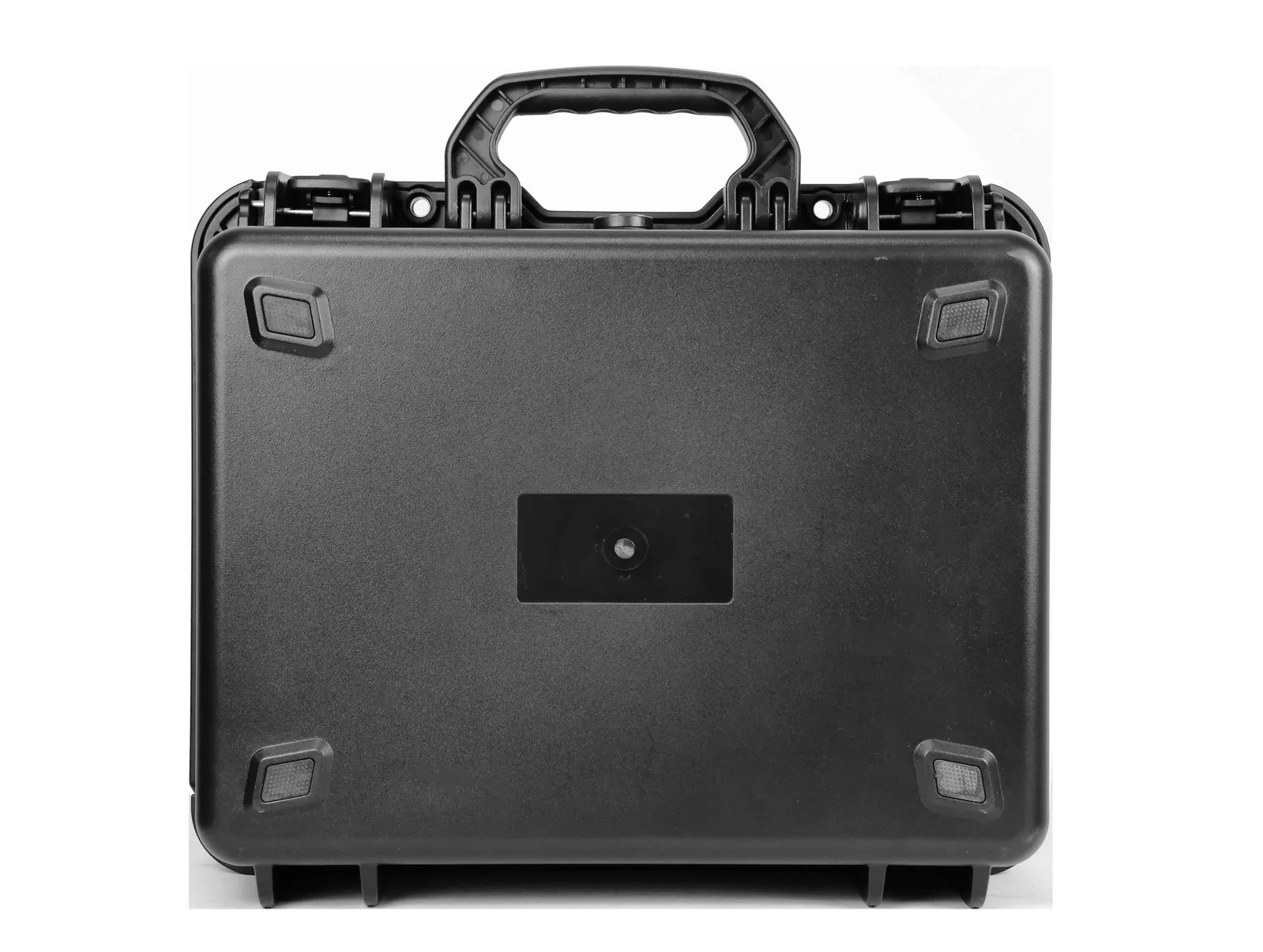

WL8-4419 Gun Case

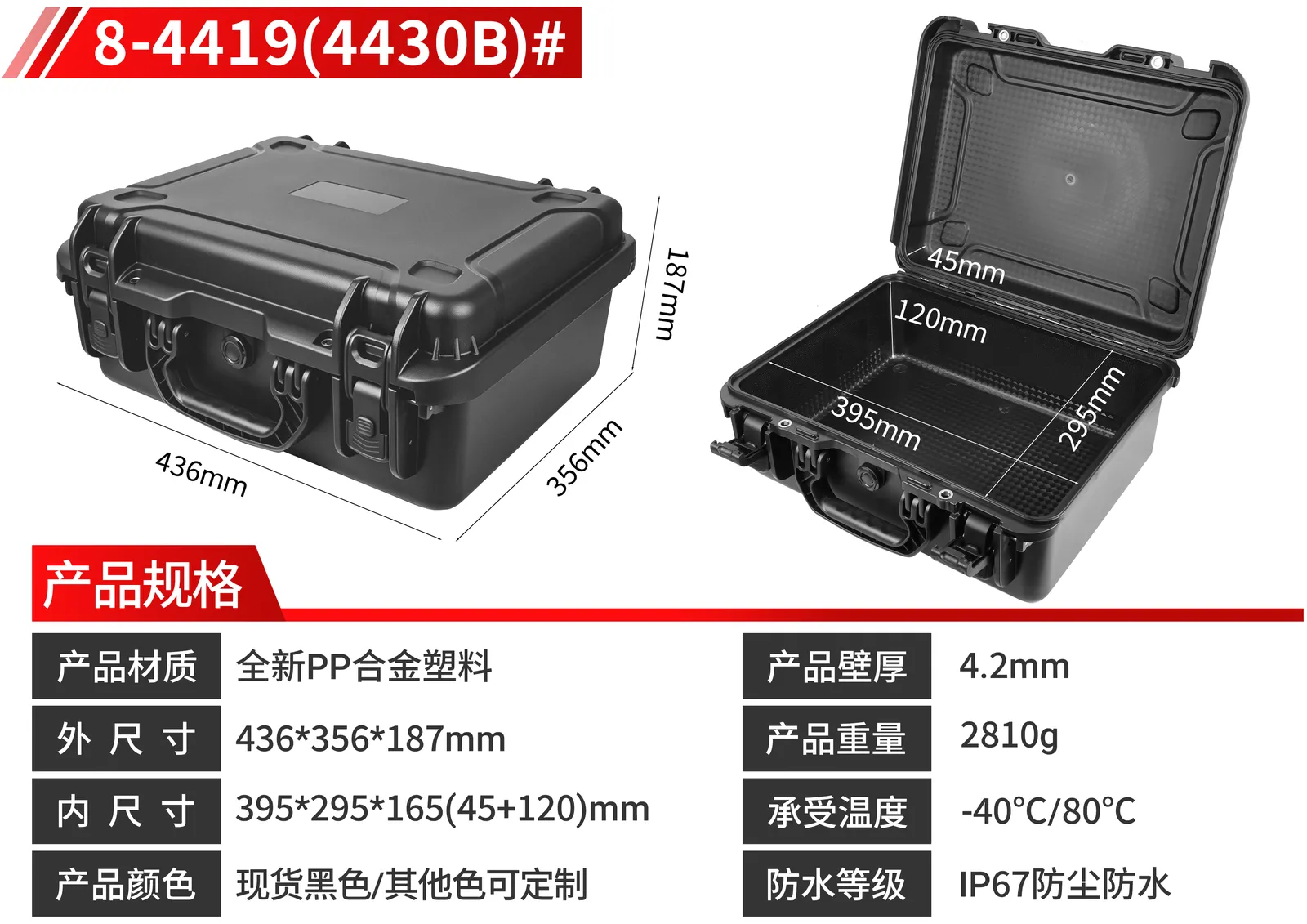

Both share the 436*356 mm footprint. The outer sizes are 436*356*187 mm and 436*356*157 mm, the interiors are 395*295*165 mm and 395*295*135 mm, the lid and base depths are 45 mm with 120 mm and 45 mm with 90 mm, both walls are 4.2 mm, and the net weights are 2810 g and 2580 g. This model is one step taller, so it takes medium-height items upright or an extra layer. For flat packing with less weight, choose the 135 mm version.

The closed case is rated IP67 for water and dust protection, keeping rain, moisture and dust out in dusty workshops, outdoor work and short immersion. We do not claim military standard certification for this model. Protection depends on the lid seating correctly on the gasket, so check the seal on a regular schedule for ageing, deformation or trapped particles, and avoid long soaking or heavy rain once the seal is damaged, so protection stays consistent over the service life.

This product page does not state the body material, and the material and colour actually supplied are confirmed in the order technical file. The 8 Series is built as hard protective cases with an IP67 water and dust sealing structure. If your purchasing document must specify a material grade, colour or surface finish, raise it with your enquiry and we will reply with the configurations we can supply and record them on the technical confirmation sheet to avoid mismatching versions.

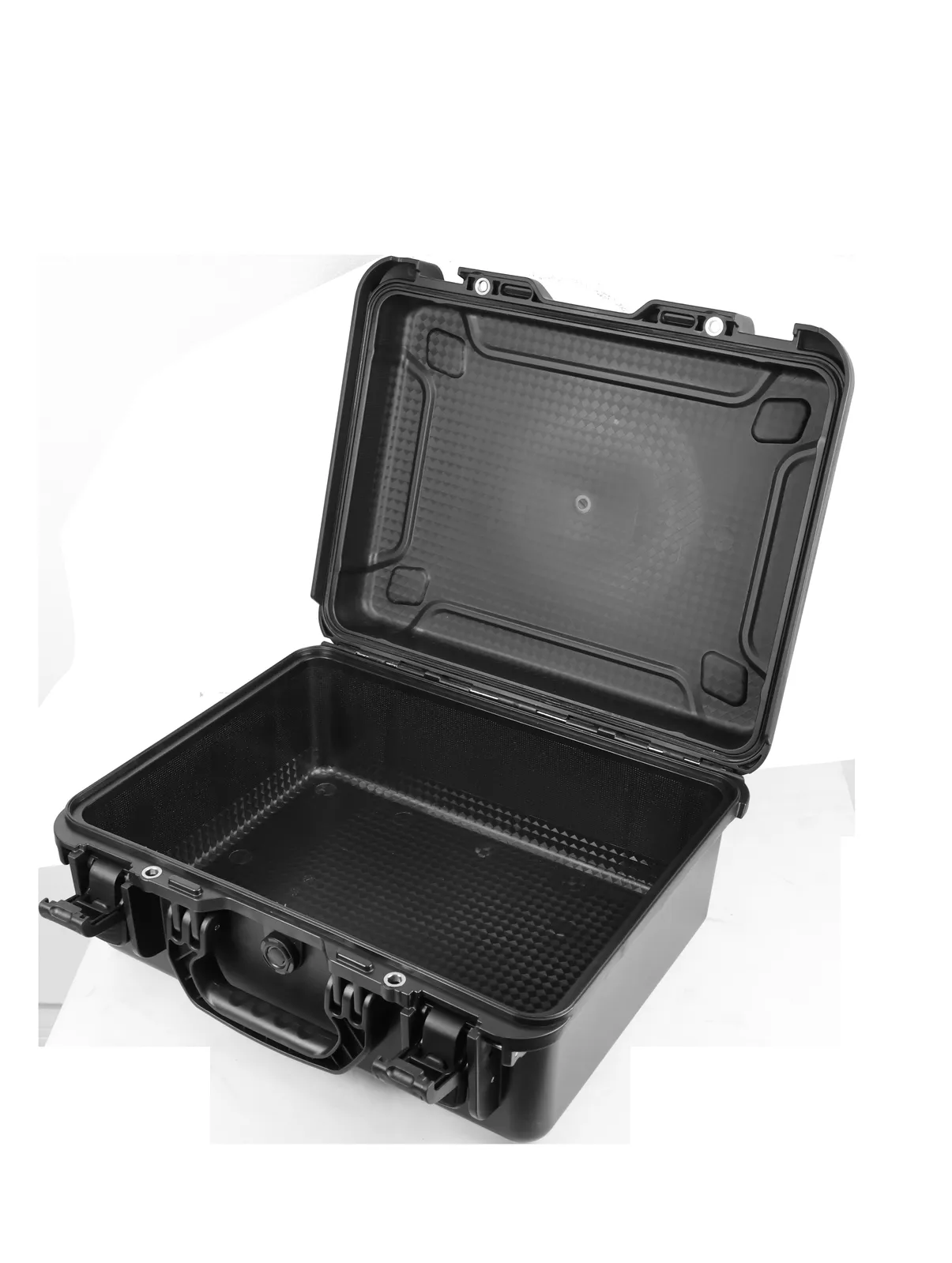

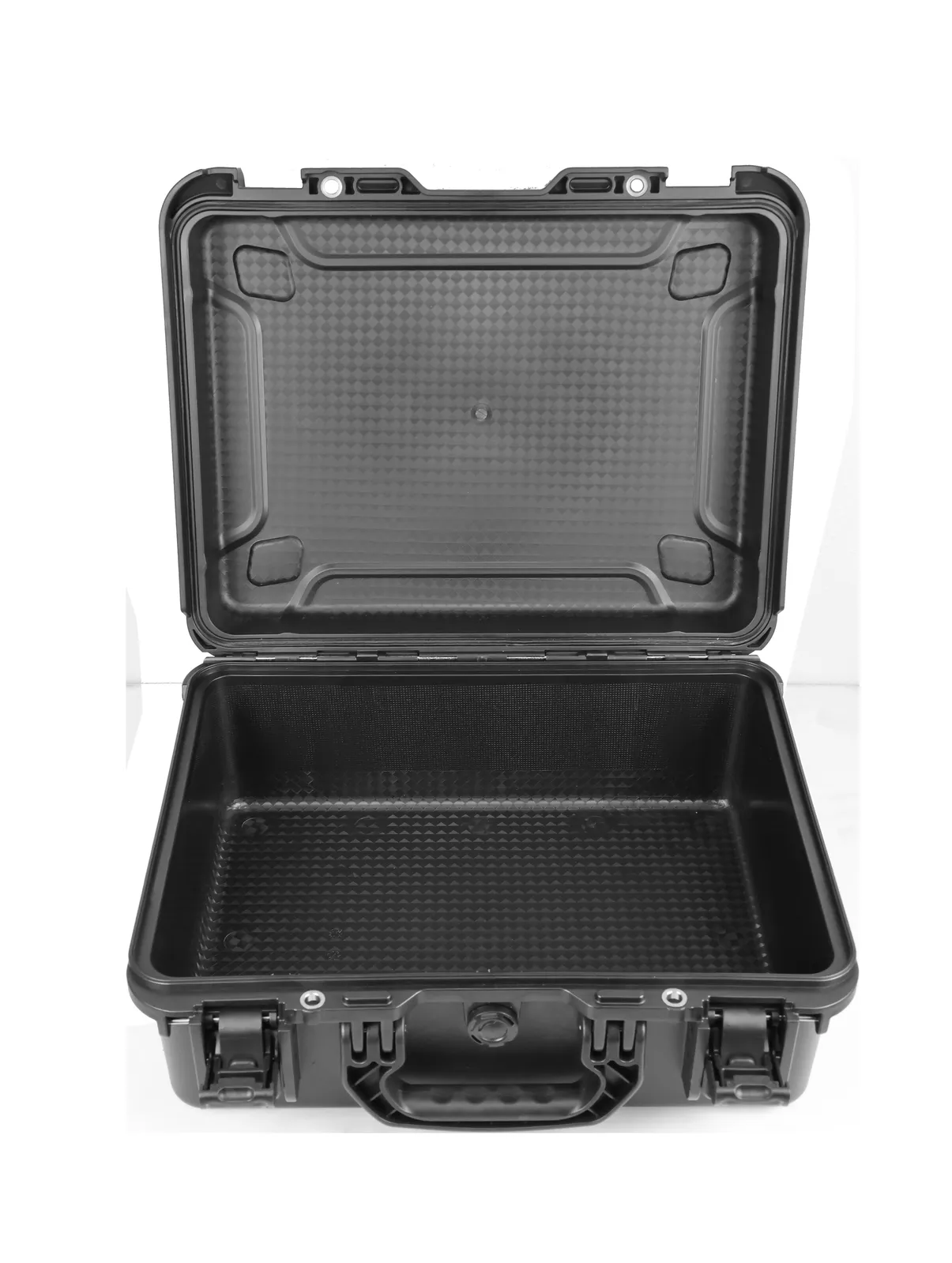

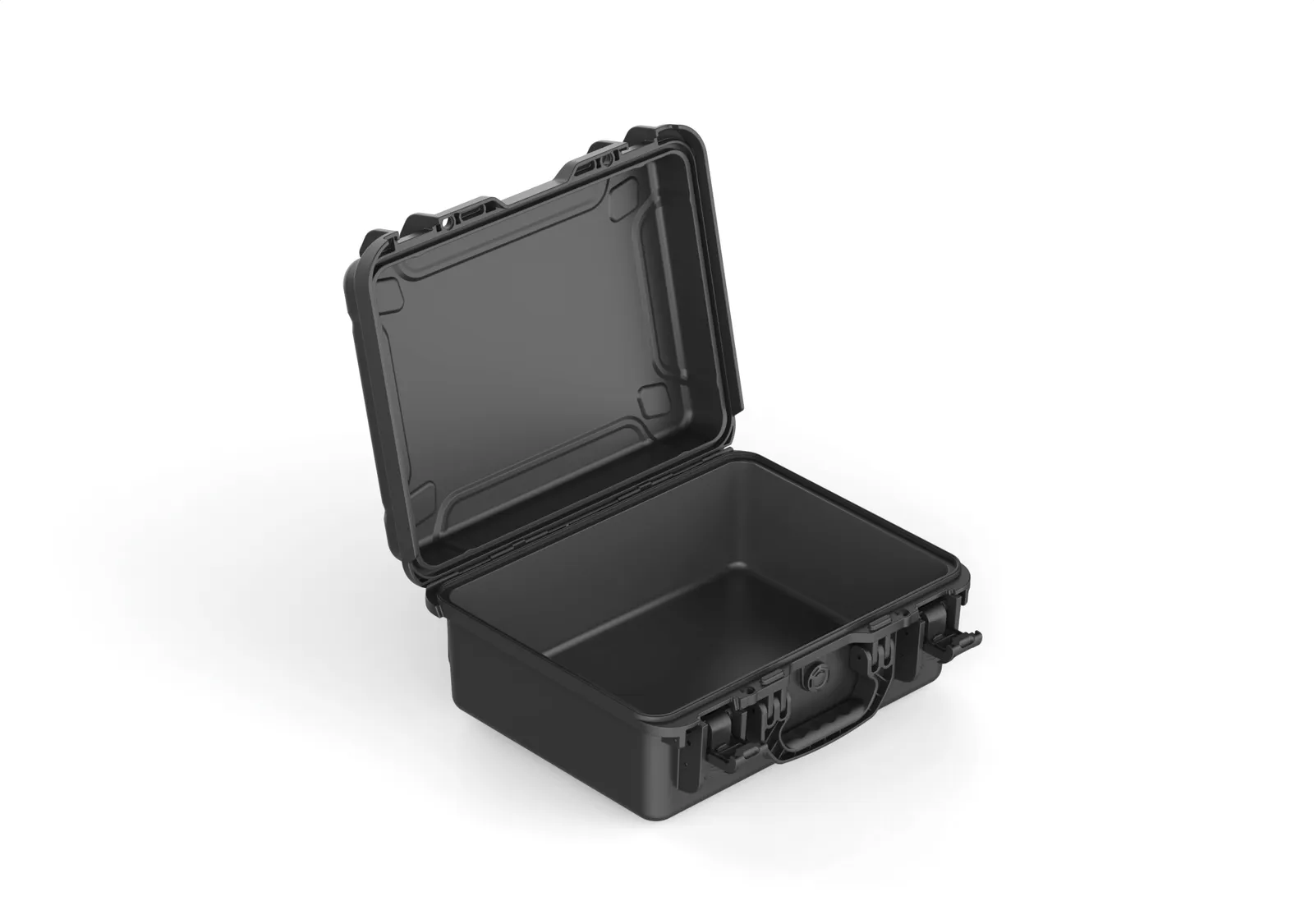

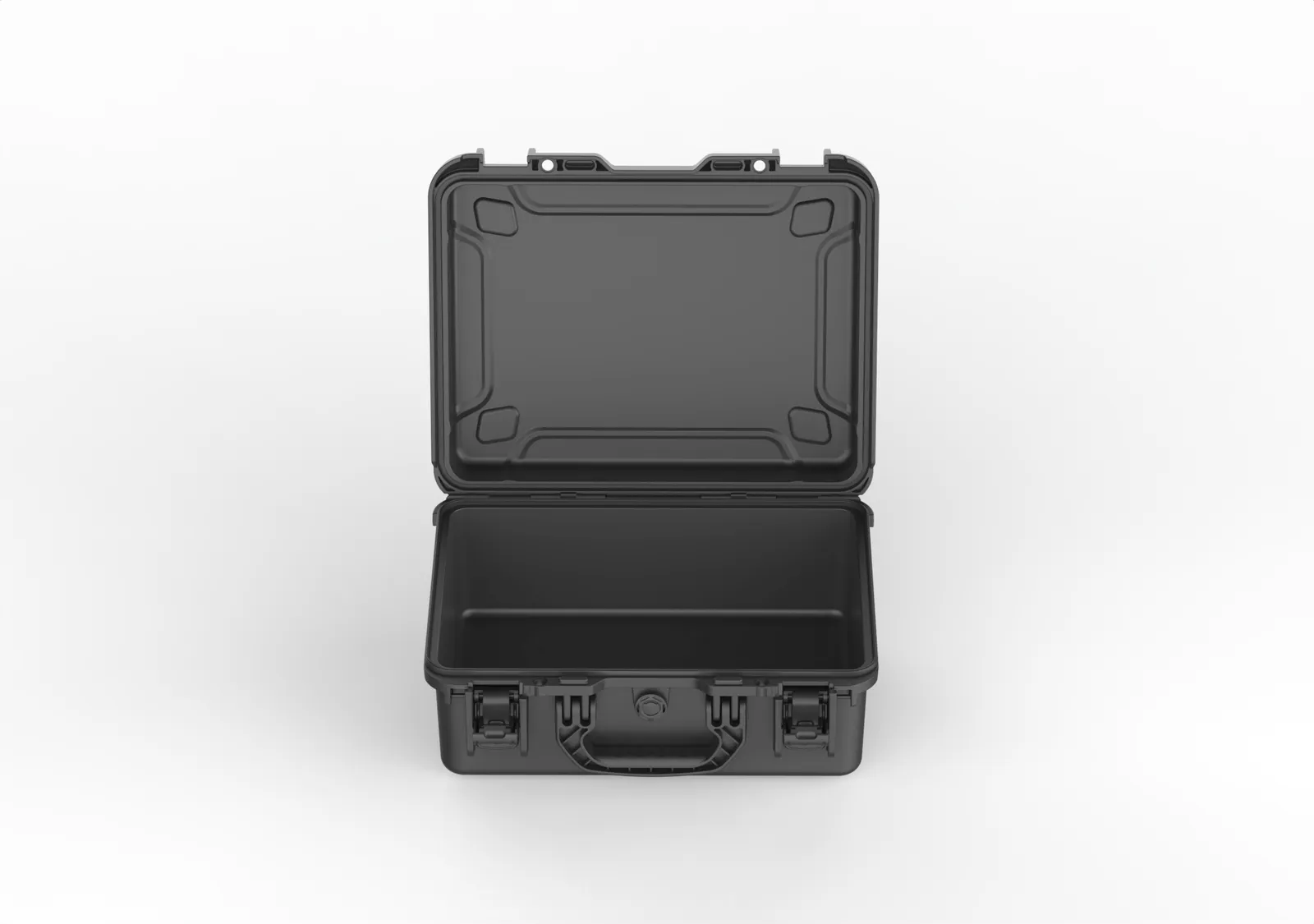

The lid depth is 45 mm and the base depth is 120 mm, which together account for the 165 mm internal height. The deeper base half carries taller main equipment, while the shallower lid side takes cables, adapters and documents. This split supports a two-layer insert: heavy items and the main unit below, accessories above. Set the height of your tallest item first, then divide the layer thicknesses and allow finger cut-outs for easy removal.

OEM and ODM are supported. JUNZHIJIA is our own brand and Kexin New Materials (Guangdong) Co., Ltd. supplies it factory-direct from its Zhongshan factory, with die-cut and layered foam, body colour, silk-screen or nameplate printing, latch configuration and packaging marks. MOQ and lead time are assessed against colour, insert complexity and printing requirements, and bulk production normally follows sample approval. Send your equipment list, target quantity and customisation items for a quote.
