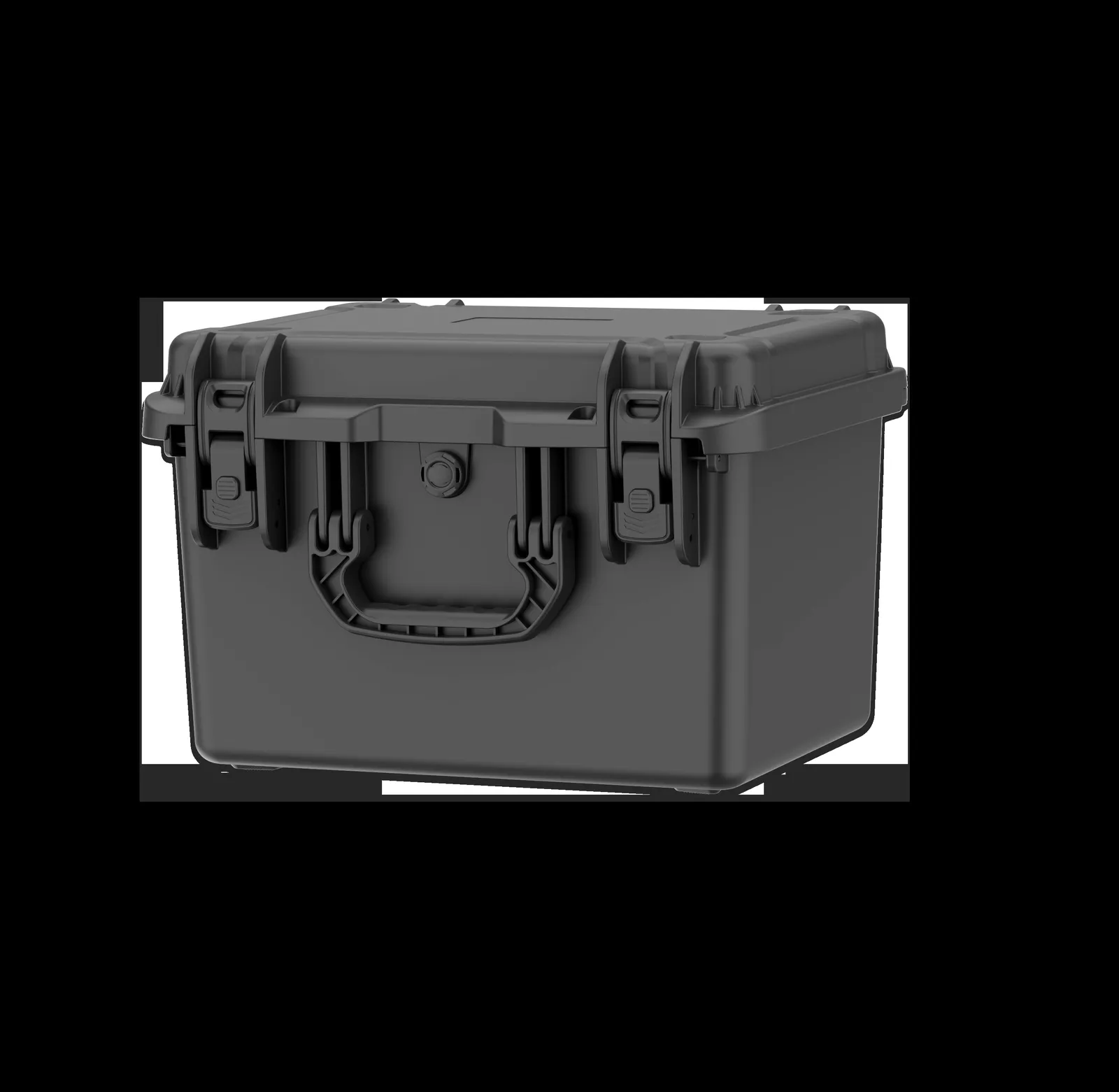

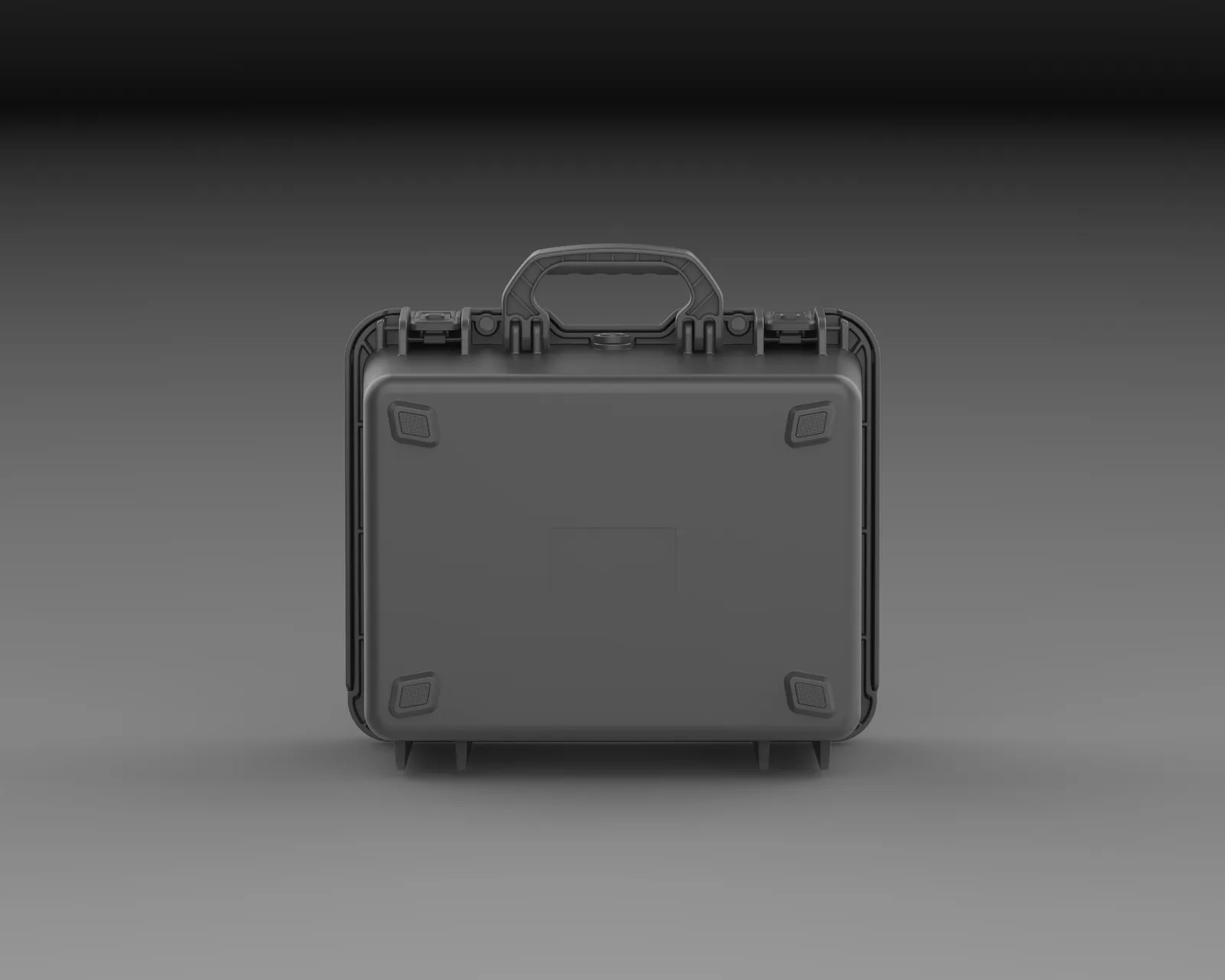

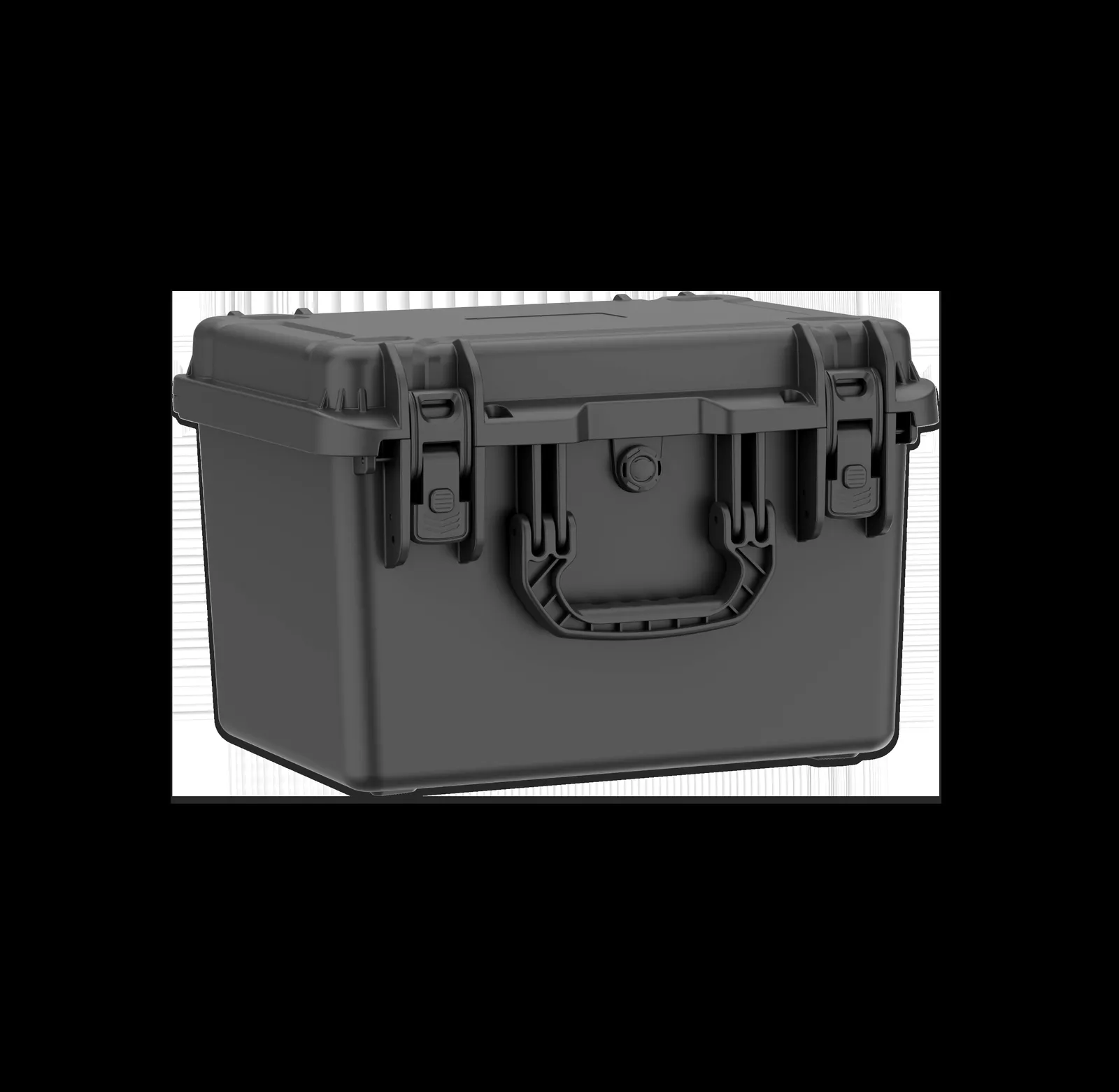

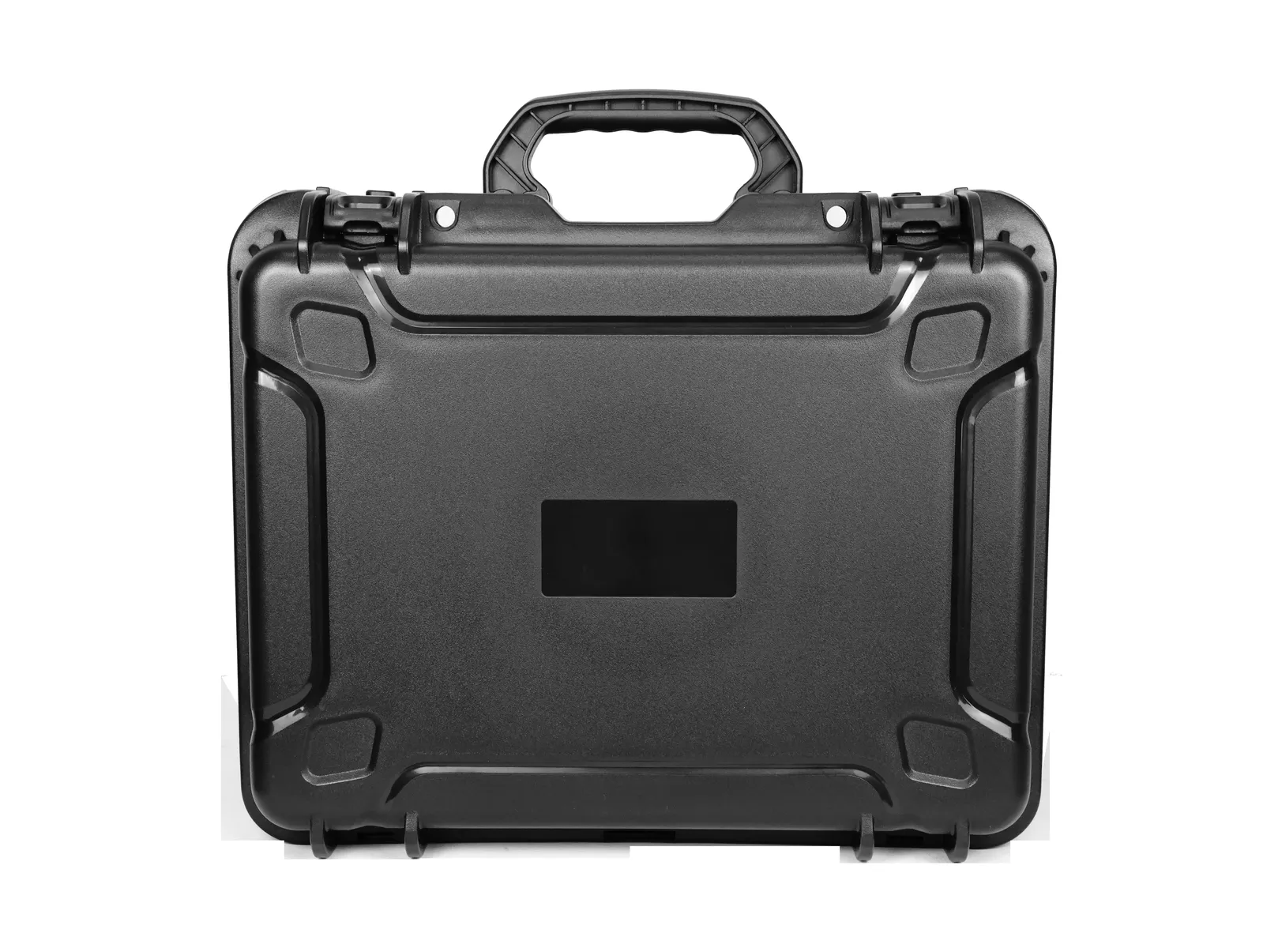

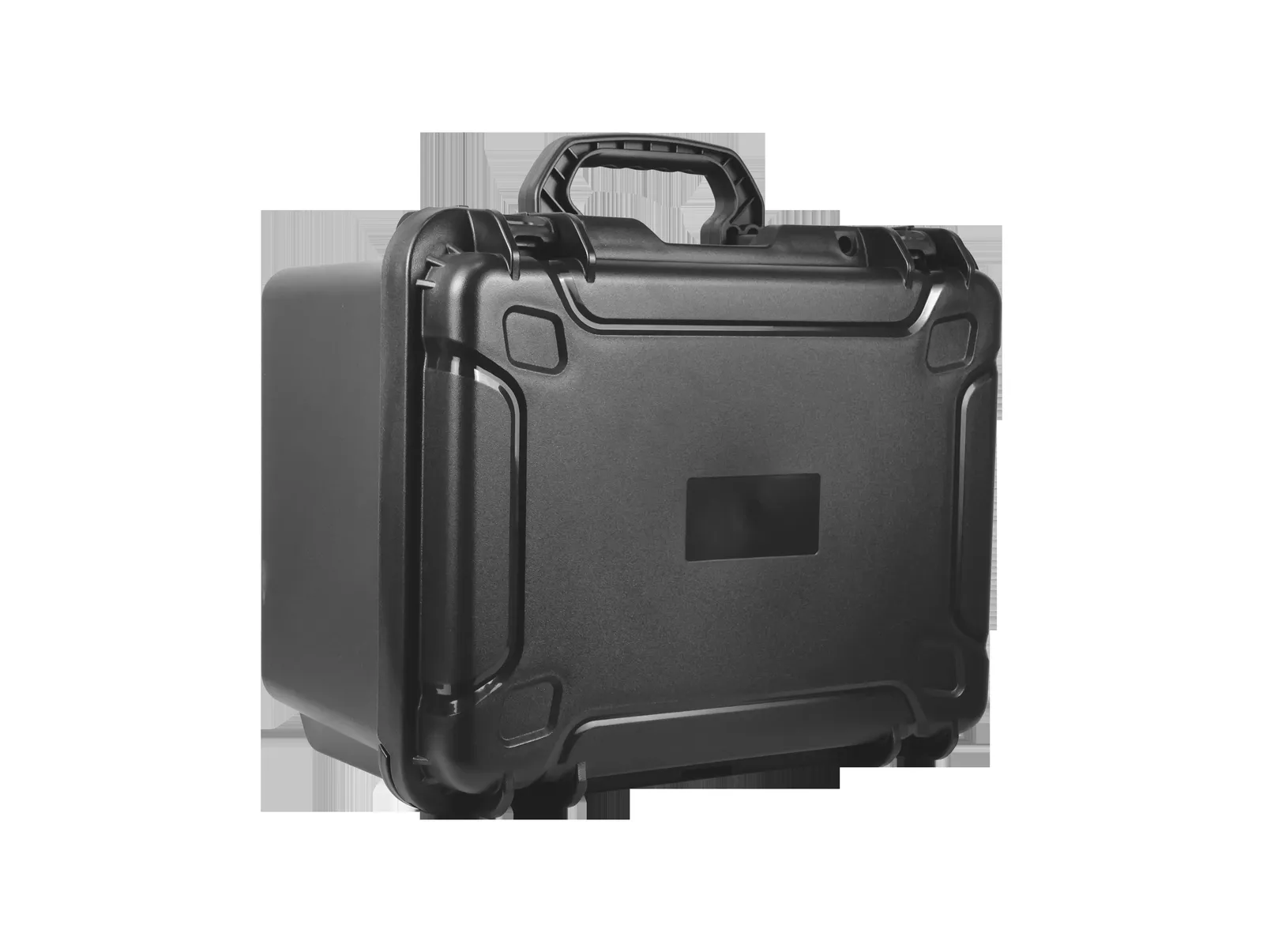

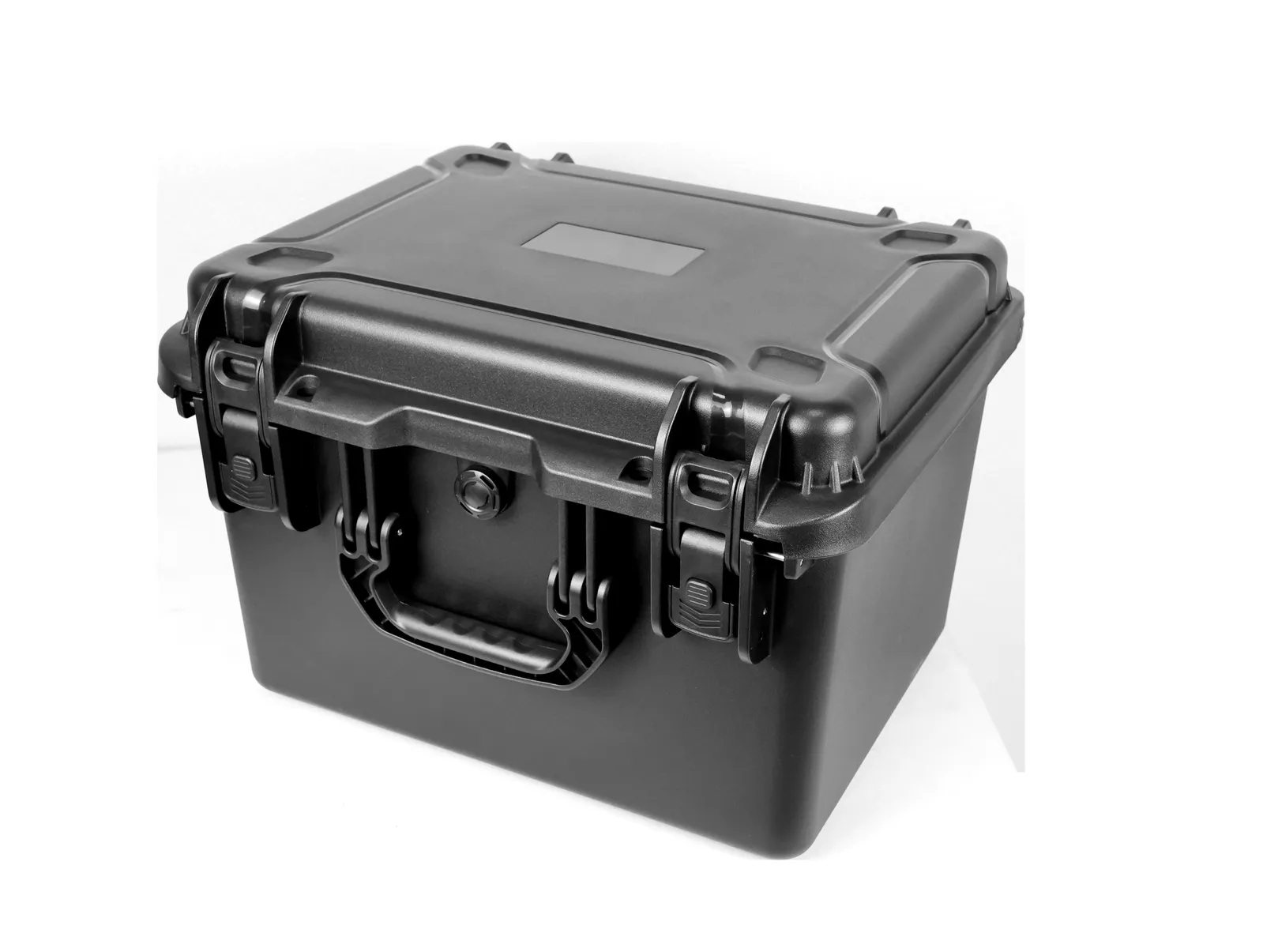

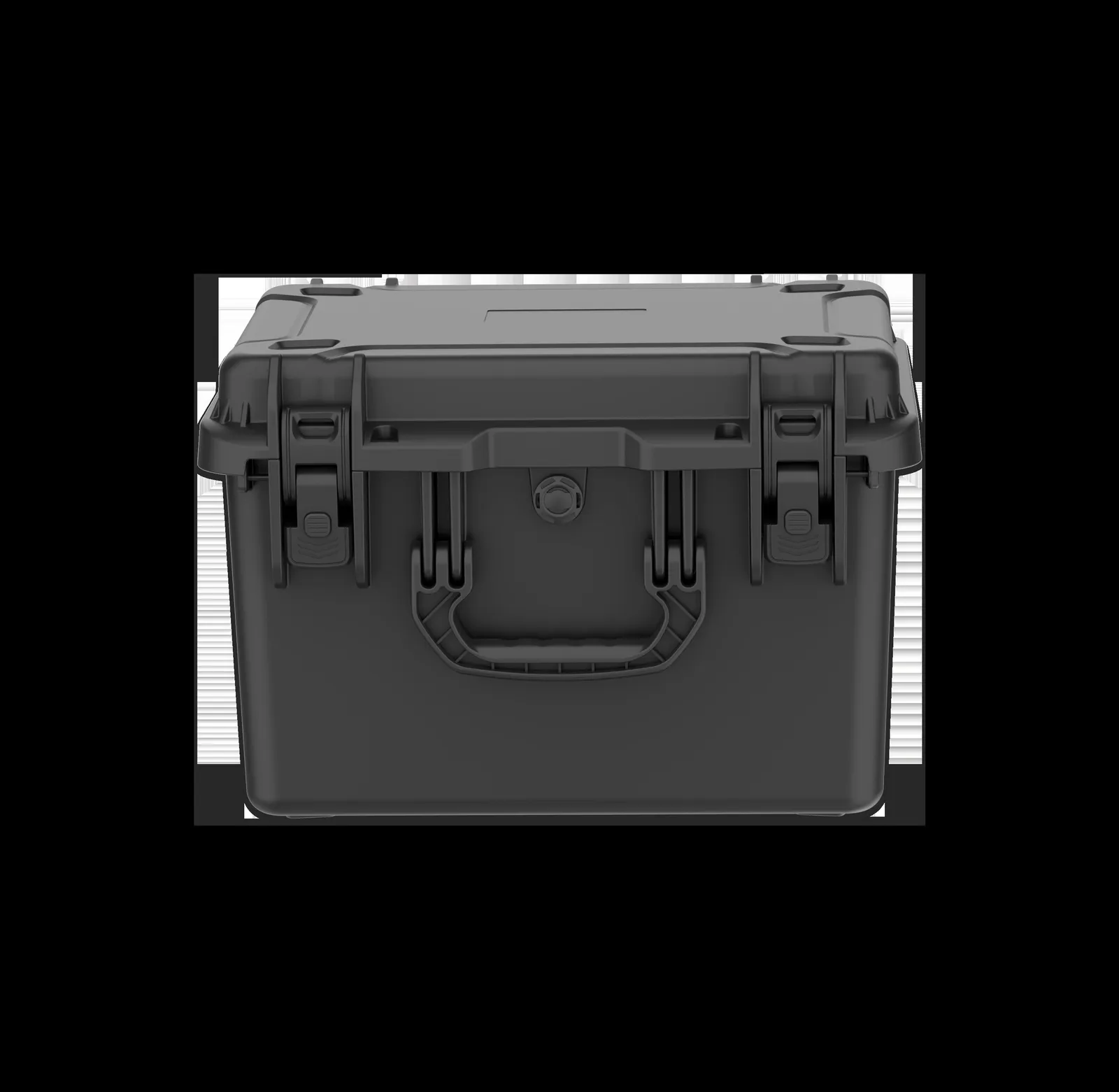

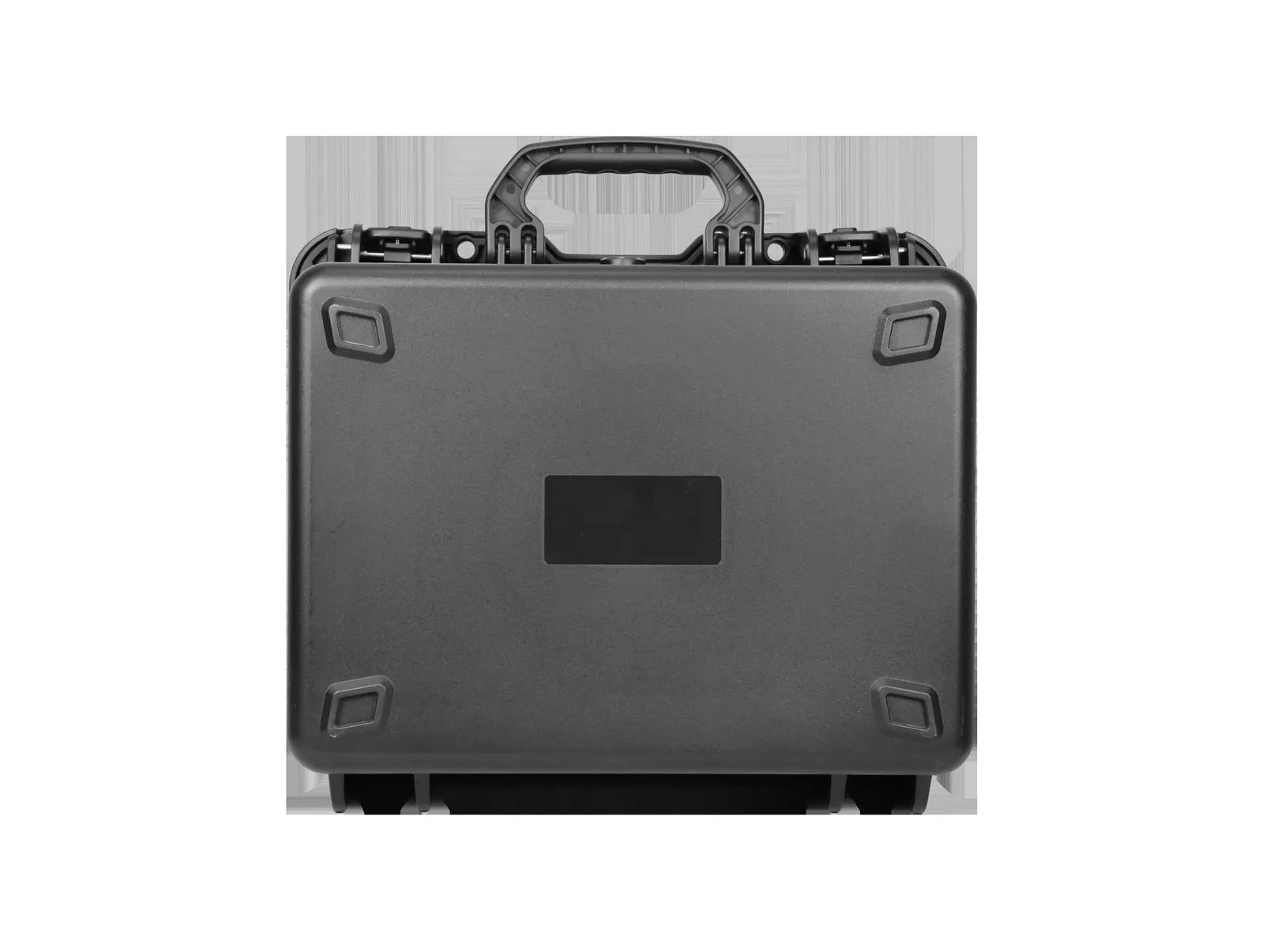

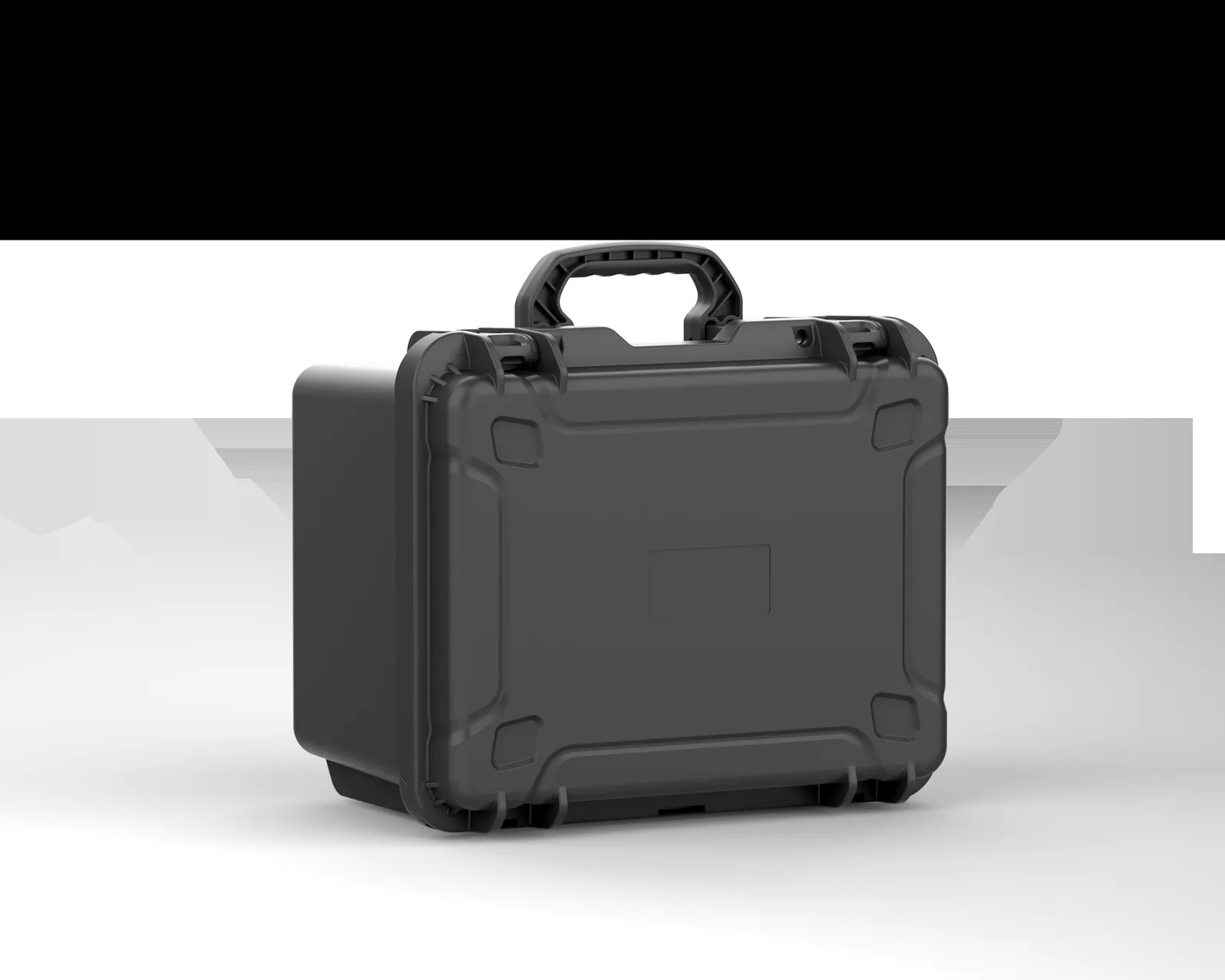

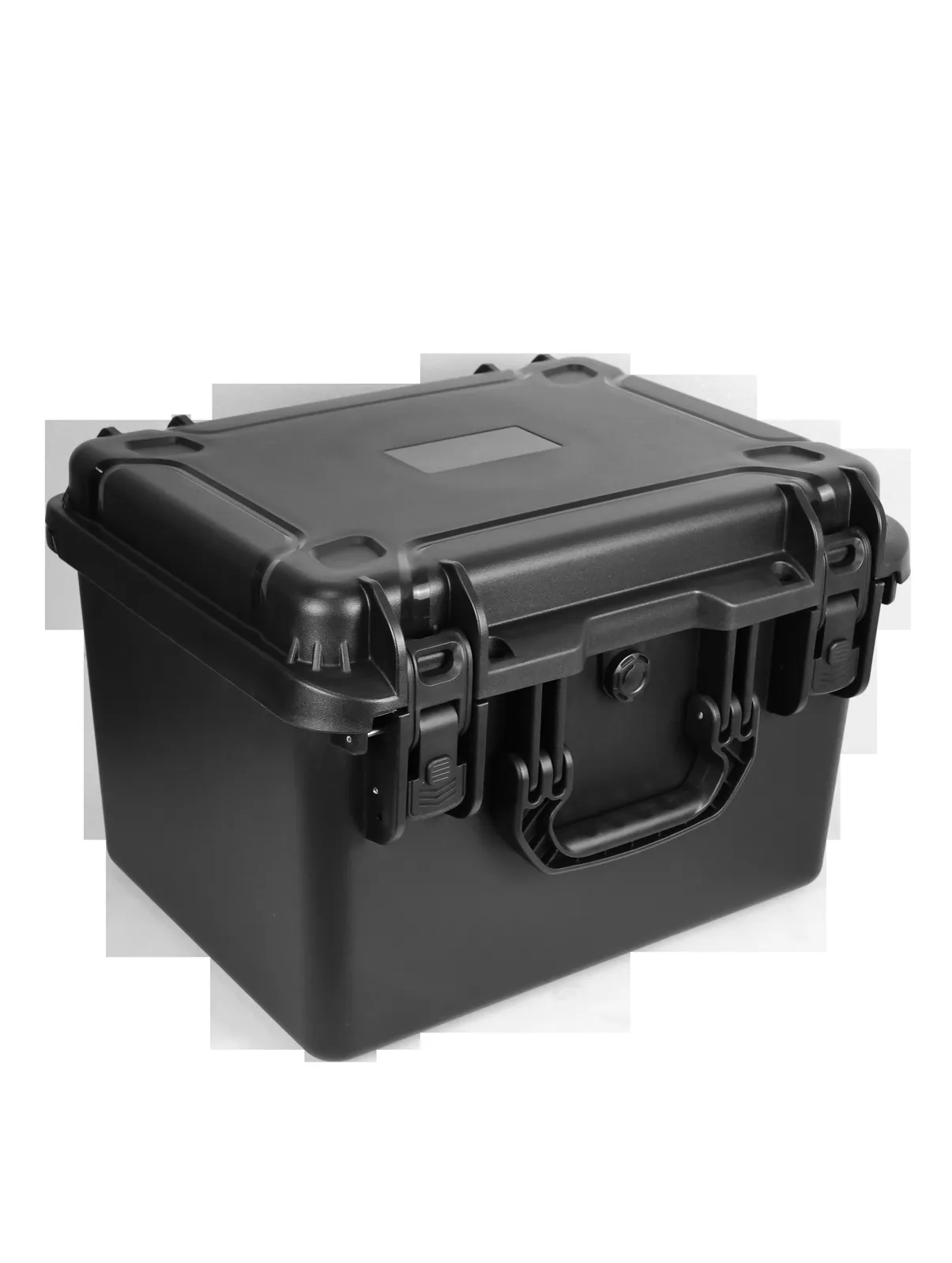

WL8-4430 Gun Case

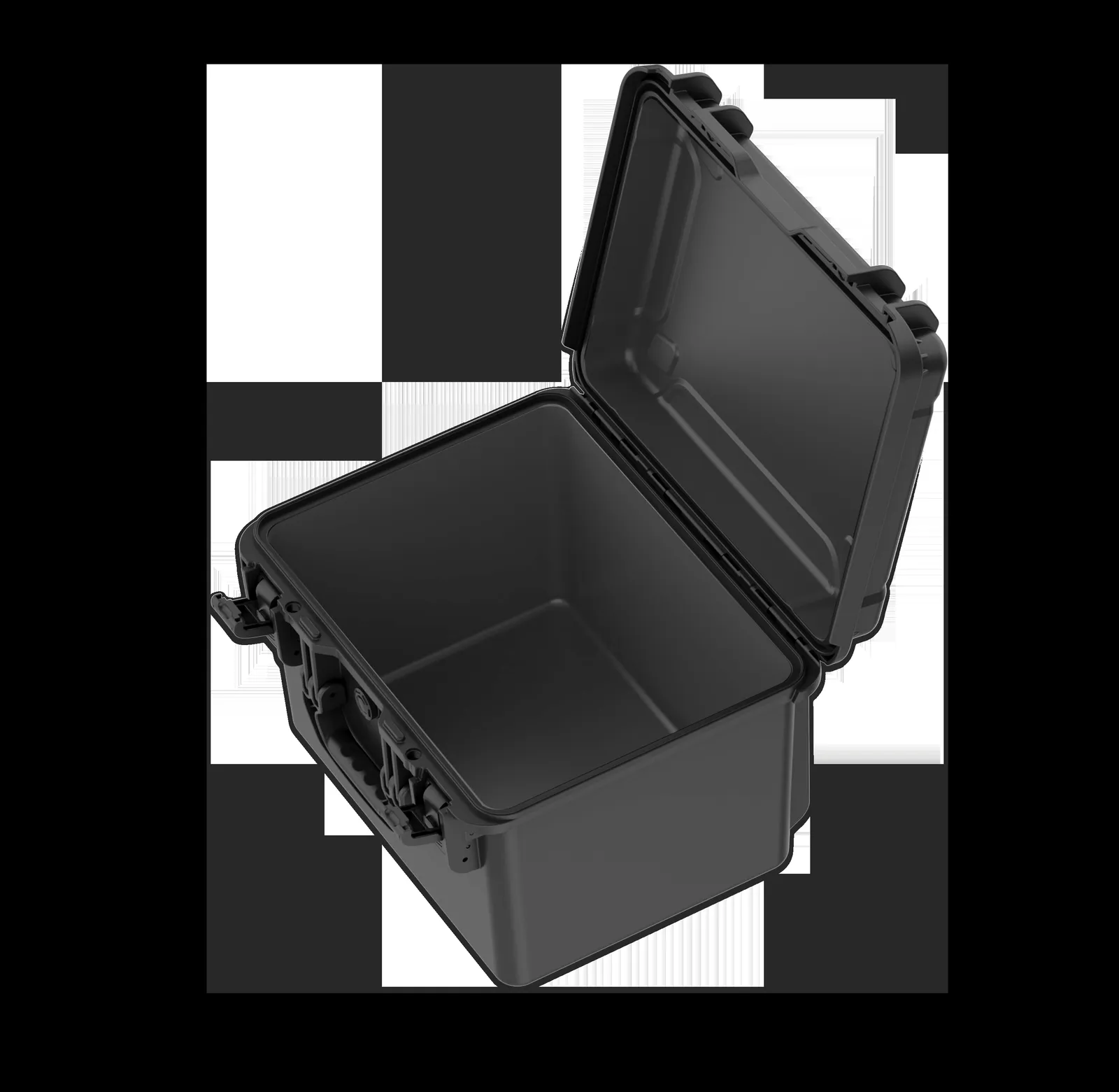

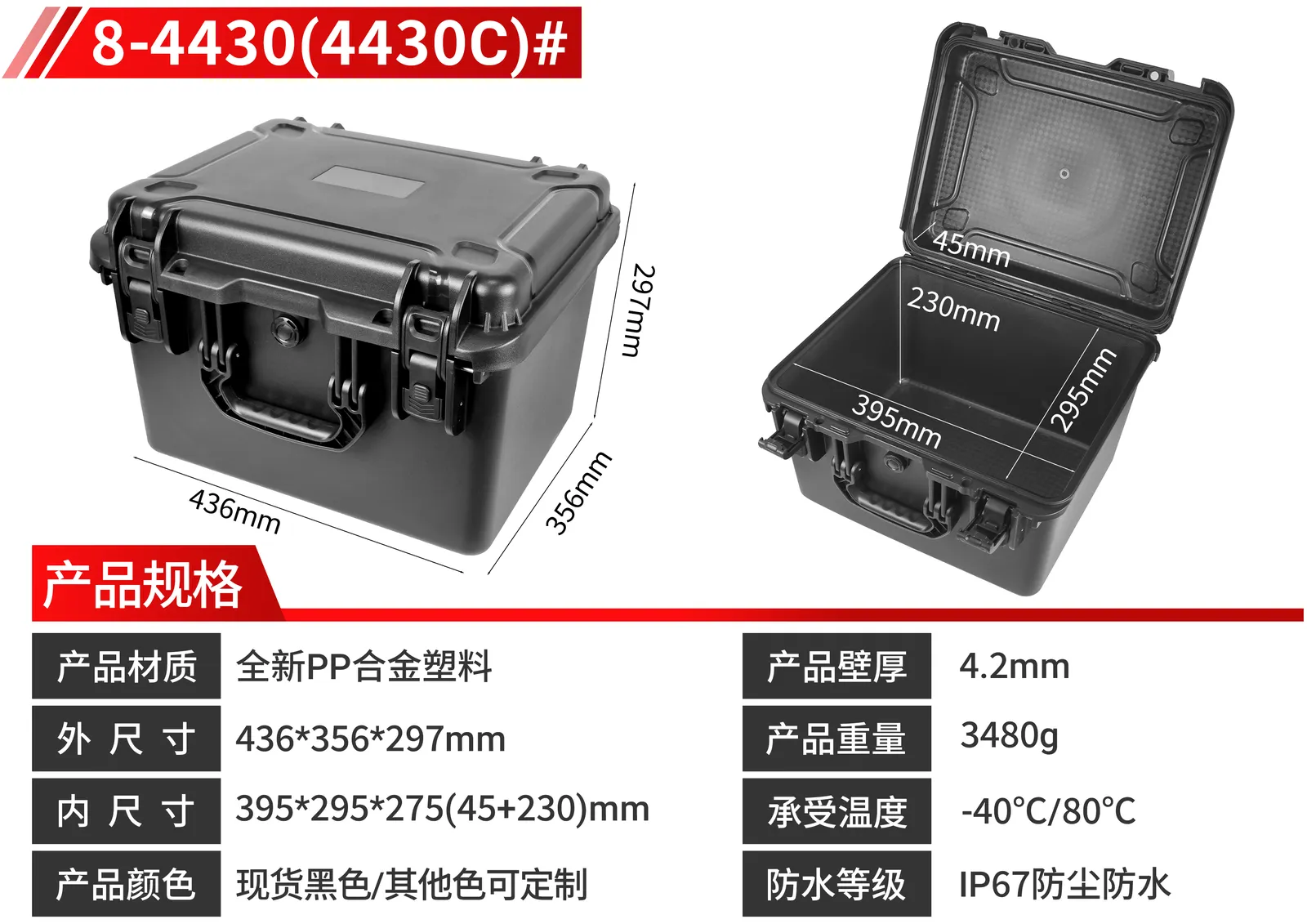

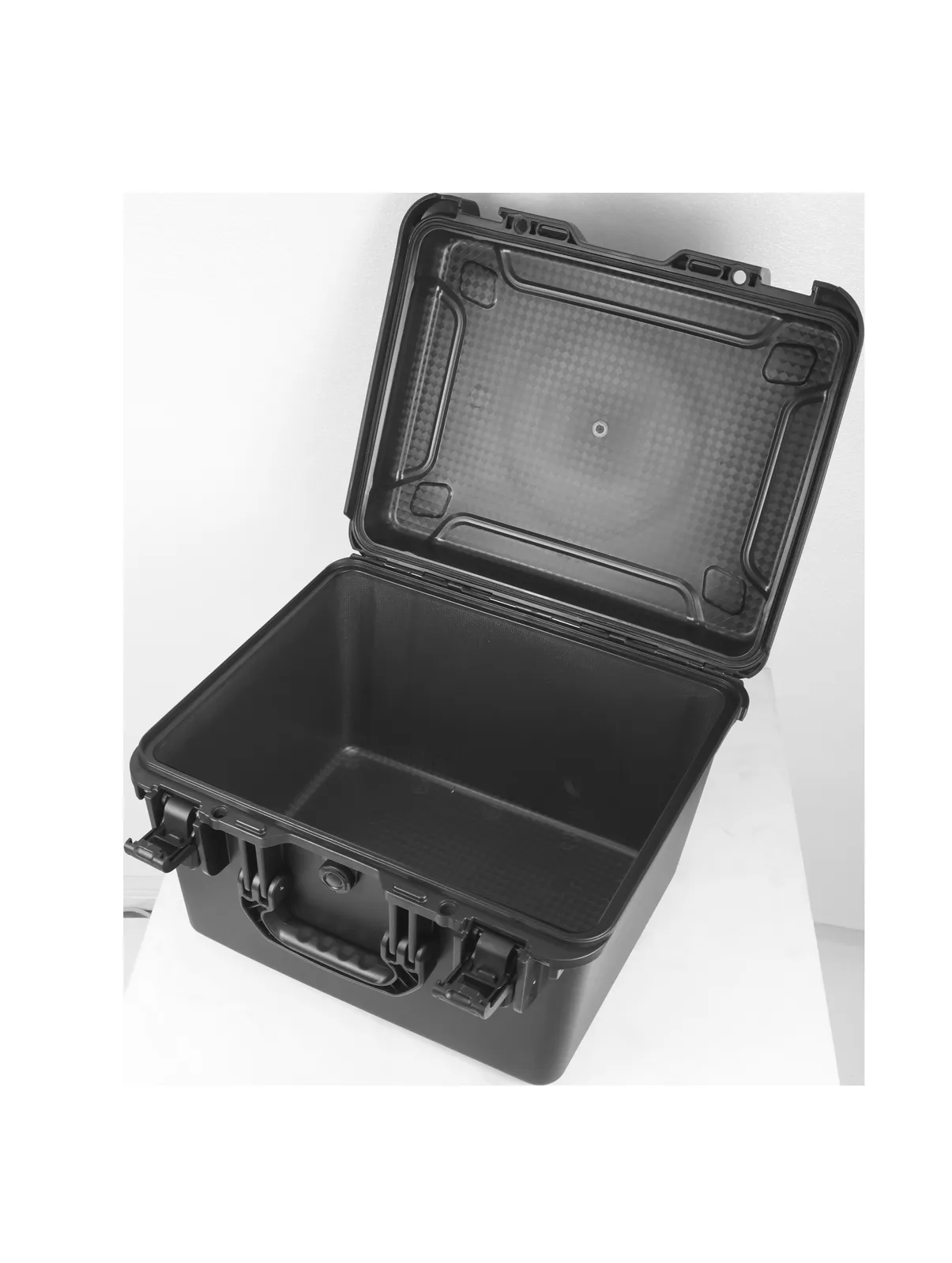

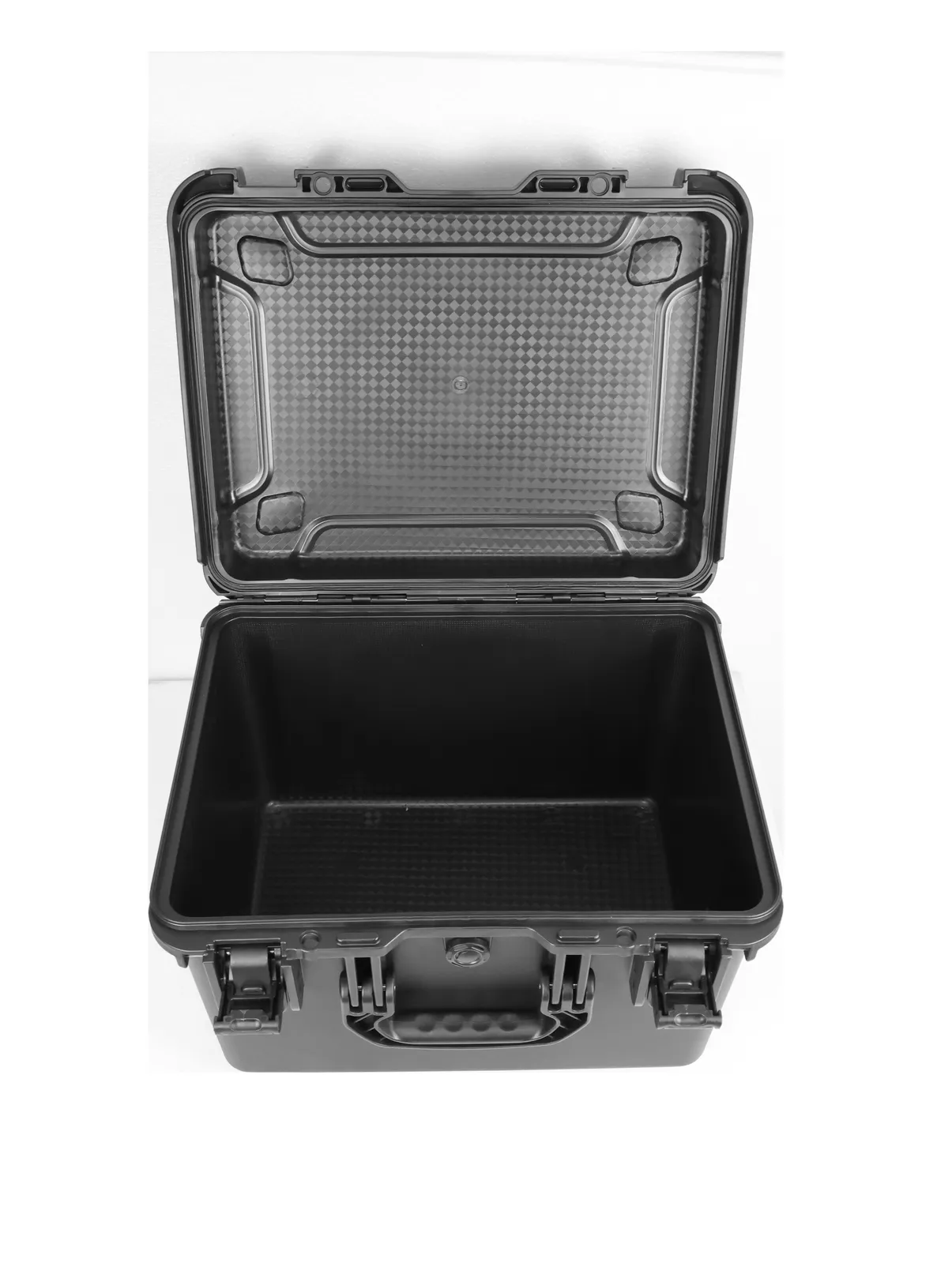

The interior is 395*295*275 mm with a usable floor of 395 by 295 mm and 275 mm of height, one of the tallest cavities in the 8 Series. That takes tall instruments, long-hand tools and electronic main units standing upright, and it supports three or more foam layers that separate equipment, tools and accessories. If an item comes close to 275 mm, allow some foam compression and have the size checked so the lid closes without obstruction before bulk ordering.

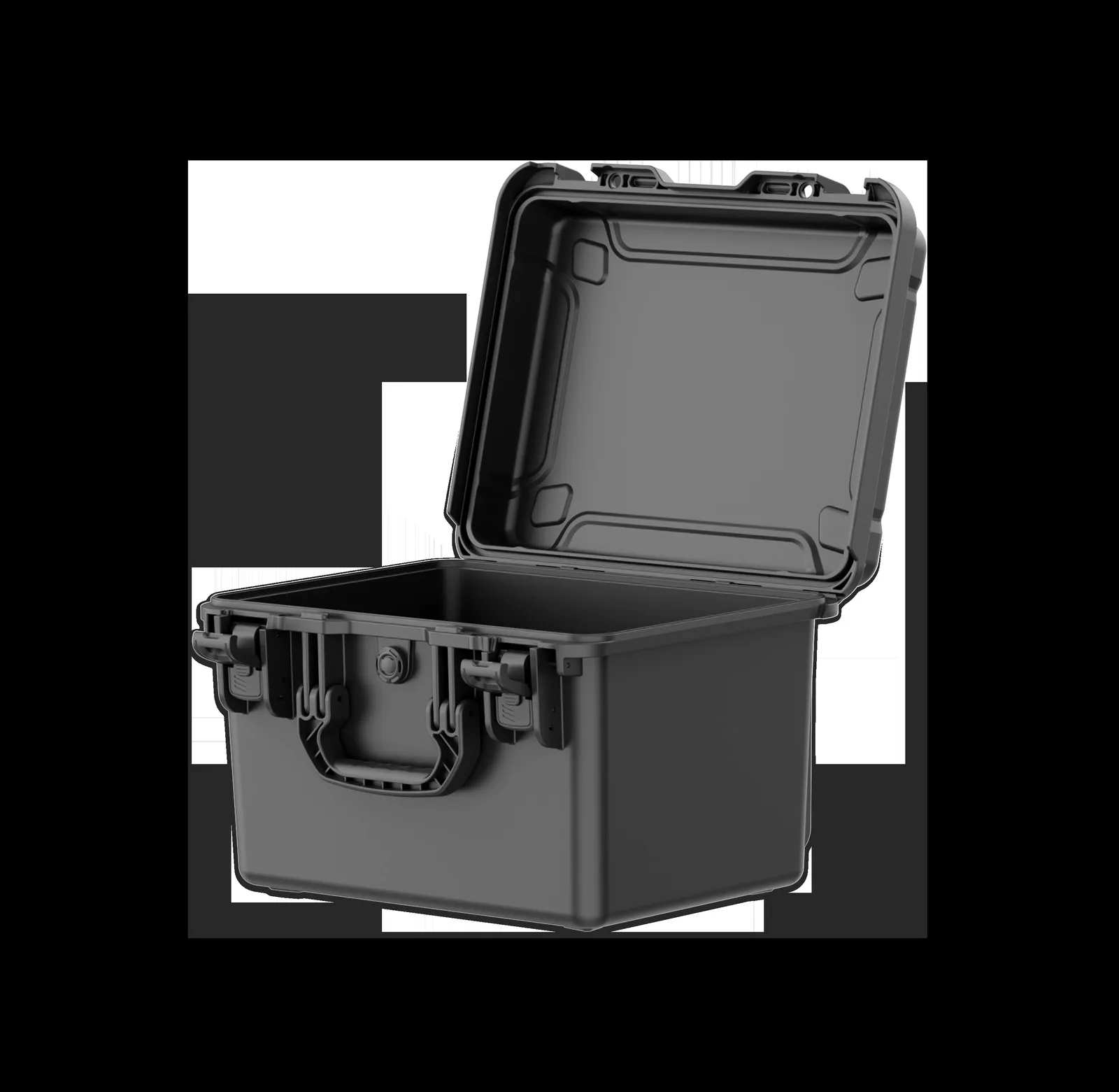

The lid depth is 45 mm and the base depth is 230 mm, which together account for the 275 mm internal height. The deep base half houses tall main equipment, and with layered foam it lets a load that would need two cases ship in one, cutting the number of cases, loading steps and inventory checks. The 45 mm lid side takes cables, documents and slim accessories, and with added foam it presses down on the top layer.

The closed case is rated IP67 for water and dust protection, keeping rain, moisture and dust out in dusty workshops, outdoor work and short immersion. We do not claim military standard certification for this model. Protection depends on the lid seating correctly on the gasket, so check the seal on a regular schedule for ageing, deformation or trapped particles, and avoid long soaking or heavy rain once the seal is damaged.

At 3480 g this is one of the heavier specifications in the 8 Series, reflecting the deep body, the 4.2 mm wall and the large 395*295 mm floor. The weight buys more structural margin and a bigger payload, which suits whole-case rotation moved by trolley or pallet truck. If the case is carried by hand for long periods, review the actual load and handling frequency, or split the inventory across two smaller cases to reduce per-case weight.

This product page does not list the body material item by item, and the material, colour and appearance actually supplied are confirmed in the order technical file. JUNZHIJIA is our own brand and Kexin New Materials (Guangdong) Co., Ltd. supplies it factory-direct from its Zhongshan factory, with die-cut and multi-layer foam, colour, silk-screen or nameplate printing, latch configuration and packaging marks for OEM and ODM orders. MOQ and lead time are quoted after configuration review.
