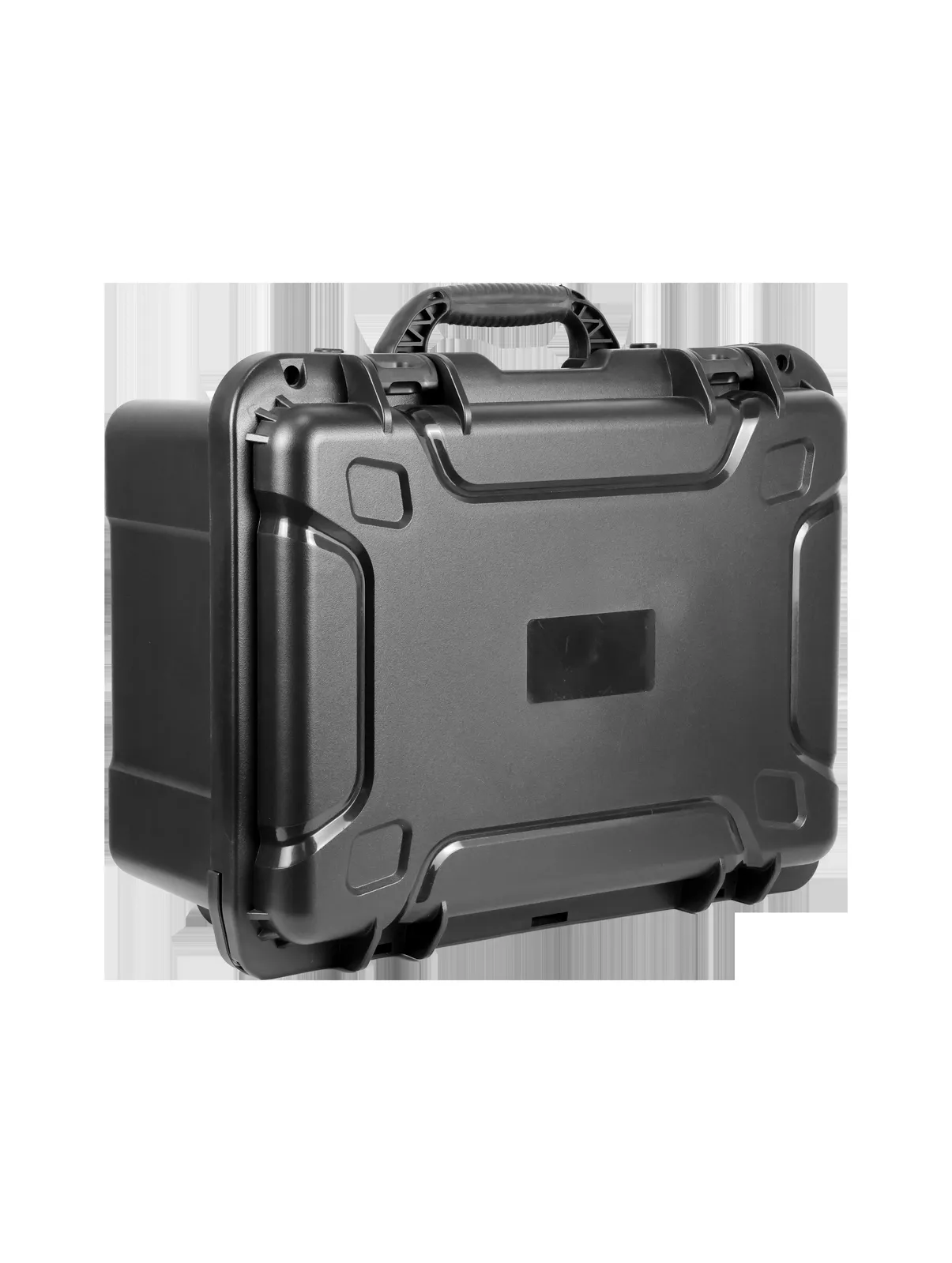

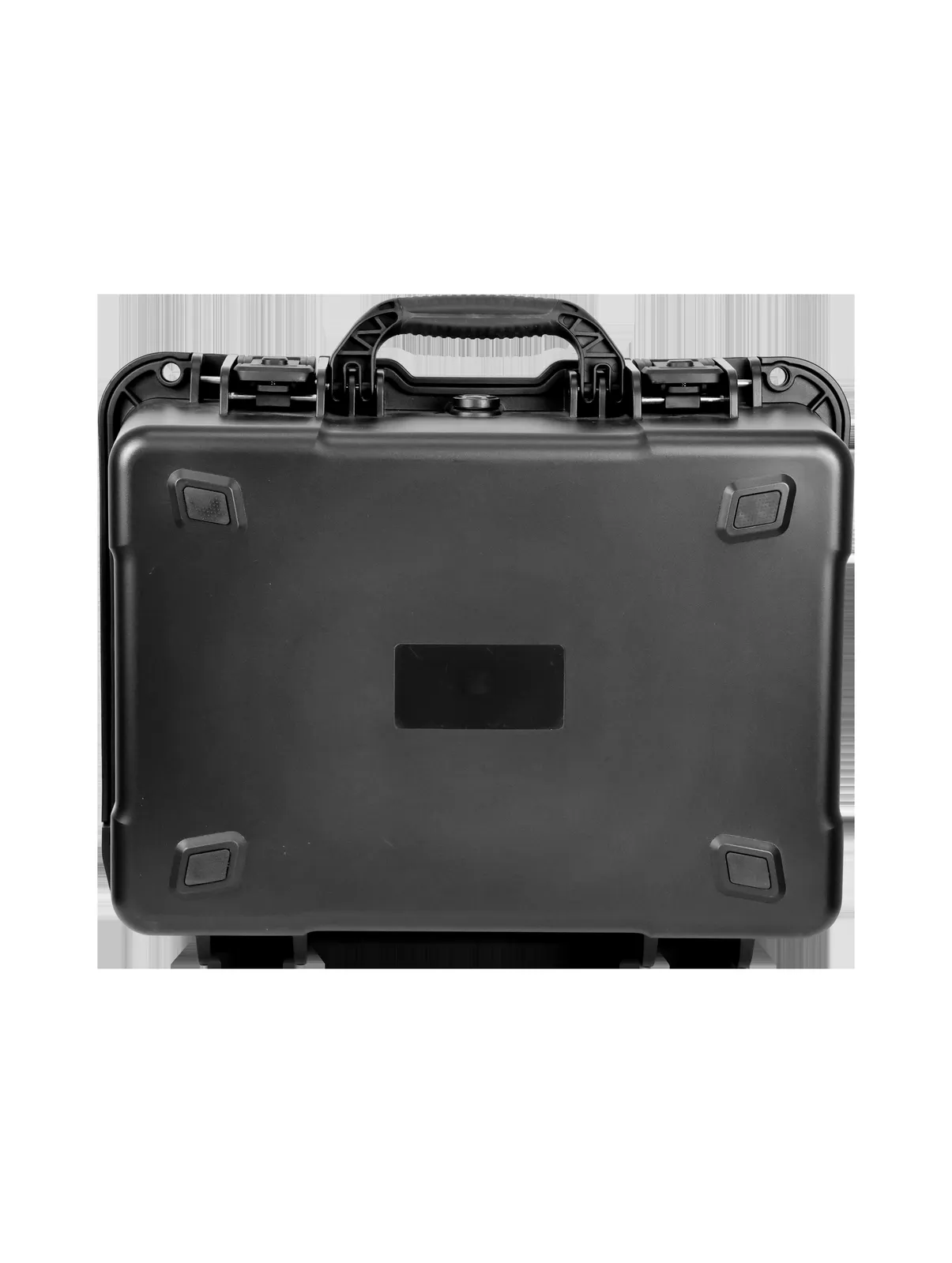

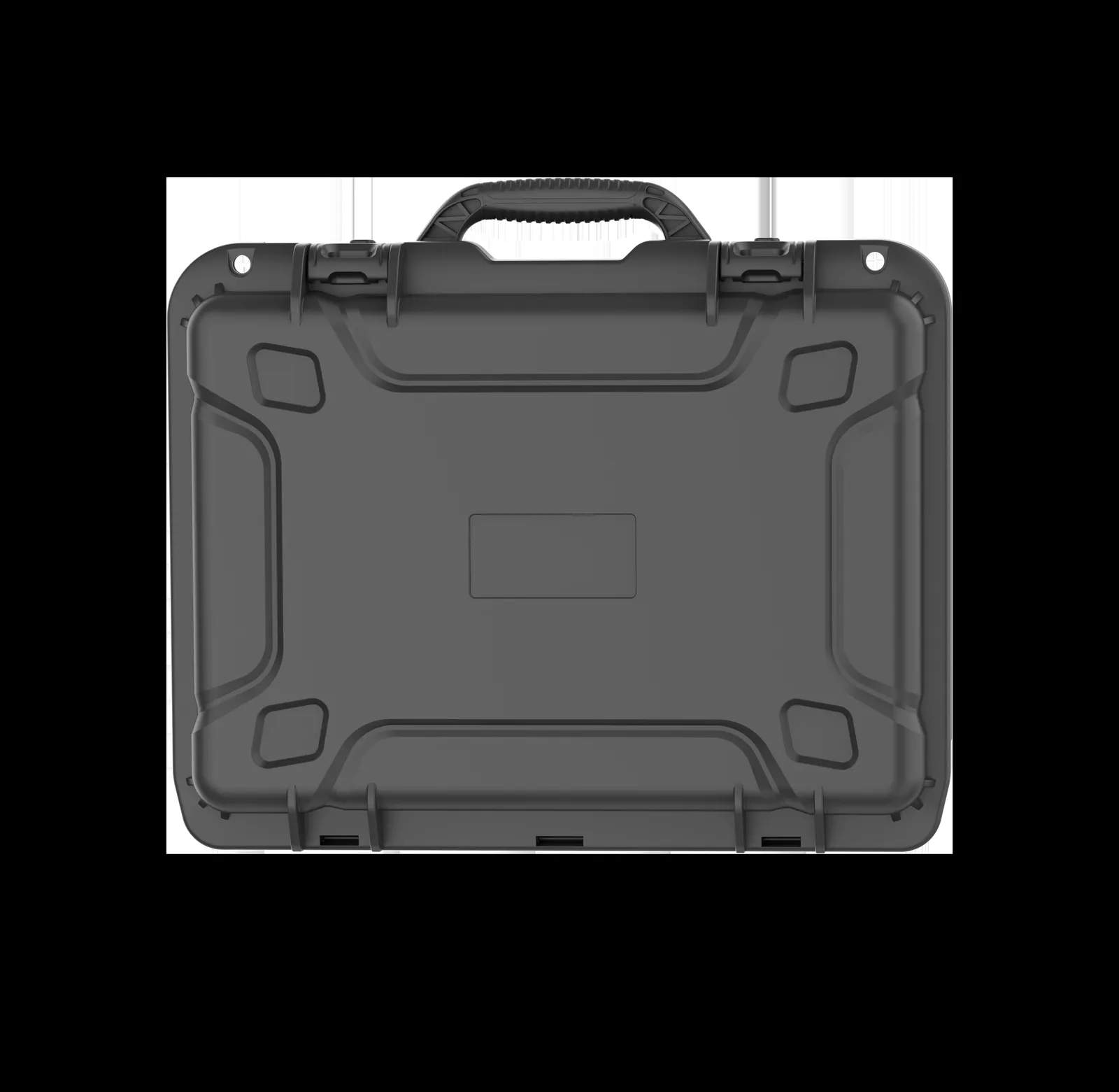

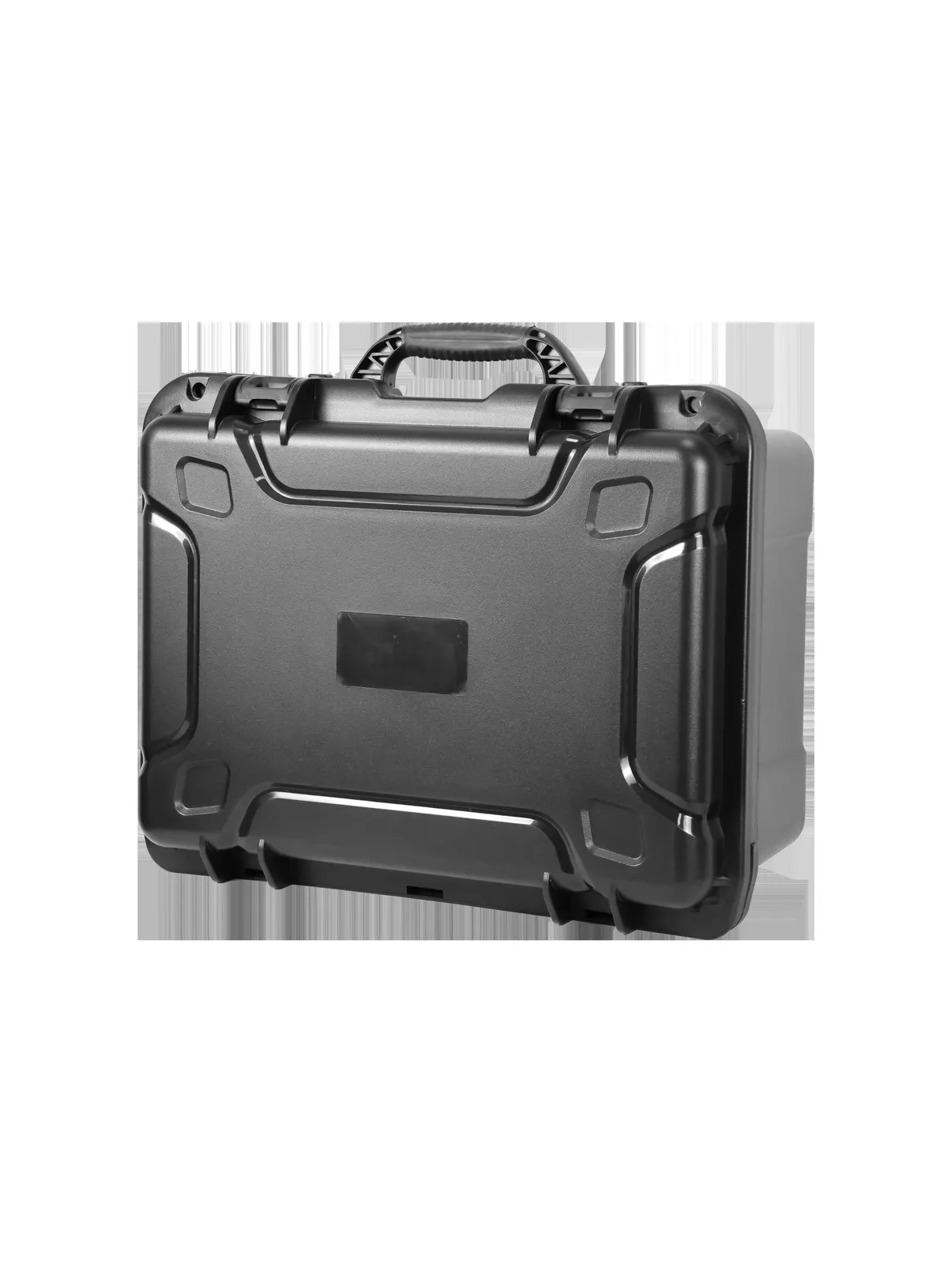

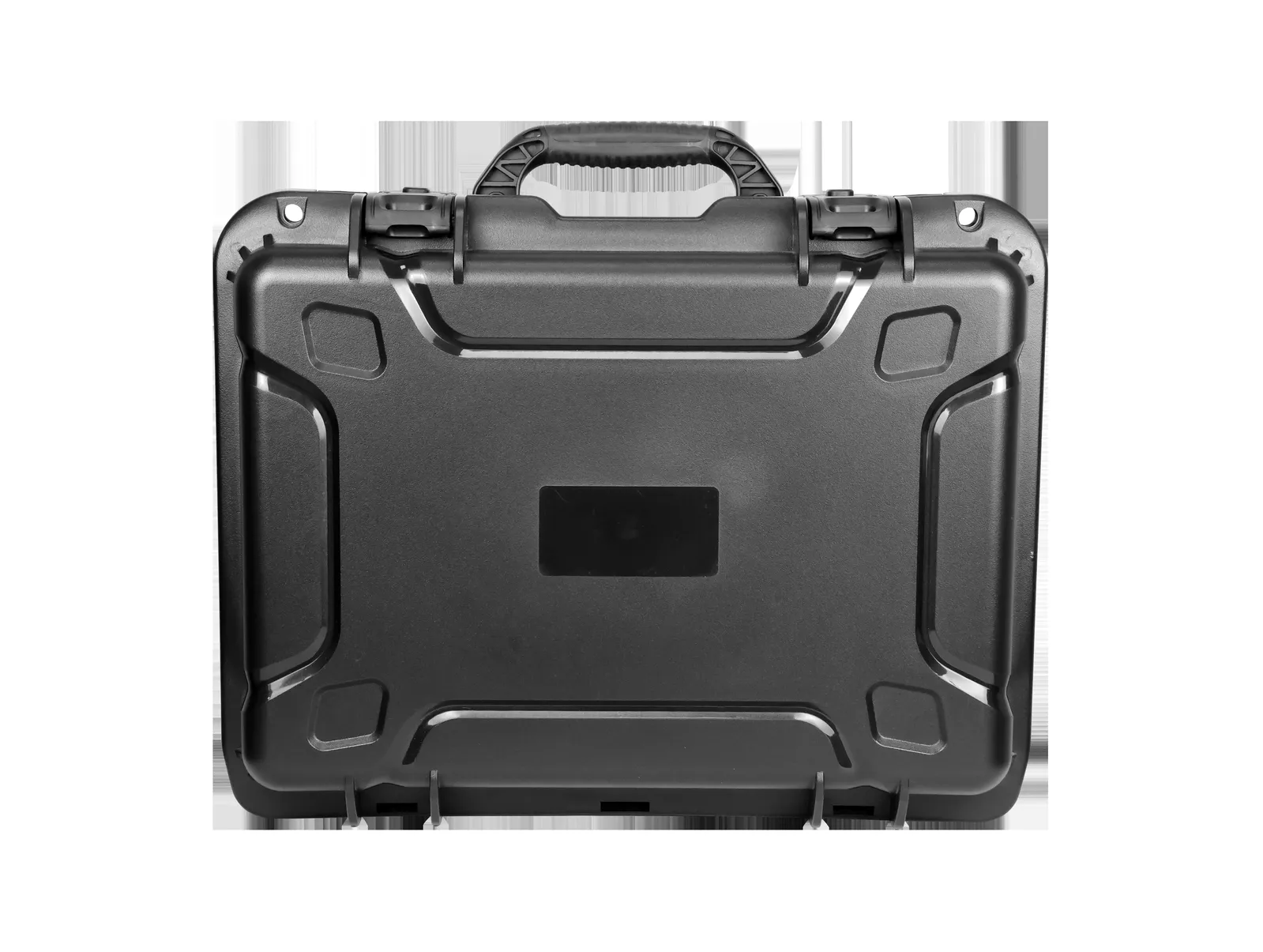

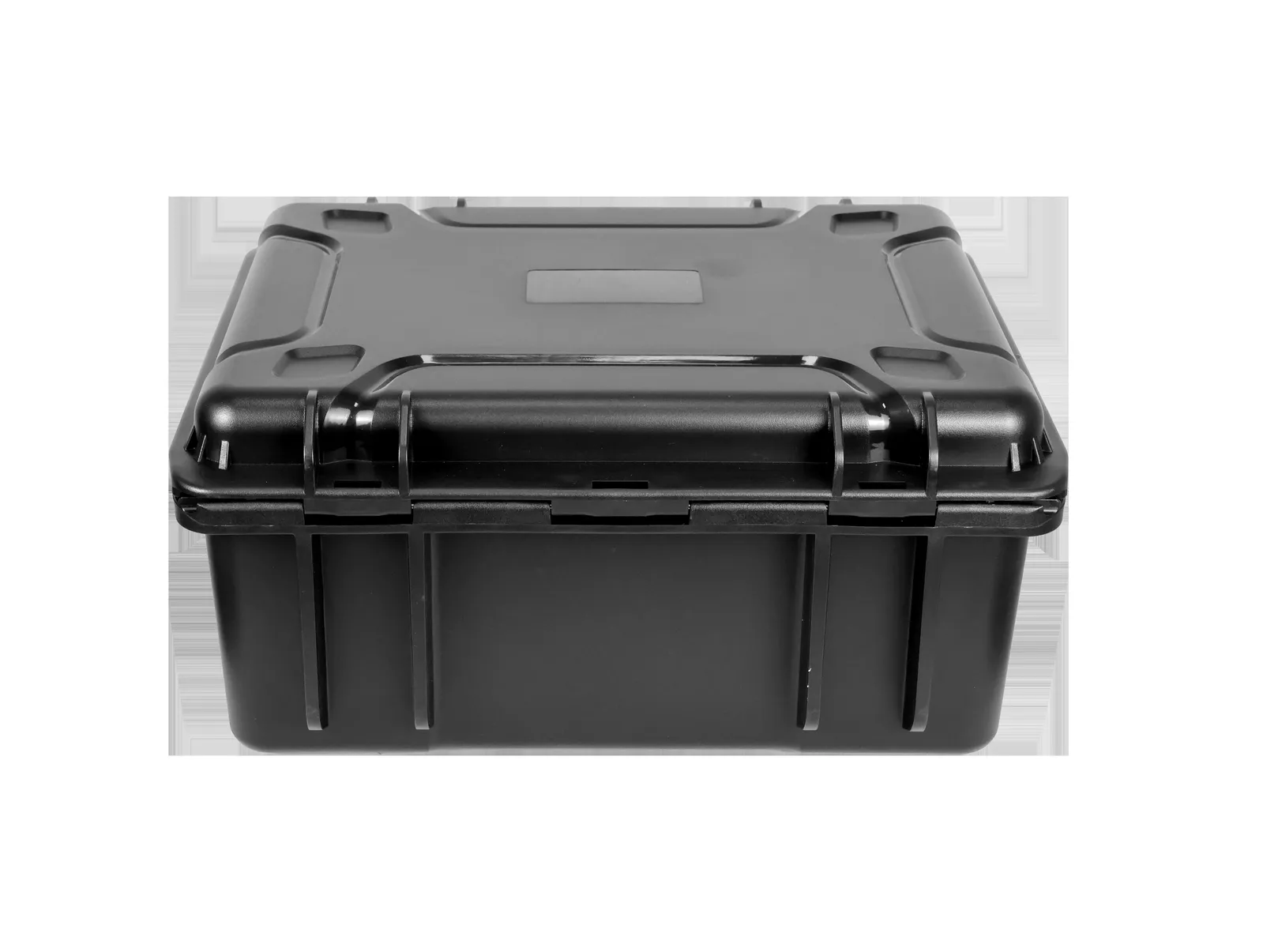

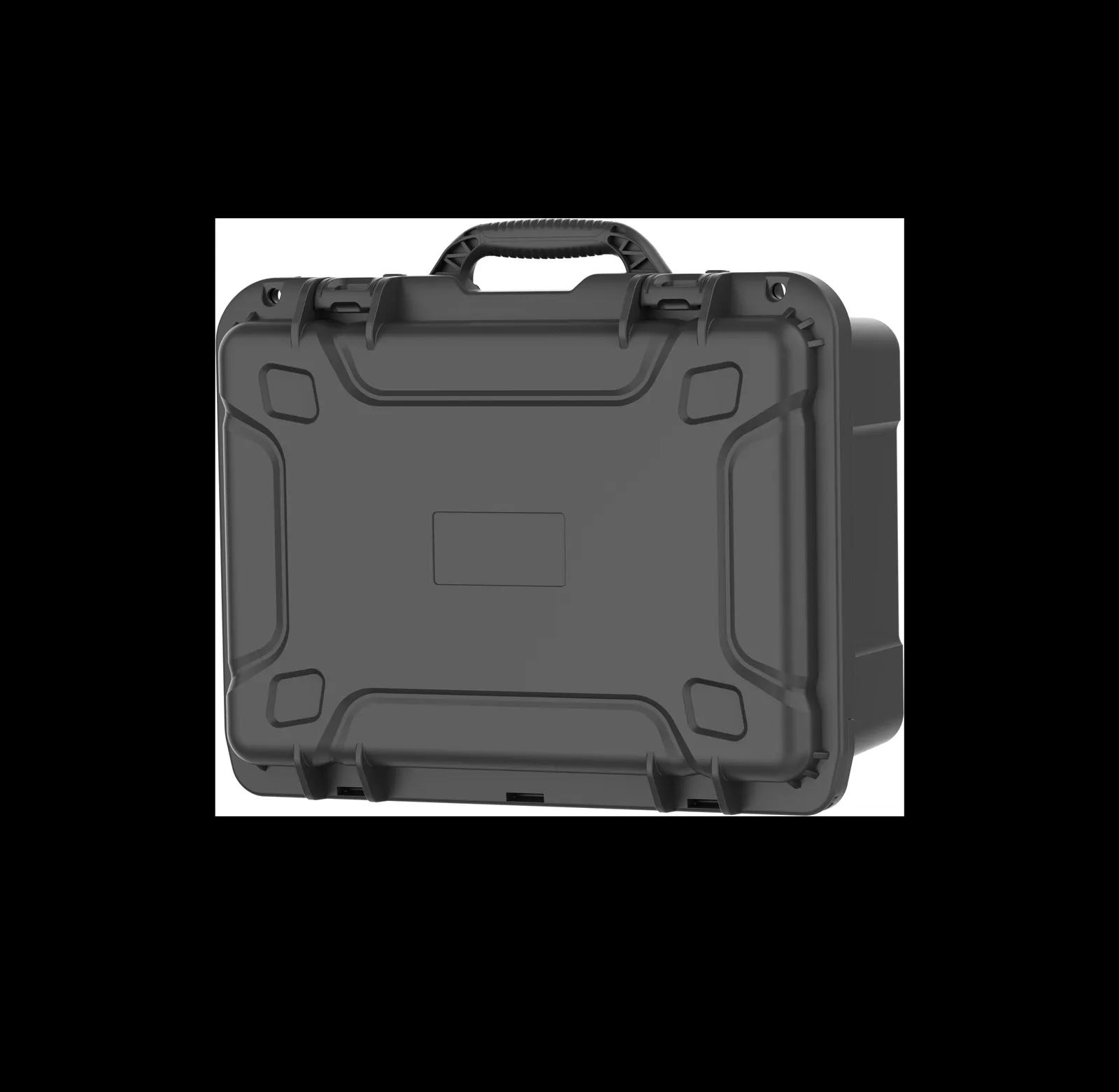

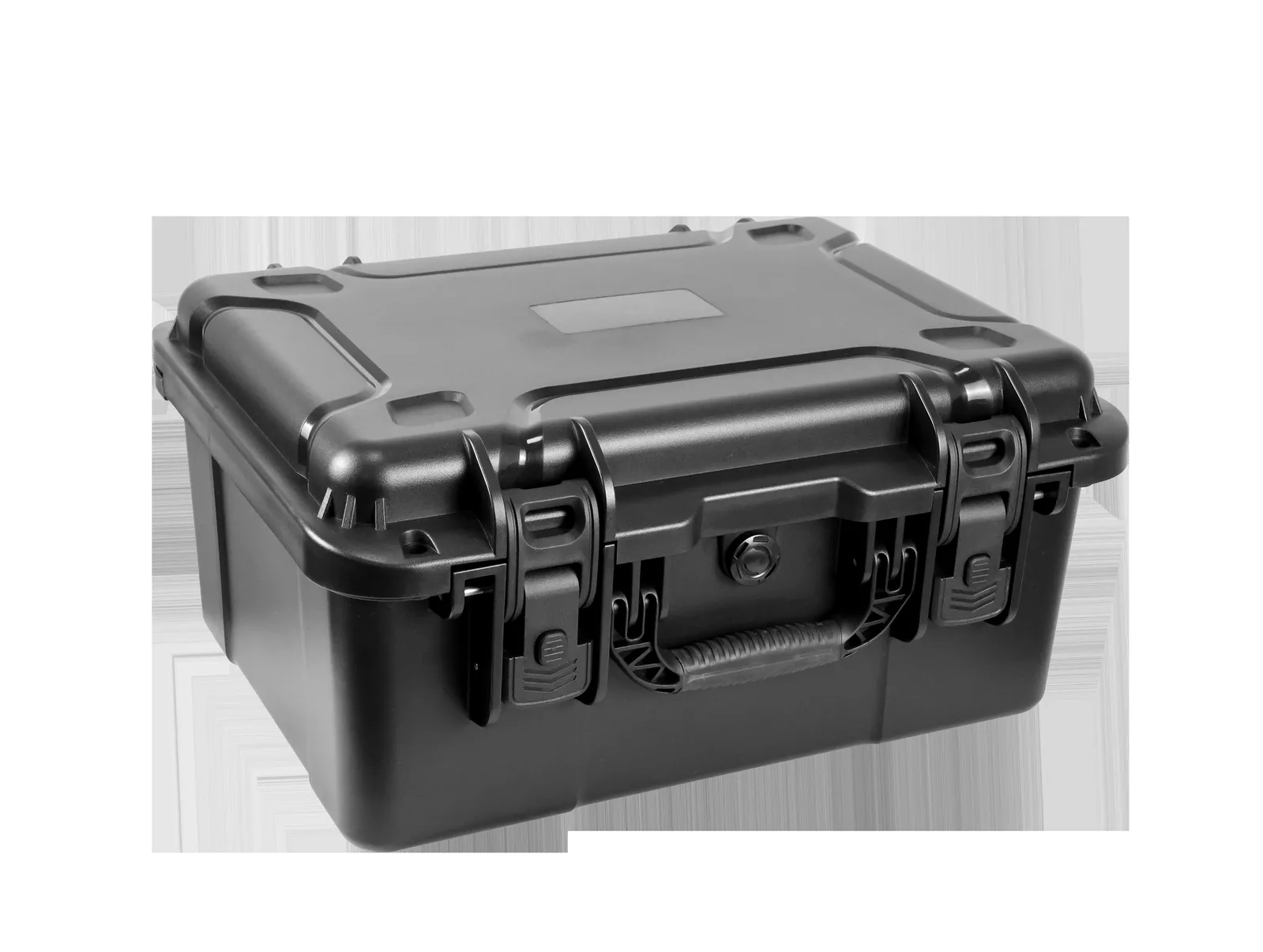

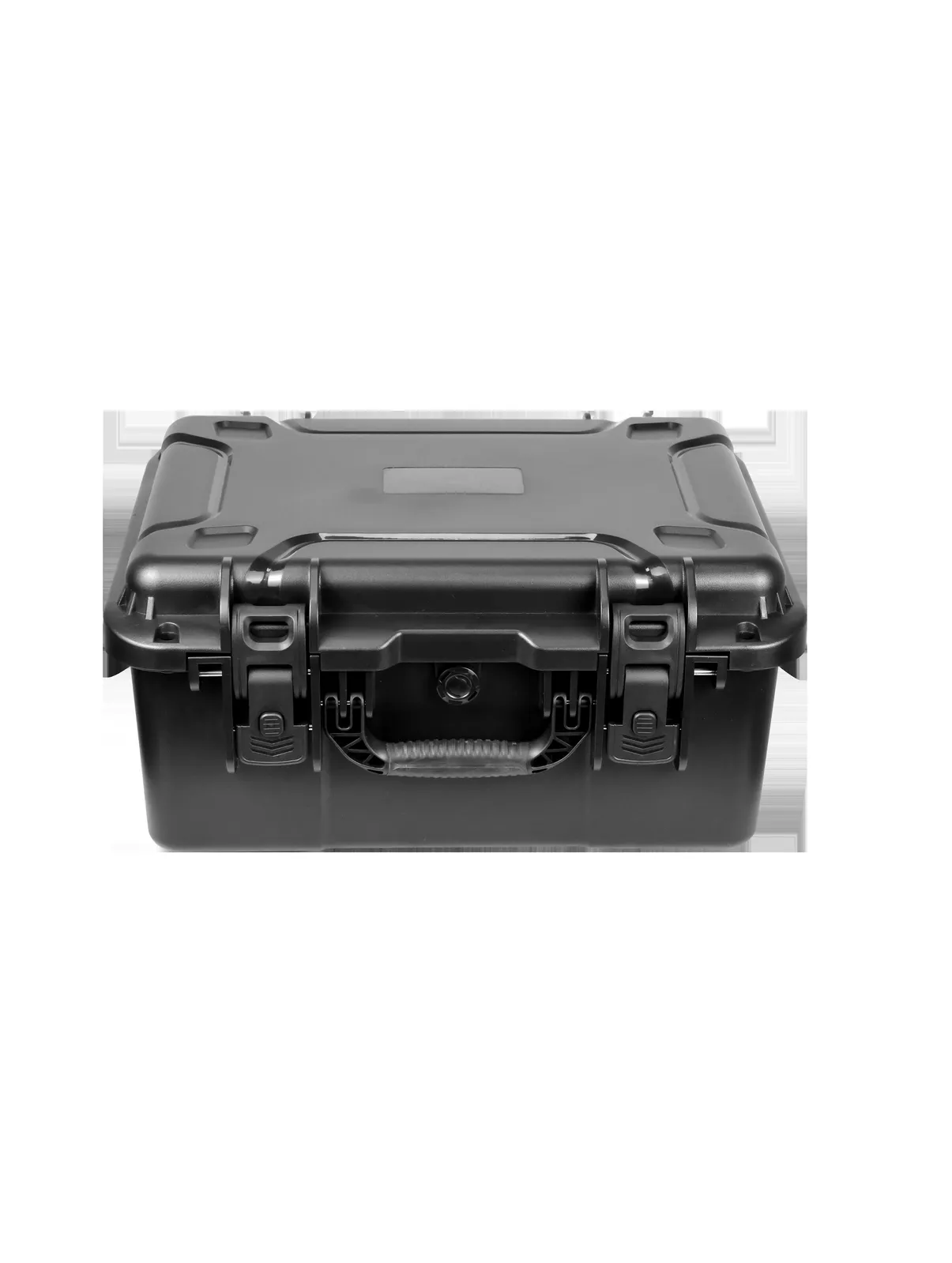

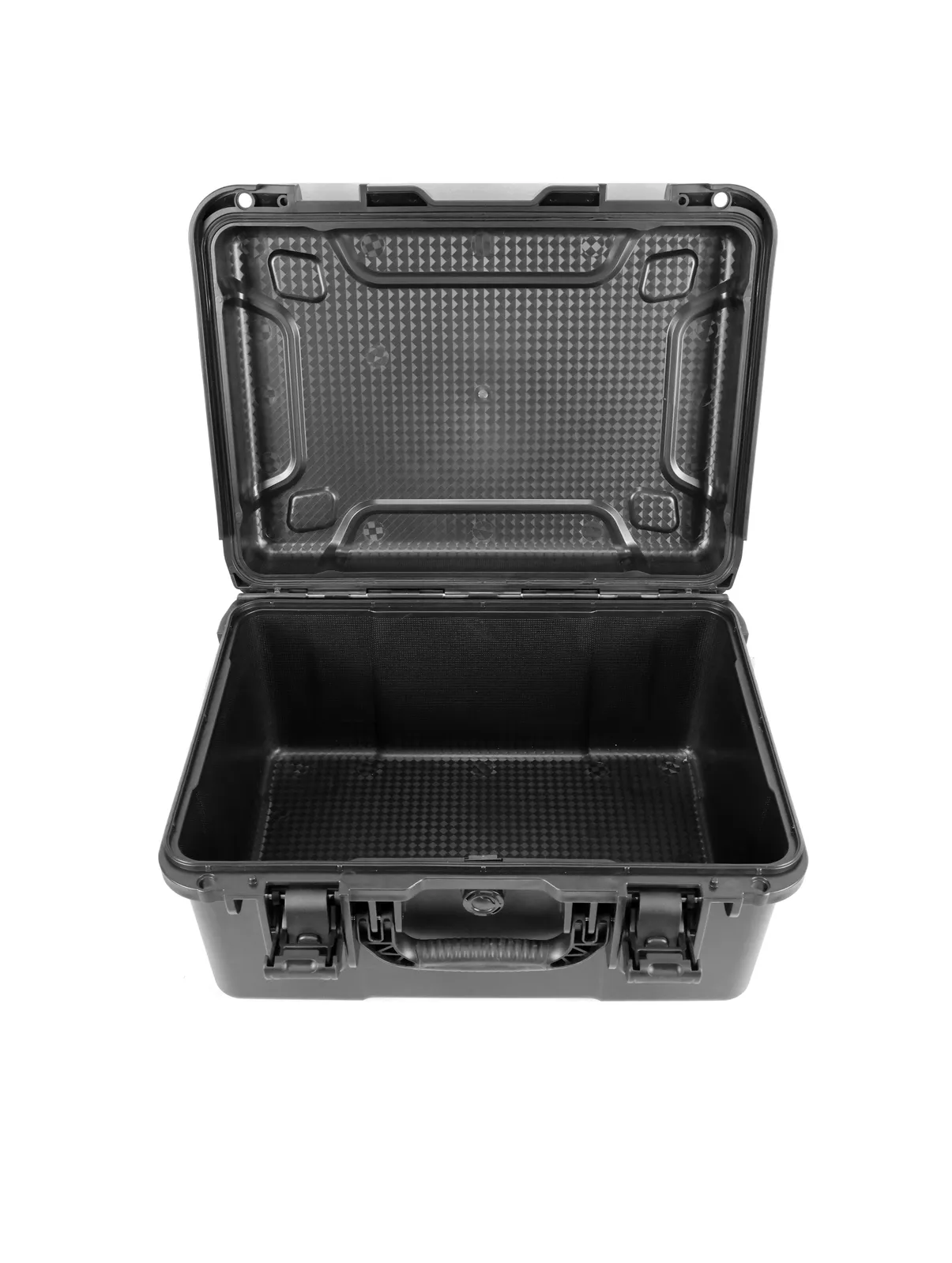

WL8-4823 PP Gun Case

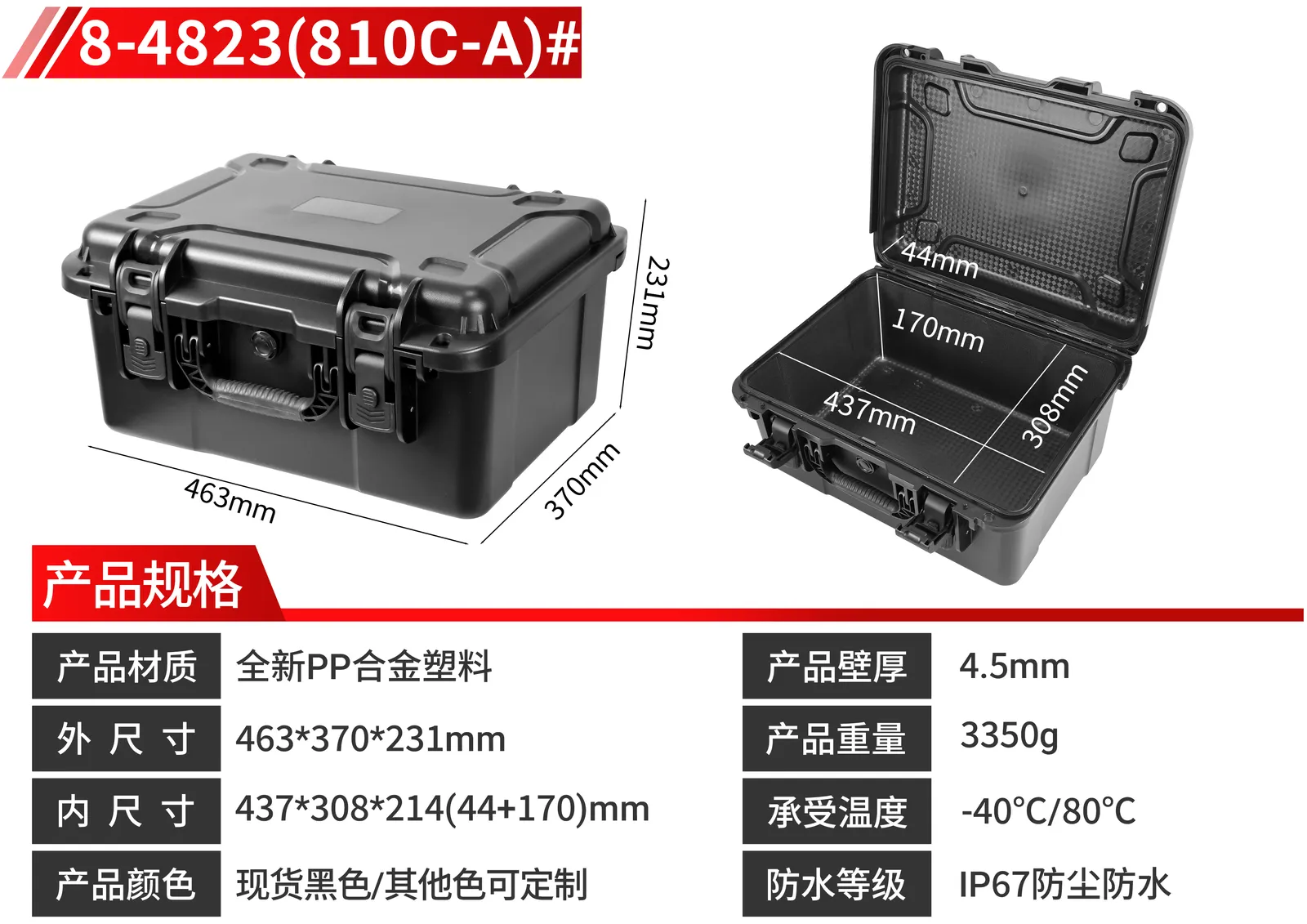

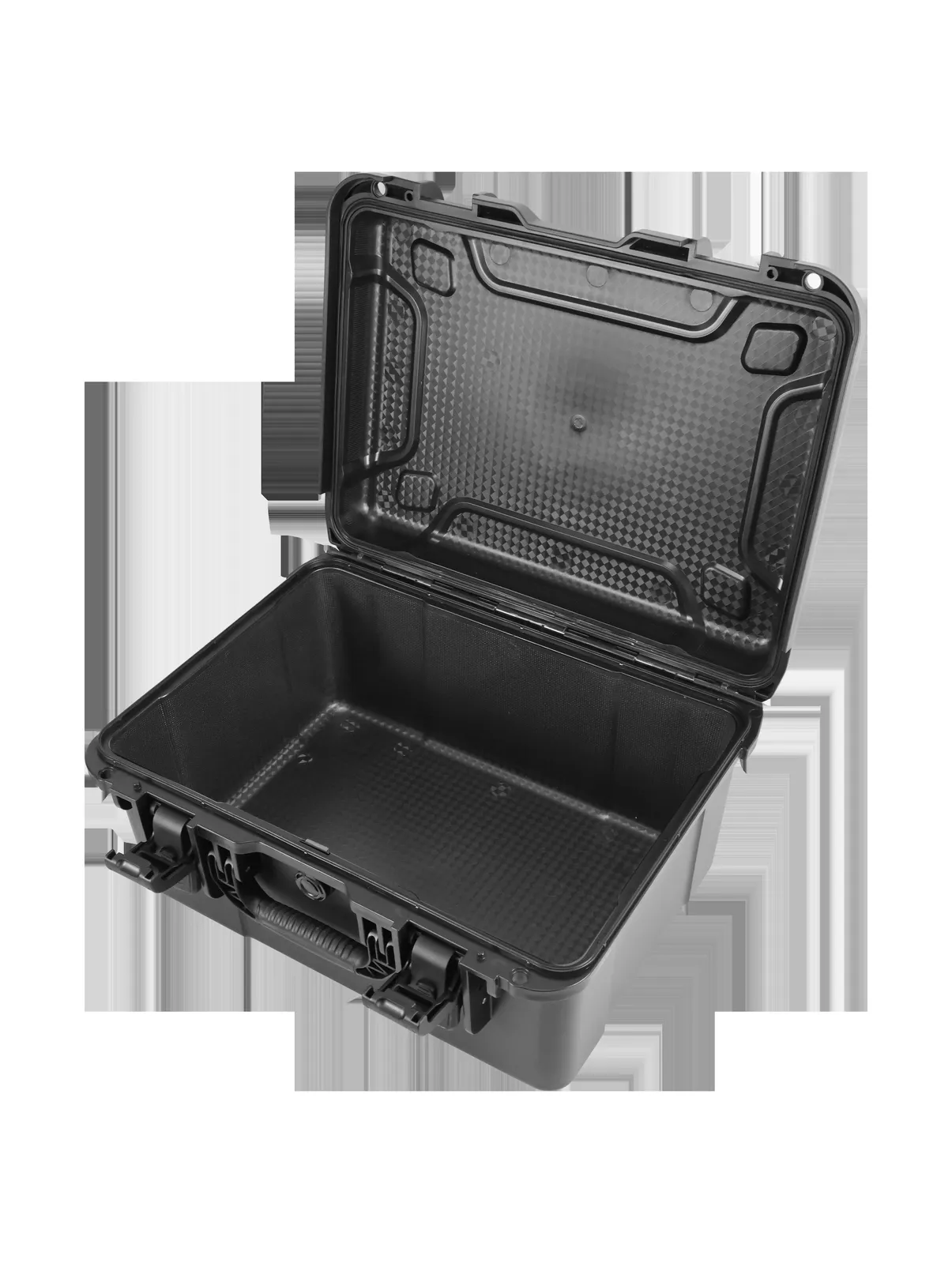

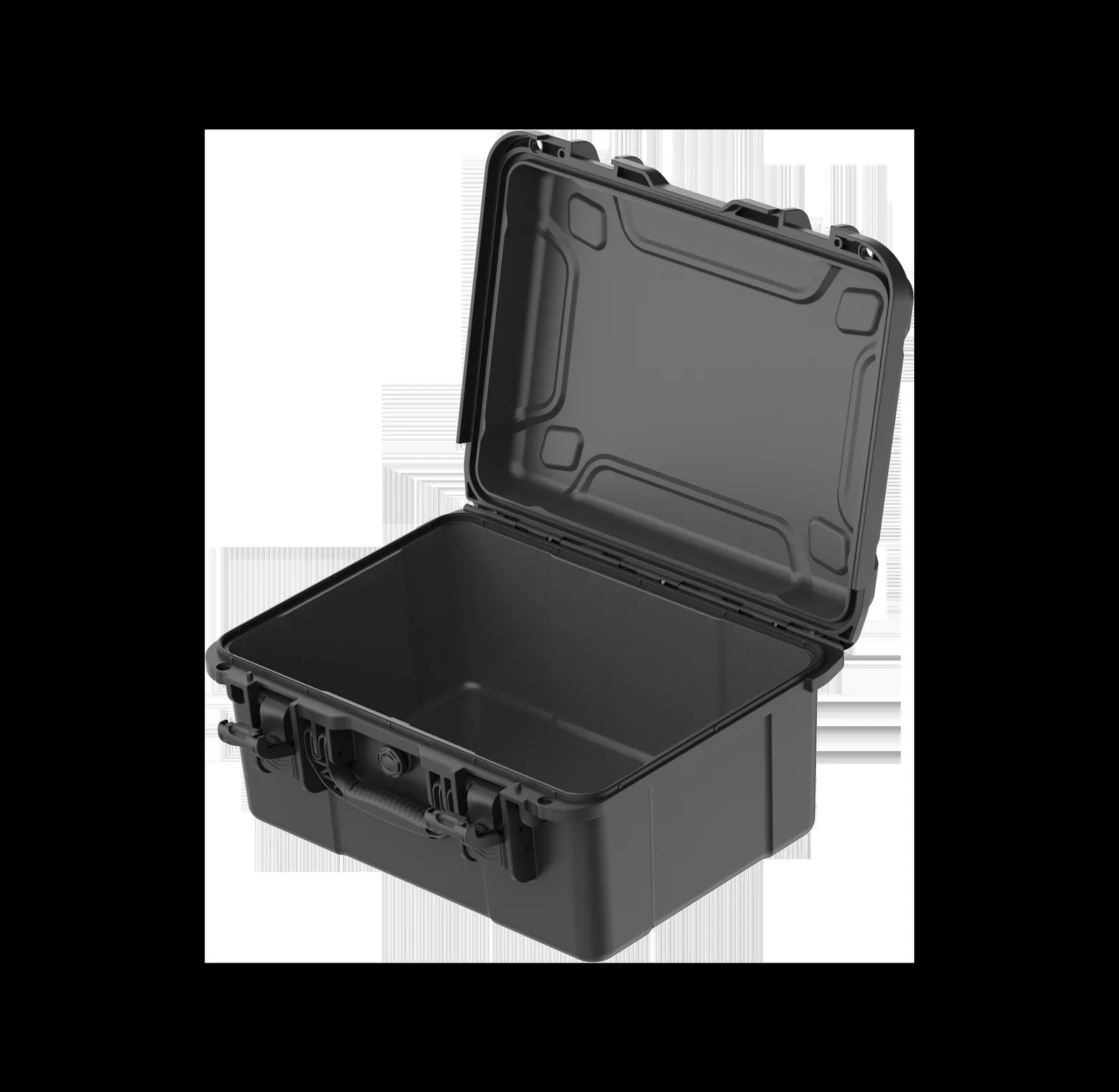

The case measures 463*370*231 mm outside and 437*308*214 mm inside, with a 4.5 mm wall and an empty weight of 3350 g. That gives a usable floor of 437 by 308 mm and 214 mm of internal height, enough for bottles standing upright, instruments with brackets and taller devices, as well as stacked small parts. Use compartmented foam to stop upright items moving sideways in transit. Send a drawing or photo if a part comes close to the limit.

The polypropylene body is injection moulded with a sealing structure, and the closed case is rated IP67 for water and dust protection. It handles rain, dusty workshops and short immersion, which suits workshop, field service and warehouse use. We do not claim military standard certification for this model. The rating depends on the lid seating correctly on the gasket, so with a tall, fully packed case check the seal regularly for ageing or trapped debris and avoid prolonged rain or immersion once damaged.

The body is polypropylene with a 4.5 mm wall and the empty case weighs 3350 g. Compared with the shorter versions on the same footprint, internal height rises to 214 mm while the weight increase stays modest, which suits users balancing packing volume against handling effort. Clean the case with water or a mild detergent and a soft cloth, and avoid strong solvents, alcohol-based cleaners and abrasive pads that can affect the surface and gasket contact area.

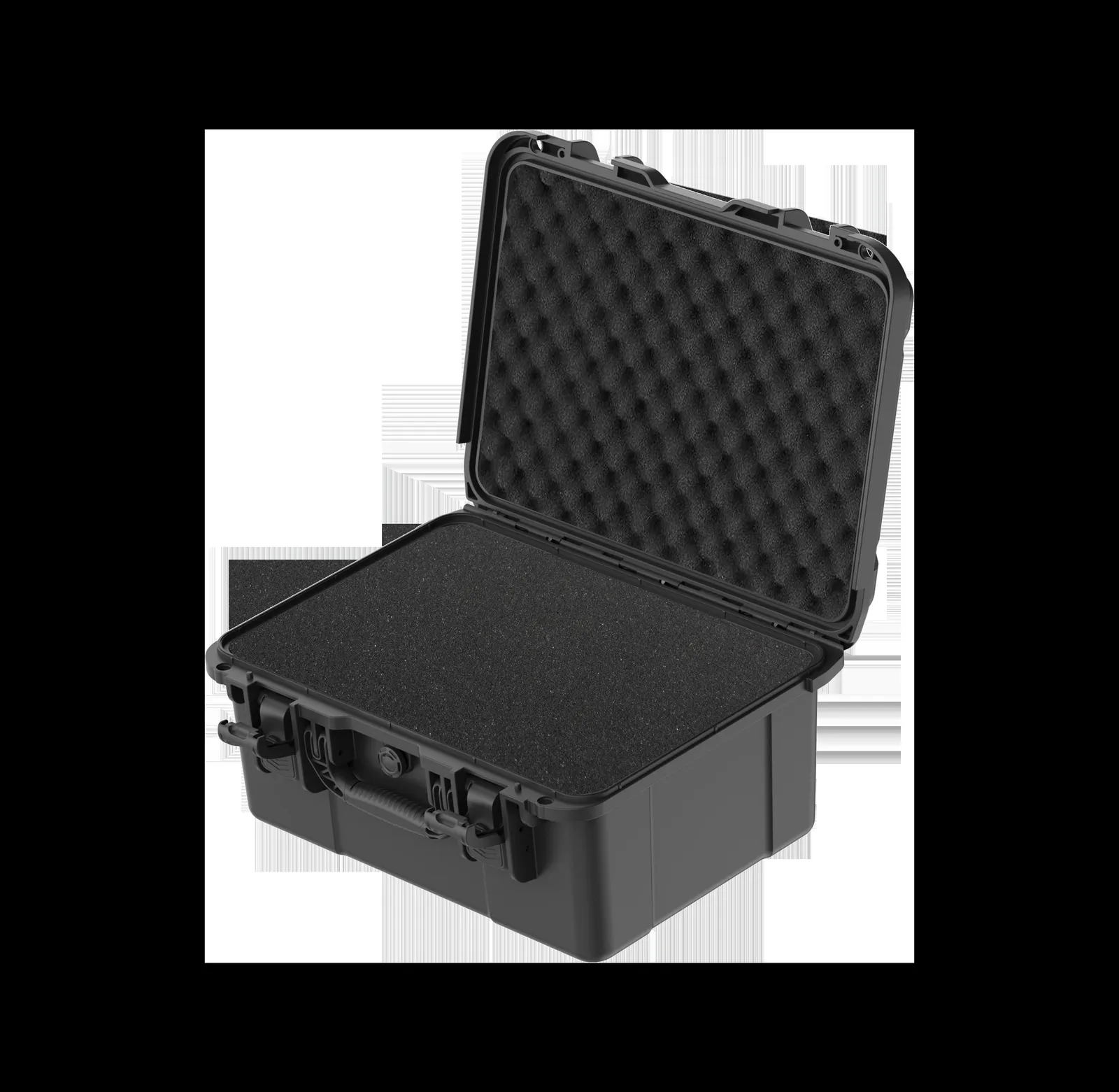

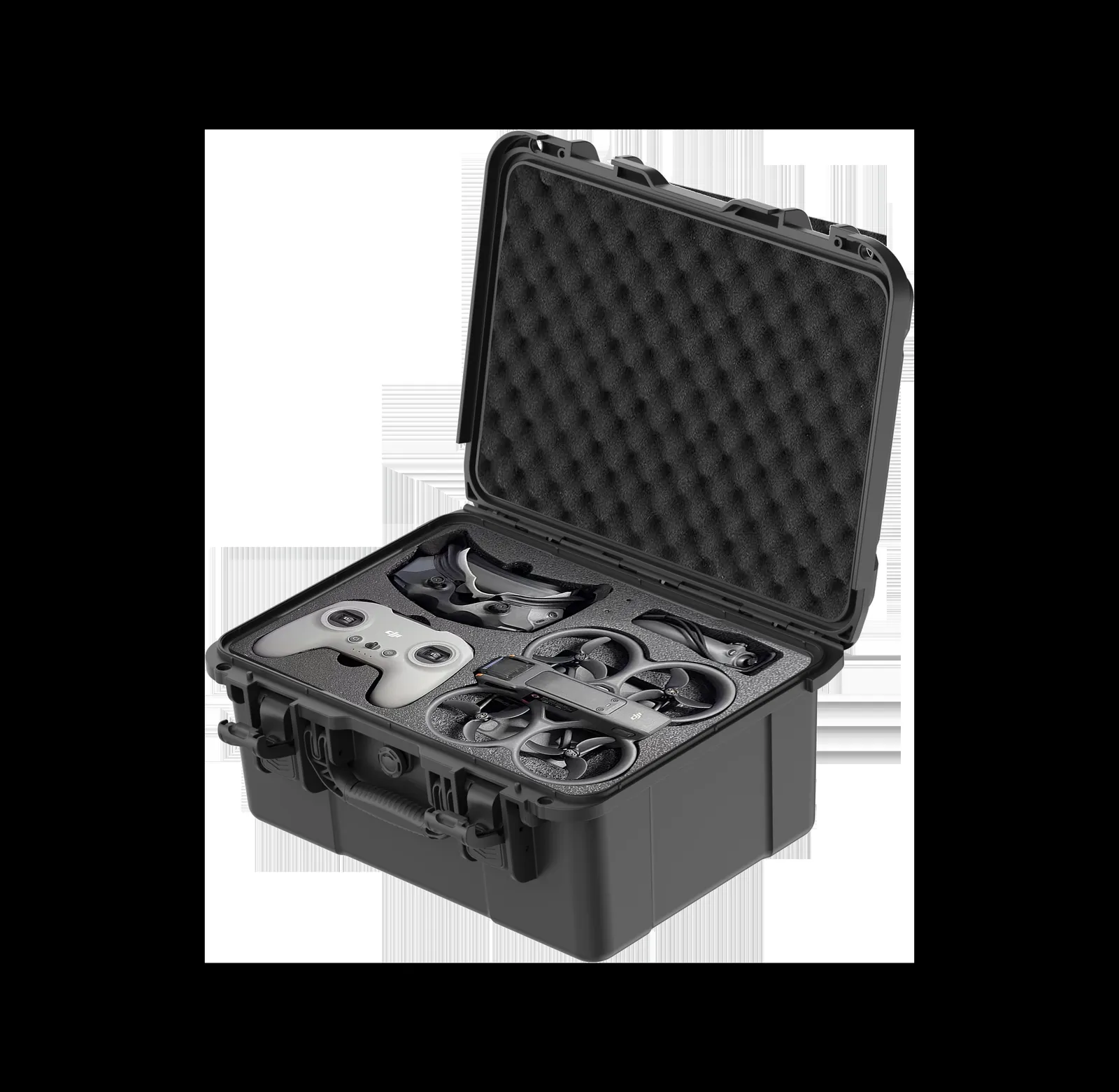

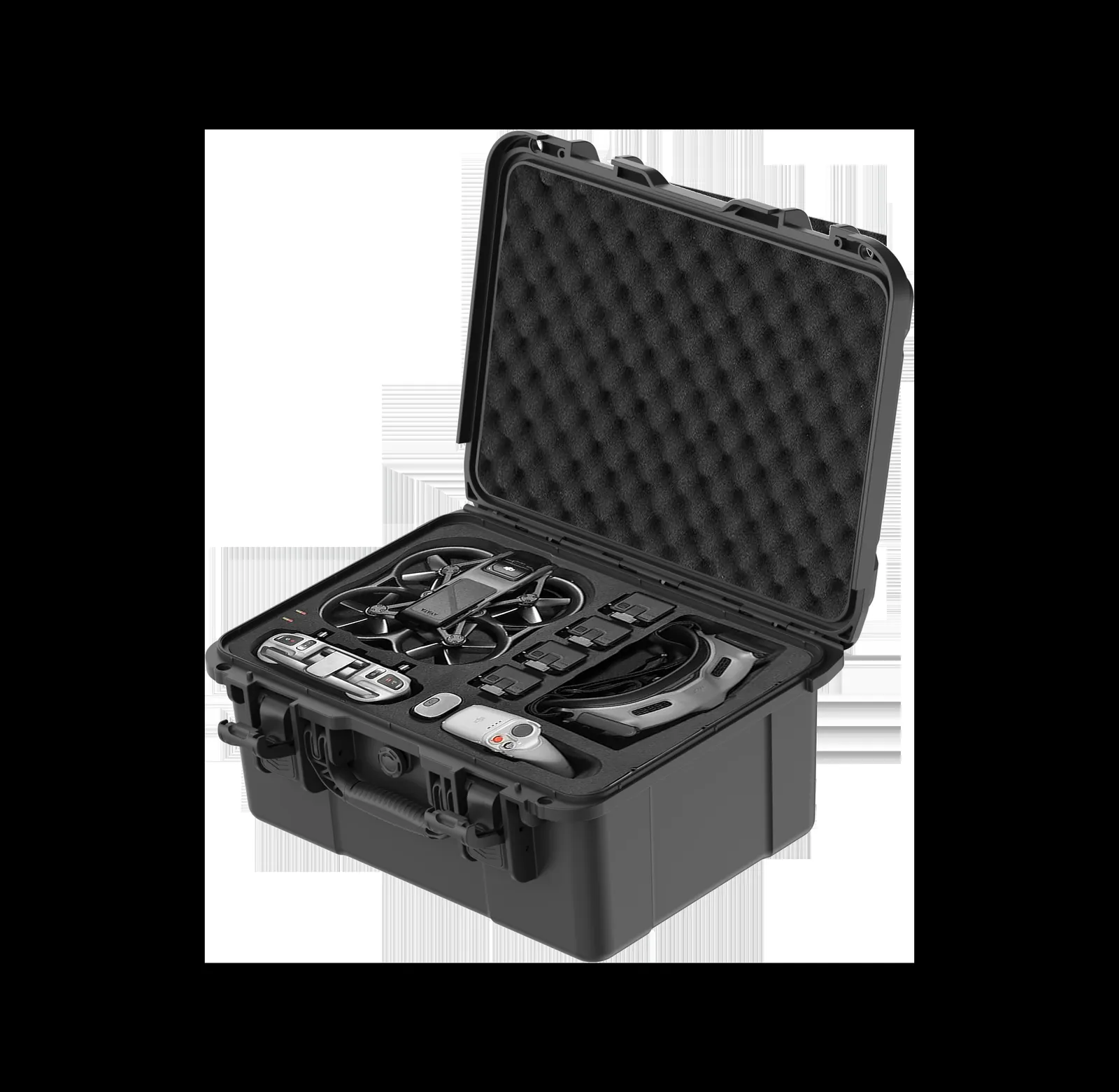

The extra internal height makes it easy to overload, so keep the total packed weight within a sensible range and avoid long-term overloading. Use both hands, support the base and keep the case level so the lid is not stressed unevenly. The deep cavity suits upright or stacked packing, but too many layers shift in transit, so divide the cavity with compartmented foam. Send item sizes and quantities for an insert design.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures at its Zhongshan factory under the JUNZHIJIA brand and supplies factory-direct for OEM and ODM orders. Colour, silk-screen printing or nameplates, foam insert layout and latch configuration can all be customised. MOQ and lead time are assessed against the chosen colour, insert process and printing requirements, and a sample is normally confirmed before batch production. Send your application, quantity and customisation list and our team will quote.
