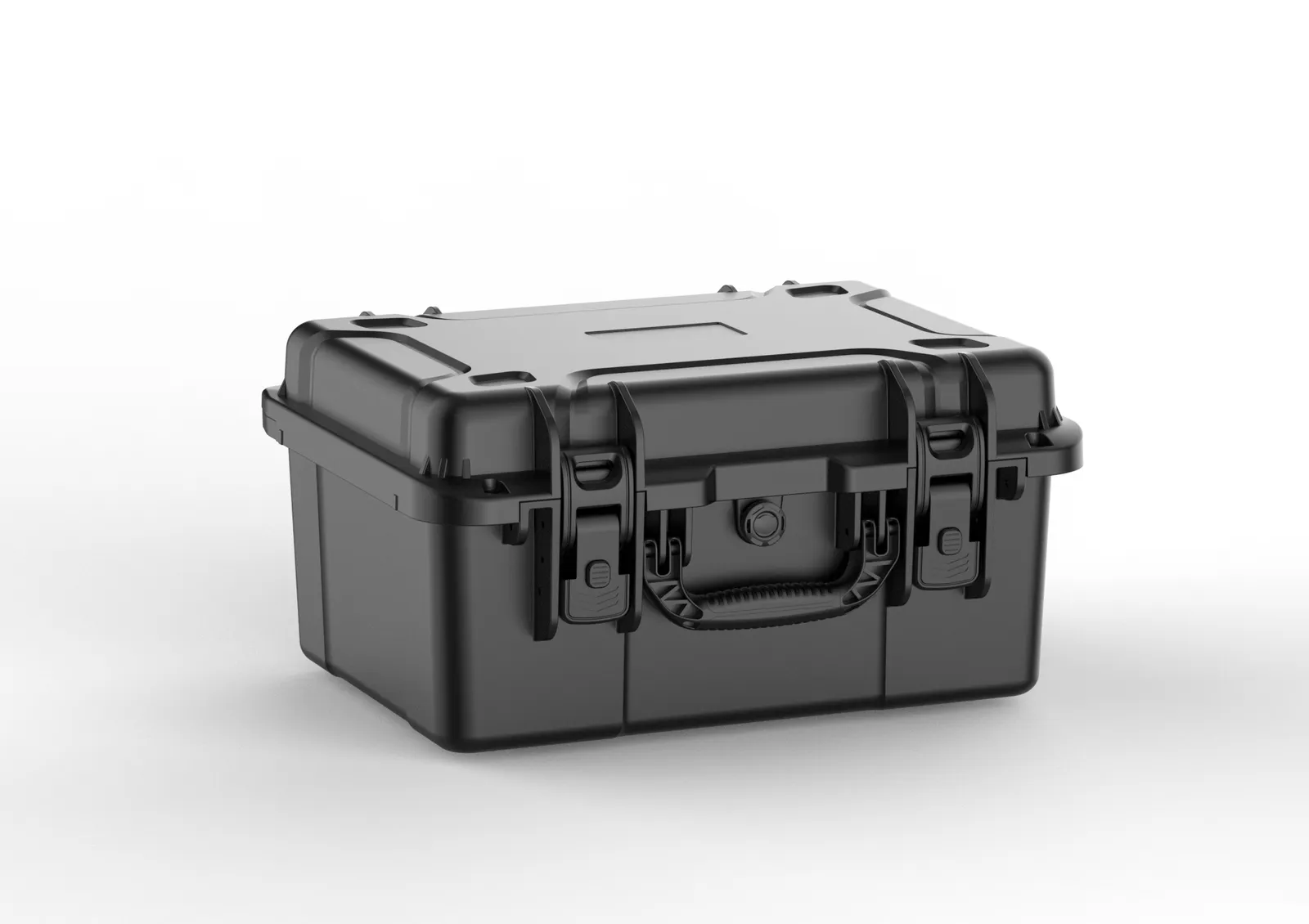

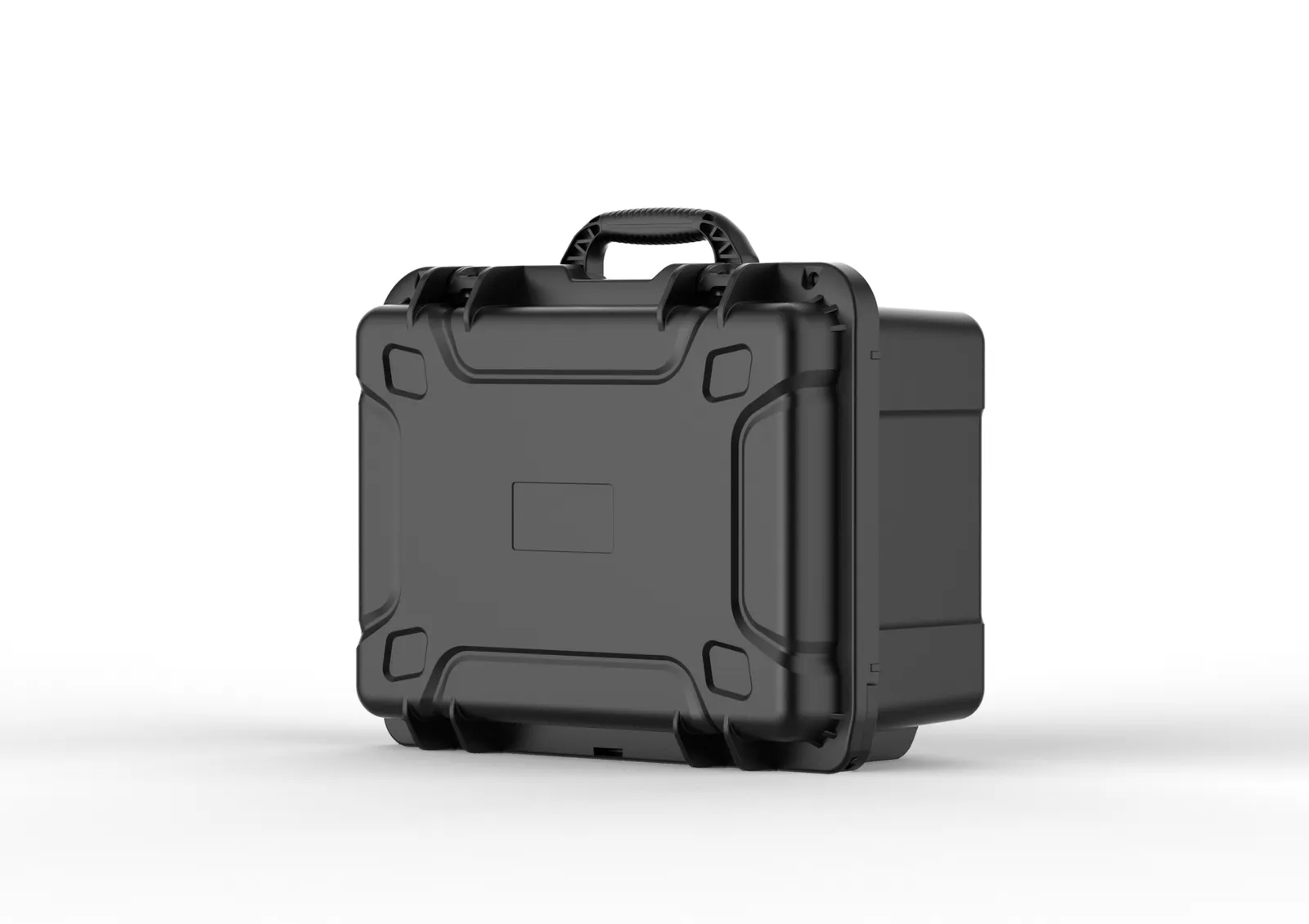

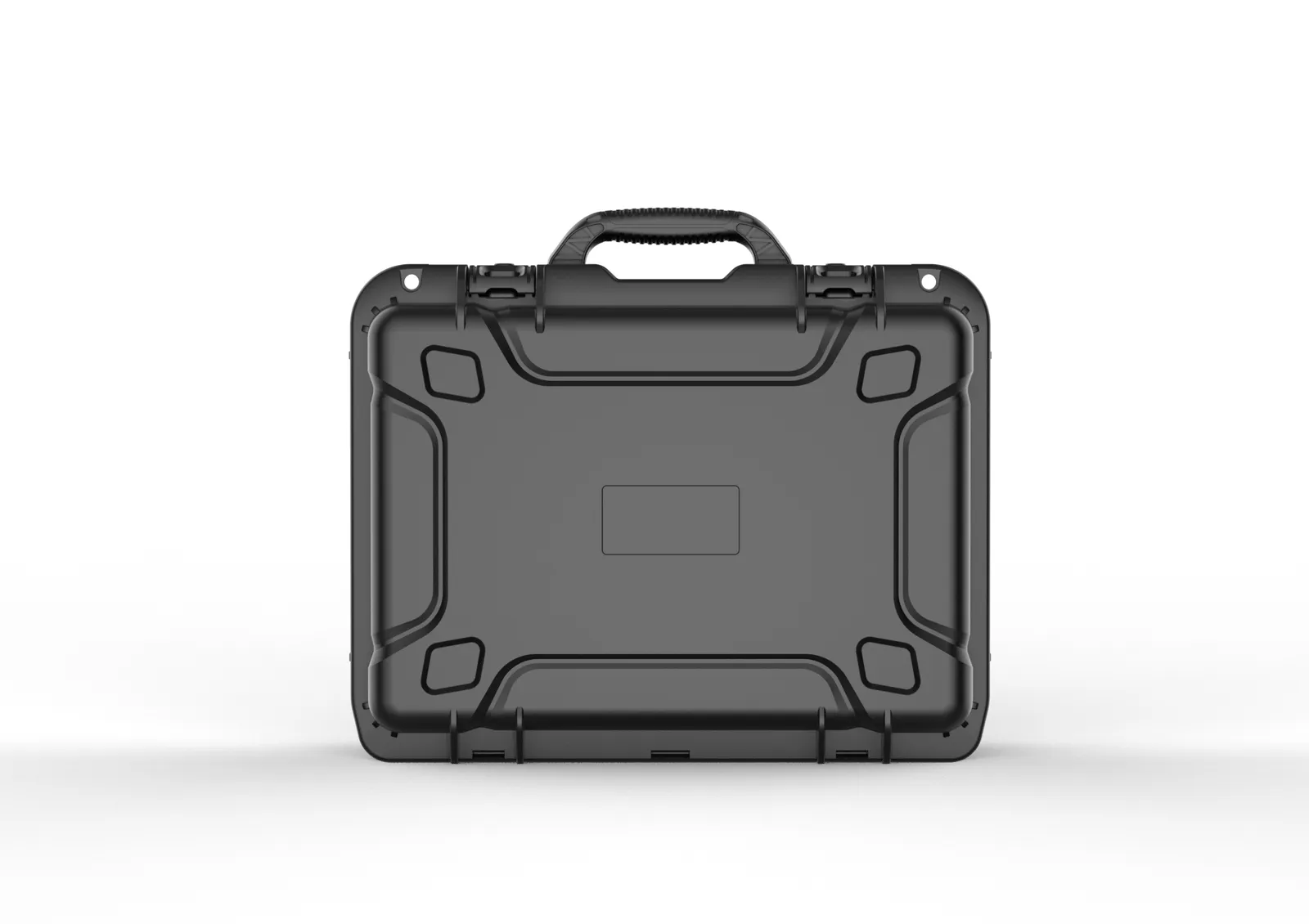

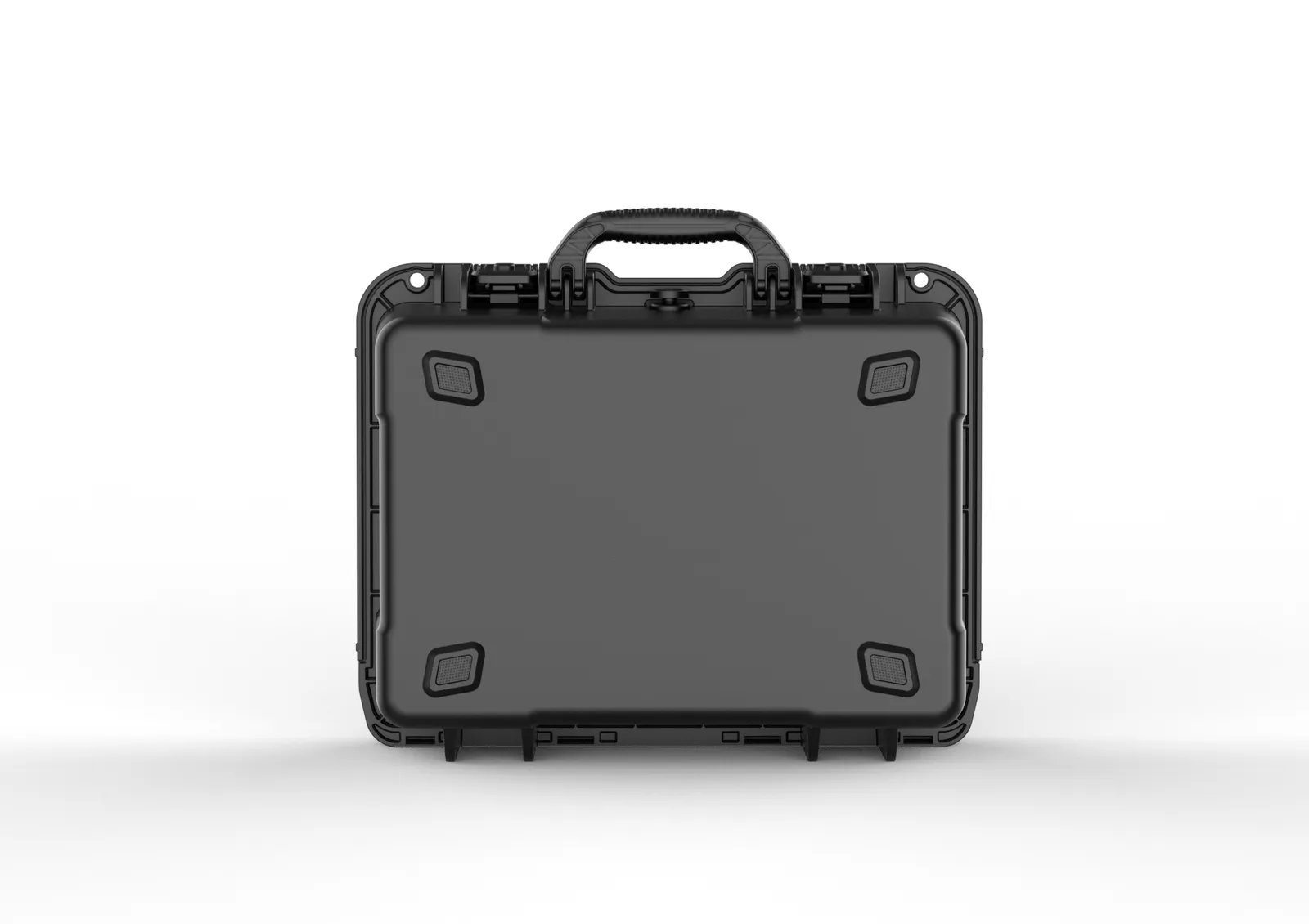

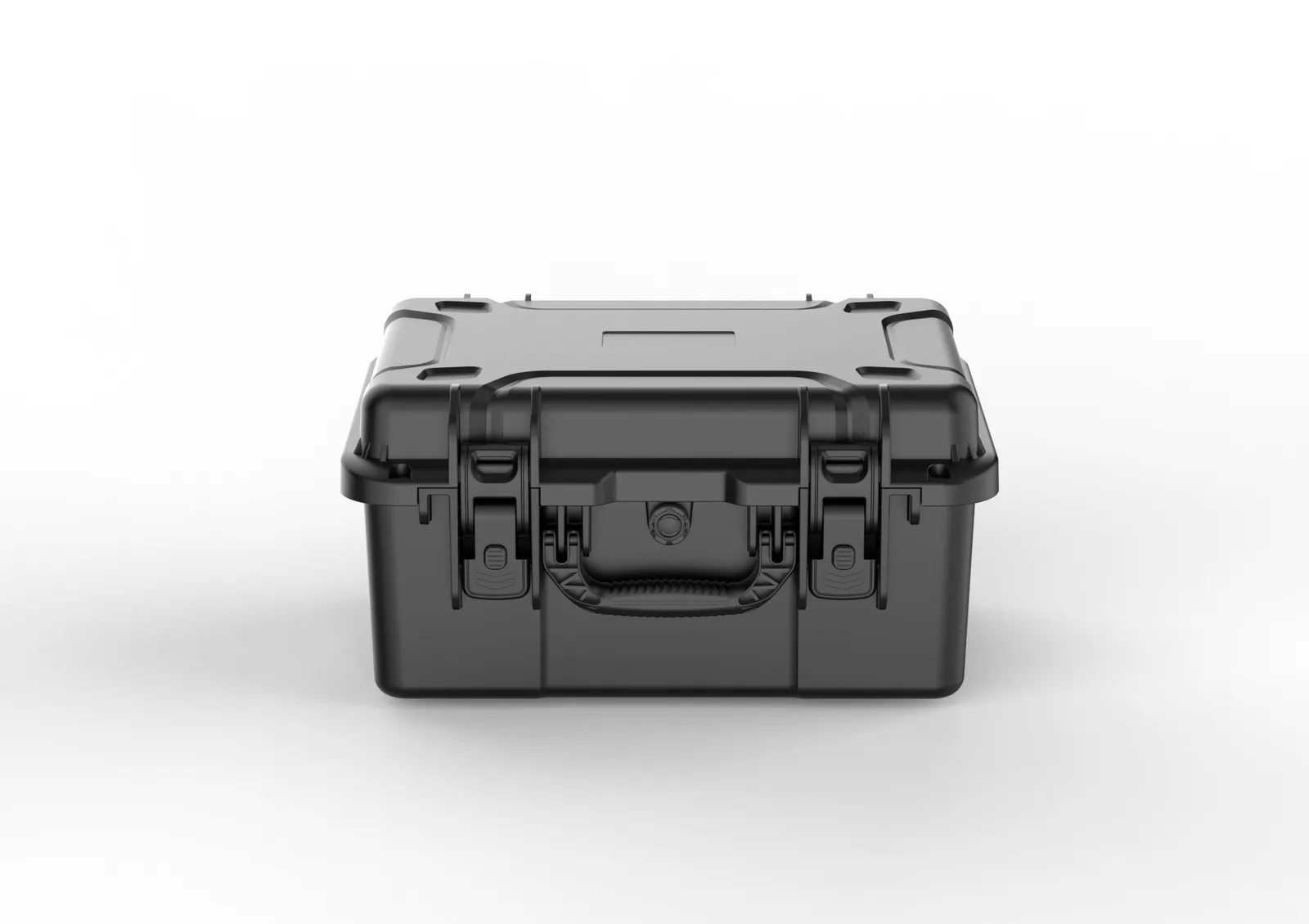

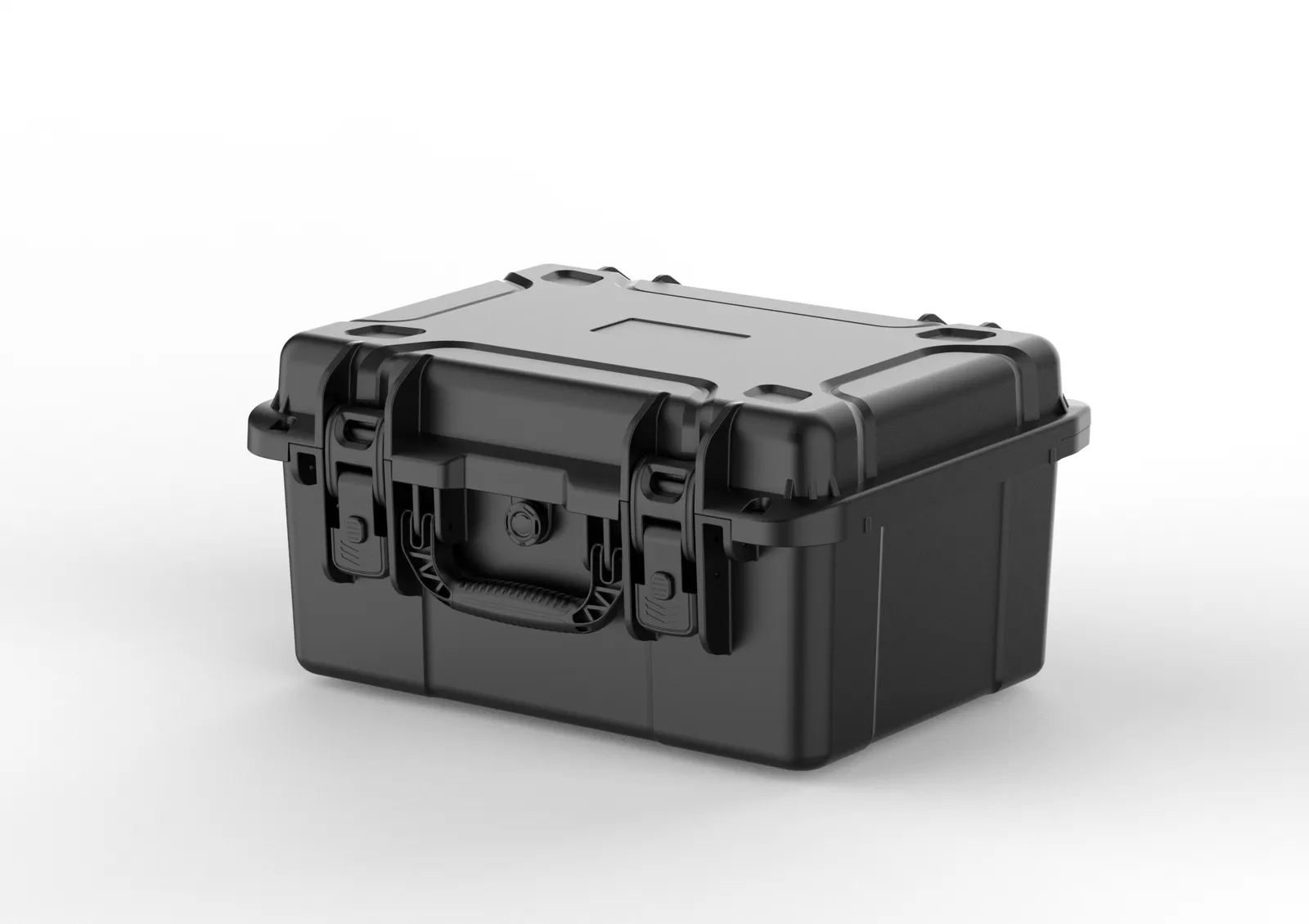

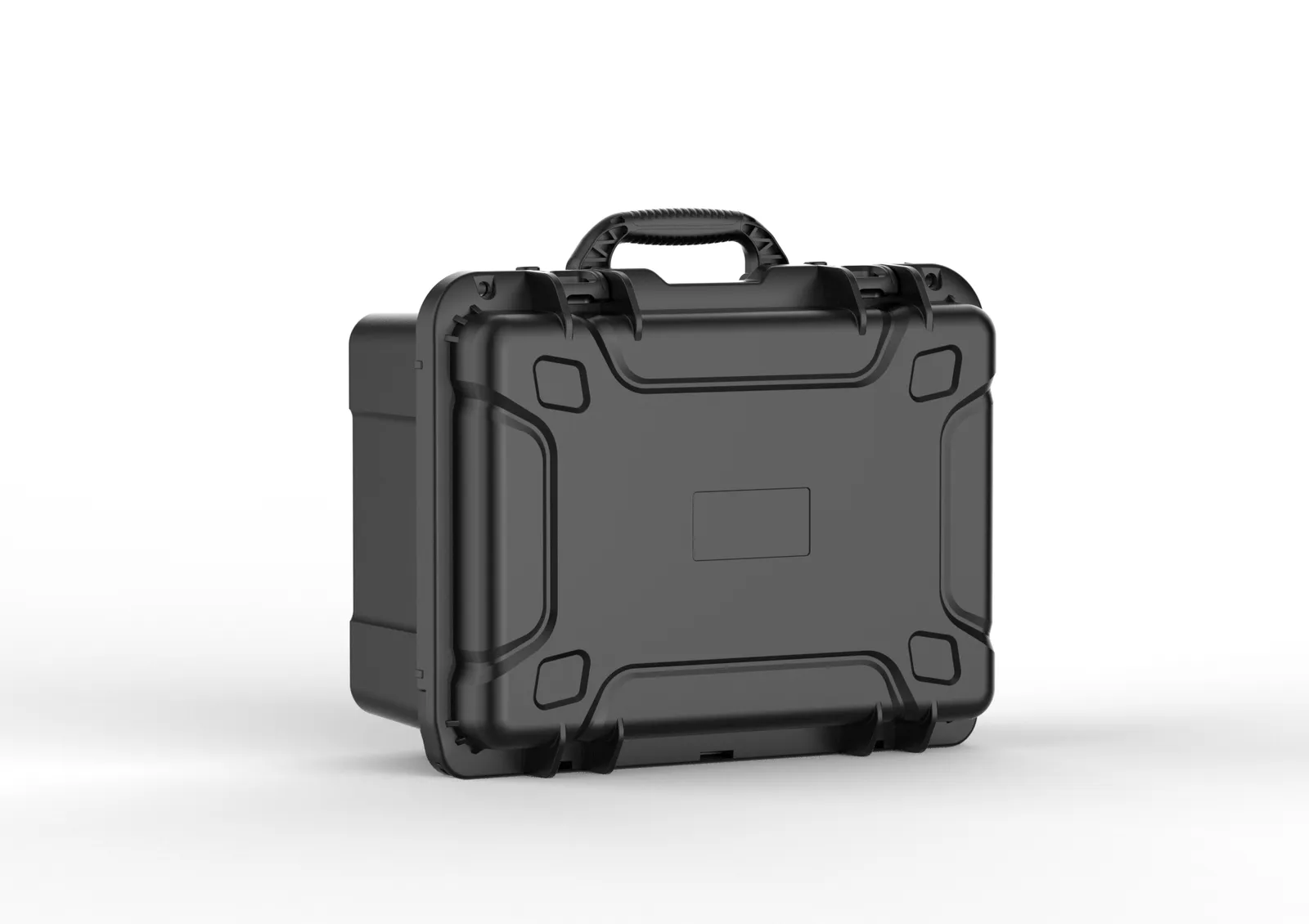

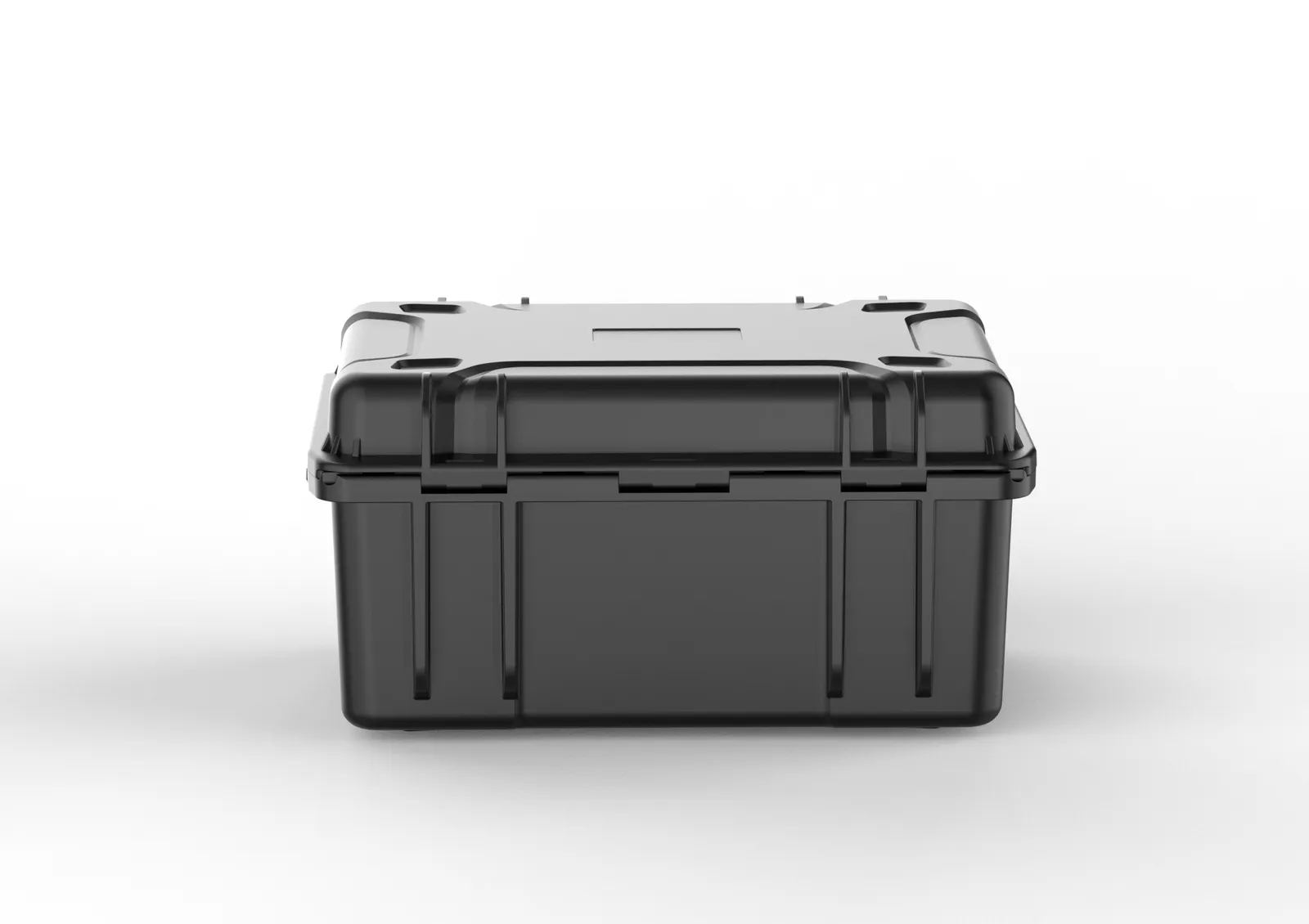

WL8-4824 Protective Case

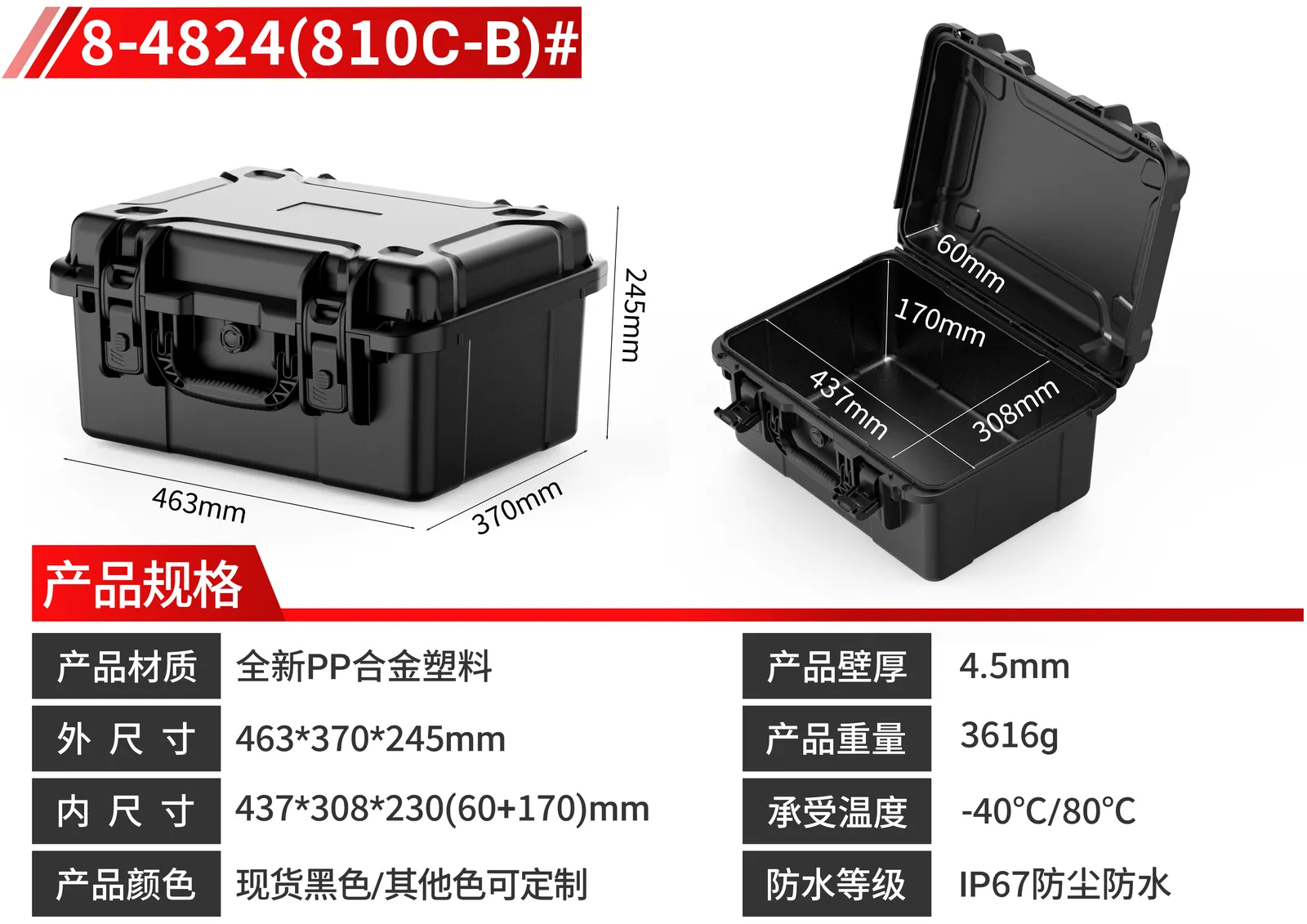

Yes. This model uses the 463*370 mm footprint and measures 463*370*245 mm outside and 437*308*230 mm inside, giving 230 mm of internal height, the tallest option on this footprint, with an empty weight of 3616 g. That height suits instruments standing upright, equipment with brackets and grouped tools. If a part approaches the limit or you plan several layers, send a drawing and quantity so we can check the layout.

The polypropylene body is injection moulded with a sealing structure, and the closed case is rated IP67 for water and dust protection. It handles rain, dusty workshops and short immersion, keeping equipment free of moisture and particles. We do not claim military standard certification for this model. The rating depends on the lid seating correctly on the gasket, so with a taller case and heavier packing check the seal regularly and avoid prolonged rain or immersion once it is damaged.

The body is polypropylene with a 4.5 mm wall, and the empty case weighs 3616 g, the heaviest on this footprint. The 4.5 mm wall combined with the taller body helps limit side-wall bulging under load, which suits turnaround and storage where equipment stands upright. Carry it with both hands supporting the base and keep it level. Clean with water or a mild detergent and a soft cloth, avoiding strong solvents and abrasive pads.

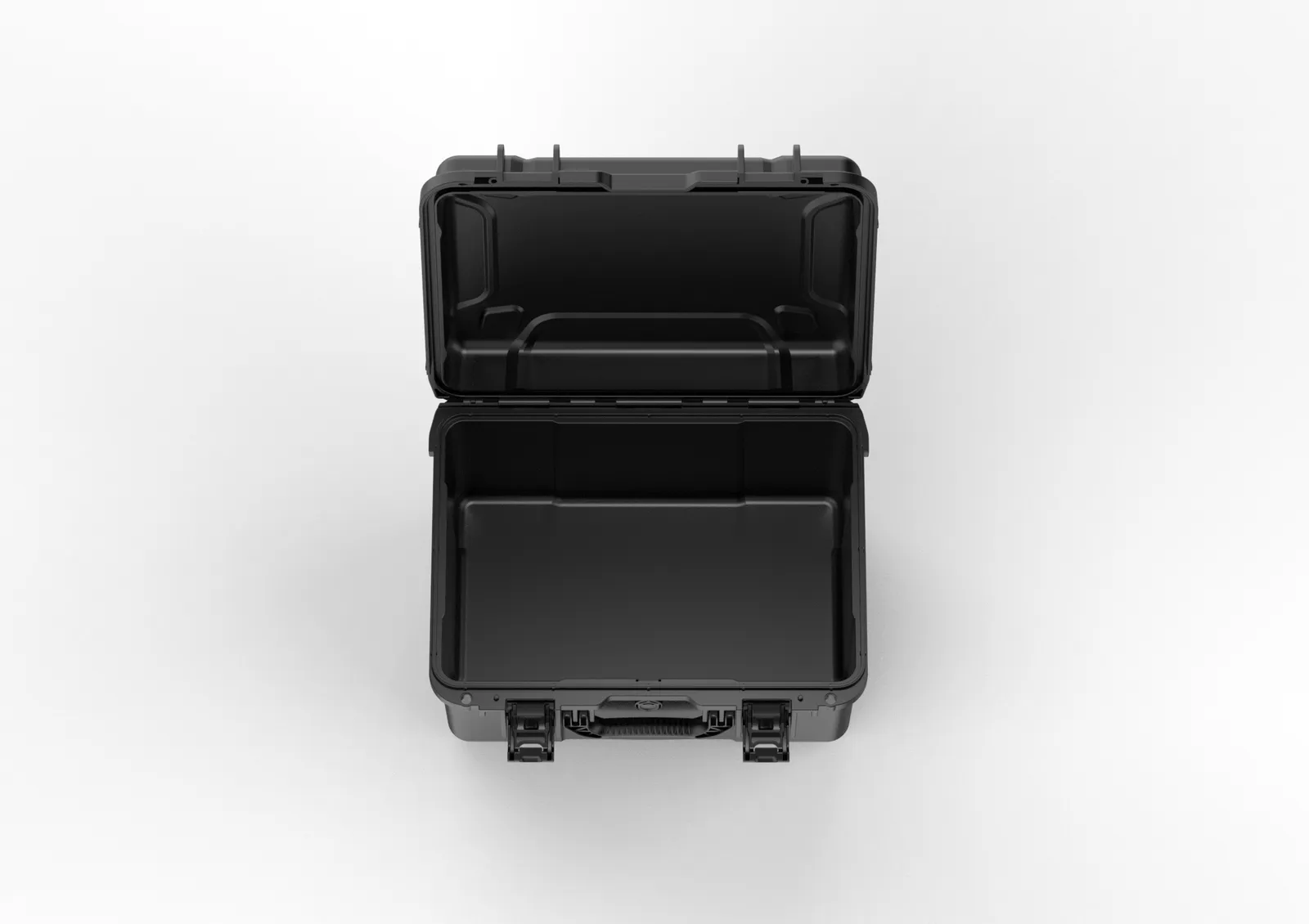

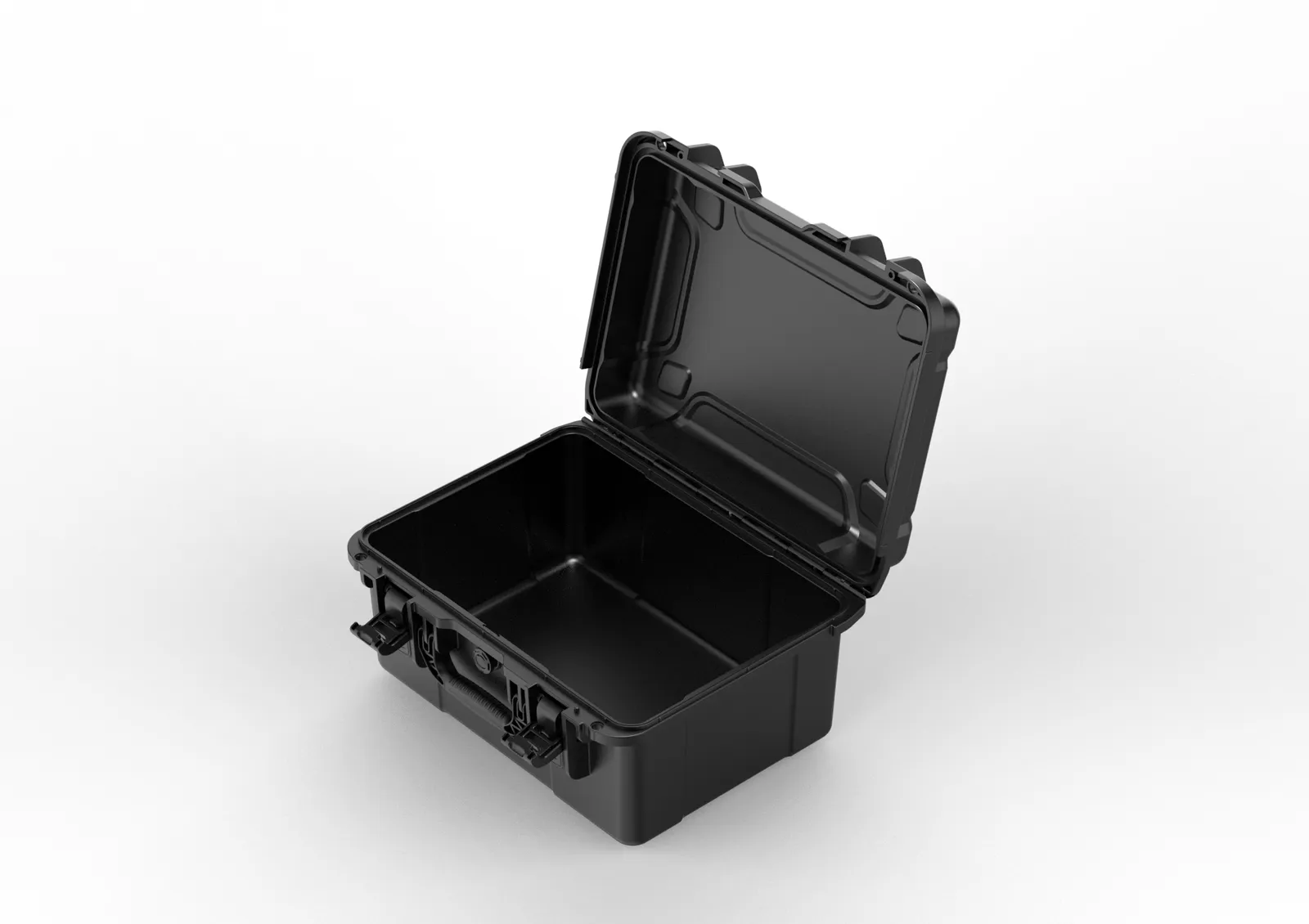

The 437*308*230 mm cavity suits upright instruments, equipment with brackets, grouped tools and electronic devices, as well as photographic gear, drone accessories, first aid supplies and knives that need moisture and dust protection. Even with generous height, fix each item with compartmented foam to limit movement and contact in transit. Send the size and quantity of each item and we will design a die-cut or compartmented insert.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures at its Zhongshan factory under the JUNZHIJIA brand and supplies factory-direct for OEM and ODM orders. Colour, silk-screen printing or nameplates, foam insert layout and latch configuration can all be customised. MOQ and lead time are assessed against the chosen colour, insert process and printing requirements, and a sample is normally confirmed before batch production. Send your application, quantity and customisation list and our team will quote.
