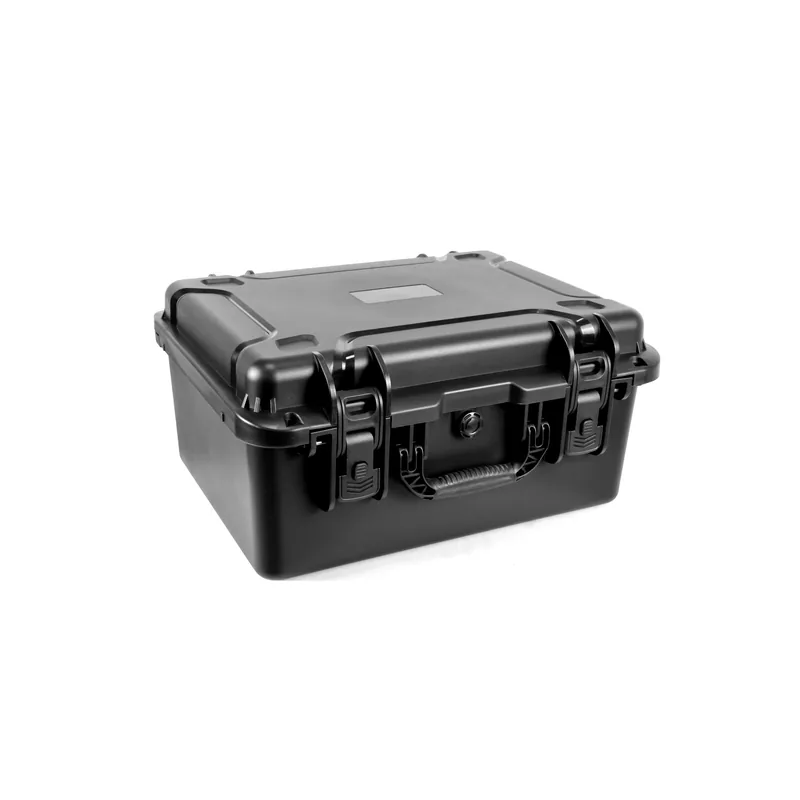

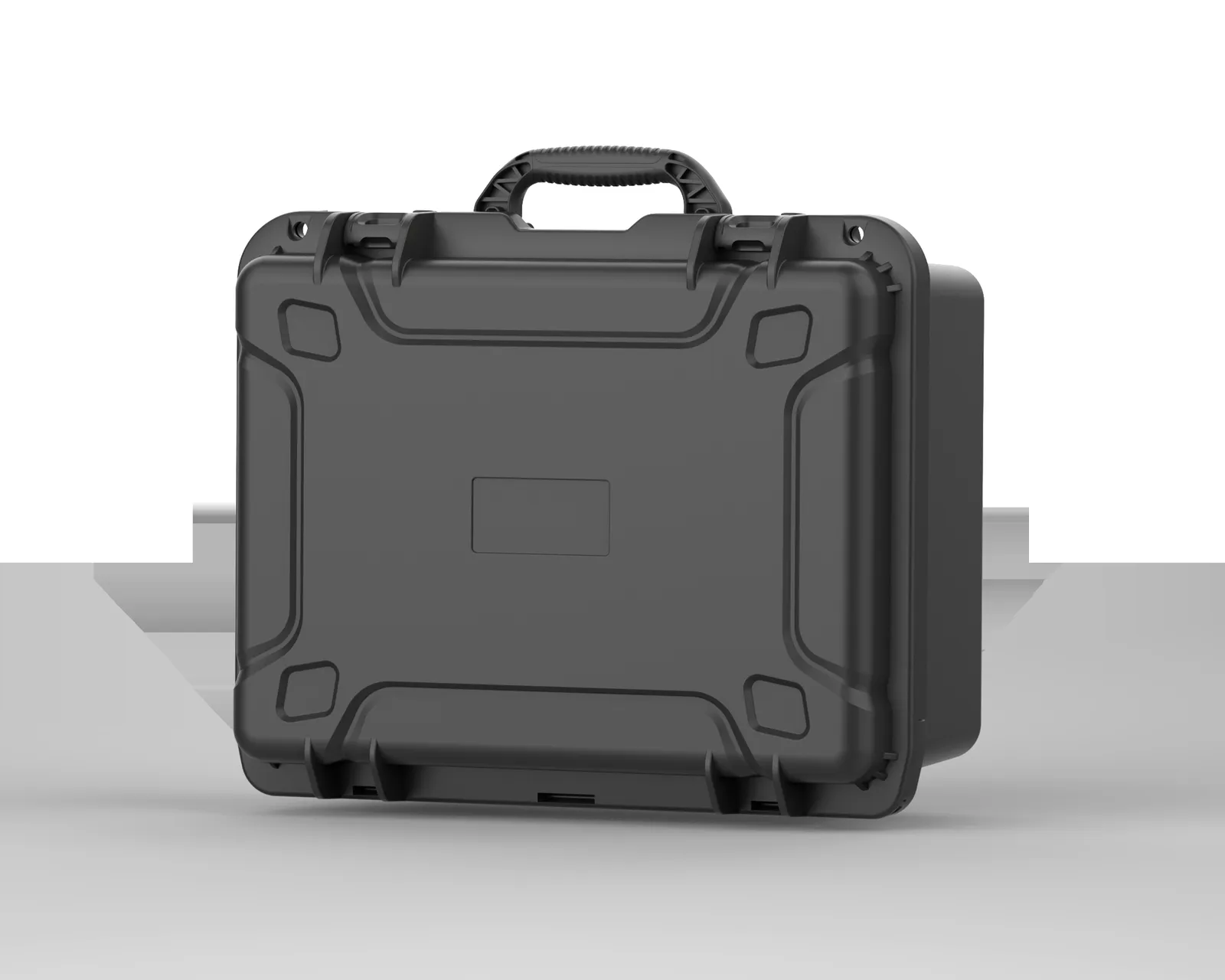

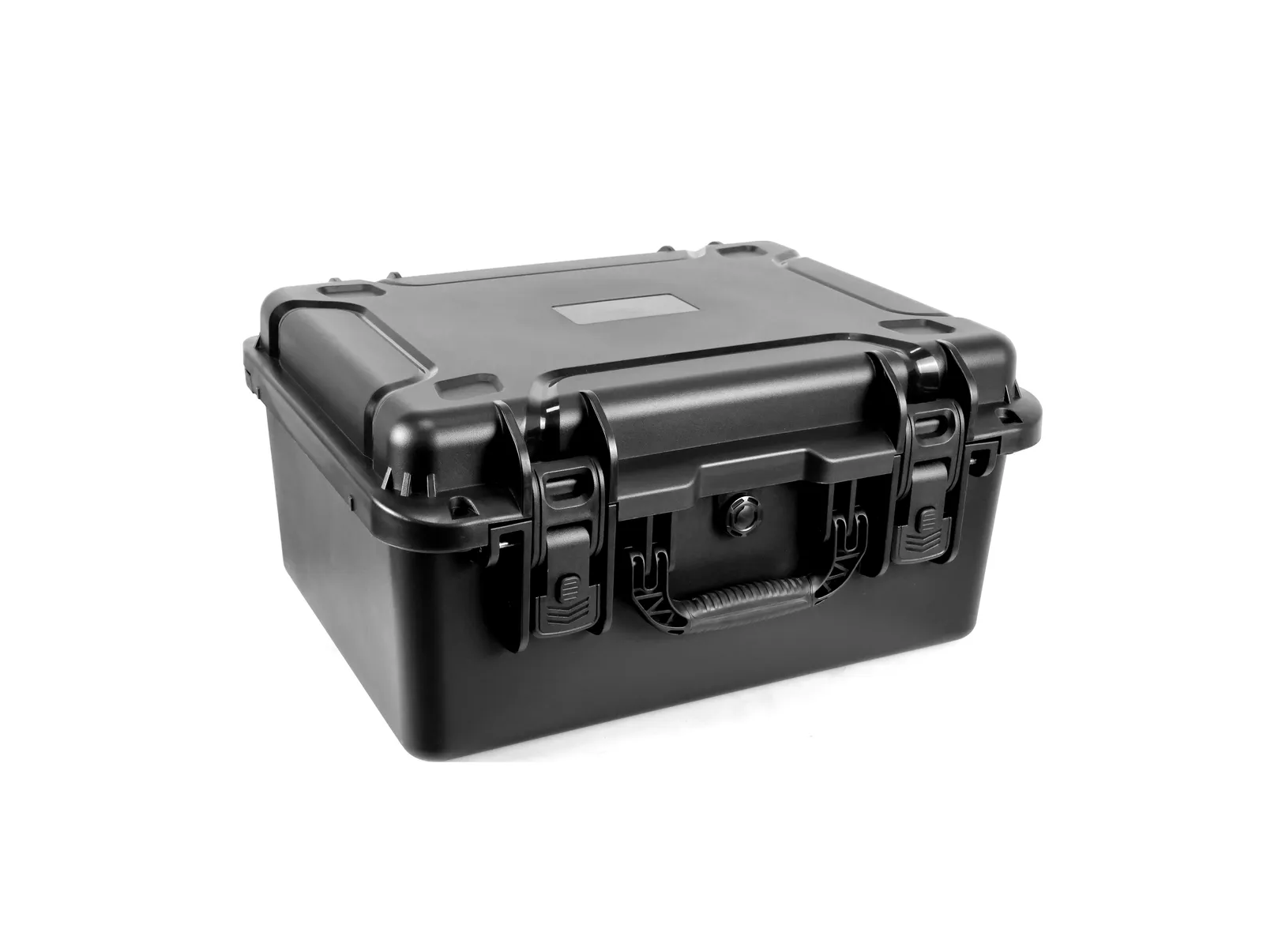

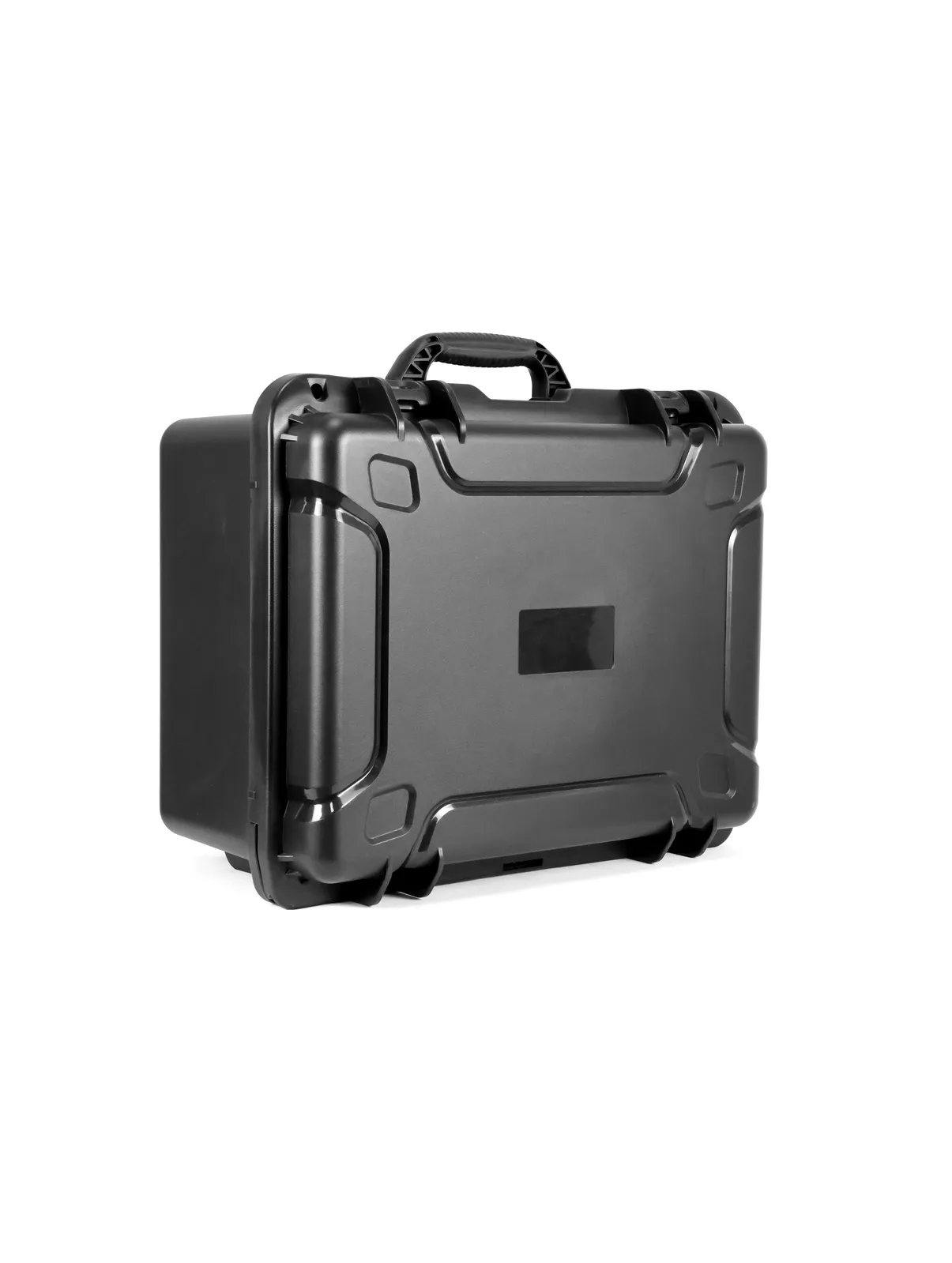

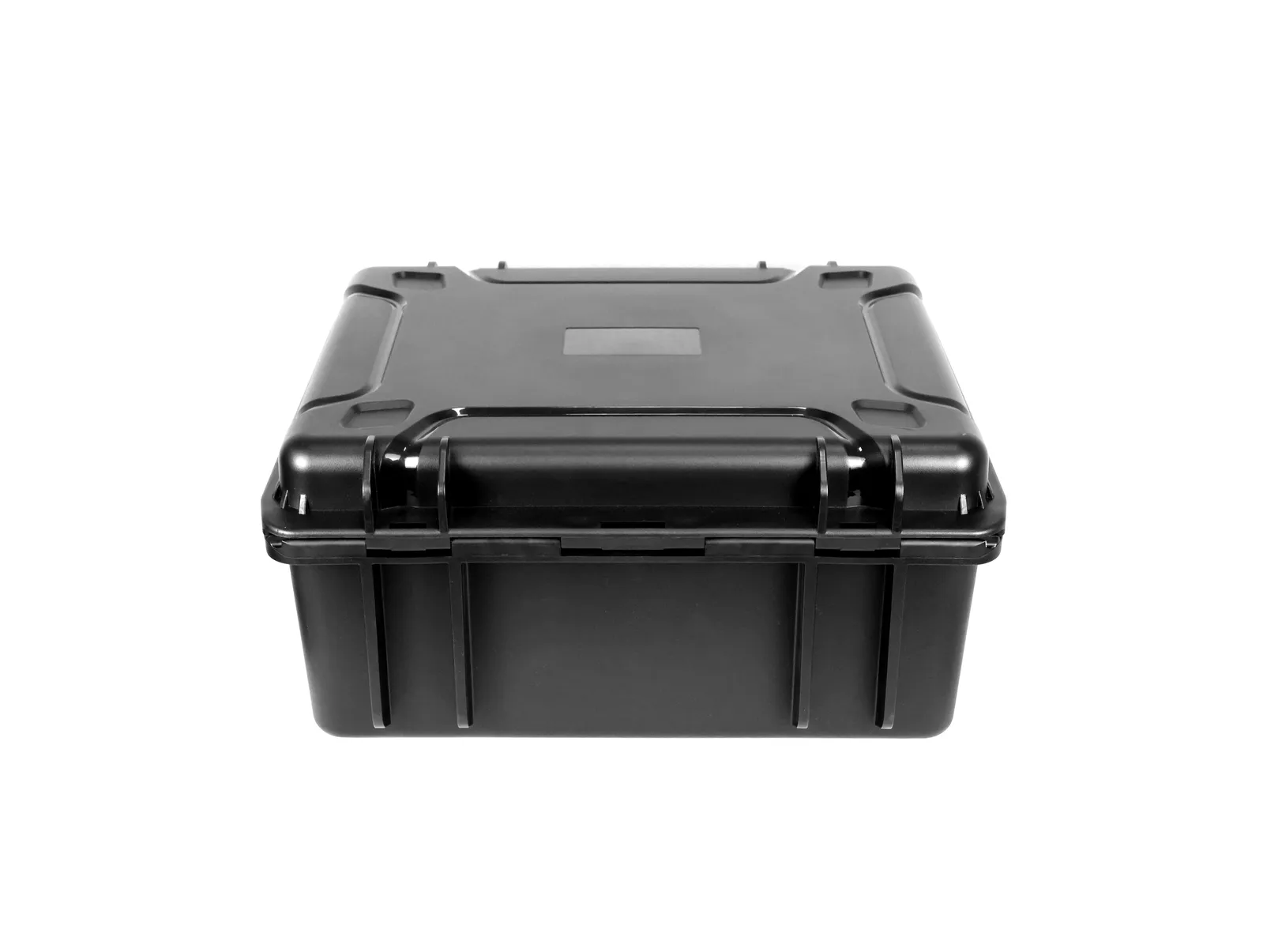

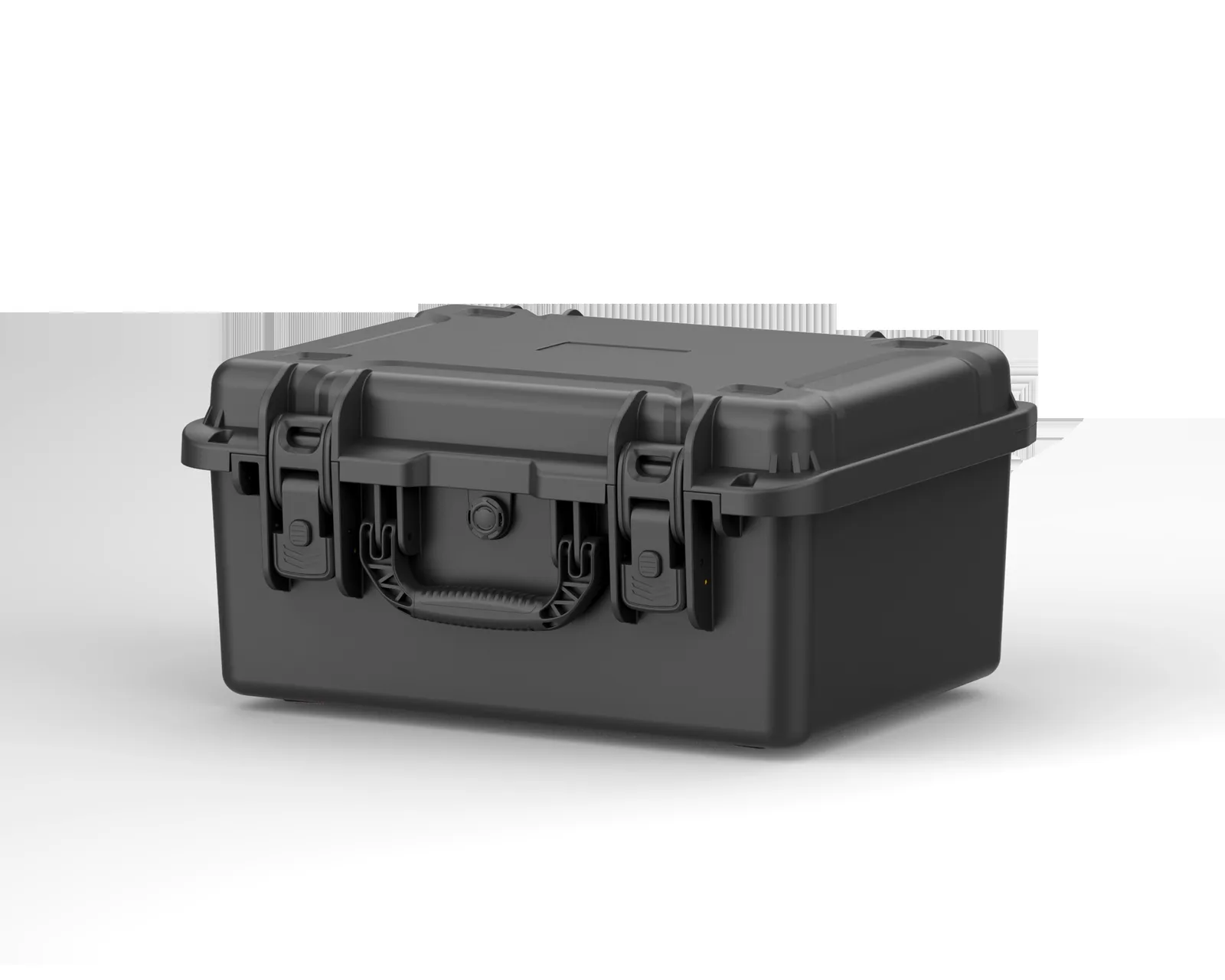

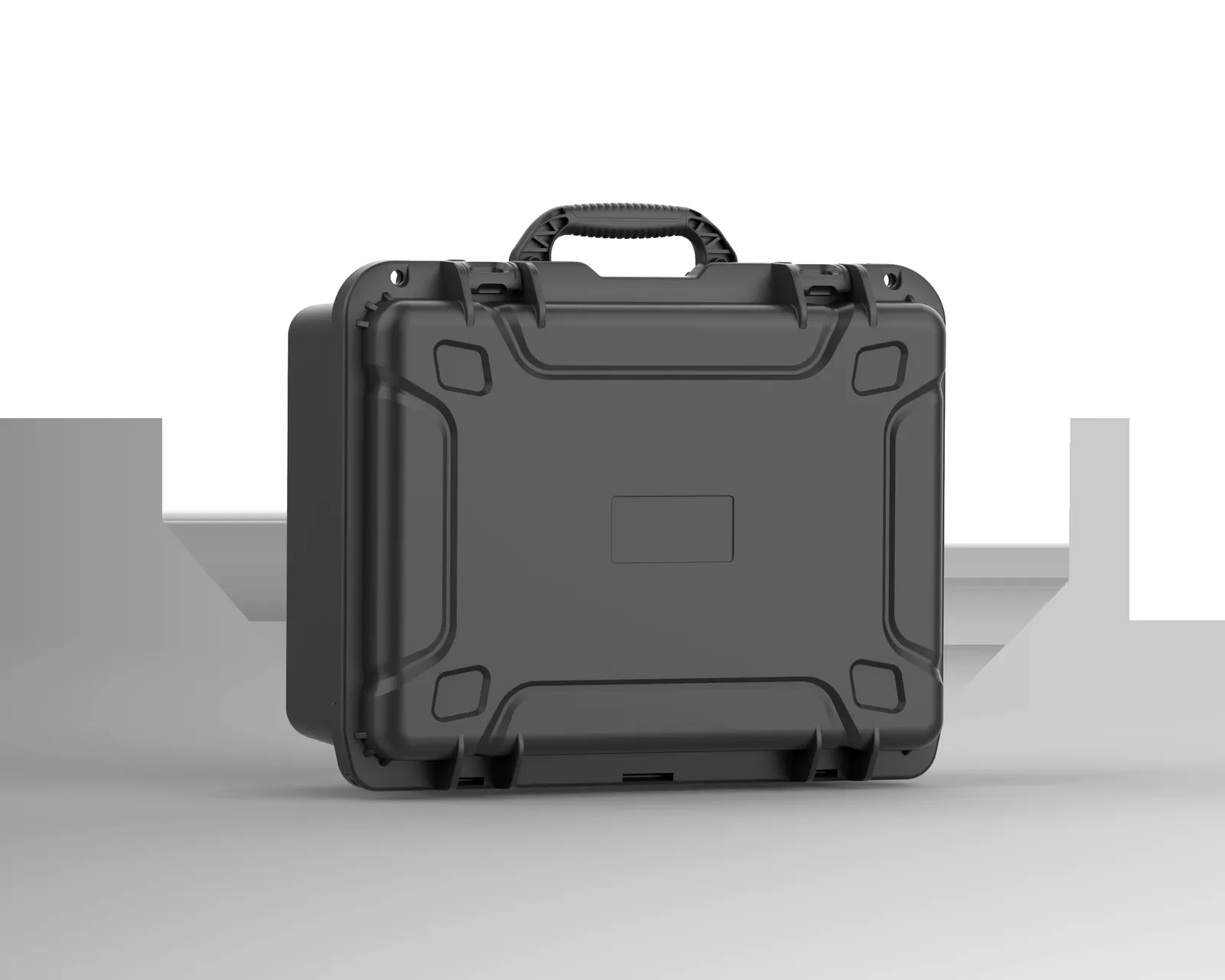

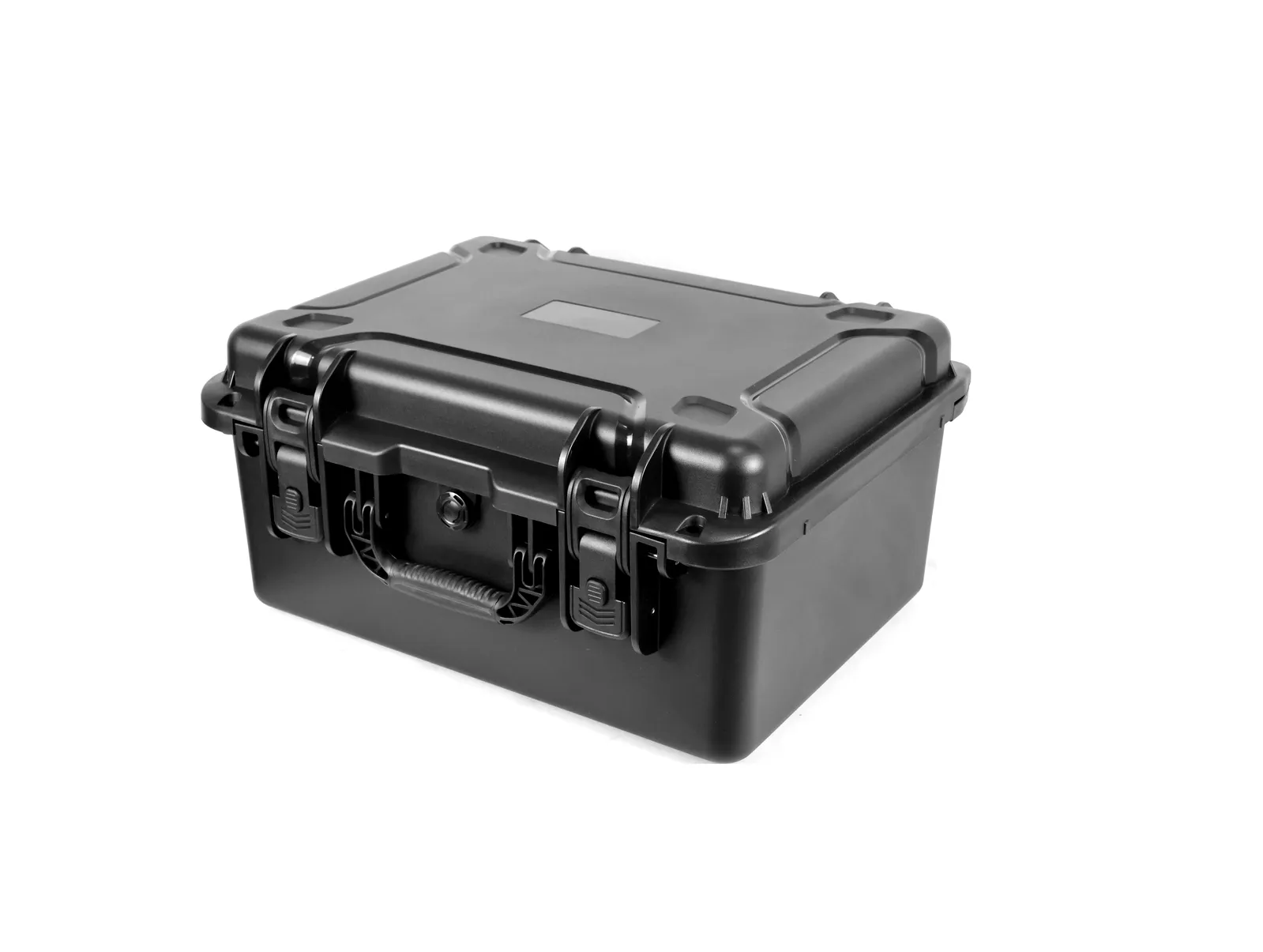

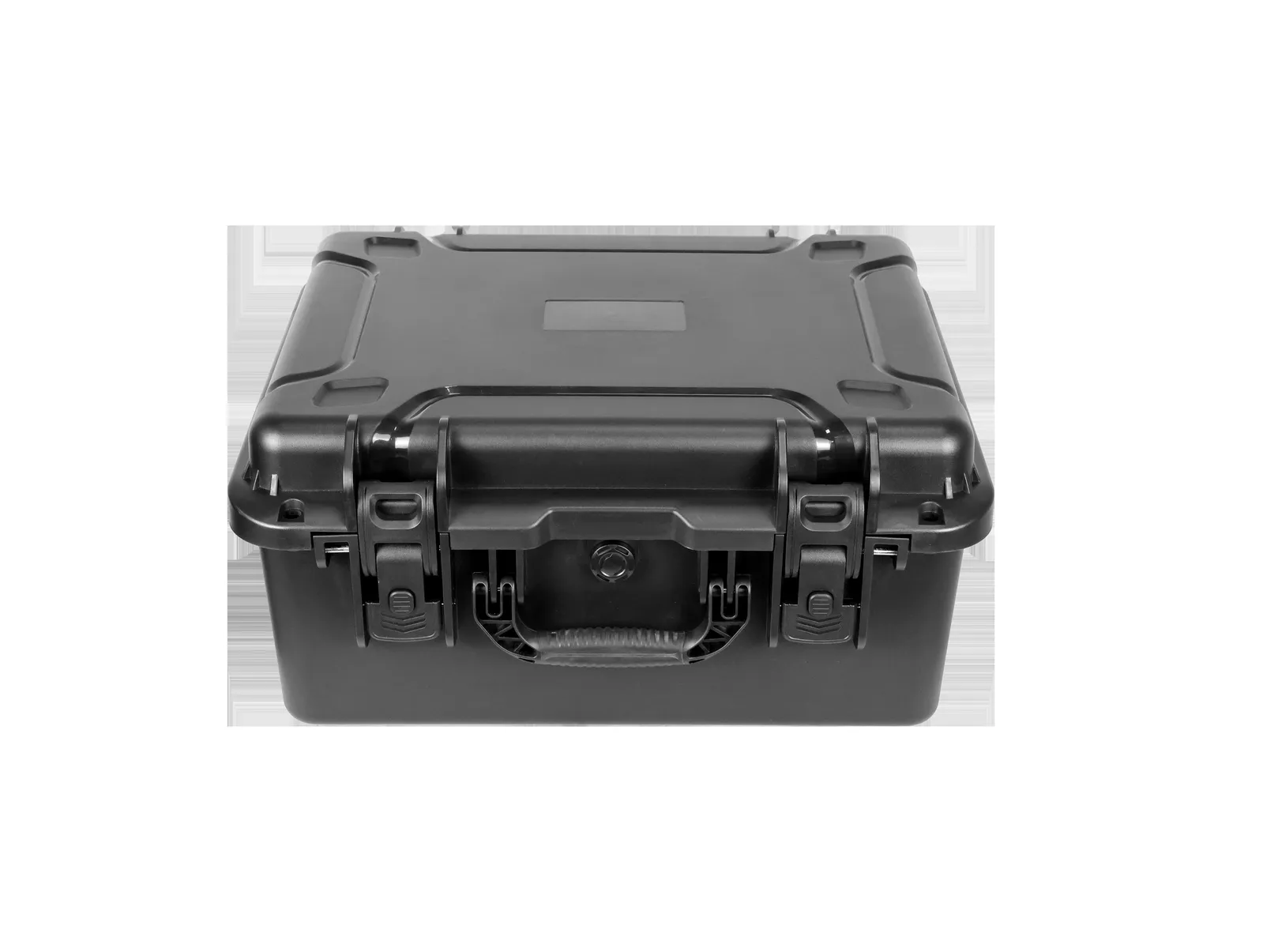

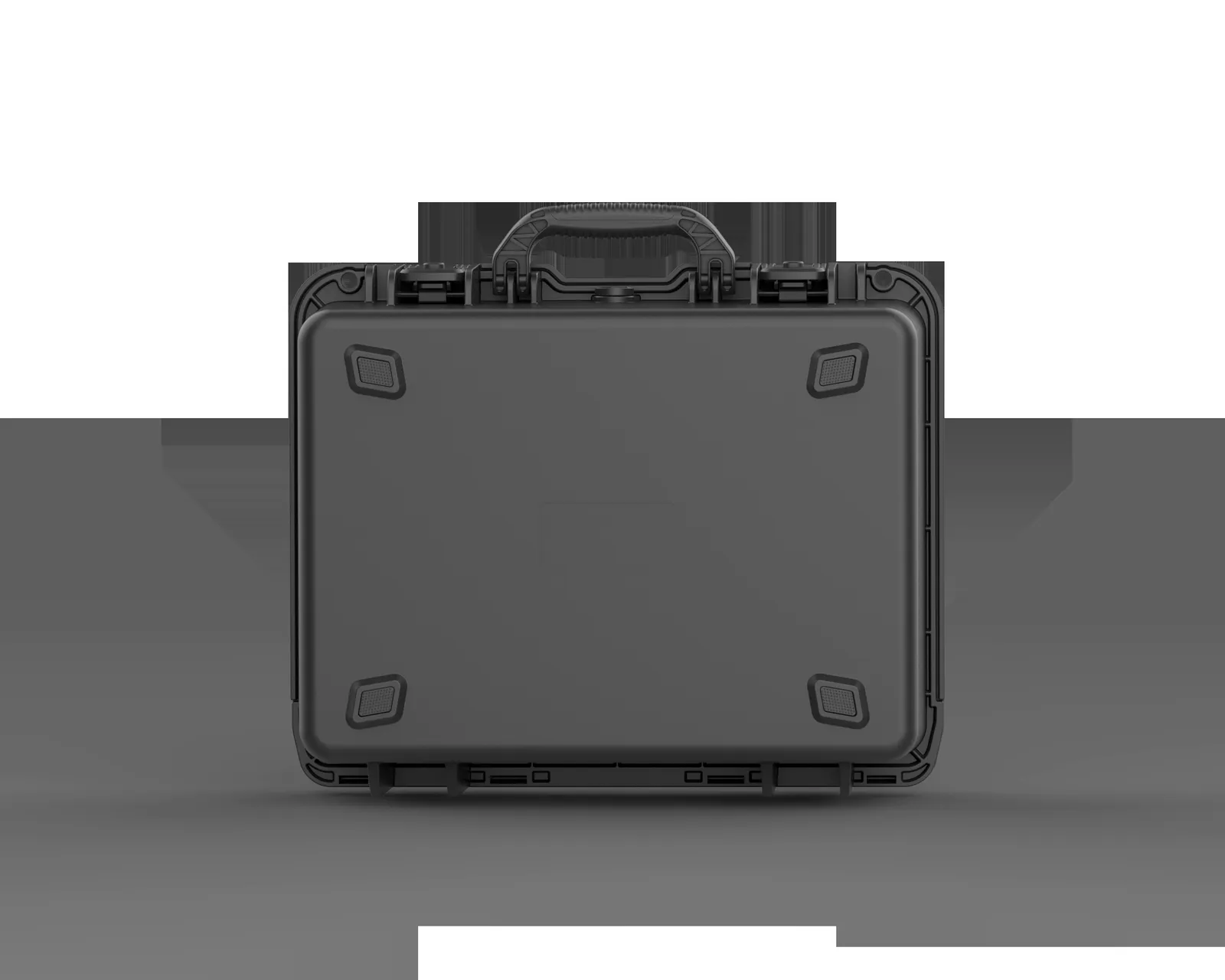

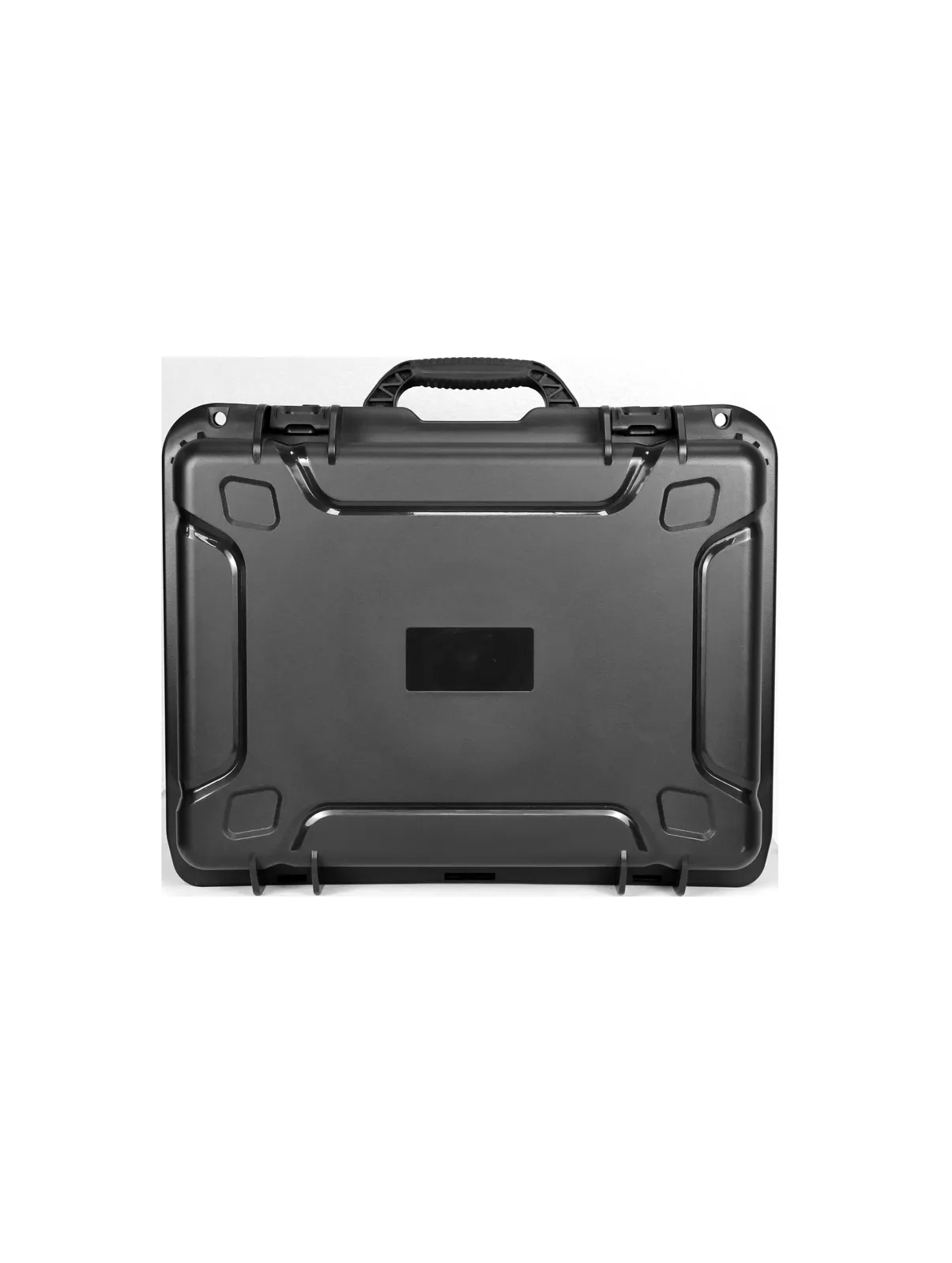

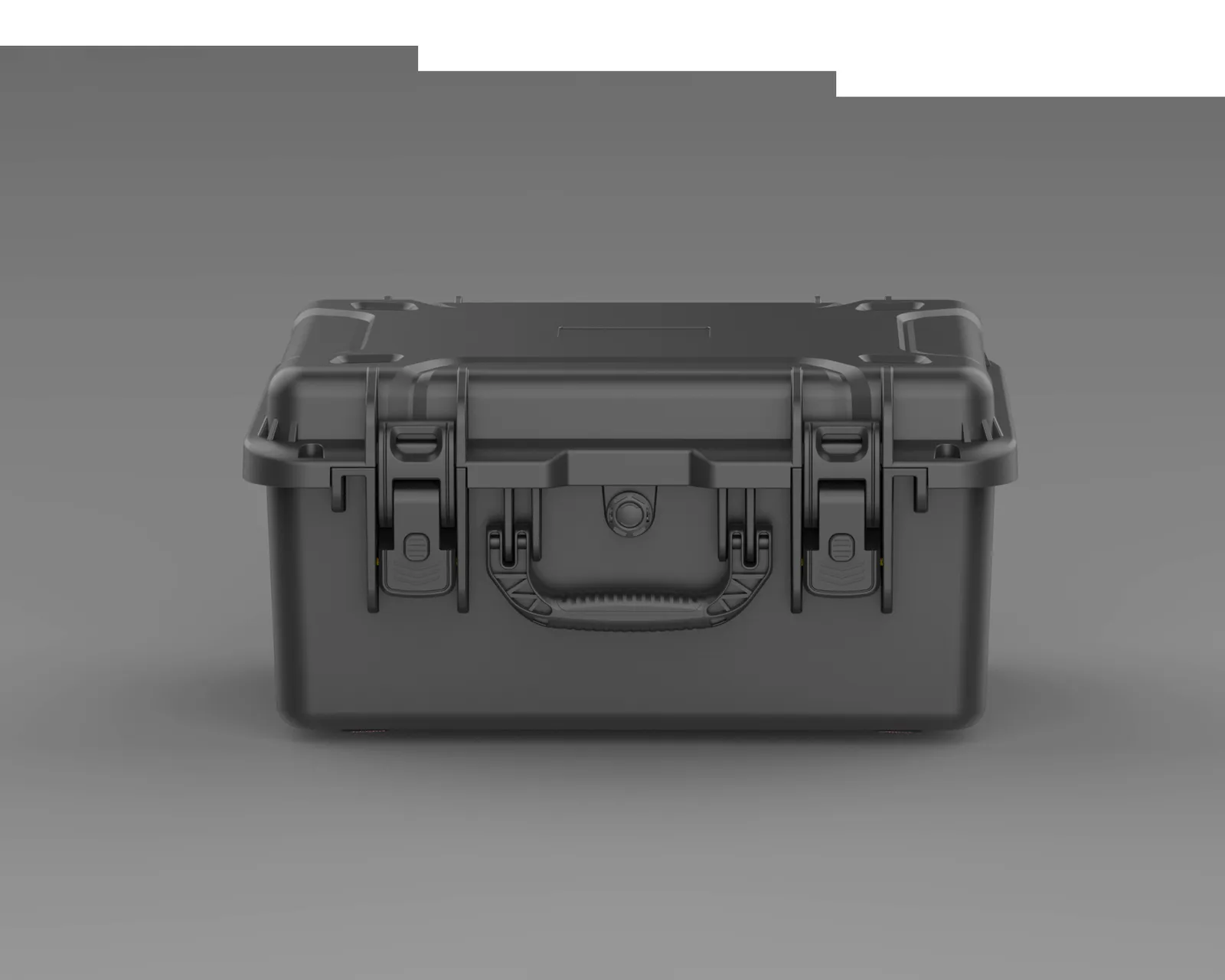

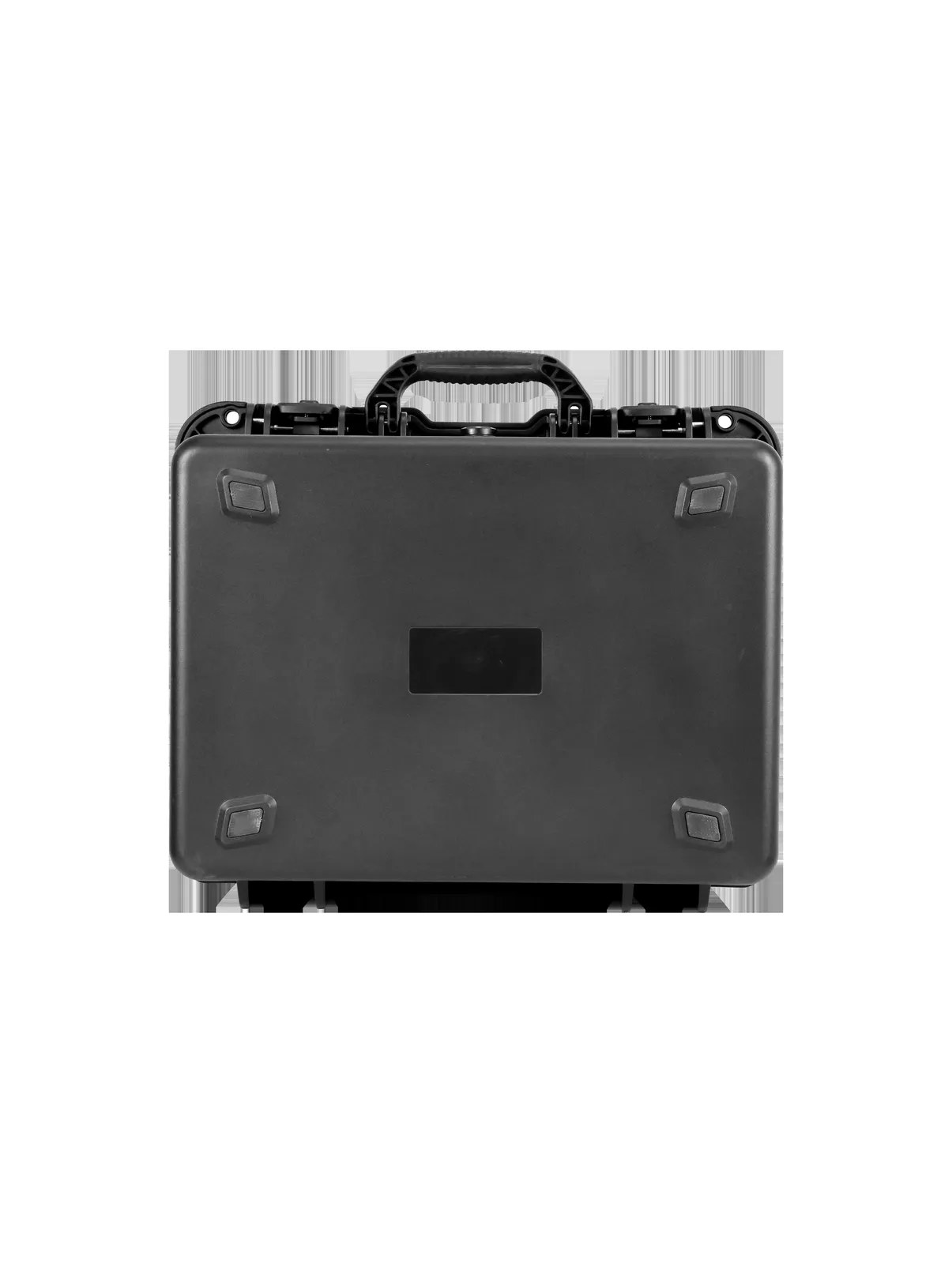

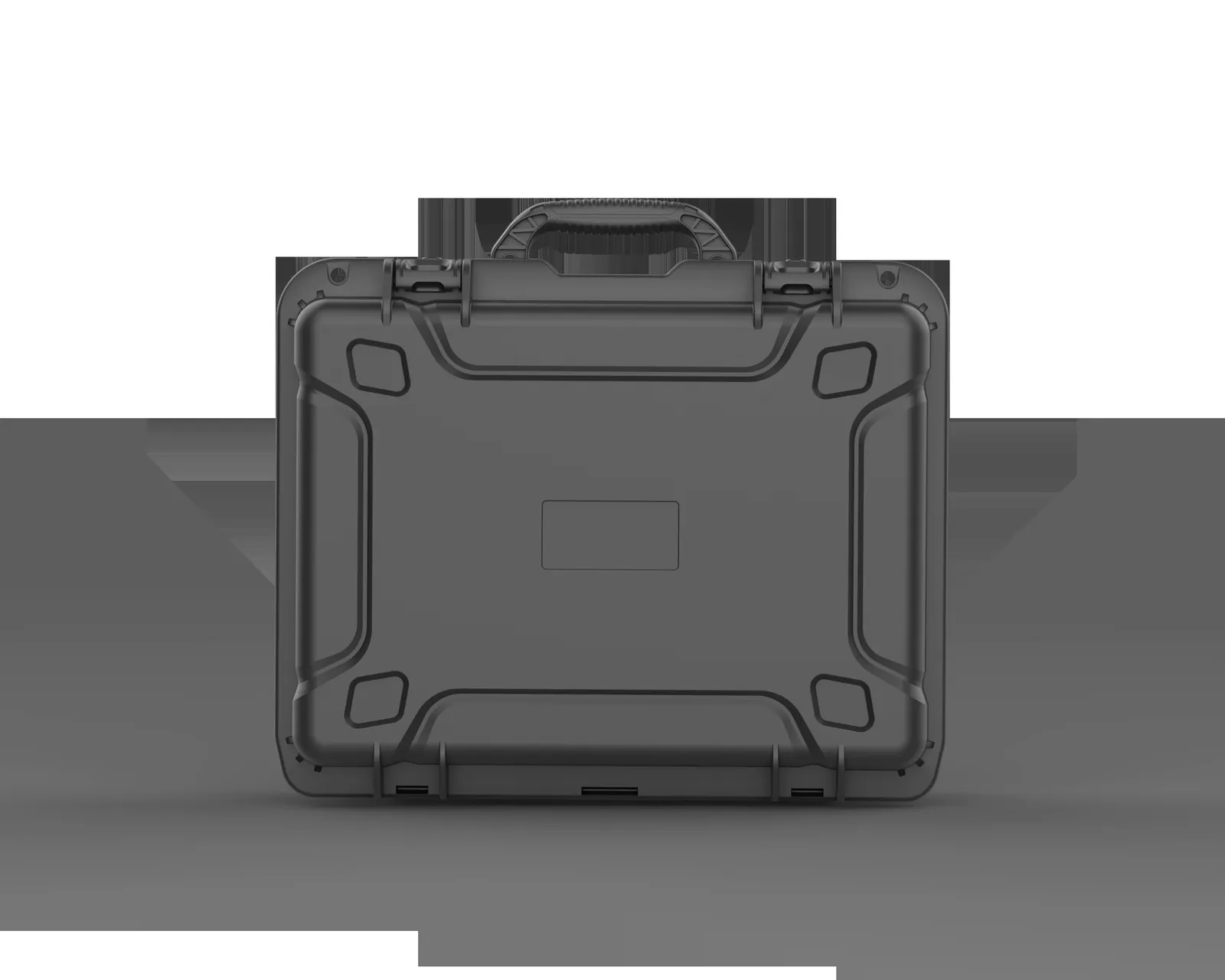

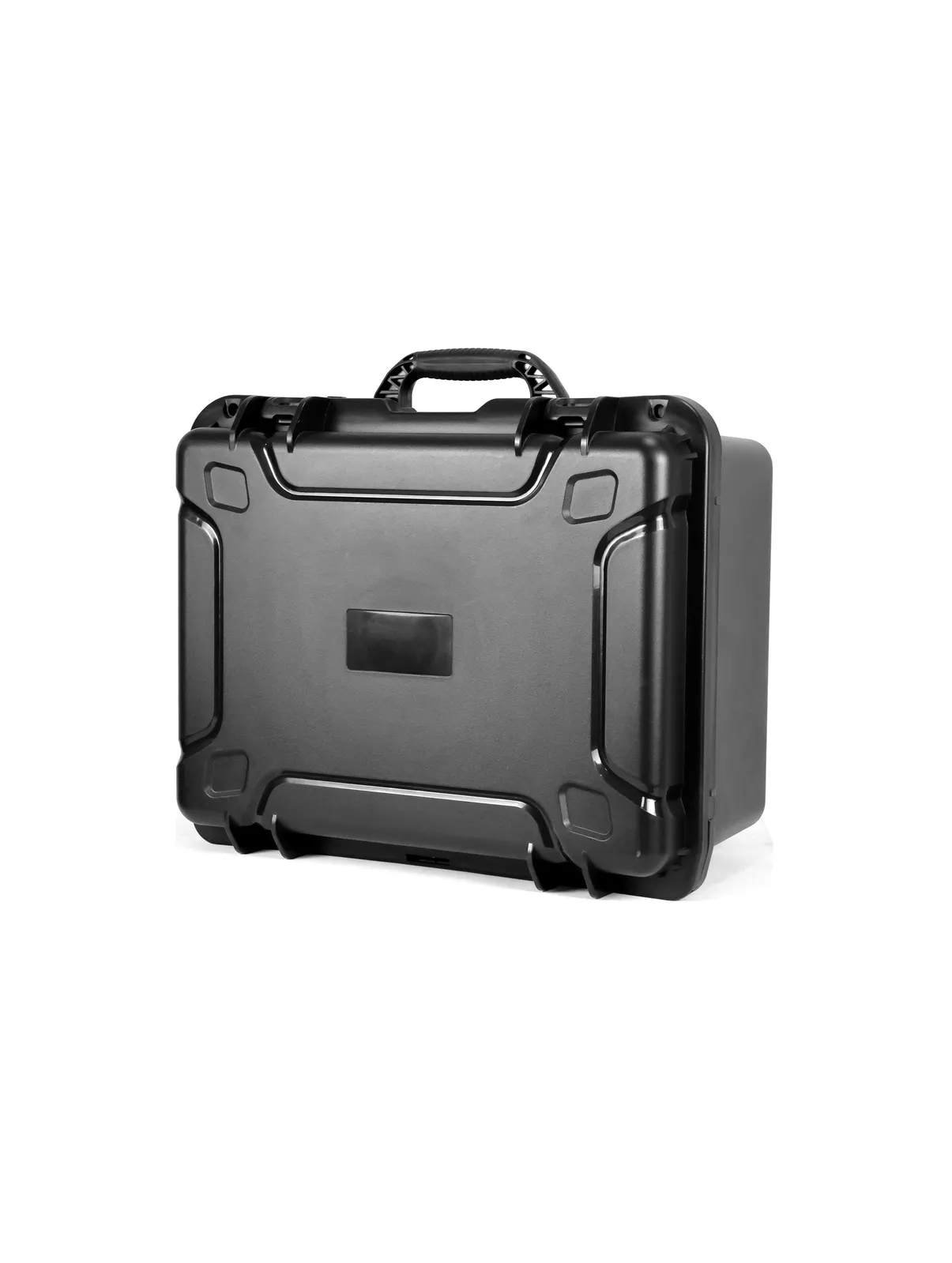

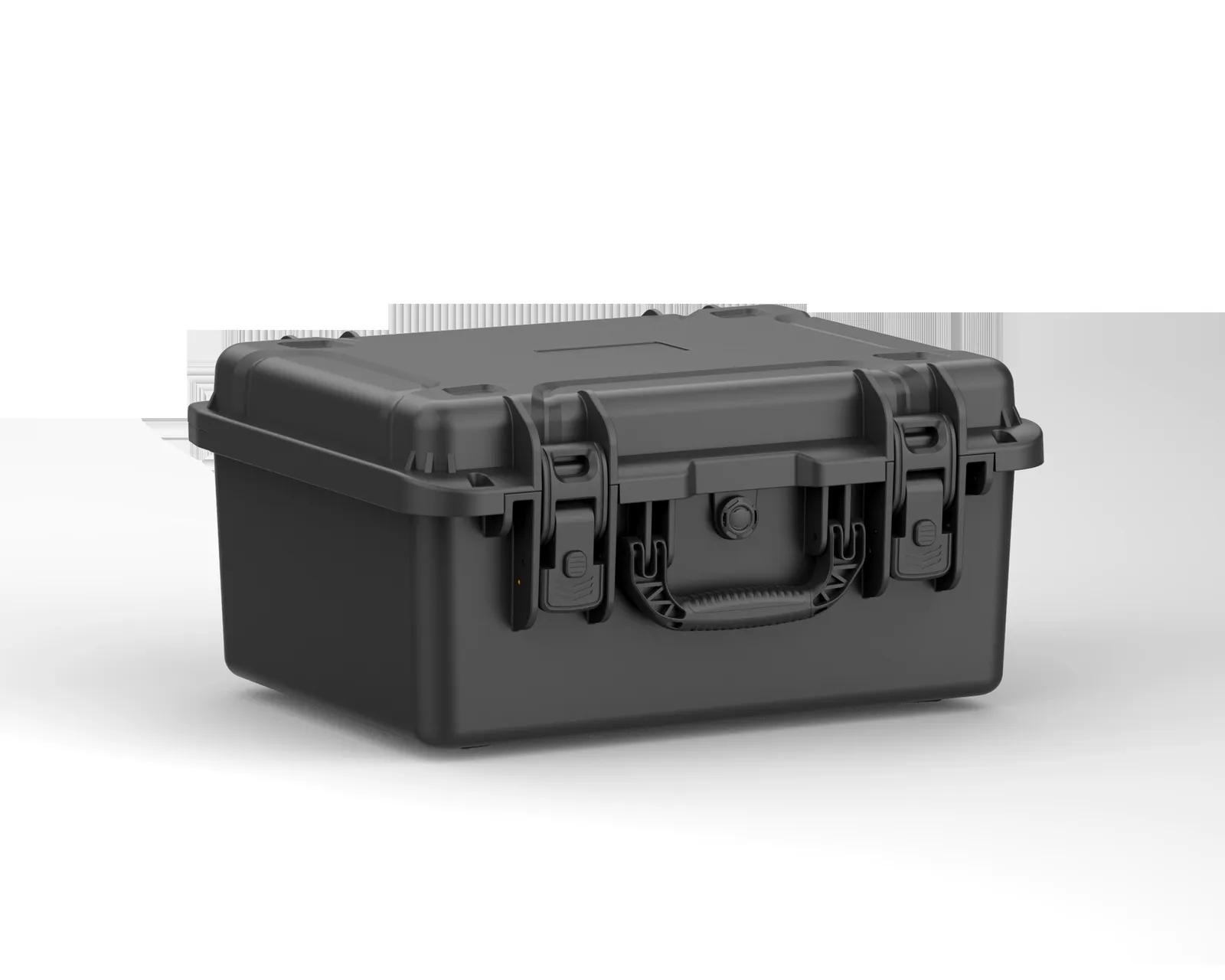

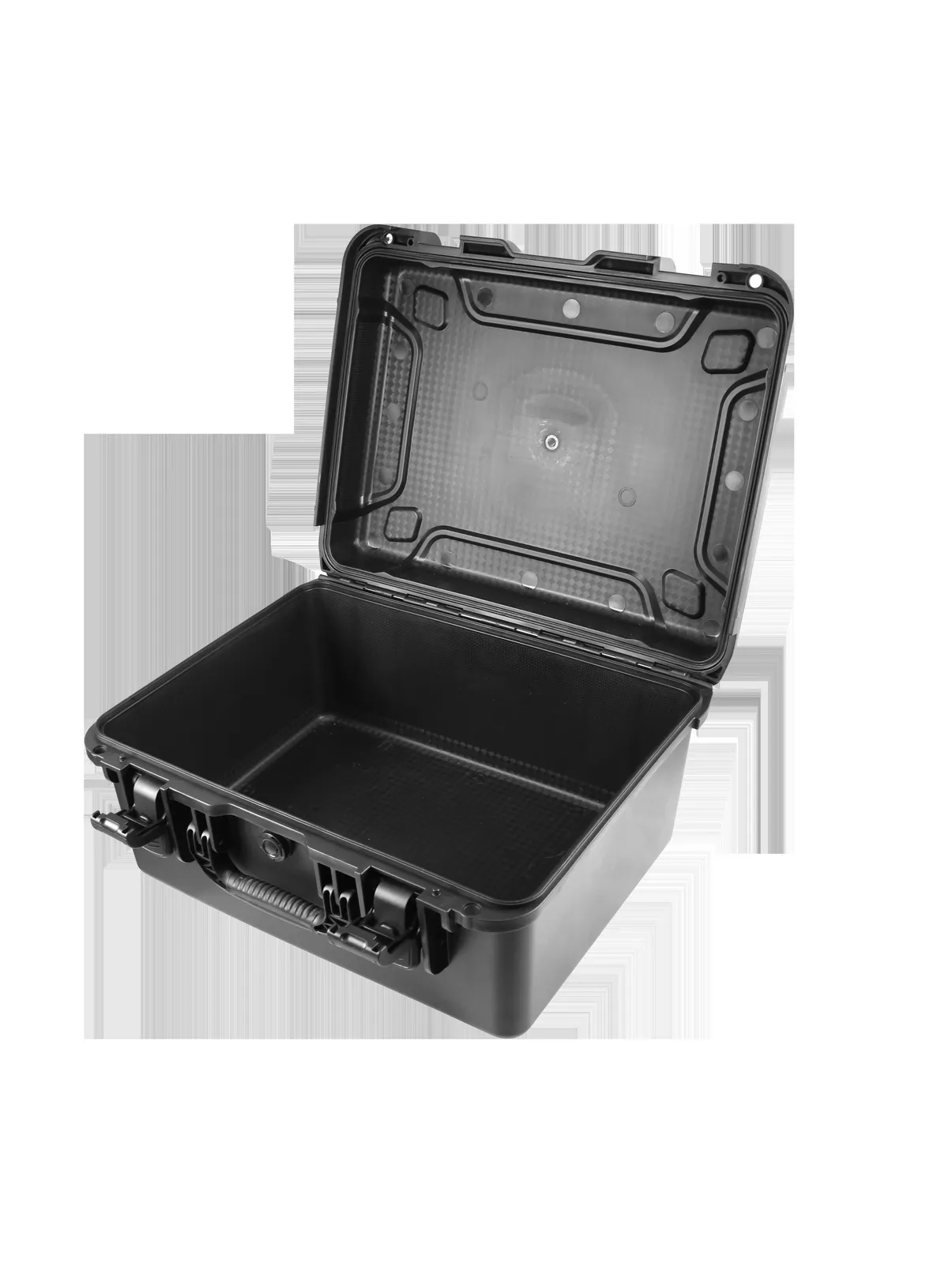

WL8-5025 Engineering PP Gun Case

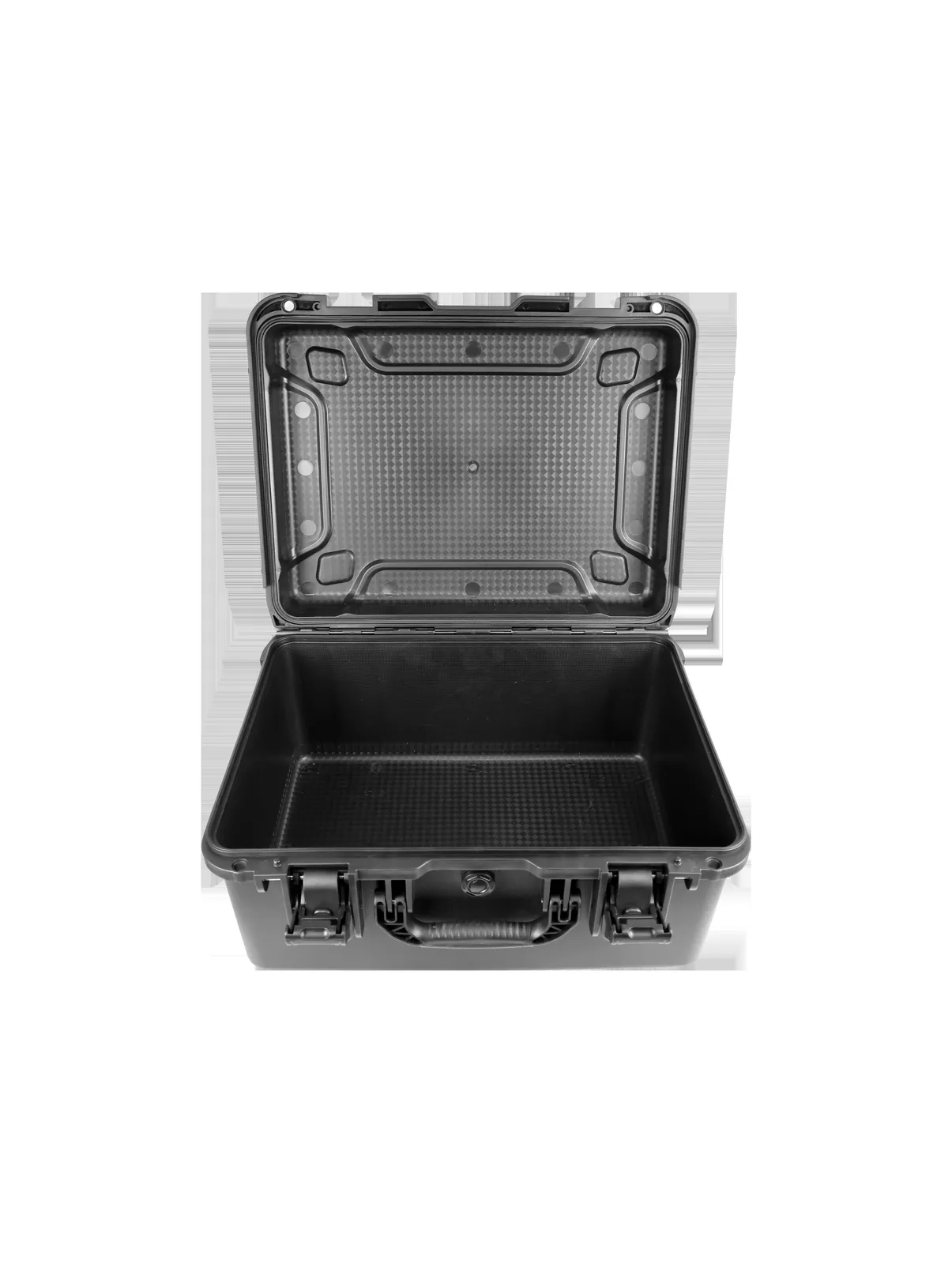

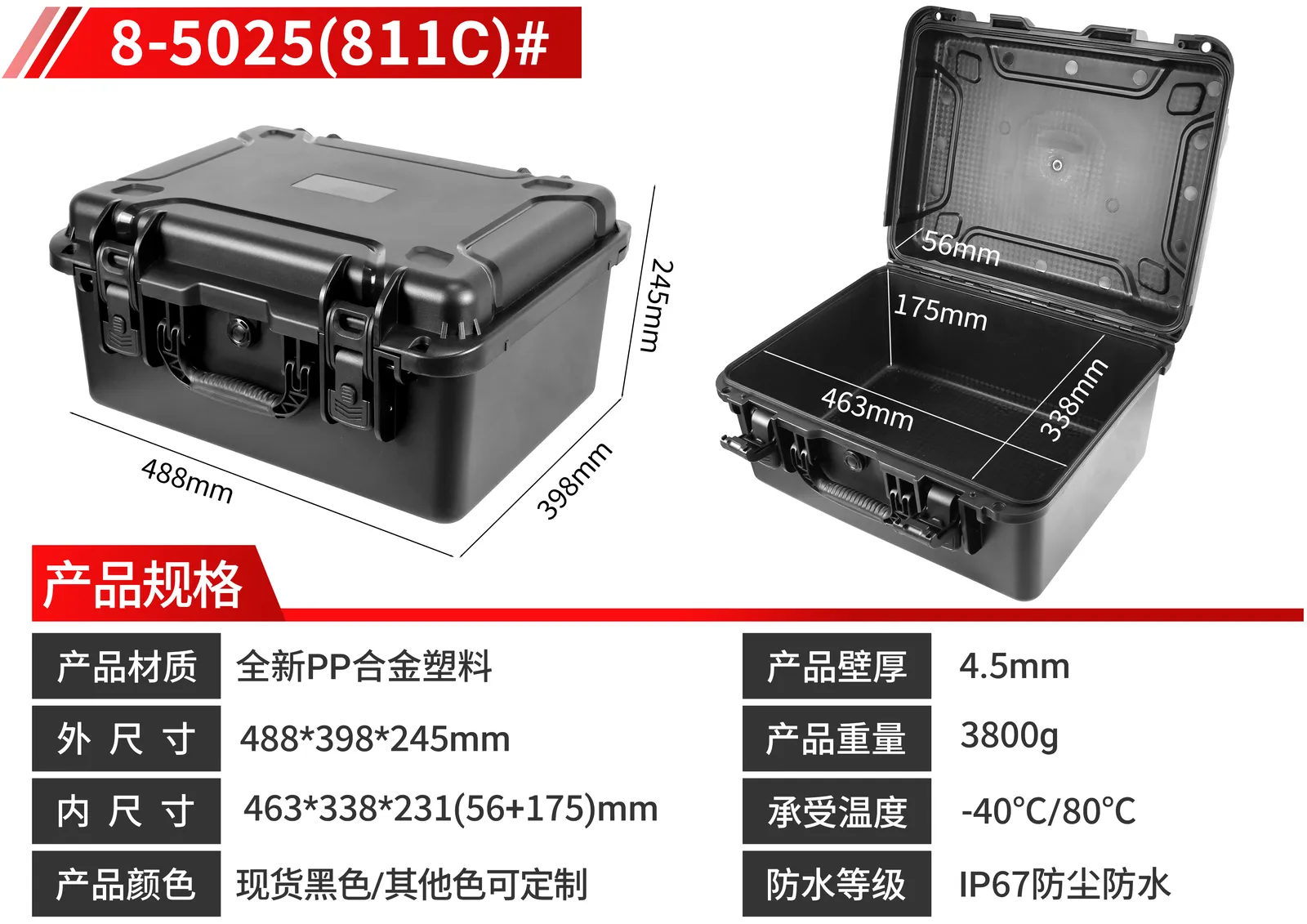

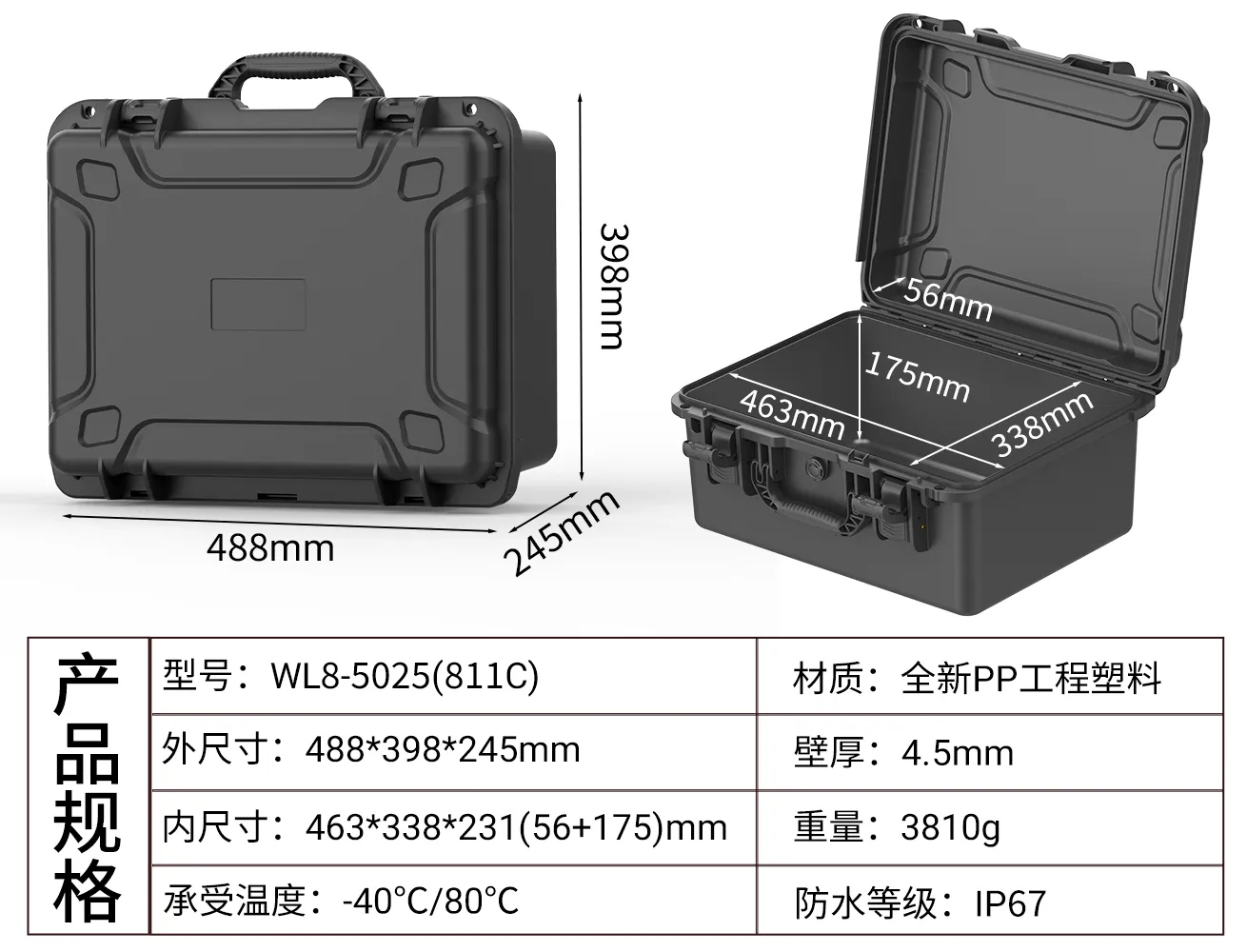

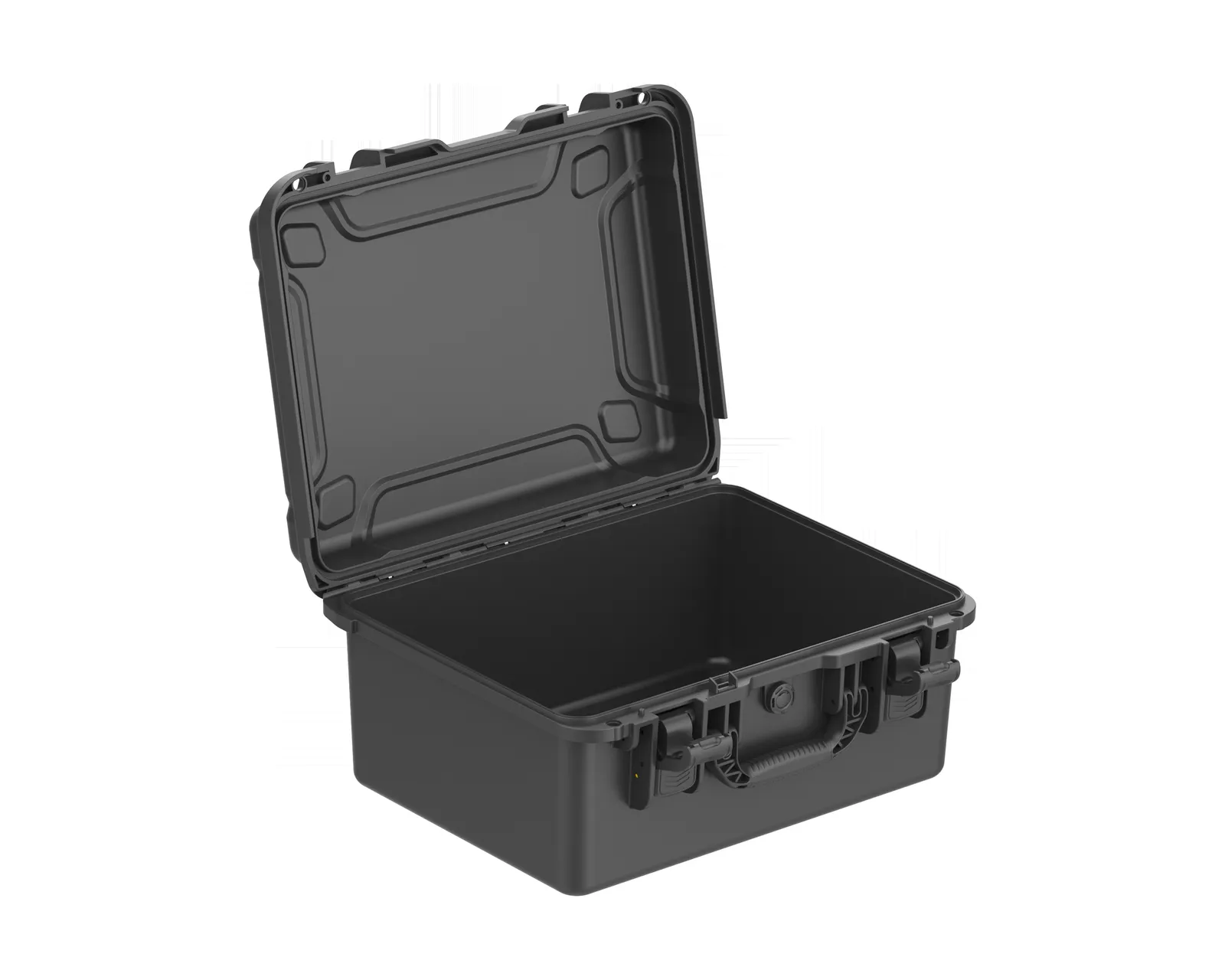

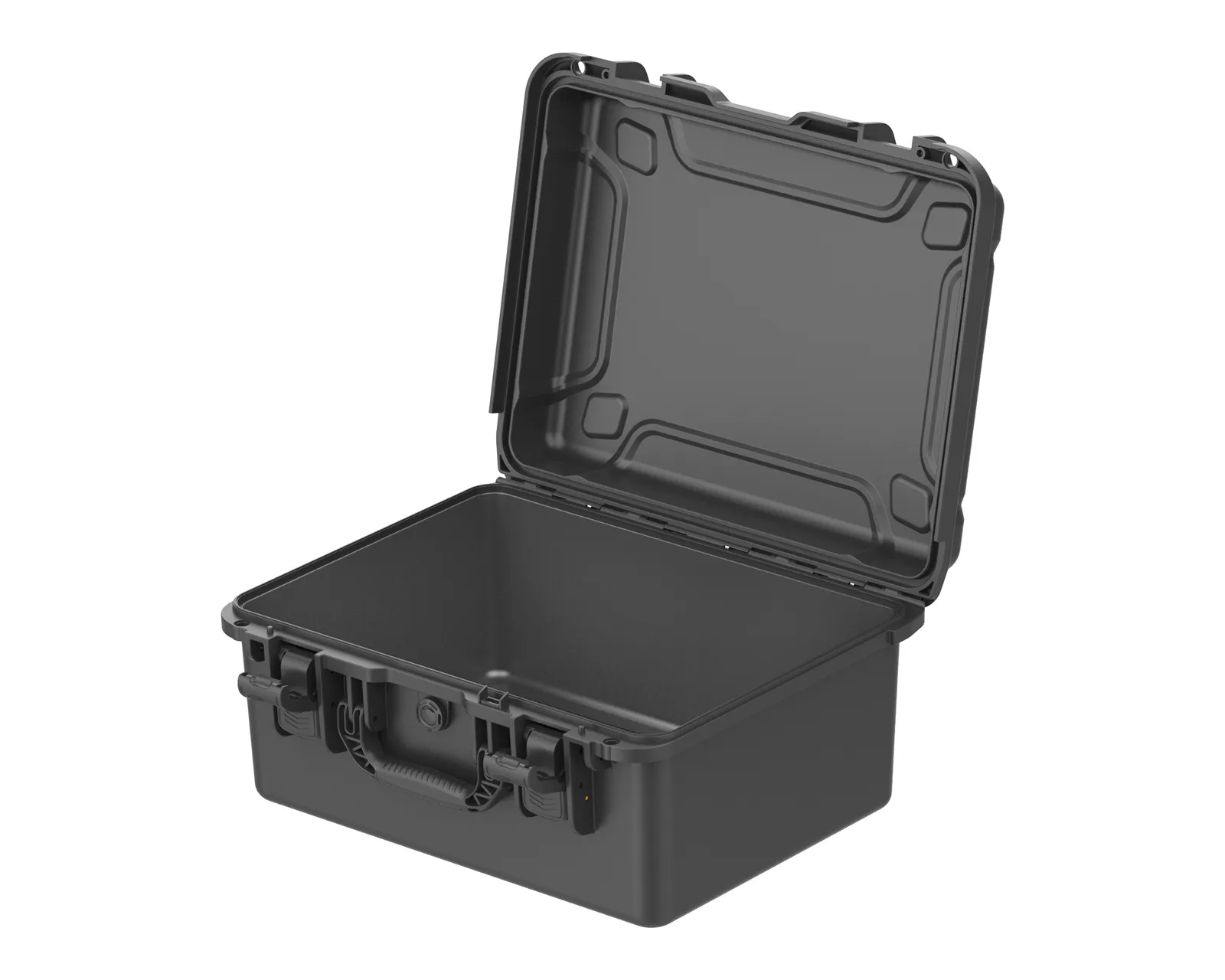

The case measures 488*398*245 mm outside and 463*338*231 mm inside, with a 4.5 mm wall and an empty weight of 3800 g. It offers a 463 by 338 mm usable floor and 231 mm of internal height, the tallest option on the 488*398 mm footprint, so taller instruments, bottles of consumables and equipment with brackets stand upright while long items still lay flat. Send a drawing or photo if a part nears the limit.

The body is injection moulded in engineering-grade polypropylene with a sealing structure, and the closed case is rated IP67 for water and dust protection. It handles rain, dusty workshops and short immersion, keeping equipment free of moisture and particles. We do not claim military standard certification for this model. Since the cavity is deep and usually well filled, check the gasket regularly for ageing or trapped debris and avoid prolonged rain or immersion once it is damaged.

The body is engineering-grade polypropylene with a 4.5 mm wall, and the empty case weighs 3800 g. Compared with shorter versions on the same footprint, internal height rises while weight increases only slightly, so the weight per unit of packed volume improves for turnaround and storage work. Use both hands, support the base and keep the case level when it is loaded.

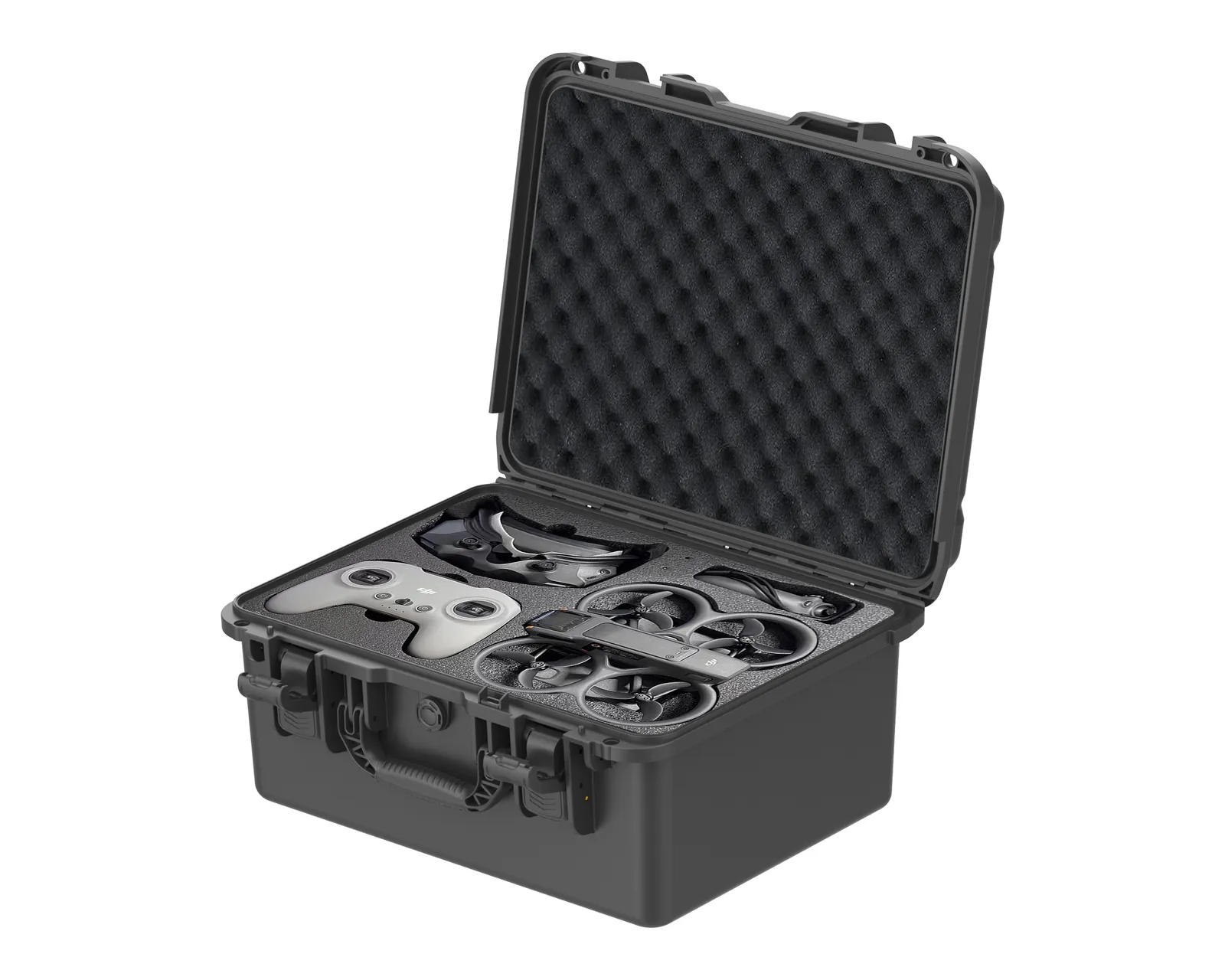

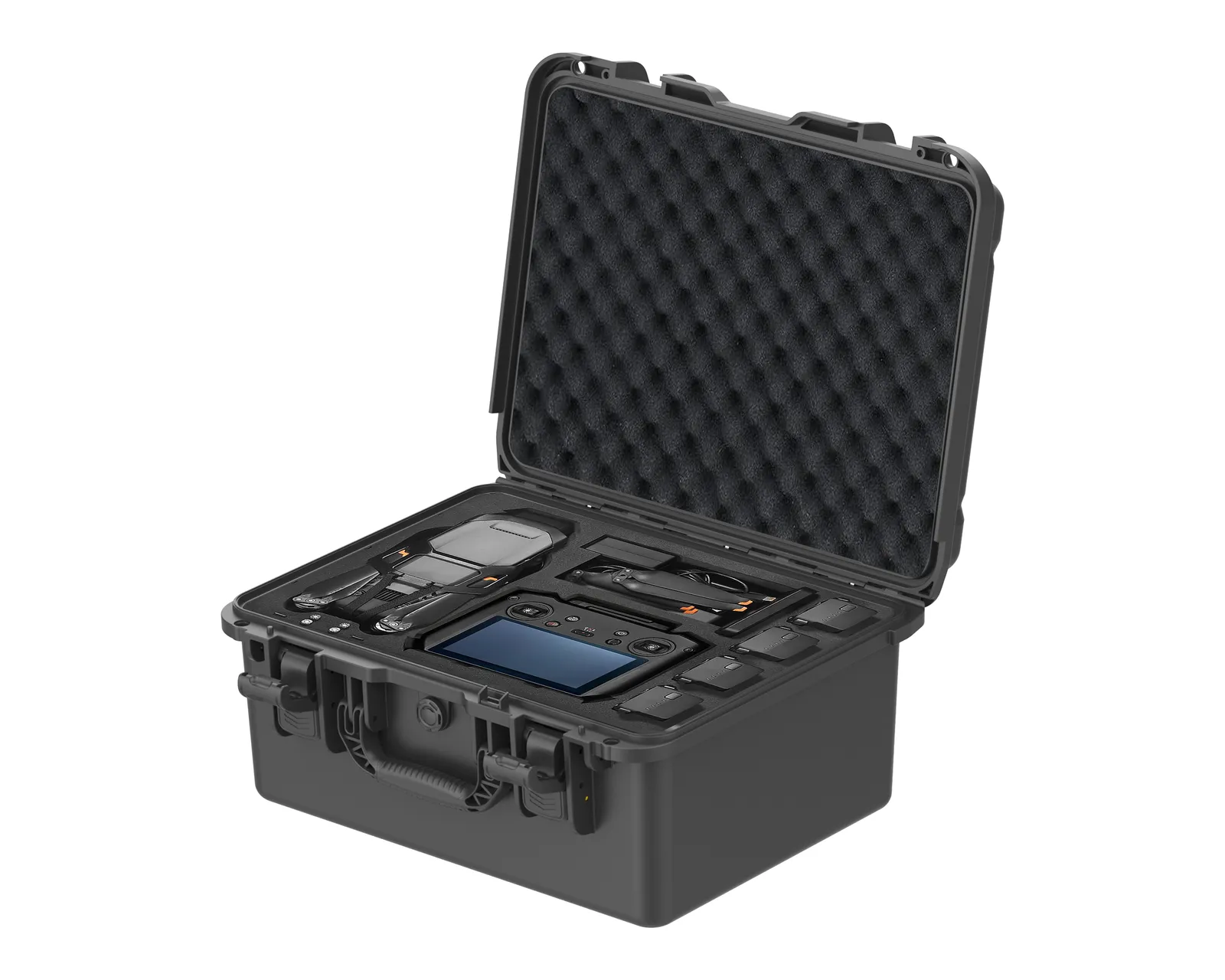

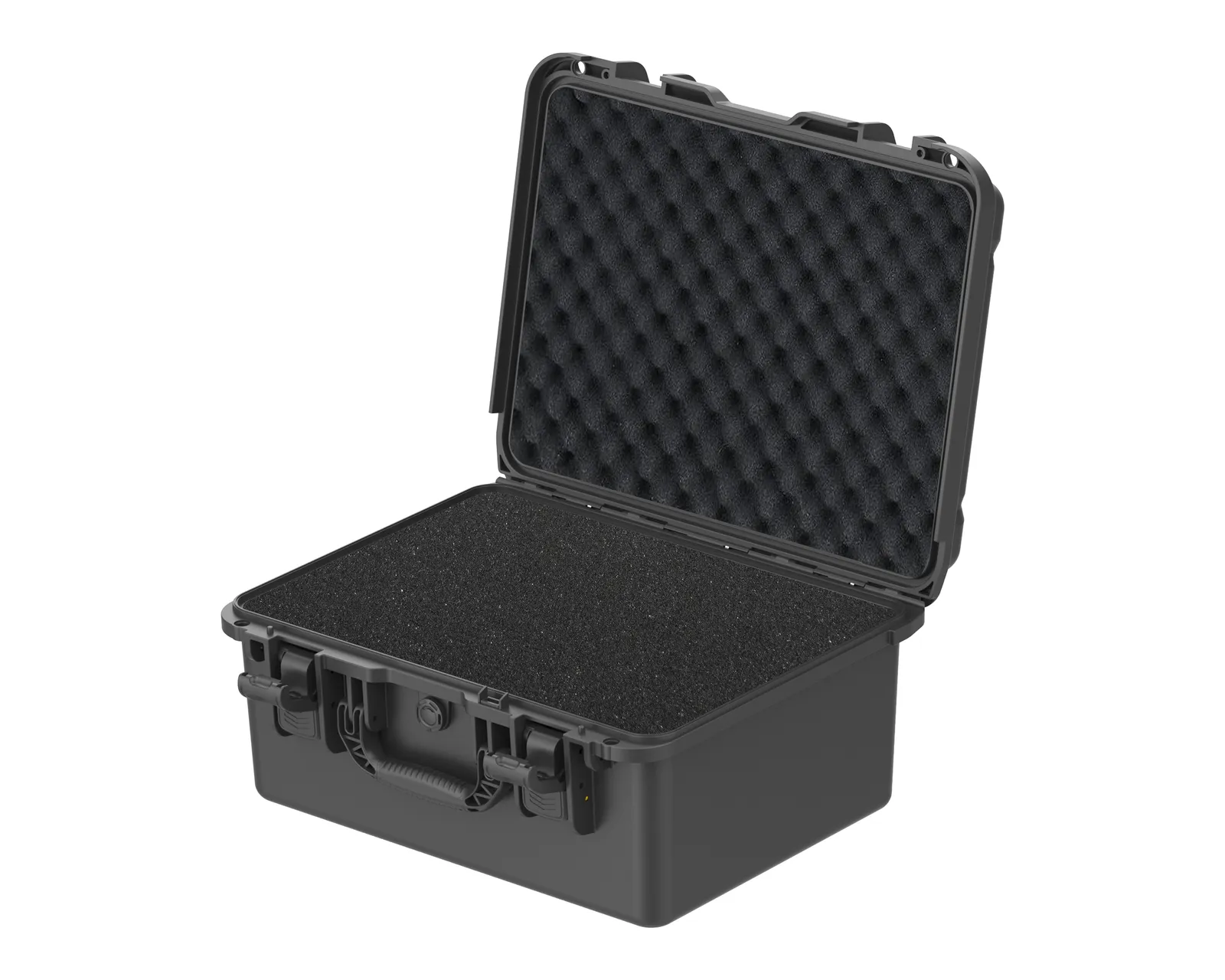

Deep cavities suit upright or layered packing, but too many layers shift in transit. Use compartmented foam or an EVA insert to divide the cavity and give every item a fixed position, restrain upright bottles and instruments so they cannot slide, and add a buffer layer on top if needed. Send item sizes and quantities and we will design an insert for the 463*338*231 mm cavity, including finger recesses on request.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures at its Zhongshan factory under the JUNZHIJIA brand and supplies factory-direct for OEM and ODM orders. Colour, silk-screen printing or nameplates, foam insert layout and latch configuration can all be customised. MOQ and lead time are assessed against the chosen colour, insert process and printing requirements, and a sample is normally confirmed before batch production. Send your application, quantity and customisation list and our team will quote.
