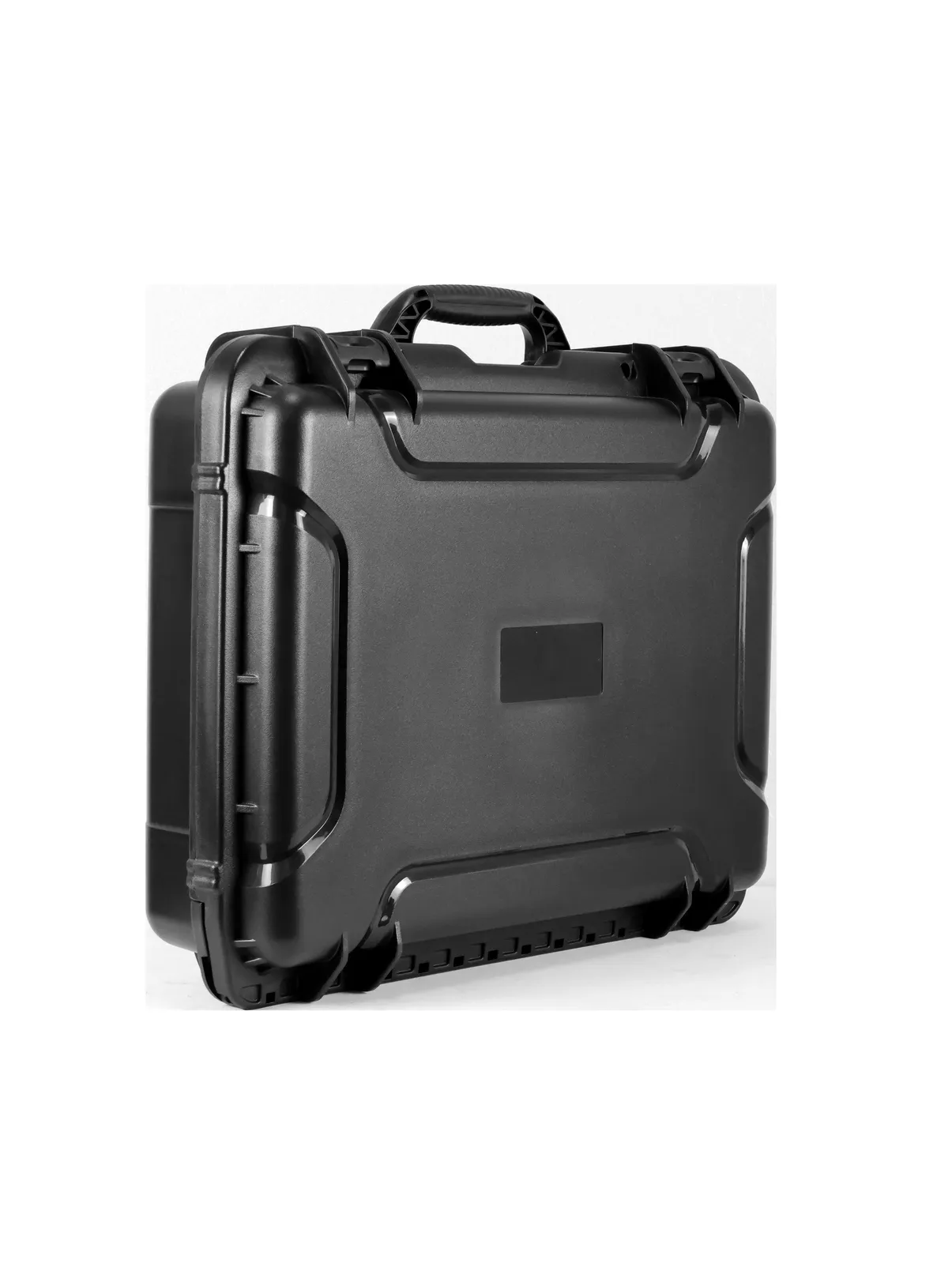

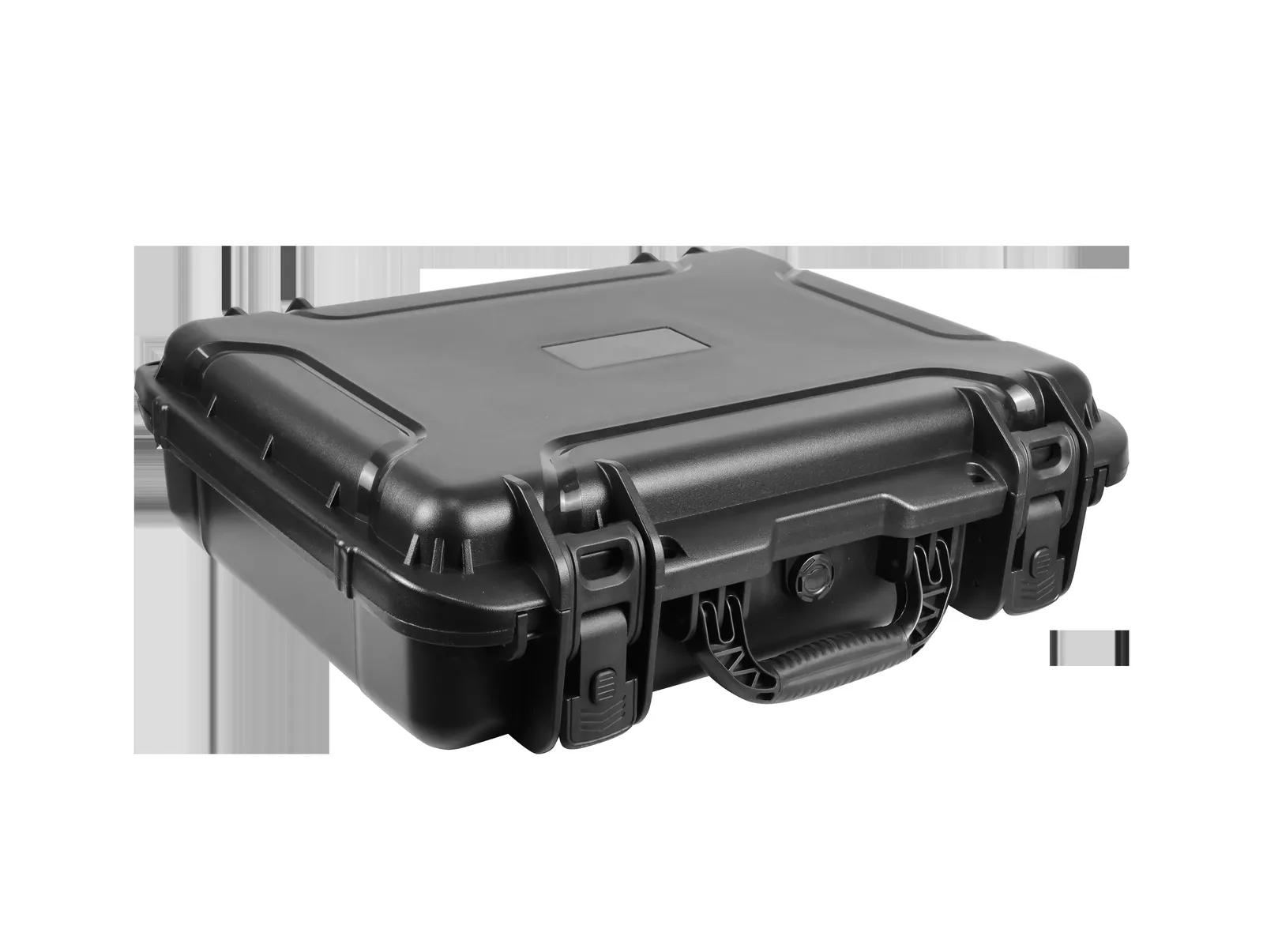

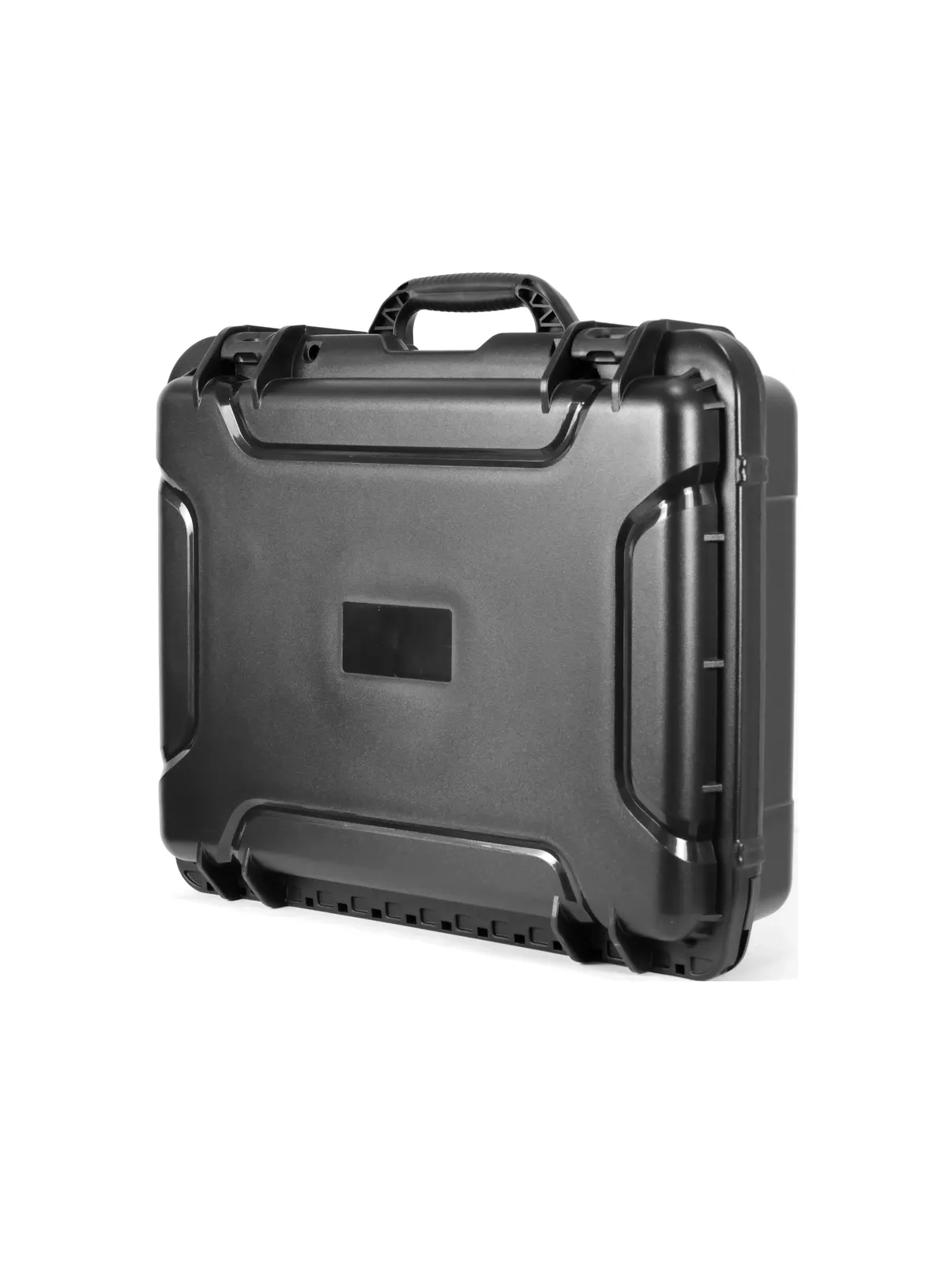

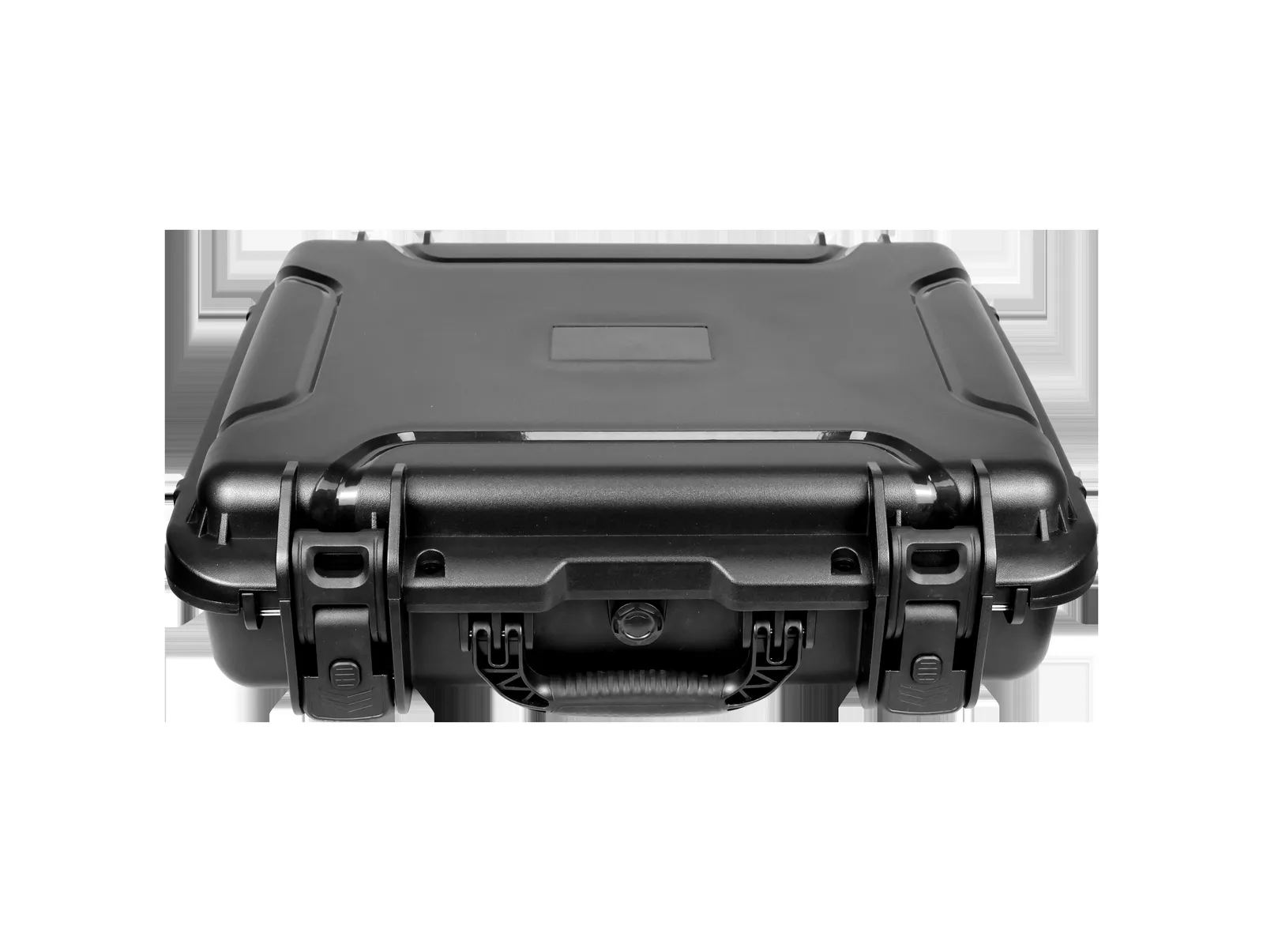

WL8-5215 Engineering PP Gun Case

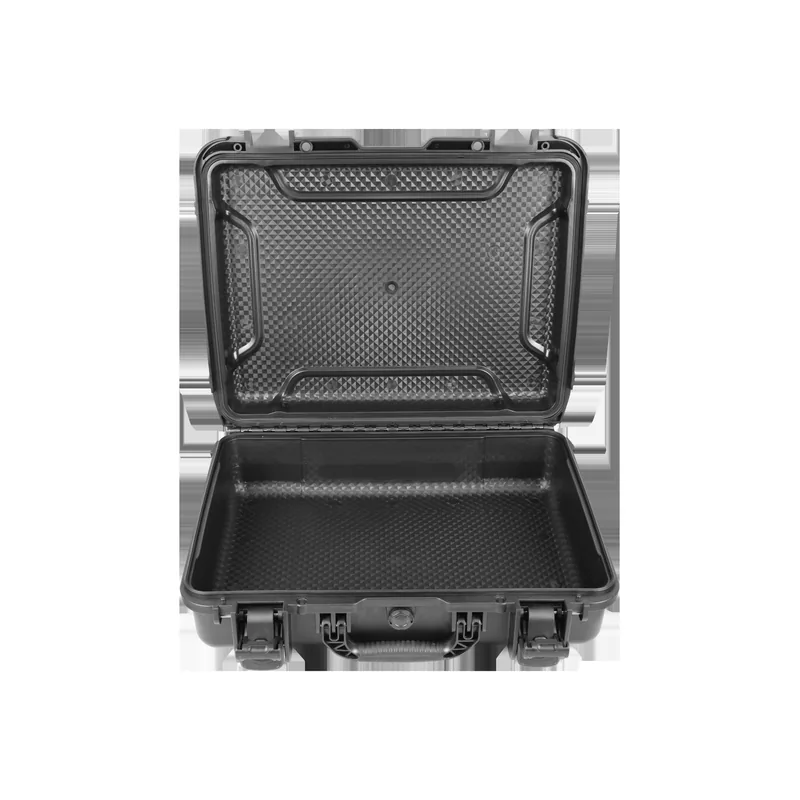

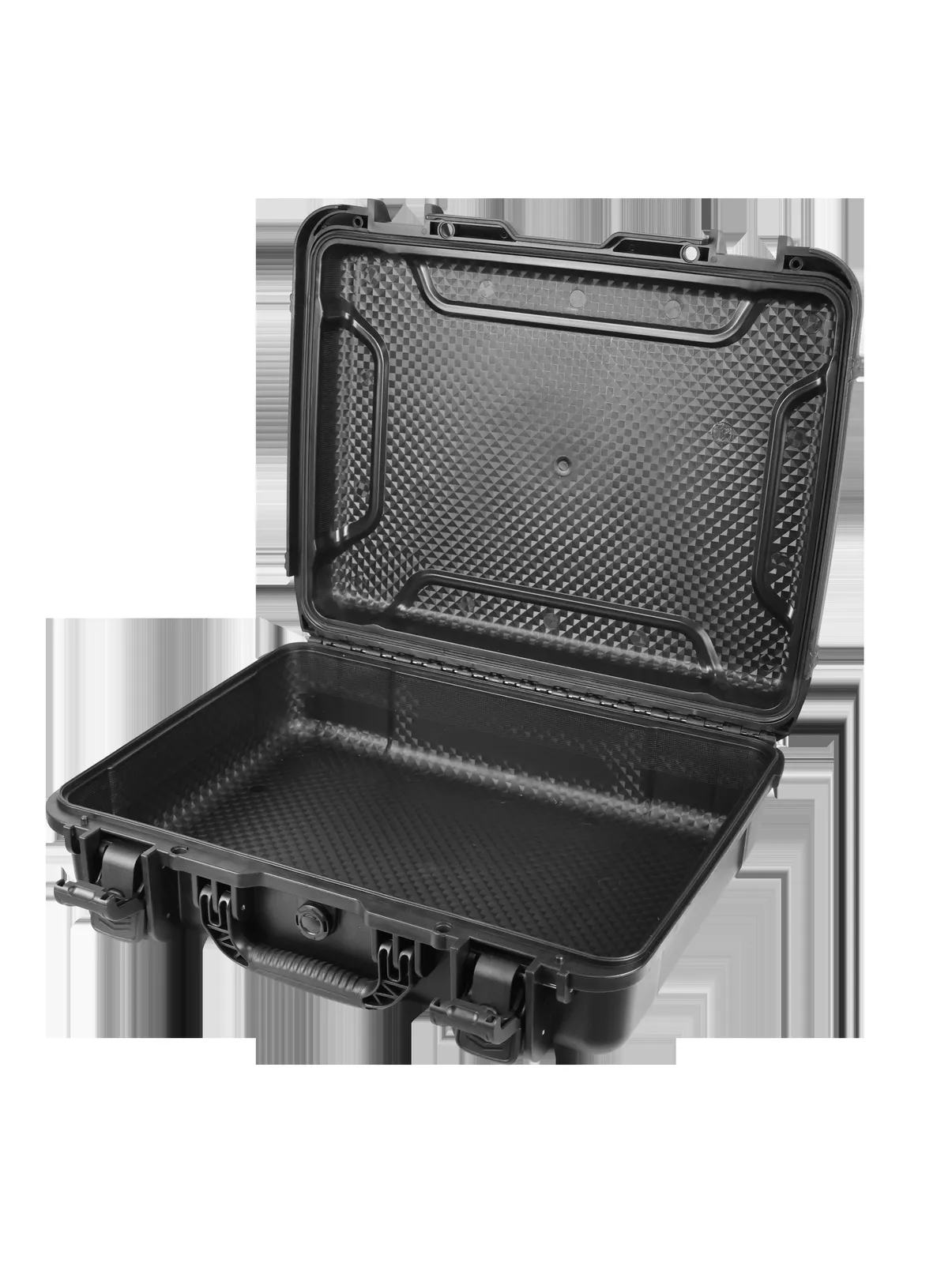

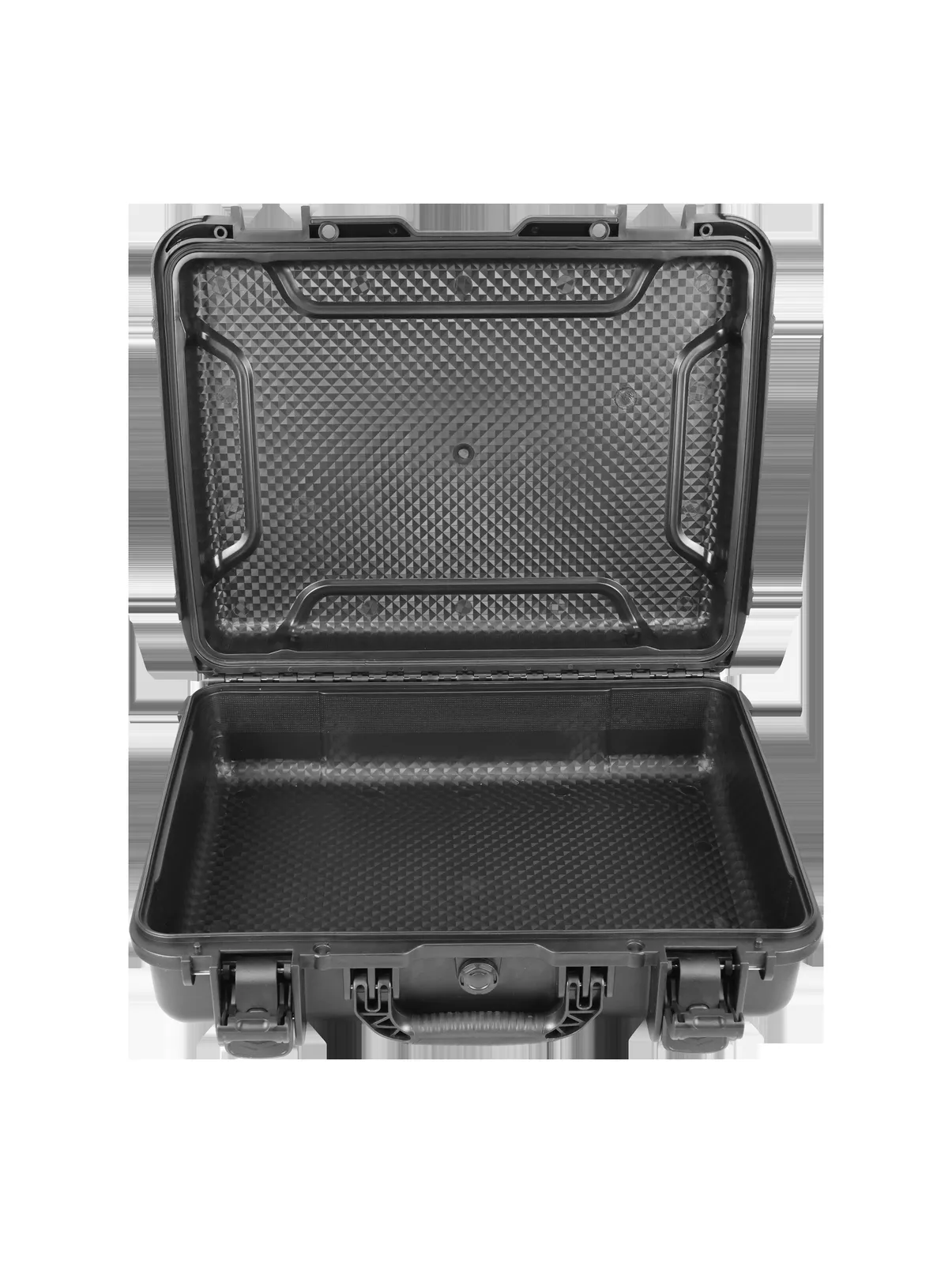

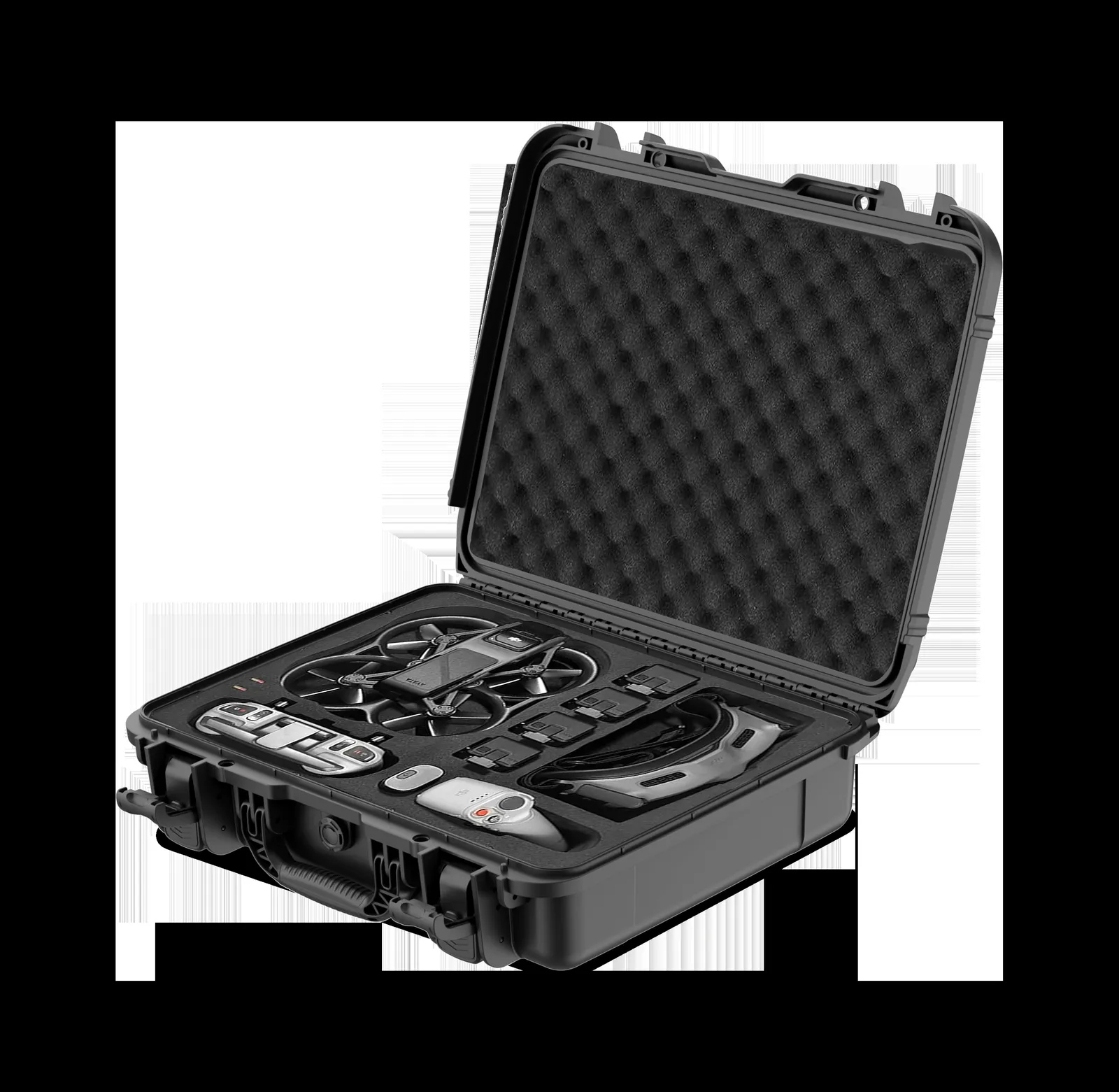

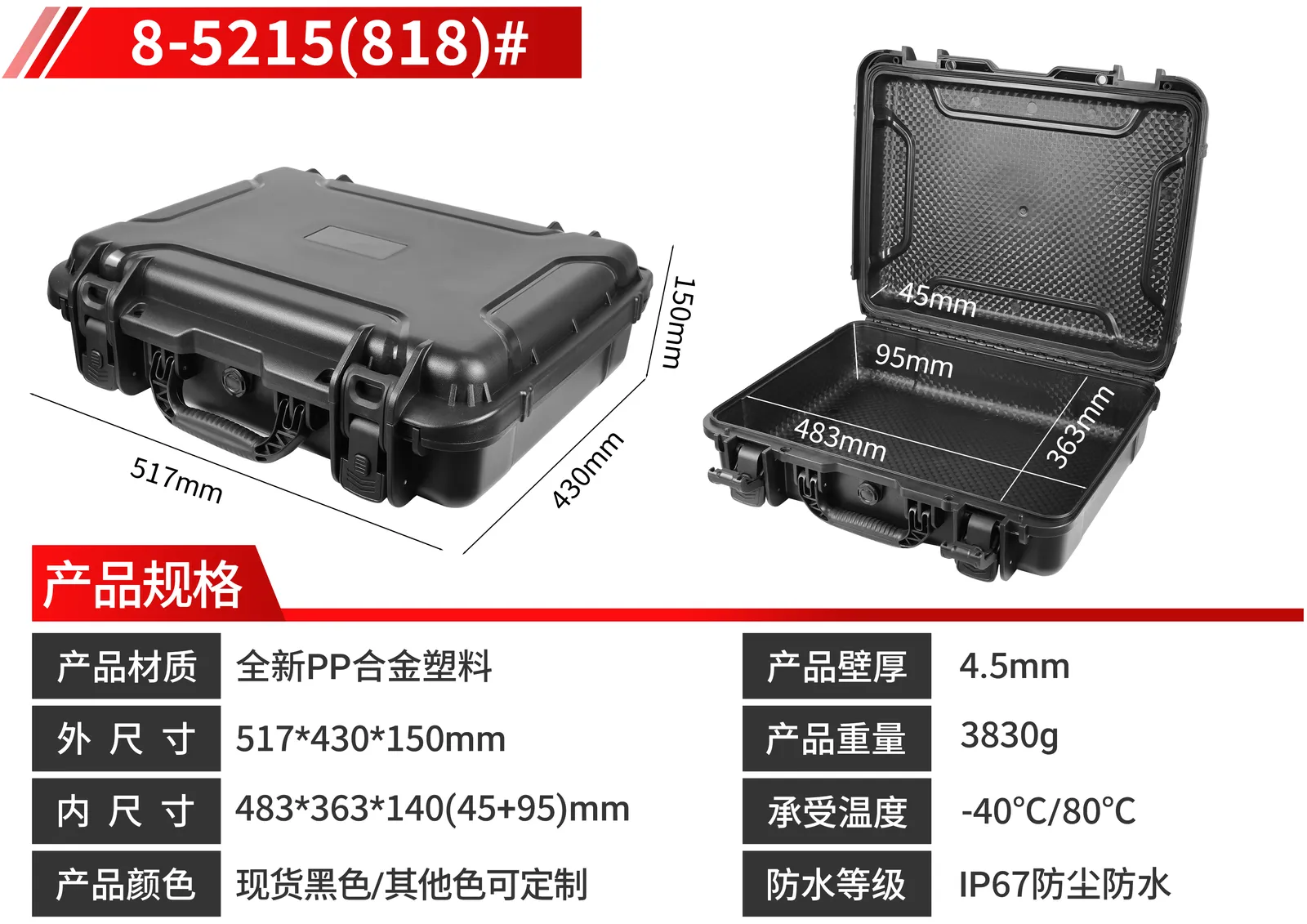

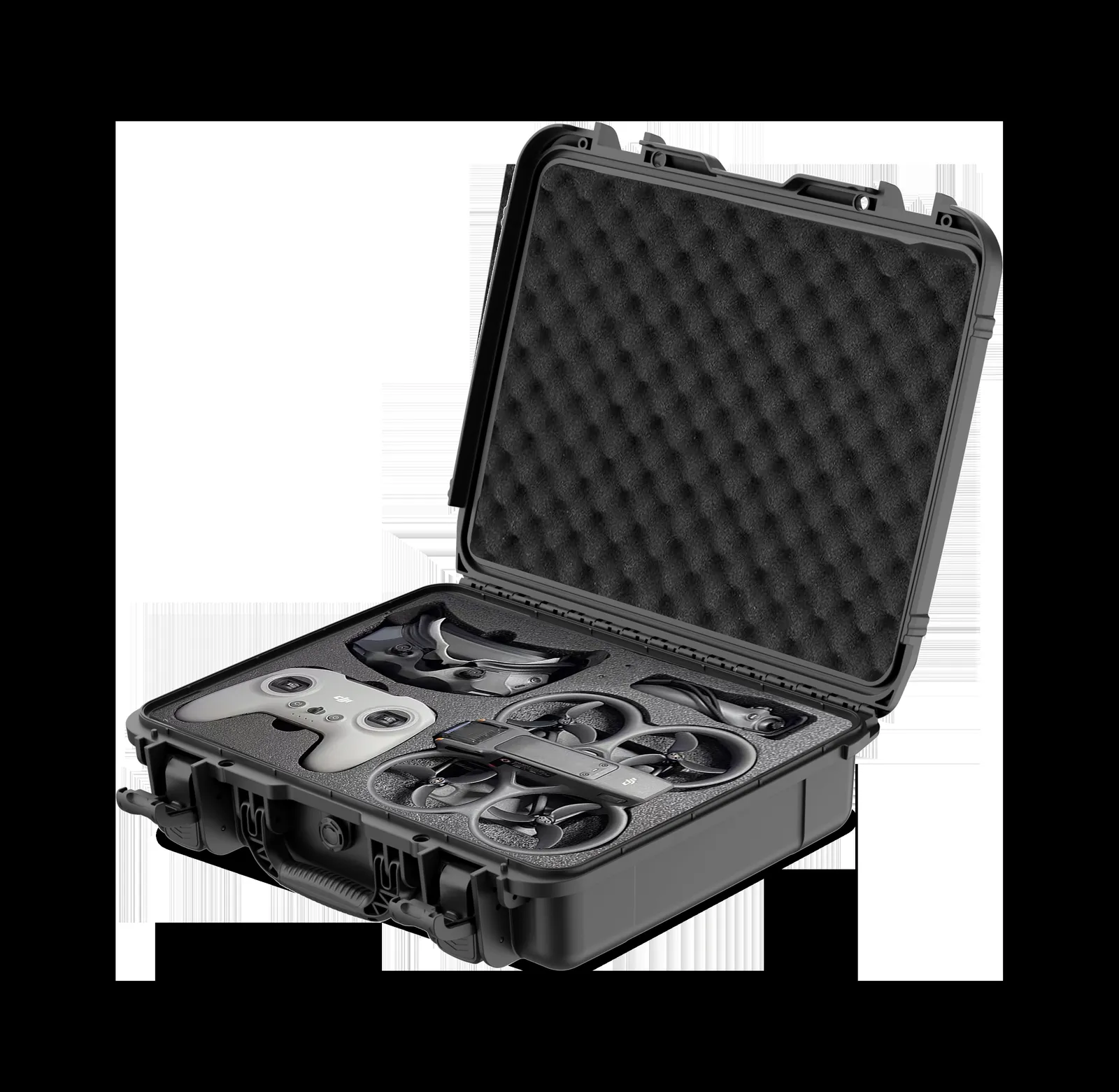

The case measures 517*430*150 mm outside and 483*363*140 mm inside, with a 4.5 mm wall and an empty weight of 3830 g. It offers a 483 by 363 mm usable floor with 140 mm of internal height, one of the larger floors in the 8 Series combined with a shallow body. That suits long tools and equipment laid flat in rows, or photographic gear, drone accessories and electronic modules stored as one full layer. Send a drawing or photo if an item nears the limit.

The body is injection moulded in engineering-grade polypropylene with a sealing structure, and the closed case is rated IP67 for water and dust protection. It handles rain, dusty workshops and short immersion, which suits workshop, field service and warehouse use. We do not claim military standard certification for this model. The rating depends on the lid seating correctly on the gasket, so with a large, well-filled case check the seal regularly for ageing or trapped debris and avoid prolonged rain or immersion once damaged.

The body is engineering-grade polypropylene with a 4.5 mm wall, and the empty case weighs 3830 g. The 4.5 mm wall helps a large floor stay flat and resist distortion under load even though the body is shallow, and engineering PP offers better rigidity, impact resistance and dimensional stability for frequent handling. Ask our sales team for the specific grade and inspection documents before ordering, and clean with water or a mild detergent.

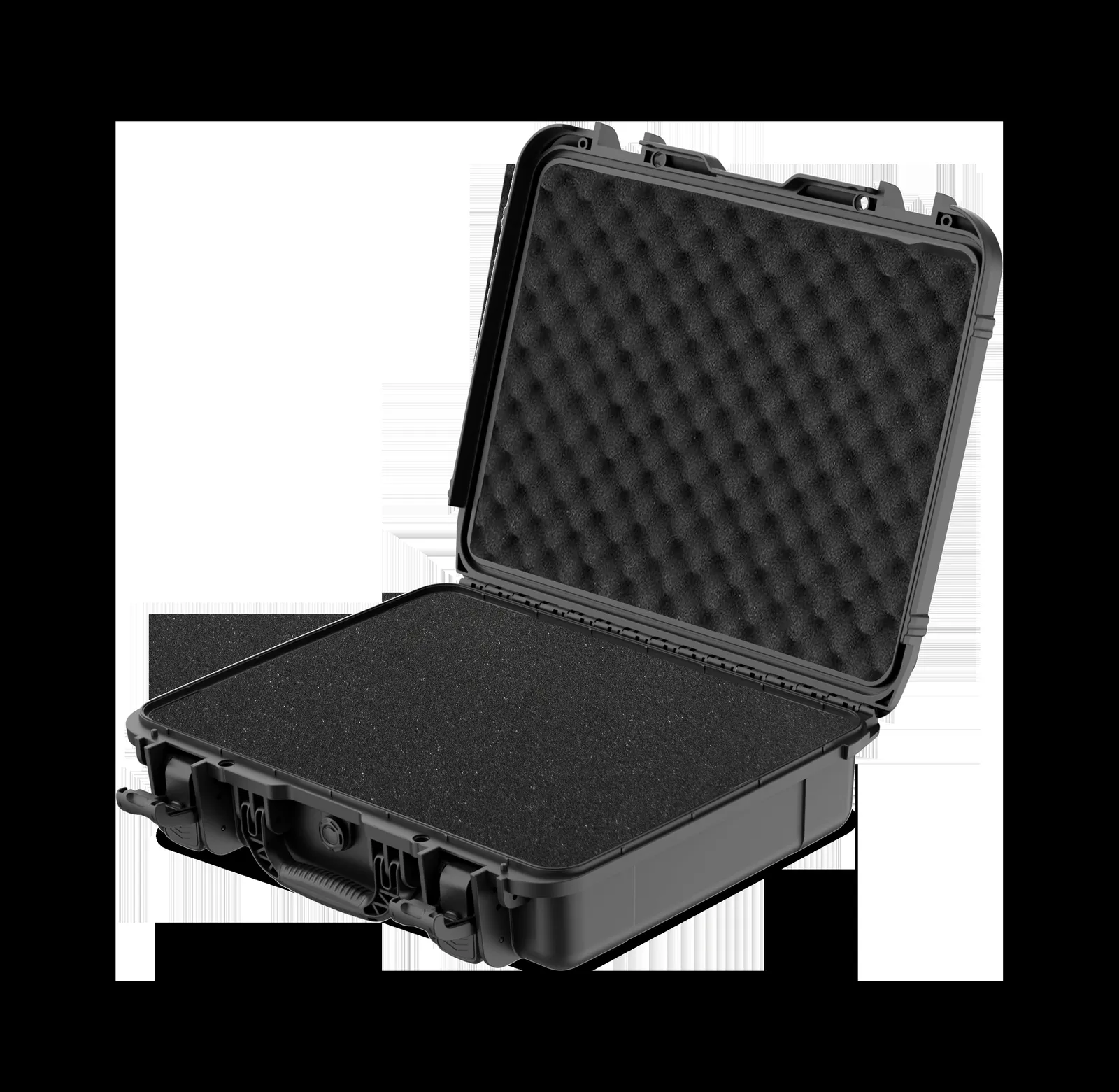

The 140 mm height is intended mainly for single-layer packing, which suits rows of long tools and gauges or photographic and electronic equipment, and you can reach any item without digging below a top layer. For thicker items, check the individual height first and leave a little clearance around each. Compartmented foam or an EVA insert can divide the single layer into zones. Send sizes and quantities and we will design the insert.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures at its Zhongshan factory under the JUNZHIJIA brand and supplies factory-direct for OEM and ODM orders. Colour, silk-screen printing or nameplates, foam insert layout and latch configuration can all be customised. MOQ and lead time are assessed against the chosen colour, insert process and printing requirements, and a sample is normally confirmed before batch production. Send your application, quantity and customisation list and our team will quote.
