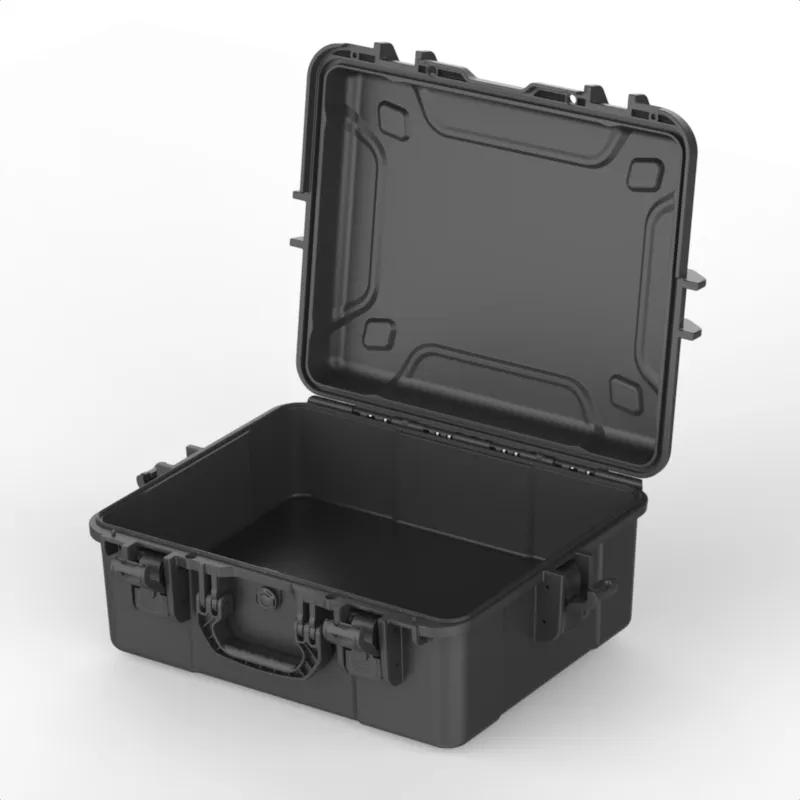

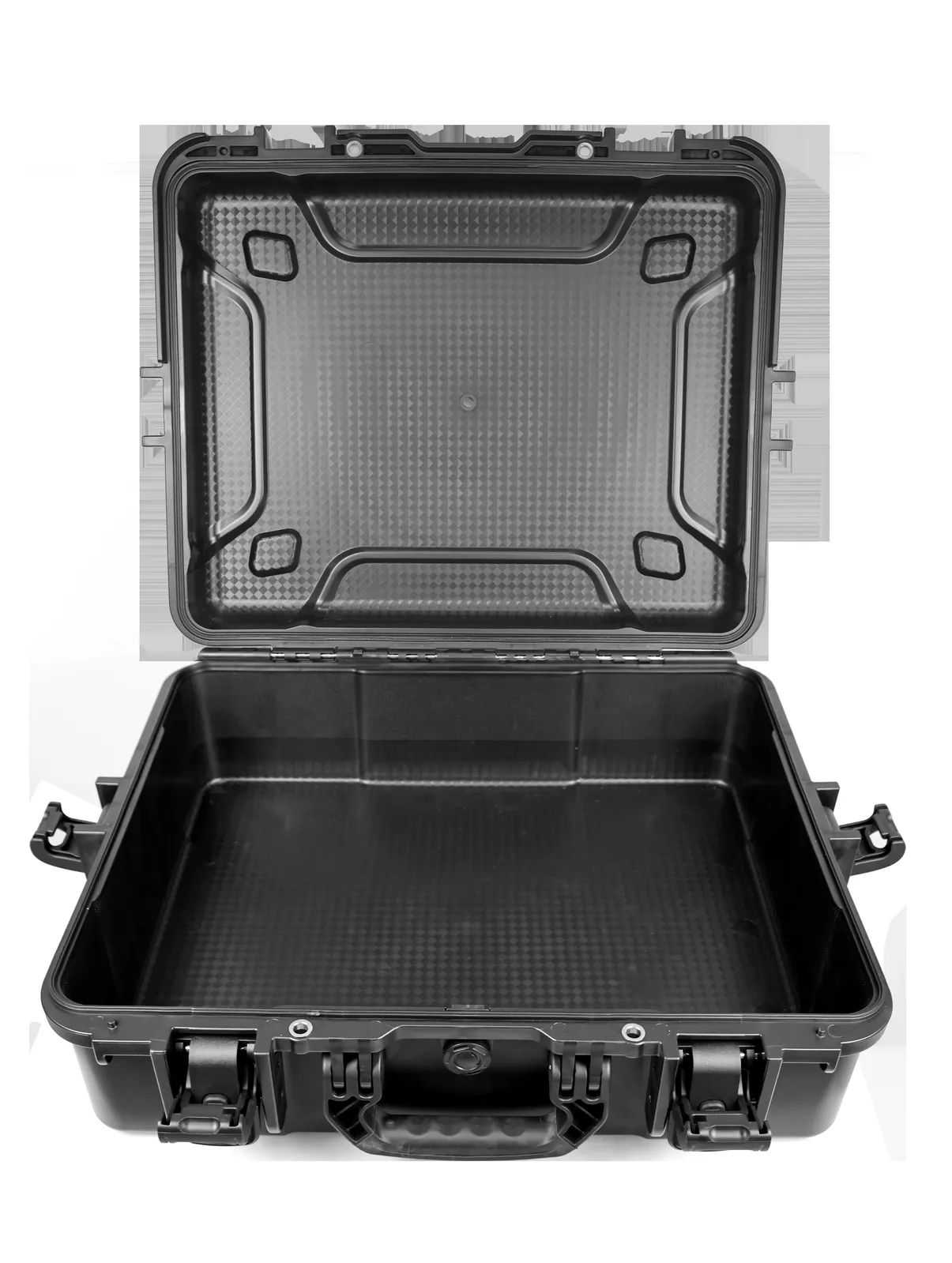

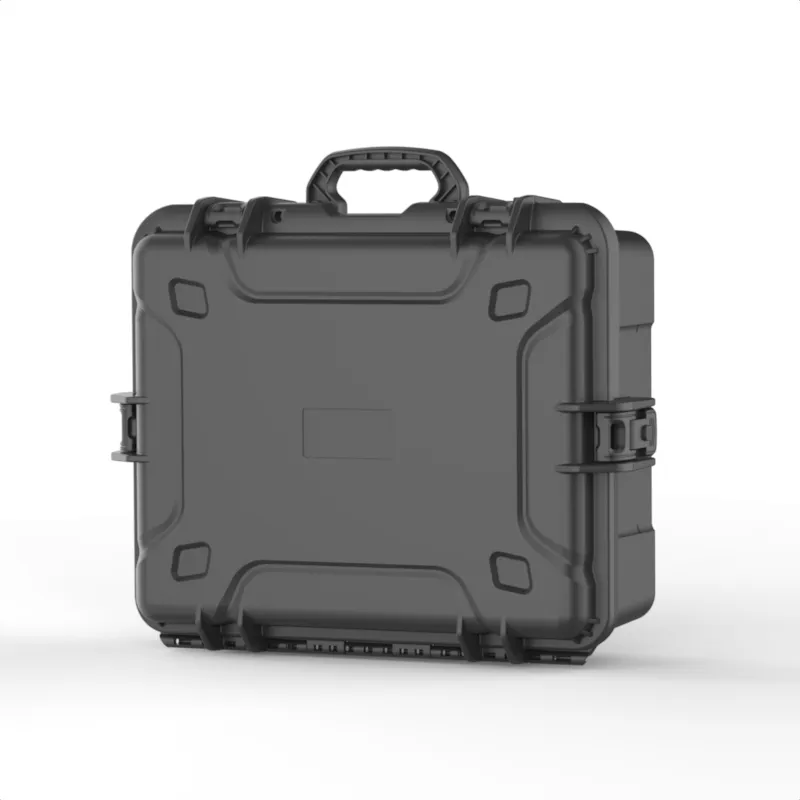

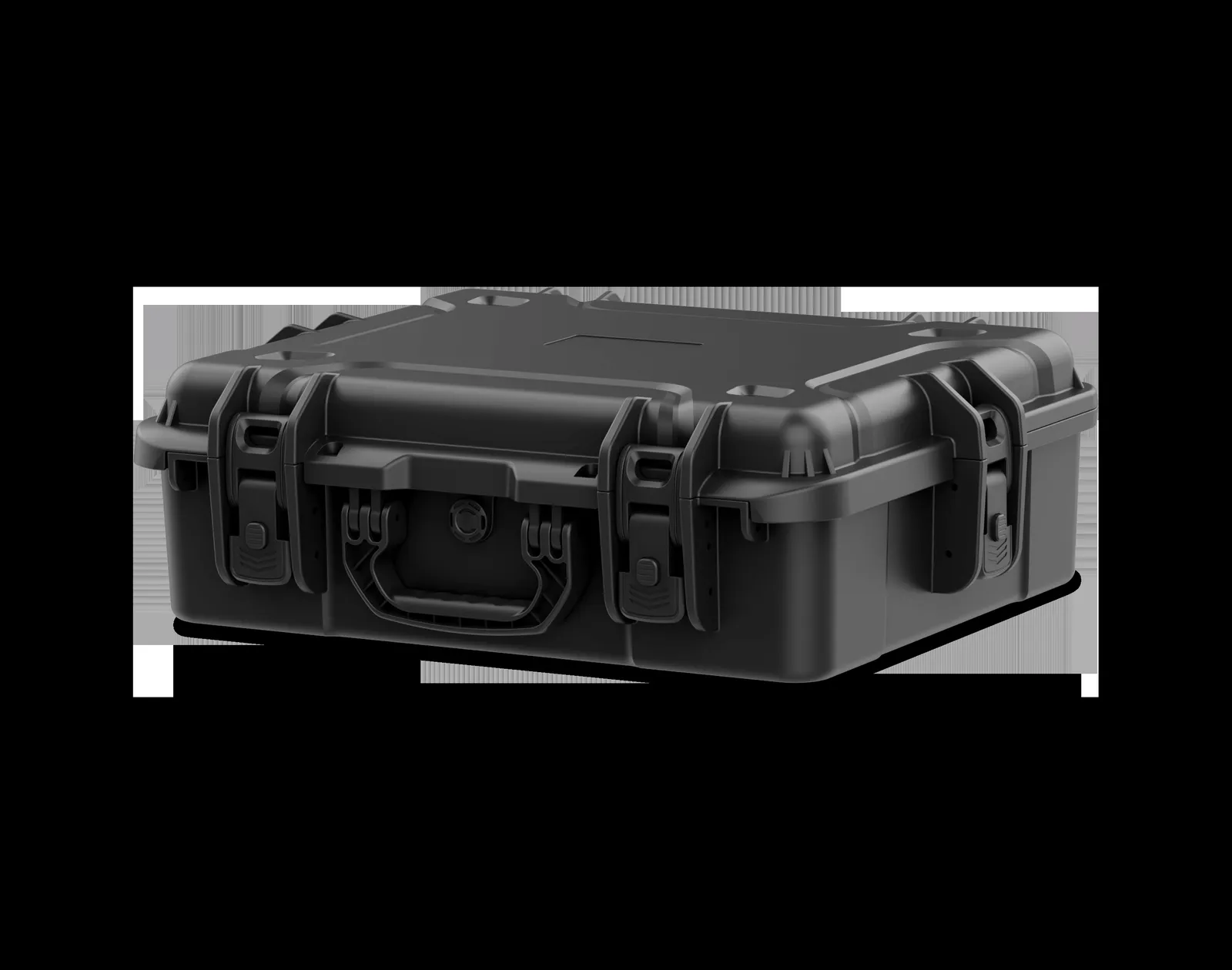

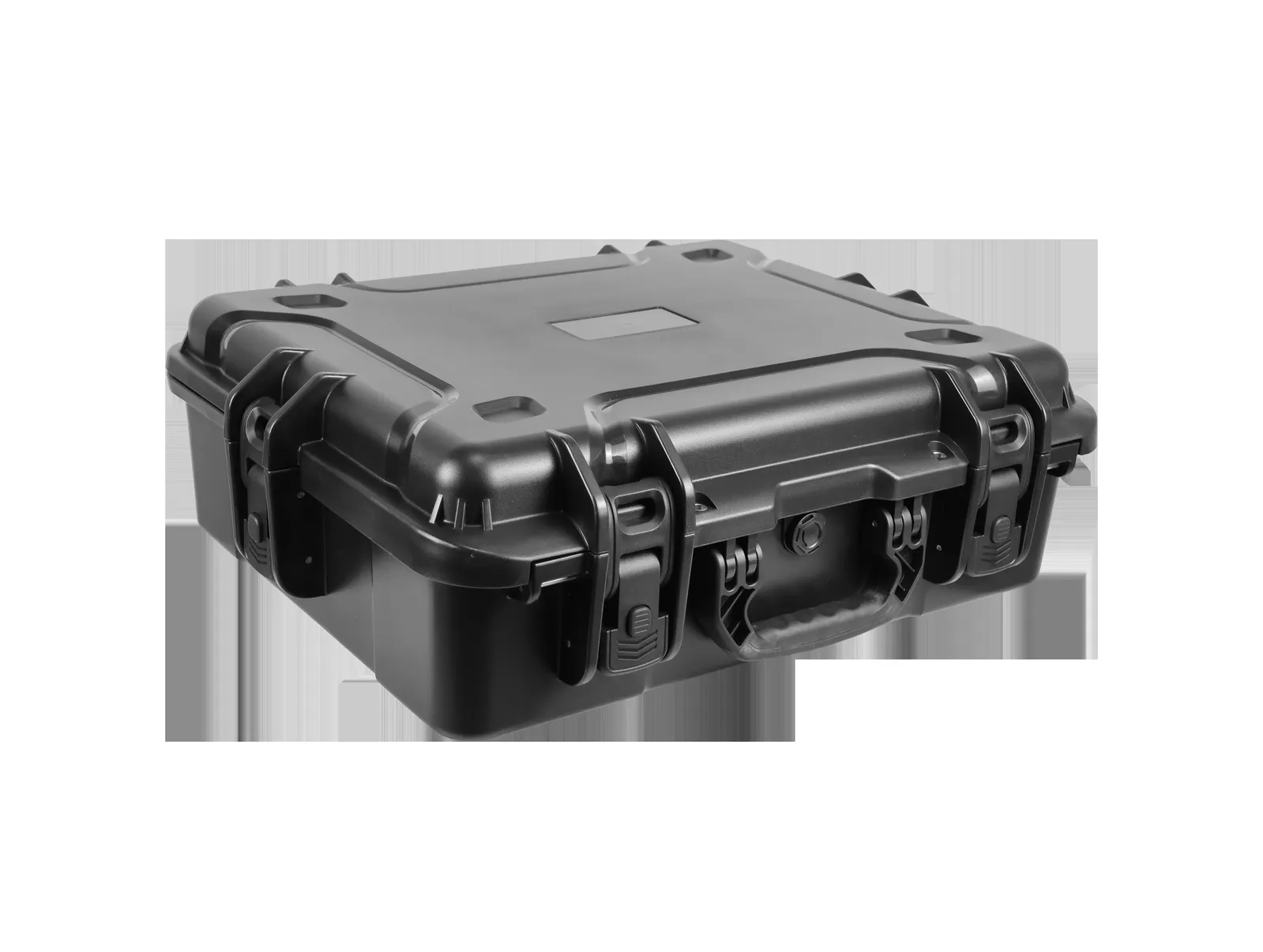

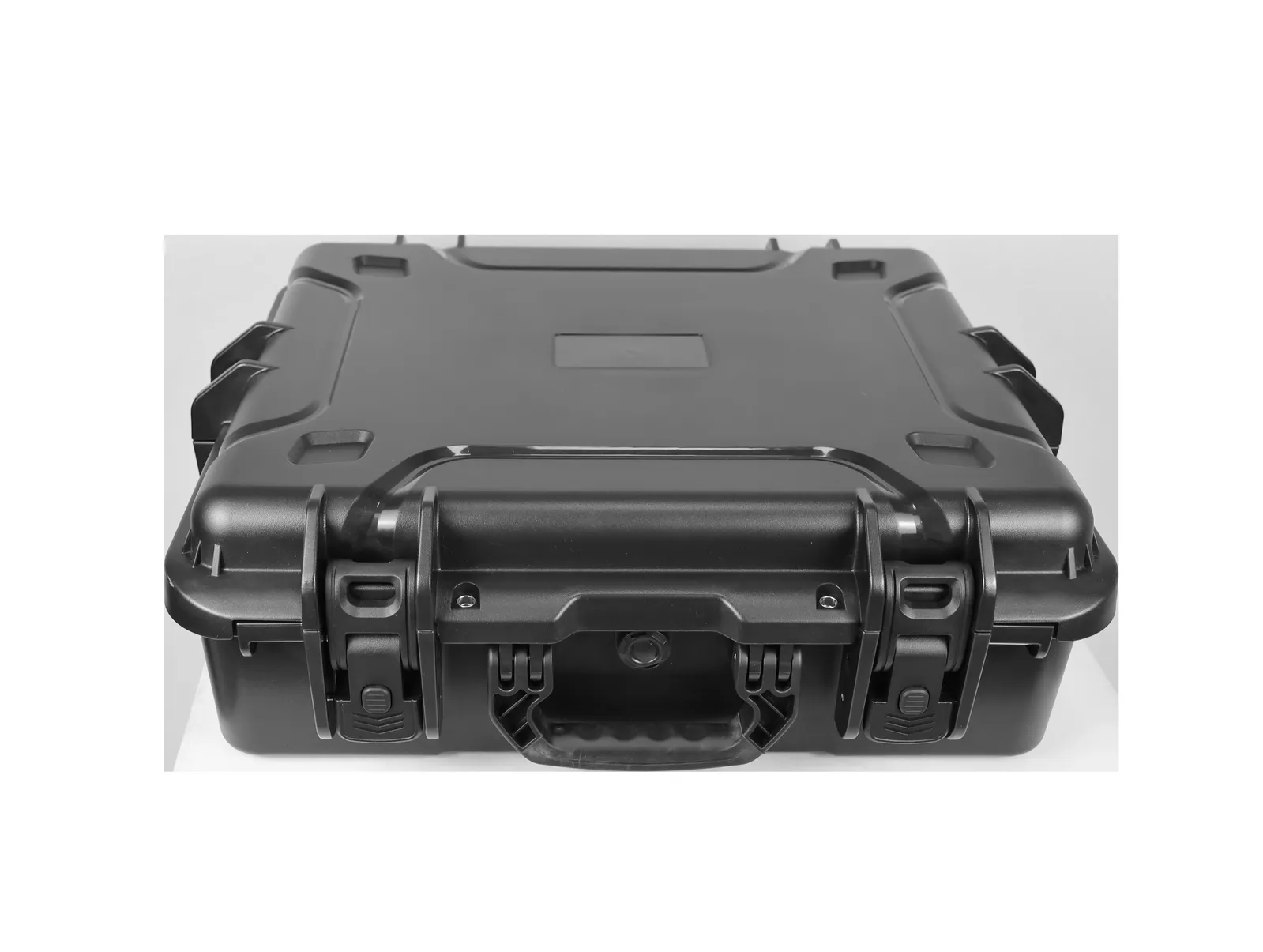

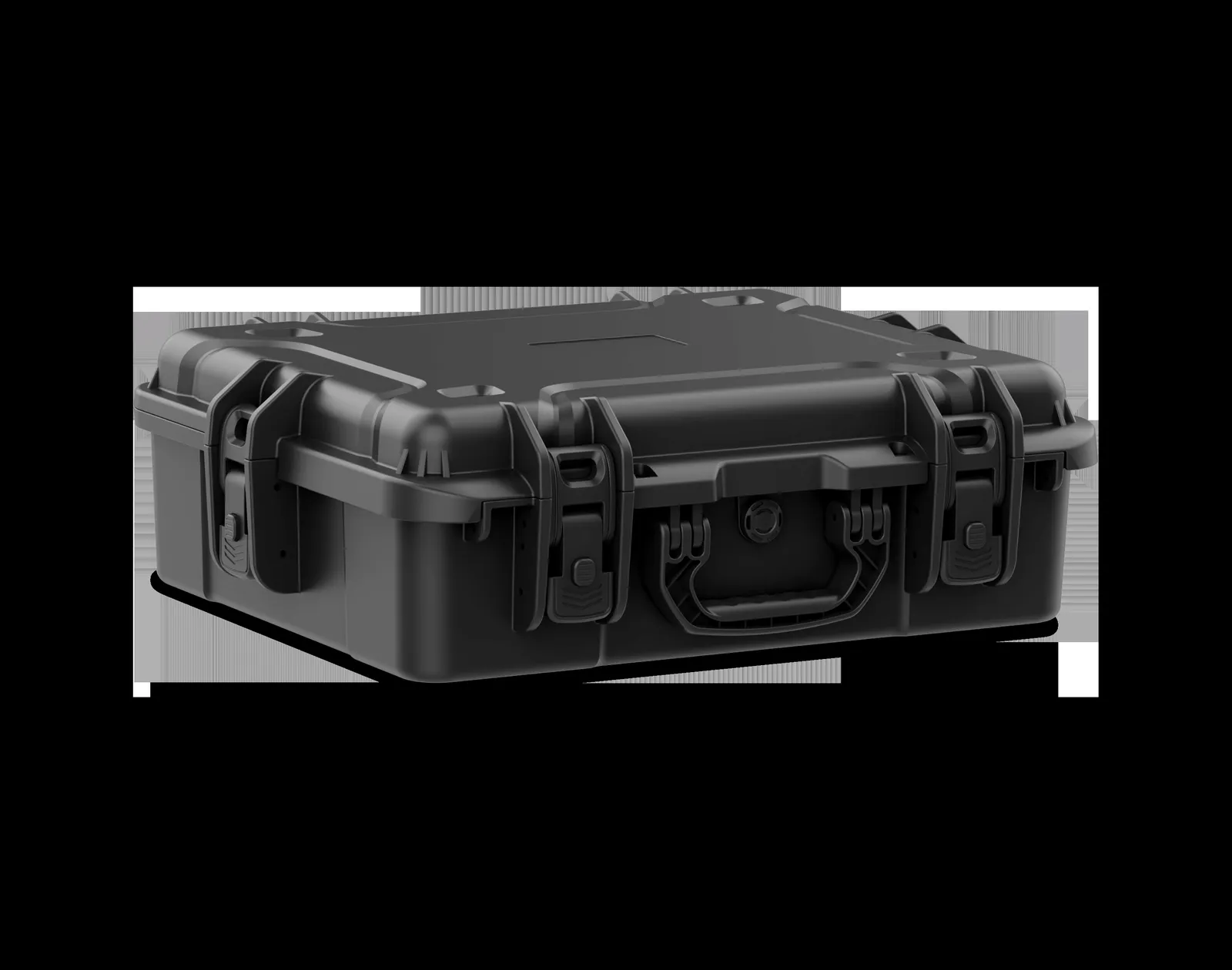

WL8-5819 PP Military Equipment Case

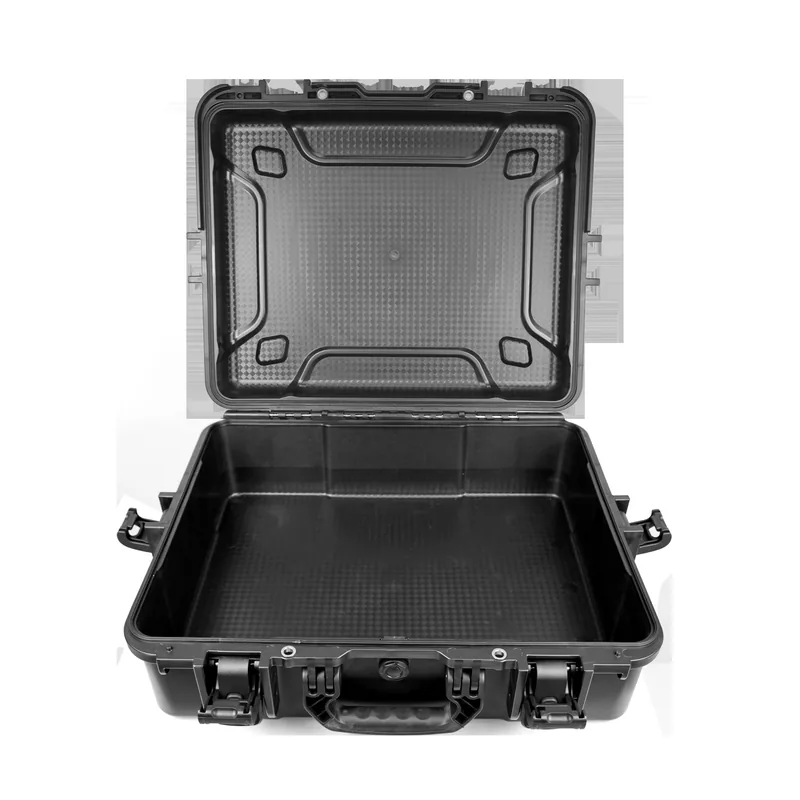

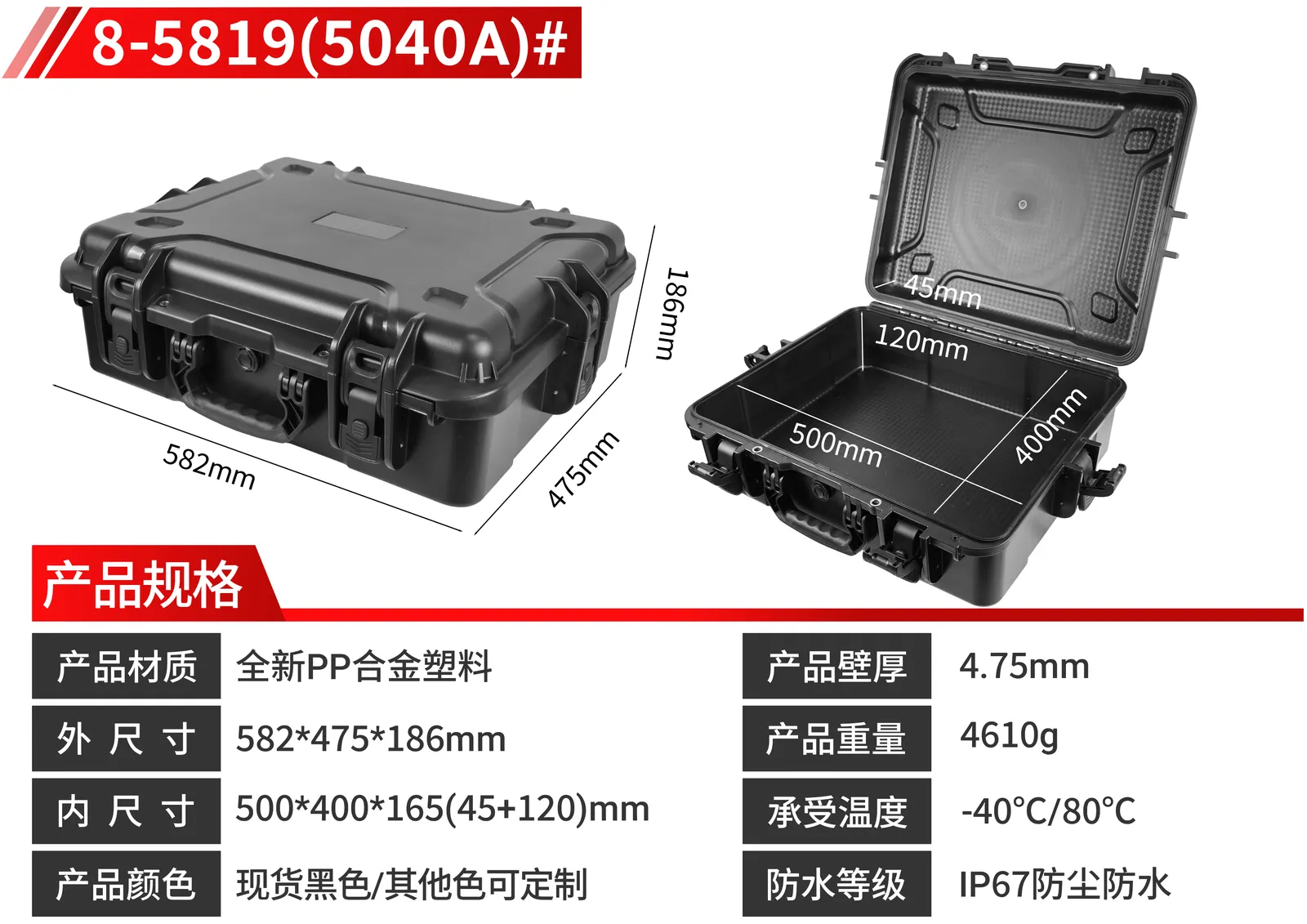

The case measures 582*475*186 mm outside and 500*400*165 mm inside, split into a 45 mm lid and a 120 mm base, with a 4.75 mm wall and an empty weight of 4610 g. The near-square 500 by 400 mm floor lets tools and equipment be laid out in rows and separate compartments. Leave a little clearance around each item, and send a drawing or photo if a part sits close to the limit so we can confirm the fit and adjust the foam layout before production.

The polypropylene body is injection moulded with a sealing structure, and the closed case is rated IP67 for water and dust protection. That covers rain, dusty workshops and short immersion, and it keeps equipment free of moisture and particles. We do not claim military standard certification for this model. The rating depends on the lid seating correctly on the gasket, so check the seal periodically for ageing or trapped debris and avoid long exposure to rain or immersion once the gasket is damaged.

The body is polypropylene with a 4.75 mm wall, and the empty case weighs 4610 g. On a 500 by 400 mm floor that wall delivers better rigidity and reduces how much the sides bow once the case is filled, which suits complete tool sets and heavier equipment in transit. Clean it with water or a mild detergent and a soft cloth, and avoid strong solvents, alcohol-based cleaners and abrasive pads that can affect the surface and the gasket contact area.

This model and the taller version share the 582*475 mm exterior and the 500*400 mm interior. This one offers 165 mm of internal height and weighs 4610 g empty, while the taller version offers 210 mm and weighs 5100 g, a difference of 45 mm in height. Choose this model for slim loads where case height and weight matter, and the taller one when you need two stacked layers or items with handles and brackets.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures this model at its Zhongshan factory, JUNZHIJIA is our own brand, and we supply factory-direct for OEM and ODM wholesale. Colour, silk-screen printing or nameplates, foam insert structure and latch configuration can all be customised. MOQ and lead time depend on the chosen colour, foam process and printing requirements, and production is normally scheduled after sample approval. Send your application, target quantity and customisation list and our sales team will issue a formal quotation and production plan.
