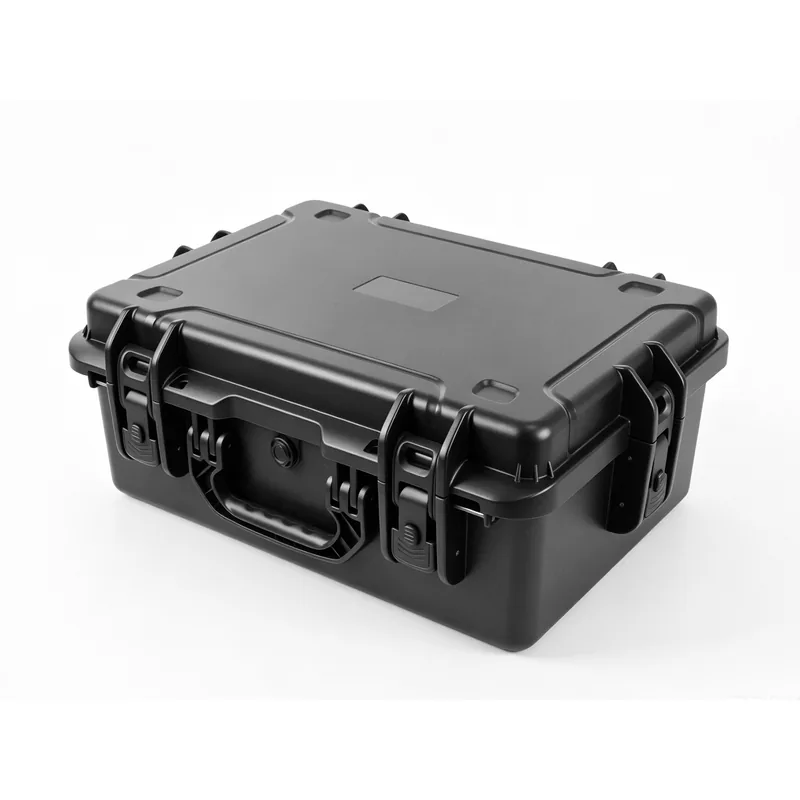

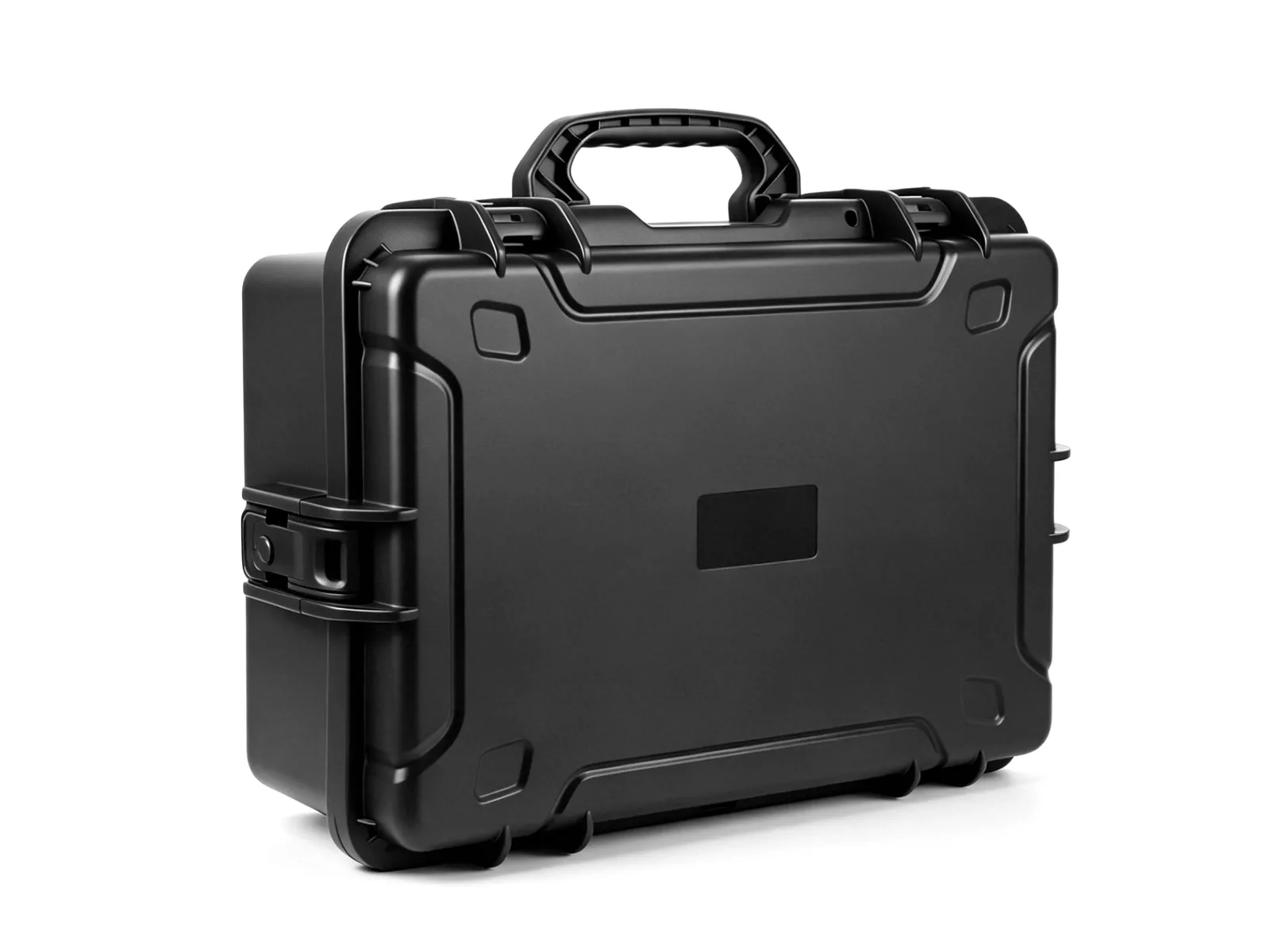

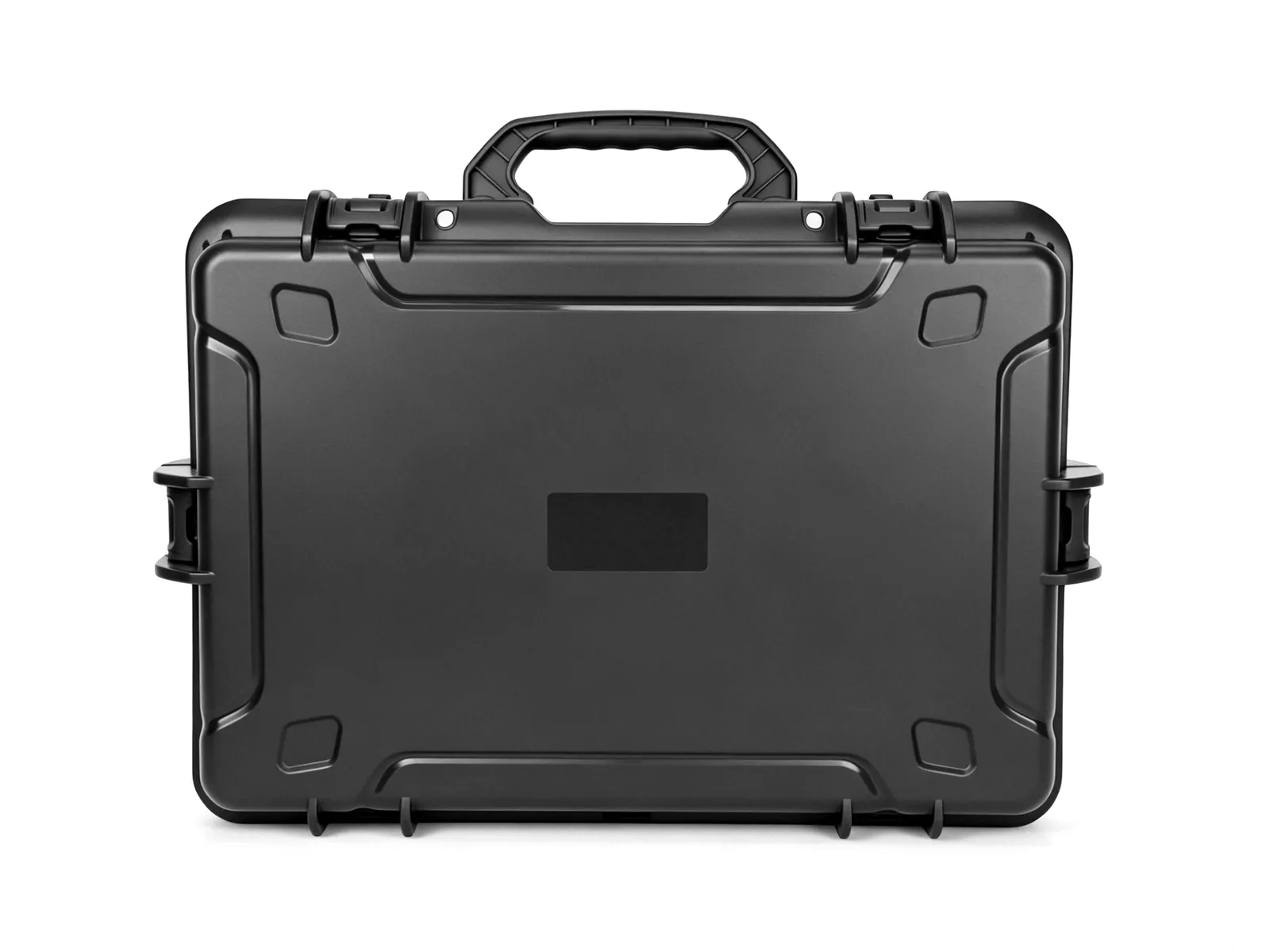

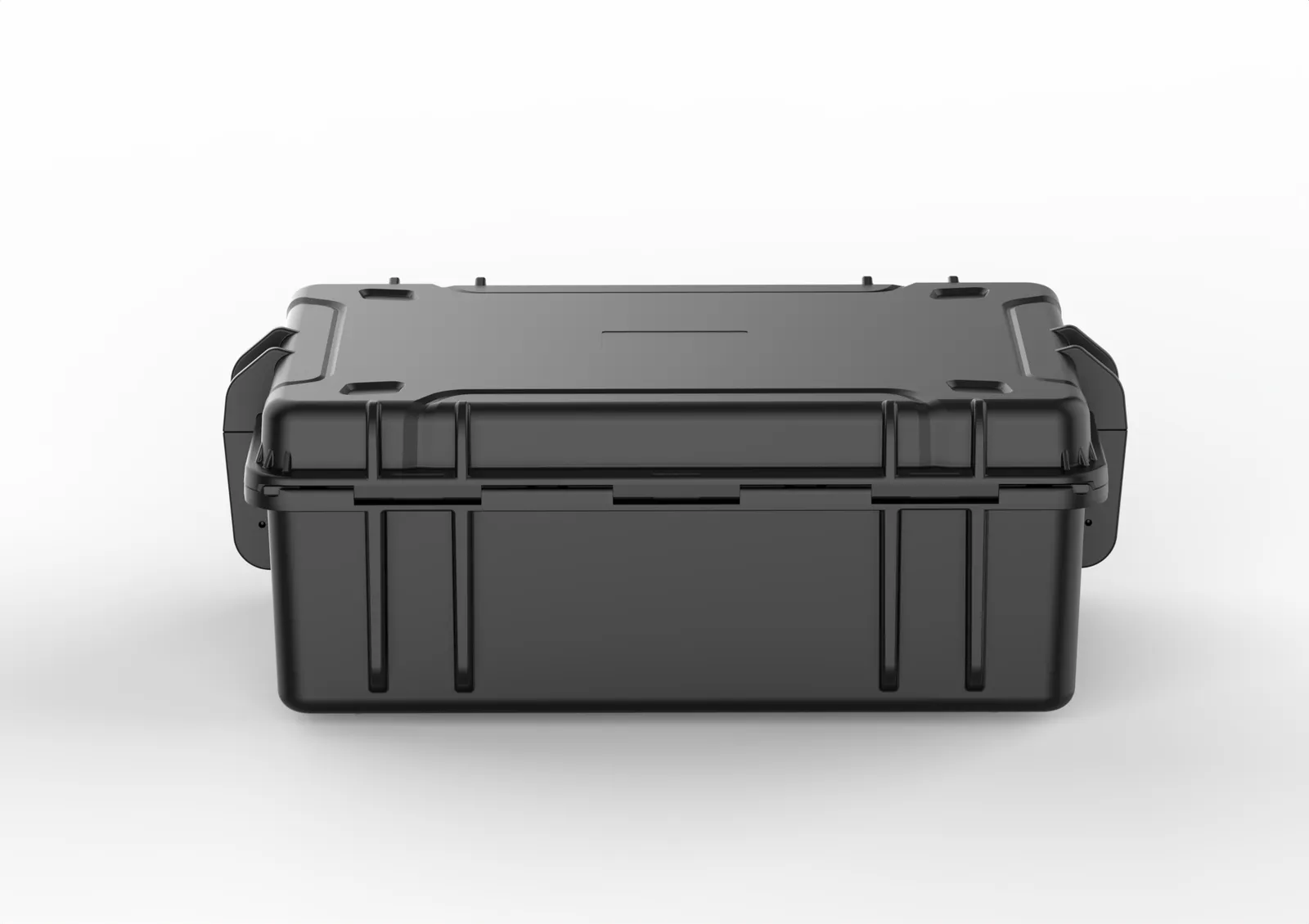

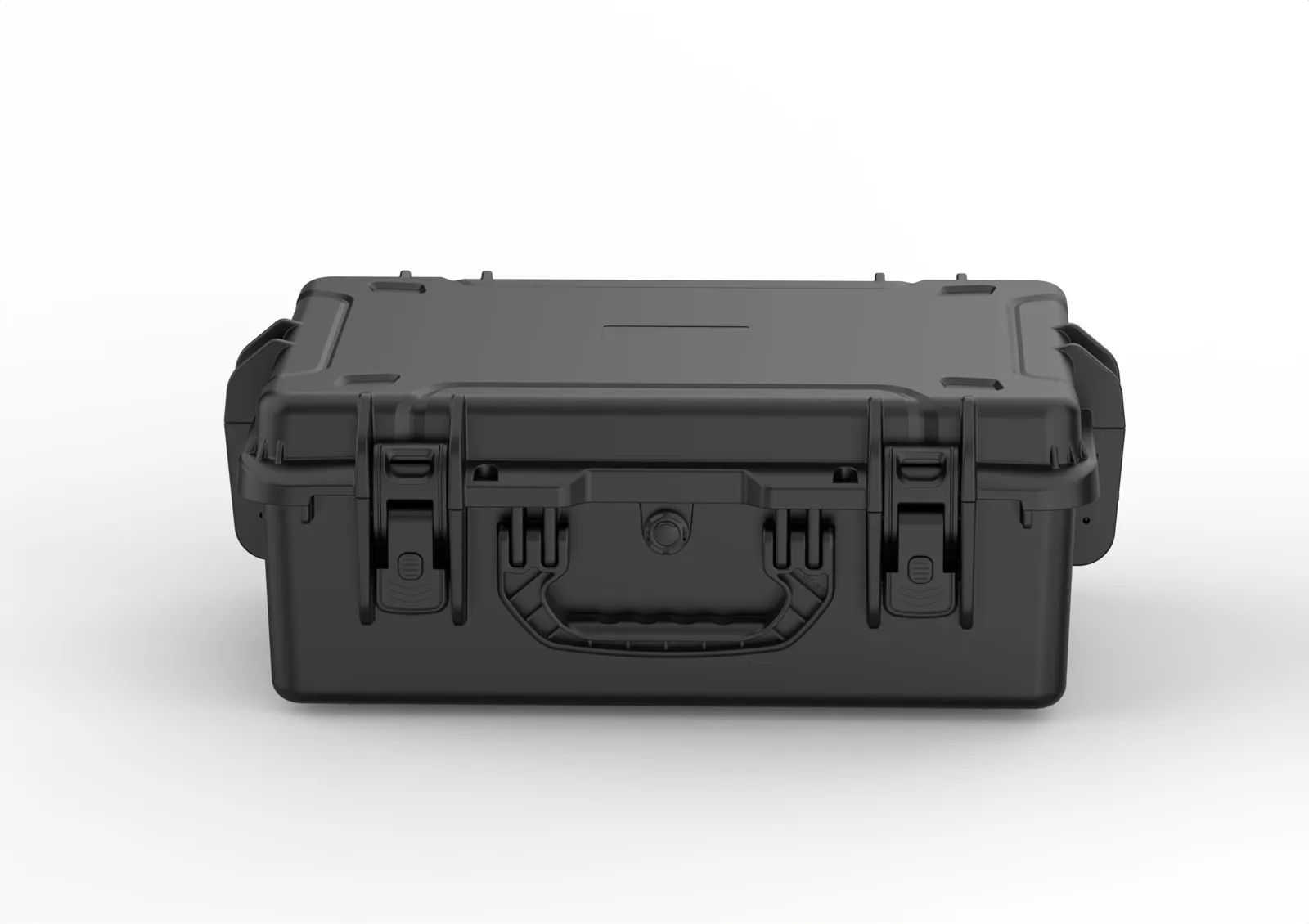

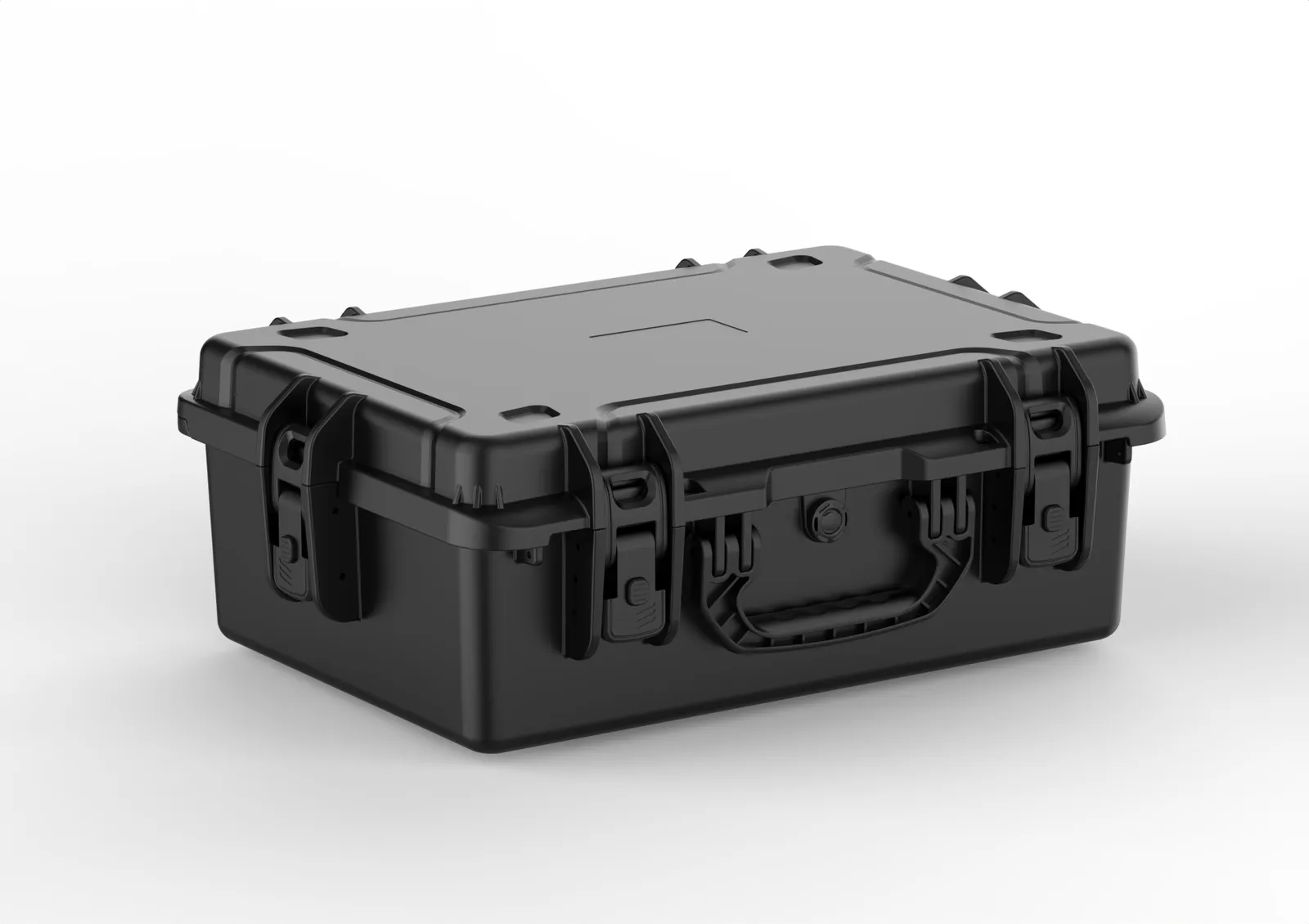

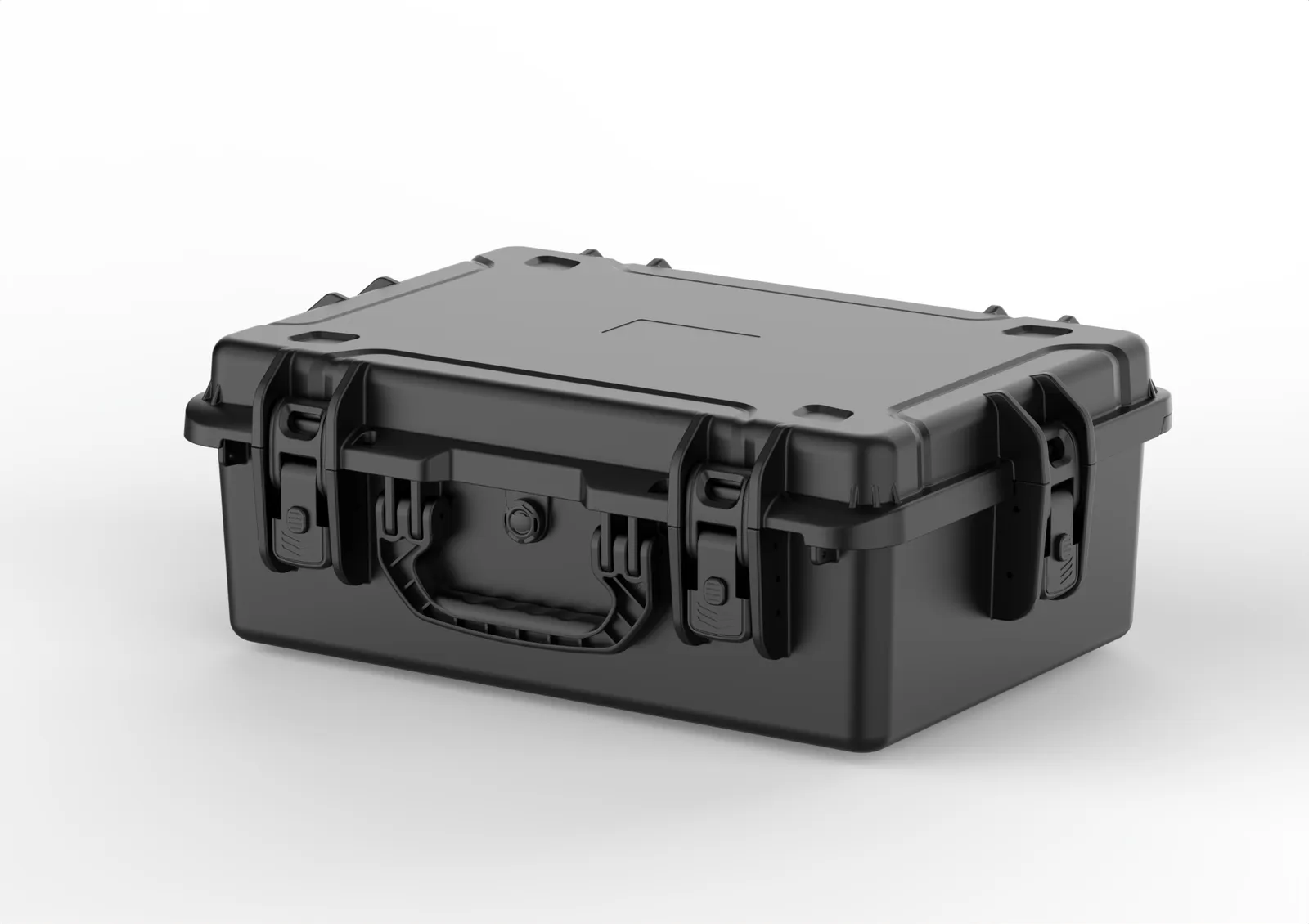

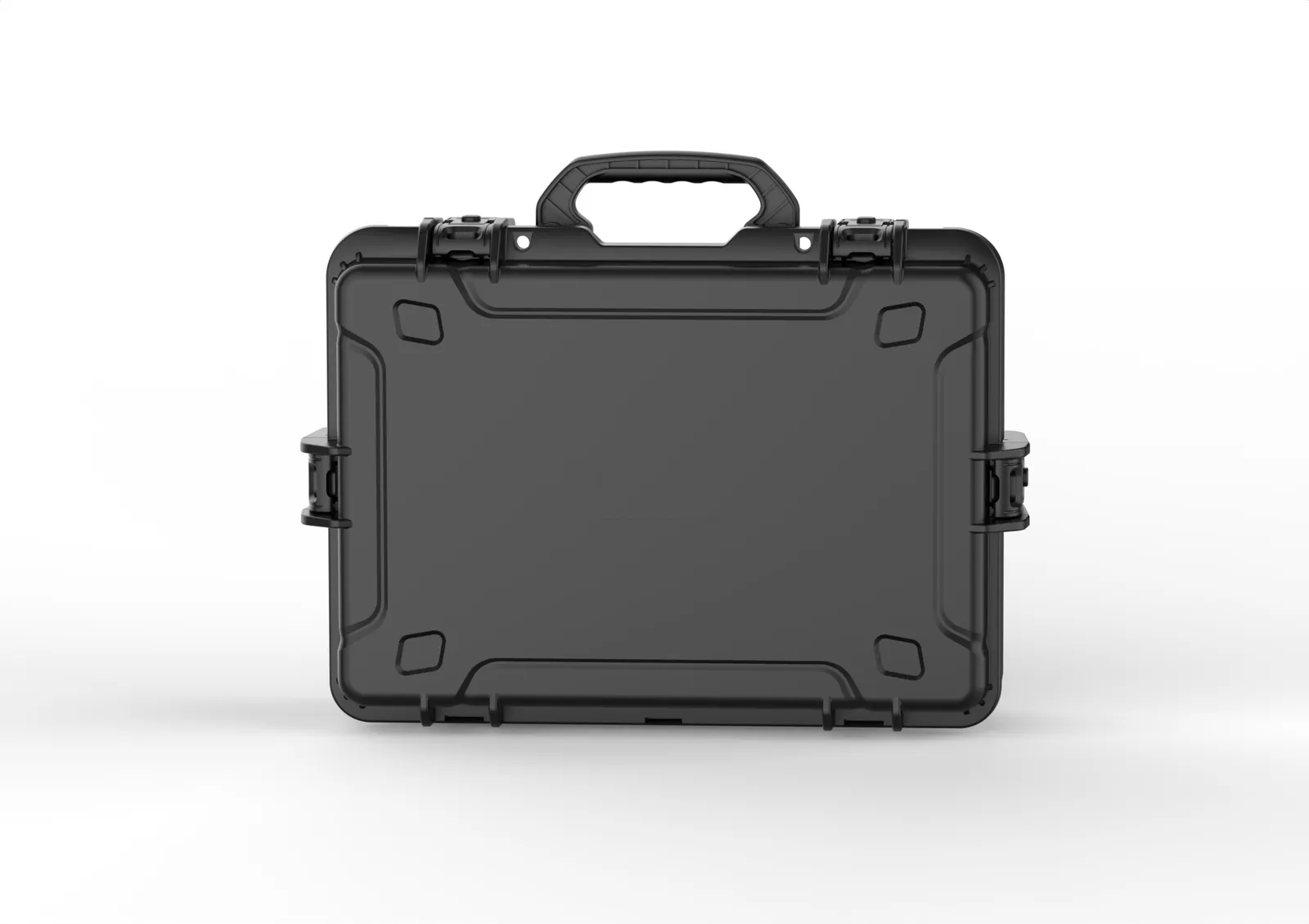

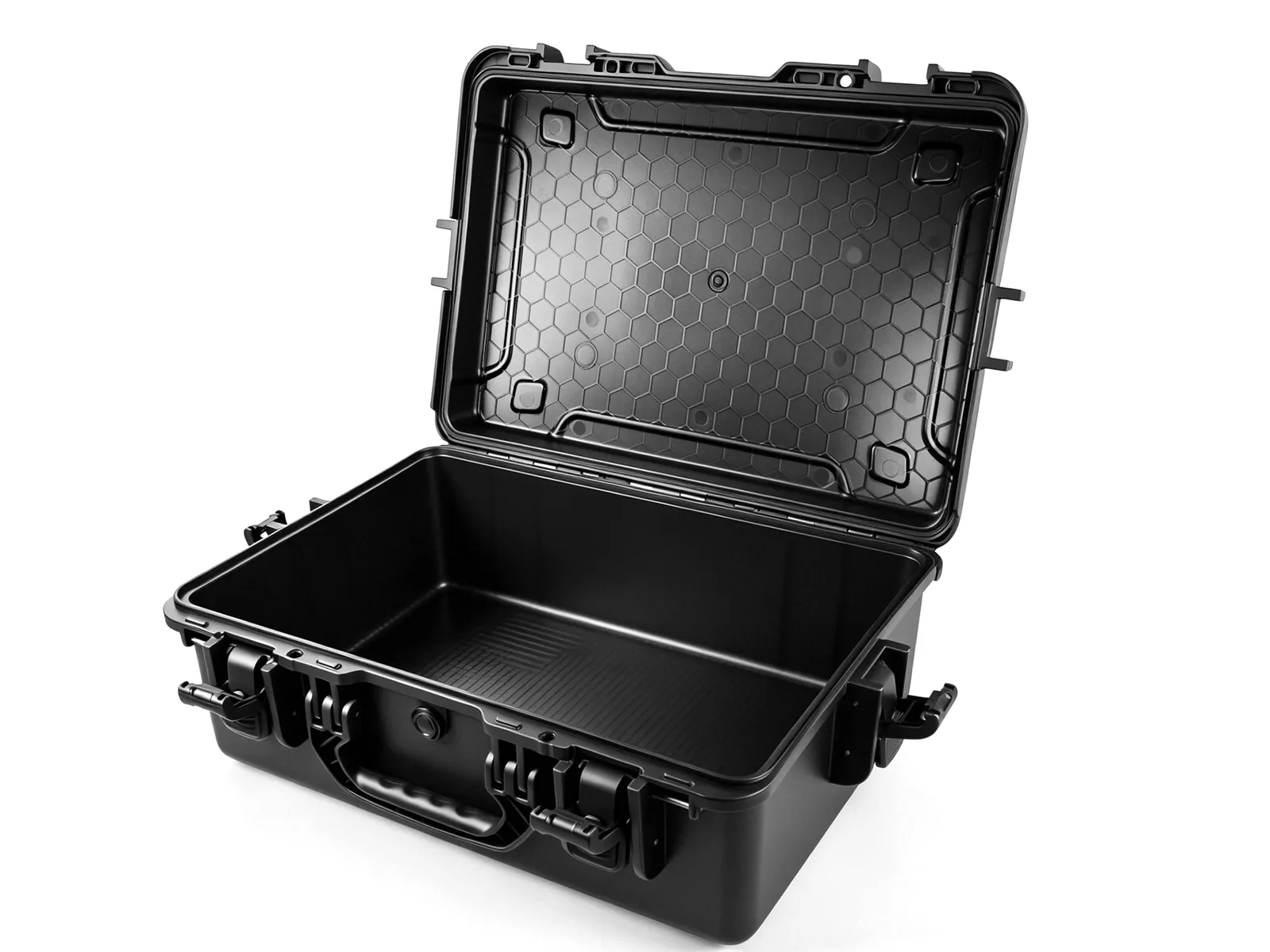

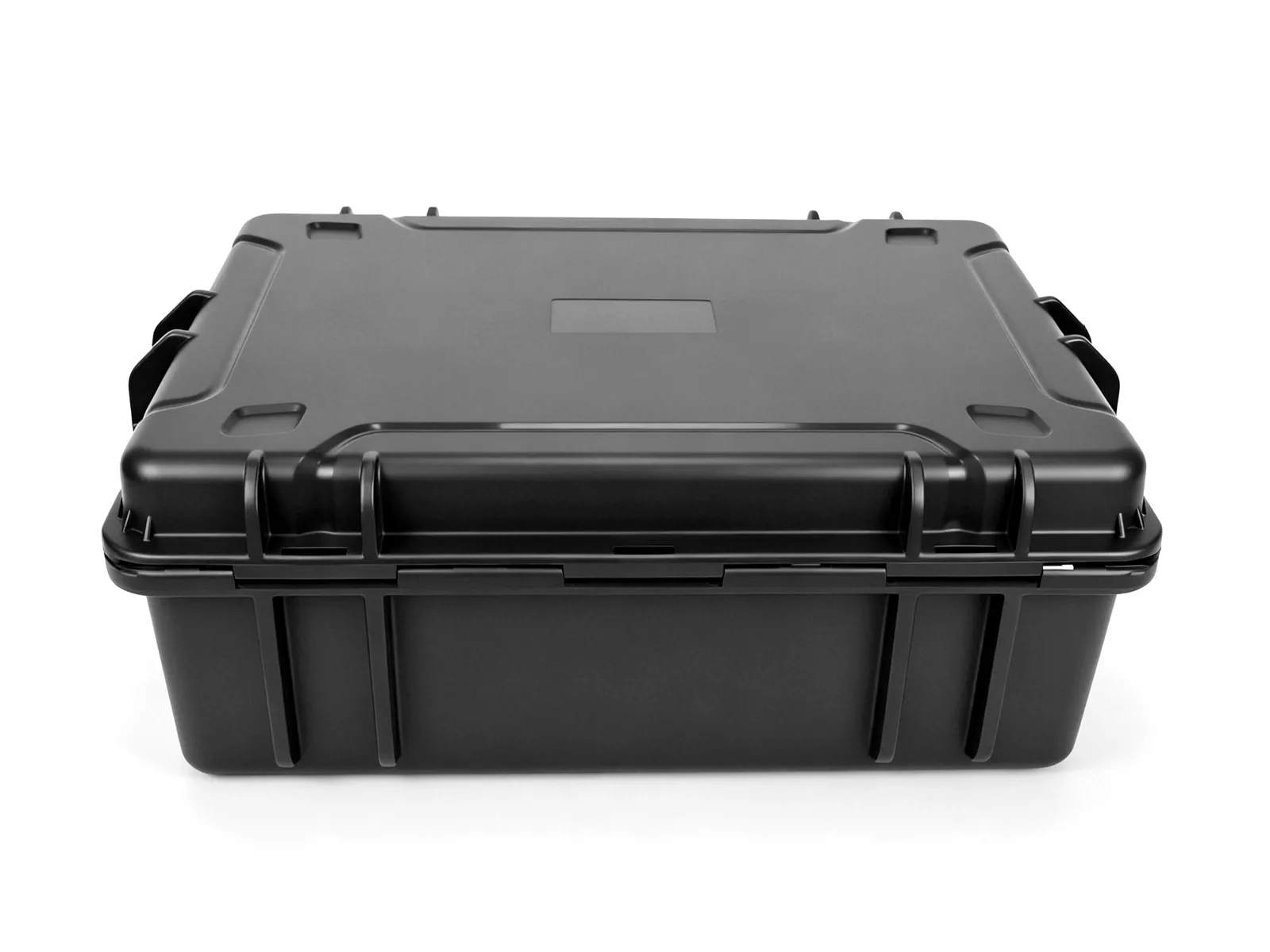

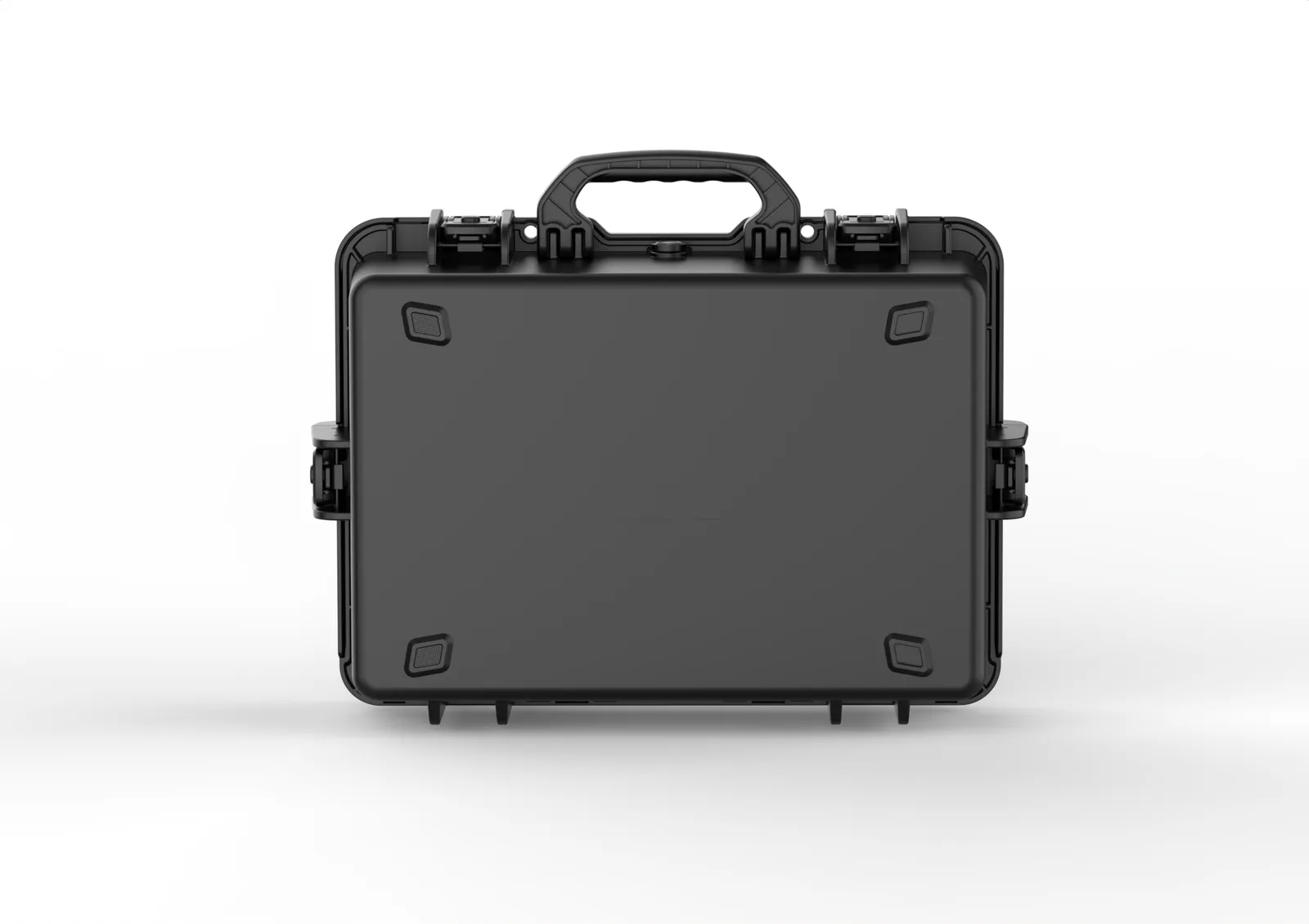

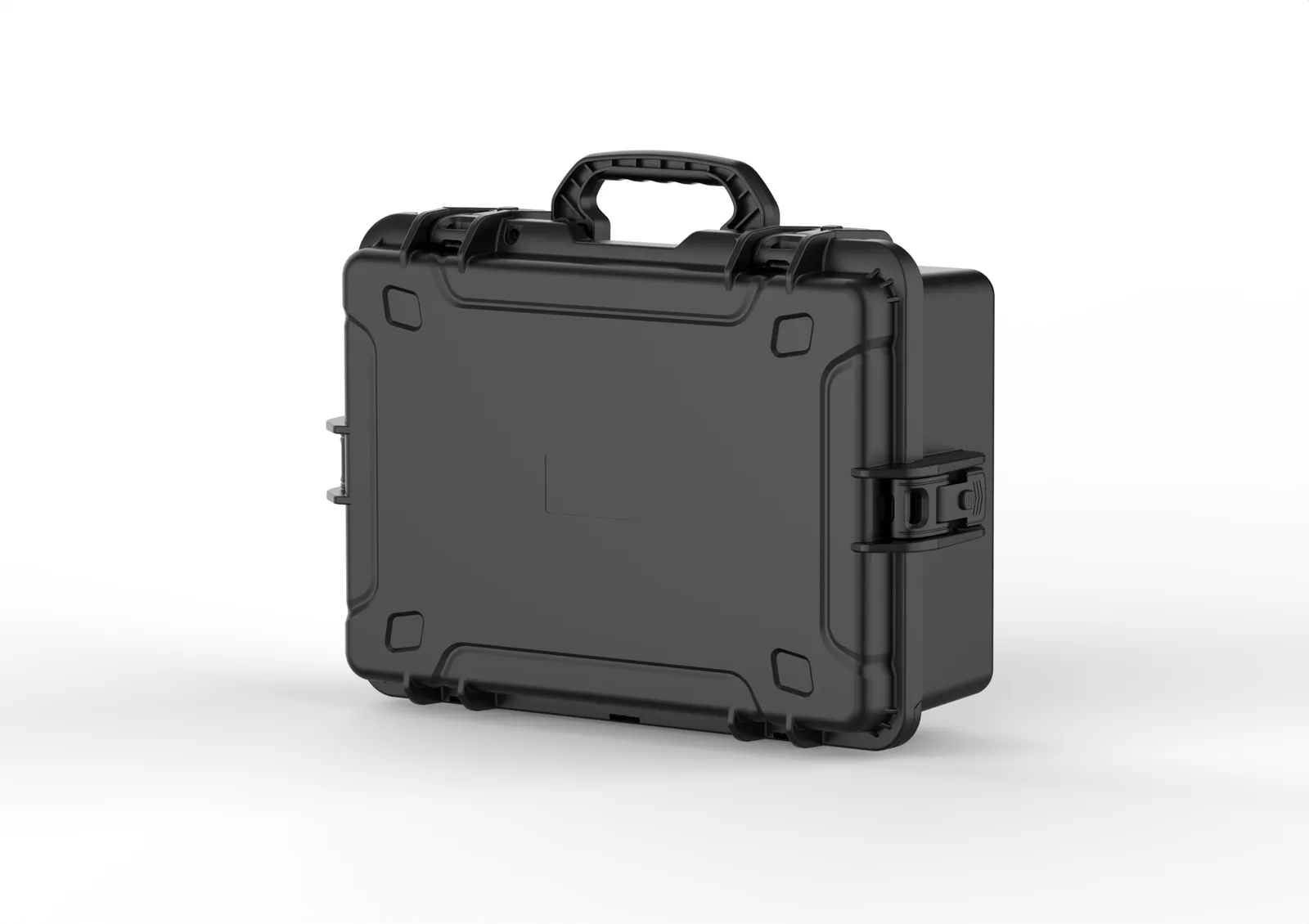

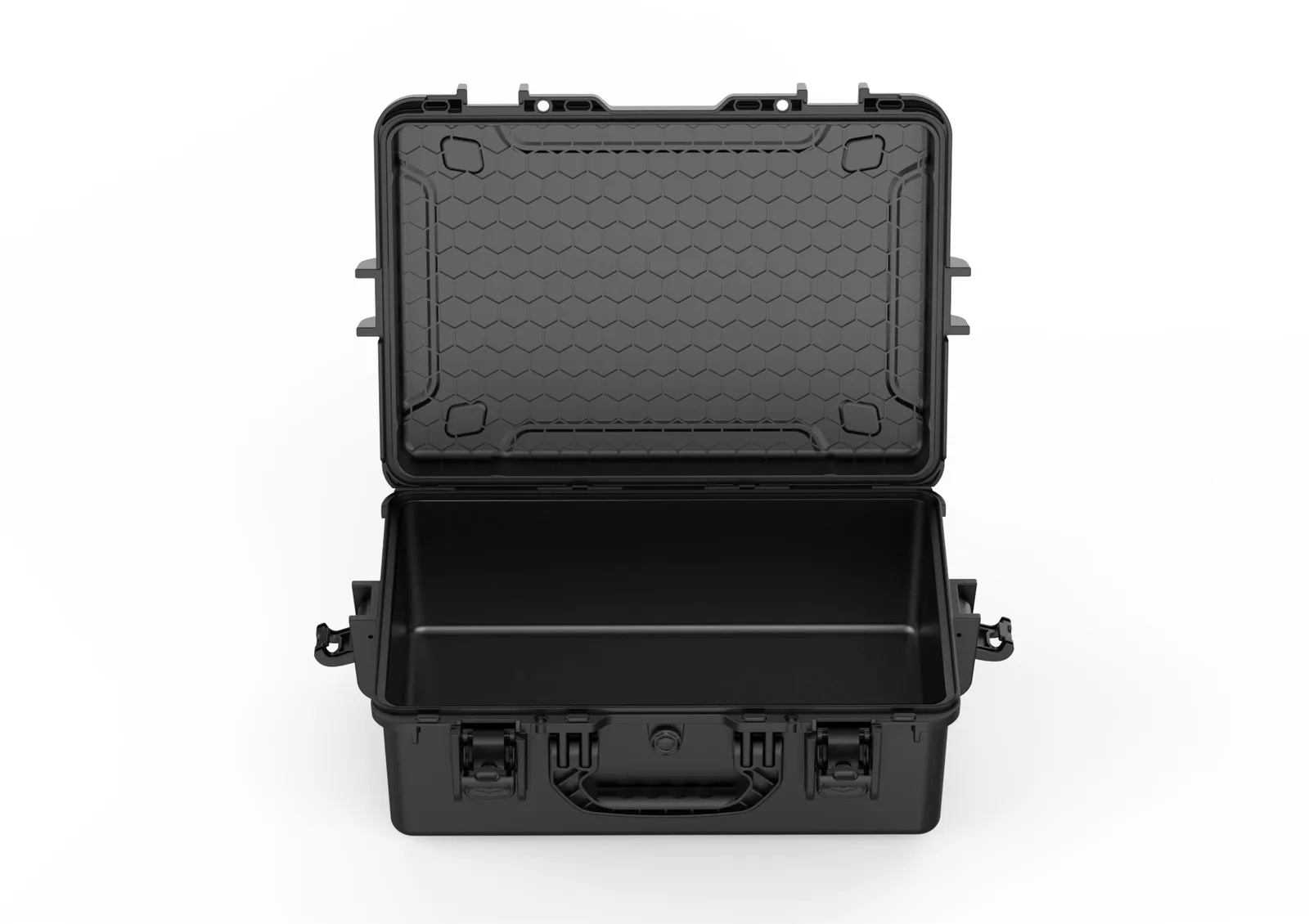

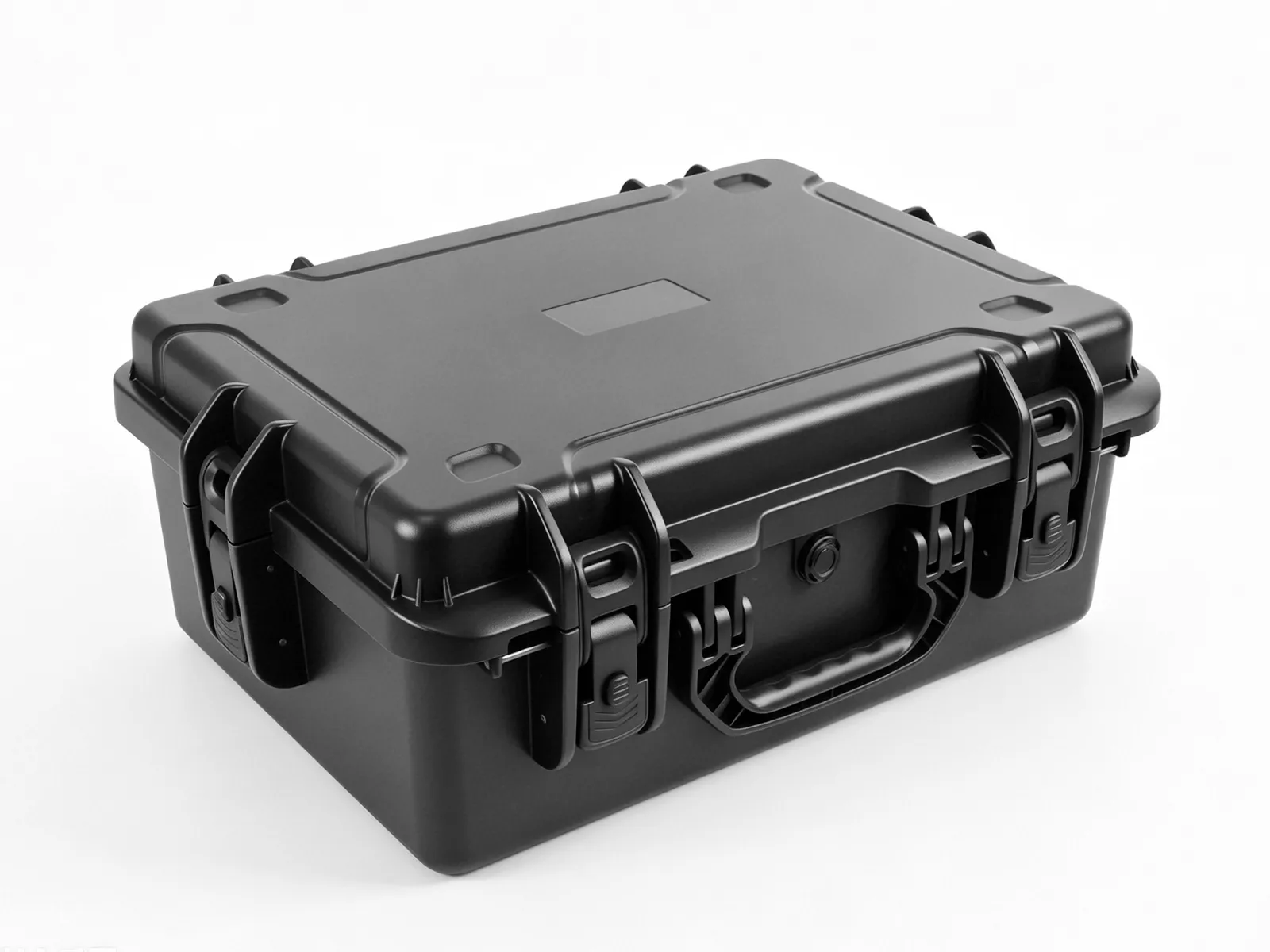

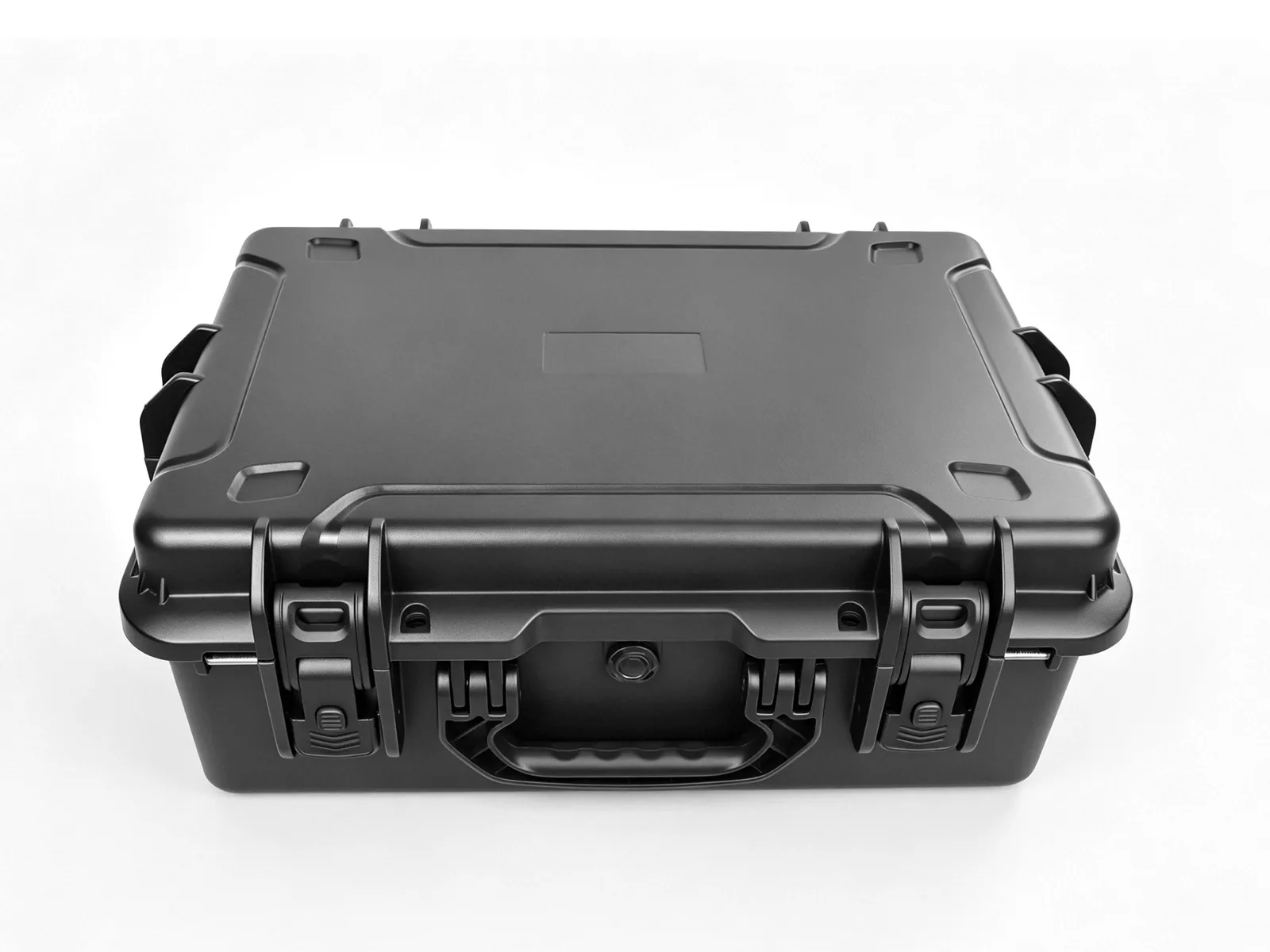

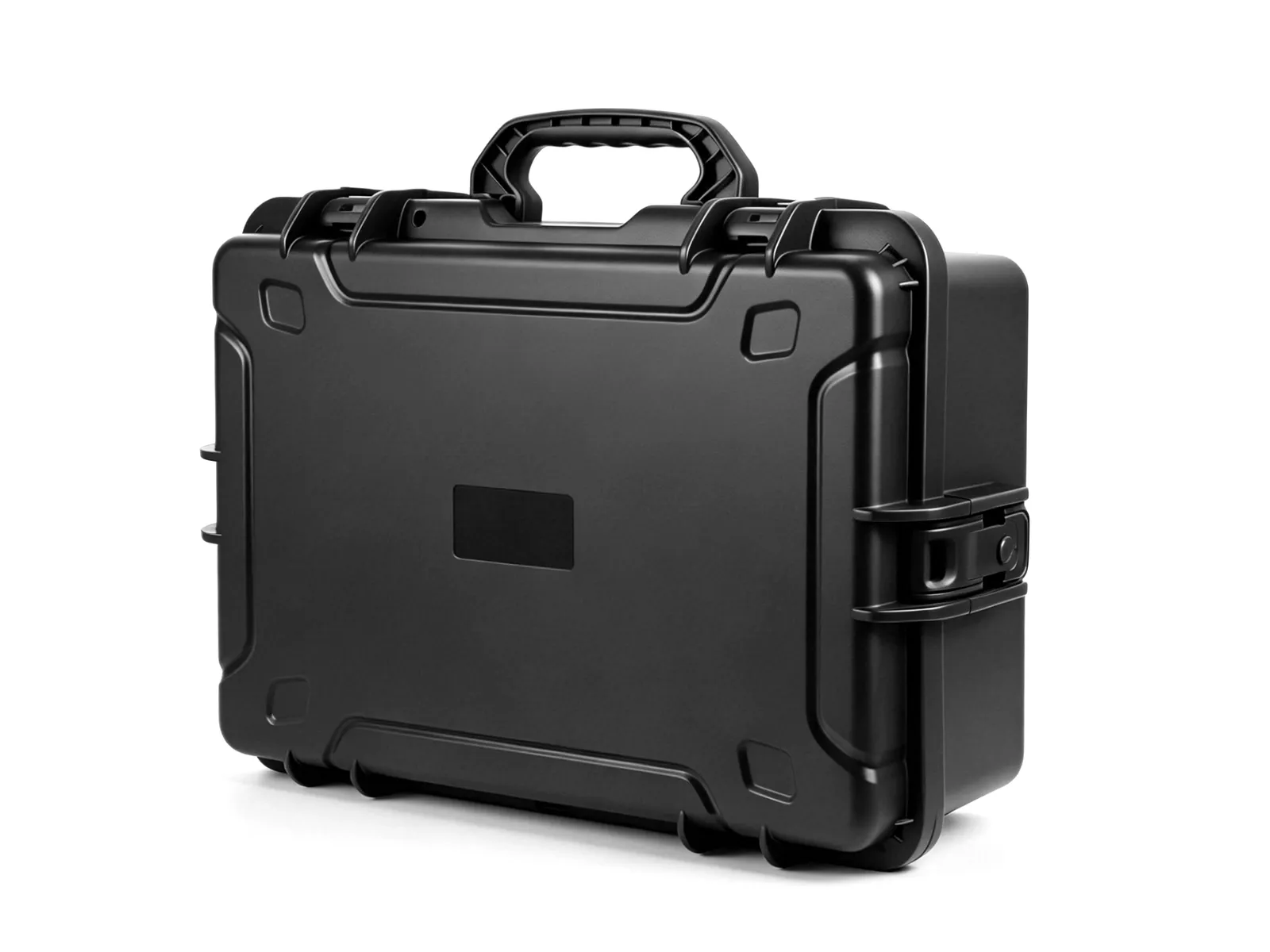

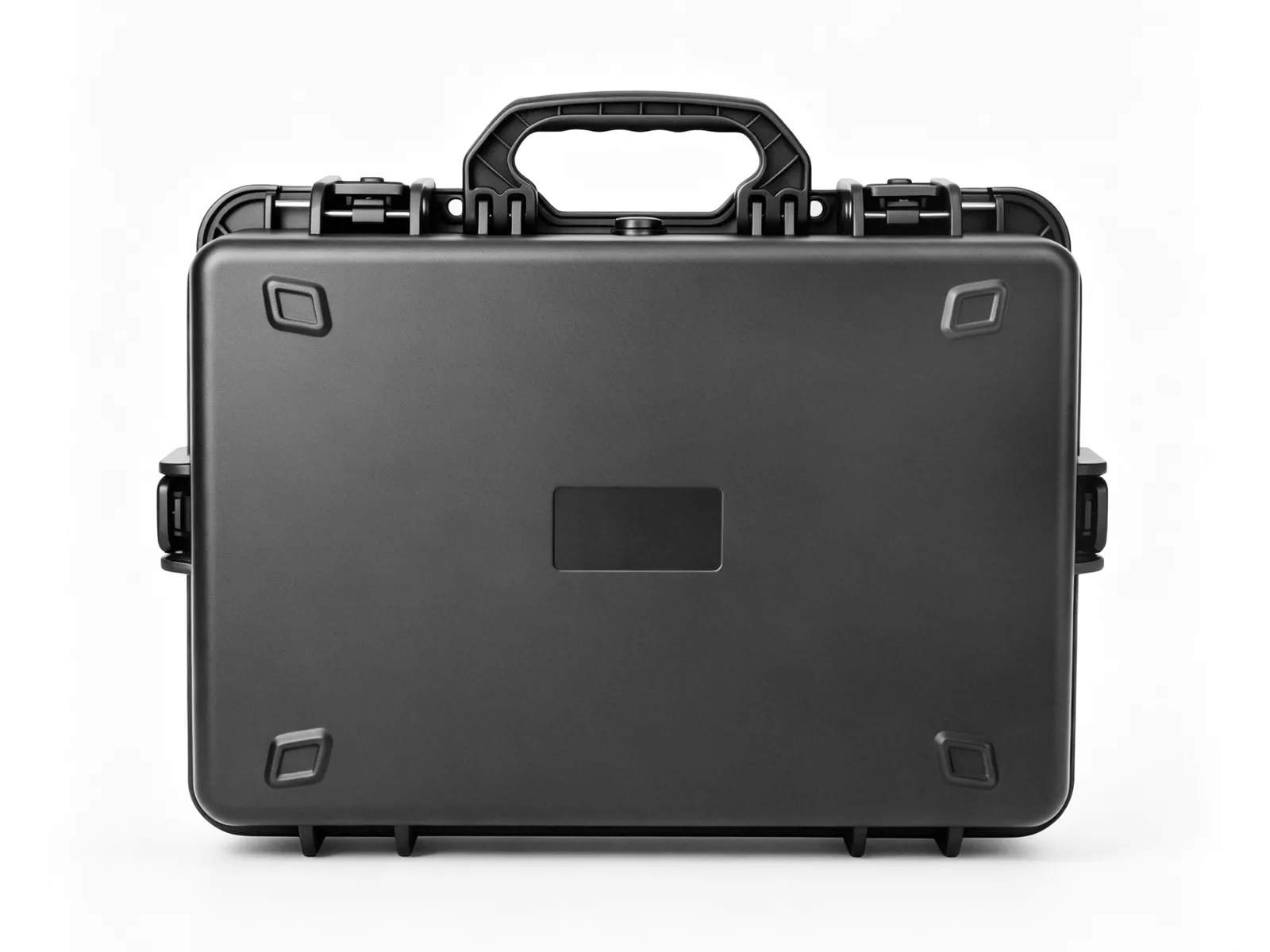

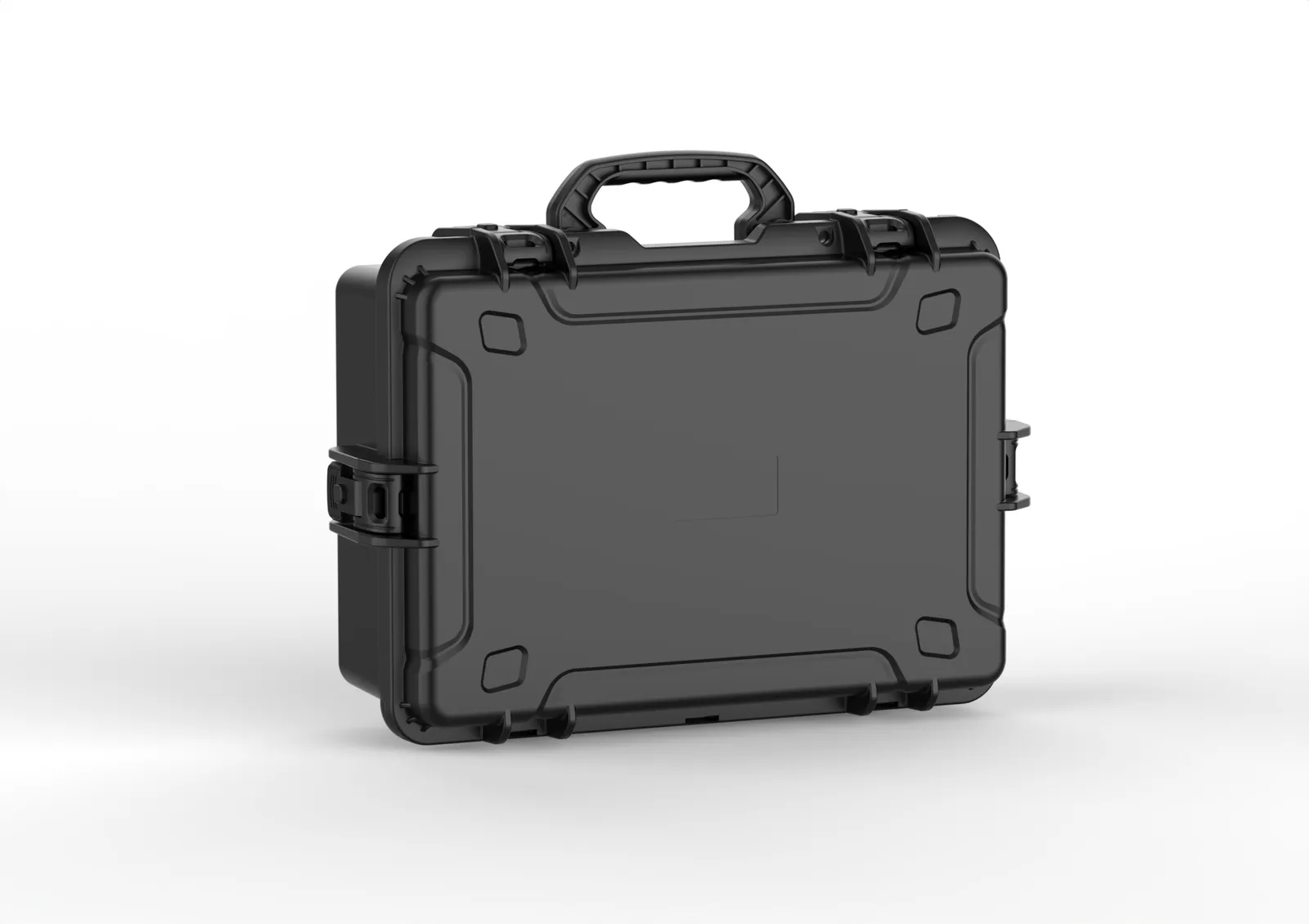

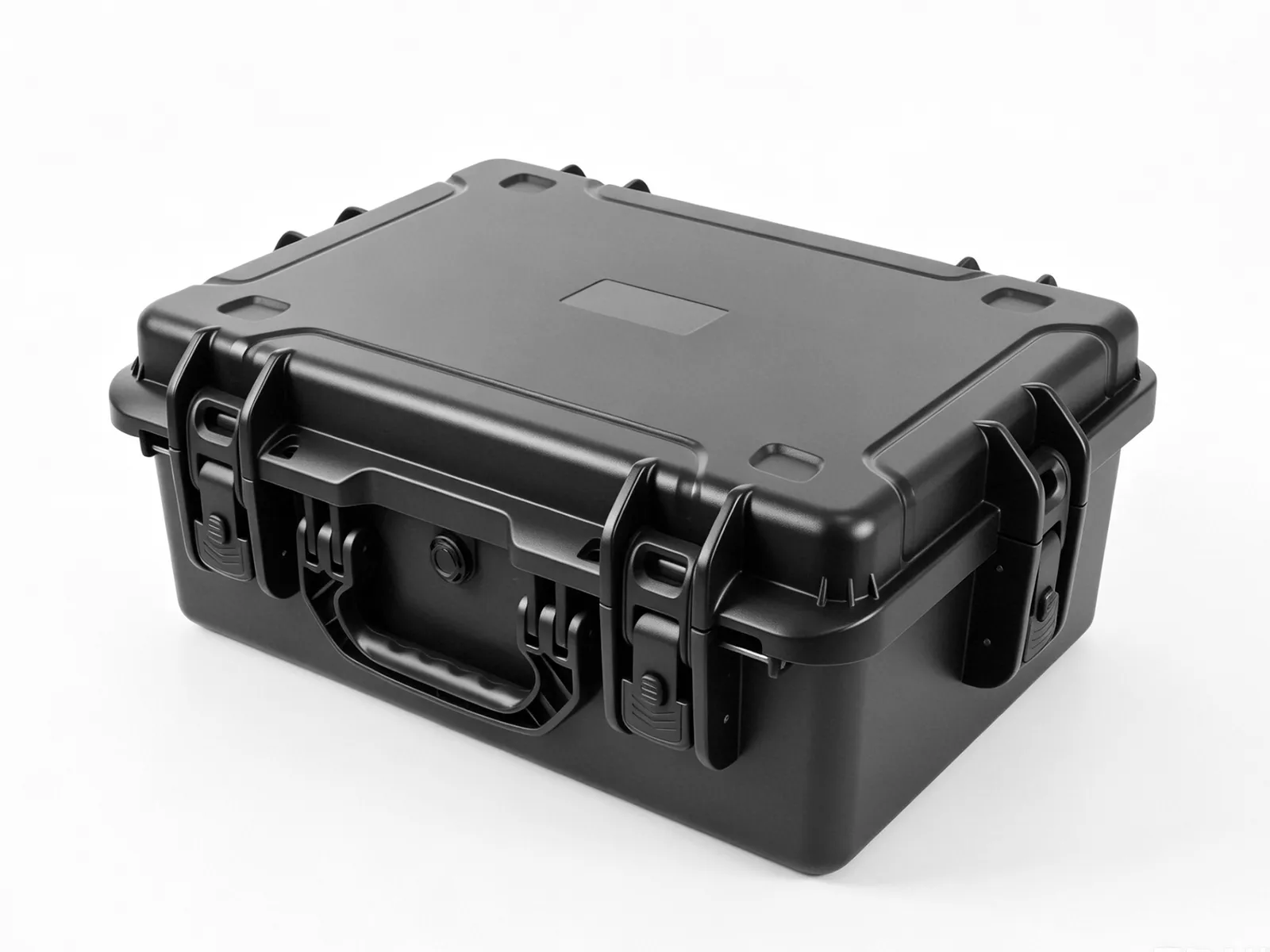

WL8-6122 PP Military Equipment Case

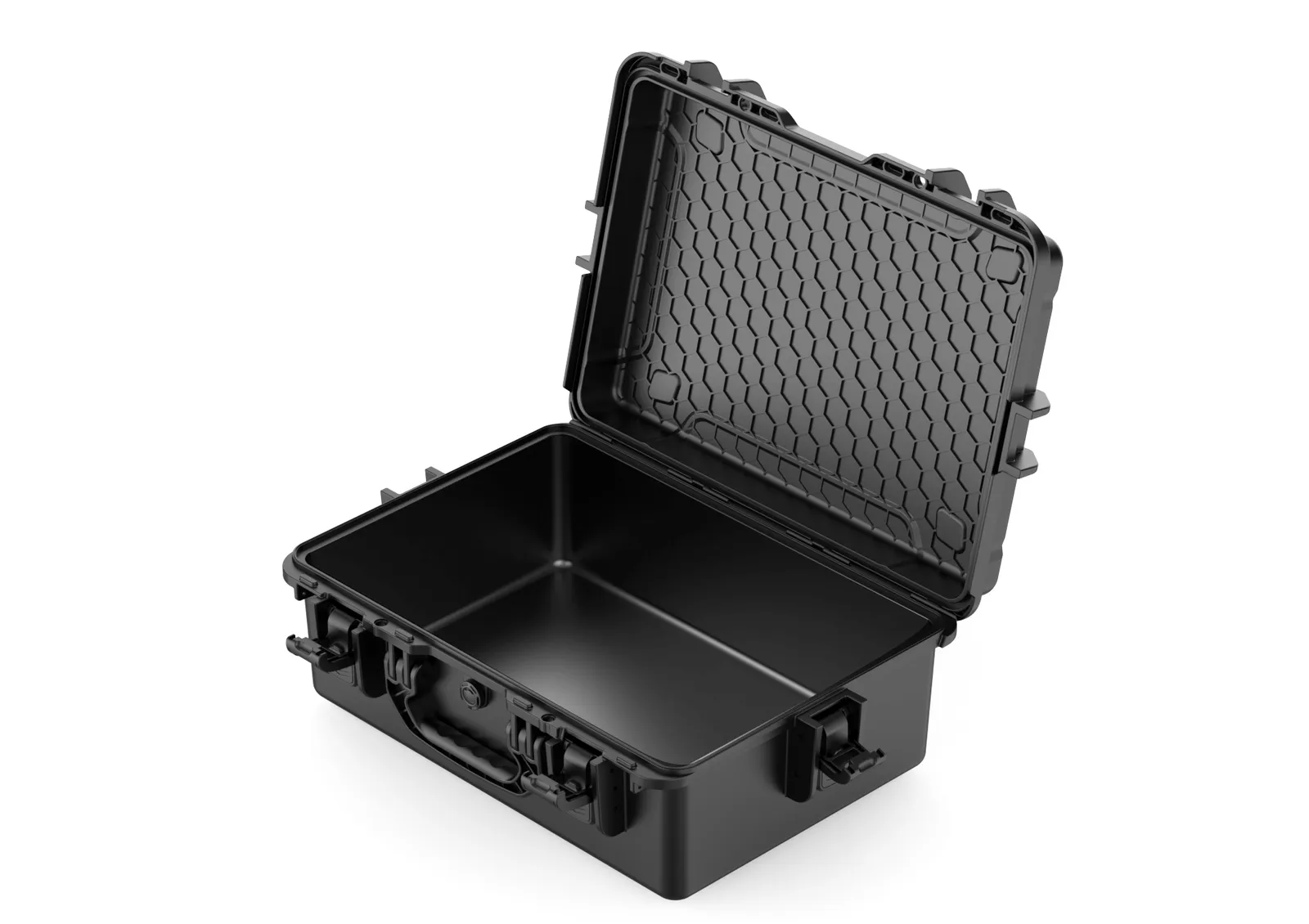

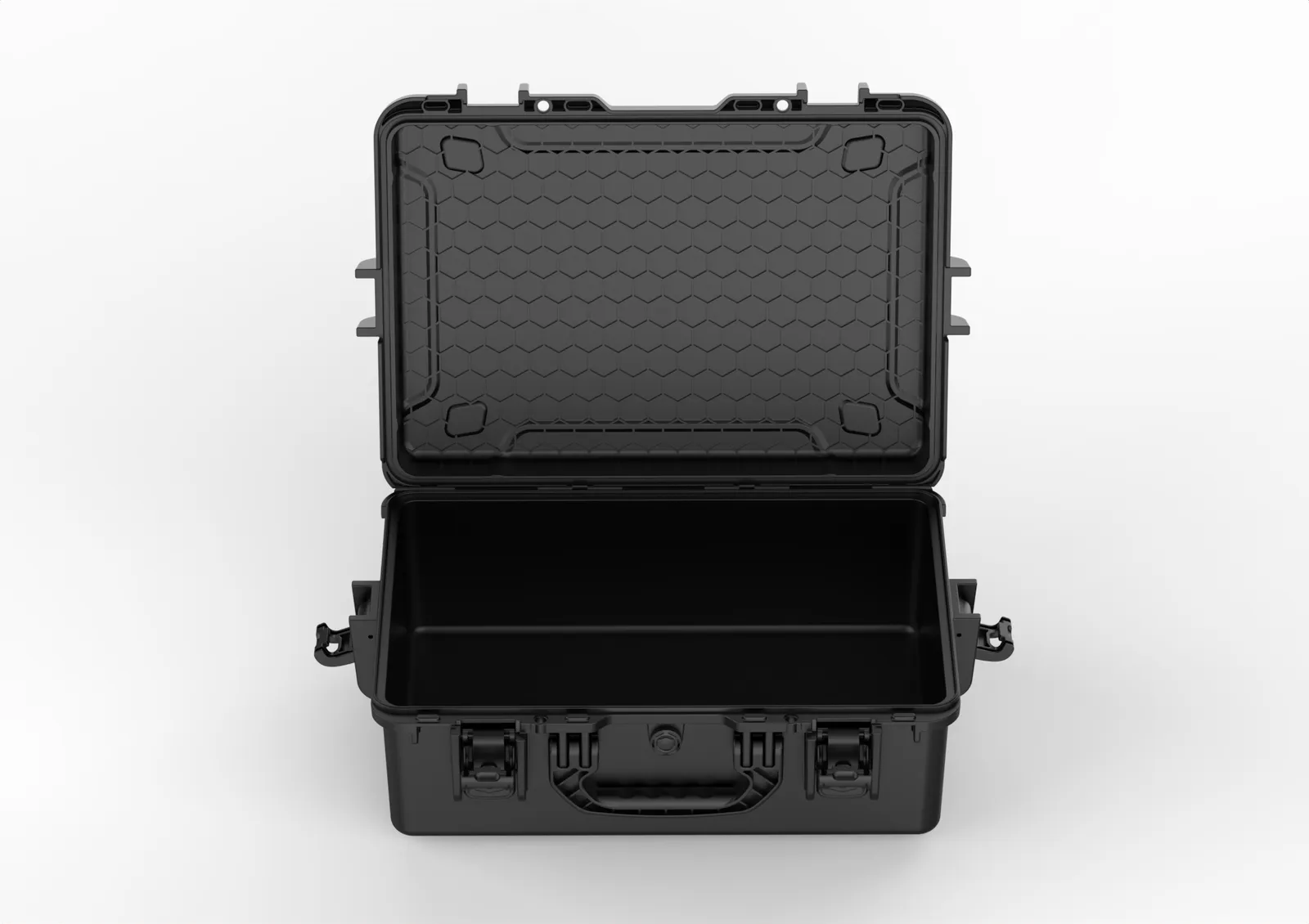

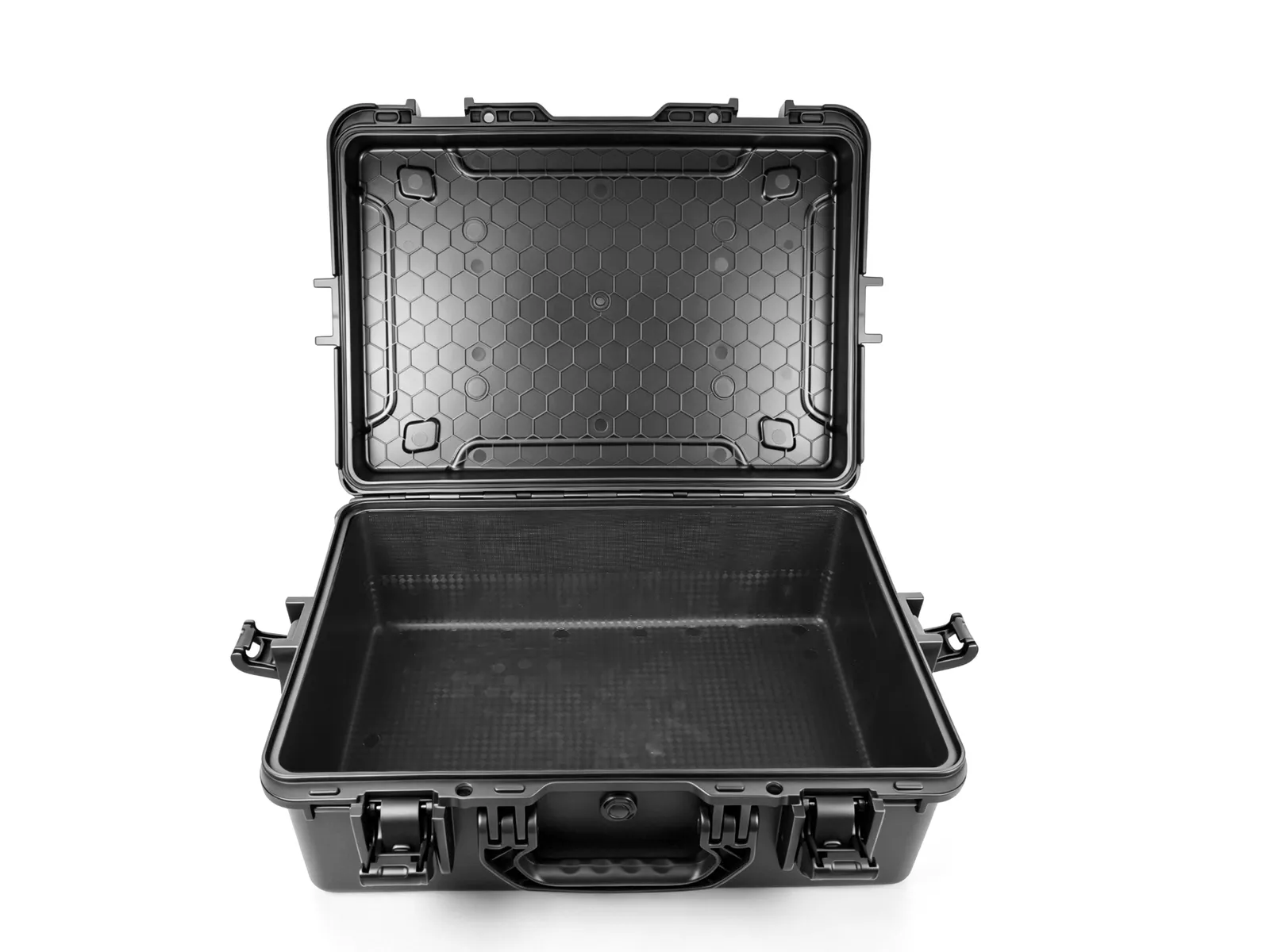

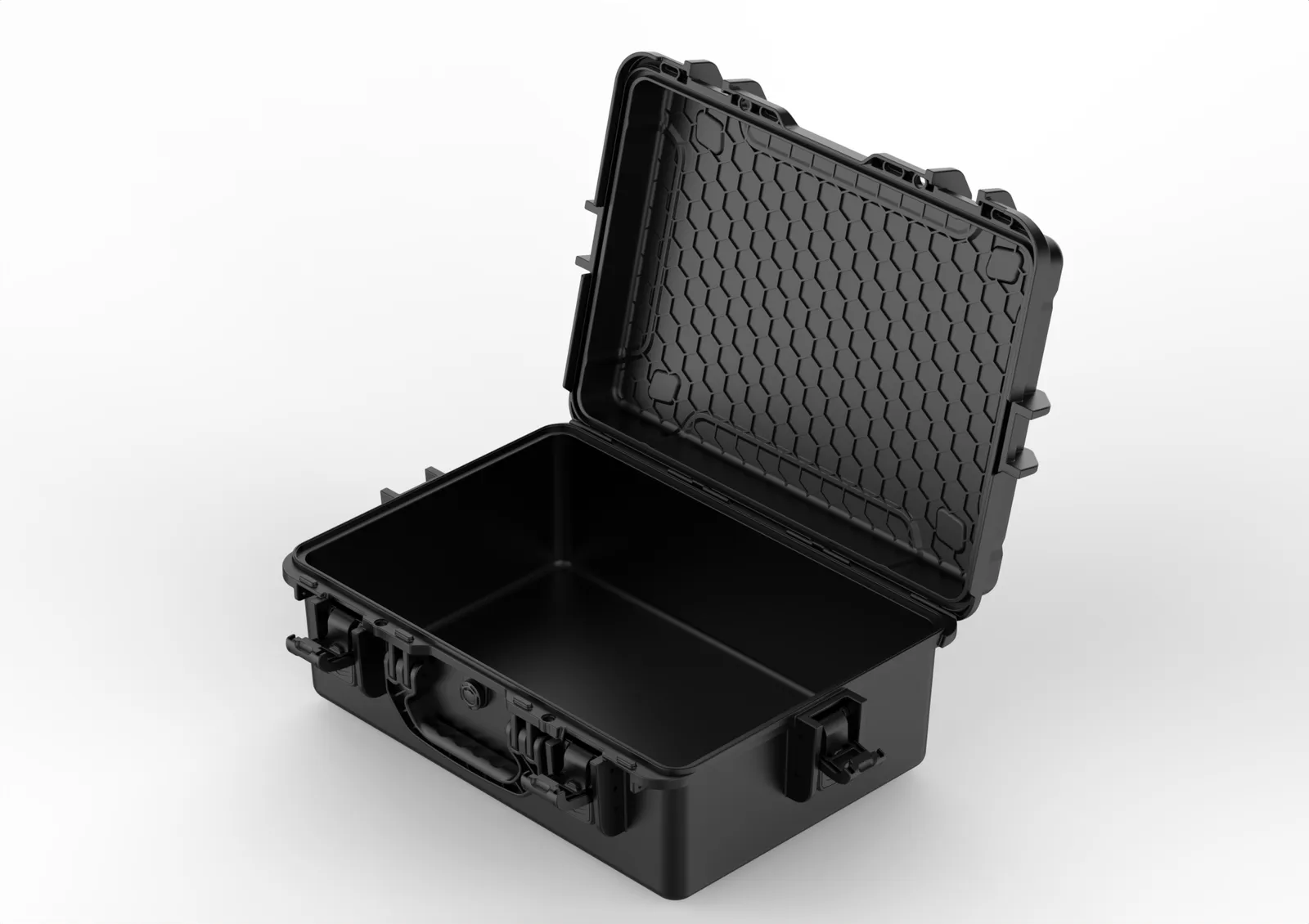

The case measures 612*427*223 mm outside and 530*360*203 mm inside, split into a 48 mm lid and a 155 mm base, with a 5.0 mm wall and an empty weight of 4910 g. That gives a usable floor of 530 by 360 mm and 203 mm of internal height, a balanced step in the series that suits items around half a metre long laid flat as well as gear with handles or brackets. Send a drawing or photo if a part sits close to the limit.

The polypropylene body is injection moulded with a sealing structure, and the closed case is rated IP67 for water and dust protection. That covers rain, dusty workshops and short immersion, and it keeps tools and electronic gear free of moisture and particles. We do not claim military standard certification for this model. The rating depends on the lid seating correctly on the gasket, so check the seal periodically for ageing or trapped debris and avoid long exposure to rain or immersion once the gasket is damaged.

The body is polypropylene with a 5.0 mm wall, and the empty case weighs 4910 g. At 5.0 mm, the wall combines with the ribs formed into the shell to resist pressure and deformation on a 530 by 360 mm floor with 203 mm of internal height, which suits instruments and equipment with real weight. Clean it with water or a mild detergent and a soft cloth, and avoid strong solvents, alcohol-based cleaners and abrasive pads.

This model and the deeper version share the 612*427 mm exterior and the 530*360 mm interior. This one offers 203 mm of internal height, a 155 mm base and 4910 g empty; the deeper version offers 248 mm of height, a 200 mm base and 5350 g, a difference of 45 mm. Choose this model for flat loads where overall height and weight matter, and the deeper one for stacked layers or gear approaching 200 mm thick.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures this model at its Zhongshan factory, JUNZHIJIA is our own brand, and we supply factory-direct for OEM and ODM wholesale. Colour, silk-screen printing or nameplates, foam insert structure and latch configuration can all be customised. MOQ and lead time depend on the chosen colour, foam process and printing requirements, and production is normally scheduled after sample approval. Send your application, target quantity and customisation list and our sales team will issue a formal quotation and production plan.
