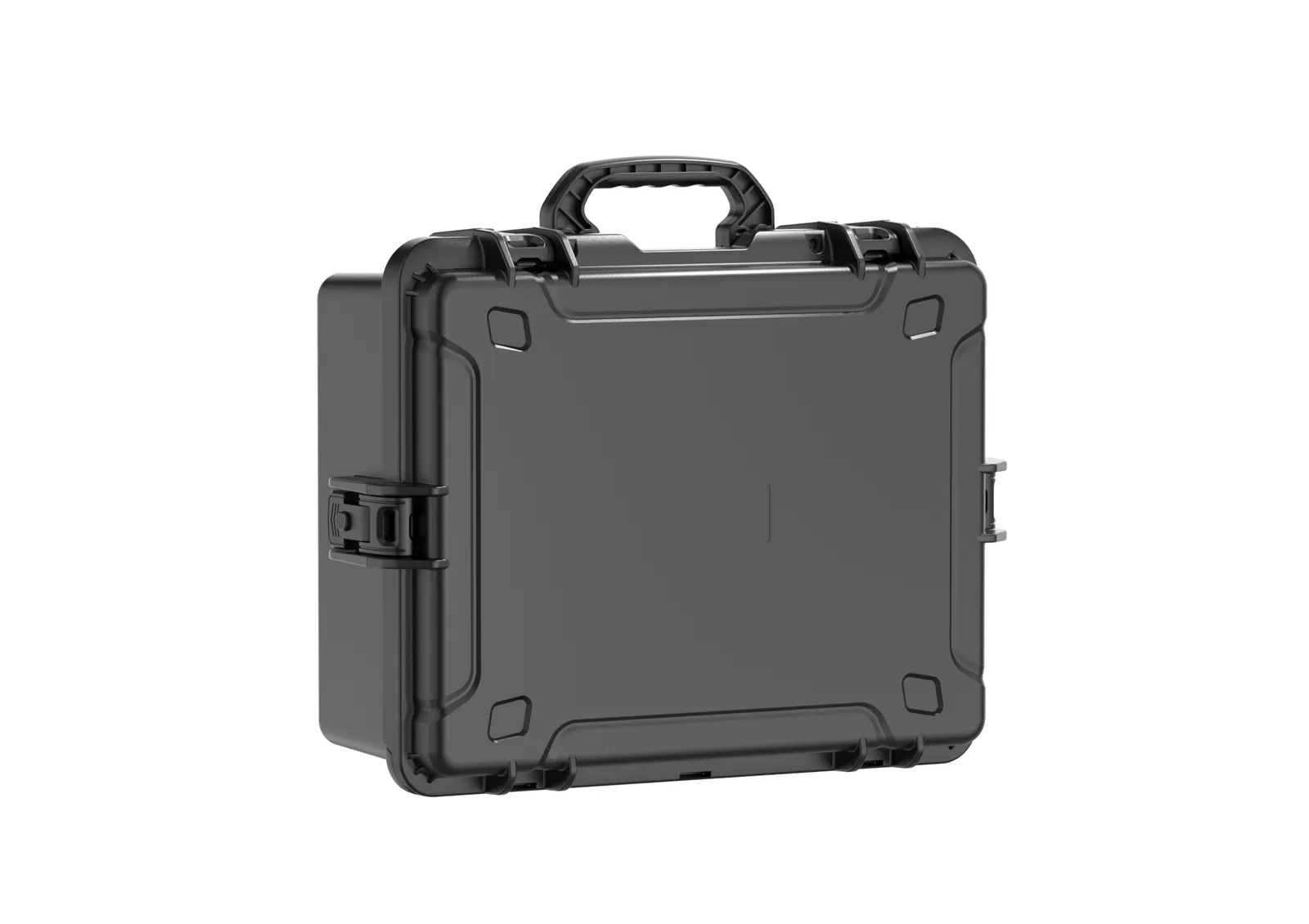

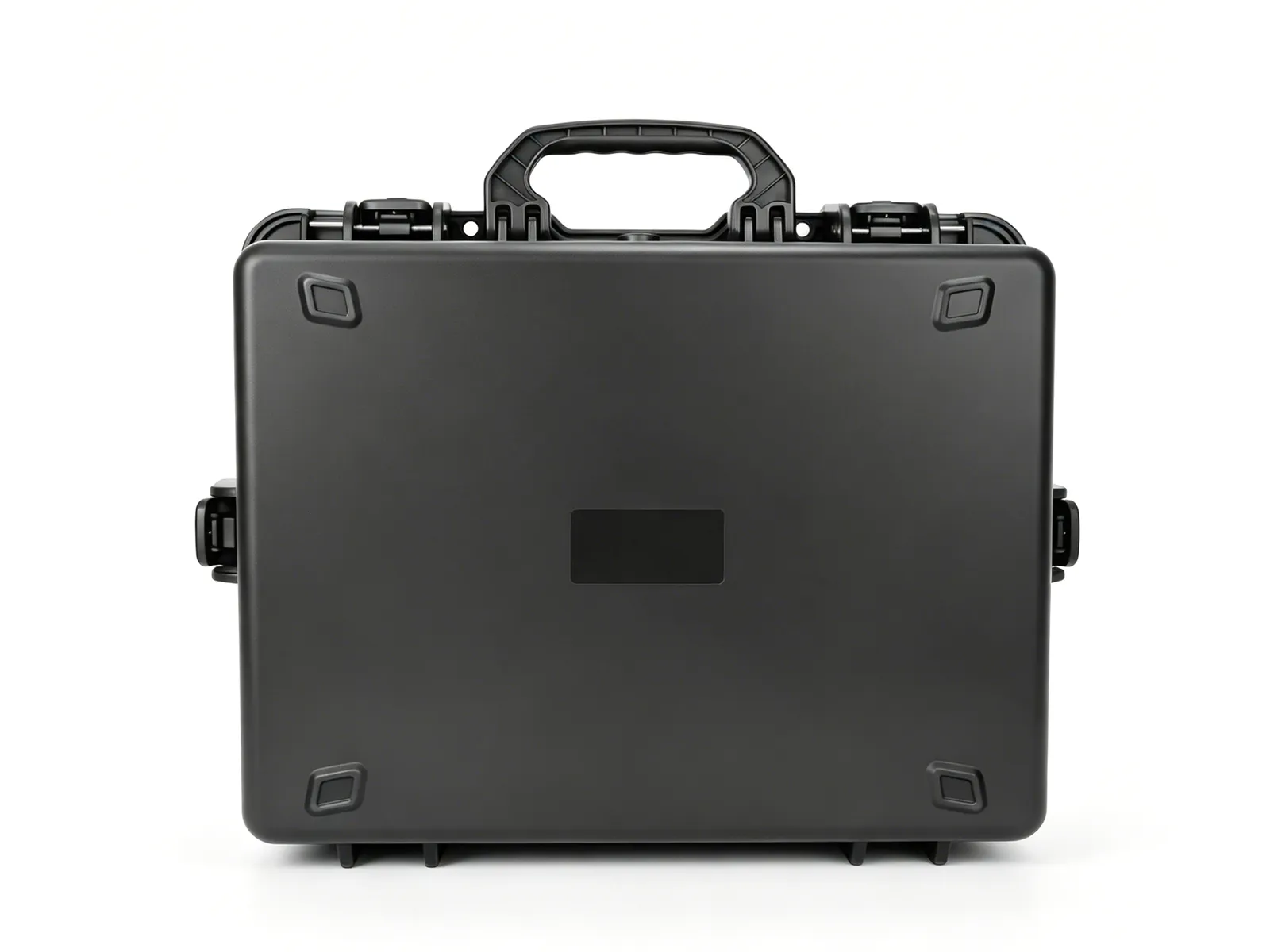

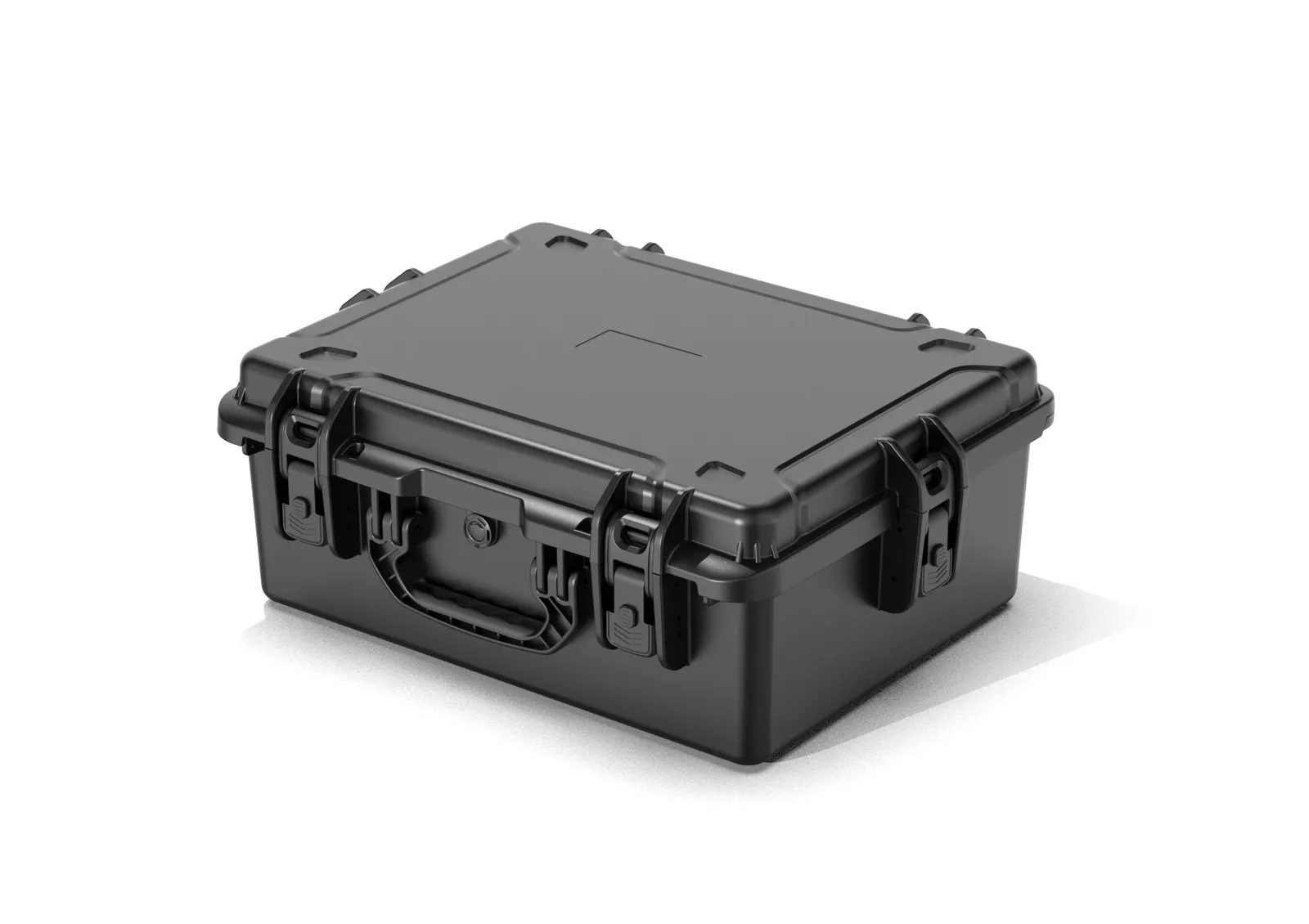

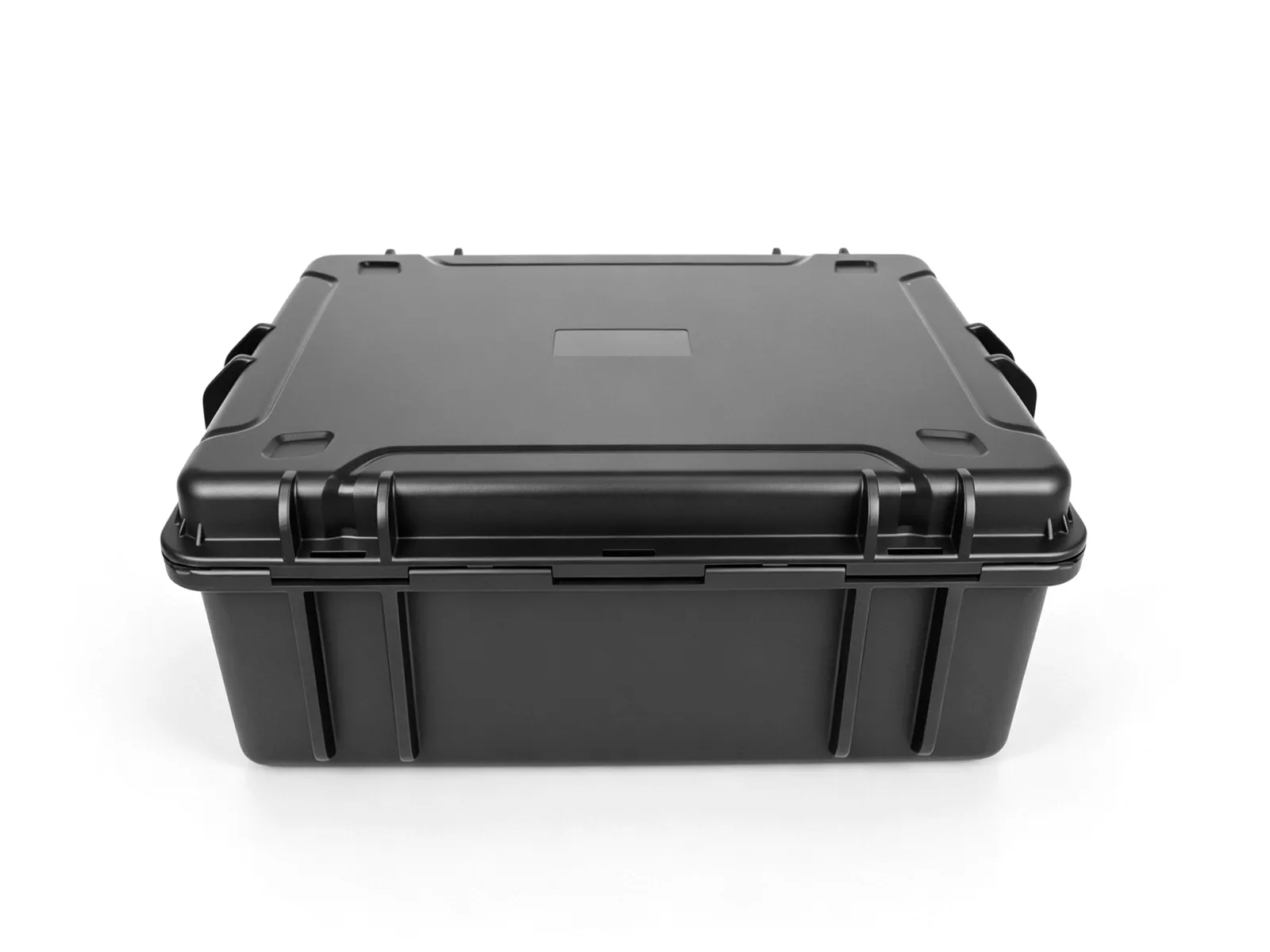

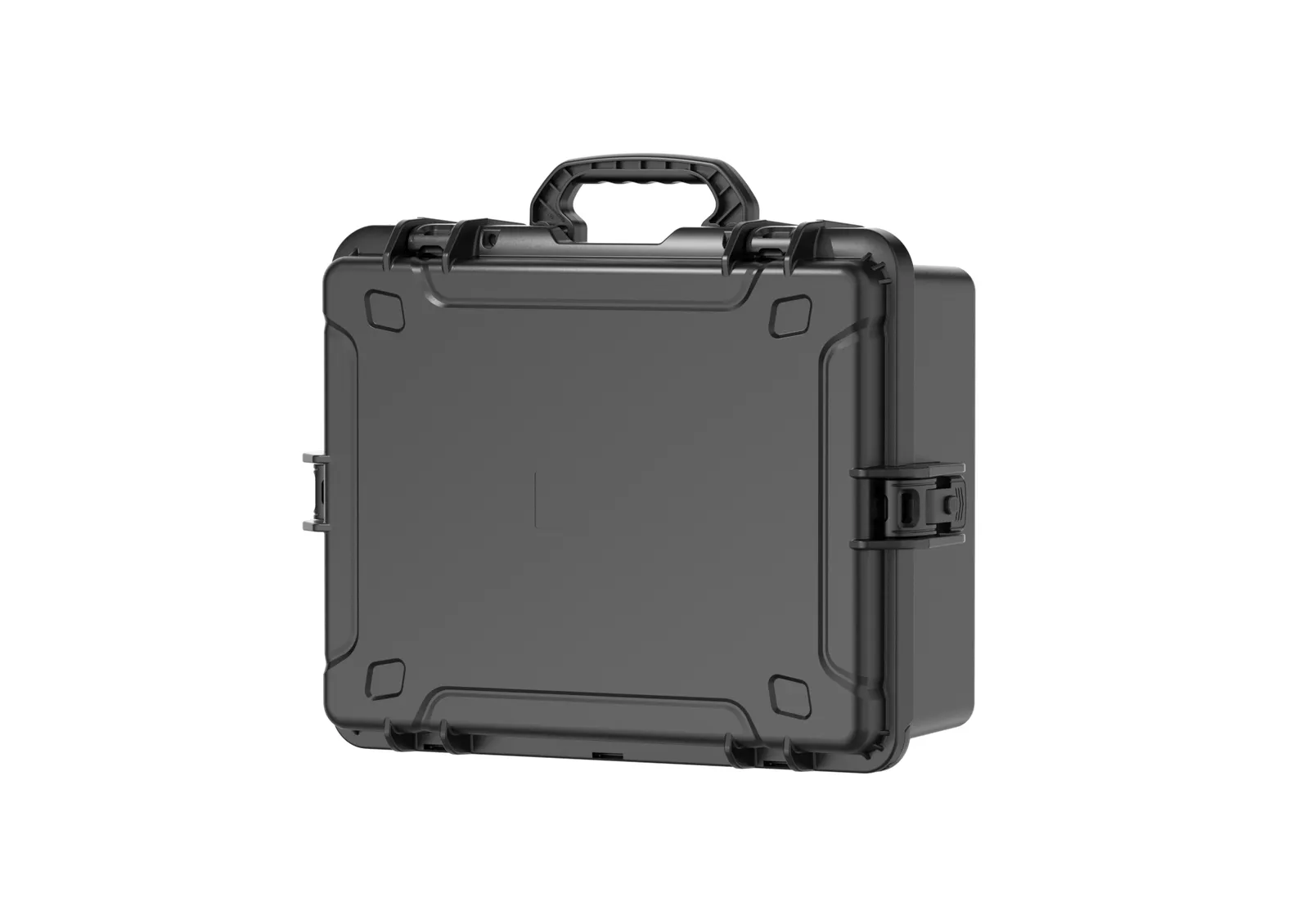

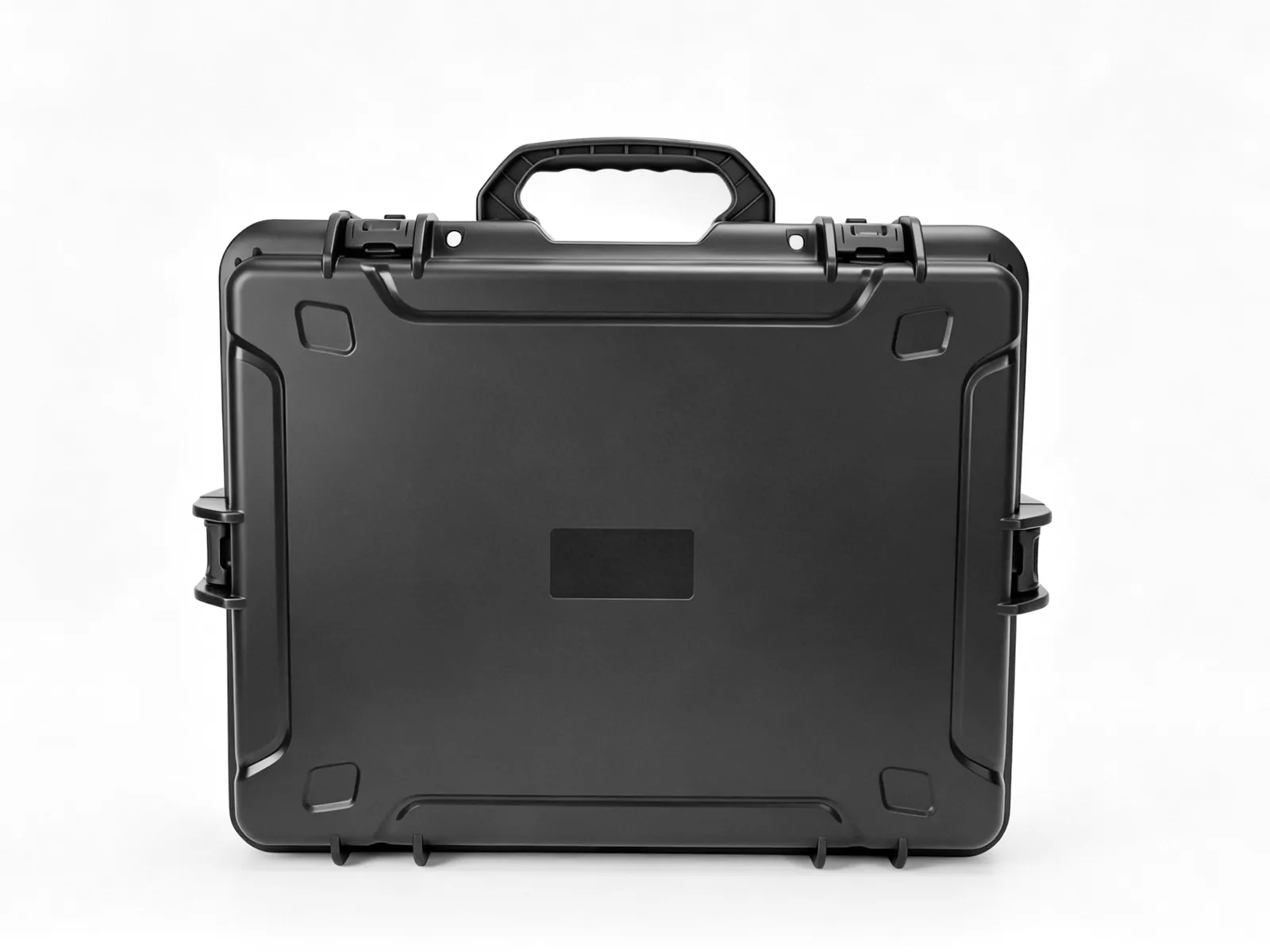

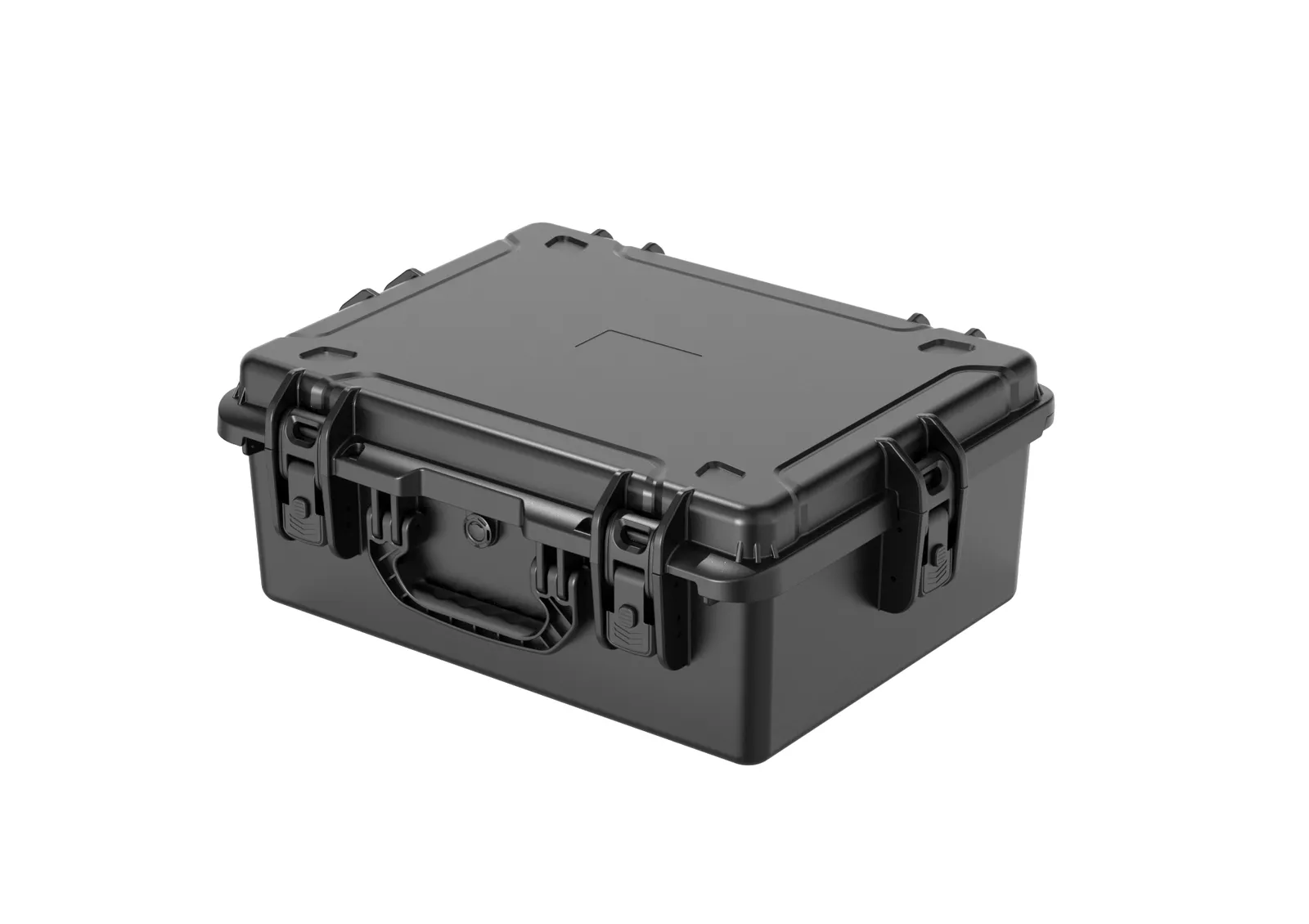

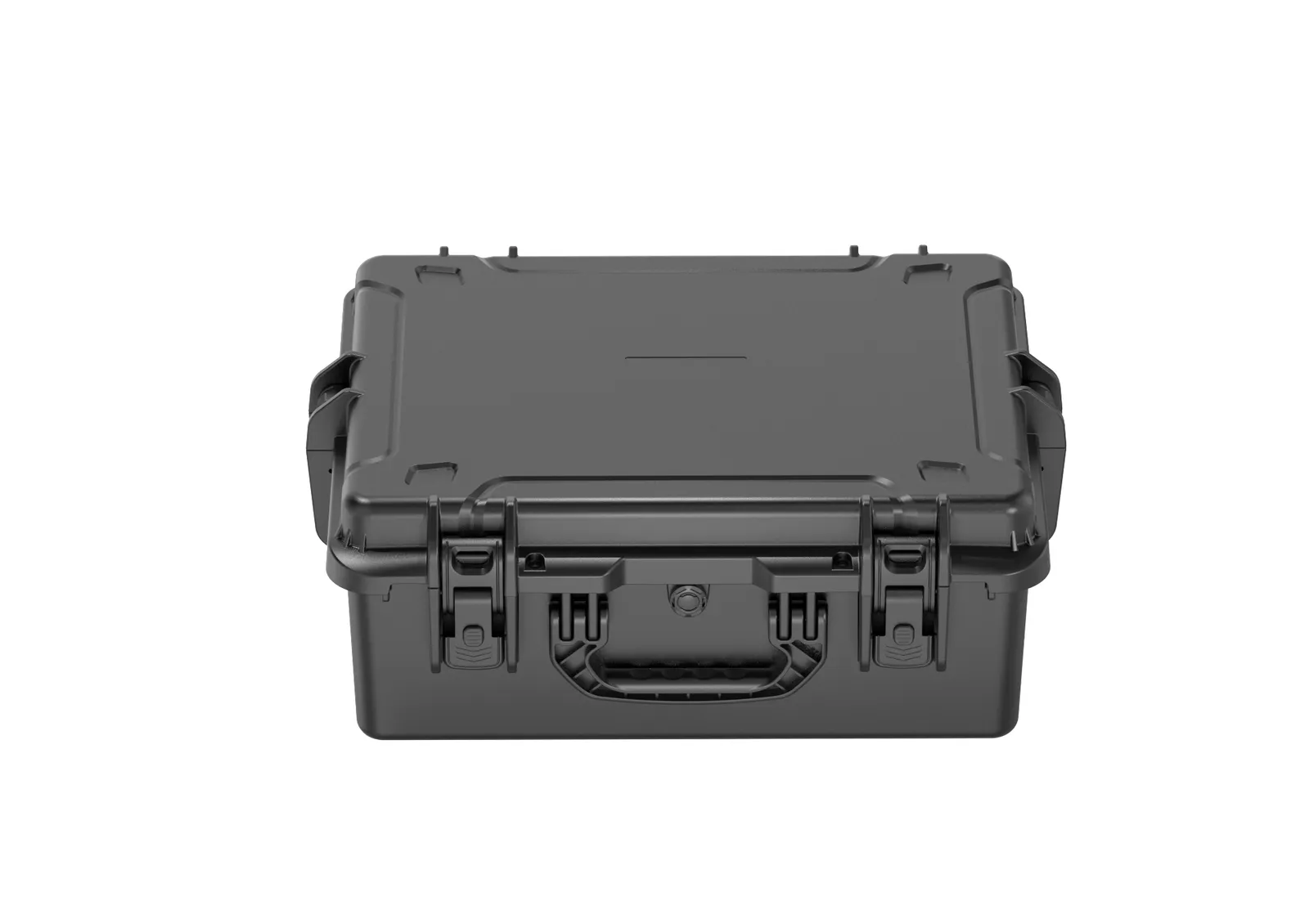

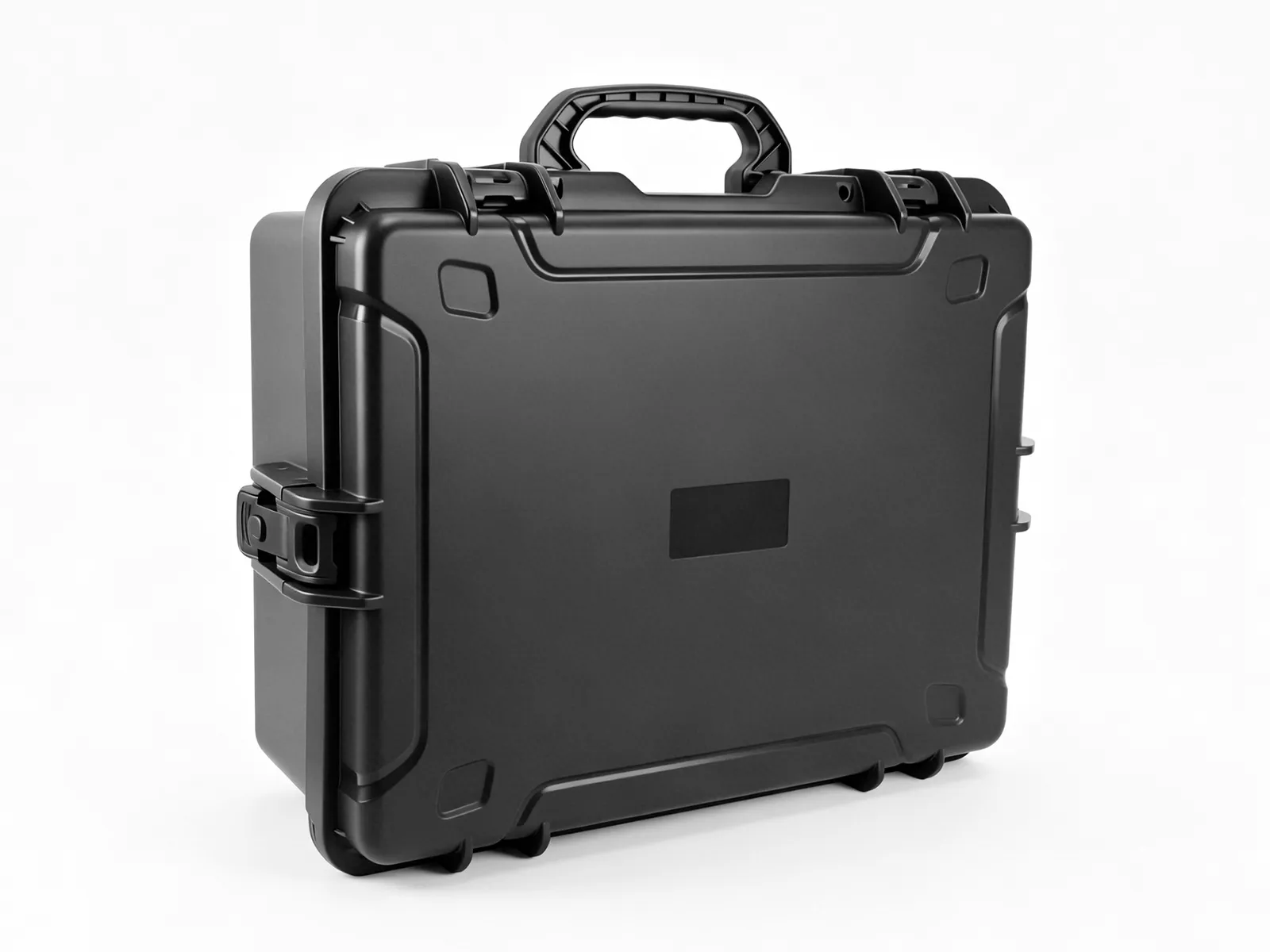

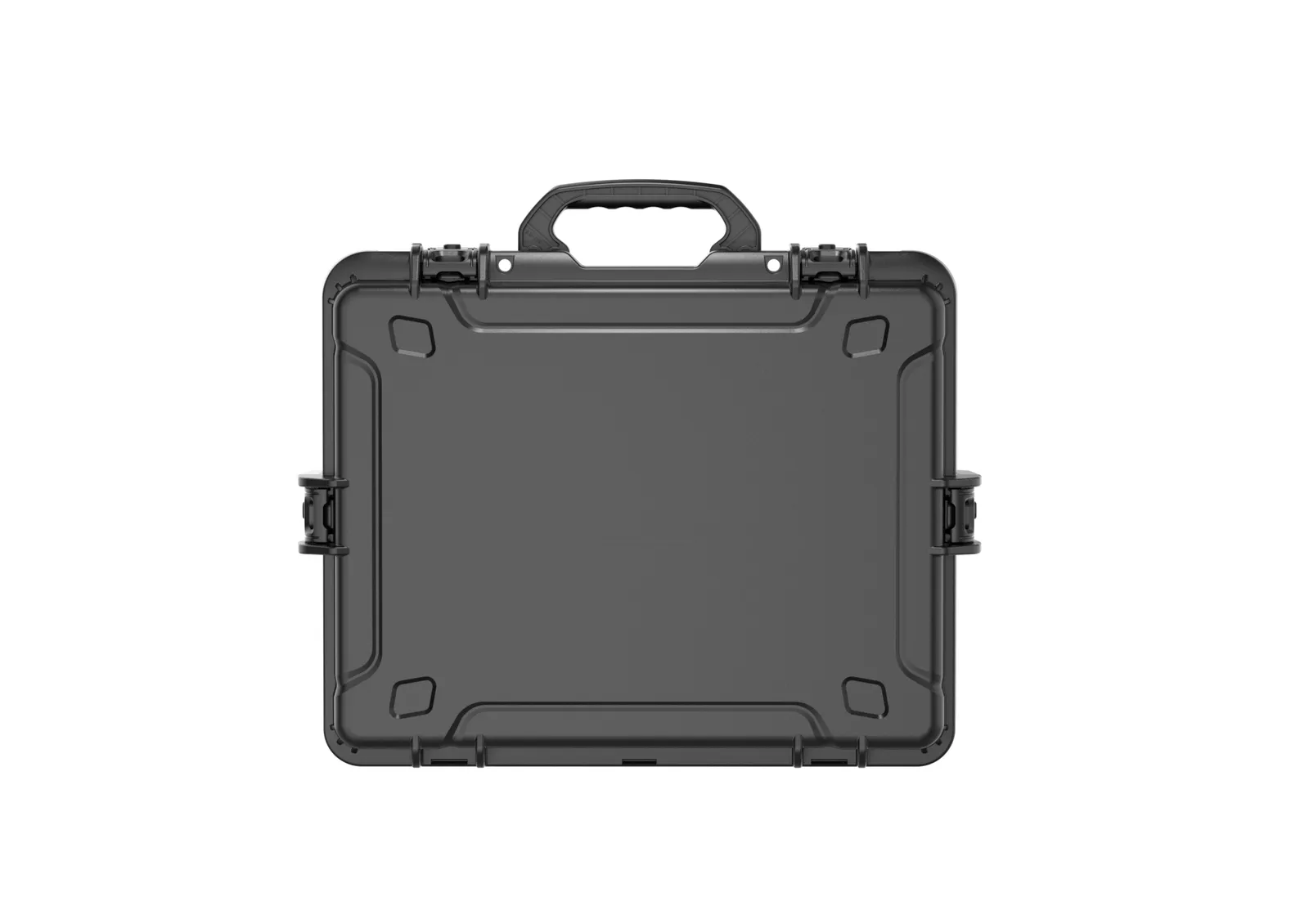

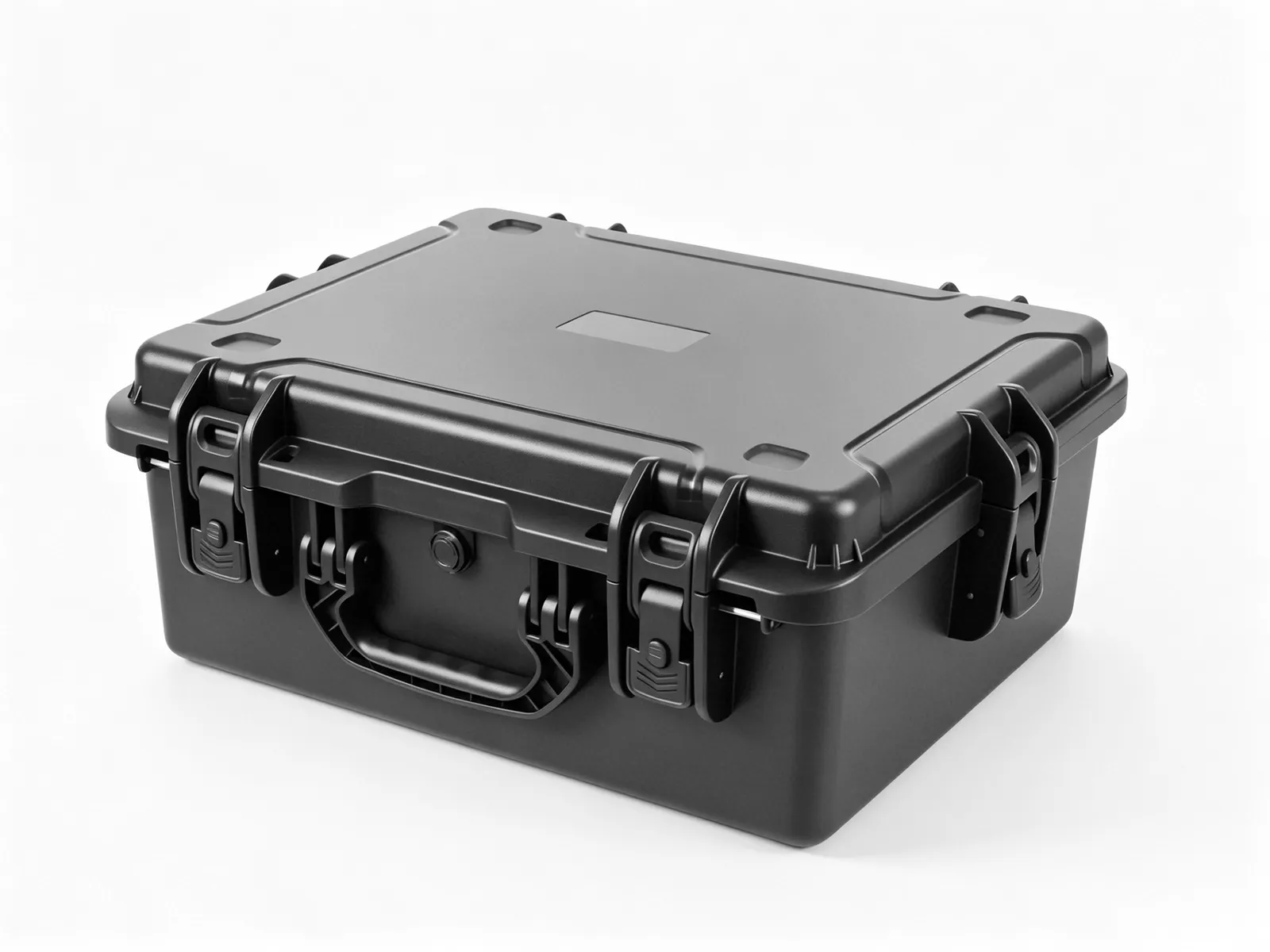

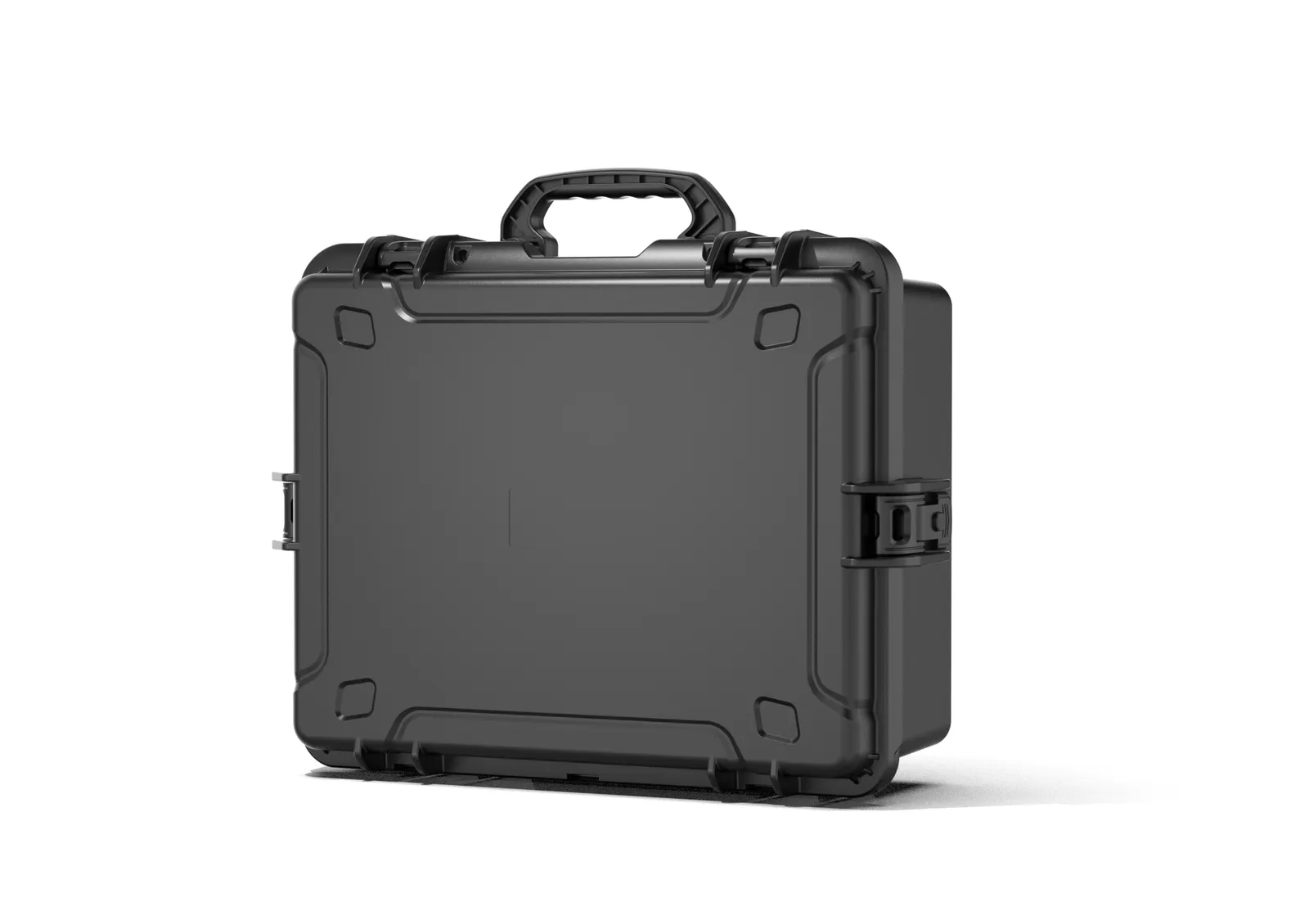

WL8-6224 PP Military Equipment Case

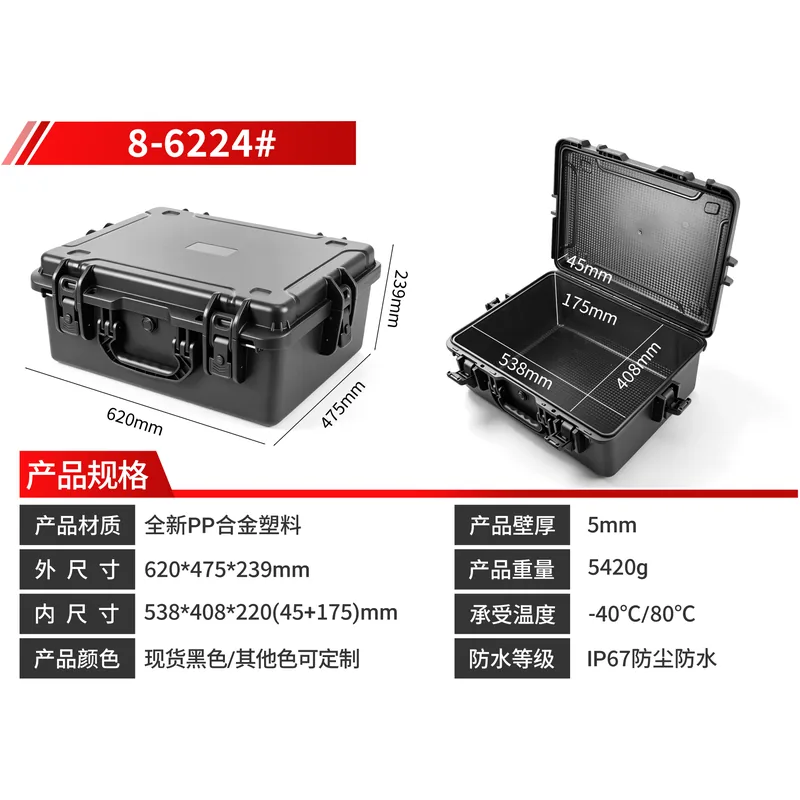

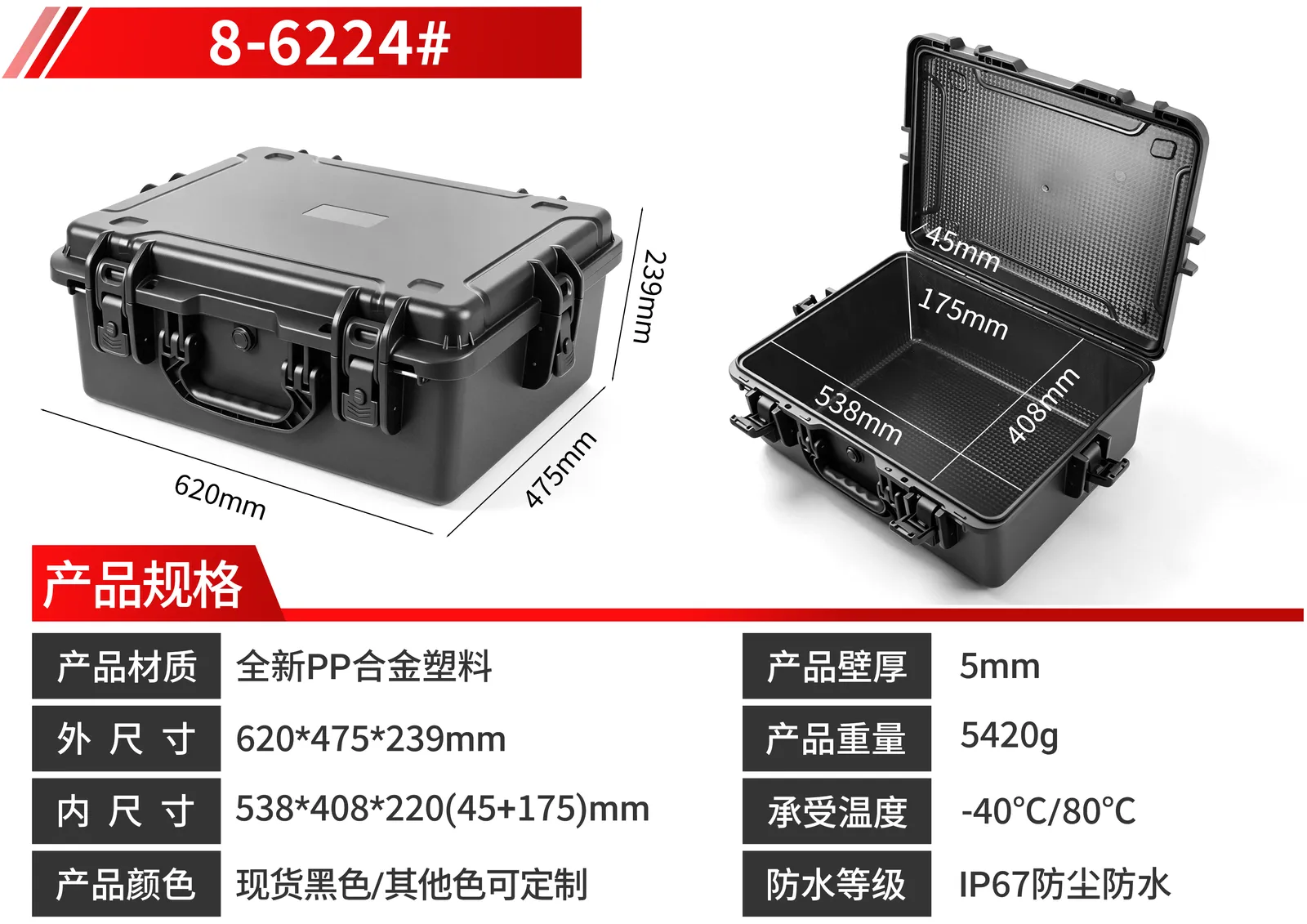

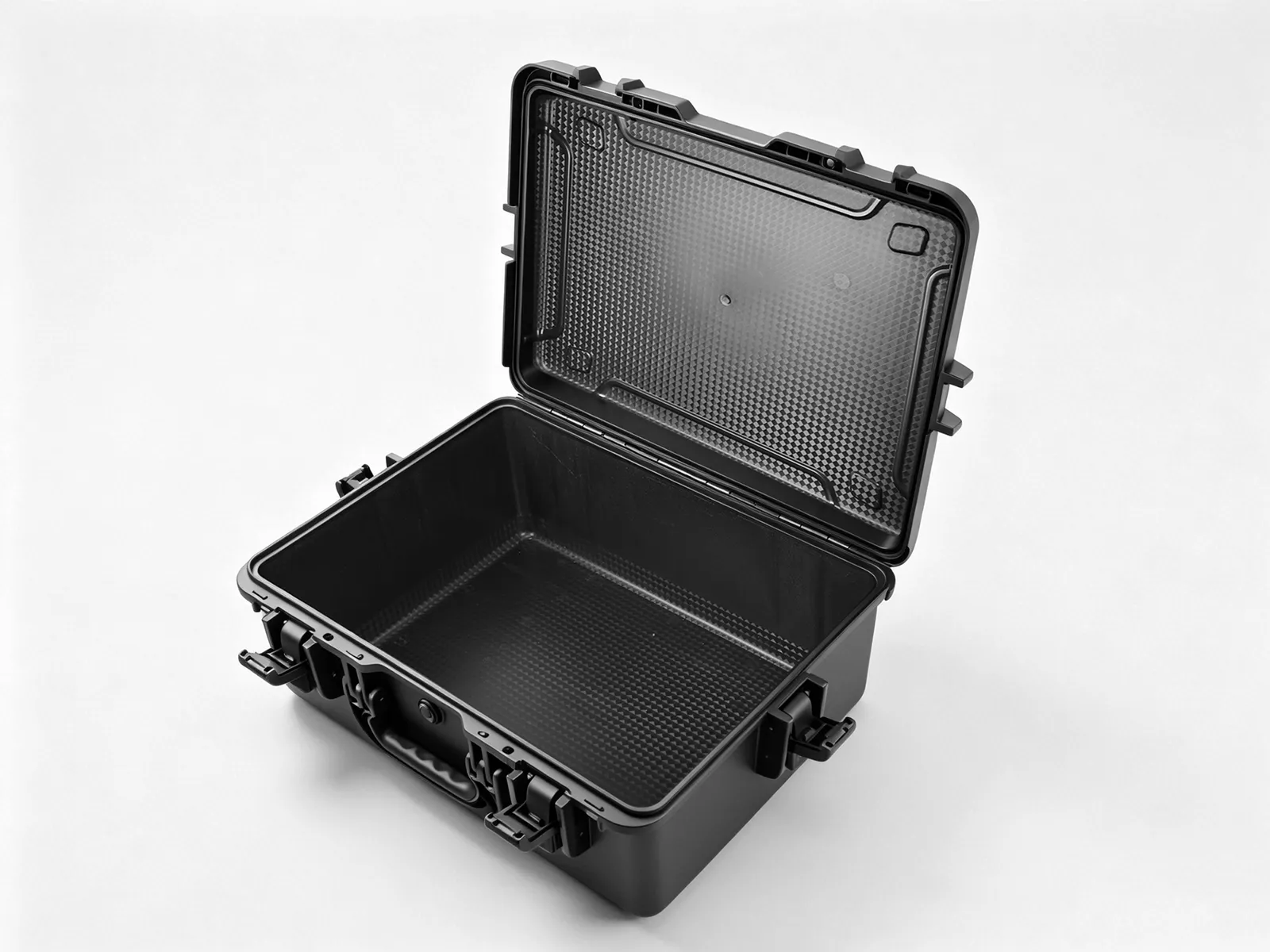

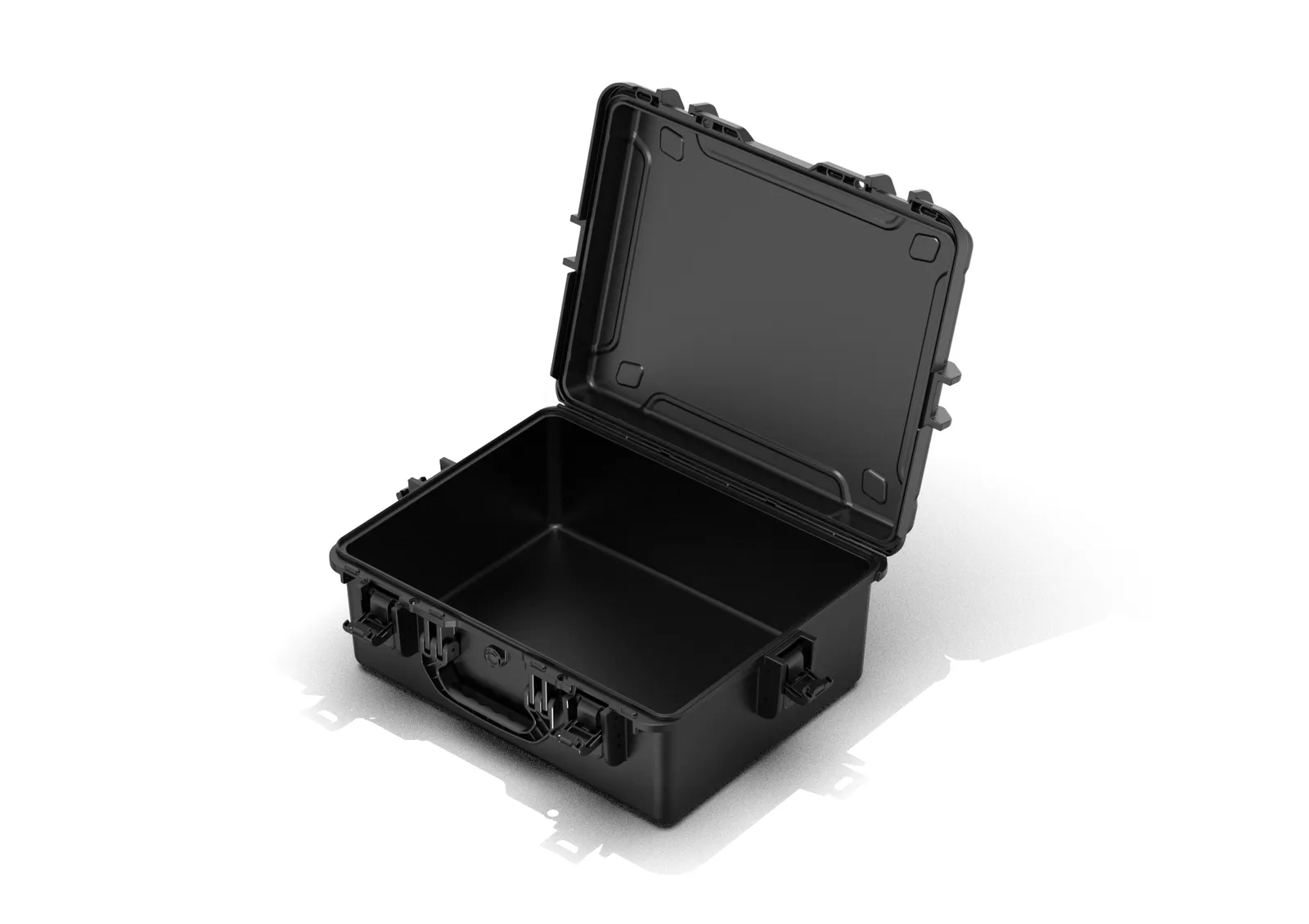

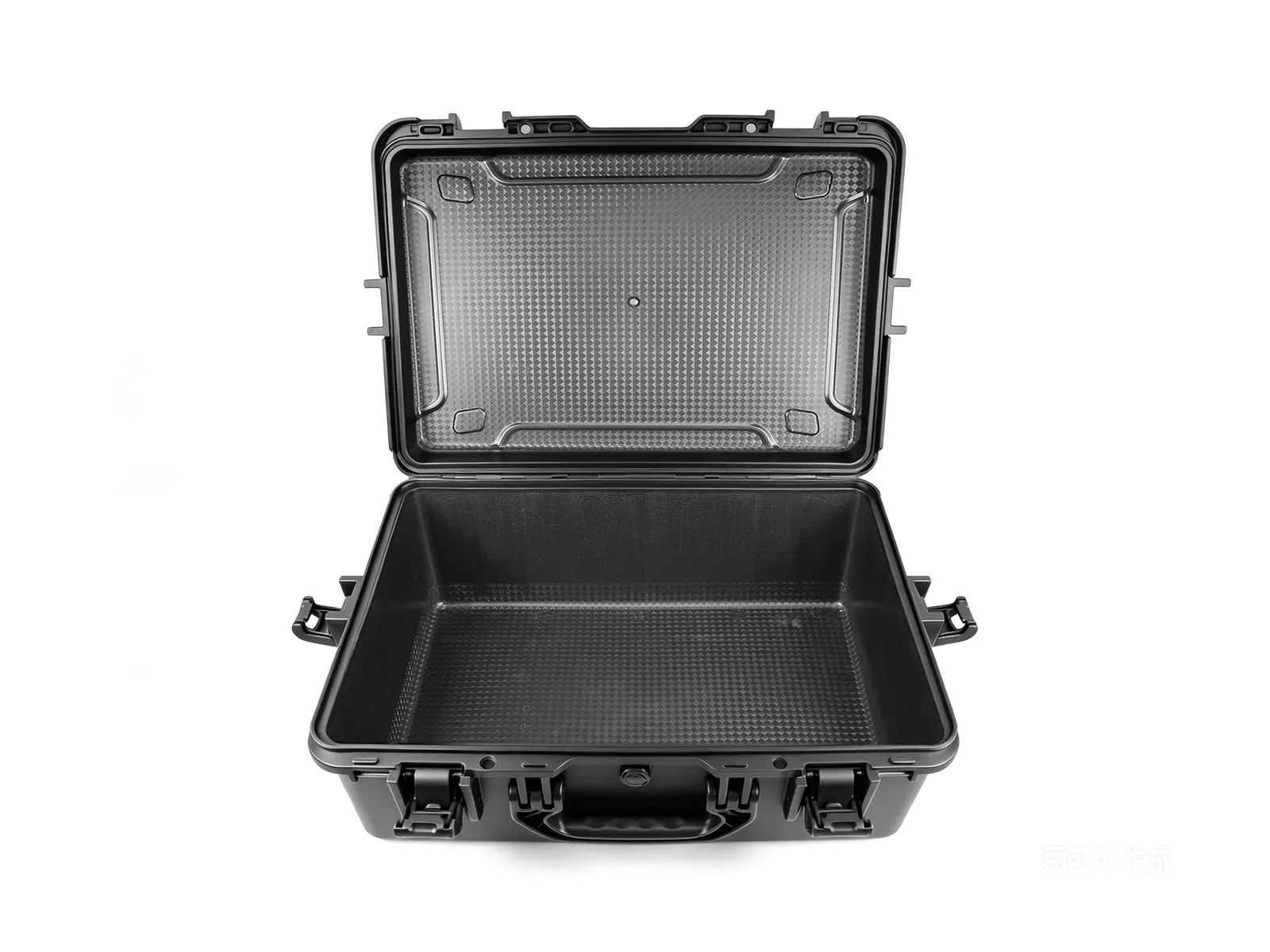

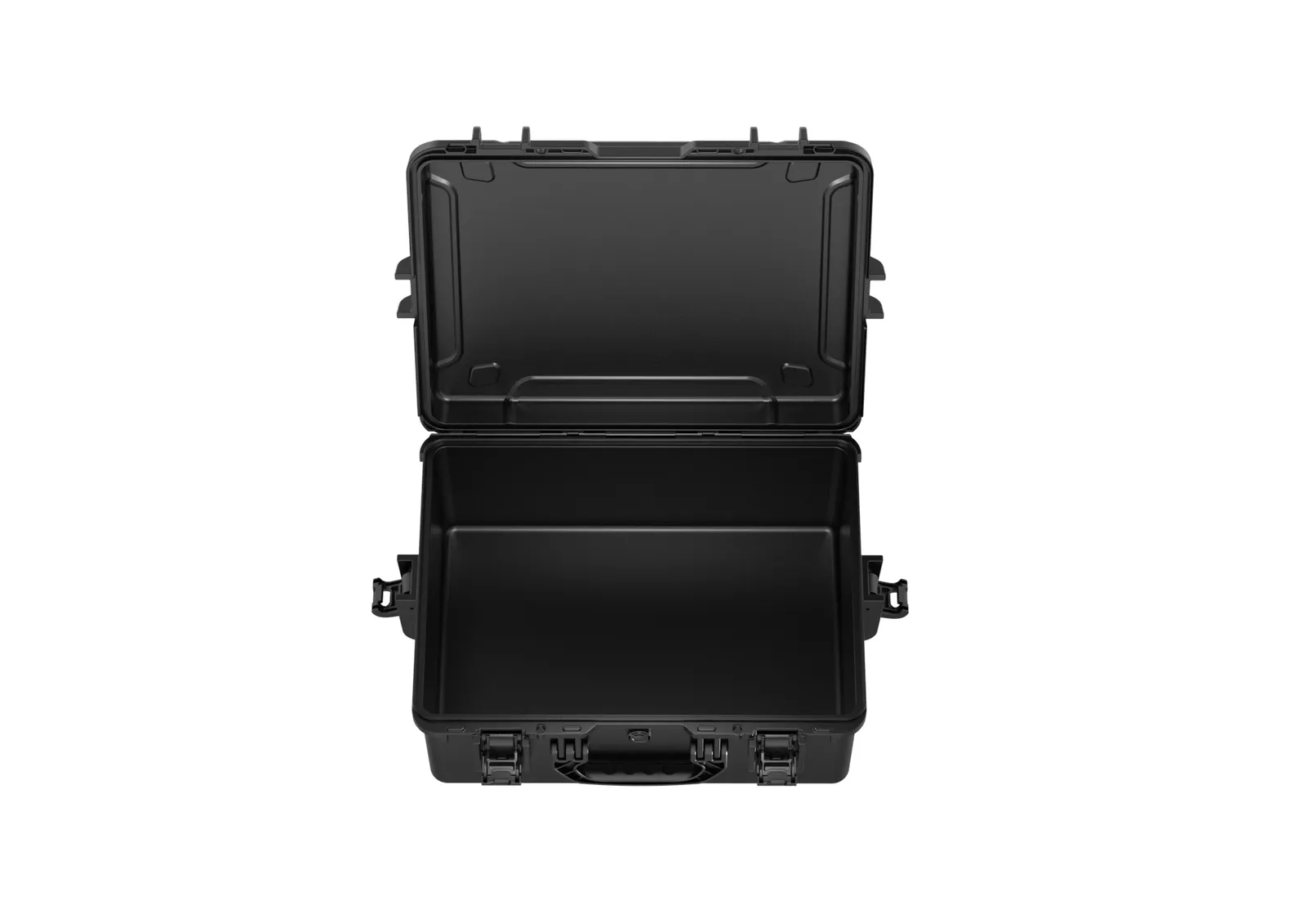

The case measures 620*475*239 mm outside and 538*408*220 mm inside, split into a 45 mm lid and a 175 mm base, with a 5.0 mm wall and an empty weight of 5420 g. That gives a usable floor of 538 by 408 mm and 220 mm of internal height, with a deepened base that allows two stacked layers on the larger floor or taller items standing upright. Send a drawing or photo if a part approaches the limit.

The polypropylene body is injection moulded with a sealing structure, and the closed case is rated IP67 for water and dust protection. That covers rain, dusty workshops and short immersion, and it keeps equipment free of moisture and particles. We do not claim military standard certification for this model. With 220 mm of internal height and a larger floor the gasket perimeter is longer, so check the seal regularly for ageing, distortion or trapped debris and avoid prolonged rain or immersion once it is damaged.

The body is polypropylene with a 5.0 mm wall, and the empty case weighs 5420 g. Compared with the shallow version on the same footprint, the base is deepened from 135 mm to 175 mm, which adds roughly 380 g of material and weight. The 5.0 mm wall and moulded ribs keep the shell rigid across the larger floor and deeper cavity, which helps when the case is stacked and shipped.

Both share a 620*475 mm exterior and a 538*408 mm interior. This model offers 220 mm of internal height, a 175 mm base and 5420 g empty; the shallow version offers 180 mm of height, a 135 mm base and 5040 g, a difference of 40 mm. Choose this one for stacked layers, upright items or gear over 180 mm thick, and the shallow one for flat loads where case height and weight matter.

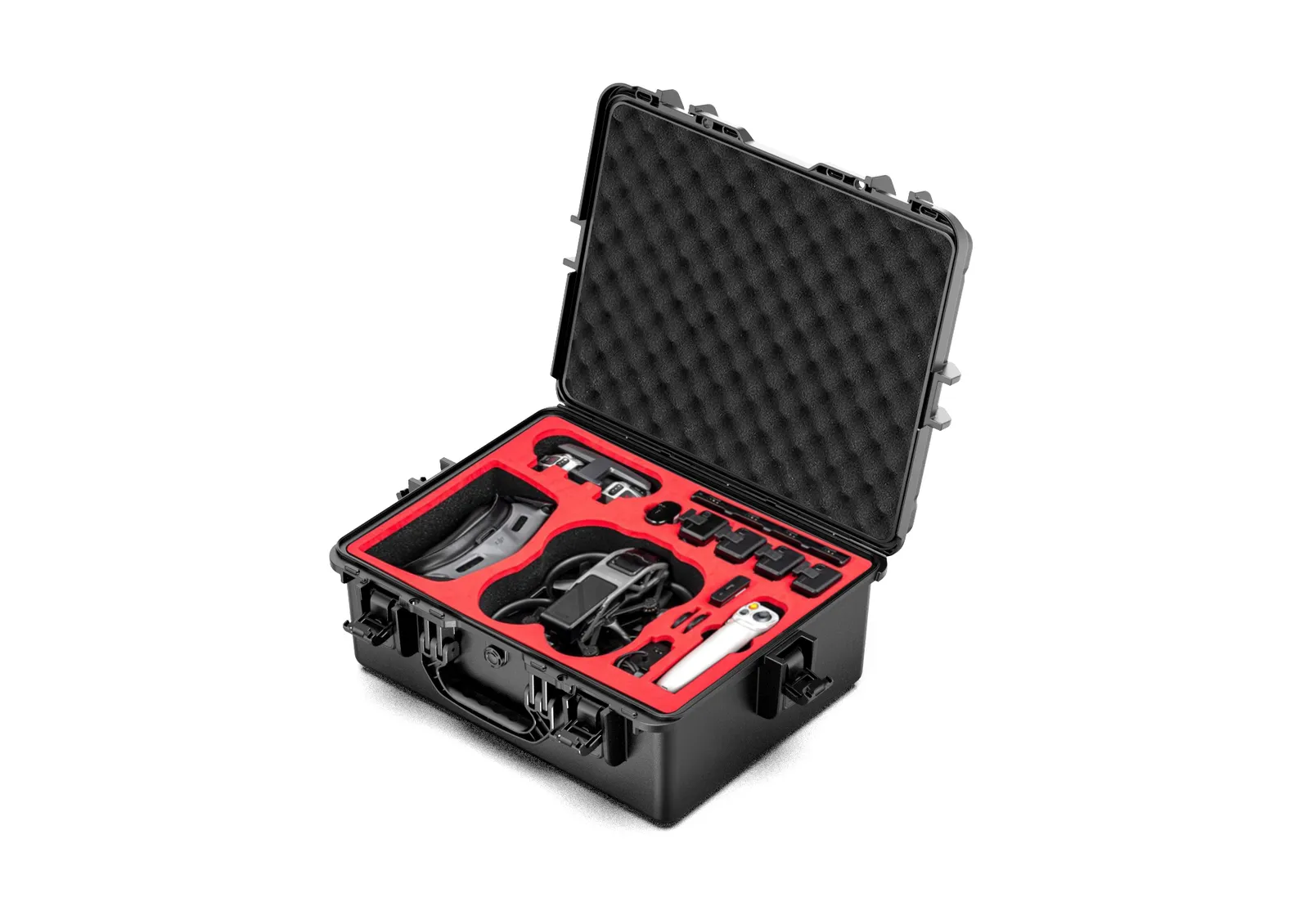

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures this model at its Zhongshan factory, JUNZHIJIA is our own brand, and we supply factory-direct for OEM and ODM wholesale. Colour, silk-screen printing or nameplates, foam insert structure and latch configuration can all be customised. MOQ and lead time depend on the chosen colour, foam process and printing requirements, and production is normally scheduled after sample approval. Send your application, target quantity and customisation list and our sales team will issue a formal quotation and production plan.
