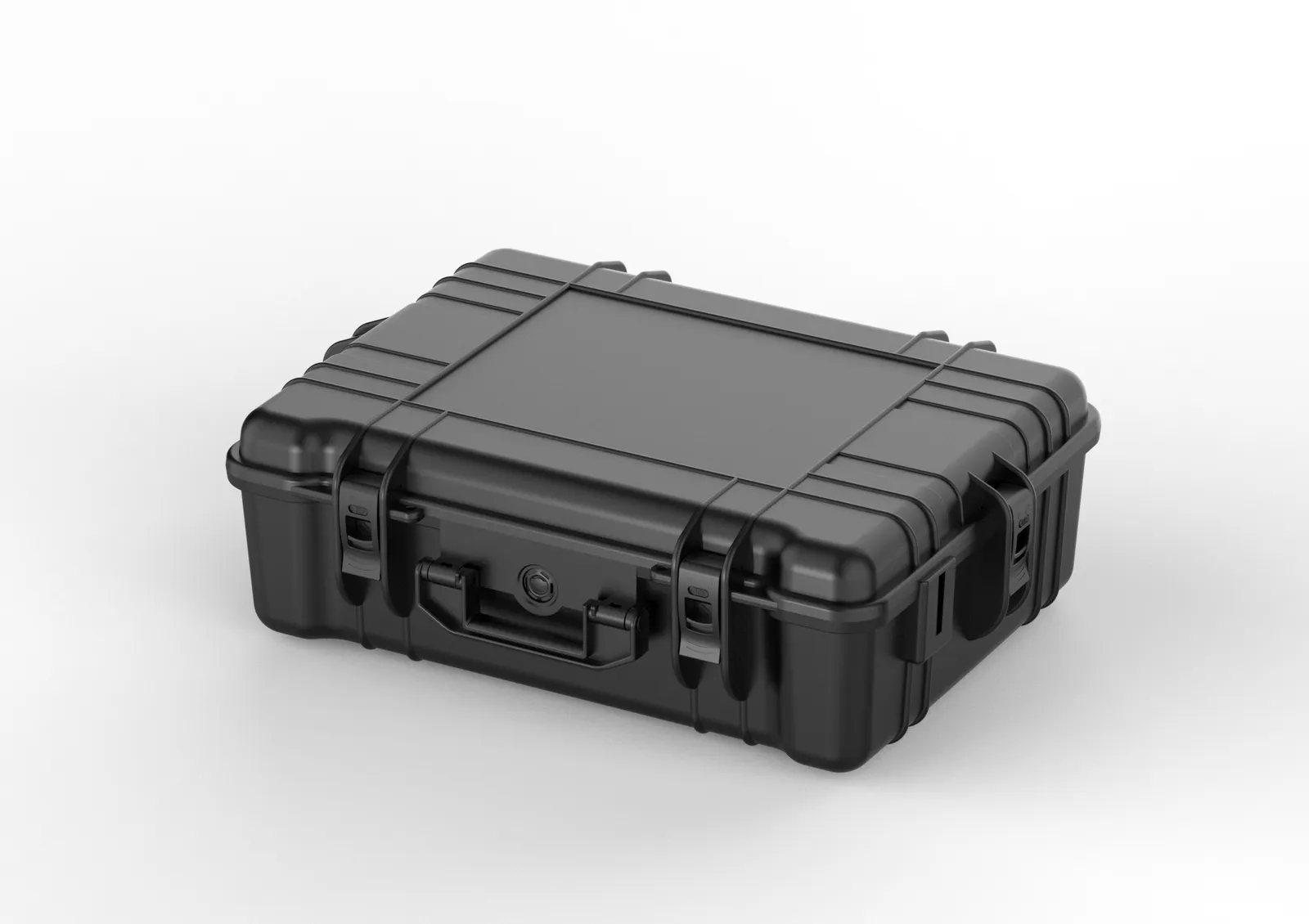

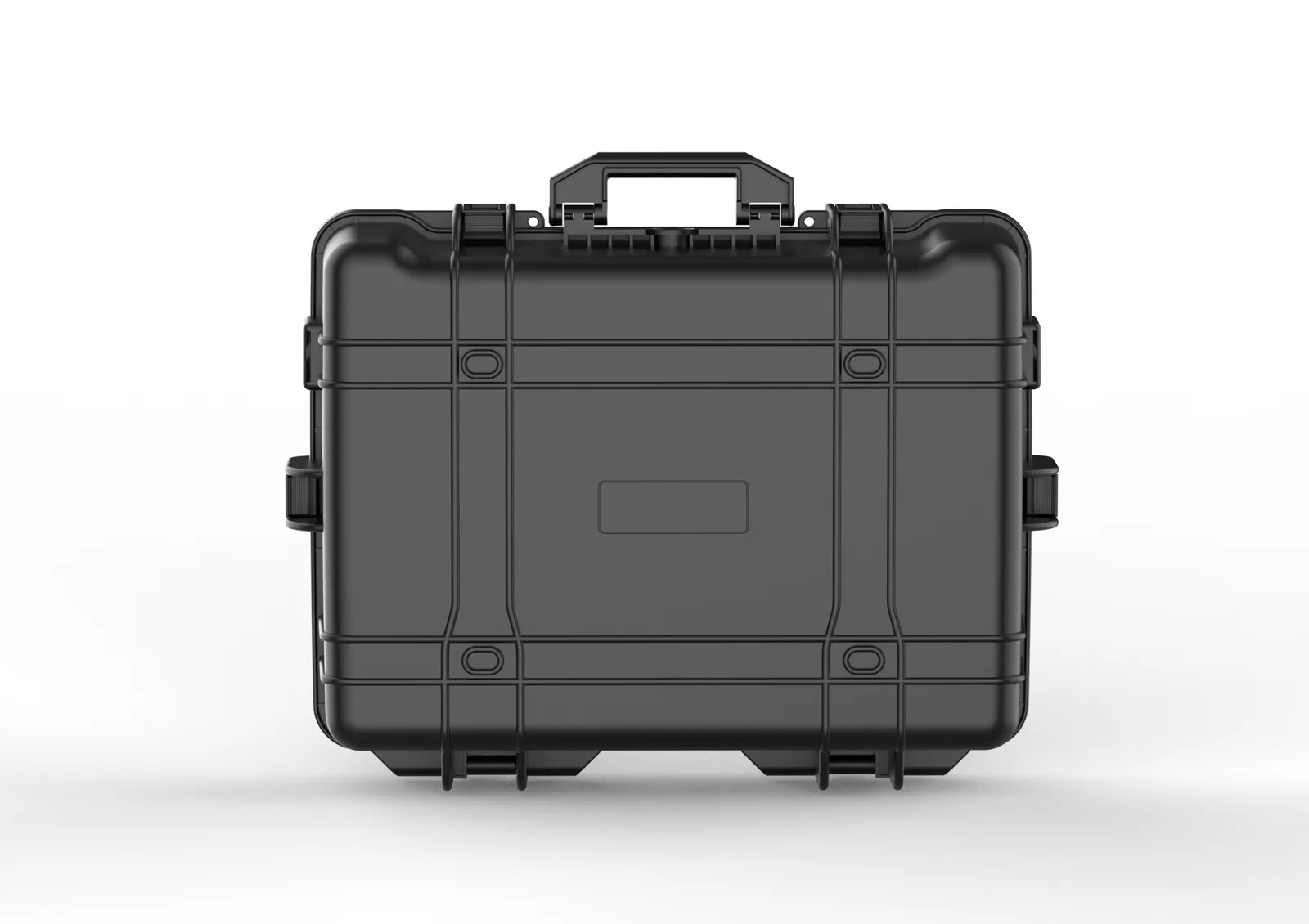

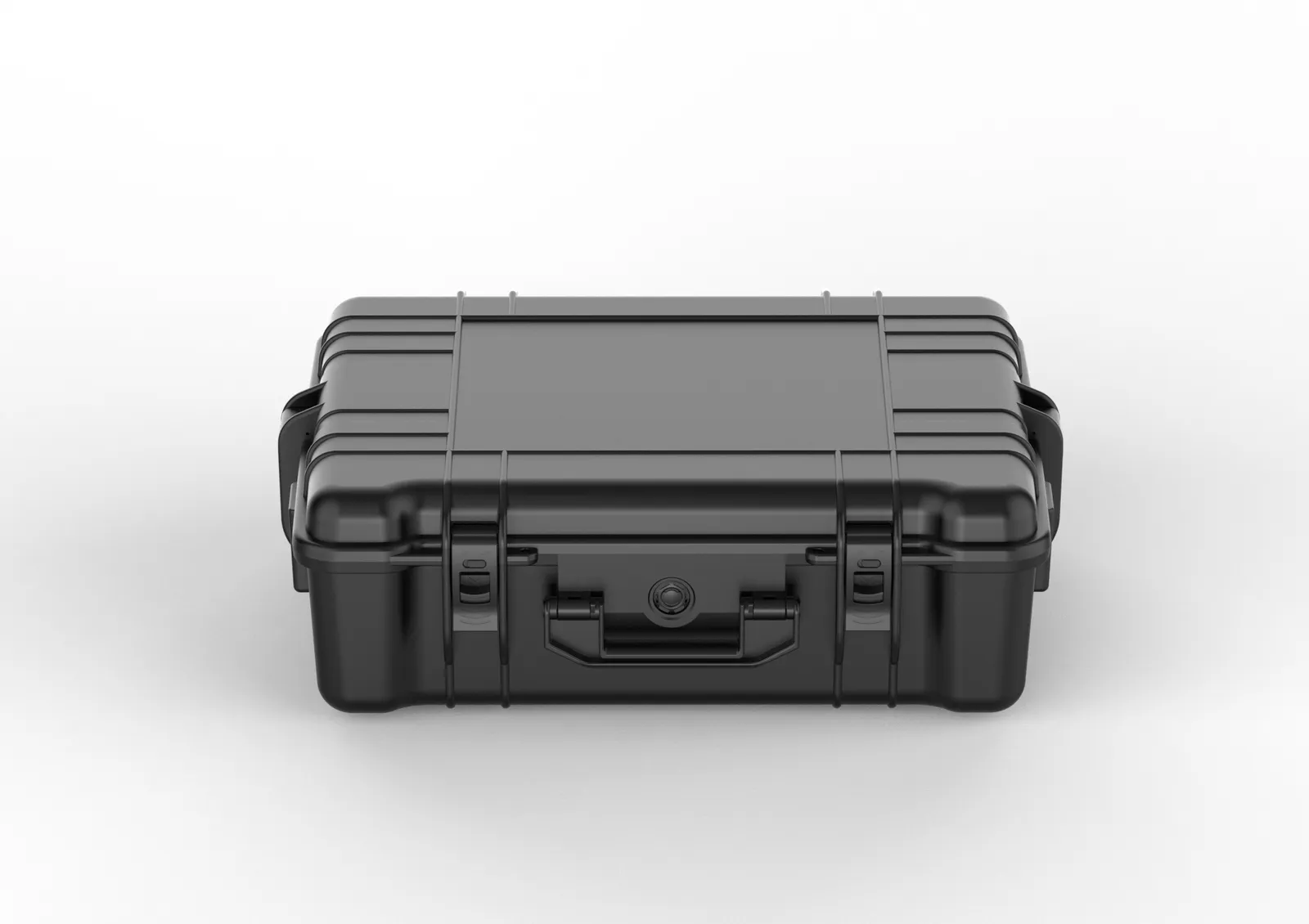

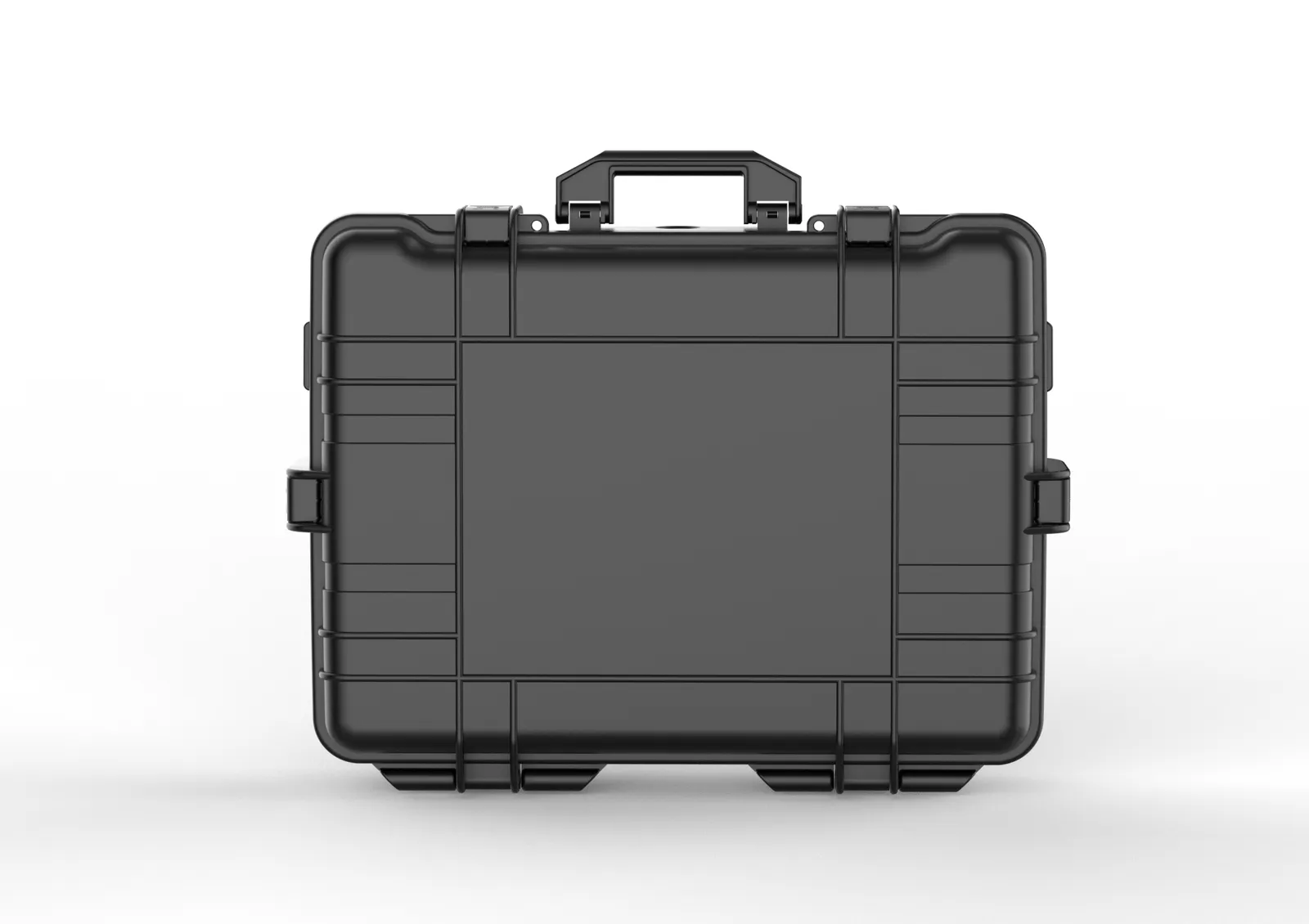

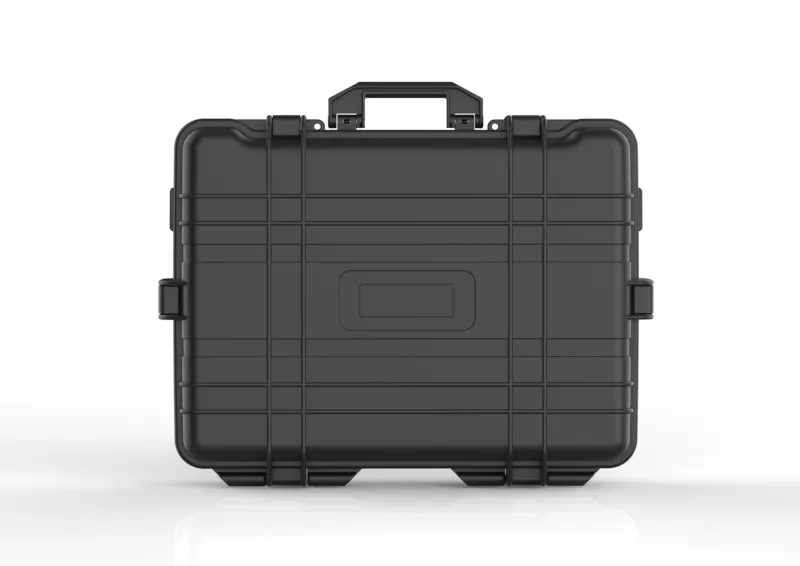

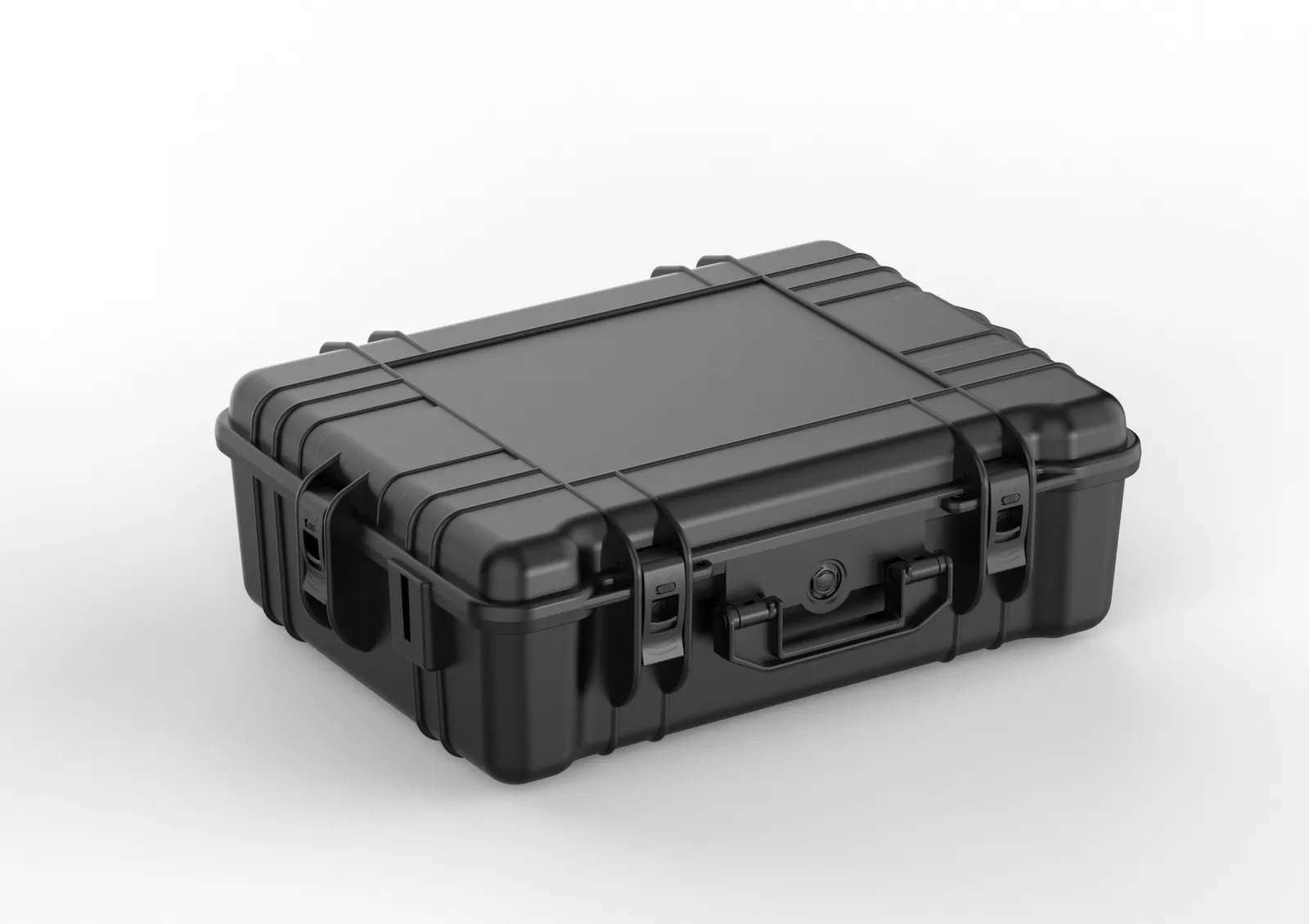

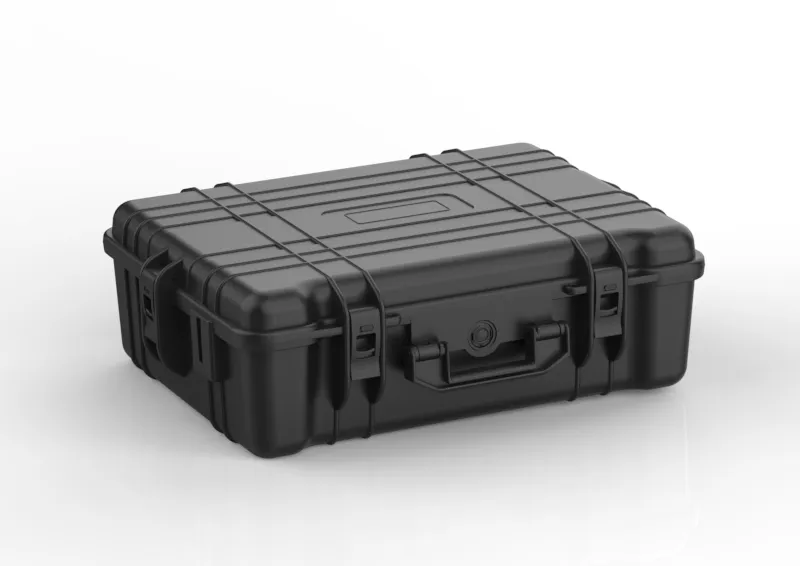

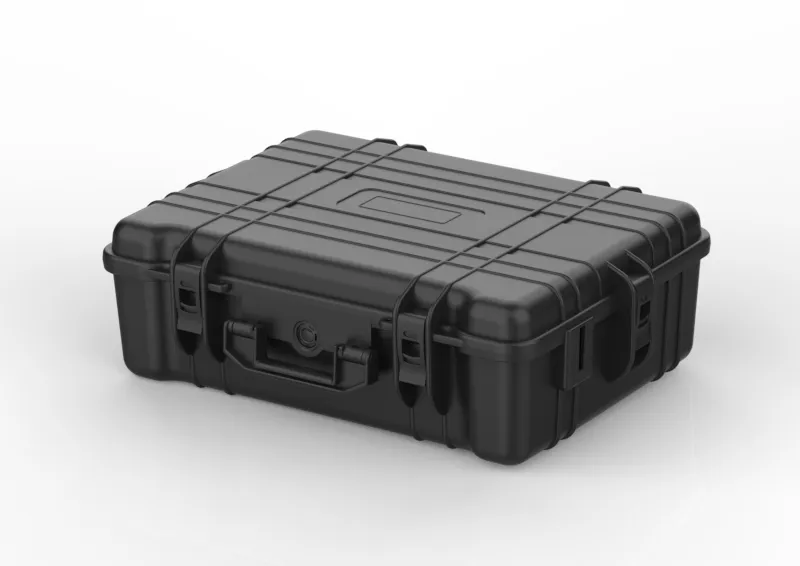

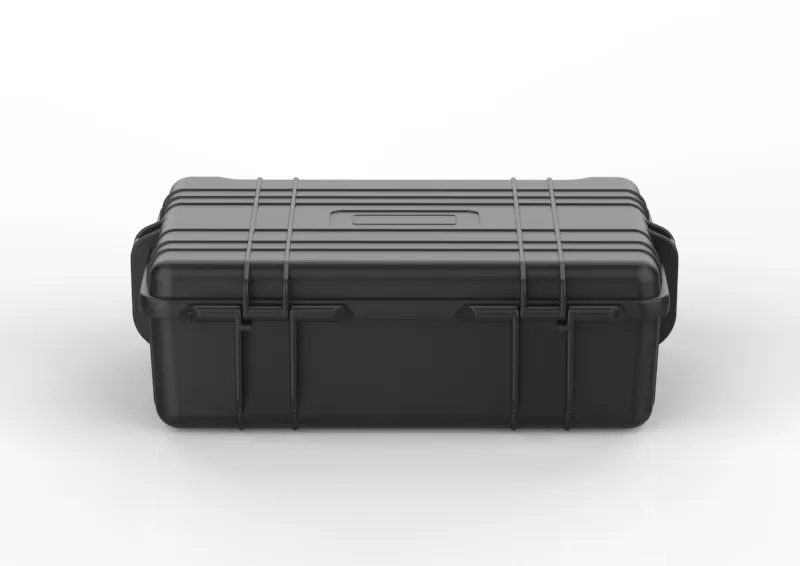

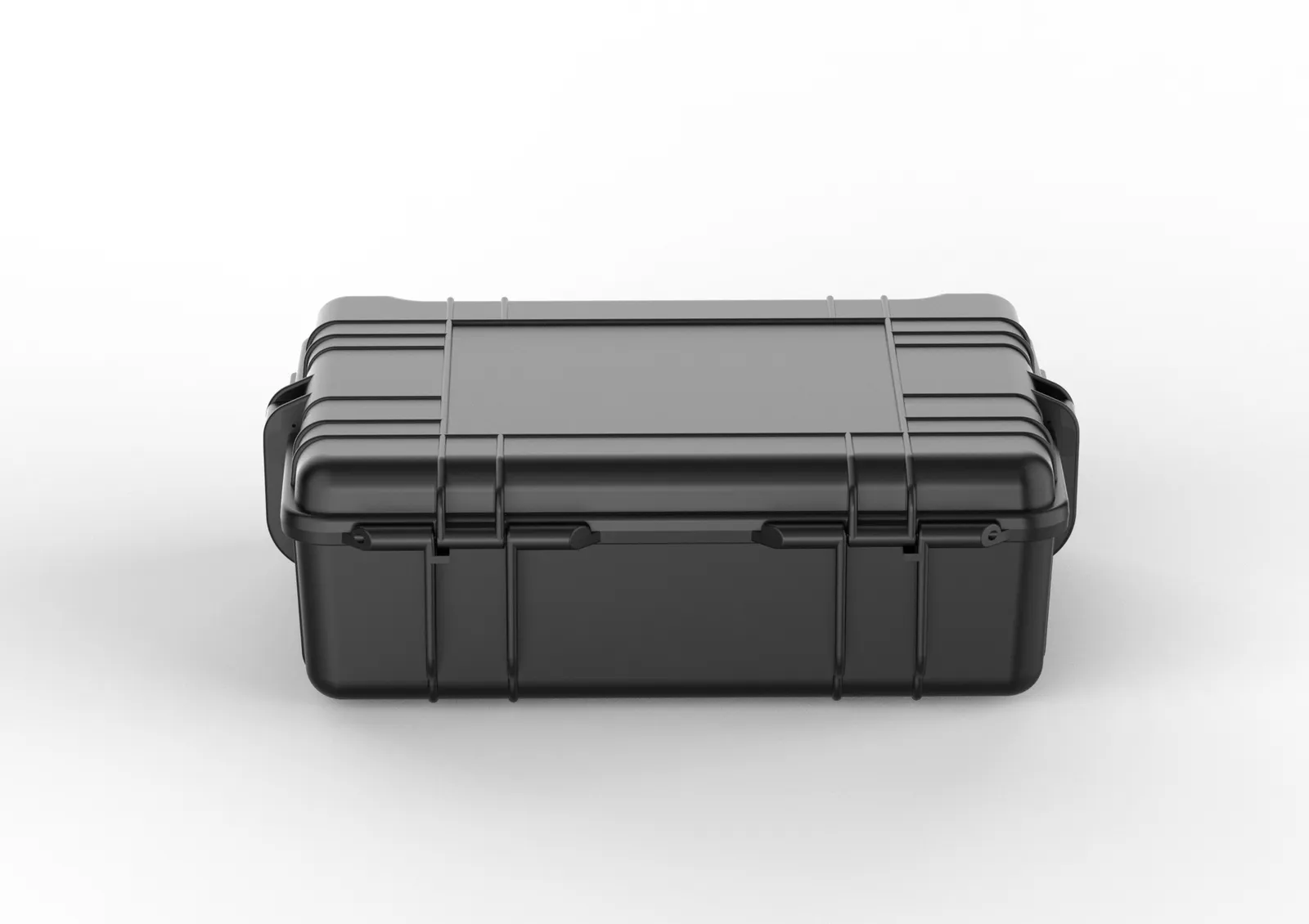

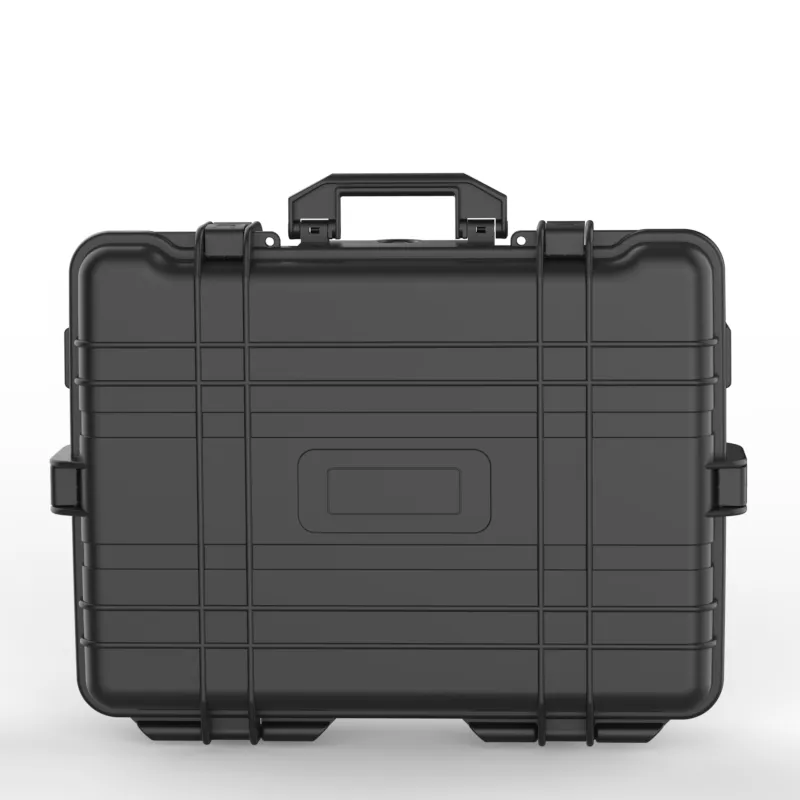

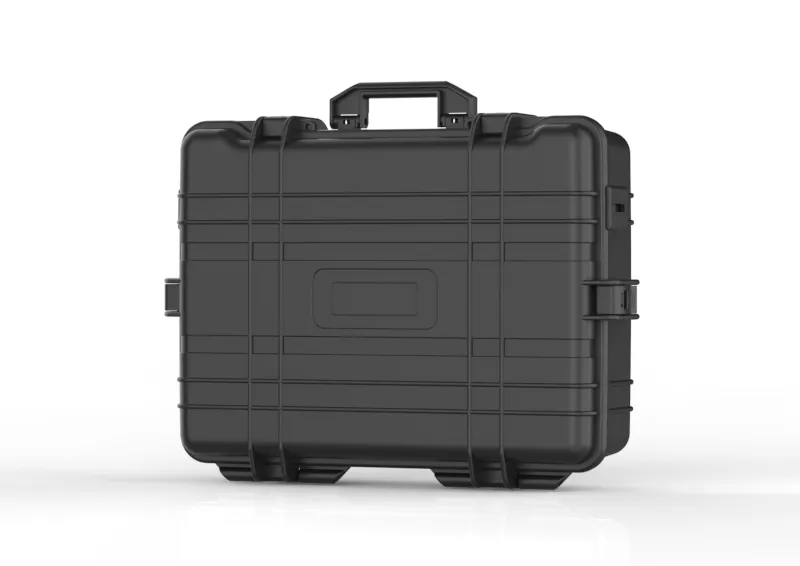

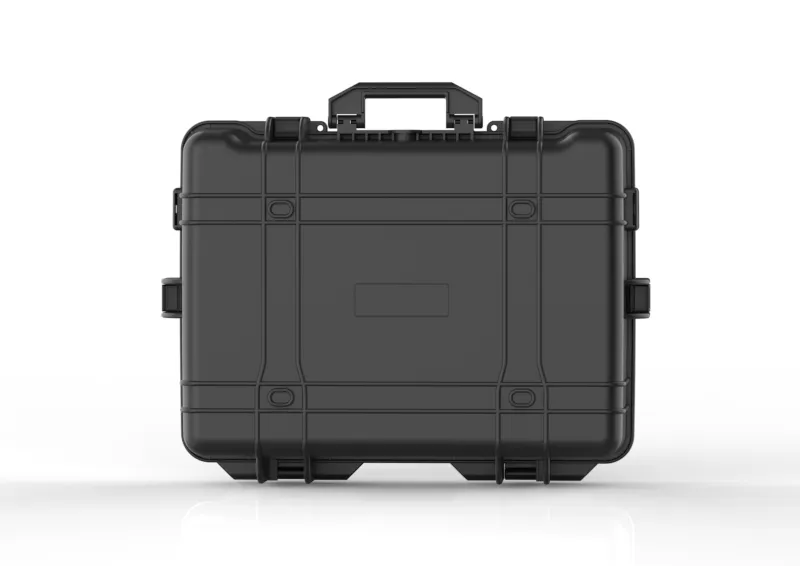

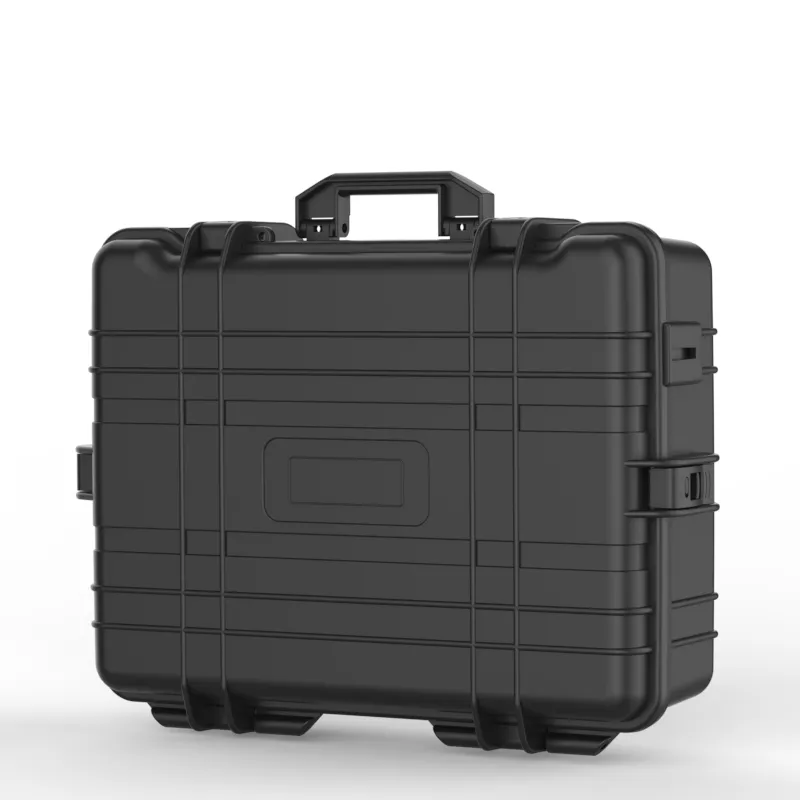

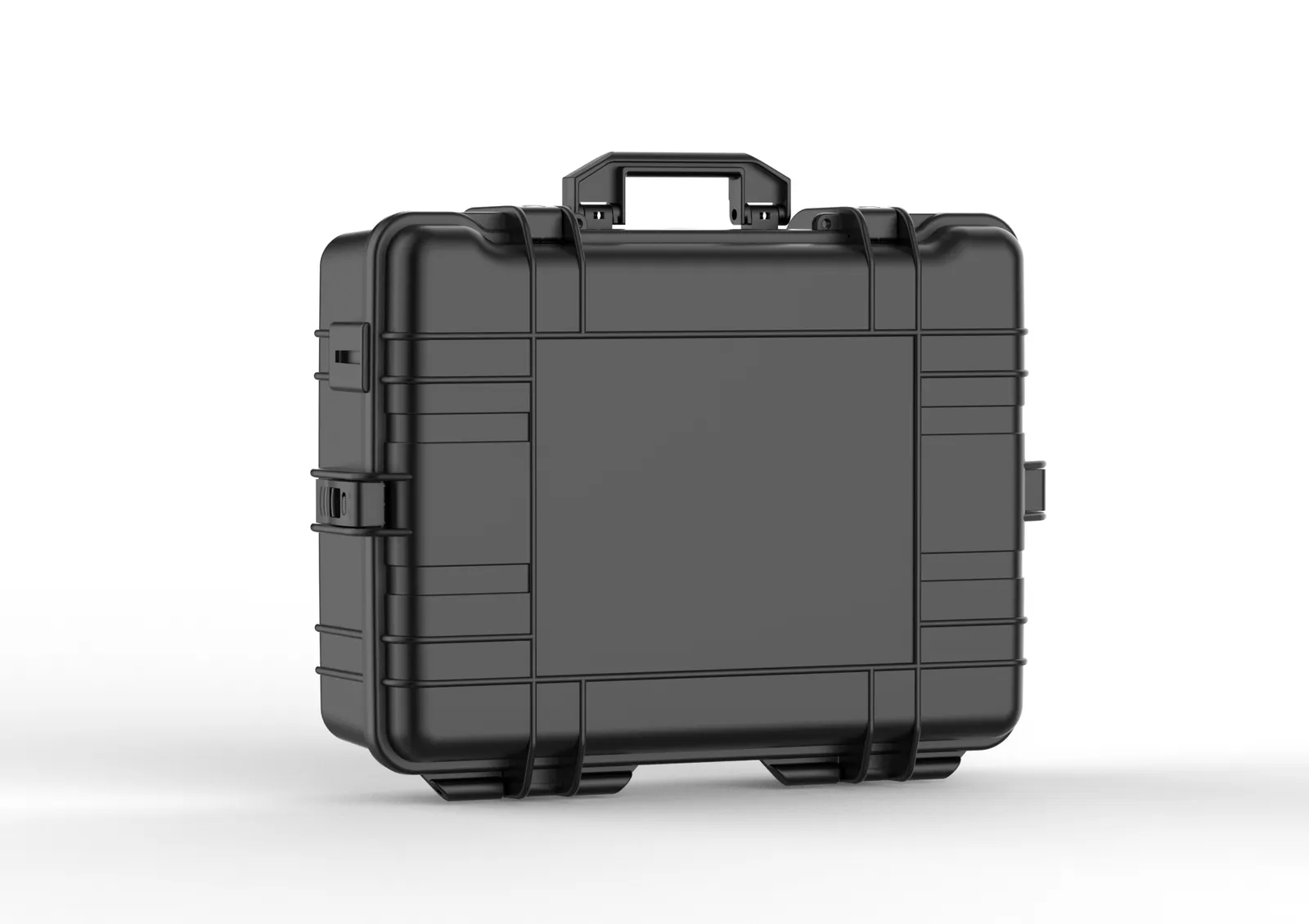

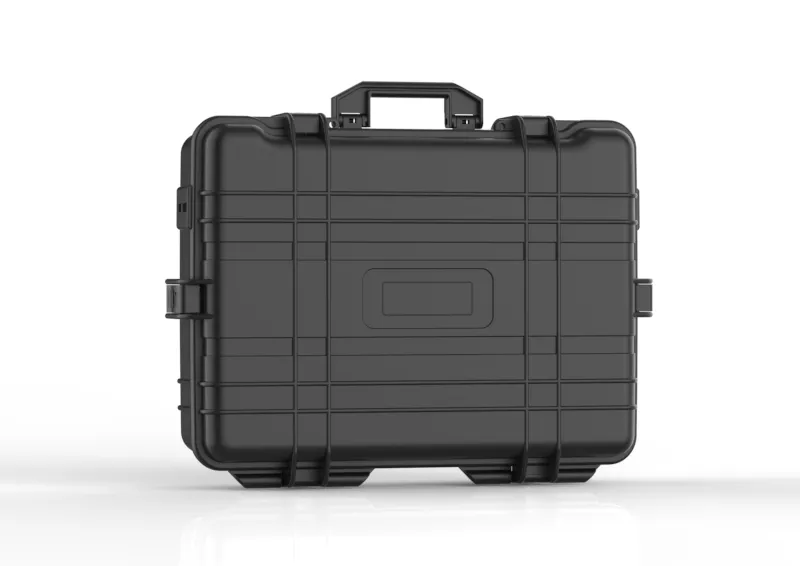

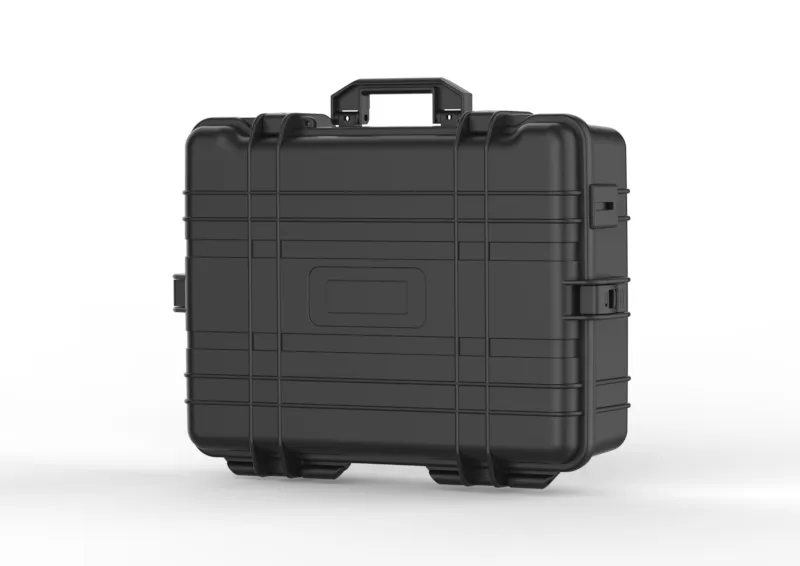

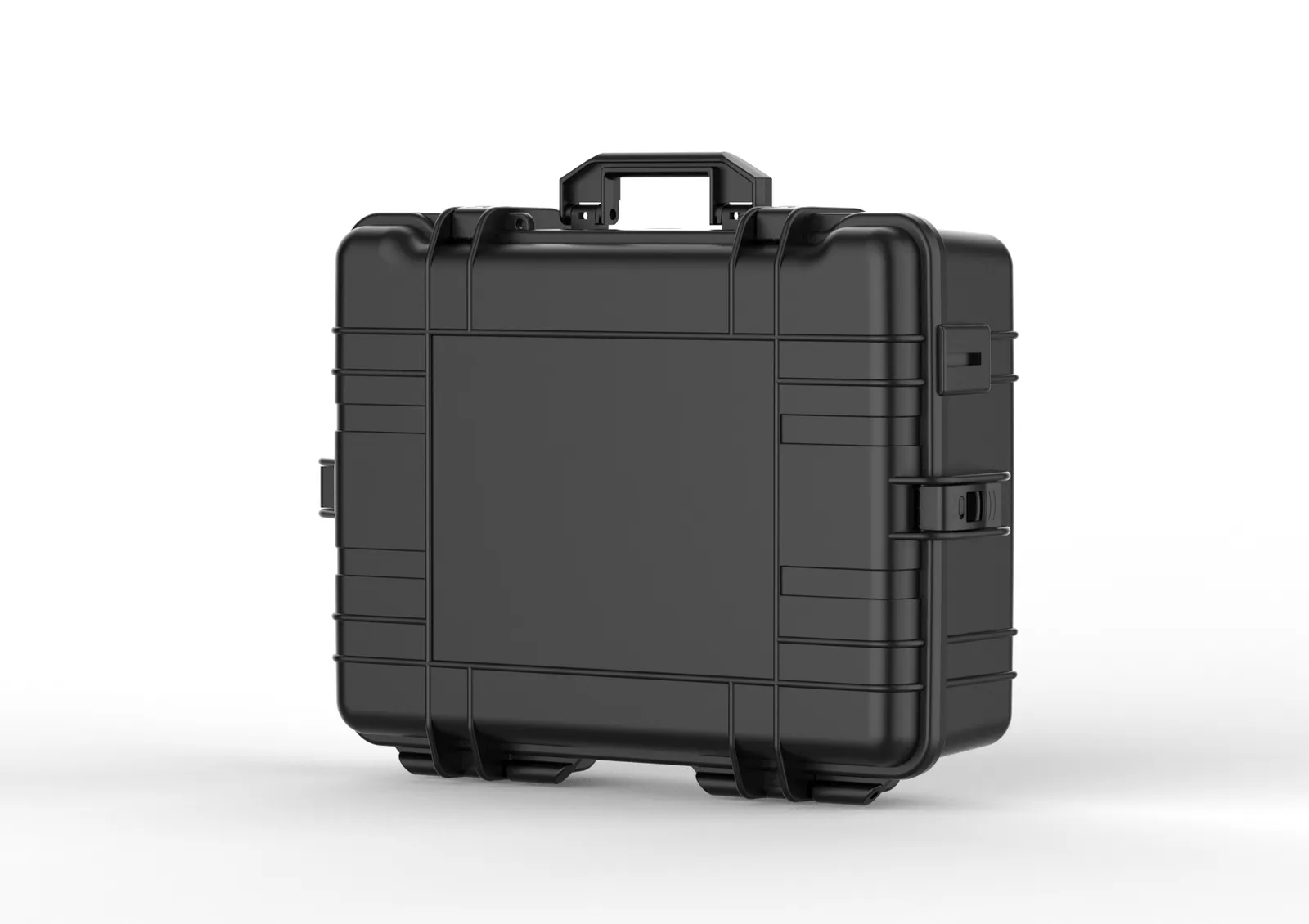

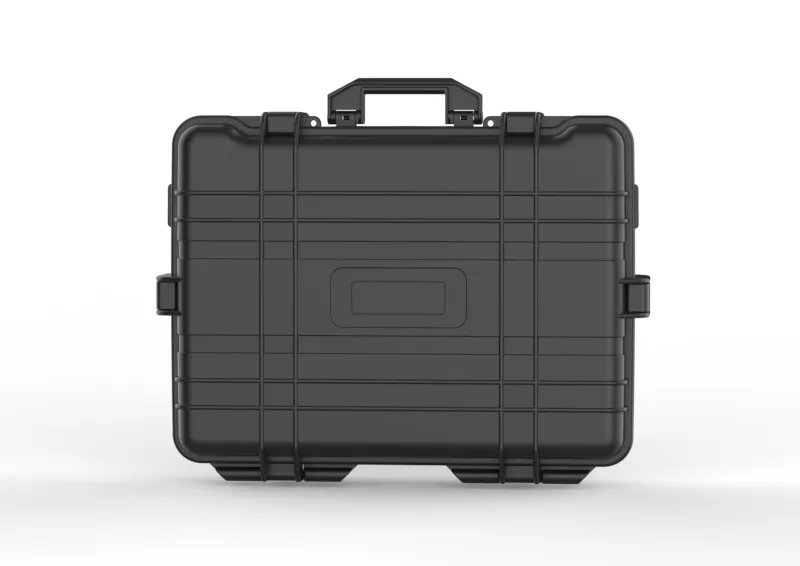

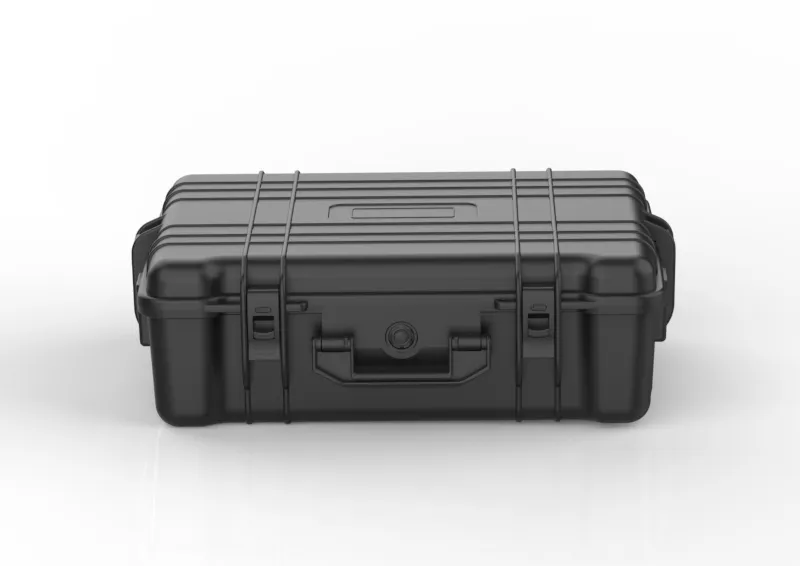

WL8-6621 Engineering PP Medical Equipment Case

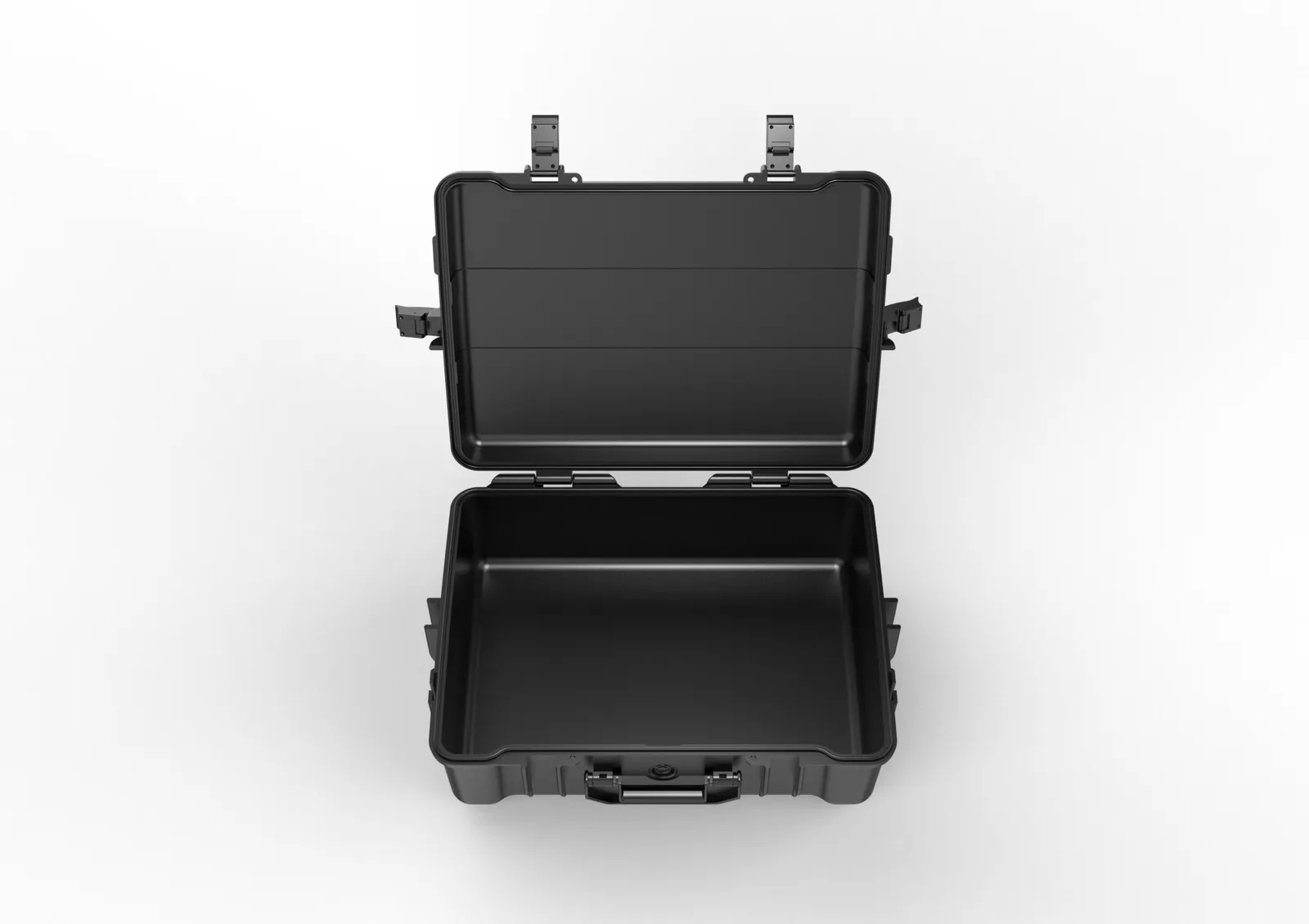

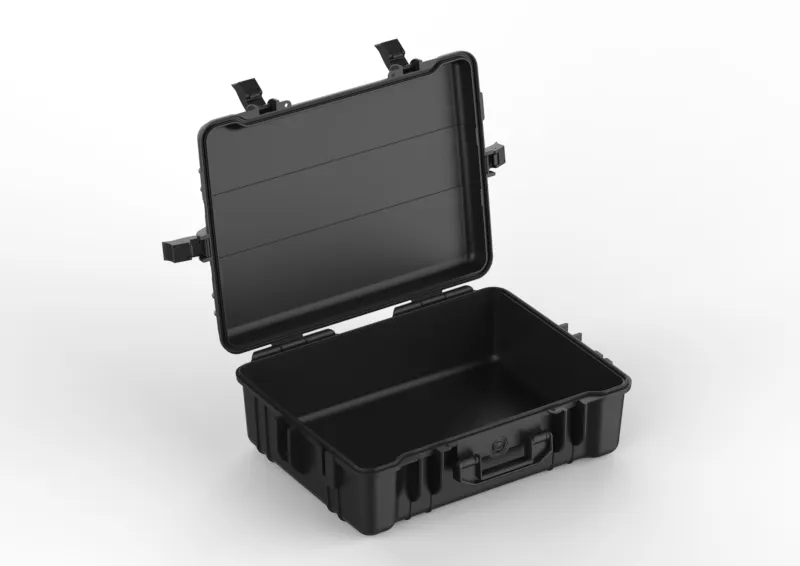

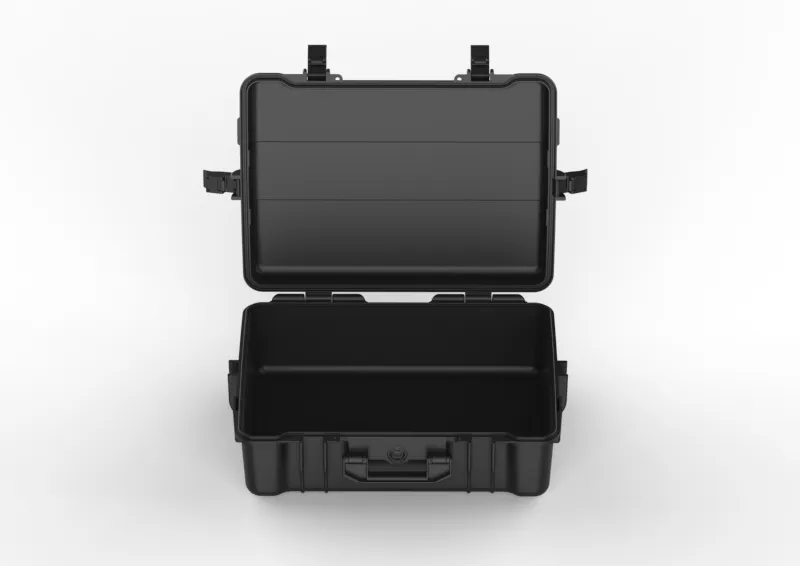

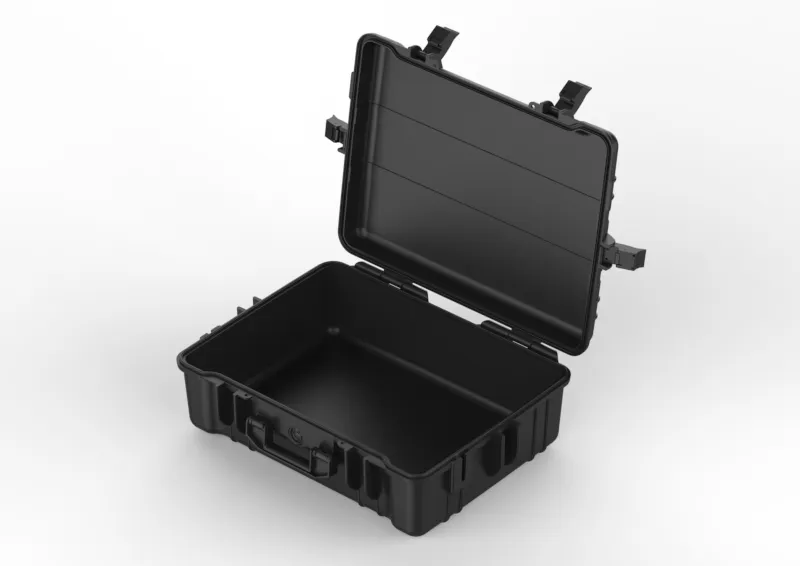

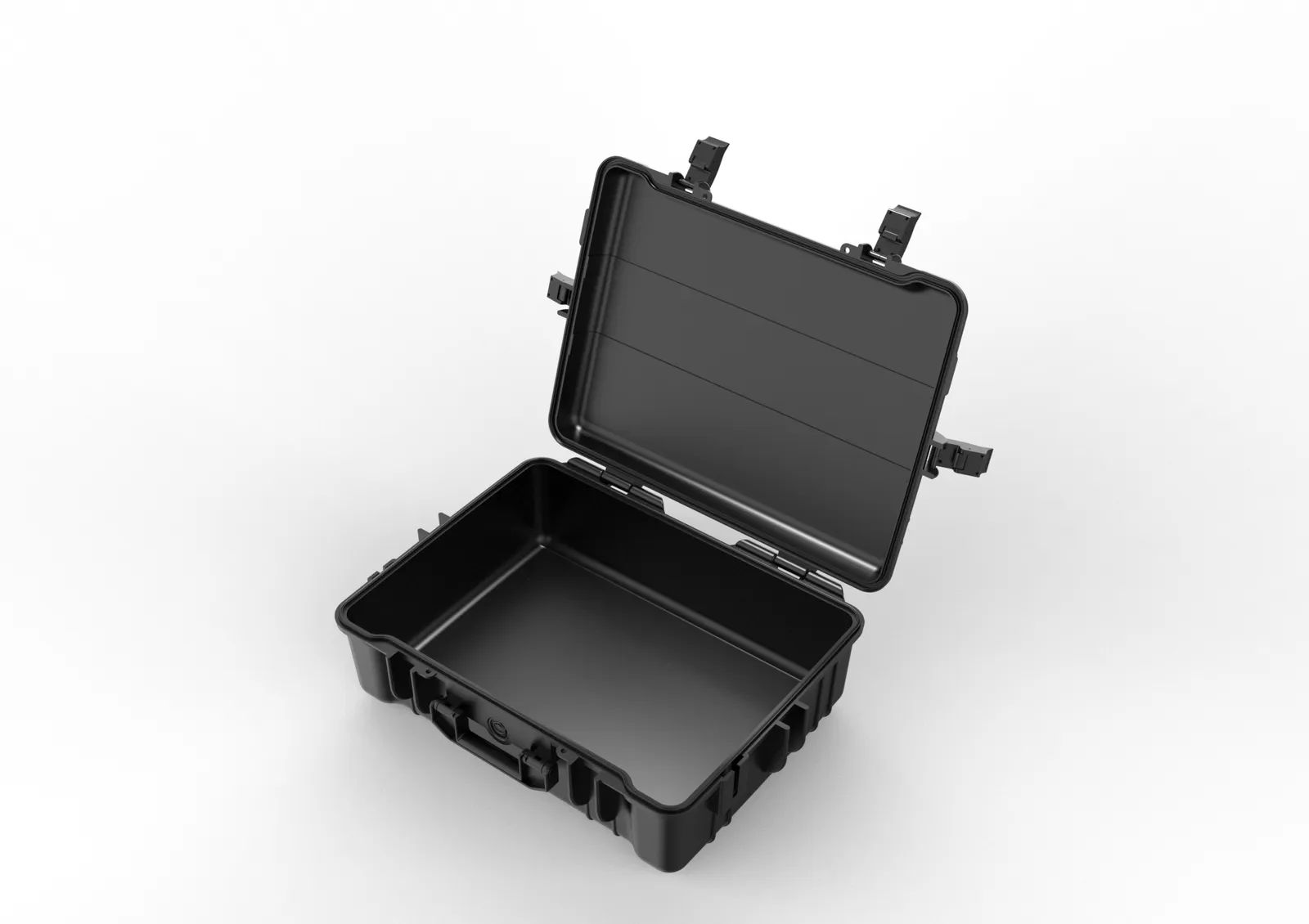

The case measures 662*495*210 mm outside and 587*434*192 mm inside, with the internal depth split into 149 mm and 43 mm sections, a 6 mm wall and an empty weight of 6420 g. The usable floor is 587 by 434 mm, large enough to move complete instruments and equipment modules as a set and to arrange foam divisions around each item. Send a drawing or photo if a device approaches the limit.

The body is moulded from engineering PP with a sealing structure, and the closed case is rated IP67 for water and dust protection. That covers rain, dusty workshops and short immersion, and it keeps equipment free of moisture and particles. We do not claim military standard certification for this model, and we do not claim medical or other industry certification. The rating depends on the lid seating correctly on the gasket, so check the seal regularly.

This model uses engineering PP with a 6 mm wall, the thickest in this group, and the empty case weighs 6420 g. The thicker engineering PP shell gives better resistance to pressure and deformation across the 587 by 434 mm floor, which suits equipment with high density or concentrated weight and makes the case easier to stack. Clean it with water or a mild detergent and a soft cloth.

Each piece is packed in a poly bag, and the carton measures 665*500*650 mm with 3 pcs per carton. That packaging simplifies bulk transfer, stacking and stock counting, and it makes it easier to calculate freight and warehouse space for volume orders. If you need a different carton quantity or additional dividers and trays, raise it when ordering and we will assess feasibility and quote accordingly.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures this model at its Zhongshan factory, JUNZHIJIA is our own brand, and we supply factory-direct for OEM and ODM wholesale. Colour, silk-screen printing or nameplates, foam insert structure and latch configuration can all be customised. MOQ and lead time depend on the chosen colour, foam process and printing requirements, and production is normally scheduled after sample approval. Send your application, target quantity and customisation list and our sales team will issue a formal quotation and production plan.
