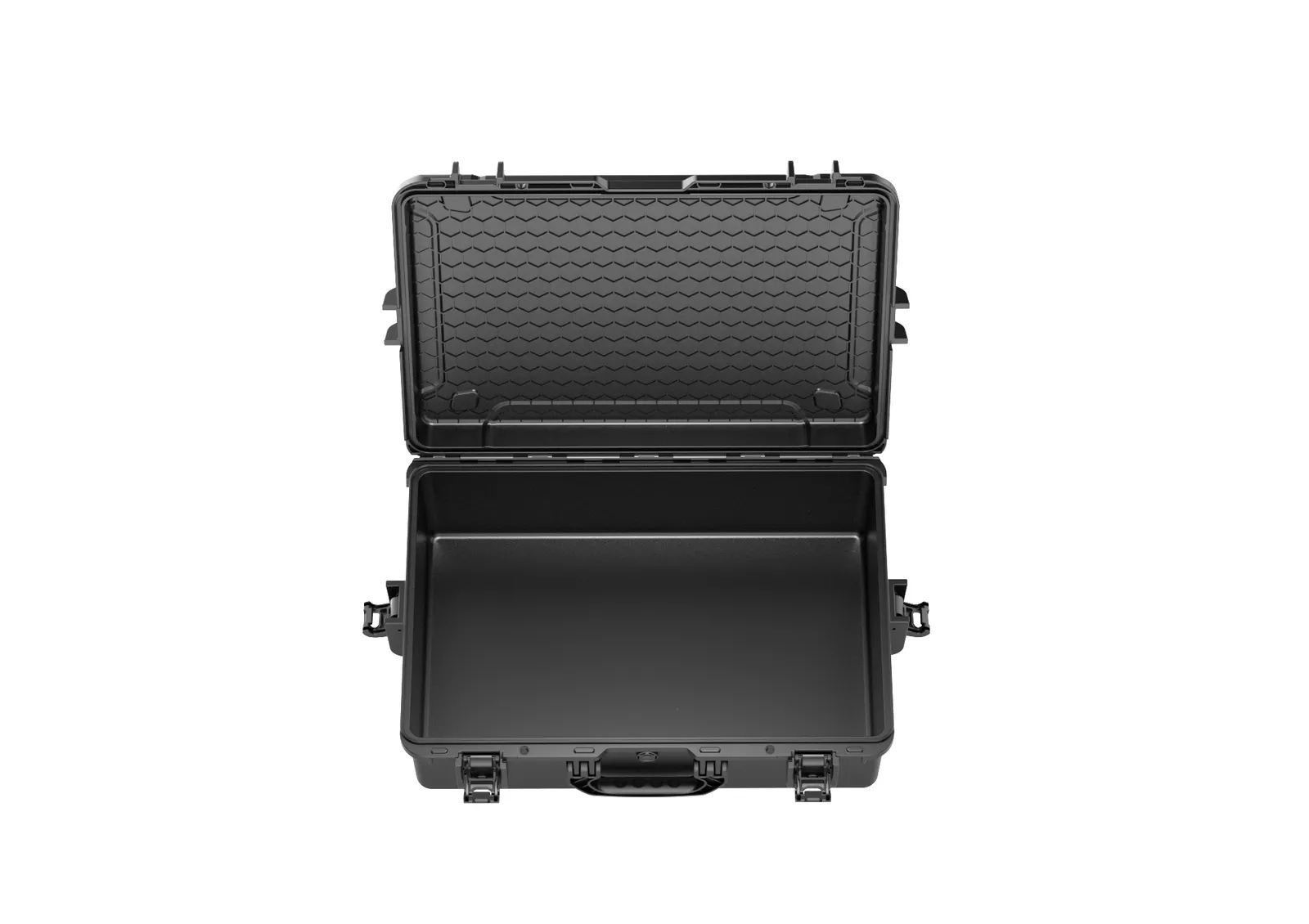

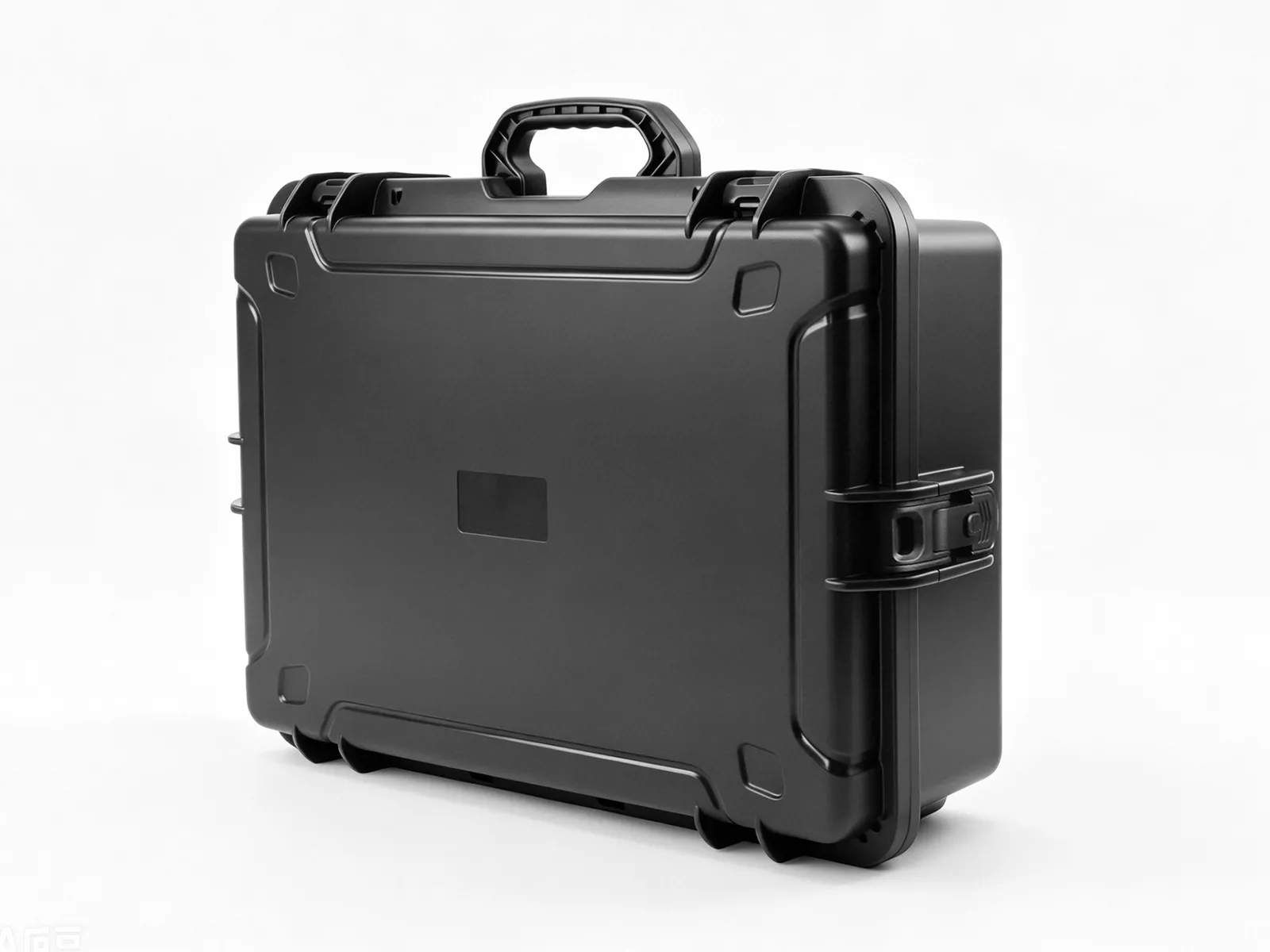

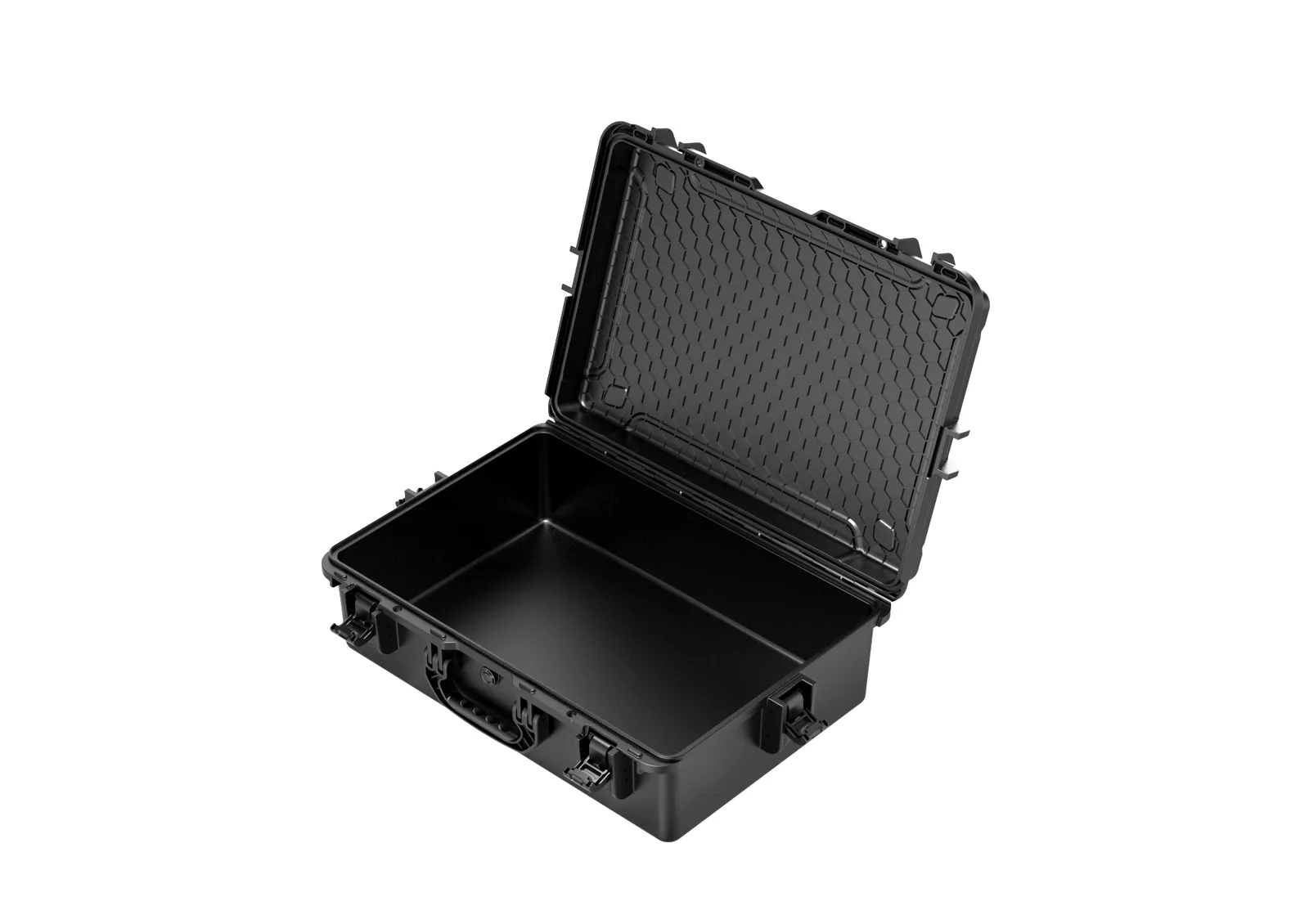

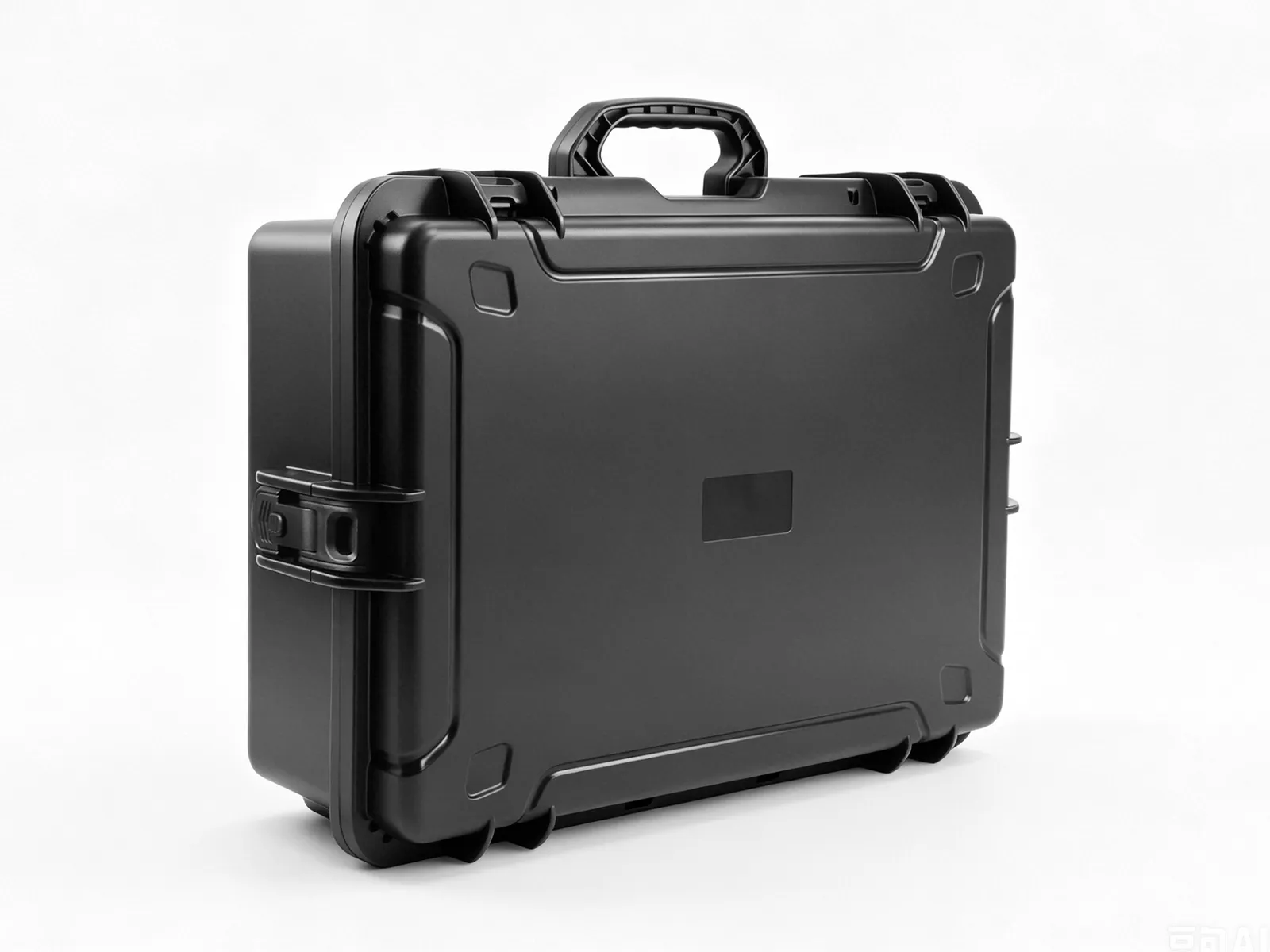

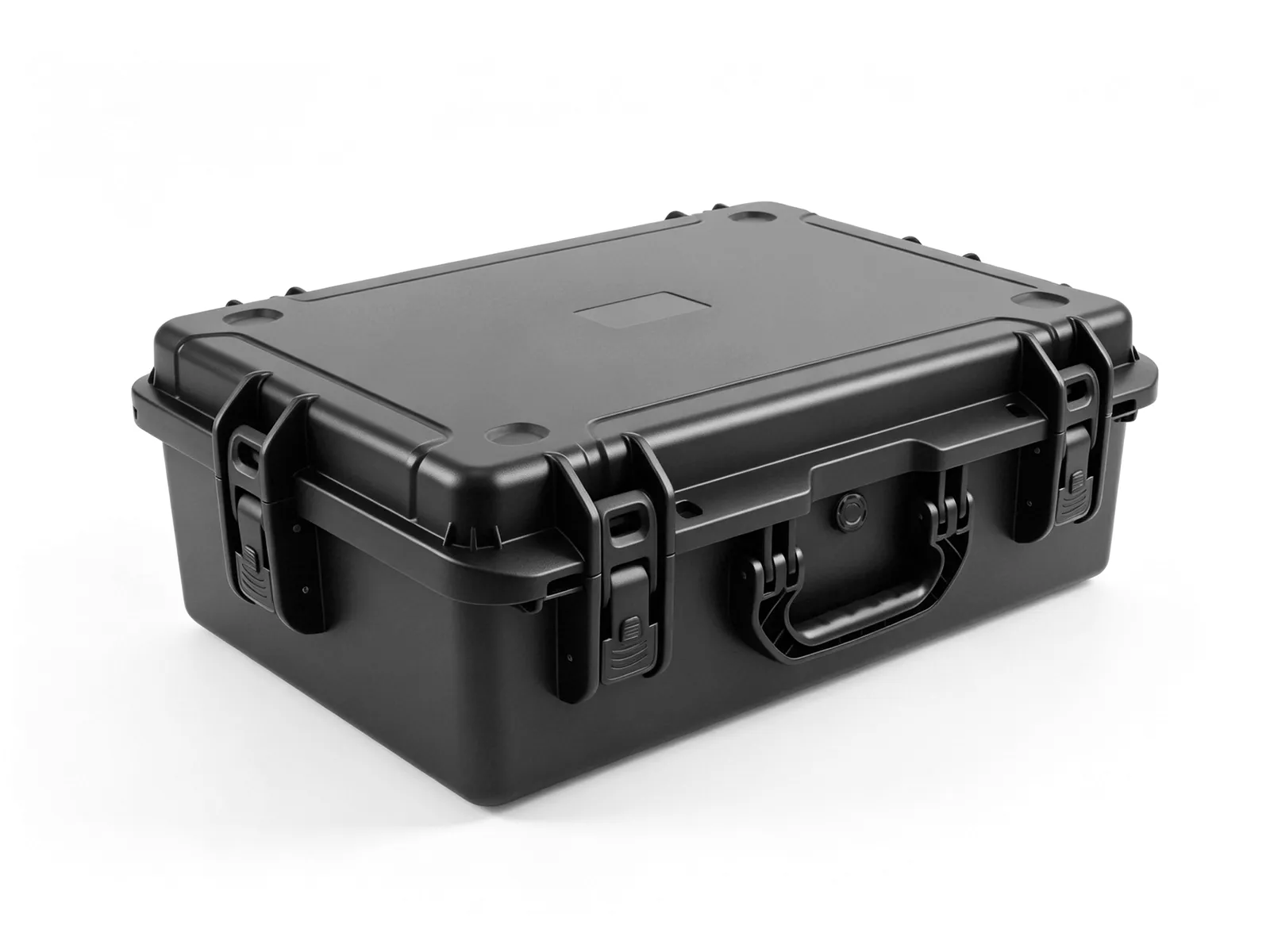

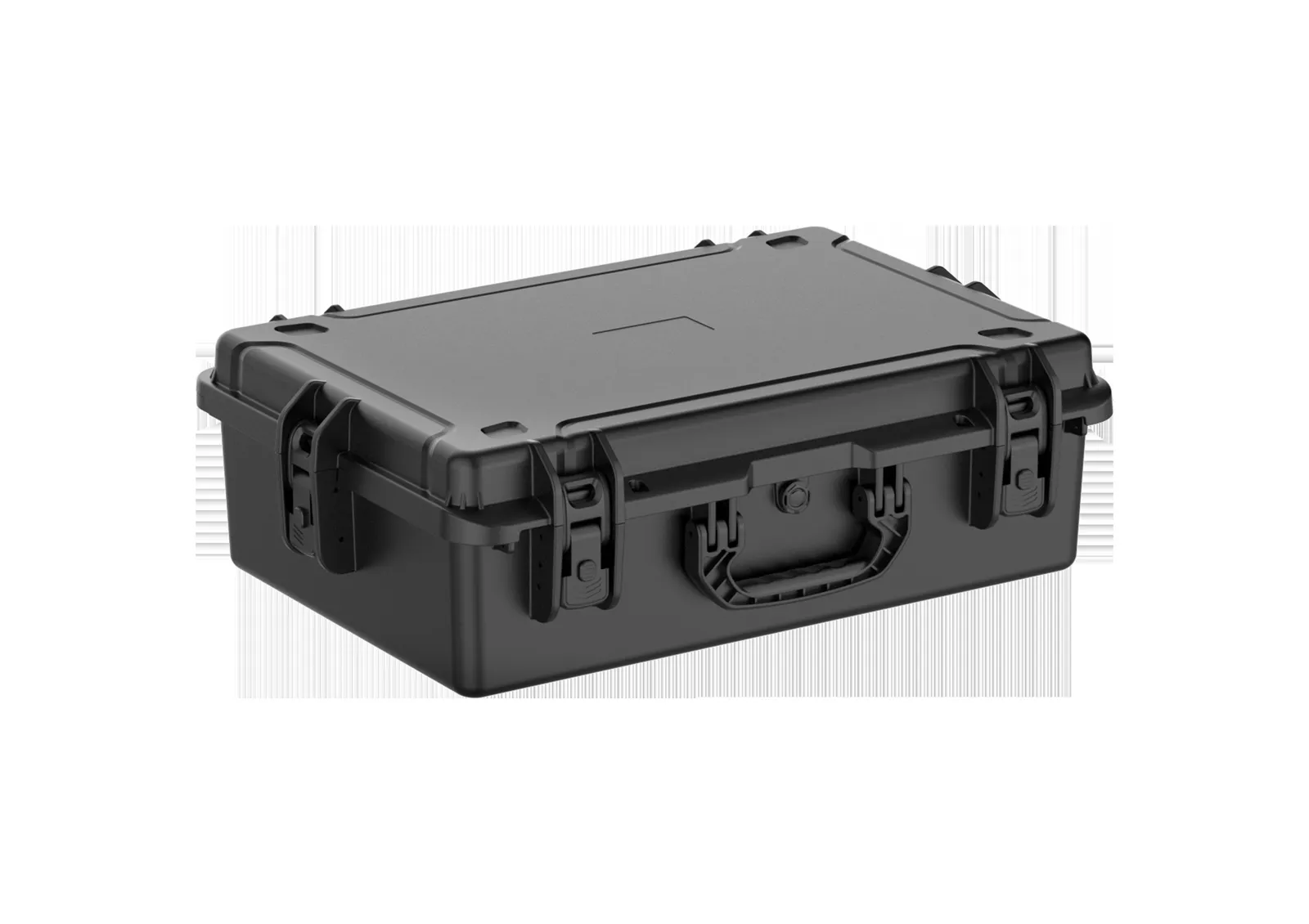

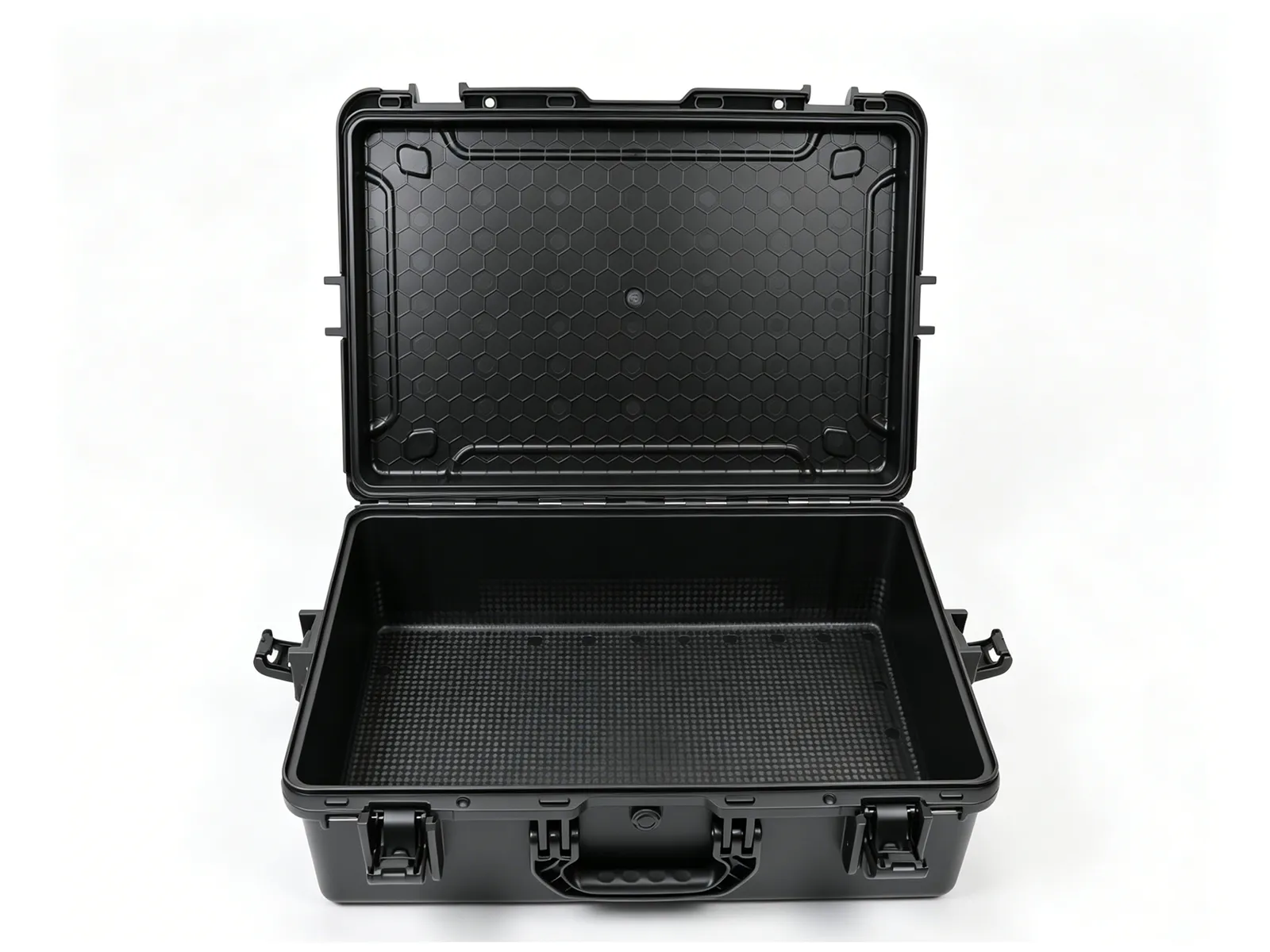

WL8-7323 Protective Case

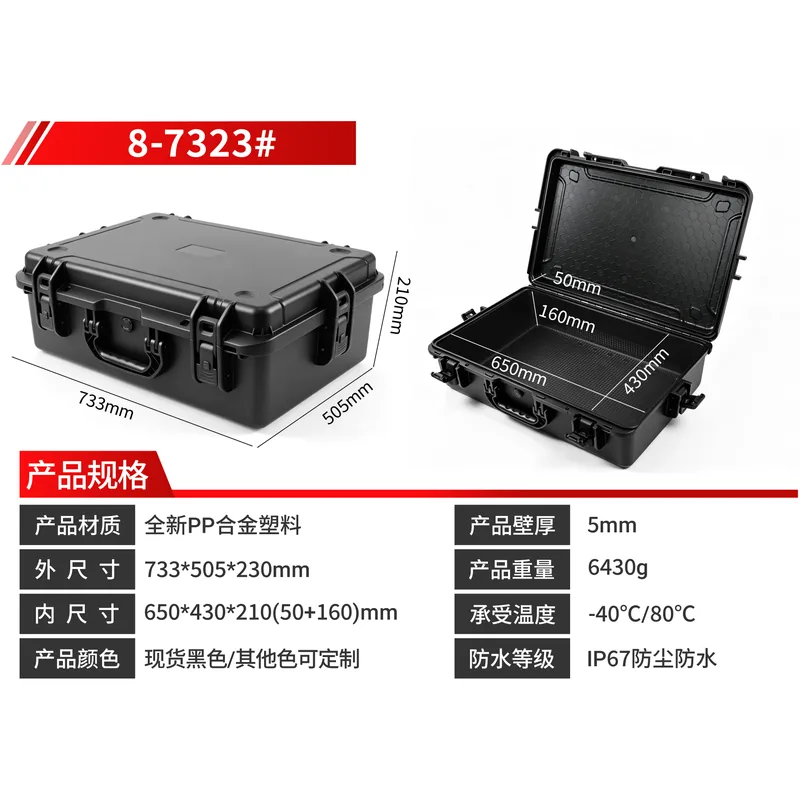

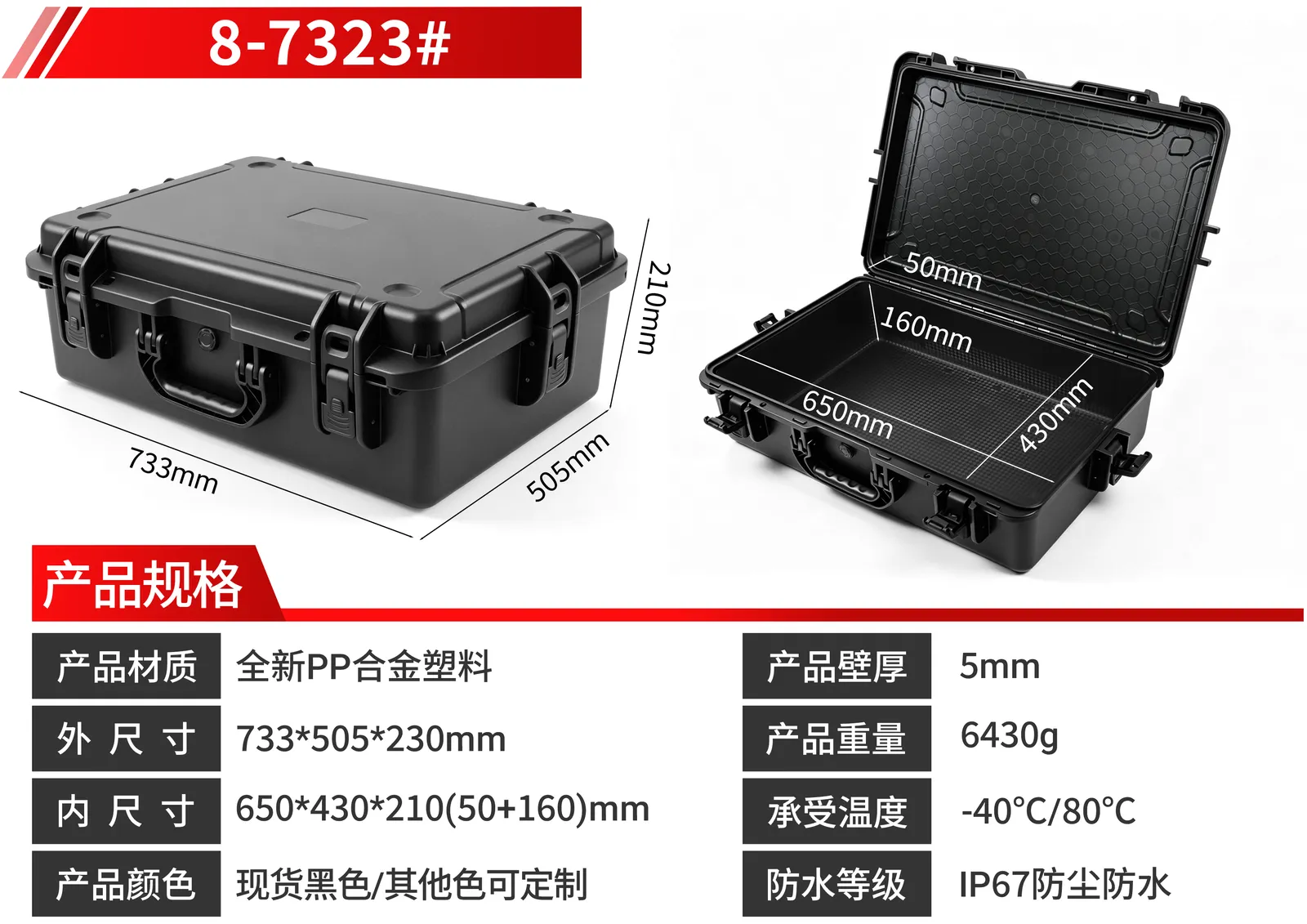

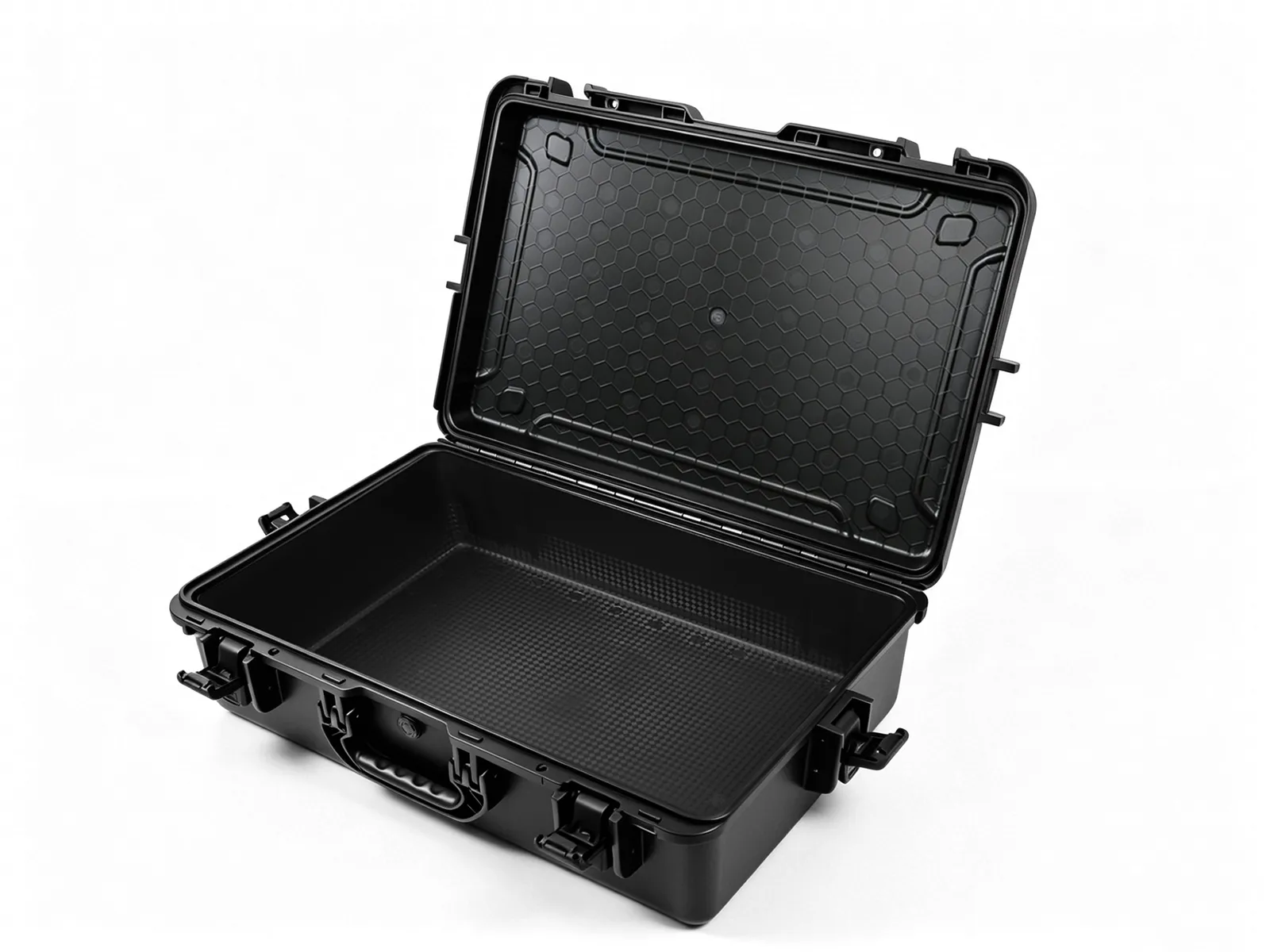

The case measures 733*505*230 mm outside and 650*430*210 mm inside, split into a 50 mm lid and a 160 mm base, with a 5.0 mm wall and an empty weight of 6430 g. That gives a usable floor of 650 by 430 mm and 210 mm of internal height, with a deepened base that adds height while keeping the 650 mm internal length. Send a drawing or photo if an item approaches the limit so we can confirm the fit.

The polypropylene body is injection moulded with a sealing structure, and the closed case is rated IP67 for water and dust protection. That covers rain, dusty workshops and short immersion, and it keeps equipment free of moisture and particles. We do not claim military standard certification for this model. With 210 mm of height and a large floor the gasket perimeter is longer, so check the seal regularly for ageing, distortion or trapped debris and avoid prolonged rain or immersion once it is damaged.

The body is polypropylene with a 5.0 mm wall, and the empty case weighs 6430 g. Compared with the shallow version on the same footprint, the base is deepened from 120 mm to 160 mm, which adds roughly 570 g of material and weight. The 5.0 mm wall and moulded ribs keep the shell rigid across the long, wide floor, which helps when the case is stacked and shipped with long items and accessories inside.

Both share a 733*505 mm exterior and a 650*430 mm interior. This model offers 210 mm of internal height, a 160 mm base and 6430 g empty; the shallow version offers 170 mm of height, a 120 mm base and 5860 g, a difference of 40 mm. Choose this one for thicker gear, accessory layers or layered foam, and the shallow one for slim long items where height and weight matter.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures this model at its Zhongshan factory, JUNZHIJIA is our own brand, and we supply factory-direct for OEM and ODM wholesale. Colour, silk-screen printing or nameplates, foam insert structure and latch configuration can all be customised. MOQ and lead time depend on the chosen colour, foam process and printing requirements, and production is normally scheduled after sample approval. Send your application, target quantity and customisation list and our sales team will issue a formal quotation and production plan.
