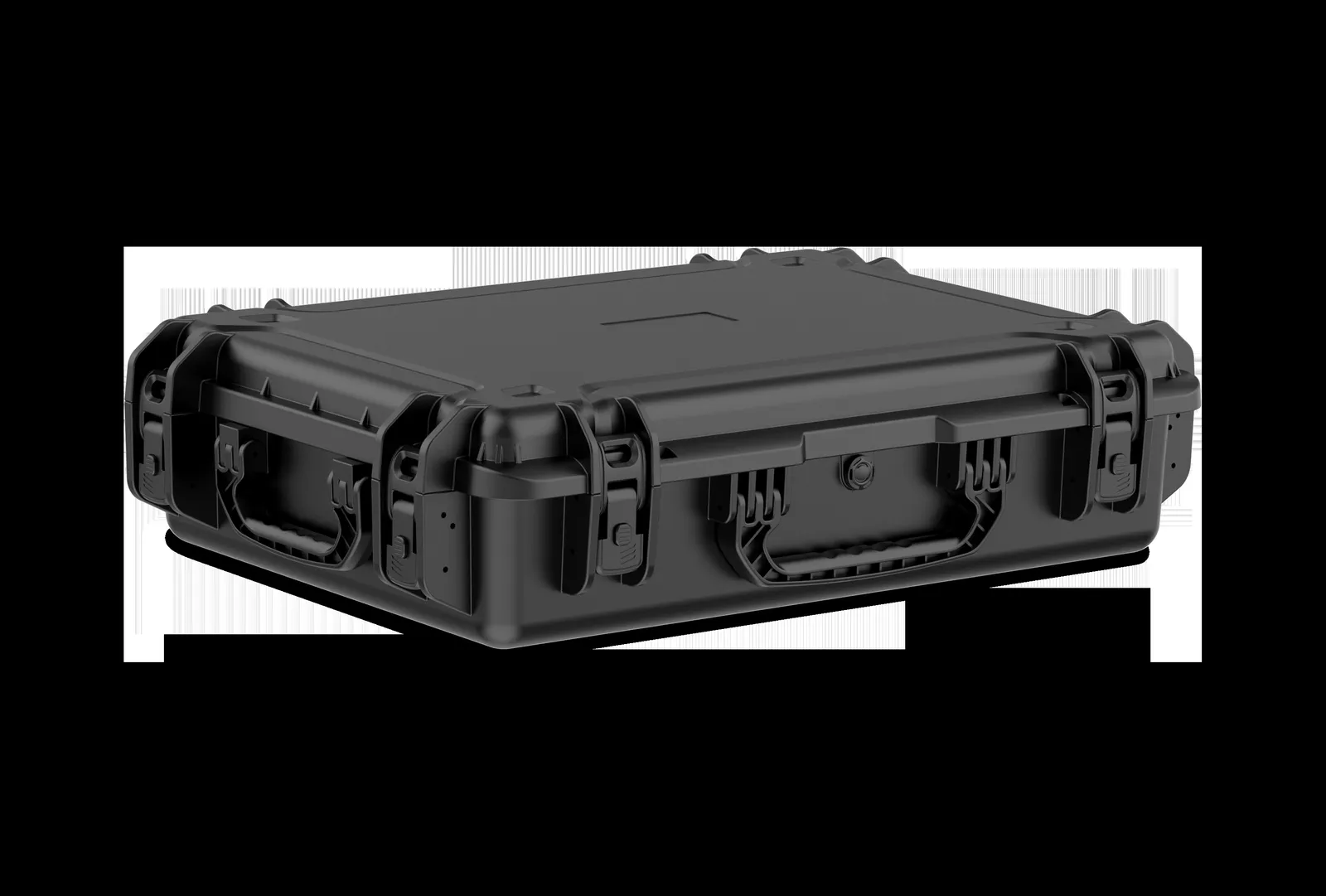

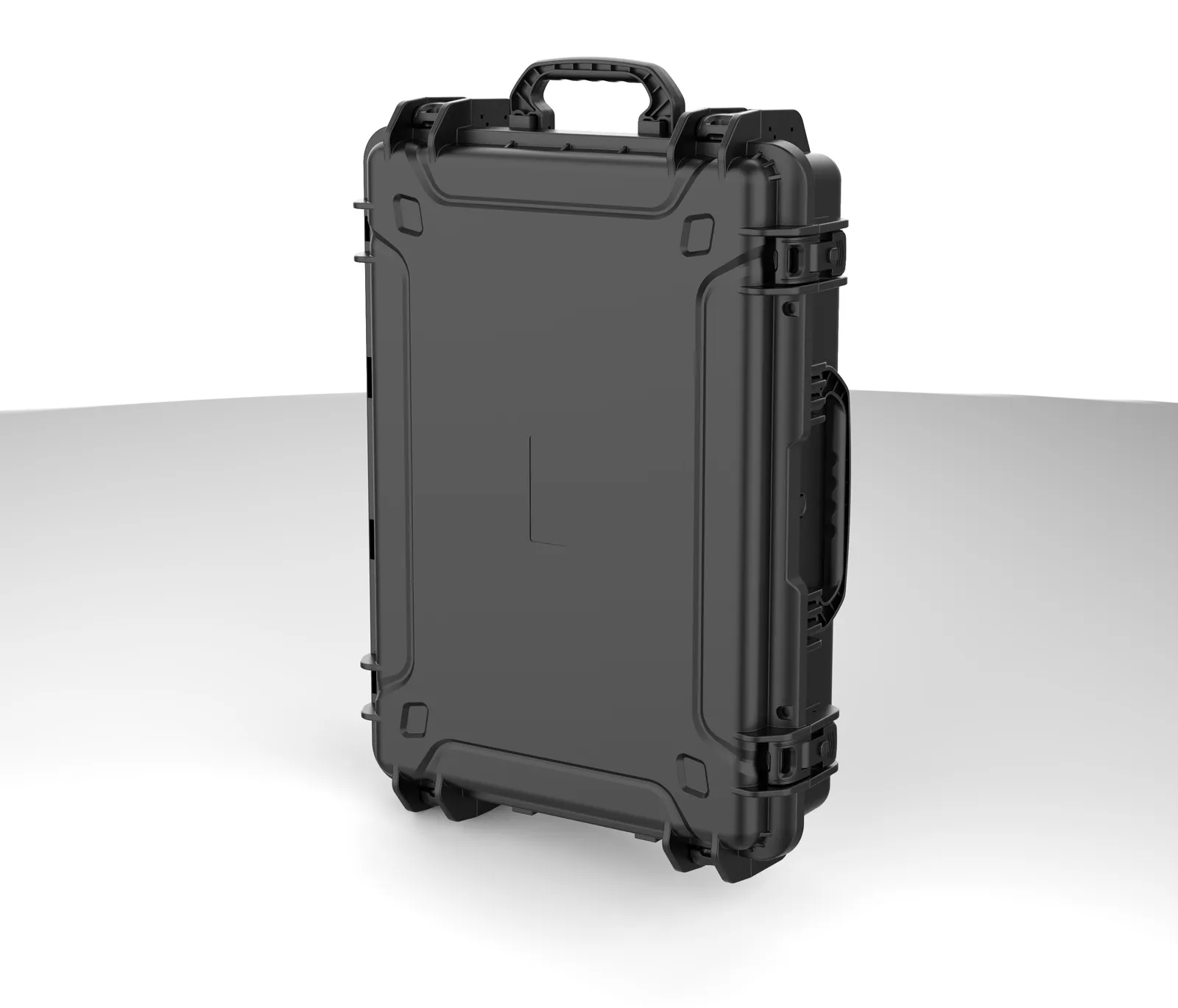

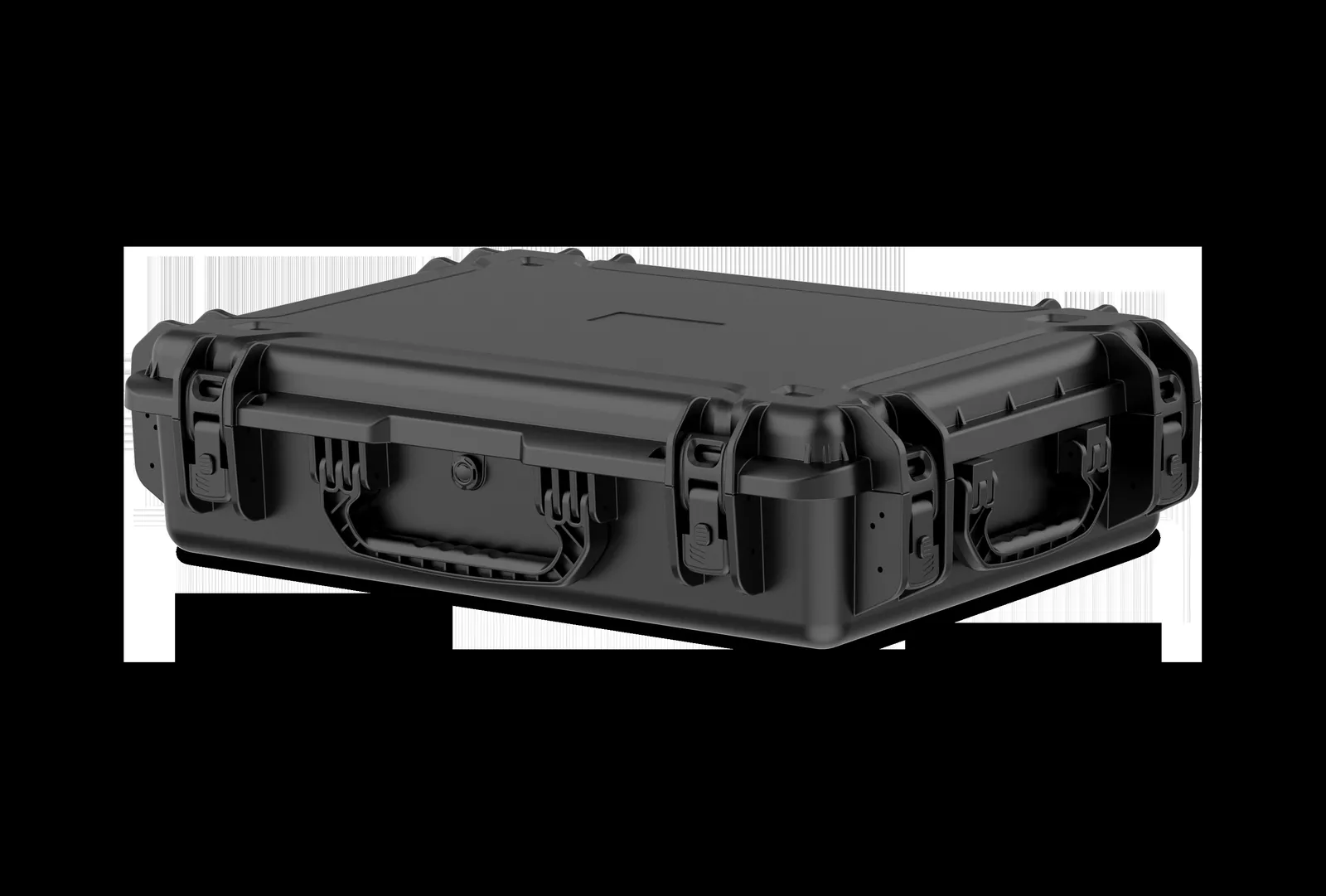

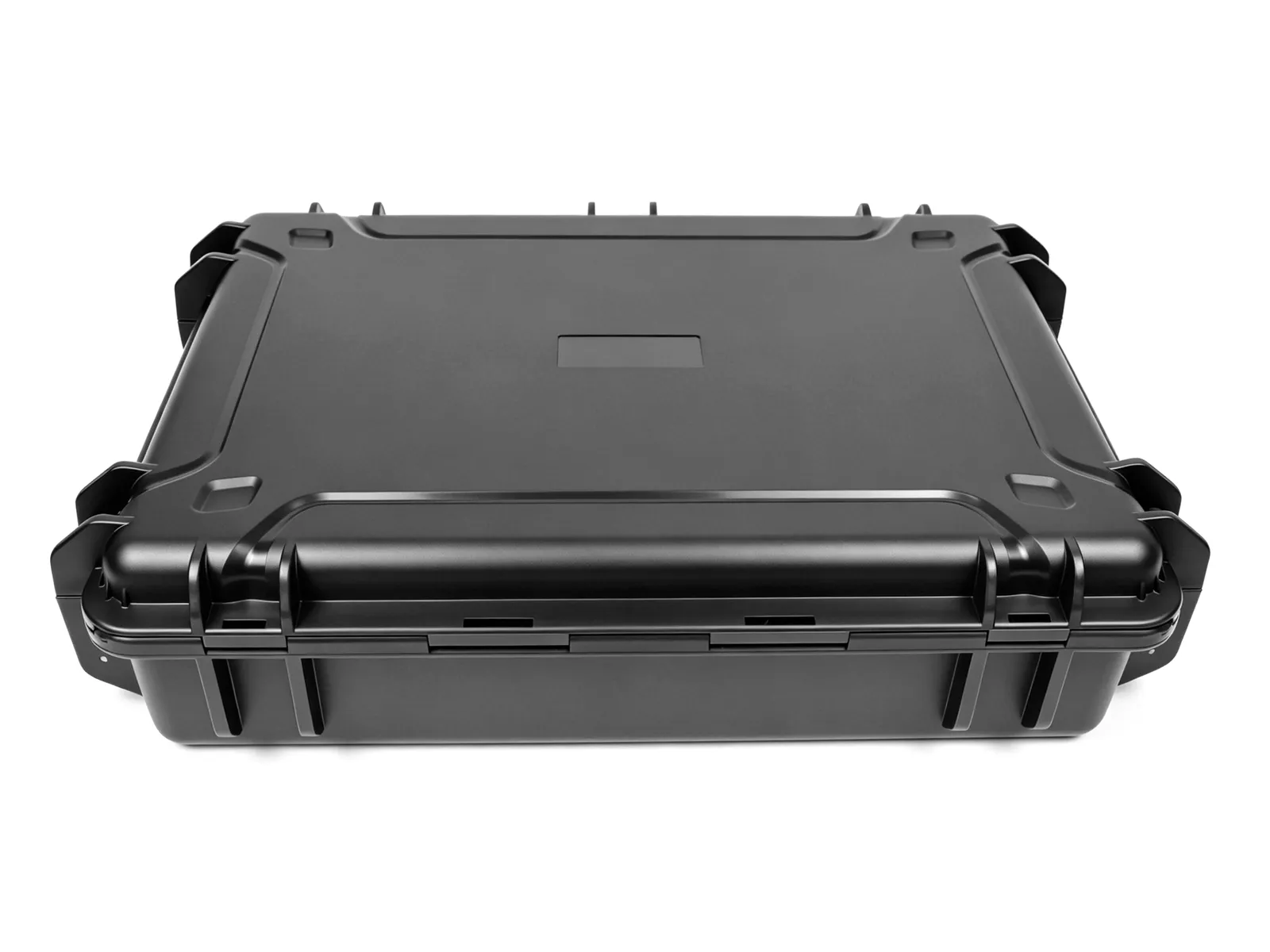

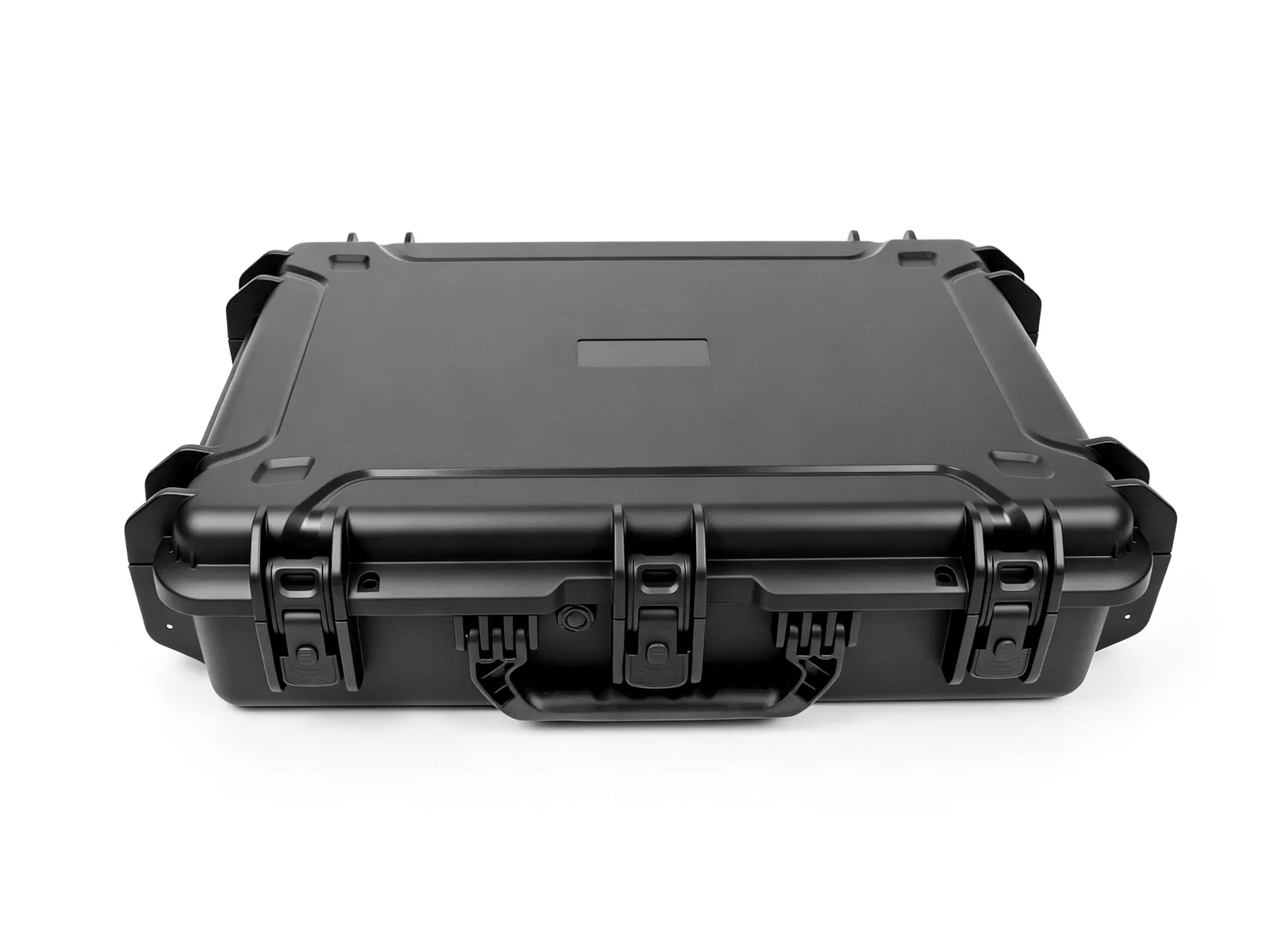

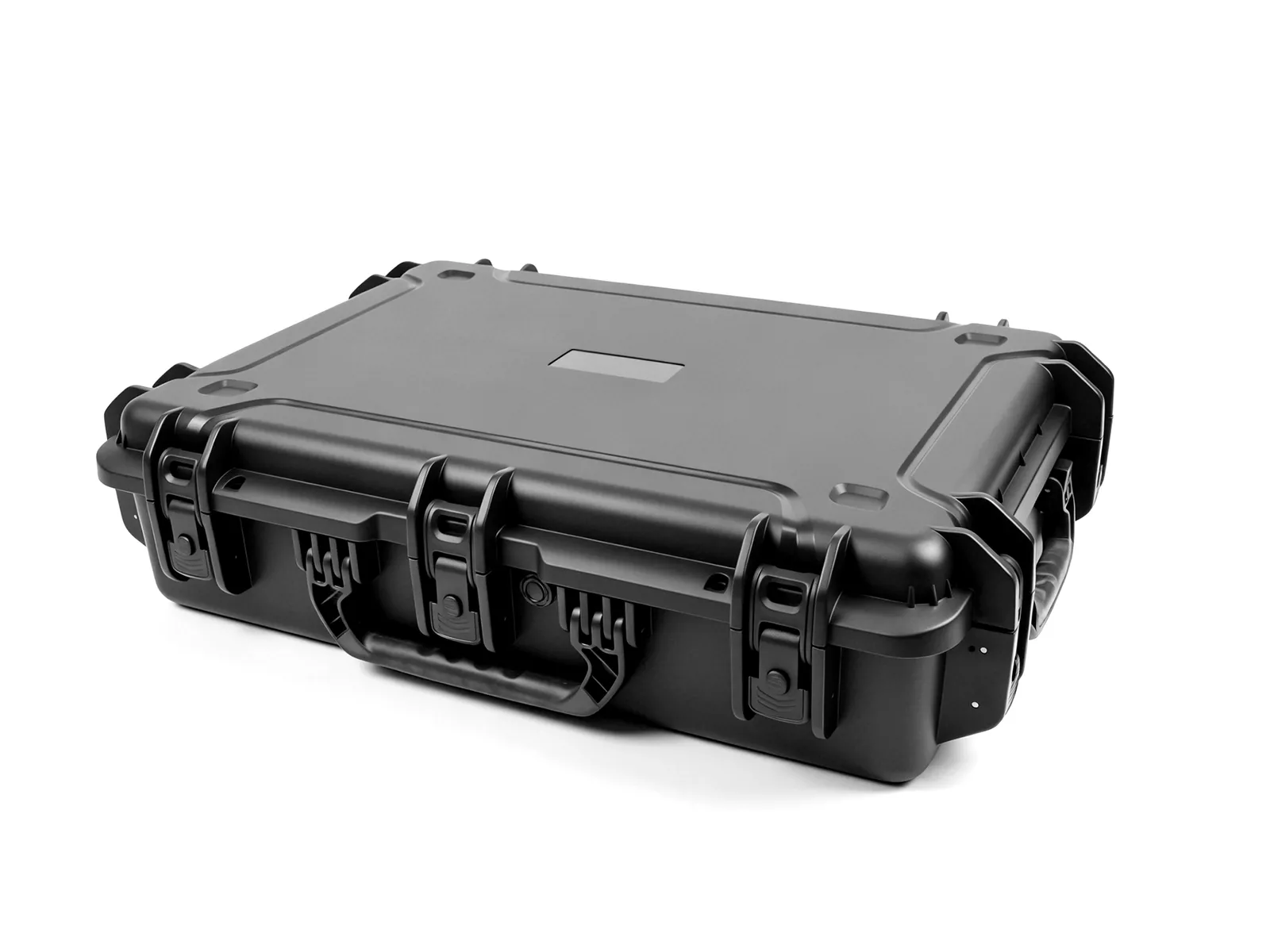

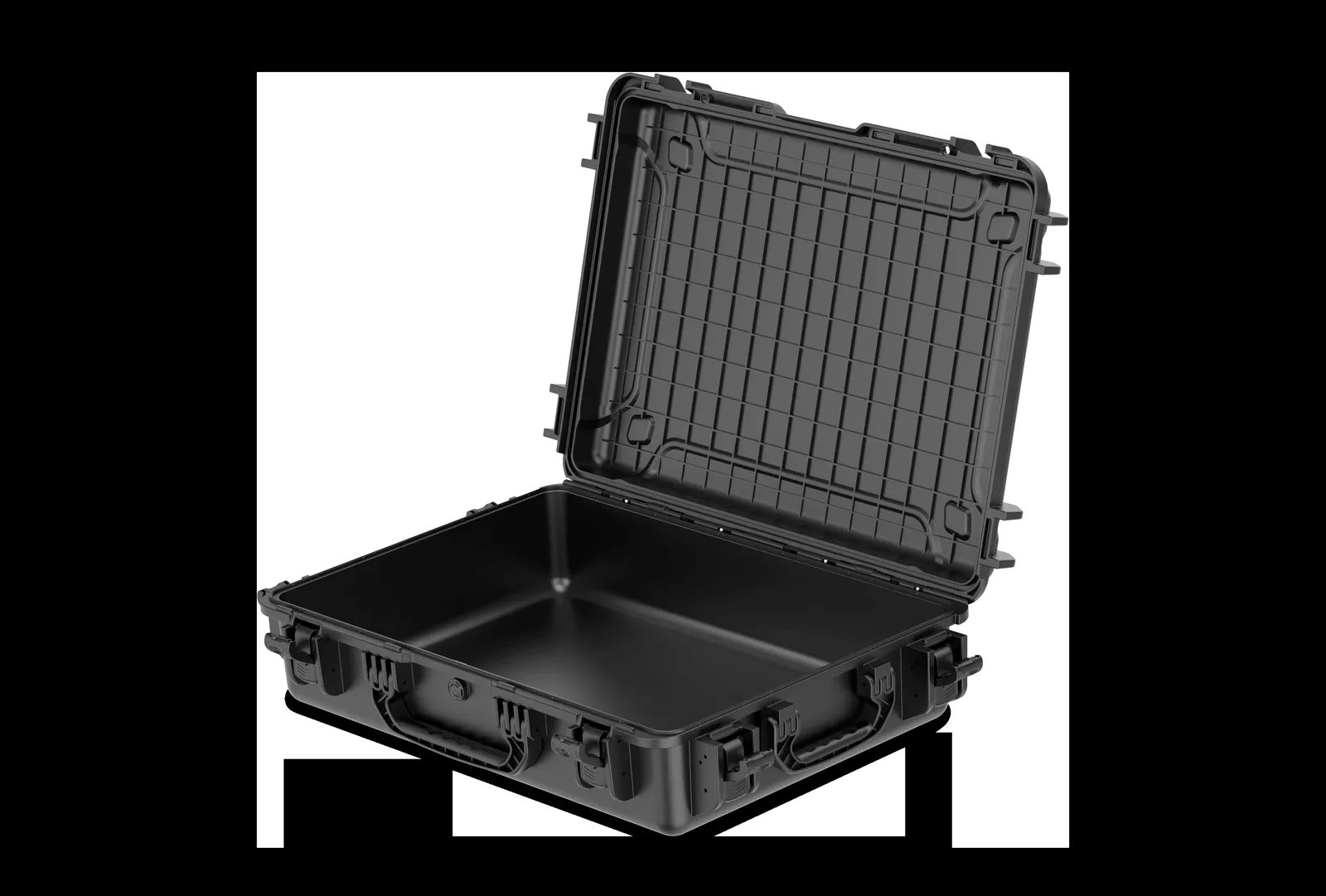

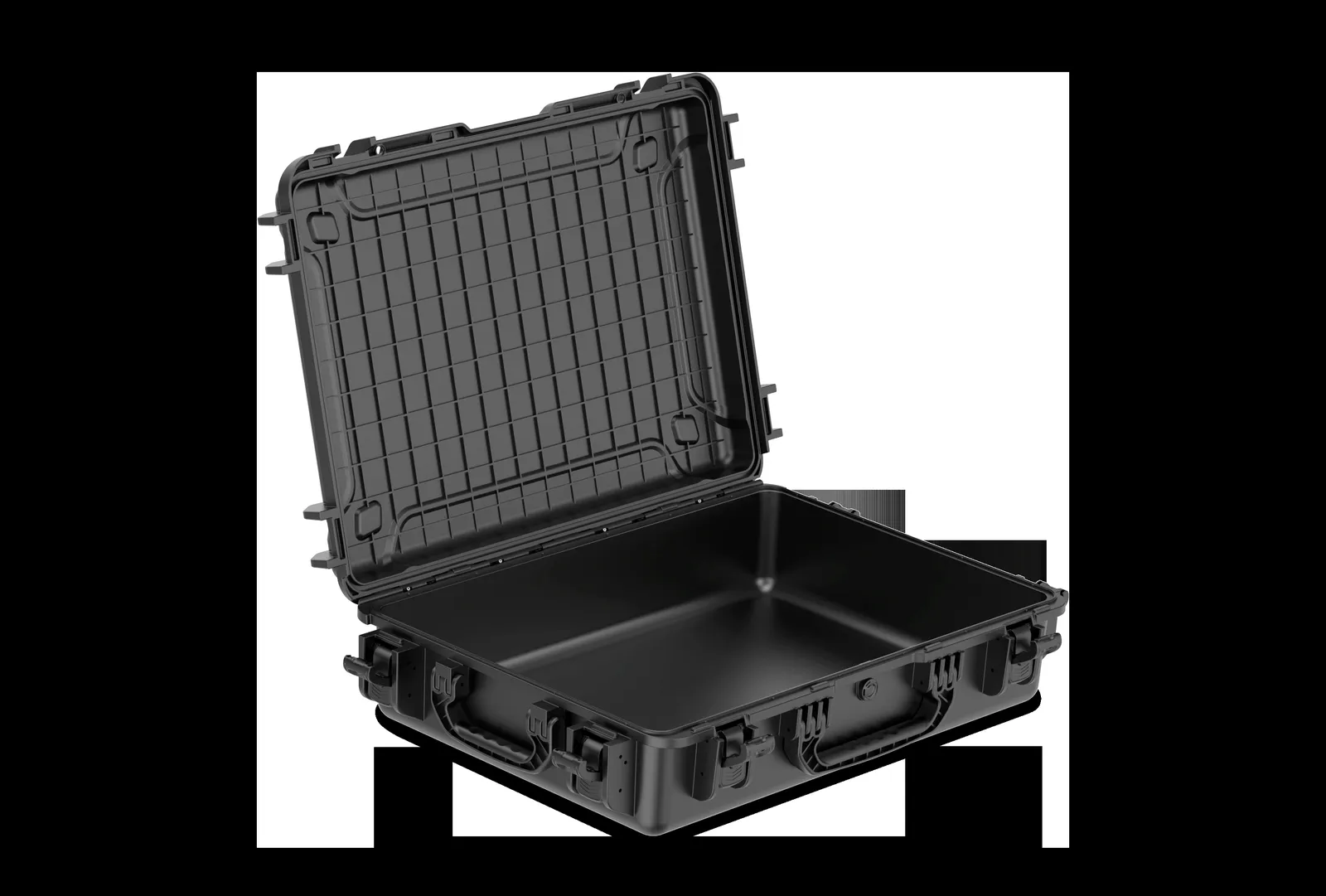

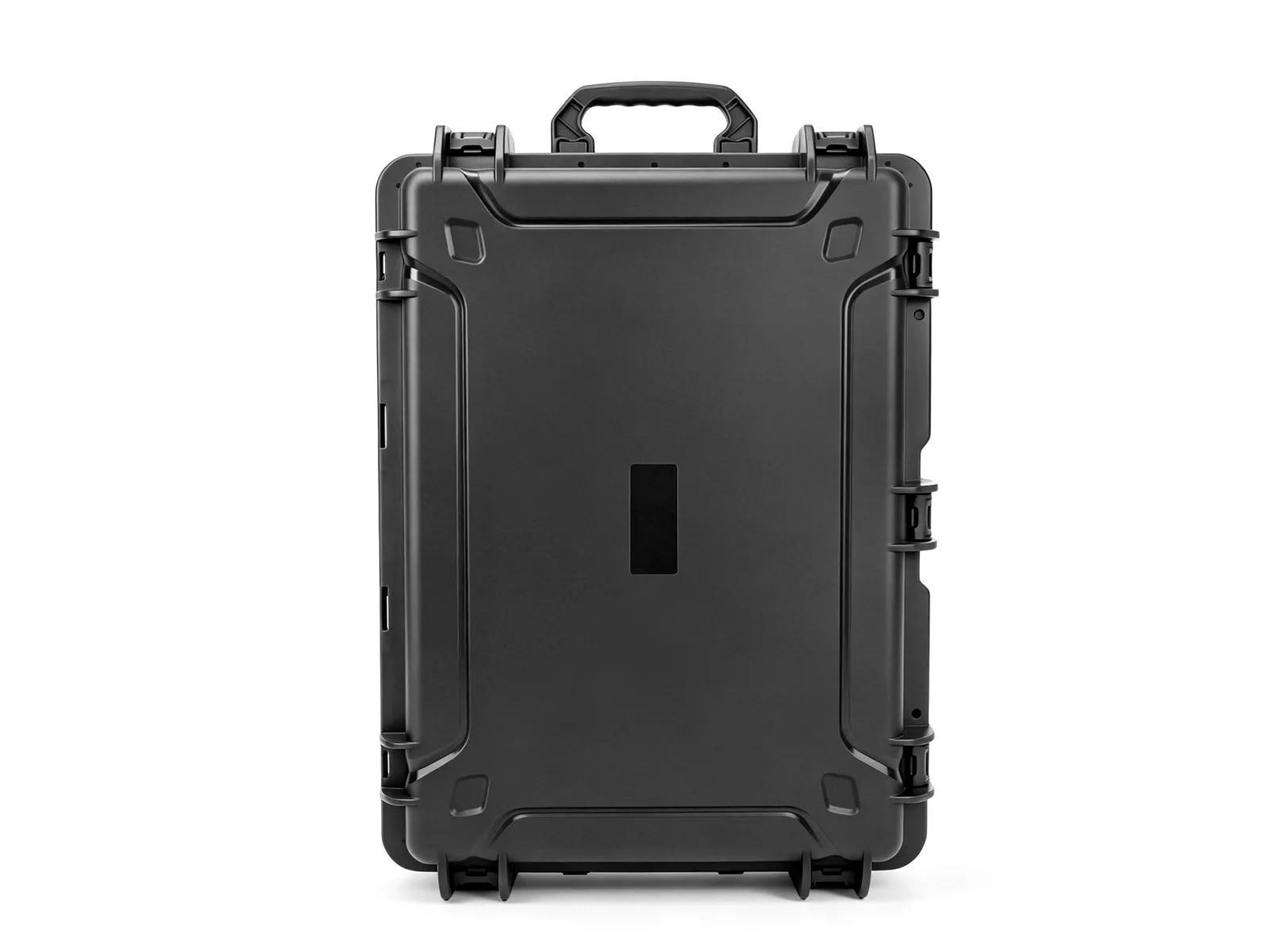

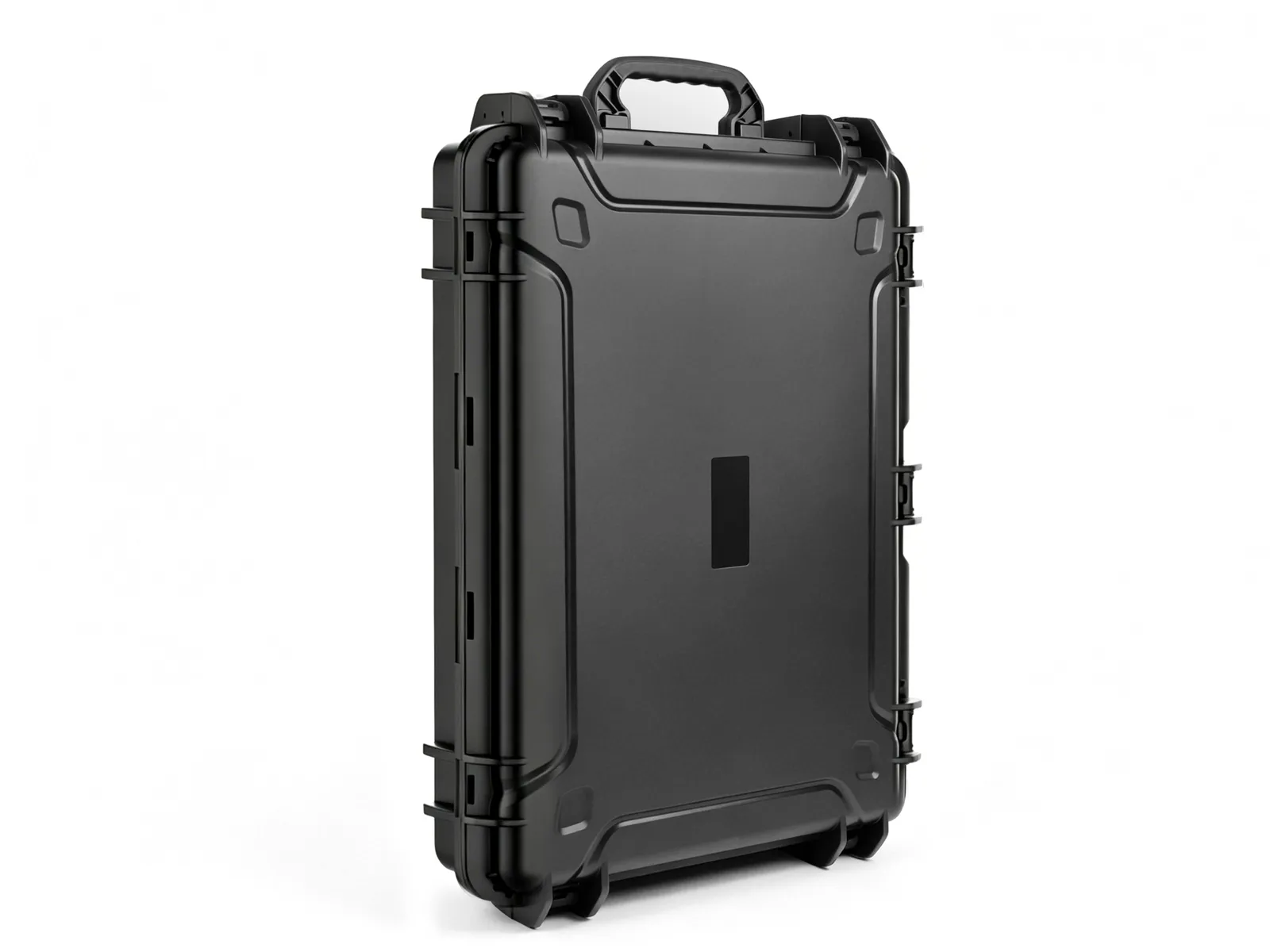

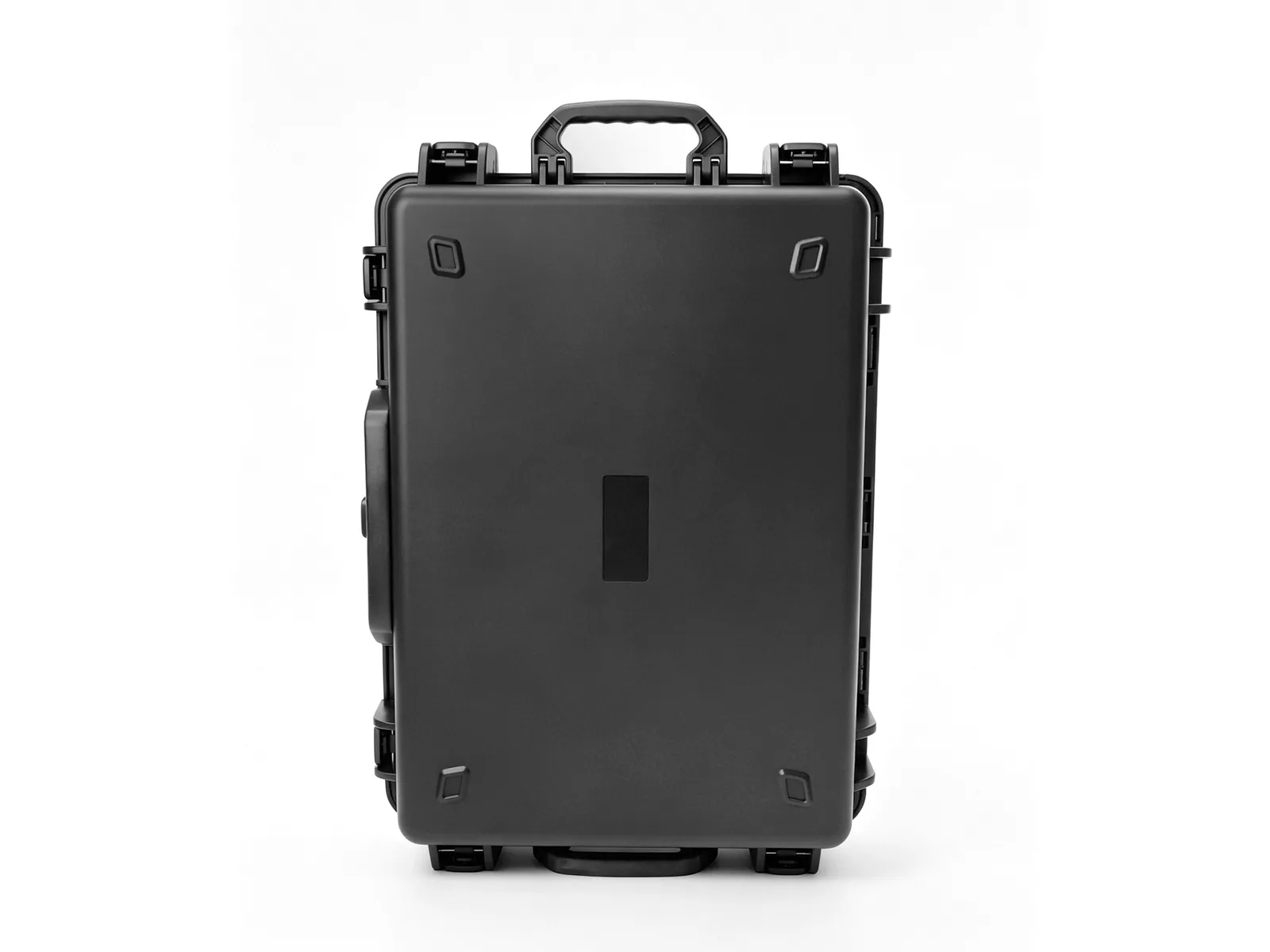

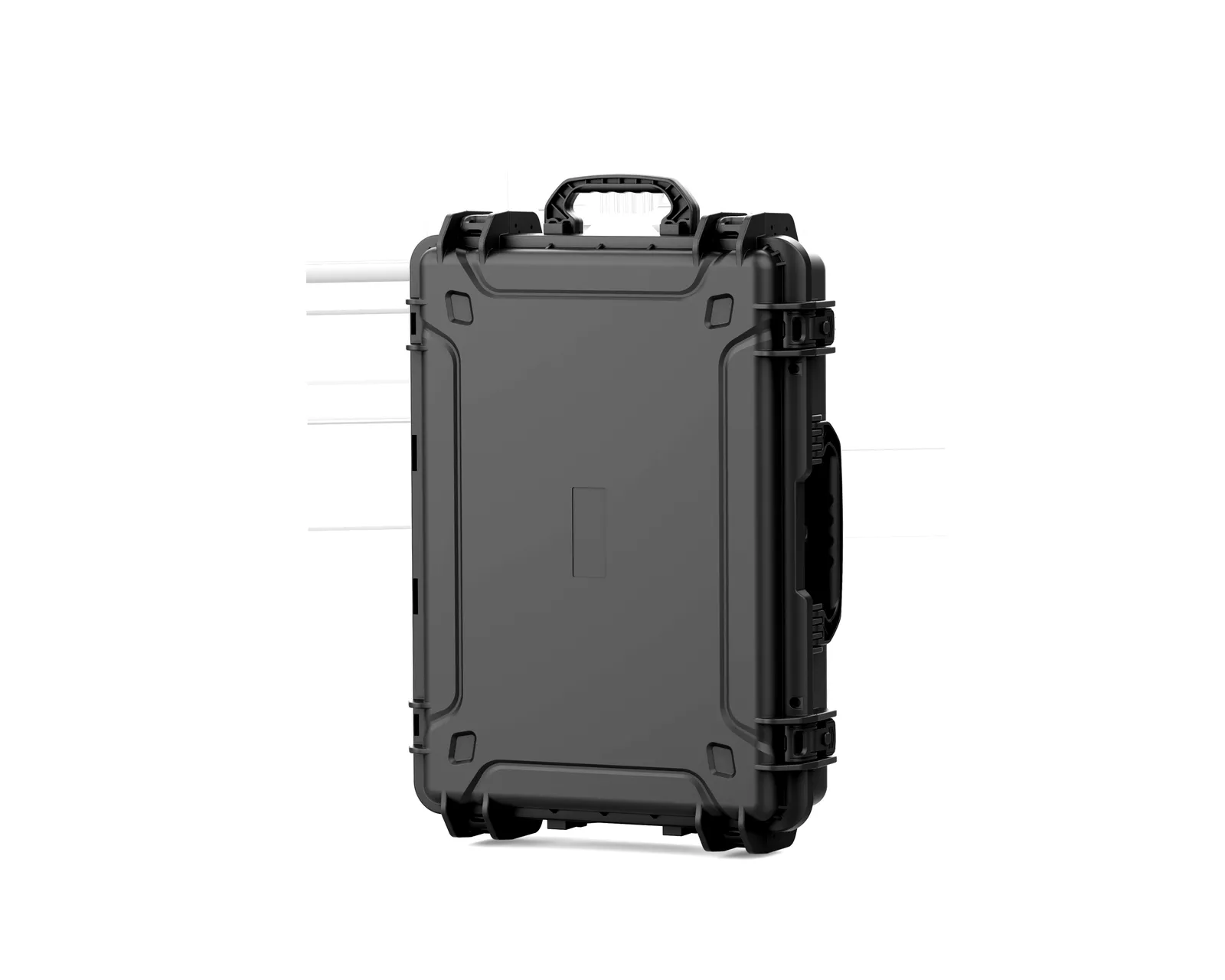

WL8-8421 PP Military Equipment Case

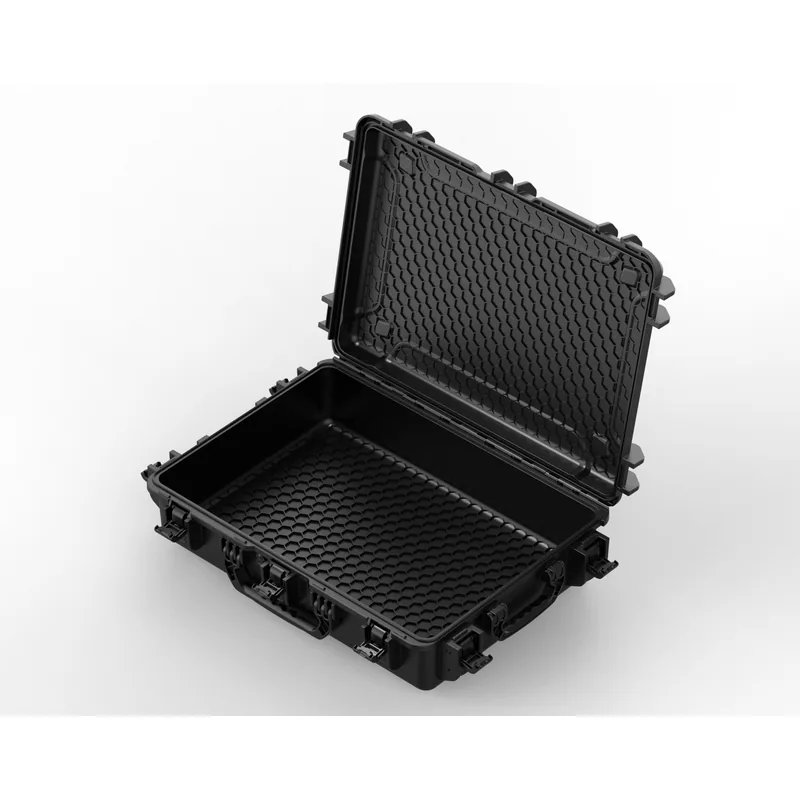

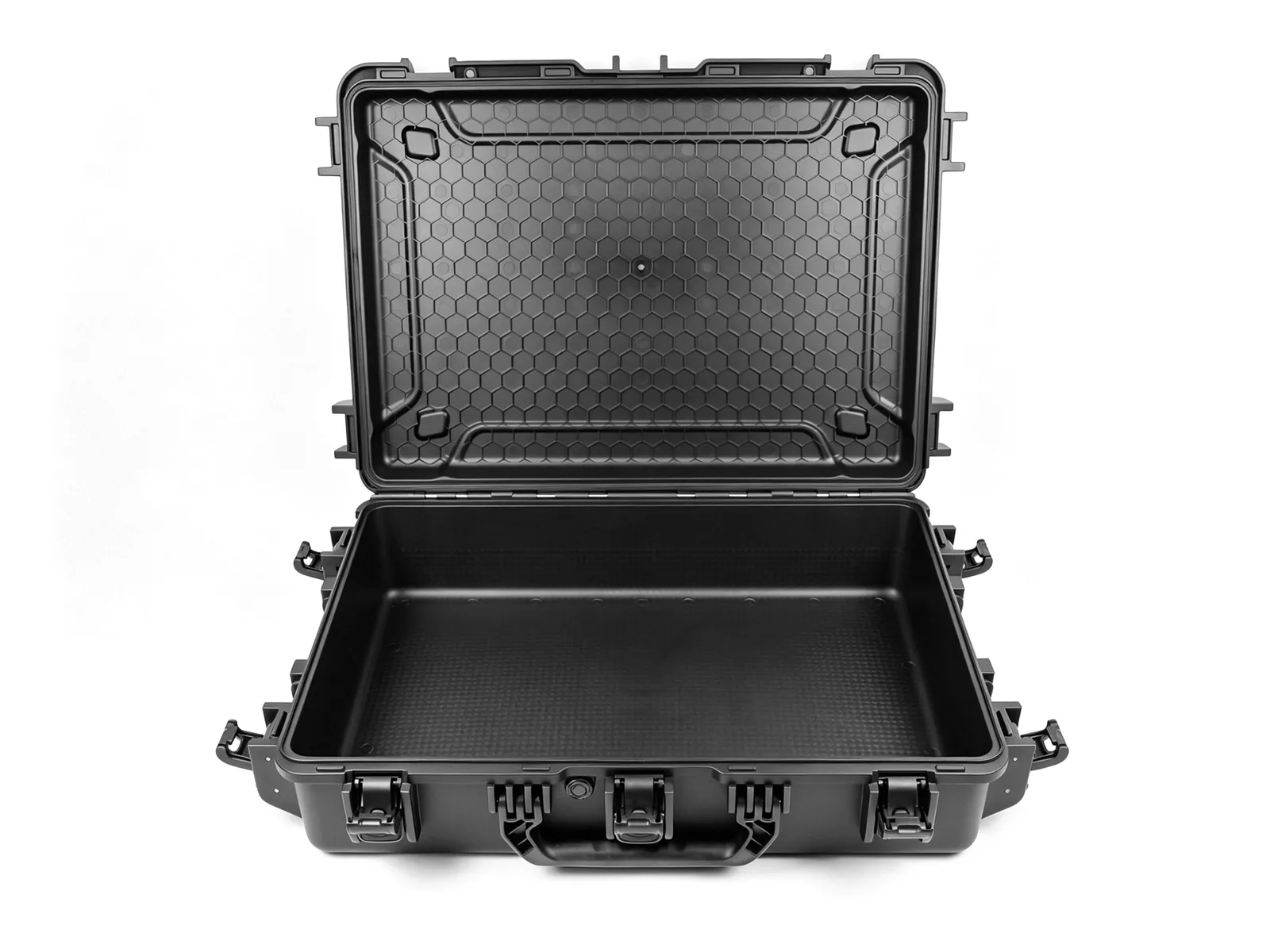

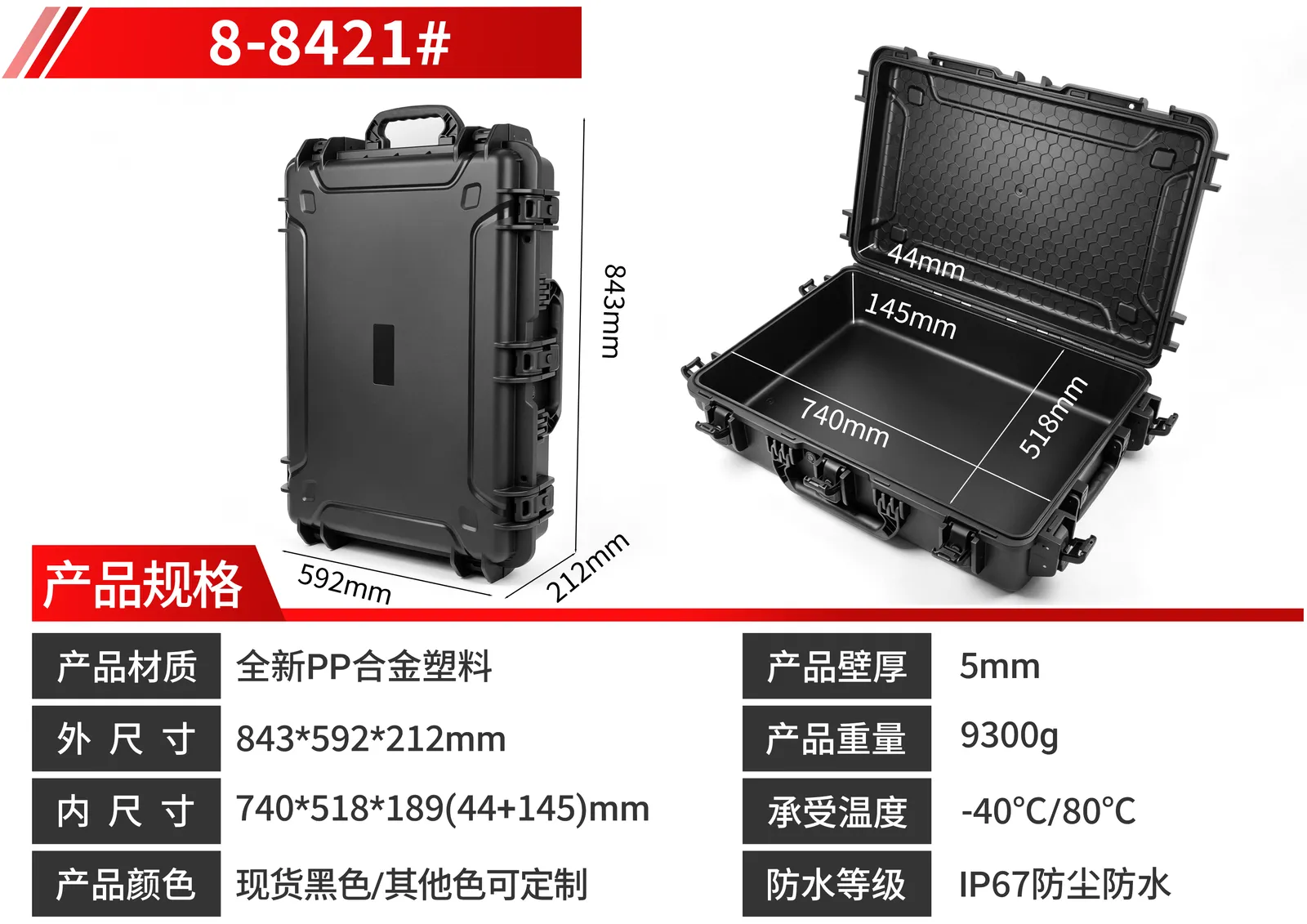

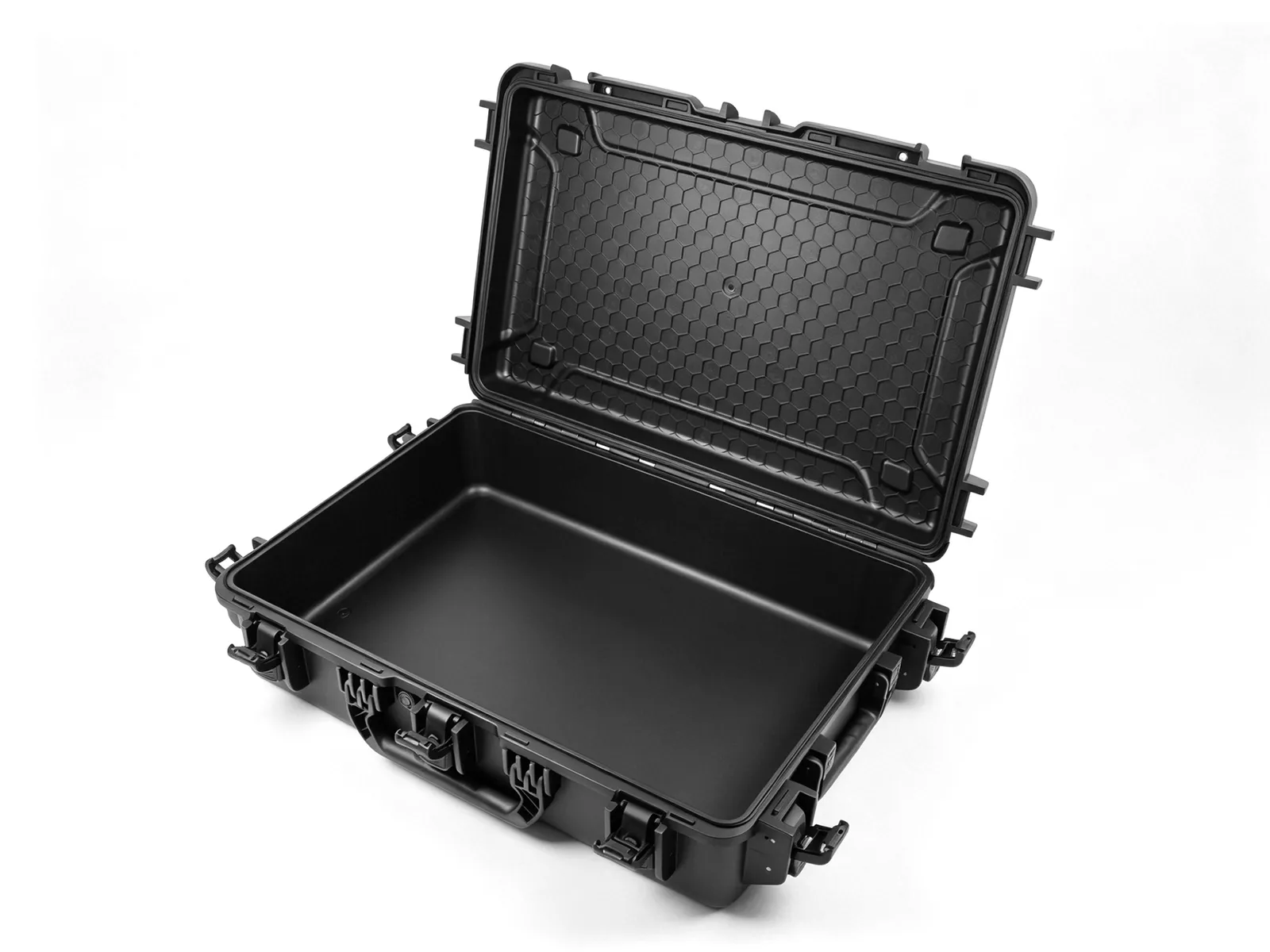

The case measures 843*592*212 mm outside and 740*518*189 mm inside, split into a 44 mm lid and a 145 mm base, with a 5.0 mm wall and an empty weight of 9300 g. The usable floor of 740 by 518 mm is the largest in this group, so it takes several complete tool sets and equipment modules at once, or single items that are long and wide. Send a drawing or photo if an item approaches the limit.

The polypropylene body is injection moulded with a sealing structure, and the closed case is rated IP67 for water and dust protection. That covers rain, dusty workshops and short immersion, and it keeps equipment free of moisture and particles. We do not claim military standard certification for this model. This case has the largest floor and body in the group and the longest gasket perimeter, so check the seal regularly for ageing, distortion or trapped debris and avoid prolonged rain or immersion once it is damaged.

The body is polypropylene with a 5.0 mm wall, and the empty case weighs 9300 g, the largest and heaviest model in this group. Across the 740 by 518 mm floor, the 5.0 mm wall and moulded ribs reduce side deflection once heavy items are loaded, which helps with stacking and long-distance transport. Clean it with water or a mild detergent and a soft cloth, avoiding strong solvents and abrasive pads.

The empty case weighs 9300 g, and loading adds further weight, so we recommend two people or a trolley, using the moulded handles and keeping the centre of gravity near the middle rather than tilting the case alone. During transport and stacking, avoid point loads on the lid, and use a pallet or straps for long journeys. Design the foam as a die-cut, layered insert so weight is carried by the base. Send your packing list and item weights for advice.

Yes. Kexin New Materials (Guangdong) Co., Ltd. manufactures this model at its Zhongshan factory, JUNZHIJIA is our own brand, and we supply factory-direct for OEM and ODM wholesale. Colour, silk-screen printing or nameplates, foam insert structure and latch configuration can all be customised. MOQ and lead time depend on the chosen colour, foam process and printing requirements, and production is normally scheduled after sample approval. Send your application, target quantity and customisation list and our sales team will issue a formal quotation and production plan.
