Does a hard plastic tool box have to hang on a pegboard?

Answer: No. Below five pulls a shift, a cart drawer wastes less space; at 20 pulls or more on a main station, hanging pays.

Is board load calculated empty or loaded?

Answer: Loaded, times three for dynamic load: a 9 kg case needs hooks rated 27 kg, since pull-out exceeds resting weight.

Foam pockets are expensive. Is there a cheaper way?

Answer: Switch to slotted dividers. A board costs CNY 18 and a change moves one strip; foam at CNY 46 has to be recut whenever a tool changes.

Which gasket suits an oil-mist cell?

Answer: Fluororubber in 5% emulsion, changed every 8 months. Nitrile hardens in 30 days there, which costs more in the end.

How fast does the conversion pay back?

Answer: At CNY 1,116 per station against CNY 4,490 a year, three months; more stations shorten it, since pegboard work runs in batches.

Hard plastic tool box on a pegboard: a year of rework costs

Quick answer: A hard plastic tool box beside an assembly station earns its keep by cutting three costs at once: hunting for tools, line stops from missing parts, and rework from wrong assembly. On 250 days and two shifts, a pegboard conversion costs CNY 1,116 per station and saves CNY 4,490 a year.

Hard plastic tool box on a pegboard: three costs first
Three mounting methods and board load
Put-back: slot codes and missing-part pace
Cleaning and marking in an oil-mist cell
The yearly account
FAQ

1. Hard plastic tool box on a pegboard: three costs first

At an assembly station the pegboard sits 1,450 mm off the floor, so a standing operator reaches it without bending or walking around a cart. A hard plastic tool box hung there turns three hidden costs into visible ones.

Cost line	Before, per year	After, per year	Difference
Tool hunting	50 hours	8 hours	CNY 1,890
Line stops for missing parts	48 minutes	8 minutes	CNY 1,040
Wrong-assembly rework	4 cases	1 case	CNY 1,560
One-off spend	none	CNY 1,116	paid back in year one

At CNY 45 an hour, those 50 hours cost about CNY 2,250; hanging cuts them to eight.

One rework event runs 42 minutes including dismantling, re-inspection and the stop, worth CNY 520. Four a year is CNY 2,080, and the change leaves one.

2. Three mounting methods and board load

Hanging is not a hook and a prayer. An empty case weighs 2.4 kg, a loaded one 9 kg, and pulling it adds outward load, so hooks are sized at three times static weight.

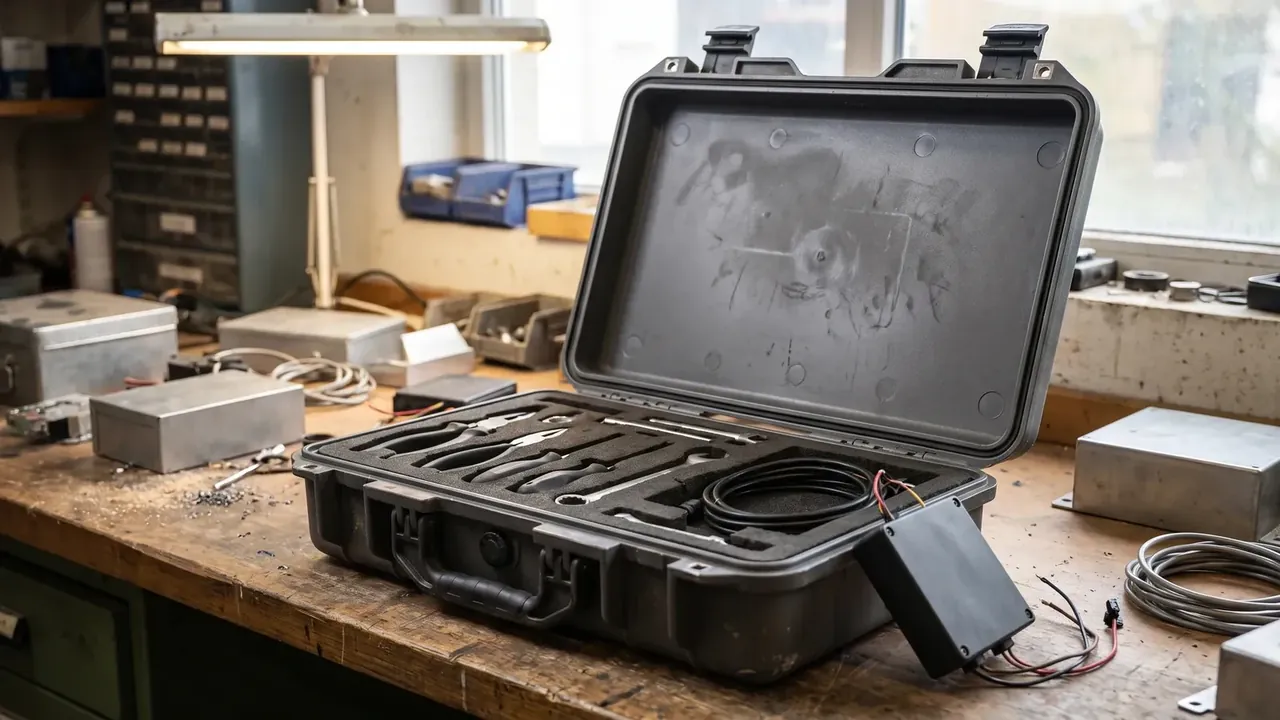

Hard plastic tool box: an open case on a wooden bench, smudged lid interior, foam cutouts for wrenches, coiled cable, metal modules beside it

Method	Board build	Load per case	Remount time	Where it fits
Hook bracket	18 mm plywood	12 kg	10 seconds	Light tools, 20 pulls a shift
Tray with M8 bolts	18 mm board, steel backing	25 kg	6 minutes	Fixed station, heavy load
Magnetic base	3 mm steel plate	8 kg	3 seconds	Repair bench, temporary bay

Shops that try all three keep two: trays at main stations, magnets at the repair bench. Hook brackets go first; a swinging case grinds a groove within a year.

Tighten tray bolts to 12 N·m, diagonally, all four. Leave one out and a loaded case sags 5 mm within a year.

3. Put-back: slot codes and missing-part pace

A hard plastic tool box only works when put-back is coded, not remembered. Two digits for the case, two for the slot, printed 8 mm high and readable from a metre away.

A3-07 means case three in zone A, slot seven; the handle carries the same label, and the match is the check.

Retrieval has to stay under 6 seconds. Past that, operators leave tools on the bench and put-back quietly dies.

Missing parts are counted at shift end, not hunted mid-run. Twenty-four slots take 90 seconds, cheaper than stopping the line to search.

One cost hides here. Foam is cut to the shape of the tools, so a new wrench model means a new sheet at CNY 46. Stations that change models often do better with slotted dividers at CNY 18 a board, where a change moves one strip. The case has a service life too: at 40 openings a shift over 250 days that is 20,000 cycles a year. A hinge rated 50,000 cycles lasts about two and a half years, and a replacement pair costs CNY 15, or CNY 30 across two cases. Put-back, in the end, buys a stable takt, not storage volume.

4. Cleaning and marking in an oil-mist cell

Next to a machining centre, a hard plastic tool box collects a film of coolant mist within a month. Polypropylene resists oil; the gasket and the label are what fail.

A nitrile gasket hardens after 30 days in 5% emulsion. Fluororubber lasts about 8 months in the same cell.

Cleaning runs in five steps:

Wipe lid and handle with 70% isopropyl alcohol at shift end, before the film sets.
Wipe the gasket separately, never with silicone dressing, which traps chips.
Vacuum the foam monthly; replace any pocket a chip has torn.
Put labels in a recess, not on a flat face, where edges wear first.
Leave the case open 15 minutes to dry; closing it wet traps moisture.

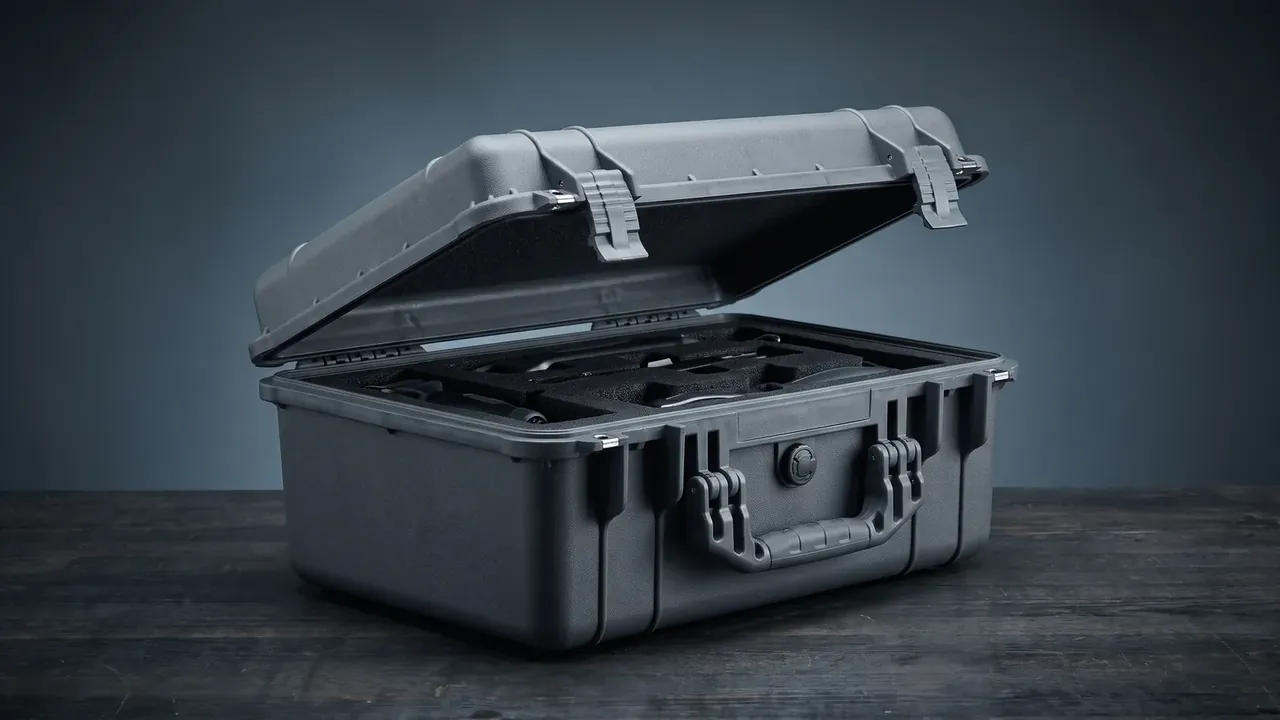

Hard plastic tool box: lid raised on a dark bench, black foam with cut pockets inside, two front draw latches, two more side catches

Marking has to survive wiping. Handwritten labels blur within two weeks; laser marking or in-mould labelling costs CNY 3 a spot and holds two years.

Choose dark grey for oily cells. A light shell shows dirt in a week and doubles the wipe frequency.

5. The yearly account

Do not price the case, price the station. Two cases at CNY 168 each plus CNY 780 of pegboard work comes to CNY 1,116.

Against CNY 4,490 saved a year, payback lands in three months. Everything after that is net.

A hard plastic tool box serves three years with one hinge and gasket change, about CNY 45, or CNY 15 a year, far below replacing it.

Conclusion

Hanging a hard plastic tool box on the wall saves time, not shelf space: the hunt, the stop and the rework. Get coding, cleaning and marking right and the case stops being another object on the bench and becomes part of the station.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
