How thick should a heavy duty plastic storage trunk be?

Answer: Match it to the load. Up to 30 kg, 2.4 to 2.8 mm is enough; past 60 kg ask for 3.8 to 4.2 mm with a mesh base.

Do more latches mean a better seal?

Answer: No. Latches even out the load on the lid; the gasket seals. Six latches over-compress it and shorten its life.

Can a wheeled heavy duty plastic storage trunk go on racking?

Answer: Yes, with one layer less. Castors add 80 to 100 mm of height and load four points, so beams past 900 mm need a deck.

How do I tell a one-piece moulding from an assembled shell?

Answer: Look at the base joint. A one-piece shell runs a continuous radius with no seam; an assembled one shows a joint line.

Does the plastic go brittle in freezing weather?

Answer: It depends on the grade. Copolymer polypropylene keeps impact strength at minus twenty degrees Celsius; homopolymer loses about half.

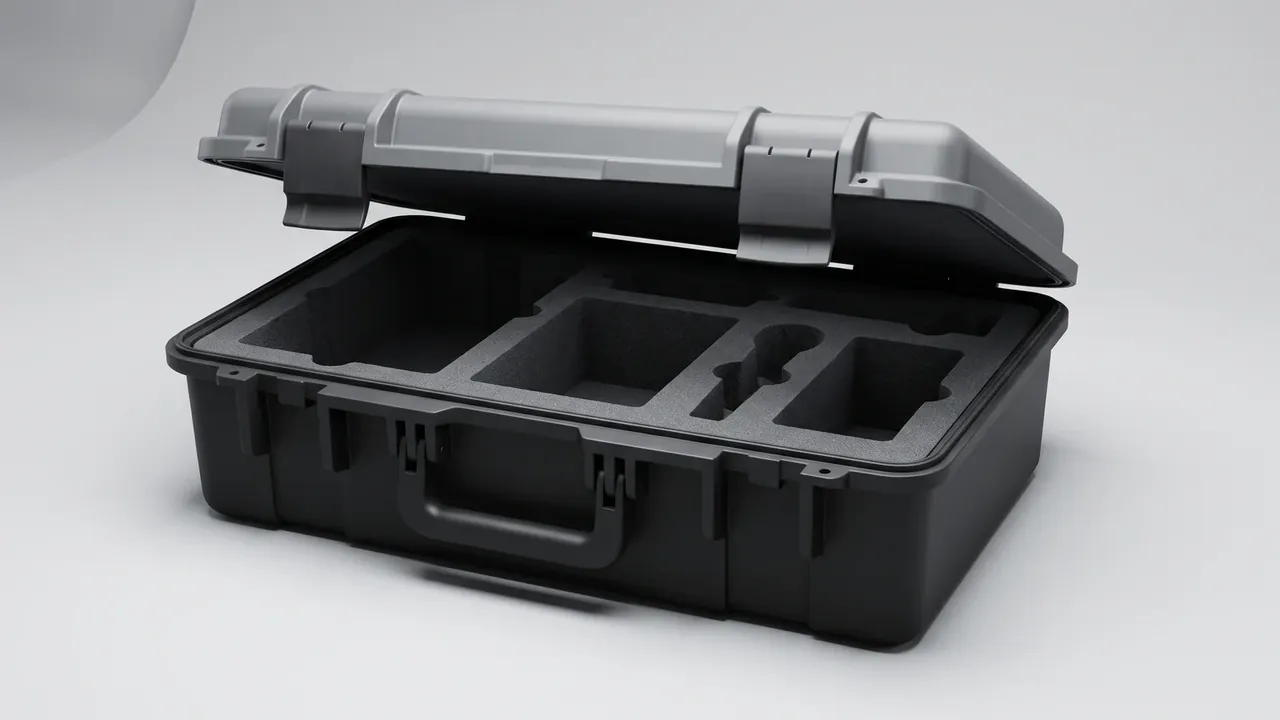

Heavy Duty Plastic Storage Trunk: Five Selection Criteria

Quick answer: Fix wall thickness and base from the load weight, then check sealing, latches, mobility and stacking height before you talk price.

Heavy Duty Plastic Storage Trunk Selection Starts with Load Weight
Wall Thickness and Rib Spacing in Millimetres
Lid Sealing and How Many Latches to Specify
Wheels, Handles and Stacking Layers
Five Checks You Can Run Before Signing
FAQ

1. Heavy Duty Plastic Storage Trunk Selection Starts with Load Weight

Load weight decides the frame of a heavy duty plastic storage trunk. To forty kilograms a flat base with two longitudinal ribs is enough; past eighty the floor must become a grid or a double-wall mesh, or the centre bows and the lid stops seating.

Static and dynamic load differ: a trunk on a rack carries static load, the same trunk in a moving van carries one and a half times more, so an eighty-kilogram rating leaves fifty-three kilograms on gravel.

Rated load	Wall	Base	Side ribs
Up to 30 kg	2.4 to 2.8 mm	Flat, one rib	Two
30 to 60 kg	3.0 to 3.5 mm	Grid	Three
60 to 100 kg	3.8 to 4.2 mm	Double mesh	Four, corner posts

A press with 1,300 tonnes of clamping force holds 4.2 mm across a 1.2 m trunk. A smaller machine drops to 3.4 mm in the middle, and two units of the same nominal size end up 1.8 kg apart.

2. Wall Thickness and Rib Spacing in Millimetres

Thicker is not stronger. From 2.8 to 3.5 mm, top-load resistance climbs forty per cent for twenty-five per cent more weight; from 3.5 to 4.2 mm it adds only twelve.

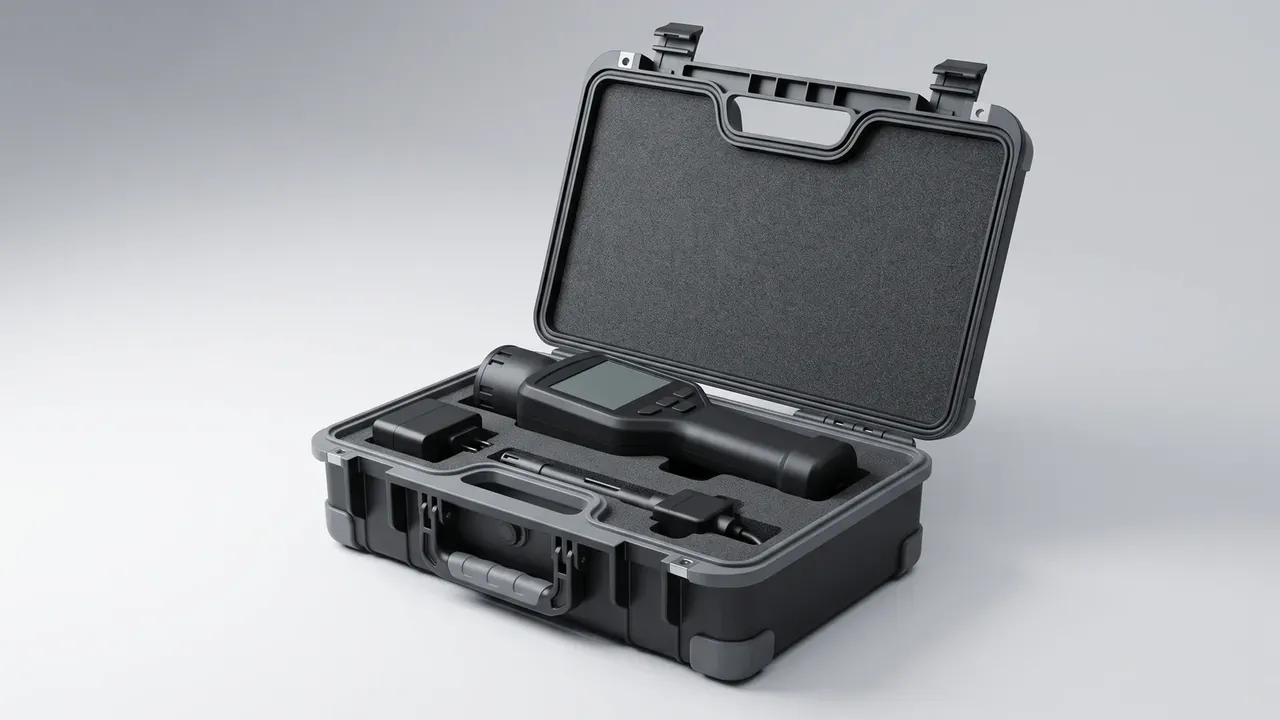

Heavy duty plastic storage trunk: dark grey shell standing open, grey foam lining the lid, a handheld meter seated in the foam tray, folding handle

Rib pitch beats rib height. At 90 to 120 mm spacing with ribs 6 to 8 mm tall the panels stay quiet; past 150 mm they flex even at 10 mm.

Internal radii under 8 mm tear liners; external radii of 12 to 15 mm spread impact on a dock drop.

3. Lid Sealing and How Many Latches to Specify

Sealing is a compression figure. EPDM rebounds best at thirty per cent; held at fifty it hardens within six months. A 6 mm cord wants a 4.5 mm groove.

Two latches hold a 600 mm heavy duty plastic storage trunk, four are needed at 800 mm, and a latch should still close one-handed after twenty cycles.

A 10 mm pressure valve near the handle keeps the lid flat from minus twenty to sixty degrees Celsius.

4. Wheels, Handles and Stacking Layers

Above sixty kilograms, wheels are not optional. A 75 mm wheel clears thresholds and dock plates; a 50 mm castor jams on concrete within twenty metres.

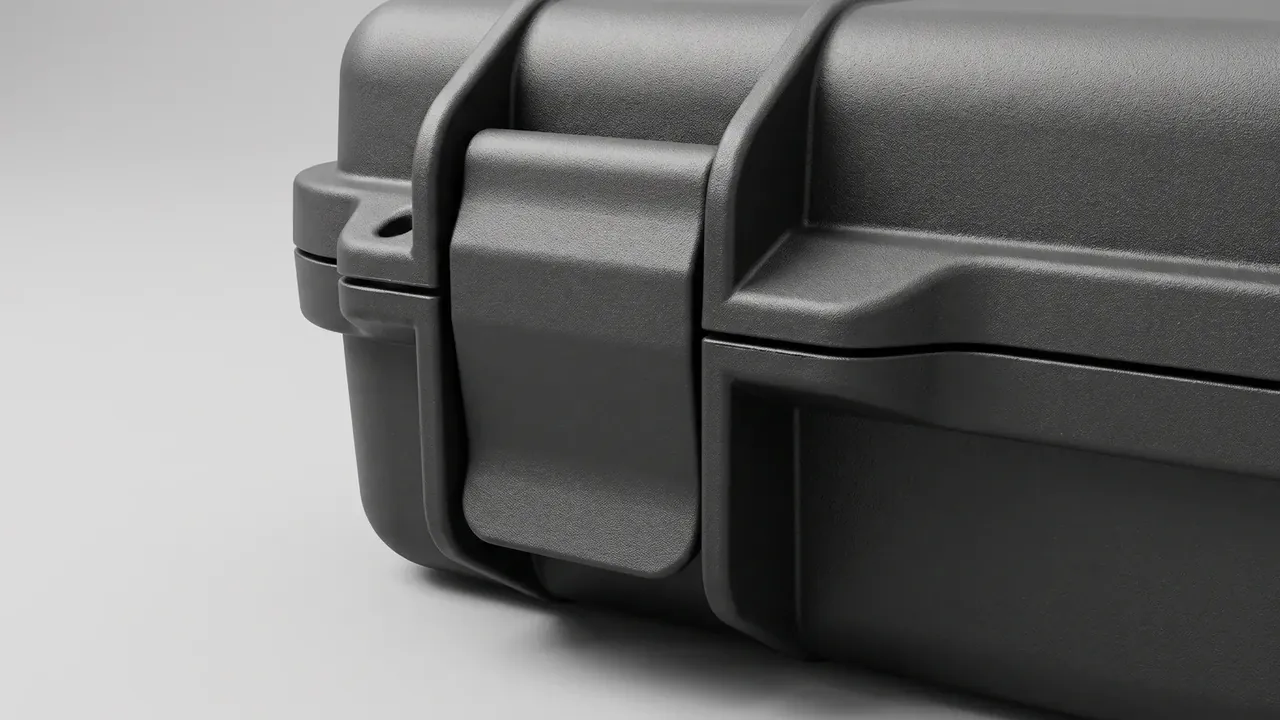

Heavy duty plastic storage trunk: close-up of a charcoal corner, one wide over-centre latch, two vertical ribs, matte textured surface

Mobility	Unit ceiling	Ground	Trade-off
Moulded handle	25 kg	Short carry	Two people above 30 kg
Two wheels	60 kg	Concrete	Cannot stack on edge
Four castors	80 kg	Narrow aisles	One layer less

Moulded handles carry twenty-five kilograms; folding handles save height but need a stainless pin rated for 480 hours of salt spray.

Stacking height on a heavy duty plastic storage trunk is set by the bottom unit. Four layers at 120 kilograms put 360 kilograms on the bottom shell, and a fifth layer needs 18 mm plywood between tiers.

5. Five Checks You Can Run Before Signing

A micrometer at nine points, with a floor of nominal minus 0.2 mm, covers half the acceptance work; base grid intersections are the thinnest spots in the moulding. Test the seal with paper at eight lid points, where two or more free pulls means a loose gasket, and stack four layers for a day to read the sag at the bottom centre.

Conclusion

Worked in order, the five criteria turn a vague brief into a drawing: weight sets the frame, thickness and base follow, and sealing, latches, wheels and stacking finish it. A 4.2 mm shell with two latches still leaks dust when full. Put the five lines on the purchase order and tick them at acceptance. Choosing a heavy duty plastic storage trunk is a matter of finding where weight, cost and handling meet.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
