Why do quotes from one plastic tool box manufacturer to the next differ by 30 percent?

Answer: Latch material, hinge pin diameter and EVA density explain most of it, plus whether the mould sits inside the unit price.

Can I order fewer than 500 boxes?

Answer: Yes, at about 10 percent above the tier price and 52 days instead of 42, since small runs fit between mould changes.

Who pays for the mould, and is it refundable?

Answer: The buyer pays and owns it; the cost returns once cumulative repeats reach the agreed volume, if the annex says so.

Can lead time be cut to 30 days?

Answer: Only when the tool exists and hardware and insert are off-the-shelf. The 22 days of tooling are hard time.

How do I verify real capacity?

Answer: Match the tonnage list and mould register against shipments. A 530-tonne machine tops out near 790 boxes a day, so 100,000 a month from two machines is not credible.

Plastic Tool Box Manufacturer: Quotes, MOQ and Lead Time

Quick answer: A plastic tool box manufacturer should quote in four lines — body, hardware, insert and packaging — with tooling separate. Tiers of 500, 2,000 and 5,000 units bring a 96,000 CNY mould to 19.2 CNY per box; lead time is 42 days from sample sign-off, not deposit.

How a Plastic Tool Box Manufacturer Breaks Down a Quote
MOQ: Three Tiers and How Mould Cost Is Amortised
Scheduling Lead Time Backwards from Mould to Loading
Samples and Pilot Runs: What to Check
Contract, Payment and Shipping Documents
FAQ

1. How a Plastic Tool Box Manufacturer Breaks Down a Quote

A quote with one total gives a buyer nothing to negotiate. A plastic tool box manufacturer that quotes properly splits the price into body, hardware, insert and packaging, with mould cost on its own line.

The body is priced by weight times resin price times scrap: at 4.2 kg, 11.8 CNY per kilogram and a 1.06 factor, material lands near 52.5 CNY. Ask for the grade and the price date.

Hardware takes 20 to 25 percent; a glass-filled nylon latch or a 5 mm hinge pin instead of 4 mm moves the price 5 to 8 CNY.

Line	Share	Terms to fix
Body	46–54%	Resin grade, scrap factor, price date
Hardware	20–25%	Latch material, hinge pin size
Insert	9–13%	EVA density, die cost

2. MOQ: Three Tiers and How Mould Cost Is Amortised

MOQ follows tonnage and cavity count. A 560 mm internal length needs a 530-tonne machine, a 95-second cycle and 21 productive hours a day: about 790 boxes.

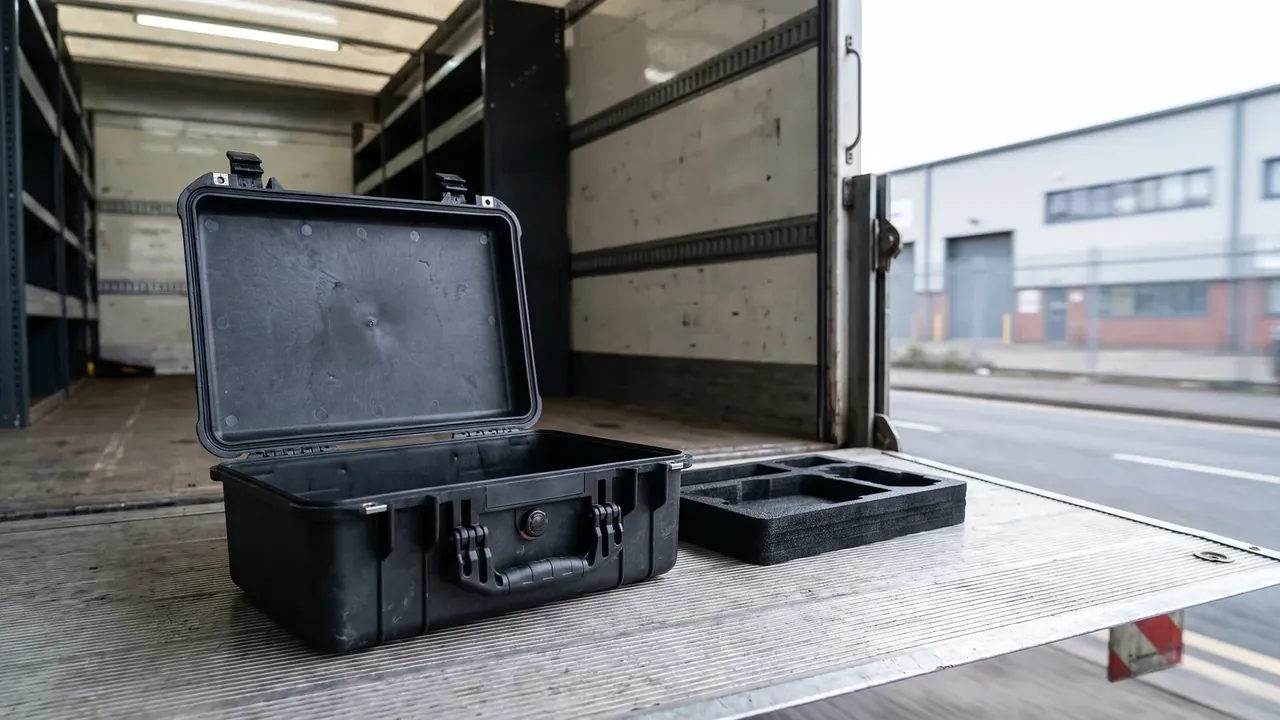

Plastic tool box manufacturer: a black case open on a truck tailgate, black foam lining, a compartmented foam tray beside it, shelving behind

Tiers run 500, 2,000 and 5,000. The 500 tier is dearest: purging colour takes 45 minutes and first-off scrap runs 3.5 percent. At 5,000 a 96,000 CNY mould falls to 19.2 CNY a box.

Tier	Index	Mould
500	100	Charged in full
2,000	91	Half amortised
5,000	84	Fully amortised

Two clauses beat another 1.5 CNY off the price: buyer-owned tooling with no recharge, and three free trial corrections.

3. Scheduling Lead Time Backwards from Mould to Loading

Forty-two days is three blocks: 22 for tooling, 4 for trials, 16 for production. What slips is the front end — masterbatch, hardware sample approval, insert die cutting. One item seven days late pushes everything.

Work backwards: six days inspection and loading, sixteen production, four trials, the rest tooling. Write "counted from return of the signed sample" into the contract, or two weeks of courier samples vanish into the lead time.

4. Samples and Pilot Runs: What to Check

Samples arrive in two stages. T1 uses a temporary tool and proves shape and hardware fit; T2 comes off production tooling and is checked for dimensions, wall thickness, drop and salt spray. A plastic tool box manufacturer supplies three T1 and six T2 samples, keeping two and breaking four.

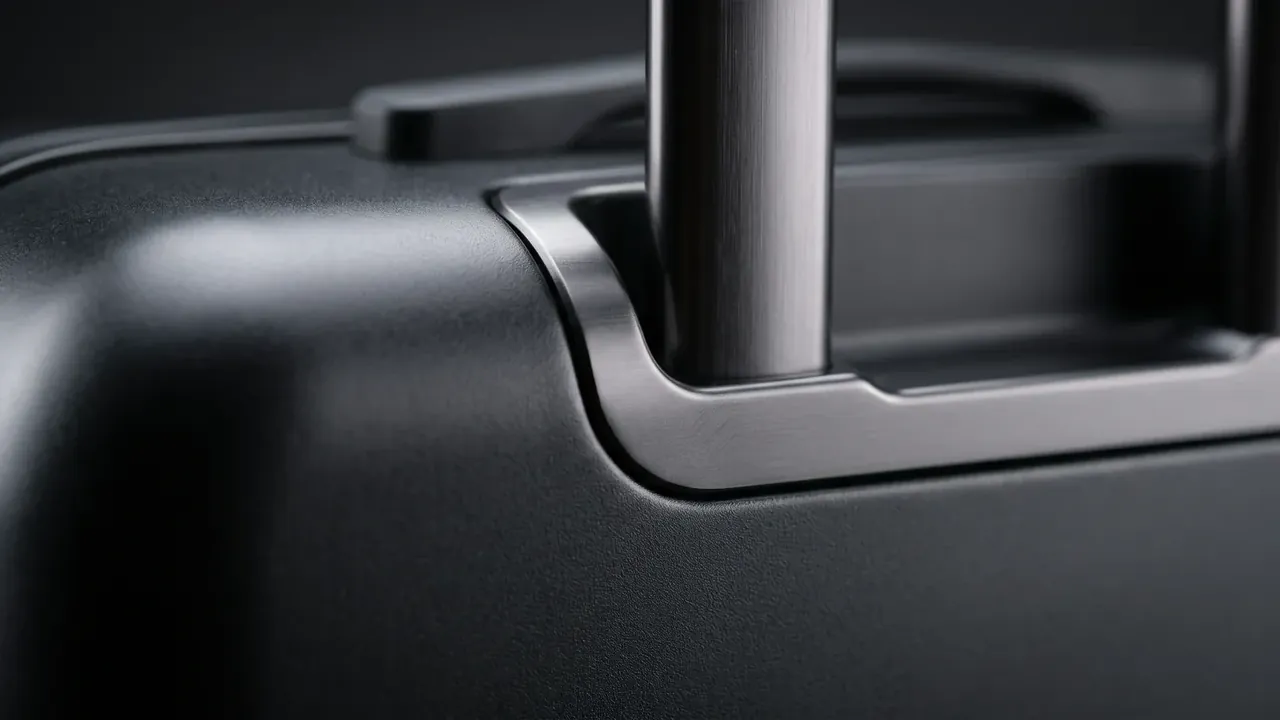

Plastic tool box manufacturer: close view of a black lid corner, a brushed metal handle in a textured matte surface, rounded mounts and fine grain

Acceptance is numeric: internal dimensions within 1.2 mm, wall 3.2 mm nominal and never under 2.9 mm, latch force 120 to 180 N, base deflection under 2 mm after 24 hours at 30 kg.

Drop testing runs 1.2 m across six faces, three edges and one corner, ten drops, after four hours at minus 20 Celsius; salt spray covers hardware only, 96 hours neutral.

5. Contract, Payment and Shipping Documents

Thirty percent deposit, seventy against a copy of the bill of lading. Below 20 percent the supplier prices it back in; above 50 percent the buyer ties up cash. Quotes hold 20 days with a re-opener at 6 percent resin movement, both ways.

Four documents travel with the goods: packing list, commercial invoice, certificate of origin and a material declaration.

Clause	Wording	Note
Deposit	30% advance, 70% against bill copy	Under 20% gets priced back
Inspection	Major AQL 1.0, minor 2.5	125 pieces from a 2,000 lot

Audit the plant, not the showroom. Ask a plastic tool box manufacturer for its tonnage list, mould register and three months of shipments, then which machine ran the last 5,000.

Conclusion

Buying plastic tool boxes comes down to three sheets: the quote breakdown, the volume ladder and the schedule built backwards from the ship date. Line them up and price, tooling and slot sit on paper before money moves. Choose a plastic tool box manufacturer that lays all three open.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
