Does a measuring instrument case always need base bolts?

Answer: No. Above 8 kg, or where 0.1 mm/m re-check is required, four bolts pay off; a handheld unit is held by 1.5 mm foam.

Which foam density should the insert use?

Answer: Closed-cell PE at 38 kg/m³. Below 30 kg/m³ pockets slump early; above 50 kg/m³ units get loaded at an angle.

How dust-tight must a field measuring instrument case be?

Answer: Judge by a clean panel after two hours open; a double-lip seal plus dust cover suits most workshops.

Is open time limited in a constant-temperature room?

Answer: Keep one opening under ten minutes; longer and settling stretches to forty minutes.

How many cases should one instrument have?

Answer: One resident, one shuttle; the lab unit stops travelling and the transport unit keeps its clamping force.

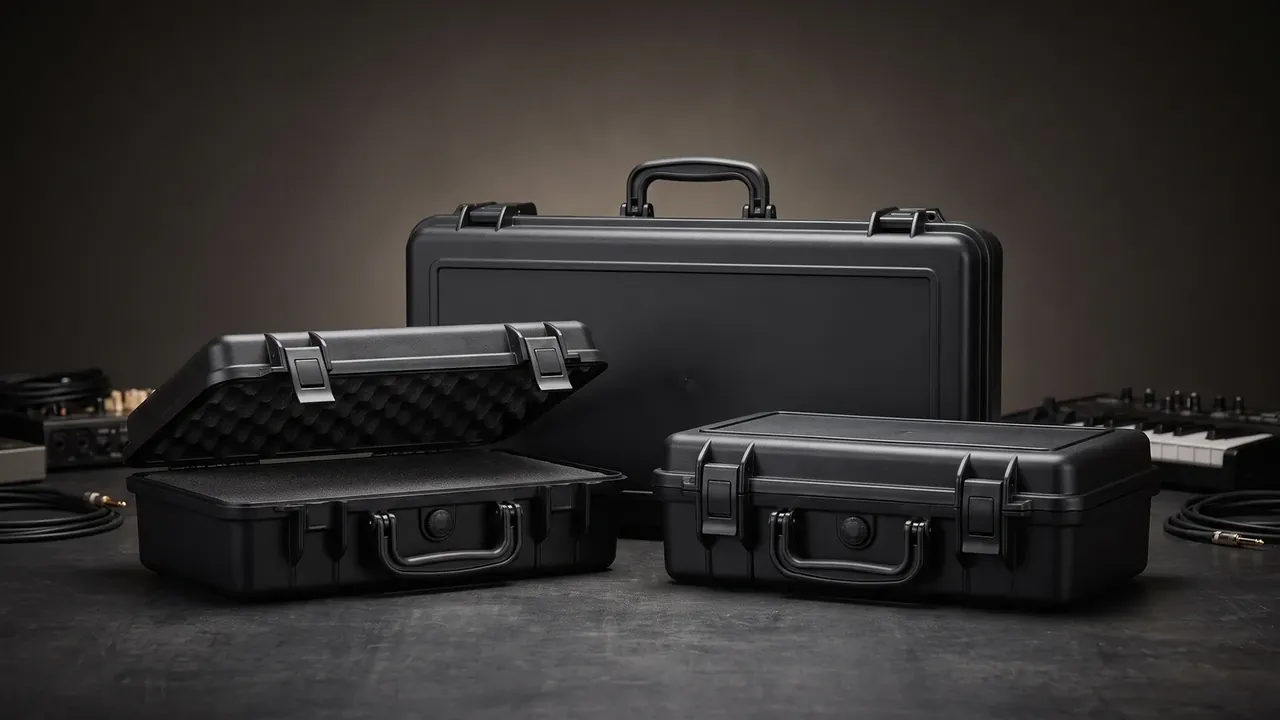

Measuring Instrument Case Applications: Lab, Field, Cleanroom

Quick answer: A measuring instrument case serves three metrology stages — a calibration queue, reference transport and on-site comparison. Each stage fixes the instrument differently: the laboratory on base mounting and handling order, transport on travel limits and repeatability, field work on one-hand latching and dust control.

Where a Measuring Instrument Case Sits in the Metrology Chain
Calibration Laboratory: Base Fixing and Handling Order
Field Verification: What Survives a Round Trip
Cleanroom and Constant-Temperature Room: Insert Cleanliness and Outgassing
Fixing Hardware: Three Configurations
FAQ

1. Where a Measuring Instrument Case Sits in the Metrology Chain

Metrology puts an instrument through three states: a calibration queue, a vehicle, a customer site. A measuring instrument case keeps its reference unchanged through all three.

Dwell time sets the job: a lab queue of three to fifteen days needs dust exclusion, a transport leg of four to forty-eight hours needs travel limits and sealing, a field check of two to six hours needs fast opening.

Stage	Typical dwell	Fixing method	Key feature
Lab queue	3–15 days	Flat, four base bolts	Removable lid, label area
Transport	4–48 hours	Upright or flat, foam interference	Double-lip seal, pressure valve
Field check	2–6 hours	Lid open, tilted support	One-hand latch, dust cover

A general equipment case is designed so the instrument fits; a measuring instrument case is designed so the reading returns.

2. Calibration Laboratory: Base Fixing and Handling Order

Inside the laboratory the fixing points sit on the instrument base, not the case wall. Most benchtop instruments carry four M5 holes at 180 mm to 240 mm centres; a 6 mm aluminium plate is bolted to them with M5×16 at 3.5 N·m. Past 5 N·m the thin base dishes and the level reference is lost.

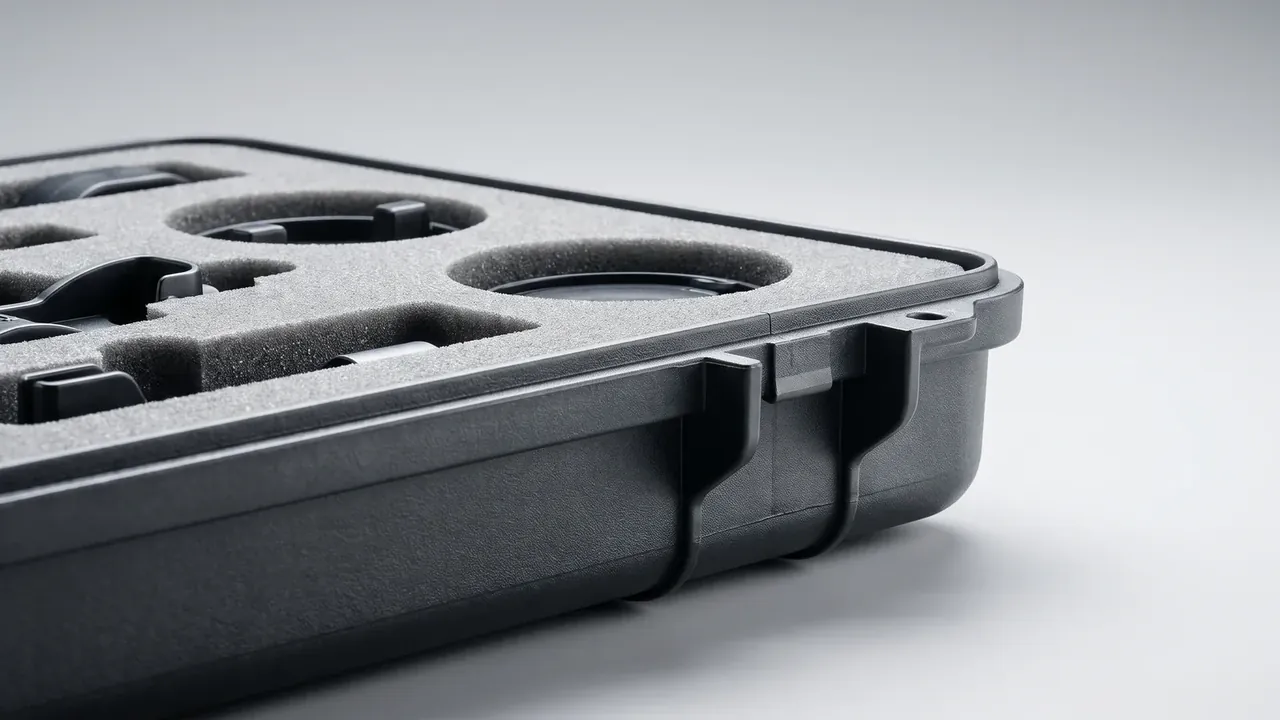

Measuring Instrument Case: black case with grey foam insert cut into round pockets and rectangular slots, side latch visible

Release both latches, rest the lid past 100 degrees, then touch the instrument; pull it first and the lid foam drags the panel.

Closed-cell PE at 38 kg/m³ shows under 3 percent compression set at 25 percent deflection; at five insertions a week the pocket walls slump after six months, so the insert is a replaceable sheet.

3. Field Verification: What Survives a Round Trip

Field acceptance is not about whether the instrument broke but whether the same reading returns. Over a 120 km round trip on secondary roads, peaks inside the case reach 8 g.

Interference limits travel, not filling: a pocket cut 1.5 mm smaller than the body clamps evenly, past 3 mm the panel takes load.

Fixing method	Travel per leg	Level deviation	Re-zero time
Foam interference 1.5 mm	≤0.3 mm	0.2 mm/m	12 min
Base bolts plus foam	≤0.1 mm	0.1 mm/m	8 min
Foam pad, no interference	1.2 mm	0.6 mm/m	25 min

Re-zero time is billable: thirteen extra minutes per unit costs a unit out of a six-unit day, so field versions carry an extra ring of locating grooves.

4. Cleanroom and Constant-Temperature Room: Insert Cleanliness and Outgassing

In a cleanroom the case is a particle source. Each cycle releases debris from seal lips and cut foam edges; under ISO 7 the count above 5 μm within one metre of the opening jumps an order of magnitude.

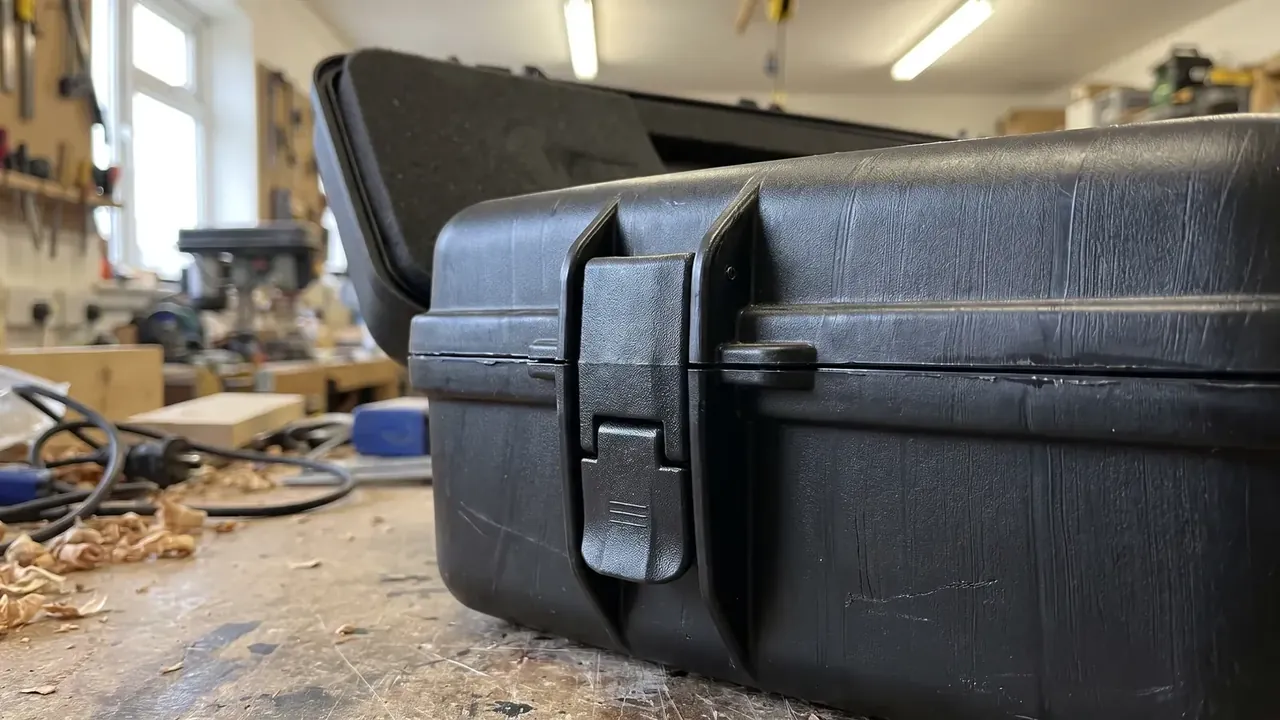

Measuring Instrument Case: black case on a workbench, lid tilted back, one latch closed, shavings and cables on the bench

In a constant-temperature room the conflict is inertia: an 11.6 kg case wheeled in takes twenty-five minutes to settle at 20±0.5 °C, forty with low-closed-cell foam.

A replaceable sheet rinses in neutral detergent; a moulded insert only tolerates 70 percent ethanol, as solvents chalk it.

5. Fixing Hardware: Three Configurations

Hardware falls into three groups: the adapter plate that makes the instrument lockable, the foam that stops travel, the parts that make the case carryable.

Configuration	Use case	Hardware	Case weight
A, resident	Lab queue area	Aluminium plate, replaceable sheet	13.4 kg
B, shuttle	Reference transport	Plate, interference foam, double-lip seal	11.6 kg
C, roving	On-site comparison	Quick-release insert, tilt support, dust cover	9.8 kg

Choose on insertions per year and repeatability. Above three hundred with 0.1 mm/m, run B with the A plate; in-building rounds under six hours take C. Stacking is four high at 35 kg per layer.

A 3.2 mm PP wall with a double-lip gasket holds 20 kPa for thirty seconds. Size steps: instrument case specifications; cutting: custom foam insert specifications; layouts: internal divider selection; temperature limits: temperature-controlled case guide.

Conclusion

Three stages, three configurations, one problem: keep the reference unchanged through movement. Choose by frequency and repeatability, and the measuring instrument case becomes a real link in the metrology chain.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
