What wobble figure is acceptable on a telescopic handle plastic case?

Answer: Under 5 mm at full extension, read from a 20 mm side push. Past 8 mm the bush is worn.

Two handle stages or three?

Answer: Follow internal height. Above 220 mm, three stages save 40 mm; on a 180 mm body, two stages wobble less.

Are bigger wheels always better?

Answer: No. A 100 mm wheel clears a 15 mm threshold but adds 25 mm of height.

Is a 2.2 mm side wall enough?

Answer: Below 20 L and 25 kg, yes; from 35 L upward start at 2.5 mm and check the boss root.

How far can the handle be carried by hand?

Answer: Pull load is half the static figure, about 20 kg at 35 L. Beyond 200 m the joint deforms.

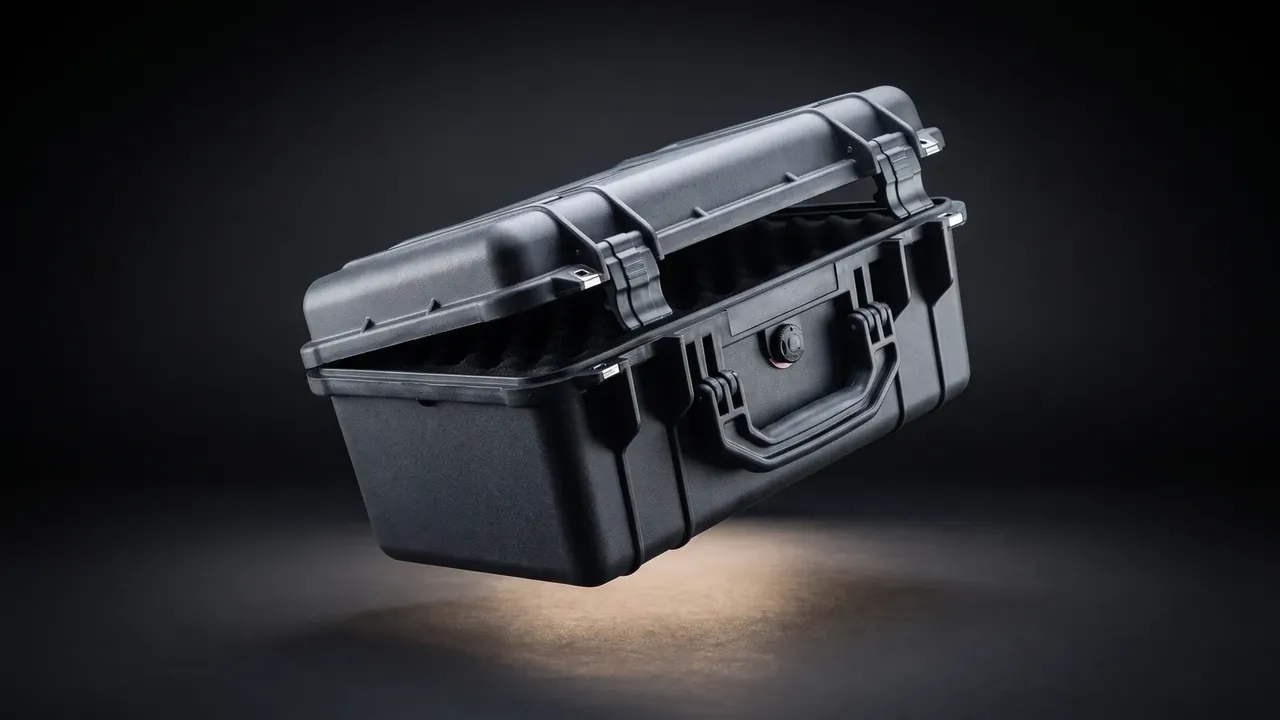

How to Choose a Telescopic Handle Plastic Case: Five Checks

Quick answer: Judge a telescopic handle plastic case in a fixed order: handle wobble, wall and boss thickness, wheels, all-up weight, then stage count. The first two remove structural failures; the rest settle ergonomics and cost.

Five Criteria for a Telescopic Handle Plastic Case
Handle Stages and Tube Diameter
Wheels, Mounting and Floor Clearance
Wall Thickness and the Handle Mount Boss
Weight, Static Load and Pull Load
FAQ

1. Five Criteria for a Telescopic Handle Plastic Case

A telescopic handle plastic case rarely fails at the shell. It fails at the handle boss and the wheel mount, reporting late as a whitened boss root or a lifted wheel plate.

Wobble is checked first because it is cheap to measure. Lock the handle at full extension, push the grip 20 mm sideways, release, and read the offset. Under 5 mm is sound; 8 mm means a worn bush and play growing 1 mm a month. Wall and boss thickness rank second, wheels third, weight fourth, stage count last; score each 1 to 5 and drop anything under 3.6.

Criterion	Pass value	Failure	Weight
Handle wobble	≤5 mm extended	grip swings, boss whitens	25%
Wall and boss	wall ≥2.2 mm, boss ≥4.5 mm	conical holes, cracks	25%
Wheels	≥75 mm, four M5 screws	one wheel flat first	20%
All-up weight	empty ≤7 kg	cannot push when loaded	15%
Handle stages	two, travel ≥180 mm	three stages, short travel	15%

2. Handle Stages and Tube Diameter

Two-stage handles run 420 mm retracted and 640 mm extended; three-stage units 380 and 700 mm. With 180 to 280 mm of internal height, retracted tubes eat lid space, so shallow cases stow more with two stages.

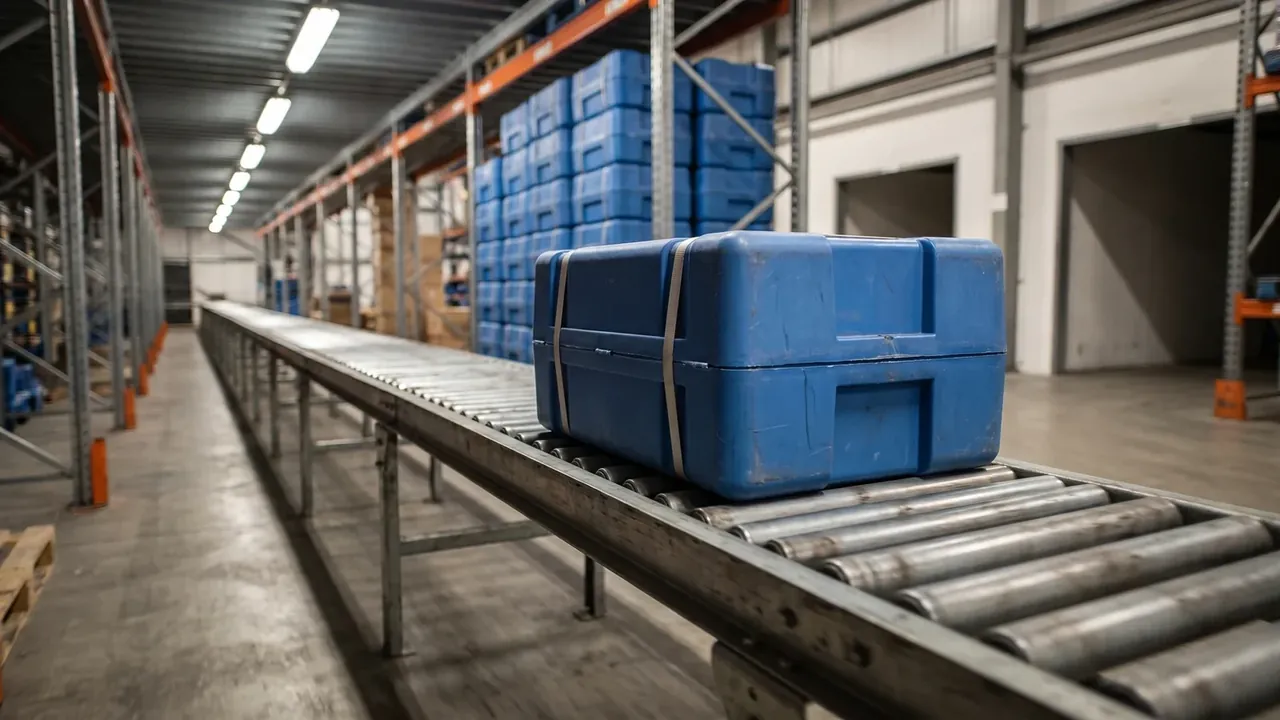

Telescopic handle plastic case: a blue case strapped to a roller conveyor, stacked blue cases on racking behind, orange uprights and ceiling lights

Diameter beats stage count. A 22 mm tube with a 1.2 mm wall on an 0.8 mm bush shows 6 to 9 mm of play, while 25 mm with a 1.4 mm wall stays under 4 mm for 180 g more weight. Detents sit 60 mm apart at 30 to 50 N, and 12 µm anodising passes 96 hours of neutral salt spray.

3. Wheels, Mounting and Floor Clearance

Wheels decide whether the case rolls. A telescopic handle plastic case usually runs 75 or 100 mm wheels on a 24 mm tread, needing 55 N and 38 N to start a 40 kg load on epoxy.

Mounting fails before tread wears. Four M5×16 screws into an 8 mm brass insert survive repeated service, while self-tapping screws in a 2.5 mm wall strip after two removals. Clearance means a 15 mm threshold, an 8 mm gap and double drag on carpet.

Wheel	Suitable floor	Start force at 40 kg	Trade-off
75 mm	epoxy, tile, concrete	about 55 N	light, poor at thresholds
100 mm	asphalt, gravel, carpet	about 38 N	adds 25 mm of height

4. Wall Thickness and the Handle Mount Boss

On a telescopic handle plastic case the side walls run 2.2 to 2.8 mm, the base 3.0 mm, and the boss root must reach 4.5 mm. Without that pad, bolt preload draws a 2.5 mm wall into a cone-shaped hole, and the wobble can never be adjusted out again.

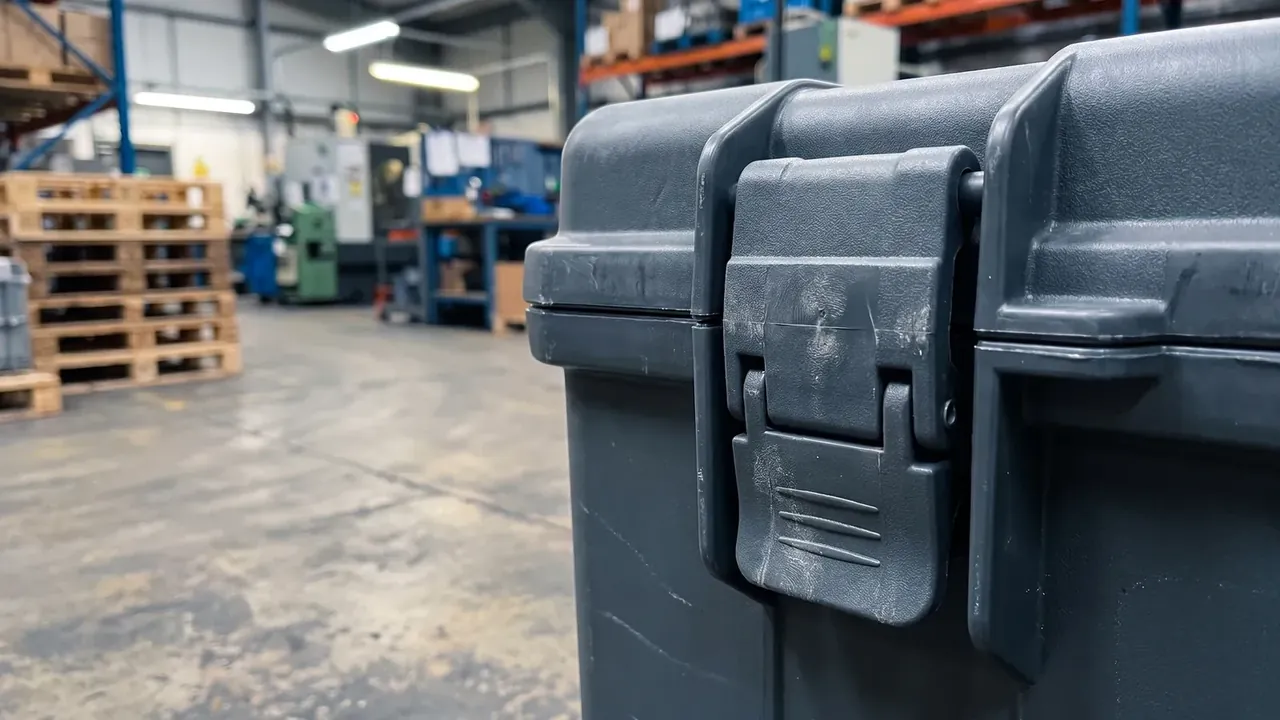

Telescopic handle plastic case: charcoal case latch clamping the lid, two raised ribs beside it, pallets and a green machine tool behind

An ultrasonic gauge on six points keeps the minimum above 90 percent of nominal and the spread under 0.6 mm, while ribs at 60 mm pitch hold the wall on an 800 tonne press.

5. Weight, Static Load and Pull Load

All-up weight means the empty case with handle and wheels. Every extra kilogram is felt once loaded, so keep the total one person pushes at or below 25 kg.

Static load is a distributed load left 24 hours with under 1.5 mm of sag; pull load means lifting the case by the grip and reaches about half that.

Size	Internal size	Empty weight	Static load	Pull load
20 L	450×330×180 mm	4.2 kg	25 kg	12 kg
35 L	550×400×220 mm	6.8 kg	40 kg	20 kg
55 L	650×460×280 mm	9.5 kg	55 kg	25 kg

Conclusion

Five numbers settle the purchase: 5 mm of wobble, 2.2 mm of side wall, 75 mm wheels, 7 kg empty, 180 mm of travel. Check structure first and ergonomics second, and the telescopic handle plastic case still tracks straight in month three.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
