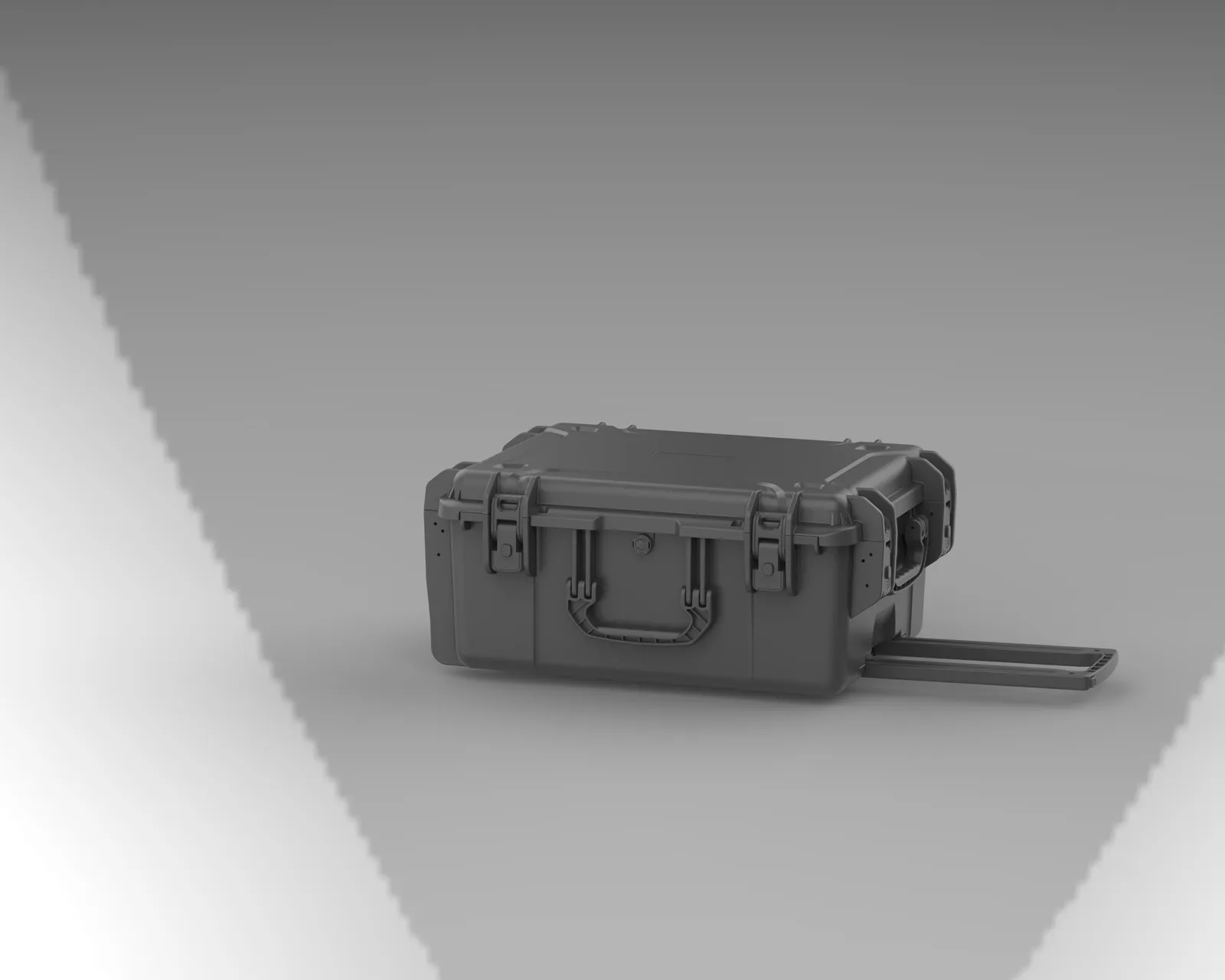

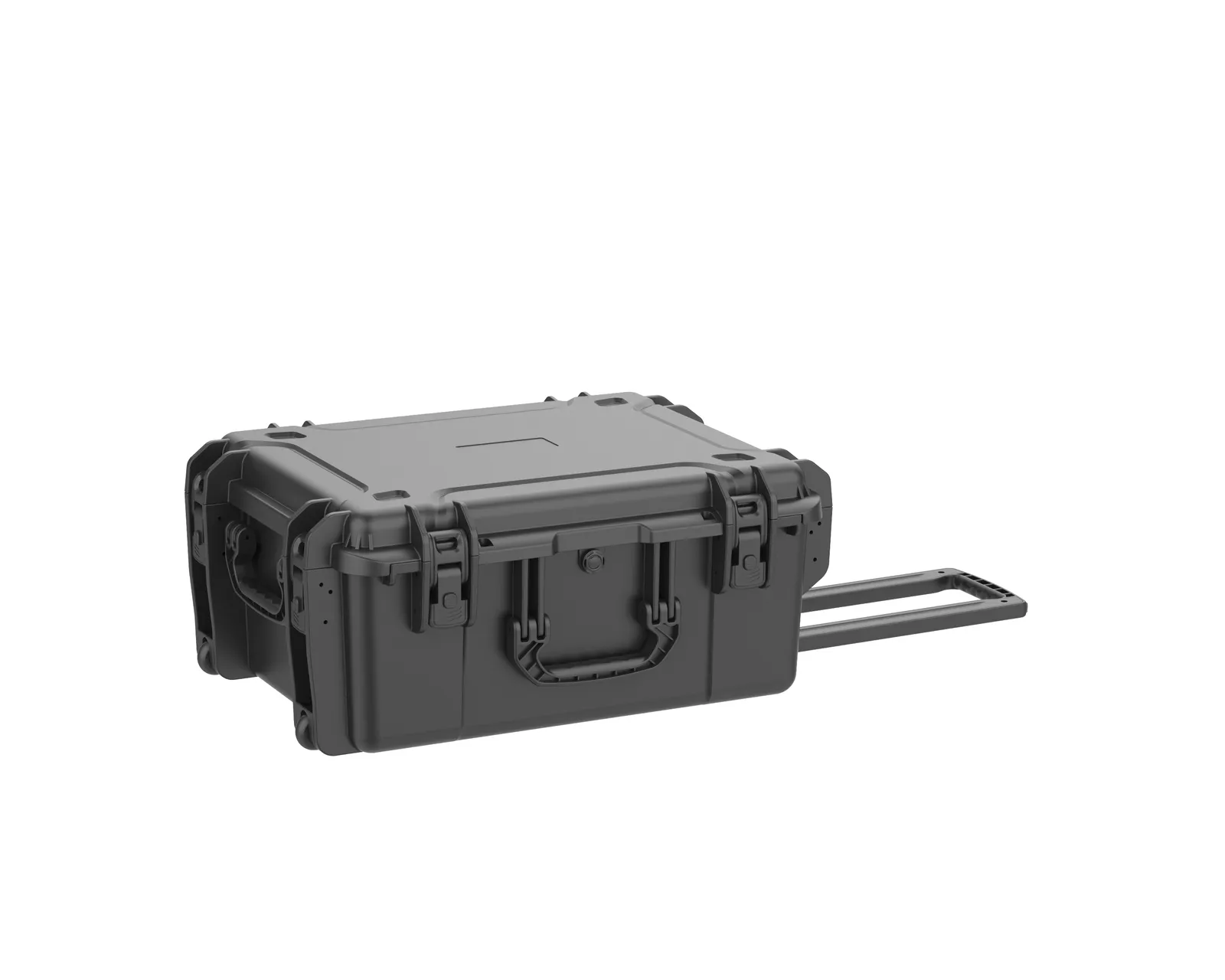

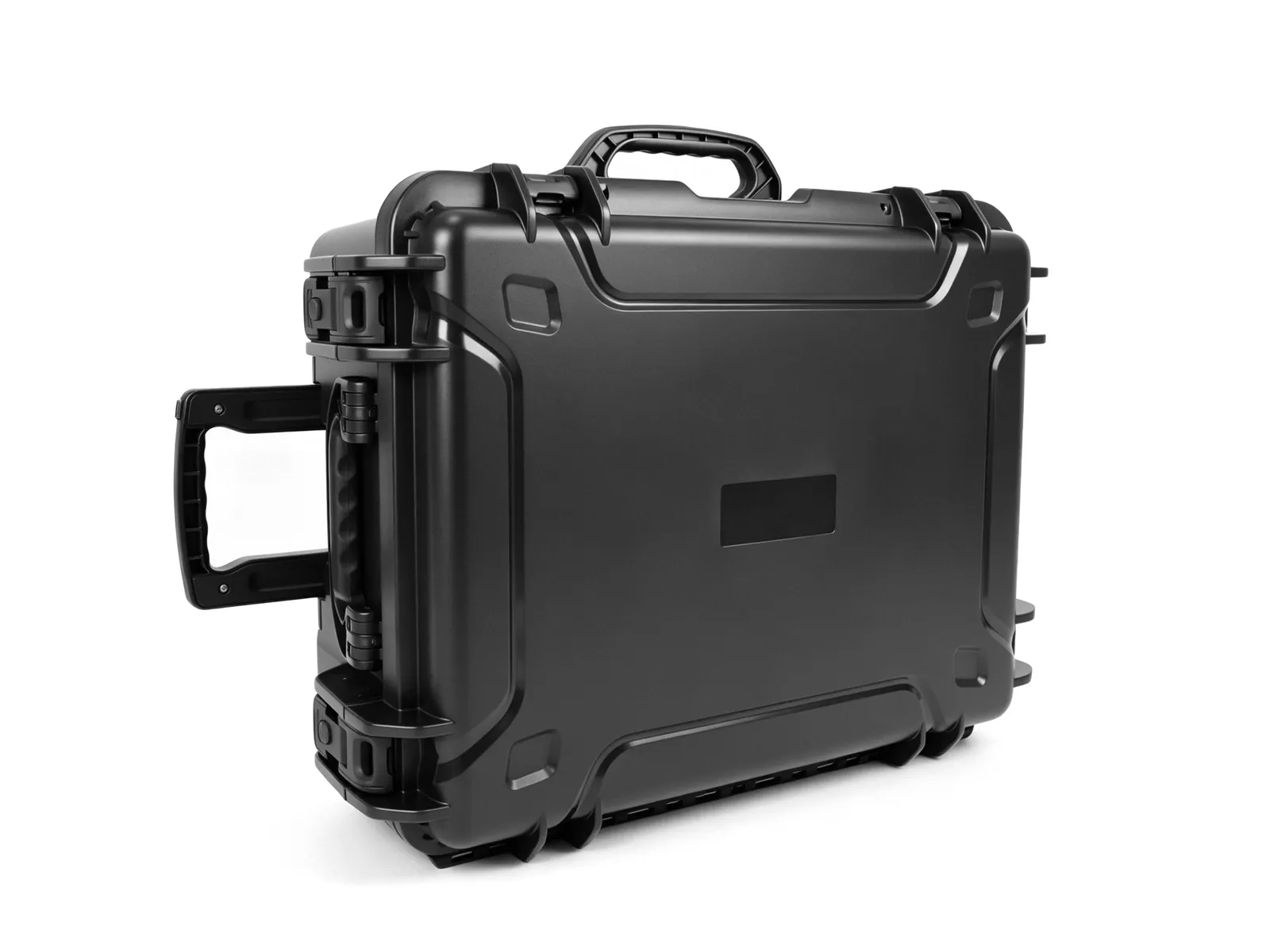

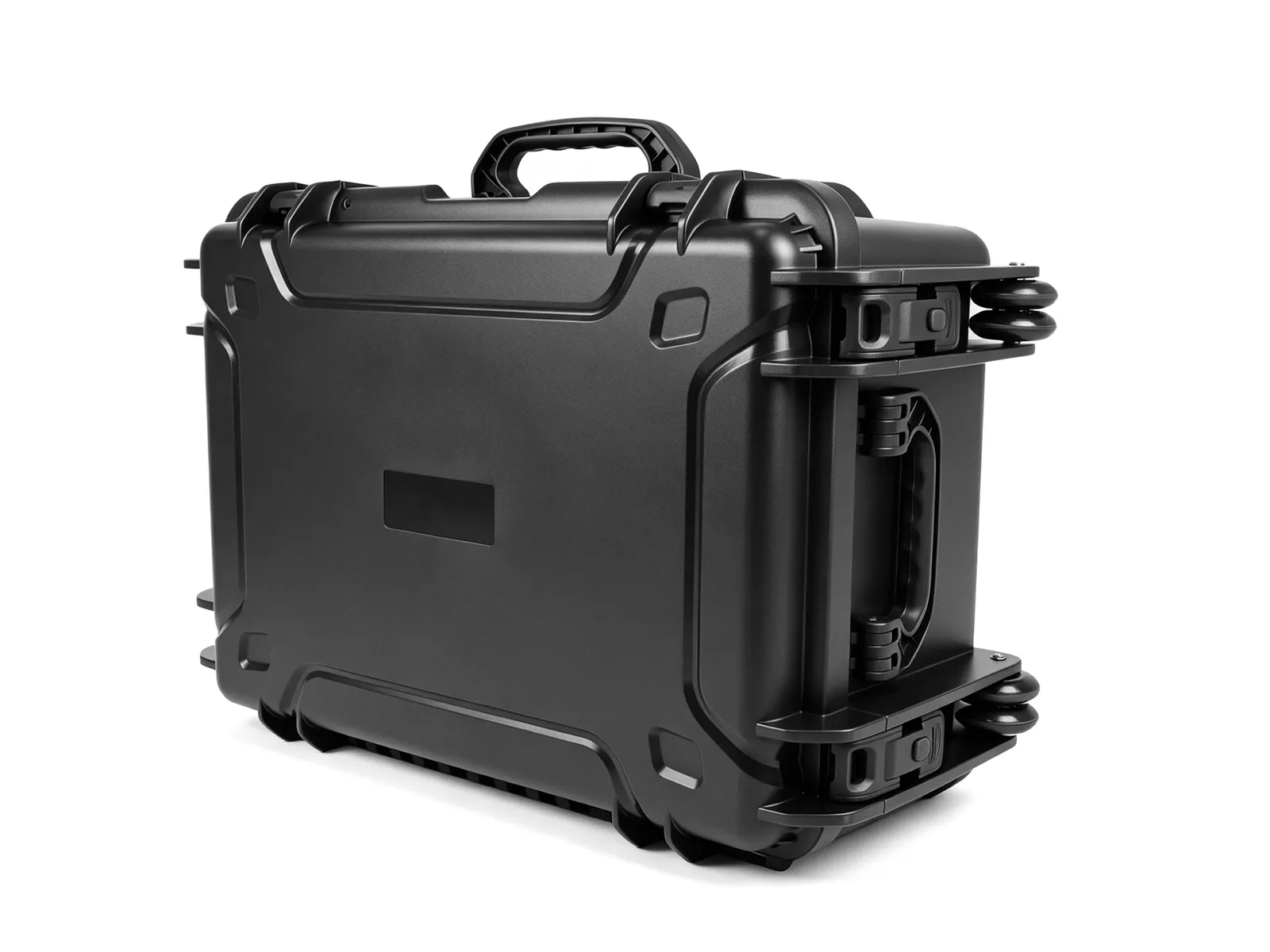

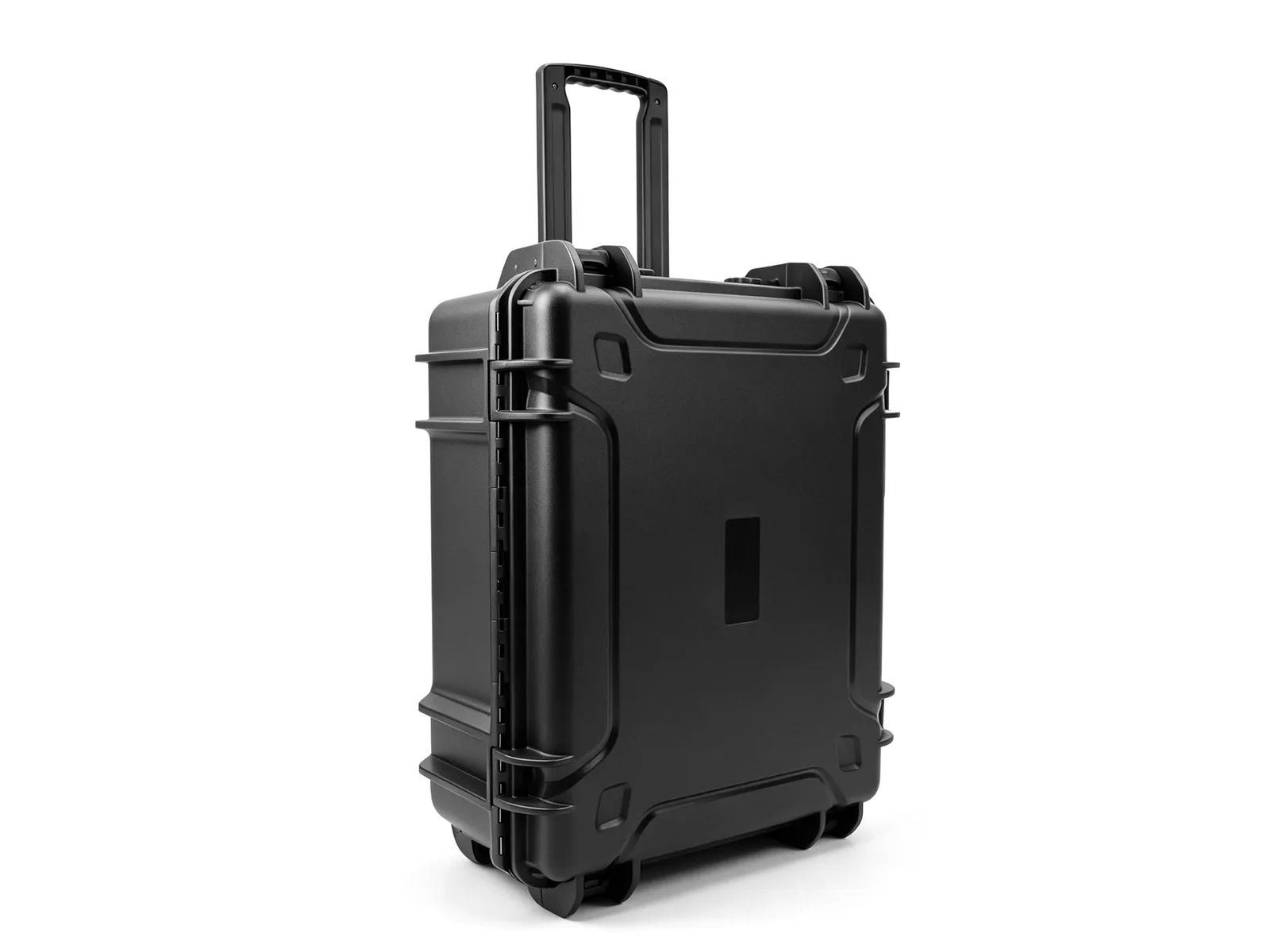

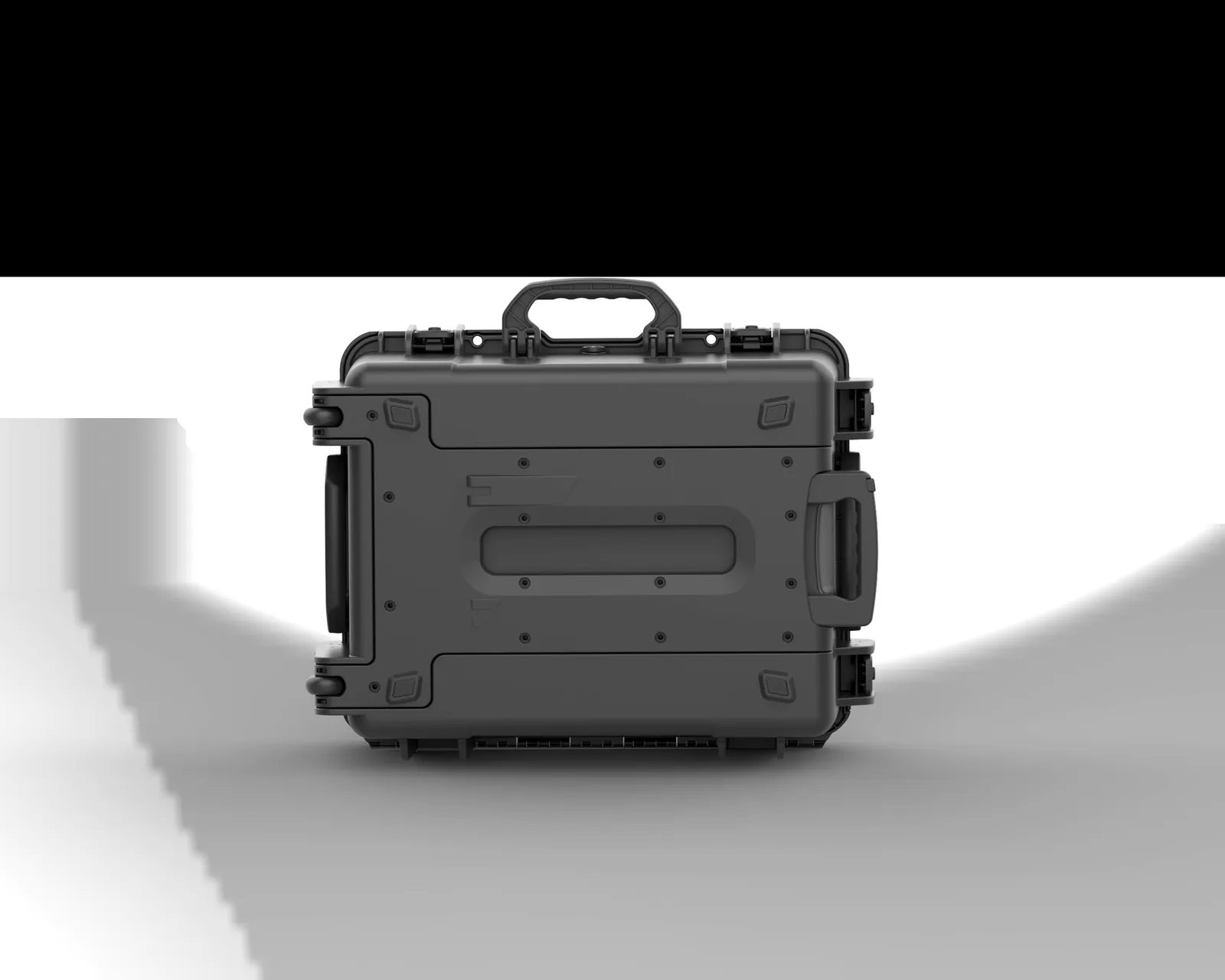

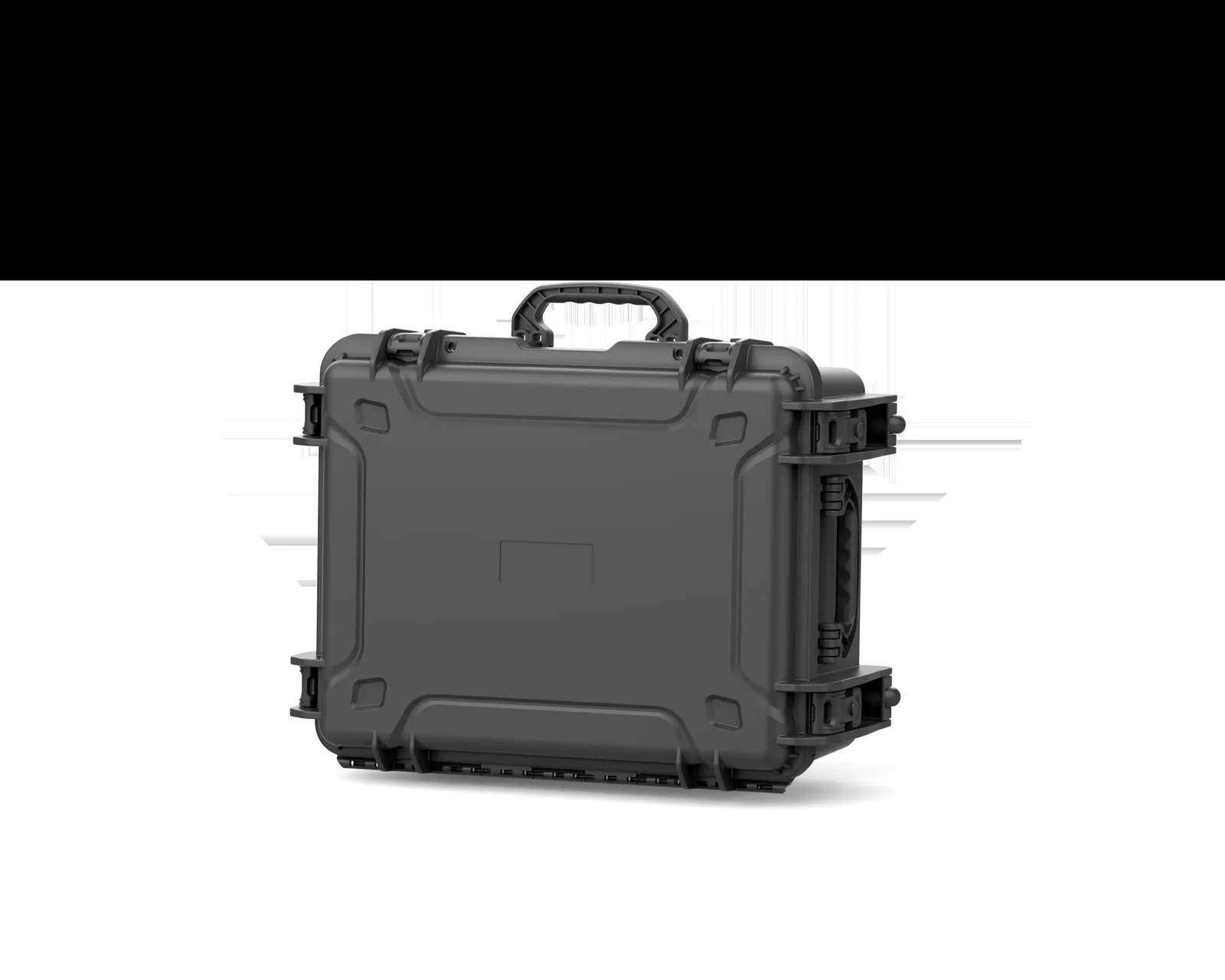

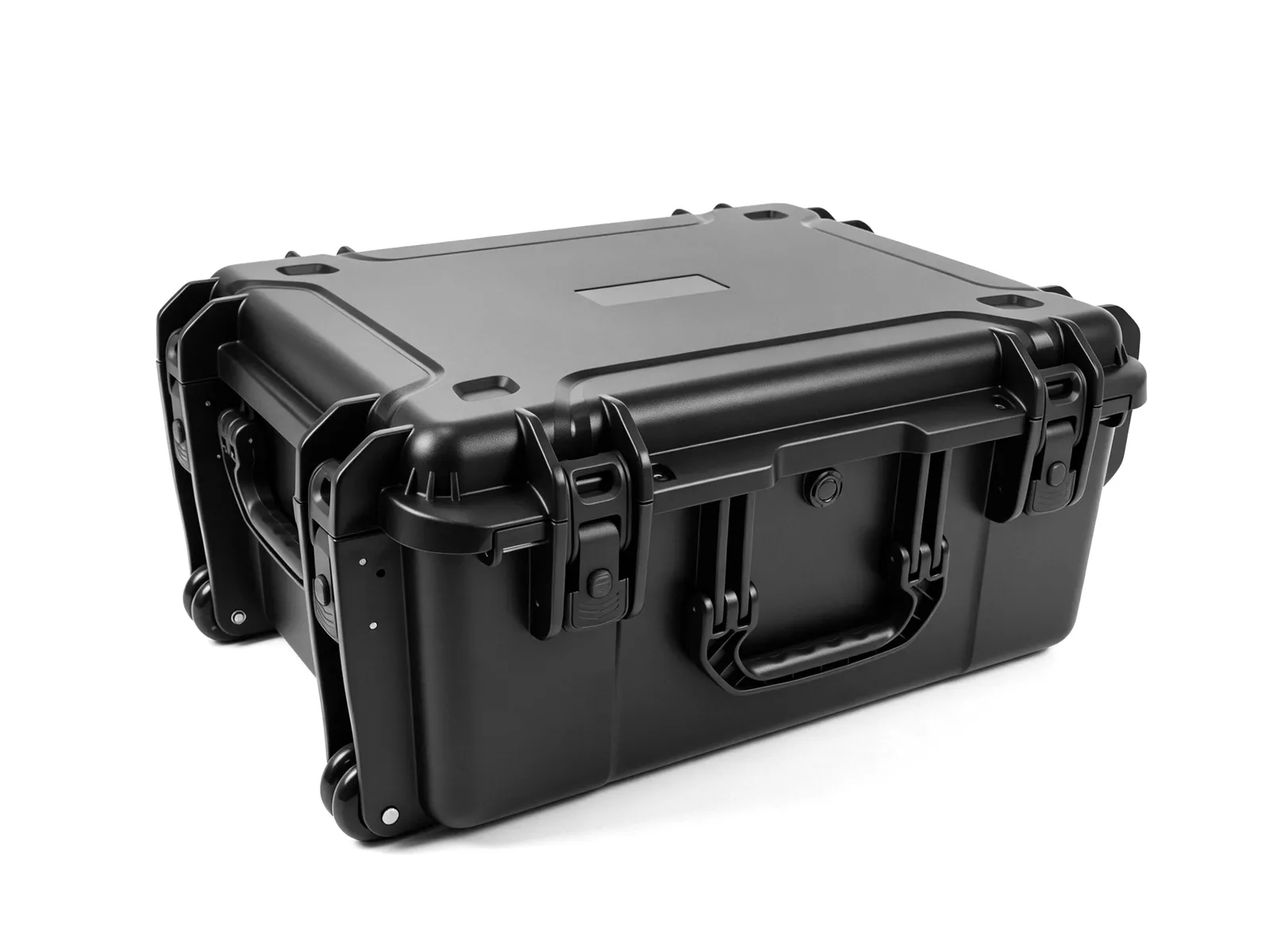

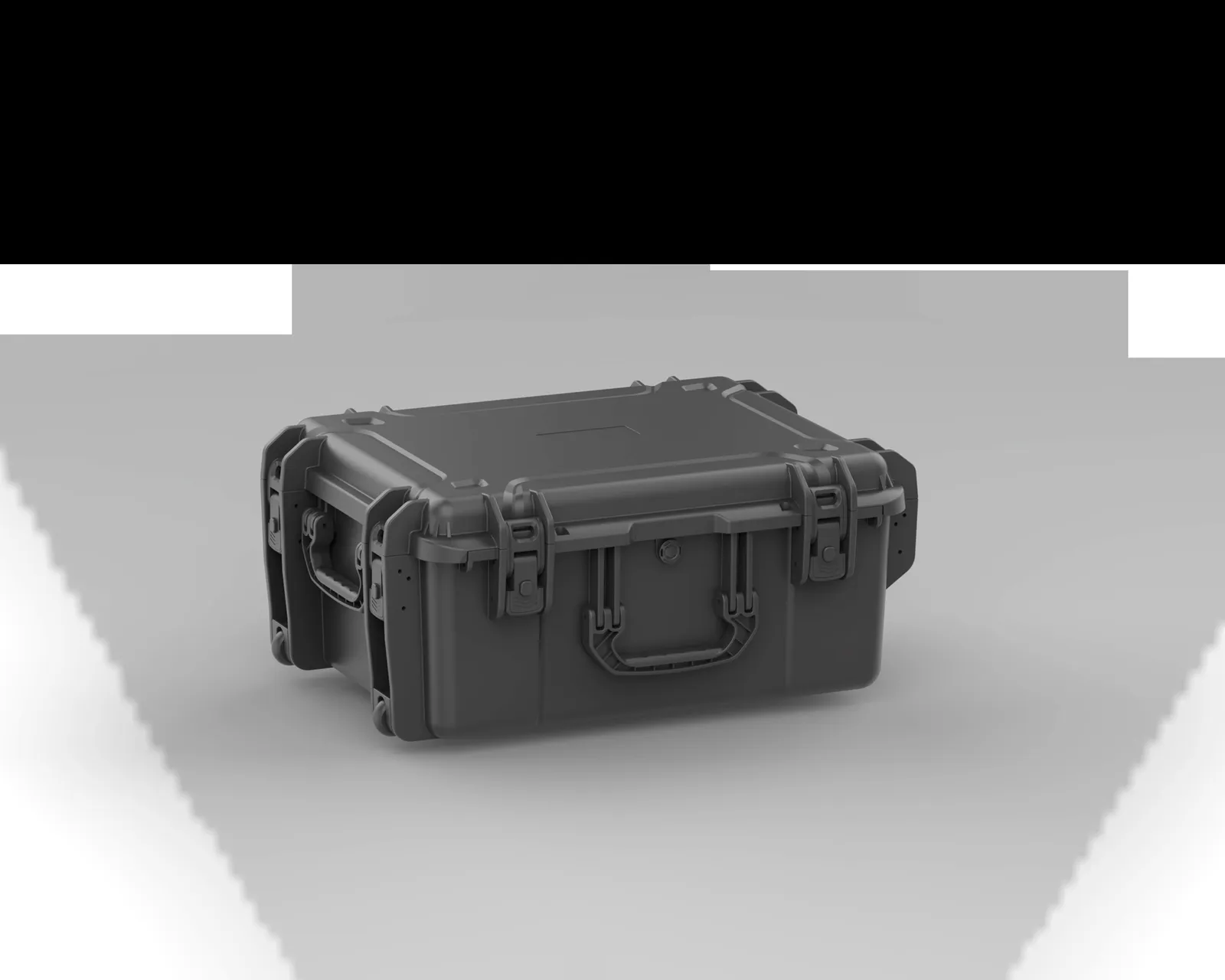

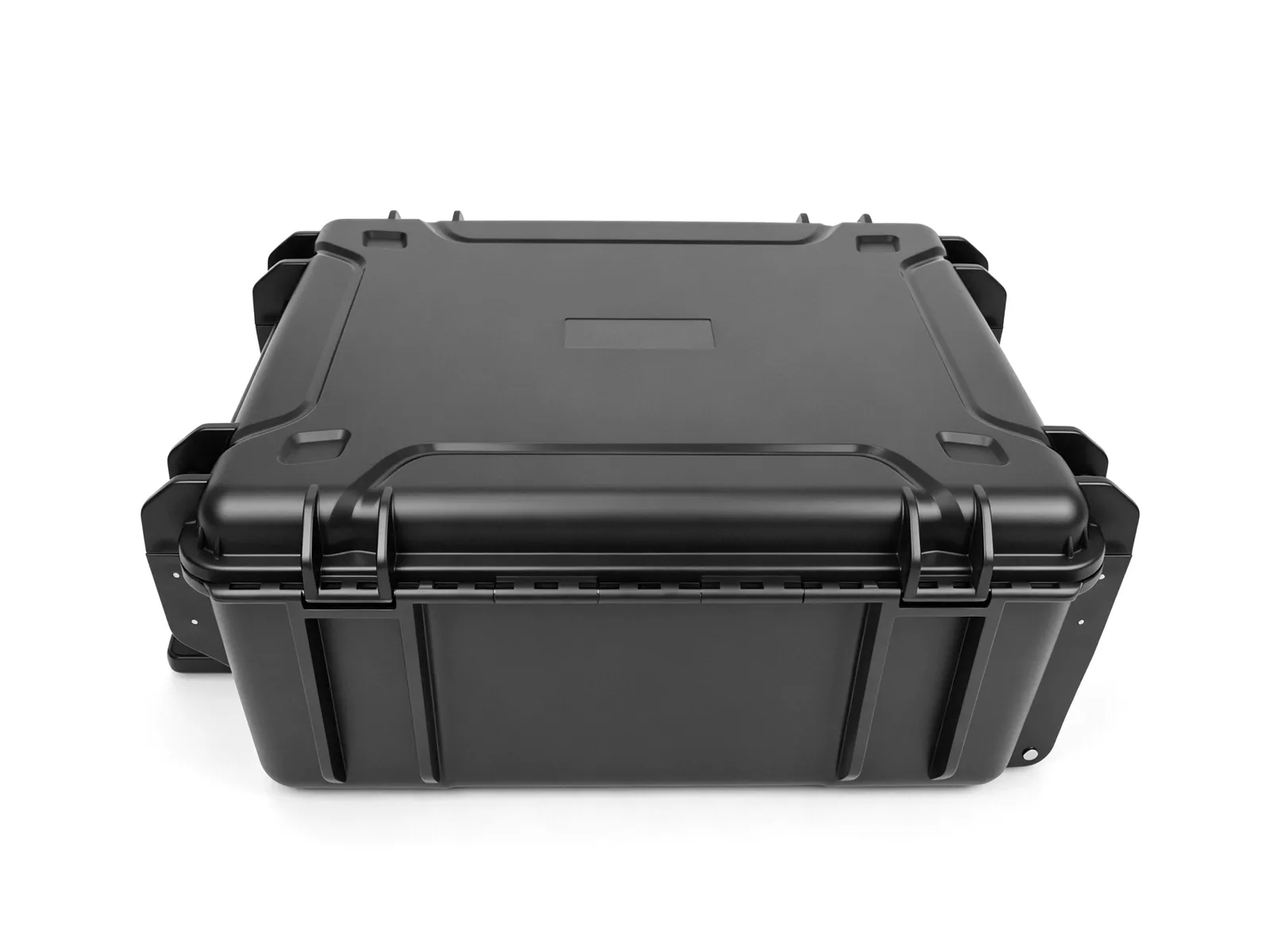

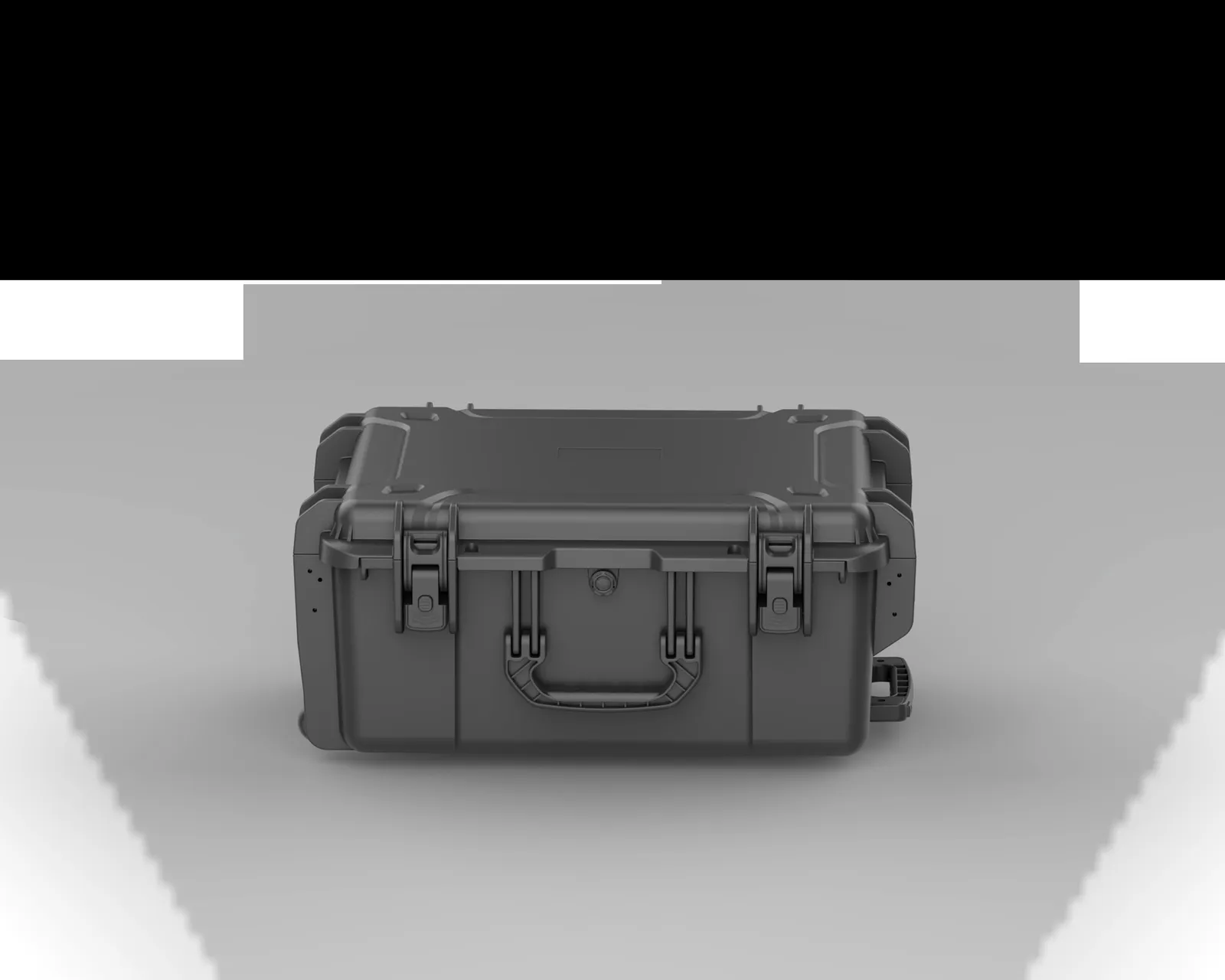

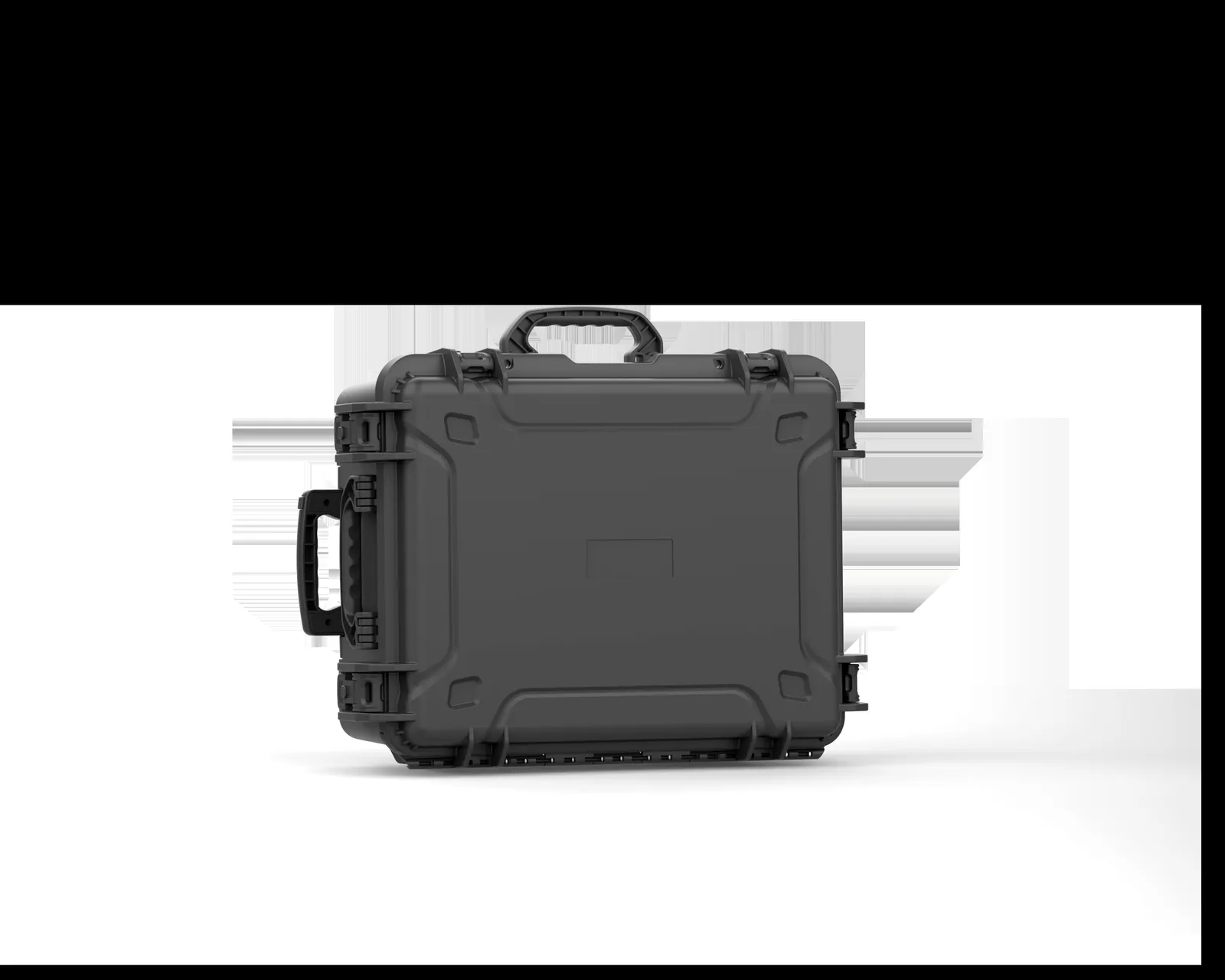

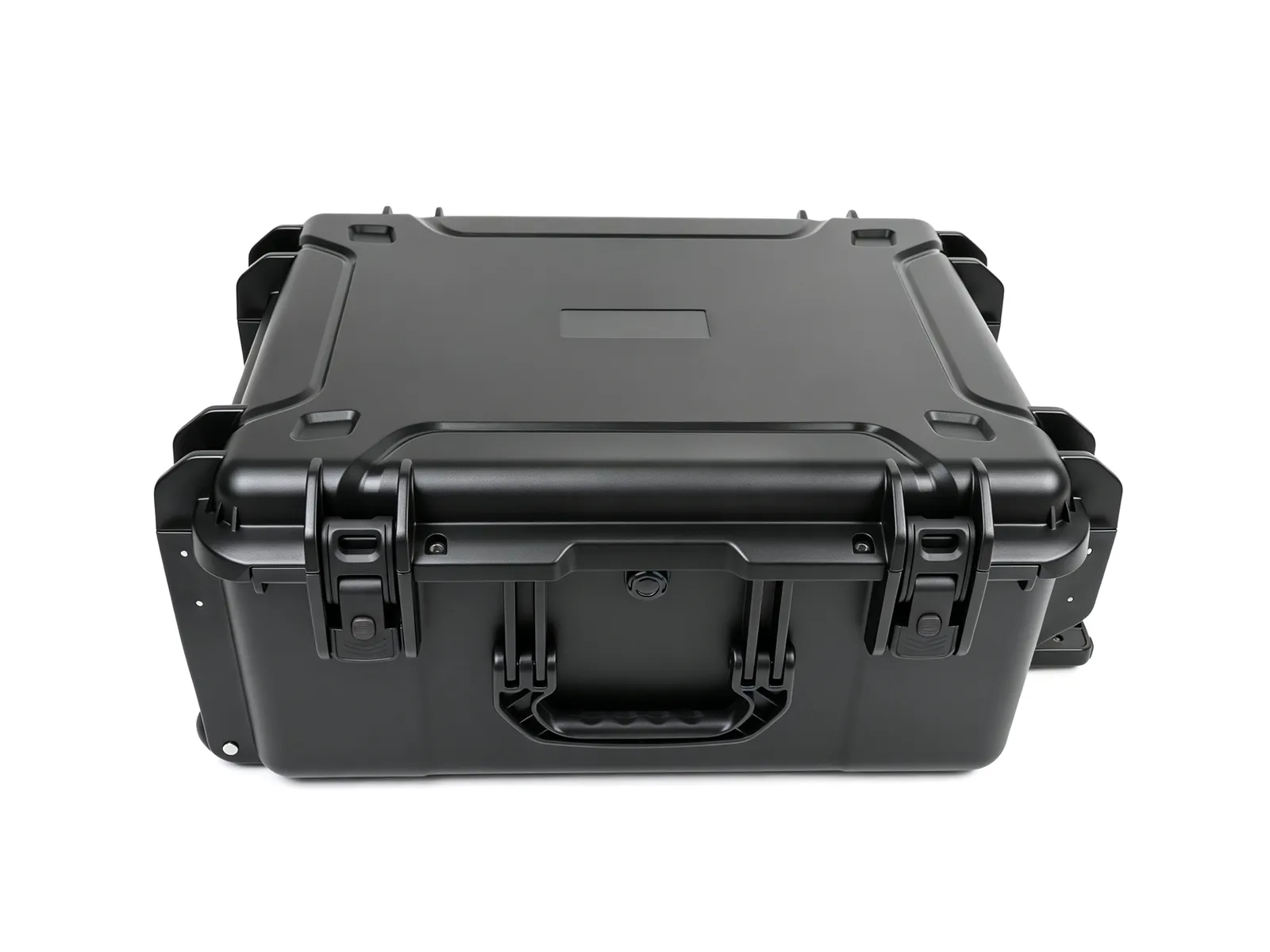

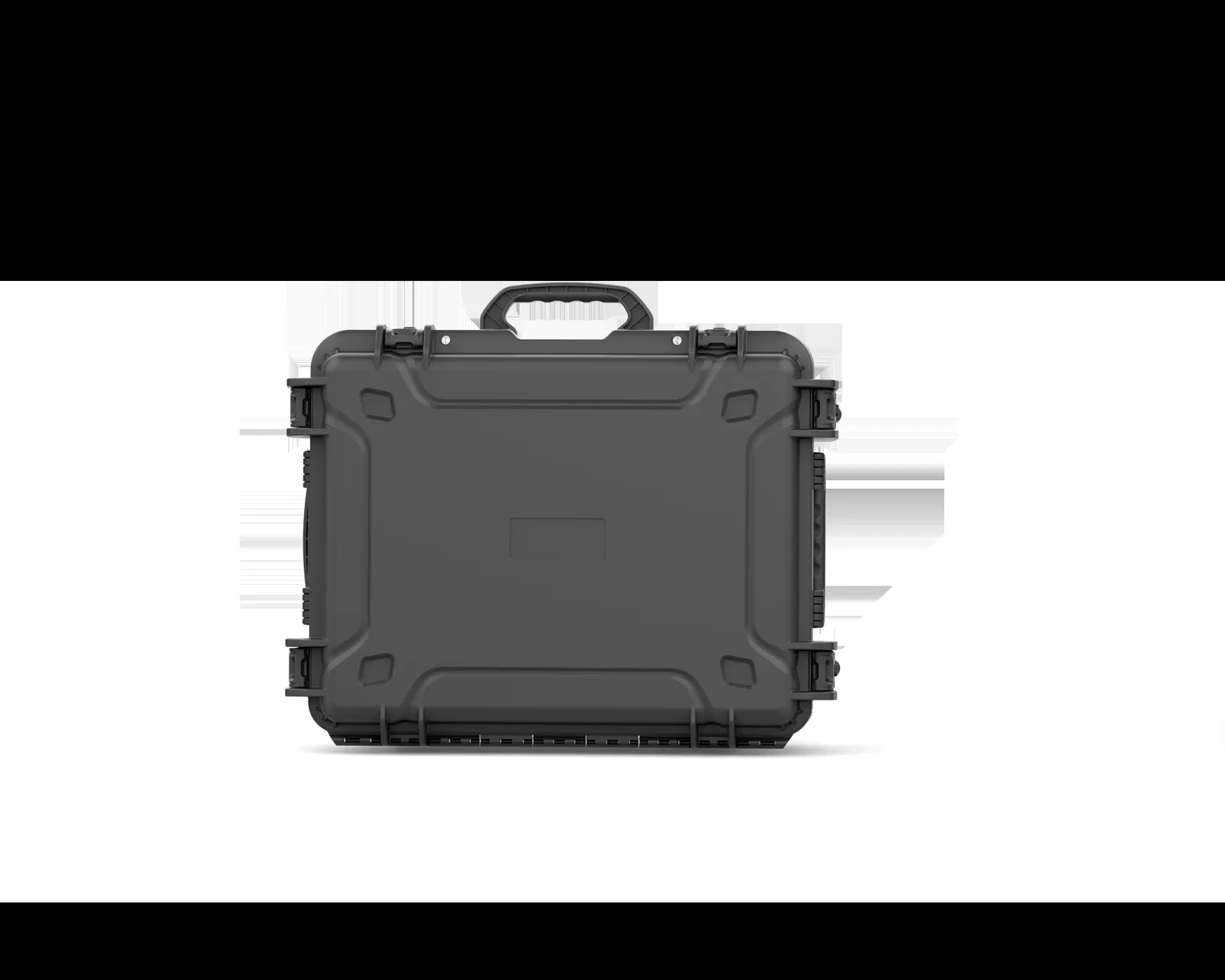

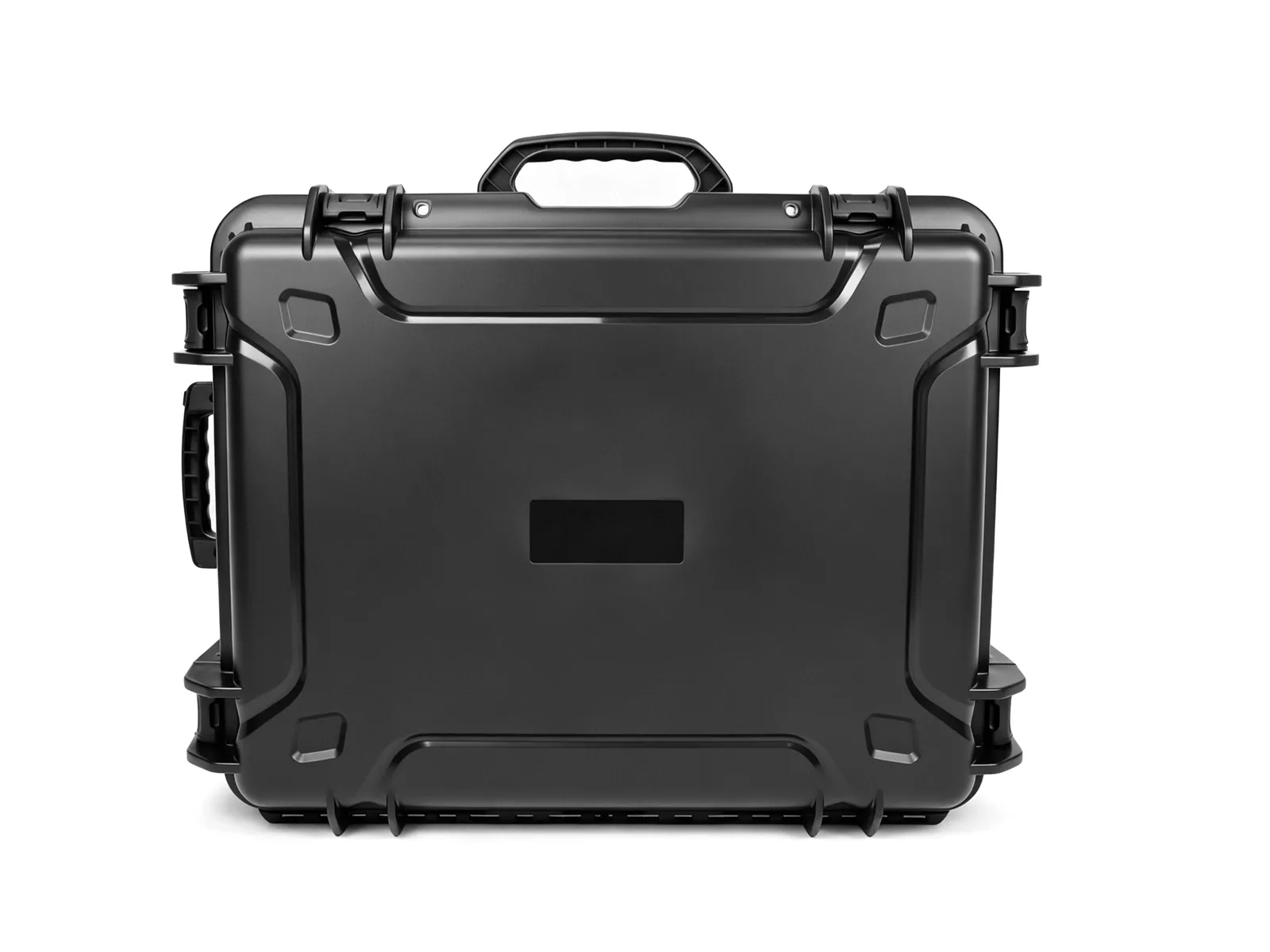

WL8-6830 PP Wheeled Protective Case

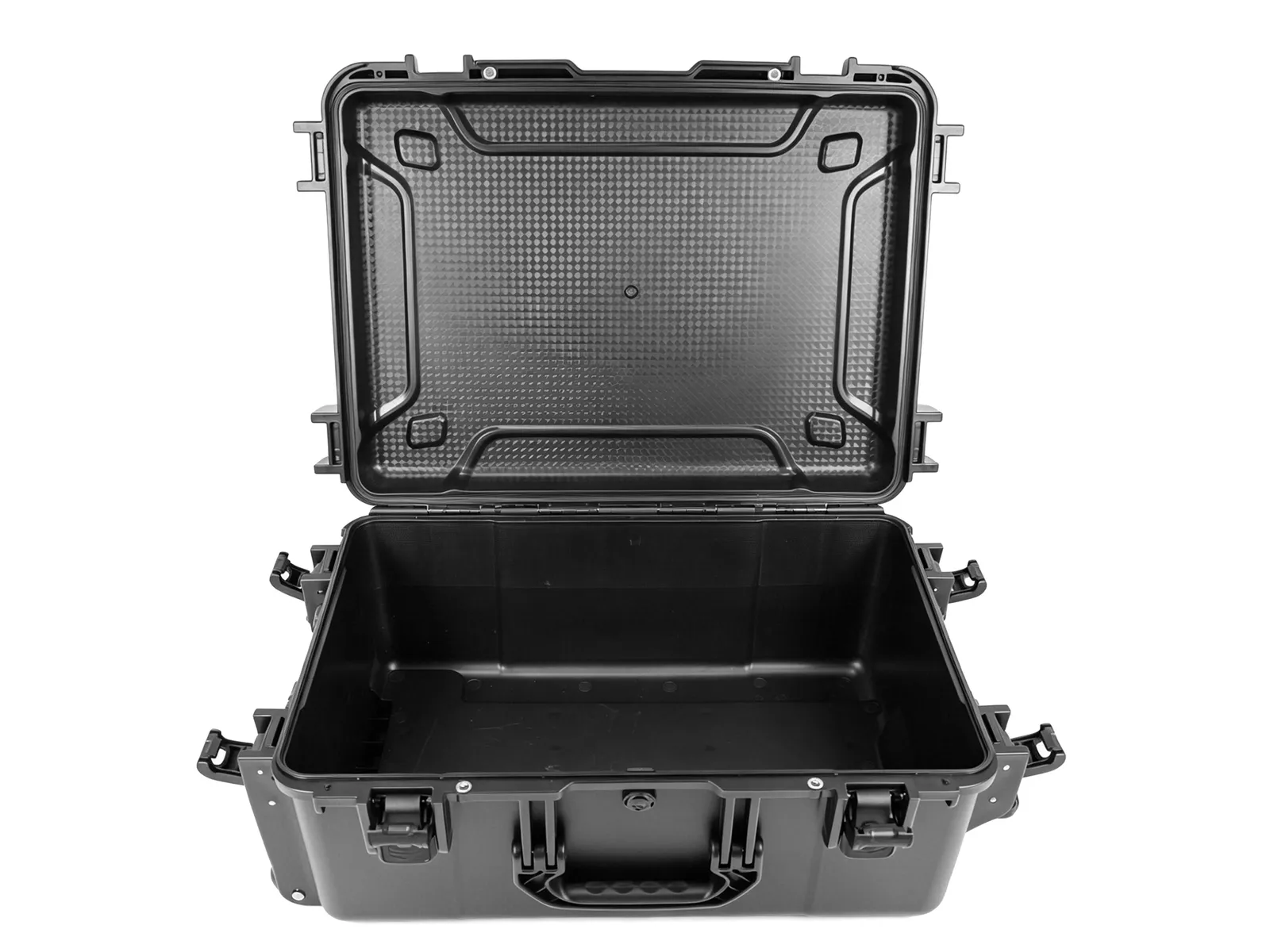

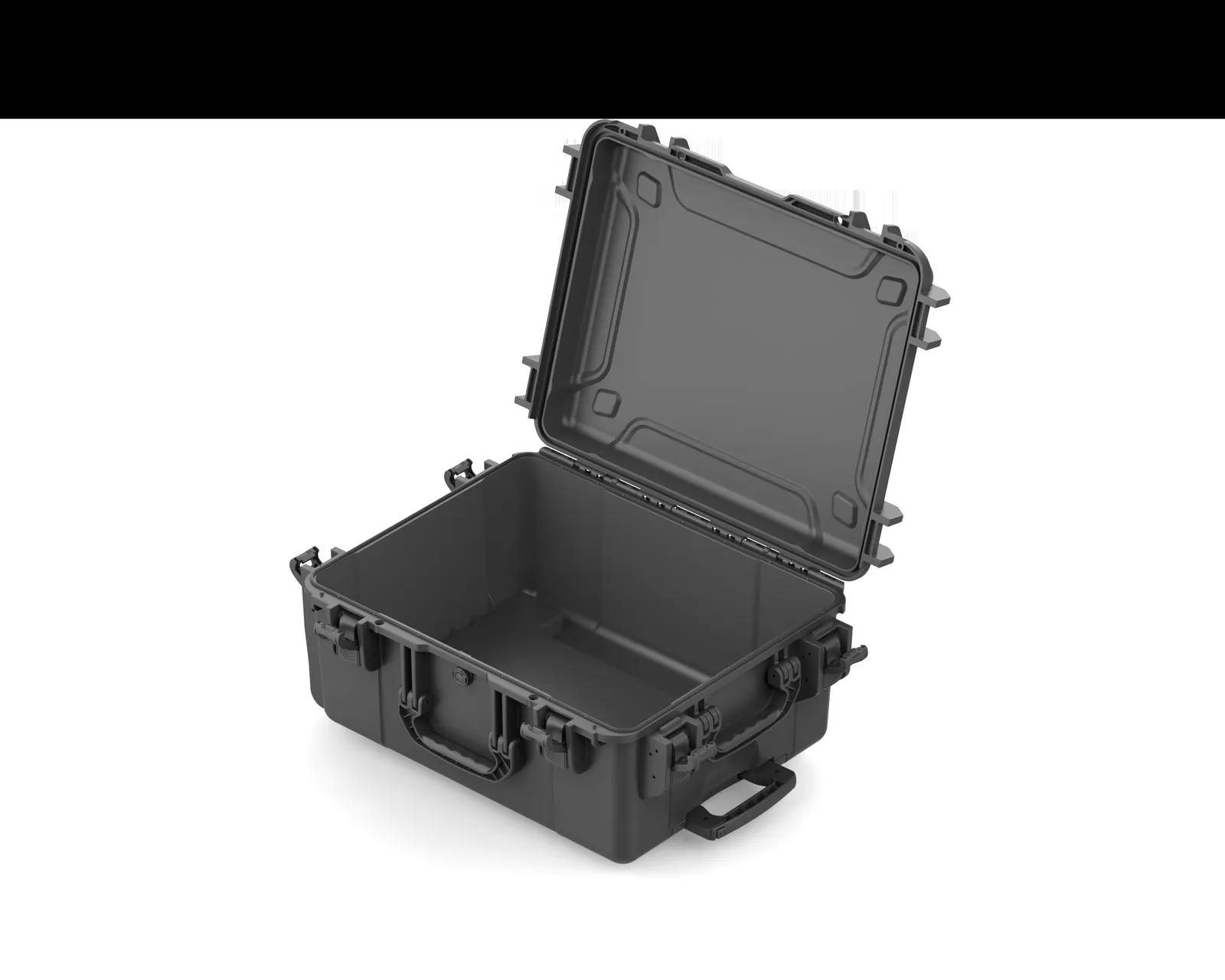

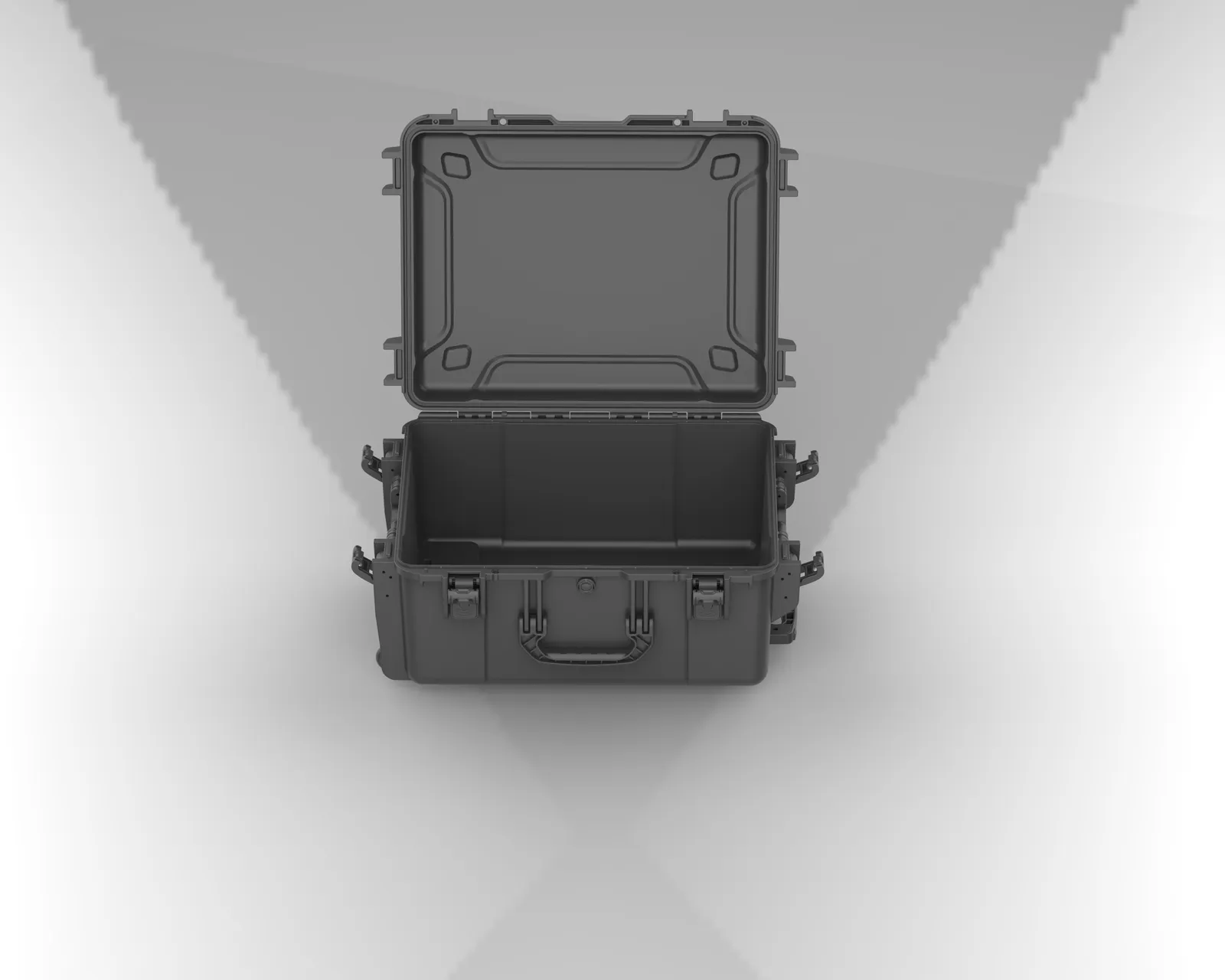

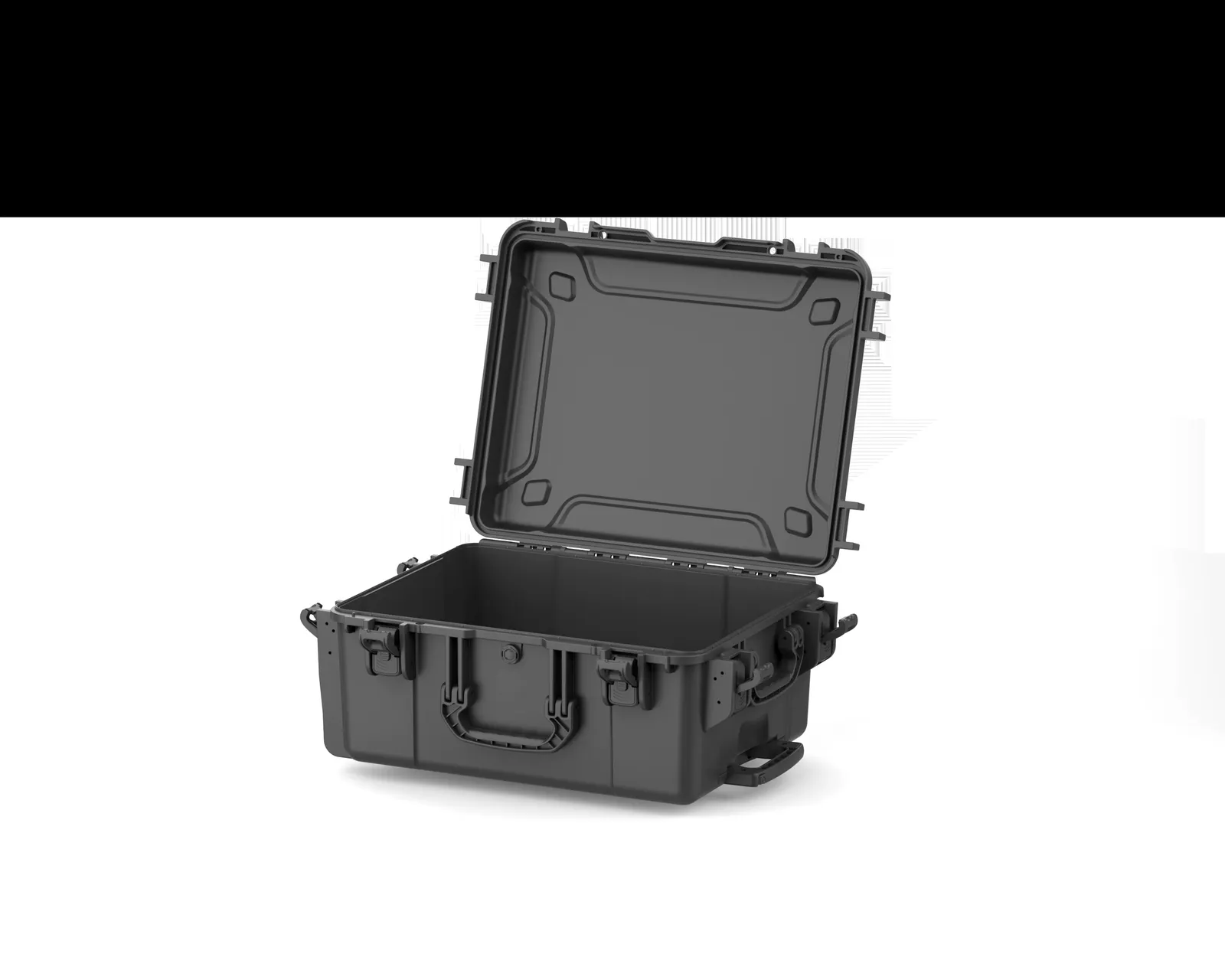

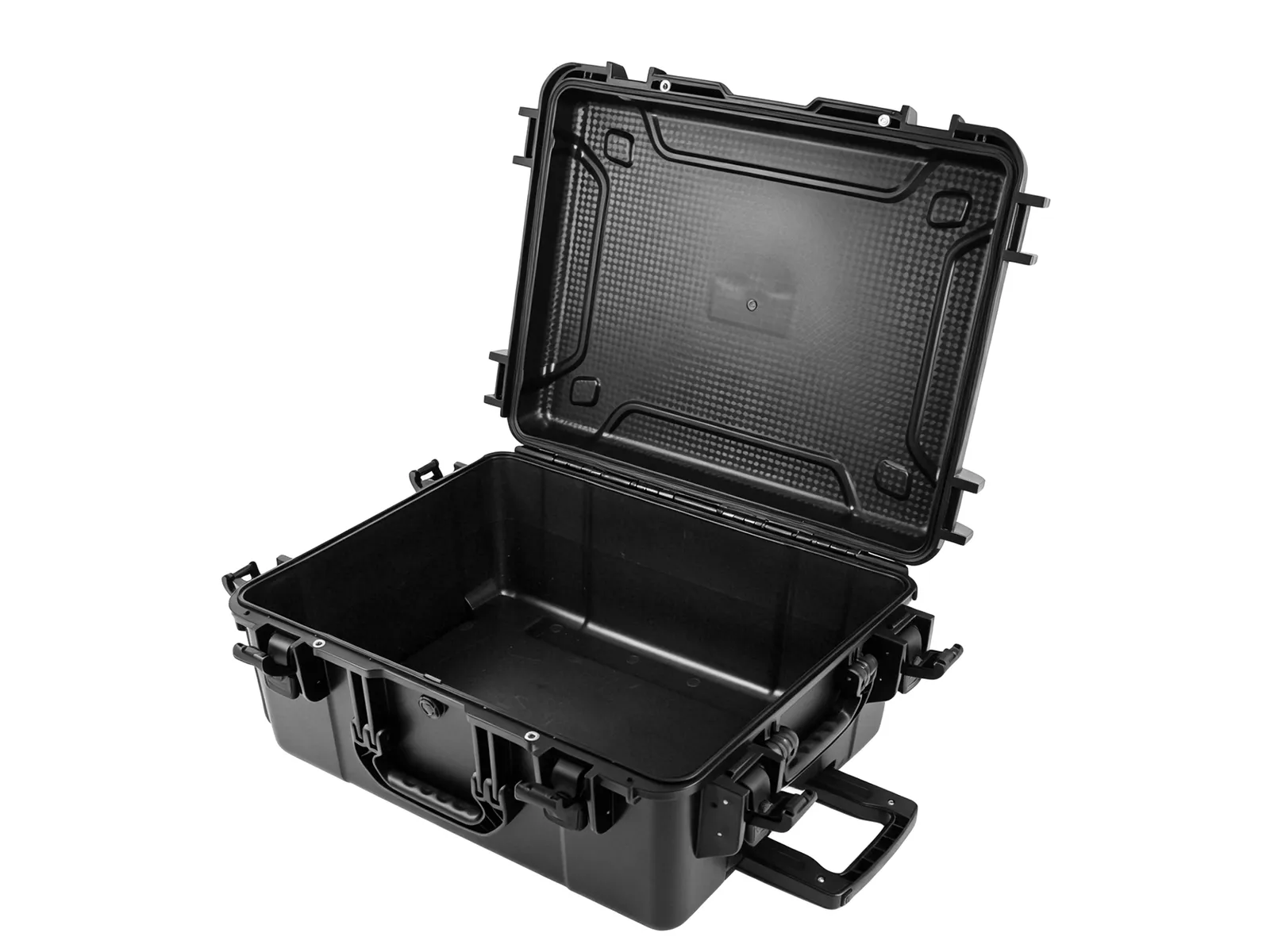

The broad 595 by 460 mm floor holds several instruments at once together with complete power tool sets and larger medical or test equipment, leaving the corners for cables and accessories. The 255 mm depth leaves pad clearance above most items. Divide the space with pocketed foam, keep heavy parts in the middle towards the wheel end and put light parts and accessories at the edges.

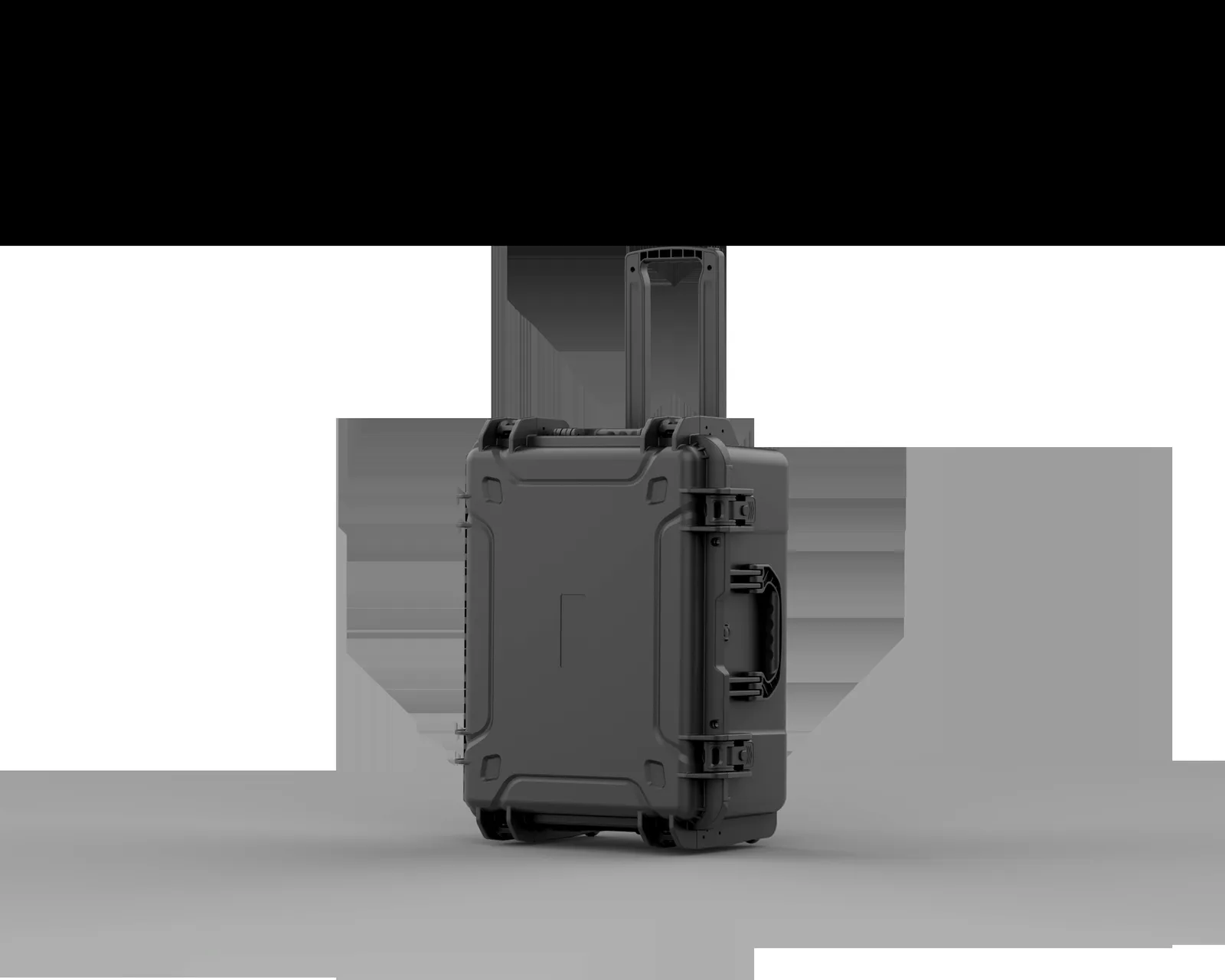

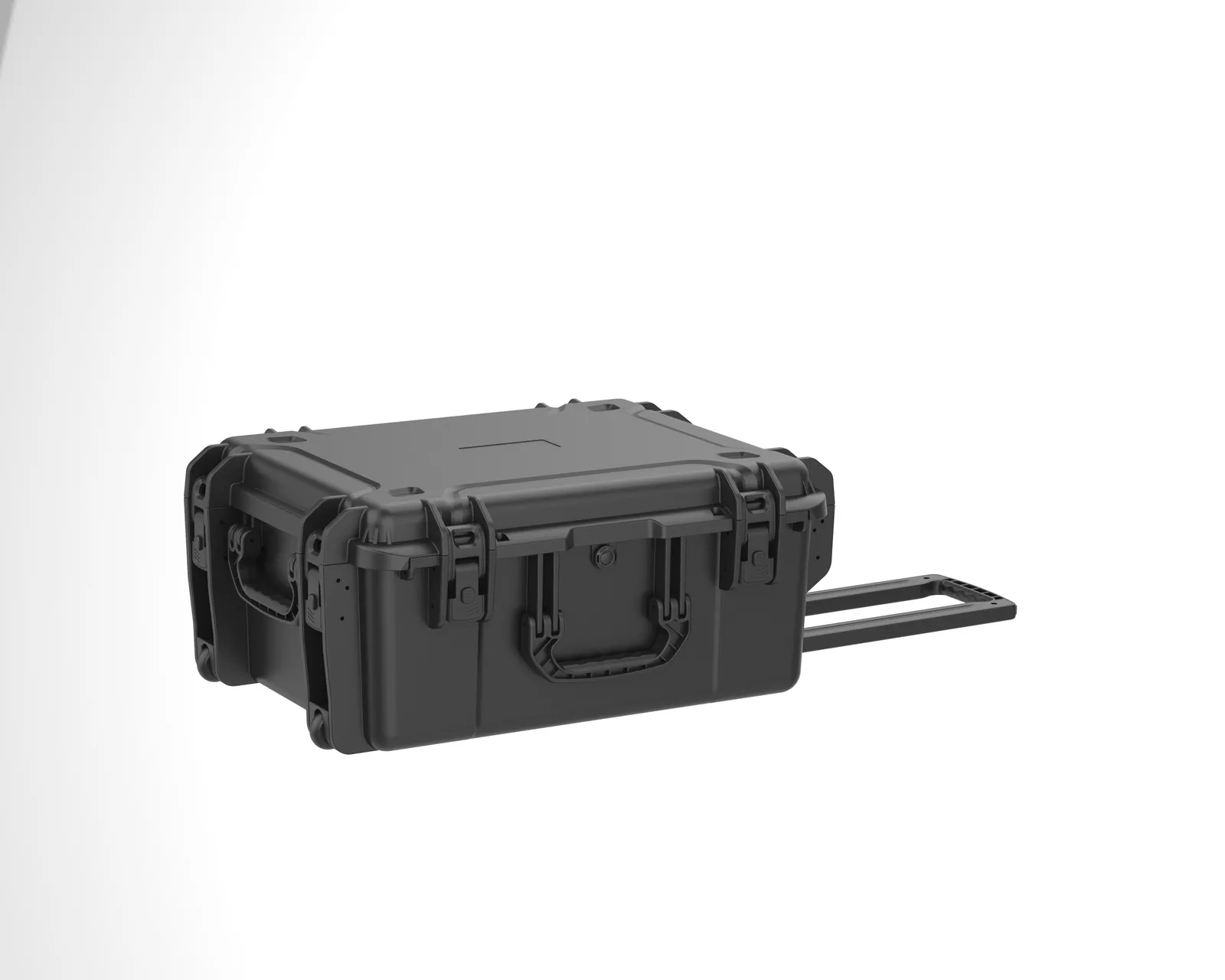

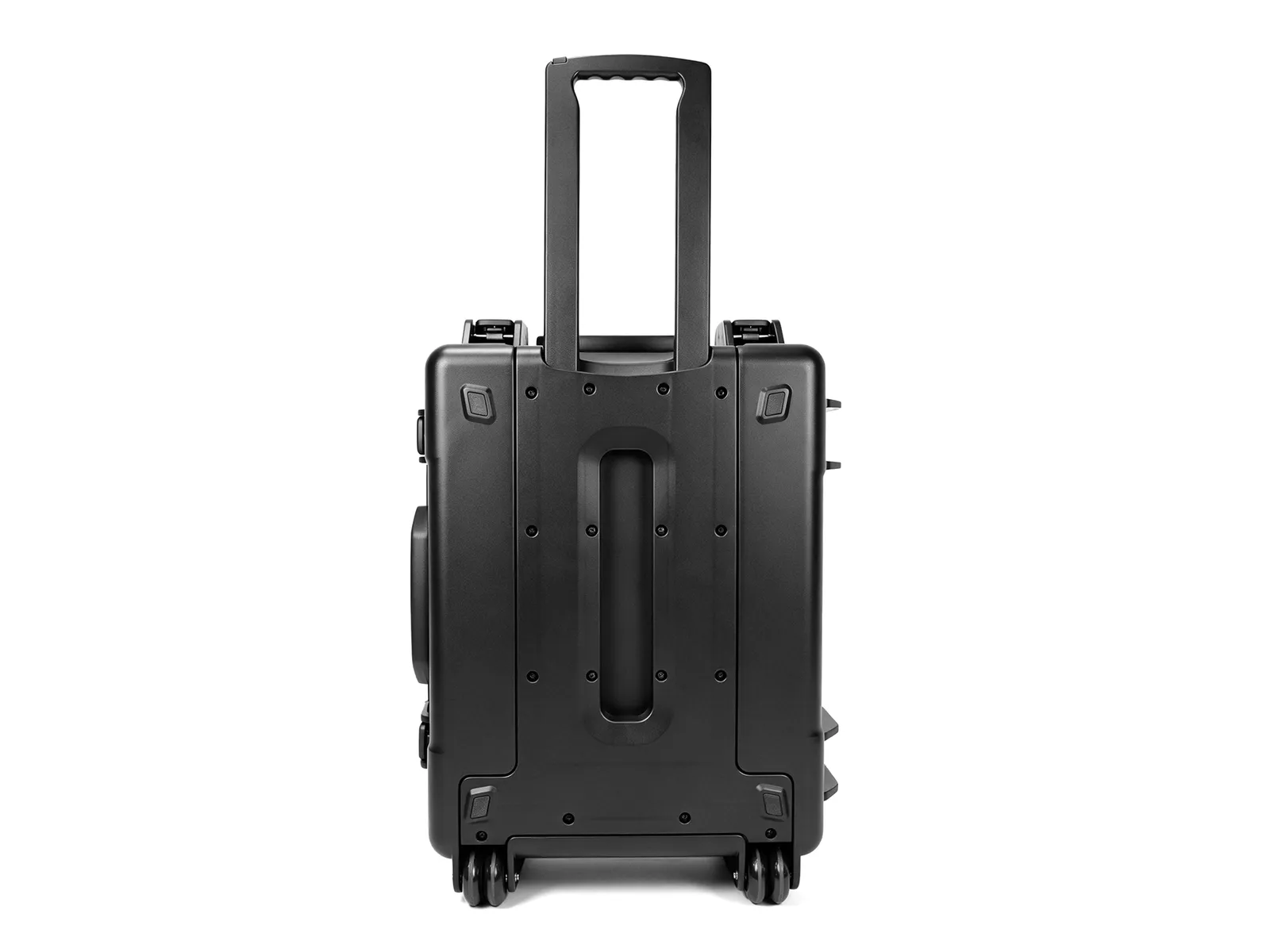

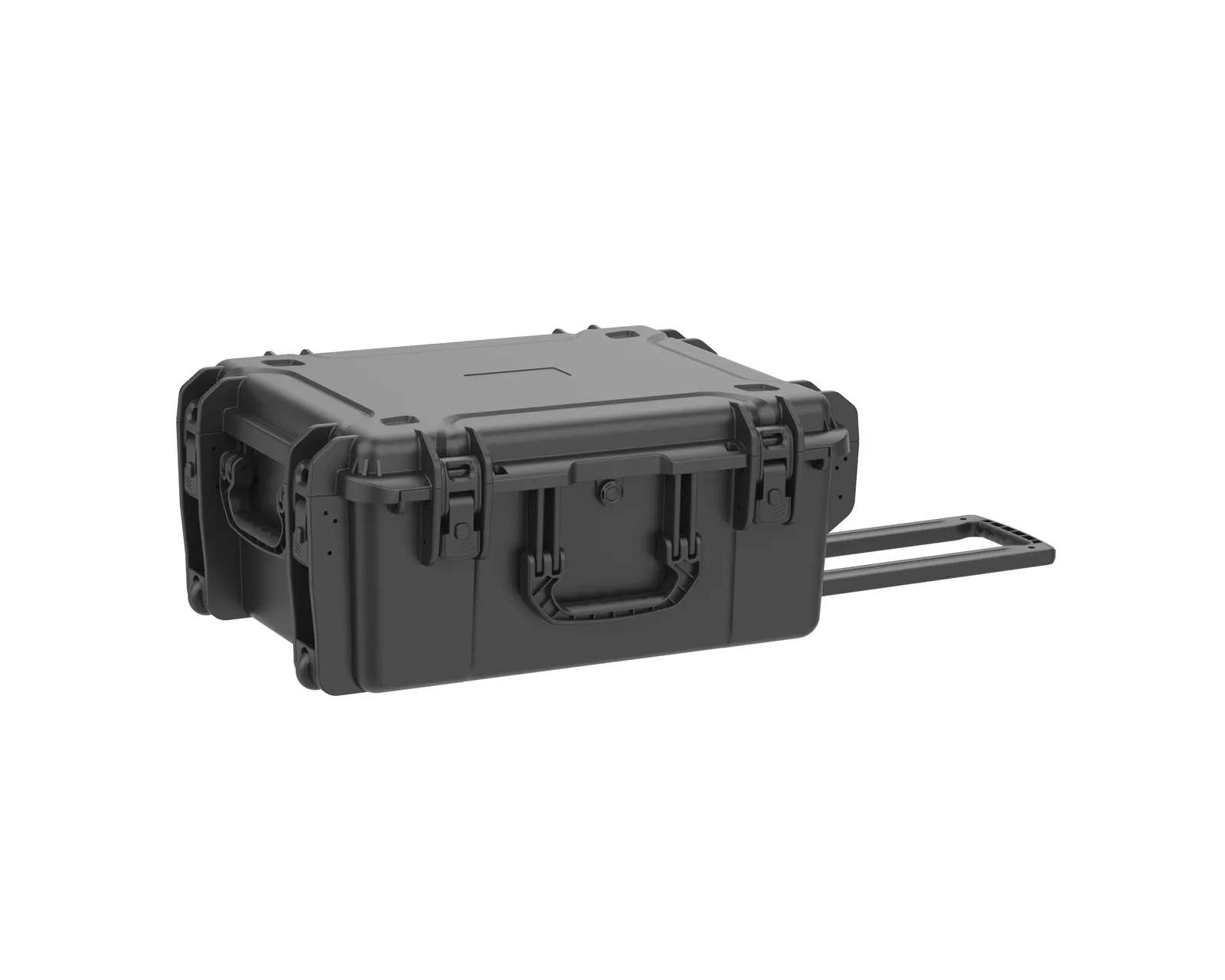

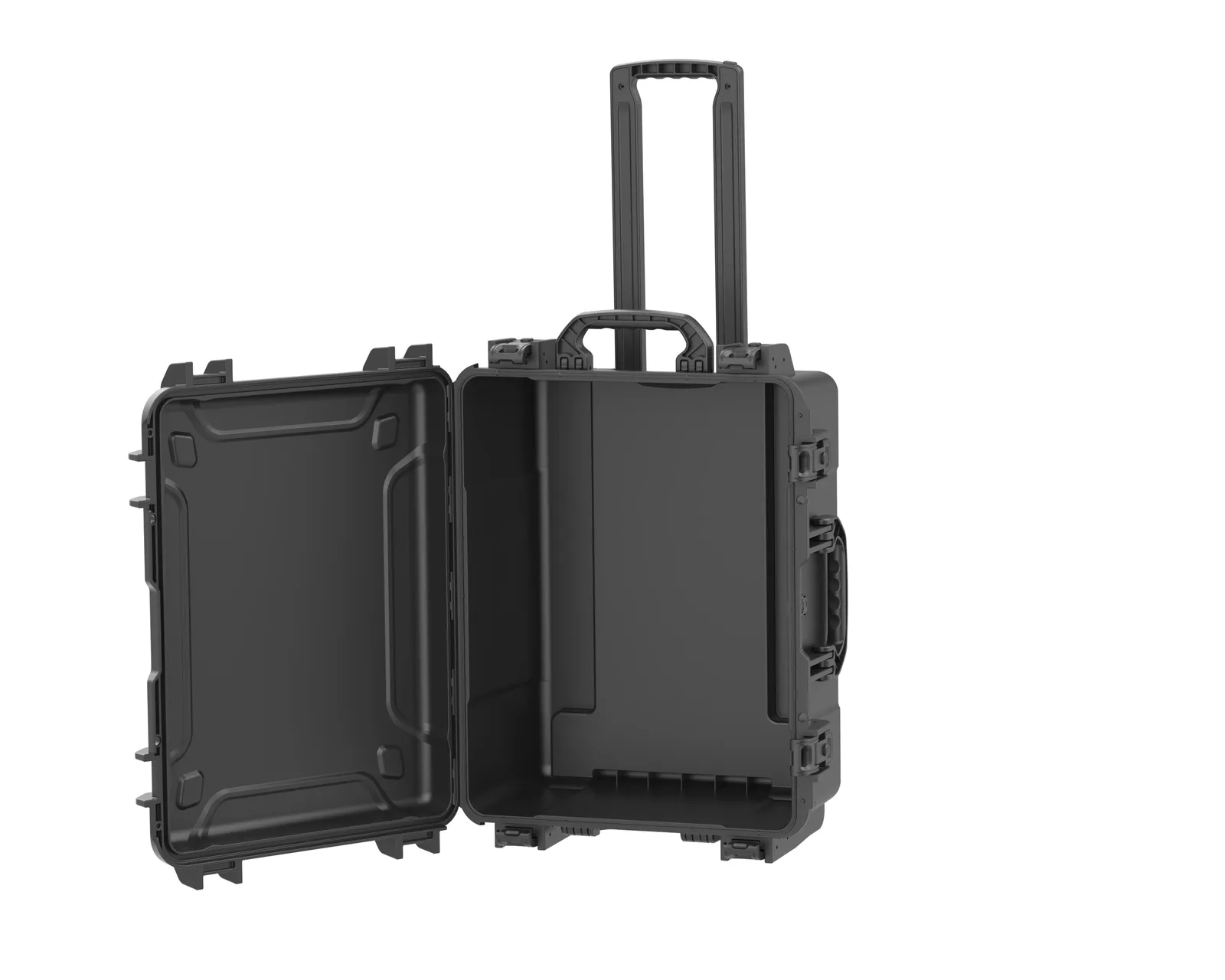

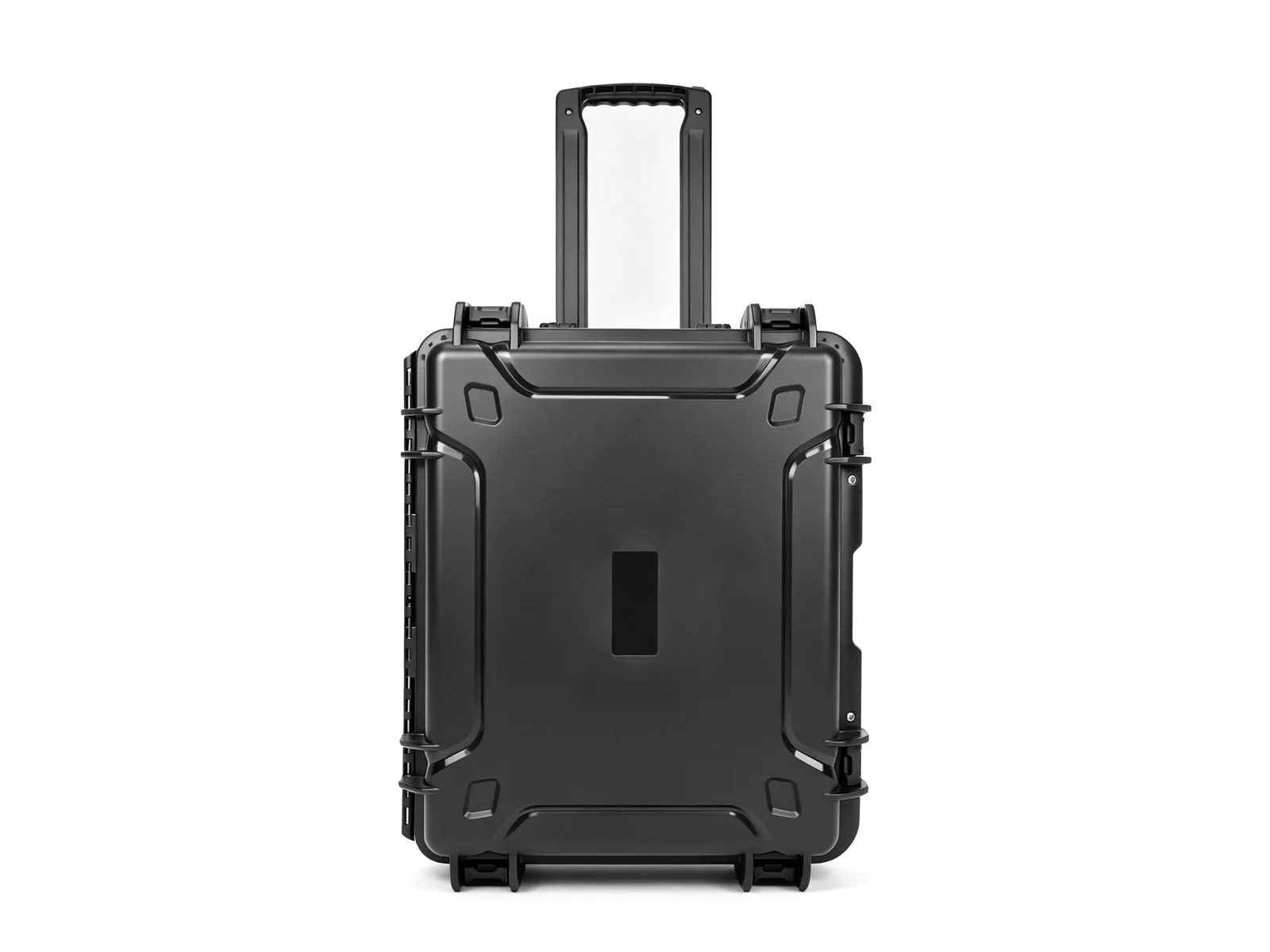

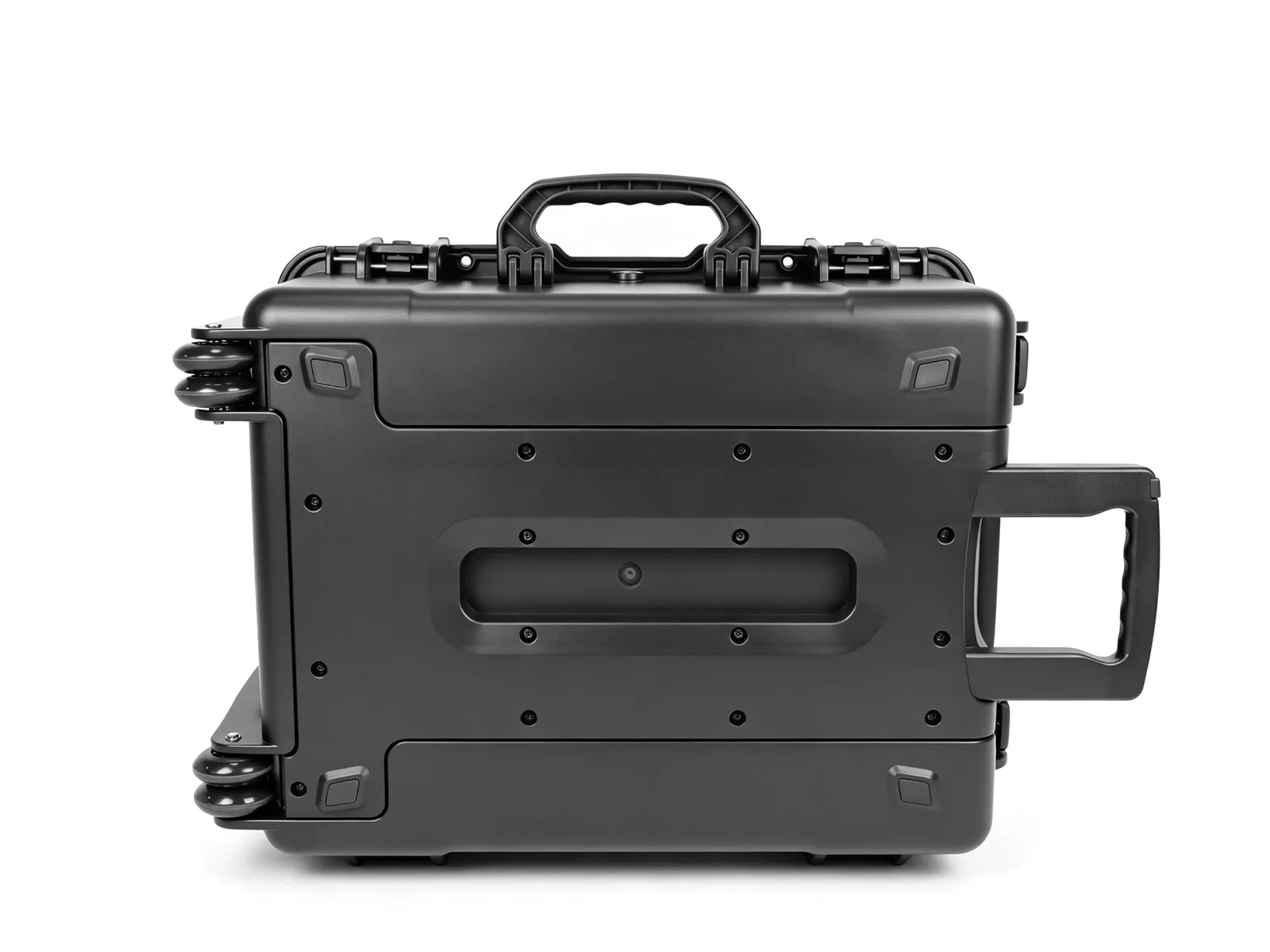

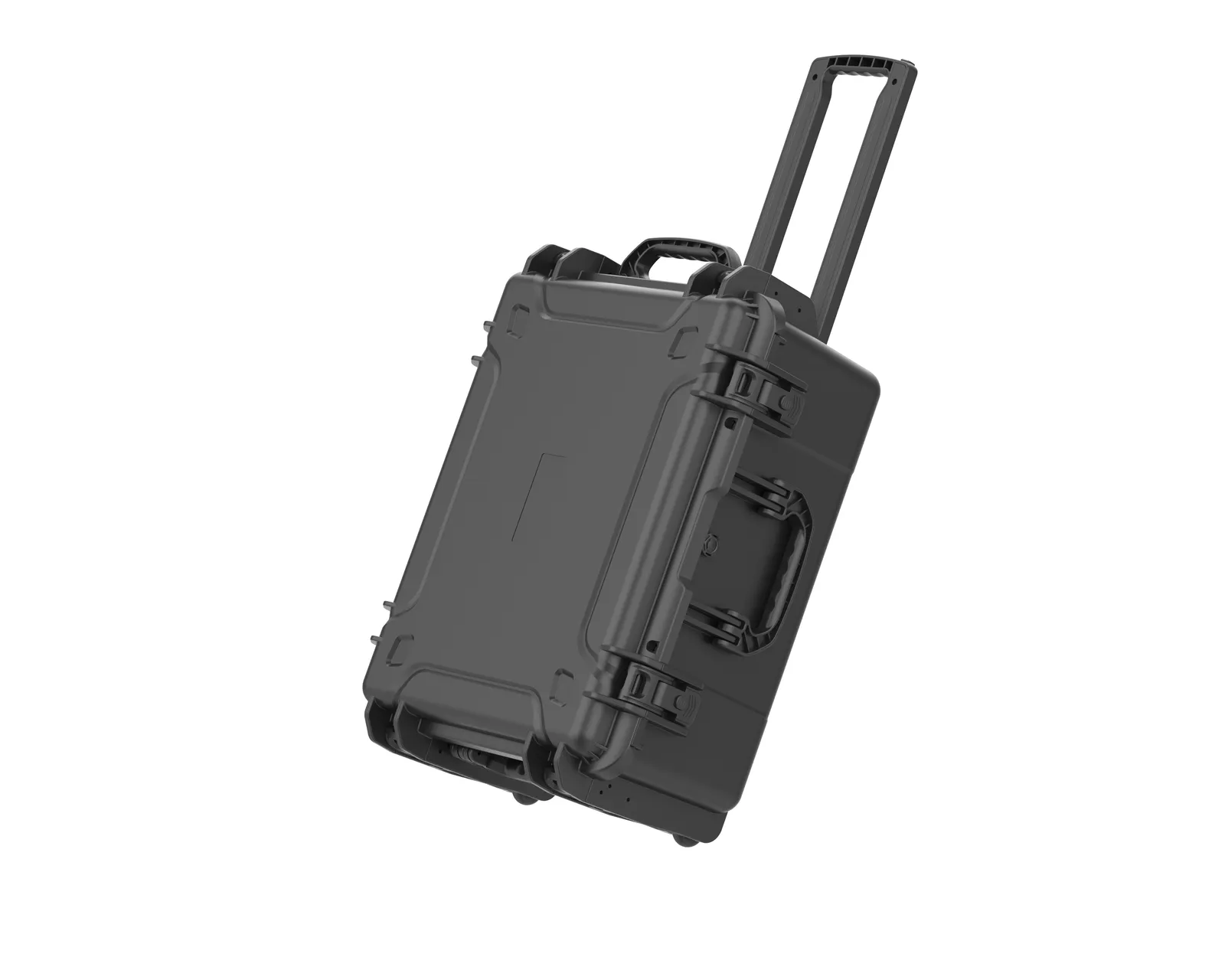

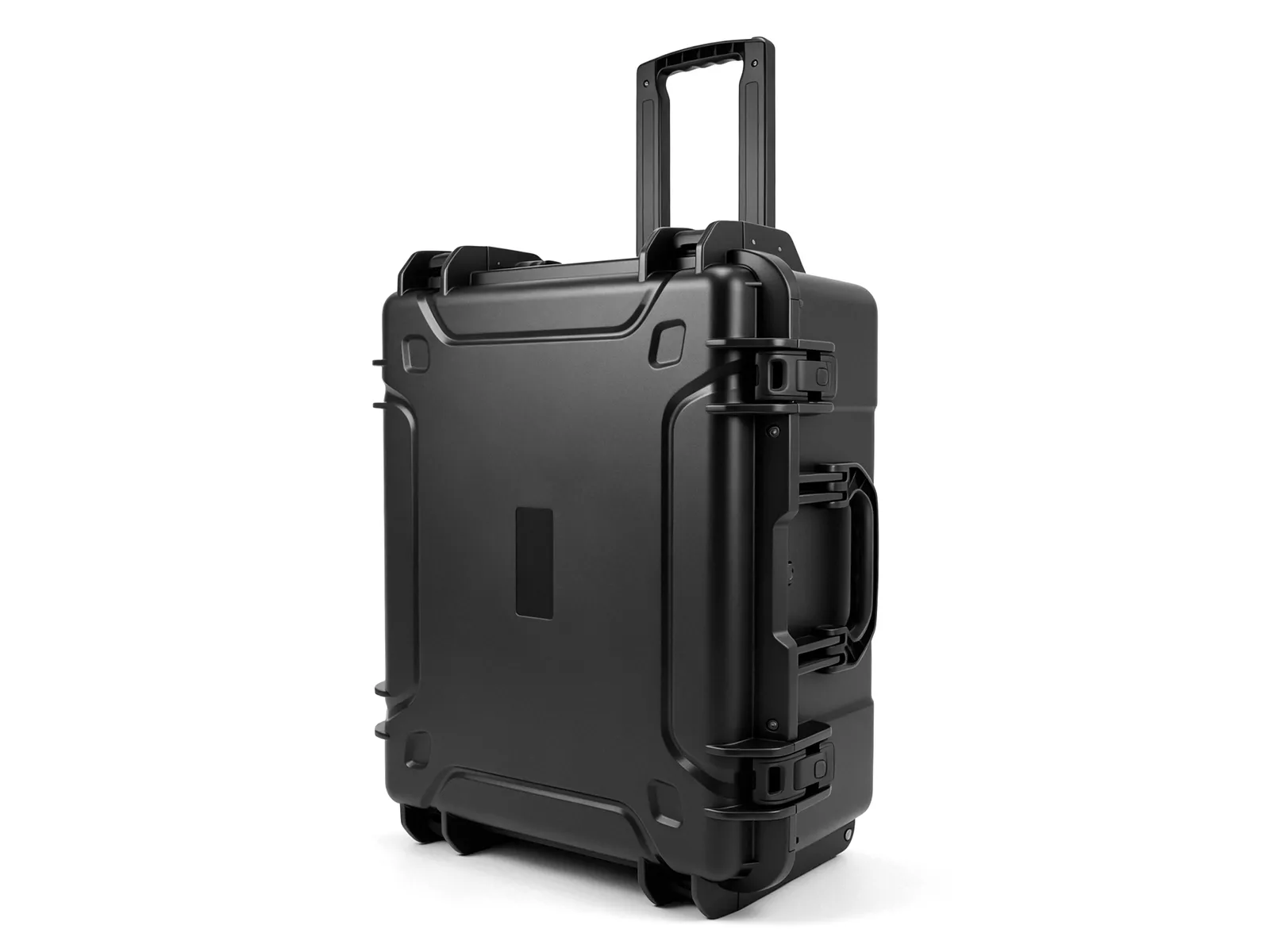

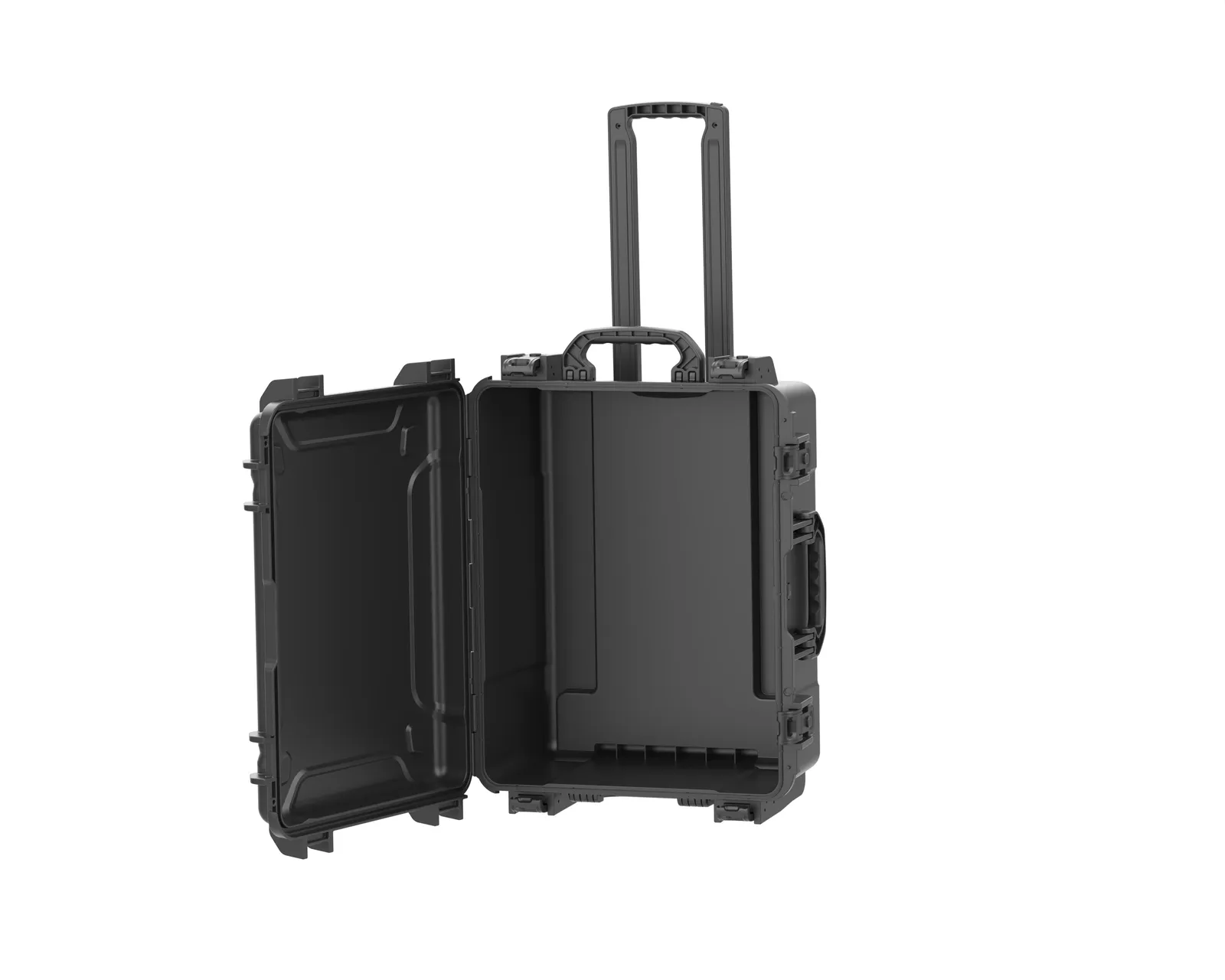

At 10160 g empty this is one of the heavier formats in the series, and a loaded case is noticeably heavier still. Roll it on the handle and wheels as much as possible; the 310 mm handle sits at a comfortable height. On stairs, when loading a vehicle and over steps or trenches, always lift with two people and avoid pulling from one side.

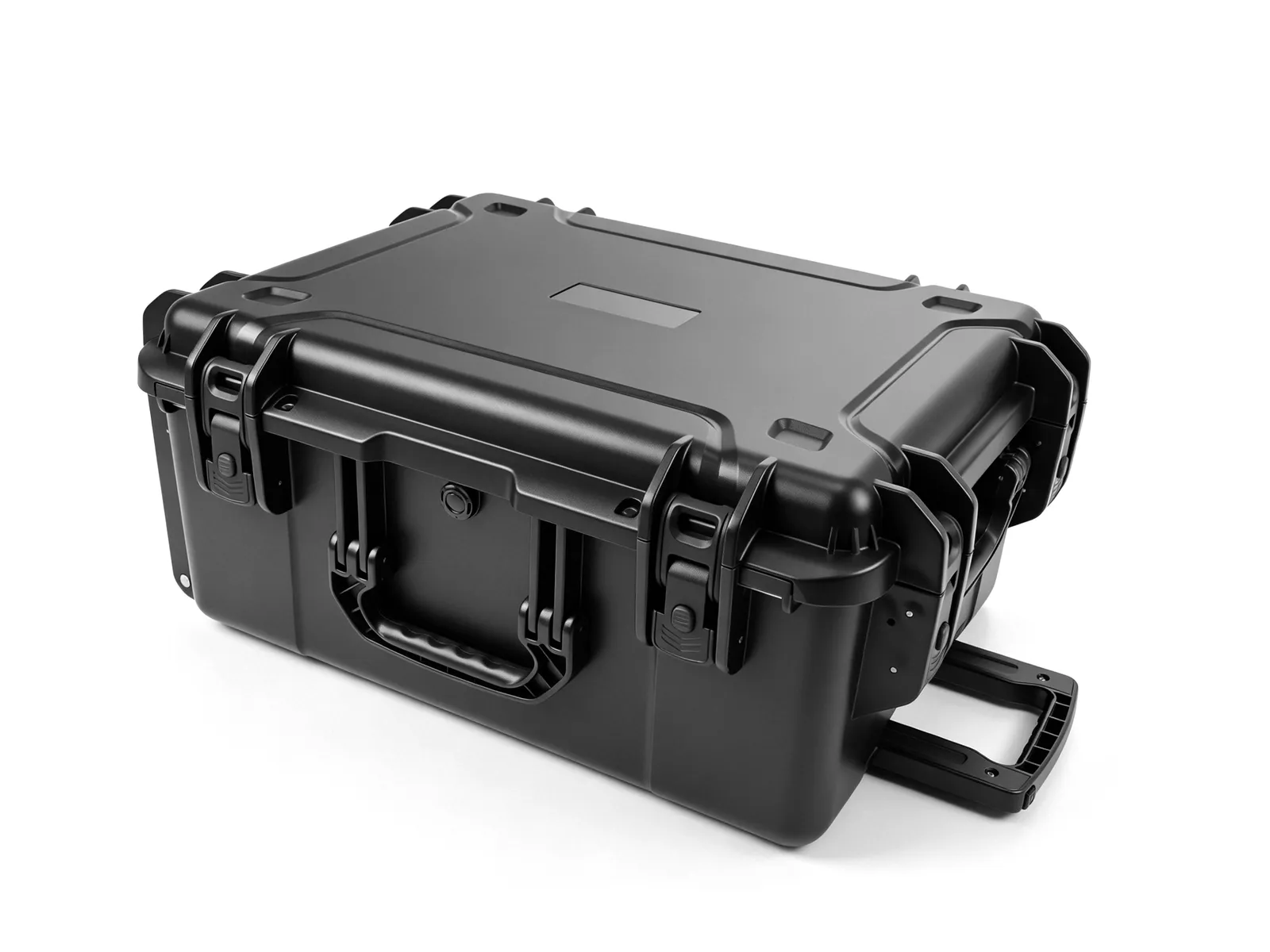

The polypropylene shell is injection moulded with a sealing structure and the closed case is rated IP67 for water and dust protection, covering rain, dust and short immersion. We do not claim military standard certification for this model. A wide body has a long sealing path, so check that the gasket sits fully and evenly, and close all latches under balanced load to keep the seal effective.

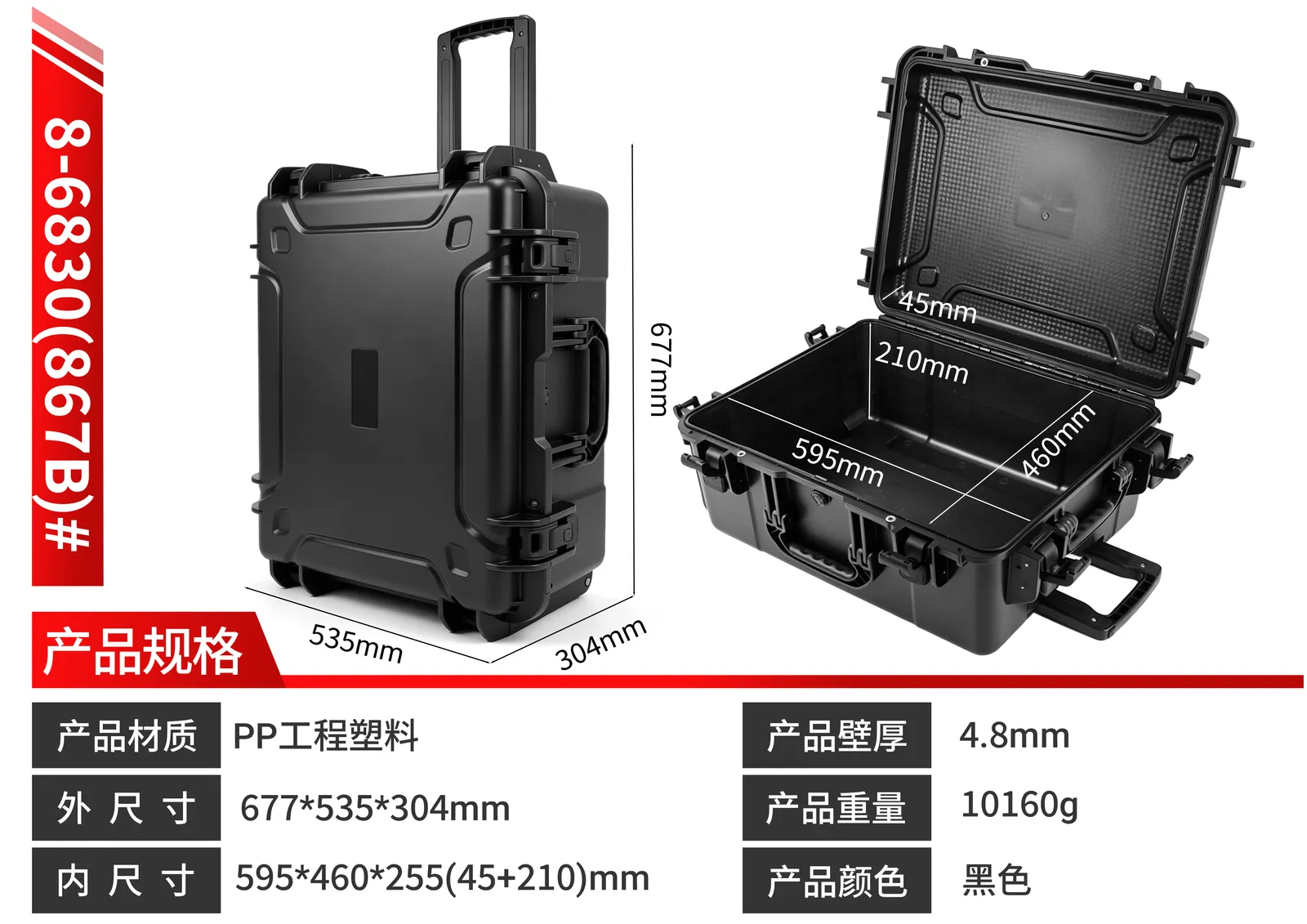

The 4.8 mm wall works with the body's reinforcing structure and polypropylene material to hold the rigidity of a 677*535*304 mm format, which is fine for normal transport and storage duty. Judge it against your load and handling method. For continuous full loads or rough transport routes, confirm the structural option with us during model selection. A thicker wall can be reviewed on request.

Yes. Kexin New Materials (Guangdong) Co., Ltd. supplies factory-direct from its Zhongshan factory under OEM and ODM programmes, so foam inserts, colour, silk-screen printing, nameplates and latch options can be adjusted. For multi device work, send the outline size and position of each item and we will design divided foam for the 595*460*255 mm cavity. Neutral cartons and shipping marks can follow your design.
