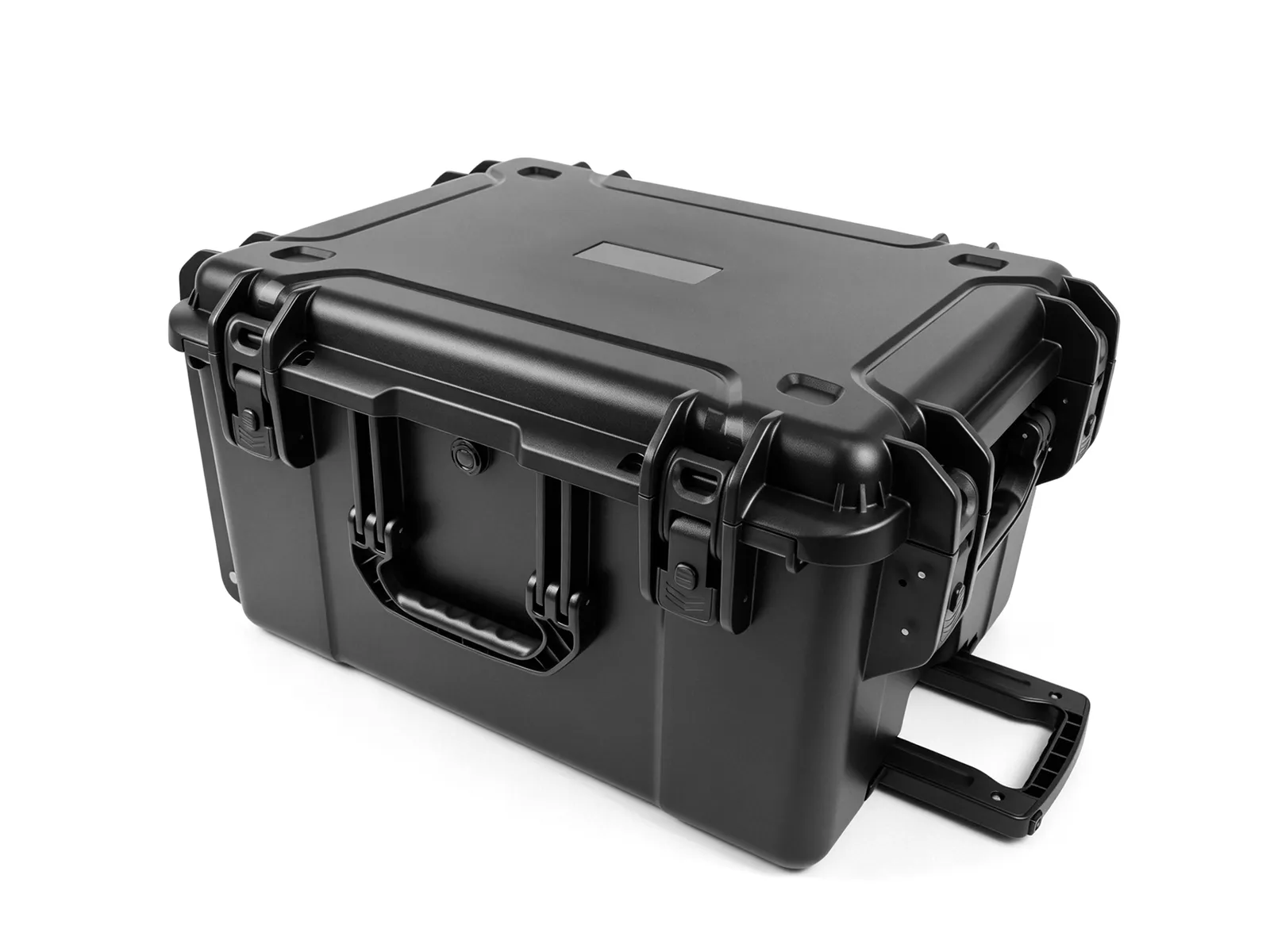

WL8-6836 PP Wheeled Protective Case

Both share the same 595*460 mm internal floor. The 867B gives 255 mm internal depth, measures 677*535*304 mm outside and weighs 10160 g, while the 867C gives 315 mm, measures 677*535*364 mm and weighs 10600 g. Pick the 867B for flat equipment in one layer, and the 315 mm deep 867C for taller items, layered packing or thick foam wrapping.

It takes upright instruments and chassis type equipment, precision gear needing two or more foam layers, and tool kits sorted by layer. Load heavy parts into the lower layer near the middle, separate the layers with thin foam and press a thin pad on top. If the total height approaches 315 mm, send a drawing first so we can confirm access clearance.

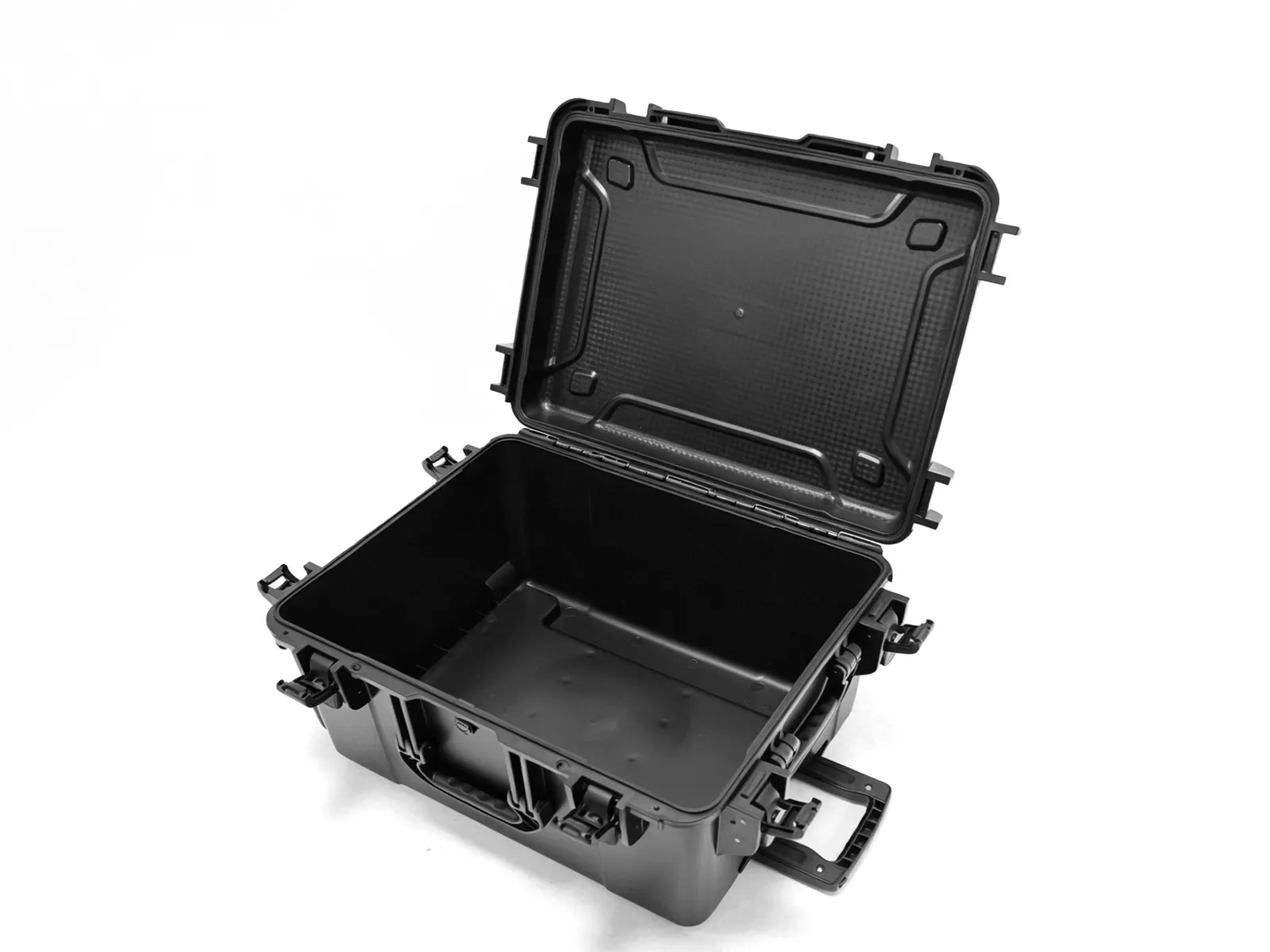

The polypropylene shell is injection moulded with a sealing structure and the closed case is rated IP67 for water and dust protection, so it suits damp workshops, outdoor transport and dusty storage. We do not claim military standard certification for this model. A deep, wide body has a long sealing perimeter, so check the gasket, clear debris from the sealing face and close the latches evenly.

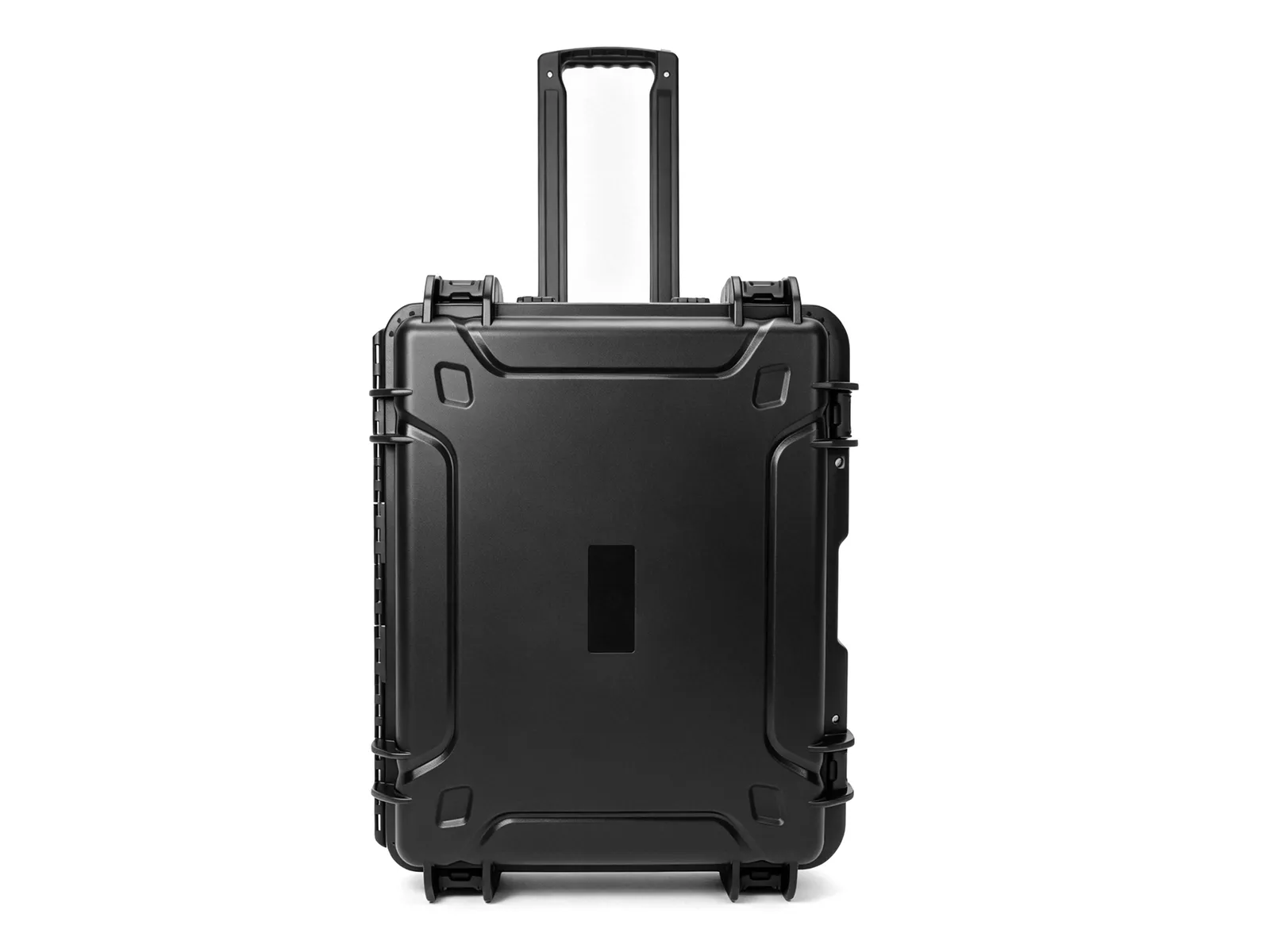

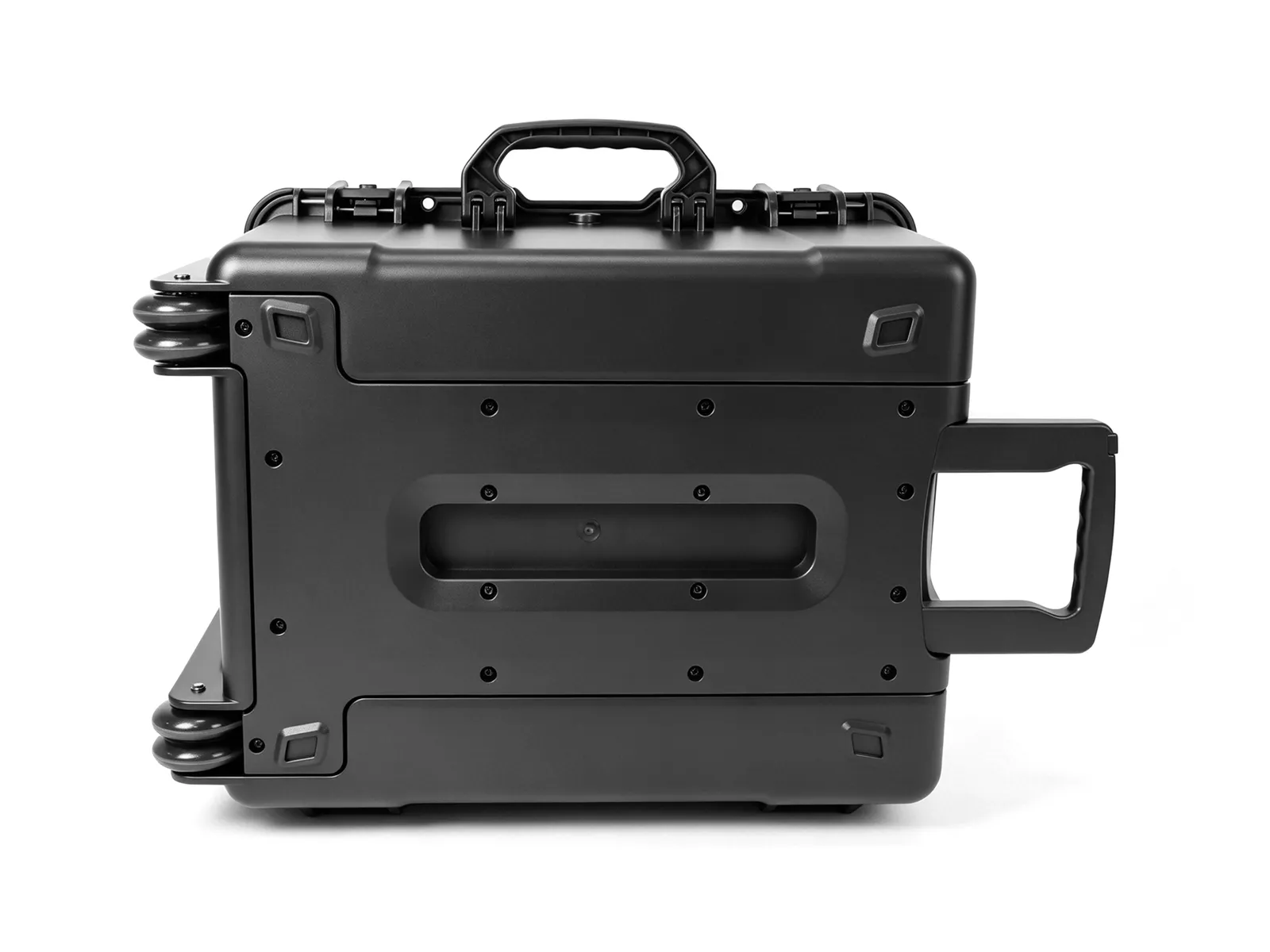

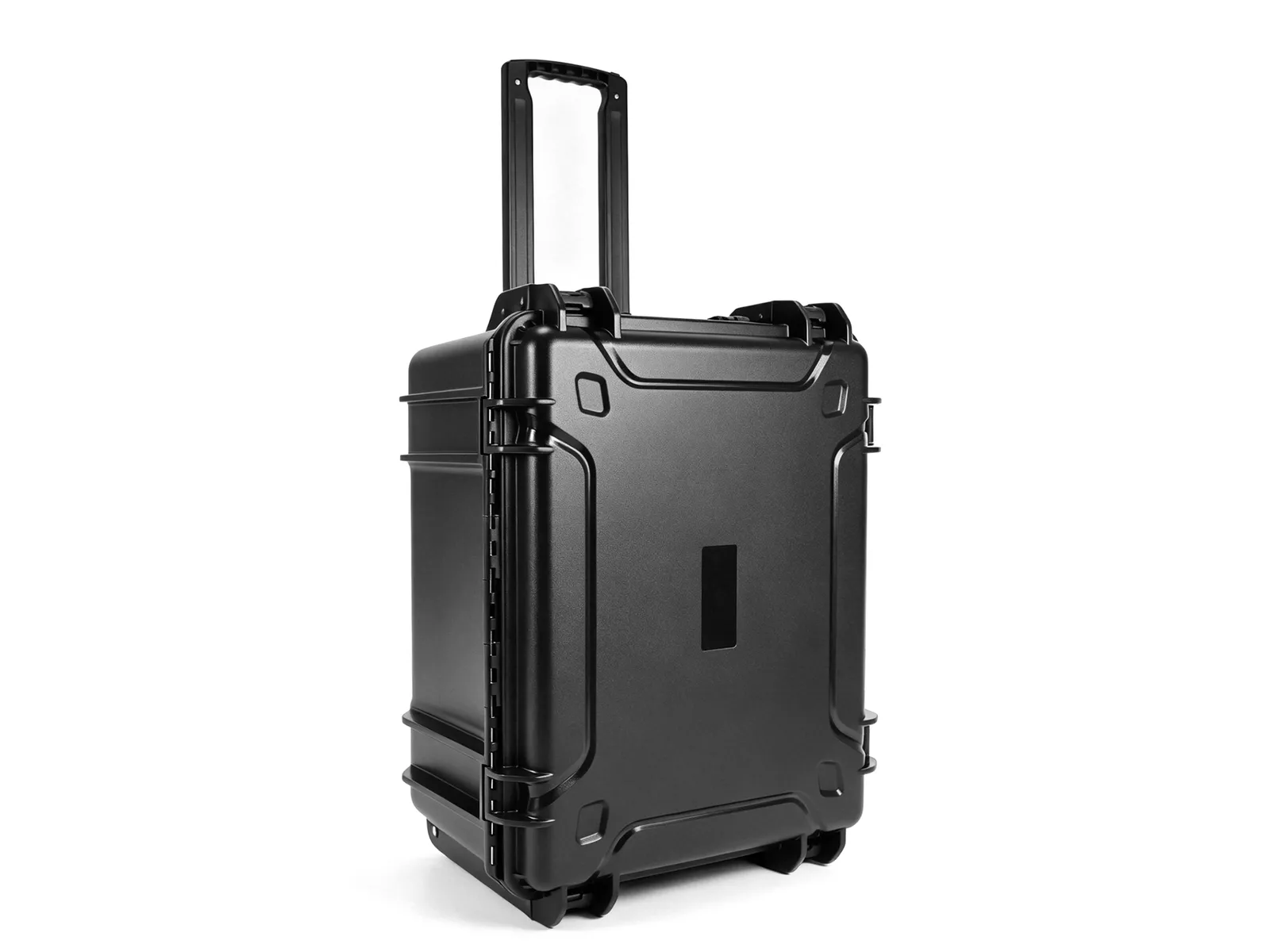

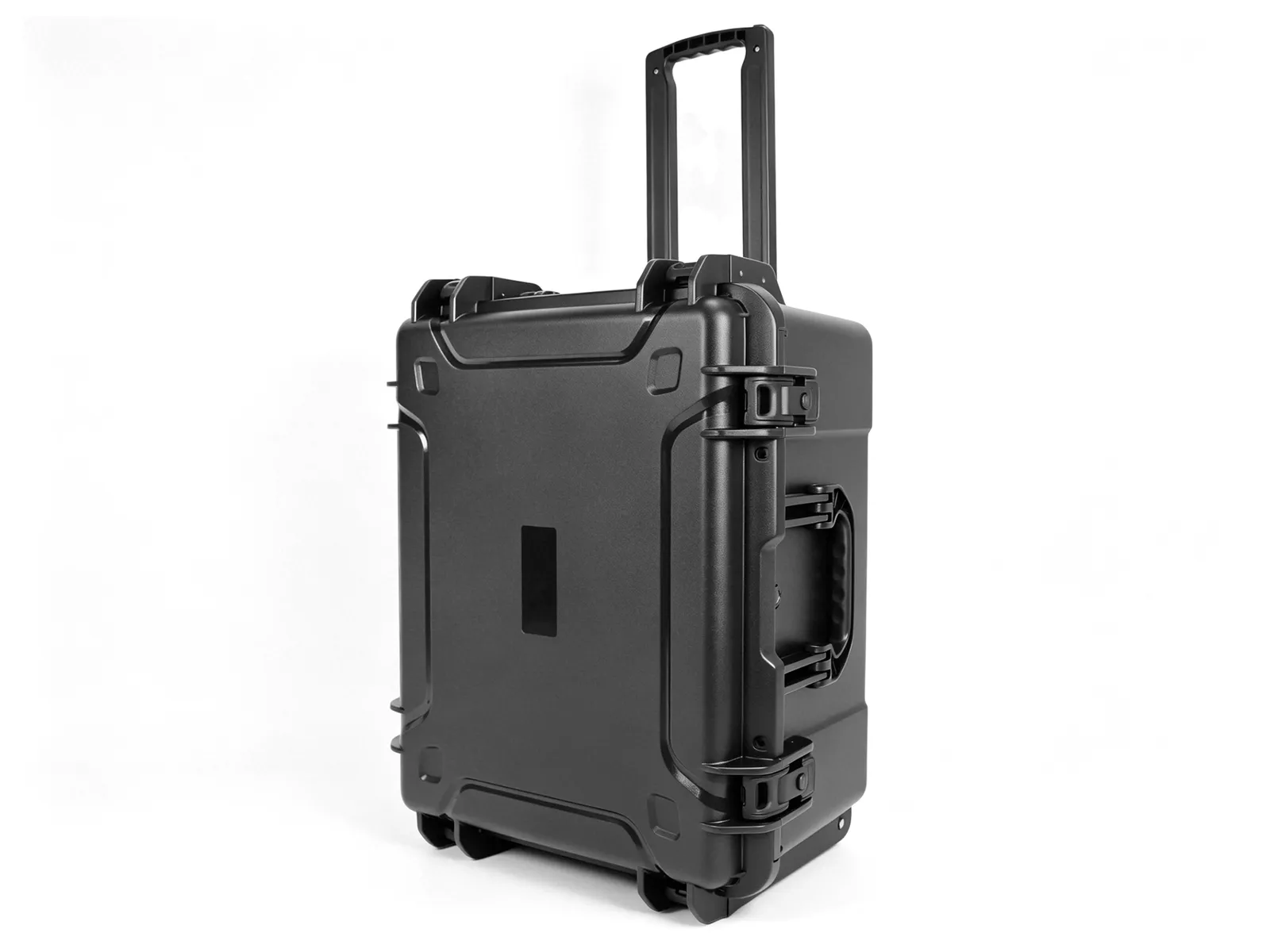

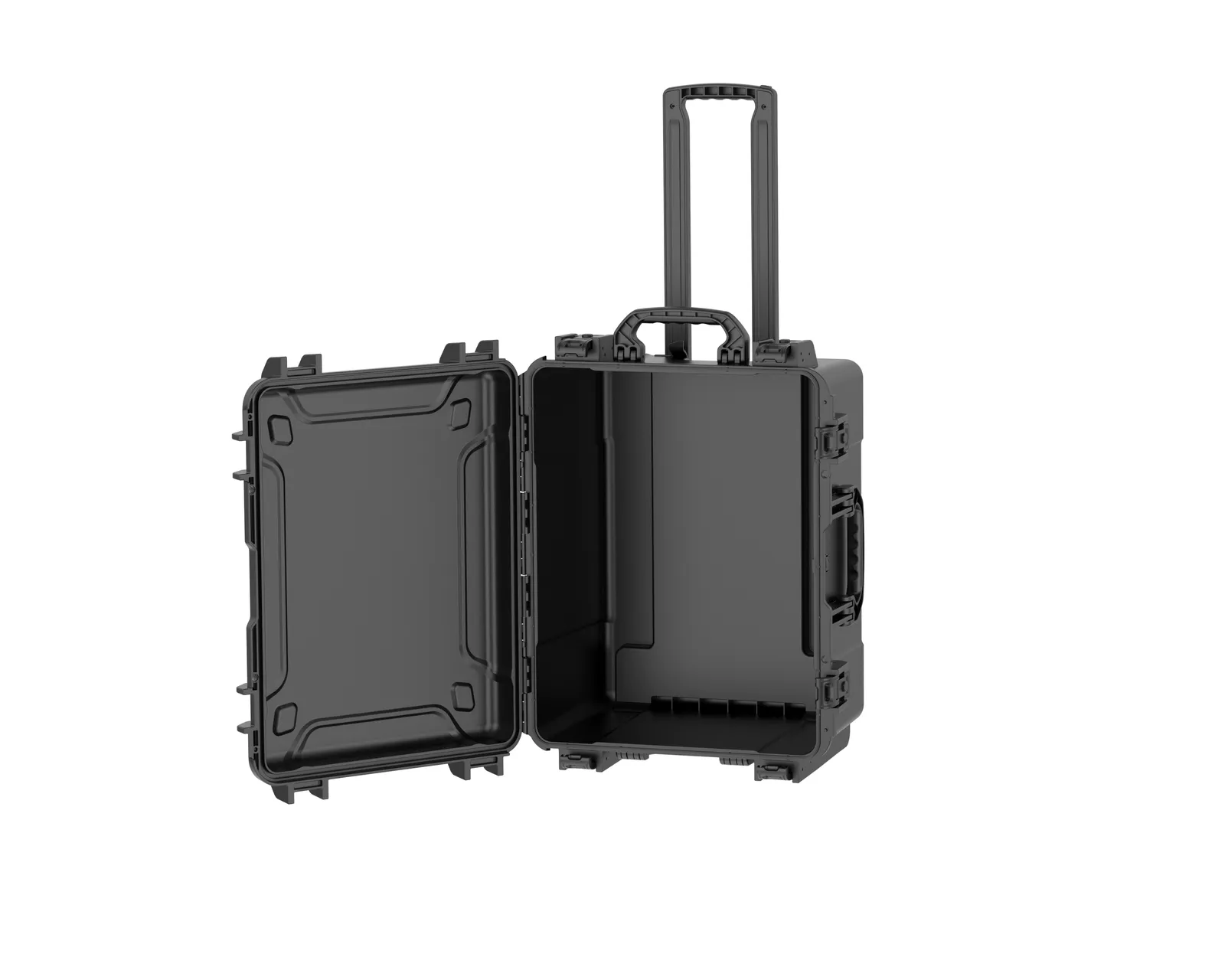

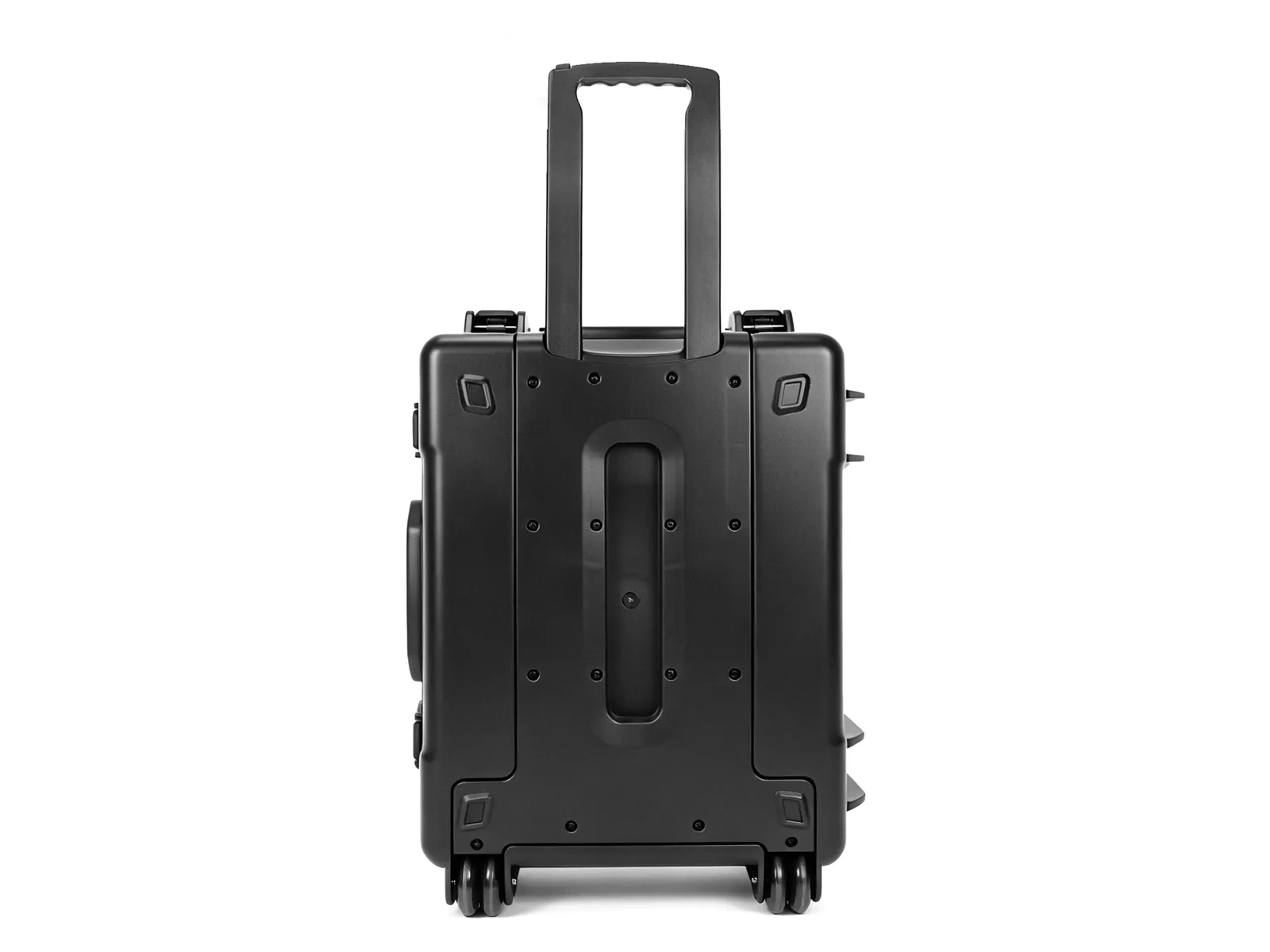

At 10600 g empty a full case is substantial. Roll it on the handle and wheels, which sit at a comfortable 310 mm height, and watch the centre of gravity and the width of the aisle. On stairs, when loading a vehicle and over steps, lift with two people so no single wheel takes the load and the body is never dragged sideways.

Yes. Kexin New Materials (Guangdong) Co., Ltd. supplies factory-direct from its Zhongshan factory under OEM and ODM programmes, and foam inserts, colour, silk-screen printing, nameplates and latch options can be adjusted. A deep cavity suits multi layer construction; send the equipment list, sizes and packing order and we will quote for the 595*460*315 mm interior. Sample approval and carton artwork are handled before the run.
