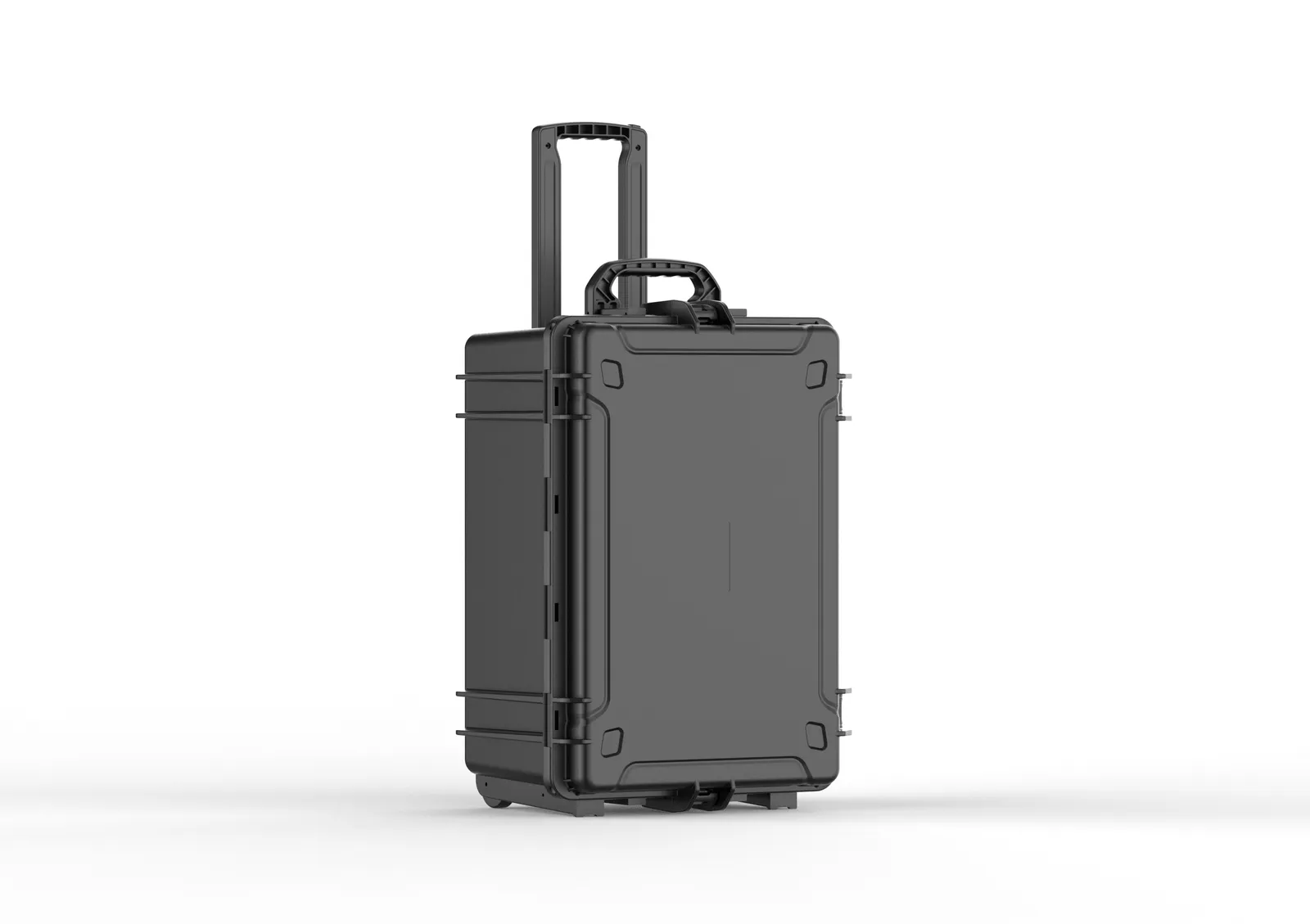

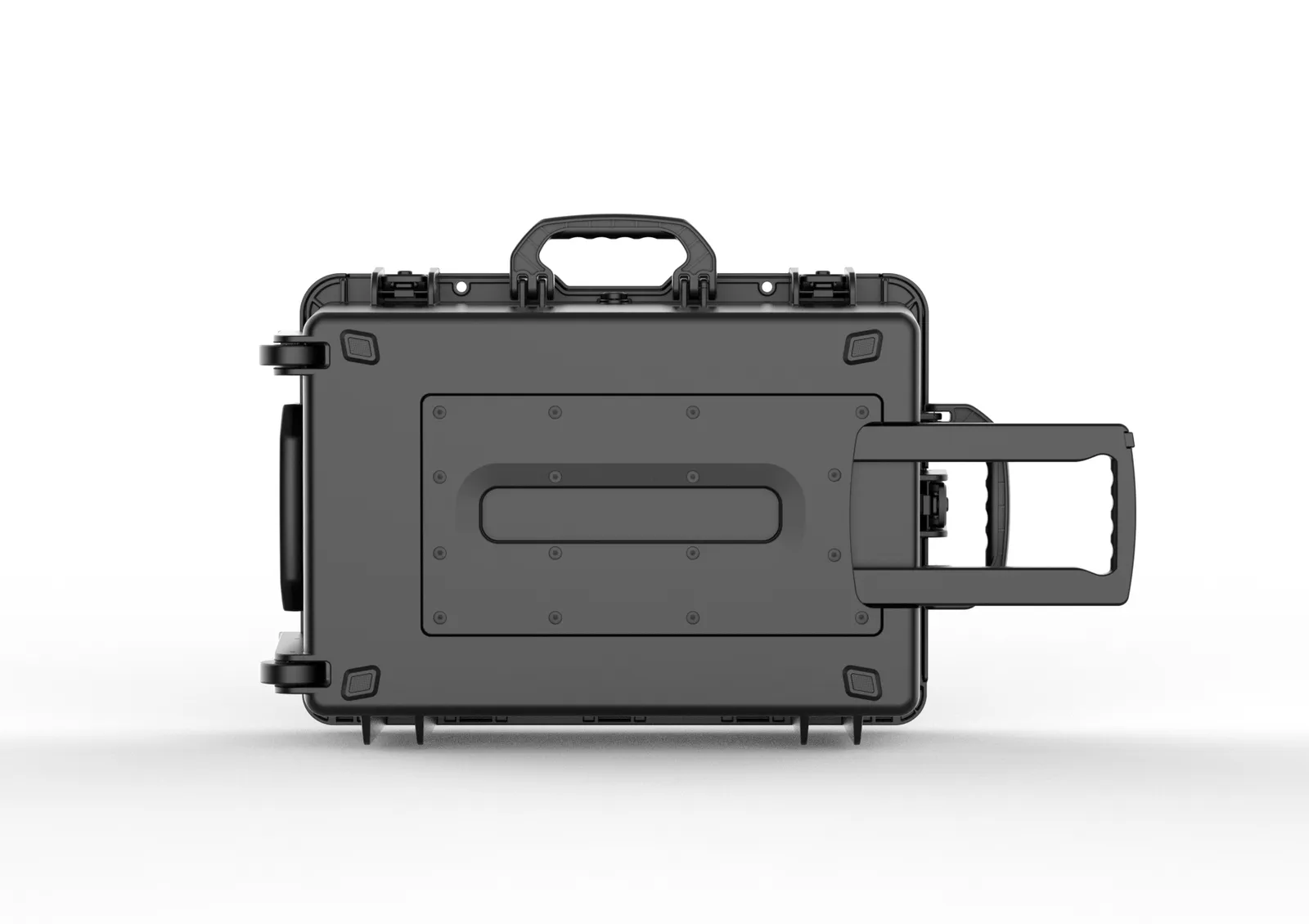

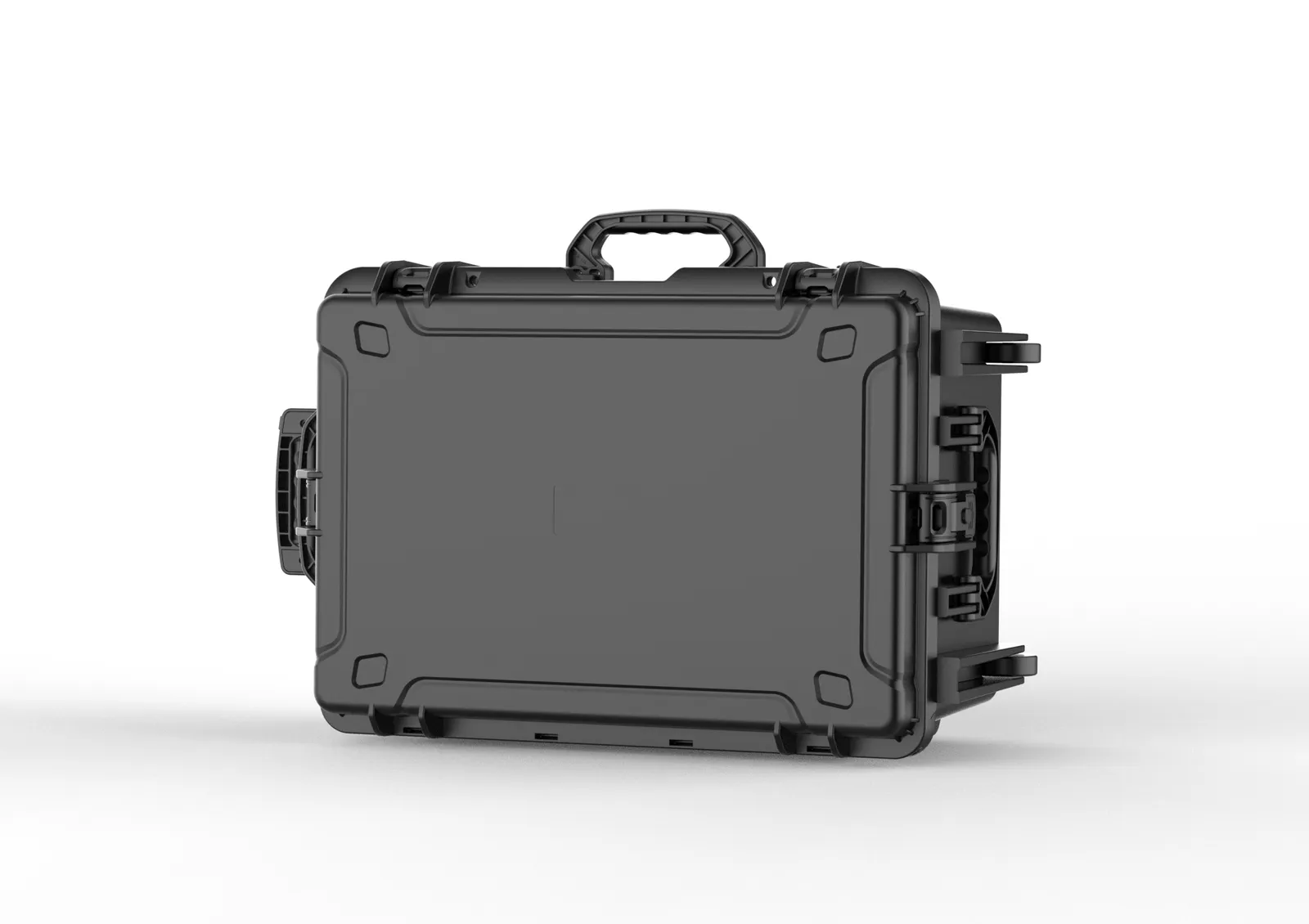

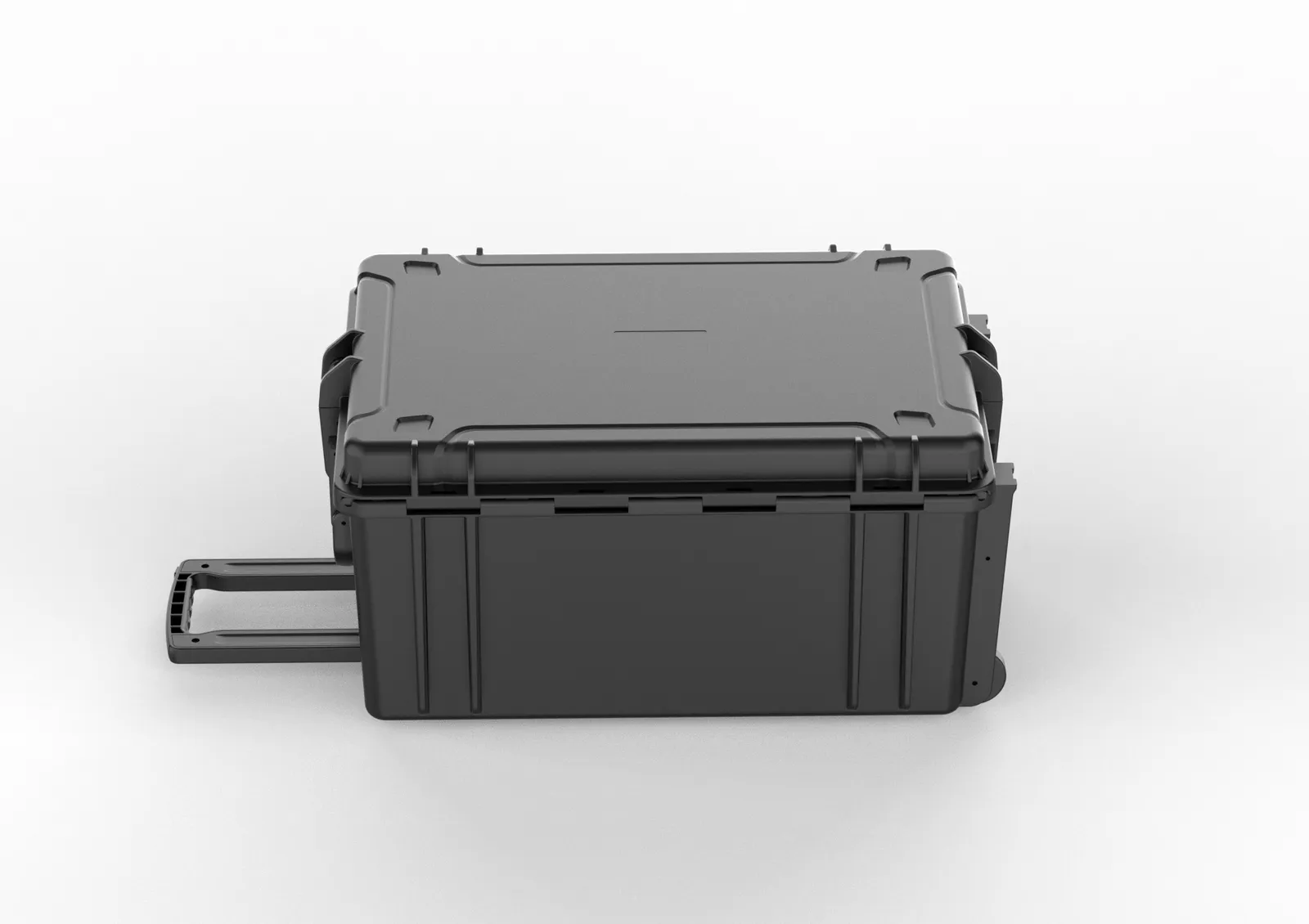

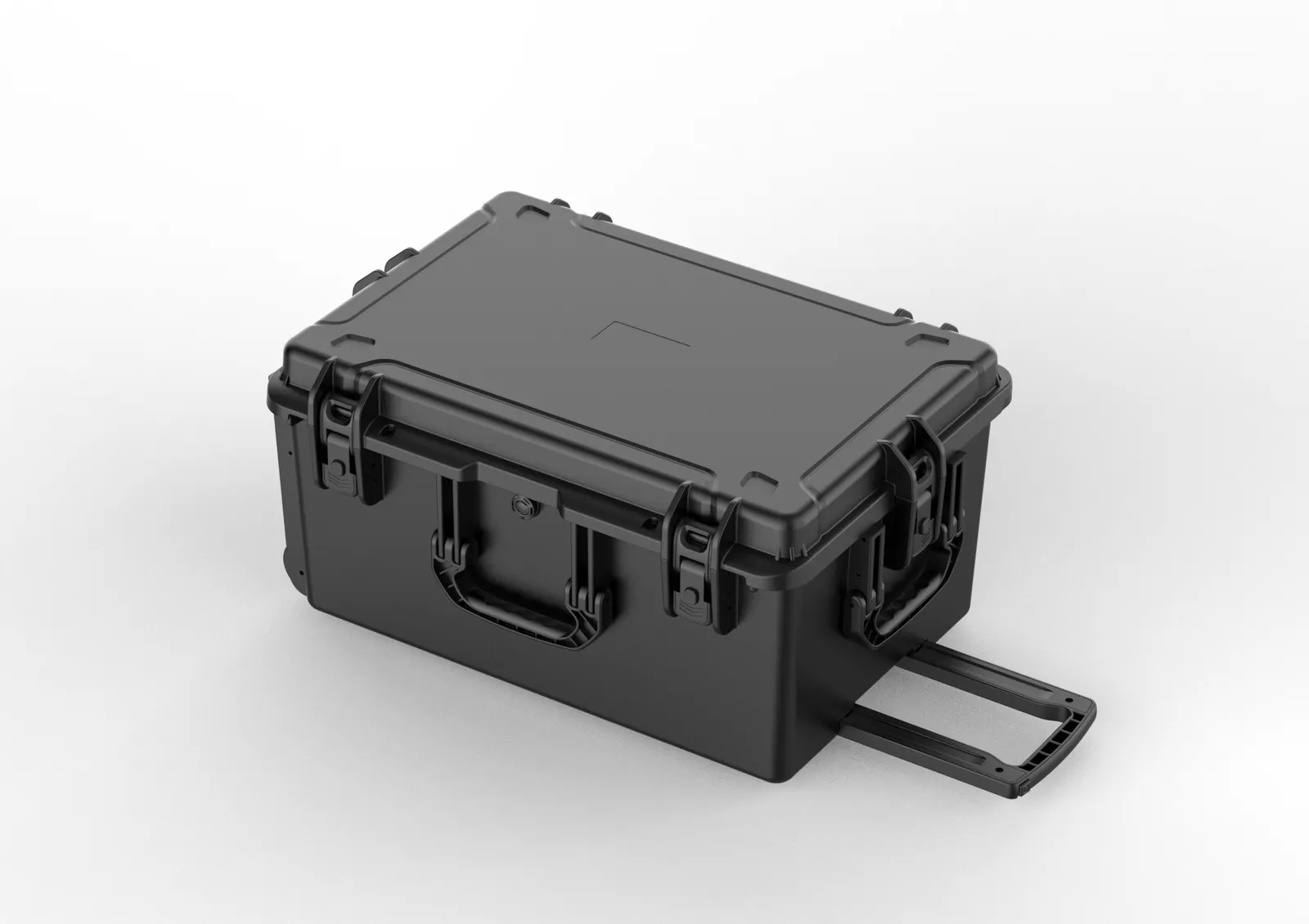

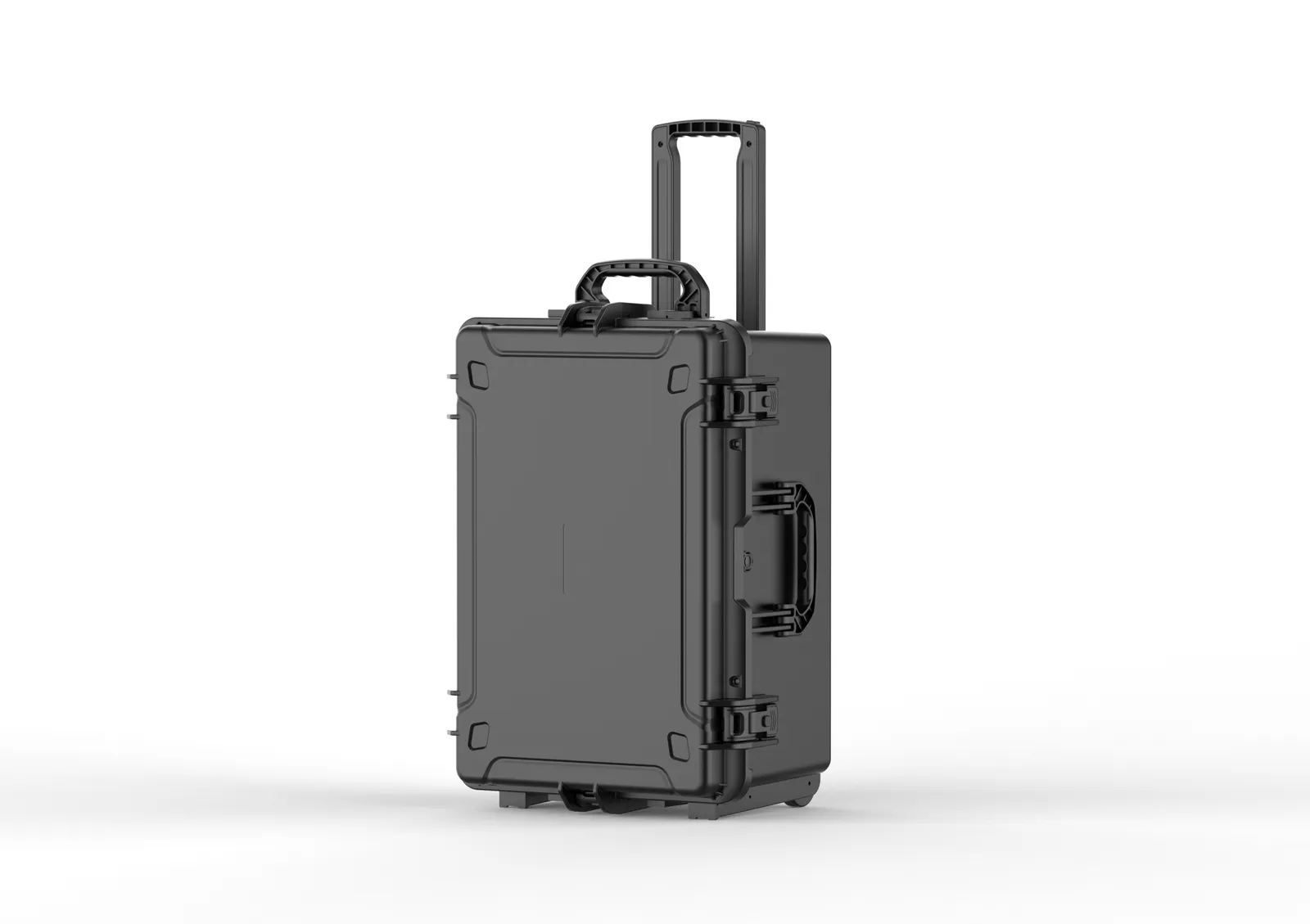

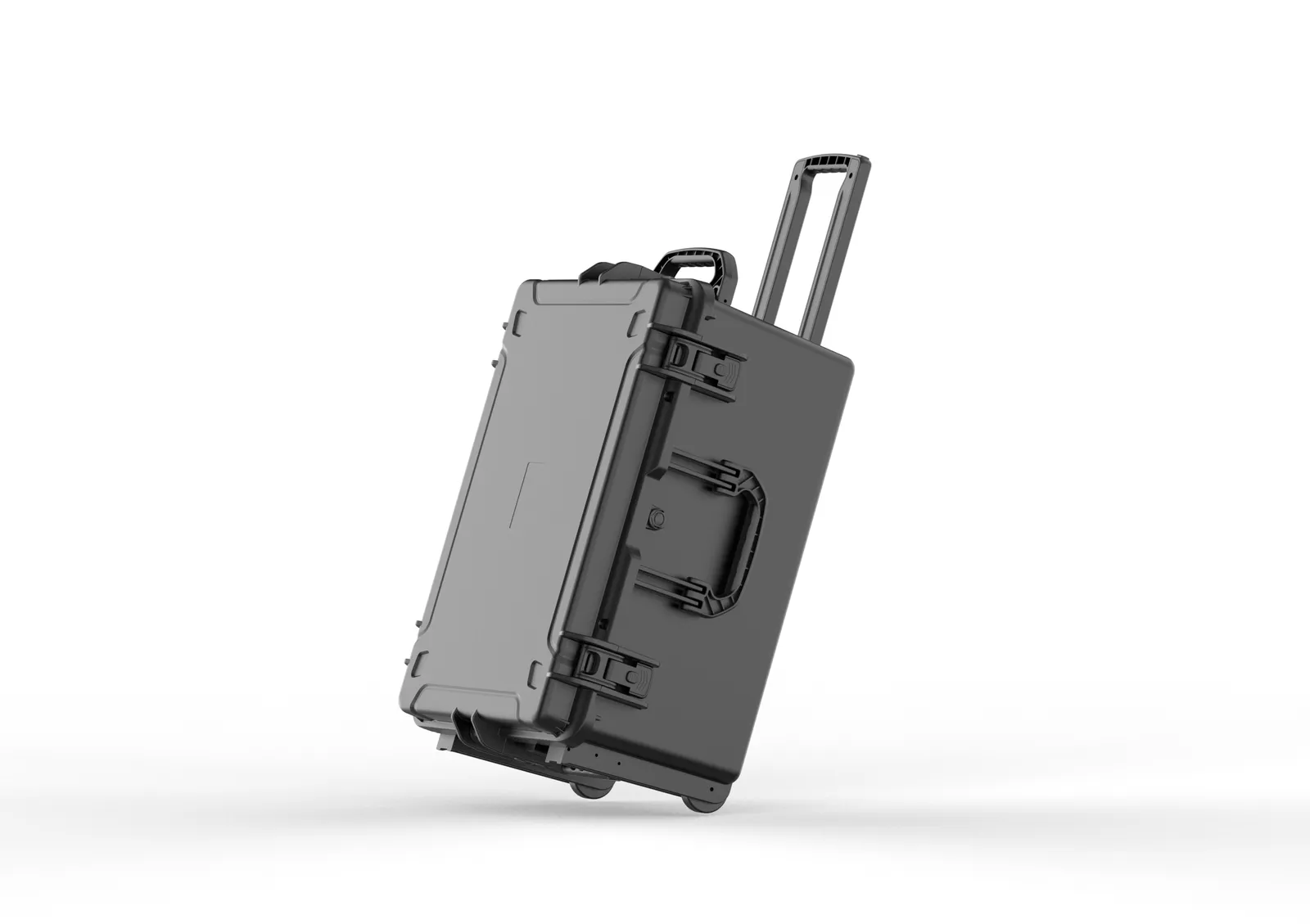

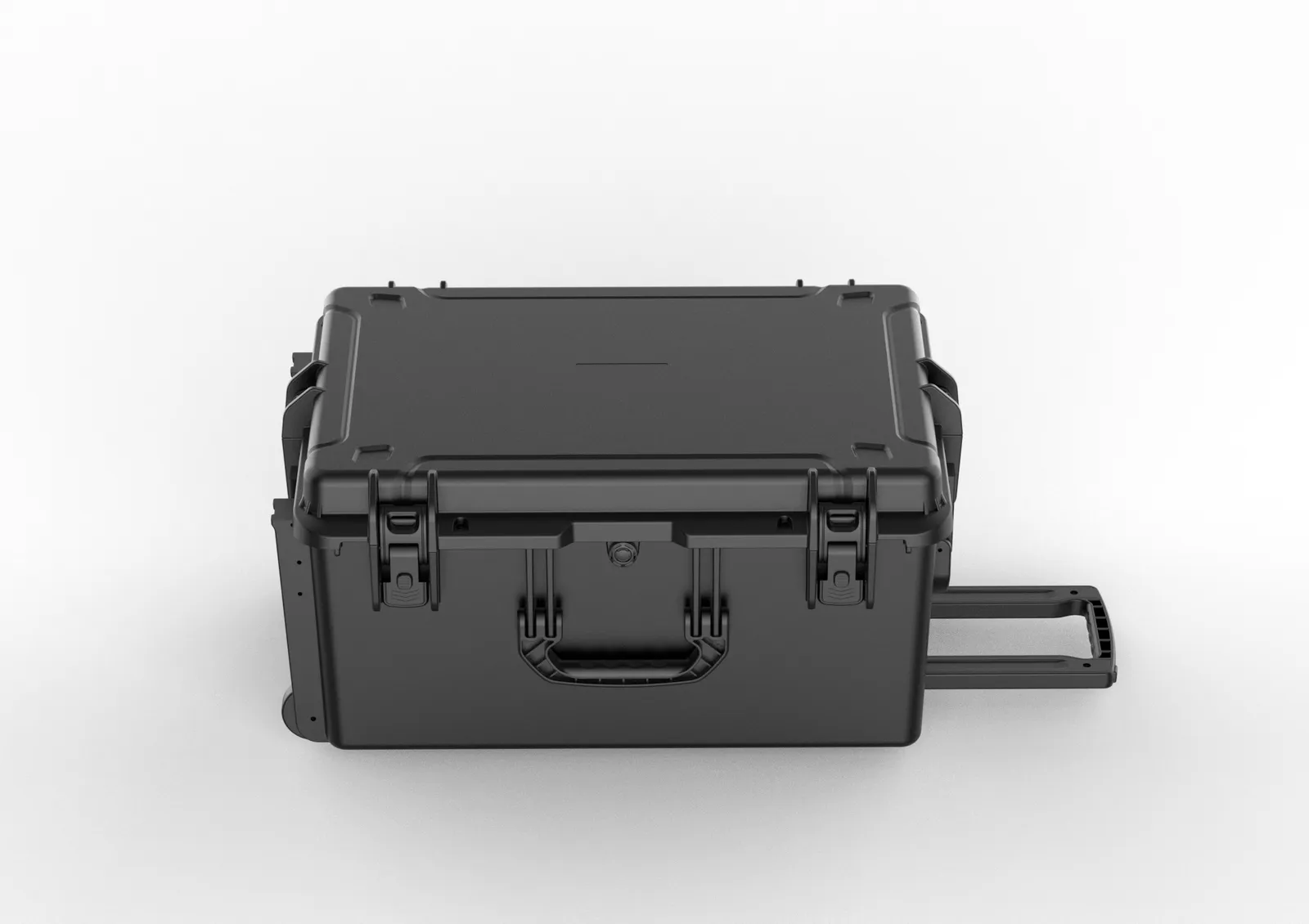

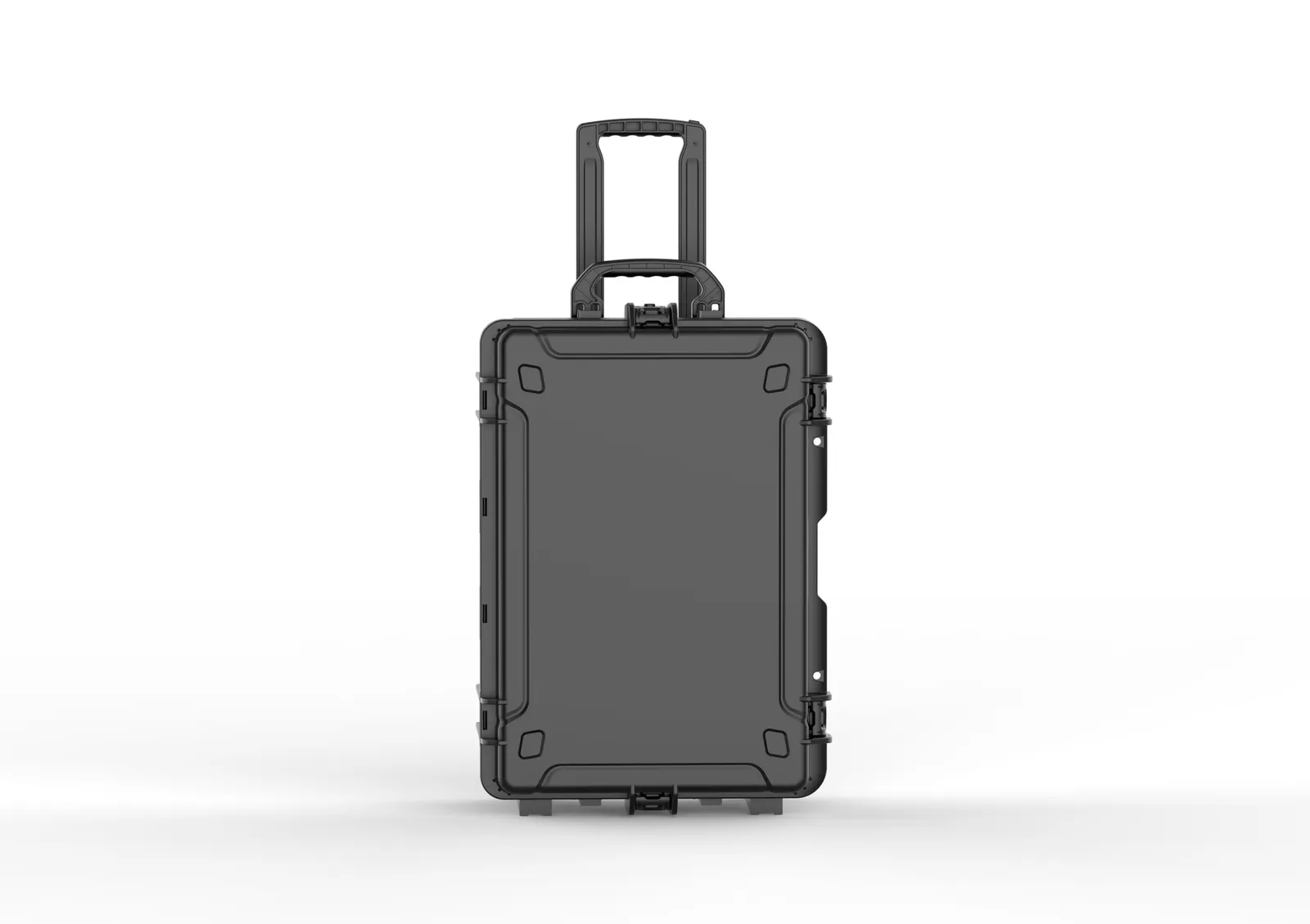

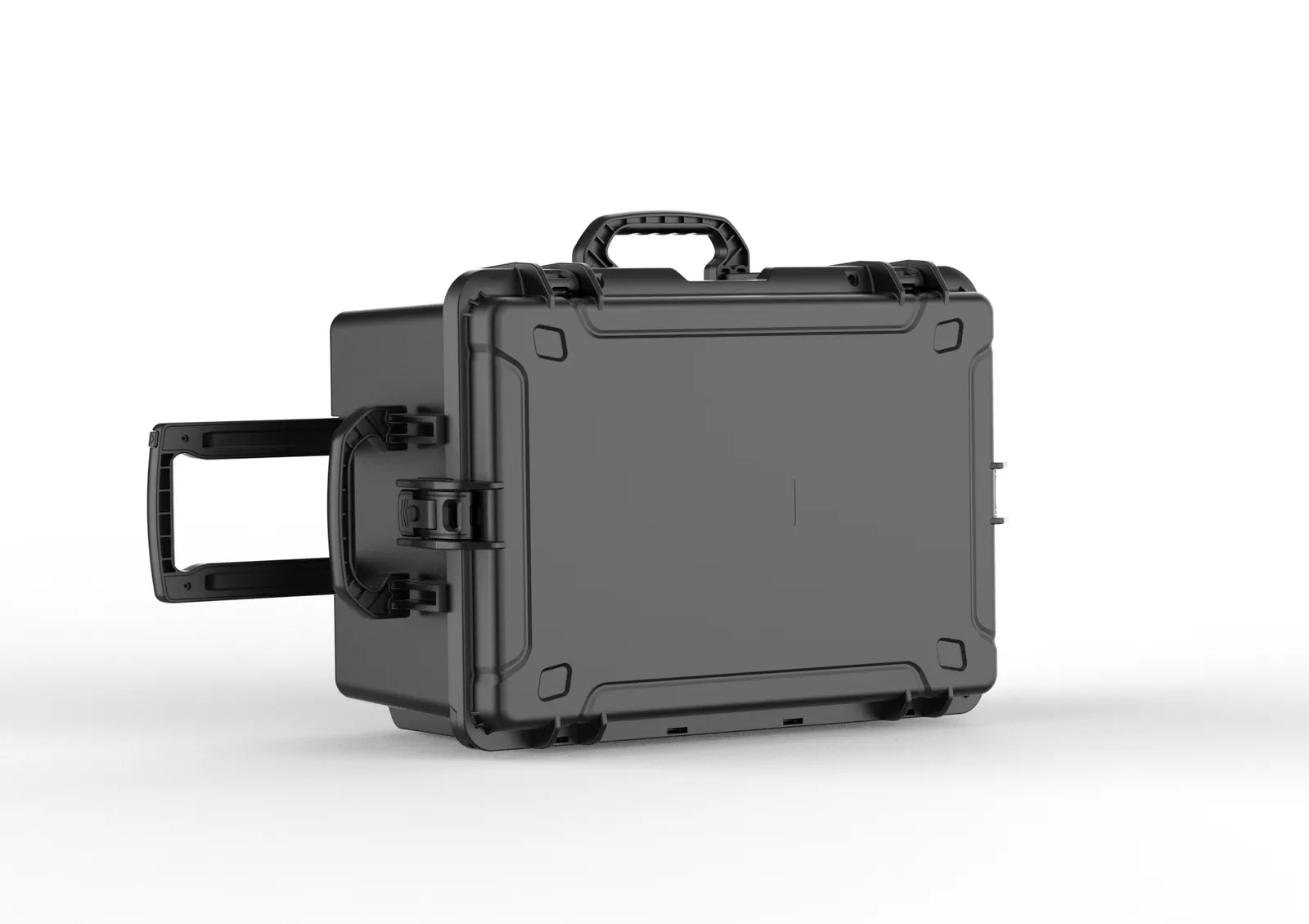

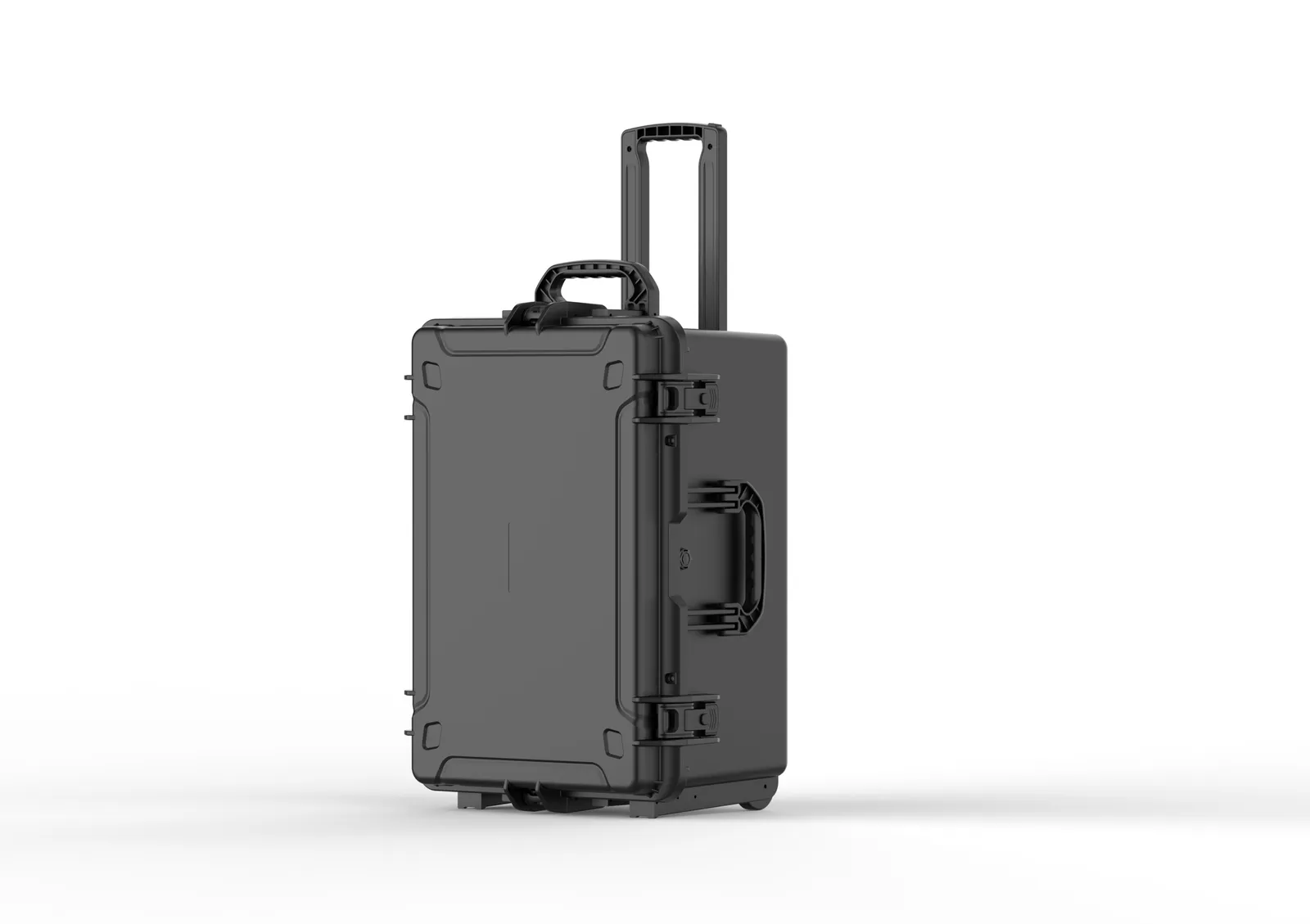

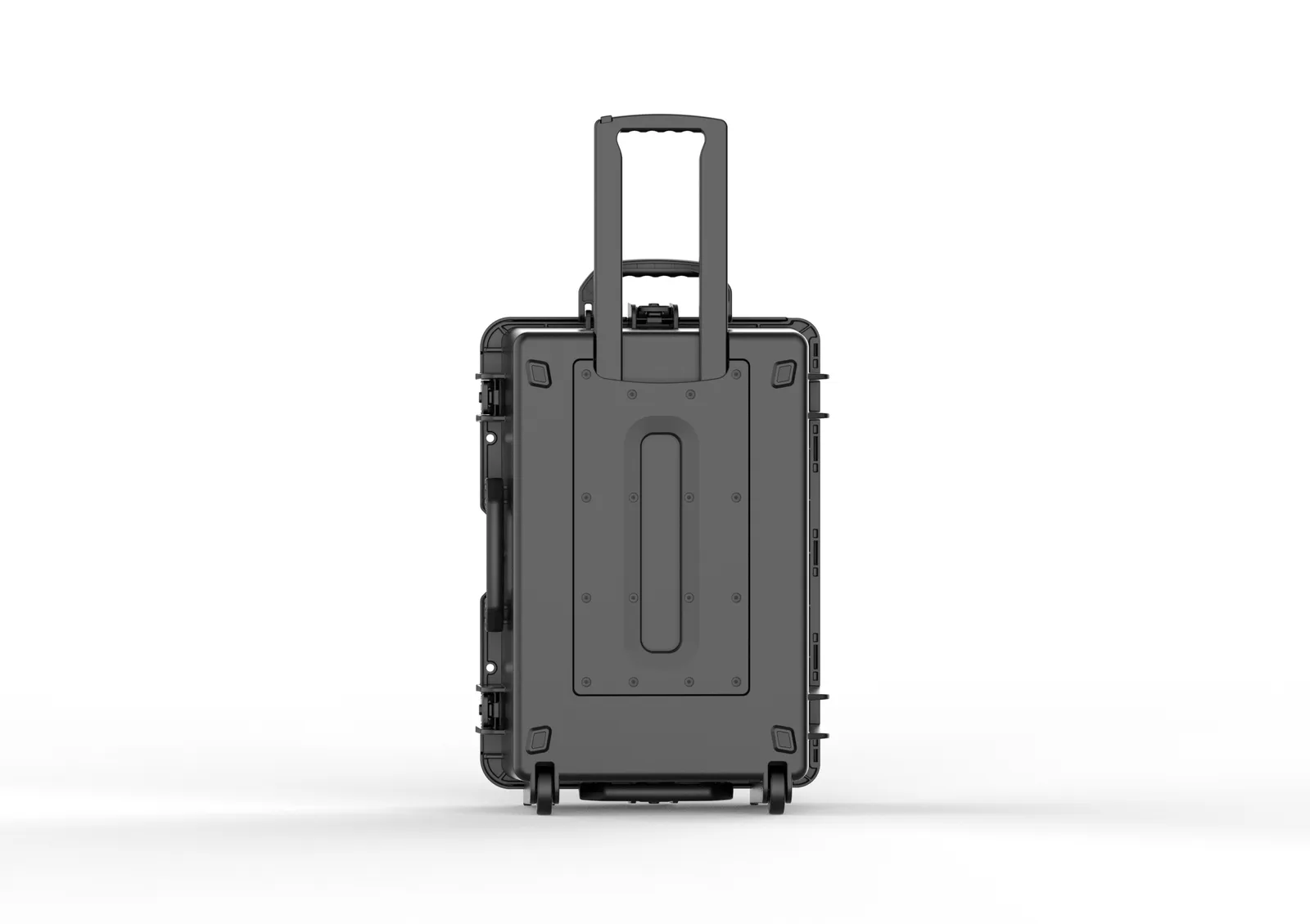

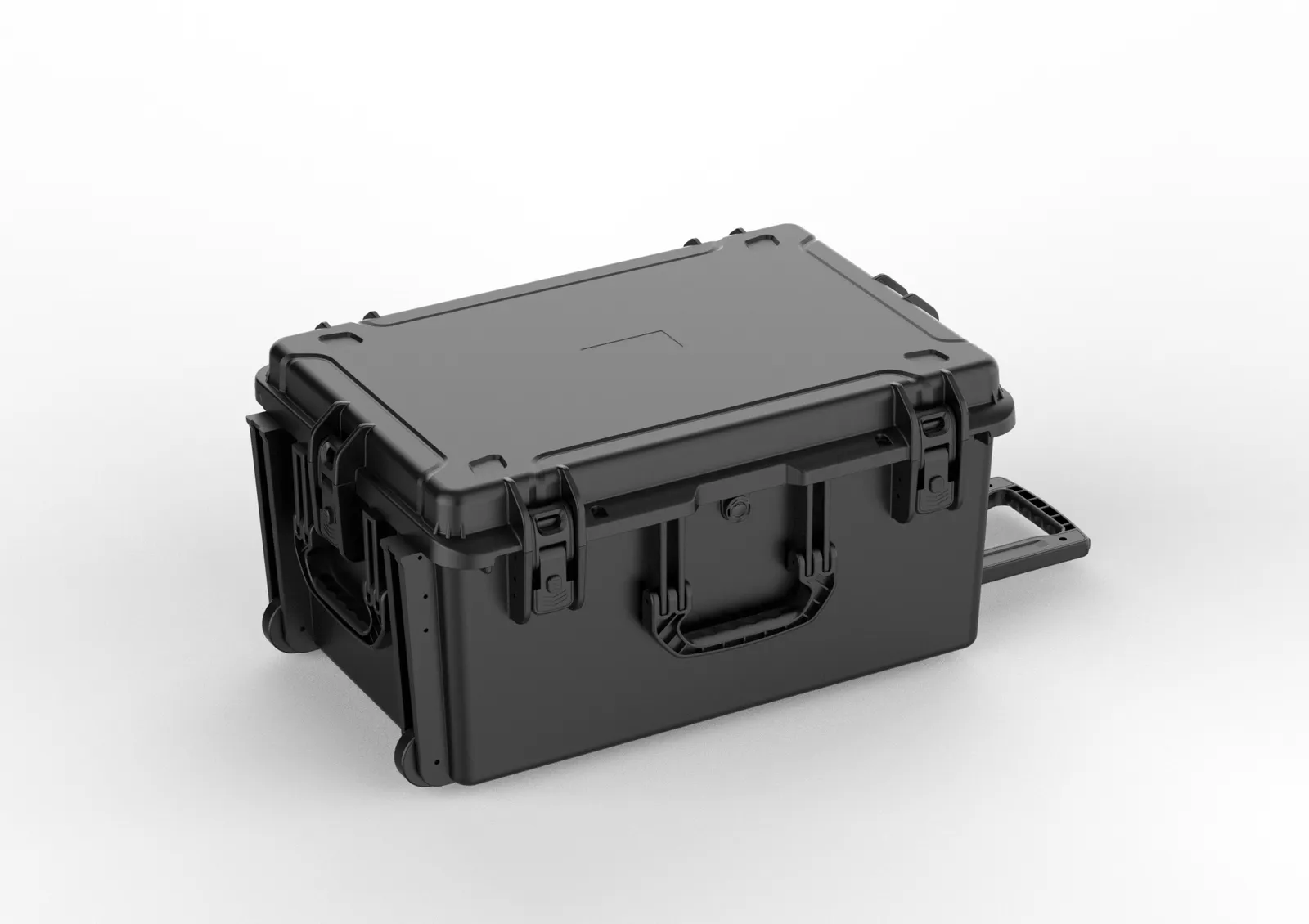

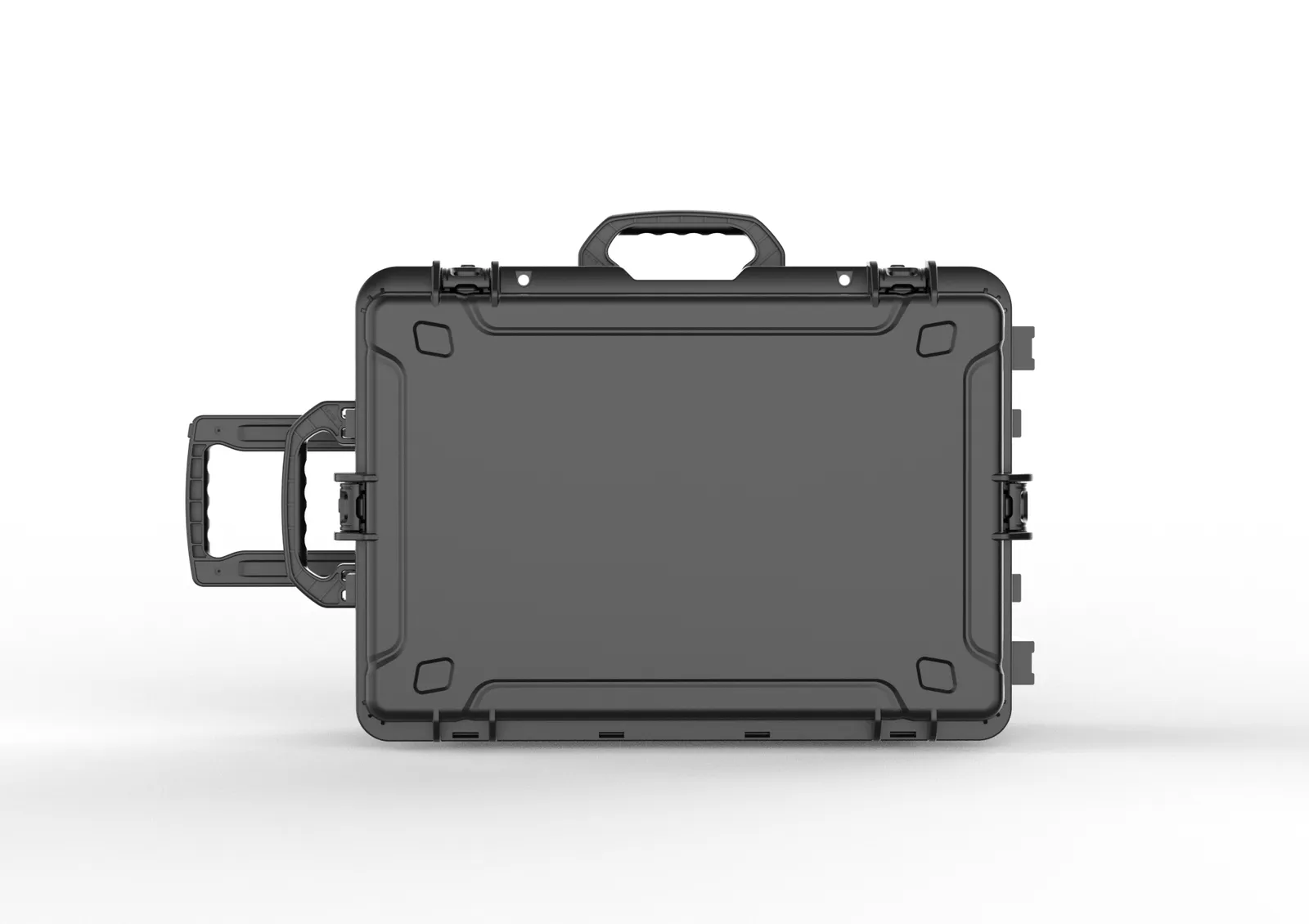

WL8-7336 PP Wheeled Protective Case

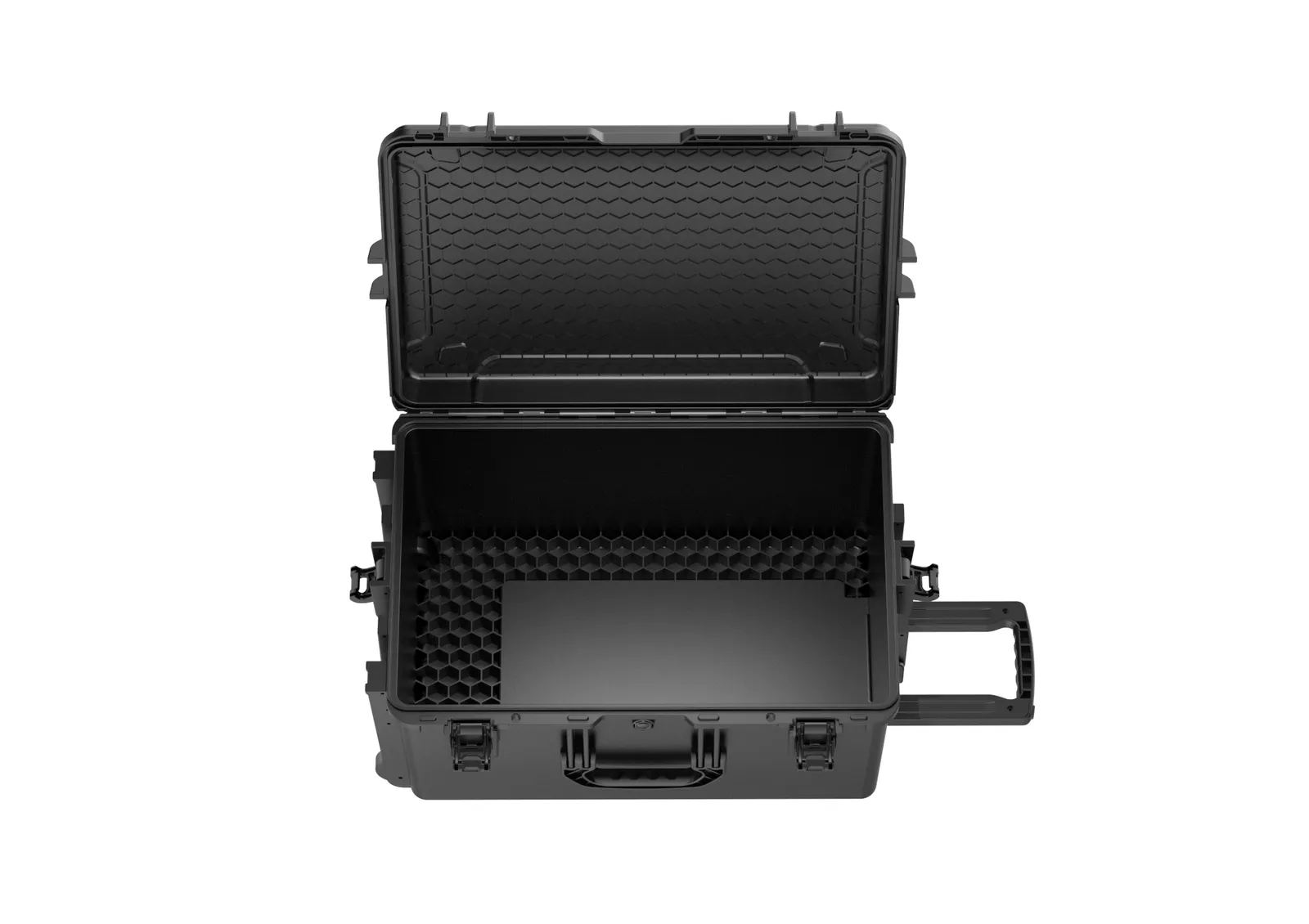

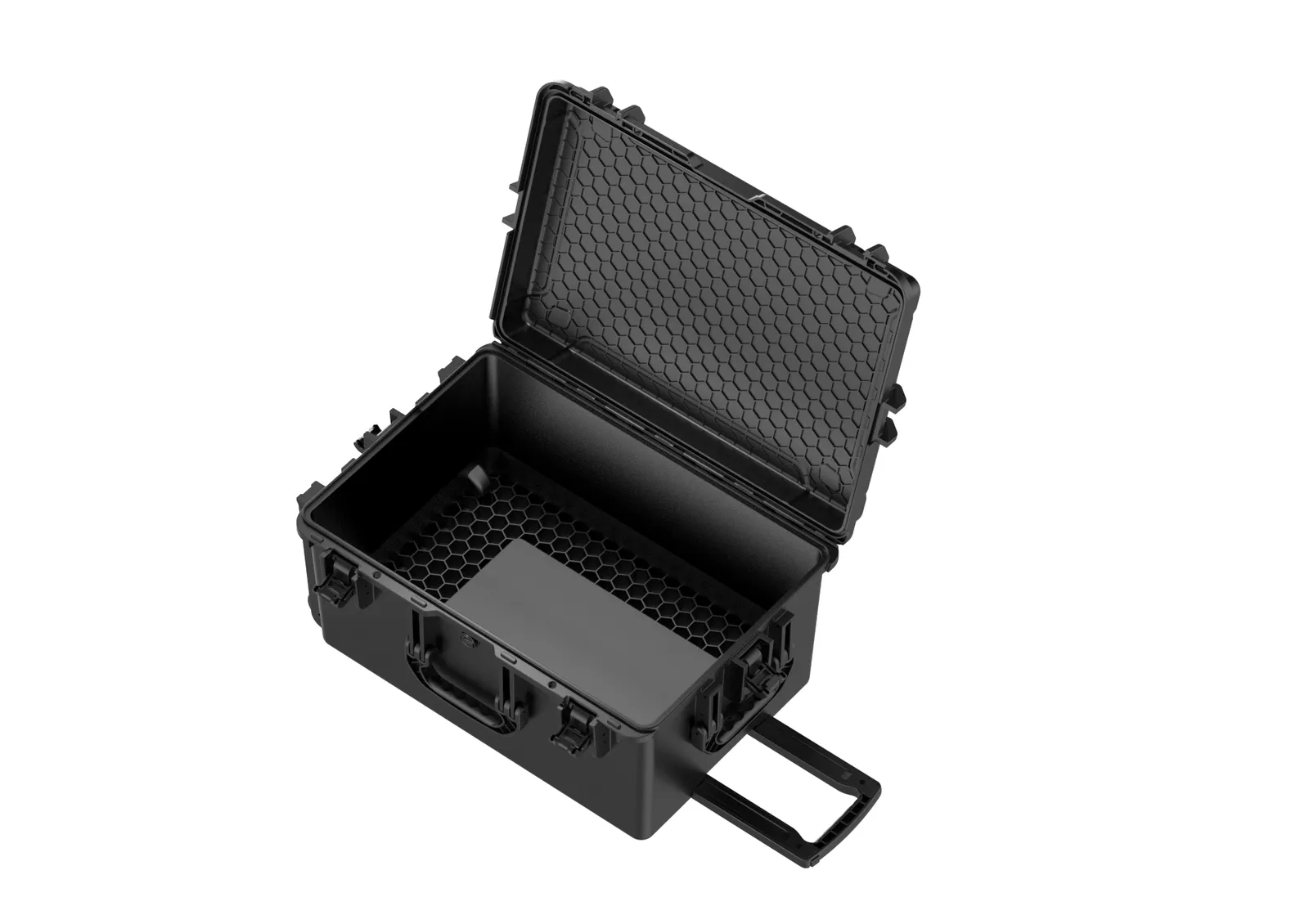

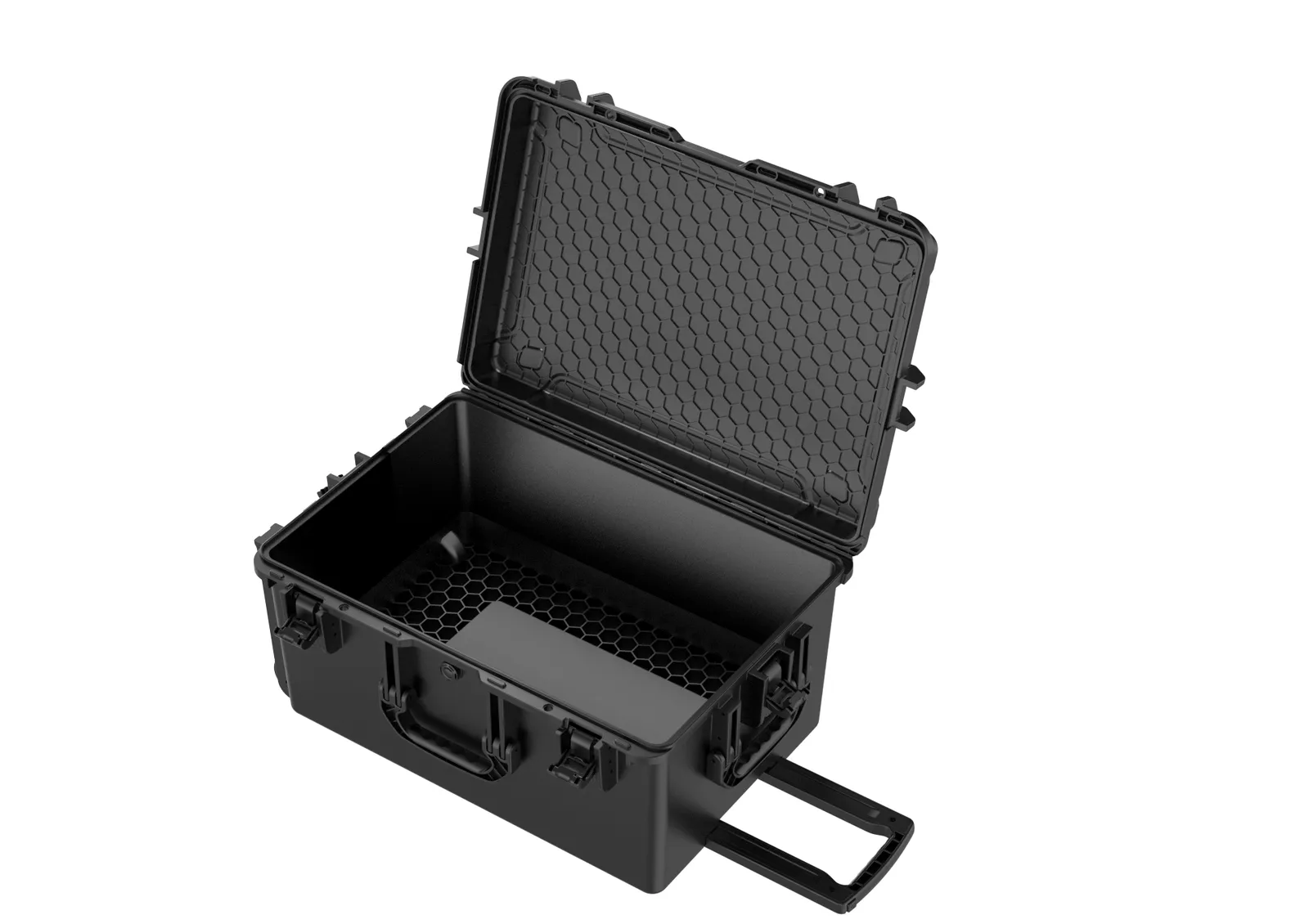

The 650 mm usable length lets longer instruments, complete long handled tool sets and bar shaped equipment lie flat, while the 310 mm deep cavity allows upright placement or two packed layers. Lay long items along the length, fill the side gaps with foam, and keep heavy parts towards the middle on the wheel side so the case rolls without shifting or leaning.

The empty case weighs 10660 g and a loaded one is heavier still, so use the handle and wheels for day to day movement. The 240 mm handle height is a low pulling position, which keeps the body close to the ground with a low centre of gravity. On stairs, when loading a vehicle and over steps or trenches, lift with two people and never drag from one side.

The polypropylene shell is injection moulded with a sealing structure and the closed case is rated IP67 for water and dust protection, covering rain, dust and short immersion. We do not claim military standard certification for this model. A long, deep body has a long sealing path, so check the gasket regularly, clear the sealing face and keep all latches under even load.

The 5.0 mm wall, together with polypropylene and the reinforcing structure, holds rigidity across a 733*505*357 mm body, which meets normal heavy load transport duty. The 240 mm handle height is the factory figure, sitting low so the case steers easily and rolls steadily, which suits short transfers between workshop aisles, goods lifts and vehicle bays. Confirm the load with us if the duty is unusual.

Yes. Kexin New Materials (Guangdong) Co., Ltd. supplies factory-direct from its Zhongshan factory under OEM and ODM programmes, so foam inserts, colour, silk-screen printing, nameplates and latch options can be adjusted. A long deep cavity suits full length channels and layered inserts; send your equipment list and sizes and we will quote for the 650*430*310 mm interior. Sample approval comes before the production run.
