Is IPX4 spray enough for an ABS waterproof equipment box?

Answer: Under a canopy or in a cabinet it covers rain splash; short immersion calls for IPX7.

How can I tell ABS from HIPS quickly?

Answer: Vicat first, since below 90 °C is likely HIPS; then density, 1.04 to 1.06 g/cm³.

Must a box be rejected for a sink mark in the seal groove?

Answer: Yes. Groove depth and compression shift, and spray will not reveal it.

Why cap regrind at 15 percent?

Answer: Above that, weld line strength and low-temperature impact drop sharply, and a corner cracks.

Can an air decay test replace immersion?

Answer: No. Gas leak and water ingress are different failure modes; screen with decay, qualify with IPX7.

ABS Waterproof Equipment Box Acceptance Standards

Quick answer: An ABS waterproof equipment box passes on four counts, not one IP number: density 1.04 to 1.06 g/cm³, Vicat softening at least 96 °C, O-ring compression 20 to 30 percent, and flash no thicker than 0.15 mm. Each figure needs a test method, or the certificate means nothing.

How to Layer the Inspection Items
Verifying the ABS Compound
Judging Molded Part Appearance
Seal Geometry and Cable Glands
Water Testing and Batch Sampling
FAQ

1. How to Layer the Inspection Items

A 200 × 150 × 80 mm ABS waterproof equipment box crosses five gates from pellets to carton; failures usually trace to a skipped gate.

Gates: incoming material, first article, patrol, final inspection, type testing. The first four run on every lot; the fifth is periodic and cannot be waived by a datasheet.

Gate	Object	Basis
Incoming	ABS pellets	Grade, density, MFI
Patrol	5 parts per 2 hours	Appearance, latch force
Final	Assembled box	Fit, torque, air decay
Type	Complete box	Spray, immersion

Only the last gate destroys parts, so type-test samples are molded apart; a new mold, pellet grade or gasket supplier restarts it.

2. Verifying the ABS Compound

An ABS waterproof equipment box may carry heavy regrind, or be HIPS underneath. Density, Vicat and melt flow index settle it.

ABS waterproof equipment box: olive-grey case open on a pallet, blue lid gasket, tools and coiled cable in foam, metal junction box alongside

Property	Accept limit	Sampling
Density	1.04 to 1.06 g/cm³	Every lot, immersion
Vicat softening	Not below 96 °C	10 N load
Melt flow index	8 to 20 g/10 min at 220 °C	Every lot
Regrind ratio	15 percent maximum	Declaration

Density near 1.03 g/cm³ means PP or excess calcium carbonate; above 1.07 g/cm³ points to filler overload. Regrind past 15 percent weakens weld lines.

Vicat separates ABS from HIPS, which softens near 80 °C. Run 10 N with a 50 °C per hour ramp; beside a heat source, that gap decides whether the wall sags. Wet pellets leave voids under the groove, so dry at 80 °C for four hours.

3. Judging Molded Part Appearance

No visible defects in a purchase order guarantees an argument. Name each defect, fix the condition, set a limit.

Defect	Condition	Limit
Sink mark	300 mm, daylight	0.3 mm deep, none on front
Weld line	Same	Visible, not whitened, 0.1 mm
Flash	Caliper	0.15 mm at parting line

On an ABS waterproof equipment box, sink marks gather behind bosses; any wall ratio beyond 2:1 invites them. A mark on the groove floor changes depth and compression.

The 0.15 mm flash limit protects the groove lip, where flash shims the O-ring and cuts compression by a fifth. Such a box passes a spray check and weeps two months later.

4. Seal Geometry and Cable Glands

Three numbers carry the seal on an ABS waterproof equipment box: groove depth, cord diameter and closing force. A 3.0 mm nitrile cord in a 2.2 mm groove 3.6 mm wide lands at 26.7 percent compression.

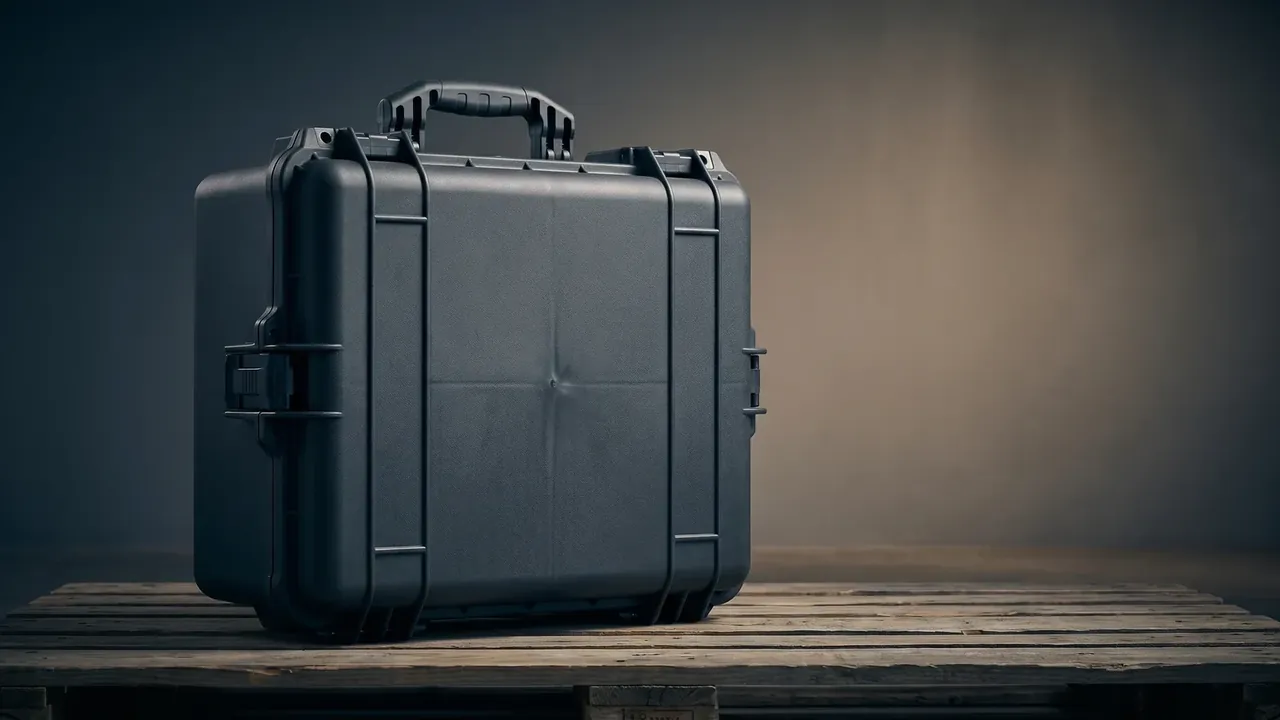

ABS waterproof equipment box: dark grey closed case standing on a pallet, plastic handle on top, one wide cam latch on each side, vertical ribs

The lip needs a 0.3 mm radius; a square edge shears the cord, and the cut only shows at teardown. Hold Ra 1.6.

On M16 or M20 glands check 2.5 N·m torque, no rolled gasket, and a plug plus backing plate on unused holes. Cam latches close at 60 to 90 N, within 15 N side to side; the loose side leaks first.

5. Water Testing and Batch Sampling

An ABS waterproof equipment box gets IPX4 spray at 10 L/min for 5 minutes per face, then IPX7 at 1 m for 30 minutes. Spray first: it opens gaps that immersion then exposes.

Air decay at 20 kPa for 60 seconds catches a missing gasket but cannot replace IPX7.

Lot size	Sample	Major Ac/Re	Minor Ac/Re
151 to 280	32	2/3	3/4
281 to 500	50	3/4	5/6
501 to 1200	80	5/6	7/8

Sampling follows GB/T 2828.1, level II, AQL 2.5 major and 4.0 minor. Three retention samples per lot sit 12 months, marked with packing date and batch.

Conclusion

Acceptance works when promises become repeatable numbers. Density, Vicat, flash, compression, spray duration and AQL give a supplier something to check and a buyer something to reject against. Fix them, and lot-to-lot consistency of an ABS waterproof equipment box stops depending on who stands at the line.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
