Custom Plastic Enclosure Case Specs: Cutouts and Interfaces

Quick answer: A custom plastic enclosure case is specified around its interfaces: cutout positions from one datum, panel thickness matched to edge distance, inserts chosen by pull-out force, and cable entries with their own shielding verdict.

Where Cutout Tolerances Come From
Panel Thickness and Cutout Edge Distance
Threaded Inserts and Pull-Out Force
Cable Entry Holes and Shielding
Inspecting and Detailing Interfaces
FAQ

1. Where Cutout Tolerances Come From

A cutout is not accurate because it is drawn accurately. Position error stacks from the slides forming the pocket, the fixture holding the case during drilling, and the flatness of the mating face. Three items at 0.1 mm each still leave a panel that will not seat, so a custom plastic enclosure case takes ±0.2 mm on position.

The datum comes first: the parting line sets height, two locating bosses set the plane, and every hole runs from those three points. Without it each shift finds its own edge, and batches drift 0.5 mm apart.

Item	Requirement	Tolerance	Method
Hole position	From locating bosses	±0.2 mm	CMM
Hole diameter	Per connector thread	+0.1 / 0 mm	go/no-go gauge
Hole to outer wall	8 mm minimum	positive only	callipers

2. Panel Thickness and Cutout Edge Distance

Panel thickness on a custom plastic enclosure case cannot simply be raised. At 3.0 mm the edge distance to a cutout should be 2.5 times the wall, 7.5 mm, and 8 mm in practice; where cutouts cluster the panel goes to 4.5 mm through a local boss, not across the face.

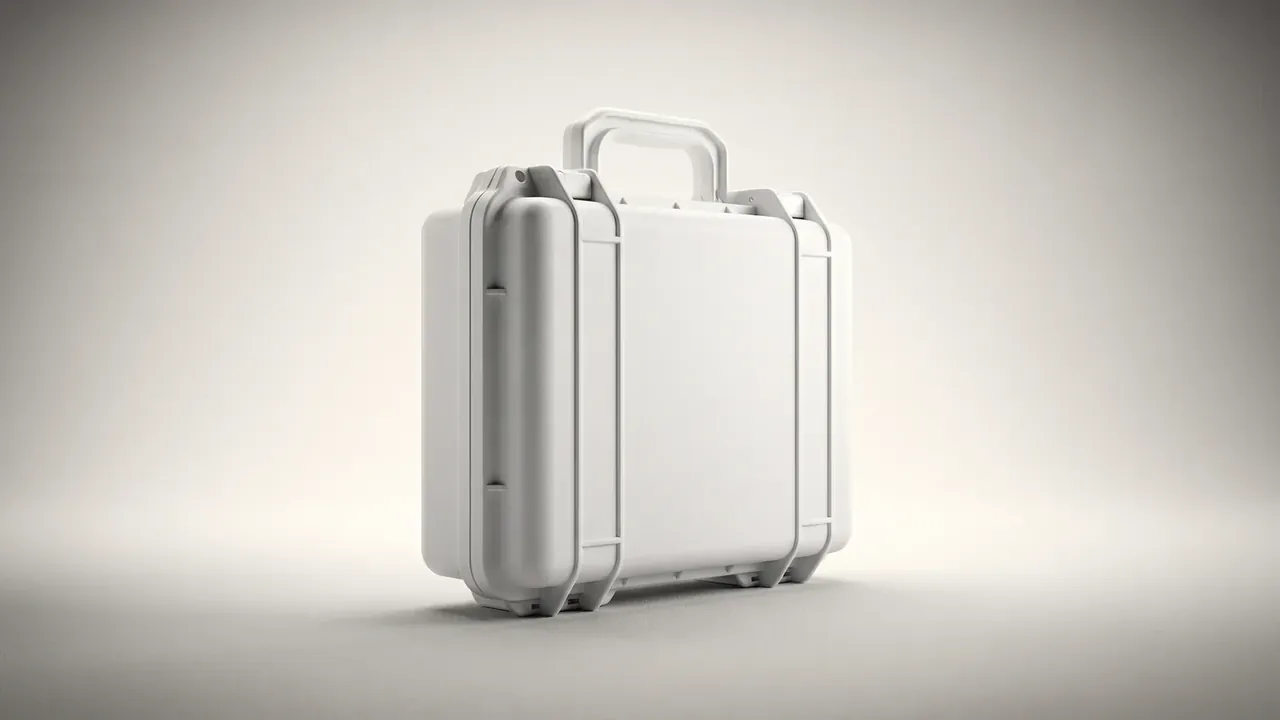

Custom plastic enclosure case: white case angled against a pale backdrop, arched top handle, hinges and vertical ribs on both sides, plain face, corner feet

Space between holes matters too: keep 3 mm of material between adjacent cutouts, or the weld line lands on the hole wall and cracks at the first turn of a screw. Above twelve holes, group them by function with a 6 mm rib between groups.

3. Threaded Inserts and Pull-Out Force

Threads in a custom plastic enclosure case come from metal inserts, hot-staked or ultrasonically set. The specification needs three numbers: insert diameter, surrounding wall, and pull-out force at a stated torque. Under 1.2 mm of wall a firm turn pushes the insert through.

Size	Insert OD	Minimum wall	Pull-out	Torque
M3	4.8 mm	1.0 mm	700 N	1.2 N·m
M4	6.5 mm	1.2 mm	1200 N	2.5 N·m
M5	8.0 mm	1.5 mm	1800 N	4.0 N·m

The boss needs room to cool: 2.5 mm larger than the insert, an R1.5 fillet at the root, a set depth of 1.1 times the insert length. On lids that open often, specify M4 and tighten to 2.0 N·m, which roughly doubles working life.

4. Cable Entry Holes and Shielding

Cable entries on a custom plastic enclosure case are specified with their glands. An M20 gland takes a 22.5 mm through hole, deburred to R0.5, with 25 mm between centres; any closer and two gland bodies foul before the seal seats.

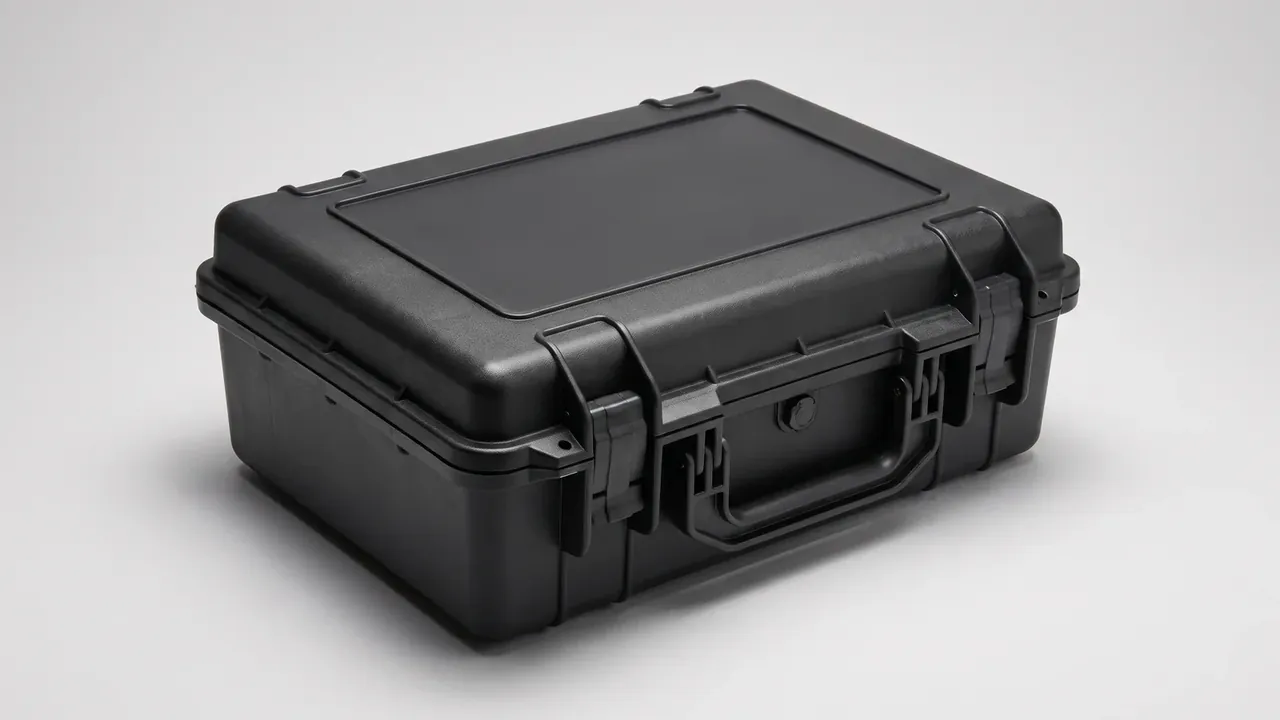

Custom plastic enclosure case: black closed case at an angle, recessed lid panel, inset front handle, a black latch each side, vertical wall ribs

Where shielding is required, every cutout breaks the shell, so bonding resistance gets its own line: 0.1 ohm or less between panel and case body, gasket compression near 25 percent, a 5 mm conductive band around each opening. Shielding comes from a coated inner surface or a metal liner, and its continuity belongs on the drawing.

5. Inspecting and Detailing Interfaces

Inspection is a set of actions: hole positions to a CMM, diameters to go/no-go gauges, three inserts pulled per batch, four points for bonding resistance. Every hole carries coordinates and a tolerance, because a sample has none.

One note is routinely missed on a custom plastic enclosure case: hole axis direction. Panel and side-wall holes each need an angle against the datum, because half a degree of tilt leaves a gland crooked and its seal compressed unevenly. Most interface failures start there.

Conclusion

A custom plastic enclosure case is specified one interface at a time: cutout tolerance from a single datum, panel thickness matched to edge distance, inserts chosen by pull-out force, cable entries and shielding each with a verdict. Left off the drawing, those items get solved on the line with a file and sealant. With datum, tolerance and check on paper, a custom plastic enclosure case becomes something a supplier can build and an inspector can reject.
