Can a custom plastic toolbox manufacturer go below 500 pieces?

Answer: Yes, at start-up rates. Mould change and start-up on a 650 t press take three hours, adding CNY 1.9 per piece at 500. Two colours in one order is worse: a purge costs CNY 600.

After tooling is billed separately, does a repeat pay again?

Answer: Not if the contract says it is invoiced once. Repeat charges hide under mould repair or engineering change, so define both in writing.

Are sampling fees credited against the order?

Answer: Usually, at an agreed volume. A CNC prototype at CNY 1,200 and a 3D print at CNY 400 are credited in full at 3,000 pieces and forfeited below.

The quote says 55 days and arrival is 80. What now?

Answer: Split delivery into tooling, first shot, production and inspection, each with a penalty, then ask for a weekly press schedule instead of chasing at month end.

Custom plastic toolbox manufacturer: who owns the tooling?

Quick answer: Most of the gap between two quotes from a custom plastic toolbox manufacturer sits in the mould clauses, not the unit price. Whether tooling is billed once, how many trial rounds are included and whether a repeat order pays again decide the cost of the second shipment.

The three lines missing from a custom plastic toolbox manufacturer quote
Setting MOQ from cavitation, volume and colour change
Mold ownership: title, trial fees and repeat orders
Tooling and lead time you can measure
Payment terms and the deposit split
FAQ

1. The three lines missing from a custom plastic toolbox manufacturer quote

A quote from a custom plastic toolbox manufacturer usually has five columns: description, dimensions, weight, price, MOQ. The missing items are not decimals but three sums that surface on the second order.

The first is how tooling is billed. Charged separately, amortised into the price, or billed per thousand shots — identical on a first order, a whole mould apart on the repeat.

Missing line	Quote says	You pay later	Sentence to add
Tooling basis	Mould separate	CNY 78,000 twice	Invoiced once, not on reorder
Trials	Included	CNY 2,800 per round	Two rounds included
Packing	Included	CNY 1,200 to 2,600	Three reports included

The second is trial rounds. However careful the review, the first shot moves: lid gap heavy on one side, latch preload light, base warp past 0.8 mm. Three fixes, three weeks.

The third is packing. Cartons, inserts and pallets hide behind one phrase, priced per piece, then per shipment, a gap of CNY 4,000.

2. Setting MOQ from cavitation, volume and colour change

MOQ is not a round number a plant invents. It falls out of cavitation, daily output and the material a colour change scrapes from the barrel.

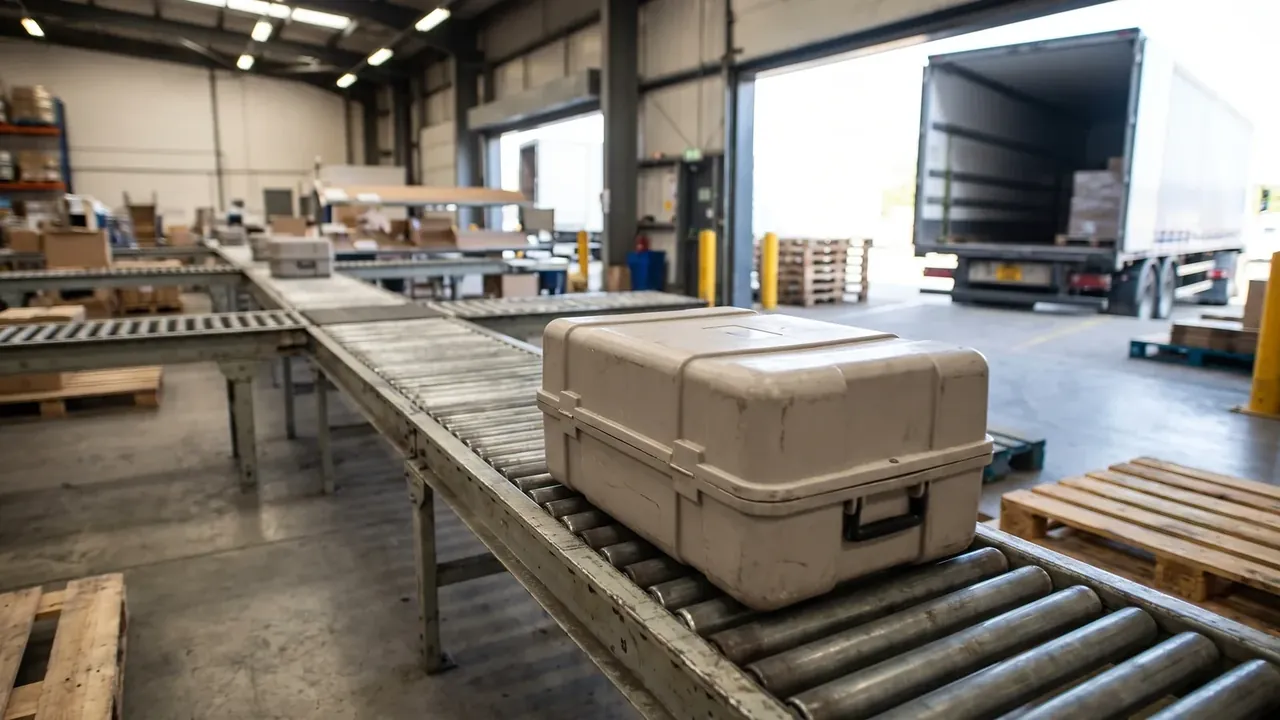

Custom plastic toolbox manufacturer: an off-white case on a roller conveyor, lid closed, one folding handle, two latches, steel frame and wooden pallets behind

A 460 × 350 × 180 mm body with 2.8 mm walls projects about 1,610 cm², so at 0.4 t per cm² the clamp force wanted is 644 t and a 650 t press is chosen. Single cavity, 52 s cycle, 20 effective hours a day gives roughly 1,380 pieces, which puts MOQ at half a day to a day of output. Half a day is 690; add three hours of mould change and the plant quotes 800. Past 30,000 pieces a year a two-cavity tool pays: tooling up 40 percent, per-piece labour down 30 percent, a saving of CNY 1.4 at 30,000 pieces and a loss of CNY 2.1 at 8,000.

Colour is the second gate. A 650 t press needs the screw purged, 90 minutes and 9 kg of compound, roughly CNY 600 that lands in the first batch. The same body quotes at 800 pieces in standard grey, 1,200 in a custom colour.

3. Mold ownership: title, trial fees and repeat orders

Paying for the mould does not always mean owning it, and the clause in custom plastic toolbox manufacturer contracts usually stays vague.

Title: ownership passes on final payment, with mould number, cavity photos and location as an annex.
Trial fees: CNY 2,800 per round with two machine hours and 30 samples, then CNY 600 per extra hour.
Repeat orders: tooling invoiced once, so a second order pays material and labour only.
Transfer: whether storage is charged after 12 months, and what ships — drawings, 3D data, electrode list.
Life: designed for 300,000 shots, normal cavity polishing on the supplier.

The clause most often skipped is transfer: without an electrode list a new set is machined, usually from CNY 6,000.

4. Tooling and lead time you can measure

Sampling runs twice: a 3D print takes three days and checks fit and lid feel, a CNC prototype seven days at CNY 1,200 checks wall transitions and handle-root strength. Doing both before steel is cheaper than changing a mould after.

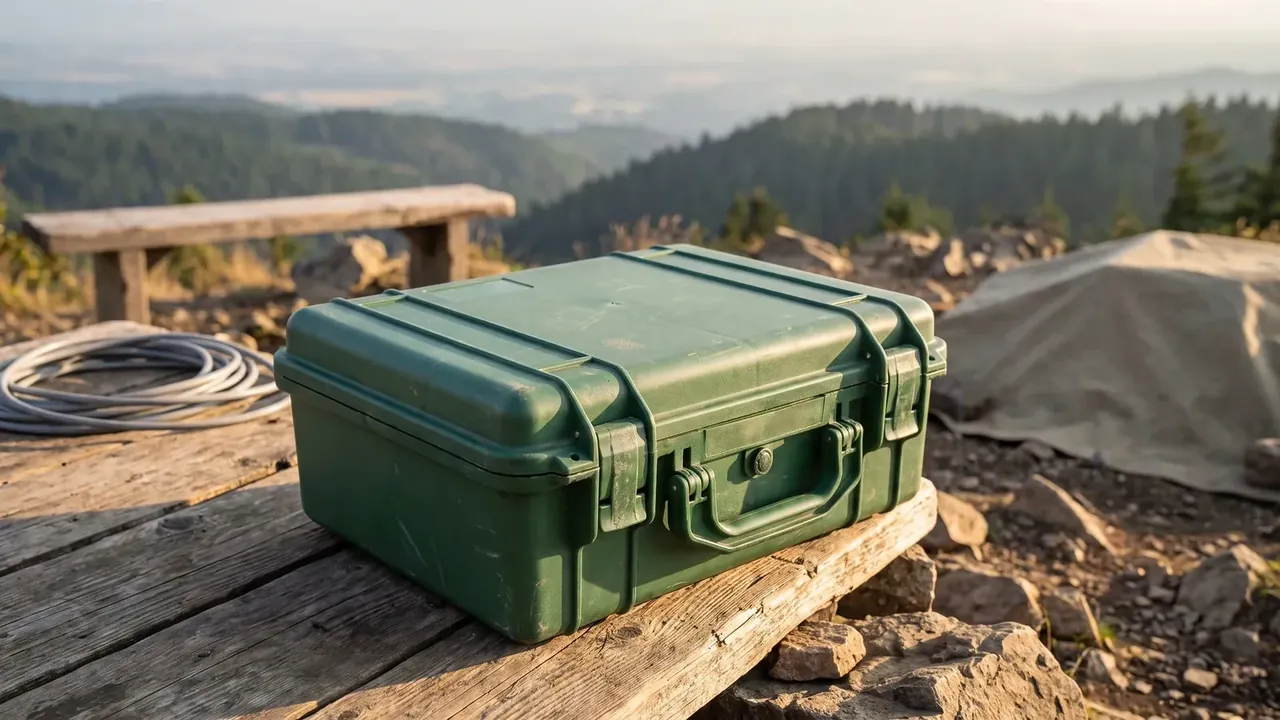

Custom plastic toolbox manufacturer: an olive green case on a wooden bench outdoors, lid closed, two latches, folding handle facing camera, grey cable at left

Cutting the tool takes 22 days, first shot two, one correction six. With two rounds, drawing release to approval is 42 days; 8,000 pieces at 1,380 a day is six days, packing three, booking four, so 55 days ex-works. Add 26 to 30 days of sea freight and Europe sees goods at about 85 days.

Write the date as ex-works, never arrival. Hang penalties on the nodes: 0.3 percent of contract value per day late, capped at 5 percent, beyond which the buyer may cancel the balance.

5. Payment terms and the deposit split

Terms are what a custom plastic toolbox manufacturer concedes last, and worth settling on the first order. The common split is 40 percent deposit, 50 percent against the bill of lading copy, 10 percent within 30 days of arrival; pushing the balance to 60 days usually moves the deposit to 50 percent.

Currency and resin need a linkage clause: share movement beyond 2 percent against the renminbi, and reset the price only when published PP grades move more than 8 percent from the quotation month. Without it a quote lasts 15 days.

Sixty days of credit hands the supplier 16.4 percent annualised funding cost, so a 3 percent discount in exchange is paying for the privilege.

Conclusion

Buying from a custom plastic toolbox manufacturer is a comparison of the lines the quote leaves out, not the column it prints. Fix the tooling basis, the trial rounds and the packing scope, and prices finally mean the same thing across suppliers. Fix ownership and repeat terms, and the second shipment stops surprising anyone. Put all five in the annex before negotiating, and any custom plastic toolbox manufacturer becomes comparable.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
