Can the tooling cost of an injection molded plastic tool box be absorbed into the unit price?

Answer: Yes, if the contract names the period: over three years the tool adds RMB 8 to 10 per unit, over one year RMB 24.

Is a four-cavity tool always cheaper than a single-cavity tool?

Answer: Only above roughly 30,000 units a year: the tool costs three times as much and the machine jumps two classes.

Can the cycle be pushed any lower?

Answer: Little is left outside cooling. Conformal cooling saves 15 percent for about RMB 40,000 in tooling.

Which matters more, sink marks or flash?

Answer: Flash. Sink marks are visual; flash on the gasket land breaks the seal and forces a gasket change.

What is the smallest machine for a 600 by 400 case?

Answer: 800 tonnes: 300 kg per square centimeter gives 720 tonnes plus margin. A 530-tonne press closes but flashes mid-edge.

How does a small order avoid wasting tooling money?

Answer: Prove it on an aluminum tool for 500 units. Aluminum costs a third of steel and lasts 3,000 to 5,000 shots.

Injection Molded Plastic Tool Box: Where the Cost Actually Sits

Quick answer: Three molding variables set the price of an injection molded plastic tool box before resin grade matters: cavity count, cycle seconds and clamp force. Under 8,000 units a year a single cavity wins; four pay back near 50,000. A 0.8 mm wall step costs an assembly line three minutes an hour.

Cavities and Tonnage Fix the Unit Cost
Where the Cycle Seconds Go
Uneven Walls Stop the Assembly Line
Sink Marks and Flash at Assembly
Matching Case Footprint to Machine Tonnage
Three Volume Bands
FAQ

1. Cavities and Tonnage Fix the Unit Cost

Tooling arrives as one number but behaves like a curve: a four-cavity mold for an injection molded plastic tool box body runs RMB 260,000 against RMB 86,000 for a single cavity, and only volume closes that gap.

Annual volume	Cavities	Tooling	Tooling per unit
3,000	1	RMB 86,000	RMB 28.70
12,000	2	RMB 145,000	RMB 12.10
50,000	4	RMB 268,000	RMB 5.40

Tooling is the down payment; clamp force decides whether the mold runs. Too little and the halves breathe apart, flash spills from the parting line and trimming must be staffed; too much and machine time climbs from RMB 0.6 to 0.9.

Neither end is cheap.

2. Where the Cycle Seconds Go

The cycle splits into four stages. The part must also walk onto the assembly line: if residual stress bows the lid past 1 mm, the seconds saved return at trial fit.

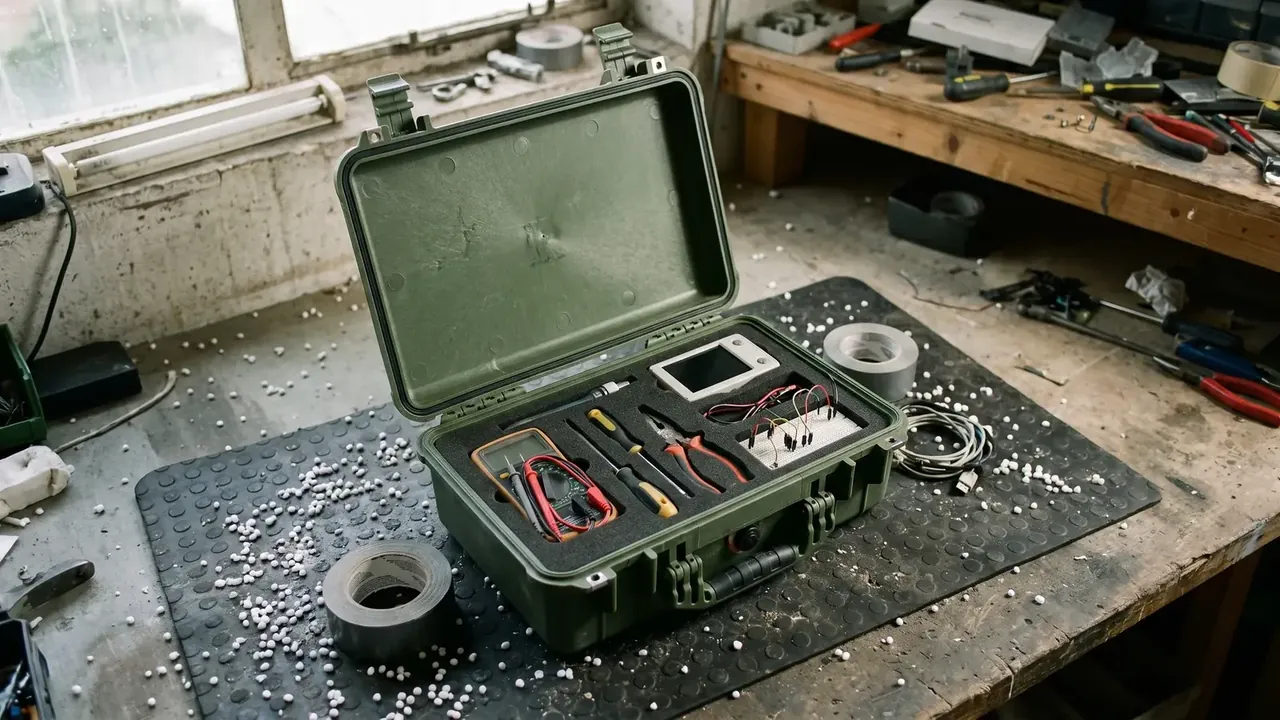

Injection molded plastic tool box: olive green case open on a workshop bench, black foam cut to outlines, screwdrivers, red-handled pliers, multimeter, two rim latches

Injection, 4 s: no slack; steal 0.5 s and a weld line shows.
Packing, 9 s: 60 to 35 MPa saves 2 s, dimpling the bosses.
Cooling, 22 s: the only stage with real room, the most wall-sensitive.
Open and close, 7 s: robots help, big cases give least.

Cooling scales with the square of wall thickness: 22 seconds at 2.4 mm, 34 at 3.0 mm, so the cycle climbs from 42 to 54 seconds. Four cavities make machine time 10.5 seconds a unit, RMB 0.18 at RMB 1.0 a minute, 0.23 on the longer cycle. Twelve seconds of cycle is five cents a unit.

3. Uneven Walls Stop the Assembly Line

Wall variation in an injection molded plastic tool box is a design decision. A 2.4 mm lid against a 3.2 mm side wall cools 30 percent apart and lifts its corners 1.3 mm.

Lid wall	Side wall	Cooling time	Corner warp
2.4 mm	2.4 mm	22 s	0.4 mm
3.0 mm	2.4 mm	26 s	1.3 mm
3.4 mm	2.4 mm	30 s	2.1 mm

The bill comes at assembly: an edge 1 mm proud must be pressed by palm before a latch catches, adding six seconds a unit.

Flatness is accepted at 0.8 mm over 300 mm. Beyond that only cooling changes: split the lid circuit from series to parallel, and drop mold temperature to 45 degrees.

4. Sink Marks and Flash at Assembly

Sink marks hide at rib roots and bosses: invisible below 0.15 mm, a shadow past 0.3 mm.

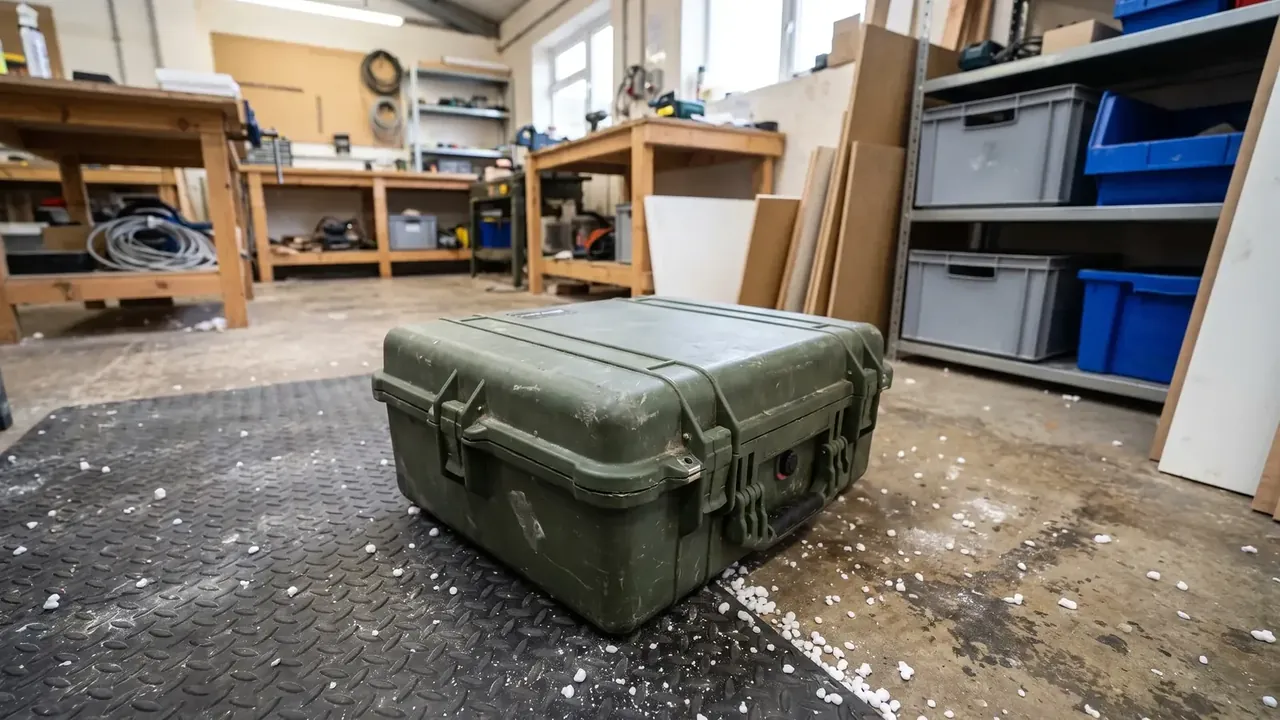

Injection molded plastic tool box: closed olive green case on a black mat, two front latches, folding handle, scuffed lid, workbench and grey bins behind

Flash is judged at the parting line. Under 0.2 mm it can stay; at 0.4 mm it sits on the gasket land and the seam becomes a water path. Trimming an injection molded plastic tool box runs 12 seconds a unit.

5. Matching Case Footprint to Machine Tonnage

Clamp force on an injection molded plastic tool box is projected area times cavity pressure, at 300 kg per square centimeter. A 600 by 400 mm case projects 2,400 square centimeters, which gives 720 tonnes and an 800-tonne machine.

Case outline	Projected area	Calculated clamp	Suggested machine
300 x 200 mm	600 cm2	180 t	250 t
450 x 350 mm	1,575 cm2	473 t	530 t
600 x 400 mm	2,400 cm2	720 t	800 t

Deep cases must also clear shot size: a 600 by 400 body weighs 1.6 kg in polypropylene, and a 22:1 barrel plasticizes 2.8 kg a shot. A 1,300-tonne press backfires, since melt sits three minutes before injection.

6. Three Volume Bands

Bands follow whether an order runs twelve months unbroken.

Under 3,000 a year: single cavity, P20 steel, no hot runner, manual demolding, tooling under RMB 90,000.
10,000 to 20,000: two cavities, hot runner, robot demolding, 48-second cycle, tooling near RMB 150,000.
Above 50,000: four cavities, beryllium copper rib inserts, zone-controlled mold temperature, unit cost near RMB 4.

A two-month gap erases the case for the four-cavity tool.

Conclusion

Tooling, machine time and trimming on one sheet show the cost structure of an injection molded plastic tool box: resin is about thirty percent, and cavities, cycle, tonnage and yield split the rest. Volume decides: single cavity below 8,000 units, four above 30,000. What gets priced is the injection molded plastic tool box itself.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
