Are bigger wheels always better on a wheeled trolley case?

Answer: No. Match diameter to body height: 50 mm for 20–35 L, 80 mm for 60–90 L. A big wheel on a small body pushes lean to 9 degrees.

TPE or nylon for tread life?

Answer: It depends on the floor. Tile favours TPE, 8 dB quieter; concrete and gravel favour PA6. Rolling resistance differs by 0.003.

How much can four wheels carry?

Answer: Size on single-wheel load, not a four-way split. At a tilt only two wheels touch, each seeing 1.8 times the average.

Why does the case shimmy when pushed?

Answer: Excess axial play or a thin axle. Play beyond 0.4 mm shows as shimmy; a 6 mm axle deflects 40 percent more than 8 mm.

Can a wheeled trolley case cross a platform gap?

Answer: Gaps of 20 to 30 mm need 65 mm wheels or more; a 50 mm wheel drops in.

How to choose a wheeled trolley case: five checks on the wheels

Quick answer: Check wheel diameter, tread width, single-wheel load and axle size first, then tread hardness and housing build, then walking and drop data, and finally match tread width to your floor. Get all five right and the case rolls without fighting you.

A wheeled trolley case starts at four wheel numbers
Tread material and hardness
Caster housing and axle structure
Load ratings and dynamic testing
Ground matching and obstacle clearance
FAQ

1. A wheeled trolley case starts at four wheel numbers

Four wheels carry everything on a wheeled trolley case: weight, acceleration and side load in a turn. Diameter sets obstacle clearance, tread width sets contact pressure, axle size sets bending resistance.

Diameters come in 50, 65 and 80 mm, clearing 10, 15 and 20 mm steps. Terminal joints stay under 8 mm while city pavements run 12 to 18 mm.

Wheel mm	Tread mm	Case volume L	Dynamic load kg	Step mm
50	22	20–35	18	10
65	25	35–60	25	15
80	30	60–90	35	20

The common mismatch is an 80 mm wheel on a 20 L body: clearance improves, yet the centre of gravity rises 30 mm and lean goes from 6 to 9 degrees.

2. Tread material and hardness

Three treads dominate: TPE at 85A, PP at 70D and PA6 nylon at 80D. TPE grips and damps noise but takes a permanent set; PP is stiff and cheap but loud on hard floors; nylon wears well yet sounds sharp on tile.

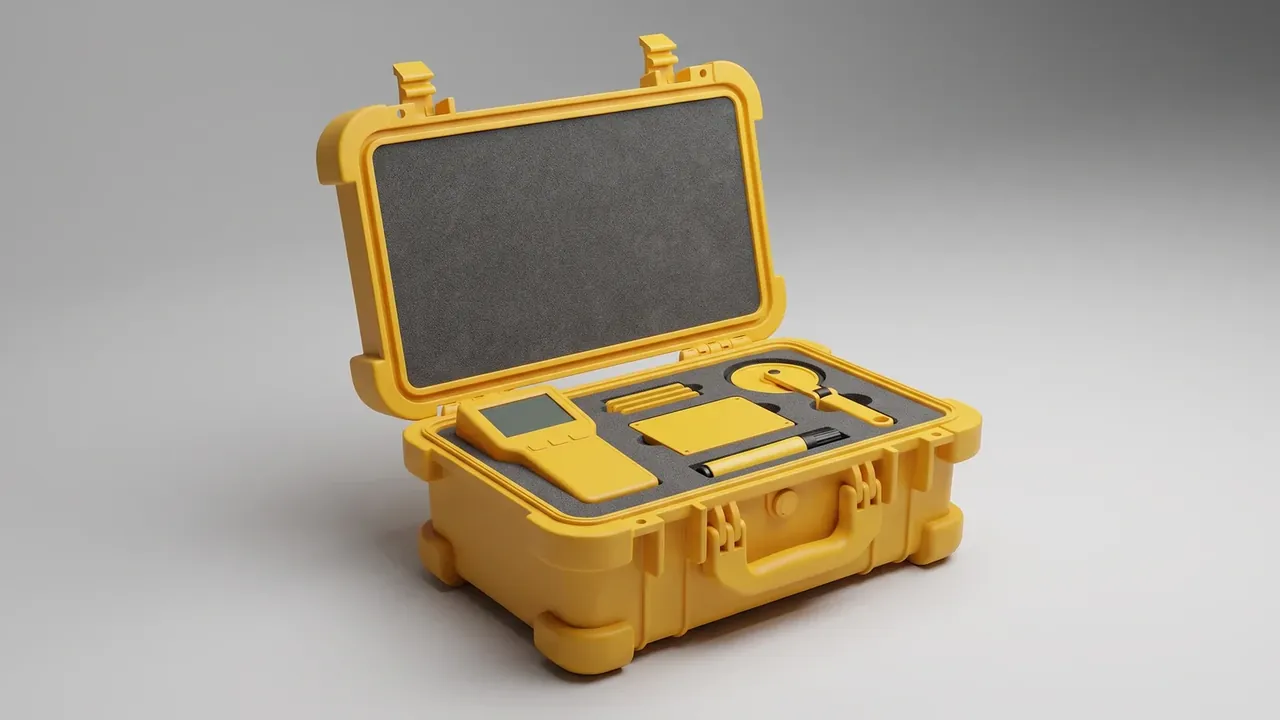

Wheeled trolley case: yellow case open and upright, grey foam sheet in the lid, two latches standing on top, folding handle, rounded corner feet

On a 25 kg case over 8 km of tile, the treads measured 62, 70 and 66 dB, with rolling resistance of 0.012, 0.008 and 0.009. An 8 dB gap is audible in a terminal hall.

Temperature rewrites hardness: four hours at -20 °C lifts TPE hardness about 8A, and six hours at 60 °C softens it 5A, leaving a 0.4 mm flat spot after a long stand.

3. Caster housing and axle structure

The housing fixes the wheel at the end of the load path: PA66 with 30 percent glass fibre, a 3.0 mm wall, M6 bolts at 6 N·m. An 8 mm axle bends 40 percent less than 6 mm at 35 kg.

Twin wheels on a wheeled trolley case split load across two treads and halve contact pressure, at the cost of a 40 mm wider turning circle. Single wheels steer in tight aisles but wear twice as fast at the same load. Keep 0.2 mm of axial play: below 0.1 mm the wheel drags, above 0.4 mm the case shimmies. A 2.5 mm pad between housing and base holds cracking under three per thousand.

4. Load ratings and dynamic testing

Static compression tells you little. Load ratings come from 25 kg over 8 km on a belt with 5 mm bumps, after which tread wear must stay under 0.5 mm.

Wheeled trolley case: olive green case side close-up, a black rubber strap through a recess held by green mouldings, fine matte texture

Drop testing runs 1.2 m onto six faces with no housing crack; the step test runs 500 hits at 15 mm with bore clearance growing 0.15 mm at most.

At a 15 degree tilt only two wheels touch, each seeing 1.8 times the average, so size on load divided by two, then multiplied by 1.8.

5. Ground matching and obstacle clearance

The floor decides tread width for a wheeled trolley case: tile favours soft 22 to 25 mm treads, grit concrete needs PP or nylon, gravel needs 30 mm tread and 65 mm diameter.

Platform gaps run 20 to 30 mm, and anything under 65 mm drops in. A 300 mm wide, 30 mm high speed bump needs an 80 mm wheel with 30 mm tread.

Test	Condition	Limit
Walking wear	25 kg, 8 km, 5 mm bumps	Tread wear ≤0.5 mm
Drop	1.2 m, six faces	No crack, wheels spin
Step impact	15 mm, 500 hits	Bore clearance +≤0.15 mm
Salt spray	48 h neutral	No rust on axle

Conclusion

Choosing a wheeled trolley case comes down to six figures: diameter, tread width, tread hardness, axle size, housing wall and bolt torque, each aligned to floor and load. Diameter matches the step, width matches the ground, axle matches the weight, and after 8 km the tread still wears under 0.5 mm. Roll the case over a doorstep and tile instead of reading the spec sheet. What decides the feel is how the four wheels of a wheeled trolley case meet the ground.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
