Where a Manual Tool Box Works: Four Site Setups

Quick answer: A manual tool box earns its place at four sites: assembly, inspection rounds, tool room counter and service vehicle. Bay width follows the largest tool, bay load follows the heaviest item, and the card follows the shift pattern.

Manual tool box layout on an assembly station
Inspection rounds and one slot per item
Tool room issue and shift handover
Vehicle and outdoor duty
Comparing four settings and acceptance
FAQ

1. Manual tool box layout on an assembly station

On a line with a 45 second takt, the case opens over four hundred times a day, so layout beats strength. Sockets from 13 mm to 24 mm fill one row, spanners from 8 mm to 19 mm the next, and the drill gets 60 mm of body clearance so a tool goes back in three seconds.

Bay width follows the largest diameter: a 24 mm socket in a 60 mm bay leaves 36 mm to grip. Below 40 mm depth the chuck stands proud and the lid lands on it.

Setting	Tool set	Bay mm	Bay load kg
Assembly	24 sockets, 8 spanners	60 by 45	4
Inspection	drill, 12 hex keys	90 by 60	6
Tool room	one full kit	70 by 50	5
Vehicle	6 spanners, 4 pliers	55 by 40	3

A manual tool box rated 18 kg does not give 18 kg per bay. Dividers are 3 mm PP sheets on a 20 mm pitch, so each bay carries 3 to 6 kg.

2. Inspection rounds and one slot per item

Inspection inverts the assembly logic: fewer tools, but they travel and get found in the dark. A walkdown technician covers about 6000 steps a shift, so every kilogram of empty weight is paid 6000 times. A 1.8 mm wall keeps a loaded case under 4.5 kg.

Manual tool box: black case open, foam cut to shape holding a screen instrument, probes and a coiled cable in side bays, two latches

The rule is one slot per item. Drill, hex keys, meter and probe each sit in a pocket cut 1 mm under the outline, so foam tension holds them through a tilted carry and a gap is visible the moment the lid opens.

3. Tool room issue and shift handover

The tool room is about counting, not carrying. A 30 person crew on three shifts hands over 42 tools per change, and a manual tool box turns that into a grid count checked in under three minutes.

A clear lid pocket outlasts writing on the case itself. A 12 mm padlock hole lets the night shift lock the case. Handles take twice rated load for 30 minutes, so a 9 kg case survives 18 kg.

Handover item	Recorded on	Time	Pass if
Tool count	bay numbers	3 min	42 present
Missing item	85 by 54 mm card	1 min	borrower signed
Padlock state	12 mm hole	30 s	number matches shift

4. Vehicle and outdoor duty

In a service vehicle the case must not walk across the load bay. Standing 12 mm off the floor on two 8 mm anti-slip feet holds it, and a 5 mm EVA lid layer presses tools down so nothing rings against steel.

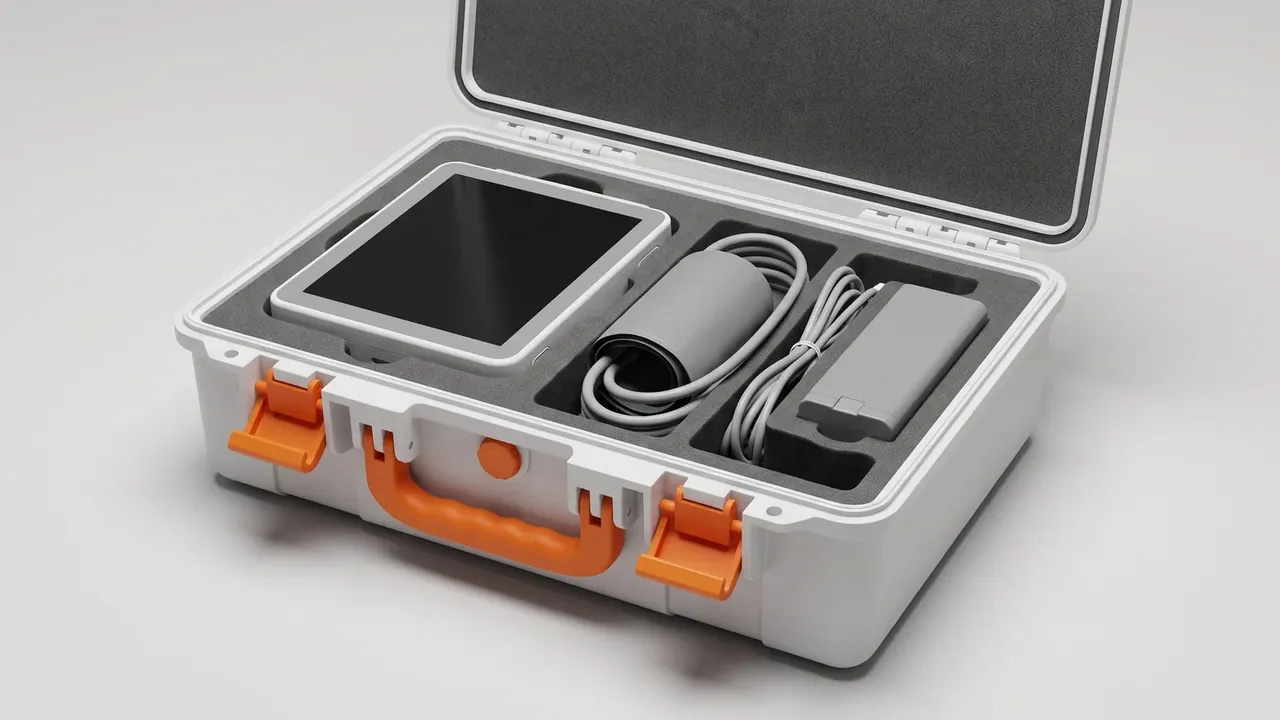

Manual tool box: white case open, orange handle and two orange latches, dark foam holding a black screen module, a coiled cable and grey adapter

Temperature decides the material. A closed van reaches 60 degrees Celsius, where PP loses about 20 percent of its modulus and the lid sags; at -10 degrees the shell chips. With a 500 mm boot, keep the case under 320 mm.

5. Comparing four settings and acceptance

Set the sites side by side and the differences reduce to three numbers: bay width, bay load and empty weight.

Item	Assembly	Inspection	Vehicle
Wall mm	1.8	1.8	2.2
Empty weight kg	5.5	4.5	4.8
Bay load kg	4	6	3
Handle static kg	22	18	20

Acceptance covers four checks: 15000 hinge cycles without play, twice rated load on the handle for 30 minutes, feet moving under 2 mm after an hour of vibration, and a pocket flat after 72 hours at 40 degrees. Sample to AQL 2.5: 20 pieces per 500. A 450 mm body tool on a 250 t press runs a 35 second cycle for 3000 pieces a day.

Conclusion

A manual tool box matters less for its shell than for turning loose tools into something counted, reached for and handed over. Assembly reads bay width and a three second pick, inspection one pocket per item, the tool room a three minute count, vehicle duty 12 mm of clearance. Written into the purchase list, the manual tool box becomes what counts 42 tools each shift.
