Waterproof Instrument Case Acceptance: Test Items and Verdicts

Quick answer: A waterproof instrument case is signed off on five verdicts, not one IP code: cavity size within 1.0 mm, foam gap under 1.5 mm, 70 to 100 N per latch, and a dry interior after IPX6 jetting.

How a Waterproof Instrument Case Is Inspected in Five Layers
Cavity Dimensions and Foam Fit
Latches, Hinges and the Pressure Valve
Sealing Geometry and Water Test Levels
Cosmetic Limits and Batch Sampling
FAQ

1. How a Waterproof Instrument Case Is Inspected in Five Layers

Acceptance sheets for a waterproof instrument case often collapse into a protection code. The dock argument is rarely about water: a cavity 1.5 mm short, foam that lifts the panel, or a latch closing on one side.

Stage	Checked	Basis	Record
Incoming	Resin, gasket	Grade, density	Drying log
First-off	First shot	Cavity, wall, flash, latch	First-article sheet
Patrol	3 units per 4 h	Cosmetics, latch, groove	Patrol chart
Final	Finished case	Assembly, torque, air leak	Final report
Type	Whole case	Dust, jet, immersion, cycles	Test report

Four layers run on every lot; the fifth runs on a cycle or after a change, and is destructive, so submerged samples cannot ship.

2. Cavity Dimensions and Foam Fit

Shrinkage pulls the cavity 0.3% to 0.6% under nominal, so a 420 by 320 by 175 mm interior can lose 1.5 mm in length, enough to stop a rigid base from seating.

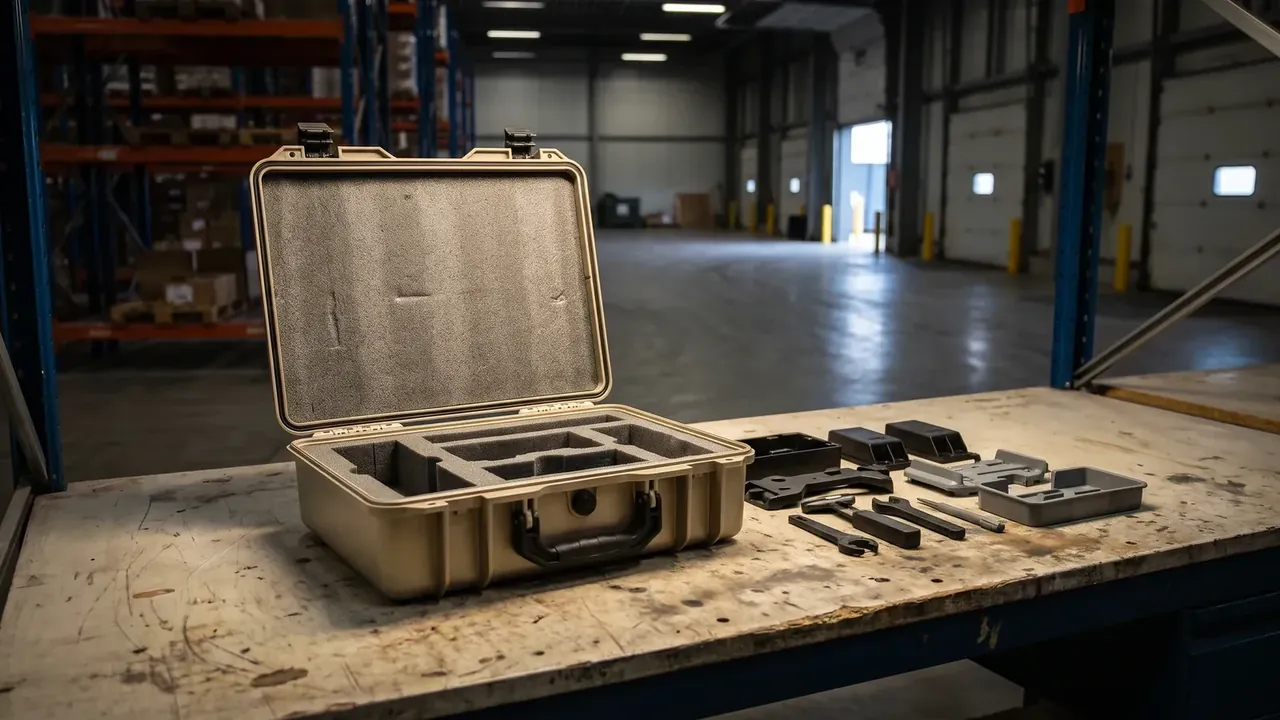

Waterproof instrument case: sand-coloured shell open upright on a repair shop bench, foam-lined lid, empty compartmented insert, black brackets and two wrenches beside it

Judge four readings: length and width within 1.0 mm, depth 0.8 mm, floor flatness 0.6 mm, wall 2.8 to 3.5 mm. A high spot near the gate means starved packing.

A 30 mm closed-cell polyethylene at 30 kg/m³ should land at 25% to 35% compression. Under-compressed the unit shifts; over-compressed the lid lifts and latch force climbs from 85 N past 120 N. Keep the foam gap at 1.5 mm or less.

3. Latches, Hinges and the Pressure Valve

Latch force is the most measurable item: 70 to 100 N per latch, no more than 15 N apart, read as a peak on a pull gauge. A wide spread means a warped body; the lighter side leaks first, invisibly, so every unit is checked.

Hinges take 3,000 cycles, after which the gap may grow 0.3 mm at most. The pressure valve is often deleted: from a 25 °C room to a minus 20 °C site the differential passes 8 kPa, the lid is sucked shut, and prying distorts the gasket of the waterproof instrument case. Specify 4 to 6 kPa to open and 1 kPa to reseat.

4. Sealing Geometry and Water Test Levels

A waterproof instrument case runs a 2.5 mm silicone O-ring in a 1.8 mm deep, 3.0 mm wide groove at about 28% compression; silicone keeps rebound where nitrile hardens.

Waterproof instrument case: a worn grey shell open on a tailoring bench, scratched lid interior, foam slots with calipers, scissors and tape measure

Round the groove lip to 0.3 mm and hold the wall at Ra 1.6; a square lip cuts the crease that starts the leak.

Test	Condition	Units	Verdict
IP6X dust	Talc 2 kg/m³, 2 kPa vacuum, 8 h	3	No dust inside
IPX6 jet	12.5 L/min, 2.5 to 3 m, 1 min per face	3	No water
IPX7 immersion	1 m, 30 min	3	Dry on opening
Post-cycling IPX7	Minus 20 °C and 60 °C, 10 cycles	3	Still passes

Buyers drop the last row, yet ten thermal cycles accumulate compression set.

5. Cosmetic Limits and Batch Sampling

Fix the viewing conditions first: 800 to 1,000 lx at 400 mm for ten seconds, then a limit per defect. Sink marks are never accepted on the groove floor, because a dip shifts compression; elsewhere 0.3 mm is the ceiling, and parting-line flash stays under 0.2 mm.

Sampling: three units at first-off, three every four hours, 5% of the lot at final with a floor of five, and a type test every 12 months. Leakage, a latch releasing under load and a failed valve get zero acceptance, so every unit passes a 20 kPa air test at 0.5 kPa maximum drop.

Conclusion

Acceptance works when promises become repeatable numbers. Cavity tolerance, foam gap, latch spread, valve pressure and thermal cycles belong on one signed sheet, with a gauge number beside each reading. Anything unmeasurable should be named as such. Fix those verdicts in the annex and consistency for a waterproof instrument case becomes a number instead of an opinion.
