How is the IP rating of a waterproof equipment case matched to a site?

Answer: Washdown needs IP65, short flooding or open storage needs IP67, long immersion needs a structural review. Set and drain notches decide year three.

The wall is 1 mm under limit, so reject the lot?

Answer: Check the location. Under 6.5 mm mid-panel is a drop risk, so rework; a patch under 20 by 20 mm at a rib root can pass a drop test.

Why 23 °C and a one-hour wait for stacking?

Answer: Polyethylene creeps with temperature and time. Hot readings exaggerate set, immediate ones understate it, and the two errors flip verdicts.

What happens when gasket set fails?

Answer: After a few dozen closures compression drops below 15% and the case passes a spray test yet leaks after immersion. Tighter latches will not recover it.

Are pinholes a defect on a rotomoulded case?

Answer: Judge by size and density. Under 2 mm and three per 0.1 m² is minor; clusters near the groove are major, since unmelted powder sits underneath.

Waterproof Equipment Case Acceptance: Items and Verdicts

Quick answer: Grade a waterproof equipment case before sampling: leakage, a releasing latch or a broken handle is critical, accepted at zero, while an 8 mm wall, 3 mm set under 500 N and 25% compression set belong in the contract.

How a Waterproof Equipment Case Is Graded for Defects
Wall Thickness and Body Stiffness
Handles, Wheels and Stack Load
Gasket Set and Ingress Tests
Cosmetics and Batch Sampling
FAQ

1. How a Waterproof Equipment Case Is Graded for Defects

Most acceptance sheets squeeze every failure into one word, so both sides read the same waterproof equipment case differently. A leak scraps the equipment; a colour shift only spoils the look.

Grade	Trigger	Disposition	Record
Critical	Immersion leak, latch release, handle break	Reject lot, trace mould	Nonconformance report
Major	Wall under limit, stack set, hardness drift	Rework or downgrade	Rework order
Minor	Colour, pinholes, flash	Concession, counted in defect rate	Inspection log

At 500 units, critical sits at zero acceptance, major at AQL 1.0 and minor at AQL 4.0.

2. Wall Thickness and Body Stiffness

A rotomoulded waterproof equipment case is specified at 8 mm wall with a 1.5 mm tolerance, and no reading may fall below 6.5 mm. Measure 12 points, three per face, with an ultrasonic gauge.

Waterproof equipment case: a khaki hard shell closed on a brown backdrop, one wide latch at the front centre, folded handle, three cloth rolls behind

Thin spots rarely sit in corners; the risk is mid-panel and at a rib root, where a 6 mm wall cracks on a one-metre drop while the outside still looks perfect.

Stiffness: 300 mm span, 500 N for one minute, 3 mm set at most, and the wall must not touch the interior. Test at 23 ± 2 °C, since polyethylene loses modulus at 70 °C.

3. Handles, Wheels and Stack Load

Loaded weight reaches 30 to 45 kg, so handle, wheels and base decide survival at a terminal.

Item	Value	Method
Handle static	60 kg for 10 min, 1 mm set	Weighted hang
Wheel travel	50 kg over 5 km, 0.5 mm play	Drum rig
Stack	400 kg for 24 h, 2 mm set	Plate load

Read stack height an hour after unloading; rotomoulded walls creep and immediate readings flatter the part. Drop follows stacking, never the reverse: 1.0 m loaded, one corner, three edges, six faces, then immersion.

4. Gasket Set and Ingress Tests

EPDM gaskets at 60 ± 5 Shore A sit in the groove at 25% to 30% compression. The governing figure is compression set: 70 °C, 25% deflection, 24 hours, no more than 25% loss.

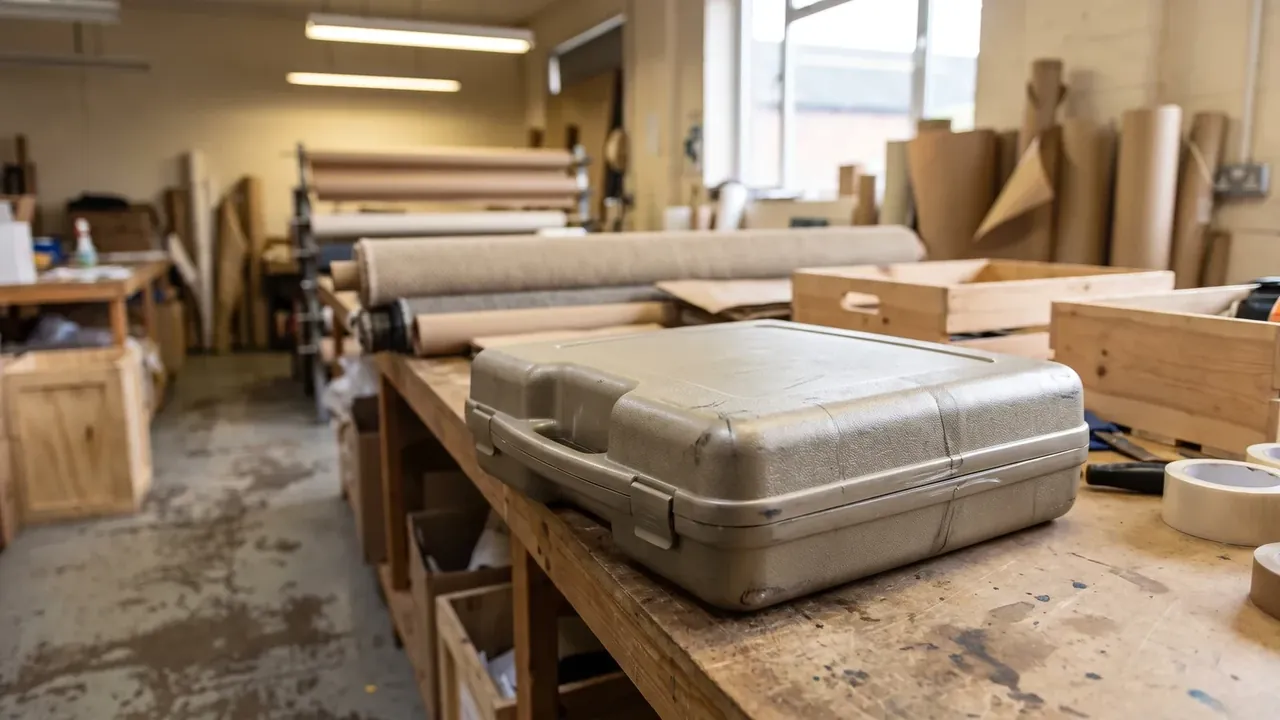

Waterproof equipment case: a scuffed grey-green shell on a packing bench, chipped corners, a small latch, paper rolls and wooden crates behind

Set predicts life better than hardness: a gasket that fails set flattens after a few closures and leaks while a recheck still reads green.

Test	Condition	Units	Verdict
IP65 jet	6.3 L/min, 12.5 mm nozzle, 3 m, 1 min per face	3	No water
IP67 immersion	1 m, 30 min	3	Filter paper gain under 1 g
Salt spray	Neutral, 96 h	3 fittings	Grade 9 or better
Thermal cycling	Minus 30 °C and 70 °C, 3 cycles	3	IP67 still passes

Cut a 2 mm by 1 mm drain notch at each groove corner; trapped wash water freezes and lifts the gasket.

5. Cosmetics and Batch Sampling

Rotomoulded cosmetics mean pinholes, flow marks and colour shift. Pinholes are counted by area, one point no larger than 2 mm and three per 0.1 m²; more becomes a minor concession. Flow marks pass unless they cross the groove; flash stays under 0.3 mm.

Sampling: two units at first-off, two every six hours, 10% of the lot at final with a floor of three, plus a type test every 12 months. Mould number, powder lot and shift go inside every waterproof equipment case, so a leak complaint traces to one mould and one week.

Conclusion

A standard earns its keep when a signature follows a number. Three grades fix disposition, five readings fix the verdict, a mould-lot-shift code fixes the trace. Anything that cannot be met should be written down, not covered by a compliance sentence. With grades, readings and traceability in place, lot consistency for a waterproof equipment case stops being an opinion.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
