How many suppliers should a military rotomolded case tender compare?

Answer: Three. Fewer makes the price hard to benchmark; more spreads approval effort across bidders.

Can the one-off charges be removed?

Answer: Mould and testing cannot, but their recovery can change; a volume rebate beats a lower unit price.

What if the supplier will not move on MOQ?

Answer: Recount sets and spares, then merge same-colour lots with another project to reach 300 units.

Can the order be contracted at 60 days?

Answer: Only on a repeat order reusing an existing mould. Otherwise put the inspection window in the schedule.

How is a deviation judged at acceptance?

Answer: Against the written limits of 2 mm internal tolerance and 0.6 mm wall spread, then fit, then rejection.

Military Rotomolded Case Procurement: Quote, MOQ and Lead Time

Quick answer: A military rotomolded case quote hides two costs: a one-off validation block and a repeatable batch price. Split them, derive quantity from equipment sets and spares, and schedule around approval and inspection.

Military Rotomolded Case Quotes Split Into Two Parts
Test Samples and First-Article Approval in the Budget
MOQ Follows Unit Counts and Spare Ratios
Two Gates That Stretch Military Lead Times
Comparing Bids by Amortising Validation Cost
FAQ

1. Military Rotomolded Case Quotes Split Into Two Parts

Most enquiries return one figure that claims to cover everything. Validation happens once, the batch repeats, and once merged into one number the second order cannot be negotiated.

A 45 L body measures 520 by 320 by 270 mm inside, 6 mm wall, 9.8 kg empty, 8.6 kg of polyethylene. Powder at 11 CNY per kilogram gives 95 CNY; a 28-minute cycle adds 78 CNY; six latches, two handles and one valve total 32 CNY; cartons and pallet 26 CNY. The batch price lands near 231 CNY.

Cost item	Reference at 45 L
Mould, one-off	68,000 CNY single, 110,000 dual
Test samples, one-off	5 units at trial price
Approval, one-off	3 units, destructive included
Third-party testing, one-off	About 12,000 CNY
Moulding and hardware, batch	About 231 CNY

A repeat order negotiates only the batch line; quoting the first-order figure again pays twice for one mould.

2. Test Samples and First-Article Approval in the Budget

A trial needs five samples: two destroyed in drop and stacking tests, three kept for review. Trial mouldings cost two to three times the production price, as every part is measured.

Military rotomolded case: a grey ribbed box on a roller conveyor, racking and pallets behind

Approval takes three more: one for the inspector, one at the plant, one with the lot. It covers internal dimensions, thickness at nine points, 500 latch cycles and three 1.5 m edge drops within a 0.6 mm spread.

The forgotten item is repeat approval: a colour change, a new supplier or one mould repair each triggers a fresh submission, so name those triggers in the specification.

3. MOQ Follows Unit Counts and Spare Ratios

Commercial minimums follow purge time. Defence orders add sets: 40 cases per battalion-level unit plus 5 percent spares is 42, and three units give 126, below the mould's economic batch.

Lot size	Amortisation per unit	Spare ratio	Situation
130	523 CNY	5%	Single unit, first order
300	227 CNY	5%	Three units merged
600	113 CNY	3%	Annual purchase
1200	57 CNY	3%	Multi-project merge

Spares follow failure: latches and gaskets carry the risk and are replaceable alone, so five percent first and three afterwards is defensible. Colour shifts the minimum too; olive drab to black costs 50 minutes of purging and 2 kg of powder.

4. Two Gates That Stretch Military Lead Times

A commercial case runs 55 days from drawing to shipment; a defence programme needs 85, and nearly all of the extra 30 sits at approval and inspection.

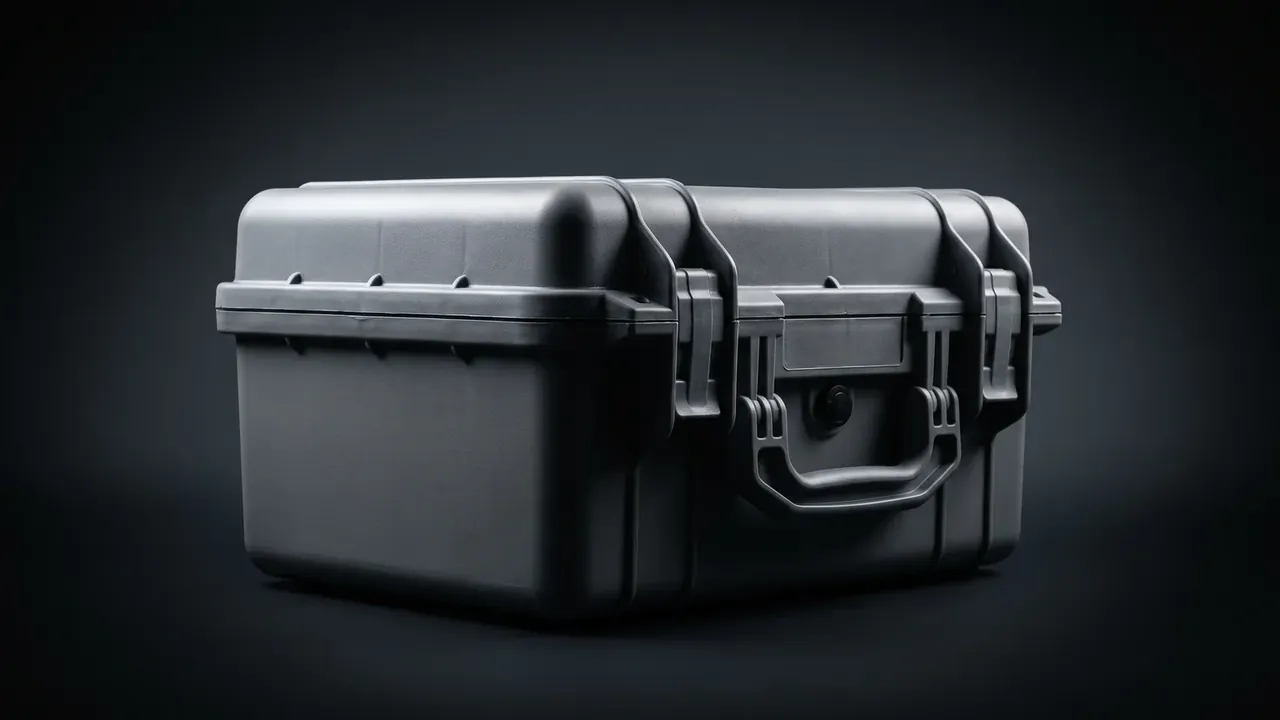

Military rotomolded case: a black closed case with two over-centre latches and a folding handle, dark background

Stage	Days
Specification sign-off	5 to 7
Mould build	22 to 28
Trial run	6
Approval	3, plus 5 to 14 waiting
Inspection and report	8 to 10

Approval takes three days, but a quarterly window can add two weeks. Inspection is stiffer: three to five working days' notice, two days on site, three for the report. Those ten days never show on a supplier schedule yet consume the delivery date.

Parallel mould build and colour preparation save seven days; booking approval for the trial day saves five. The inspection gate does not compress, only aligns.

5. Comparing Bids by Amortising Validation Cost

Two bids can sit 20 CNY apart on batch price and 14,000 CNY apart on one-off cost. A spreads 26,000 CNY over 300 units, adding 87 CNY each; B charges 12,000 CNY, or 40 CNY each. On unit price B looks dearer; amortised, the ranking reverses.

Bidder	Batch price	One-off	Total at 300	Total at 1000
A	231 CNY	26,000 CNY	318 CNY	257 CNY
B	251 CNY	12,000 CNY	291 CNY	263 CNY

Volume shrinks the one-off weight, so fix the three-year requirement first. Loading needs its own row: a 12 mm taller rib on a military rotomolded case drops a 40-foot high-cube from 260 to 235 units, adding 8 CNY of freight.

Conclusion

Procurement of a military rotomolded case comes down to three habits: split the one-off block from the batch price, derive quantity from equipment sets, and schedule around approval, not the machine. A specification stating these makes a military rotomolded case purchase controlled.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
