How low can the MOQ for a multi-purpose outdoor case go?

Answer: The body stays at 300 units because the press decides it; latches and cartons can start at 200.

Who should pay for the tooling?

Answer: Below 3,000 units a year, pay 86,000 yuan and own the tool. Above that, 18 yuan of amortisation costs less within two years.

Is settled against actuals acceptable in a quote?

Answer: Only inside a resin index clause with a base price and a band. Across a whole quotation it hands cost accounting to the supplier.

Is a 45 day lead time reasonable?

Answer: Yes, 40 days plus 5 of buffer. At 60 days, ask for the steel arrival date and the moulding schedule.

What matters most in a factory audit?

Answer: Whether press tonnage matches the tool in production. An undersized press stretches the cycle, and wall tolerance drifts from 0.2 mm to 0.35 mm.

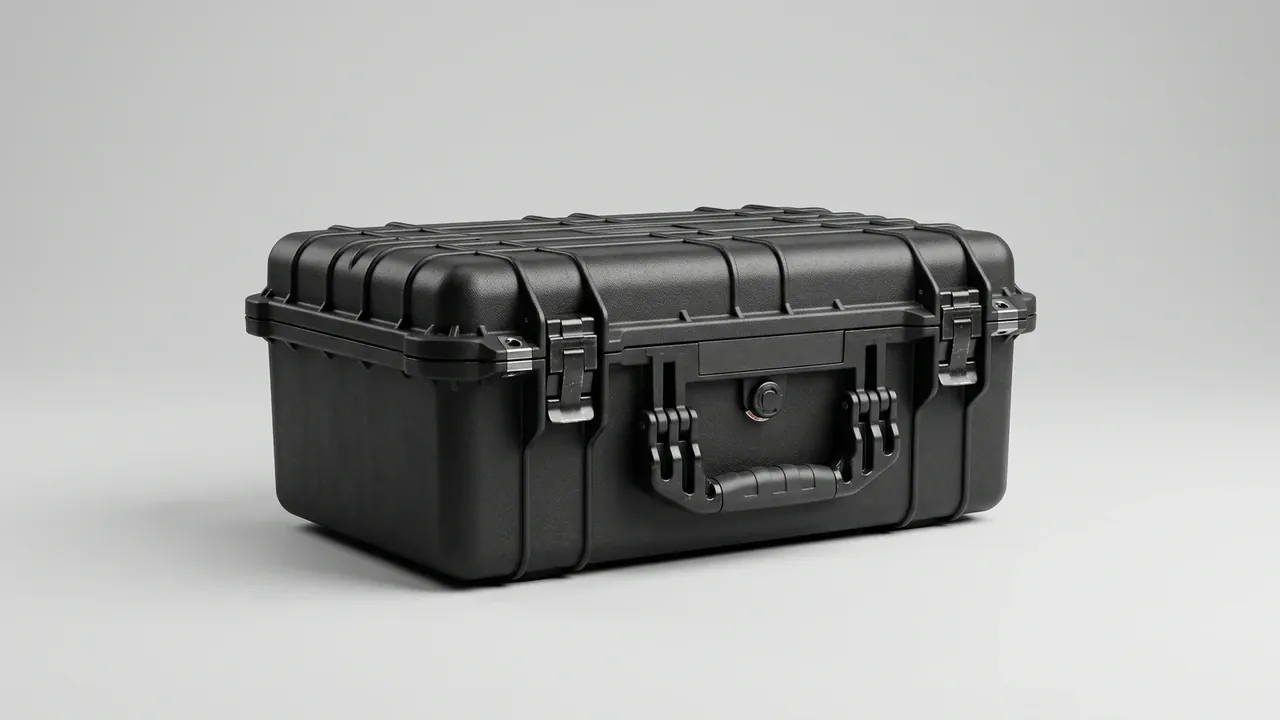

Four Cost Blocks Behind One Multi-purpose Outdoor Case

Quick answer: Price gaps on a multi-purpose outdoor case sit in four breakable blocks: resin and machine time, tooling amortisation, hardware and foam, packing and inspection. Settle MOQ, tool ownership, dated milestones and terms first, then compare unit price.

Where a 38 percent spread really comes from
MOQ and tooling ownership come first
Split delivery into five dated milestones
Three sample rounds and one factory audit
Payment terms set the floor price
Six add-on charges to close in the contract
FAQ

1. Where a 38 percent spread really comes from

Last November a Ningbo distributor sent one 2D drawing to seven plants and got quotes from 128 to 177 yuan, a 38 percent gap. The drawing had not changed. The way each quote was broken up had.

A shell with a 4.0 mm wall weighs 2.6 kg, and modified polypropylene runs 11.4 yuan per kilogram. Lifting regrind from 15 to 30 percent saves 2.1 yuan a unit, which is why a resin line written as settled against actuals never falls.

Block	Typical share	Figure to verify
Resin and machine	46%	2.6 kg part, 800 tonne press, 240 second cycle
Tooling	9%	86,000 yuan tool over 3,000 units
Hardware and foam	28%	2 latches, EVA at 38 kg/m³
Packing and audit	17%	5-ply carton, 3 inspection days

One 86,000 yuan tool spread over 3,000 units costs 28.7 yuan a case; spread over 1,000 it costs 86. That 57 yuan gap never shows on the page.

2. MOQ and tooling ownership come first

MOQ is three numbers: the smallest economic shot, the hardware purchasing lot, the carton print run. The body moulds in one shot on an 800 tonne press, and 12 shots of start-up scrap equals 30 pieces, so 300 units is honest. Room to talk sits lower down: latches ship 5,000 a box, cartons start at 500.

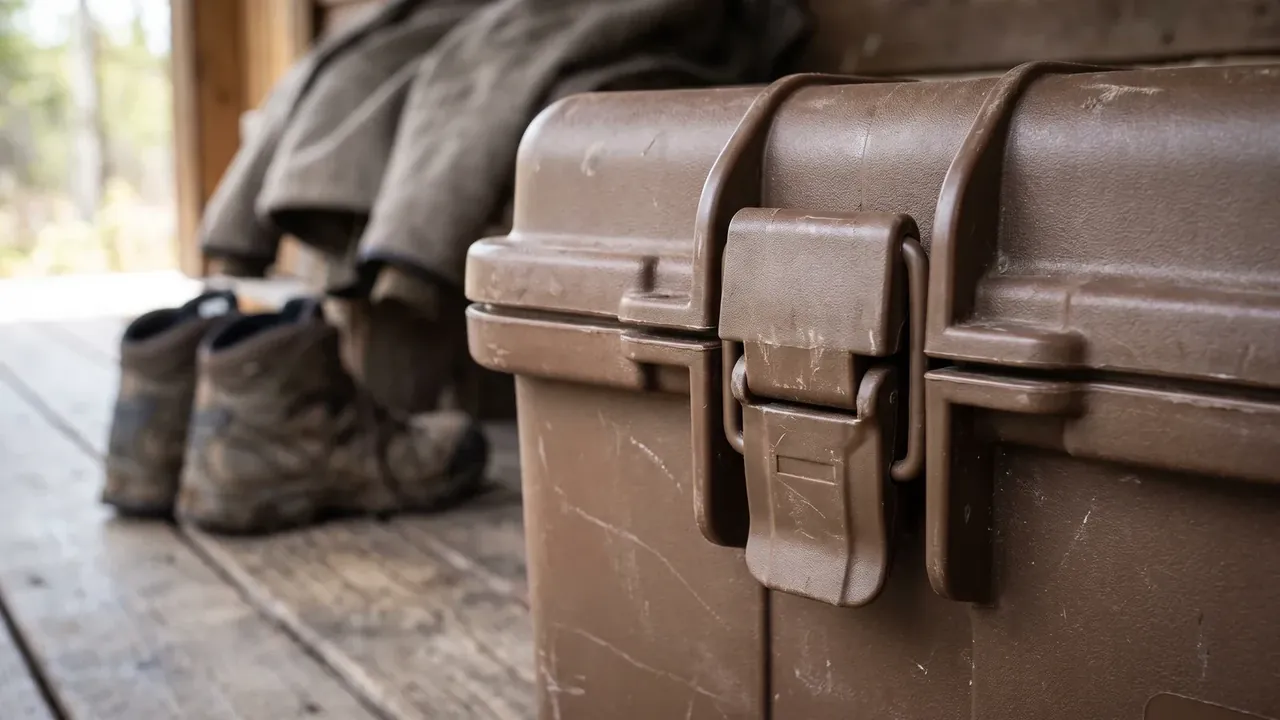

Multi-purpose Outdoor Case: close view of a brown case side with one latch, fine scratches on the shell and muddy boots blurred behind

Tool ownership belongs on page one. Pay 86,000 yuan and the tool, its steel stamp number and drawings are yours, stored at the plant. Let the plant pay and unit price carries 18 yuan of amortisation, but the mould may not move elsewhere.

Clause	Buyer pays	Plant pays
Ownership	Buyer, with stamp and drawings	Plant
Unit price	168 yuan	186 yuan, 18 yuan amortisation
If orders stop	Recoverable after 12 months	Buy-out at 86,000 yuan

The stop-order clause is missed most often. When volumes halve in year two, the tool sits in someone else's workshop, impossible to collect.

3. Split delivery into five dated milestones

Tool making takes 18 days, trials 4, moulding 9, assembly 6, inspection and loading 3: 40 days. A quote of 45 adds buffer, not capacity.

Milestone	Standard days	Usual delay
Tool and trials	22	Steel arrives 5 days late
Moulding	9	Colour master off-batch, 2 days rework
Assembly	6	Latches held at sea
Inspection and loading	3	Rework after a failed audit

Nine delays in ten land on the first milestone. Tool steel needs 12 days from order to gate while plants schedule on 8, so put the steel arrival date on its own line.

Loading hides inside lead time too: a 40 foot high cube takes 320 cases, a 20 foot takes 150, and waiting for a full load can outlast production.

4. Three sample rounds and one factory audit

Round one is a 7 day hand sample for shape and lid fit. Round two is a 12 day steel tool sample for wall thickness and sink marks. Round three is a 5 day pre-production sample for colour and hardware. All three pass before bulk release.

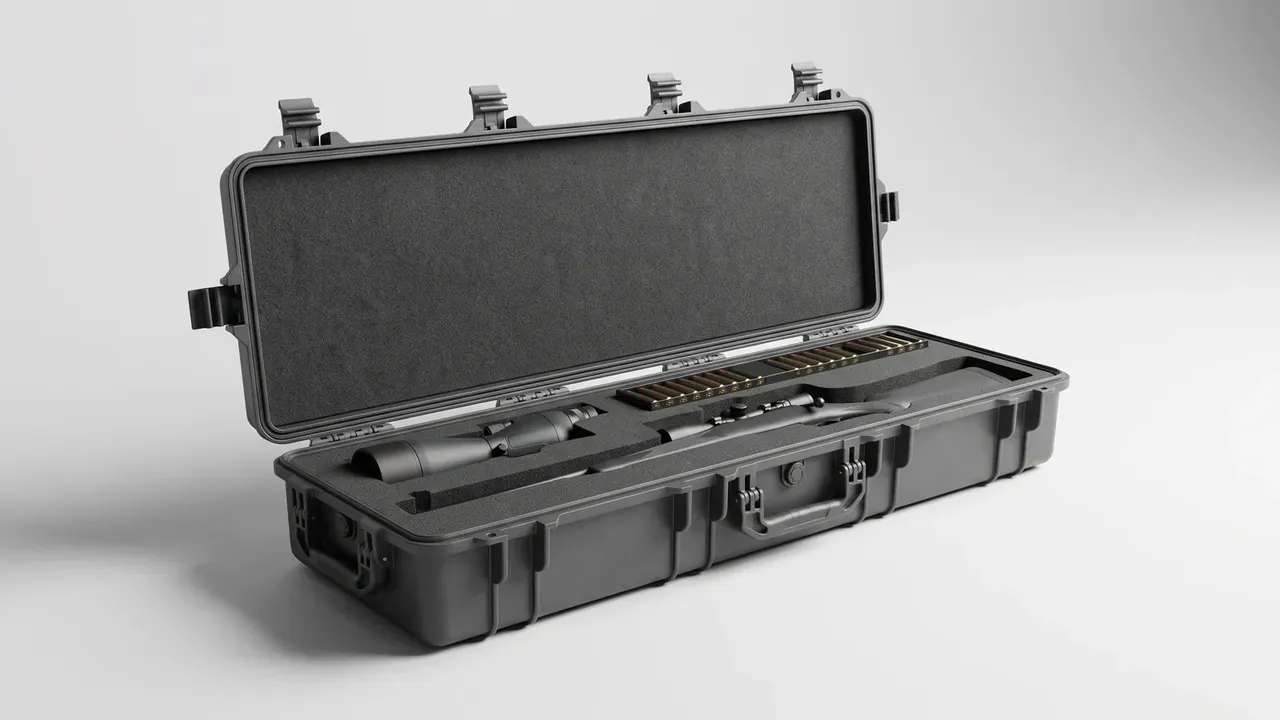

Multi-purpose Outdoor Case: an open grey case on a pale backdrop, egg-crate foam in the lid, cut-outs holding a tube and metal parts

An audit needs press tonnage and clamp force, resin lot labels, and a salt spray chamber. Call for 96 hours of neutral salt spray and a plant equipped for 48 will borrow a report; the equipment plate number settles it.

Ask who keeps the colour standard: a 60 mm master plaque held by the buyer halves the argument at batch three.

5. Payment terms set the floor price

At a funding cost of 8 percent a year, 60 day terms give away 1.3 points of unit price, so 162 and 176 yuan can both be fair for one drawing.

Settlement	Deposit	Unit price	Fits
Paid upfront	100%	162 yuan	First order
Balance on bill of lading	30%	168 yuan	300 units and up
30 day terms	30%	172 yuan	Annual framework
60 day terms	20%	176 yuan	3,000 units a year

A low deposit is no bargain: a 20 percent deposit quote usually hides a risk premium, and the total comes out worse.

6. Six add-on charges to close in the contract

A clean quotation can still grow fees once the contract is drafted.

Colour: a Pantone match adds 3 yuan a unit; write no extra charge.
Printing: one colour at 1.2 yuan a unit, plus 600 yuan for the screen.
Foam: EVA at 38 and 45 kg/m³ differs by 9 yuan, so lock the density, not the price.
Carton marks: a revised print run costs 300 yuan, so fix artwork early.
Inspection: third-party visits run 1,200 yuan each; name who pays and how many.
Tool changes: a new rib starts at 2,000 yuan; write that non-structural changes are free.

Together they add about 15 yuan, close to 9 percent. Of the 38 percent spread, 29 points come from structure and the last 9 from clauses like these.

Conclusion

Break the quotation into four blocks, put tool ownership on page one, cut lead time into five dated milestones, and the spread on one drawing closes from 38 percent to under 9. Sourcing a multi-purpose outdoor case is not short of suppliers; it is short of a comparison sheet that lines up line by line.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
