Can plastic waterproof boxes for sale be accepted on IPX4 alone?

Answer: Only for sheltered indoor use; flooding, washdown or open-yard storage needs IPX6 and IPX7 in the contract.

Is a 0.1 mm groove deviation a reject?

Answer: Yes. Shallow pushes compression past 32 percent and the ring takes a set; deep never loads it.

Why immerse when the air test passed?

Answer: Gas leak rate and water penetration fail differently. Air screens every unit; immersion confirms a batch.

How is regrind content verified?

Answer: Density and melt index read together, then a tensile check where a 20 percent elongation loss settles it.

How many units are retained?

Answer: Three per batch, dark storage, 12 months, tagged with mould and resin lot.

Plastic Waterproof Boxes for Sale: What Buyers Must Inspect

Quick answer: Judge the order as five inspection layers, not one IP claim: 3.0 mm walls at ±0.2 mm, 70 to 100 N latch force, a 30 kPa air test within 0.6 kPa for 60 s, and a 1 m, 30 minute immersion on three samples per batch.

Five inspection layers before you buy
Material, wall thickness and stack load
Seal geometry and latch force
Water tests by exposure class
Sampling, retention and shipping
FAQ

1. Five inspection layers before you buy

When you shortlist plastic waterproof boxes for sale, a quotation line reading IP67 settles nothing. Leaks rarely appear in the three approval samples; they appear in unit 3,000, after a mould or gasket change. Split the claim into incoming material, first-off, in-process, final and type test: the first four every batch, the type test quarterly.

Layer	What is checked	Decision basis
Incoming	Resin grade, gasket hardness	Mill certificate, drying log
First-off	Wall, flash, fit, latch force	First-off approval sheet
In-process	3 units every 2 hours	Patrol chart
Final	Fit, screw torque, air test	Final report
Type	Spray, immersion, drop, stack	Test report

In-process is the layer buyers skip when ordering plastic waterproof boxes for sale: over an eight-hour run the mould drifts from 40 °C to 55 °C and groove depth moves 0.1 mm, invisible on a bench, decisive for squeeze.

2. Material, wall thickness and stack load

Most plastic waterproof boxes for sale are moulded in PP copolymer or HDPE, at 0.90 to 0.91 g/cm³ against 0.94 to 0.96 g/cm³. Read density and melt index together; only the pair exposes regrind.

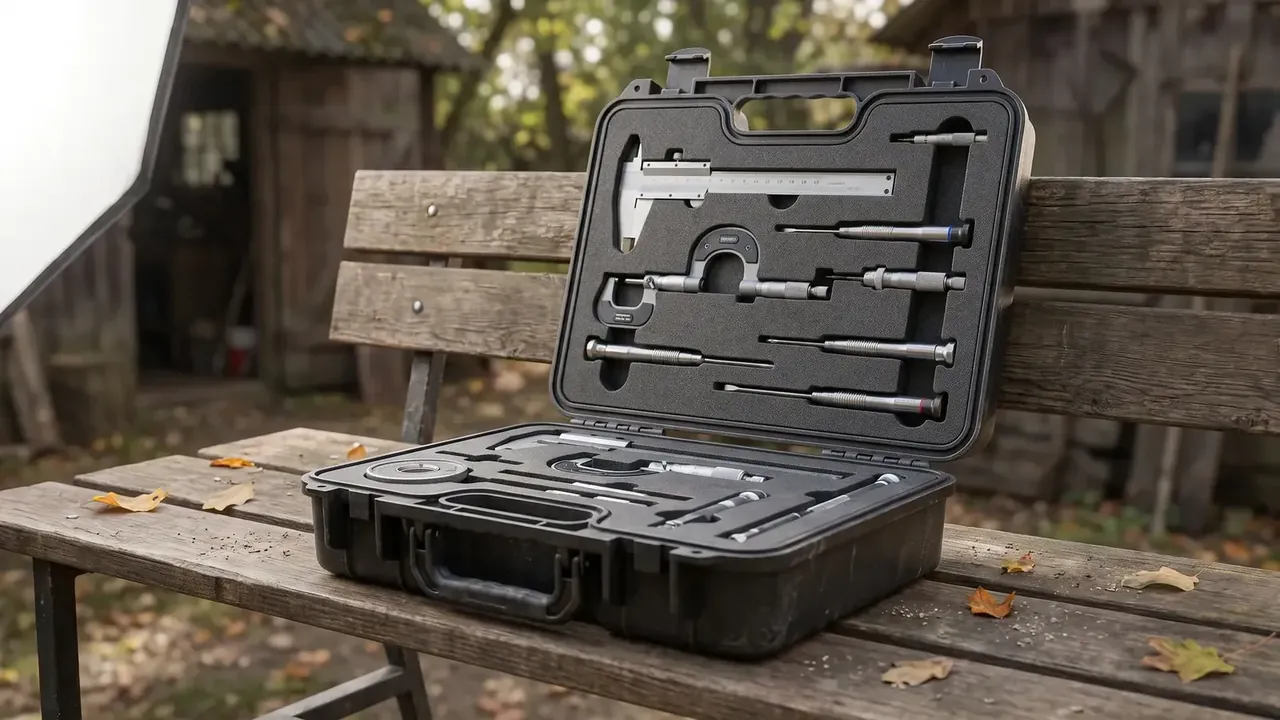

Plastic waterproof boxes for sale: a black hard case open on a wooden bench, lid foam cut for a caliper, micrometers and a depth gauge

Zone	Nominal wall and tolerance	Measurement
Side wall	3.0 mm ±0.2 mm	Ultrasonic, two points per side
Base	4.0 mm ±0.25 mm	Same
Lid crown	2.8 mm ±0.2 mm	Same
Groove floor	3.2 mm ±0.1 mm	Cut section

Uneven beats thick: a 3.0 mm wall with a 2.4 mm corner whitens there and splits on drop, so gauge six fixed points. Stack 20 kg five high for 48 hours and allow no more than 2 mm sag.

3. Seal geometry and latch force

Three numbers decide the seal on plastic waterproof boxes for sale: groove depth, cord diameter and squeeze. A 3.5 mm nitrile ring in a 2.4 mm deep, 3.9 mm wide groove lands near 25 percent.

Round the mouth to 0.3 mm, hold the wall at Ra 1.6 and keep flash under 0.12 mm; flash under the mouth steals a fifth of the squeeze and shows up a month later, not in a spray test.

Latches carry the squeeze: 70 to 100 N each, under 12 N spread per box, no more than 15 percent loss after 500 cycles. Stainless rivets and pins take 48 hours of neutral salt spray without red rust.

4. Water tests by exposure class

For plastic waterproof boxes for sale, class follows exposure, not the datasheet.

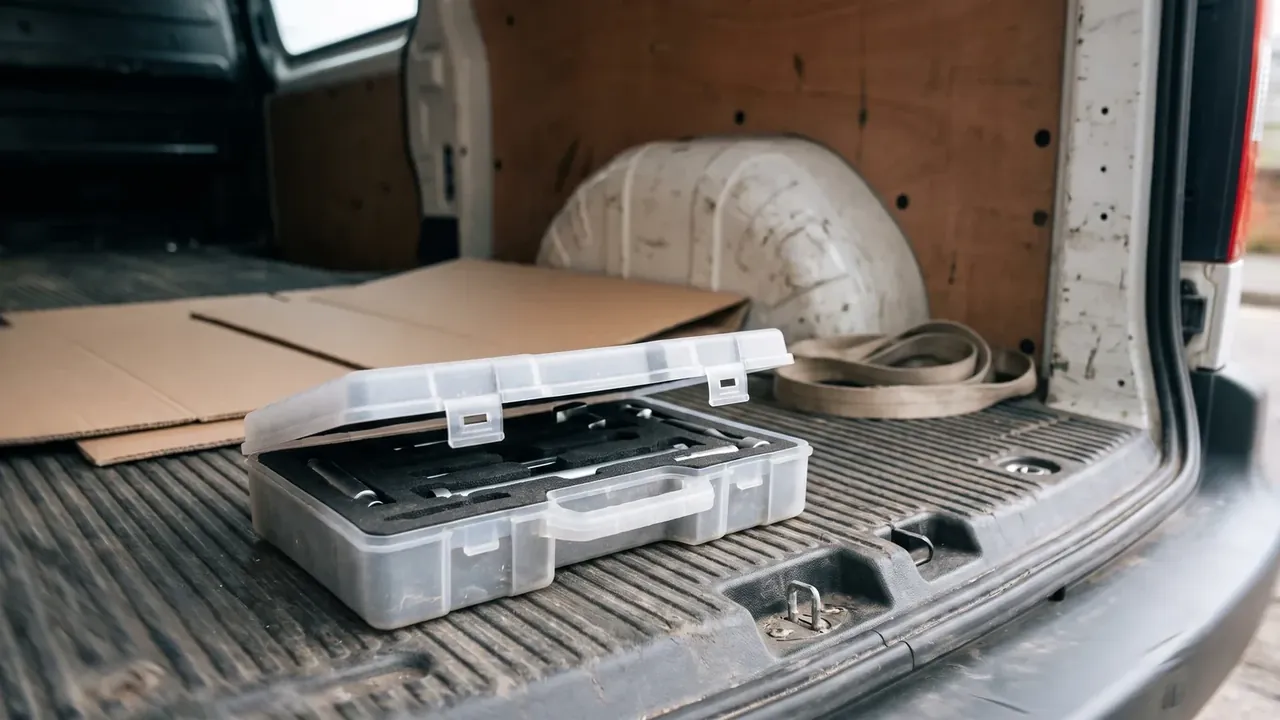

Plastic waterproof boxes for sale: a translucent box open on a van floor, black slotted foam inside, cardboard and a rolled strap beside it

Class	Condition	Samples	Pass
IPX4 spray	10 L/min, 5 min per face	3	No trace inside
IPX6 jet	100 L/min, 12.5 mm nozzle, 3 m, 1 min per face	3	Same
IPX7 immersion	1 m deep, 30 min, water within 5 °C	3	Dry inside

Spray first, immersion second: reversed, boxes that pass immersion still seep after spraying. Then two cycles at minus 25 °C and 60 °C, four hours each, and immerse again.

An air test at 30 kPa screens in thirty seconds but measures gas, not water; when the two disagree, immersion wins.

5. Sampling, retention and shipping

Outgoing inspection of plastic waterproof boxes for sale follows GB/T 2828.1 level II, AQL 2.5 major and 4.0 minor, with lots of 501 to 1,200 drawing 80 samples. Major means groove depth, flash, latch force and air leaks.

Retain three units per batch for 12 months, tagged with mould and resin lot, so a seepage claim in month six can be re-tested, not argued. Cartons are rated for 500 kg top load; transit vibration loosens latches faster than a drop.

Conclusion

Acceptance turns a promise into numbers on a sheet: wall thickness, flash, latch force, pressure drop, spray duration and AQL. Once those are written down, the supplier knows what to self-check and the buyer what to reject, and anything unmeasurable gets named rather than hidden behind an IP rating. That is what keeps plastic waterproof boxes for sale consistent batch after batch.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
