How do I estimate the load for a Portable Tool Box?

Answer: Weigh a normal day of tools and add twenty percent. Electrical lands near 6 kg, telecom at 22 kg, vehicle work up to 35 kg; past 12 kg on foot, plan for wheels.

Does an indoor case need IP65?

Answer: No. IP54 covers an air-conditioned room; the extra gasket only stiffens the lid. Rooftops and trenches need IP65.

Is colour coding worth it?

Answer: Past five people, yes. Five colours mean nobody opens a case to check whose it is.

Why give a patrol case a document bay?

Answer: Log sheets stored with tools get torn by swarf and oil. A shallow recess under the lid saves a daily search.

Does a lift-out tray weaken the body?

Answer: Slightly. Its overlap is 2 mm narrower, so the wall takes the drop; HVAC cases pair it with an IP65 body.

Portable Tool Box: Where It Works and How It Is Configured

Quick answer: A Portable Tool Box is configured in one order: carry method, then load and ingress, then cells and marking. The same 40 L shell becomes a 12 cell electrical box or a 35 kg vehicle box.

The Portable Tool Box Scene and Configuration Matrix
Electrical Work versus Telecom Sites
HVAC versus Vehicle Repair
Home Installation versus Field Patrol
Colour Coding and Handover
FAQ

1. The Portable Tool Box Scene and Configuration Matrix

Buyers usually open a Portable Tool Box spec with the cells, which is the last question. Ask first how often it is lifted and how far: one hand up three flights caps the load at 12 kg, past which two people carry it.

Ingress comes next: IP54 for an air-conditioned room, IP65 for rooftops and trenches, at the cost of a second gasket. Cells follow the tool list, marking follows the crew.

Scene	Load	Cells	Rating
Electrical service	6 kg	12, tools apart	IP54, one hand
Telecom sites	22 kg	8 deep	IP65, two-person
HVAC	9 kg	8, tray lifts out	IP65, strap
Vehicle repair	35 kg	18, long slot	IP54, wide handle
Home installation	5 kg	4 large	IP40, shoulder strap
Field patrol	12 kg	10, document bay	IP65, belt

2. Electrical Work versus Telecom Sites

An electrical case fears two things: small parts mixing and a live body. Twelve cells 45 mm deep keep terminals, bolts and ties apart.

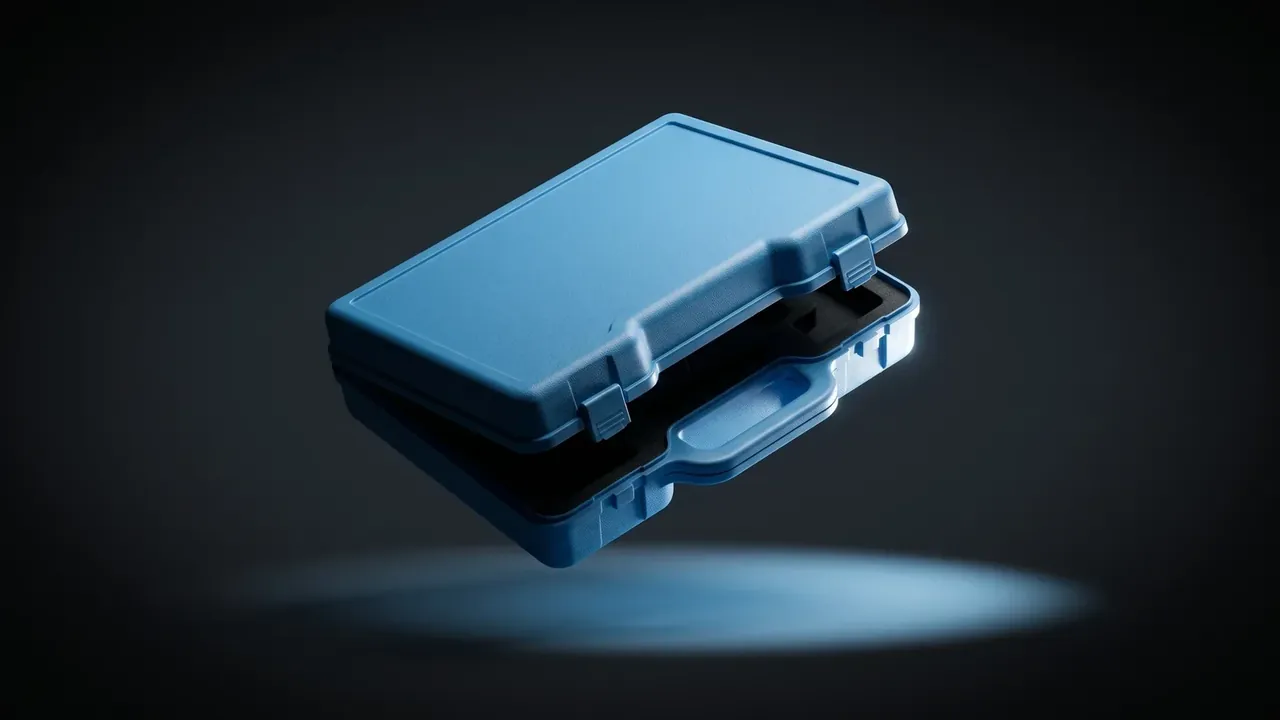

Portable Tool Box: a blue case tipped in mid-air against a dark backdrop, lid just open, black foam inside, one handle and two latches

Load settles at 6 kg: a multimeter, a clamp meter, eight insulated drivers, two boxes of terminals. Nothing metallic shows outside: handle, latches and caps are plastic.

Telecom runs two hours each way, then a roof or a mast, so two people carry 22 kg. IP65 with twin gaskets is the norm, and the handle widens to 30 mm for a gloved hand.

Item	Electrical service	Telecom sites
Load	6 kg	22 kg
Cells	12, 45 mm deep	8, with a meter layer
Ingress	IP54	IP65, twin gaskets

3. HVAC versus Vehicle Repair

HVAC follows temperature: 50 °C at a rooftop plant in summer, minus 15 °C outside in winter. The tray lifts out whole for washing, cell floors carry 4 mm drain holes, and a leak detector sits in its own cell with 5 mm foam.

Vehicle repair is another logic. Sockets, extensions and torque wrenches differ in length, so 18 cells include two at 600 mm. Load runs to 35 kg, the floor stays flat for wiping, and two ribs 6 mm tall turn the lid into a bench.

Item	HVAC	Vehicle repair
Temperature	minus 15 to 50 °C	minus 5 to 60 °C
Load	9 kg	35 kg
Cells	8, tray lifts out	18, two at 600 mm

4. Home Installation versus Field Patrol

Home work carries the widest mix and the smallest load: drill, impact driver, level, tape and anchors, 5 kg in all. Four large open cells let a standing user reach in, and a shoulder strap frees the other hand for a ladder.

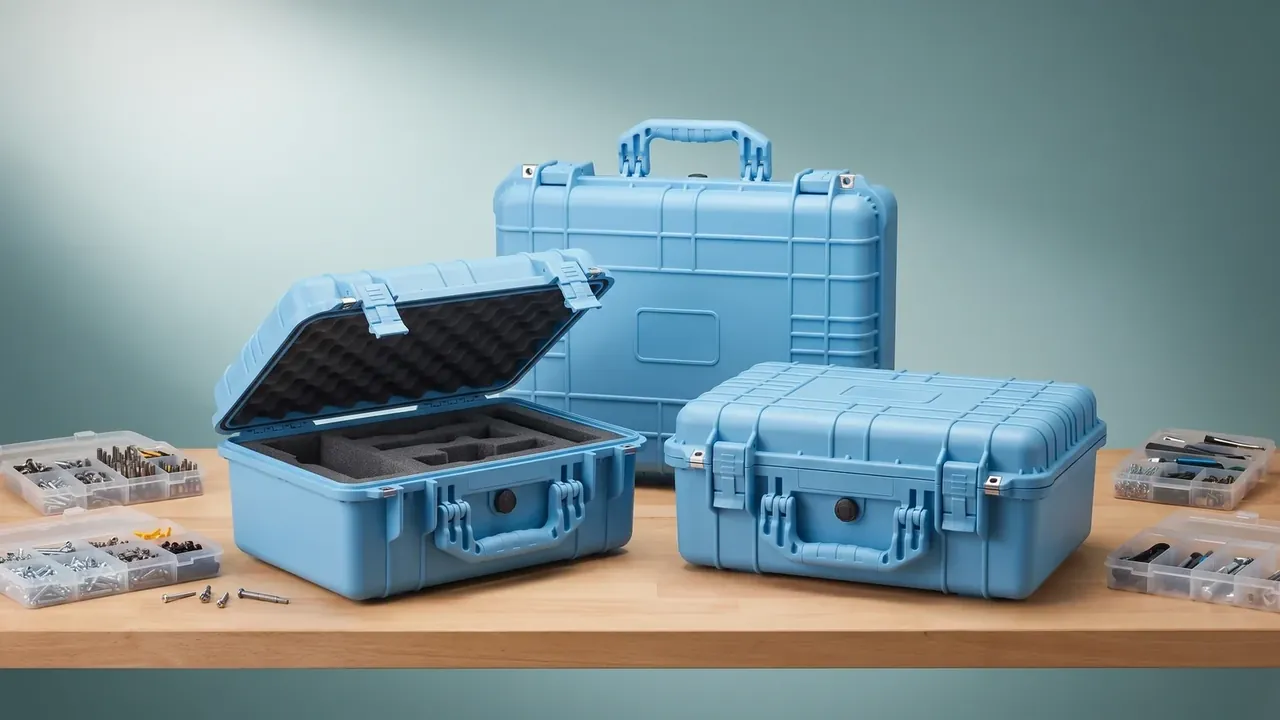

Portable Tool Box: three pale blue cases on a light wood table, left one open showing egg-crate foam and cut recesses, trays beside

Patrol is a walking job. Eight kilometres on one strap numbs a shoulder past 12 kg, so a Portable Tool Box takes a strap plus a waist belt that shifts load onto the hips, 5 mm foam on the back, and a 50 mm reflective strip.

5. Colour Coding and Handover

Identical cases are the biggest nuisance on a crew, so five colours sort them at a glance: yellow for power, orange for telecom, blue for HVAC, black for vehicles, green for home work.

A label goes top right on the front, 60 mm by 30 mm, type no smaller than 8 mm, for crew, number and owner. Paper lifts after a summer outdoors, so clear tape buys two more years. Handover runs on an A5 sheet ordered by cell, listing only what is missing.

Conclusion

The scene sets the configuration and the configuration sets the shell: fine cells for electrical work, two carriers for telecom, a washable tray for HVAC, long slots for vehicles, low weight at home, long distance on patrol. The saving comes from a Portable Tool Box that matches the road it travels.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
